Sensors 2016, 16(11), 1797; https://doi.org/10.3390/s16111797

Article
Electrochemical Behavior and Determination of Chlorogenic Acid Based on Multi-Walled Carbon Nanotubes Modified Screen-Printed Electrode
1
The Engineering Laboratory of Polylactic Acid-Based Functional Materials of Yunnan, School of Chemistry and Environment, Yunnan Minzu University, Kunming 650500, China
2
Key Laboratory of Chemistry in Ethnic Medicinal Resources, State Ethnic Affairs Commission & Ministry of Education, Yunnan Minzu University, Kunming 650500, China
*
Author to whom correspondence should be addressed.
Academic Editors: Jesus Iniesta Valcarcel and Craig E. Banks
Received: 12 July 2016 / Accepted: 12 October 2016 / Published: 27 October 2016

Abstract

:
In this paper, the multi-walled carbon nanotubes modified screen-printed electrode (MWCNTs/SPE) was prepared and the MWCNTs/SPE was employed for the electrochemical determination of the antioxidant substance chlorogenic acids (CGAs). A pair of well-defined redox peaks of CGA was observed at the MWCNTs/SPE in 0.10 mol/L acetic acid-sodium acetate buffer (pH 6.2) and the electrode process was adsorption-controlled. Cyclic voltammetry (CV) and differential pulse voltammetry (DPV) methods for the determination of CGA were proposed based on the MWCNTs/SPE. Under the optimal conditions, the proposed method exhibited linear ranges from 0.17 to 15.8 µg/mL, and the linear regression equation was Ipa (µA) = 4.1993 C (×10−5 mol/L) + 1.1039 (r = 0.9976) and the detection limit for CGA could reach 0.12 µg/mL. The recovery of matrine was 94.74%–106.65% (RSD = 2.92%) in coffee beans. The proposed method is quick, sensitive, reliable, and can be used for the determination of CGA.
Keywords:
chlorogenic acid; screen-printed electrode; multi-walled carbon nanotubes

1. Introduction

Chlorogenic acids (CGAs) (Figure 1) are a group of polyphenolic compounds common in different plant materials including many common foods and beverages [1], but especially in coffee, which has one of the highest concentrations of CGA of all plant constituents [2]. Many reports have indicated that a diet rich in CGA compounds plays a significant role in preventing many negative effects of aging, as well various diseases associated with oxidative stress such as cancer, cardiovascular, aging and neurodegenerative disease [3,4].
Several methods have been developed for the determination of chlorogenic acid and its derivatives in coffee beans and other plants. The most widely used methods are HPLC [5,6,7], capillary electrophoretic [8,9], and Miceller electrokinetic chromatography [10]. Although these developed methods have been efficient for the quantification of CGA and its derivatives, they have been criticized as being tedious and time consuming, and most of the instruments necessary for these methods are very expensive. In addition, UV-Vis spectrophotometer method is simple, fast and inexpensive for the determination of CGA in coffee beans; however, a direct spectral determination in coffee beans is relatively difficult, because of the spectral overlap with caffeine.
In recent years, electrochemical methods have been widely investigated in the determination of phenolic compounds due to their simplicity, low cost, high sensitivity and rapid response [11,12]. Furthermore, caffeic acid as another important component of coffee can be broadly studied by cyclic voltammetry methods [13,14]. Nevertheless, to the best of our knowledge, the electrochemical determination of CGA has barely been reported.
Screen-printed electrodes (SPEs) are especially recommended in the large-scale production of electrodes with easy-use and portability properties, which have been studied by Hart, Banks and Wang [15,16,17,18]. Also, these miniaturized screen-printed electrodes are suitable for working with sample microvolumes, and are disposable [19,20]. Screen-printed electrodes modified with multi-walled carbon nanotubes (MWCNTs/SPE) improve electron transfer properties, resulting in high sensitivity and low detection limits, decreased overpotentials, ease of mass production, and practicality [21]. Furthermore, they are described as useful electroanalytical tools for the development of analytical applications [22,23,24,25].
In this paper, we applied a simple and fast way to detect CGA with a highly sensitive voltammetric analysis method by using a modified screen-printed electrode with multi-walled carbon nanotubes. Here, the multi-walled carbon nanotubes material with a modified screen-printed electrode was prepared. The electrochemical behavior of CGA at MWCNTs/SPE was investigated, and a sensitive electrochemical analysis method of differential pulse voltammetry (DPV) was developed for the determination of CGA. Furthermore, the proposed method can be used in the quantitative determination of CGA in coffee beans.

2. Materials and Methods

2.1. Instruments, Materials and Reagents

All electrochemical experiments were conducted with a ZAHNER Zennium IM6 Electrochemical Workstation (ZAHNER-elektrik GmbH and Co. KG, Kronach, Germany) with an integrated screen-printed three electrode device: a carbon working electrode, a carbon counter electrode, and an Ag/AgCl reference electrode. Scanning electron microscope (SEM, JSM-6360LV, JEOL, Co., Ltd., Tokyo, Japan).
The carboxyl functionalized multi-walled carbon nanotubes (MWCNTs, purity > 95%, with a diameter of 10 nanometers, length of 5 nm) were purchased from Chengdu Institute of Organic Chemistry, Chinese Academy of Sciences; The screen-printed electrodes(work area of 3.1 square millimeter) were purchased from Methrom, Co., Ltd., Beijing, China; Coffee beans were sourced from Puèr University, Puèr, China; The specific concentration of chlorogenic acid (purity > 98%) was purchased from Sigma, St. Louis, MO, USA, and saved at 4 °C. 0.10 mol/L sodium hydrogen phosphate-potassium dihydrogen phosphate buffer, 0.10 mol/L phosphate buffer solution (PBS), 0.10 mol/L citric acid buffer, 0.10 mol/L acetic acid-sodium acetate buffer, 0.10 mol/L sodium hydroxide solution, and 0.50 mmol/L potassium ferricyanide -potassium ferrocyanide solution (K3Fe(CN)6-K4Fe(CN)6).
Other reagents used were of analytical-reagent grade. Twice-distilled water was used throughout all experiments.

2.2. Experimental Methods

2.2.1. Purification and Functionalization of the Multi-Walled Carbon Nanotubes

In a 100 mL, three-necked, round-bottomed flask, the multi-walled carbon nanotubes of 500 mg and 50 mL concentrated nitric acid were firstly added and mixed homogenously. Next, the mixture was constant-temperature reflowed for 12 h at 140 °C in an oil bath. Then, it was separated in the centrifugal separator. Finally, the multi-walled carbon nanotubes, after centrifugal separation, were washed with distilled water and then dried in a vacuum oven [26]. Thus, the carboxylated multi-walled carbon nanotubes (MWCNT-COOH) were obtained. And the Raman spectra of MWCNT and MWCNT-COOH were shown in Figure 2. Both of the spectra have the same pattern. Moreover, both Raman spectroscopy analyses showed a strong band at 1580 cm−1 (G lines) which is the Raman-allowed phonon high-frequency E2g first-order mode, and a disordered-induced peak at 1358 cm−1 (D lines), which may originate from defects in the curved graphene sheets, tube ends, as well as the turbostratic structure of graphene in the materials [27,28]. Comparing the ratio of IG/ID of the two samples, which are 0.95 for MWCNT, 0.71 for MWCNT-COOH, respectively, we were able to determine that the degree of disorder is reduced after carboxylation. Thus the carboxylation of MWCNTs might improve the electrochemical properties.

2.2.2. Preparation and Characteration of the Multi-Walled Carbon Nanotubes Modified Screen-Printed Electrode

Before modifying the working electrode at the integrated SPEs, the SPEs were first washed with distilled water and dried by N2 stream. Then the SPEs was pre-anodized in a 0.1 M (pH = 7.4) PBS containing 0.1 M KCl by applying an anodic potential of +1.9 V (vs. Ag/AgCl) for 120 s. The MWCNTs/SPEs were prepared by coating 5 µL 0.3 mg/mL of the MWCNTs homogeneous suspension onto the SPEs and then dried at room temperature overnight. All modified electrodes were cleaned by cyclic voltammetric technique between –0.5 and +0.5 V at a scan rate of 50 mV/s in PBS (pH 7.4) until a stable cyclic voltammetric response was obtained, and then rinsed with water and dried under a nitrogen stream [29]. The SEM comparison of bare SPE and the multi-walled carbon nanotubes modified screen-printed electrode was shown in Figure 3. The results showed that the surface of the MWCNTs/SPEs was a kind of reticulate cubic structure. It is obvious that the MWCNTs (with little amorphous carbon impurities) were distributed uniformly on the surface of SPE. The spaghetti-like MWCNTs formed a porous structure. The entangled cross-linked fibrils offered high accessible surface area.

2.2.3. Electrochemical Analysis

Before using the MWCNTs/SPEs, they were activated in 0.10 mol/L sodium hydroxide solution between the potential range of −0.5 V and 1.0 V at a scan rate of 10 mV/s, then the MWCNTs/SPEs activated were characterized in 0.50 mmol/L potassium ferricyanide-potassium ferrocyanide solution (K3Fe(CN)6-K4Fe(CN)6) at a scan rate of 0.15 V/s.
Cyclic voltammetry (CV) and differential pulse voltammetry (DPV) were performed in the three-electrode cell in 0.10 mol/L acetic acid-sodium acetate buffer solution (pH = 6.2) between the potential range of −0.5 V and +0.5 V at a scan rate of 0.15 V/s. The DPV conditions were: pulse width of 50 ms, pulse amplitude of 180 mV and pulse interval of 50 ms.

3. Results and Discussion

3.1. Cyclic Voltammetry and Differential Pulse Voltammetry Behaviors of CGA at MWCNTs/SPE

Figure 4 displays the CV curves of CGA in the 0.10 mol/L acetic acid-sodium acetate buffer solution (pH 6.2) at different electrodes included bare SPE (Figure 4a) and MWCNTs/SPE (Figure 4b). The scan rate is 0.15 V/s with the potential range from −0.5 V to 0.5 V. The result shows that there is no electrochemical response; however, an obvious pair of redox peaks were obtained at MWCNTs/SPE. The oxidation peak potential (Epa) and reduction peak potential (Epc) of CGA were 0.08 V and −0.19 V (vs. Ag/AgCl), respectively, as ΔE = Epa − Epc = 0.27 V (vs. Ag/AgCl). The ratio of the oxidation peak current and reduction peak (Ipa:Ipc) was 0.42, implying that the electrode process of CGA at MWCNTs/SPE is quasi-reversible.

3.2. Influence of Supporting Electrolyte and pH

Several supporting electrolytes such as 0.10 mol/L potassium hydrogen phosphate-potassium dihydrogen phosphate buffer (Figure 5a), 0.10 mol/L phosphate buffer solutions (PBS, 7% Na2HPO4 + 1% KH2PO4 + 90% NaCl + 2% KCl) (Figure 5b), 0.10 mol/L citric acid buffer (Figure 5c), and 0.10 mol/L acetic acid-sodium acetate buffer (Figure 5d) were tested at MWCNTs/SPE. A pair of CV redox peaks are observed in the four supporting electrolytes. A better-defined CV response with higher redox peak of CGA than in the other cases was obtained in 0.10 mol/L acetic acid-sodium acetate buffer.
The influence of pH was investigated in 0.10 mol/L acetic acid-sodium acetate buffer, as shown in Figure 6, the oxidation peak current of CGA increases with the increasing of pH from 4.0 to 6.2, and then reaches its maximum at pH 6.2, while the oxidation peak current decreases as pH increases above 6.2. Therefore, 0.10 mol/L acetic acid-sodium acetate buffer (pH 6.2) was chosen as the optimal supporting electrolyte for subsequent experiments.

3.3. Influence of the Scan Rate

Figure 7 and Figure 8 shows the effect of scan rate on the CV response of CGA at MWCNTs/SPE in the 0.10 mol/L acetic acid-sodium acetate buffer solution (pH 6.2). It is found that both the oxidation peak current (Ipa) and reduction peak current (Ipc) are linear to the scan rate (υ) in the range of 0.03 to 0.15 V/s, the linear regression equations of Ipa and Ipc are Ipa (µA) = 15.887 ν + 2.8809 (r = 0.9969) and Ipc (µA) = 16.798 ν + 4.1028 (r = 0.9955), respectively. This indicates that the Ip is proportional to the v but not v1/2. Therefore, the electrochemical process of CGA at MWCNTs/SPE is adsorption-controlled. The maximum peak signal-to-noise ratio for CGA was achieved at the scan rate of 0.15 V/s. The scan rate of 0.15 V/s was therefore selected for this work.
The relationship between the peak current (I) and electron transfer number (n) comply with Equation (1) in the electrode reaction according to the Laviron theory [30].
I = n 2 F 2 A Γ T v 4 RT = nFQv 4 RT
While, F (96485 C·mol−1), A (cm2), ΓT (mol·cm−2) and v (mV/s) in the formula are the Faraday constant, the electrode surface area, the adsorption quantity and the scan rate, respectively. Q = nFAΓT, Q is the peak area of a single process of cyclic voltammetry (with quantity of electricity). The oxidation peak electron transfer number(n) was calculated to be 2.01 (v = 0.15 V/s) in this electrode reaction, the oxidation peak potential (Epa) and reduction peak potential (Epc) of CGA were 0.08 V and −0.19 V (vs. Ag/AgCl), respectively. ΔE = Epa − Epc = 0.27 V (vs. Ag/AgCl), the ratio of the oxidation peak current and reduction peak (Ipa/Ipc) was 0.42, implying that the electrode process of CGA at MWCNTs/SPE is quasi-reversible.

3.4. The Linear Range and Detection Limit

A well-defined oxidation peak DPV responses with a high peak current of CGA was observed at MWCNTs/SPE. MWCNTs/SPE was the working electrode. The different concentrations of CGA were added into acetic acid-sodium acetate buffer solution (pH 6.2), then the differential pulse voltammetry analysis was used in a pulse width of 50 ms, a pulse amplitude of 180 mV, and pulse interval of 50 ms in the potential range of −0.5–0.5 V. We found that the oxidation peak current value was linearly related to the concentration of CGA in the range of 0.17 to 15.8 μg/mL and the detection limit was 0.12 μg/mL (shown in Figure 9). The regression equation was: Ipa (µA) = 4.1993 c (10−5 mol/L) + 1.1039 (r = 0.9976).
The detection limit and linear range of the proposed method have been compared with that of the other previously reported methods for the determination of CGA shown in Table 1. It is evident that the proposed electrochemical method shows high sensitivity with the lower detection limit, indicating that MWCNTs/SPE can be used as a sensor for the sensitive electrochemical detection of CGA in many samples [31,32,33,34].

3.5. Determination of CGA in Green Coffee Bean

The coffee beans (From Puèr University, Puèr, China) were ground to powder with a mortar, and the ground coffee sample was defatted with hexane (1:6; w/v) for 8 h in a Soxhlet extraction system. Then, CGA was extracted from the defatted coffee powder with water using the microwave-assisted extraction (MAE) lab station (Shanghai new apparatus of Microwave Chemical Technology Co., LTD, Shanghai, China) for 5 min under the conditions of 800 w, 50 °C and liquid-solid ratio of 5:1 [35]. According to the proposed method, the MWCNTs/SPE was applied to the determination of CGA in coffee beans, and the result is shown in Table 1. The standard deviation (RSD %) was found to be 1.33%–4.77% and the recovery was 94.74%–106.65%. The result of CGA determination was in good agreement with that specified by HPLC (shown in Table 2.).

4. Conclusions

The multi-walled carbon nanotubes material modified screen-printed electrode (MWCNTs/SPE) was prepared and it was applied to the electrochemical behavior research and determination of CGA. The differential pulse voltammetry (DPV) method for the determination of CGA was proposed based on the MWCNTs/SPE. This secured several advantages, as the method is quick, sensitive and reliable. This proposed method can be used for the determination of CGA in the coffee beans. The advantages of this proposed method are: high sensitivity, simplicity of preparation at short time and good reproducibility.

Acknowledgments

This work was supported by the National Natural Science Fundation of China (21367025), Program for Innovative Research Team (in Science and Technology) in University of Yunnan Province (2010UY08, 2011UYN09), Program for Yunnan Provincial Innovation Team (2011HC008), Program for State Ethnic Affairs Commission of the China (2014YNZ012) and Key Laboratory of Ethnic Medicine Resource Chemistry of State Ethnic Affairs Commission & Ministry of Education (MZY1302).

Author Contributions

Xiaoyan Ma and Yuntao Gao designed the overall system for estimating the accuracy of the determination of CGA based on electrochemical method. In addition, they wrote and revised the paper. Hongqiao Yang, Huabin Xiong, Xiaofen Li and Jinting Gao helped the experiments.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Leopoldini, M.; Russo, N.; Toscano, M. The molecular basis of working mechanism of natural polyphenolic antioxidants. Food Chem. 2011, 125, 288–306. [Google Scholar] [CrossRef]
  2. Adriana, F.; Tomas, D.O. Effect of roasting on the formation of chlorogenic acid lactones in coffee. J. Agric. Food Chem. 2005, 53, 1505–1513. [Google Scholar]
  3. Alvarez, J.L.; Wijngaard, H.; Arendt, E.K. Polyphenol composition and in vitro, antioxidant activity of amaranth, quinoa buckwheat and wheat as affected by sprouting and baking. Food Chem. 2010, 119, 770–778. [Google Scholar] [CrossRef]
  4. Mussatto, S.I.; Machado, E.M.S.; Martins, S.; Teixeira, J.A. Production, Composition, and Application of Coffee and Its Industrial Residues. Food Bioprocess Technol. 2011, 4, 661–672. [Google Scholar] [CrossRef][Green Version]
  5. Weisz, G.M.; Schneider, L.; Schweiggert, U.; Kammerer, D.R.; Carleal, R. Sustainable sunflower processing—I. Development of a process for the adsorptive decolorization of sunflower [Helianthus annuus, L.] protein extracts. Innov. Food Sci. Emerg. Technol. 2010, 11, 733–741. [Google Scholar] [CrossRef]
  6. Upadhyay, R.; Mohan, R.L.J. An outlook on chlorogenic acids-occurrence, chemistry, technology, and biological activities. Crit. Rev. Food Sci. Nutr. 2013, 53, 968–984. [Google Scholar] [CrossRef] [PubMed]
  7. Butt, M.S.; Sultan, M.T. Coffee and its Consumption: Benefits and Risks. Crit. Rev. Food Sci. Nutr. 2011, 51, 363–373. [Google Scholar] [CrossRef] [PubMed]
  8. Hurtado-Fernández, E.; Gómez-Romero, M.; Carrasco-Pancorbo, A.; Fernández-Gutiérrez, A. Application and potential of capillary electroseparation methods to determine antioxidant phenolic compounds from plant food material. J. Pharm. Biomed. Anal. 2010, 53, 1130–1160. [Google Scholar] [CrossRef] [PubMed]
  9. Dmitrienko, S.G.; Kudrinskaya, V.A.; Apyari, V.V. Methods of extraction, preconcentration, and determination of quercetin. J. Anal. Chem. 2012, 67, 299–311. [Google Scholar] [CrossRef]
  10. Zarrin, E.; Golsefidi, M.A.; Saify, A.; Tanha, A.A.; Rezaeifaral, Z. Carbon nanotube reinforced hollow fiber solid/liquid phase microextraction: A novel extraction technique for the measurement of caffeic acid in Echinacea purpurea, herbal extracts combined with high-performance liquid chromatography. J. Chromatogr. A 2010, 1217, 2768–2775. [Google Scholar]
  11. Barroso, M.F.; De-Los-Santos-Álvarez, N.; Delerue-Matos, C.; Oliveira, M.B.P.P. Towards a reliable technology for antioxidant capacity and oxidative damage evaluation: Electrochemical (bio)sensors. Biosens. Bioelectron. 2011, 30, 1–12. [Google Scholar] [CrossRef] [PubMed]
  12. Yola, M.L.; Atar, N.; Üstündağ, Z.; Solak, A.O. A novel voltammetric sensor based on p-aminothiophenol functionalized graphene oxide/gold nanoparticles for determining quercetin in the presence of ascorbic acid. J. Electroanal. Chem. 2013, 698, 9–16. [Google Scholar] [CrossRef]
  13. Apetrei, C.; Alessio, P.; Constantino, C.J.L.; Saja, J.A.D.; Rodriguez-Mendez, M.L. Biomimetic biosensor based on lipidic layers containing tyrosinase and lutetium bisphthalocyanine for the detection of antioxidants. Biosens. Bioelectron. 2011, 26, 2513–2519. [Google Scholar] [CrossRef] [PubMed][Green Version]
  14. Abou Samra, M.; Sanda Chedea, V.; Economou, A.; Calokerinos, A.; Kefalas, P. Antioxidant/prooxidant properties of model phenolic compounds: Part I. Studies on equimolar mixtures by chemiluminescence and cyclic voltammetry. Food Chem. 2011, 125, 622–629. [Google Scholar] [CrossRef]
  15. Rawson, F.J.; Jackson, S.K.; Hart, J.P. Voltammetric Behavior of DNA and Its Derivatives Using Screen Printed Carbon Electrodes and Its Possible Application in Genotoxicity Screening. Anal. Lett. 2010, 43, 1790–1800. [Google Scholar] [CrossRef]
  16. Honeychurch, K.C.; Hart, J.P.; Cowell, D.C.; Arriganal, D.W.M. Voltammetric studies of lead at calixarene modified screen-printed carbon electrodes and its trace determination in water by stripping voltammetry. Sens. Actuators B Chem. 2001, 77, 642–652. [Google Scholar] [CrossRef]
  17. Tan, F.; Metters, J.P.; Banks, C.E. Electroanalytical applications of screen printed microelectrode arrays. Sens. Actuators B Chem. 2013, 181, 454–462. [Google Scholar] [CrossRef]
  18. Wang, J.; Pedrero, M.; Pamidi, P.V.A.; Caial, X. Metal-dispersed screen-printed carbon electrodes. Electroanalysis 1995, 7, 1032–1034. [Google Scholar] [CrossRef]
  19. Bandodkar, A.J.; Hung, V.W.; Jia, W.; Valdés-Ramírez, G.; Windmiller, J.R. Tattoo-based potentiometric ion-selective sensors for epidermal pH monitoring. Analyst 2013, 138, 123–128. [Google Scholar] [CrossRef] [PubMed]
  20. Washe, A.P.; Lozano, P. Facile and versatile approaches to enhancing electrochemical performance of screen printed electrodes. Electrochim. Acta 2013, 91, 166–172. [Google Scholar] [CrossRef]
  21. Gao, J. The Electrochemical Analysis of Cadmium in Choline Chloride/Urea Deep Eutectic Solvent Electrolyte at Carbon Nanotubes Modified Electrode. Int. J. Electrochem. Sci. 2016, 11, 6306–6314. [Google Scholar] [CrossRef]
  22. Zhu, J.; Xi, Q.; Yangal, W. A high performance electrochemical sensor for acetaminophen based on single-walled carbon nanotube–graphene nanosheet hybrid films. Sens. Actuators B Chem. 2012, 161, 648–654. [Google Scholar]
  23. Jain, R.; Rather, J.A. Voltammetric determination of antibacterial drug gemifloxacin in solubilized systems at multi-walled carbon nanotubes modified glassy carbon electrode. Colloids Surf. B 2011, 83, 340–346. [Google Scholar] [CrossRef] [PubMed]
  24. Dogan-Topal, B.; Bozal-Palabıyık, B.; Uslu, B.; Ozkanal, S.A. Multi-walled carbon nanotube modified glassy carbon electrode as a voltammetric nanosensor for the sensitive determination of anti-viral drug valganciclovir in pharmaceuticals. Sens. Actuators B Chem. 2013, 177, 841–847. [Google Scholar] [CrossRef]
  25. Liu, M.; Xiang, J.; Zhou, J.; Ding, H. A disposable amperometric sensor for rapid detection of serotonin in the blood and brain of the depressed mice based on Nafion membrane-coated colloidal gold screen-printed electrode. J. Electroanal. Chem. 2010, 640, 1–7. [Google Scholar] [CrossRef]
  26. Lee, G.W.; Kim, J.; Yoon, J.; Bae, J.S.; Shin, B.C. Structural characterization of carboxylated multi-walled carbon nanotubes. Thin Solid Films 2008, 516, 5781–5784. [Google Scholar] [CrossRef]
  27. Tan, P.; Zhang, S.L.; Yue, K.T.; Huang, F.; Shi, Z. Comparative Raman Study of Carbon Nanotubes Prepared by D.C. Arc Discharge and Catalytic Methods. J. Raman Spectrosc. 1997, 28, 369–372. [Google Scholar] [CrossRef]
  28. Li, W.; Zhang, H.; Wang, C.; Zhang, Y.; Xu, L. Raman characterization of aligned carbon nanotubes produced by thermal decomposition of hydrocarbon vapor. Appl. Phys. Lett. 1997, 70, 2684–2686. [Google Scholar] [CrossRef]
  29. Zhang, L.; Li, Y.; Zhang, L.; Li, D.W.; Karpuzoval, D. Electrocatalytic Oxidation of NADH on Graphene Oxide and Reduced Graphene Oxide Modified Screen-Printed Electrode. Int. J. Electrochem. Sci. 2011, 6, 819–829. [Google Scholar]
  30. Ye, L.; Xiang, M.; Zhang, Y.; Luo, L.; Gao, Y. A Novel Electrochemical Method for Sensitive Detection of Anticancer Drug Picoplatin with Graphene Multi-walled Carbon Nanotubes Modified Glassy Carbon Electrode. Int. J. Electrochem. Sci. 2013, 8, 12726–12734. [Google Scholar]
  31. Belay, A.; Gholap, A.V. Characterization and determination of chlorogenic acid (CGA) in coffee beans by UV-Vis spectroscopy. Afr. J. Pure Appl. Chem. 2009, 3, 234–240. [Google Scholar]
  32. Han, S. Capillary electrophoresis with chemiluminescence detection of rutin and chlorogenic acid based on its enhancing effect for the luminol-ferricyanide system. Anal. Sci. 2005, 21, 1371–1374. [Google Scholar] [CrossRef] [PubMed]
  33. Zhang, Q.; Li, J.; Wang, C.; Sun, W.; Zhang, Z. A gradient HPLC method for the quality control of chlorogenic acid, linarin and luteolin in Flos Chrysanthemi Indici, suppository. J. Pharm. Biomed. Anal. 2007, 43, 753–757. [Google Scholar] [CrossRef] [PubMed]
  34. Ludwig, I.A.; Peña, M.P.; Cid, C.; Crozier, A. Catabolism of coffee chlorogenic acids by human colonic microbiota. Biofactors 2013, 39, 623–632. [Google Scholar] [CrossRef] [PubMed]
  35. Upadhyay, R.; Ramalakshmi, K.; Rao, L.J.M. Microwave-assisted extraction of chlorogenic acids from green coffee beans. Food Chem. 2012, 130, 184–188. [Google Scholar] [CrossRef]

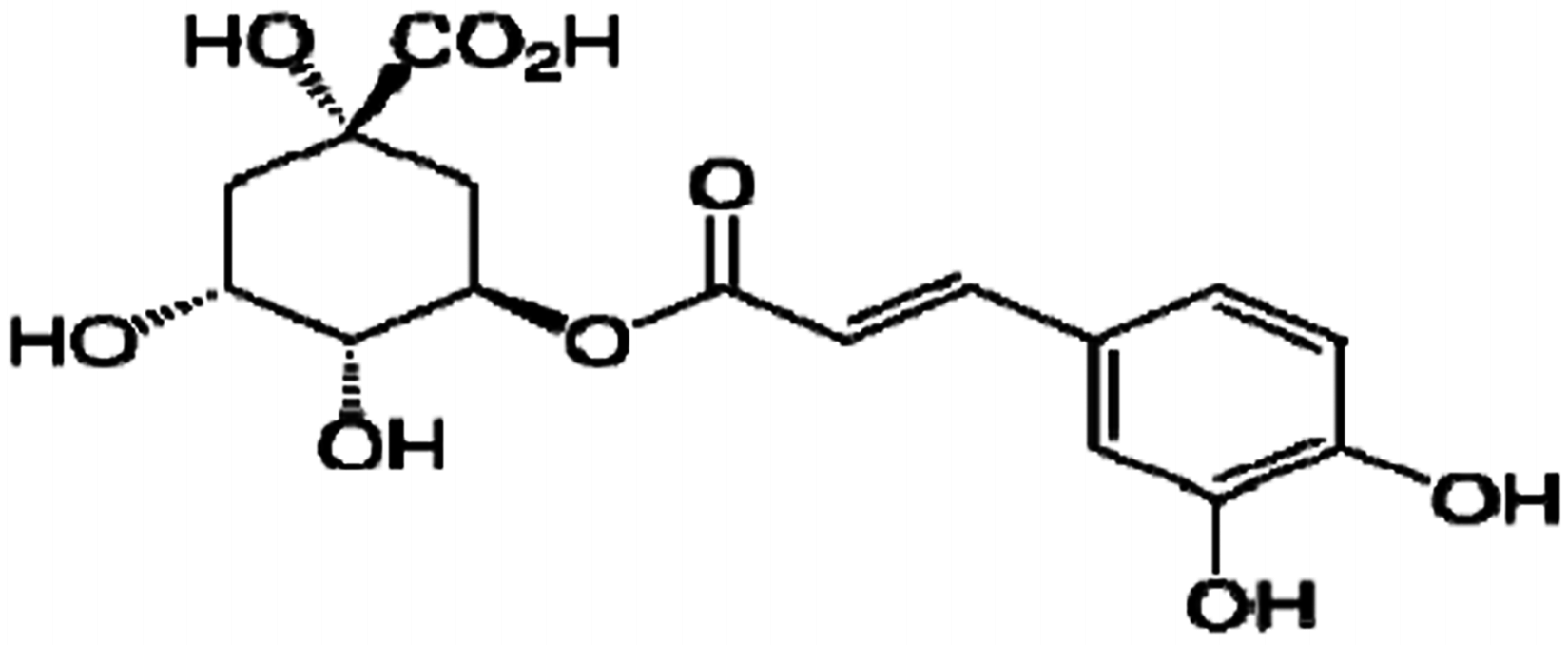

Figure 1. The structure of chlorogenic acid (CGA).
Figure 1. The structure of chlorogenic acid (CGA).
Sensors 16 01797 g001

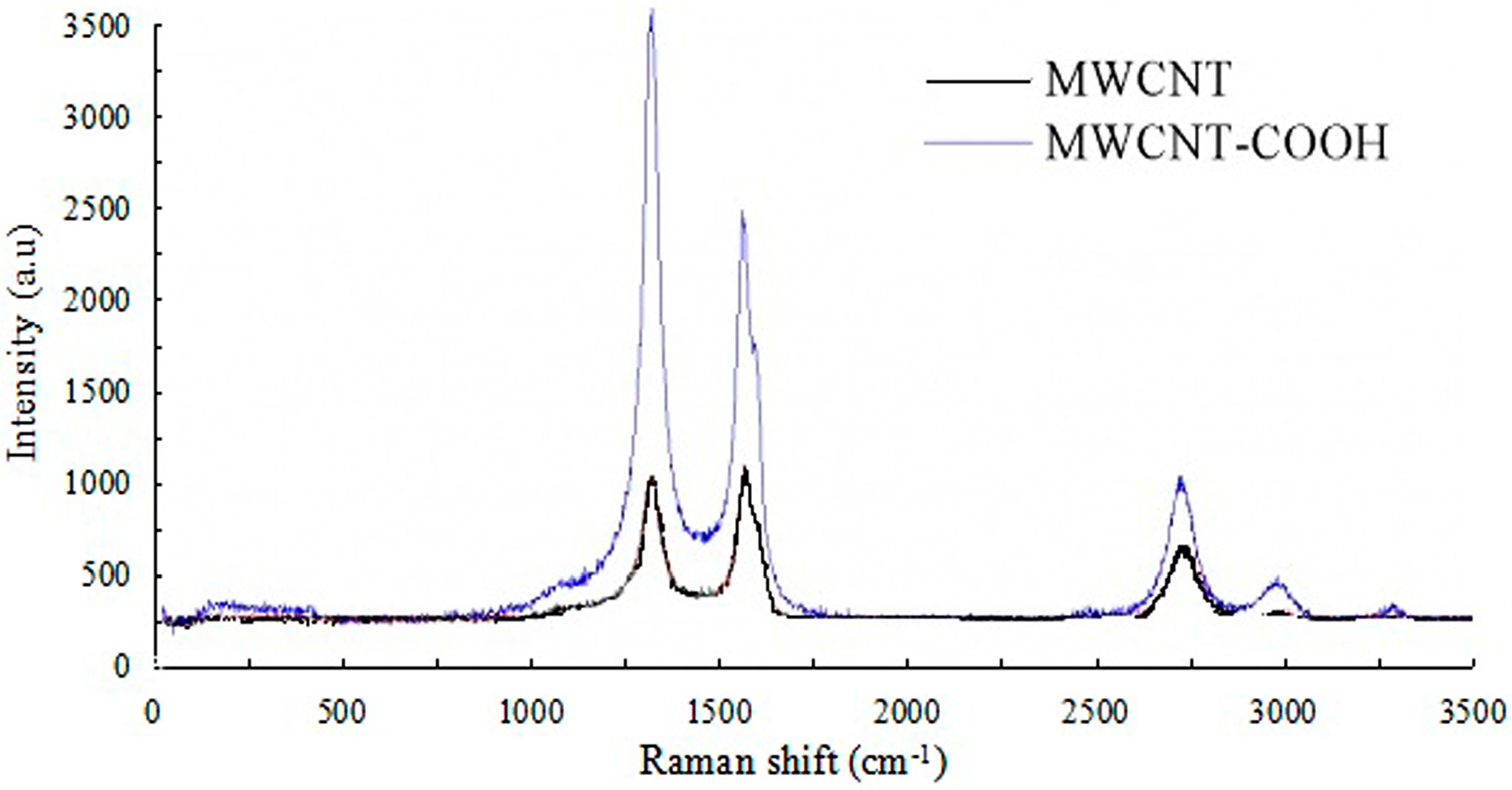

Figure 2. Raman spectra of multi-walled carbon nanotube (MWCNT) and MWCNT-COOH.
Figure 2. Raman spectra of multi-walled carbon nanotube (MWCNT) and MWCNT-COOH.
Sensors 16 01797 g002
Figure 3. The SEM comparasion of bare screen-printed electrode (SPE) (a) and the multi-walled carbon nanotubes modified screen-printed electrode (b).
Figure 3. The SEM comparasion of bare screen-printed electrode (SPE) (a) and the multi-walled carbon nanotubes modified screen-printed electrode (b).
Sensors 16 01797 g003

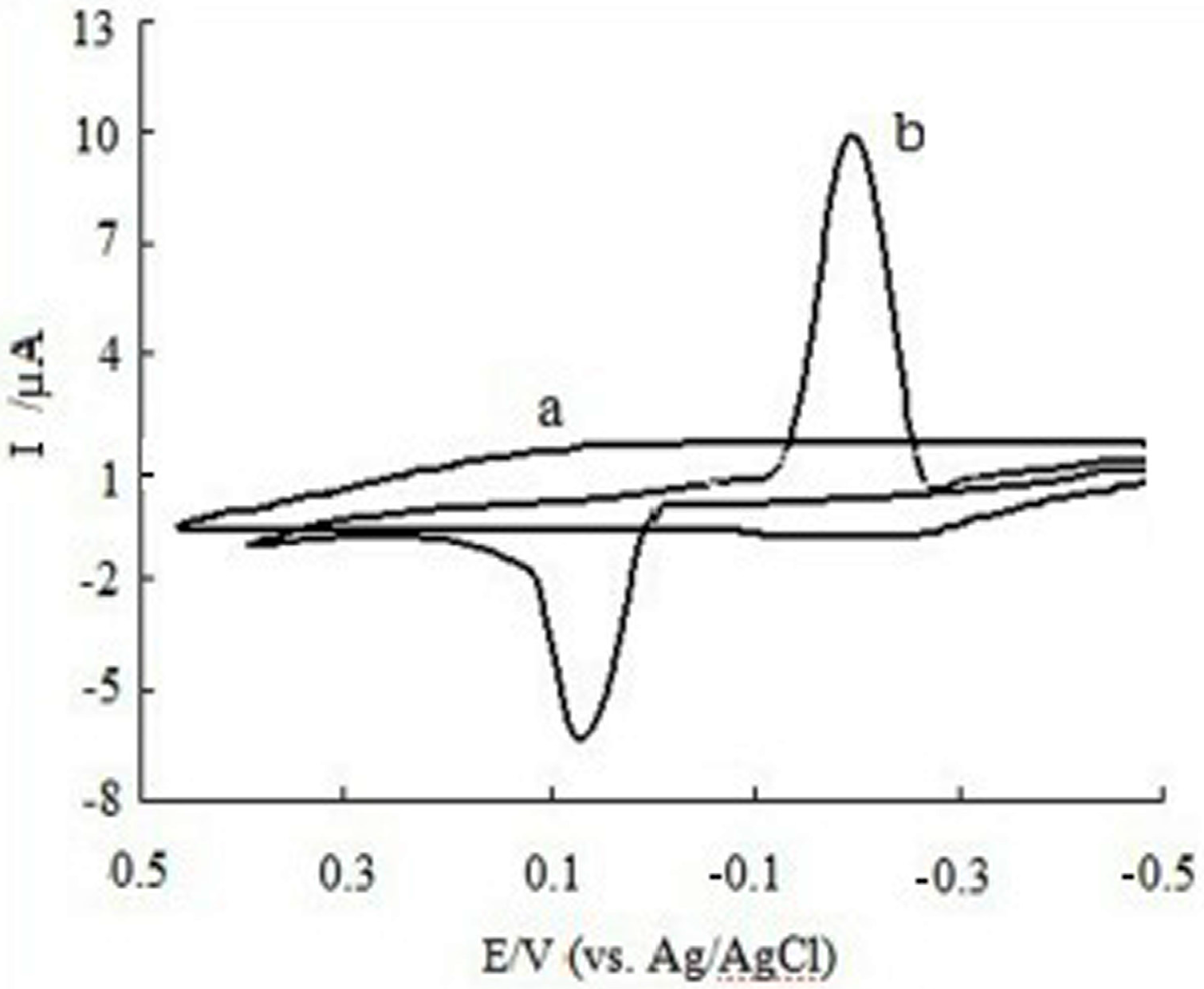

Figure 4. Cyclic voltammetry curves of CGA (a) at bare SPE and (b) at MWCNTs/SPE.
Figure 4. Cyclic voltammetry curves of CGA (a) at bare SPE and (b) at MWCNTs/SPE.
Sensors 16 01797 g004

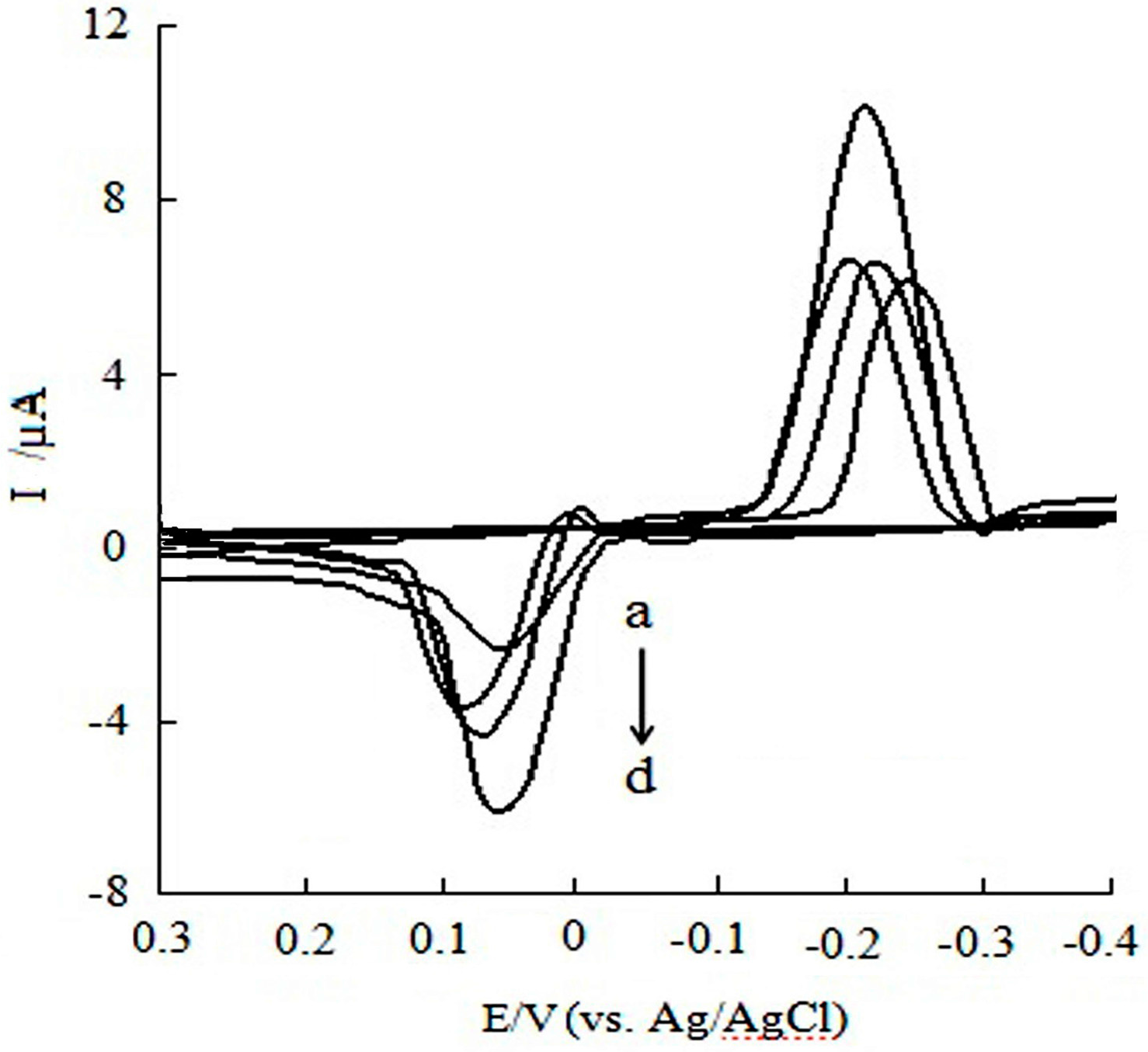

Figure 5. Influence of different supporting electrolytes on peak current: (a) 0.10 mol/L potassium hydrogen phosphate-potassium dihydrogen phosphate buffer; (b) 0.10 mol/L phosphate buffer solutions; (c) 0.10 mol/L citric acid buffer; (d) 0.10 mol/L acetic acid-sodium acetate buffer.
Figure 5. Influence of different supporting electrolytes on peak current: (a) 0.10 mol/L potassium hydrogen phosphate-potassium dihydrogen phosphate buffer; (b) 0.10 mol/L phosphate buffer solutions; (c) 0.10 mol/L citric acid buffer; (d) 0.10 mol/L acetic acid-sodium acetate buffer.
Sensors 16 01797 g005

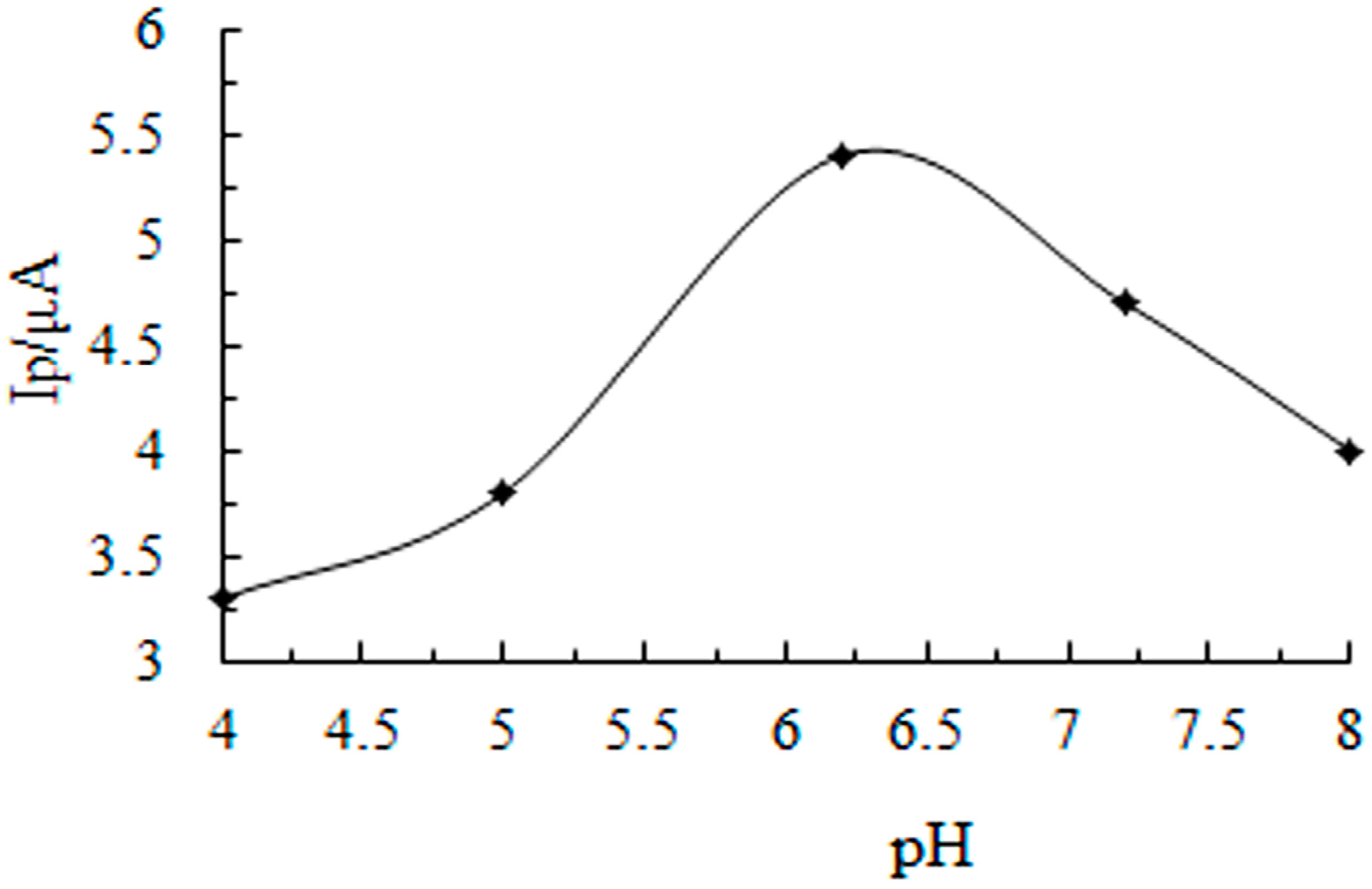

Figure 6. Influence of buffer solution pH to peak current.
Figure 6. Influence of buffer solution pH to peak current.
Sensors 16 01797 g006

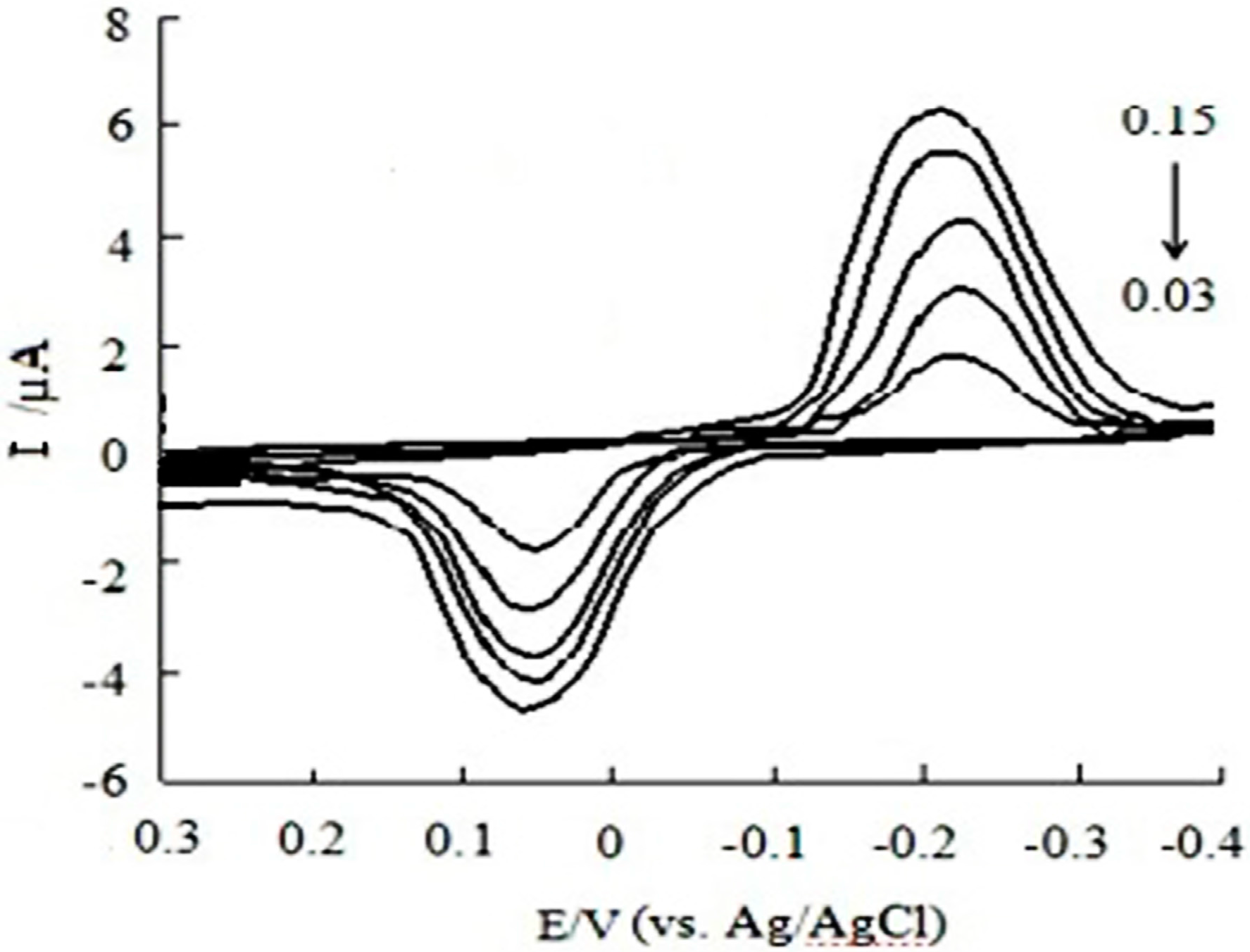

Figure 7. Cyclic voltammetry curves of CGA at different scan rates.
Figure 7. Cyclic voltammetry curves of CGA at different scan rates.
Sensors 16 01797 g007

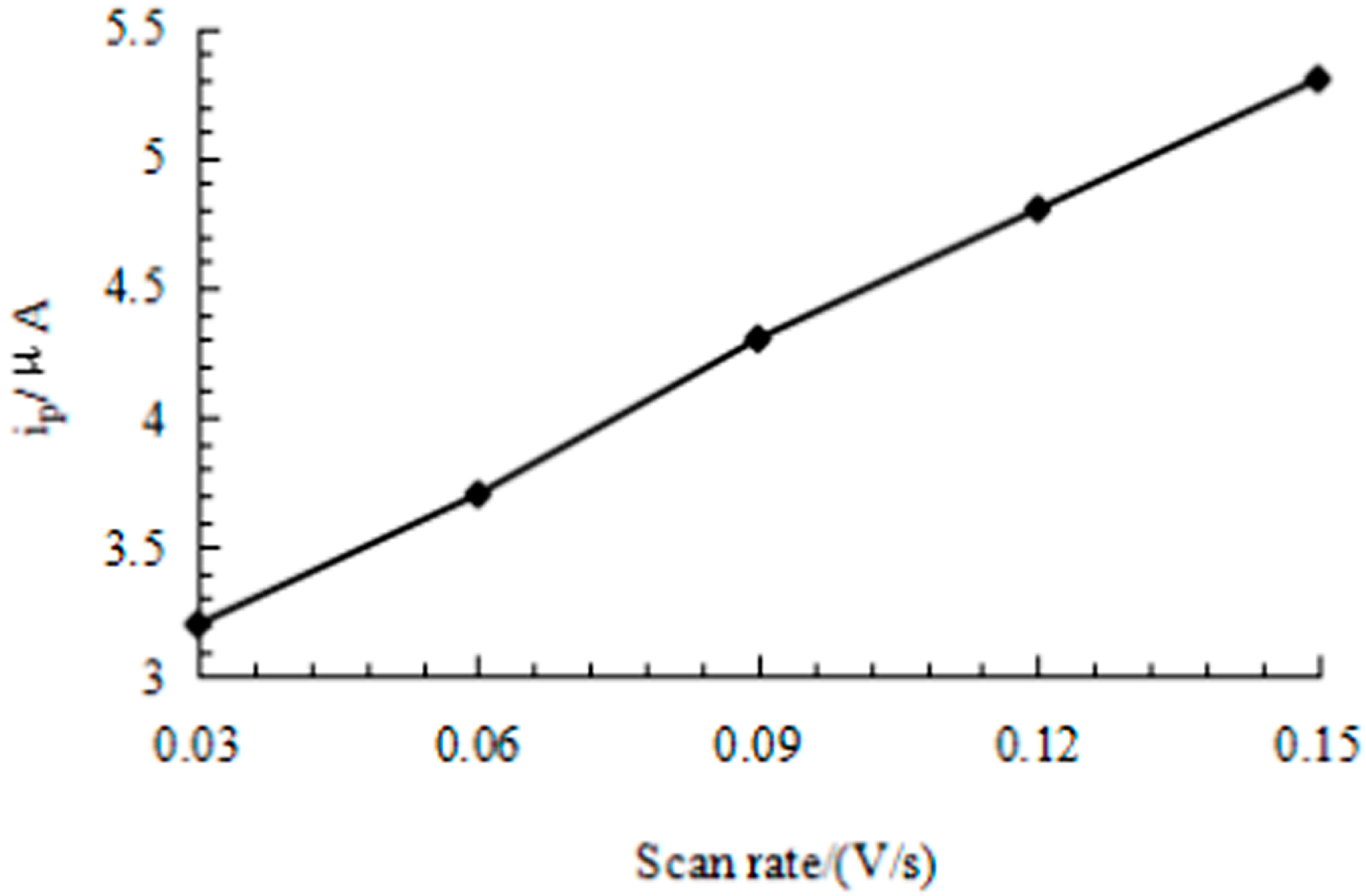

Figure 8. The peak current of CGA at different scan rate.
Figure 8. The peak current of CGA at different scan rate.
Sensors 16 01797 g008

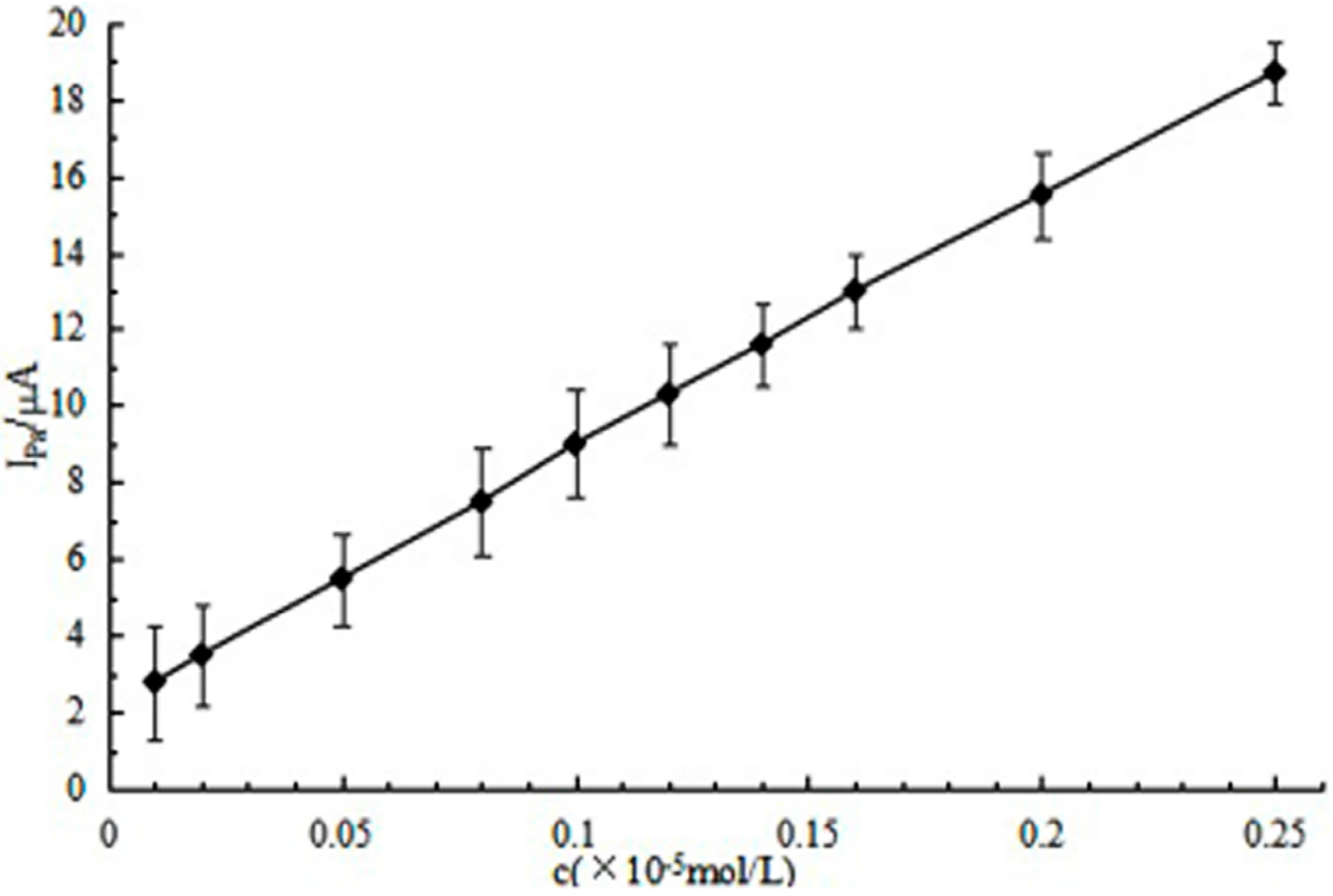

Figure 9. The peak current of CGA at different concentration.
Figure 9. The peak current of CGA at different concentration.
Sensors 16 01797 g009
Table 1. Comparison of our research with other methods for CGA detection.
Table 1. Comparison of our research with other methods for CGA detection.
Measurement MethodsLinear Range (μg/mL)Detection Limit (μg/mL)References
UV-Vis spectroscopy10.7−39.016[29]
Capillary electrophoresis with chemiluminescence1.10−1100.5[30]
HPLC0.8−20.00.32[31]
Square-wave voltammetry1.77−17.70.27[32]
Differential pulse voltammetry (DPV) using a MWCNTs/SPE0.17−15.80.12this method
Table 2. Measurement results of CGA in coffee beans (n = 5).
Table 2. Measurement results of CGA in coffee beans (n = 5).
CGA SampleBy This MethodAdded (mg/g)Found (mg/g)Recovery (%)By HPLC * (mg/g)
(mg/g)RSD (%)
113.234.7710.0024.11106.6514.71
221.123.1410.0030.0194.7419.78
325.212.4710.0036.03103.2523.92
418.741.3310.0028.92100.9619.03
* The tested conditions of HPLC: The temperature of 25 °C, the flow rate of 1.0 mL/min, the mobile phase was a mixture of acetonitrile (solvent A) and water–glacial acetic acid (99:1, v/v, pH 2.8) (solvent B).
