# Authentication Based on Non-Interactive Zero-Knowledge Proofs for the Internet of Things

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Related Works

- Related to the physical nature of smart objects: cloning of smart things by untrusted manufacturers, malicious substitution of smart things during installation, firmware replacement attack and extraction of security parameters since smart things may be physically unprotected.
- Related to intercommunication between smart objects: Eavesdropping attack if the communication channel is not adequately protected, man-in-the-middle attack during key exchange, routing attacks and denial-of-service attacks.
- Related to sensible data processed by the smart objects: Privacy threats.

## 3. Preliminaries

- Completeness: For any polynomial $p(\xb7)$ and common input $x\in L$, x is accepted by V with a probability greater than $1-\u03f5$:$$Pr[V(x,R,P(x,R))=1]\ge 1-\frac{1}{p\left(\right|x\left|\right)}$$
- Soundness: For any interactive Turing machine ${P}^{\prime}$ representing a dishonest prover, any polynomial $p(\xb7)$ and any common input $x\in L$ provided by ${P}^{\prime}$ x is accepted by V with a probability at most ϵ:$$Pr[V(x,R,{P}^{\prime}(x,R))=1]<\frac{1}{P\left(\right|x\left|\right)}$$
- Zero-knowledge: For any $x\in L$ provided by P, no information is revealed from x to V that it could not compute alone before running the protocol, which means that there is a probabilistic polynomial time algorithm M, such that:$$V\left(x\right)=x,(R\in {0,1}^{c\left(\right|x\left|\right)},P(x,R)){\approx}_{c}M{\left(x\right)}_{x\in L}$$

## 4. NIZKP-Based Authentication

Notation | Meaning |
---|---|

G | Graph known by all legitimate nodes, on which they know how to solve a hard problem |

$So{l}_{G}$ | Solution to the hard problem in G |

n | Number of challenges |

$Ch{a}_{i}$ | i-th challenge proposed by the verifier |

${G}_{i}$ | i-th isomorphic graph used as a commitment |

$Is{o}_{i}$ | Isomorphism between G and ${G}_{i}$ |

$Re{s}_{i}$ | i-th response corresponding to the challenge $Ch{a}_{i}$ on the graph ${G}_{i}$ |

$h(\xb7)$ | Cryptographic hash function |

$LSB(\xb7)$ | Least significant bit of an input string |

${E}_{{k}_{i}}(\xb7)$ | Symmetric encryption with key ${k}_{i}$ |

$Subkey$ | Contribution of a node to the session key |

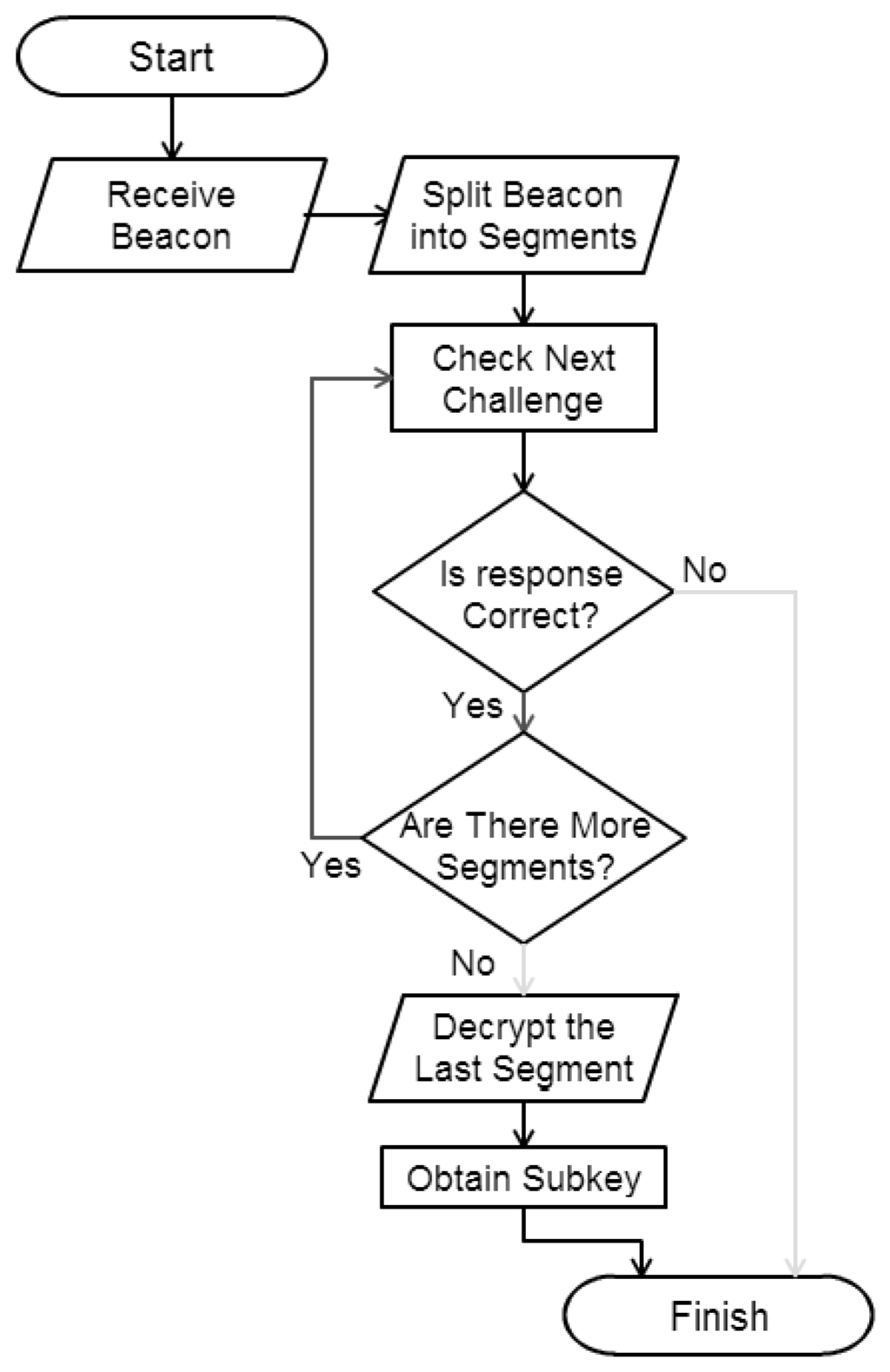

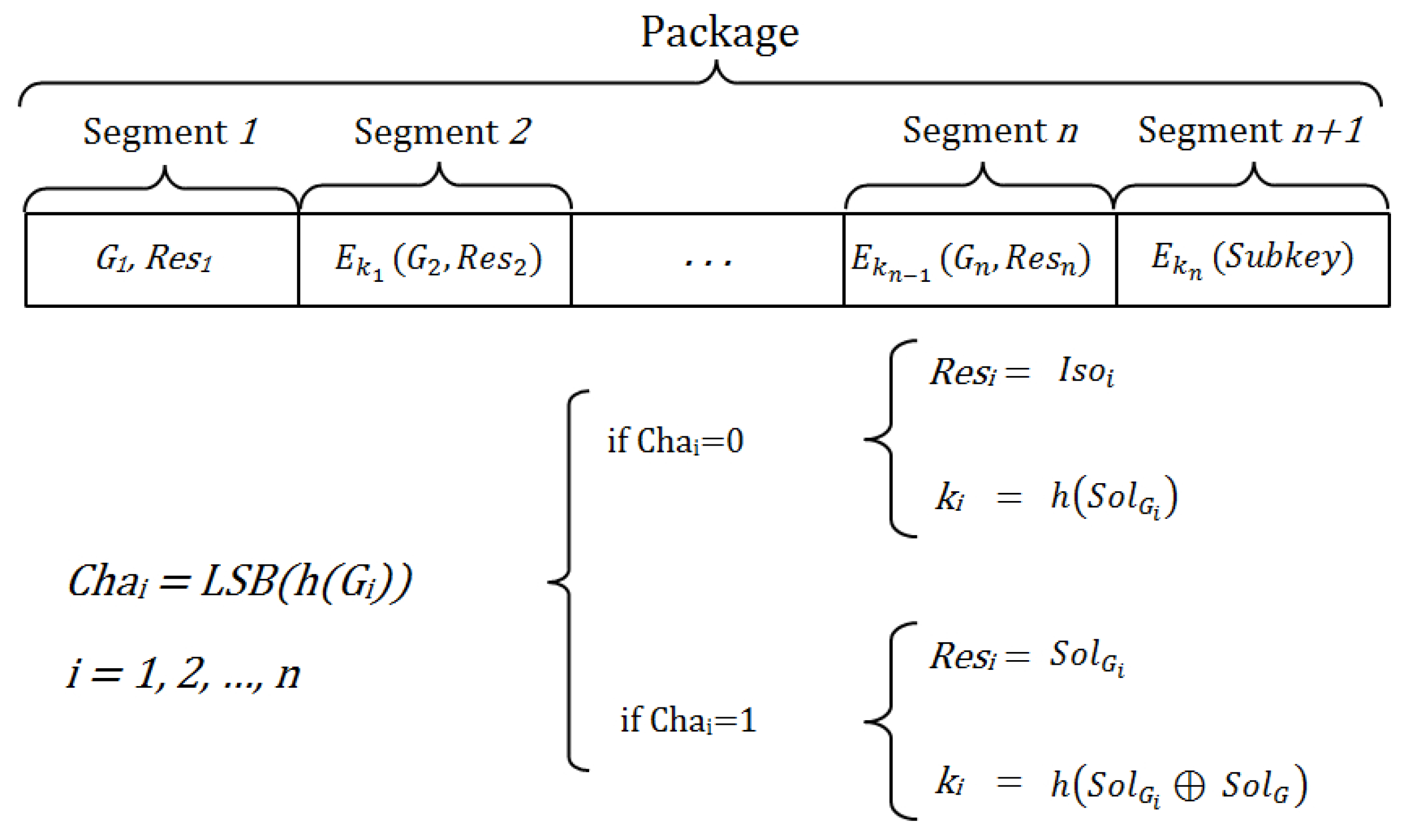

- Process the first segment of the message, which is not encrypted.
- Compute, using the hash function, the challenge that matches the information included in the segment.
- Check whether the response corresponds to the challenge and the isomorphic graph.
- From the challenge, compute the key it has to use to decrypt the next segment.
- Apply Steps 2 through 4 until the last segment, which once deciphered contains the information needed to establish the shared secret key.

- If $Challenge=0$, the response is the isomorphism.
- If $Challenge=1$, the response is the solution to the problem in the isomorphic graph.

Algorithm 1 Processing |

//Params: beacon, encrypted message segments |

//Params: t_seg, dimension of beacon segments |

//Params: solg, solution in the original graph |

//Return: subkey, contribution to the key |

function getData (char[] $beacon$, int tseg, char[] $solg$) |

01: var $segs$[]; // Stores the message segments |

02: // Message is divided into $tseg-size$ segments |

03: $segs$ = $beacon$.splitByTam($tseg$); |

04: // Isomorphic graph and response |

05: // First segment is not encrypted |

06: var $gi$ = getGi($segs$[0]); |

07: var $res$ = getRes($segs$[0]); |

08: // The challenge is computed |

09: var $cha$ = LSB.hash($gi$.getBytes()); |

10: // Check whether the response is correct |

11: if ($res$ != response($gi$, $cha$)) |

12: return; // If not correct, abort |

13: endif |

14: // The solution is obtained in $gi$ |

15: var $sol$ = solve($gi$); |

16: // $ki$ is the encryption key of the next segment |

17: var $ki$ = $\overline{cha}*hash\left(sol\right)\oplus cha*hash(sol\oplus solg)$ |

18: var $decryption$; |

19: // The following steps are repeated |

20: for (int $i=1;i<segs.size\left(\right)-1;i++$){ |

21: // The segment is decrypted with the key $ki$ |

22: $decryption$ = Crypto.decrypt($segs$[i], $ki$); |

23: $gi$ = getGi($decryption$); |

24: $res$ = getRes($decryption$); |

25: $cha$ = LSB.hash($gi$.getBytes()); |

26: if ($res$ != response($gi$, $cha$)) |

27: return; |

28: endif |

29: $sol$ = solve($gi$); |

30: $ki$ = $\overline{cha}*hash\left(sol\right)\oplus cha*hash(sol\oplus solg)$ |

31: } |

32: // Decryption of the last segment provides the |

33: // contribution to the shared key. |

34: return Crypto.decrypt($segs$[$segs.size\left(\right)$], $ki$); |

endfunction |

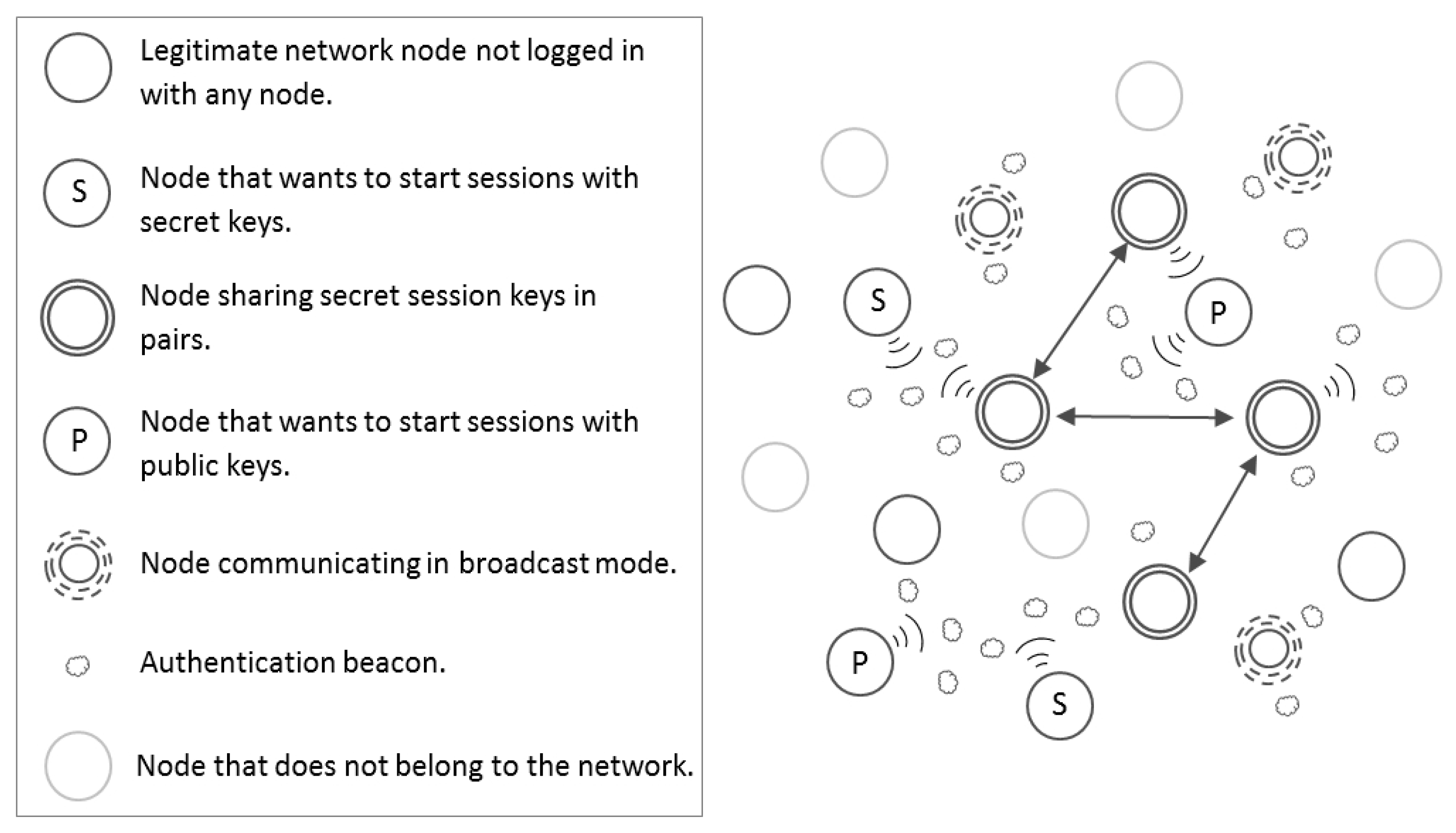

## 5. Applications to the Internet of Things

#### 5.1. Applications in Mobile Ad Hoc Networks

#### 5.2. Applications in Vehicular Ad Hoc Networks

#### 5.3. Applications in Sensors Networks

## 6. Security Proofs

#### 6.1. Attacks on the Cryptographic Operations

#### 6.2. Attacks on the Graph Problem

#### 6.3. Man in the Middle Attack

#### 6.4. Other Attacks

## 7. Implementation

#### 7.1. Package Format

- Graphs: Graphs are serialized by denoting their adjacency matrices into integers, because this is their fastest implementation. This serialization has been also improved by using hexadecimal rather than integer numbers. In this case, the storage size is smaller, but the speed serialization is quite slow. Thus, a faster serialization has been chosen compared to a slight improvement in the package size, so graphs have been serialized through their adjacency matrices.For instance, given the adjacency matrix:$$\left(\right)open="("\; close=")">\begin{array}{ccccc}0& 1& 1& 0& 1\\ 1& 0& 1& 0& 0\\ 1& 1& 0& 0& 1\\ 0& 0& 0& 0& 1\\ 1& 0& 1& 1& 0\end{array}$$it can be represented in one dimension as:0110110100110010000110110This one-dimensional representation is serialized by converting it into an integer of eight digits, formed of five integers separated by the character “,”$$13,20,25,1,22$$
- Solutions: Solutions have been serialized by using lists of integers separated by the character “,” because both types of solutions, the Hamiltonian cycle and the isomorphism between graphs, can be represented as lists. For example, if the isomorphism between two graphs is $1\to 2$, $2\to 5$, $3\to 1$, $4\to 3$, $5\to 4$, using array indexes as original nodes and the values of the array as the values of the new nodes, the isomorphism is represented as:$$2,5,1,3,4$$
- Segments: Each segment of the message is serialized in hexadecimal. Besides, all of the segments, but the first one, are encrypted as explained in previous sections. The last segment contains a secret encrypted by the key that can be obtained with the solution to the challenge of the previous segment. For instance, the aspect of a segment containing an isomorphic graph and challenge and response corresponding to the graph is the following, expressed with hexadecimal characters:$$A324D0E3F19$$
- Message or package: The complete message is the concatenation of all of the generated segments. To separate the segments, the character “|” is used. An example of a package with three segments is:$$A324D0E3F19\left|F9223B3EE34\right|DC34F212ACB$$

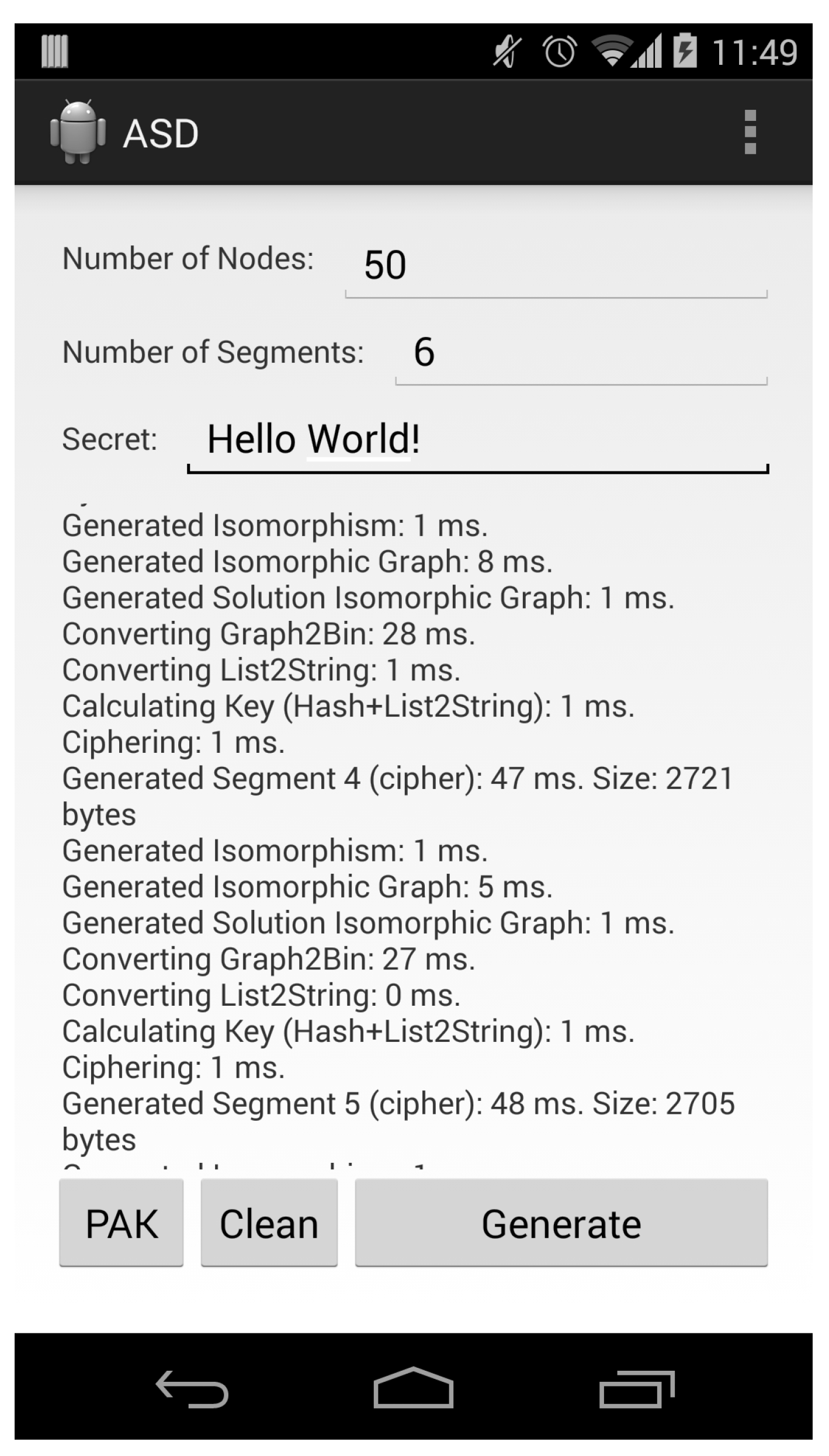

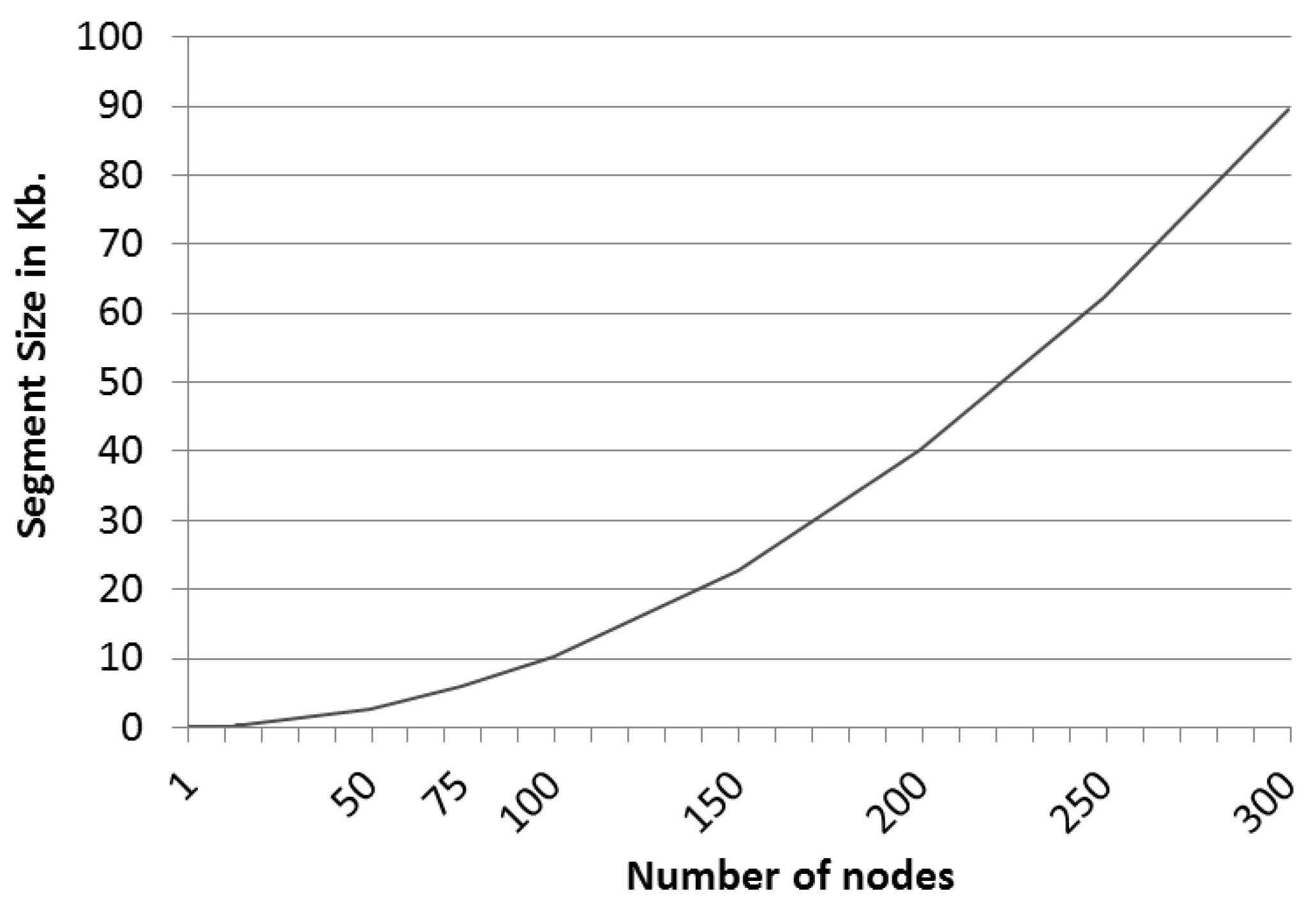

#### 7.2. Package Size

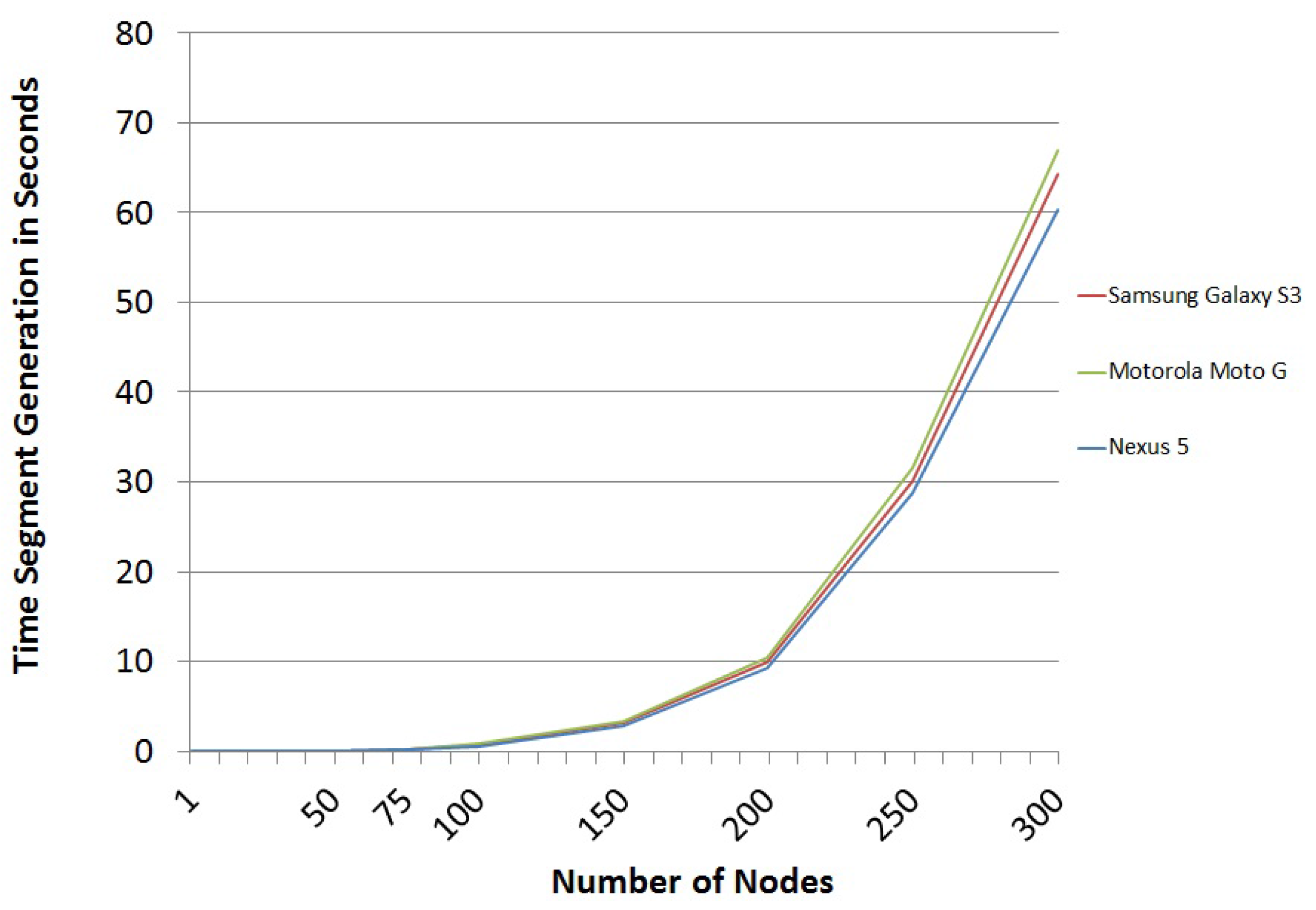

#### 7.3. Package Generation Time

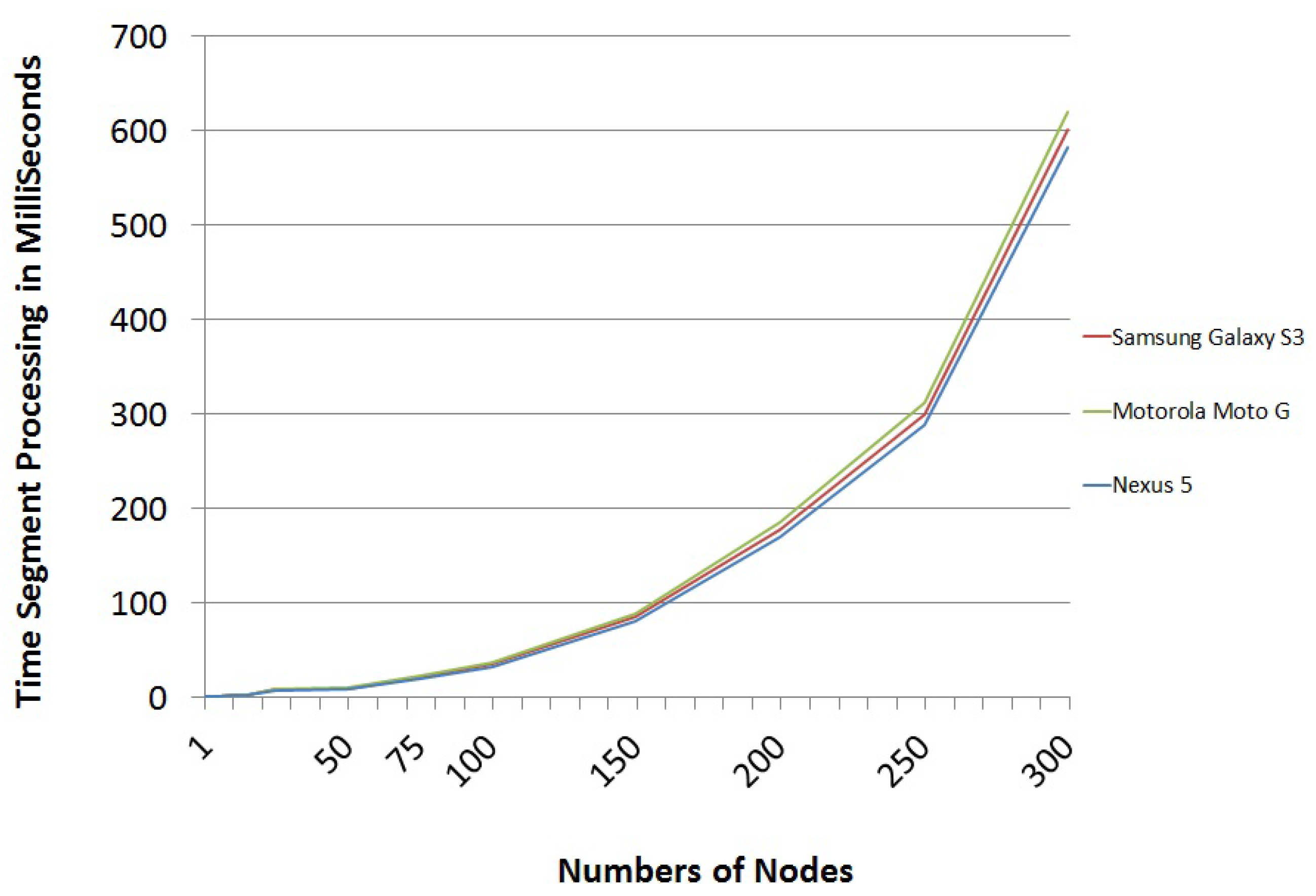

#### 7.4. Package Processing Time

## 8. Comparative Analysis

#### 8.1. ZKP Schemes

Conf1. [39] | Conf2. [39] | Conf3. [39] | Conf4. [39] | Our Scheme | ||
---|---|---|---|---|---|---|

10 Challenges | Time Size | 469 4045 | 1302 4045 | 484 4045 | 1522 4045 | 454 17,826 |

100 Challenges | Time Size | 3422 39,595 | 8070 39,595 | 3703 39,595 | 9824 39,595 | 5665 187,132 |

#### 8.2. Schemes Based on Diffie–Hellman

- Graphs of 41 nodes, which are large enough to be considered secure in the scheme; thus, an attack on the graph isomorphism would involve $41!$ iterations, which would be unfeasible.
- Packages with 3, 4, 5, 6, 7 and 8 challenges.
- The time for these comparisons includes both package generation by the sender and unpacking the package by the user who receives it.

PAK Scheme | Our Scheme | |
---|---|---|

Time (ms) | Challenges | Time (ms) |

197 | 3 | 86 |

4 | 112 | |

5 | 153 | |

6 | 176 | |

7 | 195 | |

8 | 221 |

## 9. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References
