Open AccessArticle
Sensors 2015, 15(8), 18315-18333;

A Non-Contact Measurement System for the Range of Motion of the Hand

School of Engineering, Faculty of Science, Engineering & Built Environment, Deakin University, 75 Pigdons Road, Waurn Ponds, Victoria 3216, Australia
School of Health and Social Development Occupational Therapy, Deakin University, 1 Gheringhap Street, Geelong, Victoria 3220, Australia
Author to whom correspondence should be addressed.
Academic Editor: Oliver Amft
Received: 23 April 2015 / Revised: 19 July 2015 / Accepted: 22 July 2015 / Published: 28 July 2015
(This article belongs to the Special Issue Sensor Systems for Motion Capture and Interpretation)
Full-Text   |   PDF [2771 KB, uploaded 28 July 2015]   |

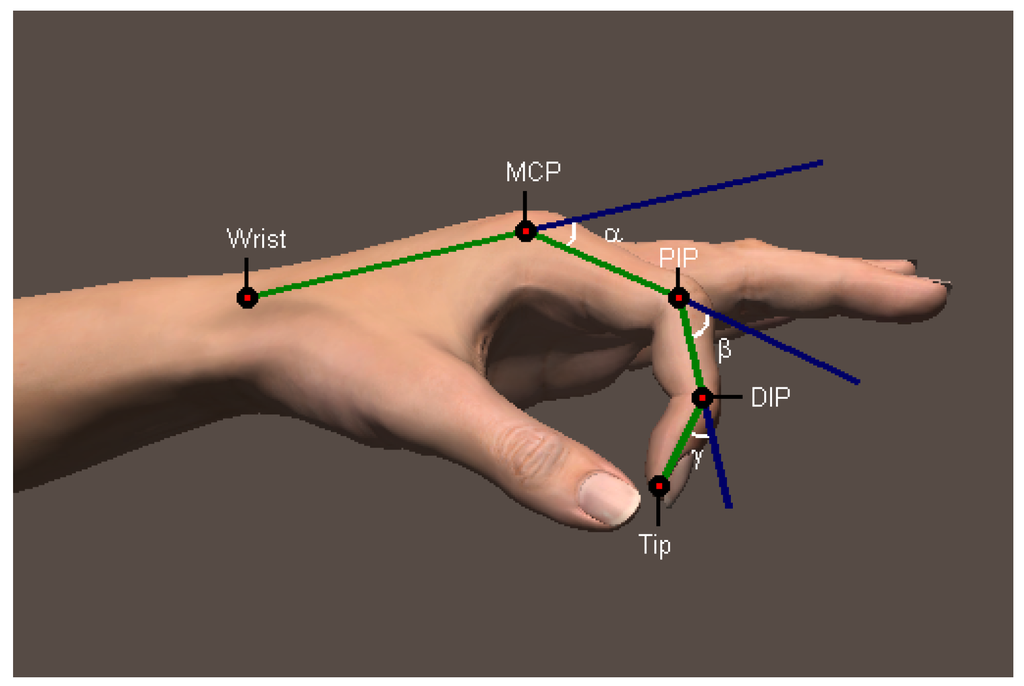

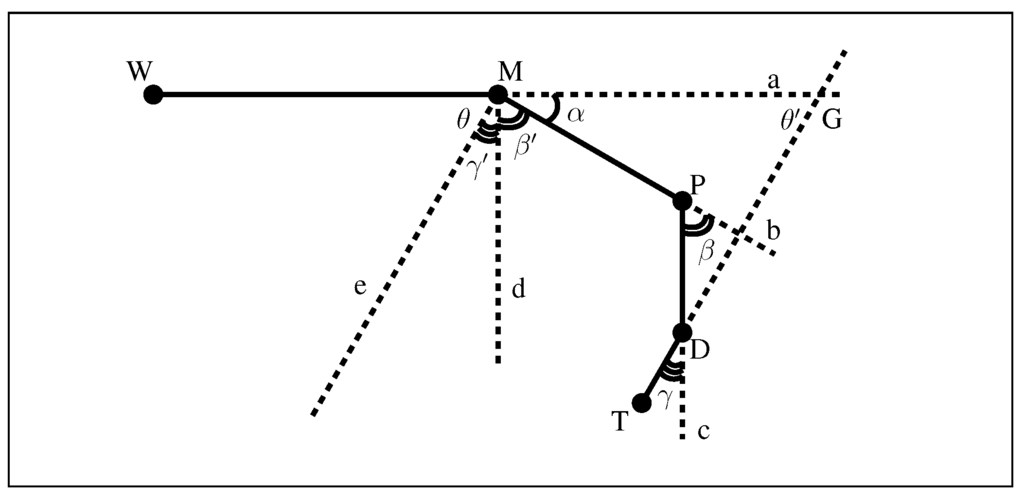

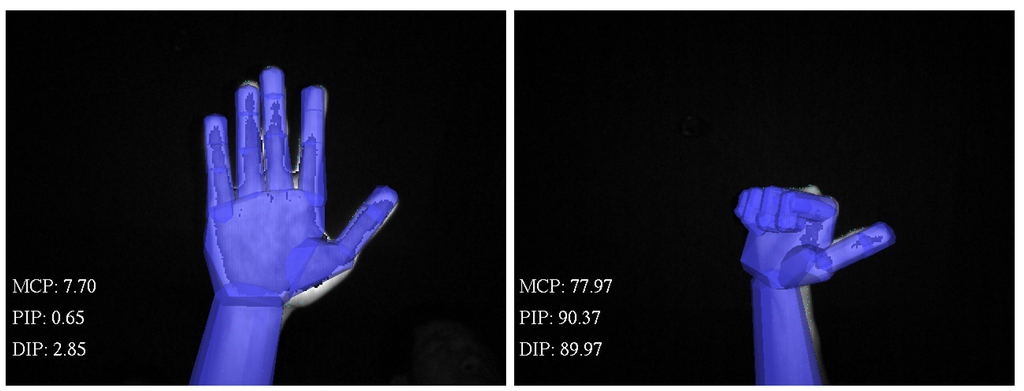

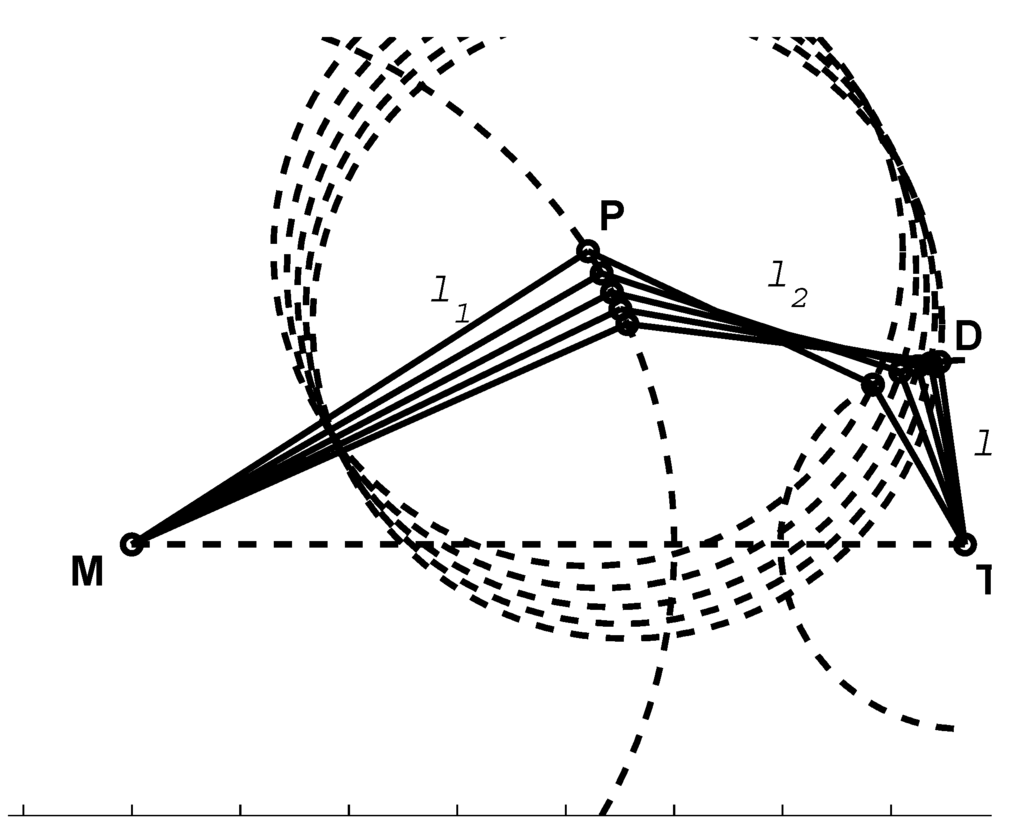

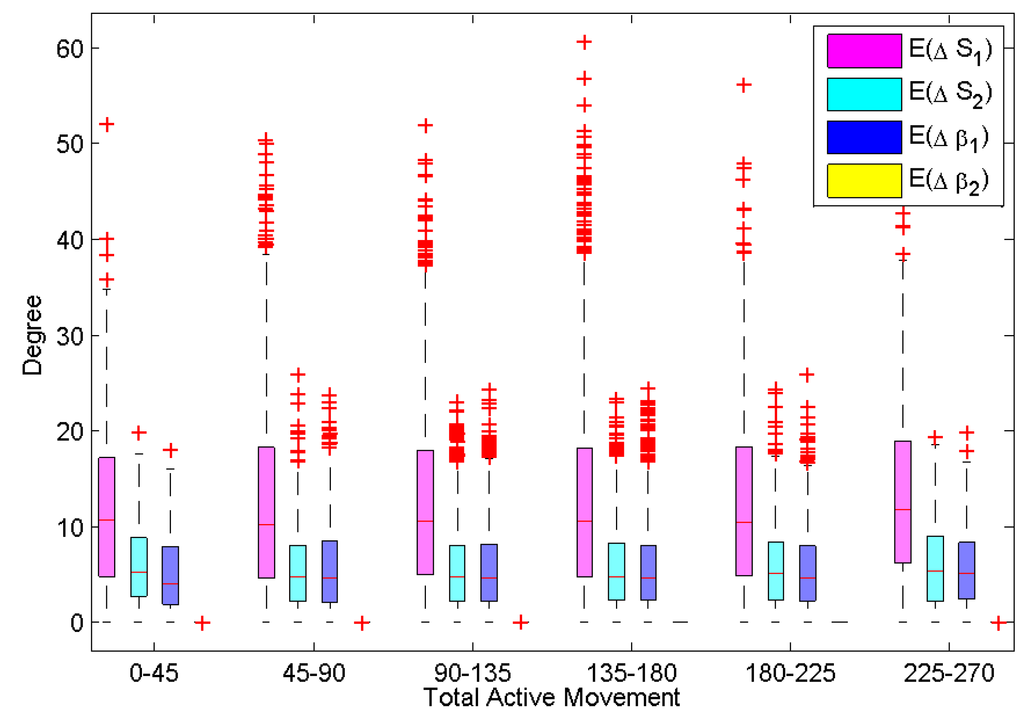

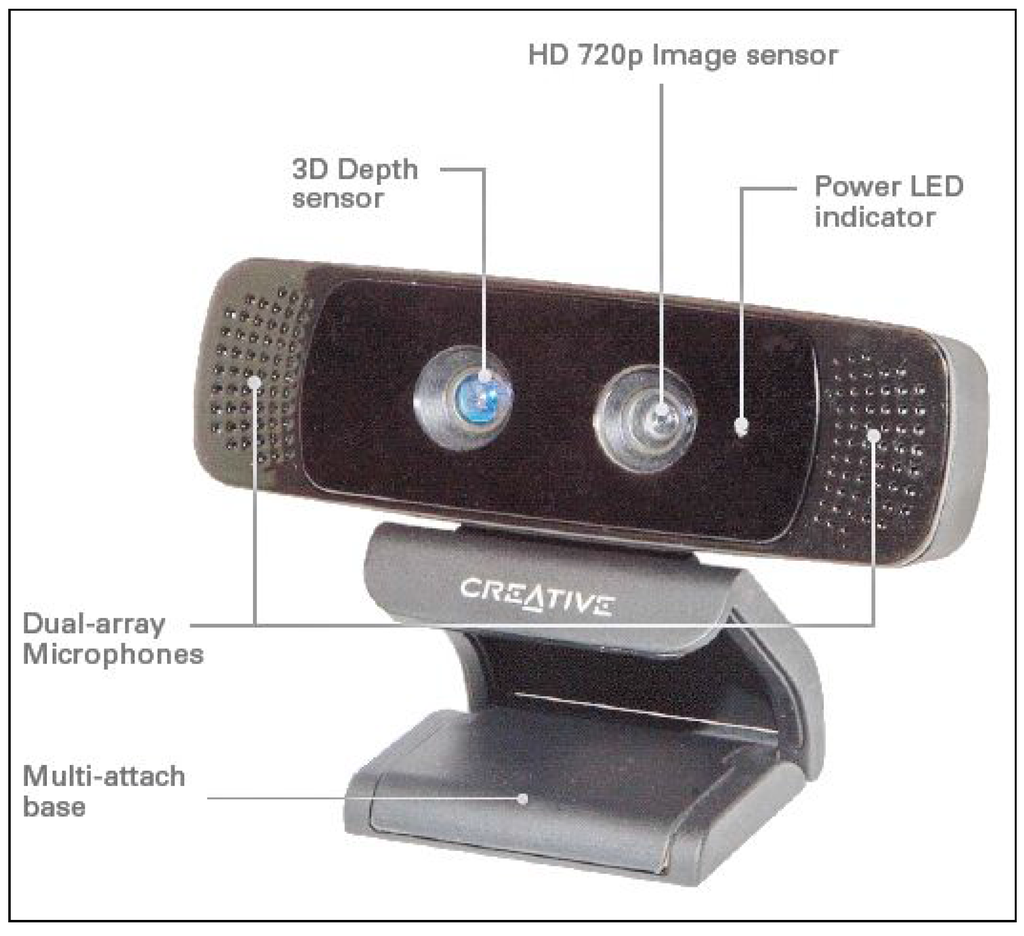

An accurate and standardised tool to measure the active range of motion (ROM) of the hand is essential to any progressive assessment scenario in hand therapy practice. Goniometers are widely used in clinical settings for measuring the ROM of the hand. However, such measurements have limitations with regard to inter-rater and intra-rater reliability and involve direct physical contact with the hand, possibly increasing the risk of transmitting infections. The system proposed in this paper is the first non-contact measurement system utilising Intel Perceptual Technology and a Senz3D Camera for measuring phalangeal joint angles. To enhance the accuracy of the system, we developed a new approach to achieve the total active movement without measuring three joint angles individually. An equation between the actual spacial position and measurement value of the proximal inter-phalangeal joint was established through the measurement values of the total active movement, so that its actual position can be inferred. Verified by computer simulations, experimental results demonstrated a significant improvement in the calculation of the total active movement and successfully recovered the actual position of the proximal inter-phalangeal joint angles. A trial that was conducted to examine the clinical applicability of the system involving 40 healthy subjects confirmed the practicability and consistency in the proposed system. The time efficiency conveyed a stronger argument for this system to replace the current practice of using goniometers. View Full-Text
Keywords: non-contact measurement; range of motion; hand; total active movement non-contact measurement; range of motion; hand; total active movement

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Pham, T.; Pathirana, P.N.; Trinh, H.; Fay, P. A Non-Contact Measurement System for the Range of Motion of the Hand. Sensors 2015, 15, 18315-18333.
