2.1. Wearable System for Physiological Signal Collection
We design a device for extraction of ECG signal from a textile electrode. This device is based on filters and amplifiers for measuring ECG and breathing signal, its block diagram is shown in
Figure 2. For sensing breathing activity and ECG signal, differential separation filter and a common part were included in the device, respectively. The common part consisted of two buffers, to provide impedance to the capacitive coupling with low impedance entailed by the consequent circuitry. Our study utilized operational amplifier ICs having high input resistance. The differential separation filter split the input signal into low frequency component including breathing signal (<1 Hz) and high frequency component containing ECG signal (>1 Hz). The circuit diagram from [
18], was used in order to reduce common mode noise mainly due to power line interference. The differential separation filter divides the input signal into sets of subtractors, amplifiers and integrators according to DC suppression circuit. The part for sensing ECG signal consisted of an instrumentation amplifier, a high-pass filter (HPF), a low pass filter (LPF) and two inverting amplifiers. The circuit elements of the LPF and the HPF were designed to achieve a cutoff frequency of 40 and 5 Hz, respectively.

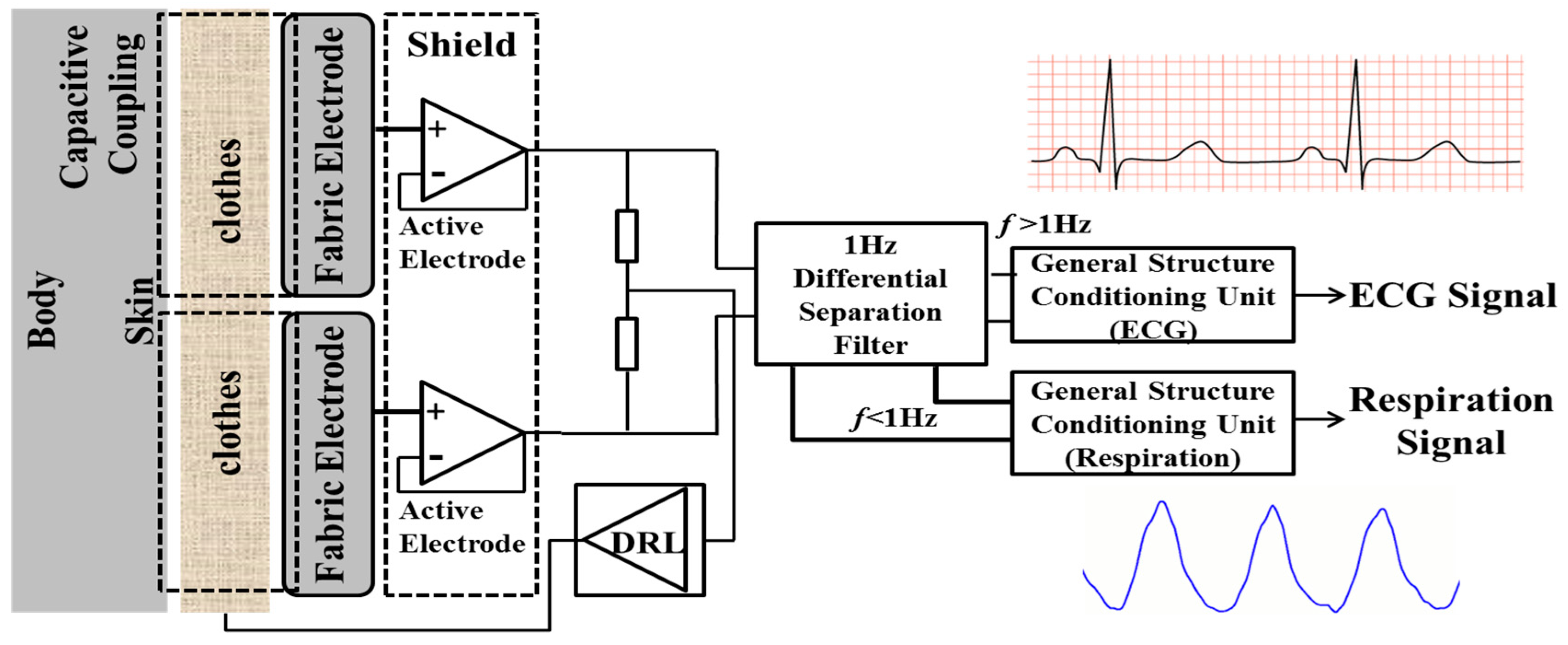

Figure 2.
Block diagram of capacitive measurement system.
Figure 2.
Block diagram of capacitive measurement system.
Software platform is responsible for extracting bio-information from raw data and for calculating the Heart Rate Variability (HRV) of physiological signals, which is further used for securing BSN. The bio-signals are generally weak and easily damaged by different kinds of noise such as instrumentation noise, power line interference, electrosurgical noise, motion artifacts, baseline drift, electrode contact noise, and other less considerable noise sources, which cannot be filtered entirely by using only hardware platform. Therefore, a finite impulse response (FIR) band-pass filter for correcting baseline stroll; a digital 60-Hz notch filter for reducing the power line interference; a multi-scale mathematical morphology (3 M) filter for removing motion artifacts and power line interference; and a differential operation for smoothing and normalizing have been integrated into the software. In order to measure the HRV, an adaptive QRS detect algorithm, which was easy to implement on a simple, real-time device developed by our laboratory in a previous study, has been adopted to extract RR interval series for HRV analysis; with 99.3% detection rate [
19]. The calculated time domain approaches SDNN and RMSSD of HRV are obtained according to the standards of measurement, proposed by the Task Force of the European Society of Cardiology and the North American Society of Pacing and Electrophysiology, which describes the detail of physiological correlates of HRV and calculation methods.
2.2. Proposed Algorithm Model
Our proposed algorithm is simple because it eliminates the use of complex key generation procedures. However, in BSN, those techniques, which are based on intricate key generation procedures, require high computational cost for management of keys as well as consume a lot of time, energy and power during data transmission. The block diagram of our proposed algorithm is shown in
Figure 3. The output of authentication protocol in Data Authentication Function (DAF) is acting as a key. Once this key matches, then the generated message from the source can be transmitted to destination. In case the receiver does not match statistically, transmission will not be started and the message will be discarded, as demonstrated in
Figure 3. Even though DAF is used, data reliability and accuracy can be achieved. But, to increase the level of security, SHA-1 hashing scheme is employed for encryption of the original message. This hashing technique is very simple, easily applied and less complex. Thus, it provides low cost encryption.
The DAF includes four main parts; (i) pre-processing of physiological signal ECG, which is combination of linear filters (step 1) and non-linear transformation (step 2); (ii) threshold detection for QRS complex (step 3); (iii) HRV calculation (step 4); and (iv) authentication protocol (step 5). ECG is used as biometric trait for data authentication in our proposed algorithm. The details of step 1 to step 5 have been illustrated in
Section 2.3. Basically, ECG waveform contains five different deflections, namely P, Q, R, S and T. QRS-complex contains Q, R and S graphical regions; which is the central and most highlighted portion of the ECG waveform. The detection of QRS-complex in ECG can be achieved by first three steps of DAF. In proposed algorithm, QRS detection is based on artificial intelligence approach [
20,
21,
22], by considering the performance and effectiveness in Matlab IDE.
The blood circulation of human body can be used as an exclusive way to provide safe communication in BSN. The variation in time interval of heart beats is referred as heart rate variability (HRV). The authors in [
2,
5,
8] have previously claimed that that HRV signals have exclusive properties and chaotic nature, which presents random characteristics and hence can be used for data authentication in BSN. Furthermore, contrasting conventional biometric cryptosystems in general networks such as fingerprint, facial pattern, palm print, hand geometry and iris pattern, the circulation of blood system in a human body produces a unique protected communication path particularly available for Body Sensor Networks (BSN).
The analysis of HRV includes the study of statistical indices such as standard deviation or other typical spectral analysis methods to observe fluctuations in heartbeats in ECG. Our conducted experimental system (including both hardware and software) results HRV measurement by using different approaches. There are two prominent methods to evaluate HRV, as studied by Lin
et al. [
23]. The first one is the evaluation of HRV in time domain by investigating the chain of RR intervals in ECG waveform. While, the second method takes in analysis of ECG in frequency domain, in which same spectrum of identical RR intervals is analyzed. The spectral analysis methods allow the decomposition of cardiovascular time series into its oscillatory elements, which offers non-invasive evaluation of the Autonomic Nervous System (ANS); the sympathetic and parasympathetic are its two main components. The heart rate is increased and decreased by sympathetic and parasympathetic, respectively. However, these methods (spectral analysis) symbolize a more complicated mode for examining time series of heart rate. Whereas, HRV measurement in time domain can reduce computational complexity and save more resources than frequency domain due to the fact that heart beats of ECG signals are recorded in time series. Therefore, time domain method of HRV calculation is focused in our research.

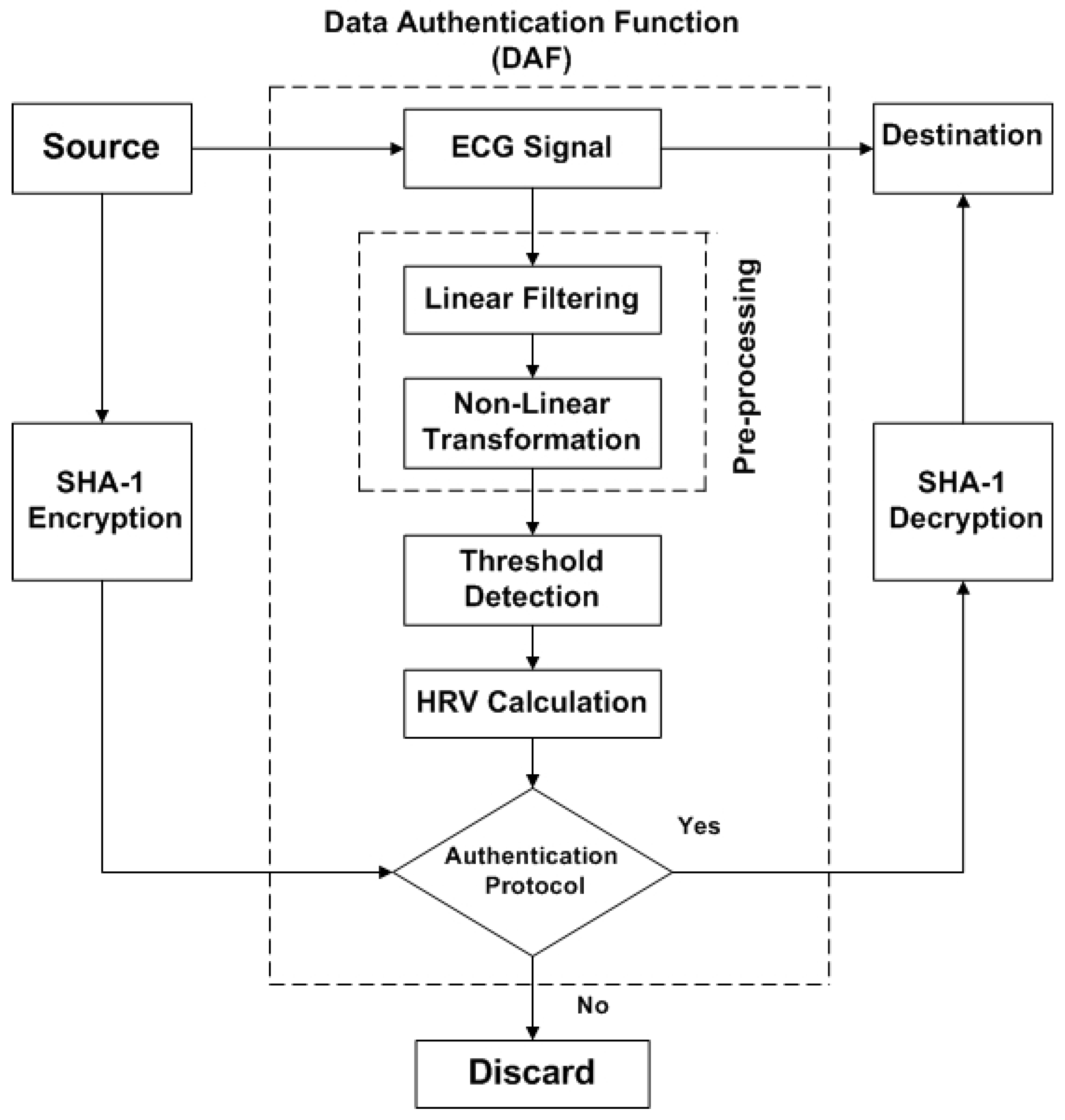

Figure 3.
Block diagram of Biometric-based Proposed Algorithm.
Figure 3.
Block diagram of Biometric-based Proposed Algorithm.
There are two important time domain approaches for HRV calculation, (i) SDNN (Standard Deviation of NN interval); and (ii) Root-Mean Squared of the Successive Differences (RMSSD). SDNN is based on calculation of standard deviation of consecutive NN intervals of heartbeats from start of the QRS-complex, where as NN interval is the time duration between consecutive R-R peaks. RMSSD can be calculated from the difference between consecutive NN intervals, as presented in Lin
et al. [
23]. The long-term recordings observed by time domain approaches must include in at least 18 h ECG recording. While performing experiment on 24 subjects, it was also observed that only SDNN and RMSSD were able to measure the cyclic components, which cause variations for both short-term and long-term recordings,
i.e., 5 min and 24 h, respectively. For that reason, we used SDNN-to-RMSSD ratio in our authentication protocol to make decision on whether to transmit data or not in BSN. If authentication protocol matches, then physiological information generated from sender could be transmitted to receiver, and if not, it is discarded. Besides, one of the reasons to exercise these two techniques collectively as authentication protocol is due to their ability of recording ECG in the short-term and long-term, because health monitoring in BSN is required for long durations. Another reason for SDNN-to-RMSSD ratio being feasible is because it demands less computation and unique statistical index, which can be utilized as a substitute for Low-Frequency to High-Frequency ratio (LH/HF) measured from the spectral analysis as elaborated in [
24,
25].
In this study, we employed SHA-1 as a low cost encryption technique to increase the level of authentication. Although DAF can provide authentication, to ensure further security, the least expensive and flexible encryption technique is used in the proposed algorithm, as shown in
Figure 3. The SHA-1 stands for Secure Hash Algorithim-1 [
26], producing 20 bytes or 40 hexadecimal digits hash value. It is very simple and cost-effective because it does not require high resources for encryption and decryption. Therefore, it is utilized in many applications and protocols, such as Secure Sockets Layer (SSL), Internet Protocol Security (IPSec), Secure Shell (SSH) and Transport Layer Security (TLS). The proposed algorithm provides unique, simple and efficient approach for securing BSN and its authentication is verified twice: (i) by using DAF; and (ii) by low cost encryption.
2.3. Data Authentication Function (DAF)
The DAF is utilized in proposed algorithm to provide efficient approach to secure BSN. It is the combination of five basic steps, which are discussed below:
Step#1: Linear Filtering
The linear filtering is based on differentiation, which is basically high-pass filtering process. It amplifies higher frequencies that are characteristic for the QRS—complex and attenuates lower frequencies that are characteristic for P and T deflections. Consider
is the input raw ECG signal, and
is the output of linear filtering, which is the linear combination of
and
, first derivative and second derivative of
, respectively.
Equation (1) represents first derivative and Equation (2) demonstrates second derivative
of raw ECG signal , whereas combination of both these derivative
is shown in Equation (3).
Step#2: Non-Linear Transformations
In our proposed algorithm, the non-linear transformation is achieved by the combination of squaring operator and moving windows integration. The squaring operator
, as shown in Equation (4), gives optimal output by squaring
. In QRS complex, it performs suppression if any difference arises due to P and T deflections, and also enhances amplitude of high frequency components. The moving window integration helps to make output from squaring operator further smooth. The moving window integration
is calculated by using Equation (5)
whereas
is the window width, which is equal to 67 and is appropriate at 128 Hz.
Step#3: Threshold Detection
The threshold detection in our algorithm is calculated by using Equation (6) and it is the essential step to discover the QRS-complex. For all value of
, where
is the number of heart beats or ECG signals involved in the ECG waveform, if outputs of non-linear transformation
is greater than or equal to the predetermined threshold as represented in Equation (7), all these outputs are termed as QRS-complex.
Step#4: HRV Calculations
Once the QRS-complex is detected, the next step is to determine the R-Peak, which can further be used for HRV calculation. Equation (8) states that just by finding the absolute value or index of QRS-complex, we can determine R-Peak from the whole QRS-complex. In ECG, Q-to-Q intervals are the time intervals between successive heart beats during whole QRS-complex; they are also normally termed as RR intervals. We used Equation (9) to calculate RR interval in our research and the heart rate can be determined by Equation (10).
Then, RR intervals are used to find heart rate variability (HRV) using two main time domain approaches SDNN and RMSSD. Both of these approaches have capability of long-term recording for 24-h; therefore in our study we measure HRV by both SDNN and RMSSD as shown in Equations (10) and (11).
whereas,
,
,
,
represents R-to-R interval, mean of R-to-R interval and number of peaks of ECG waveform, respectively.
Table 1.
The average Standard Deviation of NN interval (SDNN) and average Root-Mean Squared of the Successive Differences (RMSSD), and SDNN-to-RMSSD (SRR) for different subjects.
Table 1.
The average Standard Deviation of NN interval (SDNN) and average Root-Mean Squared of the Successive Differences (RMSSD), and SDNN-to-RMSSD (SRR) for different subjects.
Subjects | Average SDNN | Average RMSSD | SDNN-to-RMSSD Ratio (SRR) | SRR*103 | SRR*103 (Binary 16 Bits) |
---|
1 | 87.823 | 46.877 | 1.873 | 1873 | 0000011101010001 |
2 | 88.294 | 29.964 | 2.946 | 2946 | 0000101110000010 |
3 | 65.404 | 24.712 | 2.646 | 2646 | 0000101001010110 |
4 | 99.772 | 56.776 | 1.757 | 1757 | 0000011011011101 |
5 | 64.684 | 24.926 | 2.595 | 2595 | 0000101000100011 |
6 | 60.779 | 31.389 | 1.936 | 1936 | 0000011110010000 |
7 | 103.311 | 86.998 | 1.187 | 1187 | 0000010010100011 |
8 | 95.670 | 45.338 | 2.110 | 2110 | 0000100000111110 |
9 | 67.413 | 28.804 | 2.340 | 2340 | 0000100100100100 |
10 | 145.398 | 82.814 | 1.755 | 1755 | 0000011011011011 |
11 | 171.083 | 121.290 | 1.410 | 1410 | 0000010110000010 |
12 | 61.675 | 30.409 | 2.028 | 2028 | 0000011111101100 |
13 | 107.385 | 76.436 | 1.404 | 1404 | 0000010101111100 |
14 | 77.977 | 31.235 | 2.496 | 2496 | 0000100111000000 |
15 | 89.431 | 61.906 | 1.444 | 1444 | 0000010110100100 |
16 | 69.660 | 30.627 | 2.274 | 2274 | 0000100011100010 |
17 | 62.985 | 31.688 | 1.987 | 1987 | 0000011111000011 |
18 | 57.524 | 17.604 | 3.267 | 3267 | 0000110011000011 |
19 | 113.543 | 79.594 | 1.426 | 1426 | 0000010110010010 |
20 | 97.117 | 66.308 | 1.464 | 1464 | 0000010110111000 |
21 | 70.131 | 47.749 | 1.468 | 1468 | 0000010110111100 |
22 | 72.651 | 39.758 | 1.827 | 1827 | 0000011100100011 |
23 | 100.784 | 74.449 | 1.353 | 1353 | 0000010101001001 |
24 | 61.608 | 36.512 | 1.687 | 1687 | 0000011010010111 |
Step#5: Authentication Protocol
The ratio between SDNN and RMSSD, termed SRR, as shown in Equation (12), is used in authentication protocol of the proposed algorithm. According to Sollers
et al. [
25], SRR demands less computation. It is stated on basis of calculation from different contexts such as standing and sitting position of subjects and it is observed to be a good and reliable statistical index for both patients and normal health monitoring. The main advantages of using time domain estimated index are: (i) less computational complexity; and (ii) low alarm for stationary of the time series [
24]. Therefore, because of all these benefits, SRR is utilized in our authentication protocol to reduce the computational complexity so as to provide efficient approach for securing BSN.
In our conducted experiment, it is observed that SRR is the unique biometric index. The SRR values for both short-term and long-term analysis are observed to be distinctive.
Table 1 states that average SRR values (for 8 h) of 24 subjects are distinct. Therefore, it can be used to differentiate a person from any other during data transmission in BSN. Furthermore, SRR, along with gender and age of the subject (transmitter), are used to generate matchless authentication key.

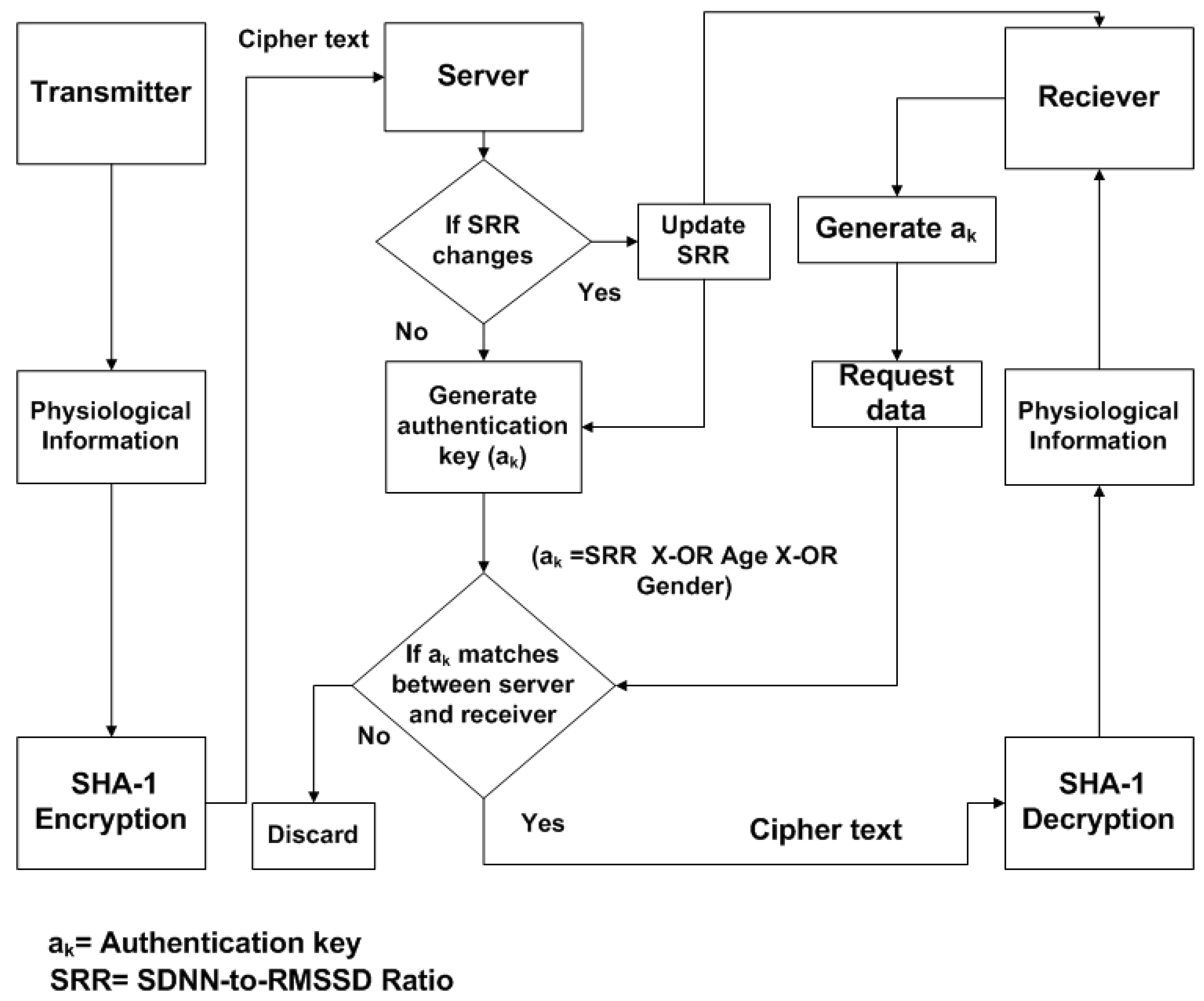

Figure 4.
The block diagram of communication model for Body Sensor Networks (BSNs) using proposed authentication protocol.
Figure 4.
The block diagram of communication model for Body Sensor Networks (BSNs) using proposed authentication protocol.
The block diagram of the communication model for the proposed algorithm is shown in
Figure 4. After collecting the physiological information from specific sensor node at transmitter side, low cost SHA-1 hashing encryption technique is applied to generate cipher text. The cipher text from transmitter is transferred to the remote sever; the inexpensive encryption is applied to original physiological information in order to provide secure communication between them. When receiver (surgeon) requests data from the sever, the authentication key (a
k) will be checked. If a
k matches between server and receiver, the receiver will obtain the cipher text and decodes it by using SHA-1 to get back original bio-signal. Sever observes the SRR periodically, in case any change occurs in SRR, sever will update to the receiver. The receiver will generate the authentication key by using update SRR.

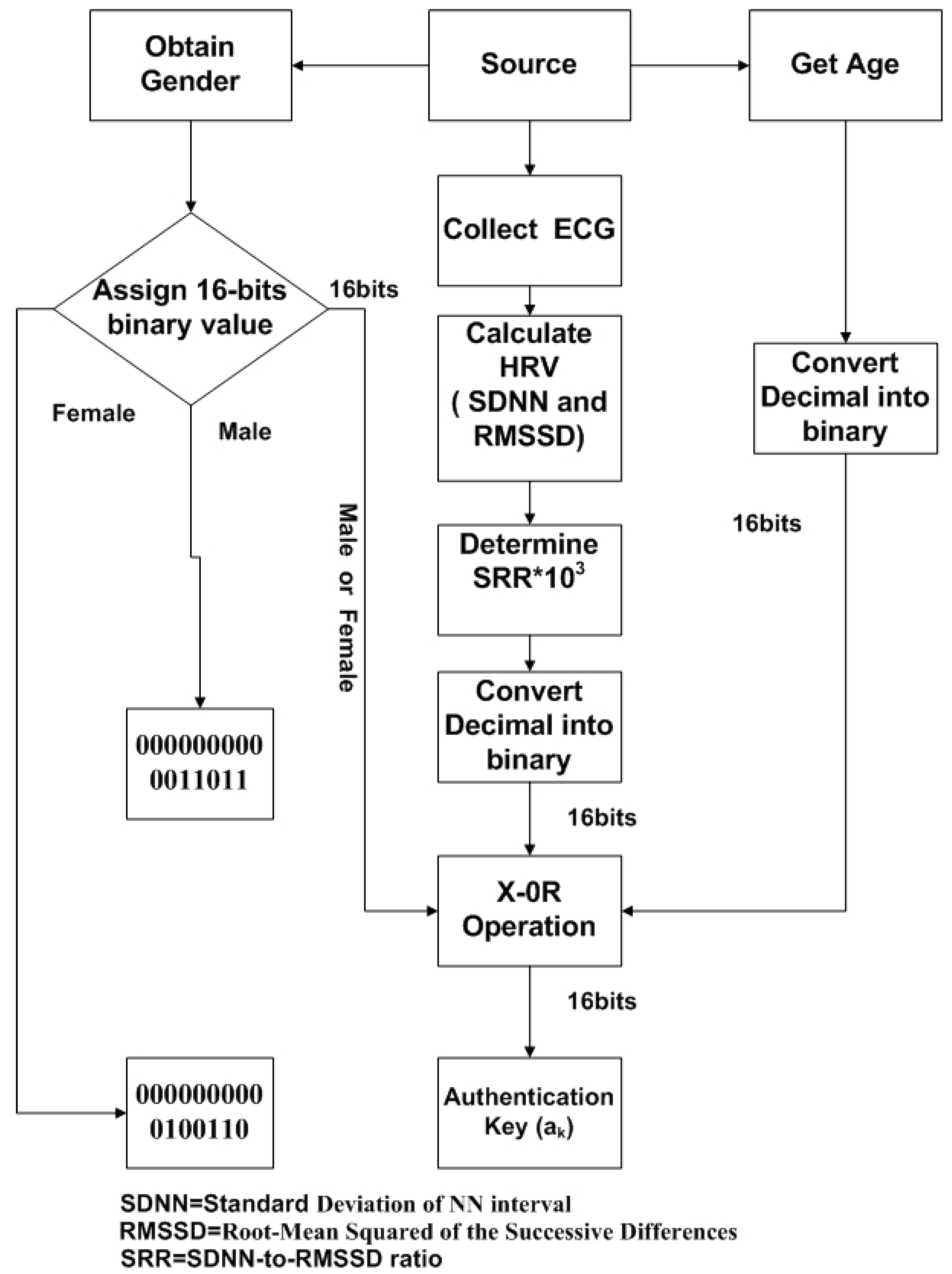

Figure 5.
The key generation procedure for proposed algorithm.
Figure 5.
The key generation procedure for proposed algorithm.
The key generation procedure in our proposed algorithm is quite simple and efficient. It is based on X-OR logical operation, as shown is
Figure 5. The ECG signal from source node is obtained and HRV is measured by using statistical indices SDNN and RMSSD. Moreover, SRR (SDNN to RMSSD ratio) is calculated, the SRR value is multiplied by 1000, or 1 k, to get a 4-digit decimal number, and converted into the equivalent 16-bit binary number. The authentication key (a
k) is the logical X-OR between SRR, age and gender of the source (a
k = SRR (16 bits) X-OR age (16 bits) X-OR gender (16 bits)). The X-0R outputs “1” only when inputs have different value. The output of a
k will be a binary number (16 bits), which is acting as key between source and destination for data transmission in BSN.
Table 1 suggests that SRR is the unique biometric index, along with that age and gender information of the subject is also used in order to generate robust authentication key.
Consider subject 1 transmits the physiological information, having a 16-bit SRR of 0000011101010001, as shown in
Table 1. The subject is male and his age is 29 years. To obtain a 16-bit equivalent value for “male”, assign 0 to 25 decimal numbers for alphabet “a” to “z”, respectively, therefore for “male” subject, the 16-bit binary number is 0000000000011011 (12 + 0 + 11 + 4 = 27). The age of the subject is 29; the binary equivalent of 29 is 0000000000011101 (16 bits). The authentication key, a
k, is the output of X-OR operation between these three 16-bits binary numbers (0000011101010001, 0000000000011011 and 0000000000011101)
, after applying the X-OR operation, the results will be 0000011101010111 (16 bits). The 16 bits output of X-OR will be authentication key between server and receiver.
The statistical indices such as SDNN and RMSSD for measurement of HRV satisfy all properties of ideal biometric traits [
2]. The ideal biometric properties are universal, unique, everlasting or permanent, measurable, efficient, adequate and reliable or unassailable. The HRV is universal as it can be measured for all subjects and acceptable to patient as well as organization to utilize as an identifier (adequate). The uniqueness of SRR can be verified from
Table 1, as all 24 subjects have different SRR. According to [
25], SRR is not complex (easily measureable), good (efficient) and reliable (quite complicated to recreate by fake acts). The SRR is permanent for a reasonable period of time, because it is observed during conducted experiment that HRV of a patient does not change significantly with respect to time matching criteria over a reasonable period of time.
In [
27], it is stated that mental stress level of the person could cause a change in HRV. Therefore, in the proposed algorithm, SRR is observed periodically by a server. On the one hand, to check SRR periodically consumes some extra memory, but still the proposed algorithm provides efficient method for data authentication in BSN. On the other hand, the varying nature of SRR due to mental stress condition could increase the strength of security, because authentication key keeps varying in accordance to change in SRR. In case one authentication key is compromised (still cannot receive original physiological information because data is converted into cipher text by using SHA-I encryption) hacker cannot receive all cipher texts of physiological information of the subject because authentication key continues changing according to SRR. The performance of the proposed algorithm is analyzed in next section.
2.4. Performance Analysis
Our proposed algorithm utilizes simple key generation procedure based on SRR to secure data processing in BSN. This advantage leads our algorithm toward simplicity in comparison with all other available approaches for securing BSN, in view of the fact that complex key production processes make existing methods more complex and ineffective than proposed algorithm.
When conventional schemes, such as symmetric encryption approaches, are used to apply security in BSN by utilizing external key, only single key is required for both encryption and decryption. There are two main reasons, which cause high transmission time and more resource utilization with these approaches. Firstly, unique keys are generated for different rounds from initial key such as in DES original key size is 64 bits, from which 8 different keys of size 56 bits are generated. Secondly, they support only fixed block size of data, such as 64 bits for DES. If data size is more than 64 bits, it must be divided into multiple blocks of 64 bits and data is transmitted in multiple rounds.
While utilizing asymmetric encryption approach for implementing security, even more transmission time and resources are consumed due to the complex process for key generation and data transmission. RSA is one of the examples of public-key based encryption, which uses two different keys during data transmission, public and private keys for encryption and decryption, respectively. Nevertheless, it requires more resources for data transmission than the proposed algorithm, even more than DES. When physiological features are used for key generation, such as in PSKA [
14], they do reduce the transmission time compared with utilization of external keys, but their complex key generation procedure makes them cost inefficient solutions for securing BSN.

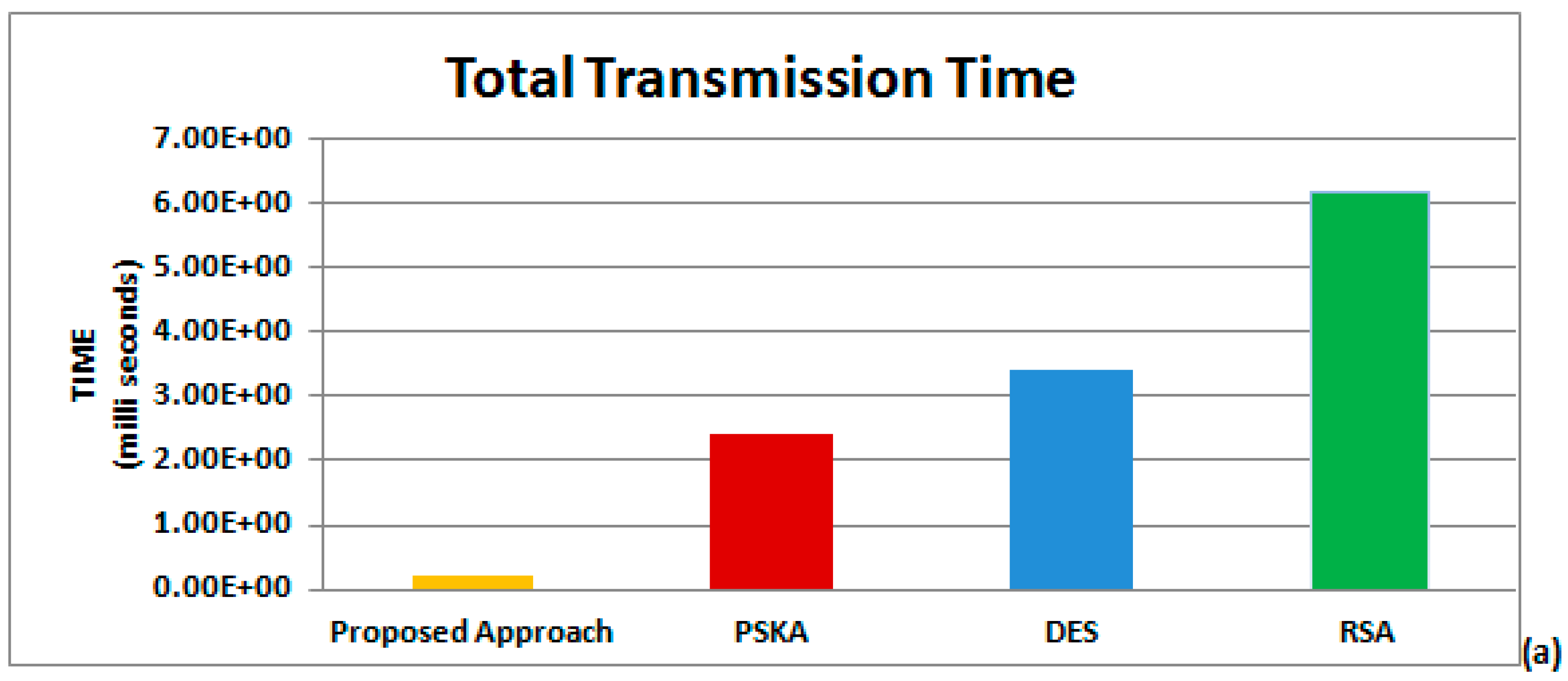

Figure 6 explains that our proposed algorithm can transmit a higher number of bits than PSKA, DES and RSA by using same number of resources due to the use of a simple and efficient key generation mechanism in our proposed algorithm. As complex key generation procedures waste more resources, our proposed algorithm eliminates the need of time consuming and inefficient methods for data authentication in BSN, resulting in low utilization of resources. Hence, it can be stated that our proposed algorithm is a cost effective approach for securing BSN.

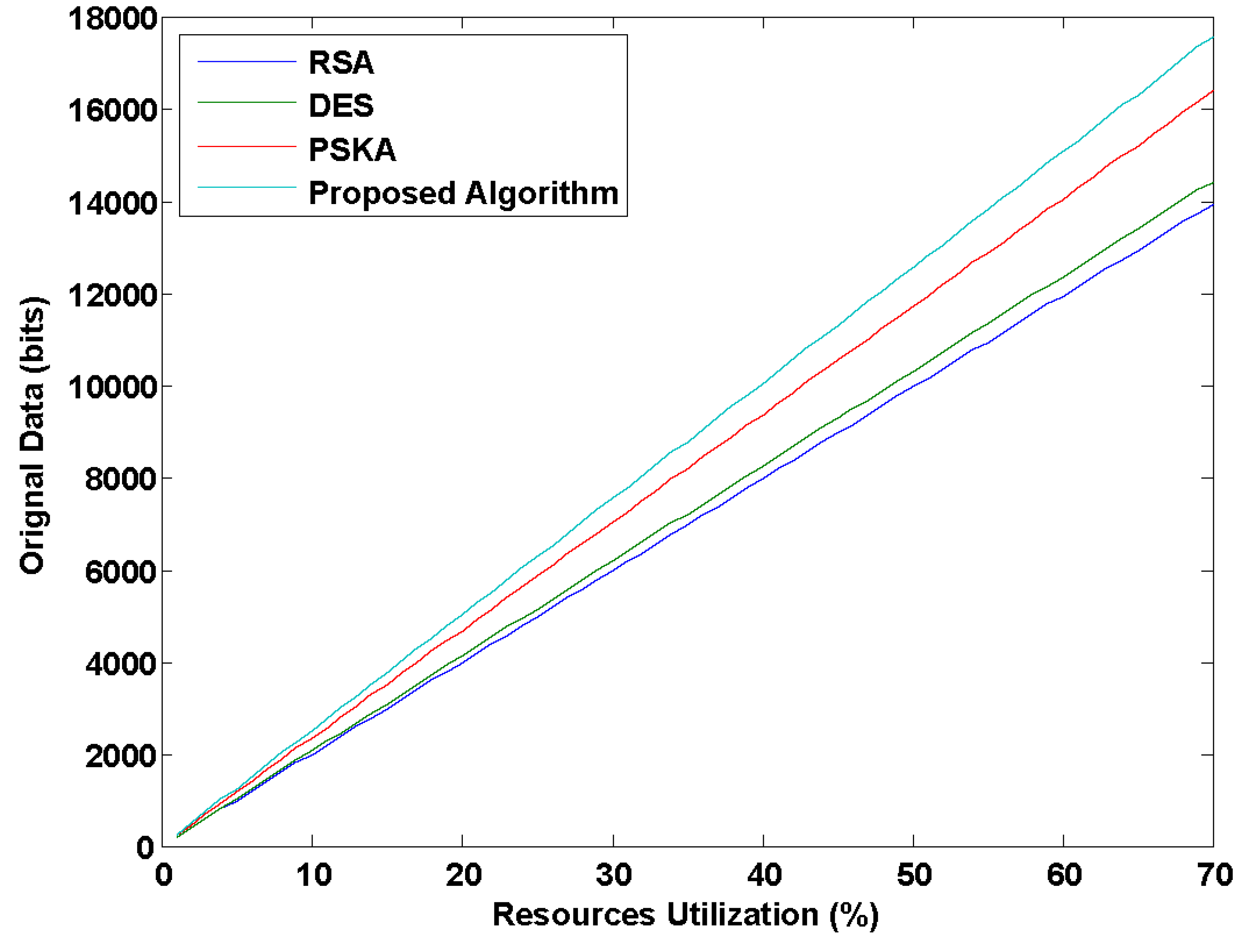

Figure 6.
Amount of data transmission in bits with same percentage of resource utilization for different methods.
Figure 6.
Amount of data transmission in bits with same percentage of resource utilization for different methods.
To explain the efficiency of our proposed algorithm, a simulation environment with the real-time data of 20 subjects was created and parameters used in performance analysis are shown in
Table 2. To analyze the performance of our proposed algorithm, we used real-time ECG data of 20-year-old female subjects. The length of this ECG data is 258 decimal values in different matrix formats, and each decimal value is equal to 36 bits, which means overall length in binary is 9216 bits. If authentication protocol matches between source and destination, then all 9216 bits will be transmitted in one round. On the contrary, this is not case for DES and RSA, because DES only supports data size of 64 bits and in RSA message of only one decimal (
i.e., 36 bits) value can be transmitted at a time. Although PSKA will send the complete information of 9216 bits, the complexity involved in its algorithm requires more processing time than proposed algorithm.
Table 2.
List of abbreviations used in performance analysis.
Table 2.
List of abbreviations used in performance analysis.
Abbreviation | Detail | Abbreviation | Detail |
---|
| Total simulation time | | Data length in binary |
| Complexity per round | | Initial energy |
| Number of rounds | | Average remaining energy |
| Number of keys required for all rounds | | Remaining energy for destination |
| Number of keys required per round | | Remaining energy from source |
| Initial key size | | Transmission power |
| Data length in decimal | | Reception power |
| Data rate | | Power utilized |
2.4.1. Transmission Time
The transmission time is the amount of time required for complete data transmission from source to destination. It depends upon the number of rounds involved during transmission. As the number of rounds increases, transmission time will increase, as shown in Equation (13).
here,
represents total transmission time,
demonstrates number of rounds, and
denotes the complexity involved per round. For our proposed algorithm,
because all data is transmitted in one round, provided that the authentication key (a
k) matches between source and destination. As the complex procedure for the construction of the key is omitted, the proposed algorithm requires less transmission time for data transmission in BSN. While for PSKA,
but
also depends on
, as the value of
in PSKA is greater than it is in the proposed algorithm, caused by the fact that PSKA is based on complex procedure for key generation. As a result, PSKA takes more time for processing of entire information from source to destination than proposed algorithm does.
For DES, the number of rounds depends upon the initial key size and length of data generated from the source. The number of rounds is directly proportional to the length of data and inversely proportional to initial key size. In Equation (14),
and
represent length of data in bits and initial key size in bits, respectively.
In our simulation,
is 9216 bits and
is 64 bits for DES, therefore
will be 144 rounds:
The overall number of keys required for all rounds
depends upon
and keys required per round
, as shown in Equation (15).
It can be visualized that DES uses 144 rounds and 1152 keys in order to achieve authentication. In addition, this complex calculation takes a longer transmission time, compared to our proposed algorithm. While for RSA, the number of rounds () is equal to the length of data in decimal (). In our simulation
is 258, so
is also 258. Since transmission time depends upon number of rounds and complexity involved per round, in both conditions RSA requires more time to process complete data than our proposed algorithm and DES, evident from the following mathematical values. For our proposed algorithm, DES, and RSA,
,
and , respectively.

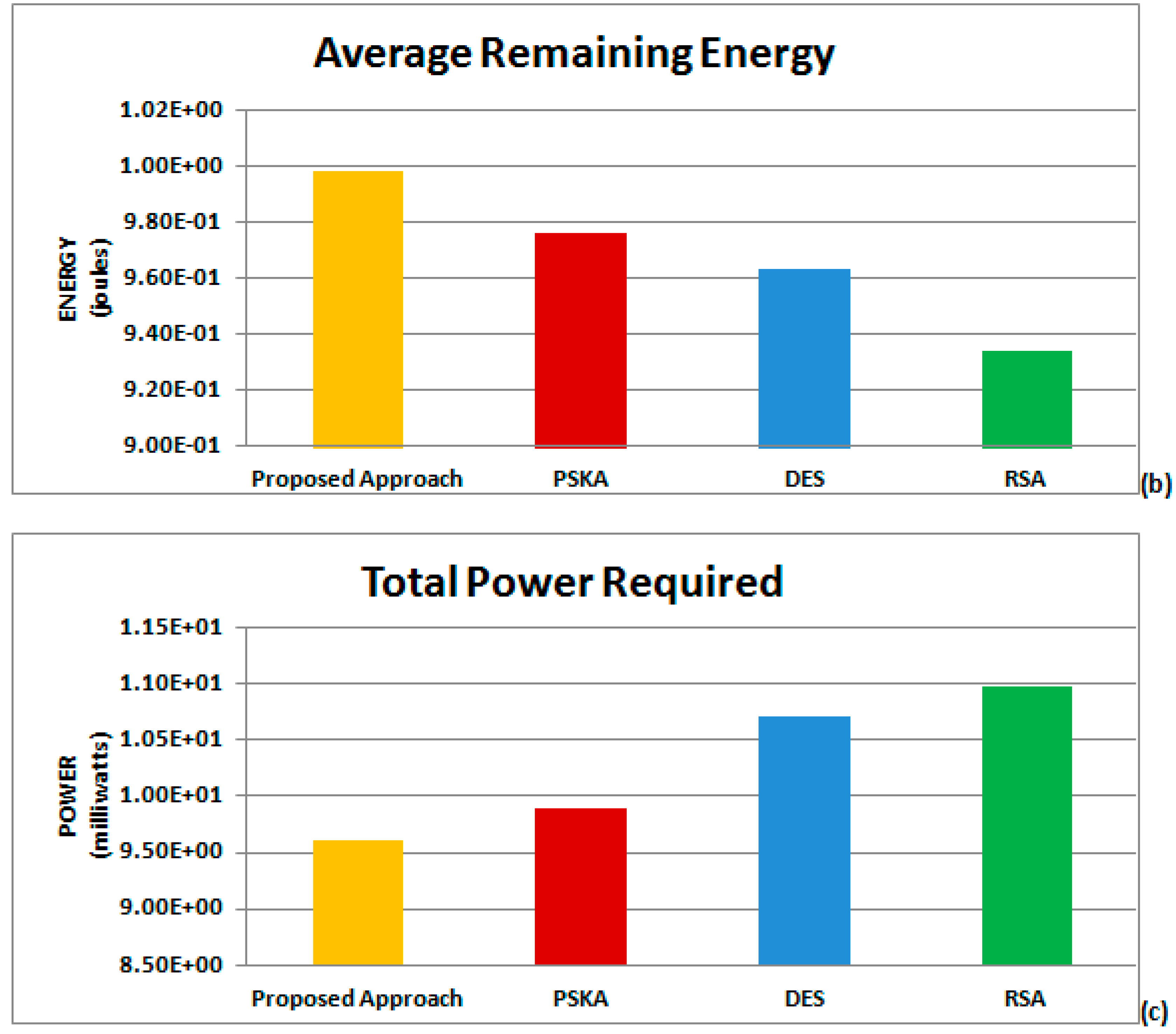

2.4.2. Average Remaining Energy
Let,
be the initial energy of source and destination for data transmission. The amount of energy consumed is proportional to the transmission time. The larger the time required for processing, the more energy will be consumed. To check whether or not our proposed algorithm is energy efficient, it is necessary to determine the average remaining energy. Equation (18) calculates average remaining energy of both source and destination.
and
represent remaining energy of source and destination, respectively, depending upon the data length (
), data rate (
) and transmitting/receiving power (
), as shown in Equations (16) and (17).
The value of
is high for our proposed algorithm, as explained in
Table 3, because it requires less transmission time. Hence, it can be believed that the proposed algorithm is simple, as it consumes less time in processing of complete information, ultimately consuming less energy than PSKA, DES and RSA.
2.4.3. Total Power Required
Our proposed algorithm is also power efficient. As utilization of power depends upon energy consumption and transmission time, as explained in
Section 2.4.1 and
Section 2.4.2, since our proposed algorithm utilizes less energy and time for data transmission, it can be stated that less power will be utilized for the proposed algorithm to secure BSN. The amount of power utilized (
) can be measured by Equation (19), depending upon the initial energy (
), data rate (
), data length (
), total transmission time (
), and transmitting/receiving power (
).
The comparison on basis of transmission time required, average remaining energy and power utilization between the proposed algorithm, PSKA, DES, and RSA is shown in
Table 3. The detail discussion of
Table 3 is provided in
Section 4.
Table 3.
Comparison between proposed algorithm, Physiological Signal based Key Agreement (PSKA), Data Encryption Standard (DES) and Rivest Shamir Adleman (RSA).
Table 3.
Comparison between proposed algorithm, Physiological Signal based Key Agreement (PSKA), Data Encryption Standard (DES) and Rivest Shamir Adleman (RSA).
Methods | Parameters |
---|
Transmission Time (ms) | Average Remaining Energy (Joules) | Power Utilization (mW) |
---|
Proposed Algorithm | 0.207 | 0.998 | 9.64 |
PSKA | 0.239 | 0.976 | 9.89 |
DES(Symmetric Encryption Approach) | 3.40 | 0.963 | 10.05 |
RSA(Asymmetric-Encryption Approach) | 6.40 | 0.932 | 10.10 |
