Estimation of Prestress Force Distribution in the Multi-Strand System of Prestressed Concrete Structures
Abstract

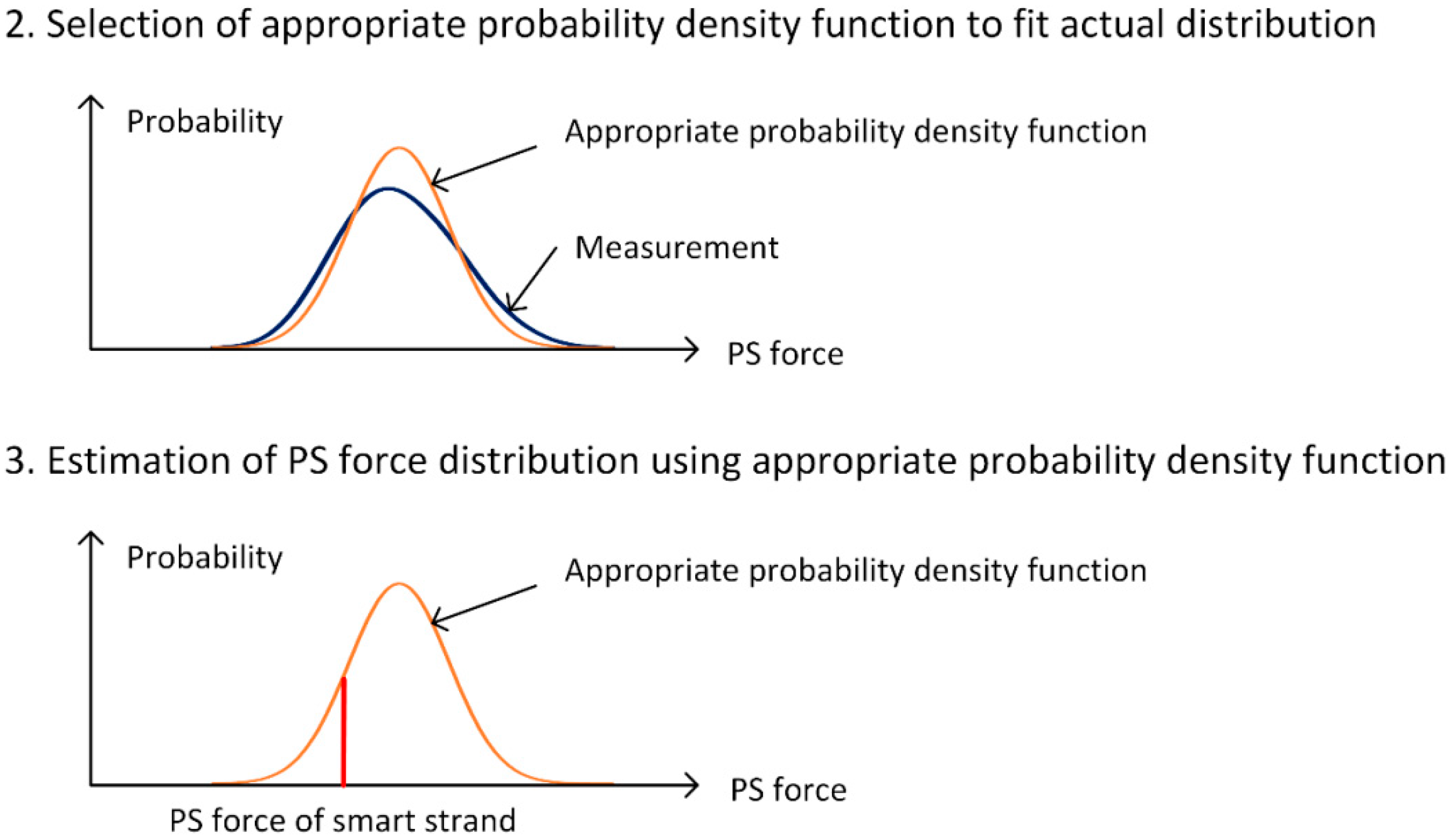

:1. Introduction

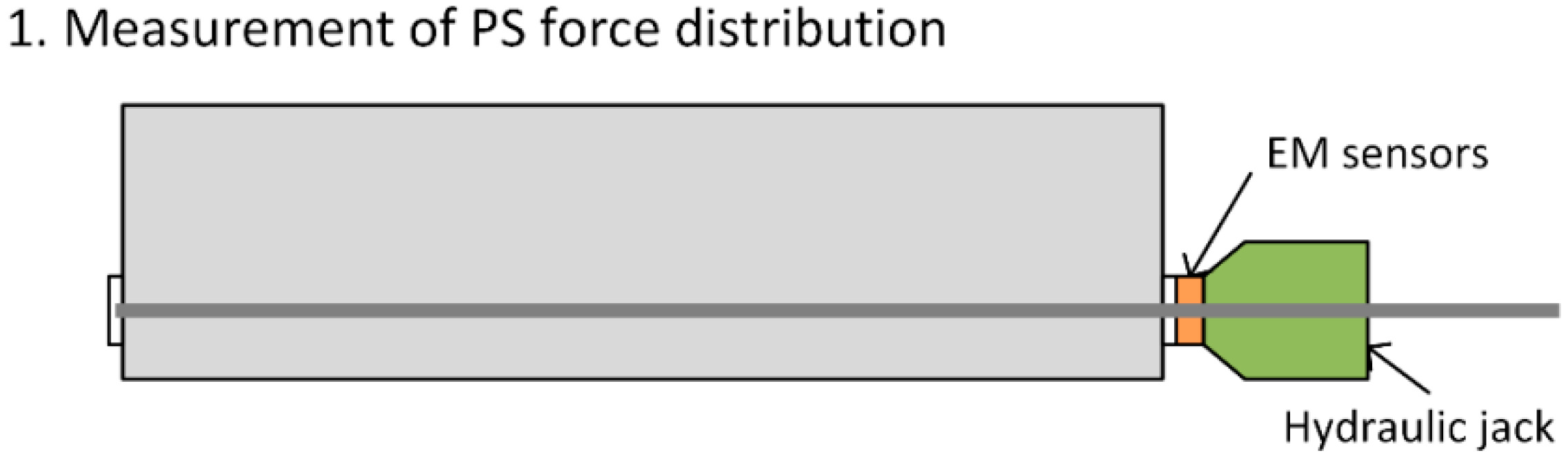

2. Experimental Section

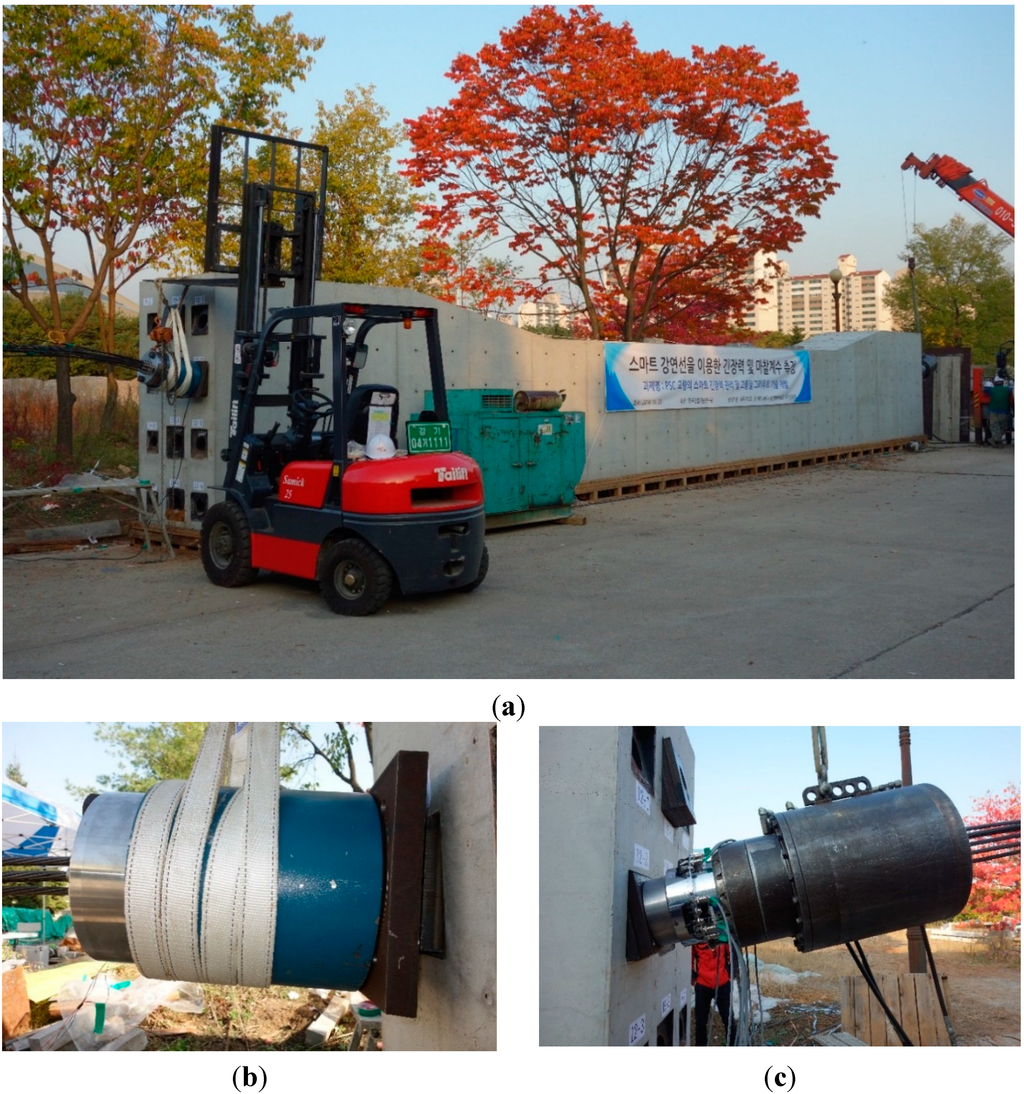

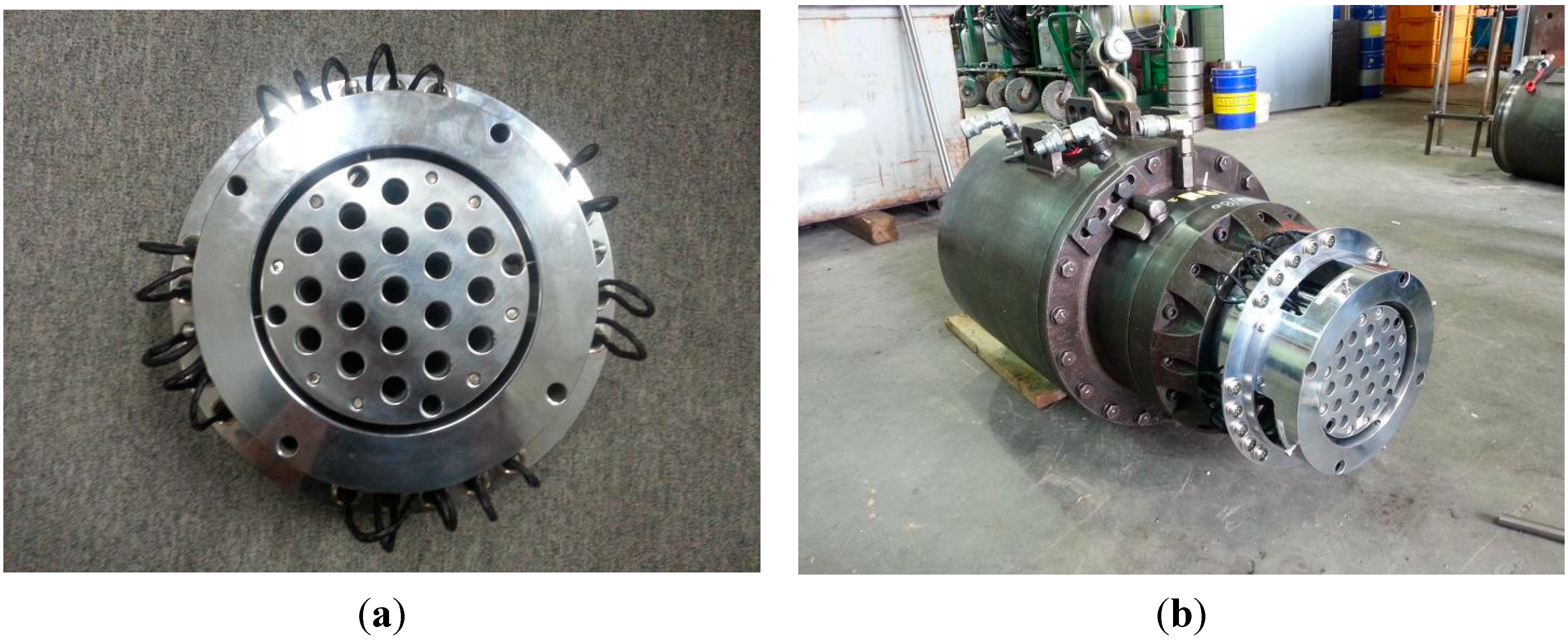

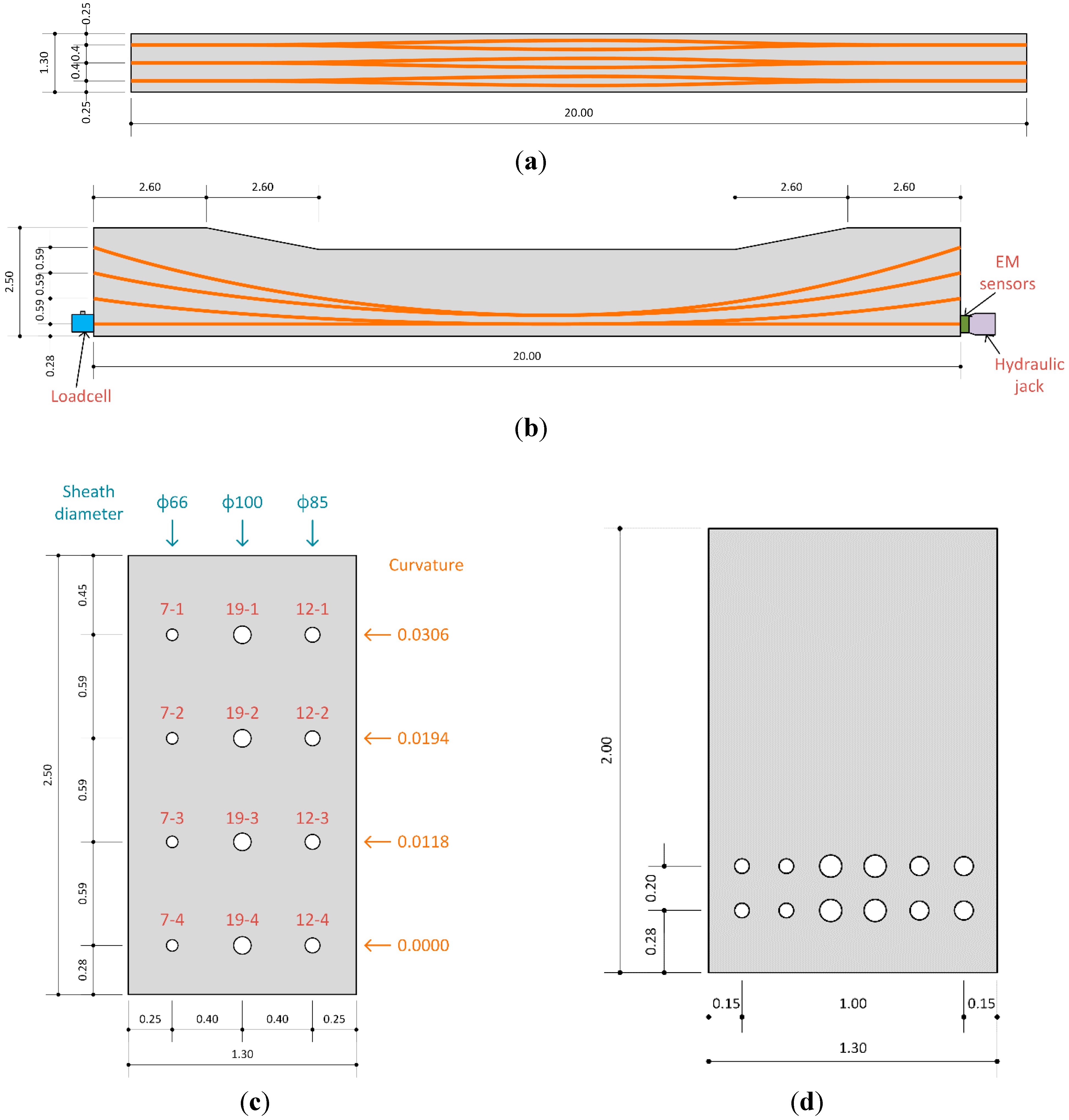

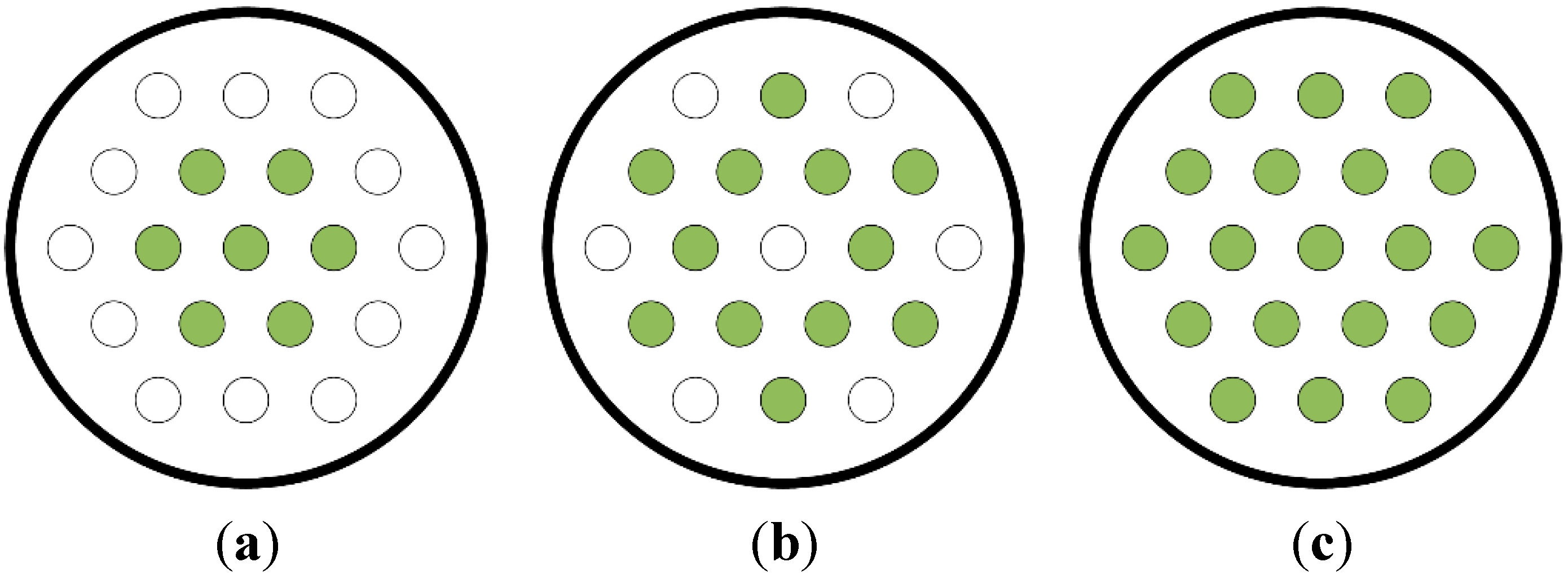

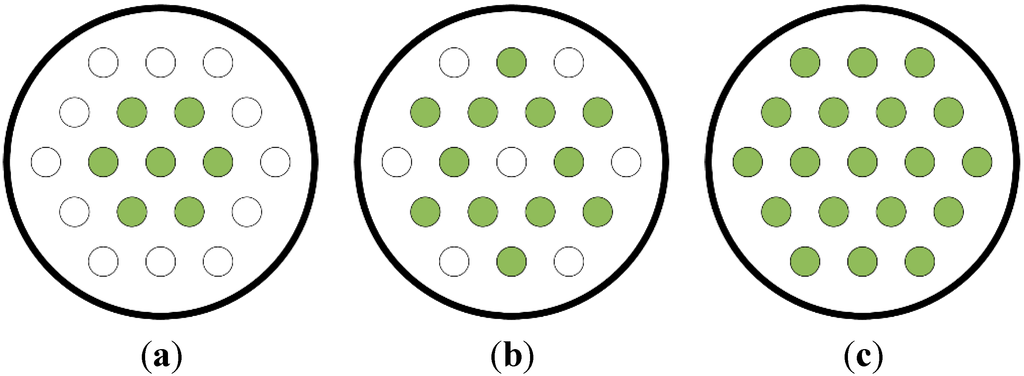

Designation | Number of Tendons | Diameter of Sheath (mm) | Curvature (1/m) |
---|---|---|---|
7-1 | 7 | 66 | 0.0306 |
7-2 | 0.0194 | ||
7-3 | 0.0118 | ||
7-4 | 0.0000 | ||
12-1 | 12 | 85 | 0.0306 |
12-2 | 0.0194 | ||
12-3 | 0.0118 | ||
12-4 | 0.0000 | ||
19-1 | 19 | 100 | 0.0306 |
19-2 | 0.0194 | ||
19-3 | 0.0118 | ||
19-4 | 0.0000 |
3. Results

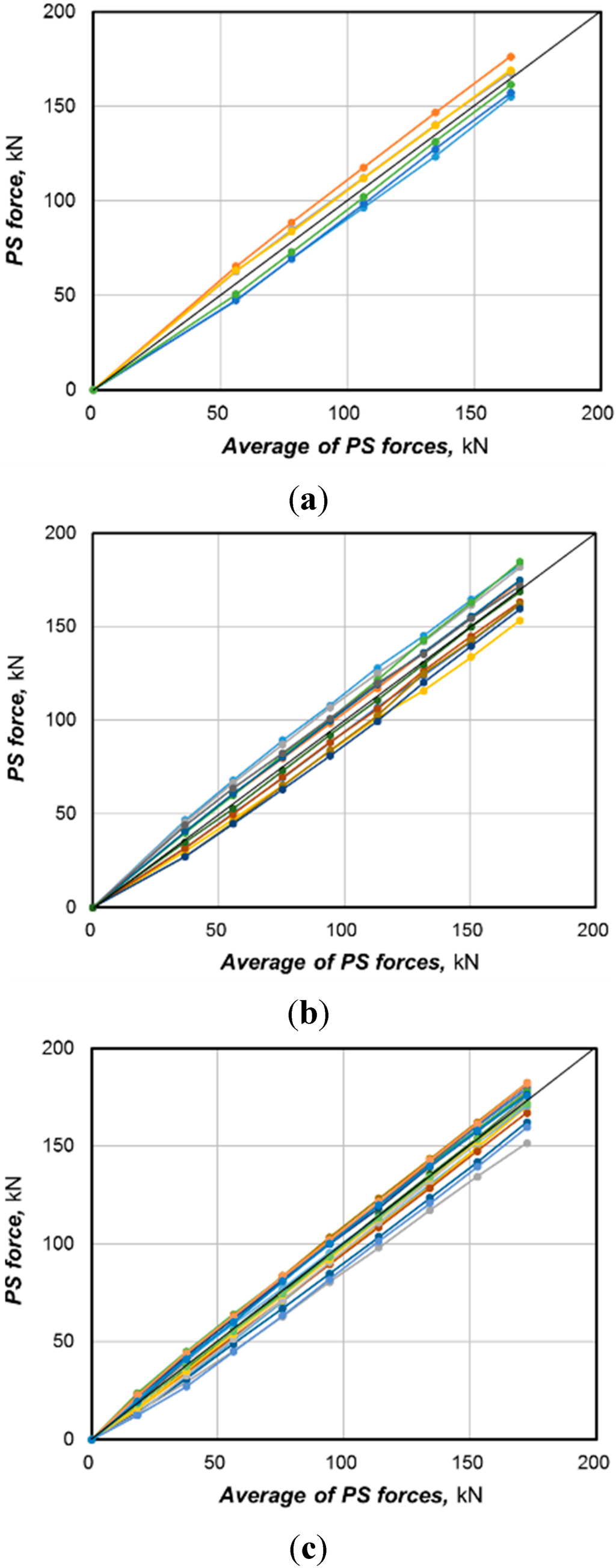

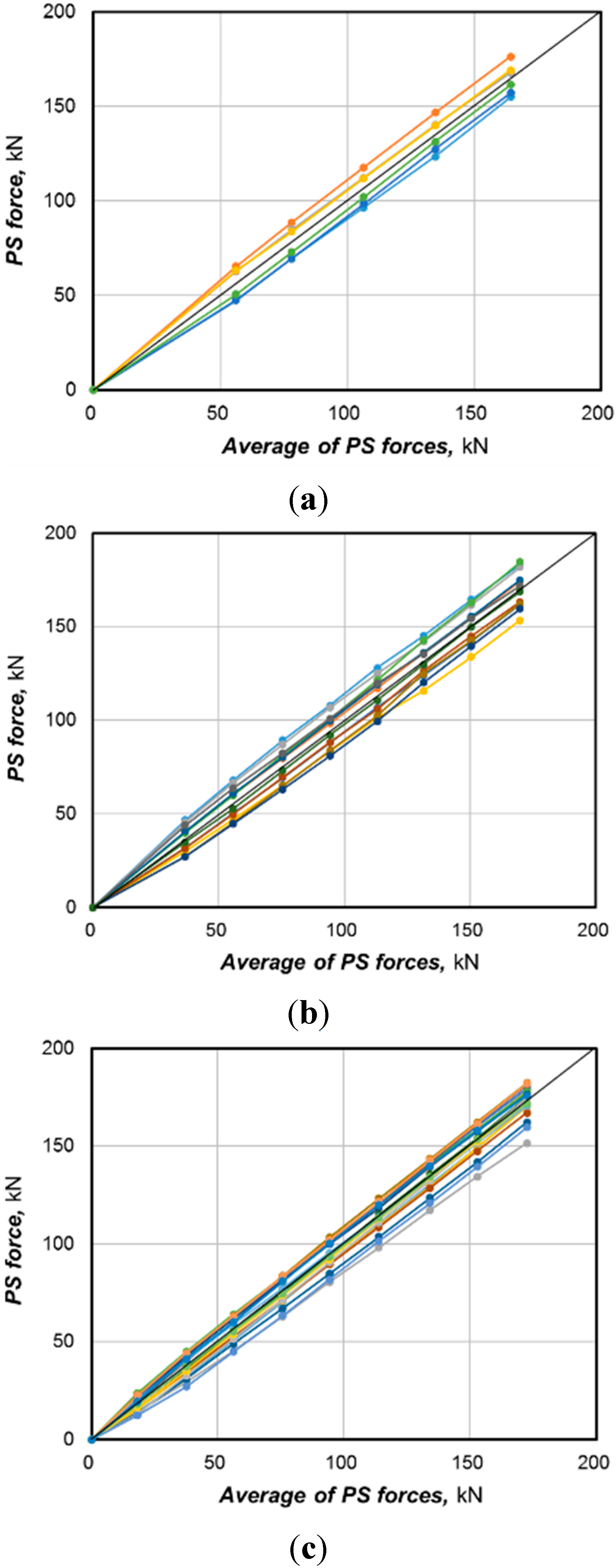

Specimen | Number of Holes | Curvature, 1/m | Average Prestress Force, kN | Std. Deviation of Prestress Force, kN | Min. Prestress Force, kN | Min. Prestress Force, kN |
---|---|---|---|---|---|---|
7-1 | 7 | 0.0306 | 164.5 | 7.4 | 155.0 | 176.4 |
7-2 | 7 | 0.0194 | 168.0 | 6.6 | 158.8 | 177.9 |
7-3 | 7 | 0.0118 | 170.2 | 8.6 | 156.7 | 187.8 |
7-4 | 7 | 0.0000 | 170.3 | 8.2 | 160.1 | 187.8 |
12-1 | 12 | 0.0306 | 170.0 | 9.7 | 153.5 | 184.7 |
12-2 | 12 | 0.0194 | 170.3 | 9.1 | 155.4 | 183.8 |
12-3 | 12 | 0.0118 | 170.8 | 6.3 | 161.2 | 181.7 |
12-4 | 12 | 0.0000 | 170.3 | 6.3 | 161.1 | 183.9 |
19-1 | 19 | 0.0306 | 172.5 | 7.8 | 151.5 | 182.3 |
19-2 | 19 | 0.0194 | 172.9 | 7.3 | 158.7 | 190.6 |
19-3 | 19 | 0.0118 | 172.5 | 9.0 | 148.6 | 187.2 |
19-4 | 19 | 0.0000 | 171.8 | 7.6 | 159.2 | 188.6 |
Average | 170.3 | 7.8 | 156.7 | 184.4 |

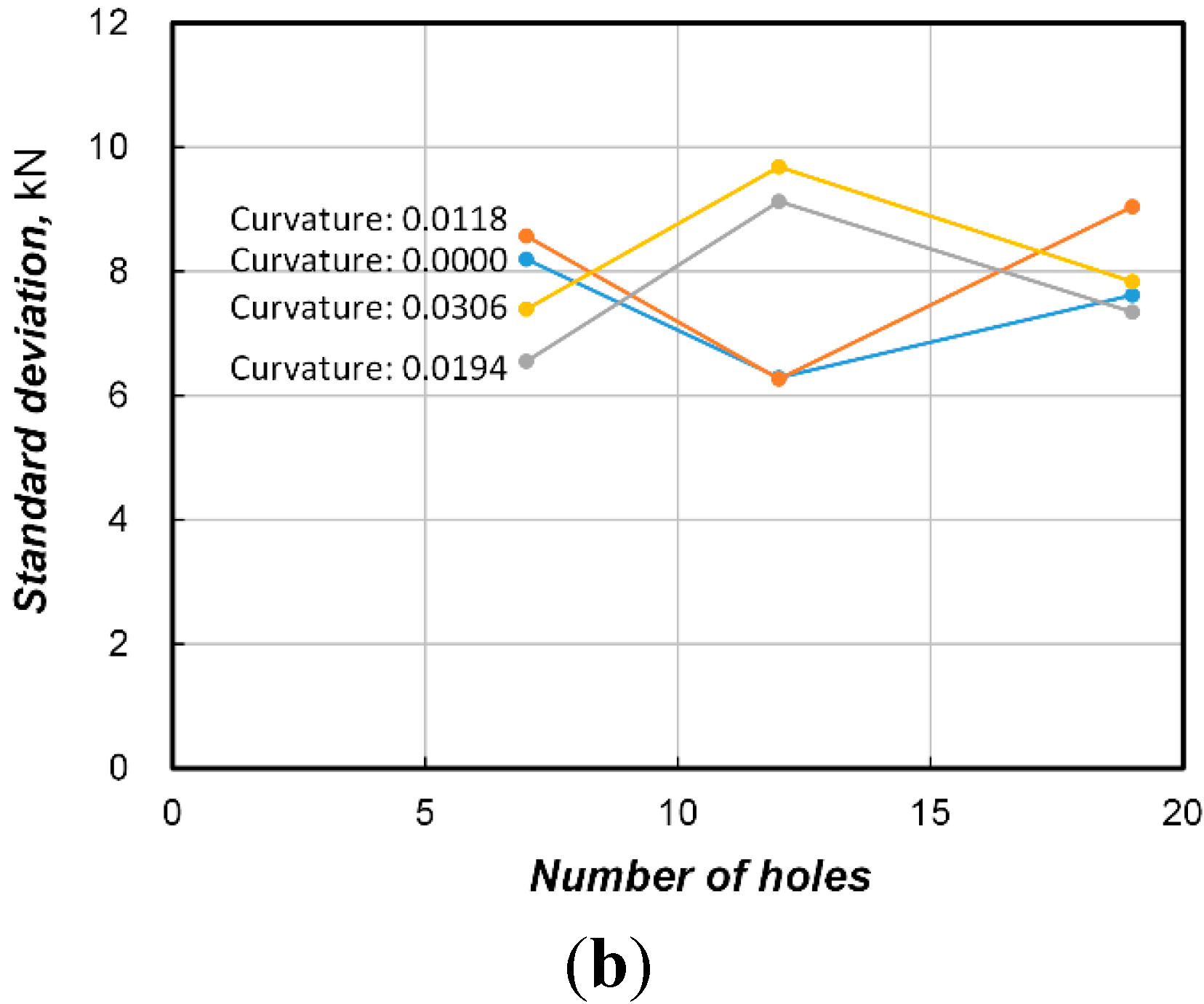

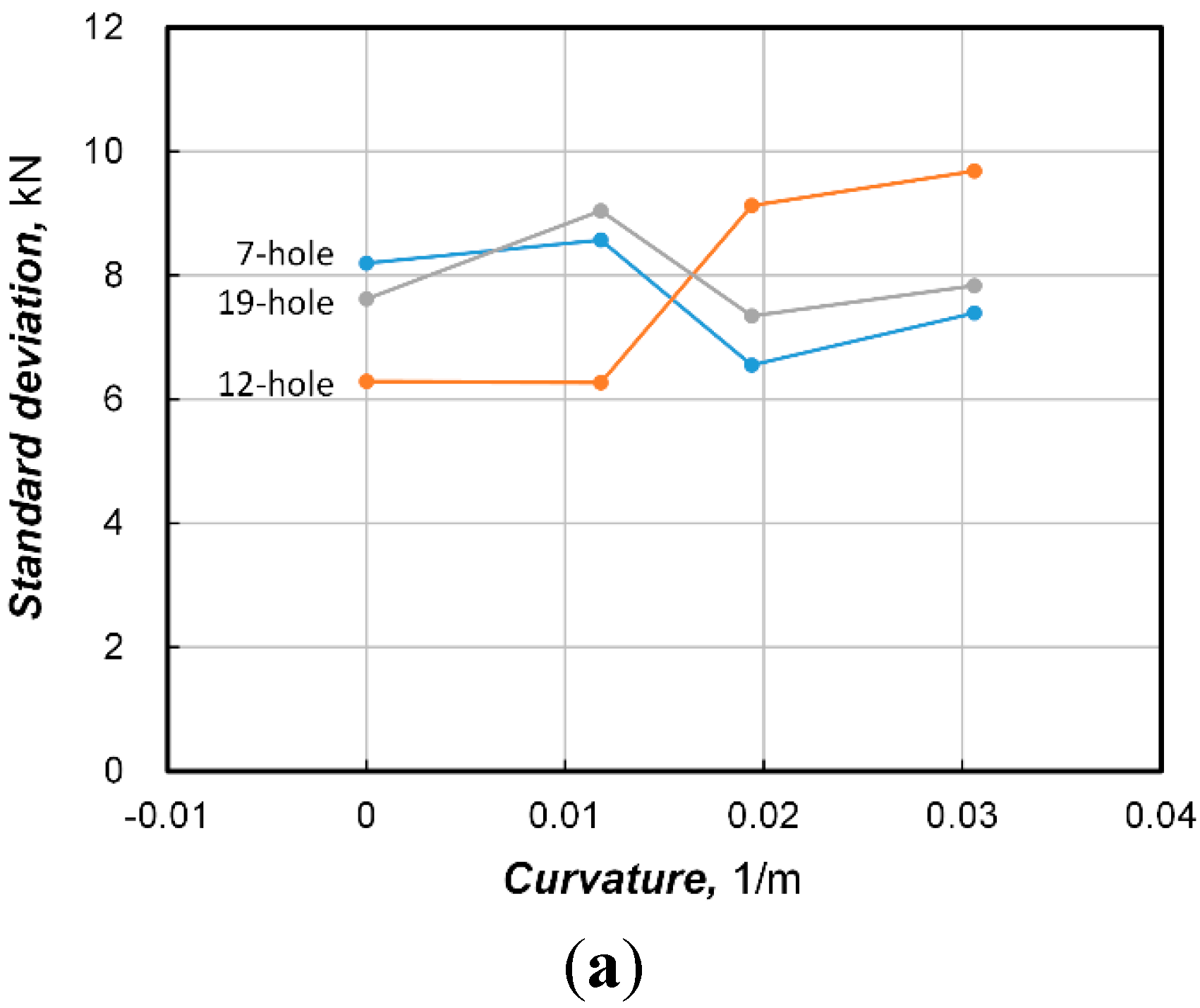

4. Discussion

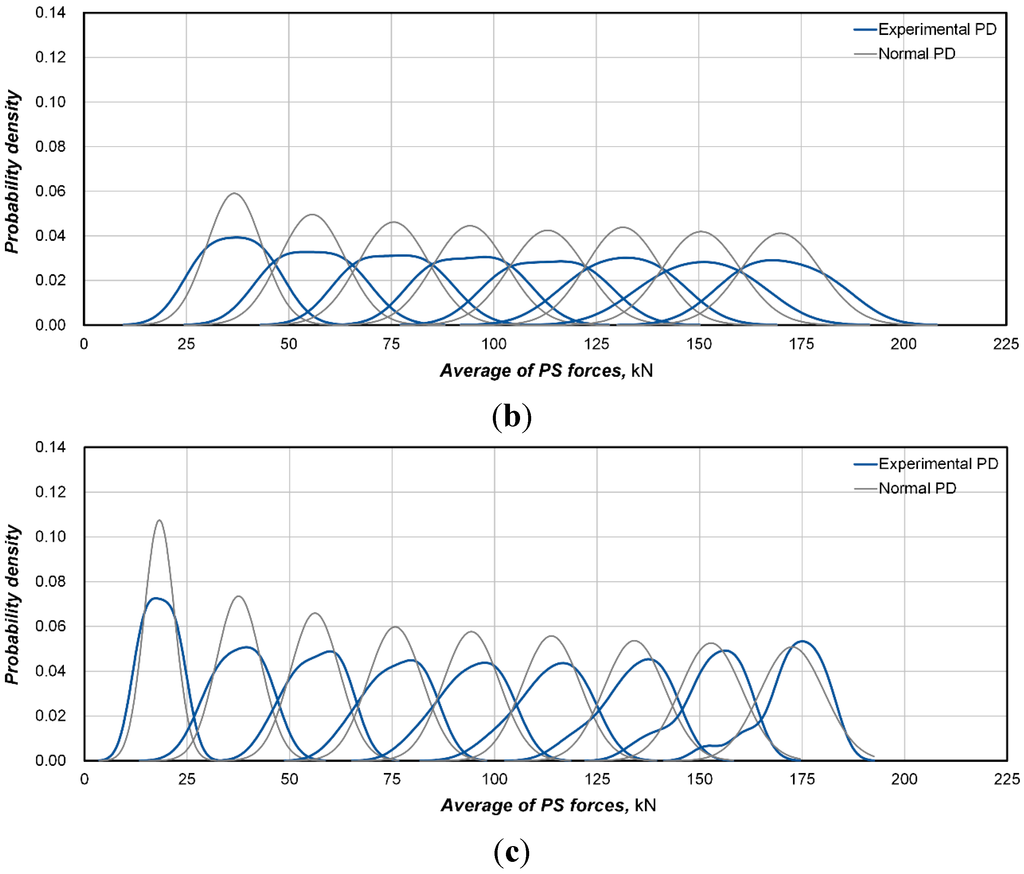

4.1. Check for Normality

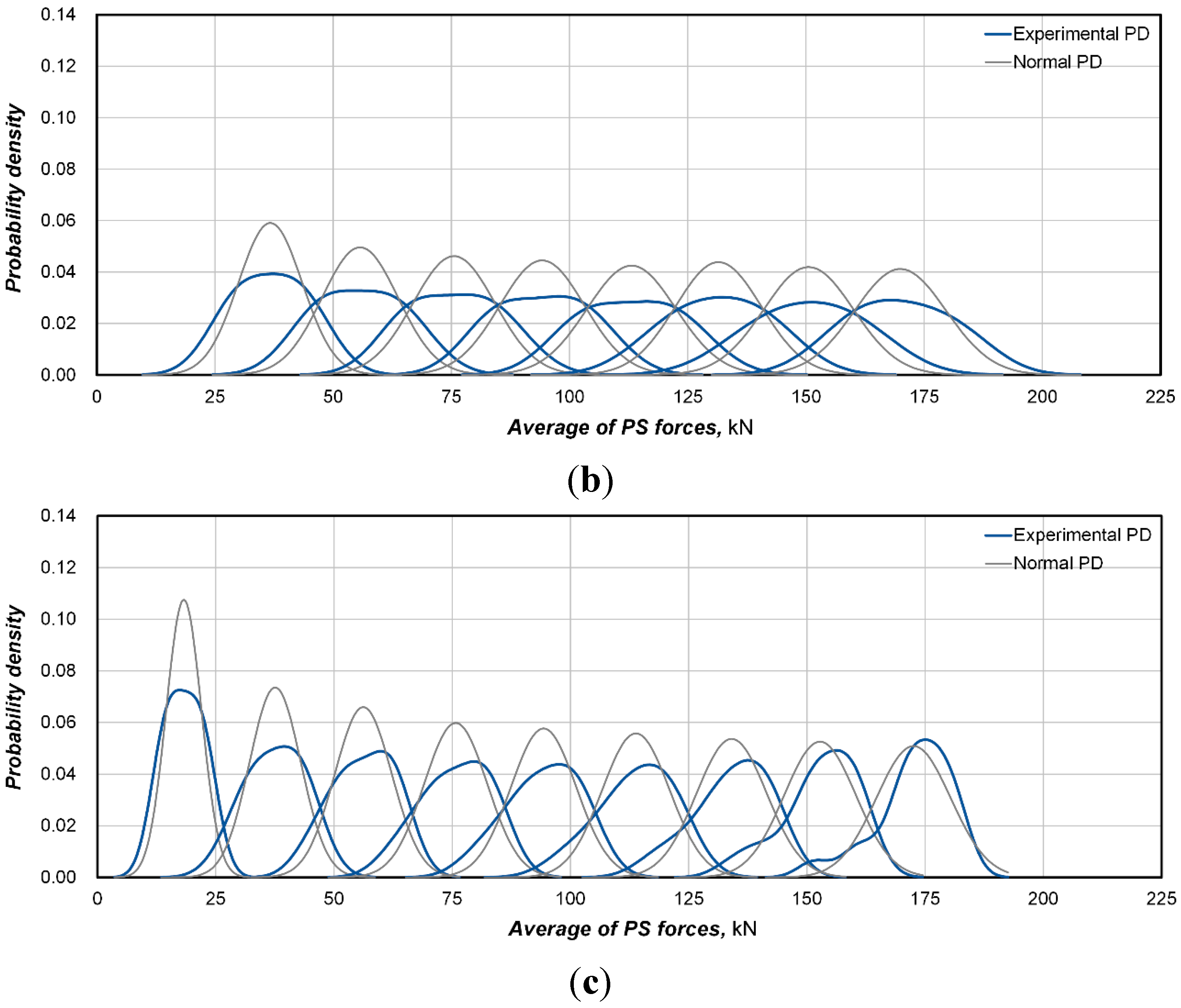

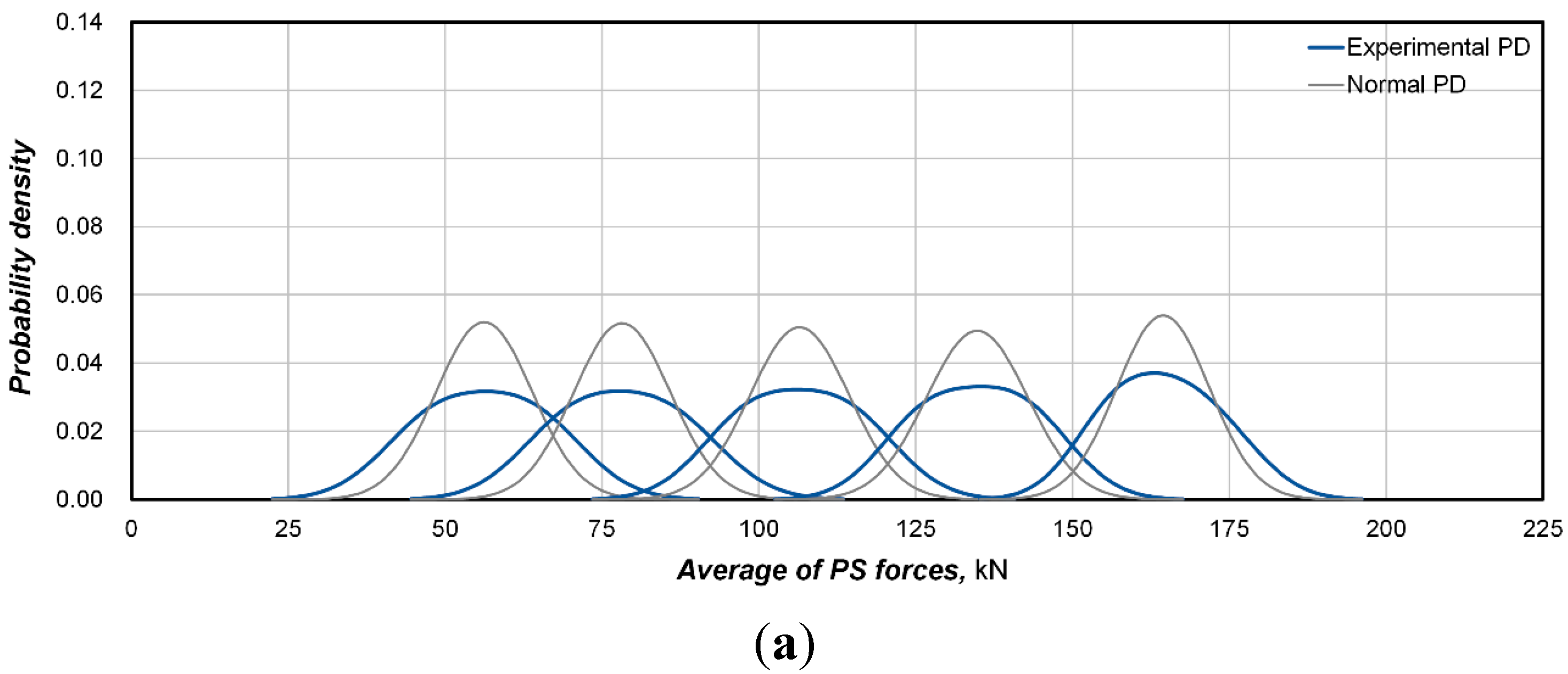

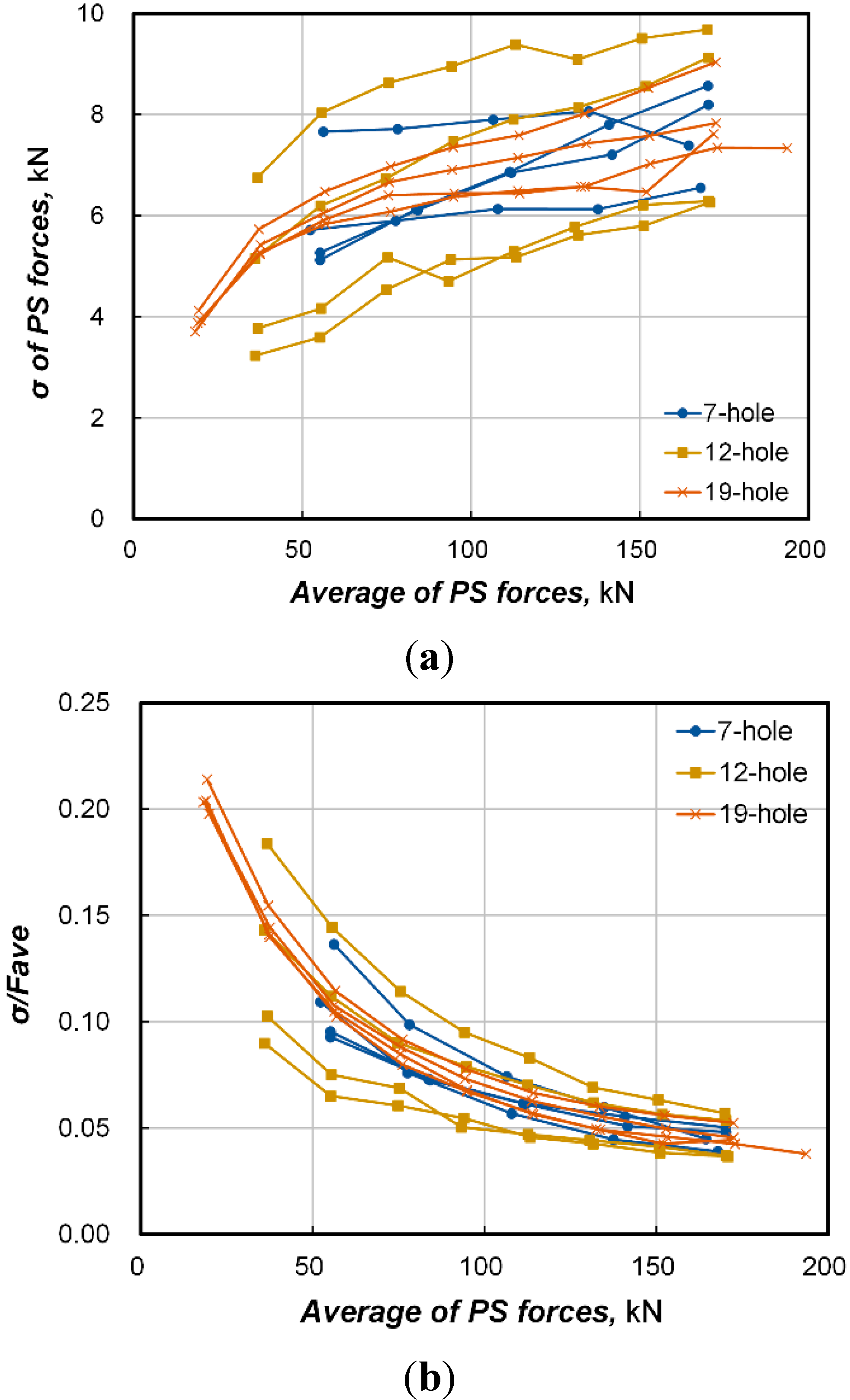

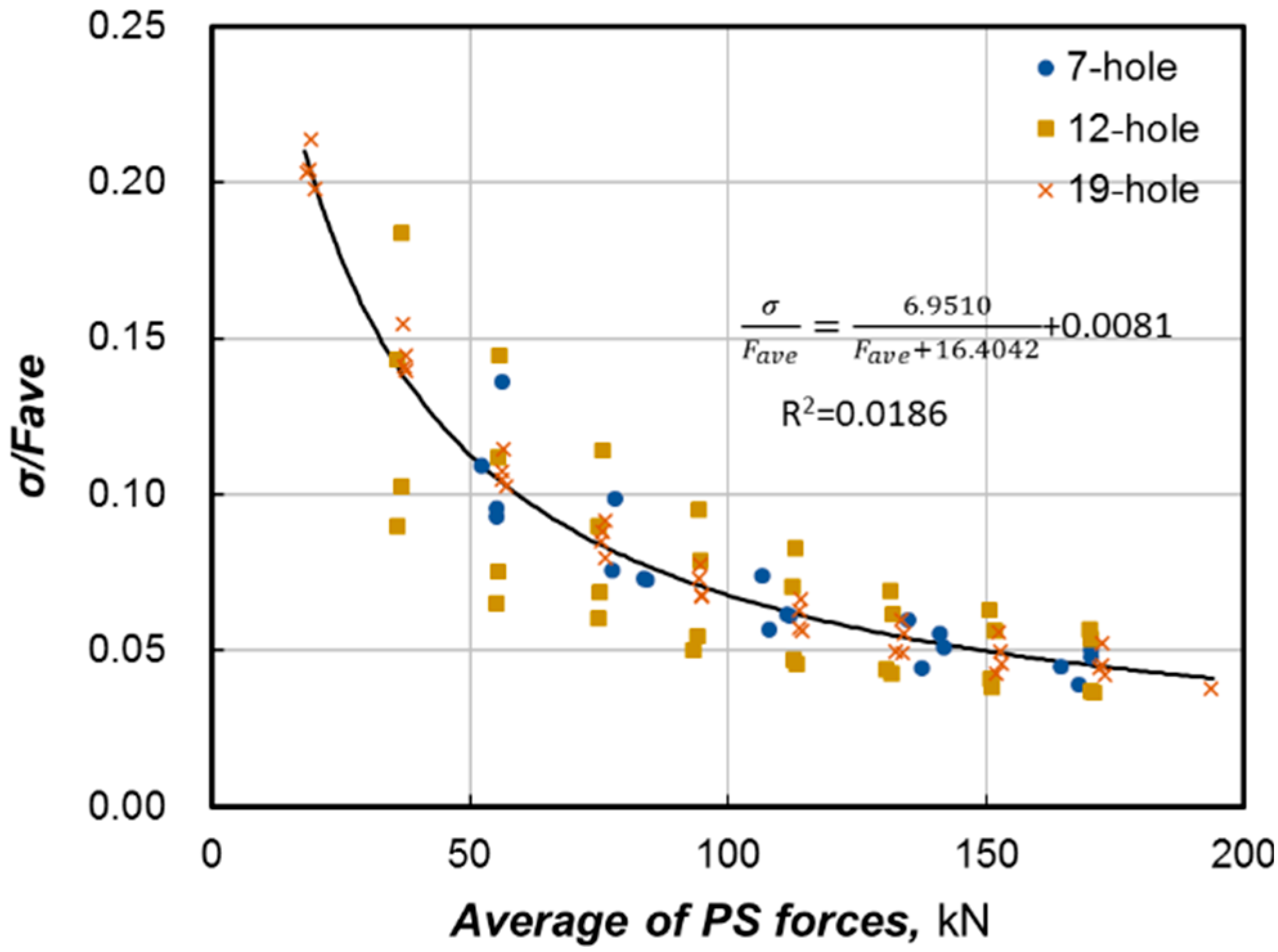

4.2. Derivation of Prestress Force Distribution Curve

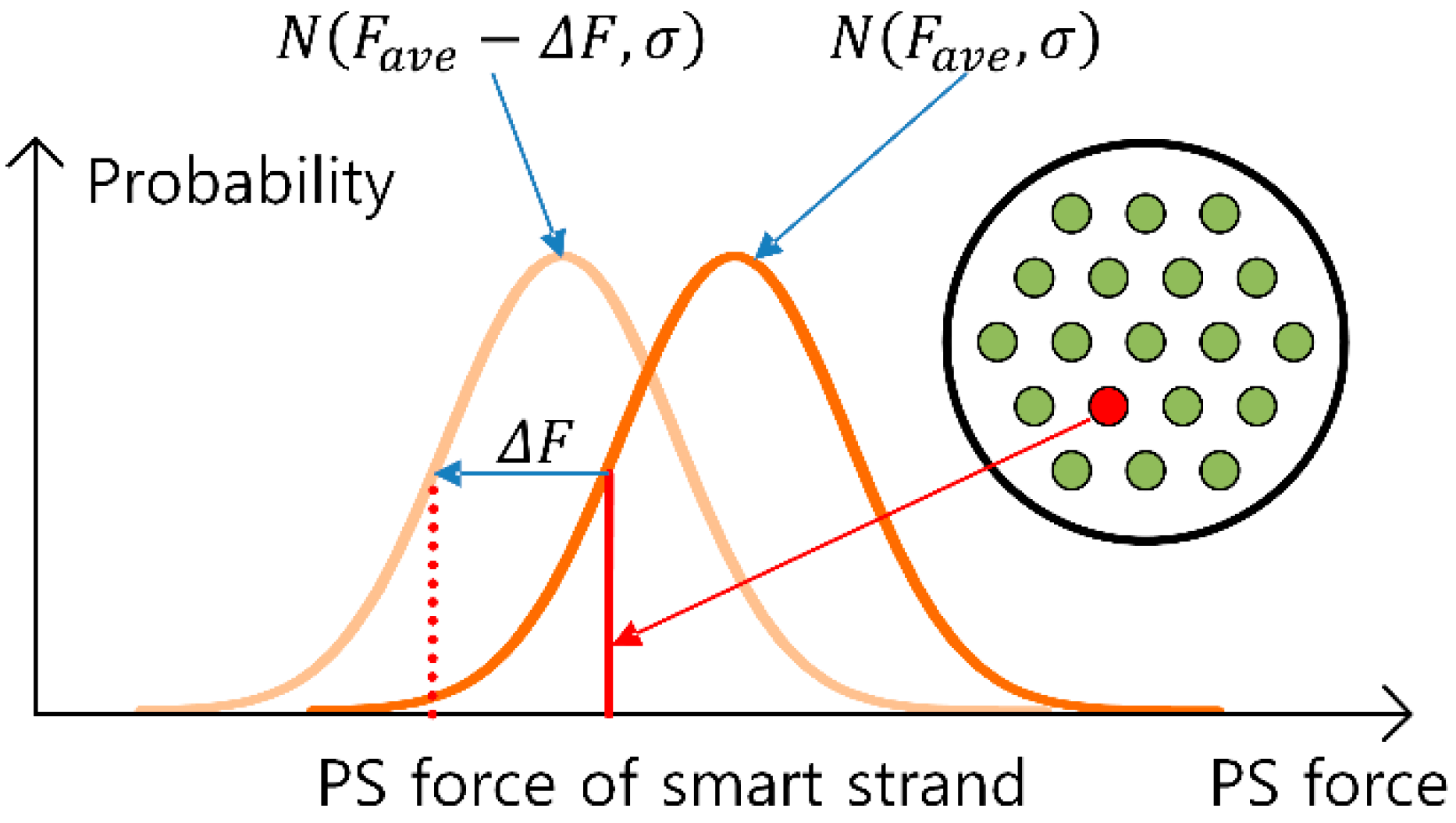

4.3. Estimation of Changes in Prestress Force Distribution
5. Conclusions
