Article

A Kalman Filter-Based Short Baseline RTK Algorithm for Single-Frequency Combination of GPS and BDS

Department of Electronic Engineering, Tsinghua University, No.1 Qinghuayuan, Haidian District, Beijing 100084, China
*
Author to whom correspondence should be addressed.
Sensors 2014, 14(8), 15415-15433; https://doi.org/10.3390/s140815415
Received: 25 June 2014 / Revised: 11 August 2014 / Accepted: 13 August 2014 / Published: 20 August 2014
(This article belongs to the Special Issue Positioning and Tracking Sensors and Technologies in Road Transport)

Abstract

: The emerging Global Navigation Satellite Systems (GNSS) including the BeiDou Navigation Satellite System (BDS) offer more visible satellites for positioning users. To employ those new satellites in a real-time kinematic (RTK) algorithm to enhance positioning precision and availability, a data processing model for the dual constellation of GPS and BDS is proposed and analyzed. A Kalman filter-based algorithm is developed to estimate the float ambiguities for short baseline scenarios. The entire work process of the high-precision algorithm based on the proposed model is deeply investigated in detail. The model is validated with real GPS and BDS data recorded from one zero and two short baseline experiments. Results show that the proposed algorithm can generate fixed baseline output with the same precision level as that of either a single GPS or BDS RTK algorithm. The significantly improved fixed rate and time to first fix of the proposed method demonstrates a better availability and effectiveness on processing multi-GNSSs.

1. Introduction

Global Navigation Satellite Systems (GNSSs) have been extensively adopted to provide accurate and continuous positioning, navigation and timing (PNT) services on a global scale. Among GNSSs, China's BeiDou Navigation Satellite System (BDS) has achieved its regional coverage and it has been providing PNT services over China and its surrounding areas since the end of 2012 [1,2]. The regional BDS constellation is comprised of five geo-stationary Earth orbit (GEO) satellites, five inclined geosynchronous orbit (IGSO) satellites and four medium Earth orbit (MEO) satellites and will evolve into a constellation with 5 GEOs + 3 IGSOs + 27 MEOs by 2020 to realize its global service [3,4].

A GNSS receiver senses the carrier's position information, whose precision can be significantly improved with a multitude of carrier phase based techniques among which the real time kinematic (RTK) algorithm is known for its real-time and high-precision features. Compared with single point positioning using only pseudorange measurements, RTK utilizes the signal carrier phase information which is more precise than the pseudorandom code measurements and has the potential to diminish the position error to centimeter level [5]. Another feature is its use of real-time broadcast satellite navigation messages other than post-processed precise ephemeris products frequently adopted in non-real-time applications including relative static positioning that requires higher precision and precise point positioning (PPP). However, RTK requires a higher quality and a larger number of received navigation signals than pseudorange-based positioning methods to guarantee its high-precision and continuous performance which limits its availability and reliability. With the combination of GPS and BDS, the number of satellites available for users is increased, which has a potential to improve the positioning precision and availability for RTK. Motivated by the fast development of BDS, recent research works have begun to study the feasibility and methods to exploit the ability of BDS for real time high-precision positioning. The contribution in [6] utilized simulated single-epoch measurements to evaluate the RTK performance on BDS multi-frequency signals. The raw measurement characteristics are analyzed and the single point and short baseline relative positioning results were demonstrated in [7]. Another study in [8] focused on the measurement quality of BDS GEO and IGSO satellites and compared the single point and relative positioning performance between BDS and GPS. The research of [9] illustrated the RTK performance improvement of a combination of BDS and GPS over a single system with a single-epoch ambiguity resolution method. Work in [10] analyzed the single-baseline observation model and assessed the relative positioning performance of GPS+BDS with also a single-epoch ambiguity resolution.

In this work, we first analyze the measurement model of double-differenced (DD) carrier phases and pseudoranges based on which a Kalman filtering model that utilizes previous and current measurement information to estimate the carrier phase float ambiguities is proposed. This model can process carrier phase and pseudorange measurements from a sole constellation of BDS or GPS. We adapt the original model to the dual-constellation case and use measurements from both systems as input to the Kalman filter to estimate all float ambiguities and their variances, and then we resolve the integer ambiguities of the two constellations simultaneously. Due to the larger number of visible satellites than either single constellation, this combined method has the potential to increase the availability of RTK. We also propose an implementation scheme with details including filter parameter setting, satellite rising/setting handling, baseline resolution, etc., which is rarely found in previous literature, and realize it with Matlab code to process the double-differenced measurements from the two systems with different signal frequencies and time frames. Tests using field-collected single-frequency measurement data of GPS and BDS generated by our self-developed receivers from a zero baseline and two short baseline experiments are conducted to validate the proposed model. Results show that high-precision baseline solutions with the same precision level as a sole GPS or BDS RTK method can be obtained by processing the dual-constellation measurements with the proposed model, the percentage of integer ambiguities and fixed baseline in all epochs using double-constellation is higher than using either single constellation, and a shorter convergence time to first fix can be obtained as well. This proposed model with implementation details can help the reader to realize his/her own application and also can be extended to multi-constellation and multi-frequency scenarios and can be a guidance for future applications which is the main contribution of this research work.

In the following parts of this paper, we first introduce the GNSS carrier phase and pseudorange measurement model as the foundation of the analysis and derivations in the remaining sections. Next, a Kalman filter-based float ambiguity estimation algorithm is proposed and improved to process the combined GPS and BDS measurements. The architecture and work process of the model are developed and presented in detail. In the experiment part, a zero baseline and two short baseline field tests to validate the proposed model are conducted from which both carrier phase and pseudorange raw measurements of GPS L1 and BDS B1 frequencies are collected. These data are processed by the proposed model to produce baseline and ambiguity solutions. The results from both single GPS and BDS and their combination are compared and analyzed. Finally, a conclusion is drawn and suggestions for future work are presented.

2. Carrier Phase and Pseudorange Measurement Model

Under a single baseline condition, the GNSS receivers at both ends are named “base” and “rover” (subscripts “b” and “r” are used in equations hereinafter) respectively in accordance with literature. The carrier phase and pseudorange measurements from a certain satellite j of an arbitrary constellation observed by the two receivers at a certain epoch can be written as

ρ j , r = λ 1 ( r j , r + I j , r + T j , r ) + f ( δ t r δ t j ) + ɛ j , r
ρ j , b = λ 1 ( r j , b + I j , b + T j , b ) + f ( δ t b δ t j ) + ɛ j , b
ϕ j , r = λ 1 ( r j , r I j , r + T j , r ) + f ( δ t r δ t j ) + N j , r + η j , r
ϕ j , b = λ 1 ( r j , b I j , b + T j , b ) + f ( δ t b δ t j ) + N j , b + η j , b
where ρ and ϕ are pseudorange and carrier phase measurements (unit: carrier cycle), respectively, λ is the carrier wavelength (unit: m), r represents the true geographical distance between the satellite and the receiver (unit: m), T is the tropospheric delay (unit: m), I is the ionospheric delay (unit: m), f is the carrier frequency (unit: Hz), δtr is the receiver clock error (unit: s), δtj is the satellite clock error (unit: s), N is the integer ambiguity, ε and η are measurement errors of pseudorange and carrier phase respectively and their variances can be modeled as a simplified function of the elevation angle based on [11] as given by Equation (5):
σ 2 = a ( b + b / sin 2 θ ) / λ 2
where θ is the elevation angle of the satellite, a and b can be set empirically, for example, we select a = 1 and b = 9e − 6 for carrier phase in the following experiment part.

The single-differenced (SD) measurement model can be obtained by subtracting the base receiver's from the rover receiver's measurements, i.e., Equation (1)Equation (2) and Equation (3)Equation (4):

ρ j , rb = λ 1 ( r j , rb + I j , rb + T j , rb ) + f δ t rb + ɛ j , rb
ϕ j , rb = λ 1 ( r j , rb I j , rb + T j , rb ) + f δ t rb + N j , rb + η j , rb
where the subscript “rb” represents the difference between the corresponding terms of rover and base. It can be seen that δtj as a common error is eliminated by this differencing.

Next, we choose the ith satellite with the highest elevation angle as reference, and the double differences of carrier phases and pseudoranges between other satellites and the reference can be obtained as follows:

ρ ji , rb = λ 1 ( r ji , rb + I ji , rb + T ji , rb ) + ɛ ji , rb
ϕ ji , rb = λ 1 ( r ji , rb I ji , rb + T ji , rb ) + N ji , rb + η ji , rb
where the subscript “ji” represents the measurements of the jth satellites minus that of the ith (reference) satellite.

If there is a short baseline (e.g., 20 km) between the rover and the base, the ionospheric and delays of the two are assumed equal in this work, although they can be kept in the DD equations for further processing if one requires higher precision or needs to estimate ionospheric characteristics. Therefore, the DD I and T terms in Equations (8) and (9) are negligible and they can be rewritten as:

ρ ji , rb = λ 1 r ji , rb + ɛ ji , rb
ϕ ji , rb = λ 1 r ji , rb + N ji , rb + η ji , rb

Equations (10) and (11) give the carrier phase and pseudorange measurement model under the short baseline condition. The baseline vector we need is buried in rji,rb terms. We expand rji,rb and reserve the first-order terms:

r ji , rb = λ 1 ( a j , r a i , r ) T b rb
where aj,r is the normalized line-of-sight (LOS) vector pointing from the rover to the jth satellite, and we assumed that the LOS vector of the rover equals that of the base under short baseline conditions, i.e., aj,r = aj,b. brb is the baseline vector pointing from the base to the rover.

With measurements from single or multiple epochs, the baseline vector brb, the float DD ambiguity Nji,rb and the ambiguity variance-covariance (VC) matrix can be obtained through a weighted least square method that is commonly found in literature, or a Kalman filter that is to be discussed in the following part. An integer searching method such as LAMBDA [12] can be employed to obtain the fixed integer ambiguities that are then used to correct brb to generate a high precision baseline solution.

3. Kalman Filtering for GPS/BDS Float Ambiguity Estimation

Kalman filtering can be used to estimate the baseline vector and the float ambiguities with a full utilization of the a priori knowledge of historical measurements. In this work, we select the three components of the baseline vector and the SD ambiguities as system states. It should be noted that the reason for selecting SD ambiguities rather than their DD counterparts is to avoid the handovers when the reference satellite changes, which is similar to the method in [13]. Of course, as an alternative, DD ambiguities can also be used as states to be estimated, and the reader can refer to Equations (36–39) in [14] to handle the changes of the reference satellite. If there are m satellites observed at a certain epoch, then the system states are expressed as follows:

X = [ x rb , y rb , z rb , N 1 , rb , N 2 , rb , , N m , rb ] T
where x, y and z are the Cartesian components of the baseline vector.

One thing to note here is that the tracked satellite signal may disappear and new satellite may rise into view due to the receiver's dynamics, attitude change and environmental factors which may cause the number of ambiguities in the system states to vary. Measures including storing the rising and setting satellite indices should be taken to handle this situation and the reader can refer to [14].

If a receiver outputs both GPS and BDS measurements, jointly processing them with a Kalman filter may be beneficial for better positioning solutions. We should note that there is only one baseline at a certain epoch no matter which constellation is adopted. This fact produces correlations between the measurements of the two constellations that may not be fully exploited by handling GPS and BDS respectively. For this reason, we include all the SD measurements of both GPS and BDS as well as the baseline elements as the states of the Kalman filter as follows:

X = [ b rb T , ( N float GPS ) T , ( N float BDS ) T ] = [ x rb , y rb , z rb , N 1 , rb GPS , N 2 , rb GPS , , N m , rb GPS , N 1 , rb BDS , N 2 , rb BDS , , N n , rb BDS ] T
where Nfloat is the SD float ambiguity vector of GPS/BDS, the rover and the base have m common GPS satellites and n common BDS respectively, and X has m + n + 3 elements in total.

The baseline at k + 1 th epoch is modeled as the sum of the baseline components at kth epoch and a normally distributed random vector Wb,k as given in Equation (15):

b rb , k + 1 = [ x rb , k + 1 , y rb , k + 1 , z rb , k + 1 ] T = b rb , k + W b , k

The ambiguities remain consistent between epochs unless cycle slip or/and satellite rising/setting happen. Therefore, the ambiguities at k + 1 th epoch equal that of the kth epoch:

N j , rb , k + 1 * = N j , rb , k *
where the superscript “*” represents an arbitrary constellation.

The one-step state transition and measurement equations of the discrete Kalman filter can be written as:

X k + 1 = F k , k + 1 X k + W k
Z k + 1 = [ ϕ GPS T , ϕ BDS T , ρ GPS T , ρ BDS T ] T = h ( X k + 1 ) + V k + 1
where Fk,k+1 is the one-step state transition matrix, Z is the DD carrier phase and pseudorange measurement vector, W and V are process and measurement noises respectively, the non-linear function h() as given in Equations (10) and (11) represents the relationship between the measurements and the states.

The one-step state transition matrix is an identity matrix as follows:

F k , k + 1 = I m + n + 3

By linearizing h(), the measurement matrix H can be obtained as given in Equation (20):

H k = [ H bl , k GPS D GPS H bl , k BDS D BDS H bl , k GPS O H bl , k BDS O ]
where H bl , k GPS is the coefficient matrix of the baseline for GPS measurements, O represents a zero matrix and other matrices are similarly defined. Furthermore, based on Equation (12) and omit the subscript, we get Equation (21) where aj,r is the normalized LOS vector:
H GPS = [ λ GPS 1 ( a 1 , r GPS a i , r GPS ) T λ GPS 1 ( a i 1 , r GPS a i , r GPS ) T λ GPS 1 ( a i + 1 , r GPS a i , r GPS ) T λ GPS 1 ( a m , r GPS a i , r GPS ) T ]

In Equation (20), D is the SD to DD transformation matrix for either GPS or BDS. It should be noted that the reference satellite cannot be a single satellite for both constellations because they have different signal carrier frequencies and their measurements cannot be mutually operated. As a consequence, we have to select two separated reference satellites from each constellation and double-difference the measurements within the single system itself. Take GPS as an example, if there are m common satellites and we choose the ith as the reference, then the DGPS matrix can be written as Equation (22), and DBDS can be derived similarly:

D GPS = [ 1 1 1 1 1 1 1 1 ] ( m 1 ) × m i th column

The Kalman filter equations can be written as follows:

P k + 1 k = F k , k + 1 P k F k , k + 1 T + Q k
K k + 1 = P k + 1 k H T ( H P k + 1 k H T + R k ) 1
P k + 1 = ( I K k + 1 H ) P k + 1 k
X k + 1 k = F k , k + 1 X k
X k + 1 = X k + 1 k + K k + 1 ( Z k + 1 h ( X k + 1 k ) )
where Pk is the VC matrix of the states at kth update, Pk|k+1 is the one-step estimation of Pk, K is the Kalman gain matrix, Q is the process noise VC matrix and can be modeled as Equation (28), where the position related terms are set to infinite (usually a large number in practice) to reduce the dependence on receiver dynamic model, and the ambiguity related terms are set to zero based on its time-invariant feature:
Q = [ 3 × 3 O m × m O n × n ]

R is the VC matrix of the DD measurements as given by Equation (29):

R = [ D GPS R SD ϕ , GPS ( D GPS ) T D BDS R SD ϕ , BDS ( D BDS ) T D GPS R SD ρ , GPS ( D GPS ) T D BDS R SD ρ , BDS ( D BDS ) T ]

The VC matrices of the SD GPS carrier phase and pseudorange measurements ( R SD ϕ and R SD ρ) are given in Equations (30) and (31) respectively, where σ is the variance of the original non-differenced base or rover measurements. The corresponding VC matrices of BDS can be obtained similarly:

R SD ϕ , GPS = [ ( σ 1 , b ϕ , GPS ) 2 + ( σ 1 , r ϕ , GPS ) 2 ( σ m , b ϕ , GPS ) 2 + ( σ m , r ϕ , GPS ) 2 ]
R SD ρ , GPS = [ ( σ 1 , b ρ , GPS ) 2 + ( σ 1 , r ρ , GPS ) 2 ( σ m , b ρ , GPS ) 2 + ( σ m , r ρ , GPS ) 2 ]

Equation (27) contains the non-linear function h() of the baseline vector and LOS vector. The baseline vector and the distance from the receiver to a certain satellite can be estimated by single point positioning and calculating the satellite position with its ephemeris which is not discussed here; the reader can refer to any GPS textbooks such as [15].

4. GPS/BDS Combined RTK Implementation

The implementation of the proposed GPS/BDS RTK model is divided into seven modules as Figure 1 shows, and are presented as follows.

(1)

Single point positioning

The pseudorange measurements from the rover and the base receivers as well as the broadcast ephemeris decoded by the rover receiver are used as the input to this module. An iterative least square (ILS) method as given in [16] (pp. 122–125) is employed to compute the position of the rover (denoted as Xr) and the base (denoted as Xb) receivers as well as the elevation angles of all visible satellites. The widely adopted Klobuchar model [17] and Saastamoinen model [18] are used to compensate the ionospheric and tropospheric delays respectively. When processing dual-constellation measurements, we use GPS to generate the single point positions in our implementation, although either constellation or their combination can be selected. It should be pointed out that the BDS time and GPS time have 14 s difference that has to be taken into account when calculating navigation solutions.

(2)

DD estimation

This module first generates the non-differenced carrier phase and pseudorange estimation using satellite positions from the ephemeris and the single point rover and base positions from the single point positioning module. The Saastamoinen troposphere model and the mapping function given in [19] are selected to reduce the DD residuals and produce more accurate estimations. Next we single-difference those estimations between the rover and the base, and then double-difference them between the reference satellite(s) and the other satellites. The estimated carrier phases and pseudoranges are denoted as ρDD and ϕ)DD respectively.

(3)

Measurement processing

After the measurements have become available as inputs, some processing including detecting cycle slips (e.g., using a loss of lock indicator), handling satellite rising and setting, eliminating satellites below the elevation angle threshold, selecting reference satellite with the largest elevation angle and generating the DD measurements should be done.

(4)

Pre-filter processing

This module processes the float SD ambiguity Nfloat (containing both GPS and BDS ambiguities if handling dual-constellation) and the VC matrix Pk generated from the Kalman filter from the last epoch. If a cycle slip is detected for the pth satellite, the corresponding column and row of Pk will be zeroed, Pk's corresponding diagonal element will be initialized and the pth element of Nfloat will be reset to the difference of the SD carrier phase and the SD pseudorange measurements, i.e., Equation (7)Equation (6). The initialization of the filter at the first epoch can be treated as an all-satellite cycle slip case, i.e., all Pk's diagonal elements and all Nfloat's elements should be initialized. If one new satellite rises, we should add a row and column to Pk and initialize the corresponding diagonal element, and Nfloat should be augmented with the corresponding term from Equation (7)Equation (6) as well. If one satellite that existed at last epoch disappears at the current epoch, then Pk and Nfloat should be shrunk correspondingly. The measurement matrix H is generated in this module based on Equations (20) and (21). At each epoch, we also reset the baseline elements in the state vector to the difference of the single point positions of the rover and the base to avoid dependence on the dynamic features of the base or/and the rover, and reset the corresponding elements in Pk to a user-defined large number.

(5)

Kalman filter

Given the DD measurements as Z in Equation (27), and the updated Pk, Nfloat and brb from the pre-filter module, Equations (23)−(27) can be solved to produce the baseline, float SD ambiguities and the SD VC matrix for the current epoch. Here, h() in Equation (27) can be written as:

h ( X k + 1 | k ) = [ ϕ DD + D N float , ρ DD ] T
where D is the transformation matrix from single to double-differenced measurements for either GPS or BDS as given by Equation (22), or to their combination as given by Equation (33):
D = [ D GPS D BDS ]

(6)

LAMBDA algorithm

The SD Nfloat and its VC matrix PSD (the upper-left 4 3 + m + n rows and 4 3 + m + n column square matrix of Pk) from the Kalman filter can be transformed to their DD counterparts by DNfloat and DPSDD that become the input to the LAMBDA algorithm [12]. The integer DD ambiguity Nint is obtained as the output of this module.

(7)

Baseline output

We use the popular ratio test [20] with a fixed threshold to decide whether to accept the integer ambiguity solution from LAMBDA. The final output of the baseline is given in Equation (34):

X bl = X r X b + ( H ϕ T R ϕ 1 H ϕ ) 1 H ϕ T R ϕ 1 ( ϕ m , DD ϕ DD N )
where H ϕ = [ H bl GPS H bl , k BDS ] is the coefficient matrix for baseline, Rφ is the DD carrier phase measurement VC matrix, φm,DD is the DD carrier phase measurement vector, and φDD is its estimation. If ratio test is passed, then N = Nint and the fixed baseline solution with higher precision is output, else N = Nfloat and the float baseline is output.

5. Experiment Setup and Result Discussion

We use two self-developed GPS/BDS receivers as the base and the rover respectively. The receiver is developed based-on a DSP + FPGA architecture as shown in the right part of Figure 2. It can receive GPS L1/L2 and BDS B1/B2 signals via 96 parallel channels and can process L1 and B1 signals at this moment. We use a commercial survey antenna (left picture of Figure 2) and place it on the rooftop of Weiqing Building, Tsinghua University, Beijing, China.

Three static experiments with a zero baseline, a 5.9 km baseline and a 9 km baseline for each are conducted. The zero baseline experiment is designed to verify the feasibility of the proposed model, and the other two short baseline tests are to evaluate its performance. In the zero baseline test, a radio frequency splitter was connected to the rooftop base antenna so as to split signals for the base and the rover receivers respectively. In the other two experiments, another antenna with the same performance as the base antenna was setup at an open-sky parking lot at the South gate of the North park of the Olympic Forest Park and the rooftop of the office building of China Academy of Civil Aviation Science and Technology respectively. The base and rover locations are drawn in Figure 3. The approximate locations calculated from pseudorange measurements for the base and the rovers in the tests as well as other experiment settings are listed in Table 1. The broadcast ephemeris and raw carrier phase and pseudorange measurements generated by the receivers are recorded during the tests. We implemented the proposed GPS/BDS combined RTK model on Matlab and post-processed the recorded measurements.

Figure 4 is the number of available satellites during the testing period. Figure 5 shows the East, North and Up (ENU) positioning results of the zero baseline experiment. For comparison, the results of processing the single GPS and the single BDS with the same algorithm is included in the figure. Other statistics of the three methods are listed in Table 2. The result validates the feasibility of the proposed GPS/BDS RTK model and shows that the baseline precision of combined GPS and BDS is on the same level as that of handling either single constellation. The proportion of fixed solutions are 100% for all the three methods, i.e., the ratios for all epochs reach above the threshold of 3. There is no difference in the first time to fix between the three approaches and they all enter fixed solution within one epoch. The reason for that should be the zero length of baseline.

The results from the 5.9 km short baseline test as shown in Figures 6, 7 and 8 and Table 3 illustrate some differences from the zero baseline experiment. First, the results demonstrate the effectiveness of the combined-constellation method. Besides that, the results of either single GPS or BDS take some time to enter a fixed solution while the combined method demonstrates a fast convergence as shown in the last row in Table 3. At the same time, the standard deviation as shown in the first three rows in Table 3 for all epochs of the combined method is much smaller than either single constellation method. Actually, for all epochs within the experiment, the overall standard deviation of GPS/BDS combined approach reaches 73.47 mm for East, 42.38 mm for North and 35.76 mm for Up which demonstrates an improvement over the other two methods. If we limit the scope to the fixed solutions, it is notable that all the three methods have similar precision level and the combined method does not show obvious improvement. Moreover, the proportion of fixed solution (ratio > 3) of the combined method (83.42%) is much higher than either single constellation method (39.98% and 34.08% respectively). This improvement shows that the GPS/BDS combination provides the higher availability of satellites and enhance the ability to enter fixed solution and therefore increase the availability of the RTK algorithm and its overall precision.

The “jumps” of ENU baseline solution in Figure 6 are transitions between the float and the fixed solutions for which we only use a hard decision by the ratio threshold to determine if the solution is fixed or not. The ratio values for the three methods shown in the lower part of Figure 8 sometimes fall below the threshold in a sharp manner, and it can be observed from the upper part of Figure 8 that the sharp falls of ratio below the threshold are coincident with new satellite rising. This indicates that the falls are caused by the new rising satellite because, in general, the new rising satellite has a low elevation angle which brings a high risk with relatively low signal-to-noise ratio or/and severe multipath effect. This fact makes the new coming measurements introduce inconsistency into the Kalman filter's VC matrix PSD, and causes the sharp falls of ratio.

The third experiment has a longer baseline (9 km) and a longer testing time (6000 epochs) than the 5.9 km baseline test. Baseline positioning results are shown in Figures 9, 10 and 11 (the variation of the number of satellites with time is shown in the upper part of Figure 11) and Table 4 which show some similarities to that of the 5.9 km baseline experiment. First, the fixed solution proportion of the combined method is higher than either using GPS or BDS. Besides that, a faster converging time to fixed solution is also obtained as shown in Table 4. However, compared with the 5.9 km baseline test, the results demonstrated some differences, e.g., the standard deviations of all the baseline components of GPS and BDS are slightly larger than that of the 5.9 km test which is possibly caused by the longer baseline. Another thing to notice is that the proportion of fixed solutions for either GPS or BDS in 9 km baseline test is higher than that of the 5.9 km baseline test. This is probably due to the smaller proportion of the converging time with a longer time span. However, there is still a gap between the fixed solution proportions of the combined method for the two short baseline tests to 100%, which indicates the limitation of the combined method—it cannot completely solve the problem of availability once and for all, some other measures should be investigated in future work.

6. Conclusions and Outlook

To benefit from more available navigation satellites due to the emergence of new GNSSs such as BDS, this work proposed a GPS/BDS single frequency combined high precision processing model. Kalman filtering is used to jointly process the carrier phase and pseudorange measurements from both constellations to estimate float ambiguities. The RTK algorithm for the dual constellations is discussed and the detailed work process and its implementation are presented by developing and integrating multiple functional modules. Readers can hopefully implement this algorithm without difficulty based on this contribution. The proposed method is validated via processing the field-collected single frequency carrier phase and pseudorange measurements of both GPS and BDS from a zero and two short baseline experiments. The experiment results show that the precision of the proposed method is comparable to the single constellation algorithm; the proportion of fixed solution based on the ratio test is improved and shorter time to first fix is obtained by using this combined method which extends the availability and reliability of the RTK algorithm.

Our future work will include adapting this method to multi-GNSS and multi-frequency applications with the consideration of its computational efficiency and testing its performance under dynamic environments. Other endeavors will lie in the measurement filtering and rejection strategy and optimization of fixed solution criterion that can help improve the solution precision, reliability and proportion of fixed solutions.

Acknowledgments

This work is funded by China Postdoctoral Science Foundation Grant No. 2014M550732 and National Natural Science Foundation No. U1333203. The authors appreciate the support from China Academy of Civil Aviation Science and Technology for providing the test place for one of the experiments.

Conflicts of Interest

The authors declare no conflict of interest.

Author Contributions

The contribution of Sihao Zhao lies in that he analyzed the short baseline measurement model, designed the Kalman filter based algorithm and implemented it in Matlab codes. He also analyzed the experimental results and wrote the original manuscript of this paper. Sihao Zhao and Feng Guan worked together to conduct the experiments and process the collected data. Xiaowei Cui derived some of the equations of the proposed RTK model, double-checked the experiment results and revised the manuscript. Xiaowei Cui and Feng Guan designed the experiments in this work. Mingquan Lu proposed the research direction of this work, reviewed the model and provided instructions on mathematical expressions. He also reviewed the manuscript and modified some figures and tables.

References

  1. China Satellite Navigation Office. BeiDou Navigation Satellite System Open Service Performance Standard; (Version 1.0); China Satellite Navigation Office: Beijing, China, 2013. [Google Scholar]
  2. China Satellite Navigation Office. BeiDou Navigation Satellite System Signal in Space Interface Control Document Open Service Signal; (Version 2.0); China Satellite Navigation Office: Beijing, China, 2013. [Google Scholar]
  3. China Satellite Navigation Office. Report on the Development of BeiDou Navigation Satellite System; (Version 1.0); China Satellite Navigation Office: Beijing, China, 2011. [Google Scholar]
  4. China Satellite Navigation Office. Report on the Development of BeiDou Navigation Satellite System; (Version 2.2); China Satellite Navigation Office: Beijing, China, 2013. [Google Scholar]
  5. Misra, P.; Enge, P. Global Position System, Signals, Measurements, and Performance, 2nd ed; Ganga-Jamuna Press: Lincoln, MA, USA, 2006. [Google Scholar]
  6. Feng, Y.; Li, B. Wide Area Real Time Kinematic Decimetre Positioning with Multiple Carrier GNSS Signals. Sci. China Earth Sci. 2010, 53, 731–740. [Google Scholar]
  7. Montenbruck, O.; Hauschild, A.; Steigenberger, P.; Hugentobler, U.; Teunissen, P.J.G.; Nakamura, S. Initial Assessment of the COMPASS/BeiDou-2 Regional Navigation Satellite System. GPS Solut. 2013, 17, 211–222. [Google Scholar]
  8. Shi, C.; Zhao, Q.; Hu, Z.; Liu, J. Precise Relative Positioning using Real Tracking Data from COMPASS GEO and IGSO Satellites. GPS Solut. 2013, 17, 103–119. [Google Scholar]
  9. He, H.; Li, J.; Yang, Y.; Xu, J.; Guo, H.; Wang, A. Performance Assessment of Single- and Dual-frequency BeiDou/GPS Single-epoch Kinematic Positioning. GPS Solut. 2014, 18, 393–403. [Google Scholar]
  10. Odolinski, R.; Teunissen, P.J.G.; Odijk, D. First Combined COMPASS/BeiDou-2 and GPS Positioning Results in Australia. Part II: Single- and Multiple-frequency Single-baseline RTK Positioning. J. Spat. Sci. 2014, 59, 25–46. [Google Scholar]
  11. Takasu, T. RTKLIB ver. 2.4.2 Manual, 2013 ed.; Tokyo University of Marine Science and Technology: Tokyo, Japan, 2013. [Google Scholar]
  12. Teunissen, P.J.G. The least-square ambiguity decorrelation adjustment: A method for fast GPS ambiguity estimation. J. Geodesy 1995, 70, 55–82. [Google Scholar]
  13. Takasu, T.; Yasuda, A. Kalman-Filter-Based Integer Ambiguity Resolution Strategy for Long-Baseline RTK with Ionosphere and Troposphere Estimation. Proceedings of the 23rd International Technical Meeting of The Satellite Division of the Institute of Navigation, Portland, OR, USA, 21–24 September 2010; pp. 161–171.
  14. Realini, E.; Reguzzoni, M. goGPS: Open Source Software for Enhancing the Accuracy of Low-cost Receivers by Single-frequency Relative Kinematic Positioning. Meas. Sci. Technol. 2013. [Google Scholar] [CrossRef]
  15. Kaplan, E.D.; Hegarty, C.J. Understanding GPS Principles and Applications, 2nd ed; Artech House Inc.: Norwood, MA, USA, 2006. [Google Scholar]
  16. Borre, K.; Akos, D. A Software-Defined GPS and Galileo Receiver: A Single-Frequency Approach; Springer: New York, NY, USA, 2007. [Google Scholar]
  17. Klobuchar, A. Ionospheric Time-delay Algorithm for Single-frequency GPS Users. IEEE Trans. Aerosp. Electron. Syst. 1987, AES-23, 325–331. [Google Scholar]
  18. Saastamoinen, J. Atmospheric correction for the troposphere and stratosphere in radio ranging of satellites. Geophys. Monogr. Ser. 1972, 15, 247–251. [Google Scholar]
  19. Boehm, J.; Niell, A.; Tregoning, P.; Shuh, H. Global Mapping Function (GMF): A new empirical mapping function base on numerical weather model data. Geophys. Res. Lett. 2006. [Google Scholar] [CrossRef]
  20. Verhagen, S.; Teunissen, P.J.G. The Ratio Test for Future GNSS Ambiguity Resolution. GPS Solut. 2013, 17, 535–548. [Google Scholar]

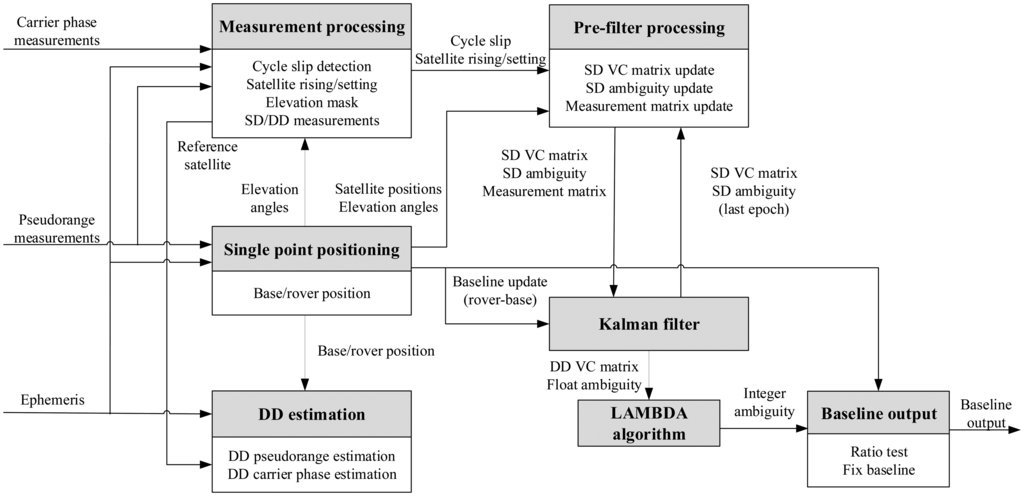

Figure 1. Flowchart of GPS/BDS combined RTK.
Figure 1. Flowchart of GPS/BDS combined RTK.
Sensors 14 15415f1 1024

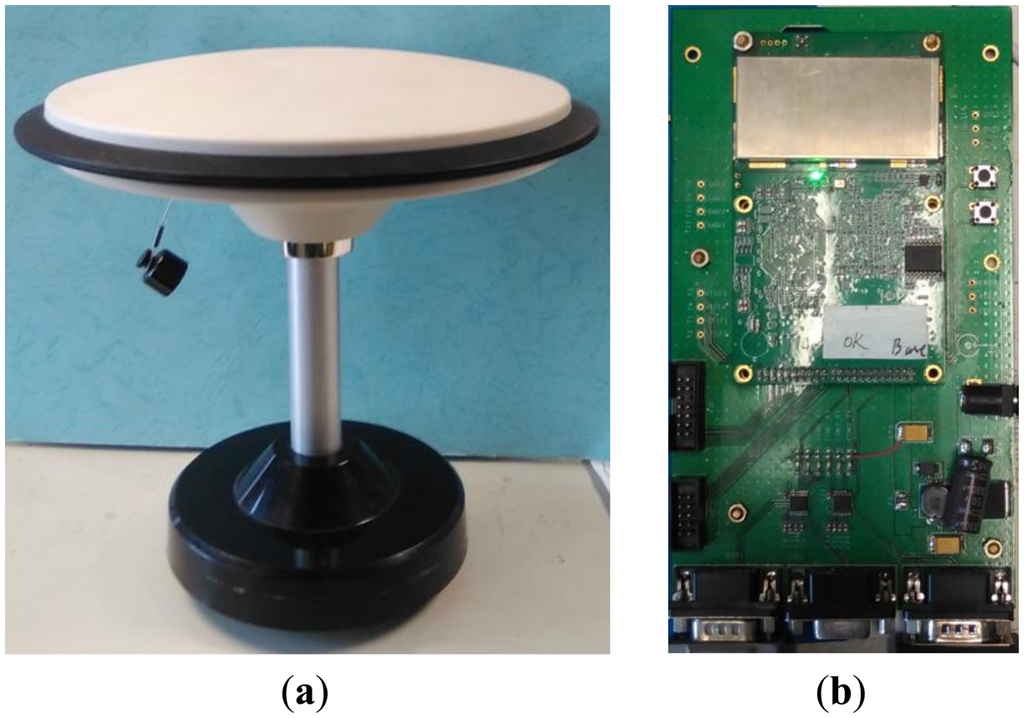

Figure 2. Experiment devices (a) antenna (b) receiver circuit board.
Figure 2. Experiment devices (a) antenna (b) receiver circuit board.
Sensors 14 15415f2 1024

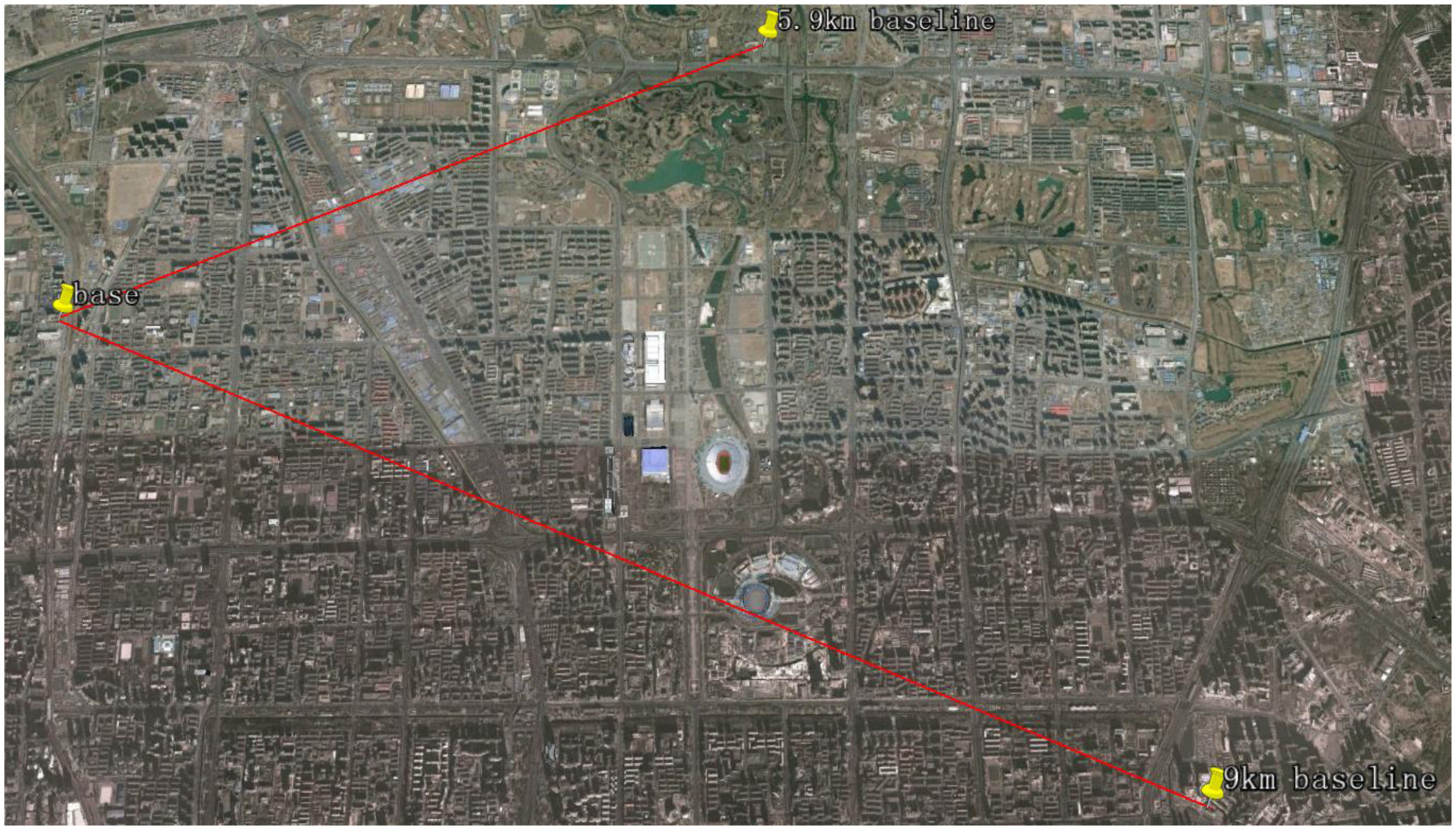

Figure 3. Base and rover locations (from Google Earth).
Figure 3. Base and rover locations (from Google Earth).
Sensors 14 15415f3 1024

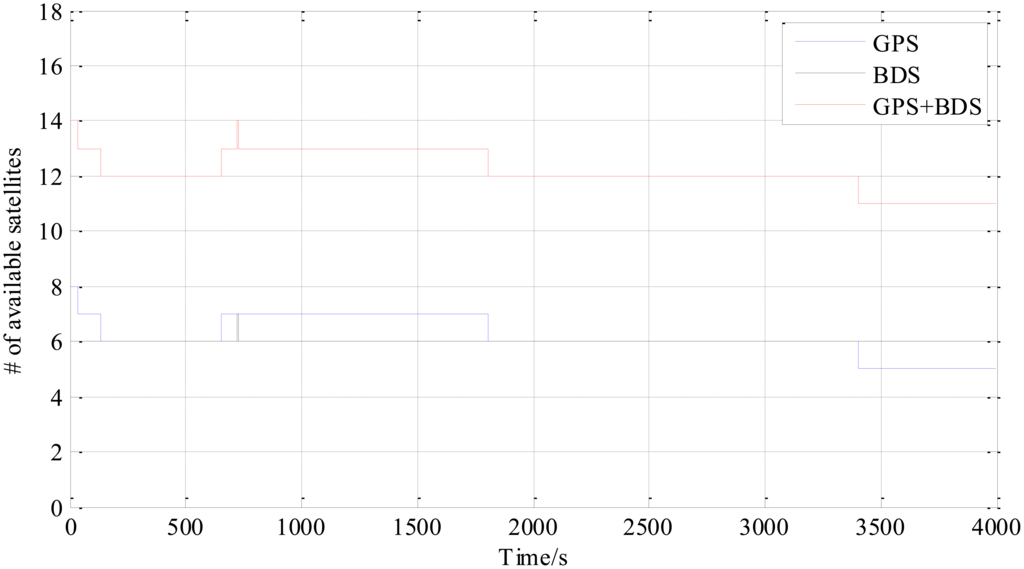

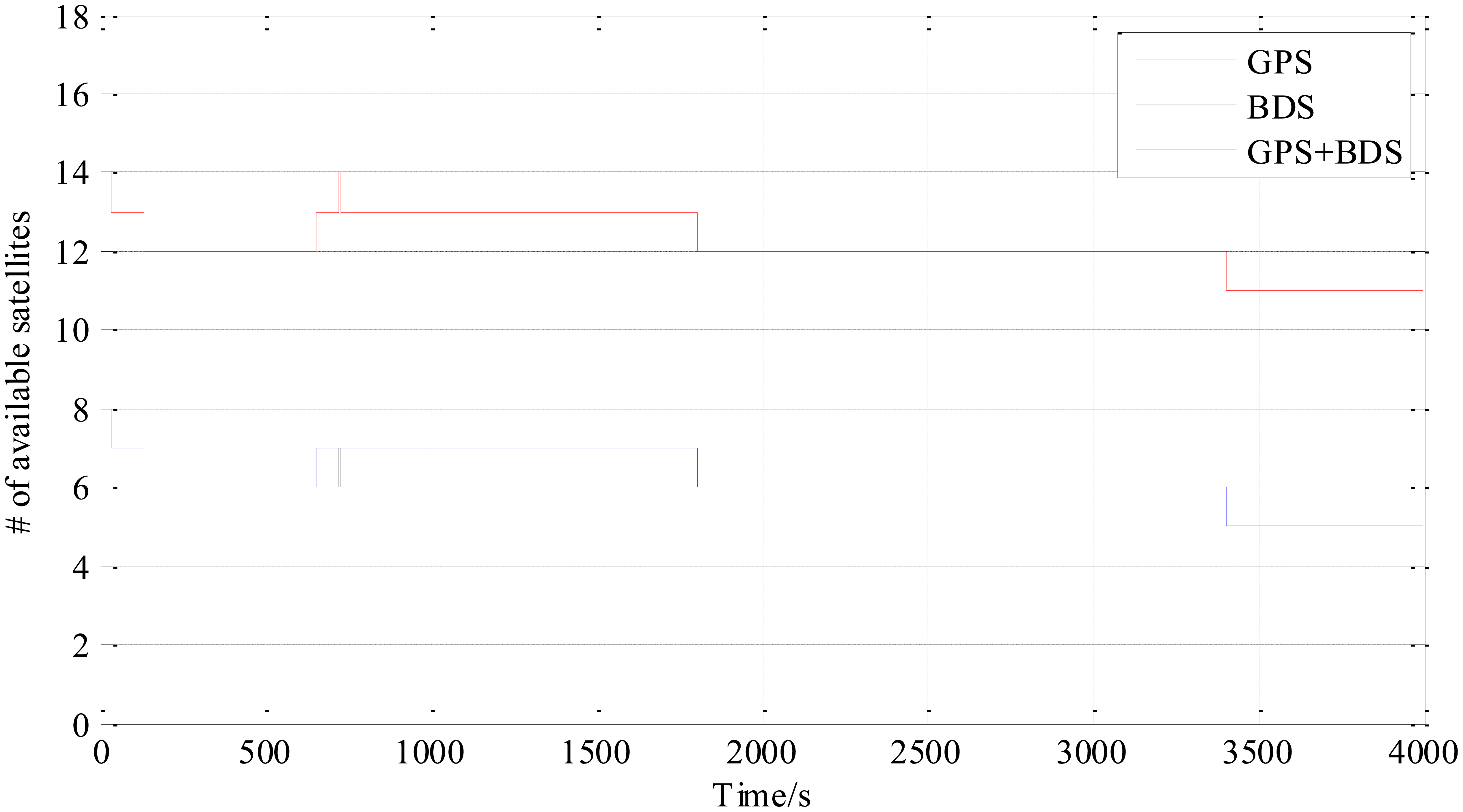

Figure 4. Number of available satellites vs. time.
Figure 4. Number of available satellites vs. time.
Sensors 14 15415f4 1024

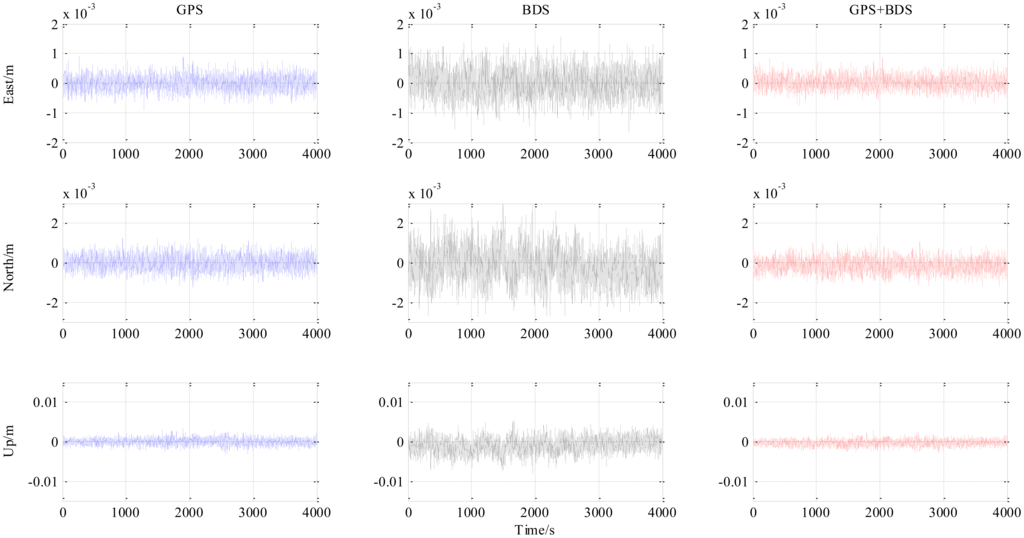

Figure 5. ENU baseline result of zero baseline experiment (all epochs).
Figure 5. ENU baseline result of zero baseline experiment (all epochs).
Sensors 14 15415f5 1024

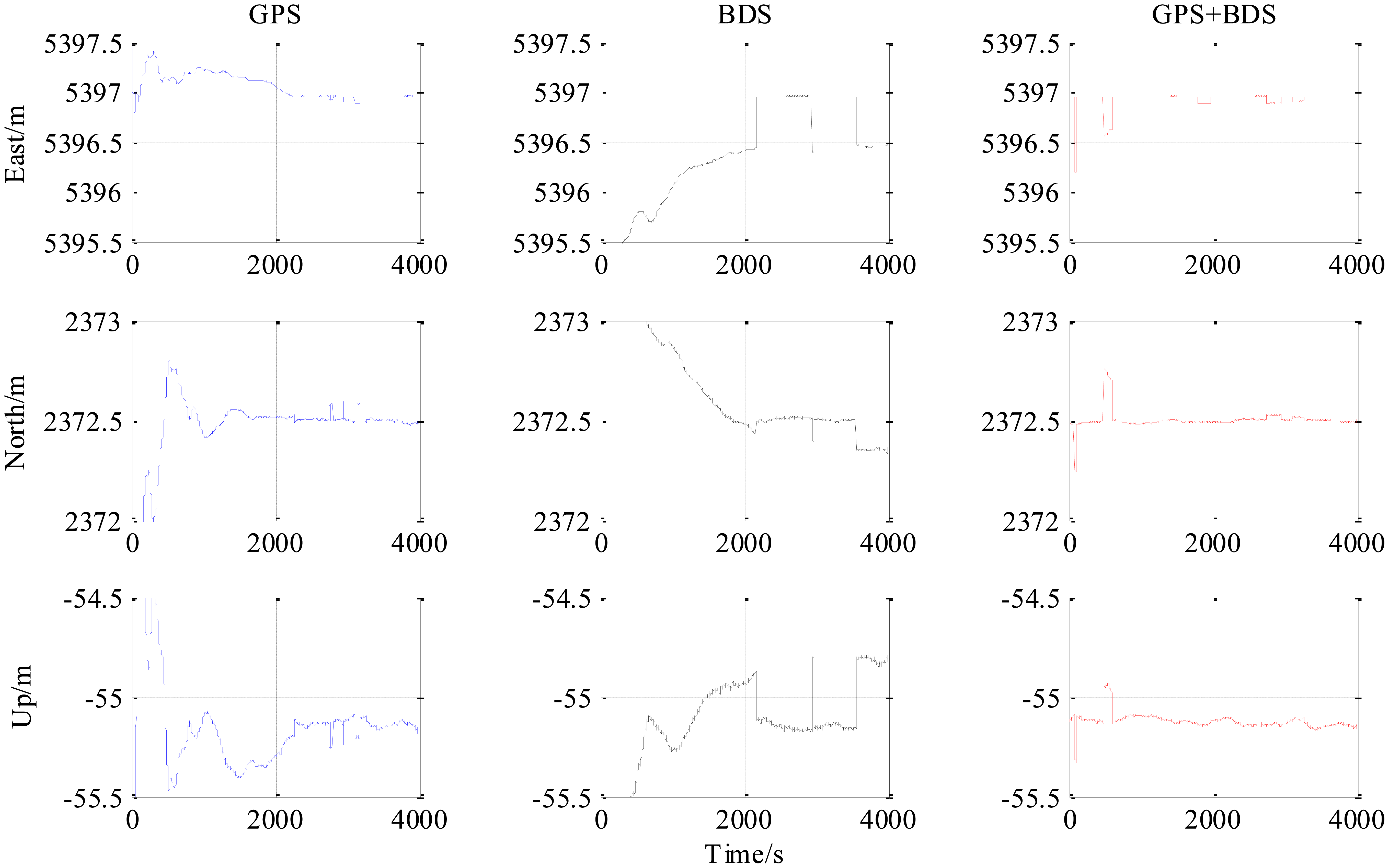

Figure 6. ENU baseline result of 5.9 km baseline experiment (all epochs).
Figure 6. ENU baseline result of 5.9 km baseline experiment (all epochs).
Sensors 14 15415f6 1024

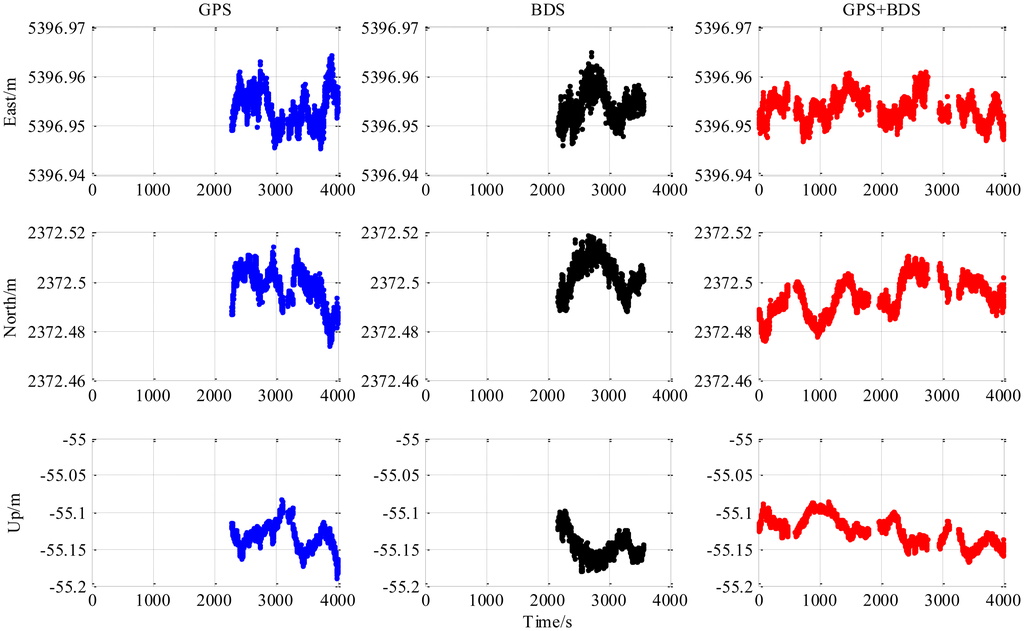

Figure 7. ENU baseline result of 5.9 km baseline experiment (fixed epochs, ratio > 3).
Figure 7. ENU baseline result of 5.9 km baseline experiment (fixed epochs, ratio > 3).
Sensors 14 15415f7 1024

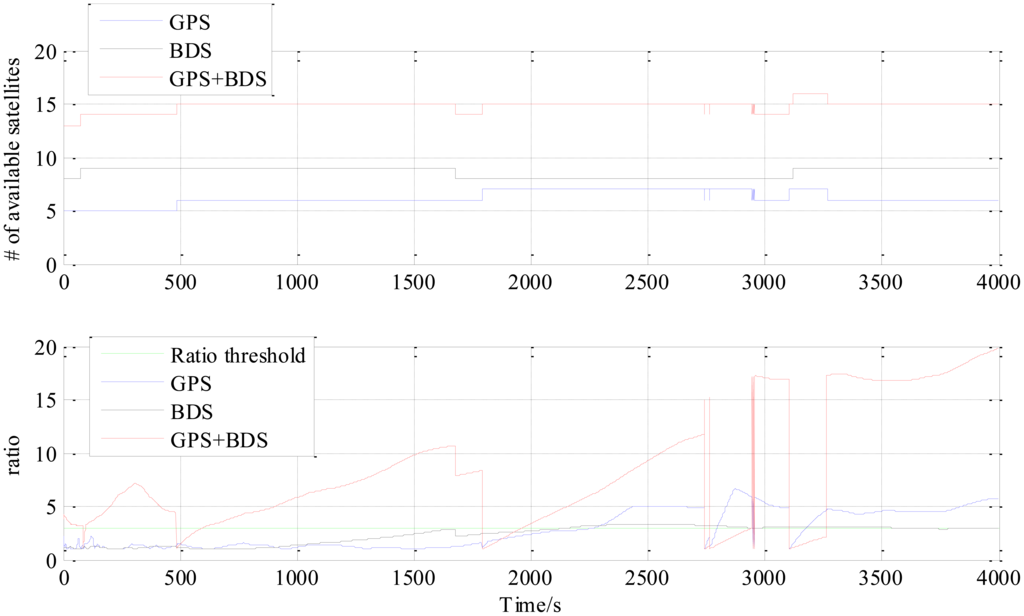

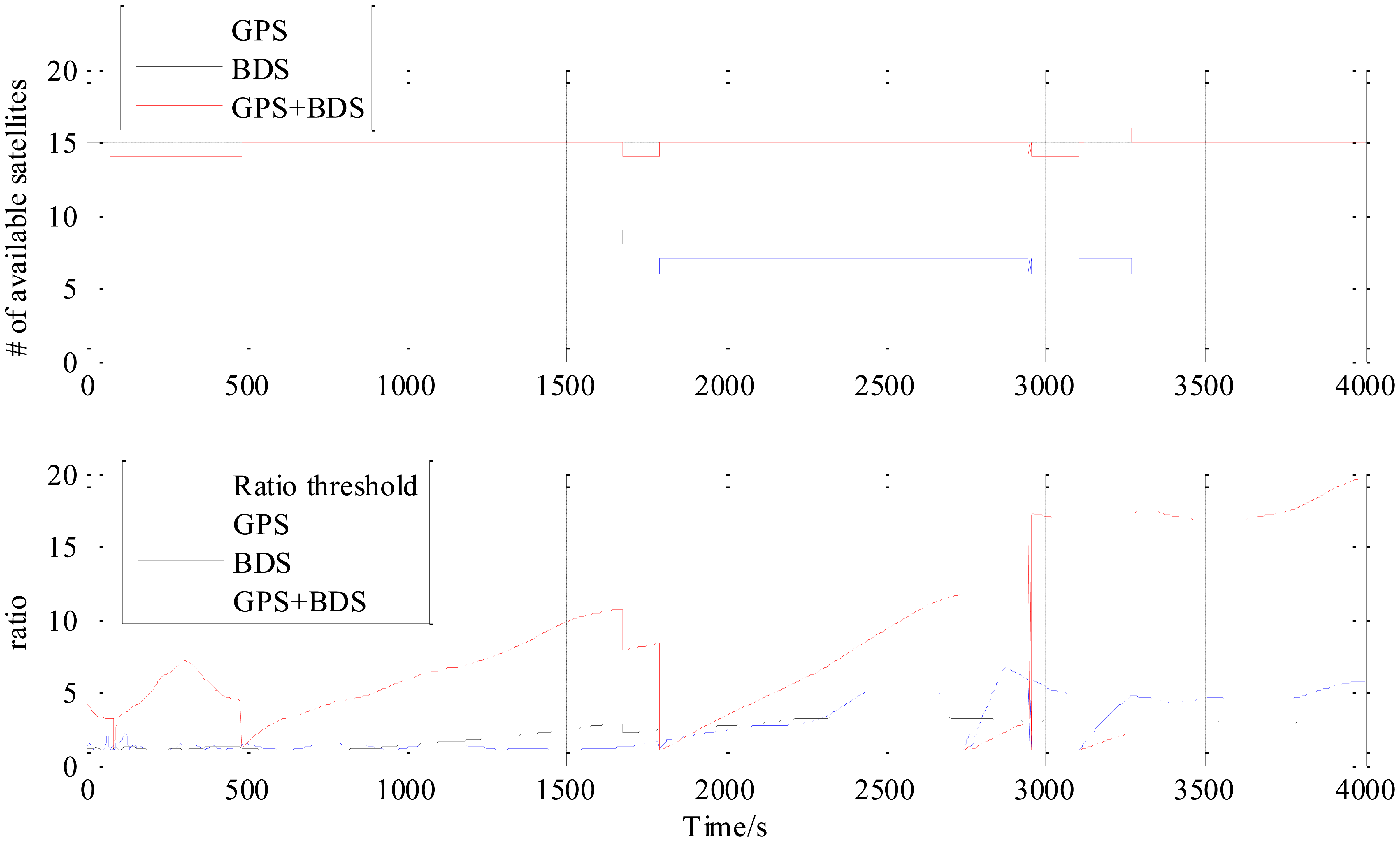

Figure 8. Number of available satellites and ratio vs time of 5.9 km baseline experiment.
Figure 8. Number of available satellites and ratio vs time of 5.9 km baseline experiment.
Sensors 14 15415f8 1024

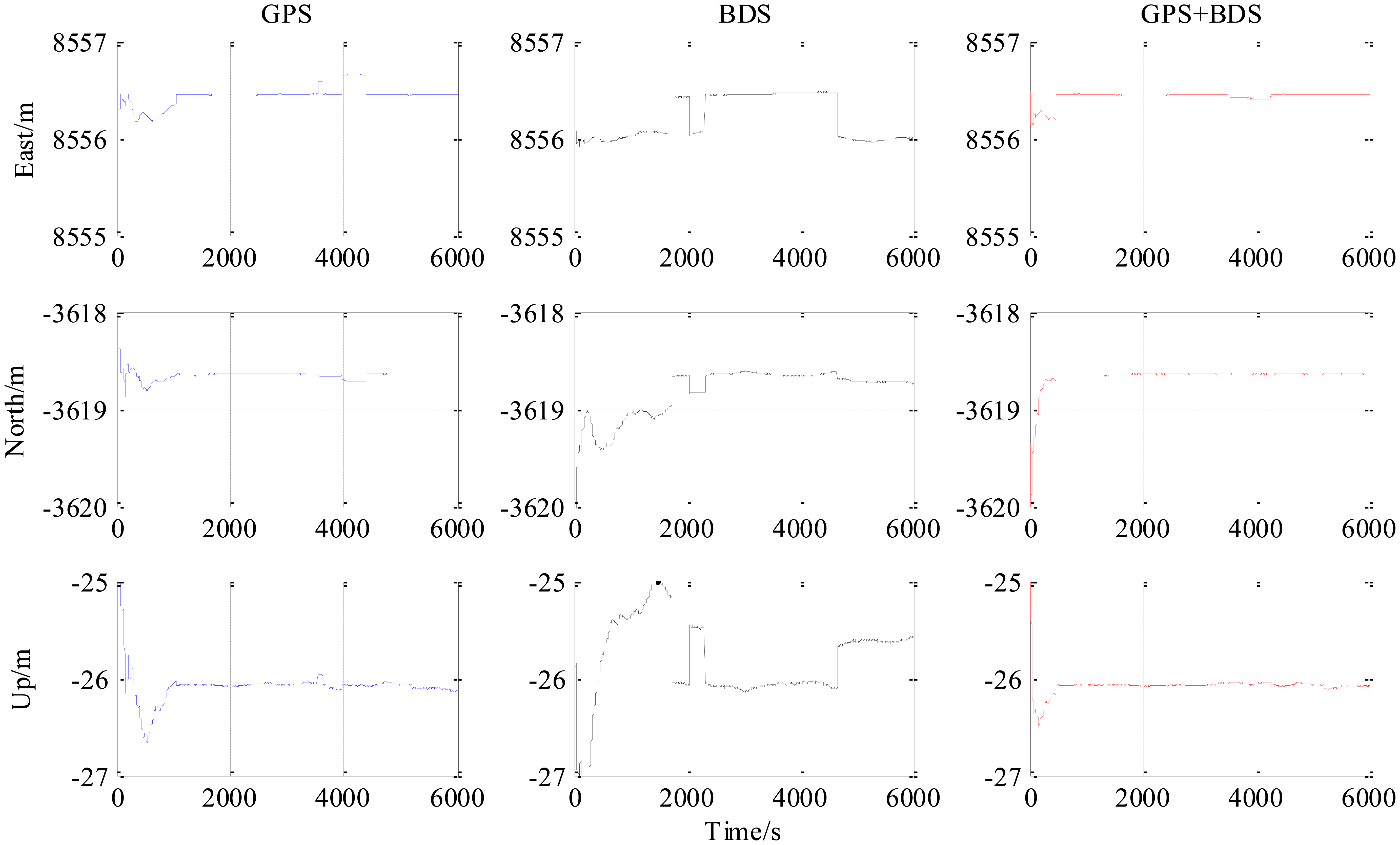

Figure 9. ENU baseline result of 9 km baseline experiment (all epochs).
Figure 9. ENU baseline result of 9 km baseline experiment (all epochs).
Sensors 14 15415f9 1024

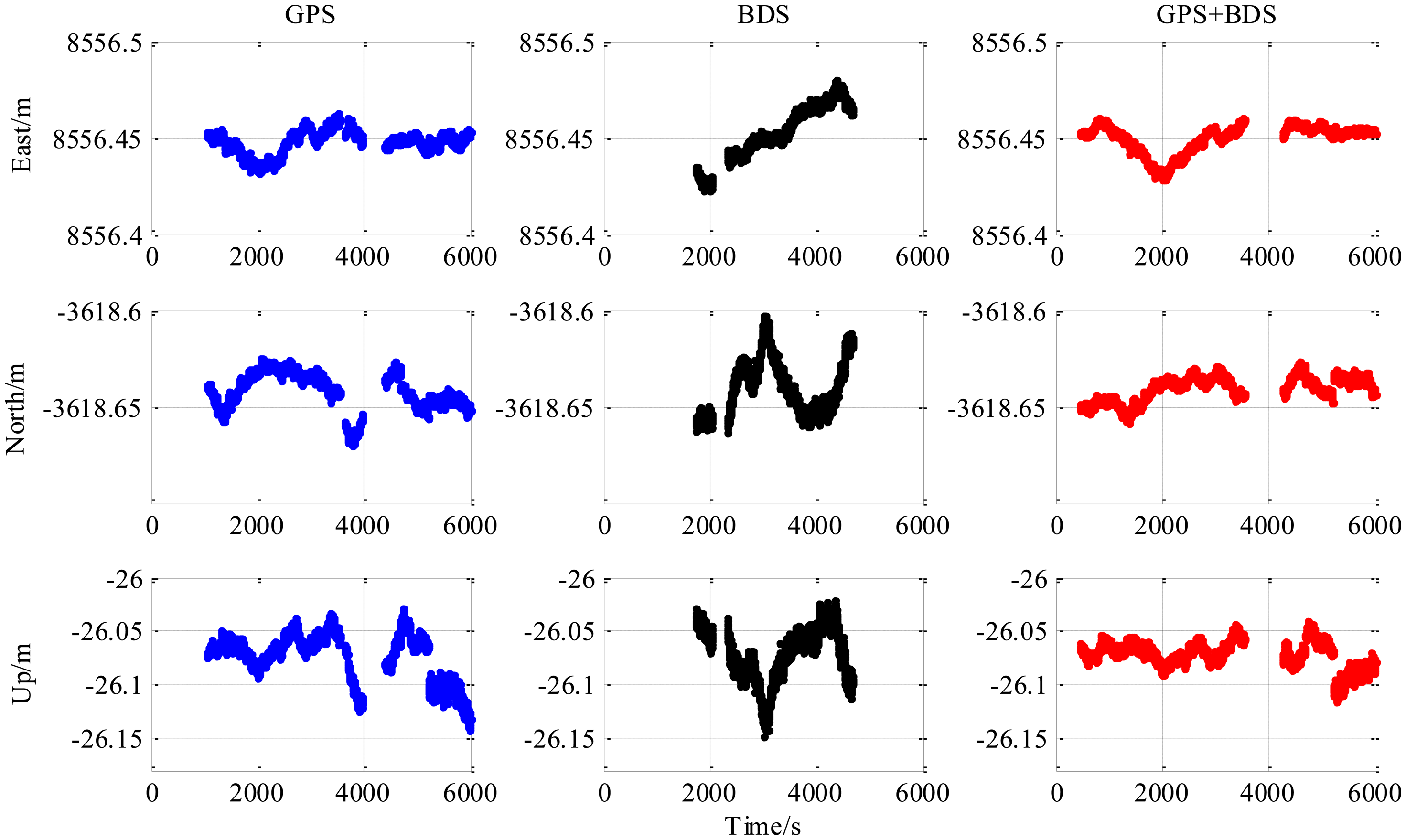

Figure 10. ENU baseline result of 9 km baseline experiment (fixed epochs, ratio > 3).
Figure 10. ENU baseline result of 9 km baseline experiment (fixed epochs, ratio > 3).
Sensors 14 15415f10 1024

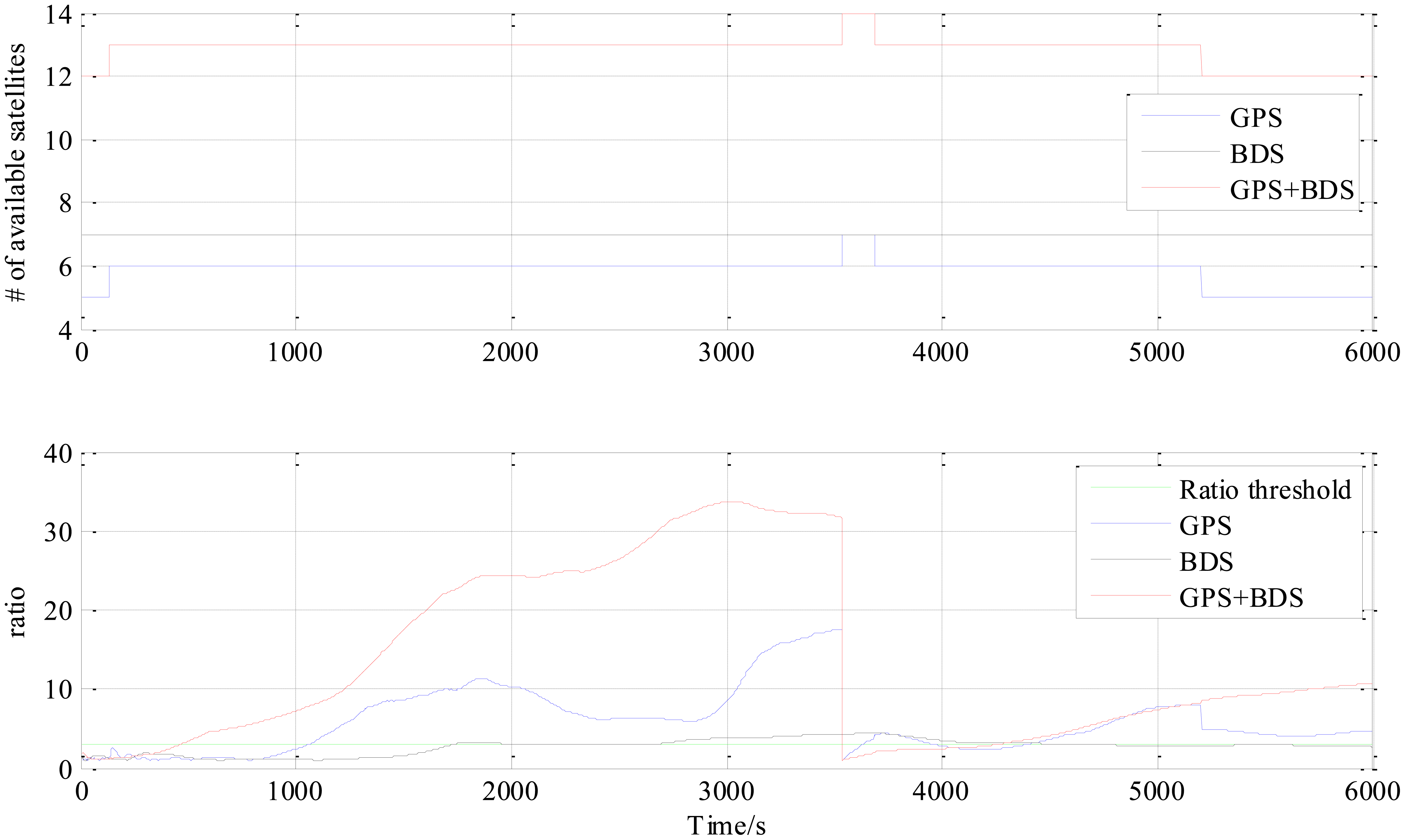

Figure 11. Number of available satellites and ratio vs time of 9 km baseline experiment.
Figure 11. Number of available satellites and ratio vs time of 9 km baseline experiment.
Sensors 14 15415f11 1024
Table 1. Experiment settings.
Table 1. Experiment settings.
ItemZero Baseline5.9 km Baseline9 km Baseline
Time (UTC)11:48∼12:5503:12∼04:1912:41∼14:21
13 May 201421 May 201431 July 2014
FrequencyGPS L1, BDS B1GPS L1, BDS B1GPS L1, BDS B1
BaseLatitude/°40.001540.001540.0015
Longitude/°116.3302116.3302116.3302
Height/m98.998.998.9
RoverLatitude/°Same as Base40.022839.9689
Longitude/°Same as Base116.3934116.4303
Height/mSame as Base46.478.3
Data length/s400040006000
Epoch interval/s111
Elevation angle threshold/°202020
Ratio test threshold333
Table 2. Statistics of zero baseline experiment.
Table 2. Statistics of zero baseline experiment.
ItemGPSBDSGPS + BDS
East standard deviation (fixed solution)/mm0.300.480.26
North standard deviation (fixed solution)/mm0.410.800.32
Up standard deviation (fixed solution)/mm0.951.770.70
Proportion of fixed solution (ratio>3)100%100%100%
First time to fix/s111
Table 3. Statistics of 5.9 km baseline experiment.
Table 3. Statistics of 5.9 km baseline experiment.
ItemGPSBDSGPS + BDS
East standard deviation (fixed solution)/mm3.603.202.67
North standard deviation (fixed solution)/mm7.636.787.34
Up standard deviation (fixed solution)/mm17.5816.8419.76
Proportion of fixed solution (ratio > 3)39.98%34.08%83.42%
First time to fix/s227721591
Table 4. Statistics of 9 km baseline experiment.
Table 4. Statistics of 9 km baseline experiment.
ItemGPSBDSGPS + BDS
East standard deviation (fixed solution)/mm6.1814.057.47
North standard deviation (fixed solution)/mm9.8014.126.40
Up standard deviation (fixed solution)/mm22.5225.1712.55
Proportion of fixed solution (ratio > 3)73.57%44.25%80.20%
First time to fix/s10621734467

Share and Cite

MDPI and ACS Style

Zhao, S.; Cui, X.; Guan, F.; Lu, M. A Kalman Filter-Based Short Baseline RTK Algorithm for Single-Frequency Combination of GPS and BDS. Sensors 2014, 14, 15415-15433. https://doi.org/10.3390/s140815415

AMA Style

Zhao S, Cui X, Guan F, Lu M. A Kalman Filter-Based Short Baseline RTK Algorithm for Single-Frequency Combination of GPS and BDS. Sensors. 2014; 14(8):15415-15433. https://doi.org/10.3390/s140815415

Chicago/Turabian Style

Zhao, Sihao, Xiaowei Cui, Feng Guan, and Mingquan Lu. 2014. "A Kalman Filter-Based Short Baseline RTK Algorithm for Single-Frequency Combination of GPS and BDS" Sensors 14, no. 8: 15415-15433. https://doi.org/10.3390/s140815415

Article Metrics

Back to TopTop
