Enterobacter asburiae Strain L1: Complete Genome and Whole Genome Optical Mapping Analysis of a Quorum Sensing Bacterium

by
Yin Yin Lau
,
Wai-Fong Yin
and
Kok-Gan Chan
*
Division of Genetics and Molecular Biology, Institute of Biological Sciences, Faculty of Science, University of Malaya, Kuala Lumpur 50603, Malaysia
*
Author to whom correspondence should be addressed.
Sensors 2014, 14(8), 13913-13924; https://doi.org/10.3390/s140813913
Submission received: 26 May 2014 / Revised: 7 July 2014 / Accepted: 23 July 2014 / Published: 30 July 2014
(This article belongs to the Section Biosensors)
Browse Figures
Versions Notes

Abstract

: Enterobacter asburiae L1 is a quorum sensing bacterium isolated from lettuce leaves. In this study, for the first time, the complete genome of E. asburiae L1 was sequenced using the single molecule real time sequencer (PacBio RSII) and the whole genome sequence was verified by using optical genome mapping (OpGen) technology. In our previous study, E. asburiae L1 has been reported to produce AHLs, suggesting the possibility of virulence factor regulation which is quorum sensing dependent. This evoked our interest to study the genome of this bacterium and here we present the complete genome of E. asburiae L1, which carries the virulence factor gene virK, the N-acyl homoserine lactone-based QS transcriptional regulator gene luxR and the N-acyl homoserine lactone synthase gene which we firstly named easI. The availability of the whole genome sequence of E. asburiae L1 will pave the way for the study of the QS-mediated gene expression in this bacterium. Hence, the importance and functions of these signaling molecules can be further studied in the hope of elucidating the mechanisms of QS-regulation in E. asburiae. To the best of our knowledge, this is the first documentation of both a complete genome sequence and the establishment of the molecular basis of QS properties of E. asburiae.

Graphical Abstract

1. Introduction

Enterobacter asburiae is a Gram-negative, facultative anaerobic, oxidase negative, non-motile and non-pigmented rod-shaped species of the Enterobacteriaceae family that has been isolated from soil, water and food products [1–3]. It is also known as the epiphytic bacterium [4], which either has a parasitism or commensalism relationship with the plant host [5]. It has been reported as a quorum sensing (QS) bacterium [3] that is able to communicate via secretion of signaling molecules called autoinducers. QS regulates the expression of certain genes in response to the bacterial population density, i.e., when a threshold amount of the autoinducers is detected [6,7], cooperative activities involved in survival and successful colonization such as the exoenzyme secretion, symbiosis, biofilm formation, sporulation, virulence, antibiotic production, bioluminescence and conjugation are activated [8,9]. Signaling via N-acyl homoserine lactones (AHLs) is the paradigm for QS in Proteobacteria [8]. These molecules, which consist of 4- to 18-carbon side chain linked to a lactone ring [10] are synthesized by AHL synthase (LuxI homologs) using S-adenosylmethionine (SAM) and acylated acyl carrier protein (Acyl-ACP) as the substrates [11].

Studies have shown that Enterobacteriaceae are commonly associated with food spoilage as well as food poisoning [12,13]. It is believed that the availability of AHL-regulated systems in the microbes could be the causative factor responsible for the toxicity of food products, deterioration of taste and texture, and ultimately, food safety threat [14]. Lipolytic, proteolytic, pectinolytic, and chitinolytic activities are among the traits that are possibly regulated by QS [15]. Consequently, study on the potential role of QS in food safety and food spoilage has provided a very important insight into food microbiology in order to generate useful information to reduce or prevent spoilage reactions as well as control the expression of virulence factors [16]. In depth investigations on bacterial QS properties could potentially offer solutions to resolve the food safety issues whilst improving human health.

As seen in recent years, genome-wide scale computational analysis is widely been used as a backbone to foster novel discovery in biomedical research. This high demand of low-cost sequencing has driven the rapid development of high-throughput sequencing. Next generation sequencing (NGS) technology offers rapid insights at the genome level at a decreasing cost and hence will soon become a common platform for bacterial genome study [17]. Coupling with the commercialization of various affordable desktop sequencers and fast improved computing power, researchers are able to map bacteria genome within a short period of time. In this study, two different NGS technologies were applied to generate the whole genome sequence of E. asburiae L1, an AHL-producing strain isolated from lettuce leaves. The complete genome was annotated and the gene functions were predicted to search for genes of interest.

2. Experimental Section

2.1. Bacterial Source, Isolation and Culture

E. asburiae L1 isolated from lettuce leaves was identified and characterized by obtaining pure cultures on MacConkey agar (Scharlau, Scharlab, Barcelona, Spain). The pure culture was routinely maintained on LB (Luria Bertani, Merck, Whitehouse Station, NJ, USA) agar at 37 °C or incubated overnight at 37 °C agitated at 200 rpm in LB broth. E. asburiae was also maintained kept at −80 °C in 80% (v/v) glycerol.

2.2. Scanning Electron Microscopy Imaging

Scanning electron microscopy (SEM) observation of E. asburiae L1 was conducted on a TM3000 Analytical Tabletop Microscope (Hitachi, Brisbane, CA, USA). The bacterial pellets were fixed in 2.5% glutaraldehyde for at least 2 h before proceeding with two 0.1 M phosphate buffer washes. The fixed cells were then subjected to post fixation with 1% osmium tetroxide for at least an hour. After two post-fixation washes, a graded series of ethanol dehydration steps (50%, 75%, 95%, 100%, 100% ethanol, 10 min each) was performed before immersed the cells in Hexamethyldisilazane (HMDS) (Ted Pella, Redding, CA, USA) for another 10 min. The SEM preparation was completed by decanting the HMDS from the tube and letting the cells air-dry in a desiccator at room temperature. Prior to examination, the dried cells were mounted onto a SEM specimen stub with a double-sided sticky tape and subjected to gold coating.

2.3. Genomic DNA Extraction

The genomic DNA of E. asburiae L1 was extracted using Masterpure™ DNA purification kit (Epicenter, Illumina Inc., Madison, WI, USA) per the manufacturer's instructions. The quality of the extracted DNA was performed with Nanodrop Spectrophotometer (Thermo Scientific, Pittsburgh, PA, USA) and agarose gel electrophoresis while DNA quantification was carried out with a Qubit® 2.0 Fluorometer (dsDNA High Sensitivity Assay Kit, Invitrogen, Carlsbad, CA, USA).

2.4. Library Preparation and Sequencing

DNA sequencing template was obtained from sheared genomic DNA using the Pacific Bioscience 10 kb SMRTbell library template preparation kit per the manufacturer's instructions (Pacific Biosciences, Menlo Park, CA, USA). The quality sizing analysis of DNA library was validated by Bioanalyzer 2100 high sensitivity DNA kit (Agilent Technologies, Inc., Santa Clara, CA, USA) prior to sequencing. PacBio RS II sequencing technology (Pacific Biosciences) was used as the sequencing platform. P4 chemistry was utilized, and the prepared library was sequenced on four single-molecule real-time (SMRT) cells.

2.5. Whole Genome Optical Mapping

A whole genome map of E. asburiae L1 was generated from the single DNA molecule with the automated Argus system (OpGen Inc., Gaithersburg, MD, USA). DNA extraction was performed based on the manufacturer's instructions. Purified DNA was then diluted to the appropriate concentration by performing the quality check using QCard (OpGen Inc.). The DNA molecules were filled through all the channels of the channel-forming device (CFD) on MapCards II (OpGen Inc.) through capillary action. The four reagent reservoirs were pipetted into their individual load ports according to the labeled with the corresponding reagent on the left side of the MapCard II. Digestion was performed with AflII for 30 min while all the four reagents were dispensed and aspirated from the reaction chamber at appropriate times, volumes, and flow rates in the MapCard Processor. Upon completion, the MapCard II was placed in whole genome mapper to perform whole genome optical mapping.

2.6. Gene Prediction and Annotation

Genes were predicted using Prodigal 2.60 while gene annotation was performed using RAST [18] followed by visualization of the bacterial circular genome using DNAPlotter version 1.4 (Artemis 12.0, Sanger Institute, Hinxton, Cambridge, UK) and Gepard version 1.3 (Institute of Computational Biology, Neuherberg, Germany) [19]. Phylogenetic analysis was performed using MEGA version 5.2 [20].

3. Results and Discussion

3.1. Isolation and Characterization of E. asburiae L1

E. asburiae L1 was identified at the species level with score values above 2.3 using MALDI-TOF-MS (Bruker, Leipzig, Germany). Like other species classified in the Enterobacteriaceae family, E. asburiae L1 is a rod-shaped bacterium with approximately 1.32 μm in size (Figure 1). E. asburiae L1 lives in the mesophilic environment with its optimal temperature at 37 °C. In our previous study, E. asburiae L1 has been reported to produce AHLs [3], suggesting the possibility of virulence factors regulation by a QS mechanism.

3.2. Whole Genome Sequencing of E. asburiae L1

The genome size of E. asburiae L1 is 4.5 Mbp. The PacBio sequencing platform generated an output data with average genome coverage of 216.24×. De novo assembly of the insert reads was performed with the Hierarchical Genome Assembly Process (HGAP) algorithm in SMRT Portal (version 2.1.1), in which the genome sequence of E. asburiae strain L1 was assembled into a GC-rich (56.1%) single contig of 4,561,905 bp. The whole genome map of E. asburiae L1 generated from the single DNA molecule with the automated Argus system (OpGen Inc.) was aligned with the sequence obtained from the Pacific Biosciences RS II sequencing technology to investigate the mismatch tolerance. Figure 2 showed that although two different sequencing technologies were applied, both sequences generated are highly aligned with each other, confirming the completeness of this genome. Apart from that, the complete genome is proved to be circular with the help of DNAPlotter (version 1.4) and Gepard (version 1.3) (Figure 3).

3.3. Gene Prediction and Annotation of E. asburiae L1

Gene prediction by Prodigal showed that the complete genome of L1 carried 4223 coding DNA sequences (CDS). The data was then annotated using RAST and the subsystem category distribution was shown in Figure 4.

Like most Proteobacteria, the majority of L1 genes (593 counts) are responsible for carbohydrate metabolism, followed by amino acids and derivatives; cofactors, vitamins, prosthetic groups and pigment production with 471 and 252 counts, respectively. Generally, these genes are responsible for the basic life-sustaining needs of the bacterial cell. Apart from the presence of the basic necessary genes in L1, there are 117 genes responsible for virulence, disease and defense. Among these 117 genes, 85 were found to play a role in controlling the resistance against antibiotics and toxic compounds.

Previous studies have indicated that members of the Enterobacteriaceae cause gastrointestinal illnesses, such as diarrhea. Outbreaks have been reported all around the world, commonly connected to vegetable and fruit products [21,22]. Studies also showed that Enterobacteriaceae colonization is believed to trigger spoilage activities in food products [23,24]. Due to the raise of awareness concerning human health, multidisciplinary interest research in the involvement of QS in both food spoilage and food-borne illnesses caused by enteric bacteria has increased. Our data revealed the presence of virulence-related gene virK, which has been reported to be an important virulence determinant in other species, especially at the late stages of infections [25,26]. This leads to the speculation that E. asburiae L1 might be a pathogen. However, more studies need to be carried out to explore the mechanisms involved in pathogenesis of this organism.

In a complete AHL-based QS system, the luxI/luxR homologs interact with each other whereby AHLs synthesized by LuxI bind to and activate the LuxR-type protein [27]. This AHL-protein complex in turn regulates the expression of certain genes, leading to the collective behaviors of the bacteria [28]. The luxI/luxR pairs are often genetically linked. However, there are examples where the luxI/luxR functional pairs are distantly located in the bacterial chromosome or plasmid. For instance, Pseudomonas aeruginosa has been reported to carry an unpaired luxR [27,29] which is responsible for the cognate signaling molecules produced by both its existing AHL synthase and the signaling molecules from the environment [30]. A putative luxR gene (Figure 5A) with the size of 693 bps was identified at the location in between 1,633,036 and 1,633,728 of the E. asburiae L1 complete genome. In Figure 5B, the phylogenetic analysis based on amino acid sequences showed that the gene luxR of E. asburiae L1 grouped under the same AHL-based QS transcriptional regulator family as compared with other E. asburiae and closely related enterobacteria. Furthermore, an AHL synthase gene of E. asburiae L1 with a size of 639 bps was found located in the region in between 1,633,743 and 1,634,381 of this genome. The alignment (Figure 6A) of luxI and luxR genes sequences showed that they are 14 bps apart with opposite orientation (Figure 6B). To date, reports on the presence of LuxI in Enterobacter are still very limited.

Our initial analysis of the luxI homolog of E. asburiae L1 was annotated as ‘croI’ found in Citrobacter rodentium. In Figure 6C, the phylogenetic analysis based on amino acid sequences showed that the AHL synthase found in E. asburiae L1 formed a separate cluster as compared with other E. asburiae and closely related enterobacteria. Therefore, we decided to name the luxI homolog of E. asburiae L1 easI.

According to Rezzonico et al., E. asburiae possesses an autoinducer-2 (AI-2)-based QS system. In our present work, genes that have been known to be involved in the AI-2-based system were detected as well. Although the AI-2 QS system has been proven to be functional in Vibrionaceae, doubts regarding AI-2 status as a universal signal still remain unresolved to date. In fact, limited studies were conducted to explore the phenotypes regulated by AI-2 in others bacteria apart from Vibrio harveyi. According to Winzer et al., molecules such as AI-2 that function as cell-to-cell signals in some organisms may not necessarily do so in others. In addition, the question marks on whether the synthesis of the AI-2 molecules is really catalyzed by an enzyme solely dedicated to its production and whether their primary function as a true QS system in all bacteria are yet to be solved [31,32]. This especially applies for those that occur in bacteria without a luxS gene.

On the other hand, AHL-regulated phenotypes have successfully been identified after the inactivation of luxI homologue genes [33]. Even though very little is known about the relationship between QS in E. asburiae and its pathogenicity, studies have shown that Enterobacteriaceae that possess diverse AHL signals are more capable of causing infections [34]. Therefore, compared to AI-2, our interest is more towards study on the AHL-based QS system in E. asburiae that has been described in our previous study.

To date, apart from E. asburiae L1, only two different strains of E. asburiae have been found deposited in DDBJ/EMBL/GenBank, namely E. asburiae LF7a (accession CP003026) and E. asburiae C1 (accession JACW00000000). Although the genome of E. asburiae LF7a has been completely sequenced, no AHL-based regulated QS system was detected in the sequence. In contrast, E. asburiae C1, which possessed an AHL-based QS system, is not a complete genome sequence. Consequently, the presence of both AHL synthase easI gene and the success in obtaining the complete genome of E. asburiae L1 is a great stepping stone for us to move towards exploration of the interaction of the AHLs produced by E. asburiae L1 with the virulence genes in order to gain a better understanding on how these interactions may affect food safety and human health.

In addition, there is much recent interest in exploring QS as a novel anti-infectious therapy [35,36] as it does not involve the use of antibiotics. Theoretically, this will reduce drug resistance problems [35]. In fact, a previous study by Dong et al. has proved that expression of aiiA in transformed Erwinia carotovora strain SCG1 significantly reduced the amount of autoinducer produced, thus decreasing extracellular pectolytic enzyme activities, and attenuating pathogenicity on potato, Chinese cabbage, celery, carrot, cauliflower, eggplant, and tobacco [37]. In addition, Rasmussen et al. showed that blockage of the QS systems attenuates Pseudomonas aeruginosa [38]. Therefore, the complete genome of our E. asburiae L1 isolate will allow us to further investigate the QS-mediated gene expression in this bacterium, as well as the development of novel anti-QS molecules [39–43].

4. Conclusions/Outlook

The AHL synthase gene easI of E. asburiae L1 was discovered in this work thanks to the availability of its complete genome. Analysis of this complete genome also indicated the presence of virulence factor coding genes. It is believed that the virulence factors might be coordinated by QS, so this complete genome may provide insights into the QS-mediated pathogenesis and virulence determinants of this potential pathogen. Therefore, our future work will focus on the AHL-based QS gene regulation of E. asburiae L1 to determine the importance and functions of these signaling molecules in the hope of enhancing produce safety and elucidating the mechanisms of QS-regulation in E. asburiae.

5. Availability of Supporting Data

The complete genome sequence of E. asburiae strain L1 was deposited in DDBJ/EMBL/GenBank under the accessions CP007546. The version described in this paper is the first version.

Acknowledgments

This work was supported by the University of Malaya for High Impact Research Grant (UM-MOHE HIR Grant UM.C/625/1/HIR/MOHE/CHAN/14/1, no. H-50001-A000027) awarded to Kok-Gan Chan.

Author Contributions

YYL and WFY performed the experiments, all authors analyzed the data and KGC conceived the ideas, obtained funding and supervised the project. All authors read and approved the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Koth, K.; Boniface, J.; Chance, E.A.; Hanes, M.C. Enterobacter asburiae and Aeromonas hydrophila: Soft tissue infection requiring debridement. Orthopedics 2012, 35, 996–999. [Google Scholar]
  2. Asis, C.; Adachi, K. Isolation of endophytic diazotroph Pantoea agglomerans and nondiazotroph Enterobacter asburiae from sweetpotato stem in Japan. Lett. Appl. Microbiol. 2004, 38, 19–23. [Google Scholar]
  3. Lau, Y.Y.; Sulaiman, J.; Chen, J.W.; Yin, W.-F.; Chan, K.-G. Quorum Sensing Activity of Enterobacter asburiae Isolated from Lettuce Leaves. Sensors 2013, 13, 14189–14199. [Google Scholar]
  4. Cooley, M.B.; Chao, D.; Mandrell, R.E. Escherichia coli O157: H7 survival and growth on lettuce is altered by the presence of epiphytic bacteria. J. Food Protect. 2006, 69, 2329–2335. [Google Scholar]
  5. Gnanamanickam, S.S.; Immanuel, J.E. Epiphytic bacteria, their ecology and functions. In Plant-Associated Bacteria; Springer: Heidelberg, Germany, 2006; pp. 131–153. [Google Scholar]
  6. Smith, R.S.; Iglewski, B.H. P. aeruginosa quorum-sensing systems and virulence. Curr. Opin. Microbiol. 2003, 6, 56–60. [Google Scholar]
  7. Karlsson, T.; Turkina, M.V.; Yakymenko, O.; Magnusson, K.-E.; Vikström, E. The Pseudomonas aeruginosa N-acylhomoserine lactone quorum sensing molecules target IQGAP1 and modulate epithelial cell migration. PLoS Pathog. 2012, 8. [Google Scholar] [CrossRef]
  8. Schuster, M.; Sexton, D.J.; Diggle, S.P.; Greenberg, E.P. Acyl-homoserine lactone quorum sensing: from evolution to application. Ann. Rev. Microbiol. 2013, 67, 43–63. [Google Scholar]
  9. Miller, M.B.; Bassler, B.L. Quorum sensing in bacteria. Ann. Rev. Microbiol. 2001, 55, 165–199. [Google Scholar]
  10. Pearson, J.P.; Van Delden, C.; Iglewski, B.H. Active efflux and diffusion are involved in transport of Pseudomonas aeruginosa cell-to-cell signals. J. Bacteriol. 1999, 181, 1203–1210. [Google Scholar]
  11. Swift, S.; Karlyshev, A.V.; Fish, L.; Durant, E.L.; Winson, M.K.; Chhabra, S.R.; Williams, P.; Macintyre, S.; Stewart, G. Quorum sensing in Aeromonas hydrophila and Aeromonas salmonicida: identification of the LuxRI homologs AhyRI and AsaRI and their cognate N-acylhomoserine lactone signal molecules. J. Bacteriol. 1997, 179, 5271–5281. [Google Scholar]
  12. Rasch, M.; Andersen, J.B.; Nielsen, K.F.; Flodgaard, L.R.; Christensen, H.; Givskov, M.; Gram, L. Involvement of bacterial quorum-sensing signals in spoilage of bean sprouts. Appl. Environ. Microbiol. 2005, 71, 3321–3330. [Google Scholar]
  13. Mandal, S.M.; Sharma, S.; Pinnaka, A.K.; Kumari, A.; Korpole, S. Isolation and characterization of diverse antimicrobial lipopeptides produced by Citrobacter and. Enterobacter. BMC Microbiol. 2013, 13. [Google Scholar] [CrossRef]
  14. Gram, L.; Christensen, A.B.; Ravn, L.; Molin, S.; Givskov, M. Production of acylated homoserine lactones by psychrotrophic members of the Enterobacteriaceae isolated from foods. Appl. Environ. Microbiol. 1999, 65, 3458–3463. [Google Scholar]
  15. Ammor, M.S.; Michaelidis, C.; Nychas, G.J. Insights into the role of quorum sensing in food spoilage. J. Food. Prot. 2008, 71, 1510–1525. [Google Scholar]
  16. Skandamis, P.N.; Nychas, G.J. Quorum sensing in the context of food microbiology. Appl. Environ. Microbiol. 2012, 78, 5473–5482. [Google Scholar]
  17. De Bona, F.; Ossowski, S.; Schneeberger, K.; Rätsch, G. Optimal spliced alignments of short sequence reads. Bioinformatics 2008, 24, I174–80. [Google Scholar]
  18. Aziz, R.K.; et al. The RAST Server: rapid annotations using subsystems technology. BMC Genomics 2008, 9. [Google Scholar] [CrossRef]
  19. Krumsiek, J.; Arnold, R.; Rattei, T. Gepard: A rapid and sensitive tool for creating dotplots on genome scale. Bioinformatics 2007, 23, 1026–1028. [Google Scholar]
  20. Tamura, K.; Peterson, D.; Peterson, N.; Stecher, G.; Nei, M.; Kumar, S. MEGA5: Molecular evolutionary genetics analysis using maximum likelihood, evolutionary distance, and maximum parsimony methods. Mol. Biol. Evol. 2011, 28, 2731–2739. [Google Scholar]
  21. Teplitski, M.; Warriner, K.; Bartz, J.; Schneider, K.R. Untangling metabolic and communication networks: interactions of enterics with phytobacteria and their implications in produce safety. Trends Microbiol. 2011, 19, 121–127. [Google Scholar]
  22. Mandrell, R.E. Enteric Human Pathogens Associated with Fresh Produce: Sources, Transport and Ecology. In Microbial Safety of Fresh Produce; IFT Press/Wiley-Blackwell Publishing: Ames, IA, USA, 2009; pp. 5–41. [Google Scholar]
  23. Borch, E.; Kant-Muermans, M.-L.; Blixt, Y. Bacterial spoilage of meat and cured meat products. Int. J. Food Microbiol. 1996, 33, 103–120. [Google Scholar]
  24. Bennik, M.; Vorstman, W.; Smid, E.; Gorris, L. The influence of oxygen and carbon dioxide on the growth of prevalent Enterobacteriaceae and Pseudomonas species isolated from fresh and controlled-atmosphere-stored vegetables. Food Microbiol. 1998, 15, 459–469. [Google Scholar]
  25. Detweiler, C.S.; Monack, D.M.; Brodsky, I.E.; Mathew, H.; Falkow, S. virK,somA and rcsC are important for systemic Salmonella enterica serovar typhimurium infection and cationic peptide resistance. Mol. Microbiol. 2003, 48, 385–400. [Google Scholar]
  26. Novik, V.; Hofreuter, D.; Galan, J.E. Characterization of a Campylobacter jejuni virk protein homolog as a novel virulence determinant. Infect. Immun. 2009, 77, 5428–5436. [Google Scholar]
  27. Subramoni, S.; Venturi, V. LuxR-family ‘solos’: Bachelor sensors/regulators of signalling molecules. Microbiology 2009, 155, 1377–1385. [Google Scholar]
  28. Bassler, B.L. Small talk: cell-to-cell communication in bacteria. Cell 2002, 109, 421–424. [Google Scholar]
  29. Lee, J.H.; Lequette, Y.; Greenberg, E.P. Activity of purified QscR, a Pseudomonas Aeruginosa orphan quorum‐sensing transcription factor. Mol. Microbiol. 2006, 59, 602–609. [Google Scholar]
  30. Patankar, A.V.; González, J.E. Orphan LuxR regulators of quorum sensing. FEMS Microbiol. Rev. 2009, 33, 739–756. [Google Scholar]
  31. Rezzonico, F.; Smits, T.H.M.; Duffy, B. Detection of AI-2 Receptors in Genomes of Enterobacteriaceae Suggests Role of Type-2 Quorum Sensing in Closed Ecosystems. Sensors 2012, 12, 6645–6665. [Google Scholar]
  32. Winzer, K.; Hardie, K.R.; Williams, P. Bacterial cell-to-cell communication: Sorry, can't talk now—Gone to lunch! Curr. Opin. Microbiol. 2002, 5, 216–222. [Google Scholar]
  33. Fuqua, W.C.; Winans, S.C.; Greenberg, E.P. Quorum sensing in bacteria: The LuxR/LuxI family of cell density-responsive transcriptional regulators. J Bacteriol. 1994, 176, 269–275. [Google Scholar]
  34. Wang, H.; Cai, T.; Weng, M.; Zhou, J.; Cao, H.; Zhong, Z.; Zhu, J. Conditional production of acyl-homoserine lactone-type quorum-sensing signals in clinical isolates of Enterobacteria. J. Med. Microbiol. 2006, 55, 1751–1753. [Google Scholar]
  35. Hong, K.W.; Koh, C.L.; Sam, C.K.; Yin, W.F.; Chan, K.G. Quorum quenching revisited-from signal decays to signalling confusion. Sensors 2012, 12, 4661–4696. [Google Scholar]
  36. Chan, K.G.; Atkinson, S.; Mathee, K.; Sam, C.K.; Chhabra, S.R.; Cámara, M.; Koh, C.L.; Williams, P. Characterization of N-acylhomoserine lactone-degrading bacteria associated with the Zingiber. officinale (ginger) rhizosphere: Co-existence of quorum quenching and quorum sensing. Acinetobacter. and Burkholderia. BMC Microbiol. 2011, 11. [Google Scholar] [CrossRef]
  37. Dong, Y.H.; Xu, J.L.; Li, X.Z.; Zhang, L.H. AiiA, an enzyme that inactivates the acylhomoserine lactone quorum-sensing signal and attenuates the virulence of Erwinia carotovora. Proc. Natl. Acad. Sci. USA 2000, 97, 3526–3531. [Google Scholar]
  38. Rasmussen, T.B.; Skindersoe, M.E.; Bjarnsholt, T.; Phipps, R.K.; Christensen, K.B.; Jensen, P.O.; Andersen, J.B.; Koch, B.; Larsen, T.O.; Hentzer, M.; et al. Identity and effects of quorum-sensing inhibitors produced by Penicillium species. Microbiology 2005, 151, 1325–1340. [Google Scholar]
  39. Chong, Y.M.; Yin, W.F.; Ho, C.Y.; Mustafa, M.R.; Hadi, A.H.A.; Awang, K.; Narrima, P.; Koh, C.L.; Appleton, D.R.; Chan, K.G. Malabaricone C from Myristica. cinnamomea exhibits anti-quorum sensing activity. J. Nat. Prod. 2011, 74, 2261–2264. [Google Scholar]
  40. Tan, L.Y.; Yin, W.F.; Chan, K.G. Silencing quorum sensing through extracts of Melicope lunu-ankenda. Sensors 2012, 12, 4339–4351. [Google Scholar]
  41. Norizan, S.N.M.; Yin, W.F.; Chan, K.G. Caffeine as a potential quorum sensing inhibitor. Sensors 2013, 13, 5117–5129. [Google Scholar]
  42. Tan, L.Y.; Yin, W.F.; Chan, K.G. Piper nigrum, Piper betle and Gnetum gnemon natural food sources with anti-quorum sensing properties. Sensors 2013, 13, 3975–3985. [Google Scholar]
  43. Wong, C.S.; Yin, W.F.; Choo, Y.M.; Sam, C.K.; Koh, C.L.; Chan, K.G. Coexistence of quorum quenching and quorum sensing in tropical marine Pseudomonas aeruginosa strain MW3A. World J. Microbiol. Biotechnol. 2011, 28, 453–461. [Google Scholar]
Sensors 14 13913f1 1024
Figure 1. Scanning electron microscope image of E. asburiae L1. The size of the strain is approximately 1.32 μm (bar).
Figure 1. Scanning electron microscope image of E. asburiae L1. The size of the strain is approximately 1.32 μm (bar).
Sensors 14 13913f1 1024
Sensors 14 13913f2 1024

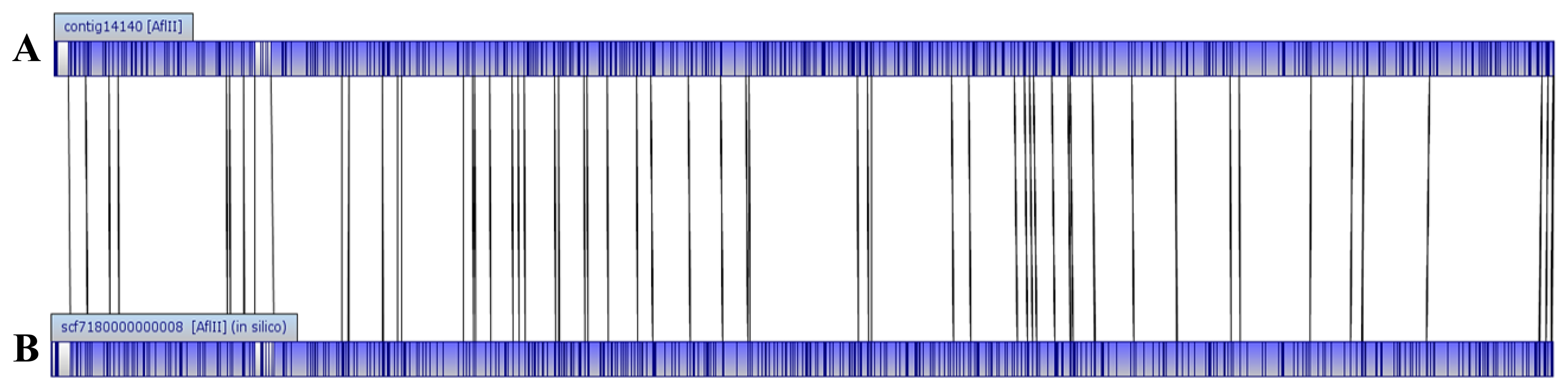

Figure 2. Alignment of (A) OpGen Sequence with (B) PacBio Sequence for E. asburiae L1.
Figure 2. Alignment of (A) OpGen Sequence with (B) PacBio Sequence for E. asburiae L1.
Sensors 14 13913f2 1024
Sensors 14 13913f3 1024

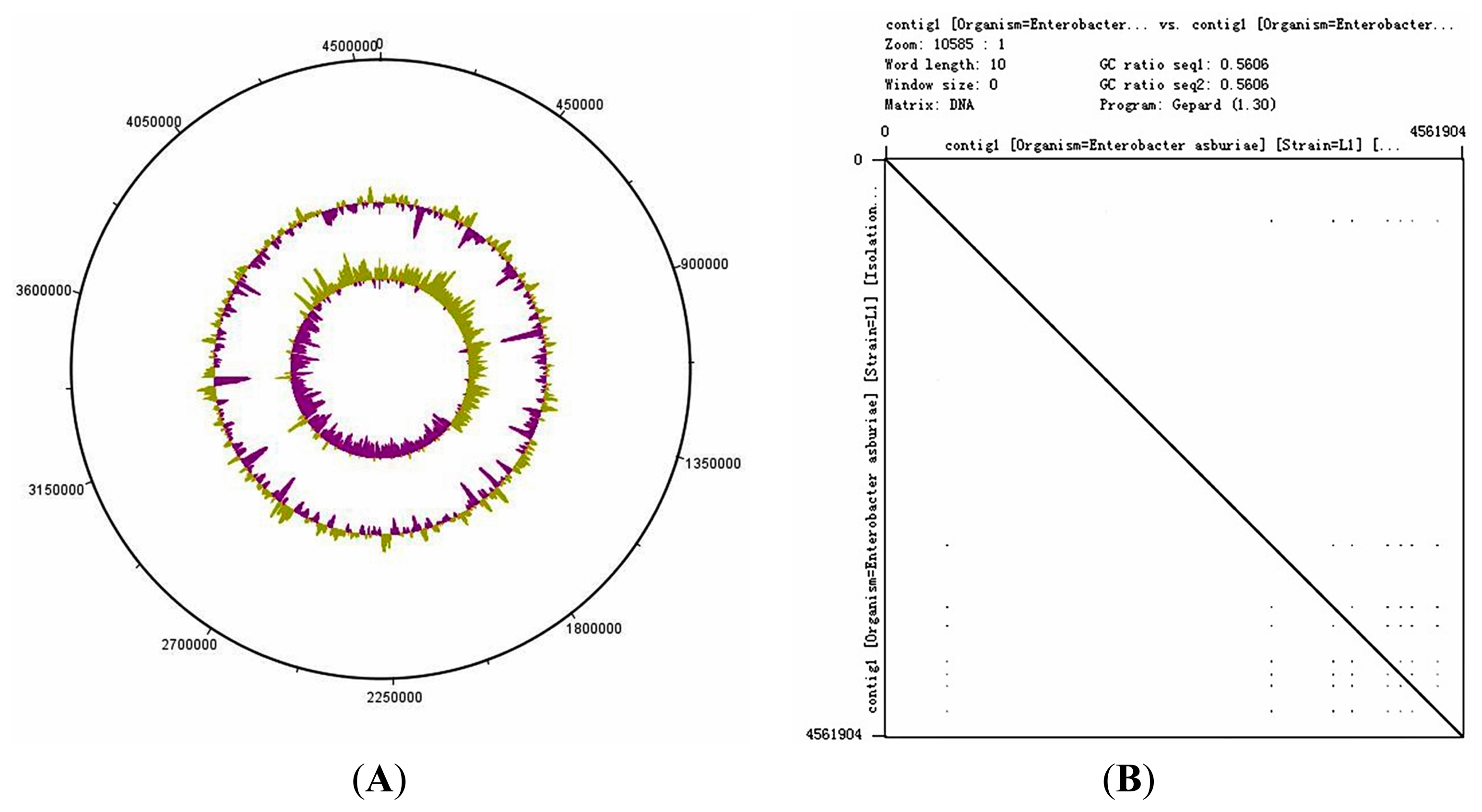

Figure 3. Circular representation of E. asburiae L1. The figure was constructed by (A) DNAPlotter version 1.4 and (B) Gepard version 1.3. The GC skew was shown in the most inner layer while the GC plot was shown in the second lane counting from the outer most lane. The genome size of E. asburiae L1 was 4.5 Mbp. The straight line of dotplot generated from Gepard further supported the circular representation of this genome.
Figure 3. Circular representation of E. asburiae L1. The figure was constructed by (A) DNAPlotter version 1.4 and (B) Gepard version 1.3. The GC skew was shown in the most inner layer while the GC plot was shown in the second lane counting from the outer most lane. The genome size of E. asburiae L1 was 4.5 Mbp. The straight line of dotplot generated from Gepard further supported the circular representation of this genome.
Sensors 14 13913f3 1024
Sensors 14 13913f4 1024

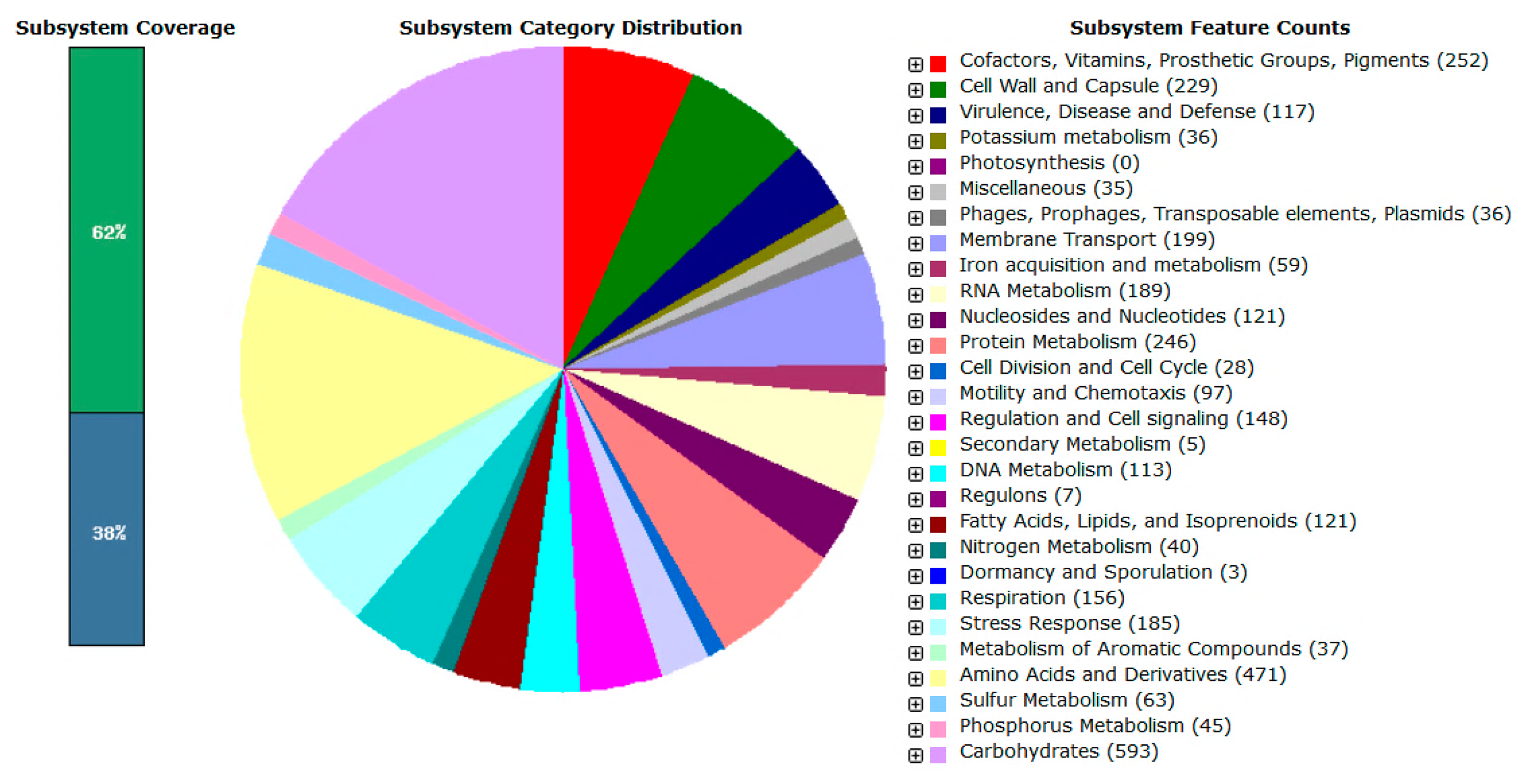

Figure 4. Subsystem category distribution statistics for E. asburiae L1. The complete genome sequence of E. asburiae L1 was annotated using the Rapid Annotation System Technology (RAST) server. The pie chart showed the count of each subsystem feature and the subsystem coverage. The green bar of the subsystem coverage corresponds to the percentage of the proteins included in the subsystems while the blue bar corresponds to the percentage of the proteins that are not included in the subsystems.
Figure 4. Subsystem category distribution statistics for E. asburiae L1. The complete genome sequence of E. asburiae L1 was annotated using the Rapid Annotation System Technology (RAST) server. The pie chart showed the count of each subsystem feature and the subsystem coverage. The green bar of the subsystem coverage corresponds to the percentage of the proteins included in the subsystems while the blue bar corresponds to the percentage of the proteins that are not included in the subsystems.
Sensors 14 13913f4 1024
Sensors 14 13913f5 1024
Figure 5. Putative luxR gene of E. asburiae L1. (A) The red arrow showed the visual region of E. asburiae L1 luxR gene and (B) Phylogenetic analysis of E. asburiae L1 luxR gene. The tree was constructed based on the LuxR protein sequences by Neighbor-Joining with bootstraps value of 1000 replicates.
Figure 5. Putative luxR gene of E. asburiae L1. (A) The red arrow showed the visual region of E. asburiae L1 luxR gene and (B) Phylogenetic analysis of E. asburiae L1 luxR gene. The tree was constructed based on the LuxR protein sequences by Neighbor-Joining with bootstraps value of 1000 replicates.
Sensors 14 13913f5 1024
Sensors 14 13913f6 1024

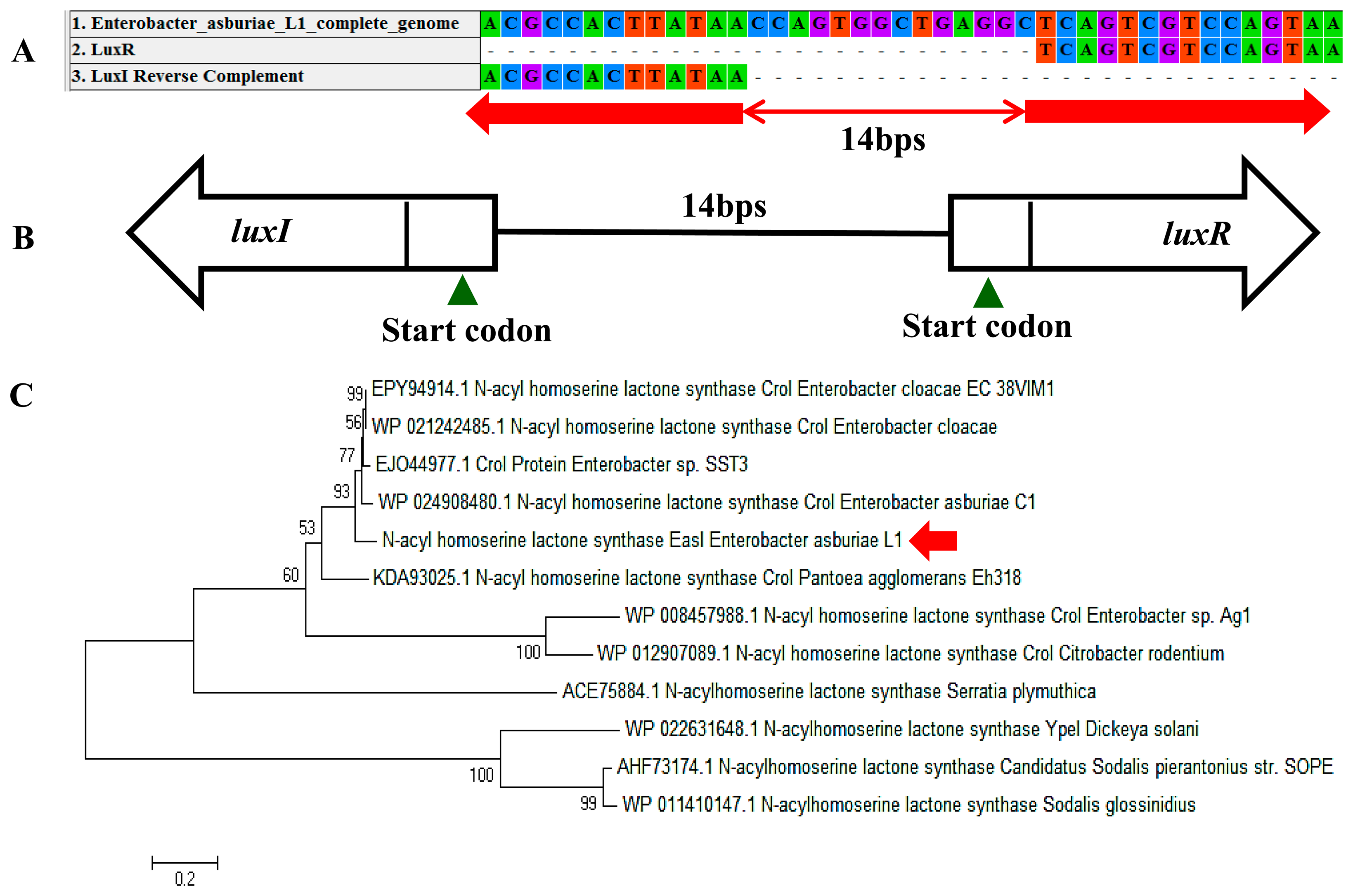

Figure 6. N-acyl homoserine lactone synthase EasI and transcriptional regulator of E. asburiae L1. (A) The alignment of luxI and luxR genes with 14 bps apart; (B) The arrows showed the transcriptional direction of luxI and luxR genes while the green triangle indicated the site for start codons and (C) Phylogenetic analysis of E. asburiae L1 luxI gene. The tree was constructed based on the similar LuxI protein sequences by Neighbor-Joining with bootstraps value of 1000 replicates.
Figure 6. N-acyl homoserine lactone synthase EasI and transcriptional regulator of E. asburiae L1. (A) The alignment of luxI and luxR genes with 14 bps apart; (B) The arrows showed the transcriptional direction of luxI and luxR genes while the green triangle indicated the site for start codons and (C) Phylogenetic analysis of E. asburiae L1 luxI gene. The tree was constructed based on the similar LuxI protein sequences by Neighbor-Joining with bootstraps value of 1000 replicates.
Sensors 14 13913f6 1024
