Article

Effects of Reduced Terrestrial LiDAR Point Density on High-Resolution Grain Crop Surface Models in Precision Agriculture

1
GIScience Research Group, Institute of Geography, Heidelberg University, Heidelberg 69120, Germany
2
Heidelberg Center for the Environment (HCE), Heidelberg University, Heidelberg 69120, Germany
*
Author to whom correspondence should be addressed.
Sensors 2014, 14(12), 24212-24230; https://doi.org/10.3390/s141224212
Received: 14 October 2014 / Revised: 12 November 2014 / Accepted: 8 December 2014 / Published: 16 December 2014
(This article belongs to the Special Issue Agriculture and Forestry: Sensors, Technologies and Procedures)

Abstract

: 3D geodata play an increasingly important role in precision agriculture, e.g., for modeling in-field variations of grain crop features such as height or biomass. A common data capturing method is LiDAR, which often requires expensive equipment and produces large datasets. This study contributes to the improvement of 3D geodata capturing efficiency by assessing the effect of reduced scanning resolution on crop surface models (CSMs). The analysis is based on high-end LiDAR point clouds of grain crop fields of different varieties (rye and wheat) and nitrogen fertilization stages (100%, 50%, 10%). Lower scanning resolutions are simulated by keeping every n-th laser beam with increasing step widths n. For each iteration step, high-resolution CSMs (0.01 m2 cells) are derived and assessed regarding their coverage relative to a seamless CSM derived from the original point cloud, standard deviation of elevation and mean elevation. Reducing the resolution to, e.g., 25% still leads to a coverage of >90% and a mean CSM elevation of >96% of measured crop height. CSM types (maximum elevation or 90th-percentile elevation) react differently to reduced scanning resolutions in different crops (variety, density). The results can help to assess the trade-off between CSM quality and minimum requirements regarding equipment and capturing set-up.

1. Introduction

The important role of precision agriculture (PA) for tackling issues like global food supply, adaptation of crops to climatic changes or serving energy needs with renewable biomass is often emphasized [15]. Of central importance in PA are geodata of crops because they allow for site-specific management of crop fields [610]. Increasingly, three-dimensional geodata (3D geodata) are used in precision agriculture (e.g., [4,1114]) because they can be examined with spatial (3D) analysis methods. Thus, 3D geodata are the basis for deriving features which cannot be calculated from other data sources like remotely sensed ortho-rectified imagery or classical surveying, e.g., directly captured plant heights [13].

An established method for capturing 3D geodata is LiDAR, which is also increasingly applied in PA-related studies [4,11,1318]. Advantages of this active remote-sensing method are, e.g., its non-invasive and non-destructive measurements, its capability to capture crops area-wide in high geometric detail, its capability of partly penetrating objects like vegetation, and its independence of lighting conditions [13,15]. LiDAR studies in PA cover a wide range of scanning resolutions and object scales. For example, Paulus et al. [17,18] use a high-precision laser scanner coupled with a moveable articulated measuring arm to produce detailed geometric models of single plant organs which are valuable for quantifying growth processes. On a larger scale, crop height models of entire agricultural fields, which can be used, e.g., for biomass estimations are derived from terrestrial laser scanning (TLS) point clouds in [4,14]. In Höfle [13], single maize plant positions and their heights are detected in a 132 m × 6 m field, which is important for growth monitoring and site-specific plant treatment. The study exploits both radiometric and geometric information which were available directly from the TLS point clouds. Eitel et al. [16] also use both TLS radiometry and geometry to detect the nitrogen status of wheat for optimizing fertilizer applications.

In the aforementioned studies [4,11,1317], high quality data are captured with high-end TLS which is not applicable for operational use in PA due to the high cost of equipment, data acquisition and analysis. To overcome these drawbacks, recent studies explore and develop low-cost 3D sensing methods and platforms for different applications and object scales. Chéné et al. [19] capture the geometry of single plant components with a low-cost structured-light camera which has been proven to deliver high-quality data [20]. To derive height models for the full extent of grain crop fields, low-cost 2D laser scanners are mounted on a mobile platform in [2,21]. From the captured point clouds, crop height models are derived and successfully used as input for biomass estimations. Similar to PA studies, a need for low-cost 3D sensors is also stated in the neighboring field of forestry. Eitel et al. [22], for example, successfully introduce an autonomous low-cost terrestrial laser scanner for monitoring forest growth which allows for continuous scanning of a scene at a fraction of the cost of high-end TLS.

Applying low-cost sensors can lead to datasets with lower resolutions when compared to high-end sensors. In addition, low resolutions can be intentionally chosen to reduce the cost of a scanning campaign [23]. With changing resolutions, the features of point clouds and their derivatives might also change, and influence analysis results. Höfle [13], e.g., finds that by reducing point cloud density, the correctness of single maize plant detection even improves slightly, whereas the completeness drops sharply from about 80% to 12.5% when reducing the point cloud to 10% of its original size (i.e., amount of single measurements).

The effects of lower point cloud densities on derivatives like height-related raster models were mostly analyzed in forestry studies. González-Ferreiro et al. [24] state that a reduction of a point cloud to 6% of its original size (16 to 1 point/m2 by randomly keeping one point per cell) does not significantly affect the derived stand parameters, which include, e.g., mean height, dominant height, and stand basal area. Similarly, Jakubowski et al. [25] find height-related stand parameters react robustly to point cloud thinning until a point density of 1 point/m2 is reached. Gobakken and Næsset [26] reduce the density of ALS point clouds of coniferous forest stands by randomly keeping one point per 4, 8, and 16 m2 cell (0.25, 0.125, and 0.0625 points/m2, respectively). A comparison between original and thinned point clouds shows that especially the maximum canopy height reacts sensitively to reduced point densities with difference values ranging from −0.85 to −2.76 m (at 0.25 and 0.0625 points/m2, respectively; [26]).

High-resolution crop surface models (CSM) [27] which represent the upper boundary of a crop field are a crucial input for a wide range of applications in PA. For example, by normalizing a CSM with a digital terrain model representing the elevation of the bare soil, the crop height distribution can be derived, which is used as an input dataset in, for example, grain yield estimations [15], biomass modeling [11,14,21,28], crop nitrogen status [16] and leaf area index distribution [29]. To the knowledge of the authors, no study has investigated the effects of reduced point densities on TLS-based crop surface models for agricultural grain crop fields so far. In this study, we simulate low densities of grain crop field point clouds to analyze the changes in the derived surface models. Other factors affecting data capturing and CSM calculations, and limitations of the sensing method (e.g., laser footprint diameter [30,31], receiver sensitivity [30]) are not examined in this study. Their influence is minimized by selecting datasets which are homogeneous regarding these factors. Based on the results, the trade-off between point cloud density (i.e., data volume, acquisition effort) and surface model quality can be assessed. This study contributes to the improvement of 3D geodata capturing efficiency. It can therefore help to further establish 3D sensors for operational use in precision agriculture by overcoming cost constraints for equipment and data acquisition.

2. Study Area and Datasets

The study area represents a winter rye and a winter wheat field prepared by the Julius-Kühn-Institute for Crop and Soil Science in Brunswick, Germany (52.288° N, 10.435° E). The crops were captured on 6 June 2013 at a growth stage of 71 (rye) and 67 (wheat) according to the BBCH scale [32]. Seed density was 250 grains/m2 for rye and 360 grains/m2 for wheat. The plain fields of similar growth and soil conditions had a size of 130 m × 6 m and they were subdivided into three parts with different nitrogen fertilizing stages (100%, 50%, and 10%) (Figure 1, Table 1). The different fertilization resulted in different crop stand densities which were visible directly in the fields (Figure 2). To relate CSM elevation changes to actual crop heights, the maximum height of single plants was measured at multiple locations in each fertilizing stage and the mean value of the measurements was derived (Figure 1, Table 1).

The applied time-of-flight VZ-400 laser scanner (Riegl, Horn, Austria) emits near-infrared beams of 1550 nm wavelength and 0.35 mrad divergence (3.5 mm diameter at 10 m distance). Its range accuracy is 5 mm (one sigma) at 100 m distance according to the data sheet [33]. The fields were scanned with the scanner mounted about 4 m above ground on an elevated platform. High-resolution point clouds for the experiments were acquired with a point spacing of 5 mm at 10 m distance. Additionally, low-resolution scans were captured from the same scan positions with a point spacing of 17 mm at 10 m distance. They are the basis for direct comparisons to the simulated low-resolution scans generated in this study.

To assess the effects of point density reduction on crop surface models in areas of different crop stand densities, point cloud subsamples containing single and first echoes were extracted from each fertilizing stage. To achieve similar scanning geometries for the subsamples, a range filter from 12 m to 19 m was applied to the point cloud of the scan position closest to the respective fertilizing stage plot (Figure 1), which is the range available in all fertilizing stages. Within this range, factors which are not in the focus of this study but which also influence the derivation of CSMs (e.g., laser footprint diameter [30,31]) are considered to be constant. The occurrence of missing recordings due to low echo energy at the maximum scanning range [30] is also assumed to be minimized by applying the range filter as the selected areas are close to the scanner and well within the maximum scanning range of up to 600 m [33]. The number of laser points that penetrate the crop stand horizontally via the field border was reduced by including a distance of minimum 1 m to the crop field boundary for subsampling. Vertical outliers were removed manually using the Riegl RiSCAN PRO software. The six resulting point clouds (Table 2) were exported into ASCII files which contain the XYZ coordinates for the analyses.

3. Methods

The main steps conducted in this study are summarized in Figure 3. Data preparation and preprocessing were described in Section 2. In Section 3.1., the method for reducing the point density and the resulting datasets are introduced, followed by details on the crop surface modeling and crop surface model change assessment in Section 3.2.

3.1. Point Density Reduction

To simulate lower scanning resolutions, the number of points is reduced in each of the six sample point clouds by selecting the point of every nth laser beam based on the timestamp of beam emission, with n being a multiple of two (Figure 4a). The approach simulates a scanning set-up with lower scanning frequencies of a static terrestrial scanner as introduced, e.g., in [22]. The steps applied in this study range from 2 to 50 so that 25 reduced point clouds were generated from the original dataset. The final step width of 50 is chosen to reach the point cloud reduction which corresponds to the data of the low-resolution scans. The stepwise reduction approach is also used, e.g., in [34,35].

3.2. Crop Surface Modeling and Surface Model Change Assessment

In order to assess the effect of point cloud thinning on crop surface models, two CSM types are derived and analyzed: (1) a raster Zmax with the maximum LiDAR point elevation value assigned to the respective cell and (2) a raster Zp90 with cells containing the elevation of the 90th percentile. Zmax is chosen to analyze a simple and straight forward canopy surface model which is, for example, appropriate for on-line processing. With Zp90, a model is analyzed which is more robust against changes in point density than Zmax [2426]. The CSMs are calculated with a cell size of 0.1 m × 0.1 m which is the cell size that results in a seamless CSM derived from the high-resolution (5 mm at 10 m distance) point clouds (CSMref). In the CSMs which are derived from thinned point clouds, raster cells with no value can occur because the respective cells are void of laser points. These raster gaps are included and evaluated in the subsequent analyses and, thus, are intentionally not interpolated as it was done in other studies, e.g., [14,27].

The assessment of the CSMs derived from the thinned point clouds (CSMred) is based on the comparison between the CSMref and CSMred raster datasets. Thus, this study follows an intrinsic approach [36] which allows for a relative assessment based on features derived from the datasets themselves, as applied, e.g., in [3739] who use their maximum quality datasets as a basis for reference models and model change assessments. The overlap of CSMref and the respective CSMred is guaranteed by a fixed coordinate of the raster origin. All calculations were conducted in the software Orientation and Processing of Airborne Laser Scanning Data (OPALS) [40].

In order to validate the CSMred, they are compared to their counterparts derived from the low-resolution scan datasets (CSMslowres). Number of points, coverage (i.e., number of raster cells with elevation values relative to the seamless CSMref), standard deviation of CSM elevation values, and the mean absolute elevation difference to the CSMref are compared. CSMred and CSMslowres are connected via the absolute number of points in the respective point clouds: In the 10%-fertilized rye dataset, for example, the reduction step width 48, with 3221 points, is closest to the low-resolution scan, with 3182 points, and is therefore used for the comparison.

To analyze the CSMred development over the whole range of reduction steps, coverage, standard deviation, and the mean absolute difference values CSMref − CSMred are calculated for each reduced point cloud (Table 3). The three parameters are chosen to represent core features of the CSMs: The coverage describes the ratio of cells relative to the CSMref which contain at least one laser point and thus an elevation value. On the basis of the coverage, the required scanning resolution for deriving seamless CSMs or CSMs that contain a given percentage of empty cells can be assessed. The standard deviation of CSM elevation values (SD) represents the vertical heterogeneity of the crop surface. It influences, e.g., the application of fungicides, which depends on the crop surface area [29]. If the SD changes with reduced scanning resolutions, an adjustment of the herbicide quantity would be necessary. The mean absolute differences CSMref − CSMred represent the decreasing probability of capturing the highest points in a crop canopy with decreasing scanning resolution. All applications that are based on CSMs or their derivatives are, thus, affected by CSMref − CSMred differences, which implies the need for corrected CSM elevation values when lower scanning resolutions are used for capturing crop fields.

4. Results

The results of stepwise thinning of the high-resolution datasets are described in Section 4.1. Section 4.2 contains the comparison between the stepwise-thinned point clouds and their low-resolution counterparts as well as the description of the changes of the CSM parameters coverage, standard deviation, and the mean elevation difference in absolute values and percentage of crop height.

4.1. Effects of Point Density Reduction

Figure 5 shows an exemplary result of the stepwise point cloud reduction. The stepwise reduction method follows closely a 1/n relationship with n being the step width (i.e., every n-th point of the full dataset is selected). The number of points in the point cloud shown in Figure 5b is 2.09% of the original dataset, corresponding well to the theoretical percentage of 2.08% derived from step width 48. The horizontal extent and high point density clusters are preserved by the method whereas areas with a low number of points tend to become void of points. The point cloud which was extracted from the coarse scan (Figure 5c) exhibits a similar point distribution but with a more emphasized distinction between high and low point density areas. The vertical extent of the thinned (Figure 5b) and low-resolution (Figure 5c) point cloud is 0.1 m and 0.3 m smaller, respectively, which reflects the lower probability of capturing single protruding stalks when applying lower resolutions.

4.2. Crop Surface Modeling and Surface Model Change Assessment

To compare the point clouds produced by low-resolution scans with the corresponding point cloud resulting from the stepwise reduction process, descriptive features are summarized in Table 4. Additionally, coverage, standard deviation, and the mean value of the difference to the CSMref are listed for the CSMslowres and CSMsred.

Regarding the point density, the coarse scans and the reduced point clouds have a similar number of points per cell of 0.4 points/0.01 m2 in average. On the other hand, the coverage of the derived CSMs is lower for the CSMslowres, especially in case of the Zmax CSM with a mean coverage of 44.6% for the CSMslowres and 51.2% for the CSMsred. For the Zp90 surface models, the coverage is similar with 19.6% (CSMlowres) and 18.2% (CSMred). Also the standard deviations of the CSM elevation values and the mean difference to the CSMref correspond well with the difference values being at least one order of magnitude smaller.

The following diagrams (Figures 6 and 7) describe the CSMred changes with decreasing point density by showing the development of the parameters chosen for characterizing the CSMsred over the whole range of point cloud thinning.

The coverage relative to the CSMref is summarized in Figure 6. To relate the calculations to the CSMslowres, the mean coverage values of Table 4 are shown as crosses at step width 48. The most prominent feature of the parameter development in Figure 6 is the general decrease of coverage values. For example, a reduction to 25% of the original point cloud size (step width 4) still leads to a high coverage of 97.2% and 93.8% for Zmax and Zp90 models, respectively. However, starting from the first reduction steps, a divergence between the Zmax and Zp90 CSMred values can be seen. This can be attributed to the exclusion of cells which contain only one point in the Zp90 CSM and which are not used for the derivation of elevation percentile values. It occurs mainly in the first half of the reduction steps until about step width 26, finally leading to a coverage of 49.5% for the Zmax CSMred and 17.3% for the Zp90 CSMred at step width 50.

When differentiating between crops and fertilizing stages, the CSMsred show a similar behavior in both the Zmax and Zp90 models. The lowest loss of coverage is calculated for the 10%-fertilized wheat plot. The descending order of the other datasets is 50%, 100%-fertilized wheat and 10%, 100%, 50%-fertilized rye. Therefore, the wheat plot CSM coverage is less sensitive against point cloud reduction. The least fertilized plot shows the lowest coverage loss when comparing the fertilizing stages for one crop variety. This can be explained by the more regular penetration of laser beams in the less dense stands, so that the points available for CSM raster derivation are distributed more homogeneously within the CSM extent and, thus, fewer cells void of points occur.

Finally regarding the CSMsred and CSMslowres coverage values, the Zp90 CSM derived from reduced point clouds shows practically no difference. Contrary, the coverage of the Zmax CSMred is too high when compared to the CSMlowres which is due to the more homogeneous distribution of points in the thinned point clouds (Figure 5). The CSMred coverage should thus be considered too optimistic in case of the Zmax CSMs.

The standard deviations show no distinct change all over the different reduction steps. For both the Zmax and Zp90 CSMsred, a slight increase of values occurs which follows a linear function with 0.0012 (Zmax) and 0.0006 (Zp90) slopes. At the same time, the mean elevation values of the CSMsred exhibit slight decreases with slopes of −0.0028 (Zmax) and −0.0008 (Zp90). In addition to the point density reduction, the observed standard deviation changes are also influenced by changing mean values. However, the magnitude of change in the standard deviation is marginal, so that the standard deviation of CSMred elevation values is considered constant over the whole range of reduction steps. Models and applications that use the standard deviation of CSM elevation as input can therefore be regarded as robust against reducing the scanning resolution.

A further important feature examined in this study is the CSM elevation change. Figure 7a,b shows the mean absolute elevation difference CSMred – CSMref for Zmax and Zp90 surface models. Similar to the development of coverage (Figure 6), the CSMred mean elevations decrease with increasing point reduction, following logarithmic functions similar to the results in [25,41] given for forest stands. When comparing the Zmax (Figure 7a) and Zp90 (Figure 7b) CSMs, the Zmax models clearly react stronger to the point reduction with the final values at step width 50 being on average two times higher than the respective Zp90 values. Corresponding to the findings in forestry studies [2426], the more robust Zp90 CSM can therefore also be considered advantageous for applications in PA.

The CSM elevation development also differs between the two crop varieties, with wheat reacting less sensitively to point reduction than rye. This is the case for the Zmax and the Zp90 CSMs, but more emphasized for the Zmax models. In both crop varieties, the two higher fertilized plots show a similar development of mean CSMred elevation values whereas the 10% fertilizing stages show a stronger decrease, and thus diverge from the 100% and 50% fertilizing stages.

The comparison between CSMred and CSMlowres indicates that the CSMsred tend to overestimate the reduction of CSM elevation in the case of the wheat plots in both the Zmax and the Zp90 models (Figure 7a,b; Table 4). Taking the example of the 100%-fertilized wheat, the Zp90 model derived from the thinned point cloud shows an elevation difference to the CSMref of 0.026 m, but the Zp90 model which is based on the low-resolution scan has an even lower difference of 0.003 m so that almost no reduction of CSM elevation over the whole range of simulated resolutions can be expected when conducting real scans. In contrast, in the case of the rye plots, the CSMlowres values cover a wider range, leading to a slight overestimation of CSM elevation difference in the 50%-fertilized rye plot and a strong underestimation in case of the 10%-fertilized plot (Figure 7a,b).

Overall, the 100%-fertilized wheat, which can be considered the plot with the highest crop density due to seed density and maximum fertilization, is least affected by point cloud reduction. At the final reduction stage (step width 50, 2% of the original point cloud size), the CSMred is in average 5.7 cm and 2.8 cm lower in the Zmax and Zp90 CSM, respectively. In contrast, the 10%-fertilized rye plot shows the largest CSM elevation decrease with 18.1 cm (Zmax) and 9.6 cm (Zp90).

In addition to the absolute CSM difference values, the mean elevation difference relative to crop height is of interest. In Figure 7c, the difference values of the Zmax CSMs are therefore related to the manual crop height measurements (Table 1) and given in percent of crop height. A different pattern can be seen when compared to Figure 7a. The rye plot CSMs do not strictly show the highest elevation reduction values any more as the 10%-fertilized wheat has the highest percentage of CSM elevation change. Furthermore, the rye plots show a similar development over the range of reduction steps and diverge less than in Figure 7a. However, the rye plots still react more sensitively to point reduction compared to 100% and 50%-fertilized wheat.

Overall, the 10%-fertilized wheat plot shows the highest percentage of elevation differences with up to 17.0% of the crop height at reduction step 50, although the comparison to the CSMlowres value indicates an overestimation of the difference. In addition, the divergence from its higher fertilized counterparts is more emphasized in comparison to Figure 7a. Similar to Figure 7a, the robustness of the 100%-fertilized wheat plot data against point reduction stands out. At a reduction to 6.25% of the original point cloud size (step width 16), the mean CSMred elevation is only 5% lower than the measured crop height. In contrast, 10%-fertilized wheat shows a decrease of 11% at the same point reduction level.

5. Discussion

A prominent feature when comparing the CSM elevation changes in Figure 7a,b is the high sensitivity of the Zmax CSM, which is consistent with the findings in [2426]. Thus, depending on the application in PA, the appropriate model type must be chosen. If, for example, a CSM were used to adjust the height of an agricultural processing tool to the crop surface, the Zmax CSM would better describe the maximum surface elevation, and a high scanning resolution would be required. In contrast, for empirical models of, e.g., biomass as used in [11] for optimizing the speed of a combine harvester, a Zp90 CSM can be used as input, thus reducing the required scanning resolution.

In addition, the different crop varieties and densities examined in this study lead to different sensitivities to point density reduction. The 100%-fertilized wheat, for example, results in the lowest percentage of elevation loss with decreasing point density due to a very dense and plain canopy (indicated by low CSM standard deviations in Table 4), which intercepts most of the laser beams. The resulting point cloud resembles a plain that is still captured well by low-resolution scans. The described behavior may seem trivial, because by applying a lower scanning resolution, the probability of capturing the highest point of a plant obviously decreases. However, there are crucial implications for precision agriculture: To decide on the applied scanning resolution or the scanning device, there needs to be a priori knowledge about the crop stand features. If, for example, a mean Zmax CSM elevation loss of 7% is feasible, a wheat field with a crop density and height distribution similar to the 100%-fertilized field used in this study can be scanned with 1/50th of the resolution applied here, meaning that instead of 0.005 m point spacing at 10 m distance, 0.25 m would be sufficient (Figure 7c). But when working on a field similar to the 10%-fertilized wheat of this study, a point spacing of 0.04 m would be required to reach the same CSM quality.

Similarly, for example, when correction factors for biomass or leaf area index models have to be provided, generic values cannot be applied. The models must be adjusted to the crop features, as stated also in [42] for forestry applications. To find correction factors for homogeneous parts of a crop field, representative areas can be captured with both LiDAR and manual reference measurements.

The crop stand features also influence the robustness of CSM coverage: In sparse and homogeneous crops like the 10%-fertilized wheat used in this study, the penetration rate of laser beams is higher. By reducing the number of points of the 10%-fertilized wheat point cloud to 1/22 of its original size, a Zmax CSM coverage of 80% could still be achieved. To capture a crop field similar to the 10%-fertilized wheat used in this study, lower resolutions still provide enough measurements to derive a CSM with high coverage. In denser or more heterogeneous fields, on the other hand, more laser beams are intercepted in the canopy or single dense areas as caused, e.g., by dense tussocks, so that the crop stand is not homogeneously covered with measurements. Subsequently, compared to the example of 10%-fertilized wheat, the 50%-fertilized rye only shows a coverage of 64%, so that in comparable crop stands, higher scanning resolutions would be necessary for deriving seamless CSMs.

The two CSM types (Zmax, Zp90) show different sensitivities of coverage against point density reduction, with the Zp90 model being more sensitive (Figure 6). Thus, taking into account the higher sensitivity of Zp90 CSMs, there is a trade-off between coverage and elevation accuracy. However, it must be noted that this applies for the 0.1 m × 0.1 m raster as used in this study, which was chosen to achieve a seamless high-resolution CSM in accordance to other studies using the same [13], or even higher [11,14], resolutions.

Finally, issues regarding the used datasets and methods are addressed. First, it should be kept in mind that the point cloud reduction by selecting points of every nth laser beam simulates low-resolution scans. The high-resolution point clouds used as a basis for the reduction contain measurements that were captured due to a higher penetration rate compared to a low-resolution scan. By starting the simulation of a low-resolution scan from a high-resolution dataset, points will be included in the selection of every nth laser beam that would not have been captured in case of a real low-resolution scan at all. This can be seen in Figure 5 as well as in the deviations between CSMsred and CSMslowres in Figures 6 and 7. However, the comparison between the CSMsred and CSMslowres confirms, rather than contradicts, the presented results so that the simulated low-resolution datasets are considered valid representatives of low-resolution scans.

Second, to achieve datasets of comparable scanning conditions, plots within the same scanning range were selected, resulting in low incidence angles around 75° against nadir. Higher incidence angles are normally preferred to avoid shadowing effects in canopies [11,43,44] as visible in Figure 5a. However, as the object examined in this study was the crop surface and not the volume or the terrain, the low penetration rate that can be expected from the low incidence angle was not considered an obstacle for the analyses.

Third, no interpolation method was applied to fill gaps in the derived CSMs due to cells void of laser points. The presented results, especially regarding the coverage values, can therefore be used as guidelines to assess the percentage of CSM cells that would have to be filled by interpolation methods, should a seamless CSM need to be provided as, e.g., in [14].

6. Conclusions and Outlook

To analyze the effect of point density on high-resolution grain crop surface models, high-end TLS point clouds with a resolution of 5 mm at 10 m distance were thinned by stepwise reduction of the number of points. By comparing the derived CSMs it was found that when reducing the point cloud to, e.g., 25% of the number of points in the high-end dataset, the CSM coverage (i.e., cells that contain at least one point) is still >90% (Figure 6) and the average CSM elevation difference is <4% of crop height (Figure 7c). However, coverage and elevation sensitivity strongly depend on CSM type (e.g., Zmax or Zp90) and crop stand features (e.g., surface heterogeneity, crop density). The coverage of Zmax CSMs is more robust against point cloud thinning compared to Zp90 CSMs, but the Zmax CSM elevation reacts more sensitively. Additionally, the CSM coverage of the sparse crop stands was less sensitive compared to the dense stands. In contrast, the CSM elevation of the dense crop stands results in a higher robustness against reducing the number of points. Thus, depending on the application, a trade-off between coverage and robust elevation modeling has to be taken into account by choosing the appropriate CSM type and scanning resolution. Furthermore, when using CSMs as input for, e.g., biomass or leaf area index models, correction factors have to be derived from on-site measurements to cover the crop height and density heterogeneities within a field.

The applied reduction method approximates datasets produced by scanning devices with lower performance and cost, or scan settings which were chosen to capture smaller data volumes. A comparison between high-end datasets and data produced by real low-cost TLS as used, e.g., in [22,45,46] would be a further important step towards optimized 3D or, by adding the time dimension, 4D analysis of grain crop fields. In addition, other scanning set ups like 2D laser scanners mounted on mobile platforms [11,21,43] or unmanned aerial vehicle-borne laser scanning (ULS) [15,45,4750] should be investigated regarding the minimum requirements for deriving models that are of value for PA applications. Homogeneous footprint sizes, nadir perspectives, and scanning ranges can be achieved by mounting multiple 2D scanners on a boom spanning the working width of an agricultural machine. The mentioned scanning set ups can provide advantageous scanning geometries for penetrating a crop stand to the ground and for avoiding disadvantages like, e.g., angle-dependent errors as examined in [51]. A combination of multiple low-cost sensors scanning the area closely in front of an agricultural machine over the whole working width could thus be used for deriving, e.g., canopy height or biomass models on-site and on-line, providing information for site-specific crop treatment and growth monitoring in real time. Scanning devices operating with larger laser footprint diameters compared to the 3.5 mm at 10 m distance applied in this study were used in [4,11,43], with up to 140 mm at 10 m distance in [4]. Examining the optimal footprint diameter for capturing objects like grain crop fields similar to the forestry studies [30,31] would be beneficial for improving the efficiency of capturing 3D geodata in PA. Furthermore, from point clouds captured by a device providing the full waveform of large footprints, the vertical structure of crop stands could be derived as shown for a forested area in [52]. Another promising method for the 3D reconstruction of crop fields is based on imagery captured from cameras mounted on unmanned aerial vehicles (UAV). Using the structure from motion-approach (SfM) to derive 3D geodata from UAV-based photographs, the studies [12,53] show a high potential of UAV use in precision agriculture. The transfer of the findings presented in this study to other sources of point clouds of agricultural objects, e.g., the SfM method, should be investigated to find new, efficient and complementary sources for 3D geodata important for precision agriculture.

Acknowledgments

The authors want to thank K. Koenig, C. Klonner and R.V. Hilland (GIScience Research Group, Institute of Geography, Heidelberg University) for the discussions accompanying the paper compilation and H. Lilienthal, G. Gebensleben, J.-M. Voigt, N. Richter, and A. Essmann (Julius-Kühn-Institute for Crop and Soil Science, Brunswick) for providing the crop fields and their help in the field campaign. This work was supported in part by the BMWi of Germany under Grant HyLand (FKZ 50EE1014) and by the Ministry of Science, Research, and Arts of Baden-Wuerttemberg under Grant LS-VISA.

Author Contributions

Both authors contributed to study design and data collection. The data analysis and manuscript writing were mainly conducted by Martin Hämmerle.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dourado-Neto, D.; Teruel, D.A.; Reichardt, K.; Nielsen, D.R.; Frizzone, J.A.; Bacchi, O.O.S. Principles of crop modelling and simulation: II. The implications of the objective in model development. Sci. Agric. 1998, 55, 51–57. [Google Scholar]
  2. Ehlert, D.; Adamek, R.; Horn, H.-J. Vehicle based laser range finding in crops. Sensors 2009, 9, 3679–3694. [Google Scholar]
  3. Zub, H.W.; Arnoult, S.; Brancourt-Hulmel, M. Key traits for biomass production identified in different Miscanthus species at two harvest dates. Biomass Bioenerg. 2011, 35, 637–651. [Google Scholar]
  4. Zhang, L.; Grift, T.E. A LiDAR-based crop height measurement system for Miscanthus giganteus. Comput. Electron. Agric. 2012, 85, 70–76. [Google Scholar]
  5. Anwar, M.R.; Liu, D.L.; Macadam, I.; Kelly, G. Adapting agriculture to climate change: A review. Theor. Appl. Climatol. 2013, 113, 225–245. [Google Scholar]
  6. Stafford, J. Implementing precision agriculture in the 21st century. J. Agric. Eng. Res. 2000, 76, 267–275. [Google Scholar]
  7. Auernhammer, H. Precision farming—the environmental challenge. Comput. Electron. Agric. 2001, 30, 31–43. [Google Scholar]
  8. Zhang, N.; Wang, M.; Wang, N. Precision agriculture—A worldwide overview. Comput. Electron. Agric. 2002, 36, 113–32. [Google Scholar]
  9. Rosell, J.R.; Sanz, R. A review of methods and applications of the geometric characterization of tree crops in agricultural activities. Comput. Electron. Agric. 2012, 81, 124–141. [Google Scholar]
  10. Whelan, B.; Taylor, J. Precision Agriculture for Grain Production Systems; CSIRO Publishing: Collingwood, Australia, 2013; pp. 1–2. [Google Scholar]
  11. Saeys, W.; Lenaerts, B.; Craessaerts, G.; Baerdemaeker, J.D. Estimation of the crop density of small grains using LiDAR sensors. Biosyst. Eng. 2009, 102, 22–30. [Google Scholar]
  12. Bendig, J.; Bolten, A.; Bareth, G. UAV-based imaging for multi-temporal, very high resolution crop surface models to monitor crop growth variability. Photogramm. Fernerkund. Geoinf. 2013, 6, 551–562. [Google Scholar]
  13. Höfle, B. Radiometric correction of terrestrial LiDAR point cloud data for individual maize plant detection. IEEE Geosci. Remote Sens. Lett. 2014, 11, 94–98. [Google Scholar]
  14. Tilly, N.; Hoffmeister, D.; Cao, Q.; Huang, S.; Lenz-Wiedemann, V.; Miao, Y.; Bareth, G. Multitemporal crop surface models: Accurate plant height measurement and biomass estimation with terrestrial laser scanning in paddy rice. J. Appl. Remote Sens. 2014, 8, 083671. [Google Scholar]
  15. Lumme, J.; Karjalainen, M.; Kaartinen, H.; Kukko, A.; Hyyppä, J.; Hyyppä, H.; Jaakola, A.; Kleemola, J. Terrestrial laser scanning of agricultural crops. Proceedings of the International Congress for Photogrammetry and Remote Sensing, Beijing, China, 3–11 July 2008.
  16. Eitel, J.U.H.; Magney, T.S.; Vierling, L.A.; Brown, T.T.; Huggins, D.R. LiDAR based biomass and crop nitrogen estimates for rapid, non-destructive assessment of wheat nitrogen status. Field Crop. Res. 2014, 159, 21–32. [Google Scholar]
  17. Paulus, S.; Schumann, H.; Kuhlmann, H.; Léon, J. High-precision laser scanning system for capturing 3D plant architecture and analysing growth of cereal plants. Biosyst. Eng. 2014, 121, 1–11. [Google Scholar]
  18. Paulus, S.; Dupuis, J.; Riedel, S.; Kuhlmann, H. Automated analysis of barley organs using 3D laser scanning: An approach for high throughput phenotyping. Sensors 2014, 14, 12670–12686. [Google Scholar]
  19. Chéné, Y.; Rousseau, D.; Lucidarme, P.; Bertheloot, J.; Caffier, V.; Morel, P.; Belin, É.; Chapeau-Blondeau, F. On the use of depth camera for 3D phenotyping of entire plants. Comput. Electron. Agric. 2012, 82, 122–127. [Google Scholar]
  20. Hämmerle, M.; Höfle, B.; Fuchs, J.; Schröder-Ritzrau, A.; Vollweiler, N.; Frank, N. Comparison of Kinect and Terrestrial LiDAR Capturing Natural Karst Cave 3D Objects. IEEE Geosci. Remote Sens. Lett. 2014, 11, 1896–1900. [Google Scholar]
  21. Ehlert, D.; Heisig, M.; Adamek, R. Suitability of a laser rangefinder to characterize winter wheat. Precis. Agric. 2010, 11, 650–663. [Google Scholar]
  22. Eitel, J.U.H.; Vierling, L.A.; Magney, T.S. A lightweight, low cost autonomously operating terrestrial laser scanner for quantifying and monitoring ecosystem structural dynamics. Agric. For. Meteorol. 2013, 180, 86–96. [Google Scholar]
  23. Baltsavias, E.P. Airborne laser scanning: Basic relations and formulas. ISPRS J. Photogramm. Remote Sens. 1999, 54, 199–214. [Google Scholar]
  24. González-Ferreiro, E.; Diéguez-Aranda, U.; Miranda, D. Estimation of stand variables in Pinus radiata D. Don plantations using different LiDAR pulse densities. Forestry 2013, 85, 281–292. [Google Scholar]
  25. Jakubowski, M.K.; Guo, Q.; Kelly, M. Tradeoffs between LiDAR pulse density and forest measurement accuracy. Remote Sens. Environ. 2013, 130, 245–253. [Google Scholar]
  26. Gobakken, T.; Næsset, E. Assessing effects of laser point density, ground sampling intensity, and field sample plot size on biophysical stand properties derived from airborne laser scanner data. Can. J. For. Res. 2008, 38, 1095–1109. [Google Scholar]
  27. Hoffmeister, D.; Bolten, A.; Curdt, C.; Waldhoff, G.; Bareth, G. High-resolution Crop Surface Models (CSM) and Crop Volume Models (CVM) on field level by terrestrial laser scanning. Proceedings of the Sixth International Symposium on Digital Earth: Models, Algorithms, and Virtual Reality, Beijing, China, 9 September 2009.
  28. Ehlert, D.; Horn, H.-J.; Adamek, R. Measuring crop biomass density by laser triangulation. Comput. Electron. Agric. 2008, 61, 117–125. [Google Scholar]
  29. Dammer, K.-H.; Wollny, J.; Giebel, A. Estimation of the Leaf Area Index in cereal crops for variable rate fungicide spraying. Eur. J. Agron. 2008, 28, 351–360. [Google Scholar]
  30. Yu, X.; Hyyppä, J.; Hyyppä, H.; Maltamo, M. Effects of flight altitude on tree height estimation using airborne laser scanning. Proceedings of the ISPRS working group VIII/2 Laser-Scanners for Forest and Landscape Assessment, Freiburg, Germany, 3–6 October 2004.
  31. Næsset, E. Effects of different flying altitudes on biophysical stand properties estimated from canopy height and density measured with a small-footprint airborne scanning laser. Remote Sens. Environ. 2004, 91, 243–255. [Google Scholar]
  32. Meier, U., Ed.; Growth stages of mono and dicotyledonous plants. BBCH Monograph. 2. German Federal Biological Research Centre for Agriculture and Forestry, 2001. Available online: http://www.bba.de/veroeff/bbch/bbcheng.pdf (accessed on 3 September 2014).
  33. Riegl VZ-400 Data Sheet. Available online: http://www.riegl.com/uploads/tx_pxpriegldownloads/10_DataSheet_VZ-400_2014–09–19.pdf (accessed on 6 November 2014).
  34. Raber, G.T.; Jensen, J.R.; Hodgson, M.E.; Tullis, J.A.; Davis, B.A.; Berglund, J. Impact of LiDAR nominal post-spacing on DEM accuracy and flood zone delineation. Photogramm. Eng. Remote Sens. 2007, 73, 793–804. [Google Scholar]
  35. Treitz, P.; Lim, K.; Woods, M.; Pitt, D.; Nesbitt, D.; Etheridge, D. LiDAR Sampling Density for Forest Resource Inventories in Ontario, Canada. Remote Sens. 2012, 4, 830–848. [Google Scholar]
  36. Barron, C.; Neis, P.; Zipf, A. A comprehensive framework for intrinsic OpenStreetMap quality analysis. Trans. GIS 2014. 0.1111/tgis. [Google Scholar]
  37. Schaefer, M.; Inkpen, R. Towards a protocol for laser scanning of rock surfaces. Earth Surf. Process. Landf. 2010, 35, 417–423. [Google Scholar]
  38. Pieczonka, T.; Bolch, T.; Buchroithner, M. Generation and evaluation of multitemporal digital terrain models of the Mt. Everest area from different optical sensors. ISPRS J. Photogramm. Remote Sens. 2011, 66, 927–940. [Google Scholar]
  39. Tompalski, P.; Coops, N.C.; White, J.C.; Wulder, M.A. Simulating the impacts of error in species and height upon tree volume derived from airborne laser scanning data. For. Ecol. Manag. 2014, 327, 167–177. [Google Scholar]
  40. Pfeifer, N.; Mandlburger, G.; Otepka, J.; Karel, W. OPALS—A framework for Airborne Laser Scanning data analysis. Comput. Environ. Urb. Syst. 2014, 45, 125–136. [Google Scholar]
  41. Lovell, J.L.; Jupp, D.L.B.; Newnham, G.J.; Coops, N.C.; Culvenor, D.S. Simulation study for finding optimal LiDAR acquisition parameters for forest height retrieval. For. Ecol. Manag. 2005, 214, 398–412. [Google Scholar]
  42. Hyyppä, J.; Hyyppä, H.; Leckie, D.; Gougeon, F.; Yu, X.; Maltamo, M. Review of methods of small-footprint airborne laser scanning for extracting forest inventory data in boreal forests. Int. J. Remote Sens. 2008, 29, 1339–1366. [Google Scholar]
  43. Ehlert, D.; Adamek, R.; Horn, H.-J. Laser rangefinder-based measuring of crop biomass under field conditions. Precis. Agric. 2009, 10, 395–408. [Google Scholar]
  44. Fan, L.; Powrie, W.; Smethurst, J.; Atkinson, P.M.; Einstein, H. The effect of short ground vegetation on terrestrial laser scans at a local scale. ISPRS J. Photogramm. Remote Sens. 2014, 95, 42–52. [Google Scholar]
  45. Jaakkola, A.; Hyyppä, J.; Kukko, A.; Yu, X.; Kaartinen, H.; Lehtomäki, M.; Lin, Y. A low-cost multi-sensoral mobile mapping system and its feasibility for tree measurements. ISPRS J. Photogramm. Remote Sens. 2010, 65, 514–522. [Google Scholar]
  46. Culvenor, D.S.; Newnham, G.J.; Mellor, A.; Sims, N.C.; Haywood, A. Automated in-situ laser scanner for monitoring forest leaf area index. Sensors 2014, 14, 14994–15008. [Google Scholar]
  47. Wallace, L.; Lucieer, A.; Watson, C.; Turner, D. Development of a UAV-LiDAR system with application to forest inventory. Remote Sens. 2012, 4, 1519–1543. [Google Scholar]
  48. Petrie, G. Current developments in airborne laser scanners suitable for use on lightweight UAVs: Progress is being made. GEOInformatics 2013, 16, 16–22. [Google Scholar]
  49. Conte, G.; Rudol, P.; Doherty, P. Evaluation of a light-weight LiDAR and a photogrammetric system for unmanned airborne mapping applications. Photogramm. Fernerkund. Geoinf. 2014, 4, 287–298. [Google Scholar]
  50. Pfenningbauer, M.; Riegl, U.; Rieger, P.; Amon, P. UAS based laser scanning for forest inventory and precision farming. Proceedings of the International Workshop on Remote Sensing and GIS for Monitoring of Habitat Quality, Vienna, Austria, 24–25 September 2014.
  51. Ehlert, D.; Heisig, M. Sources of angle-dependent errors in terrestrial laser scanner-based crop stand measurement. Comput. Electron. Agric. 2013, 93, 10–16. [Google Scholar]
  52. Tian, J.; Wang, L.; Li, X. Sub-footprint analysis to uncover tree height variation using ICESat/GLAS. Int. J. Appl. Earth Obs. Geoinf. 2015, 35, 284–293. [Google Scholar]
  53. Grenzdörffer, G.; Zacharias, P. Bestandeshöhenermittlung landwirtschaftlicher Kulturen aus UAS-Punktwolken. Proceedings of the conference on Geoinformationen öffnen das Tor zur Welt, Hamburg, Germany, 26–28 March 2014. (In German).

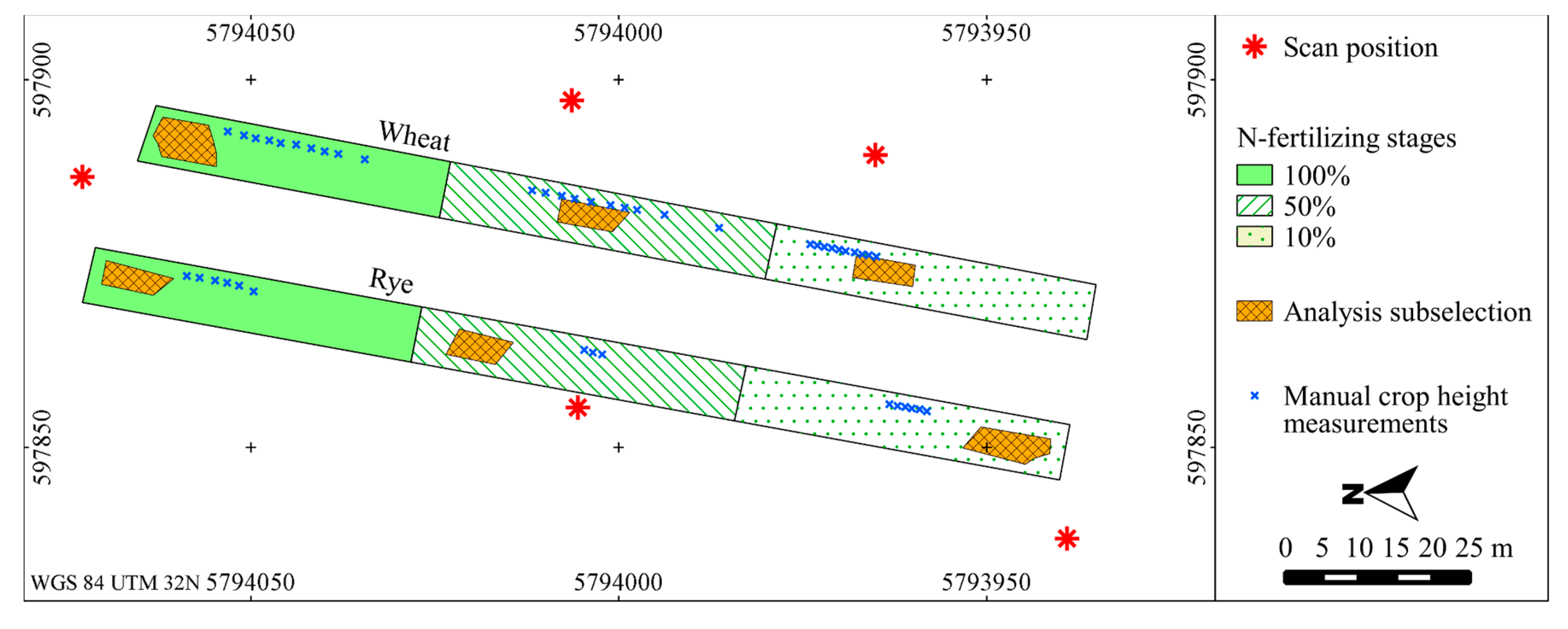

Figure 1. Study area: Scan positions, fertilizing stages and subsampled areas for analysis.
Figure 1. Study area: Scan positions, fertilizing stages and subsampled areas for analysis.
Sensors 14 24212f1 1024

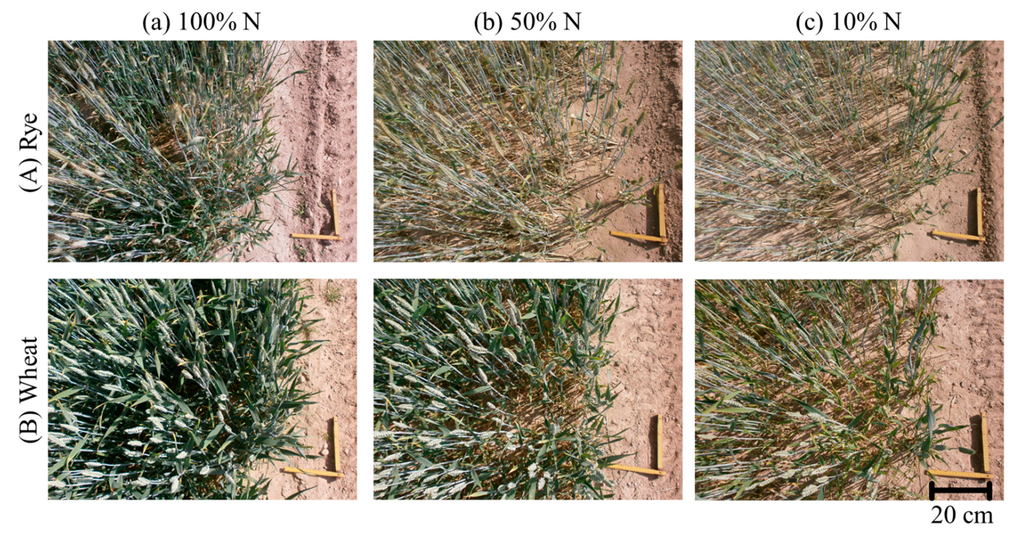

Figure 2. Bird's eye view of the analyzed crop stands. (a), (b), (c) 100%, 50%, 10% nitrogen fertilization, respectively. (A) Rye; (B) Wheat.
Figure 2. Bird's eye view of the analyzed crop stands. (a), (b), (c) 100%, 50%, 10% nitrogen fertilization, respectively. (A) Rye; (B) Wheat.
Sensors 14 24212f2 1024

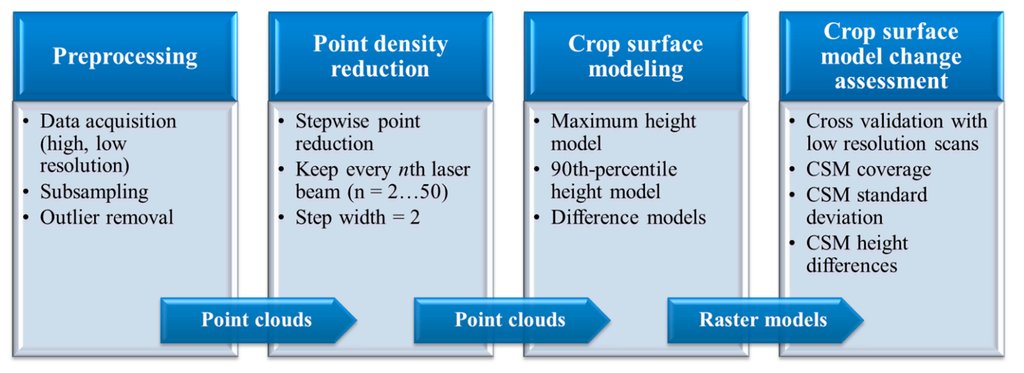

Figure 3. Overview workflow of the study design.
Figure 3. Overview workflow of the study design.
Sensors 14 24212f3 1024

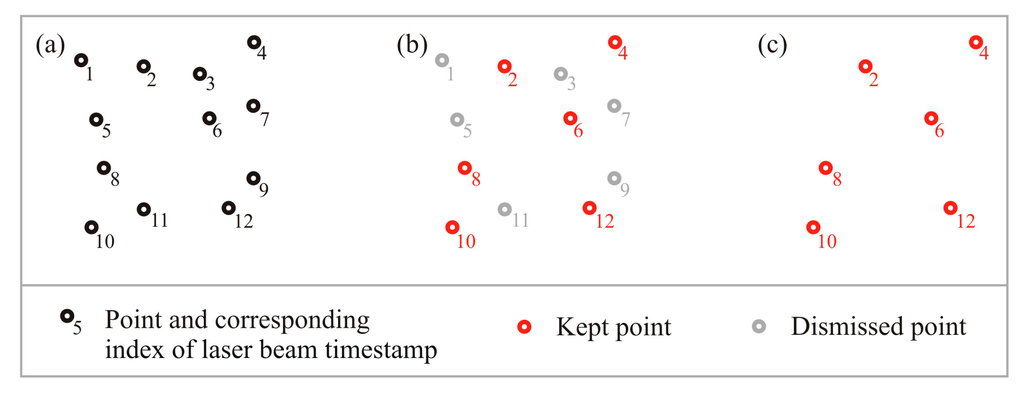

Figure 4. Stepwise point density reduction. (a) Original point cloud with index of laser beam timestamp; (b) Stepwise point selection with step width 2; (c) Resulting reduced point cloud.
Figure 4. Stepwise point density reduction. (a) Original point cloud with index of laser beam timestamp; (b) Stepwise point selection with step width 2; (c) Resulting reduced point cloud.
Sensors 14 24212f4 1024

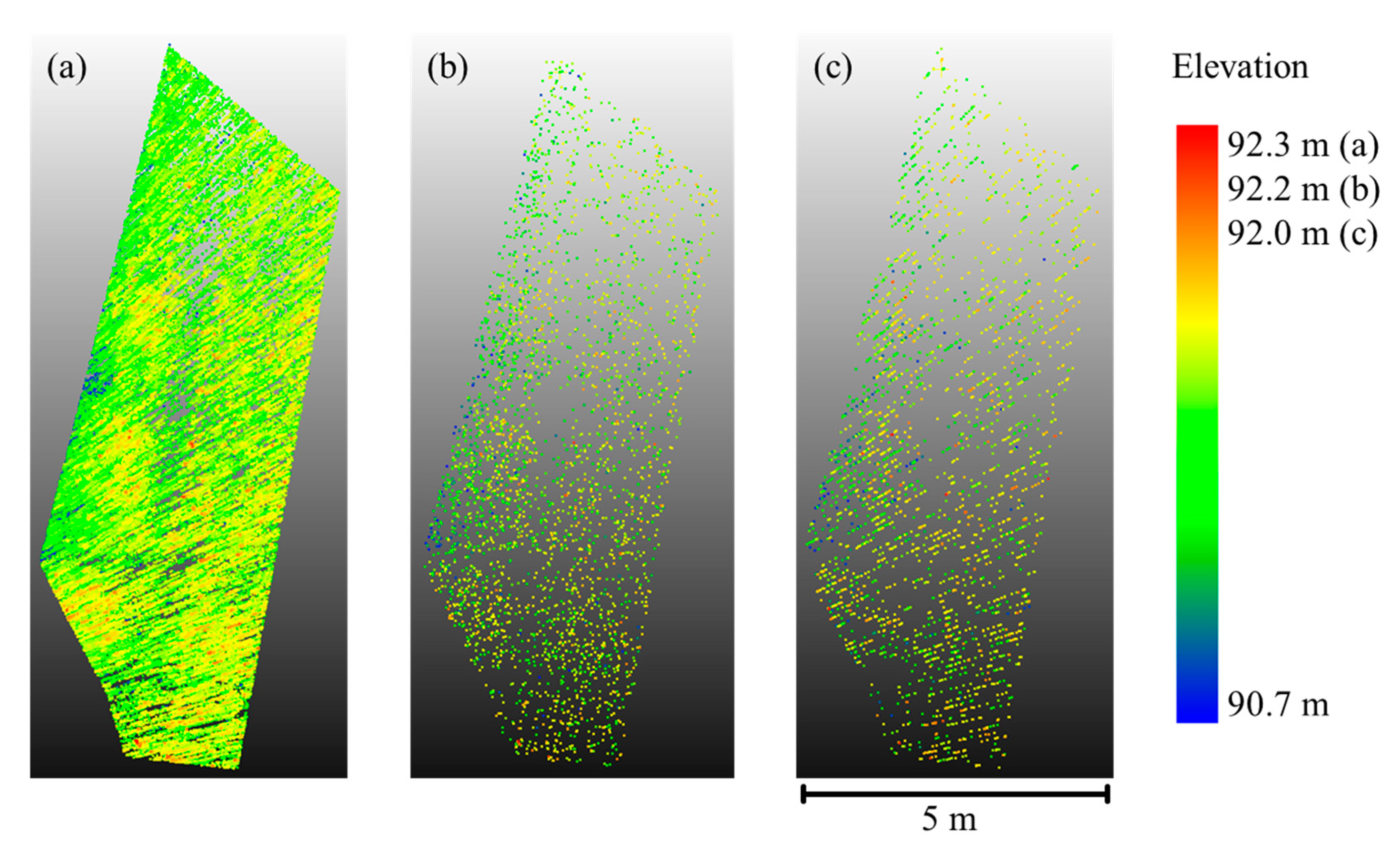

Figure 5. Exemplary results for point density reduction. Bird's eye view on the point cloud of 10%-fertilized rye. (a) Original point cloud colored according to point elevation; (b) Result of point cloud thinning with step width n = 48; (c) Point cloud of low-resolution scan with a number of points similar to (b). (b) and (c) are also colored according to point elevation.
Figure 5. Exemplary results for point density reduction. Bird's eye view on the point cloud of 10%-fertilized rye. (a) Original point cloud colored according to point elevation; (b) Result of point cloud thinning with step width n = 48; (c) Point cloud of low-resolution scan with a number of points similar to (b). (b) and (c) are also colored according to point elevation.
Sensors 14 24212f5 1024

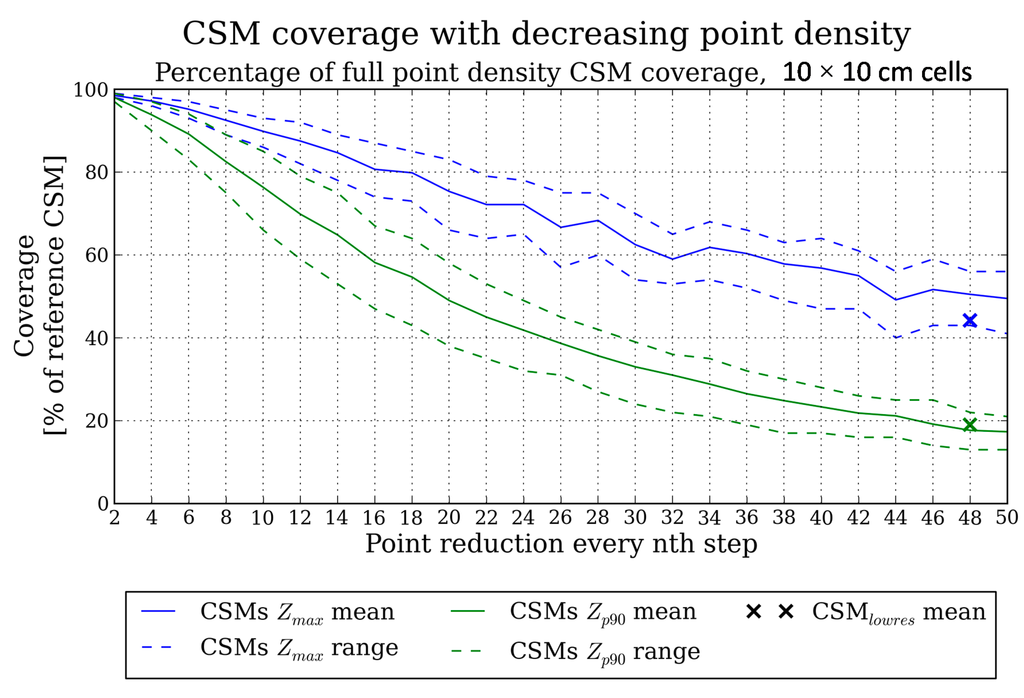

Figure 6. Development of mean CSMred coverage with stepwise reduced point cloud size. Solid line: Mean coverage value of all analyzed crop plots, dashed line: range of coverage values. Blue: Zmax CSM, green: Zp90 CSM. Cross markers: Mean CSMlowres values.
Figure 6. Development of mean CSMred coverage with stepwise reduced point cloud size. Solid line: Mean coverage value of all analyzed crop plots, dashed line: range of coverage values. Blue: Zmax CSM, green: Zp90 CSM. Cross markers: Mean CSMlowres values.
Sensors 14 24212f6 1024

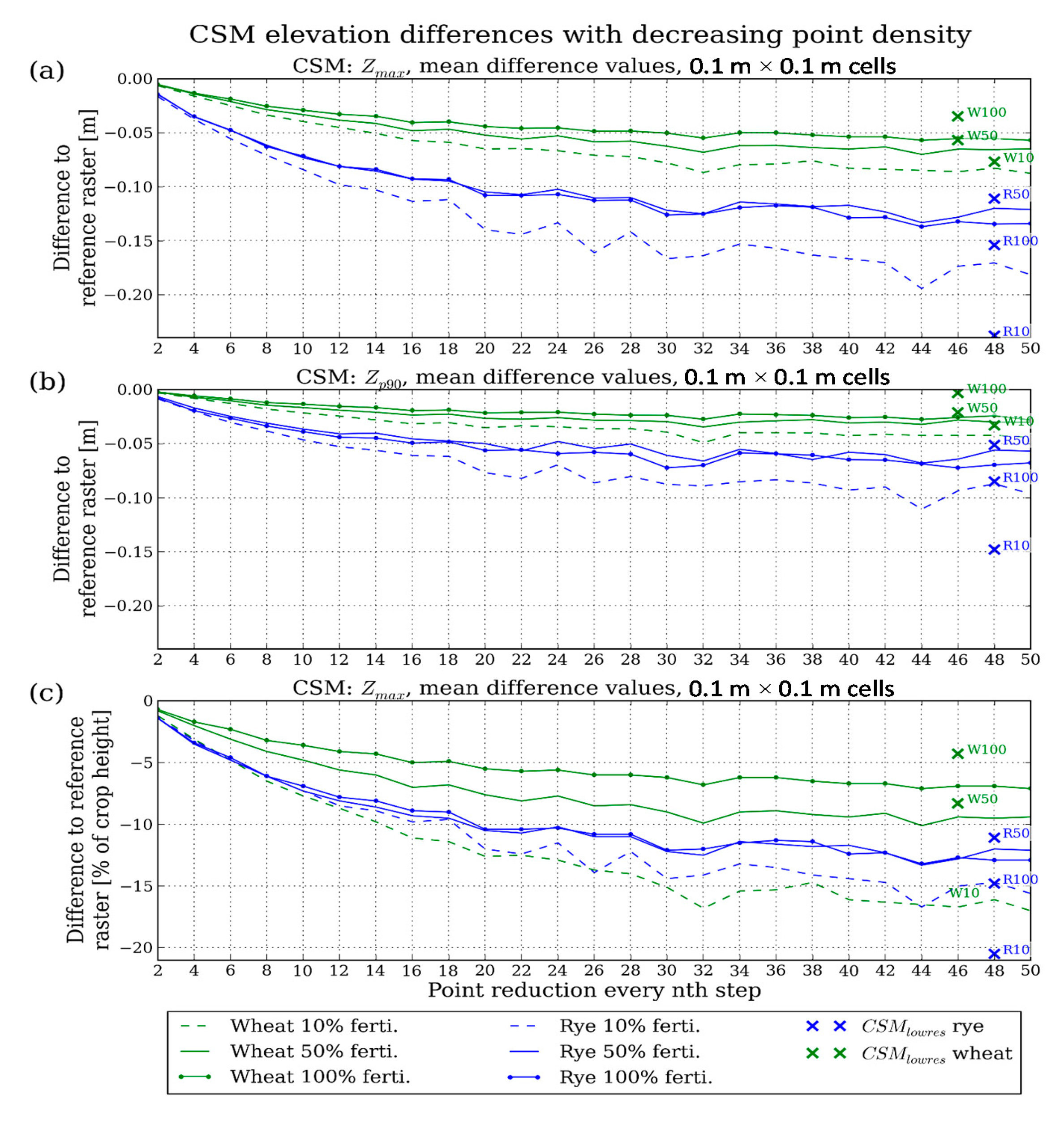

Figure 7. Development of mean CSMref − CSMred elevation difference values with stepwise reduced point cloud size. (a), (b) Absolute values for Zmax and Zp90 CSMs, respectively; (c) Values for Zmax in percent of crop height (manual field measurements). Blue: rye plots, green: wheat plots. Solid line with markers: 100% fertilizing, solid line: 50% fertilizing, dashed line: 10% fertilizing. Crosses: CSMlowres values at the corresponding reduction step width. Cross indices: ‘R’ = rye, ‘W’ = wheat, number = fertilizing stage.

Figure 7. Development of mean CSMref − CSMred elevation difference values with stepwise reduced point cloud size. (a), (b) Absolute values for Zmax and Zp90 CSMs, respectively; (c) Values for Zmax in percent of crop height (manual field measurements). Blue: rye plots, green: wheat plots. Solid line with markers: 100% fertilizing, solid line: 50% fertilizing, dashed line: 10% fertilizing. Crosses: CSMlowres values at the corresponding reduction step width. Cross indices: ‘R’ = rye, ‘W’ = wheat, number = fertilizing stage.
Sensors 14 24212f7 1024
Table 1. Fertilizer application and manual plant height measurements in the analyzed crop stands. The number after the crop name indicates the nitrogen fertilizing stage in percent.
Table 1. Fertilizer application and manual plant height measurements in the analyzed crop stands. The number after the crop name indicates the nitrogen fertilizing stage in percent.
CropFertilization [kg/ha]Manual Measurements of Maximum Plant Height

Number of MeasurementsMean [m]
Rye 101 × 1061.16
Rye 502 × 2531.00
Rye 1002 × 5061.04
Wheat 101 × 16100.52
Wheat 502 × 40100.69
Wheat 1002 × 80100.81
Table 2. Features of the high-resolution point clouds. The number after the crop name indicates the nitrogen fertilizing stage in percent.
Table 2. Features of the high-resolution point clouds. The number after the crop name indicates the nitrogen fertilizing stage in percent.
CropExtent [m × m]Number of PointsPoint Density [Points/0.01 m2]

MeanMaximumStandard Deviation
Rye 104 × 11153,94018.622230.4
Rye 503.5 × 874,49315.014221.0
Rye 1003 × 880,96913.017021.5
Wheat 103 × 8100,16916.514824.2
Wheat 503 × 999,07723.812223.6
Wheat 1005 × 9154,05723.422427.3
Table 3. Crop surface model parameters examined in this study.
Table 3. Crop surface model parameters examined in this study.
ParameterDescriptionRepresented Feature
CoveragePercentage of cells with elevation values relative to the seamless CSMrefHorizontal distribution of points
Standard deviationStandard deviation of the elevation values of the derived CSMsVertical distribution of points and elevation values in the derived CSMs
Mean difference to CSMrefMean elevation difference CSMref − CSMred or CSMref − CSMlowresMeasure of CSM height underestimation due to reduced data resolution
Table 4. Point cloud and CSM features of the low-resolution scans (‘Lowres’) and their counterparts derived from stepwise point cloud thinning (‘Step n’).
Table 4. Point cloud and CSM features of the low-resolution scans (‘Lowres’) and their counterparts derived from stepwise point cloud thinning (‘Step n’).
CropPoint CloudNo. of Points (abs.)No. of Points (Mean)CSM TypeCoverageStandard DeviationCSMref − CSMred/lowres (Mean)




[Points/0.01 m2][%]diff.[m]diff.[m]diff.
R10Lowres31820.4Zmax44.20.2140.24
Zp9021.80.1910.15

Step 4832210.4Zmax53.7−9.50.225−0.0110.170.10
Zp9022.4−0.60.1790.0120.090.06

R50Lowres15850.3Zmax37.70.1240.11
Zp9015.70.1100.05

Step 4815460.3Zmax43.7−6.00.1220.0020.12−0.01
Zp9013.32.40.0970.0130.06−0.01

R100Lowres16700.3Zmax36.80.1220.15
Zp9016.20.1090.08

Step 4816800.3Zmax45.6−8.80.125−0.0030.130.02
Zp9014.91.30.1000.0090.070.01

W10Lowres21100.4Zmax51.10.0940.08
Zp9022.90.0780.03

Step 4820760.4Zmax56.6−5.50.0870.0070.080.00
Zp9021.61.30.0670.0110.04−0.01

W50Lowres21230.5Zmax49.00.0620.06
Zp9020.40.0500.02

Step 462,1270.5Zmax53.7−4.70.0600.0020.07−0.01
Zp9018.42.00.0460.0040.03−0.01

W100Lowres33960.5Zmax48.80.0490.03
Zp9020.70.0510.00

Step 4633260.5Zmax53.6−4.80.053−0.0040.06−0.03
Zp9018.72.00.0460.0050.030.00

AverageLowres--0.4Zmax44.60.1110.11
Zp9019.60.0980.04

Step--0.4Zmax51.2−6.60.112−0.0010.110.00
Zp9018.21.40.0890.0090.05−0.01
