Open AccessArticle
Sensors 2013, 13(7), 8340-8351;

Organic Plasmon-Emitting Diodes for Detecting Refractive Index Variation

Institute of Electro-Optical Science and Technology, National Taiwan Normal University, No. 88, Sec. 4, Ting-Chou Road, Taipei 11677, Taiwan
Author to whom correspondence should be addressed.
Received: 8 April 2013 / Revised: 17 June 2013 / Accepted: 24 June 2013 / Published: 28 June 2013
(This article belongs to the Section Chemical Sensors)
Full-Text   |   PDF [746 KB, uploaded 21 June 2014]

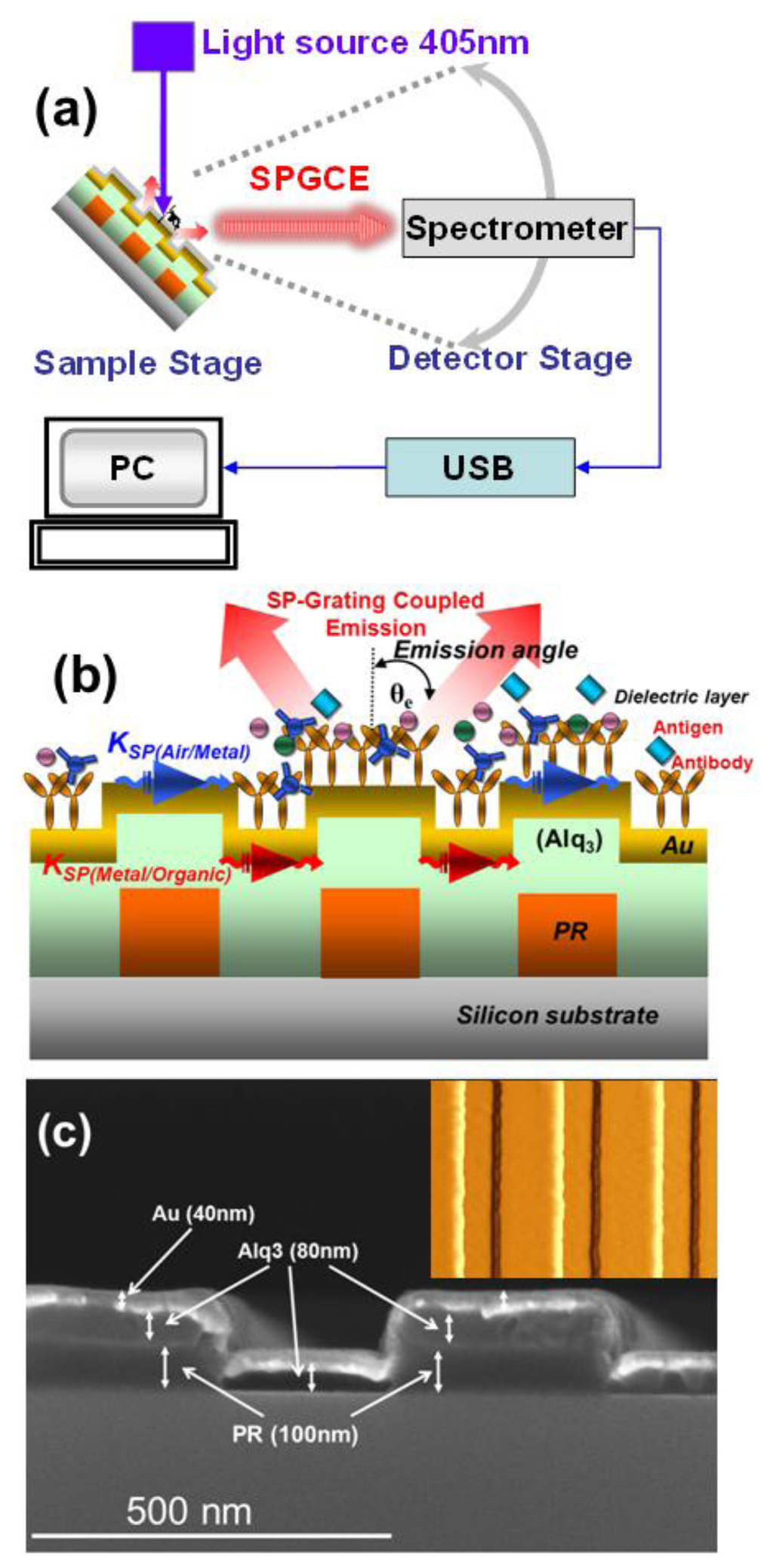

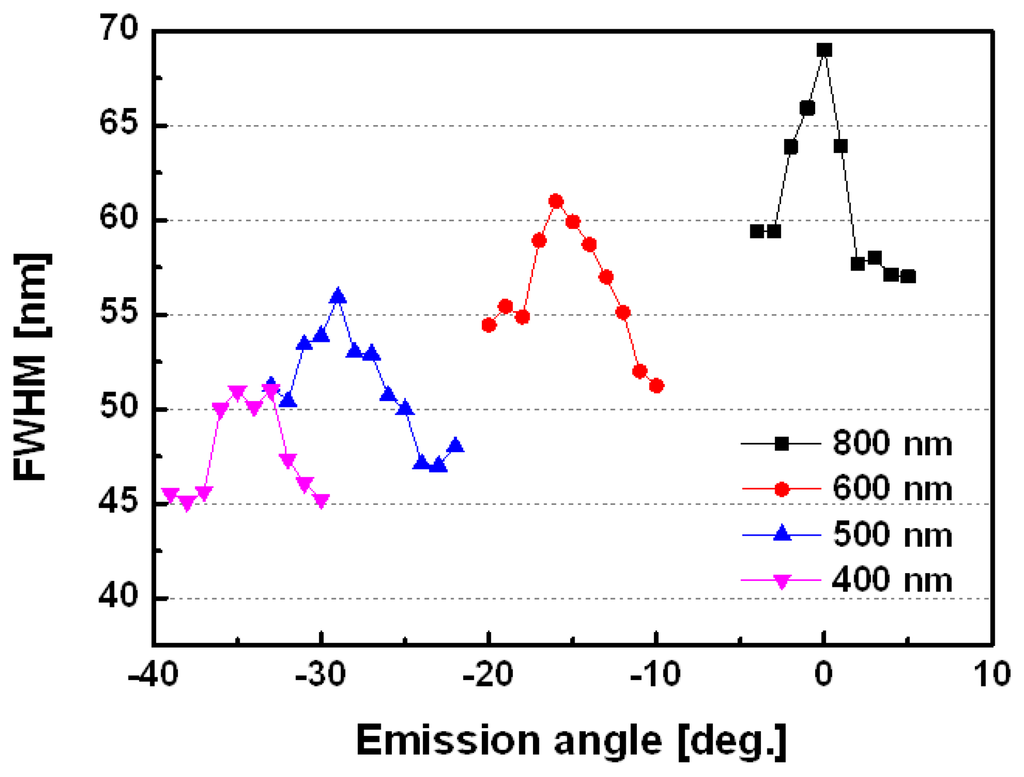

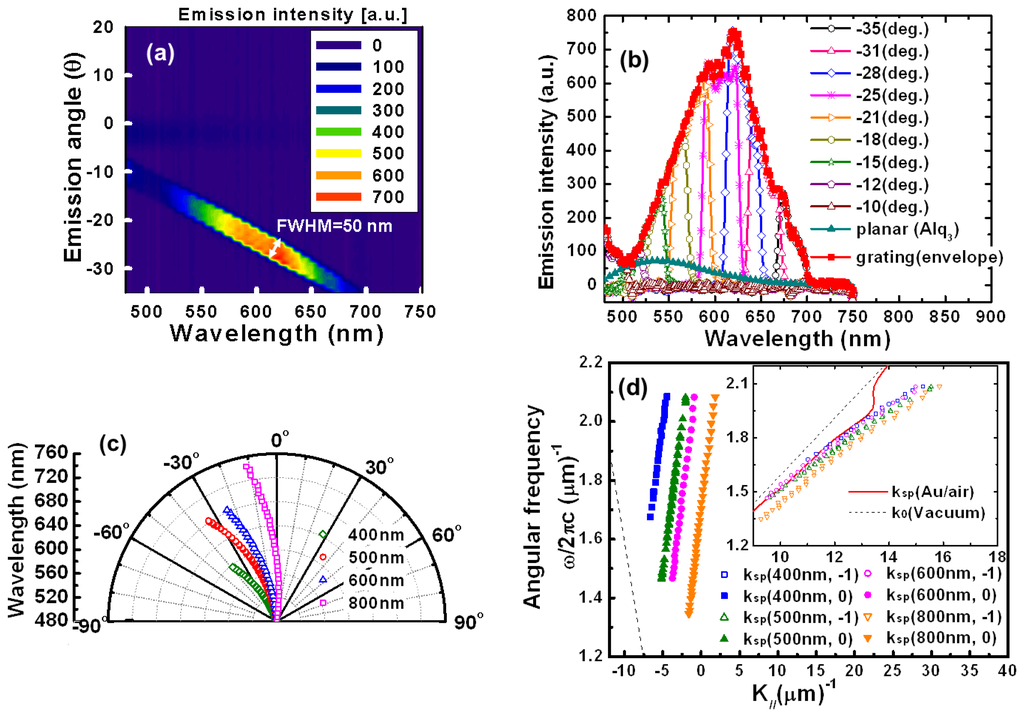

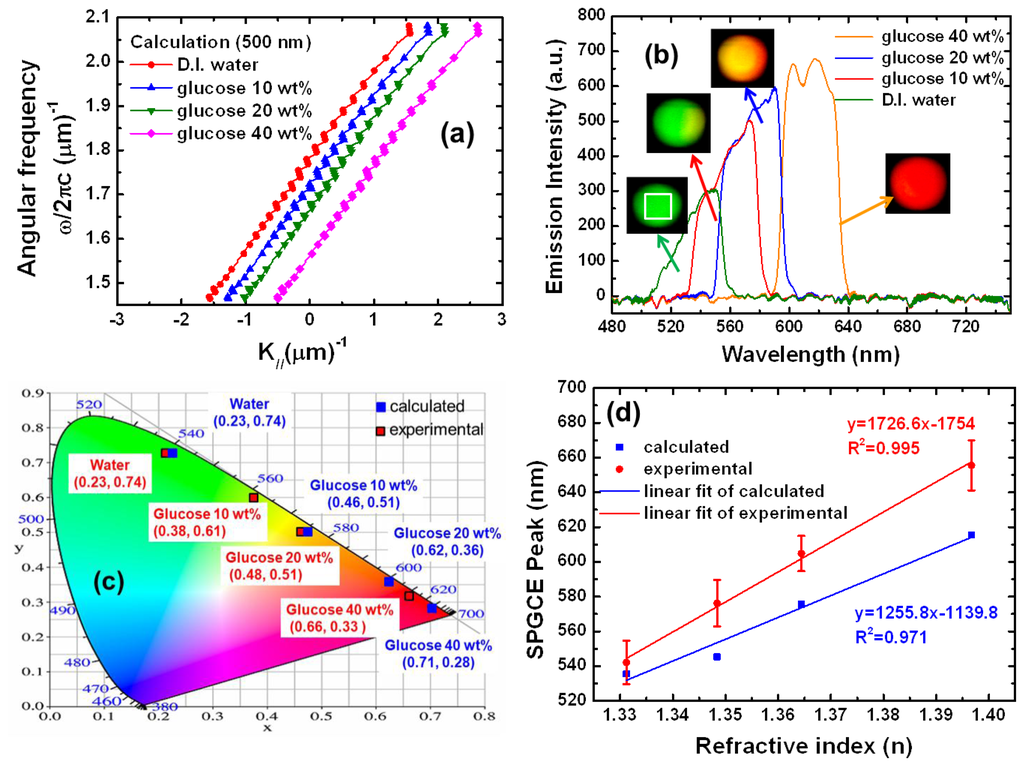

A photo-excited organic layer on a metal thin film with a corrugated substrate was used to generate surface plasmon grating coupled emissions (SPGCEs). Directional emissions corresponded to the resonant condition of surface plasmon modes on the Au/air interface. In experimental comparisons of the effects of different pitch sizes on the plasmonic band-gap, the obtained SPGCEs were highly directional, with intensity increases as large as 10.38-fold. The FWHM emission spectrum was less than 70 nm. This method is easily applicable to detecting refractive index changes by using SP-coupled fluorophores in which wavelength emissions vary by viewing angle. The measurements and calculations in this study confirmed that the color wavelength of the SPGCE changed from 545.3 nm to 615.4 nm at certain viewing angles, while the concentration of contacting glucose increased from 10 to 40 wt%, which corresponded to a refractive index increase from 1.3484 to 1.3968. The organic plasmon-emitting diode exhibits a wider linearity range and a resolution of the experimental is 1.056 × 103 RIU. The sensitivity of the detection limit for naked eye of the experimental is 0.6 wt%. At a certain viewing angle, a large spectral shift is clearly distinguishable by the naked eye unaided by optoelectronic devices. These experimental results confirm the potential applications of the organic plasmon-emitting diodes in a low-cost, integrated, and disposable refractive-index sensor. View Full-Text
Keywords: surface plasmon grating coupled emission (SPGCE); directional; plasmonic band-gap; refractive-index sensor surface plasmon grating coupled emission (SPGCE); directional; plasmonic band-gap; refractive-index sensor
This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).
