Ultrasonic and LIDAR Sensors for Electronic Canopy Characterization in Vineyards: Advances to Improve Pesticide Application Methods

1
Department of Agri Food Engineering and Biotechnology, Universitat Politècnica de Catalunya Campus del Baix Llobregat, Edifici D4, Esteve Terradas, 8, 08860 Castelldefels, Spain
2
Department of Agro Forestry Engineering, Universitat de Lleida Avda. Rovira Roure, 191, 25198 Lleida, Spain
*
Author to whom correspondence should be addressed.
Sensors 2011, 11(2), 2177-2194; https://doi.org/10.3390/s110202177
Received: 10 December 2010 / Revised: 25 January 2011 / Accepted: 28 January 2011 / Published: 15 February 2011
(This article belongs to the Special Issue Advanced Sensing Technology for Nondestructive Evaluation)

Abstract

: Canopy characterization is a key factor to improve pesticide application methods in tree crops and vineyards. Development of quick, easy and efficient methods to determine the fundamental parameters used to characterize canopy structure is thus an important need. In this research the use of ultrasonic and LIDAR sensors have been compared with the traditional manual and destructive canopy measurement procedure. For both methods the values of key parameters such as crop height, crop width, crop volume or leaf area have been compared. Obtained results indicate that an ultrasonic sensor is an appropriate tool to determine the average canopy characteristics, while a LIDAR sensor provides more accuracy and detailed information about the canopy. Good correlations have been obtained between crop volume (CVU) values measured with ultrasonic sensors and leaf area index, LAI (R2 = 0.51). A good correlation has also been obtained between the canopy volume measured with ultrasonic and LIDAR sensors (R2 = 0.52). Laser measurements of crop height (CHL) allow one to accurately predict the canopy volume. The proposed new technologies seems very appropriate as complementary tools to improve the efficiency of pesticide applications, although further improvements are still needed.

Graphical Abstract

1. Introduction

Detailed information about canopy characteristics is a need for an adequate management of tree and vineyard crops, not only regarding pesticide application, but also for water management, fertilization schemes or pruning alternatives, all of them important aspects to achieve the main objective of a high yield and safe production. Tree canopy geometric characteristics are directly related to tree growth and productivity [1], and this information has been used for different authors to predict yield [2,3], fertilizer application in citrus crops [4], water consumption [5] or biomass [6].

The crop structure of tree or vine plants varies enormously according vegetative stage, trellis system, variety and plant density, and all those changes affect the relationship between the sprayer output and the deposit obtained on the target crop [7,8]. Pesticide applications without any consideration of crop structure are in contradiction with the general principle that foliar application should result in similar deposits, independently of crop size or canopy density [9]. This objective will lead to a considerable increase of efficacy and efficiency during the process, reducing the total amount of plant protection products required, in accord with recent EU trends [10] and avoiding the most severe problems related to environmental contamination [11,12].

Canopy characteristics can be measured manually. In this case simple values of averaged crop height and crop width are easily measured and from those values, estimations of canopy volume can be obtained. This parameter has been widely used by different authors [1315] to establish application rates, but those manual measurements assume a homogeneous crop structure over the entire field and extrapolate measurements from several points on a crop line to the whole area. Total leaf surface and leaf area index (LAI) can be also manually measured. This involves a destructive, time consuming and expensive method including the total defoliation of a sample crop area and extended laboratory measurements of every individual leaf surface. Also in this case the obtained values in selected sampling area must be extended to the whole canopy area without consideration of any “in row” variability.

Electronic measurement of canopy dimensions in tree crops is not a new concept. In [16,17] the authors discussed the use of the ultrasonic sensors to measure canopy volume in peach and apple trees and used this information to improve the pesticide application process. The measurement system was based in a three ultrasonic sensors placed at different heights and mounted on an air-blast orchard sprayer. This work was improved furthermore by the same authors [18,19] using an advanced control algorithm. The results generated pesticide savings of up to 52% in apples.

Ultrasonic sensors transmit high frequency sound waves towards an object and sense the reflected echo. The distance between the sensor and the object is then calculated by measuring the time difference between the transmission and the reception of the waves. Distance measurements by several vertically mounted sensors have been used to calculate canopy volume in fruit, citrus and vineyard crops [2022]. However, due to the relative wide angle divergence of ultrasonic waves [23], the field of view becomes larger as the distance between the sensor and the canopy (target) increases, reducing the accuracy of the measurements and increasing the possible interference in the signal reception of two consecutive sensors. Escolà, et al. [20] established that for measuring apple trees with ultrasonic sensors at distances between sensor and canopy greater than 2.0 m., the minimum distance between two consecutive ultrasonic sensors placed in a vertical pole should be 0.60 m in order to avoid interferences. In spite of these drawbacks, ultrasonic sensors have become one of the most interesting new tools to improve pesticide management in fruit and vineyard cultivation in recent years. Schumann et al. developed a Windows® based software to manage field data obtained with ultrasonic sensors measuring tree canopy height and volume in citrus groves with a high efficiency at a rate of about 13.6 trees per minute [24].

Electronic canopy characterization allows the implementation of variable application rate techniques in fruit and vineyard crops, whereby pesticide application rates are modified according to crop characteristics as detected by the ultrasonic sensors [12,2022,2528]. In all those cases, canopy volume was estimated by assuming an averaged crop width for every individual crop section according the height of sensor placement on the sprayer. However, this procedure limits and introduces an error in the estimation of total volume, by assuming a constant crop width for every single crop area.

Laser sensor technology has been also adapted to determine canopy characteristics in different tree crops. LIDAR technology is a remote-sensing technique based on the measurement of the time a laser pulse takes between the sensor and a target and has the advantage that the beam can be very thin and diverges very little. In the recent years LIDAR has been used for canopy characterization in fruit trees. Tumbo et al. used a tree-sensing laser scanner to measure citrus canopy volume and found a good estimation of canopy volumes, especially in a grove were there are significant numbers of partially defoliated trees or small replants [29]. In [30] a measurement system to estimate the foliage surface of the crop based on a ground laser scanner was proposed, leading to the conclusion that in the estimation for a complete grove the relation between the external volume of the tree and its foliage surface can be considered linear with an average relative error of less than 6%. In [1] the authors used a laser scanner to characterize the geometric characteristics of citrus trees assuming symmetrical trees. Under those conditions they found good accuracy for the obtained results. Rosell et al. concluded that a LIDAR system is able to measure the geometric characteristics of plants with sufficient precision for most agriculture applications [31]. More recently Balsari et al. designed a sprayer prototype able to automatically adapt spray and air distribution according the characteristics of the target, to the level of crop disease and to the environmental conditions [27].

Accuracy of electronic measurements has been widely evaluated and several field tests have been developed to compare electronic canopy estimations with manual measurements. The authors of [29] compared ultrasonic and laser measurements of citrus canopy volume with manual measurement methods. They concluded that laser measurements provided better prediction of canopy volume than the ultrasonic system because of the inherent higher resolution, but in any case they recommended the use of both ultrasonic or laser sensors for automatic mapping and qualification of the canopy volume of citrus trees. Wei at al. developed a laser scanning system to measure canopy height, width and volume in citrus trees. In citrus trees this device showed an accuracy of 96% in length measurements in three perpendicular directions [23]. Those same authors compared laser measurements and visual assessments using a canopy boundary-smoothing algorithm, obtaining a good correlation (R2 = 0.96) between both methods [32]. They also found very good repeatability (coefficient of variation less than 3%) in different laser measurements. Zaman et al. in a comparison between ultrasonic and manual measurements of canopy volume in citrus trees, obtained differences ranging from −17.3% to 28.71% [21]. The authors also evaluated the influence of foliage density on the accuracy of electronic measurements, and concluded that volume differences were higher in light than dense trees. Arnó et al. used a LIDAR sensor to evaluate the leaf area index in vineyards, and results were compared with manual measurements [33]. They found a good correlation between both values, which allowed the creation of canopy maps for subsequent applications. In [34] the error in tree canopy measurements in citrus trees measured with ultrasonic sensors and a DGPS receiver was analyzed and quantified. The authors found that the most important factors affecting accuracy of the measures were DGPS ground speed, air temperature, ultrasonic performance and deviations in driving path. LIDAR and ultrasonic sensors were used also in [20] for canopy characterization on apple and pear trees. In all cases manual measurements were significantly different than those obtained with electronic devices.

The overall goal of this study was to evaluate the applicability of ultrasonic and LIDAR sensors for mapping canopy structure in different varieties and crop stages in vineyards. The specific objective was to correlate measurements of canopy characteristics using manual methods, LIDAR and ultrasonic sensors.

2. Materials and Methods

2.1. Experimental Fields

In years 2008, 2009 and 2010 several wine grape varieties, namely Cabernet Sauvignon, Tempranillo and Merlot were selected for canopy characterization at crop stages 65, 75 and 85 according to the BBCH classification [35]. Row distances ranged from 2.9 m for Merlot to 3.3 m in Cabernet Sauvignon vineyards. Field tests were arranged in two representative Spanish wine producing areas, Penedès (Barcelona) and Costers del Segre (Lleida). A total of twelve field tests were arranged from June to August every year.

2.2. Design of Prototype

Three ultrasonic Sonar-Bero sensors (Siemens AG, Munich, Germany) were placed with an equidistant spacing of 0.4 m on a stainless steel mast mounted on the left side of an air-blast orchard sprayer (Hardi LE-600 BK/2 with a centrifugal fan of 400 mm diameter). The sprayer was equipped with six individual and adjustable spouts (three on each side of the machine). The three sensors were connected to the central control unit placed on the rear part of the sprayer on which a computer and a Compact Field Point (National Instruments Corporation, Austin, TX, USA) were fitted. Data processing was done using new developed software based on LabVIEW (National Instruments) (Figure 1).

A laser scanner was also placed on the same stain-steel mast at a distance ranging from 1.40 m to 1.60 m above the ground level, depending on the canopy height. The LIDAR used was a LMS-200 model (Sick, Düsseldorf, Germany), a fully-automatic divergent laser scanner based on the measurement of time-of-flight (TOF) with an accuracy of ±15 mm in a single shot measurement and 5 mm standard deviation in a range up to 8 m [36]. The time between the transmission and the reception of the pulsed near-infrared laser beam is used to measure the distance between the scanner and the reflecting object surface. The laser beam is deflected by a rotating mirror turning at 4,500 rpm (75 rps), which results in a fan shaped scan pattern where the maximum scanning angle is 180°. The angular resolution is selectable at l°, 0.5°, or 0.25° making 181, 361 and 400 measures respectively at full scanning range with a response time of 13, 26 and 53 ms respectively. The LMS-200 has a standard RS232 serial port for data transfer with a rate selectable at 9.6, 19.2 or 38.4 Kbaud and a non-standard RS422 serial port capable of 500 Kbaud using a specific RS422 card. Selected configuration during the field tests was: angular resolution 1°, serial port RS232 and data transfer 38.4 Kbaud (Figure 2).

2.3. Manual Canopy Measurements

Three different canopy parameters were manually measured in each field test: crop height, crop width and leaf area index. Measuring procedure was arranged according to [37], where the total canopy height was divided into three parts. For each one of those parts height and canopy width values were obtained. Measurements were repeated 10 times on randomized vines in the whole test area. For the leaf area index calculation, all the leaves in 1 m row length (five replicates for every variety and crop stage) were picked-up separately according to the three previous levels on the canopy. Partial leaf area corresponding to each one of the three height levels was determined by applying the weight-area ratio obtained for every variety and crop stage. This ratio was determined by measuring the weight and surface area of 50 leaf samples collected from the bottom, middle and upper part of the canopy in a randomized procedure, following the method described in [28] and [38]. Leaf surface (one side) was measured with a LI-COR LI 3100C electronic planimeter.

2.4. Canopy Characterization with Ultrasonic Sensors

Ultrasonic sensors measure the distance to the external surface of the canopy by counting the lapse time between emission and reception of the emitted signal. The frequency of the pulses from the ultrasonic sensors was 20 Hz and divergence angle was 5°. The sensing range, according to manufacturer, was 400–3,000 mm and the accuracy 1.5%. Calibration curves (xs = 14.215 v + 181.21; R2 = 0.9997) was established for all three sensors, in order to verify the relation between output signal emitted, v (ranged from 0 to 10 V) and distance xs (m) to the external layout of the canopy. This distance was then transformed (Figure 3) into crop width (m) according Equation (1):

C WU = r 2 e x s
where CWU: crop width of the semi canopy (m); e distance from the center of the row to the sensor (m); and xs measured distance from sensor to external layout of the crop (m).

Total and partial canopy surface for every single ultrasonic measurement was calculated according to Equation (2) in which the average canopy width measured for every ultrasonic sensor is assumed constant in all the assigned canopy height:

C SU = i = 1 3 ( C WU ) i × 1 3 × C HM
where CSU is the crop surface (m2); CWU the measured crop width (m) obtained from every individual sensor; and CHM the total canopy height manually measured (m).

Field measurements were carried by circulating with the tractor placed in the center of the row and driving at a constant forward speed of 1.25 m·s−1 (4.5 km·h−1). This value, together with the signal frequency of the sensor implies an average of 0.1 m of crop slice width (WSU) in the row direction for every single measurement with sensors. Multiplying this value by the estimated surface (CSU) allows to calculate the canopy volume (CVU) according Equation (3) (Figure 3):

C VU = i = 1 L × W SU 1 ( C SU ) i × W SU
where L is the total length of a single crop row (m) and WSU the crop slice width for every single measurement of ultrasonic sensors (m)

In every field test one complete vine row (between 50 and 300 m length depending of the grape variety) was measured with the ultrasonic sensors by circulating in front of the both sides of the crop with the tractor moving at a constant forward speed. Using reference point measurements, total crop width (both sides) was obtained after a precise adjustment of left and right measures. Depending on measured row length the total stored values of crop width ranged from 500 to 3,000 measurements.

2.5. Canopy Characterization with LIDAR Sensor

The same driving tracks along the row crop at a constant forward speed used for ultrasonic sensor measurements were used for LIDAR canopy characterization (Figure 4). Data was also stored in the on board computer in the form of polar coordinates (each point of the crop canopy was characterized by the distance and angle referred to 0° of the position of the laser sensor). Data processing was performed using LidarScann v.1®, a specific software created for management data for the SICK LSM 200 laser sensor. Furthermore, a graphic user interface was developed in MatLab (The Mathworks Inc, Natick, MA, USA) for off-line processing and algorithm development. Figure 5 shows the procedure applied to data obtained with the LIDAR sensor to determine canopy characteristics. Crop profile was first generated with all the points where the laser intercepted any leaf layout (left). Once the crop profile was obtained (centre) the average crop width measured with LIDAR, CWL (m) was calculated by the average distance of every single point to the center of the crop line. Crop height, CHL (m) was also measured with LIDAR by calculating the difference between Yi coordinates from maximum and minimum measured points on every measured range.

Once the crop profile of a single LIDAR measurement was obtained, the surface area on the perpendicular plane regarding tractor displacement was calculated applying the surface coordinates method (right) described by [39] following Equation (4):

C SL = 1 2 [ x 0 ( y n y 1 ) + x 1 ( y 0 y 2 ) + x 2 ( y 1 y 3 ) + + x n ( y n y 0 ) ]
where CSL is the surface area on the perpendicular axis (m2), (x0, y0) is the Cartesian coordinates of the upper point on the profile and (xn, yn) Cartesian coordinates of the lower point of the profile

From tractor forward speed and signal frequency of the laser (100 ms−1) the width of every single unit of crop slice (WSL) was 0.11 m. Then, the total crop volume (CVL) was calculated integrating the volume of a single slice according Equation (5) where all slices on the total row length were included:

C VL = i = 1 L × W SL 1 ( C SL ) i × W SL
where WSL is the crop slice width (m) with LIDAR and L the total length of measured row (m).

Values of crop height measured with LIDAR (CHL) were also used to determine the total leaf wall area (LWAL) on a single row (one side). This area was calculated according Equation (6):

LWA L = i = 1 n ( C HL ) i × W SL
where CHL is the crop height (m) measured with LIDAR and n number of crop slices on a single crop row.

Values of LWAL for every row were calculated according the procedure explained in Figure 6. From every LIDAR measurement on a single crop slice maximum and minimum crop height was detected and used to calculate the crop height for a single slice. According to that, the total area under the curve represents the leaf wall area of a single row (one side). Those values were compared with the similar values manually measured (LWAM).

As for statistical treatment of the data, Lillefors tests (“Nortest” package [40] using the statistical software R® [41] have been applied for all the variables obtained with the ultrasonic and LIDAR sensors in order to check its normal distribution. In the case of non-normal distributions a Box-Cox test (“Mass” package) [42] from the same statistical software was applied. In those cases the value of the λ parameter was calculated and Equation (7) was applied for variable normalization prior the statistical analysis:

X i = X λ 1 λ × ( X ) λ 1
where Xi is the value of normalized variable; X the actual value of variable and λ the normalization constant. Correlations between different variables have been made using Pearson's product moment correlation coefficient with the “Using R” module [43] from the R® statistical package).

3. Results and Discussion

3.1. Relationships among the Obtained Variables

The obtained average values for the most important parameters used to define the canopy structure, such as crop height, crop width and crop volume obtained with the three analyzed methods (manual, ultrasonic and LIDAR sensors) are shown in Table 1. A preliminary evaluation indicates relatively close values of canopy height measured manually (CHM) or with the LIDAR sensor (CHL). Values of crop width measured manually (CWM) were in all cases greater that those obtained with the ultrasonic sensor (CWU). Crop width obtained with the LIDAR sensor (CWL) results in the lowest values, probably due to it being the most precise scanning method and its greater ability to detect gaps in the canopy. Then, as a consequence of the observed tendency of those parameters, the measurements and estimations of crop volume present the same ranking, going from the highest values with manual determinations (CVM) to the lowest obtained with LIDAR sensor (CVL).

Table 2 lists the coefficients of determination of all the parameters evaluated. Those parameters included not only the above described and most important canopy structure characteristics but others, either obtained from manual measurements on the field such as leaf area index (LAI) or numerical values derived from the use of the sensors, such as percent of zero values measured on the crop with ultrasonic or LIDAR sensors, ZU and ZL, respectively, or IL (impacts·m−1) defined as the number of impacts (points were laser beam detected canopy). A good example of those relationships is shown on Figure 7, where important crop characteristics such as leaf area index of crop volume can be predicted from the number of impacts obtained with LIDAR in the canopy or from the values of canopy height measured with the same sensor, respectively.

A detailed analysis of the correlation coefficients (Table 2) of all these parameters gives precise information about which variables can be predicted by others, always with the main goal of an easy and quick canopy characterization. A selection of those relationships was made according the following criteria: (a) interesting relationships between canopy parameters and values measured electronically; (b) rational relationship between variables; and (c) variables whose coefficients of determination indicate an expected good tendency.

3.2. Estimation of Canopy Parameters Using Electronic Devices

Leaf area is one of the most interesting parameters used to characterize crop canopy in order to determine the most adequate volumetric rate in pesticide applications, but its determination requires in most cases destructive and time consuming methods. The use of ultrasonic and LIDAR sensors can be evaluated for the estimation of this parameter. In this research results obtained for canopy volume, either with ultrasonic sensors (CVU) or LIDAR sensor (CVL) have been compared with manual data of leaf area for all the field tests. Figure 8 shows the relationship between those parameters, giving good results for the ultrasonic sensor values (R2 = 0.51), being this value higher than the one obtained with LIDAR (R2 = 0.21).

This fact can be explained by the higher accuracy of LIDAR measurements compared to the ultrasonic sensor. For any single crop slice, canopy volume is generated with three single measurements obtained with the ultrasonic sensors, while for the same slice, LIDAR uses 180 measured points. Then there is a high probability of finding holes (gaps) into the canopy, with the consequent decrease of the calculated canopy volume. Those differences can be observed in the relationship between calculated volumes with the two sensors (Figure 8 right), where in spite of a good correlation between values (R2 = 0.56), differences in the measured volumes can be observed.

3.3. Leaf Wall Area Estimation

Leaf Wall Area (LWA) is one of the proposed parameters to be used during pesticide application in fruit crops [9,44,45]. Crop height values obtained with a LIDAR sensor (CHL) allow one to calculate the total leaf wall area in one side of a row canopy. The comparison of manually estimated leaf wall area (LWAM) with the values measured with the LIDAR (LWAL) is shown in Table 3. Results show that in most cases manual estimation of this parameter exceed those obtained with LIDAR by about 30%, except in some particular cases. Those differences can be related to the total row length, L, with average values of 0.29 m2·m−1. Those differences can affect substantially in the calculation of total amount of pesticide applied on an intended area, leading to unnecessary overdose.

4. Conclusions

A laser-based measurement system and three ultrasonic sensors were proposed as tools to characterize canopy structure in vineyard plantations. After three years of field tests the following conclusions can be drawn:

  • The use of ultrasonic sensors allows one to obtain interesting information about crop width and its variability along the row, but limitations appear due to the range of sensor actuation and the increase of wave amplitude depending on the position. Point crop width measurements must be extrapolated to a defined canopy area, with some risk of errors.

  • In spite of the difficulties mentioned above, interesting information such as canopy volume or even leaf area index can be predicted with good accuracy.

  • LIDAR canopy characterization seems a very precise method. Valuable information such as percent of gaps in the canopy, variability of crop height along the row or even leaf wall area can be obtained with good accuracy. But the most difficult part of LIDAR sensor occurs during the post processing data analysis. Specific software must be developed to obtain accurate information.

  • Data obtained with ultrasonic sensors is in general less precise than that obtained with LIDAR, but this fact can be compensated by the more user-friendly and easy use of US, in comparison with the sophisticated data management needed for data acquired with LIDAR sensors.

In general the field use of ultrasonic and laser sensors, together with a adequate software, seem interesting tools to improve the pesticide application process, by using all the detailed information of canopy structure in the definition of the optimal pesticide doses.

Acknowledgments

This work was funded by the Spanish Ministry of Science and Innovation (Project AGL2007-66093-C04-02), and the ERDF (European Regional Development Fund). We are grateful to Xavier Vidal director of the School of Viticulture “Mercè Rosell” in Espiells (Barcelona) and Marcel Lleonart and Elena Martinez from the Castell del Remei farm (Lleida) for his help during the field experiments. We also thank AgriArgo Ibérica, S.A. for their inestimable collaboration in this research project.

References

  1. Lee, K.H.; Ehsani, R. A Laser Scanner Based Measurement System for Quantification of Citrus Tree Geometric Characteristics. Appl. Eng. Agric 2009, 25, 777–788. [Google Scholar]
  2. Villalobos, F.J.; Testi, L.; Hidalgo, J.; Pastor, M.; Orgaz, F. Modelling Potential Growth and Yield of Olive (Olea Europaea L.) Canopies. Eur. J. Agron 2006, 24, 296–303. [Google Scholar]
  3. Zaman, Q.U.; Schumann, A.W.; Hostler, H.K. Estimation of Citrus Fruit Yield Using Ultrasonically-Sensed Tree Size. Appl. Eng. Agric 2006, 22, 39–44. [Google Scholar]
  4. Zaman, Q.U.; Schumann, A.W.; Miller, W.M. Variable Rate Nitrogen Application in Florida Citrus Based on Ultrasonically-Sensed Tree Size. Appl. Eng. Agric 2005, 21, 331–335. [Google Scholar]
  5. Li, F.; Cohen, S.; Naor, A.; Shaozong, K.; Erez, A. Studies of Canopy Structure and Water use of Apple Trees on Three Rootstocks. Agric. Water Manage 2002, 55, 1–14. [Google Scholar]
  6. Ehlert, D.; Horn, H.J.; Adamek, R. Measuring Crop Biomass Density by Laser Triangulation. Comput. Electron. Agr 2008, 61, 117–125. [Google Scholar]
  7. Byers, R.E.; Lyons, C.G., Jr.; Yoder, K.S.; Horsburgh, R.L.; Barden, J.A.; Donohue, S.J. Effect of Apple Tree Size and Canopy Density on Spray Chemical Deposit. Hortscience 1984, 19, 93–94. [Google Scholar]
  8. Walklate, P.J.; Richardson, G.M.; Cross, J.V.; Murray, R.A. Relationship between Orchard Tree Crop Structure and Performance Characteristics of an Axial Fan Sprayer. Aspect. Appl. Biol 2000, 57, 285–292. [Google Scholar]
  9. Koch, H. How to Achieve Conformity with the Dose Expression and Sprayer Function in High Crops. Bayer CropScience J 2007, 60, 71–84. [Google Scholar]
  10. European Parliament. Directive 2009/128/EC of the European Parliament and of the Council of 21 October 2009 Establishing a Framework for Community Action to Achieve the Sustainable use of Pesticides. Offic. J. Eur. Union, 2009. Available online: http://eur-lex.europa.eu/LexUriServ/LexUriServ.do?uri=OJ:L:2009:309:0071:0086:EN:PDF/ (accessed on 15 February 2011). [Google Scholar]
  11. Doruchowski, G.; Holownicki, R. Environmentally Friendly Spray Techniques for Tree Crops. Crop Protect 2000, 19, 617–622. [Google Scholar]
  12. Doruchowski, G.; Balsari, P.; Van de Zande, J.C. Development of a Crop Adapted Spray Application System for Sustainable Plant Protection in Fruit Growing. International Symposium on Application of Precision Agriculture for Fruits and Vegetables, 1 April 2009; International Society for Horticultural Science: Orlando, FL, USA. Available online: http://www.actahort.org/books/824/824_29.htm (accessed on 1 February 2011).
  13. Rüegg, J.; Viret, O.; Raisigl, U. Adaptation of Spray Dosage in Stone-Fruit Orchards on the Basis of Tree Row Volume. EPPO Bull 1999, 29, 103–110. [Google Scholar]
  14. Doruchowski, G.; Bielenin, A.; Holownicki, R.; Swiechowski, W.; Godyn, A.; Olszak, R.W. Efficacy of TRV Based Fungicide Dose Rates in Apple Orchards. VII Workshop on Spray Application Techniques in Fruit Growing, Cuneo, Italy, 25–27 June 2003; pp. 157–162.
  15. Viret, O.; Siegfried, W.; Wohlhauser, R.; Raisigl, U. Dosage Des Fongicides En Fonction Du Volume Foliaire De La Vigne. Rev. Suisse Vitic. Arboric. Hortic 2005, 37, 59–62. [Google Scholar]
  16. Giles, D.K.; Delwiche, M.J.; Dodd, R.B. Control of Orchard Spraying Based on Electronic Sensing of Target Characteristics. Trans. ASAE 1987, 30. [Google Scholar]
  17. Giles, D.K.; Delwiche, M.J.; Dodd, R.B. Electronic Measurement of Tree Canopy Volume. Trans. ASAE 1988, 31, 264–272. [Google Scholar]
  18. Giles, D.K.; Delwiche, M.J.; Dodd, R.B. Method and Apparatus for Target Plant Foliage Sensing and Mapping and Related Materials Application Control. U.S. Patent 4,823,268,. 18 April 1989.
  19. Giles, D.K.; Delwiche, M.J.; Dodd, R.B. Sprayer Control by Sensing Orchard Crop Characteristics: Orchard Architecture and Spray Liquid Savings. J. Agric. Eng. Res 1989, 43, 271–289. [Google Scholar]
  20. Escolà, A. Method for Real-Time Variable Rate Application of Plant Protection Products in Precision horticulture/fructiculture. PhD Dissertation, Department Agro forestry Engineering, Universitat de Lleida, Available online: http://www.tesisenxarxa.net/TDX-1202110-164121/index_cs.html#documents 2010 (accessed on 10 February 2011).
  21. Zaman, Q.U.; Salyani, M. Effects of Foliage Density and Ground Speed on Ultrasonic Measurement of Citrus Tree Volume. Appl. Eng. Agric 2004, 20, 173–178. [Google Scholar]
  22. Balsari, P.; Tamagnone, M. An Ultrasonic Airblast Sprayer. Proceedings of the International Conference on Agricultural Engineering AgEng, Oslo, Norway, 24–27 August 1998; pp. 585–586.
  23. Wei, J.; Salyani, M. Development of a Laser Scanner for Measuring Tree Canopy Characteristics: Phase 1. Prototype Development. Trans. ASAE 2004, 47, 2101–2107. [Google Scholar]
  24. Schumann, A.W.; Zaman, Q.U. Software Development for Real-Time Ultrasonic Mapping of Tree Canopy Size. Comput. Electron. Agr 2005, 47, 25–40. [Google Scholar]
  25. Solanelles, F.; Escolà, A.; Planas, S.; Rosell; Camp, F.; Gracia, F. An Electronic Control System for Pesticide Application Proportional to the Canopy Width of Tree Crops. Crop Protect 2006, 95, 473–481. [Google Scholar]
  26. Gil, E.; Escolà, A. Variable Rate Application of Plant Protection Products in Vineyard using Ultrasonic Sensors. 9th Workshop on Sustainable Plant Protection Techniques in Fruit Growing (SuProFruit), Alnarp, Sweden, 11–14 September 2007; pp. 61–62.
  27. Balsari, P.; Doruchowski, G.; Marucco, P.; Tamagnone, M.; van de Zande, J.C.; Wenneker, M. A System for Adjusting the Spray Application to the Target Characteristics. Agric. Eng. Int. CIGR 2008, 10, 1–11. [Google Scholar]
  28. Llorens, J.; Gil, E.; Llop, J.; Escolà, A. Variable Rate Dosing in Precision Viticulture: Use of Electronic Devices to Improve Application Efficiency. Crop Protect 2010, 29, 239–248. [Google Scholar]
  29. Tumbo, S.D.; Salyani, M.; Whitney, J.D.; Wheaton, T.A.; Miller, W.M. Investigation of Laser and Ultrasonic Ranging Sensors for Measurements of Citrus Canopy Volume. Appl. Eng. Agric 2002, 18, 367–372. [Google Scholar]
  30. Palacín, J.; Pallejà, T.; Tresanchez, M.; Sanz, R.; Llorens, J.; Ribes-Dasi, M.; Masip, J.; Arnó, J.; Escolà, A.; Rosell, J.R. Real-Time Tree-Foliage Surface Estimation using a Ground Laser Scanner. IEEE Trans. Instrum. Measur 2007, 56, 1377–1383. [Google Scholar]
  31. Rosell, J.R.; Llorens, J.; Sanz, R.; Arnó, J.; Ribes-Dasi, M.; Masip, J.; Escolà, A.; Camp, F.; Solanelles, F.; Gràcia, F.; et al. Obtaining the Three-Dimensional Structure of Tree Orchards from Remote 2D Terrestrial LIDAR Scanning. Agric. For. Meteorol 2009, 149, 1505–1515. [Google Scholar]
  32. Wei, J.; Salyani, M. Development of a Laser Scanner for Measuring Tree Canopy Characteristics: Phase 2. Foliage Density Measurement. Trans. ASAE 2005, 48, 1595–1601. [Google Scholar]
  33. Arnó, J.; Vallès, J.M.; Llorens, J.; Blanco, R.; Palacín, J.; Sanz, R.; Masip, J.; Ribes-Dasi, M.; Rosell, J.R. Ground Laser Scanner Data Analysis for LAI Prediction in Orchards and Vineyards. International Conference on Agricultural Engineering AgEng2006, Bonn, Germany, 3–6 September 2006.
  34. Zaman, Q.U.; Schumann, A.W.; Hostler, H.K. Quantifying Sources of Error in Ultrasonic Measurements of Citrus Orchards. Appl. Eng. Agric 2007, 23, 449–453. [Google Scholar]
  35. Meier, U. Growth Stages of Mono- and Dicotyledonous-Plants. BBCH Monograph,, 2 ed2001; Uwe Meier, Federal Biological Research Centre for Agriculture and Forestry: Berlin, Germany; ( www.bba.de/veroeff/bbch/bbcheng.pdf). [Google Scholar]
  36. Palacín, J.; Salse, J.A.; Sanz, R.; Ribes-Dasi, M.; Masip, J.; Arnó, J.; Llorens, J.; Vallès, J.M.; Escolà, A.; Masana, P; Camp, F.; Solanelles, F.; Rosell, J.R. Real-Time Tree Foliage Estimation using a Ground Laser Escanner. IEEE Instrumentation and Measurement Technology Conference, Sorrento, Italy, 24–27 April 2006; pp. 1227–1232.
  37. Manktelow, D.W.L.; Praat, J.P. The Tree-Row-Volume Spraying System and its Potential use in New Zealand. Proceedings of the NZ Plant Protection Conference, 18–21 August 1997; Lincoln University: Lincoln, New Zealand; pp. 119–124.
  38. Cross, J.V.; Walklate, P.J.; Murray, R.A.; Richardson, G.M. Spray Deposits and Losses in Different Sized Apple Trees from an Axial Fan Orchard Sprayer: 1. Effects of Spray Liquid Flow Rate. Crop Protect 2001, 20, 13–30. [Google Scholar]
  39. Brinker, R.C., Wolf, P., Eds.; Topografía Moderna, 9th ed; Alfaomega: Mexico DF, Mexic, 1998.
  40. Gross, J. Nortest: Tests for Normality. 2006. R package version 1.0. http://www.R-project.org. [Google Scholar]
  41. R Development Core Team. A Language and Environment for Statistical Computing, 2010. http://www.R-project.org Vienna, Austria,.
  42. Venables, W.N., Ripley, B.D., Eds.; Modern Applied Statistics with S, 4th ed; Springer: New York, NY, USA, 2002.
  43. Verzani, J. Using R Data Sets for the Text “using R for Introductory Statistics”. R package version 0.1-13; College of Staten Island, CUNY: New York, NY, USA, 2010. [Google Scholar]
  44. Richardson, G.M.; Walklate, P.J.; Baker, D.E.; Cross, J.V.; Harris, A.L. Orchard Measurements for Optimising Label Dose Rate Adjustment. Aspects Appl. Biol 2006, 77, 497–504. [Google Scholar]
  45. Frießleben, R.; Roßlenbroich, H.J.; Elbert, A. Dose Expression in Plant Protection Product Field Testing in High Crops: Need for Harmonization. Bayer CropScience J 2007, 60, 85–96. [Google Scholar]

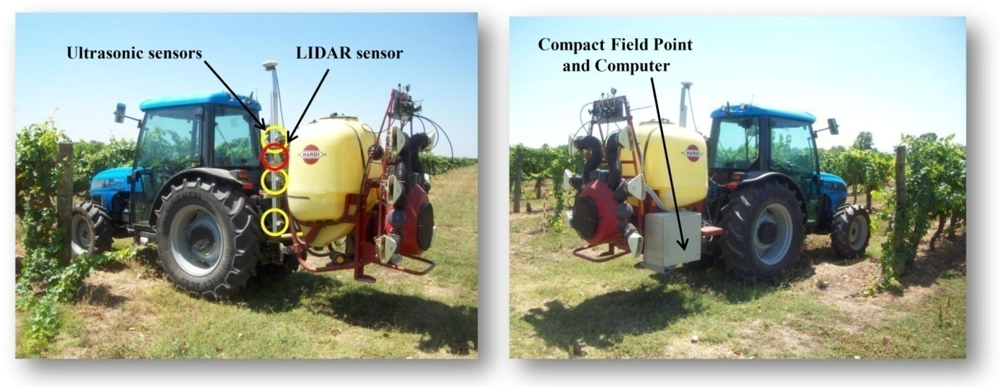

Figure 1. Sprayer equipped with ultrasonic sensors and LIDAR (left). The system includes a control unit with compact field point and computer to data processing (right).
Figure 1. Sprayer equipped with ultrasonic sensors and LIDAR (left). The system includes a control unit with compact field point and computer to data processing (right).
Sensors 11 02177f1 1024

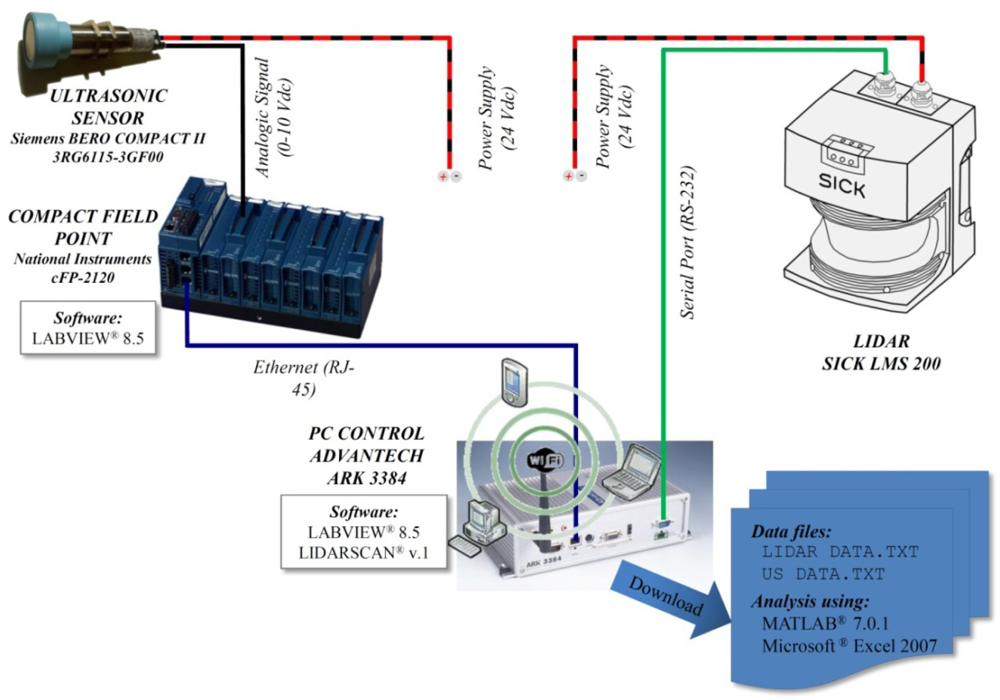

Figure 2. Scheme of electronic connections between all the elements installed in the prototype.
Figure 2. Scheme of electronic connections between all the elements installed in the prototype.
Sensors 11 02177f2 1024

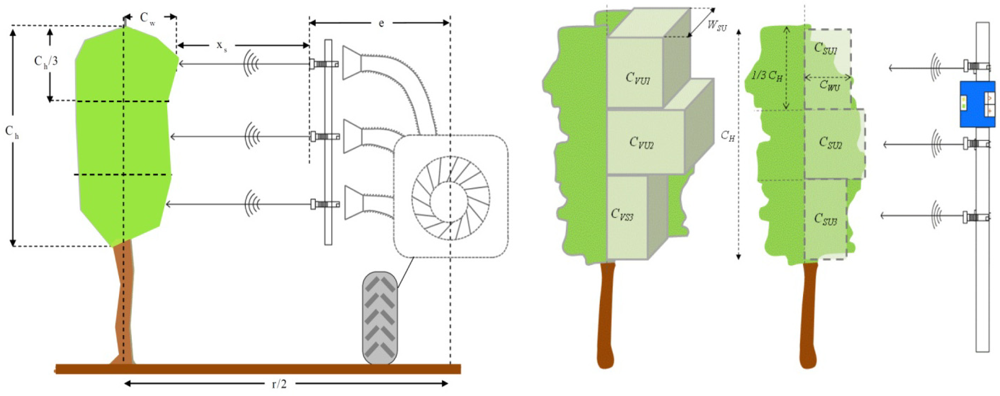

Figure 3. Functioning principle of ultrasonic sensors. Distance to the external layout of the crop (left) can be transformed into crop volume (right).
Figure 3. Functioning principle of ultrasonic sensors. Distance to the external layout of the crop (left) can be transformed into crop volume (right).
Sensors 11 02177f3 1024

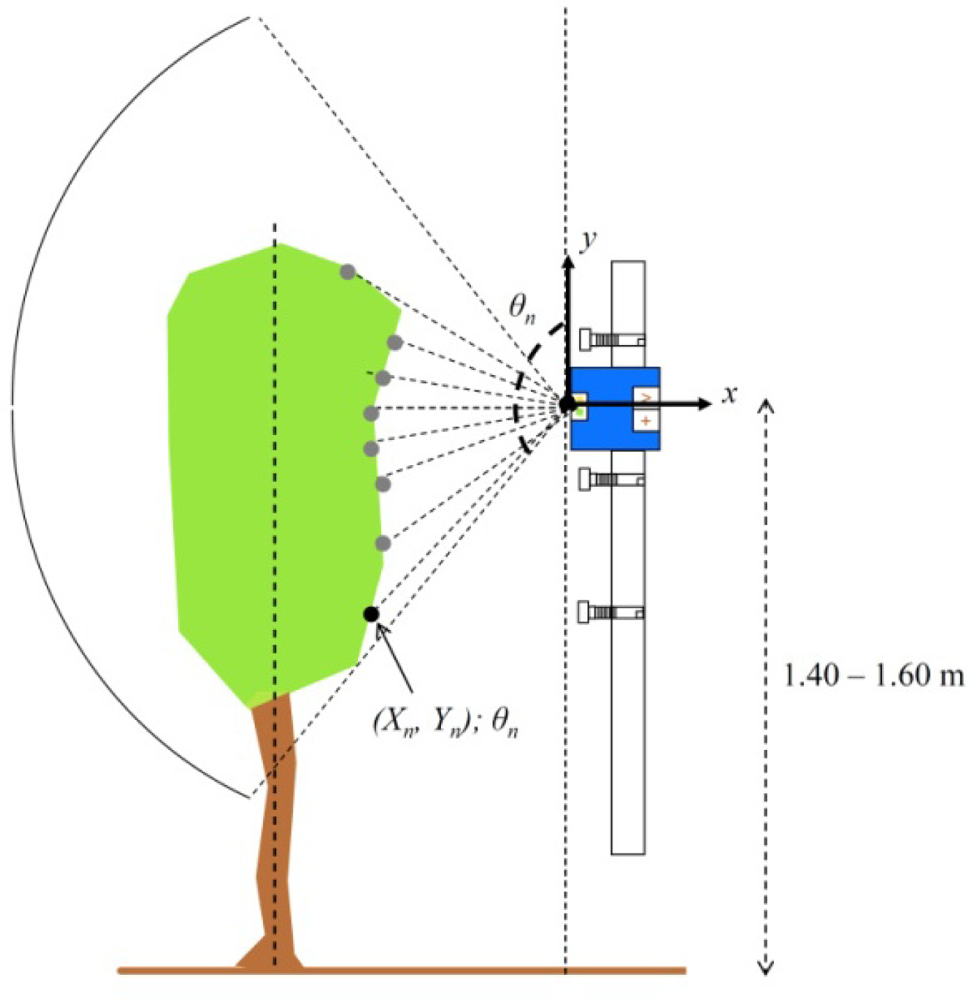

Figure 4. Functioning principle of the LIDAR sensor. The laser beams obtain for each crop slice a variable number of identified points according the distance to the sensor and angle from the horizontal.
Figure 4. Functioning principle of the LIDAR sensor. The laser beams obtain for each crop slice a variable number of identified points according the distance to the sensor and angle from the horizontal.
Sensors 11 02177f4 1024

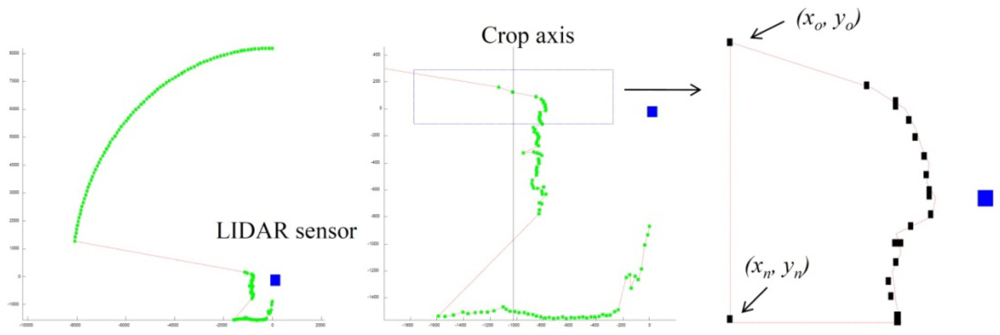

Figure 5. From impact points measured on the crop canopy (left) the average distance to the crop axis is calculated (middle) as crop width. Crop area is also determined for every individual height (right) from the Cartesian coordinates of every single point.
Figure 5. From impact points measured on the crop canopy (left) the average distance to the crop axis is calculated (middle) as crop width. Crop area is also determined for every individual height (right) from the Cartesian coordinates of every single point.
Sensors 11 02177f5 1024

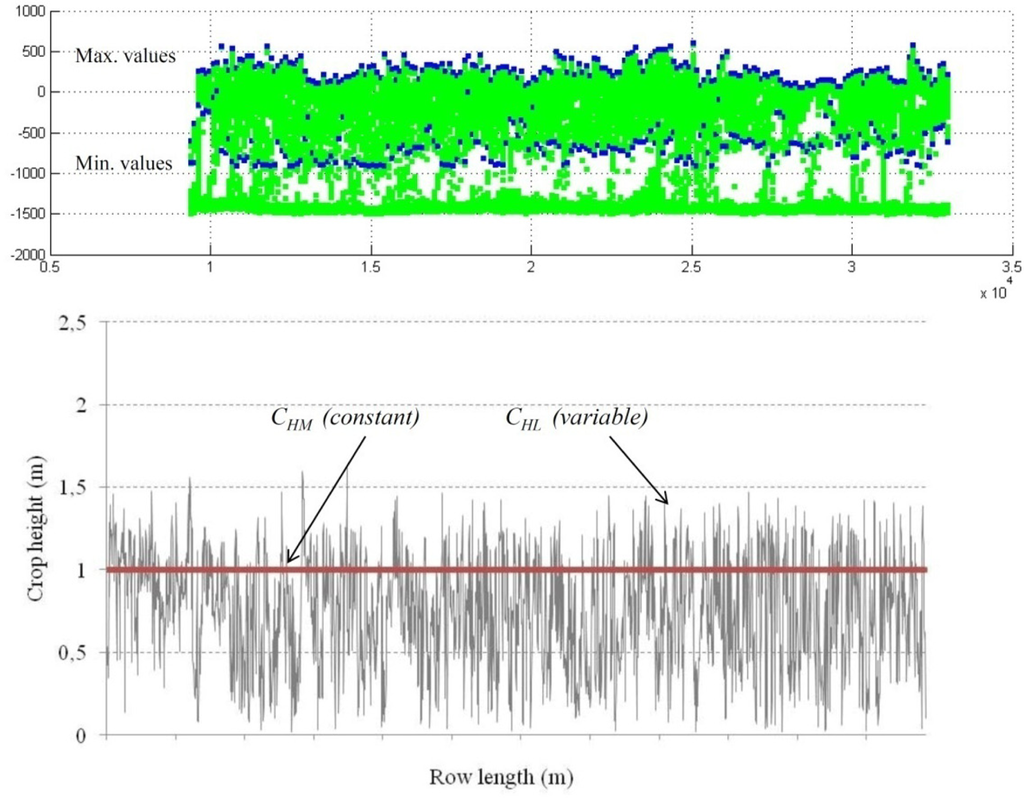

Figure 6. Simulated crop profile (top) obtained with laser sensor. Differences between max and min height on a single crop slice are used to measure canopy height. LWA is calculated according crop height variation along the row and compared with manual measurements (bottom).
Figure 6. Simulated crop profile (top) obtained with laser sensor. Differences between max and min height on a single crop slice are used to measure canopy height. LWA is calculated according crop height variation along the row and compared with manual measurements (bottom).
Sensors 11 02177f6 1024

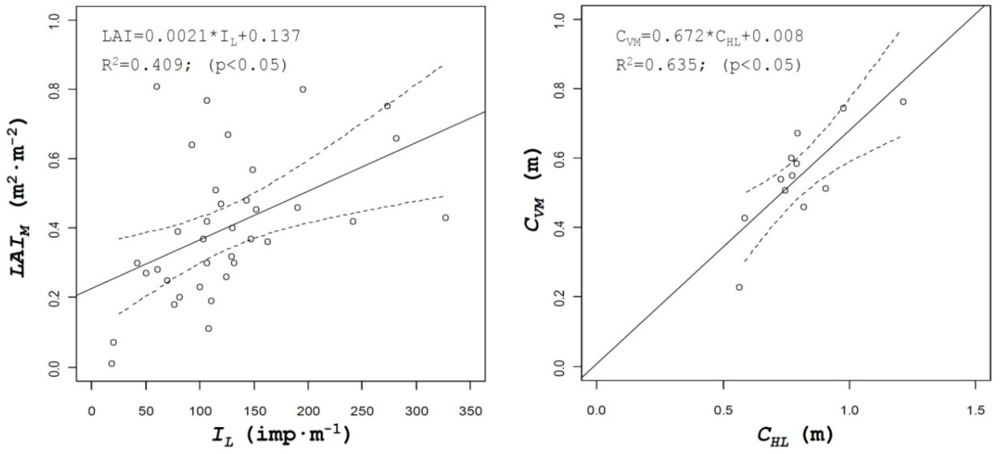

Figure 7. Relation between laser impact obtained with LIDAR and LAI (left). On the right correlation between canopy height calculated with LIDAR and canopy volume manually measured.
Figure 7. Relation between laser impact obtained with LIDAR and LAI (left). On the right correlation between canopy height calculated with LIDAR and canopy volume manually measured.
Sensors 11 02177f7 1024

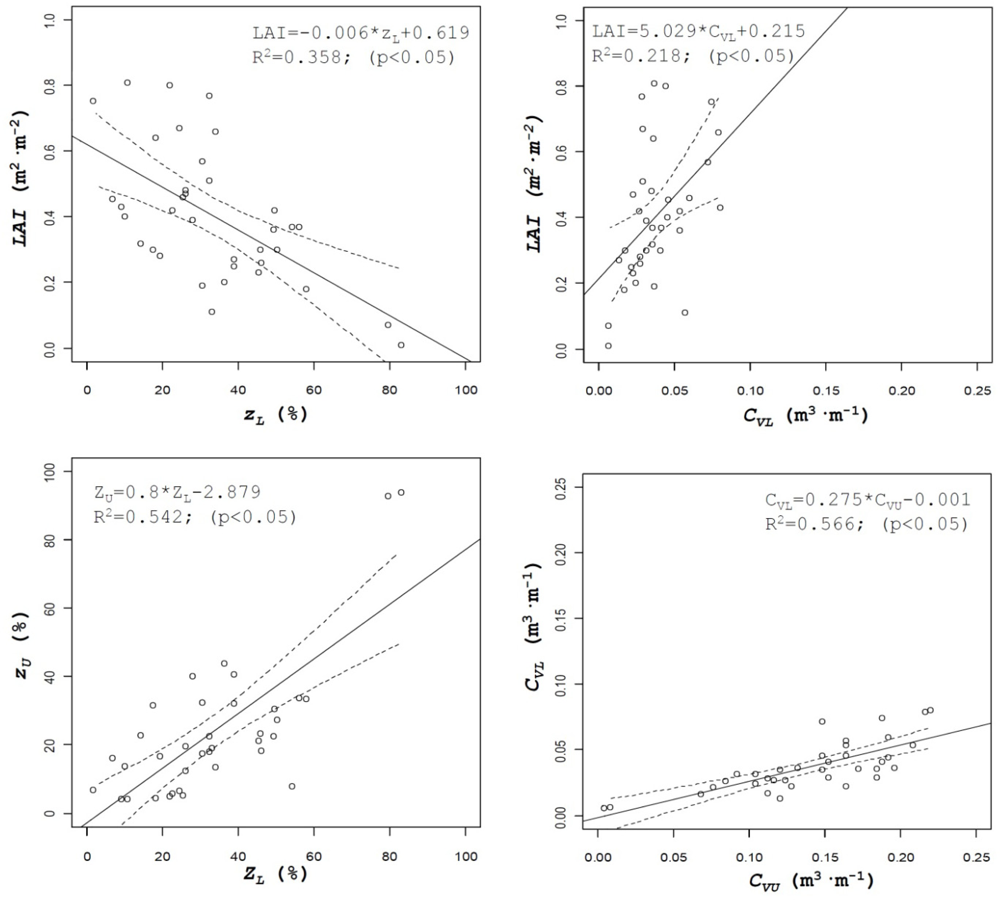

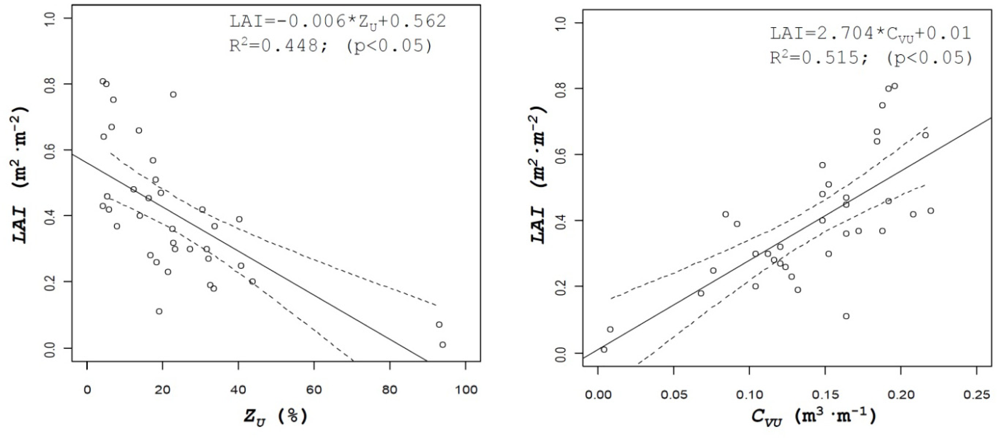

Figure 8. Correlation curves between measured leaf area index (LAI) and percent of zero values obtained with the two sensors (left). On the right side correlation between LAI and crop volume estimated with ultrasonic sensors and LIDAR.
Figure 8. Correlation curves between measured leaf area index (LAI) and percent of zero values obtained with the two sensors (left). On the right side correlation between LAI and crop volume estimated with ultrasonic sensors and LIDAR.
Sensors 11 02177f8a 1024Sensors 11 02177f8b 1024
Table 1. Values of most interesting crop parameters obtained with the different measurement systems.
Table 1. Values of most interesting crop parameters obtained with the different measurement systems.
Wine varietyCrop stage1 (year)LAI2Crop height (m)Crop width (m)Crop volume (m3·m−1)

CHMCHLCWMCWUCWLCVMCVUCVL
Cabernet Sauvignon65 (2008)0.60.690.580.620.370.250.420.230.06
75 (2008)1.11.030.790.560.490.310.580.550.17
85 (2008)1.00.770.820.590.460.250.450.490.11
75 (2009)1.11.000.720.540.460.310.540.480.16
65 (2010)1.11.060.740.480.390.210.500.350.10
75 (2010)1.30.971.210.780.520.270.760.520.17
Tempranillo65 (2008)0.60.370.560.620.290.190.220.150.04
75 (2008)1.21.140.790.590.420.210.670.430.06
85 (20081.60.900.900.570.370.220.510.330.08
Merlot75 (2009)1.70.940.760.640.460.120.600.500.09
65 (2010)1.81.060.770.520.450.300.550.480.08
75 (2010)1.51.020.970.730.460.290.740.480.15

1According to [35]

Table 2. Coefficients of determination (R2) among crop parameter values obtained with the three measurement systems.
Table 2. Coefficients of determination (R2) among crop parameter values obtained with the three measurement systems.
ManualUltrasonic sensorLIDAR sensor
CHMCWMLAICVMCWUCVUZUCHLCWLCVLZLIL
ManualCHM1
CWM0.021
LAI0.4120.081
CVM0.660.300.231
Ultras.CWU0.550.040.420.091
CVU0.550.040.4210.0911
ZU0.660.000.4410.130.770.771
LIDAR sensorCHL0.230.370.290.641,30.440.370.331
CWL0.090.000.000.000.050.050.000.061
CVL0.210.010.2210.010.570.5720.380.370.161
ZL0.260.000.3610.070.410.410.5420.080.020.261
IL0.260.080.4010.170.550.550.380.430.030.770.211

Selection criteria:1interesting relationship;2rational relationships;3good correlations is expected

Table 3. Values of leaf wall area (LWA) for the whole row length (one side) manually measured and electronically estimated with LIDAR. Relative differences (%) and by row length unit (m).
Table 3. Values of leaf wall area (LWA) for the whole row length (one side) manually measured and electronically estimated with LIDAR. Relative differences (%) and by row length unit (m).
Wine varietyRow length L (m)Leaf Wall Area LWA (m2)
(LWAM–LWAL)/ L
LWAMLWAL(LWAM − LWAL)*100/ LWAM
Cabernet Sauvignon124.485.842.550.5%0.348
126.8131.0100.023.7%0.245
118.791.471.921.3%0.164
330.0330.0245.625.6%0.256
331.2351.1232.533.8%0.358
338.7330.2421.8−27.7%−0.270
Tempranillo50.018.526.5−43.0%−0.159
52.860.228.552.6%0.600
47.843.030.030.4%0.273
Merlot205.0192.7176.28.6%0.081
205.7218.0155.528.7%0.304
204.3208.3236.8−13.6%−0.139

Share and Cite

MDPI and ACS Style

Llorens, J.; Gil, E.; Llop, J.; Escolà, A. Ultrasonic and LIDAR Sensors for Electronic Canopy Characterization in Vineyards: Advances to Improve Pesticide Application Methods. Sensors 2011, 11, 2177-2194. https://doi.org/10.3390/s110202177

AMA Style

Llorens J, Gil E, Llop J, Escolà A. Ultrasonic and LIDAR Sensors for Electronic Canopy Characterization in Vineyards: Advances to Improve Pesticide Application Methods. Sensors. 2011; 11(2):2177-2194. https://doi.org/10.3390/s110202177

Chicago/Turabian Style

Llorens, Jordi, Emilio Gil, Jordi Llop, and Alexandre Escolà. 2011. "Ultrasonic and LIDAR Sensors for Electronic Canopy Characterization in Vineyards: Advances to Improve Pesticide Application Methods" Sensors 11, no. 2: 2177-2194. https://doi.org/10.3390/s110202177

Article Metrics

Back to TopTop
