Article

When Shape Defines: Geometric Morphometrics Applied to the Taxonomic Identification of Leaf-Footed Bugs of the Genus Acanthocephala (Hemiptera: Coreidae)

by
Allan H. Smith-Pardo
1,
Jordan Hernandez-Martelo
2,3,4,*,
Manuel J. Suazo
5,
Laura M. Pérez
6,
Camila Peña-Aliaga
3,
Juan Sebastian Garcia
3,
Monserrat Saravia
3,
Thania Acuña-Valenzuela
3,
Hugo A. Benítez
3,4,7,8 and
Margarita Correa
7,8,*
1
Pest Identification Technology Laboratory (PITL), Science and Technology (S&T), Plant Protection and Quarantine (PPQ), Animal and Plant Health Inspection Service (APHIS), United States Department of Agriculture (USDA), Sacramento, CA 95814, USA
2
Programa de Doctorado en Salud Ecosistémica, Centro de Investigación de Estudios Avanzados del Maule, Universidad Católica del Maule, Talca 3460000, Chile
3
Laboratorio de Ecología y Morfometría Evolutiva, Instituto One Health, Facultad de Ciencias de la Vida, Universidad Andrés Bello, República 440, Santiago 8370134, Chile
4
Cape Horn International Center (CHIC), Centro Universitario Cabo de Hornos, Universidad de Magallanes, Puerto Williams 6350000, Chile
5
Vicerrectoría de Investigación y Postgrado, Universidad de La Serena, La Serena 1700000, Chile
6
Departamento de Ingeniería Industrial y de Sistemas, Universidad de Tarapacá, Arica 1000007, Chile
7
Research Ring in Pest Insects and Climate Change (PIC2), Santiago 8320000, Chile
8
Centro de Investigación de Estudios Avanzados del Maule, Universidad Católica del Maule, Talca 3466706, Chile
*
Authors to whom correspondence should be addressed.
Diversity 2025, 17(10), 680; https://doi.org/10.3390/d17100680
Submission received: 9 September 2025 / Revised: 22 September 2025 / Accepted: 26 September 2025 / Published: 29 September 2025
(This article belongs to the Special Issue Insect Diversity: Morphology, Paleontology, and Biogeography)

Abstract

The study of qualitative morphological variation is essential for taxonomists and professionals involved in the identification and diagnosis of species of agricultural importance. This becomes particularly critical when quarantine decisions depend on the accurate identification of species belonging to highly diverse genera, poorly reviewed taxonomic groups, or sets of morphologically similar species that lack comprehensive identification keys. Geometric morphometrics has proven to be a powerful tool for resolving taxonomic uncertainties and distinguishing economically significant pest insects, even in the absence of formal taxonomic keys. In this study, we applied geometric morphometrics to analyze pronotum shape variation across 11 species of the genus Acanthocephala, representing nearly half of the currently recognized diversity in the genus, including several species of quarantine relevance to the United States. Our results indicate that principal component analysis accounted for 67% of the total shape variation and identified shape patterns that are useful for distinguishing between several species. Discriminate analysis further supported the differentiation among species, with significant differences confirmed through Mahalanobis distances. Although some species exhibited morphological overlaps, particularly among closely related taxa, most comparisons yielded statistically significant results. These findings demonstrate that the shape of the pronotum is a reliable and informative characteristic for species delimitation within the Acanthocephala group. We propose the use of geometric morphometrics as a reproducible, cost-effective, and robust method for species-level identification in taxonomically complex groups, which has valuable applications in quarantine inspection, pest monitoring, and agricultural biosecurity.

1. Introduction

The order Hemiptera, Linnaeus, 1758 with approximately 80,000 described species, is the fifth most diverse among insects; nearly half of its species belong to the suborder Heteroptera. All hemipterans share piercing–sucking mouthparts adapted for feeding. Within this group, the family Coreidae, Leach, 1815 commonly known as leaf-footed bugs or squash bugs is an important family of sap-feeding insects comprising four currently recognized subfamilies, 37 tribes, nearly 270 genera, and more than 2800 described species [1,2,3]. Although Coreidae are globally distributed, most species inhabit tropical and subtropical regions.
The subfamily Coreinae Leach, 1815 is the largest within the family, including 32 tribes and exhibiting a predominantly tropical distribution [4]. Within it, the Neotropical tribe Acanthocephalini Stål, 1870 includes 19 genera and more than 104 species [5,6,7], with Acanthocephala Laporte, 1833 being the most diverse genus. This complex group, comprising about 32 species, is widely distributed across the United States (with 15–16 species), Mexico, Central America, the Greater Antilles, and South America, excluding Chile [7].
Species in the genus Acanthocephala can be recognized by distinctive morphological features such as a compressed tylus (the median lobe of the clypeus that projects between the genae), spiny and strongly incrassate metafemora (more developed in males), and metatibial expansions in both sexes [8], while these traits are taxonomically informative, they also play a role in intraspecific competition. They may function as sexually selected weapons or visual signals in mate choice and rival assessment. Recent revisions have highlighted the presence of numerous synonyms, misidentified records, and undescribed species, particularly in tropical regions [9]. Despite these diagnostic traits, species identification within the genus remains challenging, especially outside geographically restricted regions. Furthermore, phylogenetic analyses have revealed the genus to be monophyletic yet internally diverse [9]. This has led to the proposal of multiple subgenera based on combined morphological characters (discrete and continuous). However, identification tools are limited or absent altogether for many species, particularly those outside North America. This highlights the urgent need for alternative methods, such as geometric morphometrics, to complement traditional taxonomy and enable precise species-level identification in ecological, agricultural, and biosecurity contexts. Previous studies on other Hemipteran taxa like Triatoma have shown that this approach is effective for more complex morphological questions [10,11]. It has helped uncover hidden diversity and improve diagnostic accuracy in other insect species [12,13]. By capturing variation in a statistically robust and reproducible framework, geometric morphometrics (GM) not only enhances taxonomic resolution but also supports broader applications in pest management, quarantine regulation, and ecological monitoring, where rapid and accurate identification is crucial [14].
In recent years, geometric morphometrics has been successfully applied to identify true bugs of medical importance, such as triatomines (Reduviidae: Triatominae) and bed bugs (Cimicidae) [15,16,17]. However, its use in agriculturally important groups has been limited, with some advances in genera such as Eysarcoris and in the tribe Nezarini (Pentatomidae) [18,19]. Galindo-Malagón et al. [20] showed that geometric morphometrics (GM), when combined with traditional morphometric data and discrete traits, can effectively resolve taxonomic ambiguities within the species complex of Rhagovelia angustipes (Hemiptera: Veliidae). This group has historically experienced significant intraspecific variation and overlapping morphological features. Therefore, by applying GM to key body structures such as the head, abdomen, and pronotum, this method has revealed distinct shape-based differences that traditional techniques often fail to detect. Building on this approach, the present study evaluates the potential of geometric morphometrics of the pronotum to discriminate among 11 species of the genus Acanthocephala, some of which are of quarantine concern in the United States due to their absence in the national fauna. Additionally, several species in this genus are known to cause economic damage to crops, such as tomatoes, peaches, and pecans, due to their phytophagous behavior [21]. We also assess whether pronotum shape varies to the species’ biogeographic origin, categorized as Nearctic Subtropical, Tropical Subtropical, or Tropical, thereby contributing to the refinement of taxonomic frameworks in agriculturally significant coreid bugs through morphometric analysis.

2. Materials and Methods

2.1. Sampling and Data Collection

For this study, 11 of the 32 currently recognized species of Acanthocephala were selected, including taxa of quarantine concern frequently intercepted at U.S. ports of entry, native North American crop pests, and less commonly encountered species from Central and South America. The selection was also constrained by the availability of verified high-resolution images. Consequently, some species recorded in the United States, such as A. confraterna (Say, 1832) and A. thomasi Uhler, 1872, could not be included due to the absence of suitable photographic material. Species identification within this group remains challenging when based solely on external morphology of either sex, as reflected by the high number of synonyms reported for some species (Table 1).

2.2. Image Processing and Landmarking

To study the shape of the pronotum, high-definition images were selected from the ImageID database of the United States Department of Agriculture (USDA), Animal and Plant Health Inspection Service (APHIS), Plant Protection and Quarantine (PPQ).Online photographs were verified by experts in the taxonomic group, and the identification of specimens in ImageID was performed by USDA specialists in true bugs. Once the images were processed, 40 landmarks were digitized on the pronotum of the species using the software TPSDig2 v2.17 [22] (Figure 1).

2.3. Multivariate Shape Analyses

To analyze pronotum shape differences between species, 54 specimens (males and females) were examined. However, interspecific comparisons were performed using only female specimens. Generalized Procrustes Analysis (GPA) was applied to standardize shape data by removing variation related to size, rotation, and orientation [23]. This alignment allowed shape variation to be analyzed independently of these factors. To explore pronotum shape differences among species of the genus Acanthocephala, Principal Component Analysis (PCA) was performed on the covariance matrix of the dataset [24]. PCA served as a multivariate ordination method to explore shape variation in morphospace [25]. And results were visualized using the two principal components that accounted for the greatest variance. Procrustes ANOVAs were conducted using species identity as the explanatory variable to assess whether shape and size differences (centroid size and Procrustes distances) were structured by species. To assess whether size has an influence on shape (allometry), we performed a multivariate regression with shape as the dependent variable and centroid size as the independent variable, allowing us to detect potential allometric effects on shape [26]. To enhance group discrimination, Canonical Variate Analysis (CVA) was applied, maximizing morphological separation by identifying axes of greatest interspecific variation. The resulting CVA scatterplot illustrated the degree of morphological overlap among species. Additionally, Mahalanobis distances were calculated to quantify morphological divergence, both relative to the mean shape and among individuals, across species [27]. All analyses were conducted using MorphoJ v1.06d [28] and the geomorph package in R [29].

3. Results

The first three principal components explained 67% of the total variation in pronotum shape (PC1 = 37.28%; PC2 = 19.90%; PC3 = 10.79%), providing a robust estimate of its morphological variability. The principal component analysis (PCA) revealed shape patterns among the analyzed species; although many shapes overlap, it also allows for the differentiation of alat, lati, and decl within the morphospace (Figure 2).
Figure 3 shows the superimposition of the mean pronotum shapes for the evaluated species, allowing the visualization of notable shape differences. Clear variation is observed in the convexity of the dorsal margin and in the lateral expansion of the pronotum. A. alat and A. decl (blue and yellow lines, respectively) exhibit a more laterally expanded shape, with a dorsoventrally flattened structure and a more curved dorsal region. A. dist also shows some lateral widening, although to a lesser extent. In contrast, the remaining species display narrower pronotum, with straighter lateral margins and less expansion. Among them, A. mercur (black line) stands out for having the narrowest pronotum laterally, although with a slight elevation in the dorsal region. The base of the pronotum remained relatively flat and conserved among most of the analyzed species.
The comparison between the overall consensus and the mean pronotum shape of each species (Figure 4) allowed the identification of landmarks with the highest deformation index, which contribute to explaining the main differences among the evaluated species. Species-specific variations were evident, particularly in lateral expansion as seen in alat (A), bico (B), laty (G), and nigr (I), and in the dorsal curvature of the pronotum, as observed in decl (C) and again in laty (G). Additionally, differences were noted in the ventral base of the pronotum in species such as dist (D) and femo (E).
The canonical variate analysis (CVA) revealed a clear morphological differentiation among the evaluated species based on pronotum shape (Figure 5). The species alat, decl, dist, merc, and thom exhibited marked shape separation, demonstrating distinctive patterns compared to the other species. In contrast, species such as bico, femo, latí, laty, nigr, and term showed a higher degree of shape overlap, indicating morphological similarities in the pronotum. These differences were statistically significant following the permutation test using Mahalanobis distances (Table 2).
The Mahalanobis distance matrix (Table 2) revealed morphological differences in pronotum shape among most of the evaluated species. Comparisons such as alat vs. bico (DM = 13.96; p-value = 0.05), alat vs. dist (DM = 11.86; p-value < 0.0001), and decl vs. dist (DM = 11.86; p-value < 0.0001) highlight significant differences in pronotum shape. Overall, most distances were statistically significant (p < 0.05), indicating clear differentiation among species. However, some cases, such as lati vs. nigr (p-value = 0.058) and lati vs. term (p-value = 0.1999), showed non-significant differences, supporting the CVA results in revealing similar morphological patterns.
The multivariate regression of centroid size on pronotum shape revealed a weak allometric effect, explaining only 4% of the total shape variation (Figure 6). At the interspecific level, significant differences in average pronotum size were observed: thom and term displayed the largest pronota; alat, dist, lati, femo, decl, and merc showed intermediate-sized pronota; while bico, nigr, and laty exhibited the smallest pronota.

4. Discussion

Our research reaffirms the value of geometric morphometrics as an effective diagnostic tool for analyzing and quantifying the morphological variation in biological traits, providing concise and structured results that enable precise discrimination among closely related taxa [12]. This methodology is particularly useful in groups with high species diversity and subtle morphological differences, where taxonomic delimitation and accurate identification can be complex. In this regard, its application is especially relevant in practical scenarios such as border entry points, where determining whether a species poses a quarantine risk is crucial.
According to Withrow et al. [30], the rapid identification of quarantine or potentially quarantinable species is essential for timely decision-making in areas such as biosecurity and invasive species management. The use of accessible and low-cost tools such as geometric morphometrics allows for fast, appropriate, and scientifically grounded responses, thereby reducing potential negative impacts on ecosystem health, the economy, and human health.
In this context, our study confirms that pronotum morphology is a reliable diagnostic trait for interspecific delimitation within the genus Acanthocephala, enabling clear differentiation among all evaluated species, as evidenced in Figure 4 and the CVA results. However, this analysis also revealed a certain degree of morphological overlap in pronotum shape among some taxa, particularly between A. bicoloripes, A. nigra, and A. latipes, as well as between A. femorata, A. latiantennata, and A. terminalis. Despite this overlap, Mahalanobis distances (Table 2) indicate significant differences among these groups. As suggested by Smith-Pardo, Lingafelter, Laroze, Piñeiro-Gonzalez and Benítez [12], such morphological convergence may result from adaptive convergence or recent differentiation not yet fully reflected in external morphology, highlighting the need to explore additional structures to complement these results and enhance taxonomic resolution. It is also worth noting that the analyzed species exhibited significant differences not only in the morphological configuration of the pronotum but also in its size. This variability was supported by multivariate regression analysis, which revealed a consistent relationship between shape and size, suggesting that both attributes jointly contribute to interspecific differentiation within the genus Acanthocephala.
The pronotum has become established as a key diagnostic trait in taxonomic studies, supported by multiple studies across different groups. Zhang et al. [31] used it, along with structures such as the head, elytra, and spermatheca, to delimit subgenera within the genus Chaetocnema (Coleoptera). In another study, Zhang, et al. [32] demonstrated its usefulness not only for differentiating species of stag beetles but also for inferring evolutionary history and morphological diversification. A notable advancement is its application to quarantine species: Smith-Pardo et al. (2025) (In press) applied geometric morphometrics to maize stink bugs of the tribe Nezarini (Pentatomidae), evaluating shape variation in the pronotum and head. The landmark-based analysis of high-resolution images enabled the discrimination of cryptic species that could not be distinguished using traditional morphological characters.
Applying geometric morphometrics to the pronotum identified it as a highly informative structure for interspecific delimitation within the genus Acanthocephala. The results not only facilitated the discrimination of most evaluated species but also revealed subtle morphological overlaps among certain taxa, underscoring the need for integrative approaches to achieve more robust delimitation. In this direction, several studies have shown that integrating ecological and molecular data further strengthens species delimitation, particularly in taxonomically complex groups. Studies by Cáceres et al. [33], Jaramillo-O et al. [34] and Cruz et al. [35] demonstrate that ecological variables (distribution, biotic interactions, or habitat preferences) provide functional context to morphological differences, resolving cases of cryptic species. Molecular tools such as DNA barcoding (COI) or whole genome analysis have also effectively complemented morphological identification, providing additional taxonomic robustness [36,37,38].
The findings of this study have relevant practical implications for the monitoring and surveillance of species of agricultural or quarantine concern. Geometric morphometrics stands out as an accessible and effective diagnostic tool for distinguishing morphologically similar species, particularly in contexts where specialists and updated taxonomic keys are lacking, such as ports, border crossings, and agricultural zones. Its usefulness has been supported by previous studies in which landmark-based approaches allowed for highly accurate discrimination of closely related taxa [39,40].
This work, the first in the genus Acanthocephala and among the few in the family Coreidae, expands the potential of GM for identifying agriculturally important insects with subtly variable morphology. By demonstrating that data obtained from high-resolution images can accurately identify species even in the absence of diagnostic keys, this study strengthens the case for applying GM in rapid diagnostic protocols. These results support recent proposals advocating for the incorporation of GM into biosecurity and pest management workflows [30,41]. Finally, beyond its direct utility for pest management and quarantine inspection, the methodological framework presented here also contributes to classical taxonomy. Several studies have demonstrated the effectiveness of GM in resolving species boundaries, defining generic limits, and informing phylogenetic hypotheses across diverse insect groups [33,39]. Our findings reinforce that GM should not only be considered as an applied diagnostic tool but also as a methodological complement to traditional taxonomy.

Author Contributions

Conceptualization, J.H.-M., A.H.S.-P., H.A.B. and M.C.; methodology, J.H.-M., A.H.S.-P., H.A.B.; software, M.S., T.A.-V., J.S.G., J.H.-M.; validation, C.P.-A.; formal analysis, J.H.-M., H.A.B. and M.C.; investigation, J.H.-M., A.H.S.-P., C.P.-A., H.A.B. and M.C.; resources, A.H.S.-P., C.P.-A., H.A.B. and M.C.; data curation, A.H.S.-P., M.S., T.A.-V., J.S.G.; writing—original draft preparation, A.H.S.-P., C.P.-A., J.H.-M., M.C.; writing—review and editing, H.A.B., M.C., M.J.S., L.M.P., C.P.-A., and J.H.-M.; visualization, J.H.-M., M.S., T.A.-V., J.S.G.; supervision, A.H.S.-P., H.A.B. and M.C.; project administration, A.H.S.-P., H.A.B. and M.C.; funding acquisition, A.H.S.-P., H.A.B. and M.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the grant ANID/ANILLO/ATE230025.

Data Availability Statement

Data is available upon request to the corresponding authors.

Acknowledgments

We thank the U.S. Department of Agriculture for providing data and support. This research was funded by ANID/ANILLO/ATE230025.

Conflicts of Interest

The authors declare no conflicts of interest. The findings and conclusions in this publication have not been formally disseminated by the U.S. Department of Agriculture and should not be construed to represent any Agency determination or policy. The mention of trade names or commercial products in this publication is solely to provide specific information and does not imply recommendation or endorsement by the U.S. Department of Agriculture. USDA is an equal opportunity provider and employer.

References

  1. Schuh, R.T.; Slater, J.A. True Bugs of the World (Hemiptera: Heteroptera): Classification and Natural History; Cornell University Press: New York, NY, USA, 1995; Available online: https://onlinelibrary.wiley.com/doi/10.1002/9781118945568.ch10 (accessed on 25 September 2025).
  2. Henry, T.J. Biodiversity of heteroptera. Insect Biodivers. Sci. Soc. 2017, 279–335. [Google Scholar]
  3. Forthman, M.; Phan, H.; Miller, C.W.; Kimball, R.T. Phylogenetic placement of the leaf-footed bug tribes Agriopocorini, Amorbini, and Manocoreini (Heteroptera: Coreidae) using ultraconserved elements. Zool. J. Linn. Soc. 2024, 202, zlae024. [Google Scholar] [CrossRef]
  4. Fernandes, J.A.M.; Mitchell, P.L.; Livermore, L.; Nikunlassi, M. Leaf-footed bugs (Coreidae). In True Bugs (Heteroptera) of the Neotropics; Springer: Dordrecht, The Netherlands, 2015; pp. 549–605. [Google Scholar]
  5. Brailovsky, H.; Barrera, E. Illustrated key to the species in the genus Sephina (Hemiptera: Heteroptera: Coreidae: Coreinae: Spartocerini), with descriptions of three new species and new distributional records. Zootaxa 2021, 5048, 77–98. [Google Scholar] [CrossRef]
  6. Olivera, L.; Melo, M.C.; Dellapé, P.M. Revisiting the South American Acanthocephalini (Hemiptera, Coreidae): Spilopleura Stål (status novum). Evol. Syst. 2023, 7, 35–50. [Google Scholar] [CrossRef]
  7. Olivera, L.; Dellapé, P.M.; Melo, M.C. Six new species and new distributional records of Acanthocephala (Hemiptera: Coreidae) from Central and North America. Integr. Syst. Stuttg. Contrib. Nat. Hist. 2024, 7, 41–60. [Google Scholar] [CrossRef]
  8. McPherson, J.; Packauskas, R.J.; Sites, R.W.; Taylor, S.J.; Bundy, C.S.; Bradshaw, J.D.; Mitchell, P.L. Review of Acanthocephala (Hemiptera: Heteroptera: Coreidae) of America north of Mexico with a key to species. Zootaxa 2011, 2835, 30–40. [Google Scholar] [CrossRef]
  9. Olivera, L. Revisión Filogenética y Biogeografía de Acanthocephala Laporte 1833 (Hemiptera: Heteroptera: Coreidae). Ph.D. Thesis, Universidad Nacional de La Plata, La Plata, Argentina, 2022. [Google Scholar]
  10. Vargas, E.; Espitia, C.; Patiño, C.; Pinto, N.; Aguilera, G.; Jaramillo, C.; Bargues, M.D.; Guhl, F. Genetic structure of Triatoma venosa (Hemiptera: Reduviidae): Molecular and morphometric evidence. Memórias Inst. Oswaldo Cruz 2006, 101, 39–45. [Google Scholar] [CrossRef]
  11. Nattero, J.; Piccinali, R.V.; Lopes, C.M.; Hernández, M.L.; Abrahan, L.; Lobbia, P.A.; Rodríguez, C.S.; de la Fuente, A.L.C. Morphometric variability among the species of the Sordida subcomplex (Hemiptera: Reduviidae: Triatominae): Evidence for differentiation across the distribution range of Triatoma sordida. Parasites Vectors 2017, 10, 412. [Google Scholar] [CrossRef] [PubMed]
  12. Smith-Pardo, A.H.; Lingafelter, S.W.; Laroze, D.; Piñeiro-Gonzalez, A.; Benítez, H.A. Shape as a Key to Taxonomy: Morphometric Analysis of Tetropium Species (Coleoptera: Cerambycidae). Insects 2025, 16, 386. [Google Scholar] [CrossRef]
  13. Zúniga-Reinoso, Á.; Benítez, H.A. The overrated use of the morphological cryptic species concept: An example with Nyctelia darkbeetles (Coleoptera: Tenebrionidae) using geometric morphometrics. Zool. Anz.-A J. Comp. Zool. 2015, 255, 47–53. [Google Scholar] [CrossRef]
  14. Lemic, D.; Benítez, H.A.; Bažok, R. Intercontinental effect on sexual shape dimorphism and allometric relationships in the beetle pest Diabrotica virgifera virgifera LeConte (Coleoptera: Chrysomelidae). Zool. Anz.-A J. Comp. Zool. 2014, 253, 203–206. [Google Scholar] [CrossRef]
  15. Deku, G.; Combey, R.; Doggett, S.L. Morphometrics of the Tropical Bed Bug (Hemiptera: Cimicidae) From Cape Coast, Ghana. J. Med. Entomol. 2022, 59, 1534–1547. [Google Scholar] [CrossRef] [PubMed]
  16. Lázari Cacini, G.; de Oliveira, J.; Belintani, T.; dos Santos Souza, É.; Olaia, N.; Pinto, M.C.; da Rosa, J.A. Immature instars of three species of Rhodnius Stål, 1859 (Hemiptera, Reduviidae, Triatominae): Morphology, morphometry, and taxonomic implications. Parasites Vectors 2022, 15, 91. [Google Scholar] [CrossRef] [PubMed]
  17. Alvarez, A.C.P.; Dale, C.; Galvão, C. Geometric morphometry of the Rhodniusprolixus complex (Hemiptera, Triatominae): Patterns of intraspecific and interspecific allometry and their taxonomic implications. ZooKeys 2024, 1202, 213. [Google Scholar] [CrossRef] [PubMed]
  18. Li, R.-R.; Zhang, H.-F. Geometric morphometric analysis of Eysarcoris guttiger, E. annamita and E. ventralis (Hemiptera: Pentatomidae). Zool. Syst. 2017, 42, 90–101. [Google Scholar]
  19. Li, R.; Li, M.; Li, S.; Zhang, H. Further geometric morphometric analysis on the genus Eysarcoris (Hemiptera: Pentatomidae) from China. Zool. Syst. 2017, 42, 446–462. [Google Scholar]
  20. Galindo-Malagón, X.A.; Morales, I.; Ospina-Garcés, S.M. Morphometric tools to solve species complexes: The case of Rhagovelia angustipes (Hemiptera: Veliidae). Arthropod Struct. Dev. 2022, 70, 101192. [Google Scholar] [CrossRef]
  21. Mizell. Stink Bug Management Using Trap Crops in Organic Farming. 2012. Available online: https://eorganic.org/node/6135 (accessed on 25 September 2025).
  22. Rohlf, F.J. The tps series of software. Hystrix 2015, 26, 9–12. [Google Scholar]
  23. Rohlf, F.J.; Slice, D. Extensions of the Procustes methods for the optimal superimposition of landmarks. Syst. Zool. 1990, 39, 40–59. [Google Scholar] [CrossRef]
  24. Jolliffe, I.T. Principal Component Analysis, 2nd ed.; Springer: New York, NY, USA, 2002. [Google Scholar]
  25. Klingenberg, C.P. Visualizations in geometric morphometrics: How to read and how to make graphs showing shape changes. Hystrix-Ital. J. Mammal. 2013, 24, 15–24. [Google Scholar] [CrossRef]
  26. Monteiro, L.R. Multivariate regression models and geometric morphometrics: The search for causal factors in the analysis of shape. Syst. Biol. 1999, 48, 192–199. [Google Scholar] [CrossRef]
  27. Klingenberg, C. Analyzing Fluctuating Asymmetry with Geometric Morphometrics: Concepts, Methods, and Applications. Symmetry 2015, 7, 843–934. [Google Scholar] [CrossRef]
  28. Klingenberg, C.P. MorphoJ: An integrated software package for geometric morphometrics. Mol. Ecol. Resour. 2011, 11, 353–357. [Google Scholar] [CrossRef]
  29. Adams, D.C.; Otárola-Castillo, E. Geomorph: An R package for the collection and analysis of geometric morphometric shape data. Methods Ecol. Evol. 2013, 4, 393–399. [Google Scholar] [CrossRef]
  30. Withrow, J.R.; Smith, E.L.; Koch, F.H.; Yemshanov, D. Managing outbreaks of invasive species—A new method to prioritize preemptive quarantine efforts across large geographic regions. J. Environ. Manag. 2015, 150, 367–377. [Google Scholar] [CrossRef]
  31. Zhang, M.; Ruan, Y.; Bai, M.; Chen, X.; Li, L.; Yang, X.; Meng, Z.; Liu, Y.; Du, X. Geometric Morphometric Analysis of Genus Chaetocnema (Coleoptera: Chrysomelidae: Alticini) with Insights on Its Subgenera Classification and Morphological Diversity. Diversity 2023, 15, 918. [Google Scholar] [CrossRef]
  32. Zhang, M.; Ruan, Y.; Wan, X.; Tong, Y.; Yang, X.; Ming, B. Geometric morphometric analysis of the pronotum and elytron in stag beetles: Insight into its diversity and evolution. Zookeys 2019, 833, 21–40. [Google Scholar] [CrossRef]
  33. Cáceres, J.S.D.; Pérez, L.M.; Grossi, P.C.; Benitez, H. Defining generic limits in Syndesini MacLeay, 1819 (Coleoptera: Lucanidae: Syndesinae) through taxonomy and geometric morphometrics. Zool. Anz. 2023, 305, 28–41. [Google Scholar] [CrossRef]
  34. Jaramillo-O, N.; Dujardin, J.P.; Calle-Londoño, D.; Fonseca-González, I. Geometric morphometrics for the taxonomy of 11 species of A nopheles (N yssorhynchus) mosquitoes. Med. Vet. Entomol. 2015, 29, 26–36. [Google Scholar] [CrossRef]
  35. Cruz, D.D.; Ospina-Garcés, S.M.; Arellano, E.; Ibarra-Cerdeña, C.N.; Nava-García, E.; Alcalá, R. Geometric morphometrics and ecological niche modelling for delimitation of Triatoma pallidipennis (Hemiptera: Reduviidae: Triatominae) haplogroups. Curr. Res. Parasitol. Vector-Borne Dis. 2023, 3, 100119. [Google Scholar] [CrossRef]
  36. Chaiphongpachara, T.; Changbunjong, T.; Laojun, S.; Sumruayphol, S.; Suwandittakul, N.; Kuntawong, K.; Pimsuka, S. Geometric morphometric and molecular techniques for discriminating among three cryptic species of the Anopheles barbirostris complex (Diptera: Culicidae) in Thailand. Heliyon 2022, 8, e11261. [Google Scholar] [CrossRef] [PubMed]
  37. Changbunjong, T.; Ruangsittichai, J.; Duvallet, G.; Pont, A.C. Molecular Identification and Geometric Morphometric Analysis of Haematobosca aberrans (Diptera: Muscidae). Insects 2020, 11, 451. [Google Scholar] [CrossRef] [PubMed]
  38. Laojun, S.; Changbunjong, T.; Sumruayphol, S.; Pimsuka, S.; Chaiphongpachara, T. Wing geometric morphometrics and DNA barcoding to distinguish three closely related species of Armigeres mosquitoes (Diptera: Culicidae) in Thailand. Vet. Parasitol. 2024, 325, 110092. [Google Scholar] [CrossRef] [PubMed]
  39. Catalano, S.A.; Goloboff, P.A.; Giannini, N.P. Phylogenetic morphometrics (I): The use of landmark data in a phylogenetic framework. Cladistics 2010, 26, 539–549. [Google Scholar] [CrossRef]
  40. Catalano, S.A.; Torres, A. Phylogenetic inference based on landmark data in 41 empirical data sets. Zool. Scr. 2017, 46, 1–11. [Google Scholar] [CrossRef]
  41. Augustin, S.; Boonham, N.; De Kogel, W.J.; Donner, P.; Faccoli, M.; Lees, D.C.; Marini, L.; Mori, N.; Petrucco Toffolo, E.; Quilici, S.; et al. A review of pest surveillance techniques for detecting quarantine pests in Europe. EPPO Bull. 2012, 42, 515–551. [Google Scholar] [CrossRef]
Figure 1. Dorsal view of the pronotum of Acanthocephala species showing the distribution of 40 landmarks along its contour.
Figure 1. Dorsal view of the pronotum of Acanthocephala species showing the distribution of 40 landmarks along its contour.
Diversity 17 00680 g001

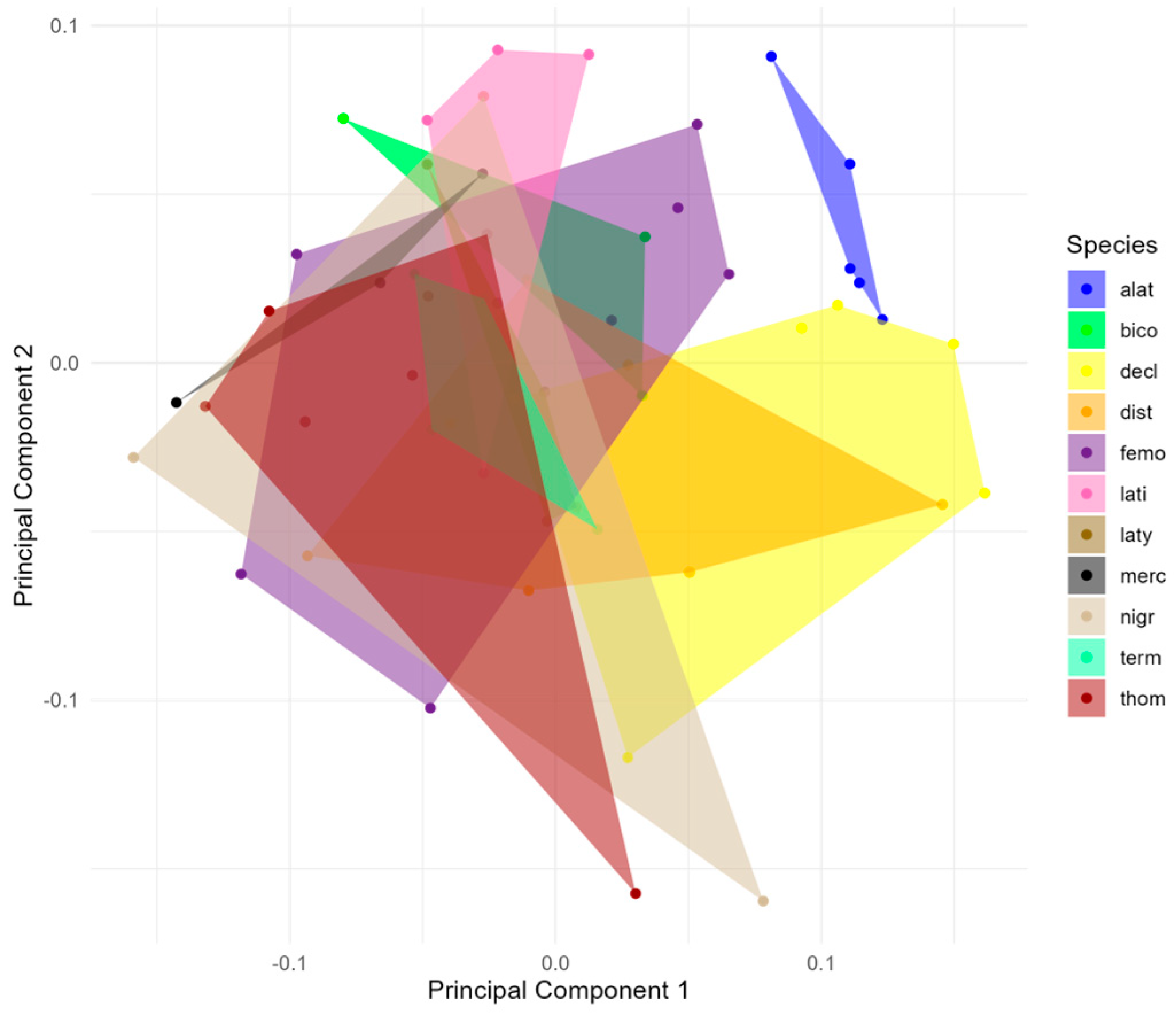

Figure 2. Principal Component Analysis (PCA) of pronotum shape among 11 species of the genus Acanthocephala.
Figure 2. Principal Component Analysis (PCA) of pronotum shape among 11 species of the genus Acanthocephala.
Diversity 17 00680 g002

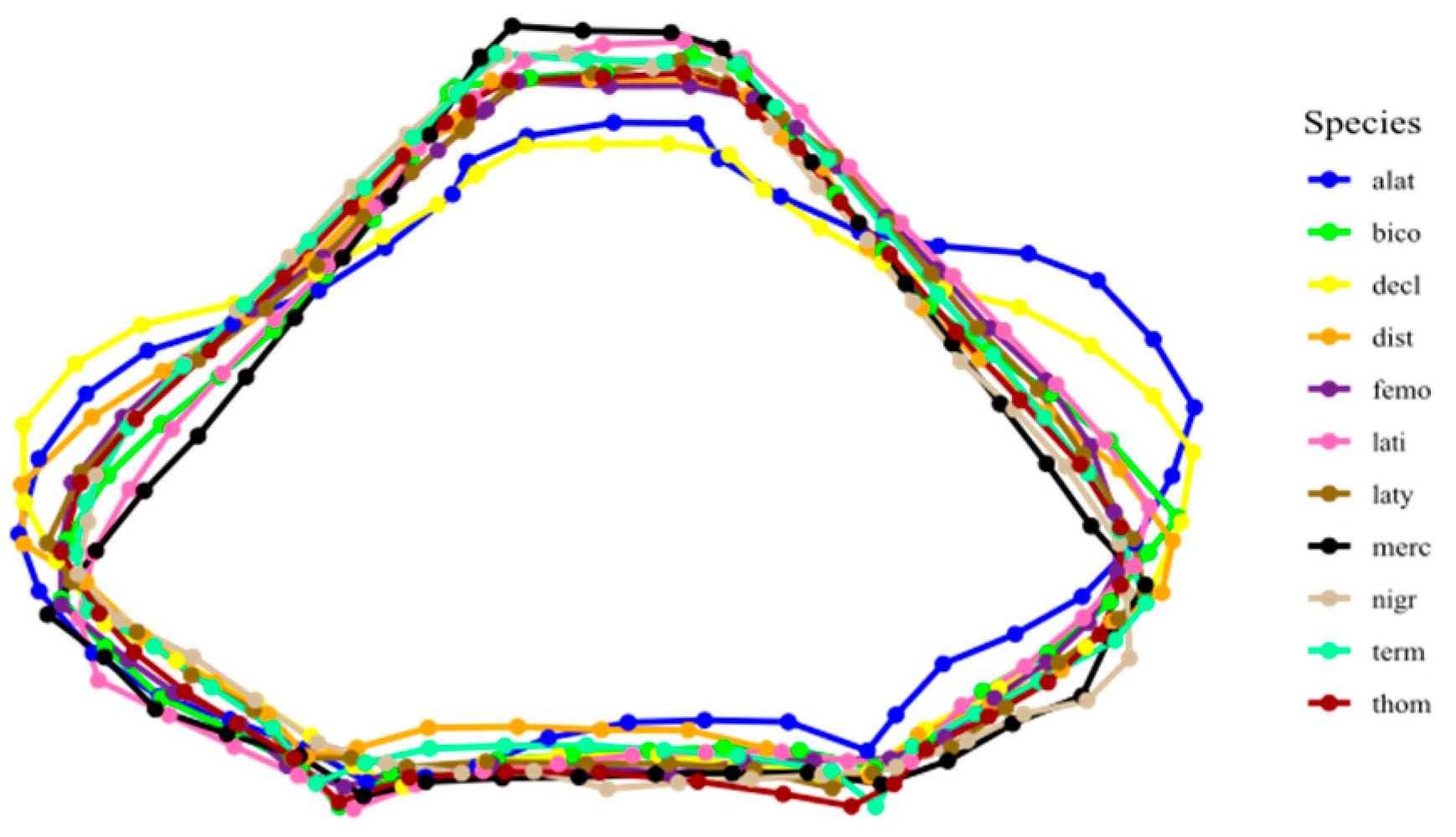

Figure 3. Superimposition of the mean pronotum shapes of the 11 evaluated species of the genus Acanthocephala.
Figure 3. Superimposition of the mean pronotum shapes of the 11 evaluated species of the genus Acanthocephala.
Diversity 17 00680 g003

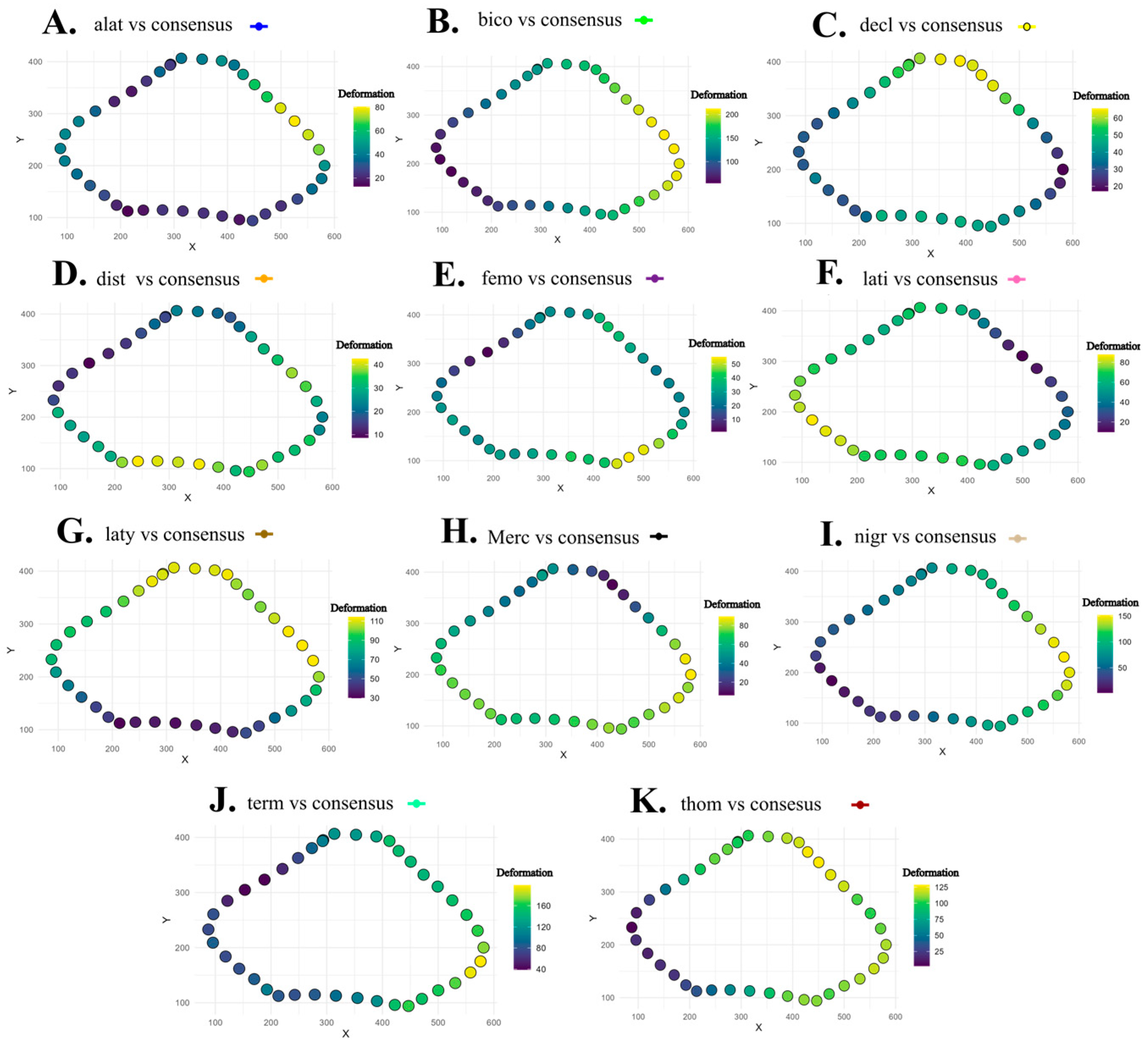

Figure 4. Comparison of the mean pronotum shapes of the 11 evaluated species with respect to the general consensus of the genus Acanthocephala. Each panel (AK) shows the deviation of a species’ mean pronotum shape from the overall morphological consensus derived from the complete dataset. Circles represent landmarks, and the color scale indicates the magnitude of Procrustes deviation at each anatomical point, ranging from lower to higher distances from the consensus.
Figure 4. Comparison of the mean pronotum shapes of the 11 evaluated species with respect to the general consensus of the genus Acanthocephala. Each panel (AK) shows the deviation of a species’ mean pronotum shape from the overall morphological consensus derived from the complete dataset. Circles represent landmarks, and the color scale indicates the magnitude of Procrustes deviation at each anatomical point, ranging from lower to higher distances from the consensus.
Diversity 17 00680 g004

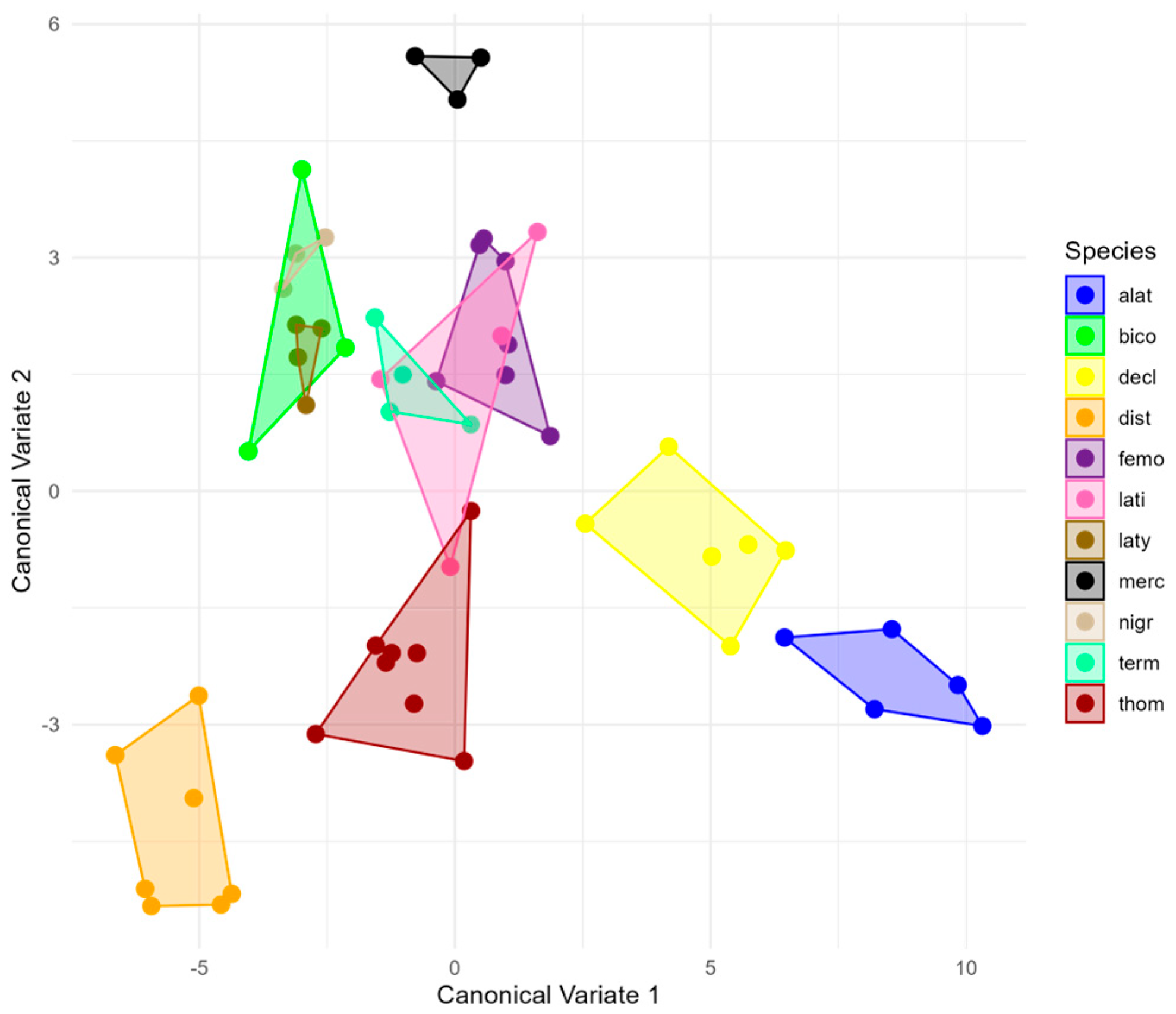

Figure 5. Canonical variate analysis of pronotum shape in the 11 evaluated species.
Figure 5. Canonical variate analysis of pronotum shape in the 11 evaluated species.
Diversity 17 00680 g005

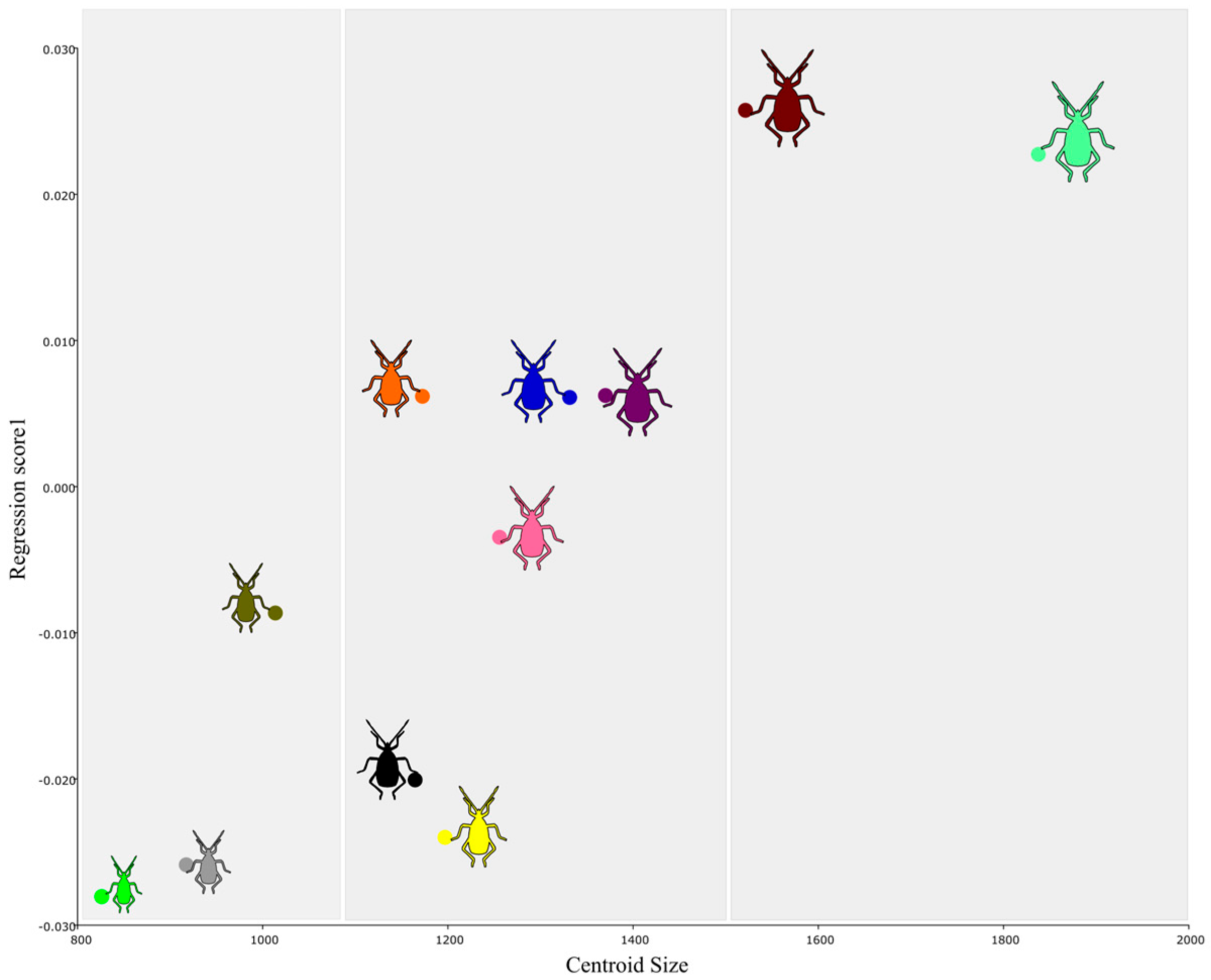

Figure 6. Multivariate regression of mean pronotum shape (dependent variable) by species against centroid size (independent variable).
Figure 6. Multivariate regression of mean pronotum shape (dependent variable) by species against centroid size (independent variable).
Diversity 17 00680 g006
Table 1. Species and abbreviations used in this study. Species selection was based on the availability and quality of photographic data.
Table 1. Species and abbreviations used in this study. Species selection was based on the availability and quality of photographic data.
SpeciesAbbreviature
A. alataalat
A. bicoloripesbico
A. declivisdecl
A. distantidist
A. femoratafemo
A. latiantennatalati
A. latipeslaty
A. mercurmerc
A. nigranigr
A. terminalisterm
Table 2. Permutation test of Mahalanobis distances and associated p-values for interspecific pronotum shape comparisons.
Table 2. Permutation test of Mahalanobis distances and associated p-values for interspecific pronotum shape comparisons.
alatbicodecldistfemolatilatymercnigrterm
bico13.96
p-value0.005
decl7.58889.724
p-value0.00020.0078
dist14.47828.650411.8618
p-value<0.00010.0036<0.0001
femo9.82798.36218.72989.9523
p-value0.00020.00090.00020.0001
lati9.94356.88617.63888.83455.0822
p-value0.00250.05060.00310.00030.019
laty13.41958.234710.40118.67586.57176.903
p-value<0.00010.01670.00050.00070.00050.0194
merc12.66946.81789.73211.8447.52567.03229.1256
p-value0.00180.0460.0070.00270.00070.02410.0266
nigr13.96927.321810.699.83368.1856.77227.87958.2783
p-value0.00030.00990.00420.00740.00450.0580.02310.0125
term11.00427.68388.87478.47286.02055.05886.46826.89127.126
p-value0.00090.04610.00490.00140.00180.19990.0210.03930.0431
thom10.64077.87578.62377.40116.94126.61047.66679.48557.78836.6333
p-value0.00090.00060.0001<0.0001<0.00010.0009<0.00010.00160.00030.0004
