Phylogeographic and Morphological Analysis of Botrylloides niger Herdman, 1886 from the Northeastern Mediterranean Sea

Developmental Biology and Genomics Laboratory, Department of Anatomy, Otago School of Medical Sciences, University of Otago, P.O. Box 56, Dunedin 9054, New Zealand
Institute of Marine Sciences, Middle East Technical University, Erdemli-Mersin 33731, Türkiye
Department of Biology, University of Fribourg, 1700 Fribourg, Switzerland
Authors to whom correspondence should be addressed.
Diversity 2023, 15(3), 367;
Received: 4 December 2022 / Revised: 28 February 2023 / Accepted: 1 March 2023 / Published: 3 March 2023
(This article belongs to the Special Issue DNA Barcodes for Evolution and Biodiversity)


Botrylloides niger (class Ascidiacea) is an invasive marine filter-feeding invertebrate that is believed to originate from the West Atlantic region. This species of colonial tunicate has been observed in several locations along the coasts of Israel and around the Suez Canal, but it has not yet been reported on the coasts of the Northeastern Mediterranean Sea (NEMS), suggesting an ongoing Lessepsian migration. However, the extent of this invasion might be concealed by reports of other potentially misidentified species of Botrylloides, given that the strong morphological similarities within this genus renders taxonomical identification particularly challenging. In this study, we performed a phylogeographic and morphological analysis of B. niger in the NEMS. We collected 238 samples from 8 sampling stations covering 824 km of the coastlines of NEMS. We reported 14 different morphotypes, of which the orange-brown, orange, and brown-striped morphs were the most abundant. Using the mitochondrial cytochrome C oxidase I (COI) as a DNA barcode marker, we identified 4 haplotypes. The COI haplotypes clustered with the reference B. niger sequences from GenBank and differed significantly from the sister Botrylloides species. We confirmed our identification using three additional barcoding markers (Histone 3, 18S rRNA, and 28S rRNA), which all matched with over 99% similarity to reference sequences. In addition, we monitored a station for a year and conducted a temporal analysis of the collected colonies. The colonies were absent during the winter and spring, while new colonies were established in the summer and expanded during autumn. We performed demographic population analysis on our spatial data that identified a possible population subdivision at a sampling site, which might have been caused by local freshwater input. Herein, we present the first report on the presence of Botrylloides niger in the NEMS. This study represents a key step toward understanding the diversity and the propagation of this highly invasive species of colonial ascidians, both within the Mediterranean basin as well as globally.

1. Introduction

Phylogeography investigates the geographical distribution of genealogical lineages by combining spatial snapshots of a portion of a population [1]. Populations divided by long distances or geographical barriers may display a higher level of genetic differentiation, representing the accumulation of mutations acquired over long periods of isolation [2]. Geography is, thus, intrinsically connected with evolutionary relations, and this connection can be detected via molecular markers that estimate genetic variations to understand the linkage between populations [1]. Consequently, spatial analyses of genetic diversity can provide important insights into the evolution of entire populations over potentially large spatial and temporal scales.
While such analyses are reasonably accessible in terrestrial environments, in aquatic systems, the population dynamics are more turbulent and harder to estimate. Considering the development of maritime traffic and aquaculture, the establishment of non-indigenous marine organisms in new environments is inevitable [3]. In particular, the global spreading of invasive species is a major threat to native ecosystems, and their prevention is of major biological and economical interest. Thus, phylogeographic studies on marine environments are essential to estimate genetic diversity, isolation patterns, and hydrographic barriers to elucidate the dispersal of populations.
DNA barcoding is a prominent molecular tool used to identify species and catalogue biodiversity. The main marker used for barcoding is a 500–650 bp fragment of the mitochondrial cytochrome C oxidase subunit I (COI) gene. COI sequences are compared to global reference databases, such as GenBank or Barcoding of Life Database (BOLD) [4,5], to assign to the sample of interest the same species as the one of the closest sequences found among the references. COI sequences from the same population can be compared to estimate the genetic diversity of the population and identify haplotypes [6]. COI sequences can also be compared across spatial and temporal sampling locations to study the movement of genetic material and infer population dynamics [7]. Additional genetic markers include the sequences of the chromatin component Histone 3 (H3), the ribosomal small subunit 18S rRNA, and the ribosomal large subunit 28S rRNA, all of which have been used to resolve population dynamics [8].
In the Northeastern Mediterranean Sea (NEMS), encompassing the coasts of Türkiye, Syria, and Lebanon, DNA barcoding studies have increased in recent years to monitor possible invasive Lessepsian migrations from the Suez Canal into NEMS [9]. These studies have proven to be decisive for the implementation of marine conservation policies by providing the required scientific knowledge on the ecosystem’s dynamics [9,10,11,12,13,14,15,16,17,18,19,20,21].
Botrylloides is a globally present genus of sessile marine invertebrate filter-feeders that belong to the Tunicata subphylum [22]. These colonial chordates live on hard substrata by establishing flat, hard, gelatin-encrusted colonies after the motile larva attaches and undergoes metamorphosis [23]. Botrylloides can also undergo asexual reproduction, which is called blastogenesis, whereby new zooids bud from the peribranchial wall of the parental zooids [24]. The blastogenic cycle culminates with the death and absorption of all parental zooids by the colony and the emergence of a new generation of zooids in a process known as the takeover [25]. Natural chimerism following the fusion of two closely related kins, hibernation, and even whole-body regeneration have commonly, but not exhaustively, been reported in Botrylloides [6,26,27,28,29,30,31]. The Botrylloides genus is composed of 21 reported species, all of which are morphologically similar, with zooids aligned in a ladder-like arrangement. Anatomical features that differentiate species can be extremely difficult to assess, such as the number of stigmata rows on the branchial basket, the presence of a pyloric caecum, or the location where the larvae incubate. Consequently, taxonomical assignments based on their anatomical features are challenging for species-level categorization [32].
Several species of Botrylloides have been identified as invasive and have been reported in the Mediterranean Sea [10,32,33,34,35,36,37,38,39,40,41]. Botrylloides niger [42] is classified within the Styelidae family and has been synonymized with reports of other colonial ascidians, including Metrocarpa nigrum [42], Botryllus niger [42], Botryllus nigrum [42], Botrylloides chazaliei [43], and Botrylloides nigrum [42]. B. niger is predicted to be native to the West Atlantic due to its frequent presence there, although it was first identified on the coasts of Bermuda, an island located in the temperate region of the North-Atlantic Ocean [6]. Peres documented the presence of B. niger on the Mediterranean coasts of Israel more than fifty years ago [44], a presence that was recently confirmed using DNA barcoding by Griggio et al. [45,46]. Since then, Halim and Messeih have reported its presence in the Suez Canal [41]; Sallona et al. in the Ionian Sea [47]; and Crocetta et al. at several sites in Italy [48,49,50].
The only record of Botrylloides in the NEMS is that of Botrylloides leachii, documented in the Mersin harbor in Türkiye [36]. However, this report was solely based on morphology and has a number of missing key anatomical insights, which suggests that the resulting taxonomical assignment at the species level could be debatable. In particular, pigmentation patterns of colonial ascidians were shown to be highly polymorphic, and, thus, not suitable for species determination [51]. For instance, Brunetti [38] and Reem et al. [10] disagree with Sheets et al. [6] on the identification of Botrylloides colonies on the coasts of Israel, with the former two assigning them as B. leachii, but the latter as B. niger.
In this study, we investigated the genetic and morphological diversity of B. niger colonies from the NEMS by combining COI barcoding with H3, 18S rRNA, and 28S rRNA to support our identification, and conducted a time-series sampling for a year to investigate the effect of seasonal changes on population genetics. Herein, we present the first report on the presence of Botrylloides niger in the NEMS. This study is a key step towards understanding the diversity and the propagation of this highly invasive species of colonial ascidians, both within the Mediterranean basin and globally.

2. Materials and Methods

2.1. Colonies Sampling

Spatial samples were collected from the coastal areas of the Antalya (Kemer-Side-Alanya-Tersane), Mersin (Tisan-Kızkalesi-Mezitli), and Hatay (Konacık) sites in September and October 2018 at water depths between 30–50 cm, as previously described for Botrylloides anceps (Figure 1A) [31]. Samples were collected from submerged stones using a single-edged razor blade. The colonies to be monitored were placed onto a microscope slide and attached with a sewing thread, while the samples for barcoding were put into 1.5 mL tubes filled with 70 % (v/v) ethanol. The sampling area’s date, coordinates, salinity, and pH were documented (Table S1). In total, 238 samples were collected, 203 of them to be processed for DNA barcoding (Table S2). Of these samples, 100 were used in our spatial analysis, 65 in the temporal analysis, and 38 in both analyses. The Kızkalesi station was visited monthly for the time-series between November 2017 and October 2018, with samples collected in November 2017 and between July 2018 and October 2018 (Table S3).

2.2. Colonies Characterization

A total of 218 of our specimens were characterized via morphological examination regarding their zooid distribution, color, and habitat preferences. Pigmentation patterns for each morphotype (Figure S1) were characterized by adapting the criteria used for the sister genus Botryllus [51]. Living specimens that were taken to the laboratory were photographed under a stereo and a light microscope (Olympus SZX16-UC30 camera; Olympus CX43-ToupTek camera (Olympus, Tokyo, Japan; ToupTek Photonics, Hangzhou, China). Living colonies were kept at 20 °C in the IMS-METU aquaculture room. The temperature and light of the room were stable, and the salinity of the water was constant at 40 ppt. The colonies were fed and the water was replaced every two days.
Hibernation of the animals was characterized by visual inspection based on the regression of all the zooids, thus resulting in a dense vascular system. Blastogenic cycles were monitored from the ventral side of the zooids, and the budding through the atrial epithelium was monitored by visual inspection.

2.3. Molecular Analyses

DNA extractions were completed as previously described [31]. The amplification reactions were executed as previously described [10] for the COI, H3, 18S, and 28S genes (Table S4). All PCR products were purified with the NucleoSpin® DNA clean-up kit [52] and then sent to Macrogen Inc. (Seoul, Republic of Korea) for sequencing. The primers used in this study are given in Table S5. Sequences were aligned for each gene region separately using Clustal X v2 [53]. Acquired contigs were aligned on BioEdit version 7 [54], edited, and trimmed.

2.4. Haplotypes Network Analyses and Bayesian Trees

The minimum spanning network of haplotypes were calculated using Arlequin version [55] and visualized via HapStar version 0.7 [56].

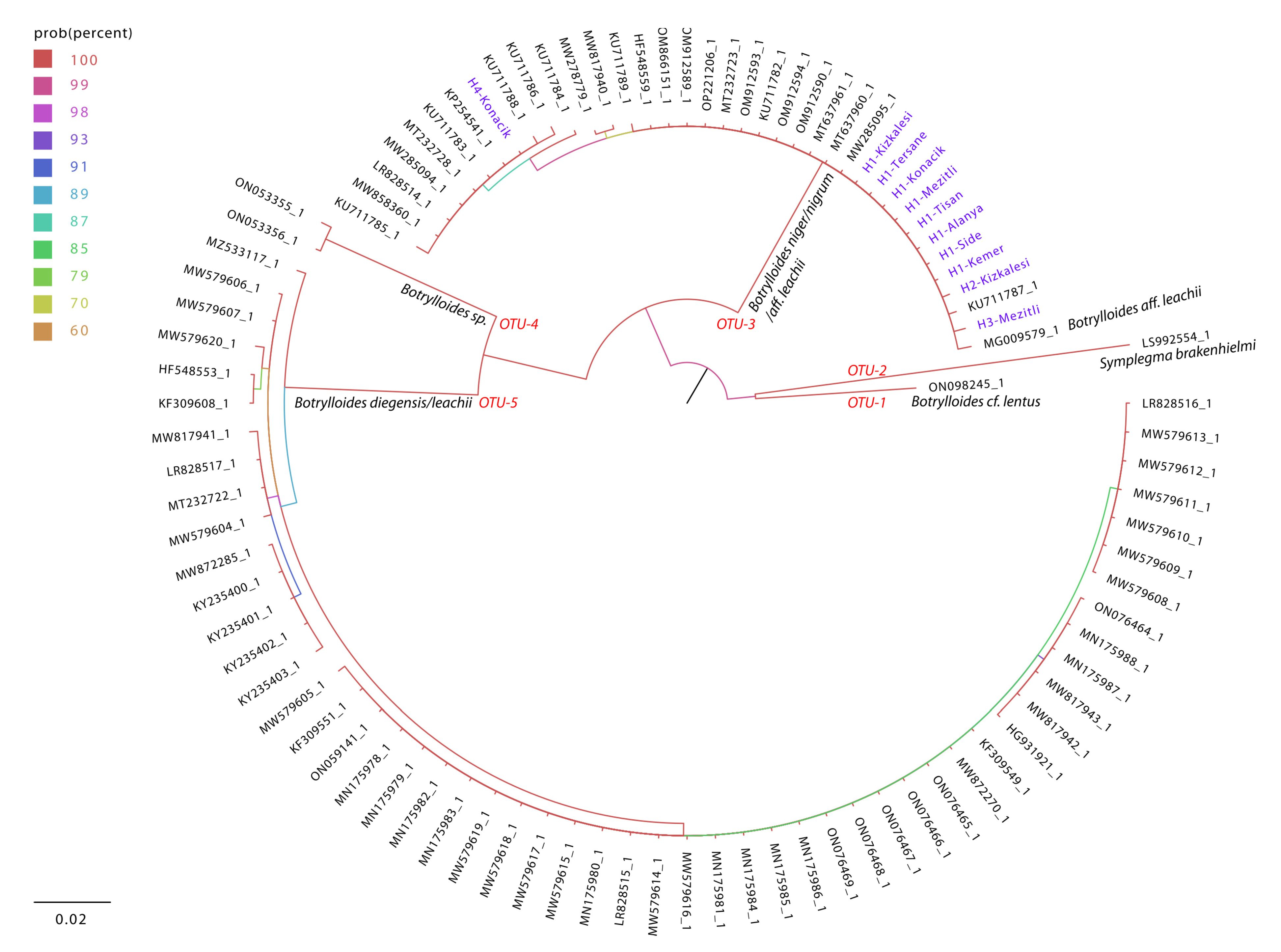

Bayesian trees of COI haplotypes and database-mined samples show the phylogenetic distances. The best model for the MrBayes v3.2 [57] was chosen via PhyML-SMS v3 software [58]. In total, four MrBayes runs (two independent for each) were conducted for the haplotypes (H) alone, as well as together, with all the database-mined samples (DM). The runs were performed based on the general time-reversible model with a proportion of invariable sites (GTR + I) for 900′000 (H) and 5′400′000 (DM) combined states with two independent runs. In total, 15 (H) and 45,002 (DM) trees were sampled after discharging a burn-in fraction of 25 % that verified the log likelihood of the cold chain (LnL) stationarity. As the convergence diagnostic, the average standard deviation of split frequencies was recorded as 0.004 (H) and 0.005 (DM), and potential scale reduction factors (PSRFs) were close to 1.0 for both [57]. The sister group of Botrylloides, the colonial ascidian Symplegma, was used as an out-group. The validity of the MCMC chains was confirmed by visual inspection of the LnL distribution to ensure stationarity. The final trees were visualized with FigTree v.1.4.4 [59].

2.5. Database Sequences

Ascidian sequences were mined from NCBI GenBank [4] in September 2022 to be used for species delimitation analyses. Sequences were selected based on their assigned genera, whether they had a voucher record, and whether they were approved by a taxonomist. All utilized reference sequences are listed in Table S6.

2.6. Species Analyses

Species delimitation analyses were carried out using the Automatic Barcode Gap Discovery method through the Assemble Species by Automatic Partitioning (ASAP,, accessed on 20 September 2022) [60] and the Poisson Tree Processes (PTP,, accessed on 20 September 2022) [61]. The hypothetical species are defined as Operational Taxonomic Units (OTUs) using these methods. ASAP clusters sequences into partitions consisting of hypothetical species based on the statistical inference of the “barcode gap”, i.e., the gap in the distribution of intra-species and inter-species pairwise distances. ASAP analyses were performed using a web-based interface [60] (last accessed on 20 September 2022). Two metric options provided by ASAP for the pairwise distance calculations were used: Jukes–Cantor (JC69) [62] and Kimura 2 parameters (K80) [63]. This strategy allowed us to exclude possible biases of the selected evolutionary model for OTU delimitation. PTP analyses were conducted using the Bayesian implementation (bPTP; adds Bayesian support values to delimited species on the input tree), available on the web-based interface [61] (last accessed on 20 September 2022). MrBayes trees were generated using 100′000 Markov Chain Monte Carlo (MCMC) generations, subsampling every 100 generations, a burn-in fraction of 0.1, and 123 seed.

2.7. Population Analyses

Mean COI distances between the NEMS populations and the NCBI database sequences were calculated by a Kimura 2-parameter model [64] using MEGA version X [65]. The Blast suite of NCBI was used to find the matching substitution rates between bases [66]. The population-wide statistics, including the genetic diversity, neutrality test, and genetic differentiation, were calculated from the corresponding multiple sequence alignments of the COI locus per population with DnaSP version 6 [67].
The following four genetic diversity indices were measured: number of polymorphic sites (Np), number of haplotypes (Nh), nucleotide diversity (π; window length: 100, step size: 25) [68], haplotype diversity (Hd, window length: 100, step size: 25) [69]. In addition, three associated neutrality test statistics were computed to test the hypothesis that all mutations were selectively neutral: Fu and Li’s D* (F&LD) [68], Fu and Li’s F* (F&LF) [70], and Tajima’s D (TajD) [71].
To compare populations, the pairwise genetic differentiation (Fst, permutations number: 10,000) [72,73] and the population size changes were calculated with DnaSP. For the population size change, measured population mismatch distributions were compared to expected values for a population with a constant population size [74] using the raggedness statistic, r [75].
All figures were edited with Inkscape version 1.1 [76].

3. Results

3.1. Morphological Records

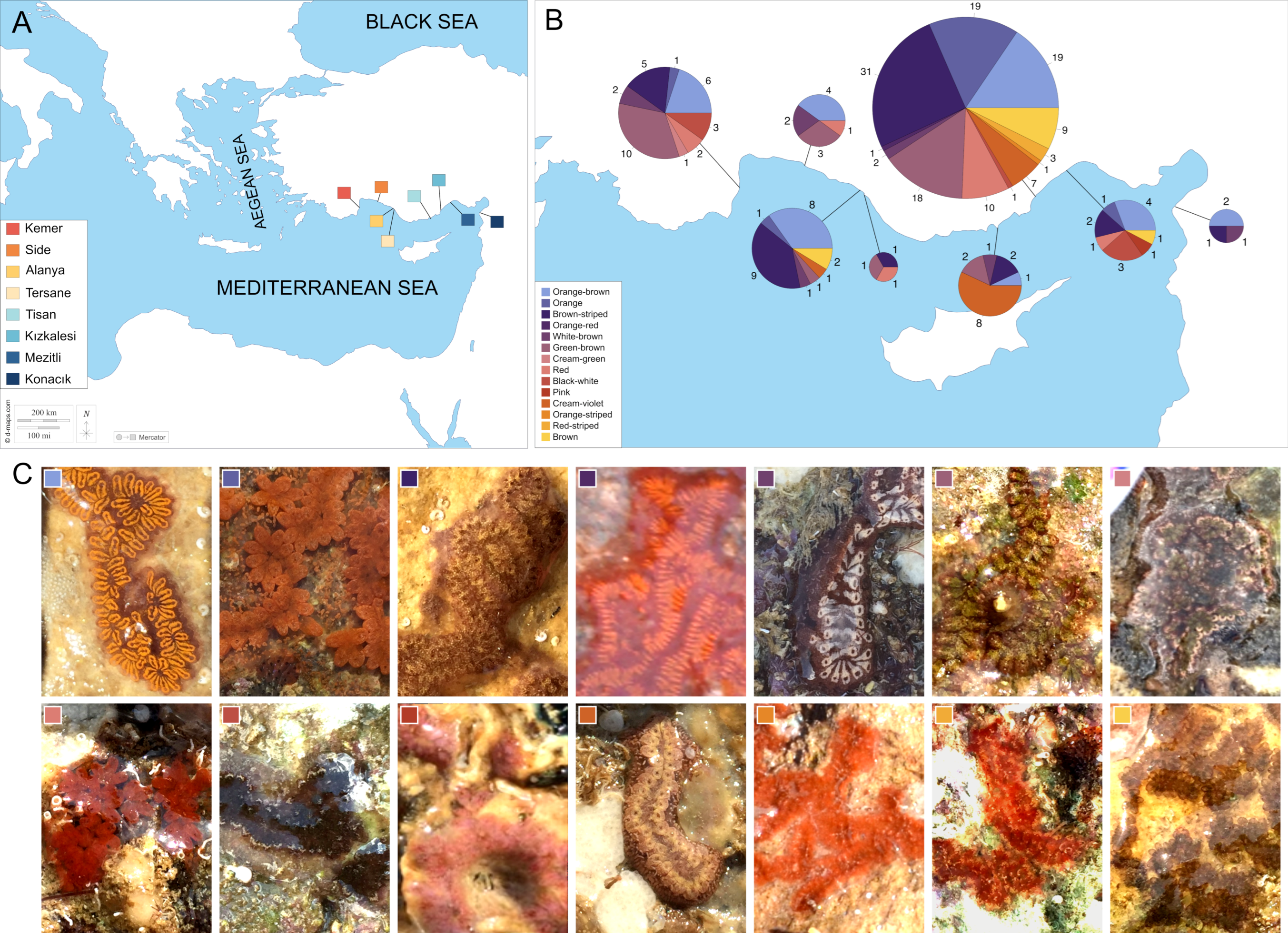

Overall, 14 different morphotypes were observed among the sampled colonies (Figure 1). Single- and double-colored morphs were recorded: orange-brown, orange, brown-striped, orange-red, white-brown, green-brown, cream-green, red, black-white, pink, cream-violet, orange-striped, red-striped, and brown (Figure S1). These 14 major morphotypes were composed of multiple sub-types with minute differences in the patterns of the colors.
All colonies presented the typical Botrylloides ladder-like organization, where zooids are aligned side by side while their dorsal lamina face the surrounding environment, and the ventral side is located on the attachment side (Figure S2). Four large and four small tentacles were recorded inside the buccal siphon, and eight alternative smaller protrusions were observed (Figure S2). Pigmented blood cells were recorded on the tentacles, especially on the two largest ones. Many pigmented blood cells on both sides of the endostyle were observed over the whole length of the animals.

3.2. Life History

The blastogenic cycle of 19 colonies was examined according to the Watanabe [77] four-phase (A–D) staging method. The duration of the cycle varied between 4 to 7 days (Figure S3). In stage A, two primary blastozooids were formed by budding from a single parental zooid. During stage B, blood flow was observed in the cardiac swellings of the primary buds. In stage C, secondary blastozooids were formed from the primary zooids. In stage D, known as takeover, the parental zooids were reabsorbed by the colony while the clonal primary zooids matured (Figure S3).
Fourteen of the nineteen cultured colonies hibernated during the winter season. During hibernation, there were no zooids in the dormant colony. The overall morphology thus consisted of only a carpet-like layer of ampullae (Figure S4). The blood circulation was lower and thicker than what is usually observed in healthy colonies. Termination of hibernation was not observed in any colony, even after the end of winter.
The life spans and morphologies of 19 colonies were documented (Table S7). The average life span of the B. niger colonies under lab conditions was ~5 months.

3.3. Network Analysis Based on COI

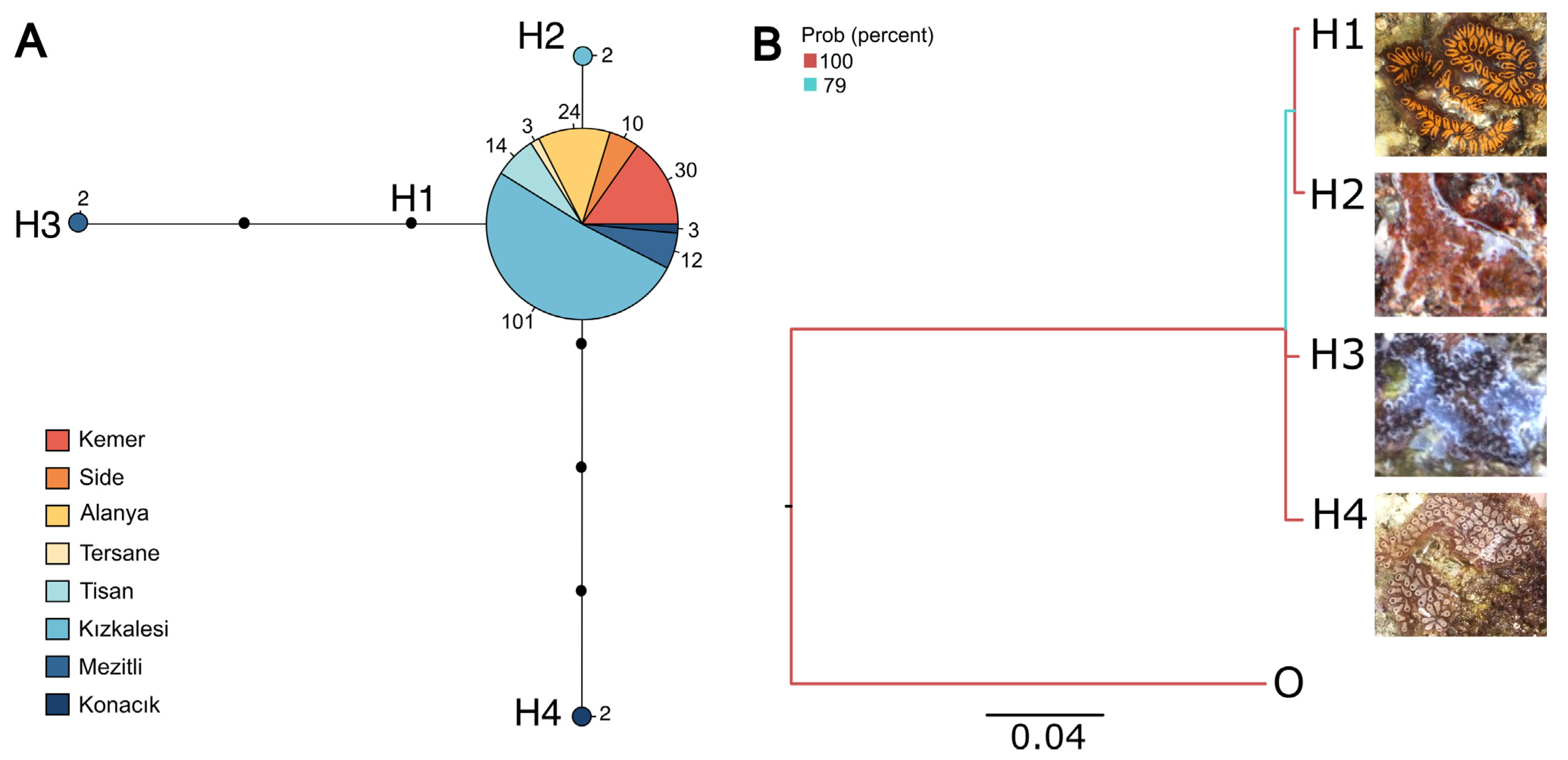

Our samples clustered under four haplotypes; H1, H2, H3, and H4 (Figure 2). The populations from the sampling sites of Kızkalesi, Mezitli, and Konacık were observed to contain more genetic variation, with three unique haplotypes in these regions. No correlation was identified between the genetic and morphological variations for the haplotypes. The highest divergence was in Konacık, where the main haplotype (H1) was separated by four mutation steps.

3.4. Species Delimitation Analysis

In total, five OTUs were assigned for all samples. Botrylloides cf. lentus (ON098245_1) was assigned in OTU-1, Symplegma brakenhielmi (LS992554_1) in OTU-2, all 27 Botrylloides niger/nigrum/aff. leachii reference samples together with all 11 from the present study in OTU-3, two uncharacterized Botrylloides sp. samples in OTU-4, and the 54 reference samples of Botrylloides diegensis/leachii in OTU-5 (Figure 3). All the main lineages reached 100% support, with some peripheral lineages having support as low as 60%. ASAP and PTP results supported identical species clustering (Figure S5).

3.5. Species Assignment by DNA Barcoding Analysis

The final length of aligned and trimmed COI partial sequences was 519 bp. In total, we analyzed 203 COI sequences from the NEMS. The divergence among the studied populations was 0–0.4% (Table 1). The greatest distance was observed between the Konacık and the rest of the NEMS populations. The B. aff. leachii (MG009579) and B. niger (MW858360, LR828514, MW278779) database sequences diverged by less than 1% from the present populations. The distances between the NEMS samples and the database reference B. leachii/B. diegensis samples were ~17–23%.
We sequenced 46 samples for the H3, three samples for the 18S, and two samples for the 28S genomic region. These sequences paired with at least 99% similarity to the reference sequences of B. aff. leachii (Figure S6) [10].

3.6. Spatial Diversity Analysis Based on COI

The evaluated regional population genetic diversity metrics (Table 2) showed that, despite its lower sample size (n = 5), the highest polymorphism (Np = 4), haplotype diversity (Nh = 0.6), and nucleotide diversity (π = 0.0046) were measured in the Konacık population. No polymorphism was documented among the Tisan, Alanya, Side, Tersane, or Kemer populations.
Fu and Li’s D and Fu, Li’s F, and Tajima’s D tests were utilized to examine the neutrality of the mutations (Table 2). While no test was statistically significant at the level of geographical sub-populations, Tajima’s D value for all the NEMS populations was significant negative (−1.857, p < 0.05).
Pairwise genetic differentiation (Fst) estimations (Table 3) showed that the Kemer-Mezitli pair was the only one that showed a statistically significant differentiation.
Population size changes raggedness statistic (r) indicated that the only significant result was recorded for the Side population (Figure S7).

3.7. Temporal Diversity Analysis Based on COI

The genetic diversity metrics for the Kızkalesi time-series (Table 4) showed two haplotypes and one polymorphic site. The highest nucleotide and haplotype diversities were observed within the November population (π = 0.0002, Hd = 0.111), while no diversity was observed for the August–September period. The same polymorphism (Np = 1) was recorded within the November and September populations.
The neutrality test statistics (Table 4) showed no statistically significant values for any population, but negative TajD values for the November and October populations. Pairwise genetic differentiation (Fst) and the population size changes raggedness statistic (r) showed no significant values for any of the temporal populations (Figure S8 and Table S8).

4. Discussion

In the present study, one primary (COI) and three additional molecular markers (H3, r18S, and r28S) were used to identify the genetic diversity of the B. niger colonies from the NEMS coasts of Türkiye. Taxonomical assignment based on the morphology of the samples was limited to the genus level (i.e., as a Botrylloides sp.) due to the high similarities between the sister species of this taxon [10,38,47,78]. Although the type of larval incubation and the structure of the pyloric cecum have been reported to support species differentiation [38], these features are very challenging to precisely assess during punctual field sampling.
The morphological characteristics of the ascidians, as a tool to distinguish species and genera, have remained cryptic, without consensus. According to Van Name [79] and Boyd et al. [80], morphological variations are accepted to have no taxonomic importance for ascidians. On the other hand, Tarjuelo et al. [81] suggested that it is possible to differentiate the color morphs of Pseudodistoma crucigaster, a colonial ascidian, based on COI locus. Furthermore, a recent study proposes that although there are morphological overlaps between Botryllus and Botrylloides, they possess different features [78]. While this proposition keeps the two genera separated, the morphological separation within Botrylloides remains untangled. Aside from the general morphological confusion of B. niger with its sister species B. leachii, B. diegensis, or B. violaceus, the color morphs that were given for Botrylloides simodensis and Botrylloides praelongus significantly resemble some morphs of the NEMS colonies, highlighting that Botrylloides species share highly similar morphotypes [82].
Based on our morphological examination, a ladder-like “leachii type” zooid organization was found in all NEMS colonies [38]. At least 14 major morphotypes with various types of striped pigmentation were recorded as sub-morphs within the NEMS. The morphological diversity was similar to the description of Sheets et al. [6], who indicated 8 different morphotypes for B. niger for the 16 worldwide locations. We observed most of the indicated morphotypes in our NEMS colonies, with the addition of a frequent green-violet morph that was not documented in their study. In this study, we assumed that B. niger had been introduced to the Mediterranean basin from the Atlantic Ocean, from which it has been proposed to originate [6]. However, the greater number of morphotypes that we found in the NEMS is challenging this hypothesis, since greater diversity suggests fewer bottlenecked populations and, thus, potentially fewer migrations. Similarly, a significant morph variation of B. schlosseri was recorded for the Mediterranean colonies, which suggested that different pigmentation patterns might result in different adaptive fitness levels [51]. Moreover, Mediterranean colonies of B. schlosseri indicated a mixture of native and non-native sub-species with diverse origins from the Pacific to the Atlantic [83,84]. Thus, to understand the history of B. niger, broader sampling is needed.
The variation in the life history characteristics of colonial ascidians is shaped by their high phenotypic and genetic plasticity to environmental changes [37,85]. Monitoring the blastogenic cycles of the different morphs showed that for all colonies, the blastogenic stages (A–D) were sequential, with a duration that varied from 4 to 7 days. These results are congruent with the previously suggested cycle duration of about one week [23,30]. The shorter cycles are probably related to hibernation [51,86]. We observed that most of the hibernating colonies in the lab were unable to recover. Hyams et al. [86] stated that ~80% of the hibernating colonies died within five months of the hibernation period. Hibernation seems to be one of the main reasons for the short life span of the colonies. To understand hibernation in their natural environment, we recorded the colonial diversity of our samplings in the winter period. We did not observe any colonies during the winter in the intertidal zone, where we collected our samples regularly.
The measured negative TajD value supports this interpretation of population expansion after a selective sweep, albeit without being statistically significant. However, Fu and Li’s D* and Fu and Li’s F* non-significant values suggest the opposite process, implying that the population has not undergone recent demographic or selective events. This apparent contradiction might be due to our sampling strategy. Indeed, F and LD and F and LF have notably little detection power for growing populations if the sampling rate is not focused around the period of maximal growth rate [87]. Consequently, having one single sampling period during August might prevent these two tests from detecting the selective sweep measured by TajD. Monitoring the colonies over more than one year, or at a higher frequency during summer, would help to clarify the demographic and selective processes that may affect the population.
Along with the morphological and life history characterization of the NEMS population, we also conducted genetic analyses. Molecular comparisons with the GenBank data showed that the current study sequences match 99–100 % with the B. niger sequences based on the COI locus; thus, we classified our species as Botrylloides niger. We found five OTUs based on our species delimitation analyses. OTU-3 consisted of all the B. niger haplotypes of the current study together with the GenBank B. niger/nigrum/aff. leachii sequences. The out-group (Symplegma brakenhielmi) and the other Botrylloides species, such as Botrylloides diegensis, were located in separate taxonomic units. We thus support COI as an adequate marker to identify and separate Botrylloides species, and B. niger in particular. Furthermore, our H3, r18S, and r28S sequences congruently matched with the same Israeli B. aff. leachii sequences whose COI barcode matched our COI barcode 100 % [10].
Despite covering only 8 stations along an 800 km coastline, the studied NEMS colonies demonstrated significant diversity, encompassing 14 morphotypes, 4 COI haplotypes, and 14 H3 genotypes. Furthermore, the overall haplotype diversity of COI was low (πCOI: 0.0004), which might stem from a recent bottleneck of the mitochondrial genome or from high introgression rates. Similarly, Sheets et al. [6] found low diversity of the B. niger populations on the Atlantic and Pacific coasts of COI and ANT loci.
Considering the significant negative Tajima’s D values, the null hypothesis that the colonies of Türkiye’s NEMS were overall under negative selection for COI was not rejected. The NEMS population seems to be under purifying selection, expanding from a restricted population or a selective sweep.
Likewise, Sheets et al. [6] found the B. niger populations on the Atlantic coast of Panama, the Pacific coast of Panama, and the coasts of Mexico to be under negative selection for the COI locus, which suggests a small population size, a founder effect, or a low dispersal. The selective forces acting as the environmental stressors on the mitochondrial DNA might be salinity or temperature [88,89,90].
The demographic population analyses based on the COI gene showed that the Side population was under significant subdivision, which could very likely result from major local freshwater input (the Manavgat stream). Freshwater inputs are known to cause the coastal salinity values to fluctuate. In support of this, Karahan et al. [91] stated that the dynamics of B. schlosseri populations from the California coasts were dramatically affected upon flooding events. Moreover, B. violaceus larvae exposed to low salinity were shown to express osmotic stress with an increased mortality rate, suggesting that colonial fitness would be reduced by seasonal storm events that cause seawater salinity to fluctuate [92]. Since the lowest salinity record (37.5 ppt) among the sampling stations belonged to Side, the population structure of the B. niger colonies appears to be affected by the lower salinity.
In this study, the population structures and interactions of B. niger from the NEMS were investigated using four molecular markers for eight spatial stations and one time-series station. Morphological results showed similar colonial characteristics regarding the blastogenic cycle and hibernation, but with a greater number of new morphotype records. Concerning the ambiguities in the classification of Botrylloides, previously suggested molecular markers were used to identify the populations from the Turkish coasts of the NEMS. As a result, the COI marker was observed to provide sufficient identification of the species.

Supplementary Materials

The following supporting information can be downloaded at: Figure S1: Description of the 14 morphotypes. Figure S2: Morphology of Botrylloides niger. Figure S3: The blastogenic cycle of B. niger. Figure S4: Hibernation of B. niger. Figure S5: Delimiting Operational Taxonomic Units (OTUs) and Bayesian tracer. Figure S6: Nuclear gene analyses of B. niger. Figure S7: Population size changes analysis based on the mismatch distribution of the COI gene for Kızkalesi, Mezitli, Konacık, and all populations. Figure S8: Population size changes of Kızkalesi time-series station based on mismatch distribution of COI. Table S1: Details of sampling stations. Table S2: Details of samplings and observed haplotypes and genotypes. Table S3: Kızkalesi site time-series samplings. Table S4: PCR programs for COI, H3, 28S rRNA and 18S rRNA genes. Table S5: Primers used in the present study. Table S6: Accession numbers for the GenBank reference sequences. Table S7: Life history of the 19 colonies cultured in the laboratory. Table S8: Pairwise comparison of the genetic differentiation (Fst) between the temporal populations of Kızkalesi. Table S9: Correspondence between sample IDs, morphotypes and the determined haplotypes and genotypes for COI, H3, 18S and 28S.

Author Contributions

Conceptualization, B.T. and A.K.; data curation, B.T., E.Ö. and A.K.; methodology, B.T., E.Ö., S.B. and A.K.; writing—original draft, B.T., S.B. and A.K. All authors have read and agreed to the published version of the manuscript.


This study was supported by the YÖP-701-2018-2666 project (Middle East Technical University support program) and BAP-08-11-DPT2012K120880 for B.T., E.Ö and A.K.; and by the Swiss National Science Foundation (SNF) [grant number PZ00P3_173981] for S.B.

Institutional Review Board Statement

The study was conducted in accordance with the Animal testing regulations Directive 2010/63/EU and the national regulation of Türkiye.

Data Availability Statement

Sequences, trace files, image files, and the primer information for each of the four COI haplotype were uploaded to the Barcode of Life Data System [5] with the accession numbers IMS255-19, IMS256-19, FEE003-23, and FEE007-23, all grouped under the BOLD:ACI1328 BIN code. COI haplotype sequences were also uploaded to NCBI GenBank [4] with accession numbers OQ211497, OQ211498, OQ211500 and OQ211501. Similarly, the 14 Histone 3, the three 18S rRNA, and the two 28S rRNA sequences were submitted to BOLD with accession numbers FEE003-23, FEE007-23, FEE012-23 to FEE025-23 and IMS254-19 to IMS257-19, as well as to GenBank; accession numbers are pending attribution. Accession numbers of the COI sequences taken from GenBank are provided in Table S6 (data retrieved from the NCBI in September 2022). Haplotypes of the sampled colonies are provided in Table S9.


We thank Megan Wilson and Michael Hart for their valuable comments on the final version of the manuscript. We thank Baruch Rinkevich, Jacob Douek, and Guy Paz for their endless support and Kenan Murat Karahan for sampling help. We kindly thank Oscar Dalkjaer Wigant, Sonja Hummel and Aude Blanchoud for proofreading the manuscript. We thank Side and Erdemli Municipality for their kind assistance during our samplings. We also thank the anonymous reviewers for their helpful comments.

Conflicts of Interest

The authors declare no conflict of interest.
