Low Temperature Scanning Electron Microscopy (LTSEM) Findings on the Ultrastructure of Trebouxia lynnae (Trebouxiophyceae, Lichenized Microalgae)

Abstract

The lichenized green microalga Trebouxia lynnae Barreno has been recently described and is considered a model organism for studying lichen chlorobionts. Its cellular ultrastructure has already been studied in detail by light, electron, and confocal microscopy, and its nuclear, chloroplast and mitochondrial genomes have been sequenced and annotated. Here, we investigated in detail the ultrastructure of in vitro grown cultures of T. lynnae observed by Low Temperature Scanning Electron Microscopy (LTSEM) applying a protocol with minimum intervention over the biological samples. This methodology allowed for the discovery of ultrastructural features previously unseen in Trebouxiophyceae microalgae. In addition, original Transmission Electron Microscopy (TEM) images of T. lynnae were reinterpreted based on the new information provided by LTSEM. The nucleolar vacuole, dictyosomes, and endoplasmic reticulum were investigated and reported for the first time in T. lynnae and most likely in other Trebouxia lineages.

1. Introduction

Lichens are self-sustaining microecosystems formed by the interaction of a major ascomycetous or basidiomycetous fungus (the mycobiont), photosynthetic microorganisms (the photobionts) comprising one or more populations of microalgae (phycobionts) and/or cyanobacteria (cyanobionts), and other microorganisms such as bacteria and other microfungi (filamentous and yeasts) [1]. In the lichen, the mycobiont builds a framework of hyphae enwrapping the photobionts cells, housing all the microorganisms that participate in the symbiosis. The genus Trebouxia Puymaly (Trebouxiaceae) comprises coccoid, colony-forming, aero-terrestrial green microalgae [2,3,4,5]. Trebouxia species are among the most widespread phycobionts, associating with a variety of ascomycetous mycobionts [6,7]. Among them, Trebouxia lynnae Barreno has emerged as the Trebouxia research model because its ultrastructure has been largely analysed and its cells have been described in detail by different approaches [8,9]. Furthermore, its nuclear, chloroplast, and mitochondrial genomes have been sequenced and annotated, and more physiology information is gathered every year [8,9,10,11,12,13,14,15].

The phycobiont-mycobiont association and their reciprocal selectivity are complex subjects. There are plenty of examples of phycobionts switching in relation to environmental and geographic variables. In particular, a diversity of Trebouxia phycobionts within different lichen species has been reported across niche gradients [16,17,18,19,20,21]. In addition, the intrathalline coexistence of various Trebouxia species-level lineages has been frequently reported, and it has been suggested that the thallus morphology and growth stage affect the diversity of the associated phycobionts [12,17,22,23,24,25,26,27,28]. Inter- and intrathalline phycobiont diversity has been mainly assessed by molecular techniques [19,21,22,24,25,26,27,28,29]. The lack of additional evidence for phycobiont diversity gives rise to some questions: are we underestimating the phycobiont diversity by skipping photobionts with abundances below the detection threshold? Are there phycobionts undetectable by the molecular approaches due to the primers efficiency? Are less abundant phycobionts real symbionts, or rather residual cells of a former phycobiont? Are estimated phycobiont abundances reliable? Supplementing molecular analysis with taxonomic identification of microalgae inside the thalli by means of microscopy is highly desirable. To this end, it is essential to analyse the morphology and ultrastructure of putative species-level lineages and identify taxonomic relevant traits. In order to reliably identify phycobionts, it is important to correlate the in vitro traits with those exhibited in the symbiotic state within the lichen thallus [30].

Recently, the diversity and the evolutionary relationships of Trebouxia species-level lineages were reappraised by Muggia et al. [7], who assembled DNA sequence data from over 1600 specimens and inferred a phylogeny from multi-locus sequence data. The multi-locus phylogenetic reconstructions confirmed four major clades within Trebouxia. In Bordenave et al. [9], 20 axenically grown species-level lineages of Trebouxia belonging to the four major clades were characterized in their morphology and ultrastructure by Confocal Laser Scanning Microscopy (CLSM) and Transmission Electron Microscopy (TEM). Pyrenoid ultrastructure and chloroplast morphology were presented as reliable taxonomic recognition tools in the genus Trebouxia. However, it is possible to further distinguish species-level lineages of Trebouxia by including additional traits by means of new microscopy approaches.

High-end Scanning Electron Microscopy imaging of fully hydrated biological samples can be attained by cryo-fixing them freshly and maintaining the frozen condition in the SEM [31]. Thus, Low Temperature Scanning Electron Microscopy (LTSEM) arises as a powerful tool to obtain biological images with minimum intervention over the sample. LTSEM frequently includes additional freeze-fracture and freeze-etching steps, in which samples are mechanically sectioned and superficial water is removed by sublimation to reveal the underlying structures. For the past few decades, microalgae samples have been frozen and cryo-fractured to observe and analyse their morphology and ultrastructure. Detailed ultrastructure of microalgae [32,33], and in particular green microalgae [34,35,36,37,38,39], has been explored by LTSEM, yielding outstanding results. LTSEM of axenically cultured lichen phycobionts for cell ultrastructure has been performed only in Asterochloris glomerata [40]. Although LTSEM of in vitro cultured Trebouxia phycobionts has also been performed, only the cell morphology, cell wall, or extracellular substances have been analysed so far [8,13,41,42].

In order to find new morphological and ultrastructural traits with the potential to be added to the taxonomic discrimination of Trebouxia species in the future, here we explore the detailed ultrastructure of T. lynnae as observed by LTSEM. In addition, we reinterpreted the original TEM images of T. lynnae, as well as those of other Trebouxia species-level lineages, based on the new information provided by LTSEM.

2. Materials and Methods

2.1. Microalgae Strains and Growth Conditions

The analyses were performed on one strain of the lichen phycobiont Trebouxia lynnae. This strain was originally isolated from a thallus of Ramalina farinacea collected from the Sierra del Toro (39°57′ 32.34″ N–0°46′ 35.51″ W, Castellón, España). This microalga was both propagated several years by in vitro cultures and deposited and maintained as living culture at the “Symbiotic Algal collection from the University of Valencia” (ASUV, https://www.asuvalgae.com, accessed on 25 January 2023), and numbered as ASUV 44. Microalgae strains maintained in the ASUV collection have been molecularly identified and are routinely monitored by means of ITS amplification and sequencing as described in Bordenave et al. [9]. T. aggregata, T. anticipata T. arboricola, T. asymmetrica, T. australis, T. corticola, T. crenulata, T. crespoana, T. cretacea, T. decolorans, T. flava, T. gigantea, T. impressa, T. incrustata, T. jamesii, T. maresiae, T. potteri, T. showmanii, and T. simplex were used for TEM analyses. Additional information about Trebouxia strains is available in the supplementary table (Supplementary Table S1). Microalgae strains were maintained axenically in Petri dishes on solid Bold’s Basal Medium (BBM) [43,44] for 21 days in a growth chamber at 20 °C under a 12:12 h light:dark cycle (25 µmol photons m⁻² s⁻¹). At 21 days, entire colonies were scraped from the substrate, resuspended in 3N liquid BBM solution (supplemented with glucose 20 g l⁻¹ and casein 10 g l⁻¹), counted in Neubauer’s chamber, and adjusted to 5.10⁷ cells/µL. 50 μL of filtered cell suspension were applied directly over solid 3N BBM or over acetate discs deposited on the same medium. The Petri dishes were incubated in a growth chamber at 20 °C under a 12:12 h light:dark cycle (25 µmol photons m⁻² s⁻¹).

2.2. Low Temperature Scanning Electron Microscopy (LTSEM)

For LTSEM, microalgal colonies plus the underlying agar medium or acetate discs were cut into squares of around 2 × 2 mm from the centre of the colony and attached to a cryo-holder using colloidal graphite. Samples were plunge frozen in LN2 slush and transferred with a transfer rod module into the cryo-preparation system (PP3010T, Quorum Technologies, Sussex, UK). Samples were mechanically freeze-fractured and then freeze-etched by sublimation for 15 to 25 min at −90 °C. The time of sublimation was adjusted to the estimated water content of the sample and the type of structures aimed at imaging. A thin layer of platinum was sputtered onto the specimens for 10 s and afterward transferred into a Field Emission Scanning Electron Microscope (FESEM ZEISS Ultra-55, Carl ZEISS SMT, Oberkochen, Germany). Images were recorded at an accelerating voltage of 1.5 kV. The images are photographic negatives; hence, protuberant elements of the fractured/etched surface are most heavily coated with platinum and appear white.

2.3. Transmission Electron Microscopy (TEM)

For TEM analyses, a portion of the sample of the microalgal colony of about 2 × 2 mm was covered with tempered low melting point agarose at 1%, fixed in Karnovsky fixative (with para-formaldehyde 2.5% and glutaraldehyde 0.5%) for 12 h at 4 °C, washed three times for 15 min with 0.01 M PBS (pH 7.4), and postfixed with 2% OsO₄ in 0.01 M PBS (pH 7.4) for 2 h at room temperature. After washing in 0.01 M PBS, pH 7.4, the samples were dehydrated at room temperature in a graded series of ethanol, starting at 50% and increasing to 70%, 95%, and 100% for at least 20–30 min at each step. The fixed and dehydrated samples were embedded in LR-White resin. Finally, increasing ethanol and resin infiltrations were carried out (two parts 90% ethanol plus one part resin, one part 90% ethanol plus two parts resin, and one part 100% ethanol plus two parts resin) until attaining 100% LR-White resin. Samples were then incubated at 60 °C for the resin to polymerizate. Ultra-thin sections, 60–90 nm thick, were cut with a UC7 Leica Ultramicrotome (Leica-Biosystems, Wetzlar, Germany) endowed with a diamond knife (Diatome ultra 458, Diatome, Switzerland), mounted on 100 mesh copper grids, and then stained with 10% uranyl acetate and Reynolds solution (0.1% lead citrate) using the ‘Synaptek Grid-Stick Kit’. Sections were observed at 80 kV under a JEOL JEM-1010 microscope (Jeol, Peabody, MA, USA). Images were obtained using an Olympus MegaView III camera and processed with Fiji distribution of ImageJ [45].

3. Results and Discussion

3.1. General Aspects of Axenically Cultured Trebouxia lynnae LTSEM for Cell Ultrastructure Analysis

Most LTSEM protocols for microalgae were optimized for aquatic microalgae, which are axenically grown in liquid media [33,34,35,36,37,38,39]. Even when used with algae grown over solid media, the structure of the algal colony was not preserved [40]. Trebouxia microalgae, when grown over solid media, proliferate in thick colonies around 1 mm tall [7,46]. Here, we used square-shaped samples of 2 × 2 mm, including the underlying agar, in order to maintain the original colony structure of the region to be analysed (Figure 1A). As a result, the surface of the samples is very irregular due to the differential cell growth (Figure 1B). Furthermore, it is possible to apply this approach to analyse different regions of the colony by selecting samples according to their distance from the center of the colony (Figure 1A). Acetate discs over the solid media were also used. In this case, the colony and the underlying disc were sectioned without taking the medium below.

So far, no typical biological sample preparation procedure for LTSEM is available. When freeze-fracture coupled with freeze-etching is used for investigating the cell contents, the procedure can be divided into four main steps: first, the rapid freezing of the sample, second, the mechanical fracture, third, freeze etching by sublimation, and fourth, covering the surface with a spout to give contrast.

The rapid freezing of the sample has many alternatives [47], but plunging the sample in LN2 slush yielded good results for Trebouxia, and minimum to no water crystal formation was observed. The size of the sample was good for the following mechanical freeze-fracturing step, as just a small amount of debris remained over the fractured sample. On the contrary, freeze-etching by sublimation was unsuccessful under the most common conditions for microalgae LTSEM. Previous works with microalgae reported times of sublimation of 2 min [32,33,39,40] and 5 min [34,35,37]. Here, times as high as 20 min were needed to reveal the Trebouxia cell ultrastructure. Times of sublimation shorter than 15 min resulted in low contrast, the presence of ice, and an orange peel texture (Supplementary Figure S1). The high water content of the underlying agar was ruled out to be the cause of the high time of sublimation required, as the samples grown over the acetate disc also needed at least 15 min of sublimation. Lichen and its phycobionts are extremely tolerant to dehydration [42,48,49,50,51,52,53]. Recently, Bruñas et al. [54] obtained surprising results applying NIRS aquaphotomics to analyse Ramalina farinacea phycobionts. They demonstrated that T. lynnae allocates water molecules to high-bonding conformations. High-bounding waters require significantly higher times of sublimation than other conformations. Accumulation of cytoplasmic glycerol/polyol has been reported in Trebouxia. The sugar alcohols form hydration shells, which reduce water activity and impede water sublimation. Another explanation that cannot be discarded is that highly hydrated extracellular substances that have an impact on the sublimation times may be present when working with sections of the thick colonies. Casano et al. [13] observed and analysed these extracellular substances both by LTSEM and biochemically, reporting the higher values of extracellular substances in T. lynnae among the assayed strains.

As expected from previous reports [9], no differences were observed between the growing conditions (solid medium vs. acetate discs laid over the solid medium, Supplementary Figure S2).

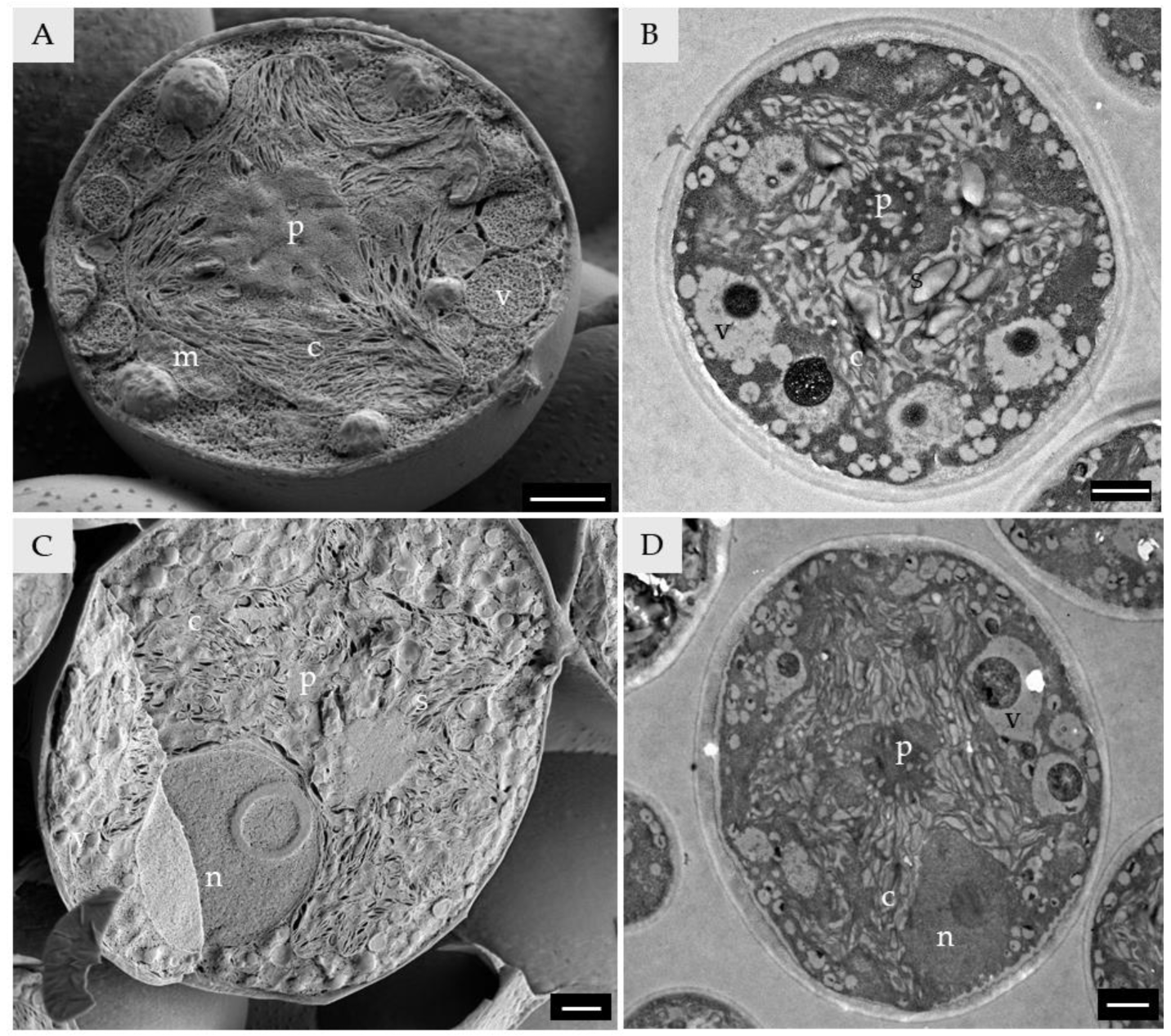

Within the T. lynnae colony, different types of cells were recognized both by LTSEM and by TEM. Young cells (6 ± 2 μm; Figure 2A,B) presented shallowly lobed chloroplasts displaying a low number of lobes and a single pyrenoid. Mature vegetative cells (10 ± 1 μm; Figure 2C,D) had shallowly lobed chloroplasts and a single impressa-type pyrenoid [9]. In both young and mature vegetative cells, a high number of vesicles was observed, and a moderate number of mitochondria could be distinguished, although they were inconspicuous. Mature vegetative cells displayed a big nucleus with a clearly distinguishable nucleolus.

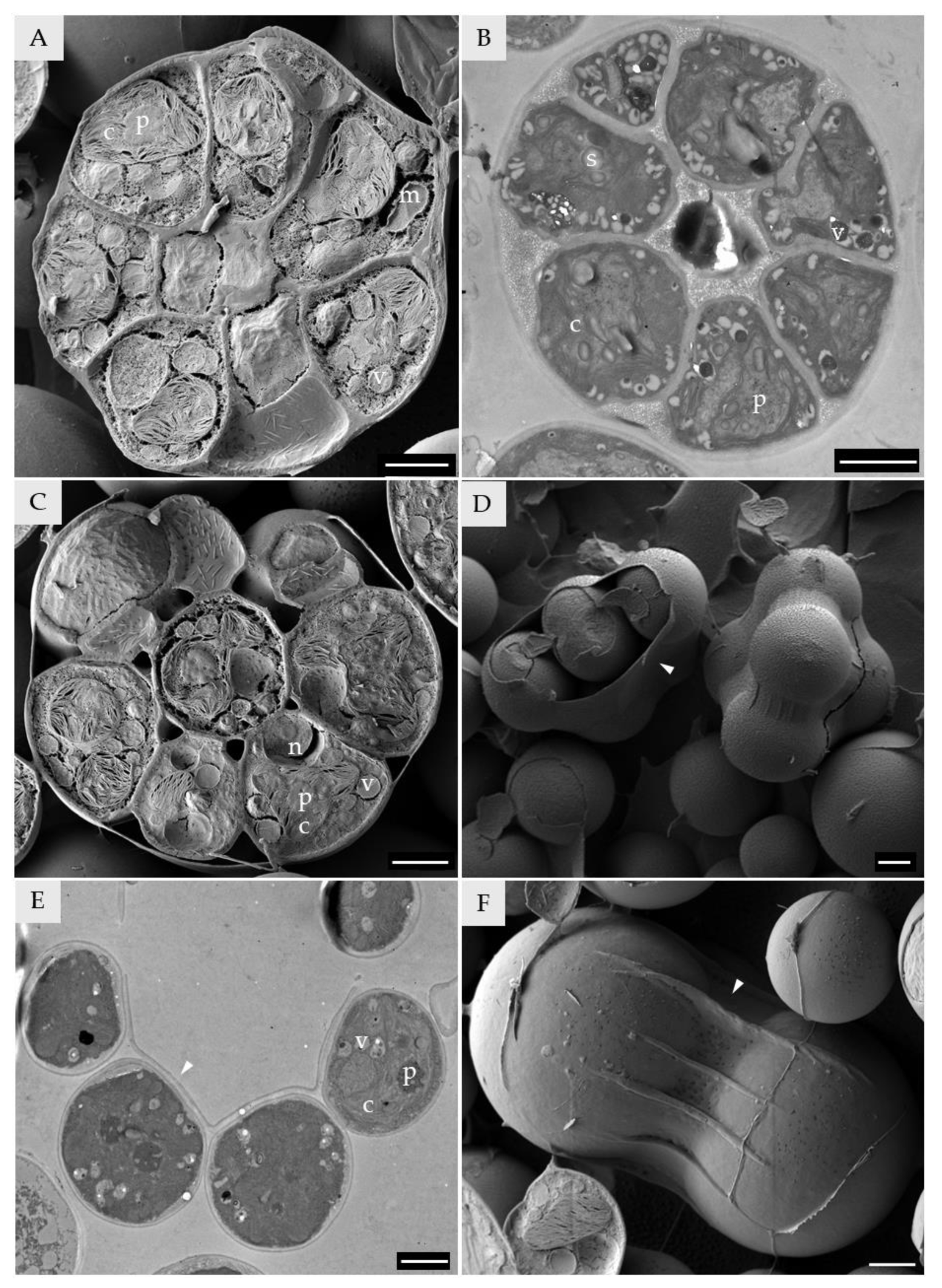

Two types of sporangia were observed (Figure 3 and Figure 4). One in which spores with cell walls are symmetrically arranged (11–13 μm; Figure 3), presumably autosporangia (i.e., mitotic sporangia carrying cell-walled spores that resemble the morphology of vegetative cells). The chloroplast of the autospores was of the shallowly lobed type [9], with a low number of lobes (Figure 3A,B). The pyrenoid was recognizable as impressa-type (Figure 3A). Before opening, the spaces between cells are filled with an aqueous substance (Figure 3A,B) that is missing when the envelope is opened (Figure 3C). The autosporangia envelope was frequently persistent, even at the maturity of the daughter cells (Figure 3D,E).

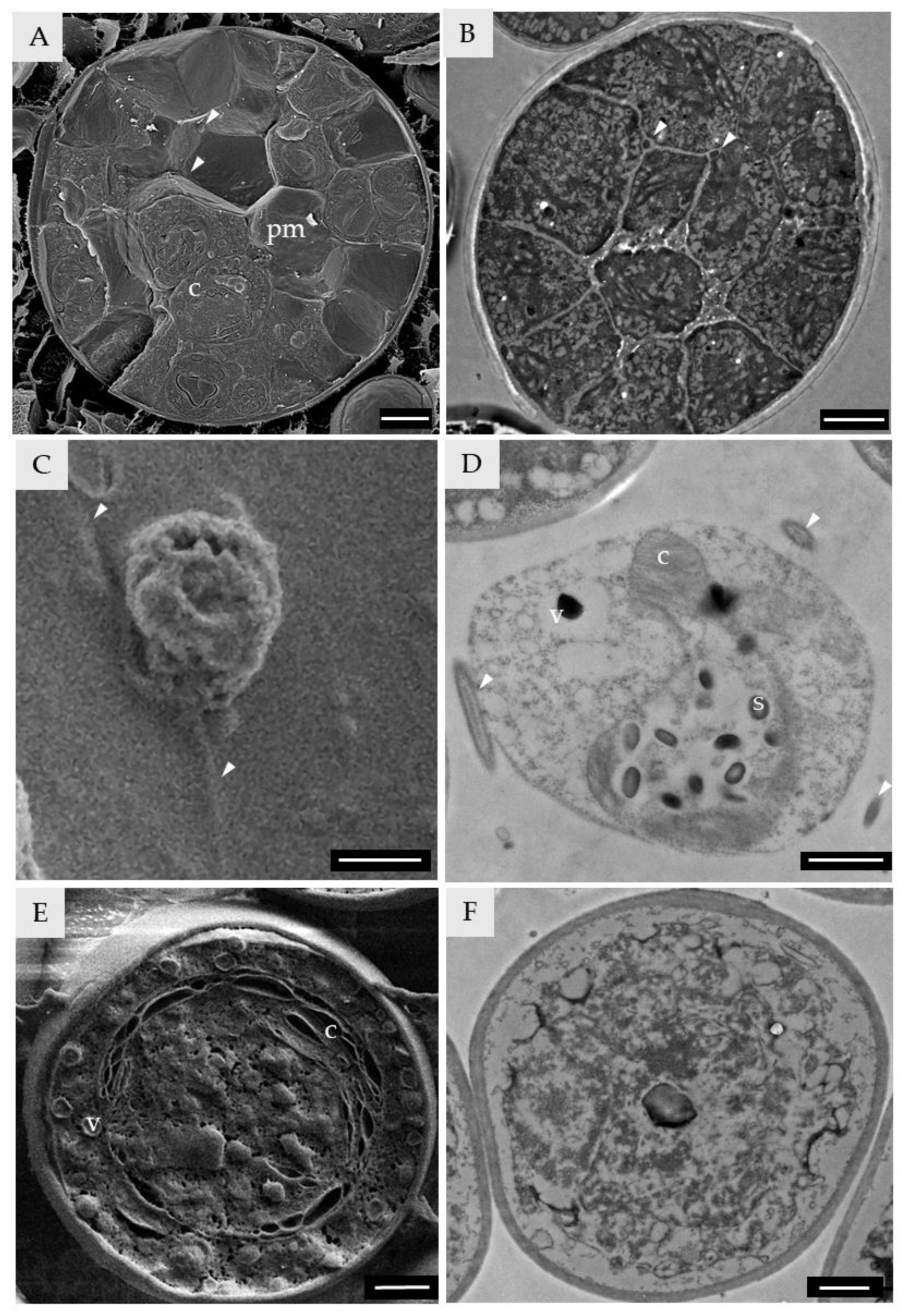

The other sporangia contained naked spores that were asymmetrically arranged (Figure 4), presumably zoosporangia (i.e., sporangia carrying naked flagellated spores). Flagella were observed both by LTSEM (Figure 4A) and by TEM inside the zoosporangia (Figure 4B).

Flagellated cells (around 7 μm; Figure 4), presumably zoospores (i.e., naked flagellated spores), are fragile and usually suffer from cytolysis. Zoospores were observed by LTSEM (Figure 4C) and TEM (Figure 4D), always showing the complete absence of the cell wall. Chloroplasts were shallowly lobed with abundant starch grains (Figure 4D).

Finally, cells bearing a parietal chloroplast with a central cavity, presumably senescent cells, were observed both in LTSEM (Figure 4E) and TEM (Figure 4F).

3.2. Chloroplast and Pyrenoid

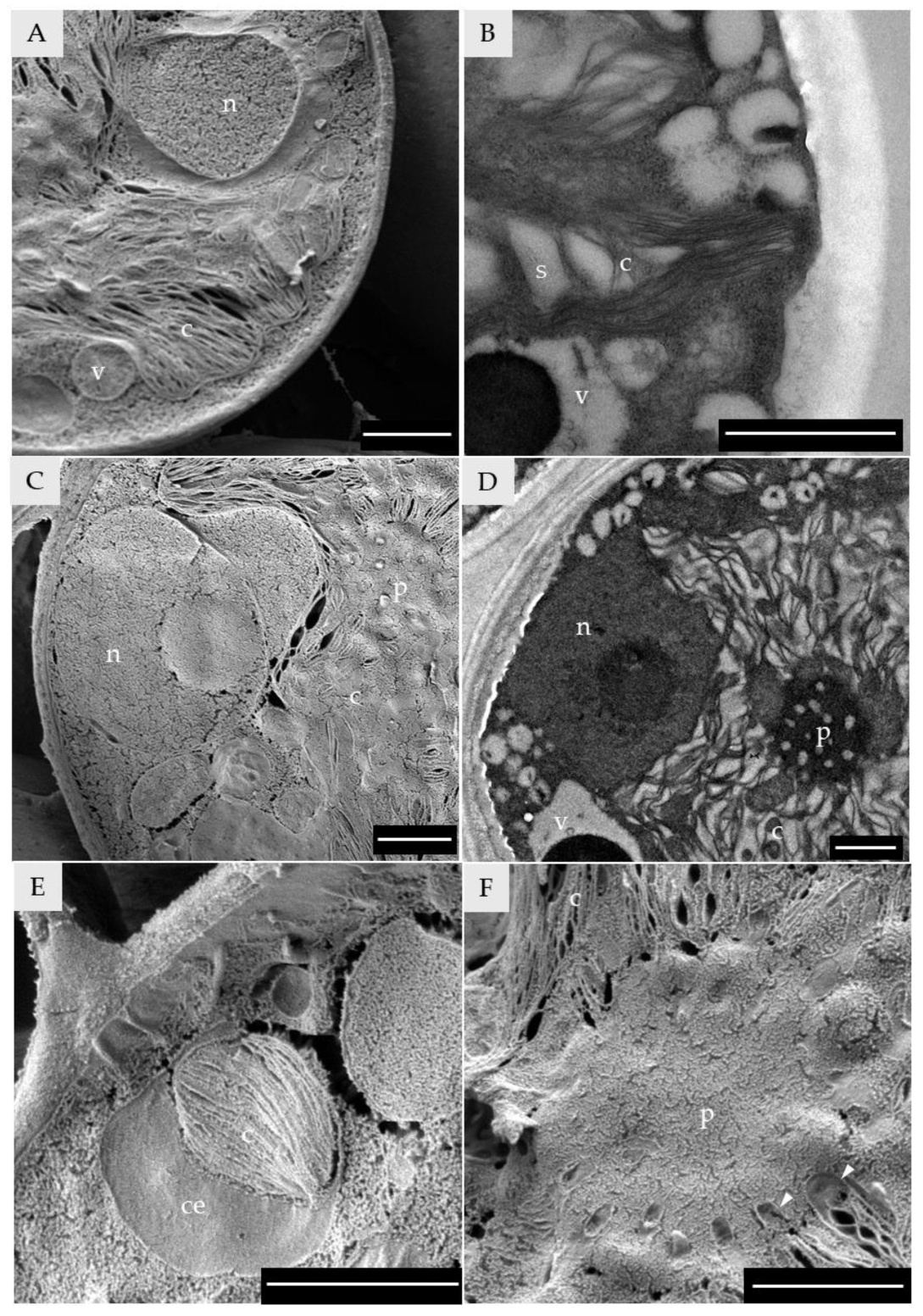

T. lynnae presents a single massive, axial chloroplast with a shallowly lobed morphology, as reported previously (Figure 2 and Figure 5) [8,9]. The surface of the chloroplast depicted shallow lobes to which the thylakoids project from the centre of the chloroplast (Figure 5A,B,E). A chloroplast pocket is always present where the nucleus is located, tightly embraced by the chloroplast (Figure 5C,D). Each chloroplast usually displays a single pyrenoid, although multiple pyrenoids per cell were occasionally observed. T. lynnae pyrenoids belong to the impressa-type, as previously reported [8,9]. These pyrenoids are characterized by radial, straight, unbranched tubules penetrating the pyrenoid matrix, appearing either long or short depending on the orientation of the section, with the pyrenoid matrix thicker than the tubules. LTSEM allowed to clearly distinguish the thylakoid lamellae from which the pyrenotubules originates (Figure 5F).

3.3. Nucleus

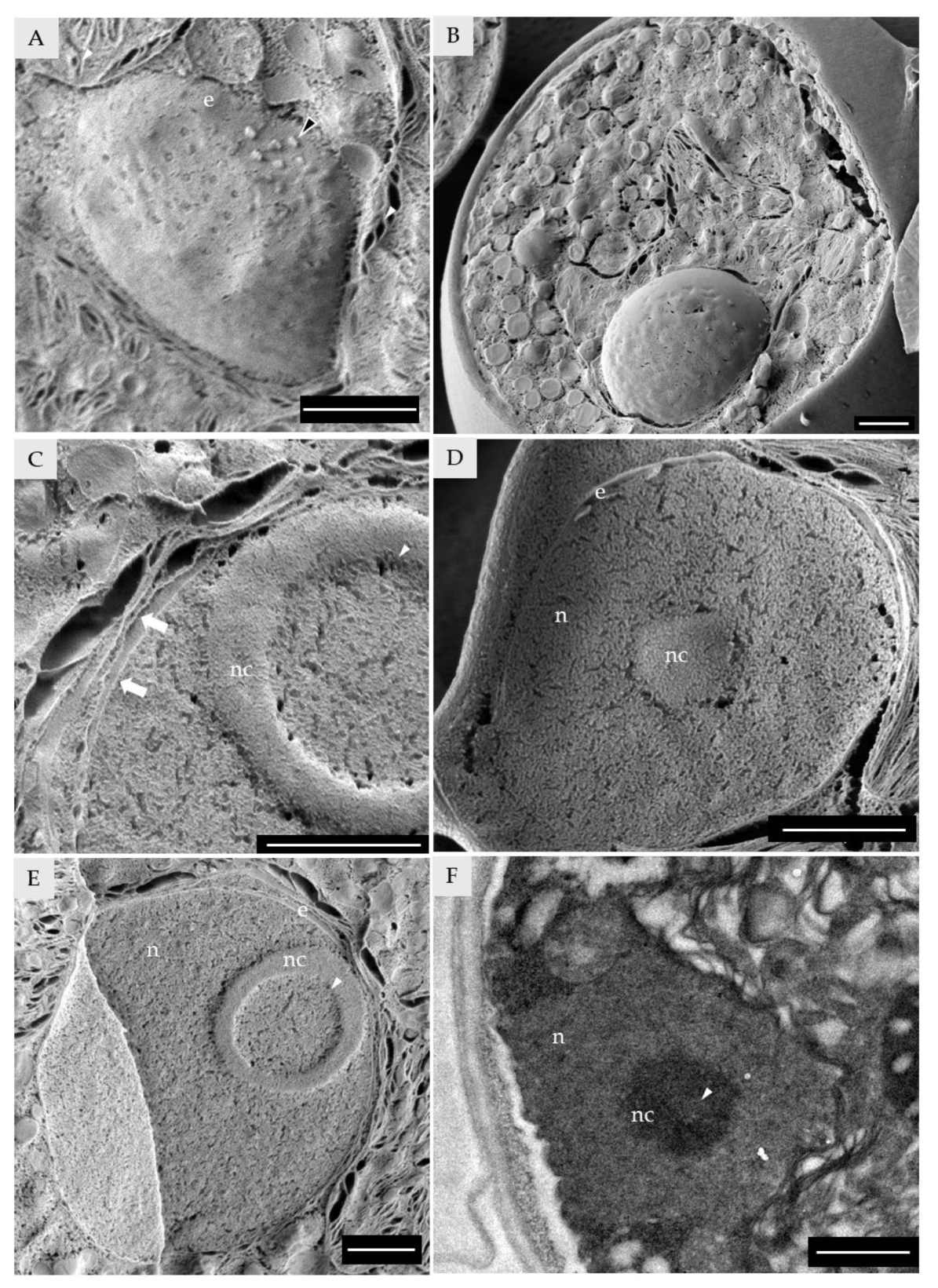

Vegetative cells of T. lynnae present a round nucleus, occupying a significant fraction of the cell volume (Figure 2C,D). The nucleus is always located in the chloroplast pocket (Figure 5C,D and Figure 6A,B). When the freeze-fracture revealed the nuclear envelope surface, nuclear pores were distinguishable with a regular distribution (Figure 6A). Material deposited in the nuclear pores was observed, presumably proteins or protein complexes translocating through the nuclear pores (Figure 6A). When the nucleus was sectioned by the freeze-fracture, both membranes of the nuclear envelope could be observed (Figure 6C–E). The nuclei of vegetative cells usually display a nucleolus (Figure 2C,D, Figure 5C,D and Figure 6C–F). LTSEM revealed that the nucleolus of T. lynnae mature vegetative cells frequently possessed a central nucleolar vacuole (Figure 6C,E). Although nucleolar vacuole function is still discussed [55], it is thought that in plants it indicates a highly active nucleus [56]. Being aware of this feature of LTSEM, it was possible to identify the nucleolar vacuole in samples of T. lynnae observed with TEM (Figure 6F). Furthermore, the nucleolar vacuole was observed in cells of 61% of the Trebouxia species-level lineages analysed (Supplementary Figure S3).

The observation of the nuclear pores and both membranes of the nuclear envelope is facilitated by LTSEM, whereas it is difficult, if not impossible, to achieve by standard TEM procedures. In addition, LTSEM allowed the observation of the nucleolar vacuole and its identification in TEM images of T. lynnae and other Trebouxia species, making this one of the few reports of nucleolar vacuoles in microalgae [57].

3.4. Cytosol and Cytosolic Organelles

The cytosol of T. lynnae was revealed to be a highly crowded compartment, with a large amount of globular structures populating it. There were also a variety of membranous structures, vesicles, and droplets, evident either by LTSEM or TEM observation (Figure 7).

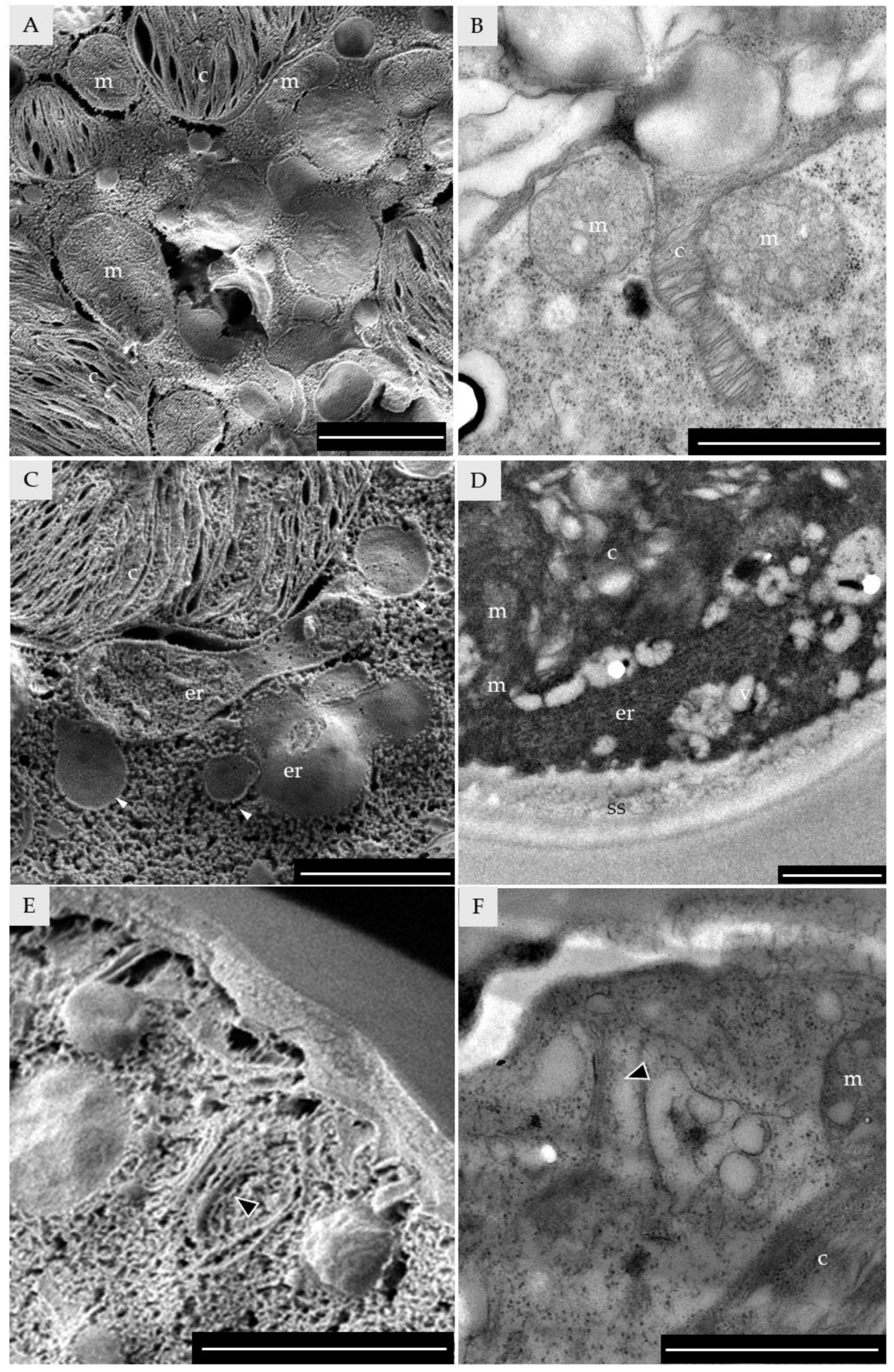

Mitochondria were observed in high numbers in LTSEM (Figure 7), although their internal structures were difficult to discern (Figure 7A,B). TEM images allowed us to observe the internal structures of the mitochondria in T. lynnae (Figure 7C), as already reported by Casano et al. [12]. As expected, every Trebouxia species-level lineage analysed by TEM presented well-developed mitochondria (Supplementary Figure S4). The overall ultrastructure of Trebouxia mitochondria was similar to that of mitochondria observed in other Trebouxiophyceae algae [58,59]. For each Trebouxia analysed here, a wide range of shapes and sizes was observed, even within the same cell (Supplementary Figure S4). This was already reported decades ago in some species of microalgae [59]. In several species of the Chlorella genus, it has been demonstrated that each cell contains a single, tubular, branched mitochondrion [60,61,62].

The diversity of morphologies observed in our results indicates that Trebouxia may also have tubularly branched mitochondria. To assert the number of this organelle present in each cell of these microalgae, other microscopy approaches may be needed.

Guo et al. [62] reported that the chloroplast and mitochondrial membranes of Chlorella pyrenoidosa run parallel to each other, hypothesizing that there may exist a mechanism of direct translocation of NADPH and ATP between these compartments in these microalgae. In T. lynnae (Figure 7B), as well as other Trebouxia species-level lineages (Supplementary Figure S4), a close proximity between the membranes of these two compartments is observed. How this phenomenon affects the efficiency of the Trebouxia metabolism compared to other microalgae and plants having different mitochondria/chloroplast architectures is still unknown.

Endoplasmic reticulum and dictyosomes are inconspicuous in T. lynnae, probably due to the cytosol crowding in cells with a low ratio of cytosol/chloroplast volumes, and have never been reported by TEM ultrastructure analyses before. Here, LTSEM allowed for the identification of both organelles (Figure 7C–F). Endoplasmic reticulum was observed as a fenestrated system of cisternae from which trafficking vesicles sprout (Figure 7C,D), similar to those observed in Botryococcus braunii [39]. Dictyosomes were observed as a group of flattened cisternae of around 0.2 × 0.5 µm (Figure 7E,F). In TEM images, we were able to recognise the endoplasmic reticulum as a stack of membranous structures with a punctuated electrodense texture, likely ribosomes (Figure 7D). Endoplasmic reticulum was frequently located at the periphery of the cell, next to the widest section of the secretion space (Figure 7D and Supplementary Figure S5).

Both endoplasmic reticulum and dictyosomes were observed in around 28% of other Trebouxia species-level lineages (Supplementary Figures S5 and S6).

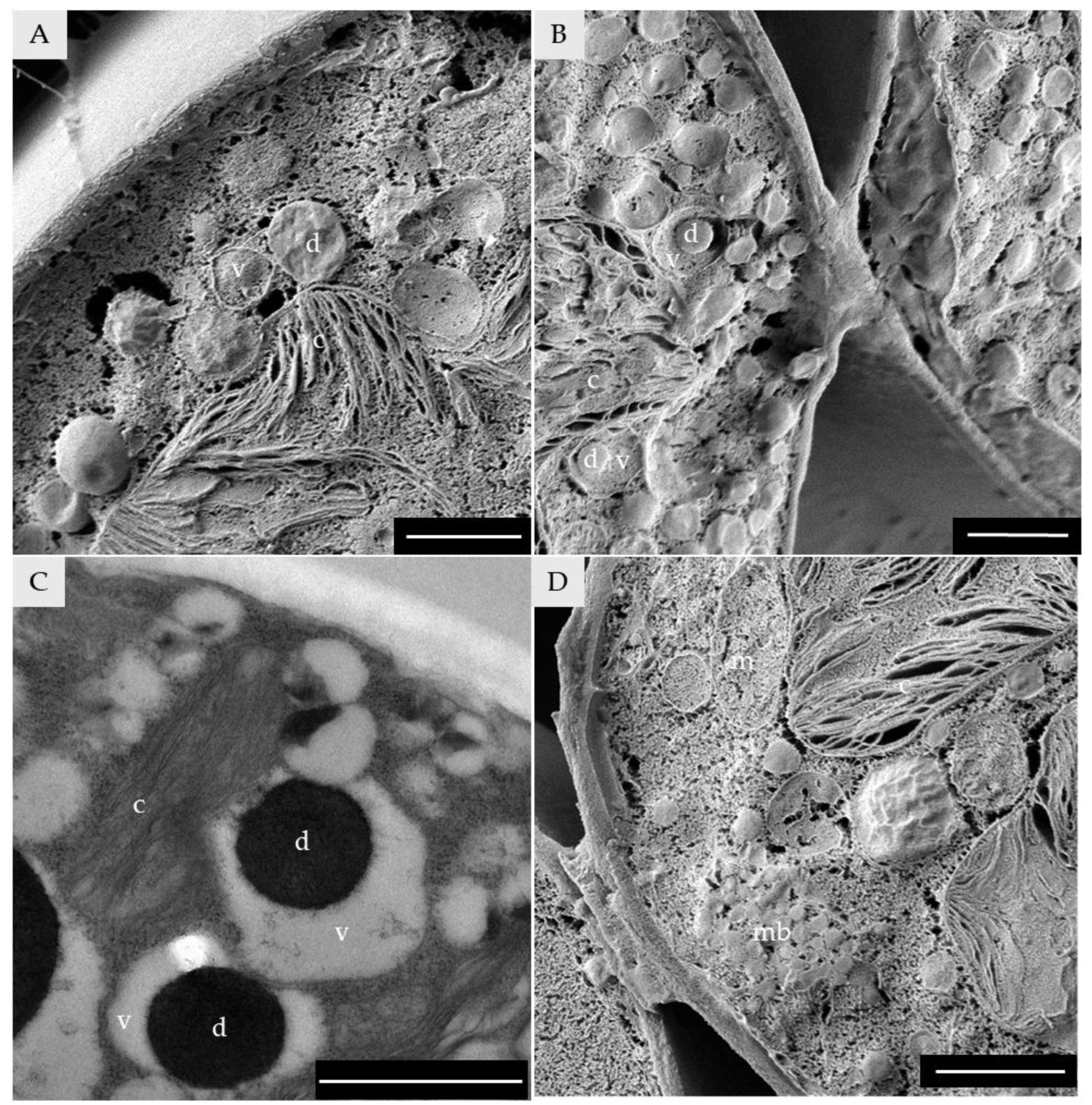

Vesicles and droplets were distinguishable from each other by the presence or absence of a membrane, respectively (Figure 8A–C). However, droplets inside some vesicles were also observed (Figure 8B,C). Multivesicular bodies, highly packaged vesicles inside a membranous structure, were also identified (Figure 8D). Multivesicular bodies have been reported to facilitate the trafficking of a variety of cargo through both the cell membrane and the cell wall [63].

The amount and diversity of vesicles, including multivesicular bodies, the presence of well-developed fenestrated endoplasmic reticulum and dictyosomes, and the location of the secretion system in the vicinity of the secretion space suggest that T. lynnae is secreting high amounts of extracellular substances, as already observed in other Trebouxiales [39]. This is also in line with the results reported by González-Hourcade et al. [42,53] on the extracellular polysaccharides and proteins of T. lynnae.

3.5. Cell-Wall

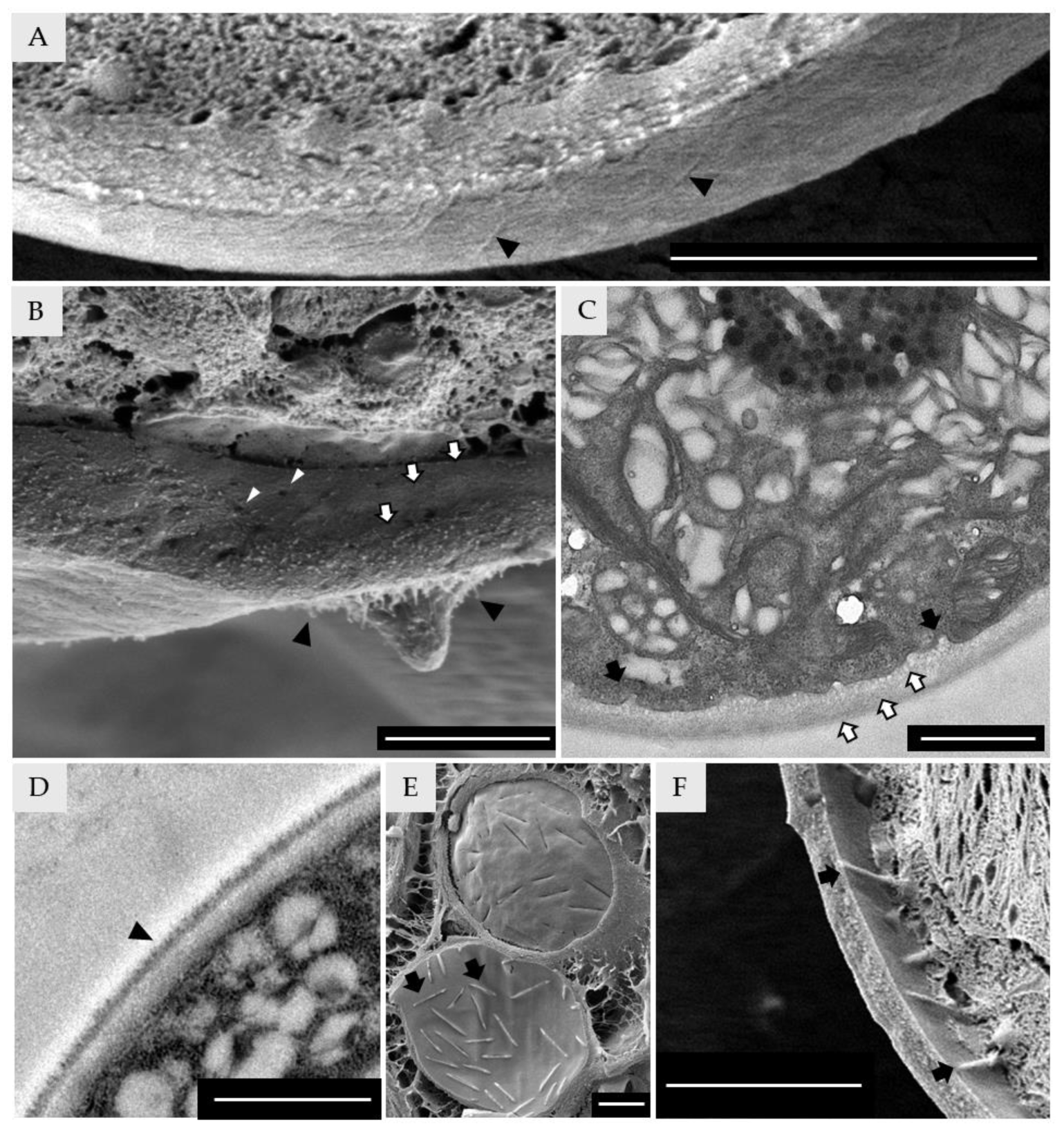

T. lynnae cell wall was thick (0.25 ± 0.05 μm) and composed of at least three layers (Figure 9B,C). Different layers of the cell wall were already reported for T. lynnae [8,12,42] and are also visible in TEM micrographs (Figure 9C). The cell wall of microalgae that contains a high amount of algaenan (sporopollenin) appears greasy/gummy when observed in LTSEM [33,40]. None of T. lynnae cell wall layers appeared greasy/gummy. This is in line with the observations of Gonzales-Hourcade et al. [42], in which the degree of crystal violet permeability in T. lynnae indicated the absence of this biopolymer in its cell wall. LTSEM images revealed some features of the T. lynnae cell-wall that are not evident with other microscopy approaches. The cell wall presents pores or cavities that seem to meander through the interior of the structure (Figure 9B). LTSEM (Figure 9A,B) and TEM (Figure 9D) also revealed the presence of fibers, either on the surface or as part of the cell wall structure. Fibre-like structures have been observed previously in the cell walls of the Trebouxia phycobiont of Cladonia macrophylla [64] and also in the phycobiont Asterochloris glomerata [40]. The porosity of the cell wall and the presence of fibre-like structures on its surface are also in line with the hypothesis of an important traffic between the intracellular compartments and the extracellular space.

When the inner face of the cell wall or the outer face of the cell membrane is exposed, regularly distributed, elongated eisosomes are visible (Figure 9C–F). Eisosomes are trough-shaped invaginations of the plasma membrane in which protein complexes nest and project up to the cell wall [41]. Eisosomes in the Trebouxia genus have been largely observed and described [40,41,42,65] and, although inconspicuous, can also be detected by TEM (Figure 9C).

4. Conclusions

LTSEM of Trebouxia phycobionts is presented here as a suitable method to expand the analysis of morphological and ultrastructural traits in lichen phycobionts. This technique contributes to reinterpreting how microalgal cell structures and compartments are shaped, and the results can be used to implement the taxonomic classification of lichen phycobionts in general. In addition, it allowed for the identification of elusive organelles and cell constituents that are difficult to observe by traditional microscopy approaches due to the nature of the procedures (steps of dehydration of the sample or affinity for the dyes for different structures) or the sample itself (high levels of cytosol crowding). Once the elusive structures are identified, it is possible to track them back with traditional microscopy for everyday benchwork, revaluing traditional microscopy methodologies, like TEM.

Our results are consistent with cell features, besides the chloroplast and the pyrenoid, and may be used for an integrative taxonomy of molecular and ultrastructural data in Trebouxia phycobionts.

LTSEM proves to be a methodology that uses a minimum amount of intervention on the biological sample. Applying LTSEM to Trebouxia phycobionts opens the door to analysing and observing microalgae samples as similar as possible to their intact condition. This will be highly desirable to assess the physiological and morphological state of phycobionts in axenic cultures or in the lichenized state, subjected to abiotic conditions such as desiccation, UV light, and salinity stresses, among many others.
