Article

Characterization of the Complete Chloroplast Genome of the Dragonhead Herb, Dracocephalumheterophyllum (Lamiaceae), and Comparative Analyses with Related Species

by
Gui Fu
1,2,
Yuping Liu
3,4,5,
Marcos A. Caraballo-Ortiz
6,
Changyuan Zheng
4,
Tao Liu
1,4,5,
Yujie Xu
1,4,5 and
Xu Su
1,3,4,5,*
1
School of Geosciences, Qinghai Normal University, Xining 810008, China
2
College of Ecological Environmental and Resources, Qinghai Minzu University, Xining 810007, China
3
Academy of Plateau Science and Sustainability, Qinghai Normal University, Xining 810016, China
4
School of Life Sciences, Qinghai Normal University, Xining 810008, China
5
Key Laboratory of Medicinal Animal and Plant Resources of the Qinghai-Tibet Plateau in Qinghai Province, Qinghai Normal University, Xining 810008, China
6
Department of Botany, National Museum of Natural History, Smithsonian Institution, Washington, DC 20013-7012, USA
*
Author to whom correspondence should be addressed.
Diversity 2022, 14(2), 110; https://doi.org/10.3390/d14020110
Submission received: 24 December 2021 / Revised: 31 January 2022 / Accepted: 1 February 2022 / Published: 3 February 2022
(This article belongs to the Special Issue Genetic Diversity and Conservation of Economic Plants)
Browse Figures
Review Reports Versions Notes

Abstract

:
Dracocephalum heterophyllum (Lamiaceae: tribe Mentheae) is an annual aromatic herb native to East Asia with a long record of human uses, including medicinal, alimentary, and ornamental values. However, no information is available about its molecular biology, and no genomic study has been performed on D. heterophyllum. Here, we report the complete chloroplast (cp) genome of D. heterophyllum and a series of comparative genomic analyses between this and closely related species of Lamiaceae. Results indicated that the cp genome has a typical circular structure of 150,869 bp in length, consisting of a long single-copy (LSC) region with 82,410 bp, a short single-copy (SSC) region with 17,098 bp, and two inverted repeat (IR) regions of 51,350 bp. A total of 133 genes were identified, including 37 tRNA genes, 8 rRNA genes and 88 protein-coding genes, with a GC content of 37.8%. The gene content, organization, and GC values observed here were similar to those of other Dracocephalum species. We detected 99 different simple sequence repeat loci, and the codon usage analysis revealed a preferential use of the Leu codon with an A/U ending. Comparative analysis of cp genome sequences revealed five highly variable regions with remarkably higher Pi values (>0.03). The mean Ka/Ks between D. heterophyllum and three other Dracocephalum species ranged from 0.01079 (psbB) to 1.0497 (ycf2). Two cp genes, ycf2 and rps11, were proven to have high ratios of Ka/Ks, implying that cp genes may had undergone positive selection in the evolutionary history. We performed multiple sequence alignments using the cp genome of 22 species and constructed maximum likelihood (ML) and Bayesian trees, and found that D. heterophyllum were more closely related to D. moldavica and D. palmatum. In addition, the phylogenetic relationships between Dracocephalum and other members of Lamiaceae were consistent with previous results. These results are valuable for further formulating effective strategies of conservation and management for species in Dracocephalum, as well as providing a foundation for future research on the genetic resources of Dracocephalum.

1. Introduction

The mint family, Lamiaceae, comprise more than 7000 species from about 236 genera and seven subfamilies distributed worldwide [1]. Plants in this family include numerous herbs with medicinal and ornamental values, such as Agastache rugosa, Mentha canadensisis, Perilla frutescens, and Scutellaria baicalensis [2]. The genus Dracocephalum, commonly known as “Dragonheads”, comprises over 60 species of aromatic perennial herbs related to mints (tribe Mentheae) distributed in the northern temperate parts of the world. In China, 32 species and seven varieties of Dracocephalum are reported, mainly distributed in Northwest China [3]. Dragonheads have a long record in human history as medicinal herbs, and have been part of the traditional Tibetan and Uyghur medicines for centuries [4]. Previous studies have reported that the main active component found in D. heterophyllum is effective calming the mind, conferring protection for hypoxic brain damage, is antibacterial, and can alleviate diseases such as high blood pressure, lymphadenitis, and cough [4,5]. Moreover, a previous study by Zhang et al. has shown that essential oils of D. heterophyllum possess antimicrobial and antioxidant properties, and therefore, can be used as natural preservatives for food, cosmetics, and in pharmaceutics [6]. D. heterophyllum can better satisfy food needs of most livestock with a high feeding value. Meanwhile, it is usually developed as an auxiliary bee plant with advantage of much honey production and less powder [7].
In angiosperm plants, the chloroplast is a kind of essential plastid with a characteristic of matrilineal inheritance. As a place in which photosynthesis is conducted, it plays a vital role in many biochemical pathways, such as the metabolism of starch, fatty acids, nitrogen, amino acids, and internal redox signals [8]. Chloroplast is considered a semi-autonomous genetic organelle with an independent transcription and transport system [9]. The cp genome usually encodes 110–130 genes which varies in size from 75 to 250 kb [10,11], and which is divided into four parts: a long single-copy sequence (LSC, 80–90 kb), a short single-copy (SSC, 16–27 kb) sequence, and two reverse complement copies (IR, 20–28 kb) [12]. The frequent hybridization and variation of plants have made nuclear genomes are highly complex, thus, it is difficult to identify the orthologous genes [13]. In addition, evolutionary and phylogenetic analyses based on complete cp sequences can provide a greater amount of potential information of a higher quality than that obtained by analysis of one or more gene loci [14]. The existing studies have confirmed that cp gene order, gene content, and genome organization are highly conserved in plants [15]. Due to their conserved nature and comparatively high substitution rate, the cp genomes are widely applied in studies of species delimitation, systematics and evolution, and genetic engineering [16,17]. Since the complete cp genome of tobacco was sequenced successfully in 1986 [18], and the development of next-generation sequencing, more and more cp genome of plants has been sequenced. According to incomplete statistics, the complete cp genome sequences of more than 1100 plants have been collected in the NCBI GenBank database [19]. These data provide a fresh approach for phylogenetic analyses, genetic diversity evaluation, and molecular identification of plants [20,21,22,23].
D. heterophyllum has rich pharmacodynamic ingredients and some unique functions, which are worthy of development. In this contribution, we sequenced and analyzed the complete chloroplast genomes of D. heterophyllum using the Illumina NovaSeq6000 platform. We also downloaded the cp genomes of other Dracocephalum species from public databases. Our main goals were to characterize their structure, further perform genomic comparative analyses on these, and construct a phylogenetic tree, using whole cp genome sequences of Dracocephalum and the closely related species of Lamiaceae, to assess variations among their plastomes and confirm the evolutionary position of D. heterophyllum. Our results have multiple applications and can be used as a robust backbone for developing molecular markers to study the diversity of Dracocephalum chloroplast genomes, and to better understand the evolutionary relationships within this family. The findings of this research will provide guidance for the screening of quality germplasms and the design of conservation strategies for wild populations of D. heterophyllum.

2. Materials and Methods

2.1. Sampling and DNA Extraction

Fresh and healthy leaves of D. heterophyllum were collected in Gangcha County, Qinghai Province, China, at 3315 m elevation (37.20639°, 99.67556°). Leaves were rapidly stored in silica until dried. The specimens were deposited in the Herbarium of the Northwest Institute of Plateau Biology (HNWP), Chinese Academy of Sciences, Xining, Qinghai Province, China. The accession number is QTP-LJQ-CHNQ-026-1003. The total genomic DNA was then extracted from dried leaves using a modified CTAB method [24], and evaluated for quality and concentration using a NanoDrop 2000 spectrophotometer (Thermo Fisher Scientific, Waltham, MA, USA).

2.2. Chloroplast Genome Sequencing and Assembly

The DNA samples for testing were fragmented into 300~500 bp randomly by an ultrasonic processor (Covaris, Woburn, MA, USA). Then, we followed these steps: end repair and phosphorylate, add A-tailing, ligate index adapter, amplify and so on. A paired-end library of 2 × 150 bp with an insert size of ~350 bp was constructed and sequenced through the Illumina NovaSeq6000 platform. A total of 8,324,187 bp (2.5 Gb) of raw reads were obtained. After low-quality reads and reads with adaptors were filtered and trimmed using Fastp program [25], approximately 2.43 Gb of clean reads remained for the D. heterophyllum sample. The cp genome was assembled from the high-quality clean reads by performing NOVOplasty2.7.2 [26] with default Kmer 33 using the cp genome of D. tanguticum (MT457746) as a reference and the rbcL coding sequence (NCBI accession number NC_000932.1) of Arabidopsis thaliana as a seed sequence.

2.3. Annotation and Analysis of Chloroplast Genomes

The online program GeSeq [27] (https://chlorobox.mpimp-golm.mpg.de/geseq.html, accessed on 28 September 2021) and PGA software [28] were used to annotate the cp genome sequence. We compared annotations from the two measures and made final adjustments manually in Geneious version 11.0.2 [29]. We checked the initial annotation, putative starts, stops, and intron positions through comparison with homologous genes in the homo-genera species D. tanguticum. Employing the program OGDRAW v1.3.1 [30], we drew a circular map of the cp genome of D. heterophyllum for the feature visualized. The cp genome sequence of D. heterophyllum was submitted to GenBank (Accession number OM201748).

2.4. Single Sequence Repeats (SSR) and Relative Synonymous Codon Usage (RSCU) Analysis

The online MISA program [31] was employed to detect SSRs using the following thresholds: ten, five, three, three, three, and three repeat units for mono-nucleotide, di-nucleotide, tri-nucleotide, tetra-nucleotide, penta-nucleotide, and hexa-nucleotide SSRs, respectively. We also conducted a relative synonymous codon usage (RSCU) analysis based on the sequence of protein-coding genes (PCGs), to reveal variations between synonymous and non-synonymous codon usage, regardless of the composition of amino acids, using CodonW (v1.4.2; https://downloads.fyxm.net/CodonW-76666.html, accessed on 14 January 2022) with default settings and length over 200 bp.

2.5. Complete Chloroplast Genome of Comparison Analysis

Boundaries among the four main chloroplast regions (LSC/IRb/SSC/IRa) of D. heterophyllum and six other related species of Lamiaceae were compared using IRscope [32]. In addition, D. heterophyllum was compared with three different species of Dracocephalum (D. moldavica, D. palmatum, and D. tanguticum) using mVista with the shuffe-LAGAN Mode [33]. The nucleotide diversity of four species in Dracocephalum was calculated through sliding window analysis in DnaSP (version 5.1) [34] with a window length of 600 bp and a step size of 200 bp.

2.6. Analysis of Synonymous (Ks) and Non-Synonymous (Ka) Substitution Rate

To analyze synonymous (Ks) and non-synonymous (Ka) substitution rates, the cp genome sequence of D. heterophyllum was compared with four other species of Dracocephalum. Here, we selected and extracted 79 exons from PCGs shared by four species for synonymous (Ks) and non-synonymous (Ka) substitution rates analysis. Then, sequences were aligned by MAFFT (version 7) [35], and substitution rates per exon were estimated using DnaSP software [36]. Coding genes were detected based on the following comparisons: D. heterophyllum vs. D. moldavica; D. heterophyllum vs. D. palmatum; and D. heterophyllum vs. D. tanguticum.

2.7. Phylogenetic Analysis

To examine the phylogenetic position of D. heterophyllum within Lamiaceae, an evolutionary tree was constructed, based on 22 full cp genomes sequences from nine genera in Lamiaceae downloaded from NCBI, using Plantago depressa as an outgroup (Table S1). Meanwhile, a molecular phylogenetic tree was constructed using 79 shared protein-coding genes of 21 cp genomes, with the exception of Elsholtzia splendens. All sequences of cp genomes and shared protein-coding genes were aligned with MAFFT (version 7) [35], and phylogenetic analyses were conducted according to the maximum likelihood (ML) method under the best-fit substitution model GTR + F + G4 selected by ModelFinder [37], using IQ-TREE (version 1.6.11) [38]. The bootstrap probability of each branch was calculated using 1000 replications. Additionally, a Bayesian inference (BI) analysis was conducted by MrBayes (version 3.1.2) [39], based on 22 full cp genomes sequences with the same best-fit substitution model. Four Markov chain Monte Carlo (MCMC) analyses were run simultaneously for two million generations, sampling one tree every 1000 generations with 25 percent of trees discarded as burn-in. The remaining trees were used to construct a consensus tree and to calculate the posterior probability (PP) percentages of trees.

3. Results

3.1. General Characterization of Chloroplast Genome

The assembled and annotated cp genome of D. heterophyllum was 150,869 bp in length and presented a typical tetra-partite circular structure with a pair of inverted repeats (IRs) of 51,350 bp each, which made the genome separate into two single-copy regions: a long single-copy (LSC) of 82,421 bp and short single-copy (SSC) of 17,098 bp (Figure 1). The estimated GC content was 37.8%, which was similar to the values published in congeners (Table 1). GC content for each of the three main regions of the cp (IR, LSC, and SSC) was calculated to be about 43, 36, and 32%, respectively, which is congruent with previous reports in related species (Table 1).
A total of 133 genes, including 37 tRNA genes, eight rRNA genes, and 87 pro-tein-coding genes, were successfully annotated in the cp genome of D. heterophyllum (Table 2). The number of genes predicted for D. heterophyllum was higher than those for D. palmatum (125 genes). The distribution of protein-coding sequences in the cp ge-nome of D. heterophyllum reflects that 85 genes were located in the LSC region, 14 genes were in the SSC region, and 17 were duplicated in the IR regions. A total of 16 genes encoded one intron, including six tRNA and ten protein-coding genes, while two genes (clpP and ycf3) contained two introns, as previously reported for other Dracocephalum species. Among the 18 genes, the smallest intron was found in the trnL-UAA gene, be-ing 495 bp in length, whereas the largest one was in trnK-UUU, with 2535 bp and con-taining the matK gene. We present a comparison of the structure and size of genes with introns in D. heterophyllum and closely related species in Table S2.

3.2. Analysis of Simple Sequence Repeat (SSR) and Codon Usage

A total of 90 SSRs were found in the cp genome of D. heterophyllum, including six types of SSR, of which tri-nucleotide repeats were the most common (43, 47.7%), followed by mono-nucleotide (29, 32.2%) and compound-nucleotide (10, 11.1%) repeats (Table S3). Three additional types of SSRs were less abundant: di-nucleotide (three, 3.3%), tetra-nucleotide (three, 3.3%), and penta-nucleotide (two, 2.2%) repeats (Table S3, Figure S1). A detailed analysis of the frequencies of SSRs per genomic feature found that most were distributed in protein-coding (42) and intergenic (IGS; 36) regions, while ten of them were located in introns and two crossed the protein-coding-IGS boundaries. In addition, we also assessed the distribution of 90 SSRs located in the LSC, IRb, SSC, and IRa regions, which were estimated to be 59 (65.6%), 10 (11.1%), 11 (12.2%), and 10 (11.1%), respectively (Table S4, Figure 2). We also obtained 88, 91, and 87 SSRs in the cp genome of D. tanguticum, D. moldavica, and D. palmatum, respectively (Table S5). They all included six types of SSR; tri-nucleotide repeats were the most common (48.2, 53.8, 55.1%), and no hexa-nucleotide SSRs were found (Figure 3, Table S5). A few tetra-nucleotides (2.2, 3.2, 2.2%) was detected in all three species, and only one penta-nucleotide (1.1%) and six di-nucleotides (6.8%) were found in D. moldavica and D. palmatum, respectively (Table S5). When combined, the number, which consisted of units, and distribution of SSRs in Dracocephalum showed high consistency.
We detected the codon usage frequency for the cp genome of D. heterophyllum and three closely related species based on the sequence of protein-coding genes (CDS), whose length were 85,371, 80,154, 79,269, and 79,599 bp. A total of 28,457 codons and RSCU were estimated, comprising 64 different types, which included 20 amino acids and three stop codons in D. heterophyllum (Figure 4, Table S6), which were similar to the other three species. In all species, leucine was the most abundant amino acid with 2982, 2864, 2840, and 2843 instances and encoded by six codons, accounting for 10.5, 10.7, 10.7, and 10.7% of the total (Table S7). Both methionine (ATG) and tryptophan (UGG) had only one codon type with 656, 644, 642, 635, and 489, 475, 470, 468 instances, respectively, and presented no bias (RSCU = 1.00) (Table S7). The codon UUA for leucine with the highest RSCU values were 1.9 (943 instances, 33.1%), 1.89 (893, 33.8%), and 1.87 (886, 33.4%) in D. heterophyllum, D. moldavica, and D. palmatum, respectively (Table S7). All species had identical codons (AGC) for serine with the lowest RSCU values. Except for D. heterophyllum (31), 30 codons had a RSCU value of greater than one, representing 18,014 (67.4%), 17,786 (67.3%), and 17,869 (67.3%) codons in three closely related species, respectively (Table S7). Remarkably, all codons with values higher than one ended with A or U, except for trnL-CAA and trnS-GGA (Table S7).

3.3. IR Contraction and Expansion

We compared the cp genome of D. heterophyllum with six closely related species in Lamiaceae, including two congeners (D. moldavica, D. tanguticum) and four other genera (Elsholtiza densa, Mentha spicata, Ocimum basilicum, and Perilla frutescens var. hirtella). A detailed comparison was performed for four genomic boundaries (LSC/IRa, LSC/IRb, SSC/Ira, and SSC/IRb) of the seven species (Figure 5). Our results showed that the lengths of LSC, IR, and SSC regions were similar among the genomes of Lamiaceae. While the IR organization was highly conserved, ranging from 50,234 to 51,394 bp, there were minor variances with expansions and contractions. Both psbA and rpl22 genes were entirely located within the LSC region, and the rpl2 gene was entirely located within the IR organization. The rps19 gene of E. densa was utterly inside the LSC region, but in the other six species it was positioned at the boundary between the LSC and the IRb. The pseudogene ycf1 and the gene ndhF were also positioned at the junctions of the IRa/SSC and IRb/SSC regions, respectively and their sequences showed length variabilities among species. Notably, the ndhF gene of three species in Dragonhead, and M. spicata, P. frutescens var. hirtella, overlapped with ycf1 in the IRb region. The trnH gene was consistently placed at the IRa/LSC border in all species except for M. spicata, which was contained far inside the LSC region. Instead, M. spicata was the only species with the rps19 gene positioned near the IRa/LSC border.

3.4. Comparisons of the cp Genome between D. heterophyllum and other Lamiaceae species

To identify events of genomic divergences among the eight species of Lamiaceae, we used the mVISTA program, with Plantago depressa as a reference (Figure 6). Results indicated that the IR region is more conserved than the LSC and SSC, especially for rRNA genes (rrn4.5, rrn5, rrn16, and rrn23). Also, the non-coding intergenic regions were highly divergent, especially for atpH–atpI, ndhH–ndhA, petN–psbM, rbcL–accD, rrn5–trnL, trnI–rpl23, trnK–rps16, trnT–psbD, trnV–rps7, and trnV–rps12. However, highly divergent regions were also detected within protein-coding regions, such as in accD, matK, ndhD, ndhF, ndhH, rpl22, rpoB, rpoC2, ycf1, and ycf2.
In addition, we conducted a nucleotide diversity analysis for four species of Dracocephalum (D. heterophyllum, D. tanguticum, D. moldavica, and D. palmatum) in DnaSP, which identified a total of 2958 mutations (Eta), 2918 polymorphic sites (S), and an average nucleotide diversity value of 0.01075 (Pi) (Table S8). When compared with the values obtained for the LSC (0.01357) and SSC (0.01509) regions, the IR showed a lower variability (0.00447), and therefore, it was the most conserved region in the cp genome. Five mutational genomic hotspots were detected with remarkably higher Pi values (>0.03), including three intergenic spacers (rps16–trnQ, trnT–psbD, ndhF–rpl32) and two conserved open reading frames with unknown functions (ycf3, ycf1). From these, three regions (rps16-trnQ, trnT-psbD, ycf3) were found in the LSC region, while the other two (ndhF–rpl32, ycf1) were located in the SSC segment (Figure 7).

3.5. Characterization of Substitution Rates

Ratios of non-synonymous (Ka) and synonymous (Ks) substitutions for 79 PCGs were calculated by comparing D. heterophyllum with three congeners (D. heterophyllum vs. D. moldavica, D. heterophyllum vs. D. palmatum, and D. heterophyllum vs. D. tanguticum). Thirty-one of the PCGs (atpB, atpH, ndhB, ndhE, petG, petN, psaC, psaJ, psbA, psbC, psbE, psbF, psbI, psbJ, psbK, psbH, psbL, psbM, psbN, psbT, psbZ, rpl14, rpl23, rpl36, rps7, rps14, rps15, rps16, rps18, ycf3, ycf15) showed values of zero, indicating that no synonymous or non-synonymous changes occurred. In the residual 48 PCGs, results showed that the mean Ka/Ks ratio between D. heterophyllum and three other Dracocephalum species ranged from 0.01 (psbB) to 1.05 (ycf2) (Table S9). However, the Ka/Ks ratio for most genes was less than one, suggesting that they experienced negative selection, except for rps11 and ycf2, who displayed positive selection (Ka/Ks > 1) (Figure 8).

3.6. Evolutionary and Phylogenetic Analysis

Phylogenetic trees were constructed based on whole cpDNA sequences of 22 species from subfamilies Lamioideae (2), Nepetoideae (18), and Scutellarioideae (2) in Lamiaceae, using Plantago depressa (Plantaginaceae) as an outgroup. The ML and Bayesian trees showed two major monophyletic clades within Lamiaceae, receiving strong support from both bootstraps and Bayesian posterior probabilities (BP = 100%; PP = 1, respectively; Figure 9). The phylogenetic trees constructed with complete cp genome and CDS sequences have the same topology (Figure S2). Within the tree, taxa from the same genus were clustered together. The D. heterophyllum was sister to a clade consisting of D. moldavica and D. palmatum and was clustered together with D. tanguticum. The largest monophyletic clade was for the subfamily Nepenthoideae, which included 16 species from six genera distributed in three tribes, most of them strongly supported. Tribe Mentheae comprised three genera, with Dracocephalum being a sister to Mentha with Salvia at the base of this relationship. The second subclade in Nepetoideae formed by Elsholtzieae and Ocimeae received moderate statistical support (BP = 52%; PP = 0.741). However, Elsholtzia and Perilla were strongly supported as sisters (both in tribe Elsholtzieae), while Ocimum was monophyletic (tribe Ocimeae). Meanwhile, subfamilies Lamioideae and Scutellarioideae were strongly supported as being sisters, despite lacking resolution with respect to their relationship with Nepetoideae. Genera within each of these two subfamilies (i.e., Pogostemon, Stachys, and Scutellaria) were monophyletic, and the overall structure of the phylogeny is in agreement with current classification schemes of Lamiales.

4. Discussion

4.1. Organization and Features of cp Genomes

Our study examined the features, content, and organization of the cp genome of D. heterophyllum and compared it with the cp genomes of four other species of Dracocephalum that have been previously published, showing that all of them presented the typical quadripartite structure found in vascular plants [40]. The cp genomes of the five Dracocephalum species ranged from 149,868 (in D. moldavica) to 150,976 bp (in D. taliense), indicating that they are very conserved, only exhibiting minor differences that altered their sizes. Intriguingly, the cp genomes of Dracocephalum had similar sizes as those of distant species within Lamiaceae, such as Elsholtzia densa [41] (149,095 bp), Stachys byzantine, [42] (149,749) and Scutellaria baicalensis [43] (151,817 bp). The phenomenon of minimal differences in cp size within a genus and a family has been previously reported in the genera Sorghum (Poaceae) [44] and Ilex (Aquifoliaceae) [45], and in the subfamily Coryloideae of Betulaceae [46], among others. The size variations of cp genomes above are usually the result of the expansions of the IR regions during evolution [47].
Regarding GC content, the overall amount detected in the cp genome of D. heterophyllus is 37.8%, identical to the values reported for the four other congeners evaluated. The GC content within the IRs region (43.2%) was higher than the estimate for the other two regions (LSC, 35.7%; SSC, 31.8%), which might be related to the presence of high GC nucleotide percentages in the genes rrn4.5, rrn5, rrn16, and rrn23, as previously reported [8,48,49].
Regarding gene estimates, our analysis detected 133 genes in the cp genome of D. heterophyllum, including 37 tRNA, 8 rRNA, and 88 protein-coding genes. The number and arrangement of genes were generally consistent when compared to those of D. moldavica, D. taliense, and D. tanguticum. However, some differences among them were detected. Gene number (133 genes) and cp genome arrangement between D. heterophyllum and D. tanguticum were identical, but comparisons with the other two species showed minor differences: D. moldavica had 132 genes, due the loss of rps2, while D. taliense contained 134 genes because of a duplication of rps19. In fact, the duplicated rps19 pseudogene has also been reported in other species of Lamiaceae [50,51]. However, there have been no reports for rps2 missing in other species of Lamiaceae. Thus, these minor variations of gene content in the cp genome of Dracocephalum were caused by evolutionary events of gene deletions and insertions. Additionally, we found that there was specific trans-splicing in the rps12 gene of D. heterophyllum, where the 5′ end of the exon was located within the LSC region while the 3′ end was in the IR region, which is a situation commonly observed in many angiosperms [52].
Although introns do not encode proteins, they play a critical role in regulating gene expression [53]. The cp genomes of the earliest diverging angiosperms contained a complete repertoire of 18 genes with introns [54]. Within the cp genome of D. heterophyllum, those 18 genes with their introns also were detected, of which 16 contained one, and two contained two introns. Although the number and arrangement of genes with introns in the cp genomes of several Dracocephalum species were identical and their exons highly conserved, we detected considerable variation in intron length, especially in genes such as clpP, ndhA, and ycf3. Intron polymorphisms (IP), including length polymorphism (ILP) and single nucleotide polymorphism (ISNP), can be used as efficient molecular markers, which have been previously developed and applied for analyses of multiple lineages of plants [55].

4.2. Simple Sequence Repeats (SSRs) and Codon Usage Analysis

The variations among SSR copy numbers are distinctive among plant species, and therefore, provide an important source of genomic information suitable for phylogenetic studies [56,57]. Our study analyzed the number and distribution of different SSR motifs in the cp genome of D. heterophyllum and closely related species. The number, motif type, frequency, and distribution for detected SSRs showed high uniformity in the cp genomes of the four species of Dracocephalum. Among the SSRs, tri-nucleotide repeats were the richest, and more than half of SSRs were located in non-coding spacers (NCS), suggesting that these regions have the potential to be hotspots for mutations. Our results suggest that SSRs can be used to develop DNA markers with the potential to delimit species, reconstruct phylogenetic relationships, and assess genetic diversity in Dracocephalum [58].
Previous studies have revealed that codon usage has essential functions in expressing genetic information, and therefore, it is critical for the evolution of cp genomes [47,59]. Here, a total of 28,457 codons were detected in the CDS of D. heterophyllum, the amino acids encoding leucine (10.5%) being the most common, and the least common being the ones for cysteine (1.2%), which is consistent with findings in D. moldavica, D. tanguticum, and D. palmatum (Table S6). It has been reported that species with close phylogenetic relationships may adopt similar codon selection strategies [60]. In the case of Dracocephalum, most amino acids had codon bias with a high preference (RSCU > 1), except for methionine and tryptophan (RSCU = 1). The RSCU value of codon types was more significant than one ending in A or U, except for trnL-CAA and trnS-GGA. Research have shown that the codons with the highest AT-content in the cp genomes of terrestrial plants preferentially end with A/U, and this might be one of the causes why these codons are more prevalent in dicotyledons [61,62,63]. Therefore, these findings may contribute to further understanding of the evolutionary history of Dracocephalum, especially through natural selection and mutation pressures [40].

4.3. IR Expansion/Contraction of cp Genomes

Variations in the size of cp genomes of angiosperms are usually caused by expansions and contractions at the IR/SC borders [64]. Li et al. [65] suggested that the length of the IR regions in some species of Magnoliaceae have a positive correlation with the total length of the cp genome sequence. In our study, a comparison of the SC/IR boundaries among the seven cp genomes of Lamilaes revealed that the gene orders were identical, although there was some minor variation in the IR regions. Notably, the ycf1 gene, considered a pseudogene, was partially duplicated in all species except for O. basilicum and E. densa. Our results showed that the downstream sequences of IRb/SSC were conserved and the ndhF gene was adjacent to the IRb/SSC borders, which were consistent with the general pattern described for angiosperms [66]. The gene content and orders of SC/IR boundaries in three species of Dracocephalum were identical, suggesting that boundary region between the SSC and the two IR was relatively conserved. Last, the comparative genome analysis results with mVISTA revealed that the D. heterophyllus cp genome was relatively conserved, presenting some minor variation mainly localized at non-coding regions, due to insertions and deletions [67].

4.4. Comparative Genomes and Characterization of Substitution Rates

Although the cp genomes of land angiosperms are highly conserved, mutational hotspots in cp genomes are usually conserved at the generic level, which can be used to obtain multiple informative loci suitable for DNA barcoding and phylogenetic research [20]. Results obtained from mVISTA for cp genome divergence analysis in Lamiaceae suggest that Dracocephalum show low degrees of sequence divergence, with plastomes being relatively conserved. However, divergence hotspots for conserved non-coding sequences (CNS) regions and gene protein-coding regions were detected among all eight genomes of Lamiaceae. Similar phenomena have been observed in the cp genomes of other genera such as Scutellaria [43], Physalis [59], and Zygophyllum [40]. Meanwhile, we also identified five highly variable regions with high Pi values (>0.03) according to the sliding window analysis, including three intergenic sections (rps16–trnQ, trnT–psbD, and ndhF–rpl32) and two genes with unknown function and conserved open reading frames (ycf1 and ycf3). Previous multispecies studies found that intergenic spacers can serve as markers with high resolution for phylogenies [46]. For example, rps16–trnQ are highly variable in most plants and have been used for DNA barcoding in phylogenetic studies of 12 different genera across angiosperms [20]. Also, the gene ycf1 is at more variable loci suitable for barcodes of land plants than existing candidate barcodes [68]. Therefore, these highly variable regions in the cp genome of Dracocephalum are expected to provide enough genetic information to conduct studies on species delimitation and the phyletic evolution of Lamiaceae.
Synonymous (Ks) and non-synonymous (Ka) nucleotide substitution patterns are considered to be essential parameters for gene evolution analysis [69], and the Ka/Ks ratio can account for the selection pressure of genes [19,70]. Three directions of evolution were revealed through the value of Ka/Ks, where genes underwent purifying (<1), neutral (=1), and positive (>1) selections [70]. In our studies, the Ka/Ks value of the remaining 31 PCGs could not be calculated because their Ka or Ks was zero, suggesting that these genes were conserved without any non-synonymous or synonymous nucleotide substitutions. The values of Ka/Ks for 48 PCGs were all less than one except for rps11 and ycf2, indicating that the majority of PCGs of the four Dracocephalum samples experienced purifying selection. These results were consistent with previous reports that non-synonymous substitutions are less frequent than synonymous ones, and Ka/Ks ratios for most PCGs were less than one [71]. Given that purifying selection could sweep away deleterious mutations, as the primary pattern in natural selection [72], we inferred that most genes in the cp genomes of Dracocephalum underwent extensive purifying selection to sustain their conserved functions, and the evolutionary rate was relatively slow. This result correlates with previous analyses showing that the cp genome of D. heterophyllus is relatively conserved and with minor variation, mainly localized at non-coding regions.

4.5. Phylogenetic Analysis Based on cp Genomes

In the past three decades, many authors have focused on the phylogenetic relationships within Lamiaceae and have established a framework for the systematics and evolution of Lamiaceae [73,74,75]. Cp genome sequences have been successfully used to reconstruct phylogenetic relationships among plant lineages [76], and a phylogenetic tree of Lamiaceae using cp genomes could be used to better understand the evolution of this diverse family. Two data sets (the complete cp genome sequences and concatenated protein-coding sequences) recovered the same topology, which was congruent with previous trees constructed using molecular data for Lamiaceae. There are two monophyletic clades within the family, forming six groups corresponding to the six currently described tribes. The first monophyletic clade consisted of the tribes Mentheae, Elsholtzieae, and Ocimeae from subfamily Nepetoideae, while the second clade constituted the tribes Scutellarioideae, Stachydeae, and Pogostemoneae from the subfamily Lamioideae, where the former is sister to the latter two. Notably, the systematic relationships among the three tribes in Nepetoideae remain ambiguous [73]. Previous studies have shown three inconsistent relationships: (1) Ocimeae being sister to the Mentheae–Elsholtzieae branch [77], (2) Mentheae being sister to the Ocimeae–Elsholtzieae group [78,79,80,81], and (3) Elsholtzieae being sister to the Mentheae–Ocimeae clade [82]. Our result, however, supported the second relationship, where Mentheae is sister to the Ocimeae–Elsholtzieae branch [73], although with weak nodal support (BP = 52, PP = 0.74). Hence, more studies are still needed to resolve relationships among these three tribes. Overall, we consider that the phylogenetic relationships between Dracocephalum and other genera has been resolved through our studies, confirming previous findings within Lamioideae from Li et al. [1] and Zhao et al. [73]. Therefore, we propose that whole cp genomes could provide sufficient data information to reconstruct the phylogenetic relationship of plants, particularly within the family Lamiaceae.

5. Conclusions

In the present study, we sequenced the cp genome sequences of the Dragonhead herb Dracocephalum heterophyllum (Lamiaceae). After comparing this newly sequenced cp genome with closely related species, we found that the cp genome size, GC content, and gene number and order among species was found to be highly conserved. The location and distribution of 99 repeat sequences and some highly variable regions were identified. We expect that these variable regions and repeat markers can assist future studies on species delimitation, systematics and evolution, and genetic engineering of Dracocephalum. The mean Ka/Ks between D. heterophyllum and three other Dracocephalum species ranges from 0.01 (psbB) to 1.05 (ycf2). Two genes, ycf2 and rps11, were found to have high Ka/Ks ratios, implying that they may have undergone positive selection during their evolutionary history. Phylogenetic trees constructed using whole cp genomes and protein-coding sequences support D. heterophyllum as being a member of the tribe Mentheae in the subfamily Nepetoideae. The results obtained in this study are expected to provide valuable genetic resources to develop strategies to discern species, perform molecular breeding, and assess shallow relationships among Dracocephalum species in the future.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/d14020110/s1, Figure S1: Number of different forms of SSRs identified in the cp genome of Dracocephalum heterophyllum (Lamiaceae). Colors represent different nucleotide repeats; Figure S2: Phylogenetic trees of the Dracocephalum species based on the sequences of cp protein-coding gene by ML; Table S1: Information of reported chloroplast genomes that was used for phylogenetic trees constructing; Table S2: Length of genes with introns in the cp genomes of D. heterophyllum, D. moldavica, D. tanguticum, and D. taliense; Table S3: Characteristics and distribution of 90 simple sequence repeats (SSRs) in the chloroplast genome of Dracocephalum heterophyllum (Lamiaceae); Table S4: Statistics of identified simple sequence repeats in the chloroplast genome of Dracocephalum heterophyllum (Lamiaceae); Table S5: SSR analysis for the cp genome of four species in Dracocephalum; Table S6: The codon usage frequency for the cp genome of D. heterophyllum; Table S7: The comparison of codon usage frequency for the cp genome of four species in Dracocephalum; Table S8: Nucleotide diversity analysis for four species of Dracocephalum in DnaSP; Table S9: The Ka/Ks value of 48 PCGs in three compares (D. heterophyllum vs. D. moldavica, D. heterophyllum vs. D. palmatum, and D. heterophyllum vs. D. tanguticum).

Author Contributions

The experimental design was completed by X.S., Y.L. and G.F.; Samples collection and treatment were conducted by C.Z., T.L. and G.F.; G.F., C.Z., T.L. and Y.X. led data analysis, and figures and tables with assistance from C.Z. and T.L.; The manuscript was drafted by G.F. and X.S., and M.A.C.-O. edited the manuscript for structure, language, and scientific content. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by [the Second Tibetan Plateau Scientific Expedition and Research (STEP) program] grant number [2019QZKK0502]; [the Science and Technology Project of Qinghai Minzu University] [2021XJGH14]; [the Key Laboratory of Medicinal Animal and Plant Resources of the Qinghai Tibet Plateau in Qinghai Province] grant number [2020-ZJ-Y40].

Institutional Review Board Statement

Not applicable.

Data Availability Statement

The original contributions presented in the present study are publicly available, and accession numbers can be found Table S1. The datasets generated for this study can be found in GenBank, the accession number of final plastome is OM201748. The associated BioProject ID, Bio-Sample accession and SRA are PRJNA797531, SAMN25008769 and SRR17629219 for raw sequencing data, respectively.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Li, B.; Cantino, P.D.; Olmstead, R.G.; Bramley, G.L.C.; Xiang, C.L.; Ma, Z.H.; Tan, Y.H.; Zhang, D.X. A large-scale chloroplast phylogeny of the Lamiaceae sheds new light on its subfamilial classification. Sci. Rep. 2016, 6, 34343. [Google Scholar] [CrossRef] [Green Version]
  2. Bunsawat, J.; Elliott, N.E.; Hertweck, K.L.; Sproles, E.; Alice, L.A. Phylogenetics of Mentha (Lamiaceae): Evidence from chloroplast DNA sequences. Syst. Bot. 2004, 29, 959–964. [Google Scholar] [CrossRef]
  3. Wang, L.M. Chemical and Bioactive Studies on Dracocephalum heterophyllum of the Genus Dracocephalum. Ph.D. Thesis, Shandong University, Jinan, China, 2011. [Google Scholar]
  4. Ren, A.M. Chemical constituents of Dracocephalum heterophyllum and antibacterial activity. Zhong Cao Yao 2011, 42, 664–667. [Google Scholar] [CrossRef]
  5. Numonov, S.R.; Usmanova, S.K.; Aisa, H.A. A triterpenoid and flavonoids from Dracocephalum heterophyllum. Chem. Nat. Compd. 2013, 48, 1109–1110. [Google Scholar] [CrossRef]
  6. Zhang, C.J.; Li, H.Y.; Yun, T.; Fu, Y.H.; Liu, C.M.; Gong, B.; Neng, B.J. Chemical composition, antimicrobial and antioxidant activities of the essential oil of Tibetan herbal medicine Dracocephalum heterophyllum Benth. Nat. Prod. Res. 2008, 22, 1–11. [Google Scholar] [CrossRef]
  7. Editorial Board of Forage Flora of China. Forage Flora of China, 1st ed.; China Agriculture Science and Technology: Beijing, China, 1992; pp. 471–473. [Google Scholar]
  8. Raman, G.; Park, V.; Kwak, M.; Lee, B.; Park, S. Characterization of the complete chloroplast genome of Arabis stellaris and comparisons with related species. PLoS ONE 2017, 12, e0183197. [Google Scholar] [CrossRef]
  9. Palmer, J.D. Comparative organization of chloroplast genomes. Annu. Rev. Genet. 1985, 19, 325–354. [Google Scholar] [CrossRef] [PubMed]
  10. Daniell, H.; Lin, C.S.; Yu, M.; Chang, W.J. Chloroplast genomes: Diversity, evolution, and applications in genetic engineering. Genome Biol. 2016, 17, 134. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  11. Li, D.M.; Zhao, C.Y.; Liu, X.F. Complete chloroplast genome sequences of Kaempferia galanga and Kaempferia elegans: Molecular structures and comparative analysis. Molecules 2019, 24, 474. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Chumley, T.W.; Palmer, J.D.; Mower, J.P.; Fourcade, H.M.; Calie, P.J.; Boore, J.L.; Jansen, R.K. The complete chloroplast genome sequence of Pelargonium × hortorum: Organization and evolution of the largest and most highly rearranged chloroplast genome of land plants. Mol. Biol. Evol. 2006, 23, 2175–2190. [Google Scholar] [CrossRef]
  13. Wolfe, K.H.; Li, W.H.; Sharp, P.M. Rates of nucleotide substitution vary greatly among plant mitochondrial, chloroplast, and nuclear DNAs. Proc. Nati. Acad. Sci. USA 1987, 84, 9054–9058. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Li, C.Y.; Zhao, Y.L.; Xu, Z.G.; Yang, G.Y.; Peng, J.; Peng, X.Y. Initial characterization of the chloroplast genome of Vicia sepium, an important wild resource plant, and related inferences about its evolution. Front. Genet. 2020, 11, 73. [Google Scholar] [CrossRef] [Green Version]
  15. Yang, J.B.; Yang, S.X.; Li, H.T.; Yang, J.; Li, D.Z. Comparative chloroplast genomes of Camellia species. PLoS ONE 2013, 8, e73053. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Wang, X.L.; Cheng, F.; Rohlsen, D.; Bi, C.W.; Wang, C.Y.; Xu, Y.Q.; Wei, S.Y.; Ye, Q.L.; Yin, T.M.; Ye, N. Organellar genome assembly methods and comparative analysis of horticultural plants. Hortic. Res. 2018, 5, 3. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Qin, M.; Zhu, C.J.; Yang, J.B.; Vatanparast, M.; Schley, R.; Lai, Q.; Zhang, D.Y.; Tu, T.Y.; Klitgård, B.B.; Li, S.J.; et al. Comparative analysis of complete plastid genome reveals powerful barcode regions for identifying wood of Dalbergia odorifera and D. tonkinensis (Leguminosae). J. Syst. Evol. 2020, 60, 73–84. [Google Scholar] [CrossRef]
  18. Shinozaki, K.; Ohme, M.; Tanaka, M.; Wakasugi, T.; Sugiura, M.; Zaita, N.; Chunwongse, J.; Obokata, J.; Yamaguchi-Shinozaki, K.; Ohto, C.; et al. The complete nucleotide sequence of the Tobacco chloroplast genome: Its gene organization and expression. Plant Mol. Biol. Rep. 1986, 4, 111–148. [Google Scholar] [CrossRef]
  19. Guo, X.Y.; Liu, J.Q.; Hao, G.Q.; Zhang, L.; Mao, K.S.; Wang, X.J.; Zhang, D.; Ma, T.; Hu, Q.J.; AI-Shehbaz, I.A.; et al. Plastome phylogeny and early diversification of Brassicaceae. BMC Genom. 2017, 18, 176. [Google Scholar] [CrossRef] [Green Version]
  20. Dong, W.P.; Liu, J.; Jing, Y.; Wang, L.; Zhou, S.L. Highly variable chloroplast markers for evaluating plant phylogeny at low taxonomic levels and for DNA barcoding. PLoS ONE 2012, 7, e35071. [Google Scholar] [CrossRef]
  21. Dong, W.P.; Liu, H.; Xu, C.; Zuo, Y.J.; Chen, Z.J.; Zhou, S.L. A chloroplast genomic strategy for designing taxon specific DNA mini-barcodes: A case study on ginsengs. BMC Genet. 2014, 15, 138. [Google Scholar] [CrossRef] [Green Version]
  22. Ni, L.H.; Zhao, Z.L.; Xua, H.X.; Chen, S.L.; Dorje, G. The complete chloroplast genome of Gentiana straminea (Gentianaceae), an endemic species to the Sino-Himalayan subregion. Gene 2016, 577, 281–288. [Google Scholar] [CrossRef]
  23. Kim, Y.; Cullis, C. A novel inversion in the chloroplast genome of marama (Tylosema esculentum). J. Exp. Bot. 2017, 68, 2065–2072. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Doyle, J.J.; Doyle, J.L. A rapid DNA isolation procedure for small quantities of fresh leaf tissue. Phytochem. Bull. 1987, 19, 11–15. [Google Scholar]
  25. Chen, S.F.; Zhou, Y.Q.; Chen, Y.R.; Gu, J. fastp: An ultra-fast all-in-one FASTQ preprocessor. Bioinformatics 2018, 34, i884–i890. [Google Scholar] [CrossRef]
  26. Dierckxsens, N.; Mardulyn, P.; Smits, G. NOVOPlasty: De novo assembly of organelle genomes from whole genome data. Nucleic Acids Res. 2017, 45, e18. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Tillich, M.; Lehwark, P.; Pellizzer, T.; Pellizzer, T.; Uibricht-Jones, E.S.; Fischer, A.; Bock, R.; Greiner, S. GeSeq-versatile and accurate annotation of organelle genomes. Nucleic Acids Res. 2017, 45, W6–W11. [Google Scholar] [CrossRef] [PubMed]
  28. Qu, X.J.; Moore, M.J.; Li, D.Z.; Yi, T.S. PGA: A software package for rapid, accurate, and flexible batch annotation of plastomes. Plant Methods 2019, 15, 50. [Google Scholar] [CrossRef] [Green Version]
  29. Zufall, R.A. Beyond simple homology searches: Multiple sequence alignments and phylogenetic trees. Curr. Protoc. Essent. Lab. Technol. 2009, 1, 11–13. [Google Scholar] [CrossRef]
  30. Greiner, S.; Lehwark, P.; Bock, R. OrganellarGenomeDRAW (OGDRAW) version 1.3.1: Expanded toolkit for the graphical visualization of organellar genomes. Nucleic Acids Res. 2019, 47, W59–W64. [Google Scholar] [CrossRef] [Green Version]
  31. Beier, S.; Thiel, T.; Münch, T.; Scholz, U.; Mascher, M. MISA-web: A web server for microsatellite prediction. Bioinformatics 2017, 33, 2583–2585. [Google Scholar] [CrossRef] [Green Version]
  32. Amiryousefi, A.; Hyvönen, J.; Poczai, P. IRscope: An online program to visualize the junction sites of chloroplast genomes. Bioinformatics 2018, 34, 3030–3031. [Google Scholar] [CrossRef]
  33. Frazer, K.A.; Pachter, L.; Poliakov, A.; Rubin, E.M.; Dubchak, I. VISTA: Computational tools for comparative genomics. Nucleic Acids Res. 2004, 32, W273–W279. [Google Scholar] [CrossRef] [PubMed]
  34. Librado, P.; Rozas, J. DnaSP v5: A software for comprehensive analysis of DNA polymorphism data. Bioinformatics 2009, 25, 1451–1452. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Katoh, K.; Standley, D.M. MAFFT multiple sequence alignment software version 7: Improvements in performance and usability. Mol. Biol. Evol. 2013, 30, 772–780. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Rozas, J.; Sanchez-Delbarrio, J.C.; Messeguer, X.; Rozas, R. DnaSP, DNA polymorphism analyses by the coalescent and other methods. Bioinformatics 2003, 19, 2496–2497. [Google Scholar] [CrossRef]
  37. Kalyaanamoorthy, S.; Minh, B.Q.; Wong, T.; Haeseler, A.V.; Jermiin, L.S. ModelFinder: Fast model selection for accurate phylogenetic estimates. Nat. Methods 2017, 14, 587–589. [Google Scholar] [CrossRef] [Green Version]
  38. Nguyen, L.T.; Schmidt, H.A.; Haeseler, A.V.; Minh, B.Q. IQ-TREE: A fast and effective stochastic algorithm for estimating maximum-likelihood phylogenies. Mol. Biol. Evol. 2015, 32, 268–274. [Google Scholar] [CrossRef]
  39. Ronquist, F.; Teslenko, M.; Mark, P.V.D.; Ayres, D.L.; Darling, A.; Höhna, S.; Larget, B.; Liu, L.; Suchard, M.A.; Huelsenbeck, J.P. MrBayes 3.2: Efficient Bayesian phylogenetic inference and model choice across a large model space. Syst. Biol. 2012, 61, 539–542. [Google Scholar] [CrossRef] [Green Version]
  40. Zhang, L.; Wang, S.; Su, C.; Harris, A.J.; Zhao, L.; Su, N.; Wang, J.R.; Duan, L.; Chang, Z.Y. Comparative chloroplast genomics and phylogenetic analysis of Zygophyllum (Zygophyllaceae) of China. Front. Plant. Sci. 2021, 12, 723622. [Google Scholar] [CrossRef]
  41. Fu, G.; Liu, J.; Li, J.Q. The complete chloroplast genome sequence of Elsholtzia densa, a herb with volatile aroma component. Mitochondrial DNA B 2020, 5, 595–596. [Google Scholar] [CrossRef] [Green Version]
  42. Welch, A.J.; Collins, K.; Ratan, A.; Drautz, M.D.I.; Schuster, S.C.; Lindqvist, C. The quest to resolve recent radiations: Plastid phylogenomics of extinct and endangered Hawaiian endemic mints (Lamiaceae). Mol. Phylogenet. Evol. 2016, 99, 16–33. [Google Scholar] [CrossRef] [Green Version]
  43. Jiang, D.; Zhao, Z.Y.; Zhang, T.; Zhong, W.H.; Liu, C.S.; Yuan, Q.J.; Huang, L.Q. The chloroplast genome sequence of Scutellaria baicalensis provides insight into intraspecific and interspecific chloroplast genome diversity in Scutellaria. Genes 2017, 8, 227. [Google Scholar] [CrossRef] [PubMed]
  44. Song, Y.; Chen, Y.; Lv, J.Z.; Xu, J.; Zhu, S.F.; Li, M.F. Comparative chloroplast genomes of Sorghum species: Sequence divergence and phylogenetic relationships. Biomed. Res. Int. 2019, 19, 5046958. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Kong, B.L.H.; Park, H.S.; Lau, T.W.D.; Lin, Z.X.; Yang, J.T.; Shaw, P.C. Comparative analysis and phylogenetic investigation of Hong Kong Ilex chloroplast genomes. Sci. Rep. 2021, 11, 5153. [Google Scholar] [CrossRef] [PubMed]
  46. Hu, G.L.; Cheng, L.L.; Huang, W.G.; Cao, Q.C.; Zhou, L.; Jia, W.S.; Lan, Y.P. Chloroplast genomes of seven species of Coryloideae (Betulaceae): Structures and comparative analysis. Genome 2020, 63, 337–348. [Google Scholar] [CrossRef]
  47. Huang, R.; Xie, X.; Li, F.; Tian, E.W.; Chao, Z. Chloroplast genomes of two Mediterranean Bupleurum species and the phylogenetic relationship inferred from combined analysis with East Asian species. Planta 2021, 253, 81. [Google Scholar] [CrossRef]
  48. Wei, F.; Tang, D.F.; Wei, K.H.; Qin, F.; Li, L.X.; Lin, Y.; Zhu, Y.X.; Khan, A.; Kashif, M.H.; Miao, J.H. The complete chloroplast genome sequence of the medicinal plant Sophora tonkinensis. Sci. Rep. 2020, 10, 12473. [Google Scholar] [CrossRef]
  49. Curci, P.L.; Demenico, P.D.; Danzi, D.; Vendramin, G.G.; Sonnante, G. Complete chloroplast genome of the multifunctional crop globe artichoke and comparison with other Asteraceae. PLoS ONE 2015, 10, e0120589. [Google Scholar] [CrossRef]
  50. Wang, K.Y.; Li, L.; Hua, Y.; Zhao, M.Z.; Li, S.K.; Sun, H.H.; Lv, Y.X.; Wang, Y. The complete chloroplast genome of Mentha spicata, an endangered species native to South Europe. Mitochondrial DNA B 2017, 2, 907–909. [Google Scholar] [CrossRef] [Green Version]
  51. He, Y.H.; Han, L.M.; Liu, Y.P.; Tian, N.; Su, X.; Wang, Z.Z. Complete sequence analysis of chloroplast genome of Salvia japonica. Bull. Bot. Res. 2017, 37, 572–578. [Google Scholar] [CrossRef]
  52. Hildebrand, M.; Hallick, R.B.; Passavant, C.W.; Bourque, D.P. Trans-splicing in chloroplasts: The rps12 loci of Nicotiana tabacum. Proc. Natl. Acad. Sci. USA 1988, 85, 372–376. [Google Scholar] [CrossRef] [Green Version]
  53. Chen, X.C.; Li, Q.S.; Li, Y.; Qian, J.; Han, J.P. Chloroplast genome of Aconitum barbatum var puberulum (Ranunculaceae) derived from CCS reads using the PacBio RS platform. Front. Plant Sci. 2015, 6, 42. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Jansen, R.K.; Cai, Z.Q.; Raubeson, L.A.; Daniell, H.; de Pamphilis, C.W.; Leebens-Mack, J.; Müller, K.F.; Guisinger-Bellian, M.; Haberle, R.C.; Hansenet, A.K.; et al. Analysis of 81 genes from 64 plastid genomes resolves relationships in angiosperms and identifies genome-scale evolutionary patterns. Proc. Natl. Acad. Sci. USA 2007, 104, 19369–19374. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Chen, X.; Zhang, G.; and Wu, W.R. Investigation and utilization of intron length polymorphisms in conifers. New For. 2011, 41, 379–388. [Google Scholar] [CrossRef]
  56. Ebert, D.; Peakall, R. Chloroplast simple sequence repeats (cpSSRs): Technical resources and recommendations for expanding cp SSR discovery and applications to a wide array of plant. Mol. Ecol. Resour. 2009, 9, 673–690. [Google Scholar] [CrossRef] [PubMed]
  57. George, B.J.; Bhatt, B.S.; Awasthi, M.; George, B.; Singh, A.K. Comparative analysis of microsatellites in chloroplast genomes of lower and higher plants. Curr. Genet. 2015, 61, 665–677. [Google Scholar] [CrossRef]
  58. Nie, X.J.; Lv, S.Z.; Zhang, Y.X.; Du, X.H.; Wang, L.; Biradar, S.S.; Tan, X.F.; Wan, F.H.; Weining, S. Complete chloroplast genome sequence of a major invasive species, Crofton weed (Ageratina adenophora). PLoS ONE 2012, 7, e36869. [Google Scholar] [CrossRef] [Green Version]
  59. Feng, S.G.; Zheng, K.X.; Jiao, K.L.; Cai, Y.C.; Chen, C.L.; Mao, Y.Y.; Wang, L.Y.; Zhan, X.R.; Ying, Q.C.; Wang, H.Z. Complete chloroplast genomes of four Physalis species (Solanaceae): Lights into genome structure, comparative analysis, and phylogenetic relationships. BMC Plant Biol. 2020, 20, 242. [Google Scholar] [CrossRef]
  60. Romero, H.; Zavala, A.; Musto, H. Codon usage in Chlamydia trachomatis is the result of strand-specific mutational biases and a complex pattern of selective forces. Nucleic Acids Res. 2000, 28, 2084–2090. [Google Scholar] [CrossRef] [Green Version]
  61. Morton, B.R. Selection on the codon bias of chloroplast and cyanelle genes in different plant and algal lineages. J. Mol. Evol. 1998, 46, 449–459. [Google Scholar] [CrossRef]
  62. Qian, J.; Song, J.Y.; Gao, H.H.; Zhu, Y.J.; Xu, J.; Pang, X.H.; Yao, H.; Sun, C.; Li, X.E.; Li, C.Y.; et al. The complete chloroplast genome sequence of the medicinal plant Salvia miltiorrhiza. PLoS ONE 2013, 8, e57607. [Google Scholar] [CrossRef]
  63. Yang, L.F.; Yang, Z.Y.; Liu, C.K.; He, Z.S.; Zhang, Z.R.; Yang, J.; Liu, H.Y.; Yang, J.B.; Ji, Y.H. Chloroplast phylogenomic analysis provides insights into the evolution of the largest eukaryotic genome holder, Paris japonica (Melanthiaceae). BMC Plant Biol. 2019, 19, 293. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Goulding, S.E.; Olmstead, R.G.; Morden, C.W.; Wolfe, K.H. Ebb and flow of the chloroplast inverted repeat. Mol. Gen. Genet. 1996, 252, 195–206. [Google Scholar] [CrossRef] [PubMed]
  65. Li, X.W.; Gao, H.H.; Wang, Y.T.; Song, J.Y.; Robert, H.; Wu, H.Z.; Hu, Z.G.; Yao, H.; Luo, H.M.; Luo, K.; et al. Complete chloroplast genome sequence of Magnolia grandiflora and comparative analysis with related species. Sci. China Life Sci. 2013, 56, 189–198. [Google Scholar] [CrossRef] [Green Version]
  66. Raubeson, L.A.; Peery, R.; Chumley, T.W.; Dziubek, C.; Fourcade, H.M.; Boore, J.L.; Jansen, R.K. Comparative chloroplast genomics: Analyses including new sequences from the angiosperms Nuphar advena and Ranunculus macranthus. BMC Genom. 2007, 8, 174. [Google Scholar] [CrossRef] [Green Version]
  67. Alzahrani, D.A.; Yaradua, S.S.; Albokhari, E.J.; Abba, A. Complete chloroplast genome sequence of Barleria prionitis, comparative chloroplast genomics and phylogenetic relationships among Acanthoideae. BMC Genom. 2020, 21, 393. [Google Scholar] [CrossRef] [PubMed]
  68. Dong, W.P.; Xu, C.; Li, C.H.; Sun, J.H.; Zuo, Y.J.; Shi, S.; Cheng, T.; Guo, J.J.; Zhou, S.L. ycf1, the most promising plastid DNA barcode of land plants. Sci. Rep. 2015, 5, 8348. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  69. Keller, J.; Rousseau-Gueutin, M.; Martin, G.E.; Morice, J.; Boutte, J.; Coissac, E.; Ourari, M.; Aïnouche, M.; Salmon, A.; Cabello-Hurtado, F.; et al. The evolutionary fate of the chloroplast and nuclear rps16 genes as revealed through the sequencing and comparative analyses of four novel legume chloroplast genomes from Lupinus. DNA Res. 2017, 24, 343–358. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  70. Yang, Z.; Nielsen, R. Estimating synonymous and non-synonymous substitution rates under realistic evolutionary models. Mol. Biol. Evol. 2000, 17, 32–43. [Google Scholar] [CrossRef] [Green Version]
  71. Makalowski, W.; Boguski, M.S. Evolutionary parameters of the transcribed mammalian genome: An analysis of 2820 orthologous rodent and human sequences. Proc. Natl. Acad. Sci. USA 1998, 95, 9407–9412. [Google Scholar] [CrossRef] [Green Version]
  72. Wu, Z.H.; Liao, R.; Yang, T.G.; Dong, X.; Lan, D.Q.; Qin, R.; Liu, H. Analysis of six chloroplast genomes provides insight into the evolution of Chrysosplenium (Saxifragaceae). BMC Genom. 2020, 21, 621. [Google Scholar] [CrossRef]
  73. Zhao, F.; Chen, Y.P.; Salmaki, Y.; Drew, B.T.; Wilson, T.; Scheen, A.C.; Celep, F.; Bräuchler, C.; Bendiksby, M.; Wang, Q.; et al. An updated tribal classification of Lamiaceae based on plastome phylogenomics. BMC Biol. 2021, 19, 2. [Google Scholar] [CrossRef] [PubMed]
  74. Scheen, A.C.; Bendiksby, M.; Ryding, O.; Mathiesen, C.; Albert, V.A.; Lindqvist, C. Molecular phylogenetics, character evolution and suprageneric classification of Lamioideae (Lamiaceae). Ann. Mo. Bot. Gard. 2010, 97, 191–217. [Google Scholar] [CrossRef]
  75. Bendiksby, M.; Thorbek, L.; Scheen, A.C.; Lindqvist, C.; Ryding, O. An updated phylogeny and classification of Lamiaceae subfamily Lamioideae. Taxon 2011, 60, 471–484. [Google Scholar] [CrossRef]
  76. Burke, S.V.; Lin, C.S.; Wysocki, W.P.; Clark, L.G.; Duvall, M.R. Phylogenomics and plastome evolution of tropical forest grasses (Leptaspis, Streptochaeta: Poaceae). Front. Plant Sci. 2016, 7, 1993. [Google Scholar] [CrossRef] [Green Version]
  77. Wagstaff, S.J.; Olmstead, R.G.; Cantino, P.D. Parsimony analysis of cpDNA restriction site variation in subfamily Nepetoideae (Labiatae). Am. J. Bot. 1995, 82, 886–892. [Google Scholar] [CrossRef]
  78. Wagstaff, S.J.; Hickerson, L.; Spangler, R.; Reeves, P.A.; Olmstead, R.G. Phylogeny in Labiatae s.l., inferred from cpDNA sequences. Pl. Syst. Evol. 1998, 209, 265–274. [Google Scholar] [CrossRef]
  79. Paton, A.J.; Springate, D.; Suddee, S.; Otieno, D.; Grayer, R.J.; Harley, M.M.; Willis, F.; Simmonds, M.S.J.; Powell, M.P.; Savolainenb, V. Phylogeny and evolution of basils and allies (Ocimeae, Labiatae) based on three plastid DNA regions. Mol. Phylogenet. Evol. 2004, 31, 277–299. [Google Scholar] [CrossRef]
  80. Drew, B.T.; Sytsma, K.J. Phylogenetics, biogeography, and staminal evolution in the tribe Mentheae (Lamiaceae). Am. J. Bot. 2012, 99, 933–953. [Google Scholar] [CrossRef] [Green Version]
  81. Li, P.; Qi, Z.C.; Liu, L.X.; Ohi-Toma, T.; Lee, J.; Hsieh, T.H.; Fu, C.X.; Cameron, K.M.; Qiu, Y.X. Molecular phylogenetics and biogeography of the mint tribe Elsholtzieae (Nepetoideae, Lamiaceae), with an emphasis on its diversification in East Asia. Sci. Rep. 2017, 7, 2057. [Google Scholar] [CrossRef] [Green Version]
  82. Chen, Y.P.; Drew, B.T.; Li, B.; Soltis, D.E.; Soltis, P.S.; Xiang, C.L. Resolving the phylogenetic position of Ombrocharis (Lamiaceae), with reference to the molecular phylogeny of tribe Elsholtzieae. Taxon 2016, 65, 123–136. [Google Scholar] [CrossRef] [Green Version]
Diversity 14 00110 g001 550
Figure 1. Gene map of the cp genome of Dracocephalum heterophyllum (Lamiaceae). Genes on the outside and inside of the circle represent the directions of transcribed in clockwise and counterclockwise, respectively.
Figure 1. Gene map of the cp genome of Dracocephalum heterophyllum (Lamiaceae). Genes on the outside and inside of the circle represent the directions of transcribed in clockwise and counterclockwise, respectively.
Diversity 14 00110 g001
Diversity 14 00110 g002 550
Figure 2. Distribution of different types of SSRs located in different regions of the cp genome of Dracocephalum heterophyllum (Lamiaceae). Colors represent different regions.
Figure 2. Distribution of different types of SSRs located in different regions of the cp genome of Dracocephalum heterophyllum (Lamiaceae). Colors represent different regions.
Diversity 14 00110 g002
Diversity 14 00110 g003 550
Figure 3. The type and presence of simple sequence repeats (SSRs) in the cp genome of four species in Dracocephalum. Colors represent different species.
Figure 3. The type and presence of simple sequence repeats (SSRs) in the cp genome of four species in Dracocephalum. Colors represent different species.
Diversity 14 00110 g003
Diversity 14 00110 g004 550

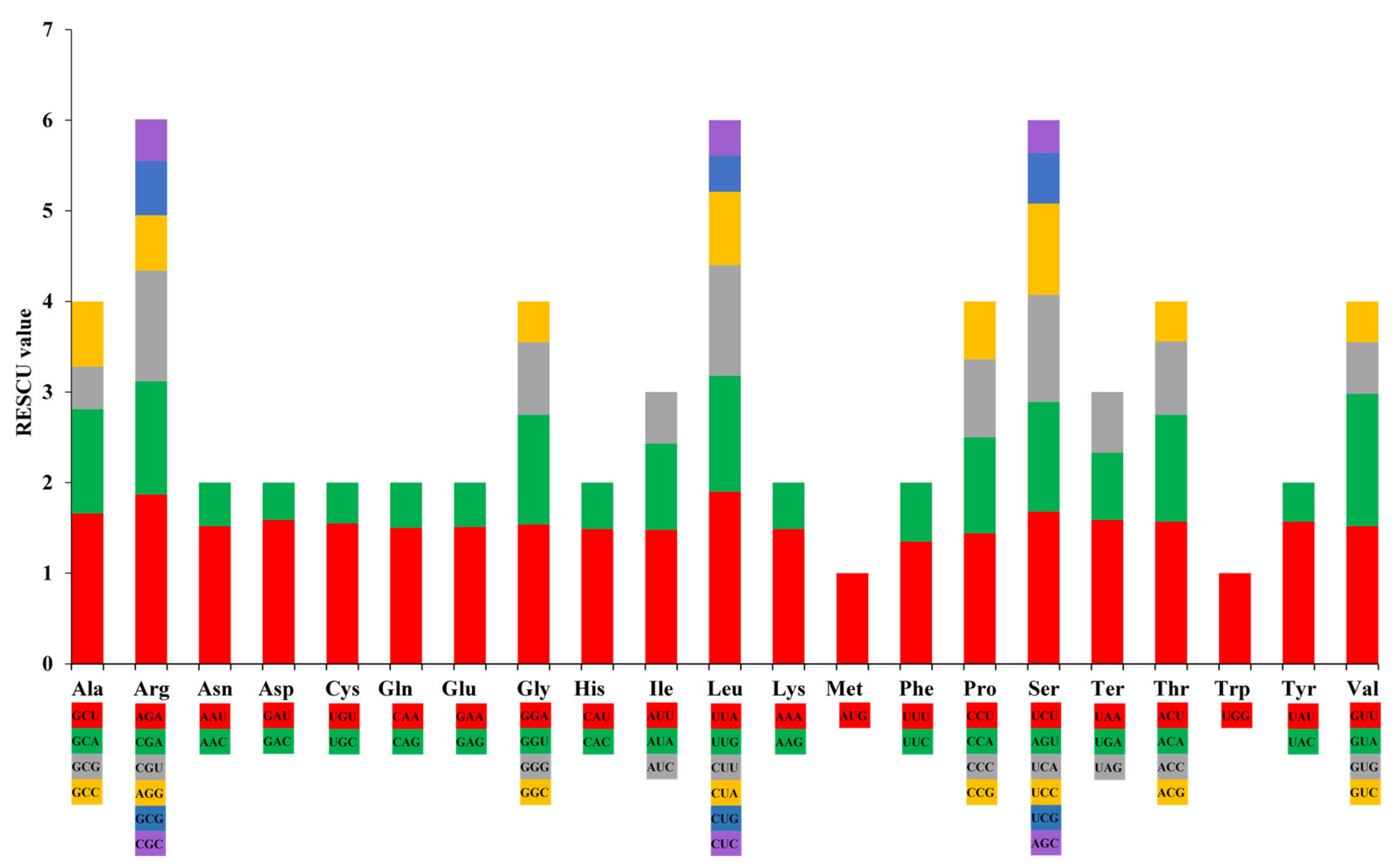

Figure 4. RSCU analysis of 21 amino acids and three termination codons in Dracocephalum heterophyllum (Lamiaceae). Bar diagram in different colors reflects codon usage bias (red, green, grey, yellow, cyan, and purple correspond to the proportion of different codons in descending order), while numbers represent codon quantities.
Figure 4. RSCU analysis of 21 amino acids and three termination codons in Dracocephalum heterophyllum (Lamiaceae). Bar diagram in different colors reflects codon usage bias (red, green, grey, yellow, cyan, and purple correspond to the proportion of different codons in descending order), while numbers represent codon quantities.
Diversity 14 00110 g004
Diversity 14 00110 g005 550
Figure 5. Comparison of the borders of the LSC, SSC, and IR regions of cp genomes between Dracocephalum heterophyllum and related species in Lamiaceae.
Figure 5. Comparison of the borders of the LSC, SSC, and IR regions of cp genomes between Dracocephalum heterophyllum and related species in Lamiaceae.
Diversity 14 00110 g005
Diversity 14 00110 g006 550

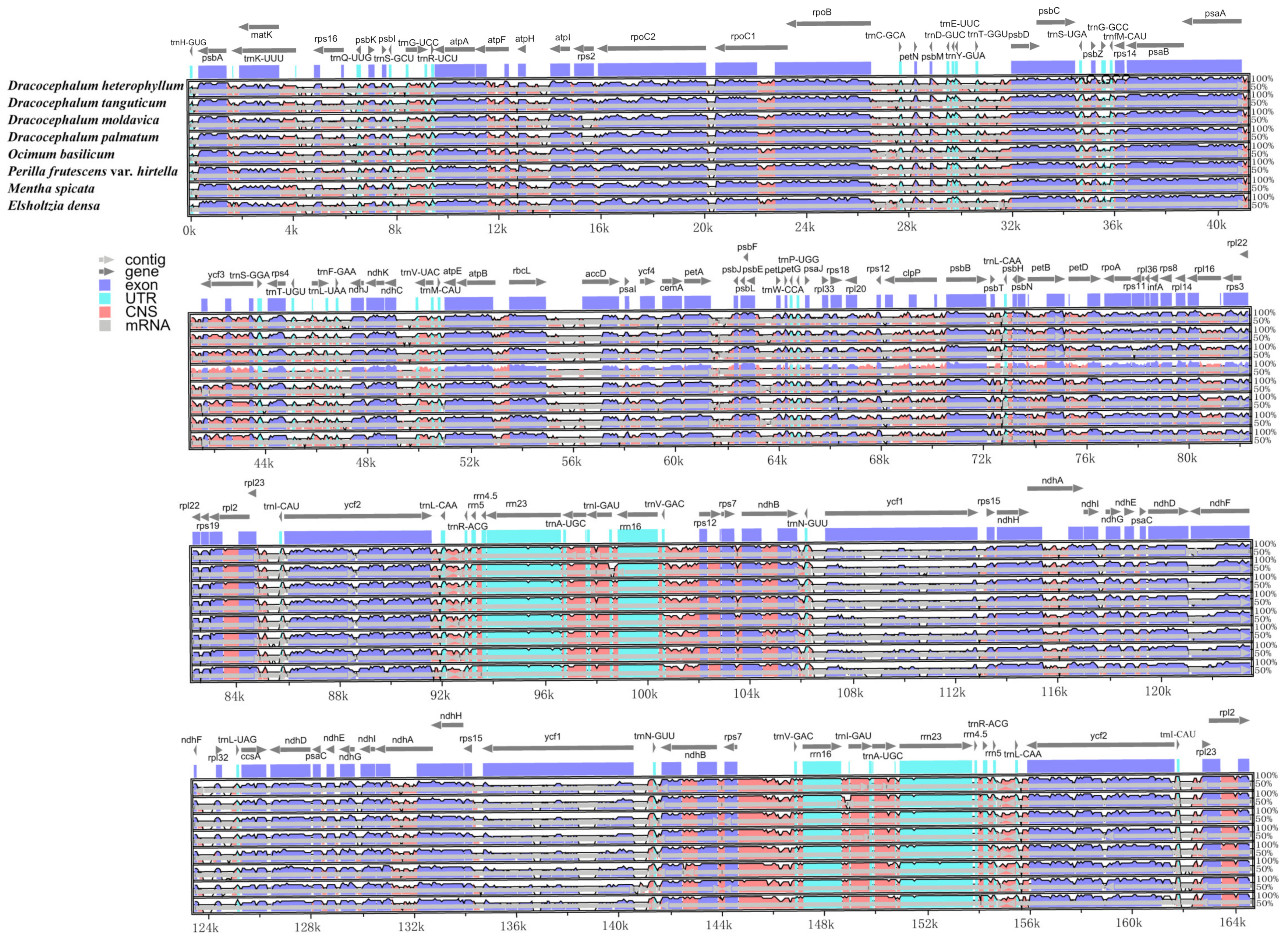

Figure 6. The sequence alignment map of eight cp genomes of Lamiaceae using Plantago depressa as a reference. The Y-axis indicates identity from 50 to 100%. Gray arrows indicate the position and direction of each gene. Purple indicates the exons of protein-coding genes (exon); Blue indicates the untranslated region (UTR); Red indicates conservative non-coding sequences (CNS).
Figure 6. The sequence alignment map of eight cp genomes of Lamiaceae using Plantago depressa as a reference. The Y-axis indicates identity from 50 to 100%. Gray arrows indicate the position and direction of each gene. Purple indicates the exons of protein-coding genes (exon); Blue indicates the untranslated region (UTR); Red indicates conservative non-coding sequences (CNS).
Diversity 14 00110 g006
Diversity 14 00110 g007 550
Figure 7. Nucleotide diversity within cp genomes of four species in Dracocephalum using a sliding window analysis. Window lengths: 600 bp; step size: 200 bp. Five hypervariable genes or gene spacers with the highest Pi values (>0.03) are highlighted. X-axis: position of the midpoint of a window; Y-axis: nucleotide diversity of each window.
Figure 7. Nucleotide diversity within cp genomes of four species in Dracocephalum using a sliding window analysis. Window lengths: 600 bp; step size: 200 bp. Five hypervariable genes or gene spacers with the highest Pi values (>0.03) are highlighted. X-axis: position of the midpoint of a window; Y-axis: nucleotide diversity of each window.
Diversity 14 00110 g007
Diversity 14 00110 g008 550

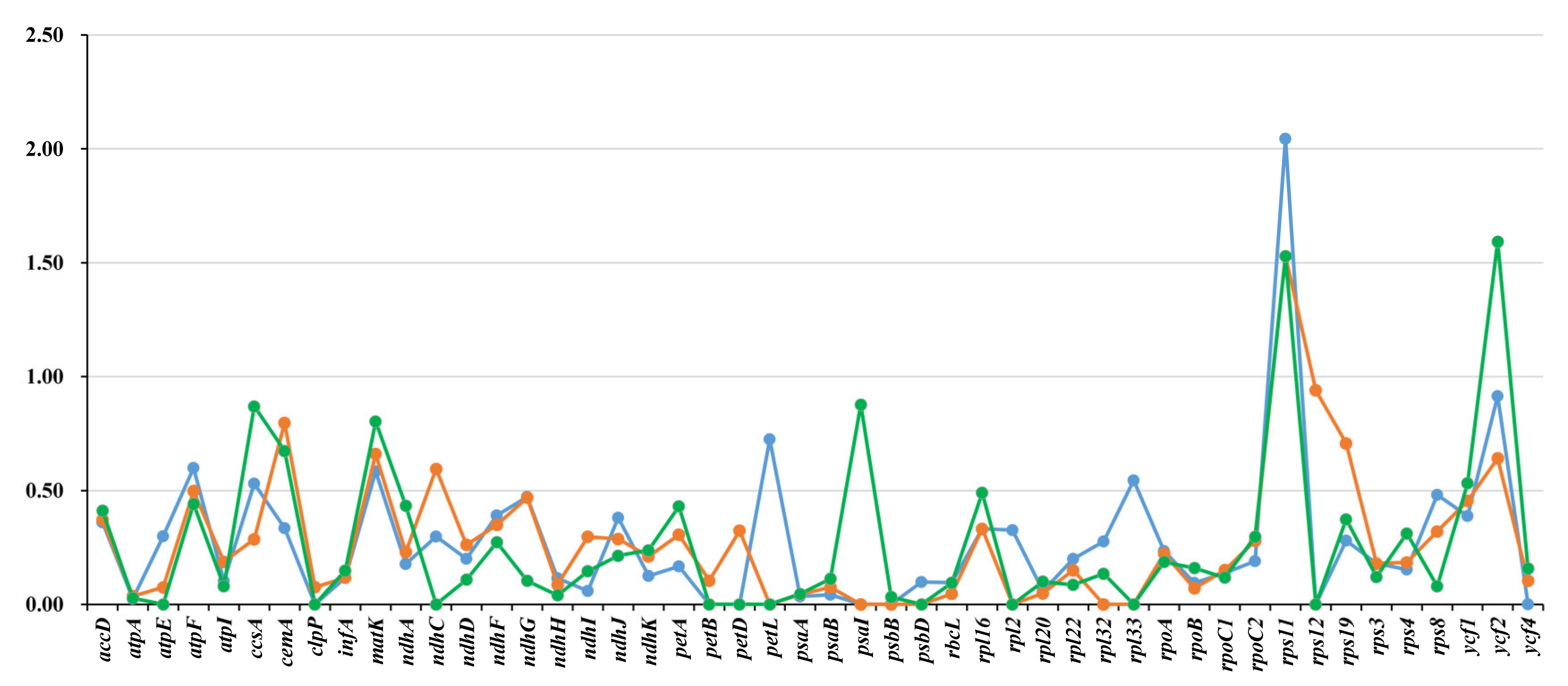

Figure 8. Comparison of the ratio of non-synonymous (Ka) to synonymous (Ks) substitutions of 79 protein-coding genes among the cp genomes of Dracocephalum heterophyllum vs. D. moldavica, D. palmatum, and D. tanguticum. Y-axis: Value of Ka/Ks; X-axis: gene names. Blue lines indicate the comparison D. heterophyllum vs. D. moldavica; orange lines are D. heterophyllum vs. D. palmatum; and green lines D. heterophyllum vs. D. tanguticum.
Figure 8. Comparison of the ratio of non-synonymous (Ka) to synonymous (Ks) substitutions of 79 protein-coding genes among the cp genomes of Dracocephalum heterophyllum vs. D. moldavica, D. palmatum, and D. tanguticum. Y-axis: Value of Ka/Ks; X-axis: gene names. Blue lines indicate the comparison D. heterophyllum vs. D. moldavica; orange lines are D. heterophyllum vs. D. palmatum; and green lines D. heterophyllum vs. D. tanguticum.
Diversity 14 00110 g008
Diversity 14 00110 g009 550

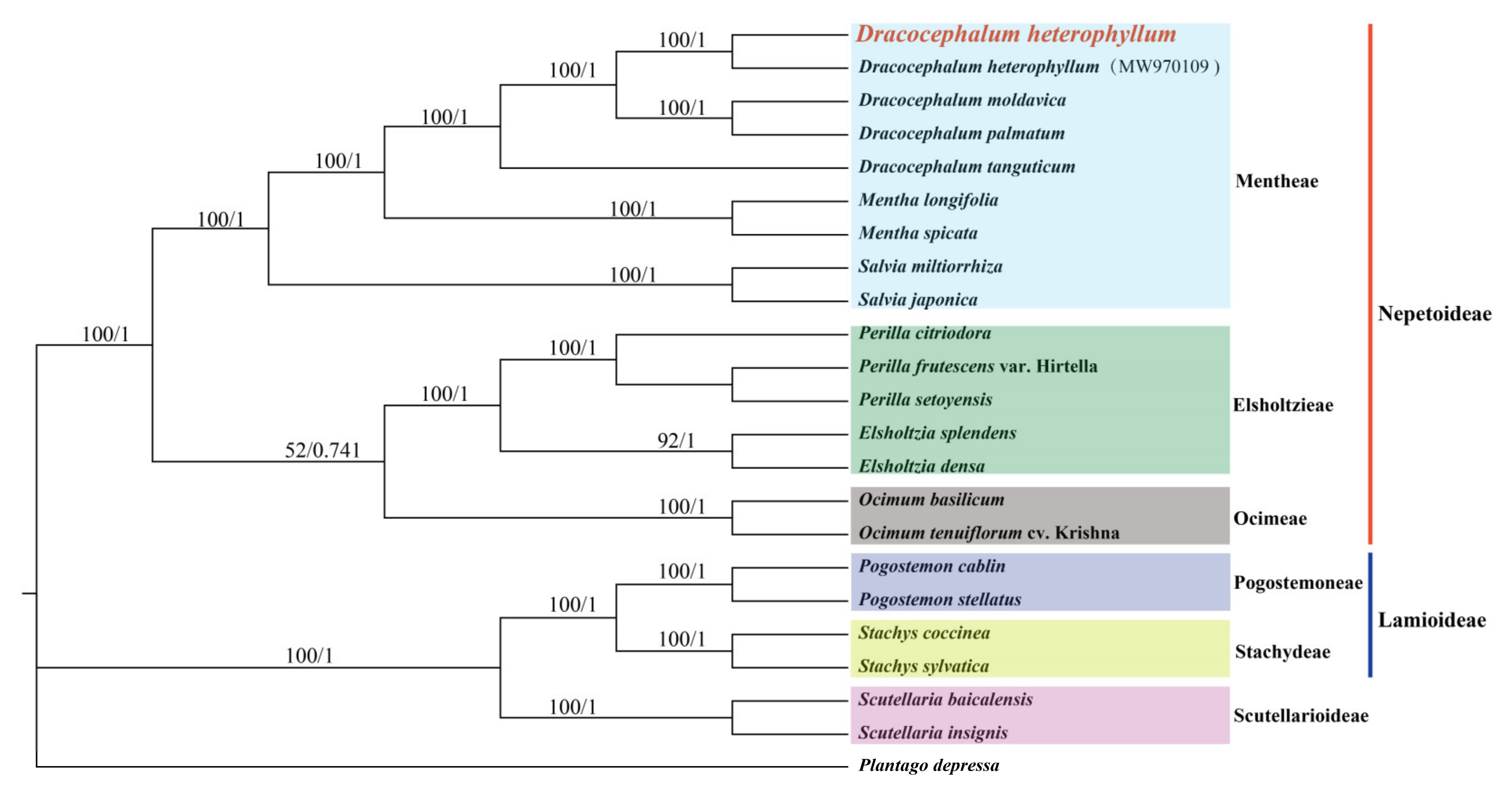

Figure 9. Cladogram based on the cp genomes of 22 species of Lamiaceae. Numbers at nodes represent bootstrap and Bayesian posterior probabilities (BP/PP). Different colors represent currently recognized subfamilies and tribes within Lamiaceae.
Figure 9. Cladogram based on the cp genomes of 22 species of Lamiaceae. Numbers at nodes represent bootstrap and Bayesian posterior probabilities (BP/PP). Different colors represent currently recognized subfamilies and tribes within Lamiaceae.
Diversity 14 00110 g009
Table
Table 1. Characteristics of chloroplast genomes for five species of Dracocephalum (Lamiaceae).
Table 1. Characteristics of chloroplast genomes for five species of Dracocephalum (Lamiaceae).
TaxonD. heterophyllumD. tanguticumD. moldavicaD. palmatumD. taliense
GenBank accessionOM201748MT457746MT457747NC_031874.1MT473756
Size (bp)150,869150,594149,868150,510150,976
GC content (%)37.837.837.837.837.8
IR (bp)51,35051,37051,35250,77251,358
GC content in IR (%)43.243.043.043.143.0
LSC (bp)82,42182,22181,45082,16082,253
GC content in LSC (%)35.735.835.835.835.8
SSC (bp)17,09817,36317,06617,25417,365
GC content in SSC (%)31.831.931.831.831.6
Gene number133133132125134
tRNA gene number3737372937
rRNA gene number88888
Protein-coding gene8888878889
Table
Table 2. Annotated list of genes present in the chloroplast genome of Dracocephalum heterophyllum (Lamiaceae).
Table 2. Annotated list of genes present in the chloroplast genome of Dracocephalum heterophyllum (Lamiaceae).
CategoryGroup of GeneGene Name
Gene for photosynthesisSubunits of photosystem IpsaA, psaB, psaC, psaI, psaJ
Subunits of photosystem IIpsbA, psbB, psbC, psbD, psbE, psbF, psbH, psbI, psbJ, psbK, psbL, psbM, psbN, psbT, psbZ
Subunits of NADH dehydrogenasendhA, ndhB1 (2×), ndhC, ndhD, ndhE, ndhF, ndhG, ndhH, ndhI, ndhJ, ndhK
Subunits of cytochrome b/f complexpetA, petB1, petD1, petG, petL, petN
Subunits of ATP synthaseatpA, atpB, atpE, atpF1, atpH, atpI
Large subunit of rubiscorbcL
Self-replicationProteins of large ribosomal subunitrpl21 (2×), rpl14, rpl161, rpl20, rpl22, rpl23, rpl32, rpl33, rpl36
Proteins of small ribosomal subunitrps2, rps3, rps4, rps7 (2×), rps8, rps11, rps12 (2×), rps14, rps15, rps16 1, rps18, rps19
Subunits of RNA polymerase Ribosomal RNArrn4.5 (2×), rrn5 (2×), rrn16 (2×), rrn23 (2×)
DNA-dependent RNA polymeraserpoA, rpoB, rpoC11, rpoC2
Transfer RNAtrnA-UGC1 (2×), trnC-GCA, trnD-GUC, trnE-UUC, trnF-GAA, trnG-GCC, trnG-UCC1, trnH-GUG, trnI-CAU (2×), trnI-GAU 1 (2×), trnK-UUU1, trnL-CAA (2×), trnL-UAG, trnL-UAA1, trnfM-CAU, trnM-CAU, trnN-GUU (2×), trnP-UGG, trnQ-UUG, trnR-ACG (2×), trnR-UCU, trnS-GCU, trnS-GGA, trnS-UGA, trnT-GGU, trnT-UGU, trnV-GAC (2×), trnV-UAC 1, trnW-CCA, trnY-GUA
BiosynthesisMaturasematK
ProteaseclpP2
Envelope membrane proteincemA
Subunit Acetyl-CoA carboxylaseaccD
C-type cytochrome synthesis geneccsA
Translation initiation factorinfA
UnknownConserved open reading frameycf1 (2×), ycf2 (2×), ycf3 2, ycf4, ycf15 (2×)
Note: 1 Gene containing a single intron; 2 Gene containing two introns; 2× showed genes duplicate.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Fu, G.; Liu, Y.; Caraballo-Ortiz, M.A.; Zheng, C.; Liu, T.; Xu, Y.; Su, X. Characterization of the Complete Chloroplast Genome of the Dragonhead Herb, Dracocephalumheterophyllum (Lamiaceae), and Comparative Analyses with Related Species. Diversity 2022, 14, 110. https://doi.org/10.3390/d14020110

AMA Style

Fu G, Liu Y, Caraballo-Ortiz MA, Zheng C, Liu T, Xu Y, Su X. Characterization of the Complete Chloroplast Genome of the Dragonhead Herb, Dracocephalumheterophyllum (Lamiaceae), and Comparative Analyses with Related Species. Diversity. 2022; 14(2):110. https://doi.org/10.3390/d14020110

Chicago/Turabian Style

Fu, Gui, Yuping Liu, Marcos A. Caraballo-Ortiz, Changyuan Zheng, Tao Liu, Yujie Xu, and Xu Su. 2022. "Characterization of the Complete Chloroplast Genome of the Dragonhead Herb, Dracocephalumheterophyllum (Lamiaceae), and Comparative Analyses with Related Species" Diversity 14, no. 2: 110. https://doi.org/10.3390/d14020110

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
