Divergence Time Estimation of Aloes and Allies (Xanthorrhoeaceae) Based on Three Marker Genes

by
Zeinab Khodaei
1,*,
Ben-Erik Van Wyk
2 and
Michael Wink
1
1
Institute of Pharmacy and Molecular Biotechnology, Heidelberg University, INF 364, 69120 Heidelberg, Germany
2
Department of Botany and Plant Biotechnology, University of Johannesburg, P.O. Box 524, Auckland Park 2006, South Africa
*
Author to whom correspondence should be addressed.
Diversity 2018, 10(3), 60; https://doi.org/10.3390/d10030060
Submission received: 2 January 2018 / Revised: 29 June 2018 / Accepted: 29 June 2018 / Published: 10 July 2018
(This article belongs to the Special Issue Feature Papers for Celebrating the tenth Founding Year of Diversity)
Browse Figures
Versions Notes

Abstract

:
Aloes and allies are prominent members of African succulent vegetation and especially of the highly diverse Cape Flora. The main goal of this study was to obtain age estimates for alooids by calibrating a Bayesian phylogenetic analysis based on two chloroplast markers (the trnL-trnF spacer region and rbcL gene) and one gene marker (ITS) using a relaxed molecular clock. Seventy four species from all succulent genera of alooids were analysed with MrBayes to infer species relationships. We discuss the age estimates to address the question whether vicariance or dispersal could account for the diversification of Madagascan alooids. In the combined maximum clade credibility tree obtained from BEAST the succulent alooids have split from asphodeloids around 51.8 Mya in Early Miocene. Divergence time age estimation for succulent drought resistant alooids (late Oligocene to early Miocene) correspond well with dates identified for several other plant lineages in southern Africa and does match with the start of dry period in Miocene which triggered speciation and evolutionary radiation of these genera and families. All climbing aloes and some tree aloes which were recently split into new genera are amongst the early diverged group in alooids and the crown node of this group diverged around 16.82 (15.5–22.4) Mya. The oldest node age estimation for aloes from Madagascar (5.1 Mya) is in early Pliocene and our findings support the hypothesis that the Africa-Madagascan divergence is best explained by oceanic long-distance dispersal rather than vicariance. This study is one of the first to give age estimates for clades of alooids in Xanthorrhoeaceae as a starting point for future studies on the historical biogeography of this family of succulent plants which are important for ethnomedicine, and as ornamental and horticultural plants.

1. Introduction

Alooids or the subfamily Alooideae sensu )Dahlgren, et al. 1985 ([1] are a well-known group of southern African and Cape rosette leaf succulents (ca. 530 species) adapted to life in dry areas; some members of Aloe occur on the Arabian Peninsula, Madagascar and the Mascarene Islands. Alooids are of interest from an ethnomedical, ornamental and horticultural perspective (Smith et al., 2000) [2]. Aloe ferox is the source of anthraquinones, which are used in medicine as a laxative. Aloe vera is also used as a laxative but also as a gel used for wound-healing, and skin care (van Wyk and Wink, 2017) [3]. In Africa, harvested species of Aloe come from east and southern Africa. During the 1990s, exports of wild-harvested exudate (Aloe) from Kenya sometimes exceeded 80 tons per annum (Oldfield, 2004) [4].
During the last 350 years, this group of plants has seen a number of diverse classifications. At the starting point of modern nomenclature, Linnaeus (1753) [5] had recognised a single genus Aloe to accommodate all aloes and close relatives. Until recently, six genera have been traditionally accepted: Aloe L., Astroloba Uitewaal, Gasteria Duval, Haworthia Duval, Chortolirion A. Berger, and Lomatophyllum Willdenow (Smith and Van Wyk, 1998) [6]. Phylogenetic analyses have revealed a high degree of poly- and paraphyly among these genera (Treutlein et al., 2003; Ramdhani et al., 2011; Daru et al., 2012; Manning et al., 2014; Grace et al., 2015) [7,8,9,10,11]. Lomatophyllum, known as berried-aloes, includes around 14 species from Madagascar and some of the Mascarene Islands. This genus has recently been included in the genus Aloe [6]. Manning et al. (2014) [10] have confirmed the paraphyly of the former genus Aloe and suggested to split it into Aloidendron Klopper & Gideon F.Sm., Kumara Medik., Aloiampelos Klopper & Gideon F.Sm., Aloe, Aristaloe Boatwr. & J.C.Manning and Gonialoe (Baker) Boatwr. & J.C.Manning. The APG IV system (2016) [12] places Aloe and associated genera in the family Asphodelaceae, subfamily Asphodeloideae, one of the three subfamilies of the Xanthorrhoeaceae.
Alooids are characterised by rosulate and succulent leafs and synapomorphies like: Bimodal karyotype with four long and three short chromosomes, hemitropous ovules, a parenchymatous, cap like inner bundle sheath at the phloem poles, 1-methyl-8-hydroxyanthraquinones in the roots and anthrone-C-glycosides in the leaves (Treutlein et al., 2003) [7]. Aloe species are often pollinated by insects and birds but can also be autogamous. Moreover, the widespread occurrence of secondary growth might be added to these characters (Smith and Van Wyk, 1998) [6].
As the largest genus in the Asphodelaceae with approximately 530 species, Aloe has centers of diversity in southern Africa. It occurs widespread in Africa, Arabia, and on several island of the Western Indian Ocean Islands off the east coast of Africa, such as Madagascar, and Socotra (Klopper et al., 2010) [13]. The distribution of Haworthia, Astroloba and Gasteria are similar. The berry fruited Lomatophyllum is limited to Mascarene Islands.
Phylogenetic relationships within alooids have been analysed by sequencing a number of chloroplast and nuclear marker genes. These studies revealed that the genus Aloe, that includes Lomatophyllum, Chortolirion and Haworthia, appeared to be paraphyletic (Treutlein et al., 2003; Ramdhani et al., 2011; Daru et al., 2012; Manning et al., 2014; Grace et al., 2015) [7,8,9,10,11]. The complex generic relationships suggest reticulate evolution and multiple hybridization events (Viljoen, 1999; Ramdhani et al., 2011) [8,14]. Rapid speciation events are especially apparent in the polyphyletic genus Haworthia (Bayer, 1976, 1982, 1999; Treutlein et al., 2003; Ramdhani et al., 2011) [8,15,16,17,18].
With regards to species richness alooids are not alone in the Cape Floristic Region (CFR) (Linder et al., 1992; Sauquet et al., 2009) [19,20], which shows a high degree of endemism including 30% of the succulents plants of the world (Schnitzler et al., 2011) [21]. With the exception of the Karoo flora which diversified as a result of recent radiation during the late Miocene or Pliocene (Verboom et al., 2003 [22], molecular phylogenies indicate that the radiation of several African plant lineages took place over much of the Neogene and had started earlier than the climatic changes in the late Miocene (Bakker et al., 2005; Schrire et al., 2003; Goldblatt et al., 2002) [23,24,25].
Although representatives of the subfamily Asphodeloideae (including Aloeae) are supposed to have been around since the early Cretaceous (Smith and Van Wyk, 1991) [26], only few dated phylogenies has been published for this diverse complex of succulent plants (Grace et al., 2015) [11].
In the current study, we have analysed nucleotide sequences of 77 taxa, comprising all genera of alooids and three genera of non-succulent Asphodeloids. These data are used to carry out an age estimation for the main clades of alooids (including a diversification of Madagascan aloes), using a “relaxed” molecular clock that permits variation of the molecular rate among lineage in two chloroplast markers (trnL-trnF spacer and rbcL) and one highly repeated nuclear ITS region. Since there are many different hypotheses including dispersal and extinction or vicariance and peripheral isolation in the speciation process of aloes, we investigated the hypothesis of vicariance vs. dispersal as explanations for the origin of Madagascan aloes.

2. Materials and Methods

2.1. Taxon Sampling

Data were compiled for 74 species from all succulent genera of alooids including Lomatophyllum (with three individuals each) and for all of these species new sequences for three gene regions were generated. Only three outgroups were additionally obtained from Genbank for non-succulent genera (asphodeloids which are the sister group of alooids) in the subfamily Asphodeloideae (family Xanthorrhoeaceae). Most of Aloe samples were collected from plants of wild provenance kept in the collection of Gariep Plants in Pretoria. Other genera came from the Botanical Garden of Heidelberg University and the Palmengarten in Frankfurt. Details of GenBank accession numbers and DNA voucher specimens which were deposited at IPMB (Heidelberg University) are presented in Table 1.

2.2. Molecular Methods

DNA was isolated from fresh leaves based on a modified CTAB method (Doyle and Doyle, 1990) [28]. Only the epidermal part of the leaves was used in DNA extraction due to large amounts of secondary metabolites in the mucilaginous part. Extracted DNA was dissolved in TE buffer and the concentration was measured by UV spectrophotometry.
The rbcL region was amplified using primers rbcL-N and rbcL-1R (reverse). Polymerase chain reaction (PCR) for rbcL was carried out using the protocol of Treutlein et al. (2003) [7]. A final volume of 50 µL contained 0.5–1 µg DNA, 5 µL 10× PCR buffer, 12.5 pmol primer, 1.5 µL dNTPs (10 mM), 0.75 U Taq polymerase, 1 µL DMSO and 1 µL 20 mg/mL BSA. PCR cycle for rbcL were 2 min at 94 °C, then 30 cycles with 45 s at 94 °C, 90s at 45 °C, 90 s at 72 °C and finally 5 min at 72 °C.
The trnL-F spacer was amplified using trnF and E pair primers (Taberlet et al., 1991) [29]. A final volume of 50 µL contained 0.5–1 µg DNA, 5 µL 10× PCR buffer, 12.5 pmol primer, 1.5 µL dNTPs (10 mM), 0.75 U Taq polymerase and 1 µL 20 mg/mL BSA. The initial denaturation at 94 °C for 2 min was followed by 28 cycles comprising denaturation at 94 °C for 1 min, annealing at 50 °C for 1 min and extension at 72 °C for 2 min and a final extension of 7 min at 72 °C.
The internal transcribed spacer (ITS1 & 2 and 5.8srDNA) regions were amplified with the primers ITS4 and ITS5 of White, et al. [30] and the same PCR protocol of Adams, et al. [31] with addition of 4% DMSO to the PCR reaction. The following PCR was applied: 26 cycles of 97 °C for 1 min, 50 °C for 1 min, and 72 °C for 3 min, followed by a final extension at 72 °C for 7 min.
For sequencing, PCR products were precipitated following Gonzalez, et al. [32]. Sequencing was performed using an ABI 3730 automated capillary sequencer (ThermoFisher Scientific, Darmstadt, Germany) with the ABI Prism Big Dye Terminator Cycle Sequencing Ready Reaction Kit version 3.1 and was carried out by STARSEQ GmbH (Mainz, Germany). Accession number of plants and DNA sequences are provided in Table 1.

2.3. Sequence Editing and Alignment

Non-coding regions such as trnL_F spacer and ITS are known to contain more substitutions than coding sequences and also carry insertions/deletions (indels). A high occurrence of indel mutations of varying lengths makes sequence alignment problematic (Small et al., 2004) [33]. Because of problems confounding alignment of these regions, all alignments were done manually using BioEdit (Hall, 1999) [34] and gaps corresponding to indels were positioned to minimise the number of nucleotide differences among sequences. To facilitate alignment most of problematic regions in terms of alignment were omitted, which resulted in a fragment of 415 bp for trnL_F spacer, 535 bp for ITS region and the final aligned matrix for rbcL was 907 bp long. A sequence alignment can be obtained from the first author on request and sequences are deposited in the GenBank (Table 1).

2.4. Phylogenetic Analyses

Phylogenetic and molecular evolutionary analyses were conducted using MEGA version 7 (Kumar, et al., 2016) [35]. Phylogenetic reconstruction was performed using maximum likelihood (ML) in MEGA v.7 with the Kimura two-parameter model (Kimura 1980) [36]. MEGA7 was used to estimate the best substitution model: Kimura’s two parameter model corrects for multiple hits, taking into account transitional and transversional substitution rates, while assuming that the four nucleotide frequencies are the same and that rates of substitution do not vary among sites. Under a general time reversible nucleotide substitution model (Tavaré, 1986) [37], one thousand inferences were run using among-site rate variation modelled with a gamma distribution. Subsequently, 1000 non-parametric bootstraps were performed under the partition data mode, and bootstrap support values were drawn on the ML tree.
In addition to ML analyses, Bayesian inference (BI) was used implemented in MrBayes v3.2.6 (Ronquist et al., 2012) [38]. To determine the best-fit model of DNA substitution for each loci with Akaike information criterion, MrModeltest v.2.3 [39] was used (for both rbcL and trnL_F: GTR + I + G, and GTR + G for ITS). We used GTR model in MrBayes and BEAST and K2P in MEGA 7 because we wanted to test the consistence between the models. Moreover, K2P is a nested model which is a special case of more general model such as GTR.
Two parallel runs of four chains of the Markov Chain Monte Carlo (MCMC) were executed for 7,000,000 generations, sampled every 1000 generations.
All parameters were stationary after 500,000 generations. All trees prior to the stationary point were discarded as “burn-in” from the compilation of posterior probabilities (PP). Strongly supported clades have posterior probabilities above 0.90. Phylogenetic trees were reconstructed for single and combined gene data and visualised using FigTree v1.3.1 [40].

2.5. Estimating Divergence Times

The estimates of divergence time of alooids were conducted using combined chloroplast and nuclear datasets.
BEAST v1.8. was used for the Bayesian MCMC inferred analyses of the nucleotide sequence data and BEAUti (Bayesian Evolutionary Analysis Utility) v1.6.1 [41] was utilised to generate initial xml files for BEAST.
A Yule (Yule, 1924) [42] process of speciation (‘a pure birth’ process) was used as a tree prior for all the tree model analyses and a relaxed uncorrelated log-normal clock (Drummond et al., 2012) [43] in BEAST v1.8. was applied.
Two independent simultaneous runs of 20,000,000 generations were completed, sampling one out of every 1000 trees in BEAST v 1.8. Log files were tested for ESS estimations with Tracer v1.6. (Rambaut & Drummond 2009) [44], LogCombiner v1.6.1 was used to combine the log files from the independent BEAST runs. Using TreeAnnotator v1.4.8, BEAST trees were summarised with a burn-in value of 25% and mean node heights (BEAUti, LogCombiner, and TreeAnnotator are all part of the BEAST software bundle).
The calibration mean date for the outgroup of alooids in Xanthorrhoeaceae or the genus Bulbine in Asphodeloids (51 Mya) and the date for the root of Xanthorrhoeaceae (61 Mya) used in the current study were taken from Wikström et al. (2001) [45].
Using fossils as calibration points, the ages and error estimates for over 75% of all angiosperm families were calculated in these studies, and these estimations were mainly compatible with the fossil record (Wikström et al., 2001) [45]. Moreover, in a recent revision of the age estimation and diversification of angiosperms using BEAST software (Bell et al., 2010) [46] the age estimation for the most cases overlapped the range published by Wikström et al. (2001) [45].
Since the Bayesian methods produce divergence time estimates which are dependent on priors and the model parameters, we tested the impact of using different settings in BEAST and a normal distribution was also applied with the mean value fixed at 61 Mya and a standard deviation of one.
Moreover, we compared our Bayesian estimates with those made using penalised likelihood approach previously applied in Hyacinthaceae, which is also a family in Asparagales, as described by Buerki et al., 2012 [47].

3. Results

Phylogenetic trees reconstructed from plastid and nuclear data showed almost identical topologies; therefore, the cpDNA and ncDNA datasets were combined. Partition homogeneity test in PAUP* 4.0 Beta was used and the P-value (P = 0.0571) indicates a congruency. Maximum Likelihood and MrBayes analyses recovered almost the same phylogenetic relationships for the combined data set. A ML phylogram is shown in Figure 1 and posterior probability values from MrBayes analysis and ML bootstrap numbers are provided at the nodes in this tree.

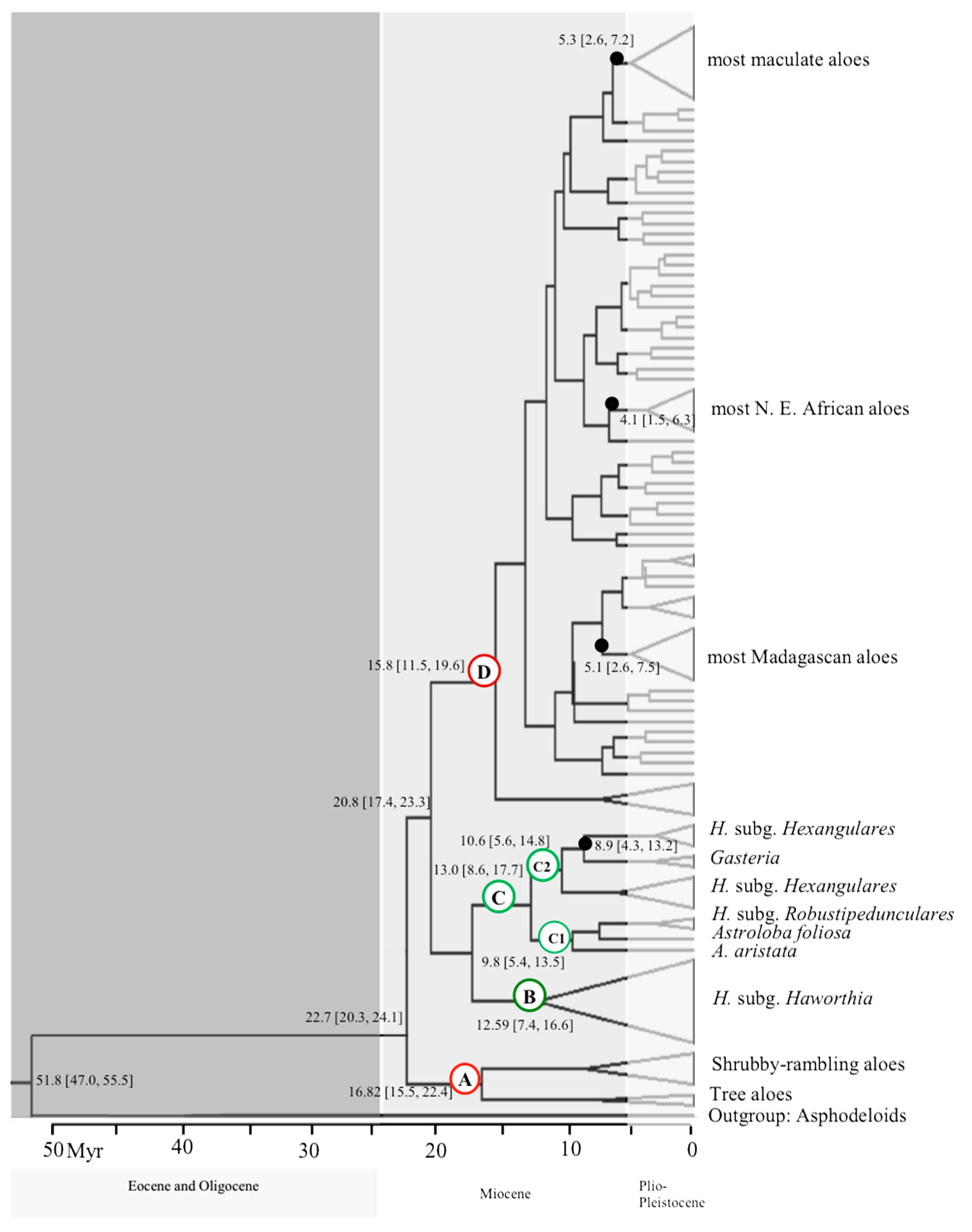

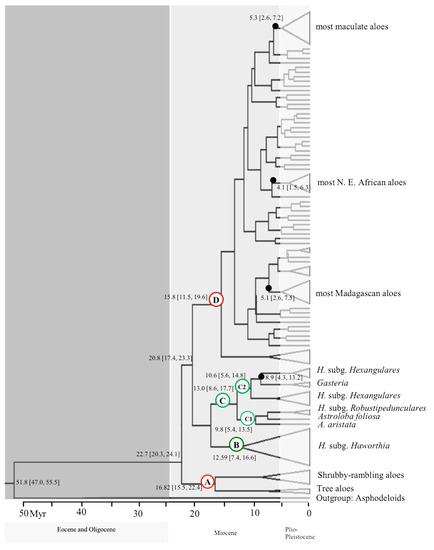

A BEAST analysis was used to reconstruct phylogeny and to estimate divergence times (Figure 2). The mean ages (with 95% HPD intervals) are given for the well supported nodes; similar estimates have also been reported in previous phylogenetic studies (Table 2). The mean coefficients of variation (σγ) under the relaxed clock model accounted for more than 1. This shows that a significant level of rate heterogeneity exists between lineages (Drummond et al., 2007) [48]. The 95% HPD intervals for the evolutionary root age of the outgroups was similar to those of the study of Wikström et al., (2001) [45]. In the combined maximum clade credibility tree obtained from BEAST, the mean age of the root of the tree for non-succulent asphodeloid members of the subfamily Asphodeloideae is about 51.8 (47.0–55.5) Mya. The succulent alooids have split from asphodeloids much later around 22.7 (20.3–24.1) Mya in Early Miocene. The result from penalised likelihood method were similar to the BEAST and the two different setting BEAST analyses provided similar values for node age estimates.
The combined dataset resolved four major clades within alooids labelled A–D in Figure 1 and Figure 2: (A) some tree aloes from Aloe sect. Aliodendron, Dracoaloe and all shrubby aloes from Aloe sect. Macrifoliae (B) Haworthia subg. Haworthia, (C) the ‘Haworthioid’ clades including (C1): Haworthia subg. Robustipedunculares + Astroloba + Poellnitzia + Aloearistata; C2: Haworthia subg. Hexangulares and Gasteria, (D) all other ‘true’ Aloe species including Lomatophyllum.
(A) Shrubby and Tree aloes: In congruence with previous studies (Treutlein et al., 2003; Ramdhani et al., 2011; Daru et al., 2012) [7,8,9]. This group is now regarded as a new genus Aloiampelos Klopper & Gideon F. Sm. (Grace et al., 2015) [11]. Similarly, the tree aloes have been elevated to generic rank, as Aloidendron (A. Berger) Klopper & Gideon F. Sm. for the species with branched stems and rosulate leaves.
(B) Haworthia subgen. Haworthia: In the present study and in all previous phylogenetic reconstructions (Treutlein et al., 2003; Ramdhani et al., 2011; Daru et al., 2012; Manning et al., 2014) [7,8,9,10] these acaulescent Haworthias have always grouped as a monophylum with a high bootstrap and posterior probability values (PP = 1; BS = 99%). Although the mean age of the stem of this monophyletic group is about 12.59 (7.4–16.6) Mya (Table 2), the youngest well supported node amongst all Haworthias can be found in this subgenus with a mean age of about 1.81 (0.03–4.5) Mya.
(C) Haworthioids: The mean age of the stem node for two other subgenera in Haworthia and other small leaf rosulate taxa (Astroloba and Aloe aristata) is about 13.0 (8.6–17.7) Mya.
(C1) Haworthia subgen. Robustipedunculares, Astroloba and Aloe aristata: This clade displays almost the same topology (posterior probability; PP = 1) in the current and most previous studies (Ramdhani et al., 2011; Daru et al., 2012; Manning et al., 2014) [8,9,10] as a monophyletic sister clade to the other taxa of the subgenus Haworthia and Gasteria (clade C2).
This clade diverged around 9.8 (5.4–13.5) Mya; the divergence time of the well supported monophyletic members of Haworthia subgen. Robustipedunculares is in the late Miocene about 7.78 (3.8–11.4) Mya. These groups have now been raised to generic rank (or reinstated as genera), namely Tulista Raf. (for H. subgen. Robustipedunculares) and the monotypic Aristaloe Boatwr. & J.C. Manning (to accomodate Aloe aristata) (Manning et al., 2014) [10].
(C2) Haworthia subgen. Hexangulares and Gasteria: This clade includes a heterogeneous group of Haworthias from the subgenus Hexangulares which is apparently polyphyletic (Ramdhani et al., 2011; Daru et al., 2012; Manning et al., 2014) [8,9,10] as a sister clade of a strongly supported monophyletic Gasteria with a weak posterior probability (PP = 0.80; BS = 60). It has diverged around 10.6 (5.6–14.8) Mya from the other subclade of Haworthioids. The well supported monophyletic Gasteria diverged around 8.9 (4.3–13.2) Mya from Haworthia subgen. Hexangulares, which is now treated as the genus Haworthiopsis G.D. Rowley (Rowley 2013; Manning et al., 2014) [10,49].
(D) True aloes and Lomatophyllum: The rest of the species of aloes including some tree aloes were found to be in one clade (PP = 0.90; BS = 69%), which diverged about 15.8 (11.5–19.6) Mya. Only some internal groups are possibly monophyletic. For example, most samples from Yemen and North East Africa appeared in a single clade with moderate support value (PP = 0.90; BS = 59%) which has diverged only 4.1 (1.5–6.3) Mya. Moreover, most Madagascan aloes were found in a poorly supported internal clade of aloes with stem node divergence time about 5.3 (2.6–7.2) Mya. Lomatophylum is unlikely to be monophyletic.

4. Discussion

4.1. Formation of Arid Habitats in Africa

A combination of the post African І erosion cycle (5–24 Mya), Post African ІІ uplift event at the Pliocene and the glacial-interglacial cycles in the Pleistocene triggered a rapid speciation of many southern African plants (Siesser, 1978; Goldblatt, 1997) [50,51]. Through the Miocene (5.5–24 Mya) arid habitats became abundant in Africa (Coetzee, 1993; Axelrod and Raven, 1978) [52,53]. In this period falls the divergence of succulent alooids (22.7 Mya), corresponding with the diversification of many other South African lineages such as Iridaceae (Goldblatt and Manning, 2002) [25], Pelargonium (Bakker et al., 2005) [23], and Ehrharta (Verboom et al., 2003) [22].
The mid-Miocene Climatic Optimum (ca. 15 Mya) has led to the development of wide open ecosystems and the start of the radiation of the present hyperdiverse clades of the Cape flora. Moreover, the aridity of Southwestern Africa increased around 14 Mya (Siesser, 1978) [50] through the development of the proto-Benguela current off the coast of SW Africa as a result of the spread of the Antarctic ice sheet. This event led to the radiation of succulent life forms (Goldblatt, 1997) [51], among them alooids.

4.2. Divergence in Aloes

An early divergence of shrubby aloes (or their ancestors) around 16.82 (15.5–22.4) Mya had already been suggested by Holland (1978) [54], who had supposed that these succulents represent the original ancient lineage for other aloes during the desertification of Africa.
The early occurrence of fynbos aloes such as Aloe commixta and Aloe juddii (or their ancestors) is in good agreement with the age of many fynbos endemic lineages such as the African Restionaceae (Linder and Hardy, 2004) [55], Moraea (Goldblatt et al., 2002) [56], Muraltia (Forest et al., 2007) [57], Ehrharta (Bouchenak-Khelladi, 2007) [58], Schoeneae (Bremer, 2002) [59], and Zygophyllum (Verboom et al., 2003) [22]. It is remarkable that the divergence of these fire tolerant (Van Wyk and Smith, 2003) [60] rambling aloes agree with the age of the fynbos flora sensu Goldblatt P. and J.C. (2000) [61] in the Early Miocene, ca. 19.5 Mya.
Despite the assumption of an early radiation in southern Africa around the Early Miocene or earlier, most modern African species have radiated in contemporary climatic conditions and have evolved during the Pliocene–Pleistocene (Linder, 1992) [19]. A second Pliocene uplift event in Africa (Partridge and Maud, 2000) [62] caused extensive aridification by changing the ocean currents (Krammer et al., 2006) [63]; this was a period of rapid speciation in many clades such as in Phylica (Richardson et al., 2001) [64], semi-desert ice plants (Aizoaceae) (Klak et al., 2004) [65] and Gladiolus (Rymer et al., 2010) [66]. The estimated mean crown age of many nodes within alooids also fall in this period (around 5 Mya).
From 2.5 Mya (i.e., the Quaternary) onwards, the climatic instability associated with glacial-interglacial cycles in the Northern hemisphere stimulated further diversification in South Africa (Cowling et al., 2009) [67]. The extensive speciation of many plants such as Kniphofia (Bakker et al., 2005) [23] and Haworthia subgen. Haworthia (Bayer, 1999) [17] falls in this period. Although the Haworthias diverged in the mid-Miocene, the youngest internal nodes within alooids are found in this group. This may be considered as further evidence for the recent speciation with in this subgenus of Haworthia as postulated by Ramdhani and co-workers (2011) [8]. The results of Manning et al. (2014) [10] confirm an early separation of the clade.

4.3. Divergence on Madagascar

A high diversity of Aloe and Lomatophyllum species was detected on Madagascar which represents the “hottest hotspot” of biodiversity of plants species of the world (Myers et al., 2000) [68]. Only grass aloes have not been found there (Reynolds, 1966) [69]. The oldest node age estimation for aloes from Madagascar (5.1 Mya) is in early Pliocene and apparently much later than the separation of this island during Gondwana from both the mainland of Africa (165–121 Mya) and India (88–63 Mya).
The divergence time of most Madagascan aloes correspond with other greatly diverse plants in Madagascar such as scaly tree ferns (Janssen et al, 2008) [70] and Indian Ocean Daisy Trees (Psiadia) (Strijk et al, 2012) [71]. Due to climatic alternations in the Pliocene (Coetzee, 1993) [52] resulting in habitat disintegration and repetitive decrease and increase of limited forest refugia, it has been assumed that these plants experienced fast geographical parallel diversification spurts in Madagascar. Our findings in aloes support the hypothesis that the Africa-Madagascan divergence is best explained by oceanic long-distance dispersal rather than ancient vicariance.

4.4. Speciation Processes in Aloes

Despite the strong influence of climate on plant diversification, it is very unlikely that climate alone is the cause for these levels of plant diversification especially in Cape Flora (Goldblatt and Manning, 2002) [25]. It has been proposed that speciation and endemism in alooids are associated with many other factors. Most species of alooids occur in extremely restricted areas, which are naturally isolated, thus showing a ‘mosaic distribution’ (Holland, 1978) [54]. It is assumed that specific microclimatic preferences of species had enhanced endemism in aloes (Kamstra, 1971) [72]. Therefore, the drivers of high endemism and speciation of alooids were mainly sought in mechanisms that lead to geographically isolated populations, and so to allopatric speciation (Schluter, 2001) [73]. From several proposed selective forces, a speciation in alooids might have been driven by a change of pollinators as well as by a slight differentiation in flowering times permitting the survival of new forms which enable a greater number of Aloe species to coexist (Rowley, 1976; Botes et al., 2008) [74,75].
In the Cape flora (including Aloe), parapatric sister-species limited to the diverse territories are known as a result of edaphic specialization (Goldblatt et al., 2001; Kurzweil et al., 1991) [76,77], leading to different life forms or ecomorphotypes that are described as different species today (Holland, 1978) [54].
Even though the real biological traits that have influenced speciation of alooids are unclear at this stage, the hypothesis of contemporary speciation and ongoing hybridization (Ramdhani et al. 2011) [8] in non-monophyletic genera of alooids (such as Haworthia sensu lato) should also be considered as an explanation for the complex taxonomy and the abundance of habitat restricted species.

5. Conclusions

In conclusion, although age estimations are dependent on fossil calibrations and monocots do not fossilise well, we hope that this phylogenetic study of alooids, in which we aimed to sample most sections of Aloe and many of its allied genera, will throw light on the causes of the high diversity in alooids and the timing of their speciation. We suggest that future studies focus on increased taxon sampling to conclude more comprehensive age estimates for this important group of African succulents.

Author Contributions

M.W. and Z.K. conceived and designed the experiments; Z.K. performed the experiments and analysed the data; M.W. and B.-E.V.W. contributed materials/analysis tools and revised the ms; Z.K. wrote the paper.

Funding

DAAD funded a PhD fellowship of Z.K.

Acknowledgments

Z.K. thanks the DAAD for a PhD fellowship.

Conflicts of Interest

The authors declare no conflict of interest. The founding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the results.

References

  1. Dahlgren, R.M.T.; Clifford, H.T.; Yeo, P.F. The Families of the Monocotyledons: Structure, Evolution, and Taxonomy; Springer: Berlin, Germany, 1985. [Google Scholar]
  2. Smith, G.F.; Steyn, E.M.A.; Victor, J.E.; Crouch, N.R.; Golding, J.; Hilton-Taylor, C. The conservation status of Aloe in South Africa: An updated synopsis. Bothalia 2000, 30, 206–211. [Google Scholar]
  3. Van Wyk, B.-E.; Wink, M. Medicinal Plants of the World, 2nd ed.; CABI: Wallingford, UK, 2017. [Google Scholar]
  4. Oldfield, S.A. Review of significant trade: East African Aloes. In Document 9.2.2, Annex 4, Proceedings of the 14th Meeting of the CITES Plants Committee, Windhoek Namibia, 16–20 February 2004; Convention on International Trade in Endangered Species of Wild Fauna and Flora (CITES): Geneva, Switzerland, 2004. [Google Scholar]
  5. Linnaeus, C. Species Plantarum 1; Laurentius Salvius: Stockholm, Sweden, 1753; p. 319. [Google Scholar]
  6. Smith, G.F.; Van Wyk, B.-E. Asphodelaceae. In The Families and Genera of Vascular Plants 3. Monocotyledons. Lilianae (except Orchidaceae); Kubitzki, K., Ed.; Springer: Berlin, Germany, 1998; pp. 130–140. [Google Scholar]
  7. Treutlein, J.; Smith, G.F.; van Wyk, B.E.; Wink, M. Phylogenetic relationships in Asphodelaceae (subfamily Alooideae) inferred from chloroplast DNA sequences (rbcL, matK) and from genomic fingerprinting (ISSR). Taxon 2003, 52, 193–207. [Google Scholar] [CrossRef]
  8. Ramdhani, S.; Barker, N.P.; Cowling, R.M. Revisiting monophyly in Haworthia Duval (Asphodelaceae): Incongruence, hybridization and contemporary speciation. Taxon 2011, 60, 1001–1014. [Google Scholar]
  9. Daru, B.H.; Manning, J.C.; Boatwright, J.S.; Maurin, O.; Maclean, N.; Schaefer, H.; Kuzmina, M.; van der Bank, M. Molecular and morphological analysis of subfamily Alooideae (Asphodelaceae) and the inclusion of Chortolirion in Aloe. Taxon 2012, 62, 62–76. [Google Scholar]
  10. Manning, J.; Boatwright, J.S.; Daru, B.H.; Maurin, O.; van der Bank, M. A molecular phylogeny and generic classification of Asphodelaceae subfamily Alooideae: A final resolution of the prickly issue of polyphyly in the Alooids? Syst. Bot. 2014, 39, 55–74. [Google Scholar] [CrossRef]
  11. Grace, O.M.; Buerki, S.; Symonds, M.R.; Forest, F.; van Wyk, A.E.; Smith, G.F.; Klopper, R.R.; Bjorå, C.S.; Neale, S.; Demissew, S.; et al. Evolutionary history and leaf succulence as explanations for medicinal use in aloes and the global popularity of Aloe vera. BMC Evol. Biol. 2015. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. The Angiosperm Phylogeny Group; Chase, M.W.; Christenhusz, M.J.M.; Fay, M.F.; Byng, J.W.; Judd, W.S.; Soltis, D.E.; Mabberley, D.J.; Sennikov, A.N.; Soltis, P.S.; et al. An update of the Angiosperm Phylogeny Group classification for the orders and families of flowering plants: APG IV. Bot. J. Linn. Soc. 2016, 181, 1–20. [Google Scholar] [Green Version]
  13. Klopper, R.R.; van Wyk, A.E.; Smith, G.F. Phylogenetic relationships in the family Asphodelaceae (Asparagales). Biodivers. Ecol. 2010, 3, 9–36. [Google Scholar]
  14. Viljoen, A.M. Chemotaxonomic Study of Phenolic Leaf Compounds in the Genus Aloe; Rand Afrikaans University (now University of Johannesburg): Johannesburg, South Africa, 1999. [Google Scholar]
  15. Bayer, M.B. Haworthia Handbook; Kirstenbosch National Botanic Gardens: Cape Town, South Africa, 1976. [Google Scholar]
  16. Bayer, M.B. The New Haworthia Handbook; Kirstenbosch National Botanic Gardens: Cape Town, South Africa, 1982. [Google Scholar]
  17. Bayer, M.B. Haworthia Revisited: A Revision of the Genus; Umdaus Press: Hatfield, UK, 1999. [Google Scholar]
  18. Treutlein, J.; Smith, G.F.; van Wyl, B.E.; Wink, M. Evidence for the polyphyly of Haworthia (Asphodelaceae subfamily Alooideae; Asparagales) inferred from nucleotide sequences of rbcL, matK, ITS1 and genomic fingerprinting with ISSR-PCR. Plant Biol. 2003, 5, 513–521. [Google Scholar] [CrossRef]
  19. Linder, H.P.; Meadows, M.E.; Cowling, R.M. The ecology of fynbos: Nutrients, fire and diversity. In History of the Cape Flora; Cowling, R.M., Ed.; Oxford University Press: Oxford, UK, 1992; pp. 113–134. [Google Scholar]
  20. Sauquet, H.; Weston, P.H.; Anderson, C.L.; Barker, N.P.; Cantrill, D.J.; Mast, A.R.; Savolainen, V. Contrasted patterns of hyperdiversification in Mediterranean hotspots. Proc. Natl. Acad. Sci. USA 2009, 106, 221–225. [Google Scholar] [CrossRef] [PubMed]
  21. Schnitzler, J.; Barraclough, T.G.; Boatwright, J.S.; Goldblatt, P.; Manning, J.C.; Powell, M.P.; Rebelo, T.; Savolainen, V. Causes of plant diversification in the Cape biodiversity hotspot of South Africa. Syst. Biol. 2011, 60, 343–357. [Google Scholar] [CrossRef] [PubMed]
  22. Verboom, G.A.; Linder, H.P.; Stock, W.D. Phylogenetics of the grass genus Ehrharta: Evidence for radiation in the summer-arid zone of the South African Cape. Evolution 2003, 57, 1008–1021. [Google Scholar] [CrossRef] [PubMed]
  23. Bakker, F.T.; Culham, A.; Marais, E.; Gibby, M. Nested radiation in Cape Pelargonium. In Plant Species-Level Systematics: New Perspectives on Pattern & Process; Bakker, F.T., Chatrou, L.W., Gravendeel, B., Pelser, P.B., Eds.; Koeltz: Königstein, Germany, 2005; pp. 75–100. [Google Scholar]
  24. Schrire, B.D.; Lavin, M.; Barker, N.P.; Cortes-Burns, H.; von Senger, I.; Kim, J.-H. Towards a phylogeny of Indigofera (Leguminosae-Papilionoideae): Identification of major clades and relative ages. In Advances in Legume Systematics, Part 10, Higher Level Systematics; Klitgaard, B.B., Bruneau, A., Eds.; Royal Botanic Gardens, Kew: London, UK, 2003; pp. 269–302. [Google Scholar]
  25. Goldblatt, P.; Manning, J.C. Plant diversity of the Cape region of southern Africa. Ann. MO. Bot. Gard. 2002, 89, 281–302. [Google Scholar] [CrossRef]
  26. Smith, G.F.; van Wyk, B.-E. Generic relationships in the Alooideae (Asphodelaceae). Taxon 1991, 40, 557–581. [Google Scholar] [CrossRef]
  27. Carter, S.; Lavranos, J.J.; Newton, L.E.; Walker, C.C. Aloes: The Definitive Guide; Kew Publishing, Royal Botanic Gardens Kew: London, UK, 2011. [Google Scholar]
  28. Doyle, J.J.; Doyle, J.L. Isolation of plant DNA from fresh tissue. Focus 1990, 12, 13–15. [Google Scholar]
  29. Taberlet, P.; Gielly, L.; Patou, G.; Bouvet, J. Universal primers for amplification of three noncoding regions of chloroplast DNA. Plant Mol. Biol. 1991, 17, 1105–1109. [Google Scholar] [CrossRef] [PubMed]
  30. White, T.J.; Bruns, T.D.; Lee, S.; Taylor, J. Amplification and direct sequencing of fungal ribosomal RNA genes for phylogenetics. In PCR Protocols, a Guide to Methods and Applications; Innis, M.A., Gelfand, D.H., Sninsky, J.J., White, T.J., Eds.; Academic Press: San Diego, CA, USA, 1990; pp. 315–322. [Google Scholar]
  31. Adams, S.P.; Leitch, I.J.; Bennett, M.D.; Chase, M.W.; Leitch, A.R. Ribosomal DNA evolution and phylogeny in Aloe (Asphodelaceae). Am. J. Bot. 2000, 87, 1578–1583. [Google Scholar] [CrossRef] [PubMed]
  32. Gonzalez, J.; Wink, M.; Garcia-del-Rey, E.; Delgado, G. Evidence from DNA nucleotide sequences and ISSR profiles indicates paraphyly in subspecies of the Southern Grey Shrike (Lanius meridionalis). J. Ornithol. 2008, 149, 495–506. [Google Scholar] [CrossRef]
  33. Small, R.; Cronn, R.; Wendel, J. Use of nuclear genes for phylogeny reconstruction in plants. Aust. Syst. Bot. 2004, 17, 145–170. [Google Scholar] [CrossRef]
  34. Hall, T.A. BioEdit: A user-friendly biological sequence alignment editor and analysis. In Nucleic Acids Symposium Series; Information Retrieval Ltd.: London, UK, 1999. [Google Scholar]
  35. Kumar, S.; Stecher, G.; Tamura, K. MEGA7: Molecular Evolutionary Genetics Analysis version 7.0 for bigger datasets. Mol. Biol. Evol. 2016, 33, 1870–1874. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Kimura, M. A simple method for estimating evolutionary rates of base substitutions through comparative studies of nucleotide sequences. J. Mol. Evol. 1980, 16, 111–120. [Google Scholar] [CrossRef] [PubMed]
  37. Tavaré, S. Some probabilistic and statistical problems in the analysis of DNA sequences. In Some Mathematical Questions in Biology: DNA Sequence Analysis; Waterman, M.S., Ed.; American Mathematical Society: Providence, RI, USA, 1986; pp. 57–86. [Google Scholar]
  38. Ronquist, F.; Teslenko, M.; van der Mark, P.; Ayres, D.L.; Darling, A.; Höhna, S.; Larget, B.; Liu, L.; Suchard, M.A.; Huelsenbeck, J.P. MrBayes 3.2: Efficient Bayesian phylogenetic inference and model choice across a large model space. Syst. Biol. 2012, 61, 539–542. [Google Scholar] [CrossRef] [PubMed]
  39. Nylander, J.A.A. MrModeltest: Program Distributed by the Author; Evolutionary Biology Centre, Uppsala University: Uppsala, Sweden, 2004. [Google Scholar]
  40. Rambaut, A. FigTree v1.2.3; Institute of Evolutionary Biology, University of Edinburgh: Edinburgh, UK, 2009. [Google Scholar]
  41. Drummond, A.; Rambaut, A.; Xie, W. (2002–2010) BEAUTI-Bayesian Evolutionary Analysis Utility Version v1.6.1. Available online: http://beast.bio.ed.ac.uk (accessed on 31 May 2012).
  42. Yule, G.U. A mathematical theory of evolution, based on the conclusions of Dr. JC Wills, FRS. Philos. Trans. R. Soc. Lond. Ser. B 1924, 213, 21–87. [Google Scholar] [CrossRef]
  43. Drummond, A.J.; Suchard, M.A.; Xie, D.; Rambaut, A. Bayesian phylogenetics with BEAUti and the BEAST 1.7. Mol. Biol. Evol. 2012, 29, 1969–1973. [Google Scholar] [CrossRef] [PubMed]
  44. Rambaut, A.; Drummond, A.J. Tracer: Version 1.5. Available online: http://beast.bio.ed.ac.uk/Tracer (accessed on 31 May 2012).
  45. Wikström, N.; Savolainen, V.; Chase, M.W. Evolution of the angiosperms: Calibrating the family tree. Proc. R. Soc. Lond. 2001, 268, 2211–2220. [Google Scholar] [CrossRef] [PubMed]
  46. Bell, C.; Soltis, D.; Soltis, P. The age and diversification of the angiosperms re-revisited. Am. J. Bot. 2010, 97, 1296–1303. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Buerki, S.; Jose, S.; Yadav, S.R.; Goldblatt, P.; Manning, J.C.; Forest, F. Contrasting biogeographic and diversification patterns in two Mediterranean-type ecosystems. PLoS ONE 2012, 7, e39377. [Google Scholar] [CrossRef] [PubMed]
  48. Drummond, A.; Ho, S.; Rawlence, N.; Rambaut, A. A Rough Guide to BEAST 1.4; BEAST Version 1.61 Manual; University of Edinburgh: Edinburgh, Scotland, 2007. [Google Scholar]
  49. Rowley, G.D. Generic concepts in the Alooideae 3: The phylogenetic story. Alsterworth. Int. Spec. Issue 2013, 10, 1–7. [Google Scholar]
  50. Siesser, W.G. Aridification of the Namib Desert: Evidence from oceanic cores. In Antarctic Glacial History and World Palaeoenvironments; van Zinderen Bakker, E.M., Ed.; Balkema: Rotterdam, the Netherlands, 1978; pp. 105–113. [Google Scholar]
  51. Goldblatt, P. Floristic diversity in the Cape flora of South Africa. Biodivers. Conserv. 1997, 6, 359–377. [Google Scholar] [CrossRef]
  52. Coetzee, J. African flora since the terminal Jurassic. In Biological Relationships between Africa and South America; Goldblatt, P., Ed.; Yale University Press: New Haven, CT, USA, 1993; pp. 37–61. [Google Scholar]
  53. Axelrod, D.I.; Raven, P.H. Late Cretaceous and Tertiary vegetation history of Africa. In Biogeography and Ecology of southern Africa; Werger, M.J.A., Ed.; Junk: The Hague, The Netherlands, 1978. [Google Scholar]
  54. Holland, P.G. An evolutionary biogeography of the genus Aloe. J. Biogeogr. 1978, 5, 213–226. [Google Scholar] [CrossRef]
  55. Linder, H.P.; Hardy, C.R. Evolution of the species-rich Cape flora. Philos. Trans. R. Soc. Lond. B Biol. Sci. 2004, 359, 1623–1632. [Google Scholar] [CrossRef] [PubMed]
  56. Goldblatt, P.; Savolainen, V.; Porteous, O.; Sostaric, I.; Powell, M.; Reeves, G.; Manning, J.C.; Barraclough, T.G.; Chase, M.W. Radiation in the Cape flora and the phylogeny of peacock irises Moraea (Iridaceae) based on flour plastid DNA regions. Mol. Phylogenet. Evol. 2002, 25, 341–360. [Google Scholar] [CrossRef]
  57. Forest, F.; Nänni, I.; Chase, M.W.; Crane, P.R.; Hawkins, J.A. Diversification of a large genus in a continental biodiversity hotspot: Temporal and spatial origin of Muraltia (Polygalaceae) in the Cape of South Africa. Mol. Phylogenet. Evol. 2007, 43, 60–74. [Google Scholar] [CrossRef] [PubMed]
  58. Bouchenak-Khelladi, Y. Grass evolution and diversification: A phylogenetic approach. Ph.D. Thesis, University of Dublin, Dublin, Ireland, 2007. [Google Scholar]
  59. Bremer, K. Gondwanan evolution of the grass alliance of families (Poales). Evolution 2002, 56, 1374–1387. [Google Scholar] [CrossRef] [PubMed]
  60. Van Wyk, B.E.; Smith, G.F. Guide to aloes of South Africa; Briza Publications: Pretoria, South Africa, 2003. [Google Scholar]
  61. Goldblatt, P.; Manning, J.C. New species of Moraea (Iridaceae-Iridoideae) from southern Africa. Novon 2000, 10, 14–21. [Google Scholar] [CrossRef]
  62. Partridge, T.C.; Maud, R.R. Macro-scale geomorphic evolution of Southern Africa. In The Cenozoic of Southern Africa; Partridge, T.C., Maud, V., Eds.; Oxford University Press: Oxford, UK, 2000; pp. 3–18. [Google Scholar]
  63. Krammer, R.; Baumann, K.H.; Hennich, R. Middle to late Miocene fluctuations in the incipient Benguela Upwelling System revealed by calcareous nannofossil assemblages. Palaeogeogr. Palaeoclimatol. Palaeoecol. 2006, 230, 319–334. [Google Scholar] [CrossRef]
  64. Richardson, J.E.; Pennington, R.T.; Pennington, T.D.; Hollingsworth, P.M. Rapid diversification of a species-rich genus of neotropical rain forest trees. Science 2001, 293, 2242–2245. [Google Scholar] [CrossRef] [PubMed]
  65. Klak, C.; Reeves, G.; Hedderson, T.A. Unmatched tempo of evolution in Southern African semi-desert ice plants. Nature 2004, 427, 63–65. [Google Scholar] [CrossRef] [PubMed]
  66. Rymer, P.; Manning, J.; Goldblatt, P.; Powell, M.; Savolainen, V. Evidence of recent and continuous speciation in a biodiversity hotspot: A population genetic approach in southern African gladioli (Gladiolus; Iridaceae). Mol. Ecol. 2010, 19, 4765–4782. [Google Scholar] [CrossRef] [PubMed]
  67. Cowling, R.M.; Procheş, Ş.; Partridge, T.C. Explaining the uniqueness of the Cape flora: Incorporating geomorphic evolution as a factor for explaining its diversification. Mol. Phylogenet. Evol. 2009, 51, 64–74. [Google Scholar] [CrossRef] [PubMed]
  68. Myers, N.; Mittermeier, R.A.; Mittermeier, C.G.; da Fonseca, G.A.B.; Kent, J. Biodiversity hotspots for conservation priorities. Nature 2000, 403, 853–858. [Google Scholar] [CrossRef] [PubMed]
  69. Reynolds, G.W. The Aloes of Tropical Africa and Madagascar; The Aloes Book Fund: Mbabane, Swaziland, 1966. [Google Scholar]
  70. Janssen, T.; Bystriakova, N.; Rakotondrainibe, F.; Coomes, D.; Labat, J.N.; Schneider, H. Neoendemism in Madagascan Scaly Tree Ferns results from recent coincident diversification bursts. Evolution 2008, 62, 1876–1889. [Google Scholar] [CrossRef] [PubMed]
  71. Strijk, J.S.; Noyes, R.D.; Strasberg, D.; Cruaud, C.; Gavory, F.; Chase, M.W.; Abbott, R.J.; Thebaud, C. Correction: In and out of Madagascar: Dispersal to peripheral islands, insular speciation and diversification of Indian Ocean Daisy Trees (Psiadia, Asteraceae). PLoS ONE 2013, 8. [Google Scholar] [CrossRef]
  72. Kamstra, M.W. Aloe seeds. Excelsa 1971, 1, 19–26. [Google Scholar]
  73. Schluter, D. Ecology and the origin of species. Trends Ecol. Evol. 2001, 16, 372–380. [Google Scholar] [CrossRef]
  74. Rowley, G.D. Generic concepts in the Aloineae. Natl. Cactus Succul. J. 1976, 31, 26. [Google Scholar]
  75. Botes, C.; Johnson, S.D.; Cowling, R.M. Coexistence of succulent tree aloes: Partitioning of bird pollinators by floral traits and flowering phenology. Oikos 2008, 117, 875–882. [Google Scholar] [CrossRef]
  76. Goldblatt, P.; Manning, J.; Bernhardt, P. Radiation of pollination systems in Gladiolus (Iridaceae: Crocoideae) in Southern Africa. Ann. MO. Bot. Gard. 2001, 88, 713–734. [Google Scholar] [CrossRef]
  77. Kurzweil, H.; Linder, H.P.; Chesselet, P. Phylogeny and evolution of the Pterygodium—Corycium complex. Plant Syst. Evol. 1991, 175, 161–223. [Google Scholar] [CrossRef]
Diversity 10 00060 g001 550

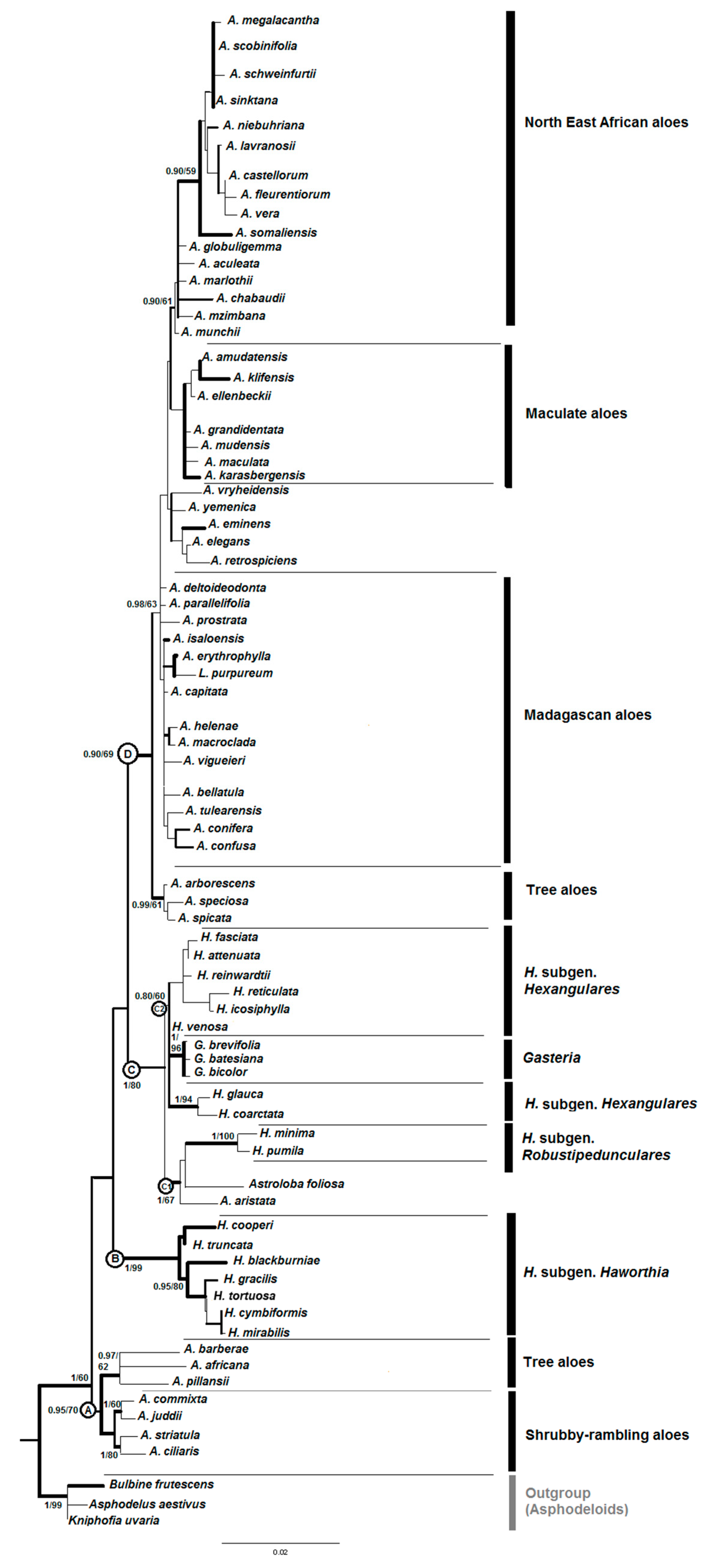

Figure 1. Phylogeny reconstruction of aloes using ML. Numbers at nodes in the ML phylogram refer to posterior probability values from MrBayes and ML bootstrap analyses. The branches in bold indicate a Bayesian posterior probability >0.95. Major lineages are highlighted by the letters A to D: (A) Shrubby and Tree aloes, (B) Haworthia subgen. Haworthia, (C) Haworthioids, (C1) Haworthia subgen. Robustipedunculares, Astroloba and Aloe aristata, (C2) Haworthia subgen. Hexangulares and Gasteria, (D) True aloes and Lomatophyllum.
Figure 1. Phylogeny reconstruction of aloes using ML. Numbers at nodes in the ML phylogram refer to posterior probability values from MrBayes and ML bootstrap analyses. The branches in bold indicate a Bayesian posterior probability >0.95. Major lineages are highlighted by the letters A to D: (A) Shrubby and Tree aloes, (B) Haworthia subgen. Haworthia, (C) Haworthioids, (C1) Haworthia subgen. Robustipedunculares, Astroloba and Aloe aristata, (C2) Haworthia subgen. Hexangulares and Gasteria, (D) True aloes and Lomatophyllum.
Diversity 10 00060 g001
Diversity 10 00060 g002 550
Figure 2. Estimation of divergence times in alooids. The combined maximum clade credibility tree was obtained from BEAST v1.8. Major lineages are highlighted by the letters A to D: (A) Shrubby and Tree aloes, (B) Haworthia subgen. Haworthia, (C) Haworthioids, (C1) Haworthia subgen. Robustipedunculares, Astroloba and Aloe aristata, (C2) Haworthia subgen. Hexangulares and Gasteria, (D) True aloes and Lomatophyllum.
Figure 2. Estimation of divergence times in alooids. The combined maximum clade credibility tree was obtained from BEAST v1.8. Major lineages are highlighted by the letters A to D: (A) Shrubby and Tree aloes, (B) Haworthia subgen. Haworthia, (C) Haworthioids, (C1) Haworthia subgen. Robustipedunculares, Astroloba and Aloe aristata, (C2) Haworthia subgen. Hexangulares and Gasteria, (D) True aloes and Lomatophyllum.
Diversity 10 00060 g002
Table
Table 1. Origins of samples. List of specimens, distribution of plant samples, morphological information, number in the herbarium of the Institute of Pharmacy and Molecular Biotechnology (IPMB) and GenBank accession numbers (from our own sequence analyses) listed in this order: rbcL, trnL_F and ITS. Aloe life forms are according to Carter et al. (2011) [27]: A = grass aloes, B = maculate aloes, C = stemless aloes (in small clumps, flower stems few-branched), D = stemless aloes (in small clumps, flower stems multi-branched), E = stemless aloes (in large clumps, flower stems few-branched), F = stemless aloes (in large clumps, flower stems multi-branched), G = pendulous or sprawling aloes, H = shrubby aloes (flower stems few-branched), I = shrubby aloes (flower stems multi-branched), J = tree aloes. Subgeneric classification of Haworthia is based on Bayer (1999) [17]: HA = subgenus Haworthia, HE = subgenus Hexangulares and RO = subgenus Robustipendunculares. Distribution abbreviations: SA = South Africa, Uga = Uganda, Mad = Madagascar, Mal = Malawi, Ken = Kenya, Yem = Yemen, Moz = Mozambique, Zim = Zimbabwe, Tan = Tanzania, Sud = Sudan, Eth = Ethiopia, Som = Somalia, Zam = Zambia, Bot = Botswana, Ang = Angola, Zan = Zanzibar, Swa = Swaziland, Eri = Eritrea, Nam = Namibia, Oma = Oman.
Table 1. Origins of samples. List of specimens, distribution of plant samples, morphological information, number in the herbarium of the Institute of Pharmacy and Molecular Biotechnology (IPMB) and GenBank accession numbers (from our own sequence analyses) listed in this order: rbcL, trnL_F and ITS. Aloe life forms are according to Carter et al. (2011) [27]: A = grass aloes, B = maculate aloes, C = stemless aloes (in small clumps, flower stems few-branched), D = stemless aloes (in small clumps, flower stems multi-branched), E = stemless aloes (in large clumps, flower stems few-branched), F = stemless aloes (in large clumps, flower stems multi-branched), G = pendulous or sprawling aloes, H = shrubby aloes (flower stems few-branched), I = shrubby aloes (flower stems multi-branched), J = tree aloes. Subgeneric classification of Haworthia is based on Bayer (1999) [17]: HA = subgenus Haworthia, HE = subgenus Hexangulares and RO = subgenus Robustipendunculares. Distribution abbreviations: SA = South Africa, Uga = Uganda, Mad = Madagascar, Mal = Malawi, Ken = Kenya, Yem = Yemen, Moz = Mozambique, Zim = Zimbabwe, Tan = Tanzania, Sud = Sudan, Eth = Ethiopia, Som = Somalia, Zam = Zambia, Bot = Botswana, Ang = Angola, Zan = Zanzibar, Swa = Swaziland, Eri = Eritrea, Nam = Namibia, Oma = Oman.
IPMB NumberTaxonDistributionAloe Life Forms & Haworthia SubgeneraGenBank Accession Numbers
P4716Aloe arborescens Mill.SAJKF013362, KF013435, KF013255
P7612Aloe aculeata Pole-EvansSADKF013363, KF013436, KF013256
P7613Aloe africana Mill.SAJKF013364, KF013437, KF013257
P7615Aloe aristata Haw.SAFAY323634, KF013438, KF013258
P7614Aloe amudatensis ReynoldsUgaBKF013365, KF013439, KF013259
P7617Aloe barberae Dyr.SAJAJ512294, KF013444, KF013264
P8195Aloe bellatula ReynoldsMadEKF013367, KF013442, KF013262
P7624Aloe castellorum J.R.I.WoodYemCKF013371, KF013447, KF013267
P8196Aloe capitate BakerMadDAY323643, KF013448, KF013268
P7628Aloe ciliaris Haw.SAHAJ512287, KF013453, KF013273
P310Aloe conifera H. PerrierMadCAJ512303, KF013449, KF013269
P7630Aloe commixta A. BergerSAHKF013372, KF013450, KF013270
P7626Aloe chabaudii SchönlandZimFKF013374, KF013452, KF013272,
P7632Aloe confuse Engl.TanGKF013375, KF013454, KF013274
P8197Aloe deltoideodonta BakerMadCAJ512304, KF013459, KF013279
P7641Aloe elegans Tod.EthDKF013381, KF013462, KF013282
P4567Aloe ellenbeckii A. BergerSomBKF013378, KF013457, KF013277
P8198Aloe erythrophylla Bosser.MadCKF013382, KF013463, KF013283
P7642Aloe eminens Reynolds & P.R.O.BallySomJKF013384, KF013465, KF013285
P7649Aloe fleurentiniorum Lavranos & L.E. NewtonYemDKF013388, KF013469, KF013289
P7654Aloe grandidentata Salm-DyckSABKF013389, KF013470, KF013290
P7653Aloe globuligemma Pole-EvansSAFKF013390, KF013471, KF013291
P7657Aloe helenae DanguyMadJKF013392, KF013473, KF013293
P7658Aloe isaloensis H.PerrierMadIKF013395, KF013476, KF013296
P7659Aloe juddii van Jarssv.SAHKF013396, KF013477, KF013297
P7662Aloe kilifiensis ChristianKenBKF013398, KF013480, KF013300
P7661 Aloe karasbergensis PillansSADAJ522183, KF013481, KF013301
P317Aloe lavranosii ReynoldsYemDAY323647, KF013458, KF013278
P7666Aloe macroclada BakerMadCKF013400, KF013483, KF013303
P7669Aloe megalacantha BakerEthIKF013401, KF013484, KF013304
P7668Aloe marlothii A.BergerBotJKF013402, KF013485, KF013305
P7667Aloe maculata All.SABKF013404, KF013487, KF013307
P7674Aloe mudenensis Reynolds.SABKF013405, KF013488, KF013308
P7675Aloe munchii ChristianZimJKF013406, KF013489, KF013309
P7676Aloe mzimbana I.Verd. & ChristianMalEKF013407, KF013490, KF013310
P327Aloe niebuhriana LavranosYemEAY323648, KF013491, KF013311
P7685Aloe pillansii L.GuthrieSAJAJ512292, KF013494, KF013314
P8202Aloe parallelifolia H.PerrierMadHKF013408, KF013492, KF013312
P8193Aloe prostrata (H.Perrier) L.E.Newton & G.D.RowleyMadCKF013361, KF013434, KF013254
P7693Aloe retrospiciens Reynolds & P.R.O.BallySomJKF013410, KF013495, KF013315
P7697Aloe schweinfurthii BakerSudFKF013412, KF013497, KF013317
P7702Aloe speciosa BakerSAJKF013413, HQ646844.1, KF013318
P7703Aloe spicata L.f.SAJKF013414, KF013499, KF013319
P7701Aloe somaliensis C.H.Wright ex W.WatsonSomDAY323639, KF013501, KF013501
P331Aloe scobinifolia Reynolds & P.R.O.BallySomDAJ512307, KF013502, KF013322
P345 Aloe sinkatana ReynoldsSudDAJ512306, KF013503, KF013323
P7705Aloe striatula Haw.SAHKF013415, KF013500, KF013320
P7713Aloe tulearensis T.A.McCoy & LavranosMadIKF013420, KF013509, KF013329
P295 Aloe vera L.NEA (North East Africa)EAJ290289.1, KF013511, KF013331
P4570Aloe viguieri H.PerrierMadGKF013422, KF013512, KF013332
P7639Aloe vryheidensis Groenew.SAJKF013380, KF013461, KF013281
P7724Aloe yemenica J.R.I.WoodYemGKF013426, KF013516, KF013336
P4635Haworthia blackburniae W.F.BarkerSAHAAJ512300, HQ646793, KF013337
P8192Haworthia cymbiformis DuvalSAHAAJ512296, KF013517, KF013338
P4587Haworthia mirabilis Haw.SAHAAY323618, KF013518, KF013339
P8189Haworthia tortuosa Haw.SAHAKF013427, KF013519, KF013340
P4605Haworthia reticulate Haw.SAHAKF013428, KF013520, KF013341
P4565Haworthia cooperi BakerSAHAAJ512275, KF013521, KF013342
P8190Haworthia truncate SchönlandSAHAKF013429, KF013522, KF013343
P4593Haworthia gracilis Poelln.SAHAAY323623, KF013523, KF013344
P4604Haworthia fasciata Haw.SAHEAY323629, HQ646824.1, KF013345
P4599Haworthia glauca BakerSAHEAJ512318, HQ646827.1, KF013346
P8177Haworthia coarctata Haw.SAHEAY323635, KF013524, KF013347
P4582Haworthia reinwardtii Haw.SAHEAY323631, HQ646829.1, KF013348
P8191Haworthia venosa Haw.SAHEKF013430, KF013526, KF013349
P8175Haworthia attenuata Haw.SAHEAJ512315, KF013527, KF013350,
P4580Haworthia icosiphylla BakerSA AJ512316, KF013528, KF013351
P6429Haworthia minima BakerSAROKF013431, HQ646836.1, KF013352
P6427Haworthia pumila DuvalSAROKF013432, HQ646837.1, KF013353,
P8173Gasteria brevifolia Haw.SA KF013433, KF013529, KF013354
P8172 Gasteria batesiana G.D.RowleySA AJ512324, KF013530, KF013355
P4557Gasteria bicolor var. liliputana (Poelln.) van Jaarsv.SA AJ512282, KF013531, KF013356
P306Lomatophyllum purpureum T. Durand & SchinzSA AJ512301, KF013532, KF013357
P4632Astroloba foliosa UtiwaalSA AJ512278, KF013534, KF013359
P378Asphodelus aestivus Brot.SA AJ512314, KF013535, KF013360
Bulbine Wolf AJ512323.1, AJ290294.1, AY323650.1
Kniphofia uvaria (L.) Hook AJ512330.1, AJ290301.1, EU707283.1
Table
Table 2. Node age with the posterior probability densities are shown for important clades and outgroups (asphodeloids).
Table 2. Node age with the posterior probability densities are shown for important clades and outgroups (asphodeloids).
CladesMean Age
(Node, Mya)		95% HPD a
(Mya)
Asphodeloids51.847.0–55.5
Alooids22.720.3–24.1
Shrubby and Tree aloes clade A16.8215.5–22.4
Haworthia subgen. Haworthia clade B12.597.4–16.6
Haworthioid clade C19.85.4–13.5
Haworthioid clade C210.65.6–14.8
Gasteria8.94.3–13.2
True aloes & Lomatophyllum clade D15.811.5–19.6
Most North East African aloes4.11.5–6.3
Most Madagascan aloes5.12.6–7.5
a Represent lower–upper 95% HPD intervals, respectively. The 95% HPD is regarded as a Bayesian representation of confidence interval.

Share and Cite

MDPI and ACS Style

Khodaei, Z.; Van Wyk, B.-E.; Wink, M. Divergence Time Estimation of Aloes and Allies (Xanthorrhoeaceae) Based on Three Marker Genes. Diversity 2018, 10, 60. https://doi.org/10.3390/d10030060

AMA Style

Khodaei Z, Van Wyk B-E, Wink M. Divergence Time Estimation of Aloes and Allies (Xanthorrhoeaceae) Based on Three Marker Genes. Diversity. 2018; 10(3):60. https://doi.org/10.3390/d10030060

Chicago/Turabian Style

Khodaei, Zeinab, Ben-Erik Van Wyk, and Michael Wink. 2018. "Divergence Time Estimation of Aloes and Allies (Xanthorrhoeaceae) Based on Three Marker Genes" Diversity 10, no. 3: 60. https://doi.org/10.3390/d10030060

APA Style

Khodaei, Z., Van Wyk, B. -E., & Wink, M. (2018). Divergence Time Estimation of Aloes and Allies (Xanthorrhoeaceae) Based on Three Marker Genes. Diversity, 10(3), 60. https://doi.org/10.3390/d10030060

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
