Diversity 2018, 10(2), 38; doi:10.3390/d10020038
Molecular and Morphological Phylogenetic Analyses of New World Cycad Beetles: What They Reveal about Cycad Evolution in the New World
USDA APHIS PPQ South Florida, P.O. Box 660520, Miami, FL 33266, USA
Department of Microbiology, University of Massachusetts, Amherst, MA 01003, USA
2313 W. Calle Balaustre, Green Valley, AZ 85622, USA
Montgomery Botanical Center, 11901 Old Cutler Road, Miami, FL 33156, USA
School of Life Sciences, P.O. Box 874501, Arizona State University, Tempe, AZ 85287-4501, USA
Departamento de Botánica, Universidad de Panamá, Estafeta Universitaria, Panamá City, Panamá
Instituto de Ecología, A.C., Red de Ecología Evolutiva, Apartado Postal 63, Antigua a Coatepec 351, El Haya, Xalapa 91070, Veracruz, Mexico
Herbario Eizi Matuda (HEM), Facultad de Ciencias Biológicas, Universidad de Ciencias y Artes de Chiapas, Libramiento Norte Poniente 1150, Col. Lajas Maciel, Tuxtla Gutierrez CP29039, Chiapas, Mexico
Sociedad Para el Estudio de los Recursos Bióticos de Oaxaca, A.C. Camino Nacional No. 80-b, San Sebastián Tutla CP71246, Oaxaca, Mexico
Departamento de Biología, Universidad de Puerto Rico, Río Piedras, P.O. Box 23360, San Juan 00931-3360, Puerto Rico
Florida State Collection of Arthropods, Florida Department of Agriculture—DPI, 1911 SW 34th St., P.O. Box 147100, Gainesville, FL 32614-7100, USA
Instituto de Biologia, Universidad de Antioquia, AA 1226 Medellin, Colombia
Nong Nooch Tropical Botanical Garden, 34/1 Moo 7 Na Jomtien, Sattahip 20250, Chonburi, Thailand
Author to whom correspondence should be addressed.
Received: 8 March 2018 / Accepted: 17 May 2018 / Published: 23 May 2018
Two major lineages of beetles inhabit cycad cones in the New World: weevils (Curculionoidea) in the subtribe Allocorynina, including the genera Notorhopalotria Tang and O’Brien, Parallocorynus Voss, Protocorynus O’Brien and Tang and Rhopalotria Chevrolat, and beetles in the family Erotylidae, including the genus Pharaxonotha Reitter. Analysis of the 16S ribosomal RNA (rRNA) mitochondrial gene as well as cladistic analysis of morphological characters of the weevils indicate four major radiations, with a probable origin on the cycad genus Dioon Lindl. and comparatively recent host shifts onto Zamia L. Analysis of the 16S rRNA gene for erotylid beetles indicates that an undescribed genus restricted to New World Ceratozamia Brongn. is the most early-diverging clade, and this lineage is sister to a large radiation of the genus Pharaxonotha onto Zamia, with apparent host shifts onto Dioon and Ceratozamia. Analysis of beetles are in accord with current models of continental drift in the Caribbean basin, support some proposed species groupings of cycads, but not others, and suggest that pollinator type may impact population genetic structure in their host cycads.
Keywords:Belidae; Oxycoryninae; Erotylidae; Pharaxonothinae; cycad pollination
Over the last three decades, evidence has accumulated that insect pollination is widespread in New World cycads. This evidence includes wind and insect exclusion experiments on ovulate cones of three species in the cycad genus Zamia, detailed observations of the life cycle and behavior of the beetles that inhabit them [1,2,3,4,5], as well as observations on other New World cycad genera Ceratozamia, Dioon, and Microcycas (Miq.) A. DC. [6,7,8]. Similar experiments and observations on other continents indicate the same for other genera of cycads [9,10,11,12,13,14,15,16,17,18,19]. In a recent seminal work on guidelines for cycad classification, insect symbionts of cycads were identified as having a potentially important impact on cycad classification: “Insects appear to be the primary vectors for pollination […] evidence is accumulating to suggest coevolutionary processes between cycads and their pollinators. Once these processes are uncovered, resulting data will probably have a significant impact on how cycad taxa are classified” . During the 6th International Conference on Cycad Biology, a coordinated global effort was organized to collect and study the insect pollinators of cycads . One of the explicit goals was to use this information to understand cycad evolution. In this paper, we report on results of this insect survey effort in the New World, present phylogenetic analyses of the insects found, and discuss implications for cycad taxonomy.
The majority of cycads in the New World host more than one species of beetle in their cones and some host as many as three species. These beetles fall into two distinct and not closely related groups: (1) Weevils of the subtribe Allocorynina (Coleoptera: Curculionoidea: Belidae: Oxycoryninae: Oxycorinini; higher-level classification follows Bouchard et al. ) associated with Dioon and Zamia; these include the genera Notorhopalotria, Parallocorynus, Protocorynus, and Rhopalotria [8,23] (see Figure 1A–D) and (2) Erotylidae (Coleoptera: Cucujoidea) in the subfamily Pharaxonothinae associated with Ceratozamia, Dioon, Microcycas, and Zamia (Cycadales: Zamiaceae; classification follows Calonje et al. ); these include the genus Pharaxonotha and an undescribed genus [7,25,26,27] (see Figure 1E,F).
O’Brien and Tang  recently described or reviewed all known species of Allocorynina, but they did not present a detailed phylogenetic analysis of the species. All known species inhabit and develop in cones of New World cycads. Six species of New World Pharaxonothinae have been described, but many remain undescribed [7,27]. New World forms are closely related to the recently described genus Cycadophila found on the Asian cycad genus Cycas [26,28]. The lack of phylogenetic frameworks for the New World groups of cycad beetles hinders the proper allocation of biological information and host/beetle associations and limits what can be interpreted from them. For instance, Maldonado-Ruiz and Flores-Vazquez  catalogued beetles found with a species of Dioon in Mexico, however, due to lack of keys for identification or prior phylogenetic work, they were not able to assess how many species of Allocorynina and Pharaxonothinae they were dealing with. In this paper, phylogenetic analyses were conducted on both morphological characters and DNA data of Allocorynina and DNA data of Pharaxonothinae beetles collected from cycad cones. The resulting trees from these analyses are used to generate hypotheses about cycad biogeography and evolutionary patterns at genus, species, and population levels [30,31].
2. Materials and Methods
Beetles were collected from cycad cones in habitat by the authors and other cooperators and include previously described cycad-associated beetle species, as well as many undescribed beetle taxa [8,27]. Total number of cycad taxa sampled include 3 of the 31 recognized species of Ceratozamia, 13 of the 15 species of Dioon, and 29 of the 77 currently recognized species of Zamia . In total, 89 cycad populations or localities yielded beetles with useable DNA for this study. The monotypic Cuban cycad genus Microcycas was not sampled, however, a species of Pharaxonotha has been described from this host . For Allocorynina, institutions for deposition of specimens are listed in O’Brien and Tang . Pharaxonothinae used are deposited in the Florida State Collection of Arthropods, Division of Plant Industry, Gainesville, FL, USA.
2.1. Morphological Analysis
For the Allocorynina weevils, external morphology and morphology of genitalia were studied and photographed using Nikon® SMZ1500 stereoscopic and Eclipse 80i compound microscopes mounted with Nikon® DS–Fi1 digital cameras. For morphological characters, taxonomic description of species and specimens used, see Appendix A and O’Brien and Tang . For the outgroup, Oxycraspedus cornutus Kuschel (Belidae: Oxycorininae: Oxycornini: Oxycraspedina), currently placed in the same subfamily and tribe as the Allocorynina , was chosen. A matrix of 89 characters based mainly on morphology, but also host-associations and behavior such as diet and pupation sites, was built (see Figure A1 in Appendix B). A phylogenetic tree was generated using maximum parsimony (MP) implemented by TNT  using default settings, and a strict consensus tree was generated from the ten most parsimonious trees found. Bootstrap support values were generated based on 1000 replicates. Multi-state characters were treated as non-additive; and all characters were weighed equally in the analysis. Morphological analyses of cycad-associated erotylid taxa are under way , but are not presented here.
2.2. DNA Analysis
The quality of DNA preservation of the beetles available for this study varied and was often poor, therefore, only short sections of DNA could be consistently sequenced in the samples available. We selected a fragment of the mitochondrial 16S ribosomal RNA (rRNA) gene with a combined sequence length ranging from 311–316, varying with additions and deletions of sections. The aligned data set contained 318 sites, with 222 constant, 93 variable, and 68 parsimony informative sites. As seen in other arthropods, the 16S rRNA gene is highly AT-rich with average nucleotide frequencies of thymine (T) 42.9%, cytosine (C) 7.9%, adenine (A) 35.0%, and guanine (G) 14.3%. The 16S rRNA gene has been used widely in insect molecular systematics and its utility in discerning species groups and deeper divisions in beetles and other holometabolous insects is well-founded [34,35,36,37,38]. It has been proposed for use as a standard for insect phylogenetics . Total DNA was extracted from individual beetles, either adults or larvae, using Epicenter Master Complete DNA and RNA Purification Kits (Epicenter Technologies, Madison, WI, USA) following the manufacturer protocols and dissolved in 30 µL H2O. The mitochondrial 16S rRNA was amplified using the following primers: 73Forward-AGATAGAAACCARCCTGGCT, 98Forward-CGGTYTRAACTCAGATCATGTA, and 430Reverse-AAGACGAGAAGACCCTATAG [26,28]. Reactions were carried out in 25 µL volumes containing 1 µL DNA, 5 µL 5X buffer, 4 µL of 25 µM MgCl2, 1 µL of 10 mM dNTPs, 1 µL of 10 µM of each primer, and 0.2 µL 5 U/µL of Taq polymerase (Promega, Madison, WI, USA). PCR was performed using an Eppendorf ep mastercycler (Eppendorf, Westbury, NY, USA) using the following DNA denaturation, annealing and replication protocol: 94 °C for 1 min, then 40 cycles of 94 °C for 15 s, 50 °C for 15 s, and 72 °C for 40 s. Amplified products were cleaned up with the ExoSAP-IT kit (USB, Cleveland, OH, USA) and sequenced bidirectionally on an ABI 3130XL Genetic Analyzer (Applied Biosystems, Foster City, CA, USA).
DNA sequences were deposited into GenBank with accession numbers MF990634-MF990709 for weevils and KR005722, KR005724, KR005725, KY365240, KY365243, and MG256677-MG256758 for Erotylidae. Specimens of Oxycraspedus cornutus, used as the outgroup for the morphological analyses, did not yield usable DNA, therefore, for the phylogenetic analysis for weevils using DNA, we chose as outgroups Hypera postica (Curculionidae), Ischnopterapion virens (Brentidae), Rhinotia haemoptera (Belidae), Anthribus albinus, and Anthribus nebulosus (Anthribidae), with 16S sequences obtained from GenBank, accession numbers: U16967.1, KY084146.1, AJ495455.1, AJ495448.1, and AJ495449.1, respectively.
For weevils, nucleotide sequences were aligned using MAFFT version 7 . The aligned sequences were then phylogenetically analyzed via: (1) maximum parsimony (MP) implemented by TNT  using default settings: a strict consensus tree was generated from the ten most parsimonious trees found; (2) maximum likelihood (ML) implemented in RAxML version 8 : the best tree from 20 independent searches was selected and bipartition bootstrap values were written from 500 bootstrap replicates; (3) bayesian inference (BI) implemented in Mr Bayes version 3.2 , which was run with two simultaneous searches each using four chains for 1 million generations: trees were sampled every 100 generations, and the first 25% were discarded as burnin.
For erotylid beetles, two Asian species of Pharaxonothinae that inhabit the genus Cycas were used as outgroups: Cycadophila (C.) debaonica and C. (Strobilophila) tansachai [26,28], GenBank accession numbers KR005715, KY365223, respectively. Multiple-sequence alignments were conducted with CLUSTAL W . Phylogenetic trees were generated using maximum parsimony (MP), neighbor joining (NJ), and maximum likelihood (ML) methods as implemented in PAUP 4.0b10  and MEGA5 . Bootstrap support values were generated based on 1000 replicates. The best fit model of sequence evolution employed in the ML analysis was the Tamura 3-parameter+G model with log likelihood −1448.98 and Gamma distribution 0.2653.
3. Results and Discussion
3.1. Allocorynina Trees

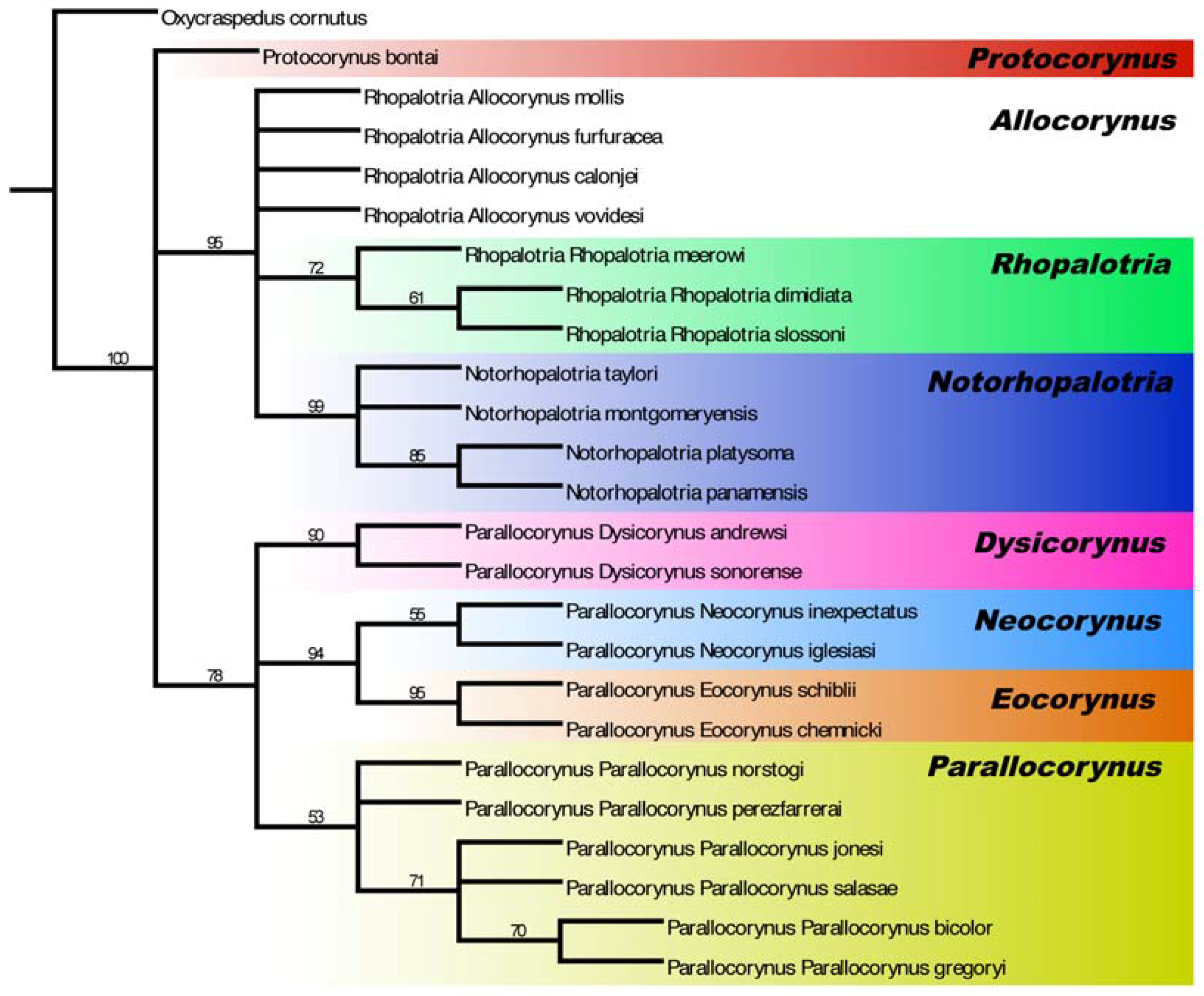

The phylogenetic tree based on MP analysis of the morphological, behavioral, and host-association data set is displayed in Figure 2. This tree generally supports the genera and subgenera recognized by O’Brien and Tang . Genera Protocorynus, Neocorynus, and Parallocorynus and subgenera Rhopalotria, Dysicorynus, Neocorynus, Eocorynus, and Parallocorynus are monophyletic. Only the monophyly of genus Rhopalotria and its subgenus Allocorynus is not supported. The three molecular trees for the Allocorynina generated from MP, ML, and BI analyses of the 16S rRNA data set were almost identical, and any slightly conflicting clades are linked to very low support values. Therefore, in Figure 3, only the molecular tree from the BI analysis is presented, with ML support values annotated underneath the branches. Also, in this tree, each analyzed sample displays corresponding host cycad species and the geographic region where they were collected. All genera (and most subgenera) are well supported, but the relationships between them are not. The main difference between the two trees is that in the molecular tree subgenus Rhopalotria is paraphyletic with respect to Allocorynus, whereas in the morphology tree, the situation is reversed and subgenus Allocorynus is paraphyletic, but neither of them refute the monophyly of the other analysis. Another major difference in the molecular tree is the strong support for Protocorynus to be sister to the remaining three genera. These differences between the two trees may, in part, be attributed to different choices in outgroups.
The morphological analysis and the resultant tree are valuable in answering how each of these weevil lineages differ and what may be driving evolution in this group. Each recognized genus and subgenus is distinguished by differences in their genitalia and also in the spination of their profemora. Behavioral observations [3,4] indicate that the profemora are used during courtship battles between males. The spination on their profemora appear to function in grasping an opposing male during these mating struggles. Sexual selection, larval feeding sites, pupation sites, as well as host genus (Dioon vs. Zamia) appear to account for many of the morphological differences between the genera and subgenera. For details on synapomorphic characters for major clades see Appendix C.
3.2. Erotylidae Tree

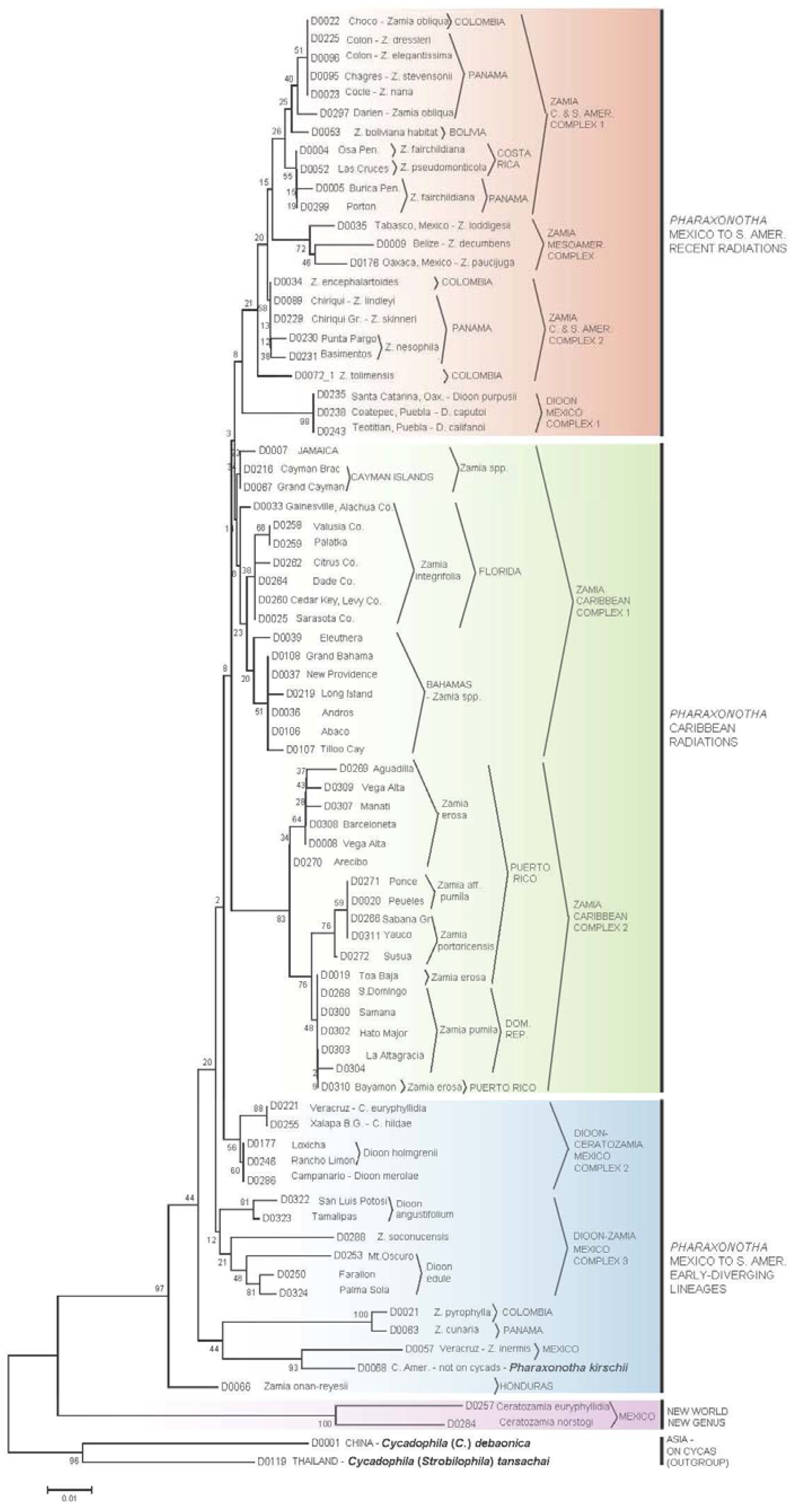

The trees produced from MP, NJ, and ML analyses of 16S rRNA sequences for Erotylidae were similar, therefore, only the ML tree is displayed in Figure 4. The MP and NJ trees are provided in Appendix D as Figure A2 and Figure A3. The ML tree, as well as the MP and NJ trees, can be divided into four sections: (1) The most early-diverging clade is an undescribed genus residing in cones of Ceratozamia (purple color in Figure 4); the remainder of the New World taxa are sister to this clade and are tentatively assigned to the genus Pharaxonotha. (2) This Pharaxonotha clade can be broadly assigned to three sections; the first of these are labeled “Early-diverging lineages Mexico to South America” (blue color in Figure 4). Within this division, the most early-diverging branches reside in cones of Zamia onan-reyesii C. Nelson and Sandoval, an aerial-stemmed species from Honduras and subterranean-stemmed Z. cunaria Dressler and D. W. Stev. and Z. pyrophylla Calonje, D. W. Stev. and A. Lindstr., in the eastern Panama-northern Colombia region. Also among these early diverging lineages are species of Pharaxonotha that reside in other Ceratozamia, Dioon, and Zamia hosts. (3) A third broad division consist of Pharaxonotha inhabiting cones of the Zamia pumila L. species complex in the Caribbean, specifically on islands of the Greater Antilles, the Bahamas archipelago, and the Florida peninsula (green color in Figure 4). This division consists of two clades; one in the easternmost section of the Greater Antilles on Puerto Rico and Hispaniola and the other clade in the western Greater Antilles, Florida, and the Bahamas. (4) Lastly, there is a fourth major division, consisting of a more recent radiation of Pharaxonotha that also extends from Mexico to South America and inhabits Zamia and Dioon (red color in Figure 4). Although bootstrap support for many of these clades are weak, they fall consistently into these four broad categories in the ML, MP, and NJ trees, with only one exception: the P. kirschii Reitter lineage, discussed below.
Although no morphological analyses are presented in this paper for the Erotylidae, Xu et al. , Skelley et al. , and Tang et al.  have identified a number of external morphological and genital characters which support many of the clades revealed here (Figure 4) through phylogenetic analysis of the 16S rRNA gene. All species discussed herein are assigned to a single subfamily, the Pharaxonothinae, of the Erotylidae. Of special interest is the taxon Pharaxonotha kirschii, the type species for the genus and the only known Pharaxonothinae in the New World that is a generalist feeder. Although it has been found with Zamia, it is the only known member of the New World Pharaxonothinae that is not an obligate inhabitant of a cycad during its life cycle and is widely distributed in Central America . Our DNA analysis indicates that the Pharaxonotha associated with Z. inermis (specimen D0057 in Figure 4), while a distinct species, is related to P. kirschii. The specimen used for DNA analysis was a larva and an adult female associated with that larva matches the morphology of P. kirschii. This specimen and Pharaxonotha kirschii may be part of a species complex, with different branches of this complex inhabiting either cycads or non-cycad hosts. In the ML tree, this P. kirschii clade is associated with the Caribbean group, however, in the MP and NJ trees (Figure A2 and Figure A3), these two taxa are associated with the early diverging lineages from Mexico to South America.
While all Zamia that have been closely sampled have yielded Pharaxonotha beetles from their cones, this is not so for all Dioon and Ceratozamia populations examined. The cycad genus Dioon was especially well-sampled in this study and in one species, Dioon mejiae Standl. and L.O.Williams, no erotylids were detected in three separate samples consisting of a total of many hundreds of beetles (only Allocorynina weevils found). Furthermore, the erotylid beetles sampled here from seven other Dioon species cluster in three disparate branches in the erotylid trees, suggesting separate colonization events of Dioon by this group of beetles.
3.3. Implications for the Evolution of Cycad Hosts
3.3.1. Using Beetle Trees to Generate Hypotheses of Cycad Evolution
While the 16S rRNA gene is considered to provide fairly accurate phylogenies for beetles and other insects, the search for plastid and nuclear genes of similar utility in the construction of phylogenies for New World cycads has had equivocal results [46,47,48,49]. Genetic analysis of beetles that have coevolved with cycads may reveal evolutionary patterns in cycads that are much more difficult to discern from direct examination of cycad genomes. The following discussions will be confined mainly to the generation of hypotheses about cycad evolution in the New World based on the interpretation of the beetle trees produced in this study.
Before proceeding, we offer some caveats and limitations as to what can or cannot be deduced about cycad evolution from coevolving insect pollinators. Cycads typically form colonies or groves widely dispersed from other populations of conspecific or closely related species , and in such situations, flight distances of seed dispersers or pollinators between populations may be typically measured in kilometers or tens of kilometers. Cycad seeds are relatively large and heavy compared to available animal dispersers, and field studies indicate that the great majority of cycad seeds fall within two meters of their mother [51,52,53], suggesting that gene flow between distant populations via seed dispersal is rare. These population structures and seed dispersal constraints may configure insect pollinators as the primary gatekeepers of gene flow in most cycad populations. Thus, when two cycad populations host different species of beetles believed to be involved in pollination, we can use this to infer that the cycads in question may be genetically isolated, as little or no gene flow is likely to occur via exchange of pollinators. When the scenario is reversed and cycad populations share the same pollinator, we cannot automatically assume gene flow is occurring between the cycad populations via pollinators. Studies by Donaldson et al.  and Terry  show that pollen loads on insects that leave cycad cones drop rapidly with distance and time from the source cones. Crowson [54,55] illustrated deep antennal pockets in the antennae of Allocoynina weevils and hypothesized that these might be structures that function to hold pollen. Closer examination of these pockets with SEM  indicate that their entrances are occluded with hairs with a probable sensory function and that these pockets are unlikely to facilitate pollen transport. While a cycad pollinator may be able to fly between populations of different host cycad species and interbreed with other populations of its own species, during this process, it may not be transferring any cycad pollen between distant host cycad populations. A phylogenetic study of thrips pollinators of the Australia cycad Macrozamia suggests that both cycad and pollinator populations fragment together as a result of climate change and aridification  and that co-diversification of the host and pollinator in allopatry appears to be the process affecting diversity. Furthermore, that study concluded that distinct cycad species separated by short distances may continue to share the same pollinator species. Similarly, in New World cycads, O’Brien and Tang  recognized that some cycad beetles inhabit more than one host cycad species: (1) Parallocorynus (P.) gregoryi O’Brien and Tang inhabits the cones of three closely related Dioon species, D. argenteum T.J.Greg., Chemnick, Salas-Mor. and Vovides, D. califanoi De Luca and Sabato and D. purpusii Rose; (2) Rhopalotria (R.) dimidiata inhabits cones of many species of the Zamia pumila complex living in the Bahamas, Cuba, and Cayman Islands, and (3) Notorhopalotria panamensis O’Brien and Tang inhabits at least three species of Zamia in central Panama with adjoining geographic distributions, Z. dressleri D. W. Stev., Z. elegantissima Schutzman, Vovides and R. S. Adams and Z. stevensonii A. S. Taylor and Holzman.
Examination of these DNA-based trees indicates that host-shifts of pollinating beetles have occurred during the evolution of cycads. We cannot assume strict co-speciation of beetle lineages with their corresponding host cycad lineage. Host-shifts of cone beetles between cycad genera and between cycad species within a genus can occur. Although this limits our ability to make inferences about coevolution of cycads and their beetles, the host-shifts in themselves are interesting and informative about evolutionary processes in cycads .
3.3.2. Cycad Hypotheses Based on the Allocorynina Trees
From the DNA-based tree for Allocorynina (Figure 3) in combination with morphological data (Appendix A, ) we generate these hypotheses about cycads:
- The presence of one or two species of Allocorynina in all species of Dioon sampled compared with its absence from many Zamia species and its complete absence in the other New World cycad genera Ceratozamia and Microcycas suggests that Dioon is the earliest host lineage colonized by Allocorynina weevils, with one or possibly two host-shifts onto Zamia. In this hypothesis, Allocorynina are the original pollinators in the genus Dioon, while erotylid beetles are later colonists in Dioon.
- Based on the morphological and genetic analyses of its pollinator Dioon mejiae, located on the Chortis block, a tectonic terrane roughly corresponding to the country of Honduras , is hypothesized to be one of the earliest bifurcating lineages within Dioon.
- Species of narrow-leaflet Dioon in Mexico form four lineages with distinct biogeographic distributions: (A) western Mexico lineage along the Pacific drainage of the Sierra Madre Occidental from Sonora to Guerrero consisting of D. sonorense (De Luca, Sabato and Vázq.Torres) Chemnick, T.J.Greg. and Salas-Mor., D. stevensonii Nic.-Mor. and Vovides and D. tomasellii De Luca, Sabato and Vázq.Torres; (B) eastern Mexico lineage along the Sierra Madre Oriental from Nuevo Leon to Veracruz consisting of D. angustifolium Miq. and D. edule Lindl.; (C) south central Mexico lineage consisting of D. argentium, D. califanoi, and D. purpusii; (D) southern Mexico lineage along the Pacific drainage of Oaxaca to Chiapas, consisting of D. caputoi De Luca, Sabato and Vázq.Torres, D. holmgrenii De Luca, Sabato and Vázq.Torres, D. merolae De Luca, Sabato and Vázq.Torres and D. planifolium Salas-Mor., Chemnick and T. J. Greg.
- For the eastern Mexico lineage (group 3B above) Dioon edule (including D. angustifolium) north of the Trans-Mexican Volcanic Belt in the states of Nuevo Leon, Queretaro, San Luis Potosi, and Tamaulipas is likely a distinct species from D. edule south of this mountain range in Veracruz; the two lineages of Allocorynina and the lineage of erotylids inhabiting this cycad species group support this division.
- The absence of Allocorynina in the periphery of the geographic range of Zamia (e.g., eastern part of the Greater Antilles and much of Panama and South America) suggests that colonization of Zamia by Allocorynina is relatively recent and perhaps an ongoing ecological and evolutionary process. The alternate hypothesis is that there may have been a more widespread distribution on Zamia, but these weevils have suffered selective extinction in parts of their range.
- The shift of Allocorynina from Dioon onto Zamia may have occurred during major tectonic events in the formation of Central America when landmasses were moving through the region, emerging from the sea, and/or colliding with Mesoamerica [59,60]; during this time, lineages of cycads (including Zamia and/or possibly other extinct cycad lineages) and the Allocorynina associated with them migrated in three directions: (A) south into Central America, (B) east into the Caribbean islands, and (C) within Mesoamerica.
- Zamia obliqua A. Braun in the Choco of Colombia is likely a different species from Z. obliqua in the Darien of Panama based on genetic differences in the Allocorynina inhabiting their respective cones.
3.3.3. Cycad Hypotheses Based on the Erotylidae Tree

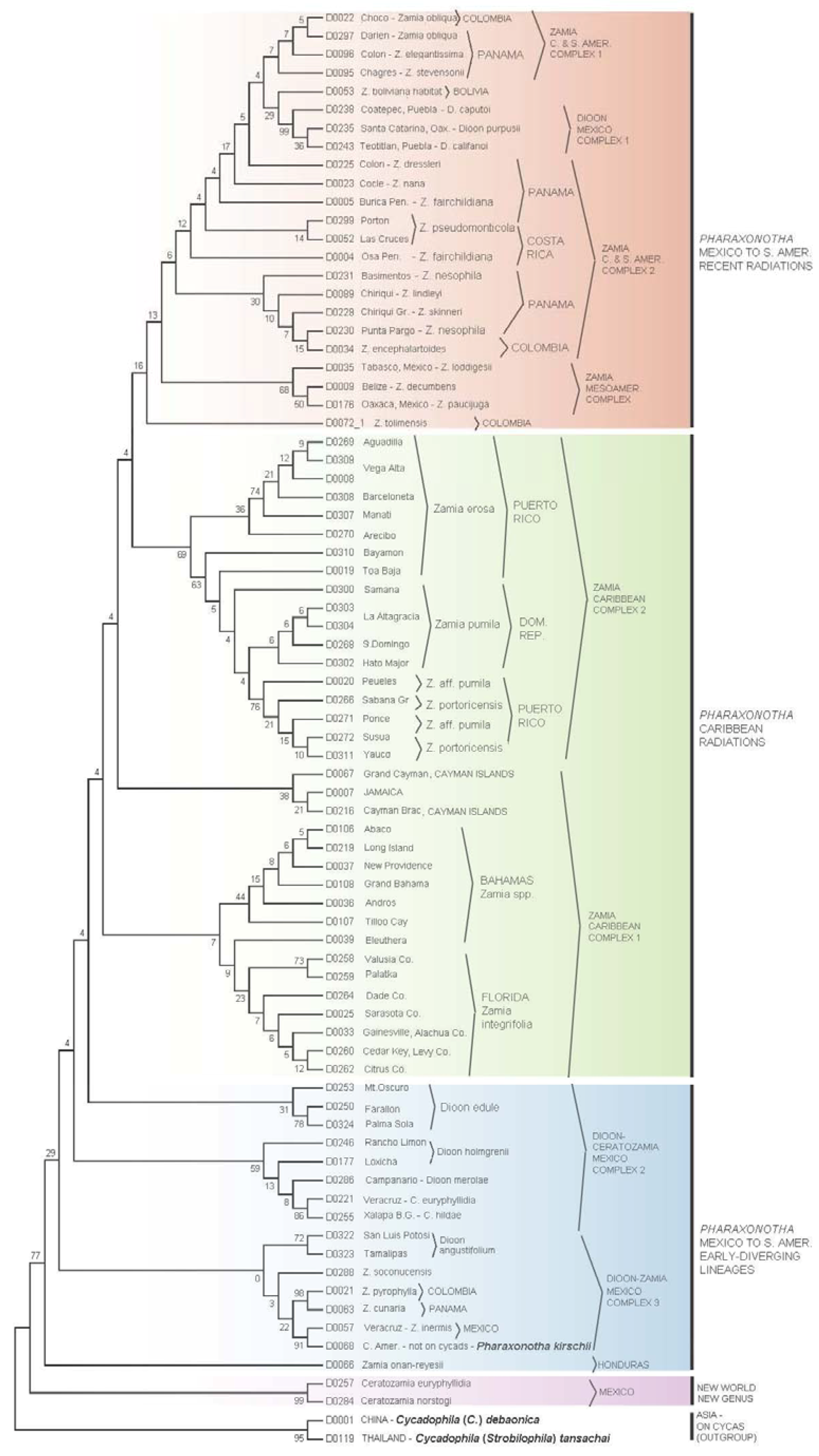

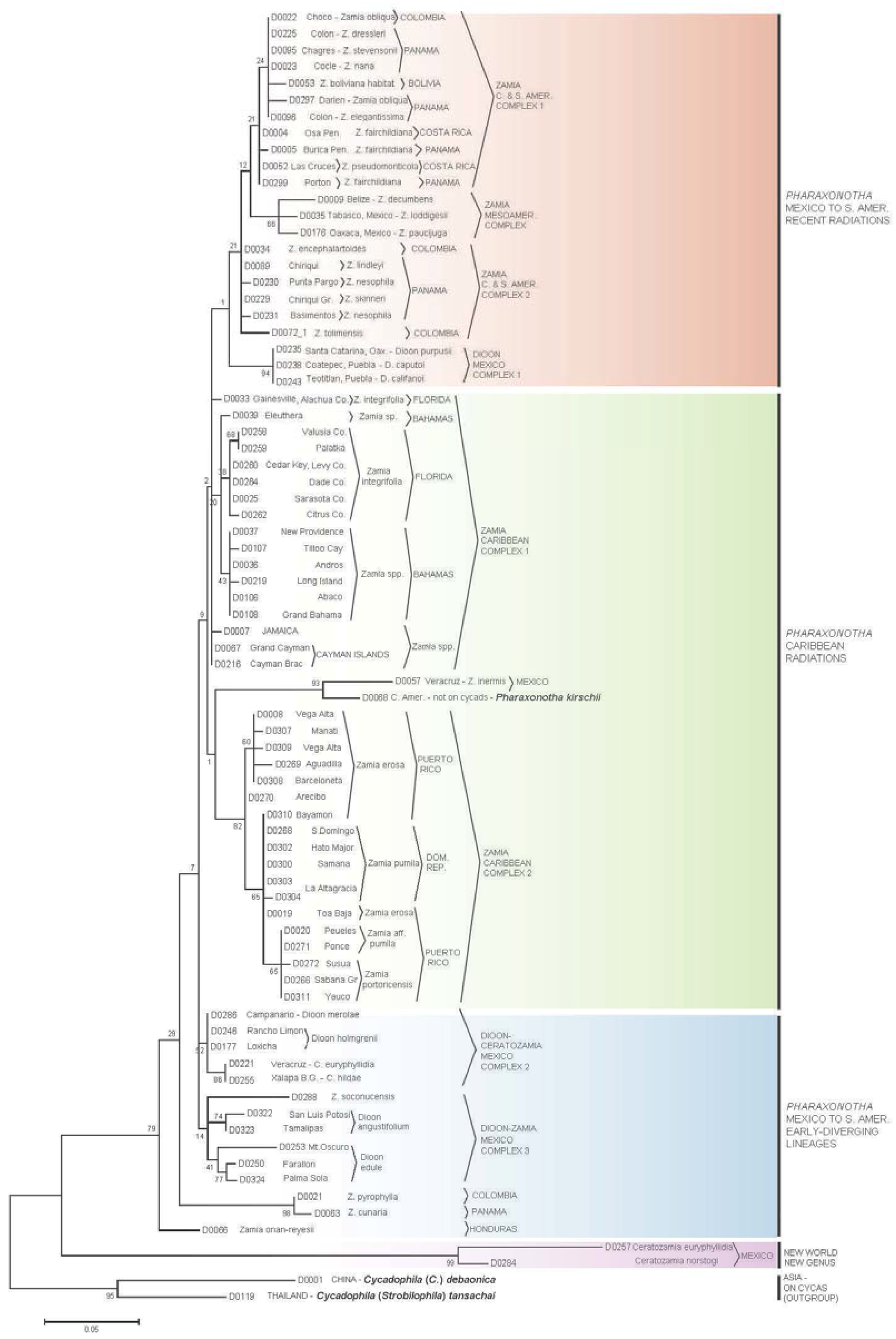

From the DNA-based tree of the Erotyidae (Figure 4) we generate these hypotheses:
- The most early-diverging lineage of cycad-associated erotylid pharaxonothine beetles in the New World is confined to the genus Ceratozamia. This branching pattern is consistent with fossil evidence indicating that the Ceratozamia lineage may have first evolved in Europe in the mid Cenozoic and then migrated to North America prior to the complete separation of these continents . In addition, the apparent close relation between cycad-associated erotylids of the New World with those found on Cycas in Asia, suggest that these beetles may have an ancient Laurasian association with cycads that predates the breakup of Laurasia.
- Two early-diverging erotylid beetle lineages associated with Zamia are located in: (a) Honduras on Z. onan-reyesii and (b) The northern South America-Darien region on Zamia cunaria and Z. pyrophylla. We may hypothesize that these host lineages of Zamia are among the earliest to diverge for the genus and are likely relicts from an earlier radiation of Zamia throughout these regions.
- The presence of erotylid beetles in the cones of all species of Zamia that have been carefully sampled suggests that these were the original pollinators of Zamia. In this hypothesis, the Allocorynina weevils are later colonists of Zamia.
- In addition to old relictual clades in hypothesis II, the existence of three separate derived clades of Pharaxonotha beetles on Zamia suggests that at least three recent and separate radiations of Zamia have occurred in the following regions: (a) A radiation into the eastern islands of the Greater Antilles, which includes Hispaniola and Puerto Rico, probably beginning when these landmasses were more closely associated with Central America ; (b) A more recent radiation into the western islands of the Greater Antilles, including Cuba, Cayman Islands and Jamaica and neighboring landmasses of the Bahamas and Florida; and (c) Sister to these two Caribbean lineages, a recent radiation onto Zamia in Mesoamerica, Central America, and northern South America.
- The separation of Pharaxonotha beetles, that inhabit Dioon cones, into three distinct and not closely related clades and the absence of erotylids on one species, D. mejiae in Honduras, at the periphery of the range of Dioon, suggests that erotylids colonized Dioon from the Zamia lineage in three separate host shift events and that these host shifts have occurred relatively recently compared to the radiation of Allocorynina in Dioon.
- At least one recent host-shift of Pharaxonotha, originating from Zamia, have occurred onto Ceratozamia. A larger and wider sampling of Ceratozamia beetles may reveal more than one host shift. These coexist within Ceratozamia cones with the more ancient erotylids beetles discussed in hypothesis I, so that now two disparate lineages of Pharaxonothinae coinhabit Ceratozamia cones. This host-shift radiation is allied with those in Dioon, suggesting important watershed periods in cycad evolution when exchange of pollinators occurred among cycad genera in the New World. Deeper study of these periods may be crucial in understanding the relatively recent resurgence of cycad evolution that have been proposed [62,63,64].
- The pattern of population genetic variation of Pharaxonotha beetles that presumably pollinate Zamia in Puerto Rico and Hispaniola mirrors to a great extent the population genetic variation exhibited by the Zamia on those islands . These mirroring patterns suggest that the mobility and/or abundance of a cycad’s pollinator may influence gene flow in its host cycad and consequently the speciation pattern of its host. For example, observations  suggests that unlike other cycad beetles, this lineage of Pharaxonotha is highly sensitive to human disturbance of its vegetative habitat and easily becomes rare or locally extinct as a result. This susceptibility to disturbance and the low ability to recolonize its host from nearby populations suggests low mobility and low ability to mediate gene flow in its host Zamia. The resulting effect is to produce local reproductive isolation of cycad populations that appear on casual observation to have continuous distributions.
- Based on population genetic variation of beetles discussed in hypothesis VII, the Zamia populations near Bayamon and Toa Baja, Puerto Rico may be conspecific with Zamia pumila in Hispaniola; furthermore, Z. pumila populations in Hispaniola may be recent colonists from an ocean dispersal event originating from Bayamon and Toa Baja.
3.3.4. Independent Tests of Beetle Generated Hypotheses
Many of these beetle-generated hypotheses about cycad evolutionary patterns in the New World may be tested with data sets of genetic and/or morphological characters from their host Ceratozamia, Dioon, or Zamia. Our tree for erotylid beetles (Figure 4) contains samples from 61 populations of Zamia along with collection localities. A phylogenetic tree for Zamia based on sequences of one gene combined with morphological data published by Caputo et al.  is available for comparison. Their tree contains 22 species of Zamia, of which only ten correspond with populations in our tree, nevertheless, some broad tests can be made of our erotylid hypotheses II and IV. Their tree shows some congruence with the erotylid trees presented here. For instance, in their tree as in ours, the Caribbean Z. pumila group is sister to many Mesoamerican and South American Zamia. Their tree differs significantly from our erotylid tree, however, in that a large branch of the Central American Zamia forms a clade that is sister to the previously described clades. Our erotylid tree suggests that their Central American clade should form part of their Mesoamerican and South American Zamia clade. In addition, our erotylid tree suggests that Z. soconuscensis Schutzman, Vovides and Dehgan belongs in a clade that is an early diverging relative to the Caribbean clade, however, Z. soconuscensis appears as a member of their Mesoamerican and South American clade that is sister to the Caribbean clade. If both beetle and Zamia host phylogenies are accurate, we would conclude that host and symbiont beetles are not co-speciating in a perfectly parallel fashion and that host shifts have occurred at important junctures in both Zamia and beetle radiations. The converse may be true, that the beetle phylogenies do reflect the evolutionary patterns of their host Zamia accurately, and that a more extensive genetic data set for Zamia may be required for a more accurate comparison.
A maximum likelihood tree produced by Nagalingum et al.  using three genes is also available for testing of hypothesis IV. Their tree contains 35 species of Zamia, of which 17 correspond with host populations in our tree and is broadly congruent with ours. In their tree, the Caribbean clade is sister to other Mesoamerican and Central and South America clades. None of our identified early diverging host Zamia lineages, however, were sampled in their study, so hypothesis I cannot be tested with their dataset.
Hypotheses may be tested by comparing trees from different beetle groups that are cohabiting in the same hosts. For example, we can test hypotheses 3A–D generated using Allocorynina weevils that there are four species groups of narrow-leafed Dioon that inhabit four distinct geographic regions. Our erotylid tree, based on less extensive samples from Dioon than that for Allocorynina, exhibits three distinct clades for Dioon erotylids that largely correspond to the three Allocorynina clades in hypotheses 3B–D. The only exception is the erotylid beetle on D. caputoi, which suggest a single host shift has occurred between our proposed regions 3C and 3D. Also, no usable DNA was extracted for erotylids from region 3A, so no comparison can be made for hypothesized region 3A. A recently published phylogeny for Dioon based on DNA by Gutiérrez-Ortega et al.  also provides a test of some of the Allocorynina generated hypotheses. Their tree  supports Allocorynina hypothesis 1 that D. mejiae is one of the early diverging lineages of the genus and the geographic regions proposed in hypotheses 3A–B. Their tree, however, does not support the distinction between hypothesized Dioon regions 3C and 3D, and in their tree, the Dioon species of 3C and 3D form an integrated clade. Their tree also does not support our hypothesis 4, that D. edule and D. angustifolium north of the Trans-Mexican Volcanic Belt form a distinct clade from D. edule south of the belt. Another published phylogeny for Dioon based on combined molecular and morphological data by Moynihan et al.  supports our hypotheses 3A–D, except their tree shows D. caputoi as a distinct branch separate from the other four.
A test of erotylid hypothesis VII, that mobility of a pollinator may influence the population genetic structure of its host, can be partly tested with the beetles inhabiting Zamia in the six island groups of the Bahamas. Although the Allocorynina beetles sampled from these islands all display the same 16S rRNA haplotype, suggesting panmixia or alternatively recent introduction to the islands from a single source, the Pharaxonotha beetles on three of these islands, Eleuthera, Long Island, and Tiloo Cay (near Abaco), exhibit haplotypes distinct from the rest. The hosts of these three Pharaxonotha haplotypes, Z. angustifolia Jacq., Z. lucayana Britton, and Z. sp. “Tiloo Cay”, possess distinctly narrower, broader, or more coriaceous leaflet phenotypes than Zamia on other Bahamian islands. Genetic analysis of Bahamian Zamia populations  supports the possibility of extended genetic isolation of the Long Island Z. lucayana population, but not of the Eleuthera and Tiloo Cay Zamia populations. In this case, genetic patterns in Pharaxonotha mirror the phenoptypic traits displayed by their host Zamia better than the genetic analysis of the Zamia populations themselves. Possibly, restricted gene flow mediated by the Pharaxonotha may have been masked by gene flow mediated by Allocorynina pollinators at a later stage, since both pollinators are present in these Zamia populations.
Hypothesis VII also predicts that low mobility of cycad pollinators may result in high genetic variation among cycad populations that are in relatively close proximity. Lazcano-Lara (66) demonstrated that successful pollination of Z. portoricensis Urb. in Puerto Rico decreases dramatically when a female plant is beyond 1.9 m of a male plant, suggesting that its sole beetle pollinator, Pharaxonotha portophylla Franz and Skelley, provides relatively ineffective long range pollination, and this appears to contribute to the high degree of genetic differentiation exhibited between neighboring Zamia populations on this island [65,66].
It is widely understood that insect pollination is a critical facet of cycad biology and conservation [30,31,70,71]. In addition to their importance in cycad reproductive biology, the morphological and genetic analysis of pollinators can provide evidence for supporting or refuting hypotheses about cycad taxonomy and biogeography. As more extensive phylogenetic studies of New World cycads become available, the hypotheses presented here can be tested in more depth. Our hypotheses and analyses can also be refined in future work with a broader sampling of mitochondrial as well as nuclear genes from cycad beetles and a wider geographic sample of beetles that corresponds more closely with the host cycads on which phylogenetic studies have been conducted. Also, analyses of beetles can be improved with divergence time estimates, which require fossils. Recently, putative fossil relatives in both Allocorynini and Pharaxonothinae have been described from amber deposits [72,73], however, with only crude age estimates ranging from Eocene to Miocene. Hypotheses about cycad evolution generated through study of their associated insects can be novel and unexpected, with examples above, and provide new insights into the evolutionary history of New World cycads. This first attempt at reciprocal illumination of New World cycads through study of their pollinators indicates that this is a fruitful avenue of endeavor.
W.T. and C.W.O.B. conceived and designed the study; W.T., C.W.O.B., M.C., A.T., A.P.V., M.A.P.-F., S.H.S.-M., J.C.L.-L., P.S., C.L.-G., A.L., and S.R. contributed materials; G.X., W.T., C.W.O.B., M.C., N.M.F., and M.A.J. analyzed the data; W.T., N.M.F., and C.W.O.B. wrote the paper.
We thank Jeff Chemnick, Wes Field, Tim Gregory, Chip Jones, Oscar Moreno, Limei Tang, and Maria Ocasio Torres for assistance in the field and Jeff Chemnick, Si-Lin Yang, and SeqGen, Inc. for financial support of field work and molecular analysis. We thank the Florida Department of Agriculture and Consumer Services—Division of Plant Industry for their support on this contribution.
Conflicts of Interest
The authors declare no conflicts of interest.
Morphological, behavioral, and host characters of Allocorynina used in the matrix in Appendix B.
- Labial palp: (0) 3 segments; (1) 2 segments. The presence of 2-segmented labial palps is a synapomorphy for the Notorhopalotria-Rhopalotria clade.
- Mean male rostral length/pronotal length (RL/PL): (0) <1.0; (1) >1.0, and <1.30; (2) >1.30. High male RL/PL are characteristic of Parallocorynus subgenus Eocorynus and the subgenus Parallocorynus bicolor-jonesi-salasae-gregoryi clade, while low male RL/PL (rostral length < pronotal length) is found in the genus Notorhopalotria and two species of Rhopalotria subgenus Allocorynus.
- Mean female RL/PL: (0) <1.25; (1) >1.25, and <1.50; (2) >1.50. High female RL/PL are characteristic of Parallocorynus subgenera Eocorynus and Neocorynus, but has arisen independently in females of other taxa including Protocorynus bontai, Notorhopalotria montgomeryensis, Rhopalotria vovidesi, Parallocorynus (Parallocorynus) bicolor, and P. (P.) gregoryi.
- Interocular width/head width at eye: (0) = or >0.5; (1) = or <0.4; (2) >0.4, and <0.5. Short interocular widths are indicative of large eyes and are found in the genera Protocorynus and Notorhopalotria and in Rhopalotria in the mollis-furfuracea species group; long interocular distances are indicative of smaller eyes and are characteristic of Parallocorynus in the subgenus Eocorynus and the subgenus Parallocorynus bicolor-jonesi-salasae-gregoryi clade.
- Male: mean post-ocular head width/head width at eye (POW/HW): (0) = or <0.95; (1) >0.95 and = or <1.0; (2) >1.0. Wide male post-ocular head width is characteristic of Notorhopalotria, Parallocorynus subgenus Eocorynus, the subgenus Parallocorynus P. bicolor-jonesi-salasae-gregoryi clade, and Rhopalotria calonjei.
- Female: mean POW/HW: (0) = or < 0.95; (1) >0.95 and = or < 1.0; (2) >1.0. Medium to short female postocular head widths are characteristic of the Allocorynina compared with the narrow width in the outgroup genus Oxycraspedus.
- POW/HW: sexually dimorphic (no overlap): (0) No (dimorphism absent); (1) Yes (dimorphism present). Strong sexual dimorphism in post-ocular head width is characteristic in Parallocorynus subgenus Eocorynus, but has arisen six separate times in other genera and subgenera.
- Transverse postocular groove: (0) Absent; (1) Present. Character 1 is a synapomorphy for the genus Parallocorynus.
- Antennal insertion shape: (0) Foveiform to slightly oval; (1) Sulciform.
- Antennal club, connection of antennomeres: (0) Distinct, 9–10 and 10–11 loosely connected; (1) Distinct, 9–10 loosely connected, 10–11 tightly joined.
- Number of pockets on each side club antennomeres: (0) 1; (1) 2; (2) 3. One pocket is characteristic for Parallocorynus and Protocorynus; two pockets is characteristic of Rhopalotria subgenus Rhopalotria.
- Antennal club pocket shape: (0) Half circle (autapomorphy for Protocorynus); (1) Oval to round; (2) Elongate oval with irregular outline. Character state 2 is a synapomorphy for Rhopalotria subgenus Rhopalotria.
- Funiclular antennomere 1 in females: (0) Approximately symmetrical; (1) Strongly asymmetrical. Synapomorphy for the Parallocorynus bicolor-jonesi-salasae-gregoryi clade.
- Mean scape length in males: (0) >1.1X and <1.8X eye length; (1) <1.1X eye length; (2) >1.8X eye length. Scape length shorter than 1.1X eye length in males is characteristic for Notorhopalotria and Rhopalotria. Scape length relative to eye length is also a synapomorphy for the Parallocorynus bicolor-jonesi-salasae-gregoryi clade; this is the only clade where the scape length routinely exceeds 2X eye length.
- Mean scape length in males: (0) <1.27X length of funicular antennomeres 1 and 2; (1) >1.27X length of funicular antennomeres 1 and 2. Scape length shorter than 1.27X length of funicular antennomeres 1 and 2 in males is characteristic for Rhopalotria.
- Gular suture: (0) Entirely separated; (1) Fused.
- Sulcus at posterior margin of eye: (0) Absent; (1) Present and extending around dorsal margin of eye.
- Collar on anterior pronotal margin: (0) Present; (1) Absent. Character shared between Protocorynus and Parallocorynus.
- Pronotal apex: (0) Without constriction; (1) With constriction.
- Lateral margin of pronotum: (0) Not carinate; (1) With carinae.
- Lateral pronotal margin: (0) Not crenulate; (1) Crenulate.
- Shape of prothorax: (0) Anterior lateral angles not produced; (1) Anterior lateral angles produced forward.
- Male: mean pronotal width/pronotal length (PW/PL): (0) < or = 1.35; (1) >1.35 and = or < 1.5; (2) >1.5. Within the Allocorynina a relatively narrow pronotum in males is characteristic for Parallocorynus except for an inferred reversal in the subgenus Dysicorynus.
- Female: mean PW/PL: (0) <1.25; (1) >1.25 and <1.45; (2) >1.45. Within the Allocorynina, a relatively wide pronotum is characteristic in Protocorynus and Rhopalotria (except R. vovidesi).
- PW/PL: (0) Overlap between sexes; (1) No overlap between sexes. Strong sexual dimophism in this character is characteristic of Parallocorynus subgenus Eocorynus, but has arisen independently twice in Notorhopalotria and Rhopalotria.
- Anterior pronotal setal fringe: (0) Present; (1) Obsolete between eyes (not protruding beyond margin). Shared character between Notorhopalotria and Rhopalotria (except for R. vovidesi).
- Fovea on pronotum: (0) Absent; (1) Present.
- Notopleural suture reaching anterior margin of pronotum: (0) Yes; (1) No. Characteristic for Rhopalotria and with a reversal for Parallocorynus chemnicki.
- Mean distance from procoxa to anterior margin of prosternum/distance from procoxa to posterior margin of prosternum: (0) >2.2 and <3.8; (1) <2.2; (2) >3.8. High ratios indicate that the procoxae are inserted on the posterior side of the prosternum and is a synapomorphy for Parallocorynus subgenera Eocorynus and Neocorynus.
- Procoxae separated by: (0) Broad sclerite; (1) Sclerotized septum; (2) Not separated. The lack of septum is a synapomophy for Parallocorynus.
- Forecoxae: (0) Partially open laterally; (1) Completely closed laterally.
- Male profemur: (0) Not enlarged; (1) Enlarged. Enlarged profemora in males appears to have arisen independently in Notorhopalotria, Rhopalotria, and the Eocorynus-Neocorynus clades.
- Male profemur granular field: (0) Absent (1) Present. Presence is a synapomorphy for the Eocorynus-Neocorynus clade.
- Male profemoral ventrodistal spine number: (0) Absent; (1) One; (2) Two; (3) More than two. Profemoral spines in males appear to have arisen three times independently in the Notorhopalotria, Rhopalotria, and the Eocorynus clades.
- Male profemoral spine position at ventrodistal pit: (0) Absent; (1) At proximal apex; (2) Lateral.
- Male profemoral spine location from margin of ventrodistal pit: (0) Absent; (1) At margin; (2) Away from margin. Spine location away from pit is a synapomorphy for Notorhopalotria.
- Male profemur with a longitudinal ventroproximal ridge: (0) Absent; (1) Present. Synapomorphy for Notorhopalotria.
- Male: profemora with ventrodistal angulation: (0) Absent; (1) Present. Synapomorphy for subgenus Neocorynus.
- Meso- and metafemora: (0) Not conspicuously compressed; (1) Strongly compressed.
- Meso- and metafemora: (0) Without dorsal crenulation; (1) With dorsal crenulation.
- Tibial spurs: (0) Present and articulated; (1) Present but fused.
- Basal tarsal segment: (0) Subequal to second segment; (1) Much shorter than second and almost concealed.
- Pronotum, frons, and dorsal surfaces of profemora with fine reticulation: (0) No; (1) Yes. Synapomorphy for Notorhopalotria-Rhopalotria clade (except for a reversal in R. vovidesi).
- Pronotum compressed: height < 0.4X width: (0) No; (1) Yes.
- Pronotum consistently bicolored: (0) No; (1) Yes. Characteristic of Protocorynus, with one independent reversal in N. montgomeryensis.
- Punctures on elytra: (0) Irregularly distributed; (1) Ordered longitudinally but not in perfect striae.
- Elytra: (0) With wing locking mechanism, closing to apices, concealing pygidium; (1) Without wing locking mechanism, rounded at apex, pygidium visible.
- Elytra bicolored: (0) No; (1) Yes. This character has arisen independently three times within Allocorynina.
- Color of frons black (vs. brown): (0) No; (1) Yes. This character has arisen twice in Allocorynina in Protocorynus and Parallocorynus chemnicki.
- Metasternum color black (vs. brown): (0) No; (1) Yes. Within the Allocorynina, this character has arisen once in the Parallocorynus subgenus Parallocorynus bicolor-jonesi-salasae-gregoryi clade.
- Meso- and metafemur always black: (0) No; (1) Yes.
- Tibia and femur colors often differ: (0) No; (1) Yes. This character is found in Parallocorynus in the subgenus Eocorynus, and in the subgenus Parallocorynus bicolor-jonesi-salasae-gregoryi clade.
- Rostrum color: (0) Brown; (1) Black. A black rostrum has arisen independently twice in Parallocorynus.
- Mesoventrite: (0) Flat with intercoxal process strongly projected ~45° angle; (1) Slightly proclinate with intercoxal process on same level.
- Metaventrite: (0) Convex; (1) Disk flattened.
- Metaventrite, latero-posteriorly: (0) Gently rounded; (1) Sharply declined.
- Wing vein rm: (0) Not sclerotized (obsolete); (1) Sclerotized.
- Wing vein Mr spur: (0) Present; (1) Absent.
- Wing vein 1A2 length: (0) >1A1; (1) <1A1; (2) Missing. Missing vein is a synapomorphy for the Notorhopalotria and Rhopalotria clade.
- Wing vein 1A1: (0) Present; (1) Missing. Missing 1A1 vein is a synapomorphy for the Notorhopalotria and Rhopalotria clade.
- Wing vein 3A: (0) Extends beyond confluence with 2A; (1) Obsolete beyond confluence with 2A. Character state 1 is a synapomorphy for the Notorhopalotria.
- Aedeagus apex subtruncate: (0) No; (1) Yes. Synapomorphy for Rhopalotria.
- Aedeagus apex length: (0) Approximately equal to own width; (1) Twice own width. Character state 1 is a synapomorphy for Parallocorynus subgenus Dysicorynus.
- Gonopore with sclerotized knob: (0) No; (1) Yes. Synapomorphy for the Parallocorynus norstogi-perezfarrerai clade.
- Gonopore position: (0) Dorsal; (1) Ventrolateral.
- Aedeagus internal sac with ventral strut: (0) No; (1) Yes. Synapomorphy for the Parallocorynus subgenus Parallocorynus.
- Aedeagus internal sac with transfer apparatus: (0) No; (1) Yes. Synapomorphy for Rhopalotria.
- Aedeagus internal sac w/dart: (0) No; (1) Yes. Synapomorphy for Parallocorynus.
- Aedeagus internal sac with dorsal pleats: (0) Absent; (1) Present. Synapomorphy for Parallocorynus subgenus Parallocorynus.
- Aedeagus with prominent sclerotized transverse bridge: (0) No; (1) Yes. Synapomorphy for Parallocorynus.
- Aedeagus shape: (0) Trough-shaped; (1) Flattened.
- Tegmen dorsal bridge length from base to its junction with the apical plate extends <1/2 length of apical plate (vs. greater than): (0) No; (1) Yes.
- Tegmen apical setae: (0) Absent or length < width of apical plate; (1) Length > width of apical plate. Character state 1 is a synapomorphy for Notorhopalotria.
- Tegmen apical visor: (0) Absent; (1) Present. Synapomorphy for Rhopalotria, with the character arising independently in Protocorynus where the visor extends across lateral and part of ventral margin.
- Tegmen apical visor curled laterally: (0) No; (1) Yes.
- Tegmen apical plate curls transversely: (0) No; (1) Yes. Synapomorphy for Notorhopalotria.
- Tegmen apodeme height: (0) <width of apical plate; (1) >width of apical plate.
- Female: sternum VIII distal half of arms: (0) Strongly converge; (1) Mostly parallel. Character state 1 is a synapomorphy for the Notorhopalotria and Rhopalotria clade.
- Female: sternum VIII arm length: (0) About equal to length of apodeme; (1) >1.5 length of apodeme. Character state (0) is found only in the R. furfuracea-R. mollis clade and has arisen independently in Protocorynus.
- Female: sternum VIII arms: (0) Curved evenly; (1) With sharp angulate bend. Angulate bends is characteristic of Parallocorynus with a reversal in the subgenera Eocorynus and Neocorynus.
- Female sternum VIII: junction of arms: (0) Diverging at angle <90°; (1) Forming transverse bar.
- Female: spermathecal tube length: (0) <sternum VIII length; (1) >sternum VIII length. Long tube is characteristic of Notorhopalotria and Parallocorynus subgenus Dysicorynus.
- Spermatheca: (0) Present and falciform; (1) Absent.
- Spermathecal gland: (0) Tapering to spermathecal duct; (1) Forming common tube with duct.
- Larval feeding site: (0) Female cone; (1) Male sporophyll; (2) Male cone axis.
- Pupation site: (0) Female cone; (1) Male cone; (2) Outside of cone. Pupation site outside of cone is a synapomorphy for the Eocorynus-Neocorynus clade.
- Host plant family: (0) Araucariaceae; (1) Zamiaceae. Synapomorphy for Allocorynina.
- Host genus: (0) Araucaria; (1) Dioon; (2) Zamia.
- Adult gut contents: (0) Mainly cone tissues other than pollen; (1) Predominately pollen. Character state 1 is a synapomorphy for Parallocorynus.

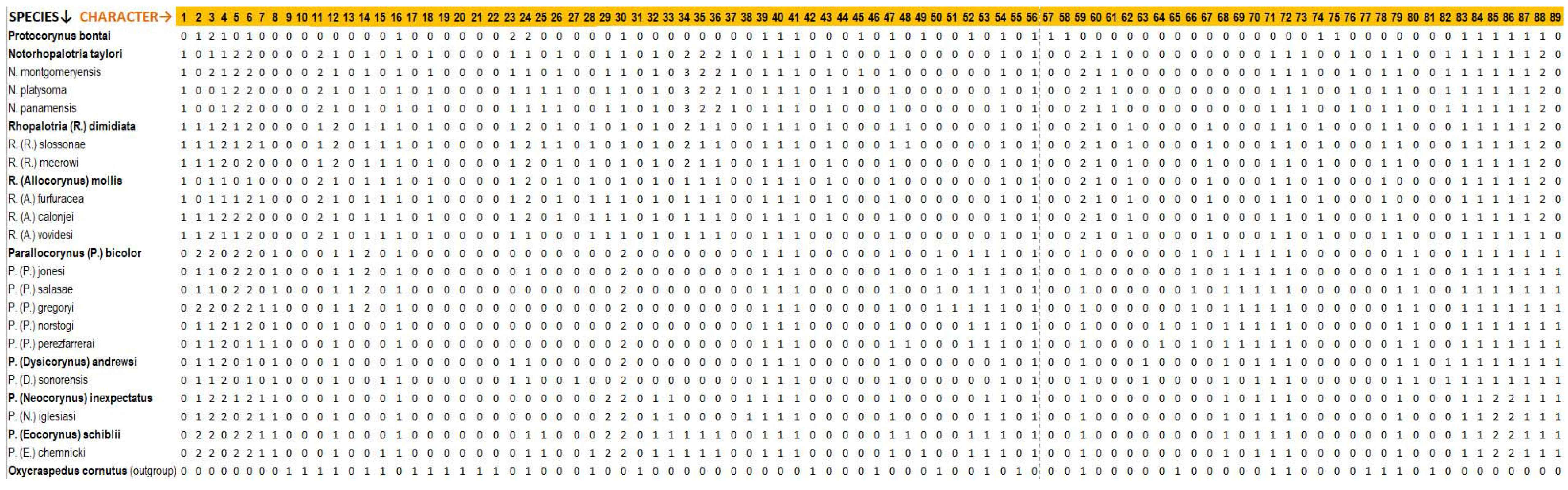

Figure A1. Character matrix for Allocorynina based on morphological, behavioral, and host-association characters (see Appendix A for description of characters states).
Synapomorphic characters separating genera and subgenera of Allocorynina.
The monophyly of Notorhopalotria is supported by the following synapomorphies:
- Male profemur with a ventroproximal ridge.
- Male profemoral spine(s) located distantly from margin of profemoral apical pit.
- Wing veins 1A1, 1A2, and 3A obsolete and not reaching margin of wing.
- Tegmen apical setae longer than width of tegmen.
- Tegmen apical plate curls transversely.
The monophyly of Parallocorynus is supported by the following synapomorphies:
- Transverse postocular groove.
- Antennal insertion pointing ventrad.
- One oval sensory pocket on each side of club antennomeres 1 and 2.
- Procoxae not separated by septum.
- Wing vein 1A1 present and shorter than 1A2.
- Aedeagal internal sac with a dart.
- Adults feeding primarily on pollen.
The monophyly of monotypic Protocorynus is supported by the following autapomorphies:
- Single semicircular-shaped pit on each side of club antennomeres 1 and 2.
- Pronotal maculation that extends to base of pronotum.
- Tegmen with an apical visor that extends from the dorsal region to part of ventral margin.
- Aedeagus dorsoventrally flattened.
- Spermathecal tube covered with filaments (versus smooth in other Allocorynina ).
The monophyly of Rhopalotria is supported by these synapomorphies:
- Wing vein 1A1 missing, but 1A2 and 3A retained.
- Aedeagal apex subtruncate.
- Aedeagal internal sac with transfer apparatus.
- Tegmen with a dorso-lateral apical visor.
Within the genus Rhopalotria two subgenera are distinguished by the following combinations of characters:
- Male profemora with a single spine at base of profemoral apical pit.
- Two elongate oval sensory pits on each side of club antennomeres 1 and 2.
- Average scape length < length of funicular antennomeres 1 and 2.
- Male profemora with pair of spines at either side of base of the profemoral apical pit.
- Three round sensory pits on either side of club antennomeres 1 and 2.
Within the genus Parallocorynus, four subgenera are supported by the following combination of characters:
- Profemora without granules or spines.
- Female RL/PL >1.27 and <1.44.
- Length of aedeagal apex twice own width.
- Larvae feed and pupate inside of male cone sporophylls.
- Male profemora with granular field and spine.
- Female RL/PL >1.77 and <1.95.
- Larvae feed along cone axis.
- Pupation outside of cone.
- Male profemora with granular field and no spine.
- Female RL/PL >1.55 and <1.76.
- Larvae feed along cone axis.
- Pupation outside of cone.
- Profemora without granules or spines.
- Female RL/PL >1.27 and <1.65.
- Aedeagus with internal sac with ventral strut and dorsal pleats.
- Larvae feed and pupate inside of male cone sporophylls.
Additional phylogenetic trees for Erotylidae.
Figure A2. Phylogenetic tree for the Erotylidae: Pharaxonothinae on the cycads of the New World based on neighbor joining (NJ) analysis of 16S rRNA gene sequences; scale bar indicates base pair substitutions per nucleotide position; numbers on branches are bootstrap values.
Figure A3. Phylogenetic tree for the Erotylidae: Pharaxonothinae on the cycads of the New World based on maximum parsimony (MP) analysis of 16S rRNA gene sequences; numbers on branches are bootstrap values.
- Norstog, K.; Stevenson, D.W.; Niklas, K.J. The role of beetles in the pollination of Zamia furfuracea L.fil. (Zamiaceae). Biotropica 1986, 18, 300–306. [Google Scholar] [CrossRef]
- Norstog, K.; Fawcett, P.K.S.; Vovides, A.P. Beetle pollination of two species of Zamia: Evolutionary and ecological considerations. Palaeobotanist 1992, 41, 149–158. [Google Scholar]
- Norstog, K.; Fawcett, P.K.S. Insect-cycad symbiosis and its relation to the pollination of Zamia furfuracea (Zamiaceae) by Rhopalotria mollis (Curculionidae). Am. J. Bot. 1989, 76, 1380–1394. [Google Scholar] [CrossRef]
- Tang, W. Insect pollination in the cycad Zamia pumila (Zamiaceae). Am. J. Bot. 1987, 74, 90–99. [Google Scholar] [CrossRef]
- Valencia-Montoya, W.A.; Tuberquia, D.; Guzmán, P.A.; Cardona-Duque, J. Pollination of the cycad Zamia incognita A. Lindstr. and Idárraga by Pharaxonotha beetles in the Magdalena Medio Valley, Colombia: A mutualism dependent on a specific pollinator and its significance for conservation. Arthropod-Plant Interact. 2017, 11, 717–729. [Google Scholar] [CrossRef]
- Vovides, A.P. Insect symbionts of some Mexican cycads in their natural habitat. Biotropica 1991, 23, 102–104. [Google Scholar] [CrossRef]
- Chaves, R.; Genaro, J. A new species of Pharaxonotha (Coleoptera: Erotylidae) probable pollinator of the endangered Cuban cycad, Microcycas calocoma (Zamiaceae). Insecta Mundi 2005, 19, 143–150. [Google Scholar]
- O’Brien, C.; Tang, W. Revision of the New World cycad weevils of the subtribe Allocorynina, with description of two new genera and three new subgenera (Coleoptera: Belidae: Oxycoryninae). Zootaxa 2015, 3970, 1–87. [Google Scholar] [CrossRef] [PubMed]
- Donaldson, J.S.; Nanni, I.; De Wet Bosenberg, J. The role of insects in the pollination of Encephalartos cycadifolius. In Proceedings of the Third International Conference on Cycad Biology; Vorster, P., Ed.; Cycad Society of South Africa: Stellenbosch, South Africa, 1995; pp. 423–434. ISBN 0620192283. [Google Scholar]
- Donaldson, J.S. Is there a floral parasite mutualism in cycad pollination? The pollination biology of Encephalartos villosus (Zamiaceae). Am. J. Bot. 1997, 84, 1398–1406. [Google Scholar] [CrossRef]
- Tang, W.; Oberprieler, R.; Yang, S. Beetles (Coleoptera) in cones of Asian Cycas: Diversity, evolutionary patterns, and implications for Cycas taxonomy. In Proceedings of the Fourth International Conference on Cycad Biology; Chen, C., Ed.; International Academic Publishers: Beijing, China, 1999; pp. 280–297. [Google Scholar]
- Tang, W. Cycad insects and pollination. In Vistas in Palaeobotany and Plant Morphology: Evolutionary and Environmental Perspectives Professor D.D. Pant Memorial Volume; Srivastava, P.C., Ed.; U.P. Offset: Lucknow, India, 2004; pp. 383–394. [Google Scholar]
- Terry, I. Thrips and weevils as dual, specialist pollinators of the Australian cycad Macrozamia communis (Zamaiceae). Int. J. Plant Sci. 2001, 162, 1293–1305. [Google Scholar] [CrossRef]
- Terry, I.; Tang, W.; Taylor, A.; Donaldson, J.; Singh, R.; Vovides, A.; Cibrián Jaramillo, A. An overview of cycad pollination studies. Mem. N. Y. Bot. Gard. 2012, 106, 352–394. [Google Scholar]
- Wilson, G.W. Pollination in the cycad genus Bowenia Hook. Ex Hook. f. (Stangeriaceae). Biotropica 2002, 34, 438–441. [Google Scholar] [CrossRef]
- Hall, J.A.; Walter, G.H.; Bergstrom, D.M.; Machin, P. Pollination ecology of the Australian cycad Lepidozamia peroffskyana (Zamiaceae). Aust. J. Bot. 2004, 52, 333–343. [Google Scholar] [CrossRef]
- Kono, M.; Tobe, H. Is Cycas revoluta (Cycadaceae) wind- or insect pollinated? Am. J. Bot. 2007, 94, 847–855. [Google Scholar] [CrossRef] [PubMed]
- Procheş, Ş.; Johnson, S.D. Beetle pollination of the fruit-scented cones of the South African cycad, Stangeria eriopus. Am. J. Bot. 2009, 96, 1722–1730. [Google Scholar] [CrossRef] [PubMed]
- Suinyuy, T.N.; Donaldson, J.S.; Johnson, S.D. Insect pollination in the African cycad, Encephalartos friderici-guilielmi Lehm. S. Afr. J. Bot. 2009, 75, 682–688. [Google Scholar] [CrossRef]
- Walters, T.; Osborne, R.; Decker, D. ‘We hold these truths’. In Cycad Classification Concepts and Recommendations; Walters, T., Osborne, R., Eds.; CABI Publishing: Oxfordshire, UK, 2004; pp. 1–11. ISBN 0851997414. [Google Scholar]
- Chemnick, J.; Oberprieler, R.; Donaldson, J.; Terry, I.; Osborne, R.; Tang, W.; Forster, P. Insect pollinators of cycads A report from a cycad pollination workshop held in Thailand, 2002 with a protocol for collecting and studying cycad pollinators. Cycad Newsl. 2004, 27, 3–7. [Google Scholar]
- Bouchard, P.; Bousquet, Y.; Davies, A.E.; Alonso-Zarazaga, M.A.; Lawrence, J.F.; Lyal, C.H.C.; Newton, A.F.; Reid, C.A.M.; Schmitt, M.; Ślipińsk, S.A.; et al. Family-group names in Coleoptera (Insecta). ZooKeys 2011, 88, 1. [Google Scholar] [CrossRef] [PubMed]
- Tang, W.; O’Brien, C.W. Distribution and evolutionary patterns of the cycad weevil genus Rhopalotria (Coleoptera: Curculionoidea: Belidae) with emphasis on the fauna of Panama. Mem. N. Y. Bot. Gard. 2012, 106, 335–351. [Google Scholar]
- Calonje, M.; Stevenson, D.W.; Stanberg, L. The World List of Cycads. Available online: http://www.cycadlist.org (accessed on 2 May 2018).
- Franz, N.M.; Skelley, P. Pharaxonotha portophylla (Coleoptera: Erotylidae), new species and pollinator of Zamia (Zamiaceae) in Puerto Rico. Caribb. J. Sci. 2008, 44, 321–333. [Google Scholar] [CrossRef]
- Skelley, P.; Xu, G.; Tang, W.; Lindström, A.; Marler, T.; Khuraijam, J.S.; Singh, R.; Radha, R.; Rich, S. Review of Cycadophila Xu, Tang and Skelley (Coleoptera: Erotylidae: Pharaxonothinae) inhabiting Cycas (Cycadaceae) in Asia, with descriptions of a new subgenus and thirteen new species. Zootaxa 2017, 4267, 1–63. [Google Scholar] [CrossRef] [PubMed]
- Tang, W.; Skelley, P.; Thomas, M.C.; Perez-Farrera, M.A. Beetles inhabiting the cycad genus Ceratozamia (Cycadales: Zamaiceae). in preparation.
- Xu, G.; Tang, W.; Skelley, P.; Liu, N.; Rich, S. Cycadophila, a new genus (Coleoptera: Erotylidae: Pharaxonothinae) inhabiting Cycas debaoensis (Cycadaceae) in Asia. Zootaxa 2015, 3986, 251–278. [Google Scholar] [CrossRef] [PubMed]
- Maldonado-Ruiz, M.F.; Flores-Vázquez, J.C. Entomofauna Asociada a Dioon sp. nov. y actividad de los insectos polinizadores en San Jerónimo Taviche, Oaxaca, Mexico. Mem. N. Y. Bot. Gard. 2012, 106, 295–301. [Google Scholar]
- Oberprieler, R.G. The weevils (Coleoptera: Curculionoidea) associated with cycads. 2. Host specificity and implications for cycad taxonomy. In Proceedings of the 3rd International Conference of Cycad Biology, Conservation through Cultivation; Vorster; Vorster, P., Ed.; Cycad Society of South Africa: Stellenbosch, South Africa, 1995; pp. 335–365. ISBN 0620192283. [Google Scholar]
- Oberprieler, R.G. Evil weevils—The key to cycad survival and diversification? In Proceedings of the Sixth International Conference on Cycad Biology; Lindstrom, A., Ed.; Nong Nooch Tropical Garden: Bangkok, Thailand, 2004; pp. 170–194. ISBN 9749235916. [Google Scholar]
- Marvaldi, A.; Oberprieler, R.; Lyal, C.; Bradbury, T.; Anderson, R. Phylogeny of the Oxycoryninae sensu lato (Coleoptera: Belidae) and evolution of host-plant associations. Invertebr. Syst. 2006, 20, 447–476. [Google Scholar] [CrossRef]
- Goloboff, P.A.; Farris, J.A.; Nixon, K.C. TNT, a free program for phylogenetic analysis. Caldistics 2008, 24, 774–786. [Google Scholar] [CrossRef]
- Wink, M.; Mikes, Z.; Rheinheimer, J. Phylogenetic relationships in weevils (Coleoptera: Curculionoidea) inferred from nucleotide sequences of mitochondrial 16S rDNA. Naturwissenschaften 1997, 84, 318–321. [Google Scholar] [CrossRef] [PubMed]
- Whitfield, J.B.; Cameron, S.A. Hierarchical analysis of variation in the mitochondrial 16S rRNA gene among Hymenoptera. Mol. Biol. Evol. 1998, 15, 1728–1743. [Google Scholar] [CrossRef] [PubMed]
- Hosoya, T.; Araya, K. Phylogeny of Japanese stag beetles (Coleoptera: Lucanidae) inferred from 16S mtrRNA gene sequences, with reference to the evolution of sexual dimorphism of mandibles. Zool. Sci. 2005, 22, 1305–1318. [Google Scholar] [CrossRef] [PubMed]
- Sobti, R.S.; Sharma, V.L.; Kumari, M.; Gill, T.K. Genetic relatedness of six North-Indian butterfly species (Lepidoptera: Pieridae) based on 16S rRNA sequence analysis. Mol. Cell. Biochem. 2007, 295, 145–151. [Google Scholar] [CrossRef] [PubMed]
- Aruggoda, A.G.B.; Shunxiang, R.; Baoli, Q. Molecular phylogeny of ladybird beetles (Coccinellidae: Coleoptera) inferred from mitochondrial 16S rDNA sequences. Trop. Agric. Res. 2010, 21, 209–217. [Google Scholar] [CrossRef]
- Caterino, M.S.; Cho, S.; Sperling, F.A.H. The current state of insect molecular systematics: A thriving tower of babel. Ann. Rev. Entomol. 2000, 45, 1–54. [Google Scholar] [CrossRef] [PubMed]
- Katoh, K.; Standley, D.M. MAFFT multiple sequence alignment software version 7: Improvements in performance and usability Mol. Biol. Evol. 2013, 30, 772–780. [Google Scholar] [CrossRef] [PubMed]
- Stamatakis, A. RAxML version 8: A tool for phylogenetic analysis and post-analysis of large phylogenies. Bioinformatics 2014, 9, 1312–1313. [Google Scholar] [CrossRef] [PubMed]
- Ronquist, F.; Teslenko, M.; van der Mark, P.; Ayres, D.L.; Darling, A.; Höhna, S.; Larget, B.; Liu, L.; Suchard, M.A.; Huelsenbeck, J.P. MrBayes 3.2: Efficient bayesian phylogenetic inference and model choice across a large model space. Syst. Biol. 2012, 61, 539–542. [Google Scholar] [CrossRef] [PubMed]
- Larkin, M.A.; Blackshields, G.; Brown, N.P.; Chenna, R.; McGettigan, P.A.; McWilliam, H.; Valentin, F.; Wallace, I.M.; Wilm, A.; Lopez, R.; et al. Clustal W and Clustal X version 2.0. Bioinformatics 2007, 23, 2947–2948. [Google Scholar] [CrossRef] [PubMed]
- Swofford, D.L. PAUP*: Phylogenetic Analysis Using Parsimony (*and Other Methods), version 4.0; Sinauer Associates, Inc.: Sunderland, MA, USA, 2002. [Google Scholar]
- Tamura, K.; Peterson, D.; Peterson, N.; Stecher, G.; Nei, M.; Kumar, S. MEGA5: Molecular evolutionary genetics analysis using maximum likelihood, evolutionary distance, and maximum parsimony methods. Mol. Biol. Evol. 2011, 28, 2731–2739. [Google Scholar] [CrossRef] [PubMed]
- Nicolalde-Morejon, F.; Vergara-Silva, F.; Gonzalez-Astoraga, J.; Stevenson, D.W. Character based, population-level DNA barcoding in Mexican species of Zamia L. (Zamiaceae: Cycadales). Mitochondrial DNA 2010, 21, 51–59. [Google Scholar] [CrossRef] [PubMed]
- Moynihan, J.; Vovides, A.P.; González-Astorga, J.; Francisco-Ortega, J. Population genetic diversity in the Dioon edule Lindl. species complex (Zamiaceae, Cycadales): Evidence from microsatellite data. Mem. N. Y. Bot. Gard. 2012, 106, 224–250. [Google Scholar]
- Moynihan, J.; Stevenson, D.W.; Lewis, C.E.; Vovides, A.P.; Caputo, P.; Francisco-Ortega, J. A phylogenetic study of Dioon Lindl. (Zamiaceae, Cycadales), based on morphology, nuclear ribosomal DNA, a low-copy nuclear gene, and plastid RFLPs. Mem. N. Y. Bot. Gard. 2012, 106, 448–479. [Google Scholar]
- Gutiérrez-Ortega, J.S.; Yamamoto, T.; Vovides, A.P.; Pérez-Farrera, M.A.; Martínez, J.F.; Molina-Freaner, F.; Watano, Y.; Kajita, T. Aridification as a driver of biodiversity: A case study for the cycad genus Dioon (Zamiaceae). Ann. Bot. 2018, 121, 47–60. [Google Scholar] [CrossRef] [PubMed]
- Hall, J.A.; Walter, G.H. Seed dispersal of the Australian cycad Macrozamia miquelii (Zamiaceae): Are cycads megafauna-dispersed “grove forming” plants? Am. J. Bot. 2013, 100, 1127–1136. [Google Scholar] [CrossRef] [PubMed]
- Burbridge, A.H.; Whelan, R.J. Seed dispersal in acycad, Macrozamia riedlei. Aust. J. Ecol. 1982, 7, 63–67. [Google Scholar] [CrossRef]
- Ballardie, R.T.; Whelan, R.J. Masting, seed dispersal and seed predation in the cycad Macrozamia communis. Oecologia 1986, 70, 100–105. [Google Scholar] [CrossRef] [PubMed]
- Tang, W. Seed dispersal in the cycad Zamia pumila in Florida. Can. J. Bot. 1989, 67, 2066–2070. [Google Scholar] [CrossRef]
- Crowson, R.A. On the systematic position of Allocoryninae (Coleoptera: Allocorynidae). Coleopt. Bull. 1986, 40, 243–244. [Google Scholar]
- Crowson, R.A. The relations of Coleoptera to Cycadales. In Advances in Coleopterology; Zunino, M., Belle’s, X., Blas, M., Eds.; Asociacion Europea de Coleopterologia: Torino, Italy, 1991; pp. 13–28. [Google Scholar]
- Brookes, D.R.; Hereward, J.P.; Terry, L.I.; Walter, G.H. Evolutionary dynamics of a cycad obligate pollination mutualism—Pattern and process in extant Macrozamia cycads and their specialist thrips pollinators. Mol. Phylogenet. Evol. 2015, 93, 83–93. [Google Scholar] [CrossRef] [PubMed]
- Franz, N.M.; Engel, M.S. Can higher-level phylogenies of weevils explain their evolutionary success? A critical review. Syst. Entomol. 2010, 35, 596–606. [Google Scholar] [CrossRef]
- Rogers, R.D.; Mann, P.; Emmet, P.A. Tectonic terranes of the Chortis block based on integration of regional aeromagnetic and geologic data. In Geologic and Tectonic Development of the Caribbean Plate in Northern Central America; Mann, P., Ed.; Geological Society of America: Boulder, CO, USA, 2007; Volume 428, pp. 65–88. [Google Scholar] [CrossRef]
- Coates, A. The forging of Central America. In Central America: A Natural and Cultural History; Coates, A., Ed.; Yale Univ. Press: New Haven, CT, USA, 1997; pp. 1–37. ISBN 0300068298. [Google Scholar]
- Tang, W. Evolutionary history of cycads in North America. Cycad Newsl. 2012, 35, 7–13. [Google Scholar]
- Kvaček, Z. A noteworthy cycad, Ceratozamia hofmannii Ettingshausen 1887, from the Lower Miocene of Austria re-examined. Neues Jahrb. Geol. Paläontol. Monatshefte 2004, 111–118. [Google Scholar]
- Nagalingum, N.; Marshall, C.; Quental, T.; Rai, H.; Little, D.; Matthews, S. Recent synchronous radiation of a living fossil. Science 2011, 334, 796–799. [Google Scholar] [CrossRef] [PubMed]
- Salas-Leiva, D.; Meerow, A.W.; Calonje, M.; Griffith, M.P.; Francisco-Ortega, J.; Stevenson, D.W.; Nakamura, K.; Lewis, C.E.; Namoff, S. Phylogeny of the cycads based on multiple single copy nuclear genes: Congruence of concatenation and species tree inference methods. Ann. Bot. 2013, 112, 1263–1278. [Google Scholar] [CrossRef] [PubMed]
- Condamine, F.; Nagalingum, N.; Marshall, C.R.; Morlon, H. Origin and diversification of living cycads: A cautionary tale on the impact of the branching process prior in Bayesian molecular dating. BMC Evol. Biol. 2015, 15, 65. [Google Scholar] [CrossRef] [PubMed]
- Meerow, A.W.; Francisco-Ortega, J.; Calonje, M.; Griffith, M.P.; Ayala-Silva, T.; Stevenson, D.W.; Nakamura, K. Zamia (Cycadales: Zamiaceae) on Puerto Rico: Asymmetric genetic differentiation and the hypothesis of multiple introductions. Am. J. Bot. 2012, 99, 1828–1839. [Google Scholar] [CrossRef] [PubMed]
- Lazcano-Lara, J.C. The Reproductive Biology of Zamia (Cycadales: Zamaiaceae) in Puerto Rico: Implications for Patterns of Genetic Structure and Species Conservation. Ph.D. Thesis, University of Puerto Rico, Rio Píedras, Puerto Rico, May 2015. [Google Scholar]
- Caputo, P.; Cozzolino, S.; De Luca, P.; Moretti, A.; Stevenson, D.W. Molecular Phylogeny of Zamia (Zamiaceae). In Cycad Classification Concepts and Recommendations; Walters, T., Osborne, R., Eds.; CABI Publishing: Oxfordshire, UK, 2004; pp. 149–157. ISBN 085199741. [Google Scholar]
- Nagalingum, N.; Marshall, C.; Quental, T.; Rai, H.; Little, D.; Matthews, S. Supporting Online Material for Recent Synchronous Radiation of a Living Fossil. Science 2011, 1–38. [Google Scholar] [CrossRef]
- Salas-Leiva, D.E.; Meerow, A.W.; Calonje, M.; Francisco-Ortega, J.; Griffith, M.P.; Nakamura, K.; Sánchez, V.; Knowles, L.; Knowles, D. Shifting Quaternary migration patterns in the Bahamian archipelago: Evidence from the Zamia pumila complex at the northern limits of the Caribbean island biodiversity hotspot. Am. J. Bot. 2017, 104, 757–771. [Google Scholar] [CrossRef] [PubMed]
- Norstog, K.; Nicholls, T. The Biology of the Cycads; Cornell Univ. Press: Ithaca, NY, USA; London, UK, 1997; 383p, ISBN 080143033X. [Google Scholar]
- Donaldson, J. Cycads Status Survey and Conservation Action Plan; IUCN: Gland, Switzerland; Cambridge, UK, 2003; 86p, ISBN 2831706998. [Google Scholar]
- Poinar, G.; Legalov, A.A. Pleurambus strongylus n. gen., n. sp. (Coleoptera: Belidae) in Dominican amber. Hist. Biol. 2014, 26, 670–674. [Google Scholar] [CrossRef]
- Alekseev, V.I.; Bukejs, A. First fossil representatives of Pharaxonothinae Crowson (Coleoptera: Erotylidae): Indirect evidence for cycads existence in Baltic amber forest. Zootaxa 2017, 4337, 413–422. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Representatives of the six major lineages of Coleoptera inhabiting New World cycads, dorsal views: (A) Protocorynus bontai O’Brien and Tang, male; (B) Notorhopalotria montgomeryensis O’Brien and Tang, male; (C) Rhopalotria (R.) dimidiata Chevrolat, male; (D) Parallocorynus (Neocorynus) schiblii Tang and O’Brien, male; (E,F) Pharaxonotha sp. and Erotylidae, undescribed genus inhabiting a male cone of Ceratozamia vovidesii Pérez-Farr. and Iglesias; scale bars = 1 mm.
Figure 2. Phylogenetic tree for the Allocorynina based on maximum parsimony analysis of the matrix of morphological, behavioral, and host characters in Appendix B; Oxycraspedus cornutus is used as the outgroup; numbers are bootstrap values.
Figure 3. Phylogenetic tree for the Allocorynina synthesized from maximum likelihood (ML) and bayesian inference (BI) analyses of 16S ribosomal RNA (rRNA) gene sequences; numbers above the branches are posterior probabilities from Mr Bayes and the numbers below the branches are bootstrap support from RAxML. Localities and host cycad species are indicated for each sample.
Figure 4. Phylogenetic tree for the Erotylidae: Pharaxonothinae on the cycads of the New World based on maximum likelihood analysis of 16S rRNA gene sequences; scale bar indicates base pair substitutions per nucleotide position; numbers on branches are bootstrap values.
© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
