Diversity 2018, 10(1), 8; https://doi.org/10.3390/d10010008

Article
Better Resilient than Resistant—Regeneration Dynamics of Storm-Disturbed Mangrove Forests on the Bay Island of Guanaja (Honduras) during the First Two Decades after Hurricane Mitch (October 1998)
Physical Geography, University of Passau, Innstraße 40, D-94032 Passau, Germany
Received: 15 December 2017 / Accepted: 25 January 2018 / Published: 27 January 2018

Abstract

:
Located at the interface of land and sea, Caribbean mangroves frequently experience severe disturbances by hurricanes, but in most cases storm-impacted mangrove forests are able to regenerate. How exactly regeneration proceeds, however, is still a matter of debate: does—due to the specific site conditions—regeneration follows a true auto-succession with exactly the same set of species driving regeneration that was present prior to the disturbance, or do different trajectories of regeneration exist? Considering the fundamental ecosystem services mangroves provide, a better understanding of their recovery is crucial. The Honduran island of Guanaja offers ideal settings for the study of regeneration dynamics of storm-impacted mangrove forests. The island was hit in October 1998 by Hurricane Mitch, one of the most intense Atlantic storms of the past century. Immediately after the storm, 97% of the mangroves were classified as dead. In 2005, long-term monitoring on the regeneration dynamics of the mangroves of the island was initiated, employing permanent line-transects at six different mangrove localities all around the island, which have been revisited in 2009 and 1016. Due to the pronounced topography of the island, different successional pathways emerge depending on the severity of the previous disturbance.
Keywords:
Guanaja; mangrove regeneration; hurricane disturbance; successional pathways

1. Introduction

Located at the interface of land and sea, mangroves provide many important ecosystem services for (sub)tropical coastal regions and their population [1,2,3,4,5]. Of particular relevance is the protection against mechanical disturbances such as tropical storms [6,7,8]. While effectively slowing down wind and wave energy, mangrove forests often experience severe disturbances once a storm hits ([9], for the Caribbean see also [10,11,12,13,14]). How regeneration dynamics of storm disturbed mangrove forests proceed is still a matter of debate: does regeneration—due to the specific site conditions—happen as true auto-succession with exactly the same set of species driving regeneration that was present prior to the disturbance [4,15,16,17,18]? Or do different successional trajectories with respect to species composition and vegetation structure and/or disturbance intensity exist [11,19,20,21]? Can extreme disturbances even transform mangrove forests into different ecosystems [22]?
While there is no shortage of studies focusing on the regeneration of mangroves after hurricane impacts, insight on long-term mechanisms and processes is still poor [23] as most studies are singular studies at varying periods of time after the storm impact and with different study designs, not allowing for the deduction of general trends. Considering the fundamental ecosystem services mangroves provide, a better understanding of the recovery of those forests is crucial, in particular as an increase of the hurricane intensity and/or frequency with global warming is predicted by climate models (on this controversial discussion, see, e.g., [24,25,26,27,28,29,30,31,32]). The Honduran island of Guanaja provides an ideal setting for the study of long-term regeneration dynamics of storm-impacted mangrove forests. The island was hit in October 1998 by Hurricane Mitch, one of the most intense Atlantic storms of the past century [33]. Infrastructure on the island as well as several ecosystems suffered severe disturbances; amongst those affected were the mangroves [34]. Immediately after the storm, 97% of the mangroves were classified as dead by wind throw, breakage of stilt-roots, or removal of leaf buds [35]. However, five years after the passage of Mitch, differences in regeneration dynamics between windward and leeward mangrove localities became apparent. In 2005, a long-term monitoring project on the regeneration dynamics of the mangrove forests was initiated, employing permanent line-transects perpendicular to the shore from the supratidal zone to the seaward fringe of the mangroves at six different localities all around the island. The transects were GPS-tracked and flagged in 2005 and revisited in 2009 and 2016 to document changes in vegetation development and to allow for the deduction of general successional trajectories for Caribbean mangrove forests after variable preceding disturbance intensities.

2. Materials and Methods

2.1. Study Area

Guanaja is the second largest of the Bay Islands (in Spanish Islas de la Bahia) off the north coast of Honduras (Figure 1). The island has a pronounced relief reaching its highest point in Michael Rock Peak at 415 m a.s.l. According to its latitude of 16°28’ N, the climate of Guanaja is tropical, dominated by trade winds from E to NE for most of the year. The climate chart of the neighboring island of Roatan in Figure 1 depicts the general climatic situation of the Bay Islands [36]. Mean temperature is 27.3 °C, with little seasonal variation. The mean annual precipitation is around 1750 mm with a maximum in winter, when polar-continental cold fronts originating from the North American continent (the so-called “nortes”) advance far south into the Caribbean and the Gulf of Honduras [36,37]. Between May and October, tropical low pressure systems regularly move in from the Atlantic, inducing a potential “hurricane season.”
Controlled by relief and edaphic conditions, a variety of vegetation types occurs on Guanaja [34]. The mangroves are restricted to flat, poorly drained areas and lagoons along the coast with low wave action (Figure 1). As elsewhere in the Caribbean, Rhizophora mangle was (is) the most dominant species, often forming monospecific forests. Where inundation is slightly less, Rhizophora mangle is usually associated with Laguncularia racemosa and/or Avicennia germinans [38]. The transition to terrestrial ecosystems is commonly by a belt of Conocarpus erectus and/or the mangrove fern Acrostichum aureum.

2.2. Hurricane Mitch

Hurricane Mitch was one of the strongest and most destructive Atlantic hurricanes of the 20th century [33]. Like most hurricanes within the Caribbean Basin, Mitch originated from an easterly wave that developed offshore Western Africa on 8/9 October 1998. After crossing the Northern Atlantic and getting in contact with the warm waters of the Caribbean Sea, this low-pressure system developed into the 13th named tropical storm of the extraordinary storm season of 1998 on 23 October. A day later, the storm reached hurricane intensity, successively strengthening during the next days. On 26 October, the pressure of the storm system reached a minimum of 905 hPa with winds up to 305 km/h, making Mitch the strongest October hurricane ever to occur until that time [33]. Slightly weakening, Mitch made landfall on Guanaja on 27 October as a Category 4 hurricane (Figure 1) but still had very high wind speeds of 195 km/h. As track speed slowed to less than 8 km/h, the center of Mitch remained right off the north coast of Honduras between 27 and 29 October. Despite an ongoing weakening of wind speeds, Guanaja was exposed to heavy winds for about 70 h. Finally, in the night to 29 October, Mitch made landfall on mainland Honduras, where it quickly became a tropical storm, nevertheless causing severe destruction and high number of casualties due to massive rain and subsequent landslides in many Central American states [33].

2.3. Data and Methods

To assess the magnitude of disturbance within the mangrove forests on Guanaja by Hurricane Mitch, a change detection analysis was initially performed [39], employing satellite images prior to and after the passage of the storm (March 1986, Landsat 5 TM, ID: LT50170491986067XXX08; April 2000, Landsat 7 ETM+, ID: LE70170492000098EDC00, respectively). Satellite images were downloaded from http://earthexplorer.usgs.gov/. Pixel values of the earlier image were normalized by linear regression related to the base image of 2000. The change detection analysis itself is based on NDVI-transformed images, and the image differencing was performed by simple subtraction of the two images. The resulting difference image shows the degree of change in vegetation density and/or vitality on the ground (high pixel values indicating a high degree of change). Satellite image analyses were performed by the software IDRISI Taiga.
In 2005, long-term monitoring on the regeneration dynamics of the mangroves on Guanaja was initiated, employing permanent line-transects (line-intercept method, see [40]) at six different mangrove localities all around the island (Figure 1). The transects run perpendicular to potential ecological gradients (as recommended by the authors of [41]) from the supratidal zone to the seaward fringe of the mangroves. According to size and outline of the mangrove area, the number of transects per site as well as their length is variable. Collectively, eleven transects were surveyed: four in West End North (50 m, 50 m, 50 m and 60 m), two in Mangrove Bight (250 m and 300 m), one in Savannah Bight (550 m), one in El Pelican (110 m), one in Airport (200 m), and two in West End South (150 m and 110 m), totaling almost 1900 m. Along the transects the sections of the measuring tape covered by living plant species (including seedlings) were recorded species-wise with a resolution of 0.1 m. Woody debris was recorded in the same manner. Those linear measures (in m) were converted afterwards to ground-cover values in % per 10 m segments for each species (see Figure 2). The taxonomy of species is in accordance with [42]. Additionally, lifeform affiliation for each taxon was determined (in accordance with [43], see also Table 1). The transects were GPS-located and flagged by colored ties to allow for exact relocation during subsequent resurveys. Resurveys took place in 2009 and 2016.
Data analyses include standard uni- and multivariate statistical procedures. For the visualization of general trends of temporal change in ground cover of particular functional groups, bar plots of mean ground cover per site were employed. To detect (un)similarities concerning species composition and/or structural features between transect segments of different sites and different sampling dates, a multivariate gradient analysis (principle component analysis, PCA) is employed. PCAs are unconstrained ordination procedures calculated from species data only. The species data set used here consists of an assortment of true species (common mangrove taxa such as Rhizophora mangle, Laguncularia racemosa, Avicennia germinans, Conocarpus erectus, and Acrostichum aureum) as well as functional groups (such as climbers, graminoids, herbs, epiphytes, freshwater swamp trees, and palms; integrating mainly rare and uncommon taxa). The ordination axes of the resulting PCA represent theoretical gradients that explain the species data best [44]. Results are visualized by an ordination diagram, arranging samples along these meaningful gradients based on the interrelationships among a large number of interdependent variables. Graphical ordinations are displayed as scatter diagrams with samples as symbols and species as arrows, which point from the coordinate origin in the direction toward samples with above-average values of the respective species/functional group, while in the opposite direction samples with below-average values are located. The location of different transect segments within the ordination space allows for a spatio-temporal interpretation of the floristic and/or structural (dis)similarity between different segments or between the same segments of different sampling dates. As an ordination-plot including all transect segments of all three surveys (i.e., almost 600 entries) would be very crowded, data are displayed separately for particular locations and sampling dates to illustrate the direction of change. PCA analyses were performed with CANOCO 4.5, and the species data were log-transformed (x’ = log (x + 1)) to balance extreme values within the dataset [44,45].

3. Results

Prior to Hurricane Mitch mangroves covered an area of 243 ha on the island of Guanaja [37]. Exposed to the high wind and wave energy caused by Mitch, the mangroves were among the ecosystems hit most severely on the island [34]. The change detection analysis in Figure 3 illustrates that most of the mangroves of the island experienced a strong alteration caused by breakage of the delicate stilt roots of the dominating Rhizophora mangle, by windthrow of Laguncularia racemosa and Avicennia germinans, and/or by the removal of leaves and leaf buds in standing mangrove trees [36]. Immediately after the passage of Mitch, 97% of the mangroves were classified as dead [35]. However, during the initial survey in 2005, seven years after Mitch, obvious differences in the state of recovery were observable, most likely due to varying previous storm impacts related to location and topography of the island.
Those differences in disturbance intensity and regeneration dynamics become apparent in the PCA analysis (Figure 4). The ordination space is primarily defined by living mangrove taxa (Rhizophora mangle and to a lesser degree by Laguncularia racemosa and Avicennia germinans) on the right side and by low or even absent cover of living mangrove species on the left, by the light-demanding mangrove fern Acrostichum aureum in the upper part of the ordination space as well as by woody debris in lower left corner. Simply speaking, transect segments without living mangrove vegetation are concentrated on the left side of the y-axis in Figure 4, while vital mangroves or those showing signs of regeneration are located on the right. Figure 4 illustrates that the Rhizophora mangle-dominated mangroves in West End North (see Table 1) had recovered from hurricane damage by 2005 (almost all transect segments are located in the right quadrants). In the subsequent surveys, there was not much further development going on except for local internal dynamics (e.g., the shift of one transect segment from the right side (in 2009) to the left side (in 2016) of Figure 4 due to the die-back of one adult Rhizophora mangle tree). Thus, a quick return to pre-Mitch conditions can be assumed for West End North. Little changes can also be observed for the Airport mangrove in Figure 4, with a continuous co-occurrence of vital (right quadrants), a few disturbed (left quadrants) and fern-dominated transect segments (in the upper left quadrant), and not much change between the three sampling dates. For all other sites, Figure 4 indicates a considerable change by the shift of transect segments from the left side (2005 and 2009) to the right side (2016), indicating a delayed but continuous regeneration of the mangrove forests.
The differences in the state of regeneration in 2005 led to a rough classification in low, moderate, and high regeneration sites (Figure 5). In general, this classification was valid for the resurvey in 2009, too. During this four-year period, ground cover of mangrove tree species increased in high (West End North) to moderate regeneration sites (El Pelican, Airport, in the latter also the light-demanding mangrove fern Acrostichum aureum increased), and in the low regeneration sites (Mangrove Bight, Savannah Bight, and West End South) some developments become apparent, too (see bar graphs in Figure 5): Mangrove taxa increased to about 10% groundcover in Savannah Bight and West End South since the initial survey, while in Mangrove Bight a relatively high amount of salt-tolerant herbs and grasses (close to 10%) established between 2005 and 2009, but almost no mangroves. A strikingly different situation was present in 2016, in particular in the most severely disturbed sites West End South, Savannah Bight, and Mangrove Bight (Figure 6), where mangrove cover skyrocketed within the seven-year period starting from 2009. Moreover, in El Pelican, cover values for mangroves doubled in the same period of time. That a herb- and grass-rich understory does not preclude the establishment of mangrove seedlings (mainly Rhizophora mangle) becomes obvious in Mangrove Bight, where both mangrove cover and cover of halophilous herbs and grasses (mainly Blutaparon vermiculare and to a lesser degree Sesuvium portulacastrum, Table 1) increased.

4. Discussion

Differences in the state of mangrove regeneration in 2005 that led to the rough classification in low, moderate, and high regeneration sites shown in Figure 5, most likely result from differences in the preceding disturbance by Hurricane Mitch. As Mitch approached the island from the Northeast (Figure 1), West End North on the leeward side of the island was effectively protected by the pronounced topography of the island. Wind energy was still strong enough to remove all leaves, so this locality was classified as dead immediately after the hurricane impact by the authors of [35], and the change detection analysis in Figure 3 indicates a strong alteration, too. Roots, trunks, and leaf buds, however, remained intact, so a swift return to pre-Mitch conditions was possible by the re-sprouting of leaves. To a lesser degree, such wind protection by micro- and/or macro-topography existed at the mangrove localities of Airport and El Pelican, where at least some segments with living mangroves were present in 2005. On the highly wind-exposed side of the island (Mangrove Bight, Savannah Bight and West End South), however, mangroves showed almost no signs of regeneration at the first survey in 2005.
As chances for natural regeneration in the severely hit mangrove sites were assumed to be low [46], the Honduran forestry agency ESCNACIFOR (Escuela Nacional de Ciencias Forestales) started a reforestation campaign in 2003 in some localities (Airport south of the canal, as well as Mangrove Bight and Savannah Bight at the seaward margin). Some years later, an American voluntary initiative started the planting of Rhizophora mangle propagules, again in the severely hit northeastern part of the island (mainly Mangrove Bight and Savannah Bight). However, mortality rates of the planted seedlings were very high (locally up to more than 90%). Peat collapse, modified site conditions (e.g., salinity, high radiation, excessive heat, etc.), and/or the feeding behavior of crabs might have been responsible for the low success. Planting of seedlings grown up in nurseries slightly enhanced the success of the establishment. As planting efforts were very local, most mangroves on Guanaja recover by natural regeneration, locally, however, some progress might result from planted seedlings that became established successfully. For instance, the increase of mangrove tree cover up to >10% in Savannah Bight in 2009 may partly go back to some of the planting done by the ESNACIFOR a couple of years earlier. In Mangrove Bight, where planting efforts were conducted as well, no substantial increase in mangrove cover happened due to widespread die-back of seedlings. Rather, this area was characterized by a strong increase of herbaceous and graminoid taxa. In 2009 it was hypothesized that the low success of mangrove seedling (planted and natural) might be related to the presence of competitors and that a long-term transformation of former mangrove to saltmarsh is taking place, as reported by the authors of [22]. As mangrove cover tremendously increased in all severely disturbed sites between 2009 and 2016 (see Figure 5), regardless of whether there were no planting efforts (as in the West End South), there was some successful planting (as in Savannah Bight), or there was an interim herbaceous phase (as in Mangrove Bight), a high resilience of mangroves is indicated even though the tree species (in particular, Rhizophora mangle) are not very resistant to severe storm impacts.
Two decades are for sure not a sufficiently long period of time to evaluate the entire successional cycle of regeneration, for which, according to the authors of [11], a minimum of three to four decades have to be assumed. Therefore, concluding remarks on the course of regeneration of hurricane disturbed mangroves on Guanaja cannot yet be made. However, based on the six mangrove sites studied, different successional trajectories during the first two decades after the disturbance can be identified, which might be valid for Caribbean mangroves in general (Figure 7). Mangroves protected from the most severe winds, where trees shed leaves but remained unharmed otherwise, experience a swift return to vital forests comparable to those present prior to Mitch by trees simply re-sprouting leaves from intact leaf buds (Cycle A in Figure 7). This trajectory is represented by West End North, where the mangroves were obviously protected from the most severe winds by the mountainous backbone of the island. Within a few years, the final state of succession is accomplished and forest structure is driven again by internal dynamics, as indicated by shifting ground cover values between 2009 and 2016 for mangrove trees in West End North (Figure 5, see also the shifts of one singular transect segment in Figure 4 due to a treefall gap).
Besides large-scale protecting effects, local small-scale protection must have been effective as singular individuals of all three mangrove species survived Mitch even in the most severely affected sites. Protection was provided by natural and/or artificial scarps surrounding the mangroves. In addition, the forest stands themselves might have provided protection to young trees established within former canopy gaps [47]. These low-growing trees were effectively protected from the most severe winds by tall, heavily affected old-growth trees and are potentially a crucial source of diaspores driving regeneration. This highlights the significance of the stand structure prior to disturbance for post-disturbance developments. Homogeneous, one-layered, even-aged, and monospecific stands most likely will regenerate more slowly than forests with a more heterogeneous structure of canopy gaps favoring young trees and tall, emergent trees acting as wind breaks at the canopy level. In such a forest, only the exposed trees are affected by winds, sparing many diaspore-bearing young individuals, which allows for a swift regeneration after the disturbance [11]. In contrast, if most diaspore-producing individuals within homogeneous stands are lost to the storm, regeneration takes considerably longer, as the influx of diaspores is delayed due to a poor diaspore availability in the immediate surrounding. In extreme cases—if no survivors are present—such influx must occur completely from abroad, which involves a high degree of randomness.
Disturbance intensity, however, is not the sole variable controlling regeneration, as different trajectories of the severely disturbed mangrove sites of Mangrove Bight, Savannah Bight, and the West End South reveal. While the latter with few survivors in the immediate surrounding and no afforestation measures conducted is characterized by a slow natural regeneration (Cycle C in Figure 7), Savannah Bight shows some acceleration in regeneration with an increase in mangrove cover from 1.5% in 2005 to 11% in 2009 (Figure 5). Whether this is a consequence of planting efforts conducted by the ESNACIFOR in 2003 and 2004 cannot be said with certainty, as these efforts in general were not very successful. However, it cannot be ruled out that some of the diaspore-bearing individuals on the seaward side of the Savannah Bight transect in 2009 date back to these efforts and are responsible for the enhanced regeneration (Cycle B in Figure 7). The larger part of (sub)adult individuals, however, originate from a few survivors in topographically protected locations at the edge of the mangrove area.
Mangrove Bight, finally, differs from all other mangrove sites studied on Guanaja in its high amount of halophilous herbs and grasses. Modified site conditions and high radiation input increasing substrate salinity, at least seasonally (in the dry season), might be responsible for that. The hypothesis based on observations in 2009 that this could be an initial stage of a long-term transformation of former mangroves towards a treeless saltmarsh (see Figure 7), as described by the authors of [22] regarding strongly altered mangroves in the Florida Everglades, has to be abandoned after the survey in 2016. The significant increase in mangrove cover—partly natural, partly human supported—between 2009 and 2016, going hand in hand with an increase of grasses and herbs, indicates that a herbaceous phase might just be a detour with temporary shifts in the species composition on the way back to mangroves (Cycle D in Figure 7, see also [11]). This trajectory contradicts the assumption of strict auto-successional pathways within mangroves following severe disturbances. In fact, a herb and grass layer might even facilitate mangrove seedling establishment after sever disturbances, as reported from Caribbean mangroves [19].

5. Conclusions

While obviously not being resistant to storm impacts, mangroves show a high degree of resilience and are able to regenerate within relatively short periods of time even after severe disturbances via different successional pathways. The fact that there is not much difference in the regeneration progress of sites with anthropogenic support due to reforestation (parts of Savannah Bight and Mangrove Bight) and those without (West End South, El Pelican) proves the high resilience of mangrove forests as hurricane-prone Caribbean ecosystems. If mangroves would not have this ability, they surely would have been replaced by other systems, considering the high frequency of tropical storms within the Caribbean basin. How this ability will be stressed by climate change in the future remains to be seen. Climate models assume both an increase in intensity of tropical storms as well as an increase of strong hurricanes (>SS3) during the 21st century under global warming [31]. How this might lead to cumulative and probably irreversible effects on Caribbean mangroves and whether this will reduce the resilience of these systems is one of the central topics related to the fundamental ecosystem services mangroves provide [23,48]. While mangroves are already at high risk by deforestation and anthropogenic modifications, these “quasi-natural” (in the sense of anthropogenic enforced natural influences) atmospheric processes linked to climate change make their future more uncertain than ever.

Acknowledgments

Field research for this study was supported by the Deutsche Forschungsgemeinschaft (DFG) under grant # FI 1254/2-1 and # FI 1254/4-1. The author also wants to acknowledge the financial support for this publication by the University Library of the University of Passau within the funding program Open Access Publishing. Field surveys were accompanied by Friederike Grüninger (University of Passau).

Conflicts of Interest

The author declares no conflict of interest.

References

  1. Costanza, R.; d’Arge, R.; de Groot, R.; Farber, S.; Grasso, M.; Hannon, B.; Limburg, K.; Naeem, S.; Oneill, R.V.; Paruelo, J.; et al. The value of the world’s ecosystem services and natural capital. Nature 1997, 387, 253–260. [Google Scholar] [CrossRef]
  2. Costanza, R.; de Groot, R.; van der Ploeg, S.; Anderson, S.J.; Kubiszewski, I.; Farber, S.; Turner, R.K. Changes in the global value of ecosystem services. Glob. Environ. Chang. 2014, 26, 152–158. [Google Scholar] [CrossRef]
  3. Ewel, K.C.; Twilley, R.R.; Ong, J.E. Different kinds of mangrove forests provide different goods and services. Glob. Ecol. Biogeogr. 1998, 7, 83–94. [Google Scholar] [CrossRef]
  4. Saenger, P. Mangrove Ecology, Silviculture and Conservation; Springer: Dordrecht, The Netherlands; Boston, MA, USA; London, UK, 2002; p. 360. [Google Scholar]
  5. Nagelkerken, I.; Blaber, S.J.M.; Bouillon, S.; Green, P.; Haywood, M.; Kirton, L.G.; Meynecke, J.-O.; Pawlik, J.; Penrose, H.M.; Sasekumar, A.; et al. The habitat function of mangroves for terrestrial and marine fauna: A review. Aquat. Bot. 2008, 89, 155–185. [Google Scholar] [CrossRef]
  6. Farber, S. The value of coastal wetlands for protection of property against hurricane wind damage. J. Environ. Econ. Manag. 1987, 14, 143–151. [Google Scholar] [CrossRef]
  7. Imamura, F.; Van To, D. Flood and typhoon disasters in Viet Nam in the Half Century since 1950. Nat. Hazards 1997, 15, 71–87. [Google Scholar] [CrossRef]
  8. Walters, B.B.; Rönnbäck, P.; Kovacs, J.M.; Crona, B.; Hussain, S.A.; Badola, R.; Primavera, J.H.; Barbier, E.; Dahdouh-Guebas, F. Ethnobiology, socioeconomics and management of mangrove forests: A review. Aquat. Bot. 2008, 89, 220–236. [Google Scholar] [CrossRef]
  9. The UN Environment World Conservation Monitoring Centre (UNEP-WCMC). The Front Line: Shoreline Protection and Other Ecosystem Services from Mangroves and Coral Reefs; UNEP-WCMC: Cambridge, UK, 2006; p. 33. [Google Scholar]
  10. Roth, L.C. Hurricanes and mangrove regeneration: Effects of Hurricane Joan, October 1988, on the vegetation of Isla del Venado, Bluefields, Nicaragua. Biotropica 1992, 24, 375–384. [Google Scholar] [CrossRef]
  11. Baldwin, A.; Egnotovich, M.; Ford, M.; Platt, W. Regeneration in fringe mangrove forests damaged by Hurricane Andrew. Plant Ecol. 2001, 157, 149–162. [Google Scholar] [CrossRef]
  12. Sherman, R.E.; Fahey, T.J.; Martinez, J.P. Hurricane impacts on a mangrove forest in the Dominican Republic: Damage patterns and early recovery. Biotropica 2001, 33, 393–408. [Google Scholar] [CrossRef]
  13. Imbert, D. Impact des ouragans sur la structure et la dynamique forestières dans les mangroves des Antilles. Bois For. Trop. 2002, 273, 69–78. [Google Scholar]
  14. Piou, C.; Feller, I.C.; Berger, U.; Chi, F. Zonation patterns of Belizean offshore mangrove forests 41 years after a catastrophic hurricane. Biotropica 2006, 38, 365–374. [Google Scholar] [CrossRef]
  15. Lugo, A.E. Mangrove ecosystems: Successional or steady state? Biotropica 1980, 12, 65–72. [Google Scholar] [CrossRef]
  16. Lugo, A.E. Mangrove forests: A tough system to invade but an easy one to rehabilitate. Mar. Pollut. Bull. 1998, 37, 427–430. [Google Scholar] [CrossRef]
  17. Lugo, A.E.; Zimmerman, J.K. Ecological life histories of tropical trees with emphasis on disturbance effects. In Tropical Tree Seed Manual; Vosso, J., Ed.; USDA Forest Service: Washington, DC, USA, 2003; pp. 191–213. [Google Scholar]
  18. Alongi, D.M. Mangrove forests: Resilience, protection from tsunamis, and responses to global climate change. Estuar. Coast. Shelf Sci. 2008, 76, 1–13. [Google Scholar] [CrossRef]
  19. McKee, K.L.; Rooth, J.E.; Feller, I.C. Mangrove recruitment after forest disturbance is facilitated by herbaceous species in the Caribbean. Ecol. Appl. 2007, 17, 1678–1693. [Google Scholar] [CrossRef] [PubMed]
  20. González, C.; Urrego, L.E.; Martínez, J.I.; Polanía, J.; Yokoyama, Y. Mangrove dynamics in the southwestern Caribbean since the ‘Little Ice Age’: A history of human and natural disturbances. Holocene 2010, 20, 849–861. [Google Scholar] [CrossRef]
  21. Biswas, S.R.; Khan, M.S.I.; Mallik, A.U. Invaders’ control on post-disturbance succession in coastal mangroves. J. Plant Ecol. 2012, 5, 157–166. [Google Scholar] [CrossRef]
  22. Wanless, H.R.; Parkinson, R.W.; Tedesco, L.P. Sea level control on stability of Everglades wetlands. In Everglades: The Ecosystem and Its Restoration; Davis, S.M., Ogden, J.C., Eds.; St. Lucie Press: Boca Raton, FL, USA, 1994; pp. 199–223. [Google Scholar]
  23. Smith, T.J., III; Anderson, G.H.; Balentine, K.; Tiling, G.; Ward, G.A.; Whelan, R.T. Cumulative impacts of hurricanes on Florida mangrove ecosystems: Sediment deposition, storm surges and vegetation. Wetlands 2009, 29, 24–34. [Google Scholar] [CrossRef]
  24. Knutson, T.R.; Tuleya, R.E. Impact of CO2-induced warming on simulated hurricane intensity and precipitation: Sensitivity to the choice of climate model and convective parameterization. J. Clim. 2004, 24, 3477–3495. [Google Scholar] [CrossRef]
  25. Emanuel, K. Increasing destructiveness of tropical cyclones over the past 30 years. Nature 2005, 436, 686–688. [Google Scholar] [CrossRef] [PubMed]
  26. Emanuel, K.A. Environmental factors affecting tropical cyclone power dissipation. J. Clim. 2007, 20, 5497–5509. [Google Scholar] [CrossRef]
  27. Webster, P.J.; Holland, G.J.; Curry, J.A.; Chang, H.-R. Changes in tropical cyclone number, duration, and intensity in a warming environment. Science 2005, 309, 1844–1846. [Google Scholar] [CrossRef] [PubMed]
  28. Klotzbach, P.J. Trends in global tropical cyclone activity over the past twenty years (1986–2005). Geophys. Res. Lett. 2006, 33, L010805. [Google Scholar] [CrossRef]
  29. Trenberth, K.E.; Jones, P.D.; Ambenje, P.; Bojariu, R.; Easterling, D.; Klein Tank, A.; Parker, D.; Rahimzadeh, F.; Renwick, J.A.; Rusticucci, M.; et al. Observations: Surface and Atmospheric Climate Change. In Climate Change 2007: The Physical Science Basis; Solomon, S., Qin, D., Manning, M., Chen, Z., Marquis, M., Averyt, K.B., Tignor, M., Miller, H.L., Eds.; Contribution of Working Group I to the Fourth Assessment Report of the Intergovernmental Panel on Climate Change; Cambridge University Press: Cambridge, UK; New York, NY, USA, 2007; pp. 235–336. [Google Scholar]
  30. Emanuel, K.A.; Sundararajan, R.; Willimas, J. Hurricanes and global warming-Results from downscaling IPCC AR4 simulations. Bull. Am. Meteorol. Soc. 2008, 3, 347–367. [Google Scholar] [CrossRef]
  31. Knutson, T.R.; McBride, J.L.; Chan, J.; Emanuel, K.; Holland, G.; Landsea, C.; Held, I.; Kossin, J.P.; Srivastava, A.K.; Sugi, M. Tropical cyclones and climate change. Nat. Geosci. 2010, 3, 157–163. [Google Scholar] [CrossRef][Green Version]
  32. Christensen, J.H.; Krishna Kumar, K.; Aldrian, E.; An, S.I.; Cavalcanti, I.F.A.; de Castro, M.; Dong, W.; Goswami, P.; Hall, A.; Kanyanga, J.K.C.; et al. Climate Phenomena and their Relevance for Future Regional Climate Change. In Climate Change 2013: The Physical Science Basis; Stocker, T.F.L., Qin, D., Plattner, G.-K., Tignor, M., Allen, S.K., Boschung, J., Nauels, A., Xia, Y., Bex, V., Midgley, P.M., Eds.; Contribution of Working Group I to the Fifth Assessment Report of the Intergovernmental Panel on Climate Change; Cambridge University Press: Cambridge, UK; New York, NY, USA, 2013. [Google Scholar]
  33. Pasch, R.J.; Avila, L.A.; Guiney, J.L. Atlantic Hurricane Season of 1998. Mon. Weather Rev. 2001, 129, 3085–3123. [Google Scholar] [CrossRef]
  34. Vanselow, K.A.; Kolb, M.; Fickert, T.H. Destruction and regeneration of terrestrial, littoral and marine ecosystems on the island of Guanaja/Honduras seven years after Hurricane Mitch. Erdkunde 2007, 61, 358–371. [Google Scholar] [CrossRef]
  35. Lebigre, J.-M.; Portillo, P.; Thompson, W. Quel avenir pour les mangroves de l’archipel de la Bahía (Honduras)? In Proceedings of the Conference de la Commission de Geographie de la Mer et du Littoral, Espace Littoraux en Mutation, Dunkerque, France, 1–3 June 2000. [Google Scholar]
  36. Bak, H.; Gallner, J.C. Proyecto Manejo Ambiental de las Islas de la Bahia, Informe Tecnico #7; Plan de Manejo del Parque Nacional de Turtle Harbour (Manglar): Islas De La Bahia, Honduras, 2002. [Google Scholar]
  37. Reconocimiento Tecnico Forestal. Consultores en Recursos: Los Ecosistemas Forestales en las Islas de la Bahía, Honduras; Reconocimiento Tecnico Forestal: Tegucigalpa, Honduras, 1996. [Google Scholar]
  38. Fickert, T.; Grüninger, F. Floristic Zonation, Vegetation Structure, and Plant Diversity Patterns Within a Caribbean Mangrove and Swamp Forest on the Bay Island of Utila (Honduras). Ecotropica 2010, 16, 73–92. [Google Scholar]
  39. Richards, J.A.; Jia, X. Remote Sensing Digital Image Analysis; Springer: Berlin/Heidelberg, Germany, 2006; p. 439. [Google Scholar]
  40. Mueller-Dombois, D.; Ellenberg, H. Aims and Methods of Vegetation Ecology; John Wiley & Sons: New York, NY, USA, 1974; p. 547. [Google Scholar]
  41. Cintrón, G.; Schaeffer-Novelli, Y. Methods for studying mangrove structure. In The Mangrove Ecosystem: Research Methods; Snedaker, S.C., Snedaker, J.G., Eds.; United Nations Educational, Scientific and Cultural Organization (UNESCO): Paris, France, 1984; pp. 91–113. [Google Scholar]
  42. Balick, M.J.; Nee, M.H.; Daniel, E.A. Checklist of the Vascular Plants of Belize. In Memoirs of the New York Botanical Garden; New York Botanical Garden Press: New York, NY, USA, 2000; p. 246. [Google Scholar]
  43. Raunkiaer, C. The Life-Forms of Plants and Statistical Plant Geography; Oxford University Press: Oxford, UK, 1934; p. 632. [Google Scholar]
  44. Ter Braak, C.J.F.; Šmilaur, P. CANOCO for Windows Version 4.5; Biometris, Plant Research International: Wageningen, The Netherlands, 2002; p. 499. [Google Scholar]
  45. Lepš, J.; Šmilauer, P. Multivariate Analysis of Ecological Data Using CANOCO; Cambridge University Press: New York, NY, USA, 2003; p. 269. [Google Scholar]
  46. Cahoon, D.R.; Hensel, P.; Rybczyk, J.; McKee, K.; Proffitt, C.E.; Perez, B. Mass tree mortality leads to mangrove peat collapse at Bay Islands, Honduras after Hurricane Mitch. J. Ecol. 2003, 91, 1093–1105. [Google Scholar] [CrossRef]
  47. Smith, T.J., III; Robblee, M.B.; Wanless, H.R.; Doyle, T.W. Mangroves, hurricanes, and lightning strikes. BioScience 1994, 44, 256–262. [Google Scholar] [CrossRef]
  48. Greening, H.; Doering, P.; Corbett, C. Hurricane Impacts on Coastal Ecosystems. Estuar. Coasts 2006, 29, 877–897. [Google Scholar] [CrossRef]

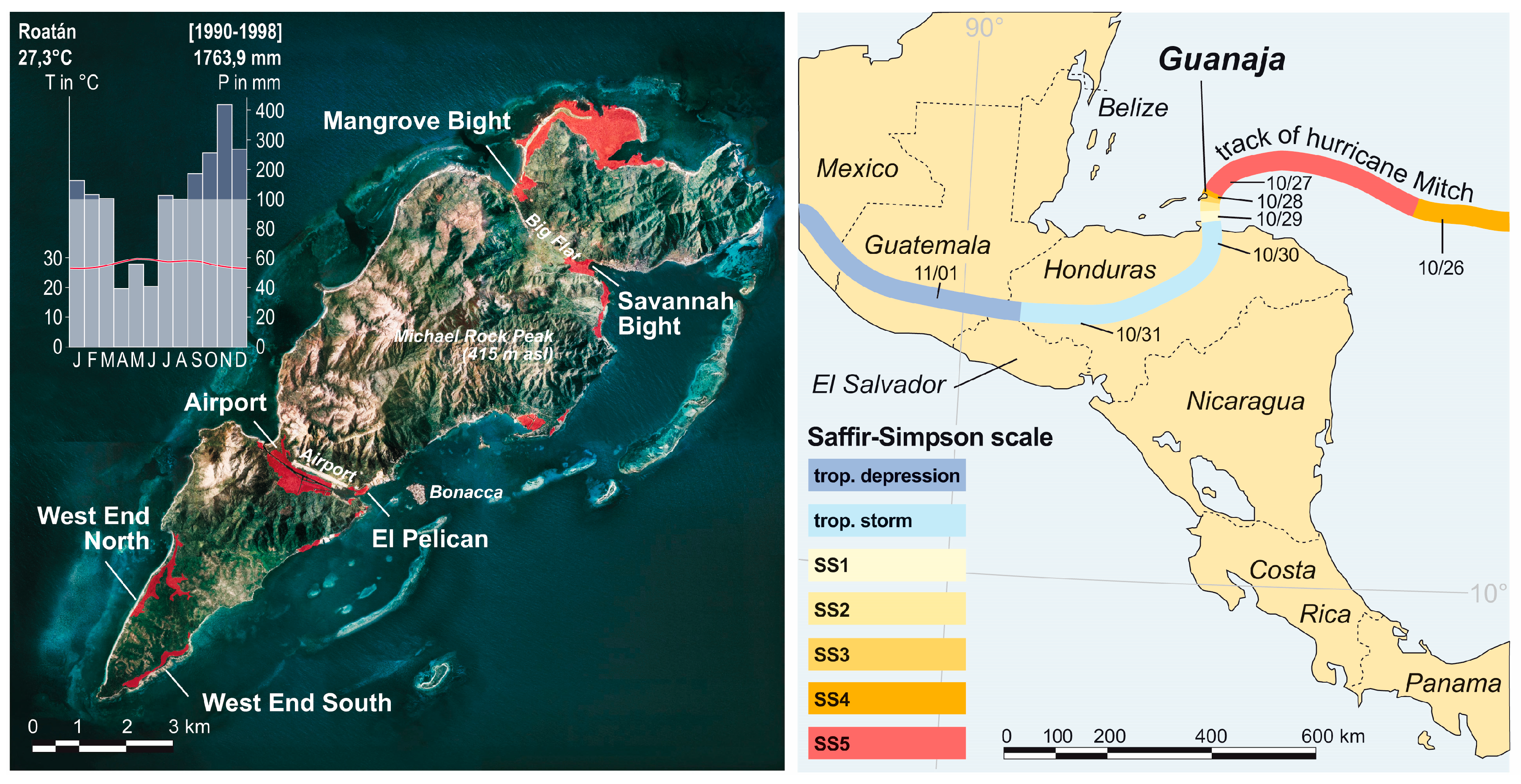

Figure 1. Aerial view of Guanaja (left); highlighted in red are mangroves, those studied are labeled; the climate diagram of the nearby island of Roatan illustrates the general climate of the Bay Islands [36]. To the right is the track of Hurricane Mitch; the different colors indicate the storm strength, the numbers the location of the storm center (“hurricane eye”) at the respective dates in October 1998.
Figure 1. Aerial view of Guanaja (left); highlighted in red are mangroves, those studied are labeled; the climate diagram of the nearby island of Roatan illustrates the general climate of the Bay Islands [36]. To the right is the track of Hurricane Mitch; the different colors indicate the storm strength, the numbers the location of the storm center (“hurricane eye”) at the respective dates in October 1998.
Diversity 10 00008 g001

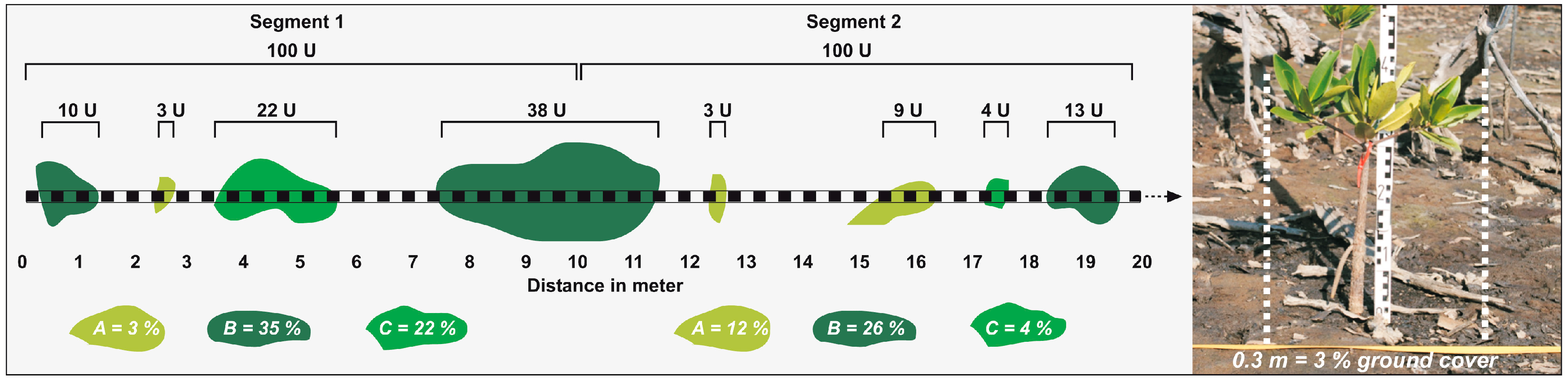

Figure 2. Sampling design of the line-transects employed; sampled distance measures (=units U) of each encountered species (here exemplified for three species A, B, and C) with a resolution of 10 cm were converted to ground cover values in % for 10 m transects segments afterwards.
Figure 2. Sampling design of the line-transects employed; sampled distance measures (=units U) of each encountered species (here exemplified for three species A, B, and C) with a resolution of 10 cm were converted to ground cover values in % for 10 m transects segments afterwards.
Diversity 10 00008 g002

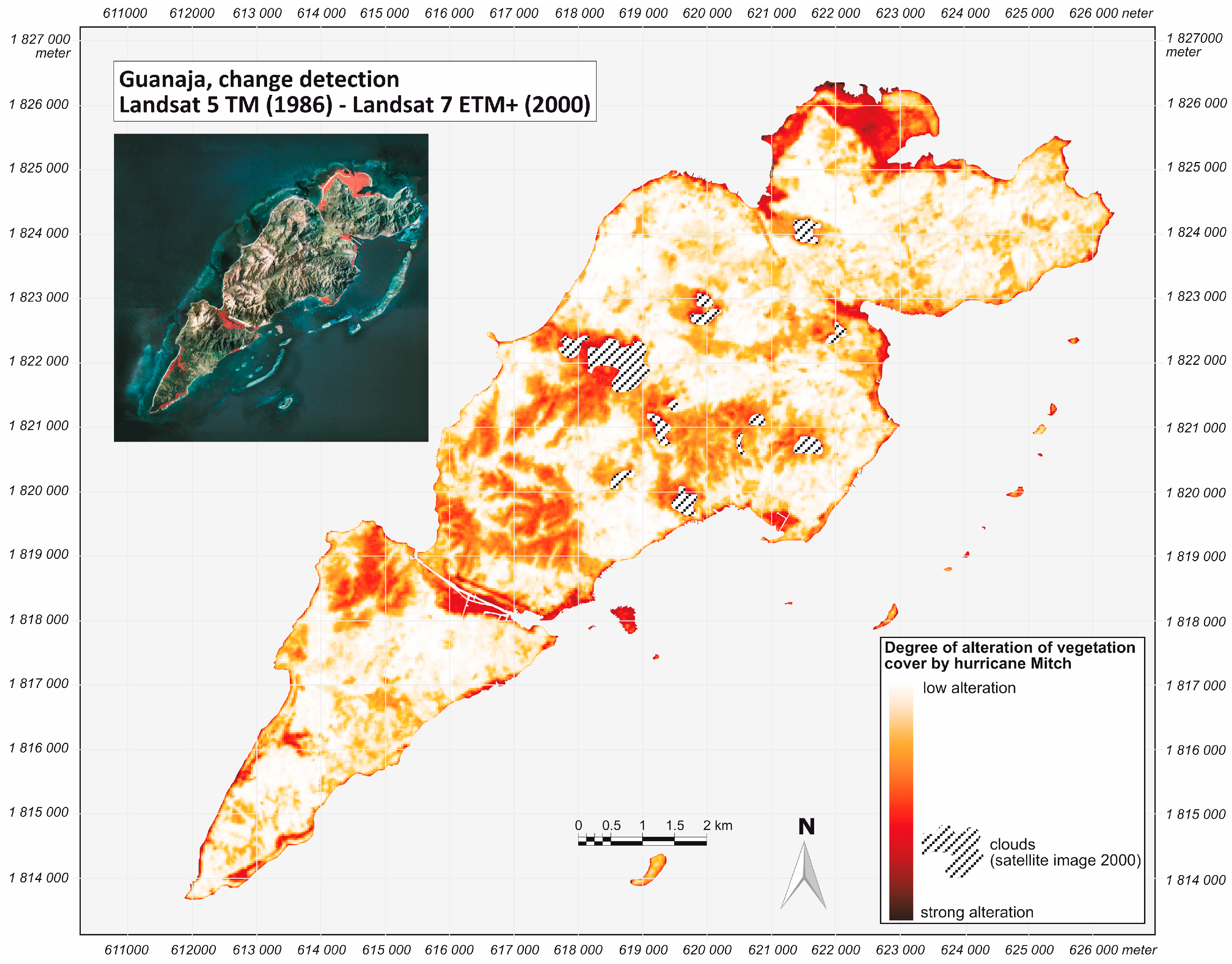

Figure 3. Difference image of two NDVI-transformed satellite images, one prior to (1986) and one after (2000) the passage of Hurricane Mitch. Areas of strong alteration correspond primarily with the mangroves (highlighted in red within the inserted aerial view of Figure 1; the other terrestrial formation strongly altered by Hurricane Mitch is the pine forest, see [34]).
Figure 3. Difference image of two NDVI-transformed satellite images, one prior to (1986) and one after (2000) the passage of Hurricane Mitch. Areas of strong alteration correspond primarily with the mangroves (highlighted in red within the inserted aerial view of Figure 1; the other terrestrial formation strongly altered by Hurricane Mitch is the pine forest, see [34]).
Diversity 10 00008 g003

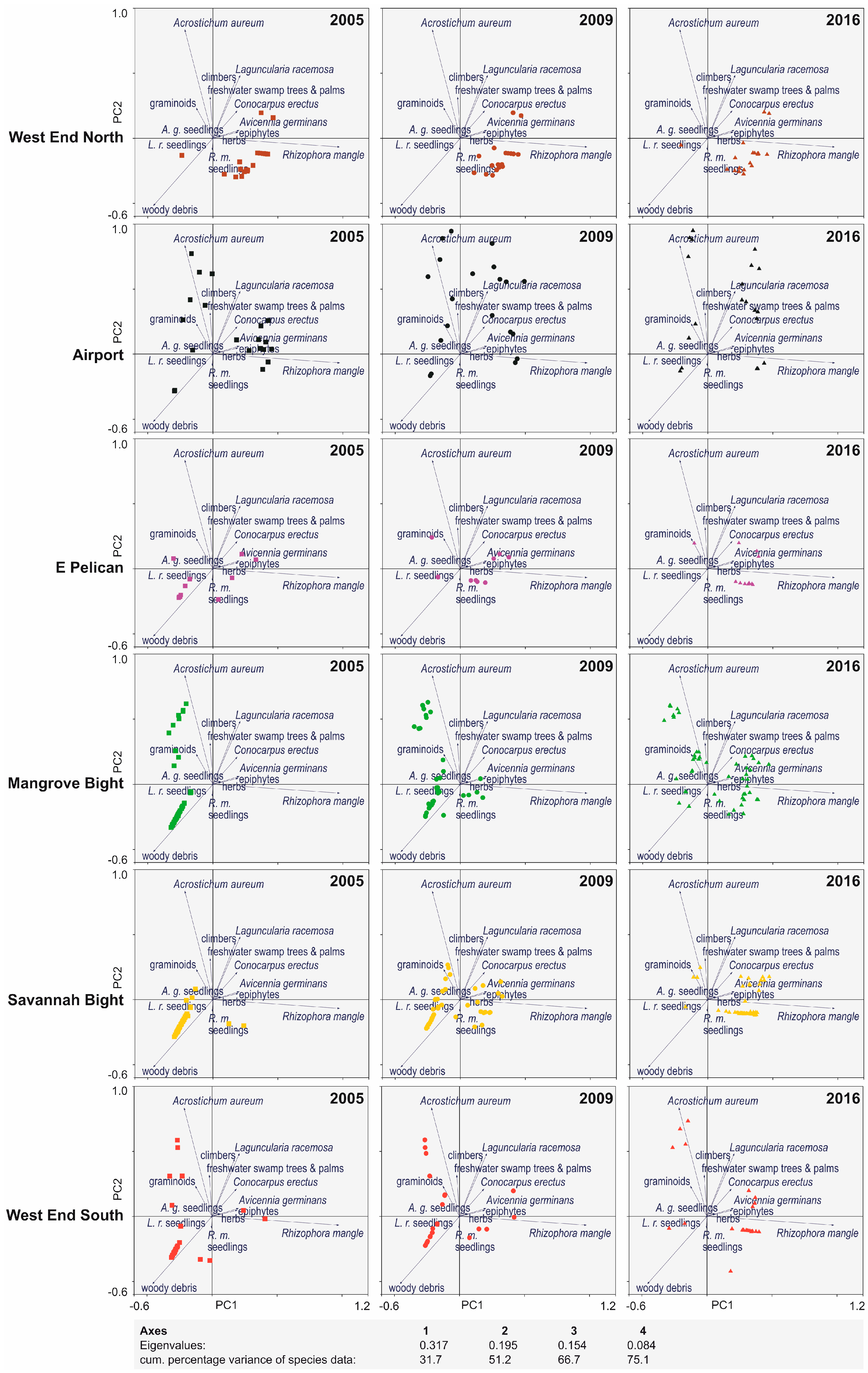

Figure 4. Principal component analysis (PCA) including all transect segments of all sampling dates; for the sake of clarity, data are displayed separately for particular locations and sampling dates.
Figure 4. Principal component analysis (PCA) including all transect segments of all sampling dates; for the sake of clarity, data are displayed separately for particular locations and sampling dates.
Diversity 10 00008 g004

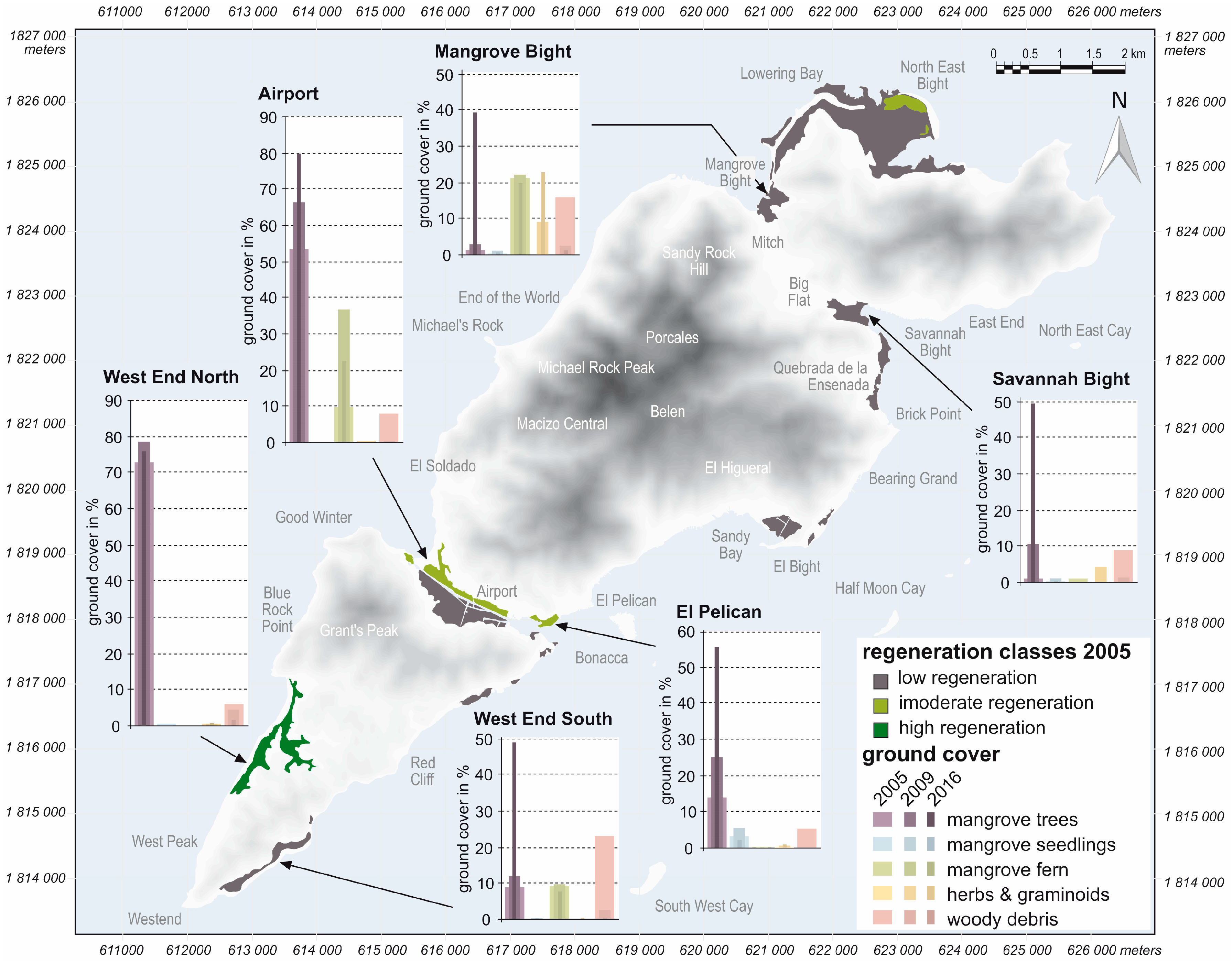

Figure 5. Digital elevation model of Guanaja (SRTM data) with location of sampling sites and initial classification of regeneration classes as represented in 2005; bar plots illustrate changes of mean cover values of particular functional groups within the different study sites for the three different sampling dates.
Figure 5. Digital elevation model of Guanaja (SRTM data) with location of sampling sites and initial classification of regeneration classes as represented in 2005; bar plots illustrate changes of mean cover values of particular functional groups within the different study sites for the three different sampling dates.
Diversity 10 00008 g005

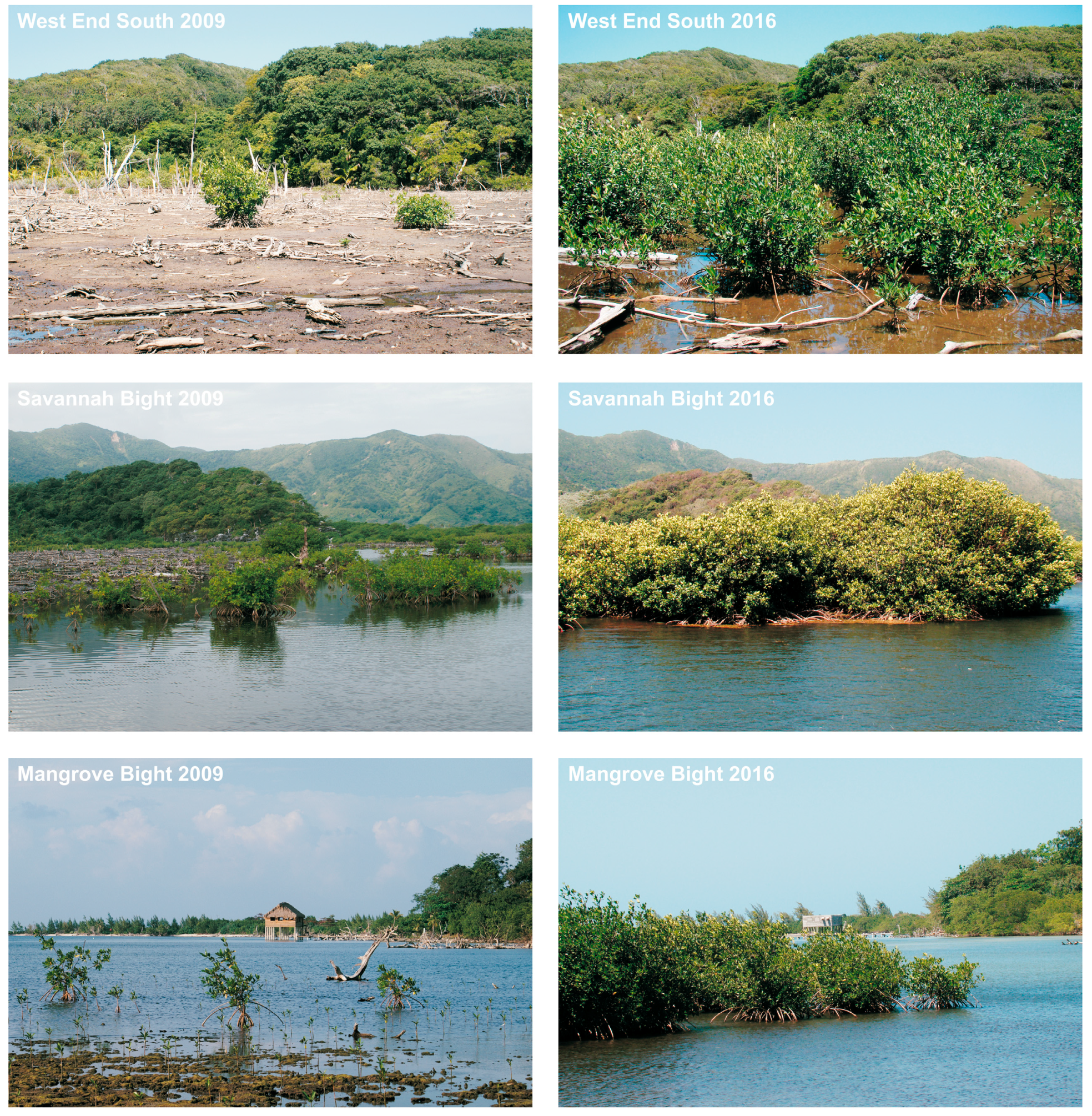

Figure 6. Repeated photographs of the three most severely hit mangrove sites studied on Guanaja, illustrating the substantial progress in regeneration between (2009) and (2016).
Figure 6. Repeated photographs of the three most severely hit mangrove sites studied on Guanaja, illustrating the substantial progress in regeneration between (2009) and (2016).
Diversity 10 00008 g006

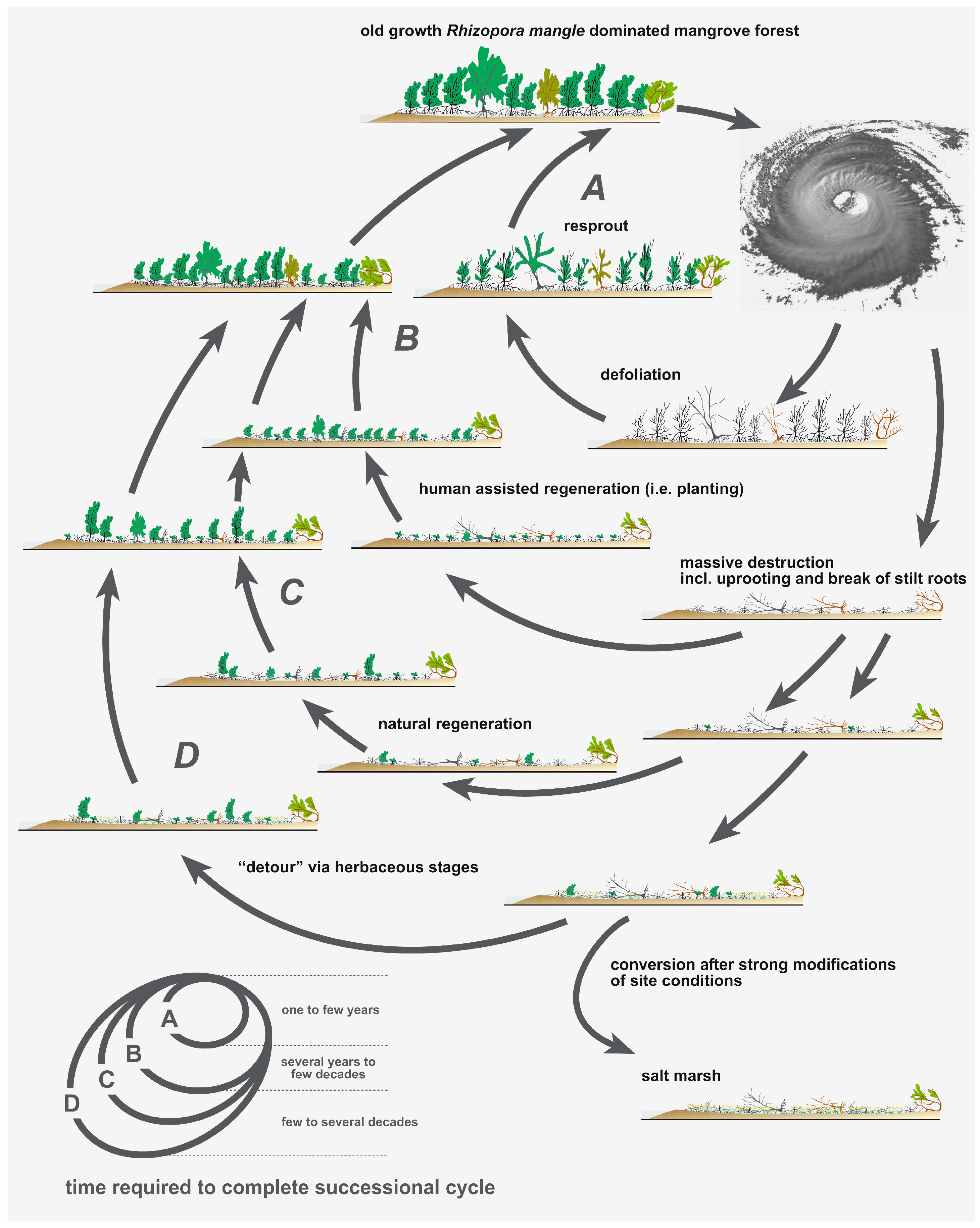

Figure 7. Schematic representation of different successional trajectories and the time frame required as portrayed within the mangrove sites studied on Guanaja within the first two decades after the hurricane disturbance.
Figure 7. Schematic representation of different successional trajectories and the time frame required as portrayed within the mangrove sites studied on Guanaja within the first two decades after the hurricane disturbance.
Diversity 10 00008 g007
Table 1. Species list (incl. family and life-form affiliation) of all plant species encountered at different sites and dates. Figures are mean ground cover values for a particular site and date.
Table 1. Species list (incl. family and life-form affiliation) of all plant species encountered at different sites and dates. Figures are mean ground cover values for a particular site and date.
SpeciesFamilyLife-formWestend NorthMangrove BightSavannah BightEl PelicanAirportWest End South
200520092016200520092016200520092016200520092016200520092016200520092016
unidentified climberunknownclimber 1.30.95
Acrostichum aureumAdiantaceaefern 22.2622.0719.65 0.360.49.0537239.39.578.42
Sesuvium portulacastrumAizoaceaeherb 0.251.4 0.110.13
Blutaparon vermiculareAmaranthaceaeherb 2.6316.41 0.13
Rhabdadenia bifloraApocynaceaeclimber 7.255.89.151.461.86
Acoelorraphe wrightiiArecaceaepalm 1.81.912.2
Cocos nuciferaArecaceaepalm 0.770.870.87
Eclipta prostrataAsteraceaeherb 0.04
Pachira aquaticaBombacaceaetree 3.95.054.85
Cakile lanceolataBrassicaceaeherb 0.4
Tillandsia dasyrilifoliaBromeliaceaeepiphyte0.1 0.1 0.351.053.450.140.09
Conocarpus erectaCombretaceaetree1.992.492.950.920.871.4 22.118.7511.25
Laguncularia racemosaCombretaceaetree6.28.29.290.681.6215.470.675.158.33 3.826.915.8525.5536.452.644.029
Cyperus esculentusCyperaceaeherb0.290.330.42 0.06 0.65
Dalbergia cf. browneiFabaceaeclimber 4.556.655.65
Vigna luteolaFabaceaeclimber 0.9
Myrmecophila tibicinisOrchidaceaeepiphyte 0.02 0.05
unidentified orchidOrchidaceaeepiphyte 0.050.2
Distichlis spicataPoaceaegraminoid 0.540.24 4.35 0.731 0.5
Spartina spartinaePoaceaegraminoid 0.29
Rhizophora mangleRhizophoraceaetree70.2977.86750.261.7420.181.786.3843.1315.217.3646.147.6541.146.256.439.7639
Typha domingensisTyphaceaeherb 4.764.76
Avicennia germinansVerbenaceaetree 6.87 1.223.847.19.735.1 0.92
woody debris 5.894.41 16.062.421.28.411.73 1.08 7.930.60.2822.372.590.27
