Communication

Four-Step Synthesis of 3-Allyl-2-(allyloxy)-5-bromoaniline from 2-Allylphenol

Department of Chemistry and Physics, Florida Gulf Coast University, 10501 FGCU Boulevard South, Fort Myers, FL 33965, USA
*
Author to whom correspondence should be addressed.
Molbank 2024, 2024(1), M1773; https://doi.org/10.3390/M1773
Submission received: 9 January 2024 / Revised: 31 January 2024 / Accepted: 6 February 2024 / Published: 7 February 2024

Abstract

:
This communication reports a four-step protocol to produce 3-allyl-2-(allyloxy)-5-bromoaniline 5 from commercially available 2-allylphenol. The synthetic steps used were nitration, selective bromination, allylation, and reduction of the nitro group.

1. Introduction

Numerous natural products and biologically active compounds incorporate nitrogen within their structures, rendering nitrogen-containing molecules valuable for the advancement of pharmaceuticals and other biologically pertinent substances [1,2,3]. Anilines and aminophenols are among those types of nitrogen-containing and versatile building blocks [4], which play a key role in diverse syntheses, especially in medicinal chemistry [5,6,7] and the dye industry [8]. Hence, there is significant interest in developing new synthetic routes toward functionalized aniline derivatives. A research interest in our group is centered on the mild C-H activation of miscellaneous allylbenzenes (including anilines). For instance, we have developed transition metal-free protocols for the synthesis of (E)-allylic compounds [9] and α-alkyl styrenes [10] from terminal alkenes, sometimes using additives or heat to improve yields. While mechanistic studies have helped to better understand the electronic effects in these transformations using allylbenzenes [11], it is still necessary to perform a direct comparison between allylbenzenes and allyl ethers. As such, the title compound was designed, synthesized, and characterized as described below.

2. Results and Discussion

As mentioned above, we embarked on the design of a benzene derivative bearing both allyl moieties (allylbenzene and allyl ether). We also wanted the new compound to be electron-rich (therefore, an amino group was also envisioned) and have a larger mass (bromo was added). With these requirements in mind, the synthesis started. Although the precedent literature uses Claisen rearrangement to install allyl groups into the benzene ring of phenols [12], we decided to take an alternative route. The commercially available 2-allylphenol 1 was used as it already has the allyl group (Scheme 1). First, 1 g of 2-allylphenol 1 was subjected to nitration conditions using a sulfonitric mixture (HNO3/H2SO4) and reacted for 30 min. at 0 °C. Analysis of the reaction mixture showed two products: the expected 2-allyl-6-nitrophenol 2 in 15% yield and 2-allyl-4-nitrophenol (not shown) in 15% yield [13]. Then, 2-allyl-6-nitrophenol 2 was selectively brominated using N-bromosuccinimide (NBS), which afforded 2-allyl-4-bromo-6-nitrophenol 3 in 72% yield [14]. The phenol group on 3 was alkylated under standard conditions using allyl bromide [12], producing 1-allyl-2-(allyloxy)-5-bromo-3-nitrobenzene 4 in 77% yield. Lastly, the nitro group in intermediate 4 was reduced using Zn and NH4Cl [15], after only 1 h of reaction, which delivered the expected new product 3-allyl-2-(allyloxy)-5-bromoaniline 5 in 98% isolated yield (Scheme 1). The spectra of compounds 2–4 can be found in the Supplementary Materials.

3. Materials and Methods

3.1. General Information

All reactions were carried out in the air in oven-dried glassware with magnetic stirring at room temperature. 2-Allylphenol was purchased from Millipore Sigma (St. Louis, MO, USA) and used as received. All reagents and solvents were purchased from Fisher (Hampton, NH, USA) and used as received. The purification of reaction products was carried out by flash column chromatography using silica gel 60 (230–400 mesh). TLC visualization was accompanied by UV light. Concentration in vacuo refers to the removal of volatile solvent using a rotary evaporator attached to a dry diaphragm pump (10–15 mm Hg), followed by pumping to a constant weight with an oil pump (<300 mTorr).
1H NMR spectra were recorded at 400 MHZ (Jeol, Akishima, Tokyo, Japan) and are reported relative to CDCl3 (δ = 7.26). 1H NMR coupling constants (J) are reported in Hertz (Hz), and multiplicities are indicated as follows: s (singlet), d (doublet), t (triplet), and m (multiplet). Proton-decoupled 13C NMR spectra were recorded at 100 MHz and reported relative to CDCl3 (δ = 77). IR experiments were recorded with neat samples on a Jasco FT/IR-4700 (Easton, MD, USA) fitted with a diamond ATR sample plate. GCMS data was recorded on a Shimadzu GC-2010 plus (Kyoto, Kyoto, Japan) system (GCMS-QP2010 SE). Elemental analysis measurements were recorded on a FlashSmart elemental analyzer (Thermo Fisher Scientific, Waltham, MA, USA).

3.2. Synthesis of 2-Allyl-6-nitrophenol 2

Compound 2 was synthesized following a modified procedure described in the literature [13]: To a 20 mL scintillation vial, equipped with a stir bar, 2-allylphenol (7.45 mmol, 1.0 equiv., 1 g) and dichloromethane (7 mL) were added, then chilled to 0 °C (ice bath). After being cooled, 2 mL of sulfonitric mixture (prepared with 2 mL of concentrated nitric acid, 6 mL of sulfuric acid, and 2 mL of water) was added dropwise. Then, the mixture was allowed to warm to room temperature and stirred for 30 min, followed by the addition of water (10 mL). This crude mixture was directly added to a silica gel column for purification. Purification by flash chromatography [silica gel, hexanes/ethyl acetate (99:1)] provided the pure product 2 as a bright yellow oil (193.2 mg, 15% yield). Rf = 0.69 [hexanes/ethyl acetate (4:1)]. Note: 2-allyl-4-nitrophenol (not shown) was observed as red oil [191 mg, 15% yield, Rf = 0.24 [hexanes/ethyl acetate (4:1)].
1H NMR (400 MHz, CDCl3) δ 10.96 (s, 1H, OH), 8.00 (1H, d, J = 8.6 Hz, H-5), 7.47 (1H, d, J = 7.3 Hz, H-3), 6.93 (1H, t, J = 8.0 Hz, H-4), 6.04–5.94 (1H, m, H-2′), 5.15–5.09 (2H, m, H-3′), 3.49 (2H, d, J = 6.5 Hz, H-1′). 13C NMR (101 MHz, CDCl3) δ 153.27, 137.51, 135.09, 133.57, 131.35, 123.1, 119.48, 116.82, 33.62. IR (neat, cm−1): ν 3205 (OH); 3085 (=C-H); 2981 (C-H); 1608 (C=C); 1539 (-NO2); 1450 (C=C); 1327 (N=O); 1249 (C-O-C). LRMS (EI) Calcd for C9H9NO3 [M], 179.05. Found: 179[M ] . The analytic data are in accordance with the data reported in the literature [13].

3.3. Synthesis of 2-Allyl-4-bromo-6-nitrophenol 3

Compound 3 was synthesized by a modification of a procedure described in the literature [14]: To a 20 mL scintillation vial, equipped with a stir bar, 2-allyl-6-nitrophenol 2 (0.70 mmol, 1.0 equiv., 123.8 mg), dichloromethane (5 mL), glacial acetic acid (0.5 mL), 4-dimethylaminopyridine (0.07 mmol, 0.1 equiv., 8.6 mg), and N-bromosuccinimide (0.71 mmol, 1.01 equiv., 126.4 mg) were added at room temperature. Then, the mixture was stirred at room temperature for 2 h. This crude mixture was directly added to a silica gel column for purification. Purification by flash chromatography [silica gel, hexanes (100%)] provided the pure product 3 as bright yellow oil (134.1 mg, 72% yield). Rf = 0.88 [hexanes/ethyl acetate (4:1)].
1H NMR (400 MHz, CDCl3) δ 10.87 (s, 1H, OH), 8.14 (1H, d, J = 2.2 Hz, H-5), 7.56 (1H, d, J = 2.4 Hz, H-3), 6.08–5.9 (1H, m, H-2′), 5.2–5.13 (2H, m, H-3′), 3.47 (2H, d, J = 5.9 Hz, H-1′). 13C NMR (101 MHz, CDCl3) δ 152.31, 139.94, 134.10, 133.83, 133.70, 125.17, 117.75, 111.23, 33.40. IR (neat, cm−1): ν 3208 (OH); 3089 (=C-H); 2919 (C-H); 1604 (C=C); 1531 (-NO2); 1450 (C=C); 1319 (N=O); 1238 (C-O-C); 663 (C-Br). LRMS (EI) Calcd for C9H8BrNO3 [M], 256.96. Found: 257[M ] , 259[M + 2 ] . The analytic data is in accordance with the data reported in the literature [15].

3.4. Synthesis of 1-Allyl-2-(allyloxy)-5-bromo-3-nitrobenzene 4

Compound 4 was synthesized by a modification of procedures described in the literature [12,15,16,17]: To a 20 mL scintillation vial, equipped with a stir bar, was added 2-allyl-4-bromo-6-nitrophenol 3 (0.52 mmol, 1.0 equiv., 134.1 mg), potassium carbonate (0.78 mmol, 1.5 equiv., 107.8 mg), acetone (5 mL), and allyl bromide (0.78 mmol, 1.5 equiv., 94.4 mg, 67 μL), at room temperature. Then, the mixture was heated to reflux and stirred for 1 h. This crude mixture was directly added to a silica gel-column chromatography for purification. Purification by flash chromatography [silica gel, hexanes/ethyl acetate (99:1)] provided the pure product 4 as a light orange oil (119.7 mg, 77% yield). Rf = 0.56 [hexanes/ethyl acetate (4:1)].
1H NMR (400 MHz, CDCl3) δ 7.81 (1H, d, J = 2.2 Hz, H-5), 7.55 (1H, d, J = 2.4 Hz, H-3), 6.08–5.91 (2H, m), 5.41–5.10 (4H, m), 4.47 (2H, d, J = 6.1 Hz, H-1′′), 3.45 (2H, d, J = 6.6 Hz, H-1′). 13C NMR (101 MHz, CDCl3) δ 149.22, 144.75, 138.81, 137.59, 134.79, 132.27, 126.09, 119.24, 117.97, 116.15, 76.17, 33.5. IR (neat, cm−1): ν 3081 (=C-H); 2923 (C-H); 1643 (C=C); 1531 (-NO2); 1461 (C=C); 1349 (N=O); 1253 (C-O-C); 705 (C-Br). LRMS (EI) Calcd for C12H12BrNO3 [M], 297.00. Found: 297[M ] , 299[M + 2 ] . The analytic data is in accordance with the reported in the literature [15].

3.5. Synthesis of 3-Allyl-2-(allyloxy)-5-bromoaniline 5

The new compound 3-allyl-2-(allyloxy)-5-bromoaniline 5 was synthesized by a modification of procedures described in the literature [12,15]: To a 20 mL scintillation vial, equipped with a stir bar, the pure 1-allyl-2-(allyloxy)-5-bromo-3-nitrobenzene 4 (0.1 mmol, 1.0 equiv., 26.7 mg), EtOH (1 mL), ammonium chloride (1.0 mmol, 10.0 equiv., 57.9 mg), zinc (1.0 mmol, 10.0 equiv., 64.7 mg), and water (0.5 mL) were added sequentially. The reaction was heated to reflux, immediately allowed to cool to rt, and stirred for 1 h. Then, the reaction mixture was filtered using a syringe filter (PVDF-L membrane filter, 0.45 μm) to eliminate the solids. The volatiles were removed under reduced pressure. Purification by flash chromatography [silica gel, hexanes/EtOAc (90:10)] provided the pure product 5 as a light-yellow oil (23.6 mg, 98% yield). Rf = 0.45 [hexanes/ethyl acetate (4:1)].
1H NMR (400 MHz, CDCl3) δ 6.76 (1H, d, J = 2.4 Hz, H-5), 6.69 (1H, d, J = 2.4 Hz, H-3), 6.13–6.03 (1H, m), 5.97–5.87 (1H, m), 5.43 (1H, dq, J = 17.2, 1.7 Hz), 5.28 (1H, dq, J = 10.5, 1.4 Hz), 5.14–5.04 (2H, m), 4.32 (2H, dt, J = 5.5, 1.4 Hz, H-1′′), 3.82 (2H, s, NH2), 3.34 (2H, dt, J = 6.6, 1.5 Hz, H-1′). 13C NMR (101 MHz, CDCl3) δ 143.17, 141.48, 136.38, 135.12, 133.65, 122.19, 117.65, 117.27, 116.57, 116.36, 72.98, 33.68. IR (neat, cm−1): ν 3467 (NH); 3374 (NH′); 3077 (=C-H); 2919 (C-H); 1608 (C=C); 1477 (C=C); 1195 (C-O-C); 674 (C-Br). LRMS (EI) Calcd for C12H14BrNO [M], 267.02. Found: 267[M ] , 269[M + 2 ] . Elemental analysis calculated (%) for C12H14BrNO: C 53.75, H 5.26, N 5.22. Found: C 53.71, H 5.24, N 5.18.

4. Conclusions

In summary, this communication described a four-step approach for the synthesis of 3-allyl-2-(allyloxy)-5-bromoaniline 5 from 2-allylphenol. The synthetic method is simple. Besides the first reaction (15%), the yields achieved in our study are good to excellent (72–98%). All the steps provide pure products after isolation using silica gel column chromatography.

Supplementary Materials

Figures S1, S5, S9 and S13: 1H-NMR spectra; Figures S2, S6, S10 and S14: 13C-NMR spectra; Figures S3, S7, S11 and S15: GC-MS spectra; Figures S4, S8, S12 and S16: FT-IR spectra; Figure S17: Elemental analysis chromatogram/data of 5.

Author Contributions

Conceptualization, A.B.; methodology, E.B.A. and S.R.I.; data analysis, A.B., E.B.A. and S.R.I.; writing—original draft preparation, A.B.; writing—review and editing, A.B. and S.R.I.; funding acquisition, A.B. All authors have read and agreed to the published version of the manuscript.

Funding

The article was supported by the National Institute of General Medical Sciences of the National Institutes of Health (NIH) under Award no. 1R15GM141726-01.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data are contained within the article.

Acknowledgments

The authors thank Florida Gulf University.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Nag, S.; Batra, S. Applications of Allylamines for the Syntheses of Aza-Heterocycles. Tetrahedron 2011, 67, 8959–9061. [Google Scholar] [CrossRef]
  2. Chen, J.G.; Crooks, R.M.; Seefeldt, L.C.; Bren, K.L.; Bullock, R.M.; Darensbourg, M.Y.; Holland, P.L.; Hoffman, B.; Janik, M.J.; Jones, A.K.; et al. Beyond Fossil Fuel–Driven Nitrogen Transformations. Science 2018, 360, eaar6611. [Google Scholar] [CrossRef] [PubMed]
  3. Askin, D.; Angst, C.; Danishefsky, S. A Total Synthesis of N-Acetylactinobolamine. J. Org. Chem. 1985, 50, 5005–5007. [Google Scholar] [CrossRef]
  4. Anjalin, M.; Kanagathara, N.; Baby Suganthi, A.R. A Brief Review on Aniline and Its Derivatives. Mater. Today Proc. 2020, 33, 4751–4755. [Google Scholar] [CrossRef]
  5. Liu, J.; Qiu, X.; Huang, X.; Luo, X.; Zhang, C.; Wei, J.; Pan, J.; Liang, Y.; Zhu, Y.; Qin, Q.; et al. From Alkylarenes to Anilines via Site-Directed Carbon–Carbon Amination. Nat. Chem. 2019, 11, 71–77. [Google Scholar] [CrossRef] [PubMed]
  6. Zeng, C.; Fang, S.; Guo, S.; Jiang, H.; Yang, S.; Wu, W. Palladium-Catalyzed Tandem Nucleophilic Addition/C–H Functionalization of Anilines and Bromoalkynes for the Synthesis of 2-Phenylindoles. Org. Lett. 2023, 25, 1409–1414. [Google Scholar] [CrossRef] [PubMed]
  7. Seki, M.; Takahashi, Y. Regioselective C–H Azidation of Anilines and Application to Synthesis of Key Intermediate for Pharmaceutical. J. Org. Chem. 2021, 86, 7842–7848. [Google Scholar] [CrossRef] [PubMed]
  8. Mitchell, S.C.; Waring, R.H. Aminophenols. In Ullmann’s Encyclopedia of Industrial Chemistry; Wiley-VCH: Weinheim, Germany, 2000; ISBN 978-3-527-30673-2. [Google Scholar]
  9. Huang, X.; Fulton, B.; White, K.; Bugarin, A. Metal-Free, Regio- and Stereoselective Synthesis of Linear (E)-Allylic Compounds Using C, N, O, and S Nucleophiles. Org. Lett. 2015, 17, 2594–2597. [Google Scholar] [CrossRef] [PubMed]
  10. Ojo, O.S.; Bugarin, A. One-Pot Synthesis of α-Alkyl Styrene Derivatives. ACS Omega 2021, 6, 20619–20628. [Google Scholar] [CrossRef] [PubMed]
  11. Hardy, D.; Isbel, S.R.; Bugarin, A.; Wagle, D.V. Quantum Chemical Insight into 1,2-Shift Rearrangement in Bromination of Allylaryls. ACS Omega 2023, 8, 42311–42318. [Google Scholar] [CrossRef] [PubMed]
  12. Schmidt, B.; Wolf, F. Synthesis of Phenylpropanoids via Matsuda–Heck Coupling of Arene Diazonium Salts. J. Org. Chem. 2017, 82, 4386–4395. [Google Scholar] [CrossRef] [PubMed]
  13. Olea, A.F.; Espinoza, L.; Sedan, C.; Thomas, M.; Martínez, R.; Mellado, M.; Carrasco, H.; Díaz, K. Synthesis and In Vitro Growth Inhibition of 2-Allylphenol Derivatives against Phythopthora Cinnamomi Rands. Molecules 2019, 24, 4196. [Google Scholar] [CrossRef] [PubMed]
  14. Furst, C.G.; Cota, P.H.P.; Dos Santos Wanderley, T.A.; Alberto, E.E. Synthesis of 2-Bromomethyl-2,3-Dihydrobenzofurans from 2-Allylphenols Enabled by Organocatalytic Activation of N-Bromosuccinimide. New J. Chem. 2020, 44, 15677–15684. [Google Scholar] [CrossRef]
  15. Markwalder, J.A.; Balog, A.J.; Williams, D.K.; Nara, S.J.; Reddy, R.; Roy, S.; Kanyaboina, Y.; Li, X.; Johnston, K.; Fan, Y.; et al. Synthesis and Biological Evaluation of Biaryl Alkyl Ethers as Inhibitors of IDO1. Bioorg. Med. Chem. Lett. 2023, 88, 129280. [Google Scholar] [CrossRef] [PubMed]
  16. Van Otterlo, W.A.L.; Morgans, G.L.; Madeley, L.G.; Kuzvidza, S.; Moleele, S.S.; Thornton, N.; De Koning, C.B. An Isomerization-Ring-Closing Metathesis Strategy for the Synthesis of Substituted Benzofurans. Tetrahedron 2005, 61, 7746–7755. [Google Scholar] [CrossRef]
  17. Van Otterlo, W.A.L.; Ngidi, E.L.; Kuzvidza, S.; Morgans, G.L.; Moleele, S.S.; De Koning, C.B. Ring-Closing Metathesis for the Synthesis of 2H- and 4H-Chromenes. Tetrahedron 2005, 61, 9996–10006. [Google Scholar] [CrossRef]

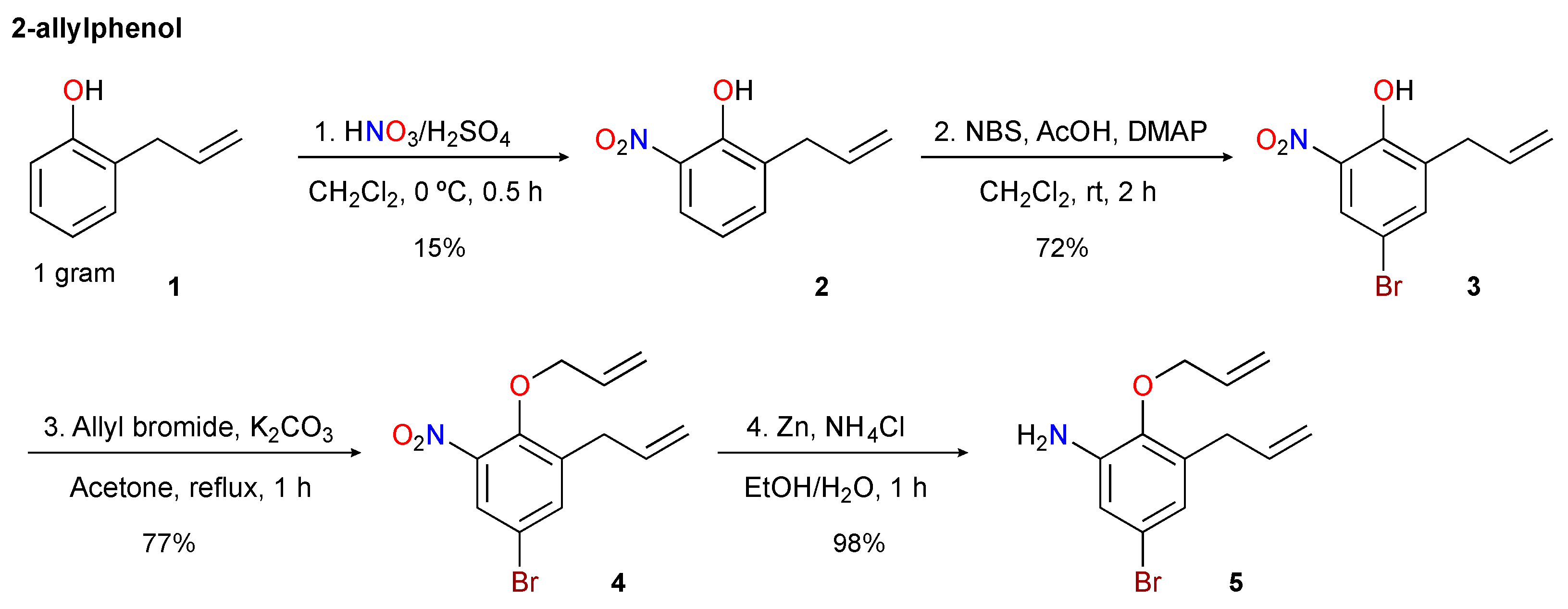

Scheme 1. Four-step synthesis of 3-allyl-2-(allyloxy)-5-bromoaniline 5.
Scheme 1. Four-step synthesis of 3-allyl-2-(allyloxy)-5-bromoaniline 5.
Molbank 2024 m1773 sch001
