Chlorido-pentamethylcyclopentadienyl-[2-(2-pyridyl-кN)-ferrocenyl-кC]-iridium(III)

Abstract

Treatment of 2-pyridyl-ferrocene wit [Cp*IrCl₂]₂ in the presence of NaOAc produces the title compound Cp*ClIr[(C₅H₃C₅H₄N-кN,кC)Fe(C₅H₅)] (2) in low yield. A crystal structure determination shows the (S_pS_Ir/R_pR_Ir)-2 enantiomeric pair of diastereomers.

1. Introduction

Cyclometalated organometallic complexes have been intensively studied for a long time due to their potential applications in catalysis, anticancer therapy and luminescence. Particularly well studied were iridium half-sandwich complexes of the type “Cp*Ir(C^X)Y” [1,2,3,4] for the first two types of applications. However, despite the less pronounced luminescence properties of this compound type, some studies were also devoted to these possible applications [5,6]. A special subgroup of these compounds includes those where the C^N ligand is a 2-pyridyl-benzene derivative, which is π-coordinated via the benzene ring to a Cr(CO)₃ or a cationic CpIr or CpRu fragment [7,8,9]. The main focus of these studies was the diastereoselectivity of the cyclometalation step, and numerous DFT studies on this particular topic were reported. One major result was that electrostatic repulsions determine the stereochemical outcome of these cycloiridation reactions. Another important group of organometallic compounds are donor-functionalised ferrocenes, which have been shown to have numerous applications mainly in the realms of catalysis and anticancer drug research [10,11,12,13,14]. Considering these overlapping applications, it seemed to be natural to combine these two research areas and study the heteronuclear Fe(II)-Ir(III) complexes involved [4,15,16,17]. In most cases, the ferrocene moiety was only present in the side-chain, in part due to the fact that in cyclometallation reactions, iridium apparently prefers cyclometallation of a phenyl group over a ferrocene group [18], or, even more unexpected, a metallocene-to-metallocene interconversion occurs [19]. Only rarely has cycloiridation occurred directly at the ferrocene cyclopentadienyl ring, leading to a complex showing both planar and metal-centred chirality [20]. Our group has shown in recent years that cyclometallation of 2-pyridyl-ferrocene is possible, and we obtained complexes with Pt(II) [21], Hg(II) [22] and very recently with Au(III) [23]. Here, we report our study on the cycloiridation of 2-pyridyl-ferrocene with [Cp*IrCl₂]₂.

2. Results

2.1. Synthesis and Spectroscopic Characterisation

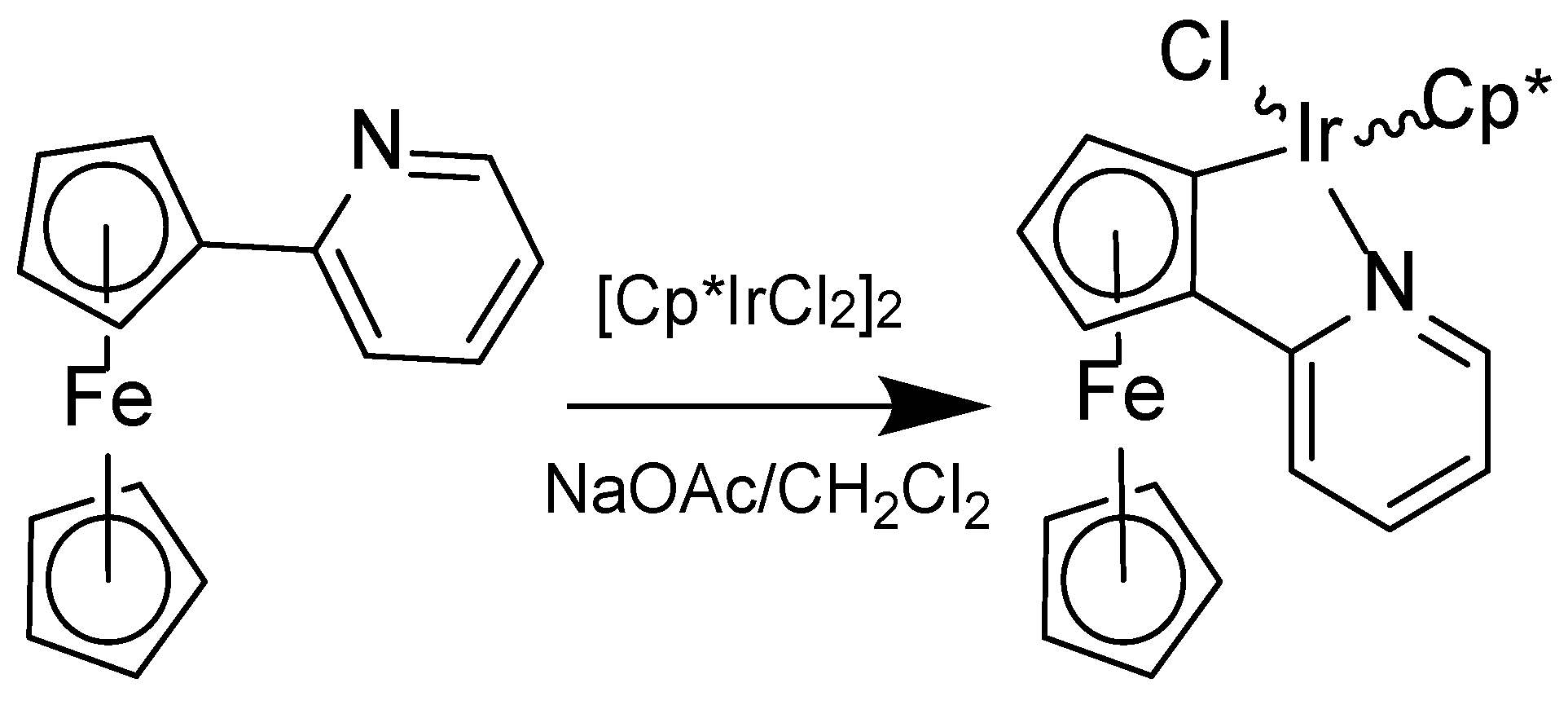

The reaction of 2-pyridyl-ferrocene 1 with [Cp*IrCl₂]₂ (Cp* = η⁵-pentamethylcyclopentadienyl), according to the general synthetic protocol for cycloiridations [24], yields a dark red coloured solution (Scheme 1). Chromatographic work-up on silica gel using a CH₂Cl₂:EtOAc gradient elution gives three fractions. The first two weakly coloured fractions contain neither ferrocene- nor Cp*Ir- attributable signals in their ¹³C-NMR spectra and appear to contain the same compound of unknown structure (Figures S3 and S4). The third intensely red-coloured fraction shows in its ¹H- and ¹³C-NMR spectra a relatively large number of signals attributable to 2-pyridyl-ferrocene and Cp*Ir fragments (Figures S5 and S6). It appears from the stronger (and sharper) signals in both ¹H and ¹³C-NMR spectra that this fraction is still a mixture with unreacted starting material (for comparison, see Figures S1 and S2). The ¹H-NMR spectrum shows three groups of signals at δ = 8.7—6.7, 5.7—3.6 and 2.1—1.5 ppm, which integrate approximately 4:8:12, corresponding to [C₅H₄N], [C₅H₃ + C₅H₅] and [C₅(CH₃)₅] protons (compound 1 has 4 phenyl, 9 cyclopentadienyl and no methyl protons; a cyclometalated product like 2 would have 4 phenyl, 8 cyclopentadienyl and 15 methyl protons. Thus, a content of ca. 20% residual 1 can be estimated. All these signals are broad without a fine structure. (It should be noted that similar broad signals were observed in the ¹H-NMR spectra of cycloiridated metallocenyloxazolines with a chloride ligand on iridium [15,25,26].) Since any structural assignment based on these NMR spectra appeared ambiguous, recrystallisation from CH₂Cl₂/ petroleum ether at −30°C was attempted. After standing for ca. 10 weeks, a few red crystals appeared, which were studied by X-ray crystallography and mass spectrometry. Both methods confirmed that this compound was the desired cycloiridated complex 2. The yield was, however, very low and not sufficient for obtaining meaningful NMR spectra. Even after standing for several more months, no further crystals appeared.

2.2. Crystallographic Study

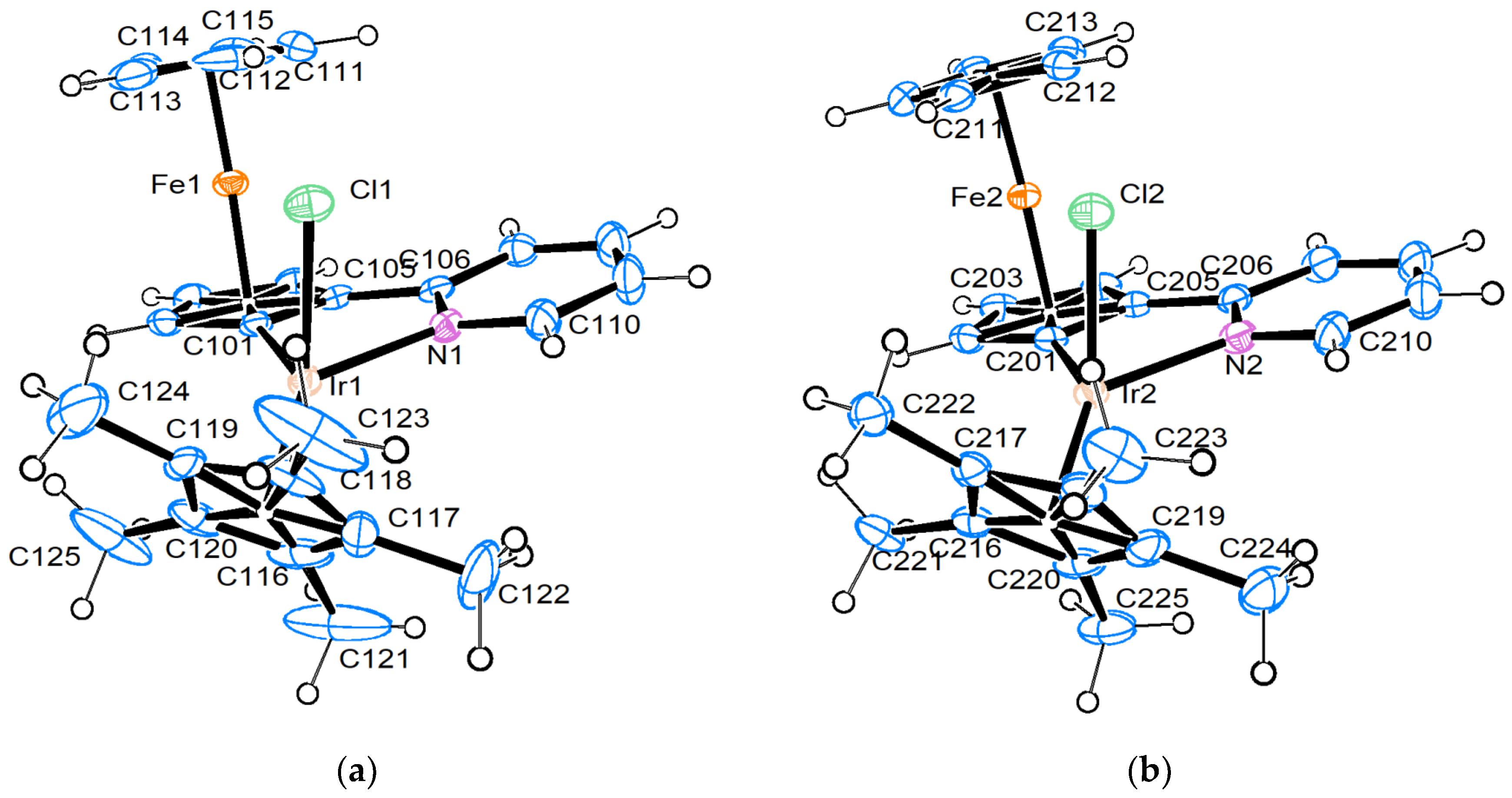

Compound 2 crystallises in the monoclinic centrosymmetric space group C2/c with two independent molecules in the unit cell, together with CH₂Cl₂ and H₂O (Figure 1; lattice solvents not shown). Both molecules are more or less identical, showing only minor differences in the relative orientation of the ferrocene cyclopentadienyl rings (Figure S7). No higher crystallographic symmetry could be found, however. The cyclopentadienyl rings on iron have nearly the same distance from the metal, with a relative orientation intermediate between eclipsed and staggered. The substituted cyclopentadienyl ring, the pyridine ring and the chelate ring are close to coplanar (torsion angles C-C-C-N 10.3(7)/5.3(7)° and Ir-C-C-C 13.6/6.5°).

Since C2/c is a centrosymmetric space group, the crystals also contain the mirror-related (S_pS_Ir)-2 isomers. Important geometrical parameters are shown in

Table 1. Important bond parameters in the crystal structure of 2 compared with two related structures from the literature.

Bond Length [Å] and Angles [°] 1	Molecule A	Molecule B	LIZBAA 2	UJEKAX 3
Ir–Cl	2.411(2)	2.443(2)	2.426(1)	2.410(3)
Ir–N	2.110(5)	2.115(5)	2.220(4)	2.107(9)
Ir–CFc	2.042(5)	2.051(5)	2.038(5)	2.04(1)
Ir–CTcp*	1.834(3)	1.822(3)	1.822	1.824
Fe–CTcp,sub	1.664(3)	1.657(3)	1.649	1.656
Fe–CTC5H5	1.656(4)	1.650(3)	1.644	1.658
CFc–Ir–N	77.6(2)	78.1(2)	76.9(2)	77.5(4)
CFc-CTcp,sub-CTC5H5-C’	13.1	21.1	10.3	17.3
Fe…Cl	4.036(2)	3.968(2)	3.850(1)	5.077(3)
Fe…Ir	3.901(1)	3.832(1)	3.8440(6)	3.820(2)

¹ CT are the centroids of the Cp rings: Cp*, C₅H₅ and Cp_sub. Substituted Cp ring of ferrocene. C_Fc is the ferrocene carbon atom bonded to iridium. C’ is the carbon atom of the C₅H₅ ring closest to the projection of the C_Fc–CT_cp,sub vector onto the C₅H₅ ring. ² See ref. [22]. ³ See ref. [17].

.

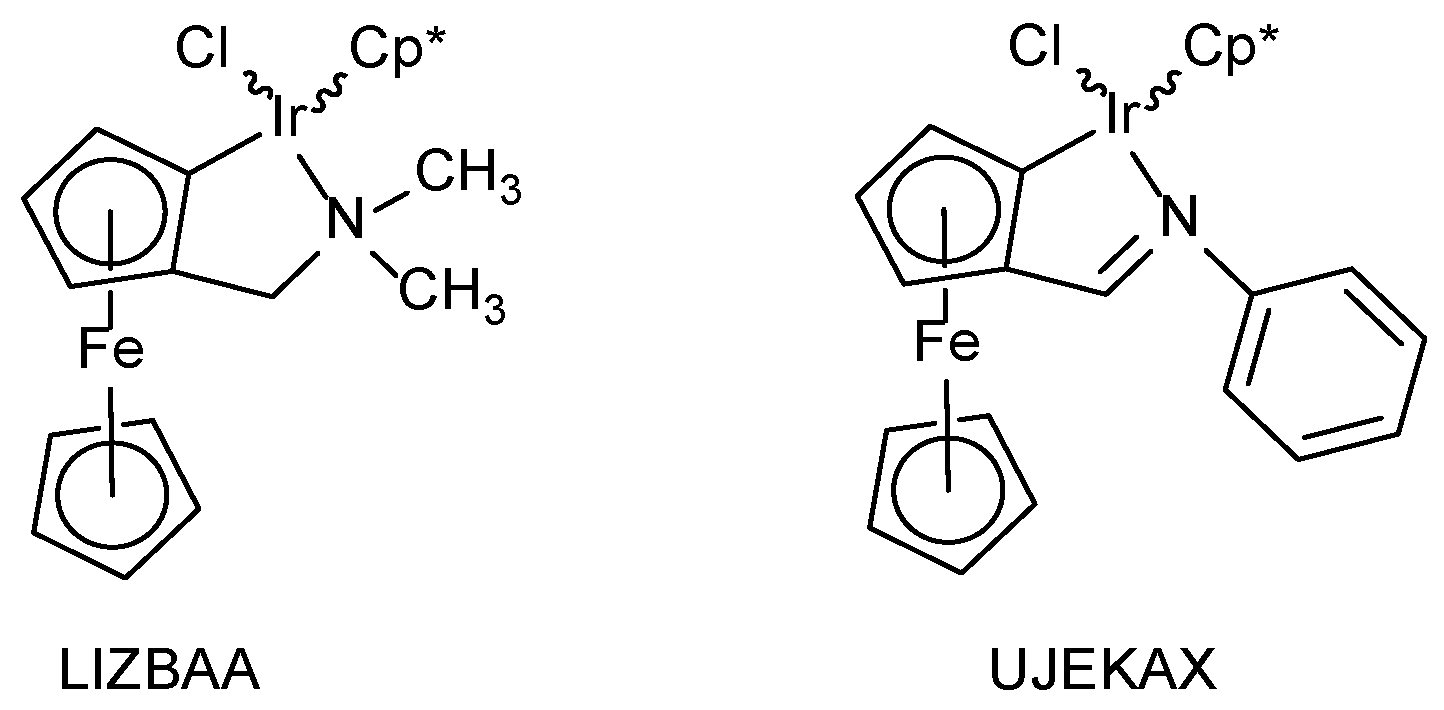

A look at the Cambridge Structural Database (accessed on 6 January 2024) shows 343 hits for the search term “Cp*Ir(C^N)X”, of which only six contain ferrocene units in general but only 2 (LIZBAA and UJEKAX), contain a cyclometalated ferrocene. LIZBAA contains a 1-dimethylaminoethyl substituent and UJEKAX contains a phenylimino substituent on the ferrocene part (see Scheme 2). The former shows the same (S_pS_Ir) diastereomer as compound 2, with the chloride substituent directing towards the ferrocene unit (“small” Fe…Cl distance), while the latter contains the (S_pR_Ir) diastereomer (“large” Fe…Cl distance). However, most of the other metrical parameters of 2 are more similar to the phenylimino derivative UJEKAX.

3. Discussion

As had been observed with several iron- or cobalt-complexed cyclopentadienyl oxazolines before when using NaOAc as base for the cycloiridation [17,23], the reaction of 1 with [Cp*IrCl₂]₂ led to the recovery of the starting material and only the partial formation of the desired iridicycle 2. The X-ray analysis of the crystals obtained after prolonged standing contain the (S_pS_Ir/R_pR_Ir’) enantiomeric pair of diastereomers. This contrasts with the observation that cycloiridation of phenyliminoferrocene yields the (R_pS_Ir/S_pR_Ir) diastereomers [17]. A computational study related to the latter compound showed that the (R_pR_Ir//S_pS_Ir) diastereomer would be ca. 2 kcal/mol more stable than the actually structurally characterised product, and it was concluded that the product formation was not under thermodynamic control. The result of this computational study is also in sharp contrast with the computations related to the Cr(CO)₃-coordinated cycloiridated phenylpyridines, where it was found that the syn-chloro isomers (as found in our structure of compound 2) are 7–8 kcal/mol less stable than their trans counterparts [7]. The fact that in our compound 2, as well as in structurally related compounds containing a Cp*IrCl(C^N) unit, the ¹H-NMR signals were very broad might be regarded as a sign of stereochemical lability with dynamic dissociation of the chloride ligand, although other explanations are possible as well. Our crystals appeared only after prolonged standing, and only in very low yield, which excluded further characterisation by NMR methods, and thus no comparison with the original mixture is possible. In particular, we cannot even say if the compound found in the crystal structure corresponds to the “observed” signals of the ¹³C-NMR spectrum. Therefore, we feel that unfortunately nothing can be said about the stereoselectivity of this particular cyclometallation reaction. The “pitfalls” in the discussion of stereoselectivity in the formation of planar-chiral metallacycles has been discussed in depth [27].

4. Materials and Methods

4.1. General Remarks

The starting material (2-pyridyl)-ferrocene 1 was prepared as described by us before [28]. All other solvents and reagents were obtained from Aldrich and used as received. NMR spectra were measured on a JEOL ECP-270 instrument, using CD₂Cl₂ as solvent. Spectra were referenced against the residual solvent signals. Mass spectra were obtained on Finnigan MAT 90 and JEOL Mstation 700 instruments in DEI mode. Chromatographic separations were performed in Schlenk glass frits of ca. 20 mm diameter with a filling height of ca. 15 cm of silica gel, which had been suspended in petroleum ether. A slight overpressure of argon was used to promote the migration of the bands through the column.

NMR data of 1: ¹H-NMR (270 MHz, CDCl₃): δ= 8.50 (m, 1H), 7.58 (m, 1H), 7.42 (m, 1H), 7.07 (m, 1H), 4.92 (m, 2H), 4.40 (m, 2H), 4.05 (s, 5H). ¹³C-NMR (101 MHz, CDCl₃): δ= 159.4, 149.4, 136.0, 120.5, 120.2, 83.8, 69.9, 69.7, 67.3.

4.2. Synthesis

Chlorido-pentamethylcyclopentadienyl-[2-(2-pyridyl-кN)-ferrocenyl-кC]-iridium(III) (2)

A solution of [Cp*IrCl₂]₂ (0.25 g, 0.31 mmol), NaOAc*3H₂O (0.090 g, 0.66 mmol) and 1 (0.17 g, 0.65 mmol) in CH₂Cl₂ (10 mL) was stirred for 20 h at room temperature. Then, the mixture was filtered through Celite and the solvent was evaporated completely in vacuo. The residue was taken up in the minimum amount of petroleum ether (PE) and placed on top of a silica gel chromatography column. Elution was tried first with PE, then PE/CH₂Cl₂ 1:1 and then pure CH₂Cl₂-, apparently without success. A 1:1 CH₂Cl₂/EtOAc mixture eluted a faint yellow first fraction and a 1:2 CH₂Cl₂/EtOAc mixture eluted a weak red second fraction. Finally, pure EtOAc eluted an intensely red third fraction. All three fractions were evaporated and examined by NMR spectroscopy. The first two apparently contained no ferrocene species (Figures S3 and S4). The third fraction contained, according to ¹H- and ¹³C-NMR spectra, a mixture of at least two compounds contaminated by some unidentified impurities. It was therefore taken up in a CH₂Cl₂/PE mixture and stored in a freezer at −30°C. After ca. 10 weeks, a few red crystals appeared, which were examined by X-ray crystallography and mass spectrometry.

¹H-NMR (270 MHz, CD₂Cl₂; Figure S5): δ= 8.7–8.1, 7.7–6.7 (several multiplets, 4H, pyridyl protons), 5.6–3.6 (several broad signals, 8 H, cyclopentadienyl protons), 1.73 (s)/1.62 s, (Cp* protons).

¹³C-NMR (68 MHz, CD₂Cl₂, Figure S6): “Major” compound (stronger signals, presumably 1): δ= 159.5, 149.6, 136.2, 120.8, 120.3 (C₅H₄N), 84.2, 70.2, 67.6 (C₅H₃XY), 69.9 (C₅H₅); “minor” compound (weaker signals, presumably 2): δ= 169.8, 151.4, 137.3, 119.8, 119.3 (C₅H₄N), 96.2, 90.8, 72.0, 71.0, 63.8 (C₅H₃XY), 88.3 (C₅Me₅), 69.8 (C₅H₅), 9.1 (C₅Me₅). [Assignments were based on comparisons with literature data.] There are also several other very weak signals, that might belong to a third species.

MS (DEI⁺): m/z = 624.9 (M⁺), 589.9 (M⁺-Cl), 469.0 (M⁺-Cl-FeC₅H₅), 263.0 (M⁺-IrCp*Cl).

4.3. Crystal Structure Determination

The crystal was measured on a BRUKER KAPPA CCD system. The experimental details of the structure determinations are collected in Table S1 of the Supplementary Materials. The software package WINGX [29] was used for structure solution (SIR97), refinement (SHELXL 2018/3) [30], evaluation (PLATON) and graphical representation (ORTEP3 and MERCURY). Carbon bound hydrogen atoms were treated with a riding model, using the AFIX command of SHELXL.

5. Conclusions

We showed that cycloiridation of 2-pyridyl-ferrocene is possible, albeit in low yield, and no clear information on the diastereoselectivity of this reaction could be obtained. Further studies would be necessary concerning optimisation of yields and also on the influence of substituents both on the ferrocene and the pyridine moiety on the stereochemical outcome of the reaction.
