Tributyl(1-((dimethylamino)(dimethyliminio)methyl)-1,4-dihydropyridin-4-yl)phosphonium Ditrifluoromethanesulfonate

Abstract

Site-selective functionalization of pyridines is a crucial tool for the synthesis of diverse pharmaceuticals and materials. We introduced diiminium pyridine adducts as highly convenient and potent Lewis acids. We report that tributylphosphine selectively adds to the 4-position of pyridine in tetramethyldiiminium pyridine ditrifluoromethanesulfonate, resulting in the formation of the title compound. This finding represents an advancement towards the utilization of diiminium units as organic reagents or catalysts for pyridine functionalization. We also employ computational models to determine fluoride and hydride ion affinities, Fukui function f⁺(r), molecular electrostatic potential, and pKa values, providing valuable insights for future investigations in this area.

1. Introduction

Pyridines play a crucial role in pharmaceutical and chemical applications [1]. However, achieving site-selective functionalization of pyridines remains a challenging task [2,3,4]. N-functionalization of pyridines can induce C2- and C4-selectivity, with bulkier N-substituents favoring the latter [5,6,7,8,9,10,11]. Addition to the C4-position leads to the formation of 1,4-dihydropyridine (DHP) structures, which can further undergo C3-functionalization [12,13,14,15]. The synthesis of substituted 1,4-DHPs was historically challenging [16,17,18,19], leading to recent advancements towards addressing this issue effectively. Pyridines substituted at the C2-position with bulky groups, for example, were found to form “frustrated” Lewis pairs (FLPs) with boranes, enabling complete reduction with molecular hydrogen [20,21,22,23,24,25]. Partial reduction can also be achieved through hydroboration and hydrosilyzation strategies [26,27,28,29].

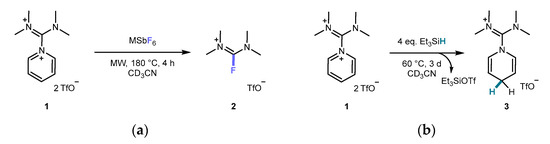

In our recent work, we investigated three diiminium nucleophile adducts, including the pyridine adduct (DIPy) 1, as carbon-based Lewis acids (Figure 1) [30]. These adducts offer a cost-efficient and convenient synthesis method at large scales and proved to be potent coupling reagents for amide and imide formations. The adducts typically engage in a “double-action” mechanism involving the addition of a Lewis base and subsequent elimination of the pyridines. This behavior resembles that of Lewis pairs and complicates direct comparison of their acidity with simple single-action Lewis acids. However, we determined that they exhibit characteristics consistent with hard and soft Lewis super-acids [31]. We successfully abstracted fluoride ions from SbF₆⁻, albeit under harsh conditions, following the typical double-action mechanism. Oxygen nucleophiles displayed similar reactivity. Interestingly, when employing the soft hydride donor Et₃SiH, we observed behavior more in line with the established chemistry of N-substituted pyridines, with the C4-position of the diiminium adduct acting as a better soft Lewis acid than the diiminium carbon. Our regiospecific synthesis of the 1,4-DHP 3 sparked our interest in employing diiminium nucleophile adducts for pyridine substitution. Consequently, we initiated investigations with heavier and more complex soft bases, and herein describe the addition of tributylphosphine to diiminium pyridine adduct 1 and examine the acidity properties of the resulting product. While they are important intermediates in the functionalization of pyridines, only six phosphonium adducts of 1,4-DHP have been isolated [32,33].

2. Results and Discussion

2.1. Synthesis

Preliminary experiments were conducted on a 250 μmol scale using dichloromethane (DCM) and diethyl ether (Et₂O) in an argon atmosphere in screw-capped 10 mL vials. In 1.5 mL of the respective solvent, 1.00 eq. of 1 and 1.05 eq. of PBu₃ were mixed and stirred for 2 h at room temperature (r.t.) under argon. The solvent was evaporated, and the reaction progress was evaluated using ¹H nuclear magnetic resonance (NMR) in CD₃CN. The remaining pyridine integrals of 1 compared to the vinylic integrals of the product tributyl(1-((dimethylamino)(dimethyliminio)methyl)-1,4-dihydropyridin-4-yl)phosphonium ditrifluoromethanesulfonate 4 suggested 88% completion in DCM and 81% completion in Et₂O (assuming a specific reaction). Based on these results, we chose to run the synthesis overnight (18 h) to ensure complete conversion.

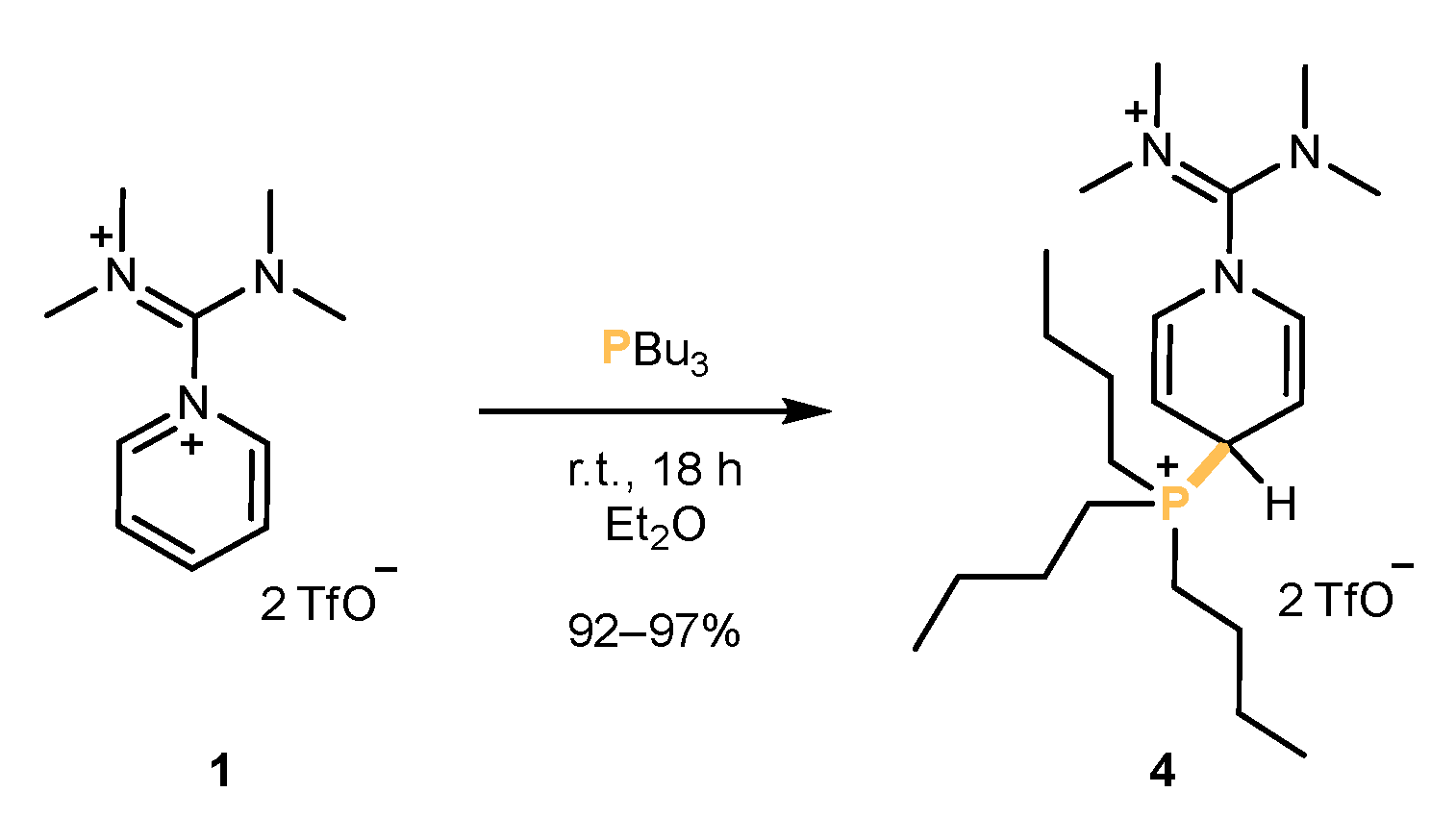

2.50 mmol of DIPy 1 were reacted with 2.65 mmol (1.05 eq.) of PBu₃ in 10 mL anhydrous Et₂O under an argon atmosphere (Figure 2). The dispersion slowly turned pale-yellow. The solid crude product was collected after 18 h in air by filtration on a paper filter and washed with Et₂O. It was then dissolved in DCM and filtrated. Removal of the solvent yielded the title compound 4 at satisfactory purity in an excellent yield (97%). Traces of 1 and [Bu₃POPBu₃]OTf₂ were be detected in ¹H and ³¹P NMR spectra, respectively. The latter was identified by analogy of the ³¹P NMR shift (87 ppm) to the known shift of [Et₃POPEt₃]OTf₂. (87 ppm) [30]. A high purity sample was obtained by recrystallisation in an argon atmosphere rather than filtration in air. To achieve this, DCM was added to the solution of another reaction after 18 h until the product dissolved. The title compound crystallized at −18 °C and was collected in the form of crystalline needles. Combined with further crystallization from the mother liquor, pure 4 was isolated in 92% yield. Storage of 4 in a dry atmosphere is advised due to mild hygroscopy.

Analogous reactions with the poorer nucleophiles triphenylphosphine and triphenylphosphite did not lead to isolable adducts. No reaction was observed with triphenylphosphite. Triphenylphosphine led to the formation of sets of broad ¹H NMR signals indicative of the desired 1,4-DHP but we were able to reisolate both starting materials through washing with Et₂O, which dissolved the phosphine. This suggests that triphenylphosphine reversible adds to DIPy 1, which may be useful for promoting other functionalization reactions.

2.2. Structure in the Solid State

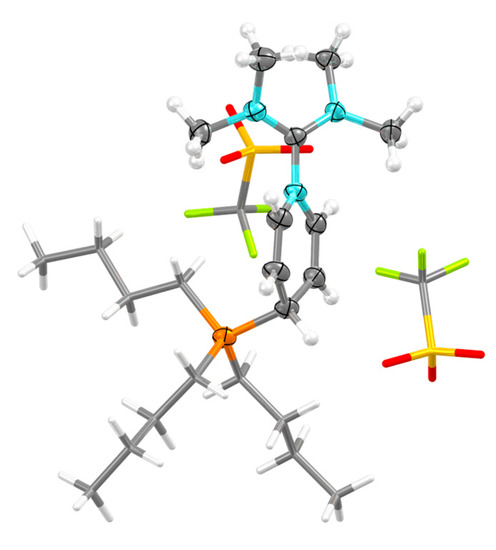

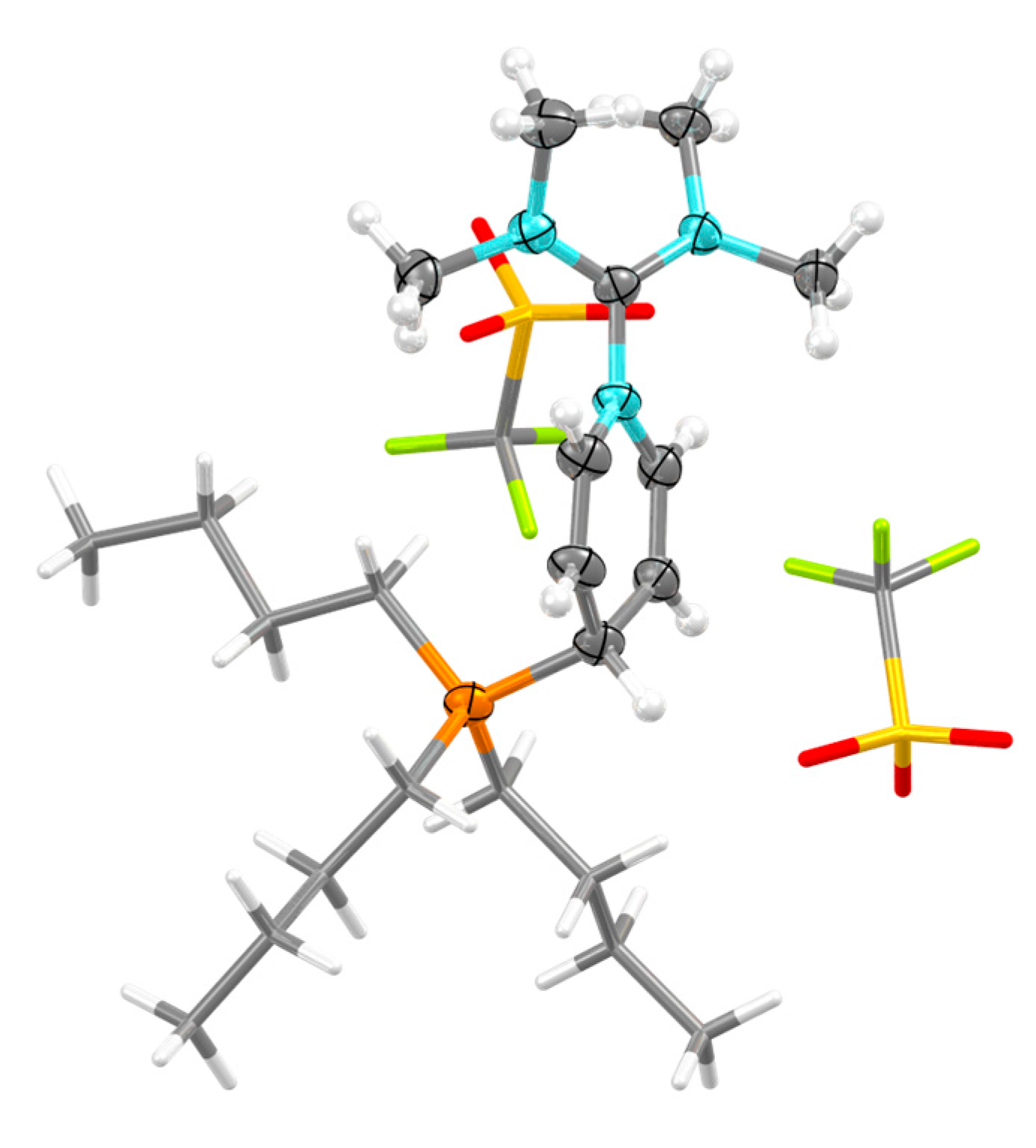

Crystals suitable for structure determination by single crystal X-ray diffraction (SCXRD) of compound 4 were generated by recrystallisation from Et₂O/DCM at −18 °C (see synthesis section for details). The colorless plates were mounted on MiTeGen 100 µm micro-mounts using a non-polar cryo-oil for subsequent determination by single crystal X-ray crystallography (Figure 3, not simplified in Figure S13). The asymmetric cell contained one molecule of 4. One triflate anion was found to be disordered over two positions in a 60%:40% ratio and was modelled accordingly.

The bond length of 137.2(3) pm indicates a strong bond in the diiminium-C–dihydropyridyl-N bond. In comparison, the diiminium-C–pyridine-N bond in 1 is 144.8(2) pm long [30]. The P–C–C bond angles at the dihydropyridyl-C4 position are 109.5(2) and 111.2(2)°, consistent with an sp³-carbon center. The respective P–C bond length measures 183.2(3) pm.

The diiminium carbon exhibits a distance of 318.2(3) pm to the closest triflate oxygen. On the other side of the diiminium carbon, there is a disordered triflate anion from a neighboring unit cell. The distances to the two closest disordered oxygens of this triflate measure 312.6(8) pm and 323.6(6) pm, with an average of 317 pm (with the individual distances weighted by the 60%:40% ratio of the triflates). These distances are smaller than the sum of the van der Waals radii (322 pm) and suggest a weak Lewis adduct formation at the diiminium carbon.

2.3. Nuclear Magnetic Resonance

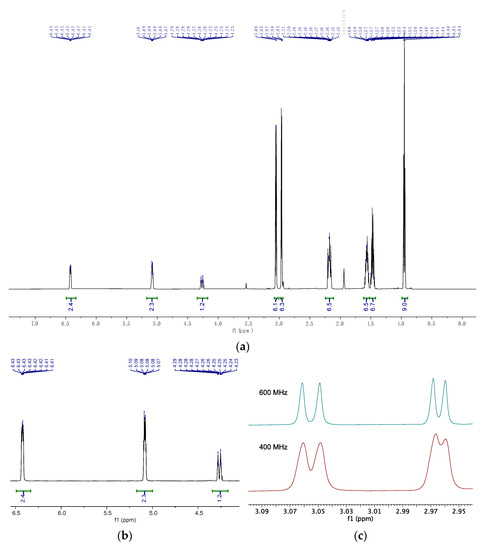

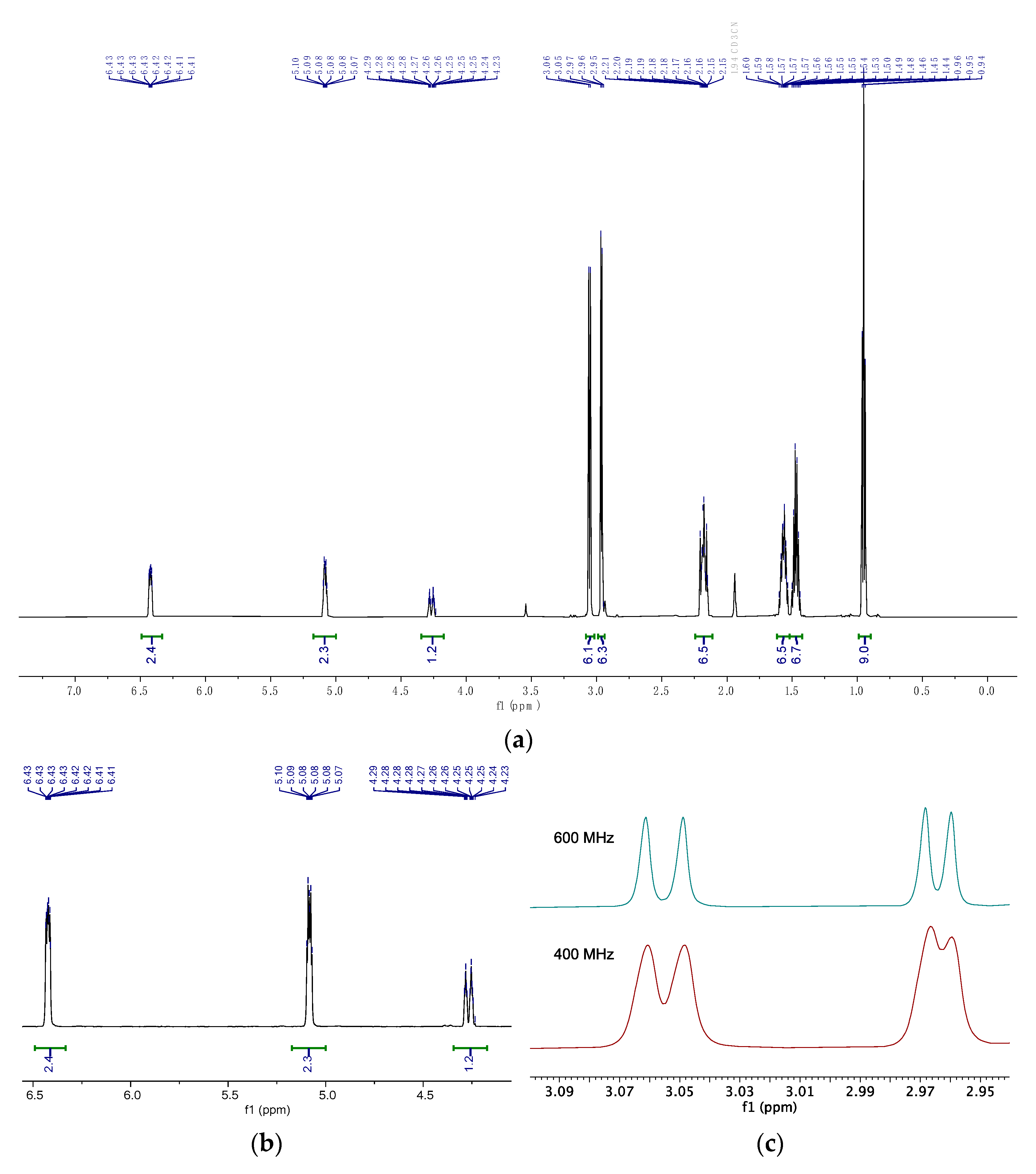

Analysis by nuclear magnetic resonance (NMR) spectroscopy revealed intriguing details (Figure 4a, also see Figures S1–S12). The proton in DHP-position 4 displayed a relatively high coupling constant to P (²J(HP) = 18.5 Hz), while positions 3 and 2 exhibited coupling constants of ³J(HP) = 3.0 and ⁴J(HP) = 3.8 Hz, respectively (Figure 4b). These findings were consistent with the scarce previous reports on similar phosphonium-substituted DHPs [32]. Interestingly, we detected a total of four iminium-methyl signals both in ¹H and ¹³C NMR spectra, with no evidence of HH couplings by ¹H/¹H COSY NMR. The major splitting can be attributed to frozen rotations of the iminium bonds (which is also known for compound 1) [30]. To explore the origin of this observation, we compared ¹H NMR spectra at different field strengths (600 and 400 MHz), and the constant shifts (in parts per million, ppm) eliminated coupling as an explanation for the minor line-splitting (Figure 4c). This suggests that the diiminium unit remains immobilized relative to the DHP plane at r.t. on the ¹H and ¹³C NMR timescale. The discovery that small methyl substituents are sufficient to freeze this degree of freedom makes the development of enantioselective follow-up chemistry with unsymmetric derivatives of 4 promising.

2.4. Computational Investigation

To facilitate further rational investigations, we modelled various properties of 4. Calculations were performed at the DSD-BLYP-D3BJ/def2-QZVPP/CPCM(MeCN)//PBEh-3c/def2-mSVP/CPCM(MeCN) level of theory [34,35,36,37,38,39,40,41,42,43]. The structure of 4 was obtained and pre-optimized using a pipeline described in detail in the computational methods section. We modelled the fluoride and hydride ion affinities (FIA/HIA) both in the gas phase and in MeCN solution (FIA_MeCN/HIA_MeCN) to evaluate the hard and soft acidity of 4 (Figure 5). To avoid direct calculations of hydride and fluoride ions, we employed Krossing’s anchoring scheme with Greb’s Me₃Si⁺ anchor [44,45,46,47,48]. This scheme employs the FIA and HIA of the Me₃Si⁺ at the level used herein: FIA = 963 kJ mol⁻¹; HIA = 962 kJ mol⁻¹. These were anchored to a high level coupled cluster method as described previously [30]. The solvation energy of fluoride and hydride ions was used to determine ion affinities in solution: ΔH_solv(F⁻) = −370 kJ mol⁻¹; ΔH_solv(H⁻) = −368 kJ mol⁻¹. The FIA of the diiminium carbon in 4 was determined to be 779 kJ mol⁻¹, while the HIA was found to be 956 kJ mol⁻¹. These values indicate significantly lower acidities compared to 1 (FIA: 983 kJ mol⁻¹, HIA: 1153 kJ mol⁻¹) [30]. The phosphonium unit, acting as an electrophilic phosphonium cation [49], displayed an FIA of 773 kJ mol⁻¹ and an HIA of 801 kJ mol⁻¹, indicating weaker acidity than the carbon but with more balanced acidities towards soft and hard bases. Dicationic Lewis acids experience strong stabilization by solvation. Modelling the polar solvent MeCN resulted in substantial acidity dampening, with all values dropping below 25 kJ mol⁻¹, except for the HIA of the diiminium unit, which remained significant at 181 kJ mol⁻¹.

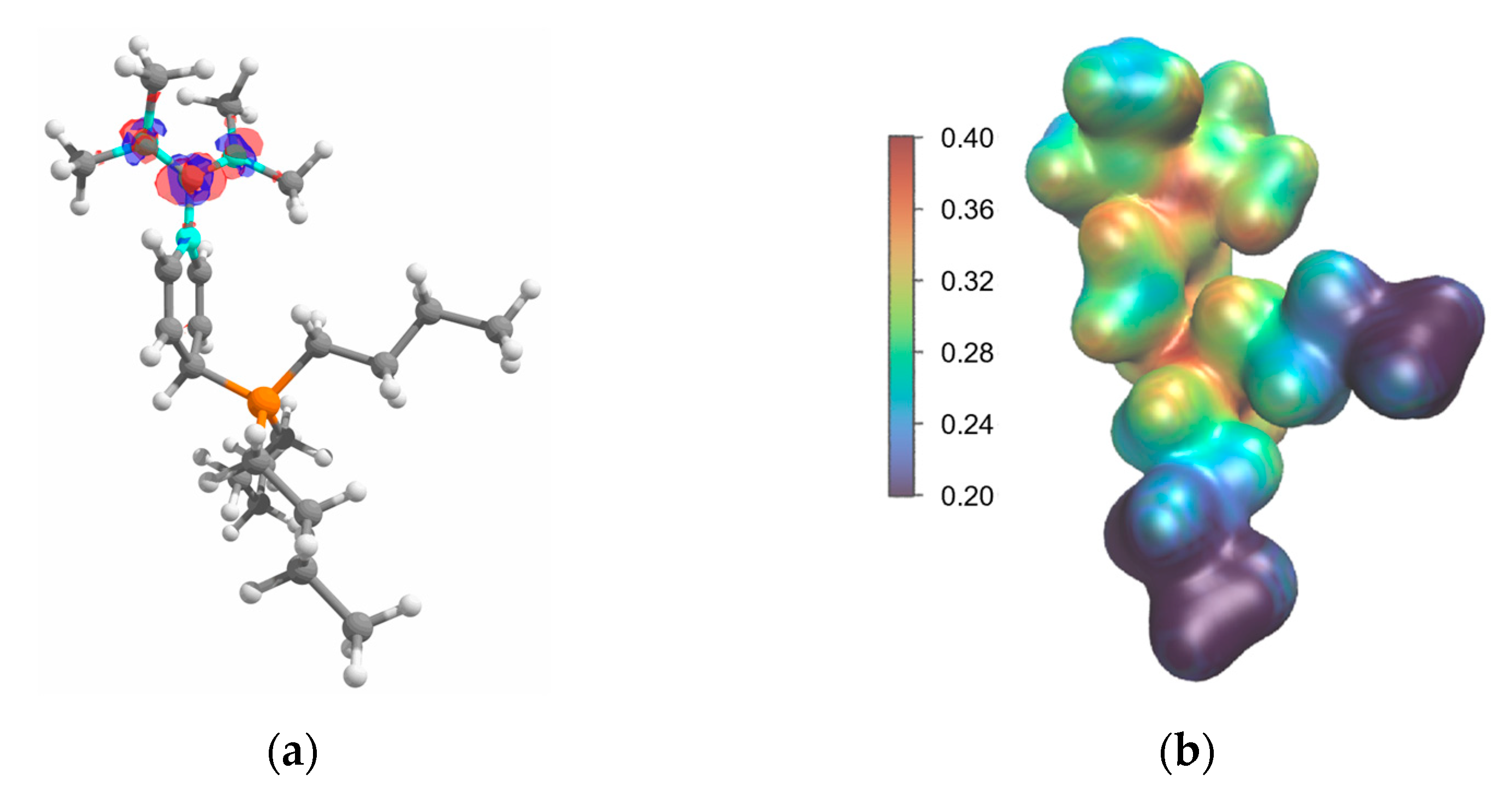

As previously observed, molecular electrostatic potentials (MEPs) provide valuable predictions of nucleophilic attacks at 1 and its derivatives under thermodynamic reaction control, while Fukui functions align with outcomes under kinetic control [30]. No clear distinction between the diiminium carbon and the phosphonium phosphorus centers was observed in the MEP. Both positions exhibit similarly strong positive electrostatic potentials which aligns well with their similar FIA values (Figure 6a). The Fukui function f⁺(r) clearly indicates that the most electrophilic position is the diiminium carbon atom (Figure 6b). Minor coefficients are visible at the iminium nitrogen. DIPy 1 showed the largest coefficients in the pyridine ring, which is in line with the observation of the phosphine addition to the pyridine C4-position.

pKa values were obtained by modeling deprotonations with the reference base 1,8-diazabicyclo(5.4.0)undec-7-ene (DBU) using Equation (1):

$$\mathrm{p}K\mathrm{a}=\frac{∆\mathrm{G}}{\mathrm{RTln}\left(10\right)}+\mathrm{p}K\mathrm{a}({\mathrm{DBUH}}^{+})$$

(1)

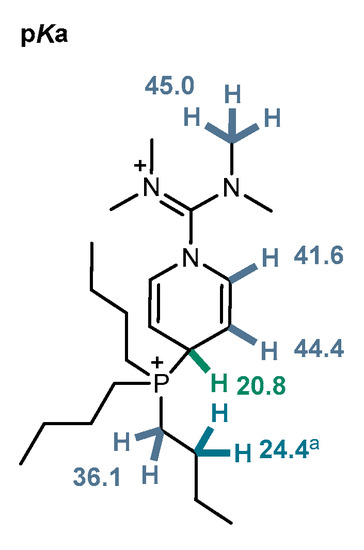

with $\mathrm{p}K\mathrm{a}({\mathrm{DBUH}}^{+})=24.31$ and $\mathrm{T}=298.15\mathrm{K}$ (Figure 7) [50,51]. The iminium-methyl groups and the vinylic protons of the DHP unit were predicted to have pKa values of 42–45. Deprotonation of the methylene groups neighboring phosphorus to form an ylide was only slightly more favorable, with a pKa of 36. While we were not able to compute a pure deprotonation at the butyls, the Hoffmann-type elimination of butene under β-CH₂-deprotonation was modeled to proceed with a pKa of 24. The most acidic position predicted was the C4-position of the DHP, with a pKa of 21. This can be attributed to the formation of a conjugated system extending from the resulting ylide through the heterocycle to the iminium units. Subsequent elimination of the phosphine to yield a carbene at its former position is as unlikely (218 kJ mol⁻¹ uphill) as spontaneous elimination of phosphonium HPBu₃⁺ without external base (229 kJ mol⁻¹ uphill).

3. Materials and Methods

3.1. Experimental Methods

All synthetic procedures were carried out in an argon-filled glovebox (O₂ and H₂O < 3 ppm) or in Schlenk-type glassware in a dry argon atmosphere unless stated otherwise. Glassware used in these procedures was pre-heated in an oven at 120 °C for at least 2 h and flame-dried with a heat gun and flushed with dry argon thrice.

All chemicals were obtained from commercial suppliers and used without further purification unless stated otherwise. Dichloromethane (DCM) and diethyl-ether (Et₂O) were dried with an MBRAUN solvent purification system (SPS-5) and stored over 4 Å molecular sieves. Deuterated solvents for anhydrous measurements were introduced to a glovebox as obtained from Eurisotop and stored over 4 Å molecular sieves. Cannula filtrations were performed with polytetrafluoroethylene (PTFE) tubing capped with MN615 filter paper from MACHEREY-NAGEL (retention capacity 4–12 μm) attached with PTFE tape.

Nuclear magnetic resonance (NMR) spectra were recorded on a Bruker Avance Neo 600 (Bruker, Billerica, USA) spectrometer at 26 °C and were analysed with the software Mnova 14.2.3 [52]. Chemical shifts δ were reported in ppm. The residual solvent signals were used for referencing ¹H NMR spectra (1.94 ppm for CD₃CN) [53,54]. This shift was used for absolute referencing of all other spectra with the unified chemical shifts scale as recommended by the International Union of Pure and Applied Chemistry (IUPAC) in its implementation in Mnova 14.2.3 (¹³C: Me₄Si j = 1%, X = 25.145020; ¹⁹F: CCl₃F X = 94.094011; ³¹P: H₃PO₄ external, X = 40.480742) [52,55]. Multiplicities of the signals were given as singlet (s), doublet (d), triplet (t), quartet (q), quintet (qui), septet (sept), multiplet (m), or broad signal (bs). Elemental analyses (CHN) were carried out in air with an Elementar VarioEL (Elementar, Langenselbold, Germany) or a Bruker maXis II (Bruker, Billerica, United States). High-resolution mass spectrometry (HRMS, further abbreviated as MS) was performed using a Thermo Scientific LTQ Orbitrap XL (Thermo Fisher Scientific, Waltham, USA). Attenuated total reflection infrared spectra (ATR-IR) were measured on a PerkinElmer Spectrum 100 FT-IR (PerkinElmer, Waltham, United States) using the universal ATR (UATR) accessory and the signals were reported in cm⁻¹. Single-crystal X-ray data was measured using a Rigaku XtaLAB Synergy-R (Rigaku, Tokyo, Japan) diffractometer with a HyPix-Arc 100 detector using mirror-monochromated Cu-Kα (λ = 1.54184 Å) radiation. The data collection and reduction were performed using the program CrysAlisPro 1.171.42.89a [56]. The structures were solved with intrinsic phasing (SHELXT) [57] and refined by full-matrix least squares on F² using Olex2 1.2 [58], which utilizes the SHELXL module [59]. Anisotropic displacement parameters were assigned to non-H atoms. All hydrogen atoms were refined using riding models with U_eq(H) of 1.5U_eq(C) for methyl groups and U_eq(H) of 1.2U_eq(C) for all other C-H groups.

3.2. Computational Methods

Calculations were performed in autodE 1.3.0 [60]. Low energy conformers were generated from simplified molecular-input line-entry system (SMILES) tags with the ETKDGv3 algorithm implemented in RDKit v. 2022.03.4 [61]. Conformer optimizations were performed using xTB 6.4.0 [62] at the GFN2-xTB level [63]. Solution phase calculations used the generalized Born solvation model with a hydrophobic solvent accessible surface area (GBSA), with parameters appropriate for MeCN [64,65]. Feasibly low energy conformers as selected with autodE default settings were then optimized with ORCA 5.0.4 [66,67,68] with the triple-corrected composite method PBEh-3c/def2-mSVP [39,40,41,42] utilising the RIJCOSX [43] approximation for Coulomb and Hartree Fock exchange with the def2/J auxiliary basis [36]. autodE’s template-based algorithm including conformer screening was used for the localization of most transition states. Relaxed potential energy scans as implemented in ORCA were used for localizing rotational transition states, which were then optimized and further treated within autodE. Hessians were then computed in ORCA at the same level of theory for confirming the nature of the optimized structures as local minimum or maximum, respectively. autodE was used to compute the zero-point energy and free energy corrections based on the generated Hessian. The frequencies were scaled by 0.95 as advised for this functional and basis set combination [39]. Low frequency vibration modes were treated with the quasi-rigid-rotor-harmonic-oscillator approximation (qRRHO, with ω₀ = 100 cm⁻¹) [69]. Potential imaginary frequencies smaller than 40 cm⁻¹ were not considered as transition states and were treated as real frequencies within thermochemistry calculations (multiplication by −i). Electronic energies were obtained from single point calculations at the DSD-BLYP [34] level with D3BJ [40,41] dispersion correction with the basis set def2-QZVPP [35] and the auxiliary basis sets def2/J [36] and def2-QZVPP/C [37]. Optimization, Hessian, and single point calculations in solution utilized the conductor-like polarizable continuum model (C-PCM) with parameters appropriate for MeCN, unless stated otherwise [38]. Energies were calculated at a 1 M concentration and a temperature of 25 °C, unless stated otherwise.

Compound energies are listed as E^opt, G^cont, H^cont, and E^sp. E^opt is the energy of the final structure at our level of theory used for geometry optimization. E^sp is the energy of the compound at our single point calculation level. H^cont is the enthalpy contribution, i.e., zero-point energy (H = E^sp + H^cont). G^cont is the total free energy contribution, i.e., the sum of the zero-point energy and entropy contributions (G = E^sp + G^cont).

The molecular electrostatic potential was computed with 80 grid intervals and projected onto the electron density surface at ρ = 0.01, utilizing ORCA 5.0.4 and a Python 3 script (used in Python 3.9.16) available at https://gist.github.com/mretegan/5501553 (revision of 25 Oct. 2022, accessed on 28. Apr. 2023). Fukui functions f⁺(r) were computed from single point calculations of the dications and the respective mono-cationic radicals and displayed at ρ = 0.01.

To assist with the editing process and improve the clarity and readability of the manuscript, an AI language model, ChatGPT (based on GPT-3.5 architecture) was employed. It provided suggestions and recommendations for improving the writing style and structure of the manuscript.

3.3. Synthesis of 4

2.50 mmol (1.19 g, 1.00 eq.) of DIPy 1 (synthesized according to [30]) were dissolved in 10 mL anhydrous Et₂O in a 100 mL Schlenk tube equipped with a magnetic stir bar. Then, 2.63 mmol (669 µL, 1.05 eq.) of PBu₃ were added dropwise under stirring. The reaction mixture was allowed to stir at r.t. for 18 h, resulting in the formation of a pale-yellow dispersion. Purification was performed following either of the following methods:

Purification procedure A: The reaction mixture was filtered swiftly in air with a paper filter. The collected solid was washed thrice using 10 mL of Et₂O each time. Subsequently, the solid was dissolved in 10 mL of DCM and filtered through the paper filter. The solvent was evaporated from the filtrate in vacuum to yield 2.43 mmol (1.65 g, 97%) of compound 4.

Purification procedure B: To achieve a higher purity at a slightly reduced yield, crystallization in an argon atmosphere in the reaction Schlenk flask was performed. We added DCM (ca. 20 mL) via cannula to the reaction dispersion of compound 4 until it dissolved completely. The flask was tightly sealed and placed in a freezer at −18 °C. After 12 h, crystals were observed to form and were subsequently collected using a filter cannula. The mother liquor was collected in a second Schlenk flask and subjected to the same crystallization method again (5 mL Et₂O, ca. 18 mL DCM) to yield further crystals. Both collected crystal batches were thoroughly washed with Et₂O via filter cannula. A total of 2.31 mmol (1.57 g, 92%) of 4 were isolated as a pale-blue wool-like material consisting of crystalline needles.

¹H NMR (600 MHz, CD₃CN) δ 6.42 (dt, J = 8.3, 4.3, 1.5 Hz, 2H, DHP-2 CH), 5.08 (dt, J = 8.3, 3.8, 3.0 Hz, 2H, DHP-3 CH), 4.34–4.17 (dtd, J = 18.5, 3.8, 1.5 Hz, 1H, DHP-4 CH), 3.06 (s, 3H, Me-CH₃), 3.05 (s, 3H, Me-CH₃), 2.97 (s, 3H, Me-CH₃), 2.96 (s, 3H, Me-CH₃), 2.24–2.11 (m, 6H, Bu-CH₂), 1.62–1.52 (m, 6H, Bu-CH₂), 1.47 (tq, J = 7.3, 7.2 Hz, 6H, Bu-CH₂), 0.95 (t, J = 7.3 Hz, 9H, Bu-CH₃). ¹³C NMR (151 MHz, CD₃CN) δ 157.5 (s, 1C, diiminium-C), 129.3 (d, J = 8.0 Hz, 2C, DHP-2 CH), 120.3 (q, J = 320.9 Hz, 2C, Tf-CF₃), 98.6 (d, J = 6.3 Hz, 2C, DHP-3 CH), 40.1 (s, 1C NCH₃), 40.0 (s, 1C NCH₃), 39.5 (s, 1C NCH₃), 39.4 (s, 1C, NCH₃), 29.1 (d, J = 48.5 Hz, 1C, DHP-4 CH), 22.8 (d, J = 15.1 Hz, 3C, Bu-CH₂), 22.2 (d, J = 4.9 Hz, 3C, Bu-CH₂), 15.4 (d, J = 44.5 Hz, 3C, Bu-CH₂), 11.7 (s, 3C, Bu-CH₃). ³¹P NMR (243 MHz, CD₃CN) δ 31.6 (1P). ¹⁹F NMR (565 MHz, CD₃CN) δ −80.1 (6F, CF₃). ATR-IR (neat) 3093, 2962, 2876, 2302, 2193, 2066, 1985, 1692, 1621, 1538, 1463, 1415, 1320, 1253, 1146, 1098, 1027, 985, 921, 894, 834, 912, 791, 760, 727. MS (ESI⁺) m/z 530.27776 (530.27876 calcd. for C₂₃H₄₄F₃N₃O₃PS⁺ [4 − TfO⁻]⁺); 380.31830 (380.31891 calcd. for C₂₂H₄₃N₃P⁺ [4 − 2 TfO⁻ − H⁺]⁺); 280.21833 (280.21886 calcd. for C₁₇H₃₁NP⁺ [4 − 2 TfO⁻ − Bu⁺ − CH₄]⁺); 249.05113 (249.05152 calcd. for C₆H₁₂F₃N₂O₃S⁺ [(Me₂N)₂COTf]⁺); 190.66270 (190.66309 calcd. for C₂₂H₄₄N₃P²⁺ [4 − 2 TfO⁻]²⁺). EA (average of four determinations) C, 41.94; H, 6.36; N, 6.17 (C, 42.41; H, 6.53; N, 6.18 calcd. for C₂₄H₄₄F₆N₃O₆PS₂). Crystal data: CCDC-2283768, [C₂₂H₄₄N₃P][CF₃O₃S]₂, M = 679.71, colorless plate, 0.02 × 0.05 × 0.11 mm, triclinic, space group P-1 (No. 2), a = 10.2279(4) Å, b = 10.9774(6) Å, c = 15.1854(8) Å, α = 79.443(4)°, β = 84.043(4)°, γ = 81.475(4)°, V = 1652.42(14) ų, Z = 2, D_calc = 1.366 gcm³, F(000) = 716, µ = 2.58 mm¹, T = 120.0(1) K, θ_max = 74.5°, 6710 total reflections, 4802 with I_o > 2σ(I_o), R_int = 0.074, 6710 data, 459 parameters, 114 restraints, GooF = 1.05, 0.49 < d∆ρ < 0.52 eų, R[F² > 2σ(F²)] = 0.055, wR(F²) = 0.156.3.

4. Conclusions

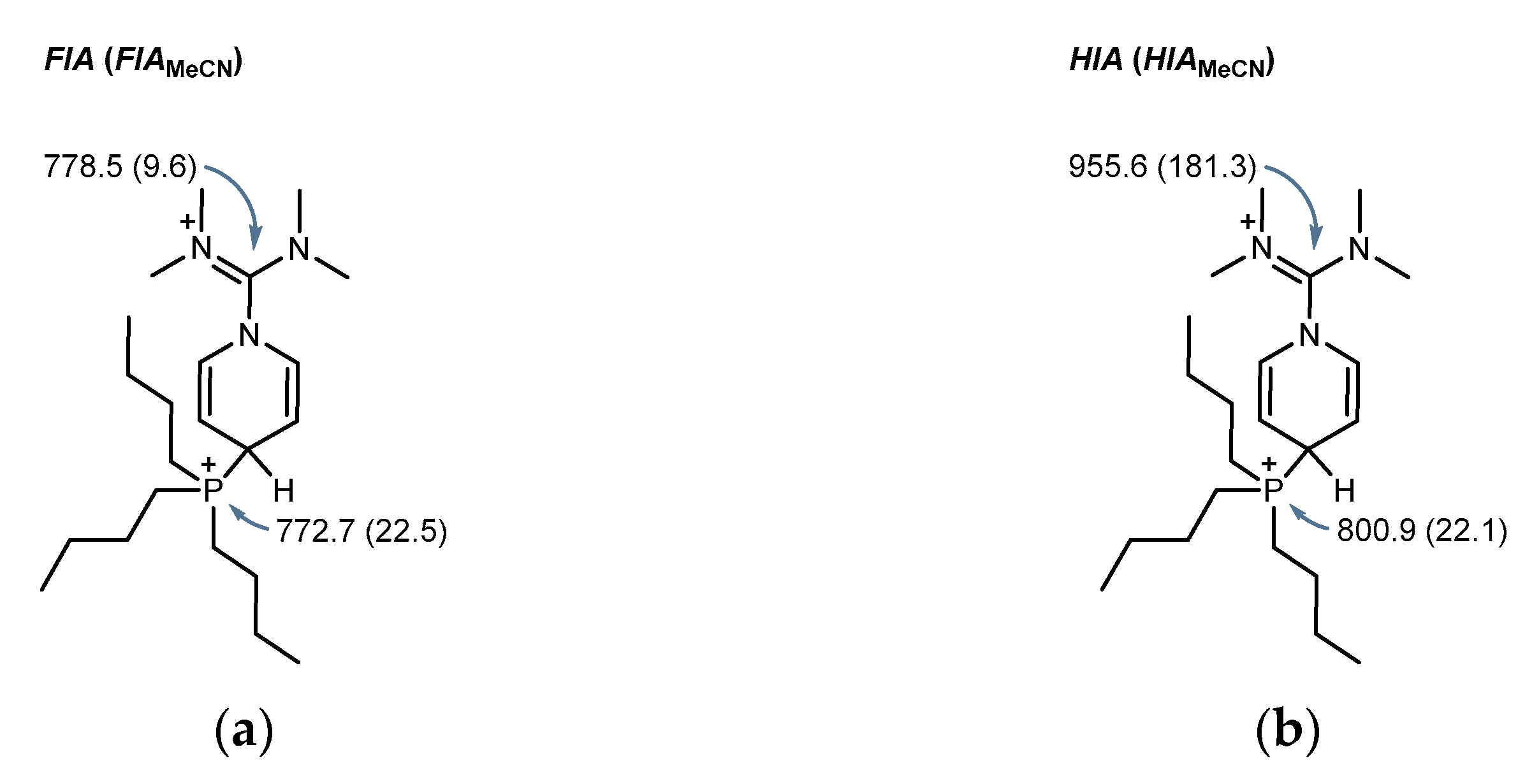

Tributyl(1-((dimethylamino)(dimethyliminio)methyl)-1,4-dihydropyridin-4-yl)phosphonium ditrifluoromethanesulfonate 4 was successfully synthesized through the addition of tributylphosphine to the diiminium pyridine adduct 1. Compound 4 contains both a strong carbon-based and a strong phosphorus-based Lewis acid, exhibiting comparable FIA and HIA values. The high computed pKa value at the C4 position of the dihydropyridine suggests its suitability for deprotonation or oxidative aromatization.
