Synthesis and X-ray Structures of Potential Light-Harvesting Ruthenium(II) Complexes

Abstract

We synthesized the luminescent ruthenium(II) polypyridyl complexes of type [Ru(bpy)₂(L1)][ClO₄]₂ (1) (where L1 = 4,4-dicarboxy-2,2-bipyridine); [Ru(bpy)₂(L2)][ClO₄]₂ (2); and [Ru(L2)₃][ClO₄]₂ (3) (where L2 = 4,4-dimethanol-2,2-bipyridine). Photo-physical and electrochemical properties of the Ru(II) complexes were investigated along with the emission vs. pH. This reveals that the carboxylic acids in the 2,2-bipyridine ligand had a more important influence on the photophysical and electrochemical properties of the Ru(II) complexes than alcohol. The crystal structure of the Ru(II) complexes 1–3 is also discussed in this paper. The cyclic voltammetry of 1–3 yields a reversible RuIII/II wave that shifts 1.4–1.2 V. UV/Visible absorbance spectroscopy reveals that Metal-to-Ligand Charge Transfer (MLCT) transitions shift to lower energy upon deprotonation of the complex.

1. Introduction

Energy is a basic need and is essential for the earth’s life [1]. The increasing consumption of non-renewable energies such as fossil fuels has caused an adverse effect on ecosystems, causing pollution and global warming, leading to a focus on sustainable and renewable energy sources [2]. Two crucial renewable energy sources have been a significant focus in the 21st century for a clean and sustainable environment: solar and hydrogen fuel cells. Solar cells use the light energy from the sun, whereas hydrogen fuel cells combine hydrogen and oxygen to produce electricity. However, the cost and non-eco-friendly waste to construct the solar cells and generate hydrogen has limited the scope of these renewable sources of energy.

Ruthenium complexes are well-known as the photosensitizer for Dyes-Sensitized Solar Cells (DSSCs) and water splitting due to their high-oxidized state stability and photo-electro-chemical properties, making their practical application feasible [3]. At present, several ruthenium(II)-polypyridyl complexes have been employed as active materials for DSSCs with overall power conversation efficiencies of over 11% under standard illumination, which is attributed to a wide-absorption range (visible to near-infrared) of material [4]. The absorption range of ruthenium(II)-polypyridyl complexes can be tuned carefully to improve the optical properties by considering the HOMO and LUMO energy levels for their potential application in DSSCs.

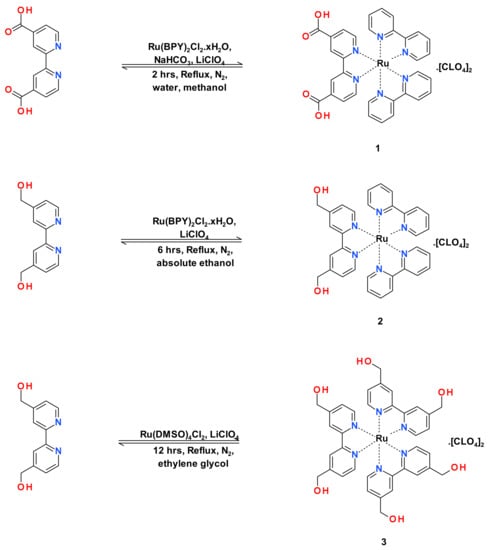

In this regard, we have synthesized a couple of ruthenium(II)-polypyridyl complexes (cis-[Ru(bpy)₂-(bpy-X)]) with different substituent groups (X = 4,4-dicarboxy-2,2-bipyridine; 4,4-methanol-2,2-bipyridine) on the 2,2-bipyridine ligand, as shown in Scheme 1, to study the effect of the substituent in photoelectric conversion. The spectroscopy and photochemistry of complexes [Ru(bpy)₂L]₂ have been of particular interest (for example, L = dicarboxy-4,4-bipyridine) because of their longer emission lifetimes and higher emission quantum yields. In such mixed-ligand complexes, the electron is largely localized on that ligand, which is more easily reduced. So, bis-(2,2-bipyridine)(4,4-dicarboxy-2,2-bipyridine)ruthenium(II) perchlorate (1), bis-(2,2-bipyridine)(4,4-methanol-2,2-bipyridine)ruthenium(II) perchlorate (2) as well as tris-(4,4-methanol-2,2-bipyridine)ruthenium(II) perchlorate (3) were synthesized. Detailed studies on the properties of all the complexes are reported in this paper. In addition, the photophysical and redox properties of such transition metal complexes can provide important information regarding the nature of the ground and excited states. These experiments aimed to investigate the photophysical and electrochemical properties of these complexes.

2. Results and Discussion

2.1. NMR Spectroscopy

The ¹H and ¹³C NMR spectra for compounds 1–3 were recorded in CD₃CN. Compounds 1–3 showed appropriate numbers of multiplets in the aromatic region, and the –COOH proton did not show in the ¹H NMR spectrum of compound 1. Functionalized BPY’s aromatic protons are de-shielded. Compounds 2 and 3 exhibited peaks at 4.74 ppm and 5.73 pm due to the –CH₂OH group. Further, as expected, all resonances were sharp and had well-defined splitting patterns. The aromatic and aliphatic proton ratios matched well with the proposed structure. Compounds 1–3 produced the expected number of signals in the ¹³C NMR. The NMR spectra of compounds 1–3 are shown in Figures S1–S6.

2.2. Crystallization and Structure Determination

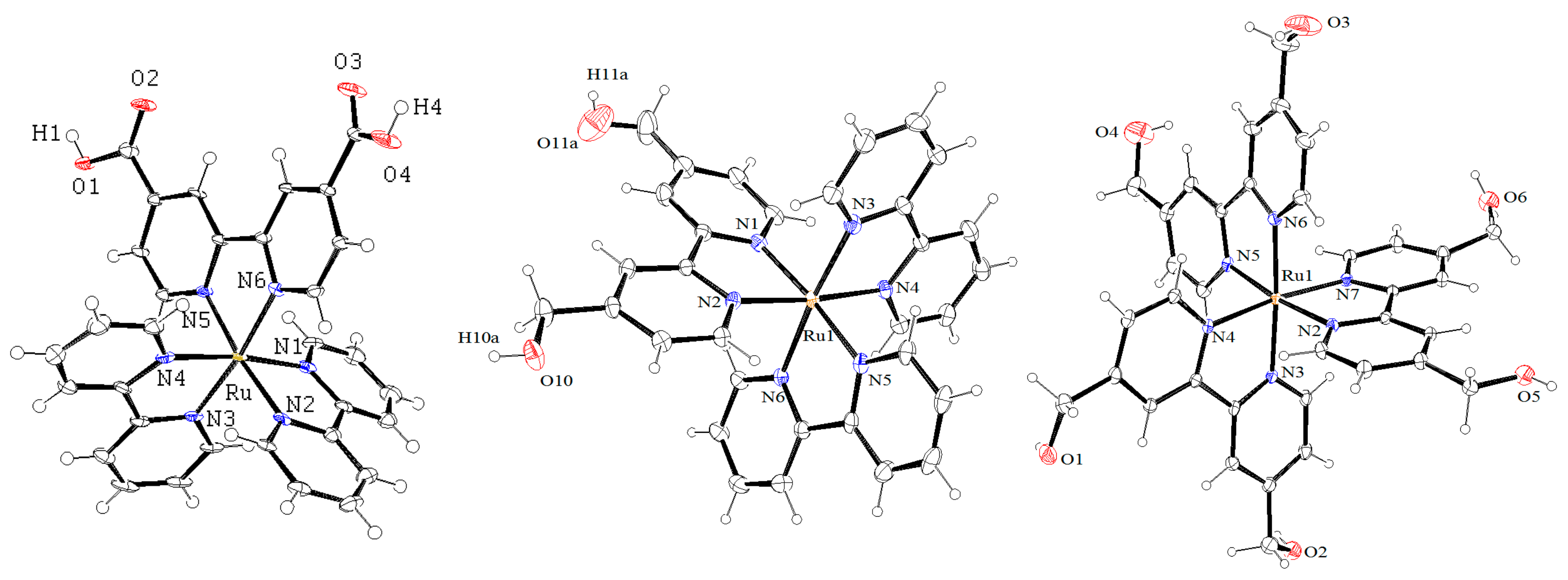

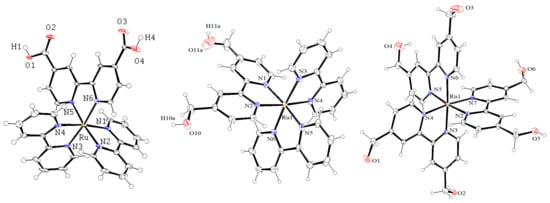

The structures of [Ru(bpy)₂{bpy(COOH)₂}]²⁺ (1), [Ru(bpy)₂{bpy(CH₂OH)₂}]²⁺ (2) and [Ru{bpy(CH₂OH)₂}₃]²⁺ (3) were studied by X-ray diffraction, as shown in Figure 1. The crystallographic data are given in

Table 1. Crystallographic data for compounds 1–3.

Compounds	1	2	3
Empirical formula	C38H33Cl2N9O12Ru	C32H28Cl2N6O10Ru	C76H78N14O31Ru2Cl4
Formula weight	979.70	828.29	2027.46
Wavelength	MoKα 0.71073	MoKα 0.71073	MoKα 0.71073
System	SMART APEXII	SMART APEXII	SMART APEXII
Temperature, K	100(2)	100(2)	100(2)
Crystal system	triclinic	monoclinic	Triclinic
Space group	P-1	P 1 21/c 1	P-1
a, Å	8.993(3)	8.8451(6)	10.7926(4)
b, Å	14.987(5)	30.857(2)	11.1969(4)
c, Å	15.291(5)	14.0432(9)	19.3405(8)
α, °	93.301(4)	90	84.03
β, °	93.474(4)	99.2170(10)	80.87
γ, °	97.352(4)	90	62.94
Volume, Å3	2035.8(12)	3783.4(4)	2053.54(14)
Z	2	8	1
Density (calc) g·cm−3	1.598	1.441	1.639
Absorb. Coef. Mm−1	0.591	0.615	1036
F(000)	996	1663	1036
θ range	2.51–24.08	2.42–24.86	2.26–27.27
Index ranges	±10, ±17, ±17	±10, ±37, ±16	±13, ±14, ±24
Reflections collected	18331	38991	24520
Independent reflections	6538	6986	9261
Observed reflections	5311	5610	7809
Max/Min trans.	0.737–0.943		0.866–0.943
Data/restr./param.	6538/0/562	6986/2/462	9261/0/582
Goodness-of-fit	1.067	1.107	1.071
Final R indices [I > 2σ(I)]	0.0390	0.0522	0.0623
R indices (all data)	0.0539	0.0640	0.0751
CCDC Number	1443902	1857593	1857586

, and selected bond distances and angles are listed in

Table 2. Important bond lengths (Å) and angles (°) of compounds 1–3.

	1	2	3
C=O (double bond)	1.198 Å; 1.199 Å	-	-
C-O (single bond)	1.311 Å; 1.346 Å	1.279 Å; 1.404 Å	1.385 Å (avg)
Ru-N (avg)	2.065 Å	2.056 Å	2.058 Å
N-Ru-N (avg) (bite angle)	78.20°	78.82°	78.60°
N-Ru-N (avg) (other angles)	92.08° & 172.81°	92.08° & 174.30°	93.07° & 174.00°

.

The crystal structure of 1 has previously been reported without counter-ions or heavily hydrated with different cell parameters, and ruthenium(II) has been reported to be balanced by the deprotonation of carboxylic acid [5,6,7]. In this case, the ruthenium(II) of complex 1 was balanced with the presence of perchlorate anions as counter-ions and solvated with acetonitrile (Figure S10). The bond length of C=O (1.199 Å), C-O (1.328 Å), average Ru-N distance (2.065 Å), average bite angle of N-Ru-N (78.70°), and other average angles of N-Ru-N (92.08° and 172.81°) are similar to the crystal structure reported previously [5].

The crystal structure of 2 has previously been reported with different cell parameters, with hexafluorophosphate as counter-ions and as solvated with water and acetone [8]. The average bond length of C-O (1.341 Å), average Ru-N distance (2.056 Å), average bite angle of N-Ru-N (78.82°), and other average angles of N-Ru-N (92.08° and 174.30°) are similar to those reported for other bipyridyl-coordinated [Ru(bpy)3]²⁺ and [Ru(bpy)2(bpy(OH)2)]²⁺ complexes [5,9,10]. Here, the ruthenium(II) is balanced with the two perchlorate anions.

The crystal structure of 3 is reported here for the first time. The average bond length of C-O, average Ru-N length, average bite angle, and other angles of N-Ru-N of 3 are presented in Table 1 and are found to be similar to the crystal structure of 2. However, the three hydroxymethyl groups are disordered; ruthenium(II) is balanced with two perchlorate anions and solvated with acetonitrile and water molecules.

2.3. Optical Properties

2.3.1. Absorbance Spectroscopy

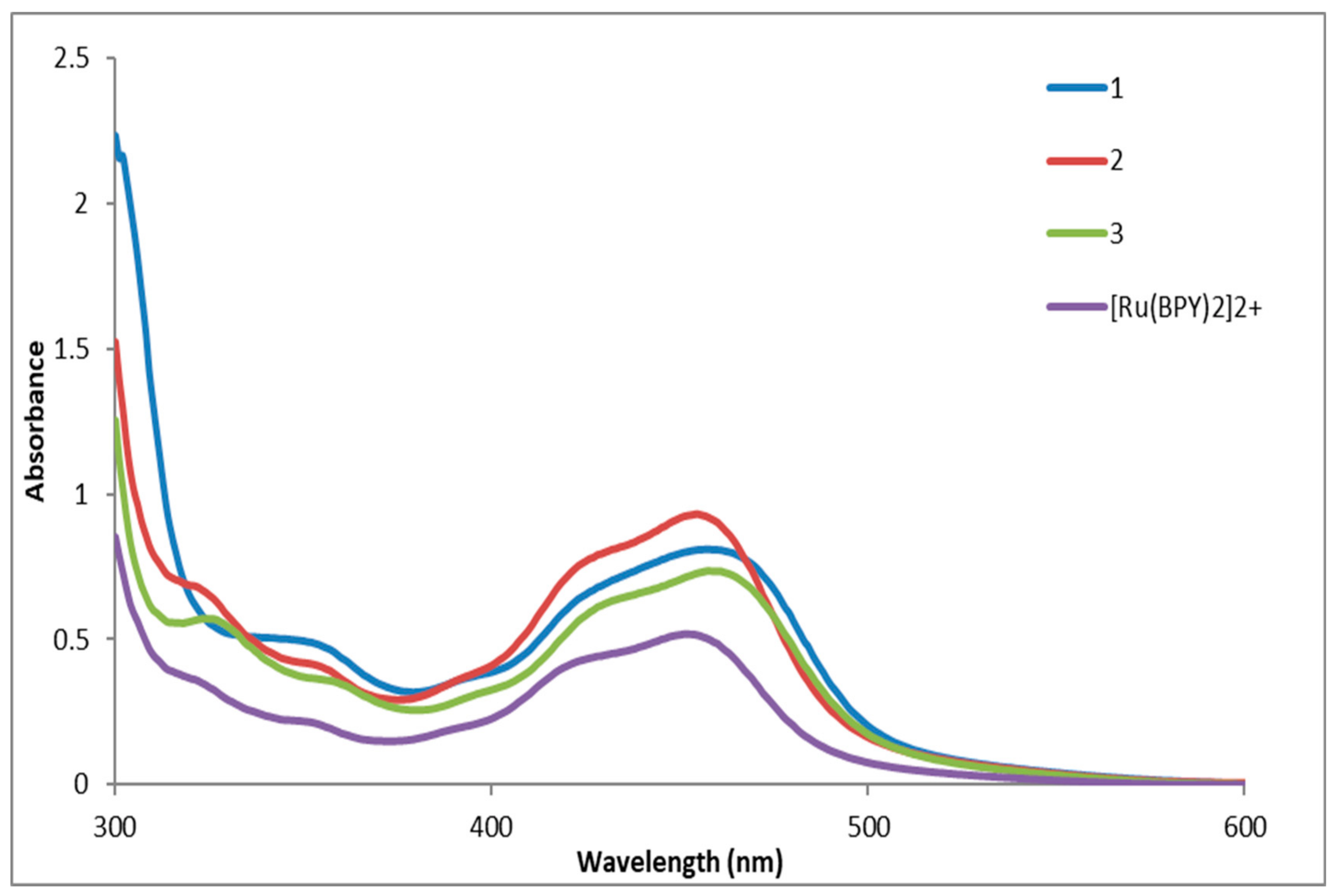

UV/Visible absorption data were collected for 1, 2, and 3 using a 5 × 10⁻⁵ molar solution in water (Figure 2). The observed absorbance bands were like those seen for [Ru(bpy)₃]²⁺ in water. Several intense transitions in the wavelength range from 240 to 300 nm are assigned to π-π* transitions. The electronic transitions that appear at wavelengths higher than 300 nm in [Ru(bpy)₃]²⁺ result from many overlapping MLCT bands from the metal-centered d-orbitals to the ligand π* orbitals and are, therefore, assigned similarly for 1–3. The lowest energy MLCT transition observed for compounds 1–3 occurs at λ_max = ~460 nm, which are like the corresponding MLCT transitions in [Ru(bpy)₃]²⁺ (λ_max = 451 nm). Compound 1’s MLCT band is slightly more red-shifted than compounds 2 and 3 due to the electron-withdrawing –COOH group.

These wavelength shifts scale with the ligands’ electron-donating ability, which destabilizes the filled d-orbitals, resulting in lower transition energies. In addition, these results follow the same trend observed for the RuIII/II redox potential as a function of ligands. Upon deprotonation of 2–3 with aqueous t-butylammonium hydroxide or aqueous NaOH in an aqueous solution to make -CH₂O⁻, the spectral region between 300 and 600 nm did not change significantly, as shown in Figures S11 and S12.

2.3.2. Emission Spectroscopy

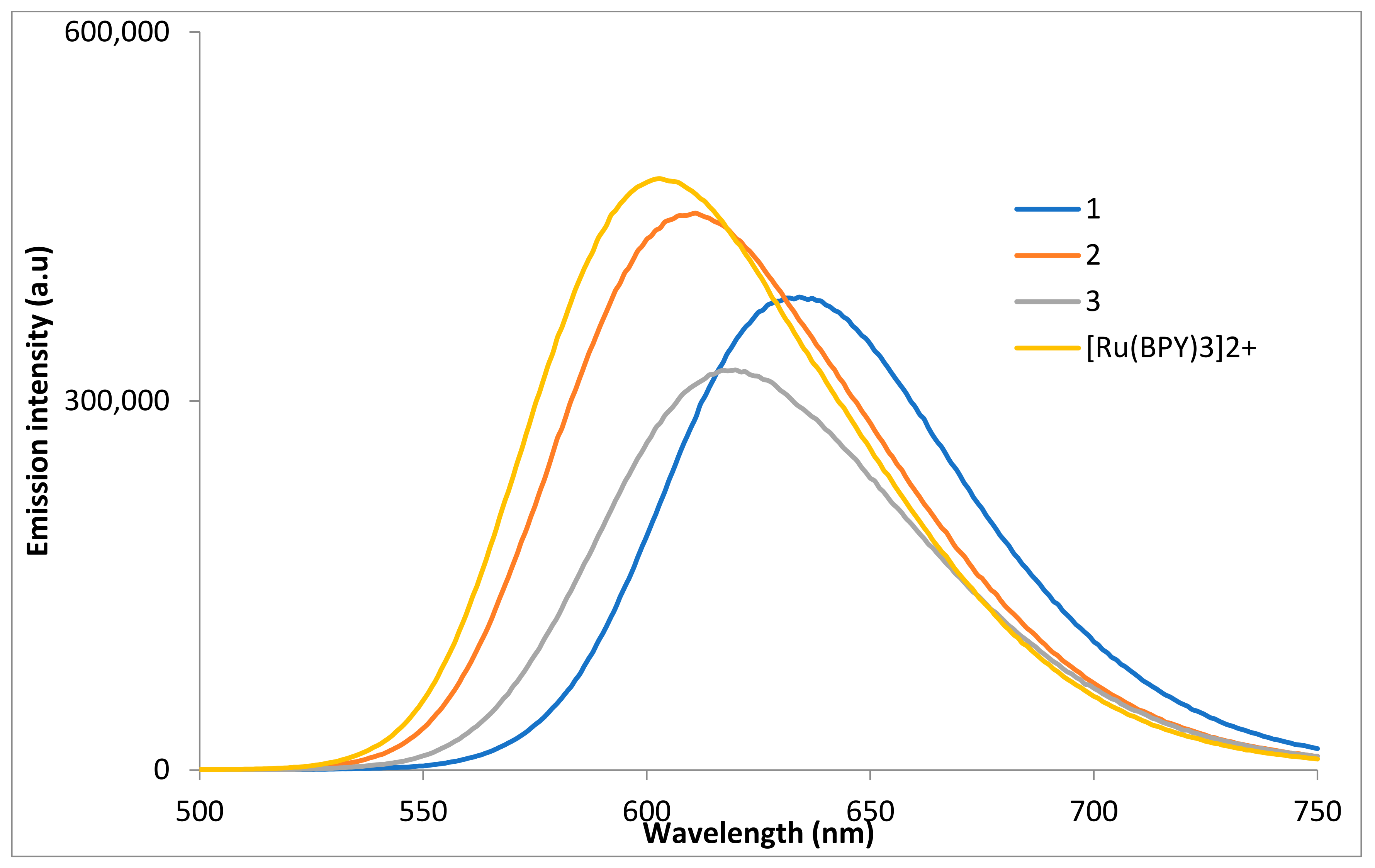

The emission spectra of 1–3 (Figure 3) in acetonitrile showed a nice Gaussian curve with an emission maximum at 660 nm, 610 nm, and 618 nm, respectively. Compound 2’s emission is ~50 nm more blue-shifted than compound 1 due to the –CH₂OH group. The emission maximum of compound 3 is close to compound 1.

2.4. Cyclic Voltammetry

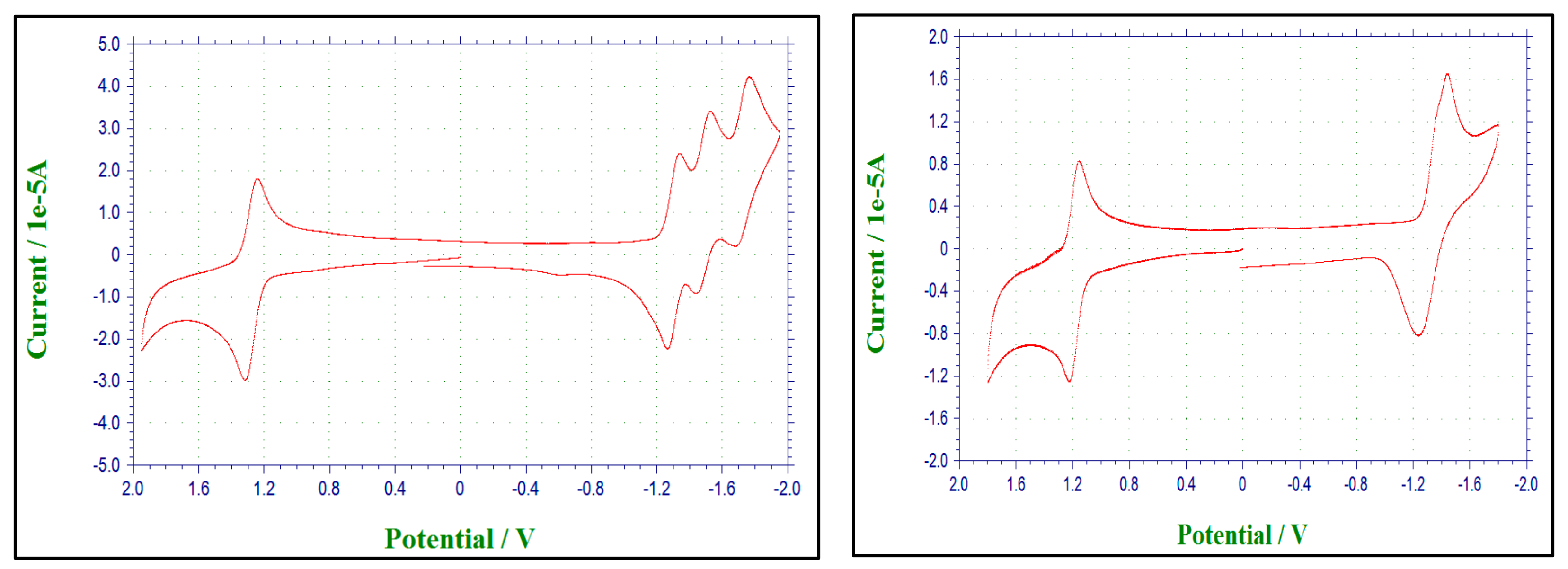

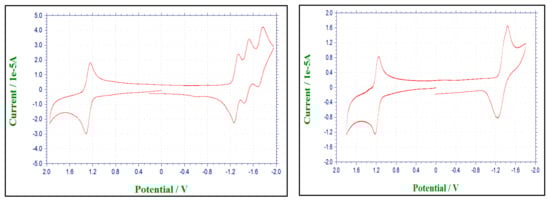

It is important to know the details of the redox process of Ru^3+/2+ to understand the redox chemistry of the ruthenium complexes 1–3, which is presented in Figures S7–S9. The redox chemistry of complexes 1–3 in CH₃CN is presented in

Table 3. Electrochemical data; referenced vs. Ag/AgCl, glassy carbon, 1 mM in 0.1 M tetrabutylammonium perchlorate at room temperature.

Compound	Solvent	EA1/2 (V)
		BPY reduction			Oxidation
		BPY0/−1	BPY−1/−2	BPY−2/−3	Ru3+/2+
1	CH3CN	−1.39	−1.58	−1.87	+1.38
2	CH3CN	−1.31	−1.48	−1.736	+1.29
3	CH3CN	−1.34			+1.19
([Ru(bpy)3]2+) [11]	CH3CN	−1.31	−1.50	−1.77	+1.27

as compared with Ru(bpy)₃²⁺. The cyclic voltammogram of Ru(bpy)₃²⁺ corresponds to the reversible one metal-based Ru^3+/2+ oxidation process and three one-electron BPY-based reduction processes [11]. We observe similar redox chemistry for all complexes; however, in compound 3, the three one-electron reduction processes are merged together into a single broad peak at −1.34 V, as shown in Figure 4, which is due to the effect of the substituent in the bipyridine unit.

In mixed-ligand complexes such as compounds 1–2, these electron transitions upon optical absorption would occur between the metal center and the ligand, which is most easily reducible. The electron-withdrawing character of the carboxylic acid group would shift the reduction potential of the ligand positively relative to that of the unsubstituted BPY ligand, as reported earlier [12]. Furthermore, compound 1 showed a promising applicability¹⁰ towards Dye-Sensitized Solar Cells. From 1 to 3, the oxidation potentials decreased with an increasing pKa. The data presented in Table 3 on the complexes with carboxylic acid groups and alcoholic functional groups exposes several interesting effects on the Ru→L luminescence.

3. Materials and Methods

3.1. Materials

4,4′-bis(hydroxymethyl)-2,2′-bipyridine,4,4′-dicarboxy-2,2′-bipyridine, [Ru(BPY)₂Cl₂].xH₂O, lithium perchlorate, tetrabutylammonium perchlorate (TBAP), tetrabutylammonium hydroxide and 70% perchloric acid were purchased from Aldrich and used without purification. The perchlorate salts used in the selectivity studies were dried at 100 °C under a vacuum over Drierite to minimize the effects of hydration. CH₃CN, THF, DMF, and CH₂Cl₂ were purchased from Aldrich and purified using a PURE SOLV^TM solvent purification system. HPLC-grade anhydrous acetonitrile (Fisher/Acros) was used in all spectroscopic studies.

Caution: Although we have experienced no difficulties with these perchlorate salts, they should be treated as potentially explosive and handled with care.

3.2. Physical Measurements

The ¹H and ¹³C NMR spectra were obtained using Bruker 400 MHz instruments at room temperature and using deuterated solvents. Absorbance data were collected using a Varian Cary 50 BIO UV-visible spectrophotometer. Luminescence titrations were conducted using a Fluoromax–4 spectrofluorometer. Mass spectrometry was conducted using a Varian 500-MS IT ESI mass spectrometer. The cyclic voltammograms were recorded using a CH instruments 660 electrochemical workstation. Elemental analyses were conducted using an Exeter CE-440 Elemental analyzer. Melting points were determined using open capillaries and were uncorrected.

3.3. Single-Crystal X-ray Structure Determination

X-ray quality crystals of compounds 1–3 was obtained by the diffusion of diethyl ether into an acetonitrile solution. Crystallographic data for 1–3 was collected at 100 K using a Bruker SMART APEX II diffractometer by MoK_α radiation. The data reduction and refinement were completed using the WinGX suite of crystallographic software [13,14]. Structures were solved using SIR97 [15]. All hydrogen atoms were placed in ideal positions and refined as riding atoms with relative isotropic displacement parameters. Table 1 lists additional crystallographic and refinement information.

3.4. Experimental Procedure

Synthesis of Ruthenium(II) Complexes (1–3)

Synthesis of [bis(2,2′-bipyridine)(4,4′-dicarboxy-2,2′-bipyridine)ruthenium(II)] perchlorate (1):

A slight modification was done in the available procedure⁹ to synthesize compound 1. A total of 1-g (1.85 mmol) of Ru(BPY)₂Cl₂.xH₂O was mixed with little excess (0.6 g, 2.55 mmol) of 4,4′-dicarboxyl-2,2′-bipyridine along with 0.6 g (7.14 mmol) of sodium bicarbonate in a round bottom flask. The solution was refluxed in 30 mL of water and 20 mL of methanol for 2–3 h under an inert atmosphere. It cooled down on its own after the heating period. A saturated aqueous lithium perchlorate was added to the reaction mixture, and the solution was brought to acidic levels (pH = 5–6) using 70% perchloric acid. Red powder with very high purity obtained over time was filtered and dried under a vacuum. The yield is 70%, and the melting point is over 300 °C. A small portion of the red powder was dissolved in acetonitrile, and diethyl ether was diffused into the solution. Dark red crystals of complex 1 were obtained over time. The elemental analyses calculated for C₃₂H₂₄N₆O₁₂RuCl₂.3CH₃CN included: C, 46.59; H, 3.37; and N, 12.86 %. The following further values were found: C, 46.17; H, 3.21; and N, 12.47 %. The following were found for ¹H NMR (CD₃CN at 25 °C): 7.39–7.45 (m, 4H, Ar-H); 7.61–7.72 (m, 4H, Ar-H); 7.81–7.83 (m, 2H, Ar-H); 7.93–7.95 (m, 2H, Ar-H); 8.05–8.11 (m, 4H, Ar-H); 8.51–8.53 (m, 4H, Ar-H); and 9.03 (s, 2H, Ar-H). The following were found for ¹³C NMR (CD₃CN at 25 °C): 124.9, 125.4, 127.8, 128.7, 128.8, 139.3, 139.8, 152.6, 152.8, 153.8, 157.6, 157.8, 158.7, and 165.1.

Synthesis of [bis(2,2′-bipyridine)(4,4′-bis(hydroxymethyl)-2,2′-bipyridine)ruthenium(II)] perchlorate (2):

Ru(BPY)₂Cl₂.xH₂O (0.5 g, 0.93 mmol) was mixed with 0.22 g (1.01 mmol) of 4,4′-bis(hydroxymethyl)-2,2′-bipyridine in a round bottom flask that contained 50 mL of absolute ethanol. The solution was refluxed for 6 h under an inert atmosphere and cooled down to room temperature. A saturated aqueous lithium perchlorate was added to the reaction mixture, and the solution was kept in the refrigerator. Red powder was obtained over time, filtered, and dried under a vacuum. The yield was 65%, and the melting point was over 250 °C. The red powder was dissolved in a minimum amount of acetonitrile, and diethyl ether was diffused into the solution. Orange-red crystals of complex 2 were obtained over time. The elemental analyses were calculated for C₃₂H₂₈N₆O₁₀RuCl₂.CH₃CH₂OCH₂CH₃ included: C, 46.39; H, 3.38; and N, 10.14 %. The following further values were found: C, 46.26; H, 3.30; and N, 9.98 %. The following were found for ¹H NMR (CD₃CN at 25 °C): 4.73–4.75 (d, 2H, CH₂-O); 5.72–5.74 (t, 2H, OH); 7.45–7.54 (m, 6H, Ar-H); 7.64–7.66 (m, 2H, Ar-H); 7.73–7.76 (m, 4H, Ar-H); 8.14–8.18 (m, 4H, Ar-H); 8.69 (s, 2H, Ar-H); and 8.82–8.84 (m, 4H, Ar-H). The following were found for ¹³C NMR (CD₃CN at 25 °C): 61.2; 121.3; 124.4; 124.9; 137.8; 150.7; 151.1; 151.2; 154.3; 156.0; and 156.6.

Synthesis of [(4,4′-bis(hydroxymethyl)-2,2′-bipyridine)ruthenium(II)] perchlorate (3):

Ru(DMSO)₄Cl₂ (0.3 g, 0.62 mmol) was mixed with a 3.3 equivalent of 4,4′-bis(hydroxymethyl)-2,2′-bipyridine (0.42 g) in a round bottom flask that contained 30 mL of ethylene glycol. The solution was refluxed overnight under an inert atmosphere and cooled down to room temperature. A saturated aqueous lithium perchlorate was added to the reaction mixture, and the solution was kept in the refrigerator. Red powder was obtained over time, filtered, and dried under a vacuum. The yield was 50%, and the melting point was over 250 °C. The red powder was dissolved in a minimum amount of acetonitrile, and diethyl ether was diffused into the solution. Red crystals of complex 3 were obtained over time. The elemental analyses were calculated for C₃₆H₄₂N₆O₁₄RuCl₂ included: C, 45.30; H, 4.40; and N, 8.80 %. The following further values were found: C, 45.17; H, 4.31; and N, 8.65 %. The following were found for ¹H NMR (CD₃CN at 25 °C): 3.96–3.99 (t, 2H, OH); 4.77–4.79 (d, 2H, CH₂-O); 7.45–7.54 (d, 6H, Ar-H); 7.33–7.35 (d, 6H, Ar-H); and 8.47 (s, 6H, Ar-H). The following were found for ¹³C NMR (CD₃CN at 25 °C): 62.6; 122.2; 125.6; 152.1; 154.8; and 157.8.

4. Conclusions

The ruthenium(II) polypyridyl complexes were synthesized and characterized using spectroscopic and electrochemical techniques. The photo-physical and electrochemical properties of the Ru(II) complexes reveal the influence of substituents on 2,2-bipyridine. The DSSC property of compound 1 was tested and reported, and we are currently exploring the application of compounds 2 and 3 as well. The cyclic voltammetry of complexes 1–3 reveals the Ru^3+/2+ oxidation wave that shifts 1.4–1.2 V to lower energy levels, whereas the Metal-to-Ligand Charge Transfer (MLCT) transitions shift to lower energy levels upon deprotonation of the complex. This observation contrasts with mixed-ligand systems containing deprotonate groups, such as -CH₂OH, that demonstrate different types of electronic transitions assigned as mixed Metal-Ligand-to-Ligand Charge Transfer (MLCT).
