Short Note

N-(((1S,5R)-6,6-Dimethylbicyclo[3.1.1]hept-2-en-2-yl)methyl)-3-((1R,5S)-6,6-dimethylbicyclo[3.1.1]hept-2-ene/ane-2-carboxamido)-N,N-dimethylpropan-1-aminium Bromide

Ilmir R. Gilfanov
Roman S. Pavelyev
Liliya E. Nikitina
Larisa L. Frolova
Alexey V. Popov
Ilfat Z. Rakhmatullin
Vladimir V. Klochkov
Svetlana A. Lisovskaya
Elena Yu. Trizna
Denis Yu. Grishaev
7 and
Airat R. Kayumov
Institute of Fundamental Medicine and Biology, Kazan Federal University, 420008 Kazan, Russia
Institute of Petroleum, Chemistry and Nanotechnologies, Kazan National Research Technological University, 420015 Kazan, Russia
Faculty of Medicine and Biology, Kazan State Medical University, 420012 Kazan, Russia
Institute of Chemistry, Federal Research Center “Komi Scientific Centre”, Ural Branch, Russian Academy of Sciences, 167000 Syktyvkar, Russia
Institute of Physics, Kazan Federal University, 420008 Kazan, Russia
Scientific Research Institute of Epidemiology and Microbiology, 420015 Kazan, Russia
Scientific and Educational Center of Pharmaceutics, Kazan Federal University, 420008 Kazan, Russia
Author to whom correspondence should be addressed.
Molbank 2023, 2023(1), M1592;
Submission received: 20 January 2023 / Revised: 14 February 2023 / Accepted: 15 February 2023 / Published: 17 February 2023


The synthesis of the title compounds was performed from (-)-cis-myrtanic and (-)-myrtenic acids. The compounds obtained were characterized using 1H- and 13C-NMR, IR, and high-resolution mass spectrometry. Despite the presence of quaternary ammonium moiety, both compounds had moderate antimicrobial activity with a MIC of 128 µg/mL on S. aureus and 512 µg/mL on E. coli. The antifungal activity was low on Candida isolates, while also comparable with conventional antimycotic (Fluconazole) on filamentous fungi. These data suggest that two bulky bicyclic terpene fragments apparently both increase lipophilicity and close the quaternary ammonium moiety located in the center of molecules and thus drastically decrease the antimicrobial potential of bipharmacophore.

Graphical Abstract

1. Introduction

Owing to the large-scale industrial production of terpenes, their importance as a starting material in organic synthesis, and the general use of their derivatives in medicine, cosmetics, and perfumery, there exists continuous interest in this field of natural compound chemistry.
Nitrogen-containing derivatives of cis-myrtanic and myrtenic acids are known to have fungicidal activity against yeast and mycelial fungi, including phytopathogens [1,2]. We have recently shown that terpene alcohol (+)-myrtenol demonstrated a synergistic antimicrobial effect with amikacin, fluconazole, and benzalkonium chloride on several clinical isolates of Staphylococcus aureus and Candida albicans, while (-)-myrtenol increased the properties of amikacin and fluconazole to repress biofilm formation in half of the S. aureus and C. albicans isolates [3]. It is known that quaternary ammonium compounds, in particular, benzyldimethyl[3-(myristoylamino)propyl]ammonium chloride monohydrate, which is commercially available as Miramistin®, exhibit high antibacterial and fungicidal activity [4]. In this regard, the combination of several pharmacophore fragments (miramistin and terpenoid) in one molecule allowed the increase in the antimicrobial properties of obtained compounds in comparison with initial ones.
The present paper aims to synthesize promising antibacterial and antifungal agents along with combined fragments of miramistin, myrtenol, and myrtan(ene) acids.

2. Results and Discussion

The synthesis of terpenoids 9 and 10 was performed in three steps (Scheme 1).
The first stage included the reaction of monoterpenoid acids 1, 2 with thionyl chloride. Further, an equimolar amount of dimethylaminopropylamine (DMAPA) was added to the resulting acid chlorides 3, 4, followed by the treatment of the mixtures with NaHCO3. As a result of the reactions of amides 5, 6 with an excess of bromide 8, followed by washing with hexane, target compounds 9, 10 were obtained in 80% and 79% yields, respectively.
The structures of compounds 9 and 10 were confirmed by spectroscopic methods (1H- and 13C-NMR, IR, and high-resolution mass spectrometry, see Supplementary Materials).
Both compounds were tested for antibacterial and antifungal activities. Surprisingly, despite the presence of quaternary ammonium moiety, both 9 and 10 had moderate antimicrobial activity with a MIC of 128 µg/mL on S. aureus and 512 µg/mL on E. coli (Table 1). The antifungal activity was low on Candida isolates, while also comparable with conventional antimycotic (Fluconazole) on filamentous fungi. Apparently, this could be a consequence of the too-high lipophilicity of structures containing two bulky bicyclic terpene fragments, which, in turn, also close the quaternary ammonium moiety located in the center of molecules.

3. Material and Methods

3.1. General

Dichloromethane (DCM), hexane, and thionyl chloride were reagent-grade and used without purification. DMAPA, tetrabromomethane, and triphenylphosphine were purchased from Sigma-Aldrich (St. Louis, MO, USA). Myrtenic 1 and myrtanic 2 acids were obtained from corresponding alcohols according to [1,5.]. (+)-Myrtenol 7 was prepared by a known procedure [5]. Acyl chlorides 3, 4 were obtained in accordance with [2]. The preparation of (+)-myrtenyl bromide 8 was performed according to [6].
The reaction progress and purity of compounds were monitored by TLC on Sorbfil PTLC-AF-A-UF plates (developer–anisaldehyde and sulfuric acid in ethanol 5:5:90).
The IR spectra were recorded on a Spectrum two PERKIN ELMER FT-IR spectrometer with attachment UATR (Single Reflection Diamond). Samples were applied to the attachment and pressed with a hand press until maximum absorption was obtained. For analyzing optical rotation “ADP 440” (B + S), a polarimeter was used.
HRMS mass spectra were obtained on a quadrupole time-of-flight (t, qTOF) AB Sciex Triple TOF 5600 mass spectrometer (AB SCIEX PTE. Ltd., Singapore) using a turbo-ion spray source (nebulizer gas nitrogen, a positive ionization polarity, needle voltage 5500 V). The recording of the spectra was performed in “TOF MS” mode with collision energy 10 eV, declustering potential 100 eV, and a resolution of more than 30 000 full-width half-maximum. Samples with the analyte concentration of 5 μmol/L were prepared by dissolving the test compounds in methanol (hypergrade for LC-MS, Merck, Darmstadt, Germany).
NMR spectra were recorded on a Bruker AVANCE-II-500 spectrometer with operating frequencies of 500 MHz (for 1H) and 125 MHz (for 13C) in a CDCl3 solvent using standard Bruker pulse programs. The numbering of atoms in the description of the NMR spectra differs from the numbering in the names of compounds.

3.2. General Procedure for Synthesis of (1R,5S)-N-(3-(dimethylamino)propyl)-6,6-dimethylbicyclo[3.1.1]hept-2-ene/ane-2-carboxamide 5, 6

To a round bottom flask containing corresponding acid chloride (0,55 mmol) in DCM (25 mL), an equimolar amount of DMAPA was added and stirred for 30 min at room temperature. Then, NaHCO3 was added until the gassing stopped. After filtration and evaporation in vacuo of the reaction mixture compounds, 5, 6 as impure pale yellow amorphous solids were obtained with yields of 91% and 88%, respectively.

3.3. General Procedure for Synthesis of N-(((1S,5R)-6,6-dimethylbicyclo[3.1.1]hept-2-en-2-yl)methyl)-3-((1R,5S)-6,6-dimethylbicyclo[3.1.1]hept-2-ene/ane-2-carboxamido)-N,N-dimethylpropan-1-aminium bromide 9, 10

Compound 8 (0.6 mmol) was added to the DCM (20 mL) solution of amide (5 or 6) (0.47 mmol). The reaction mixture was left for 40 min at room temperature. After solvent evaporation, the in-vacuo product was washed with hexane, filtrated, and dried to provide target compounds 9, 10.
N-(((1S,5R)-6,6-dimethylbicyclo[3.1.1]hept-2-en-2-yl)methyl)-3-((1R,5S)-6,6-dimethylbicyclo[3.1.1]hept-2-ene-2-carboxamido)-N,N-dimethylpropan-1-aminium bromide (9). Whitish cream amorphous solid. Yield: 80%. IR, v, cm−1: 3439 (NH), 1643, 1612 (C=C), 1557 (NH-C=O). [α]23D = –9.45° (c 0.811; MeOH).
NMR 1H (CDCl3) δ, ppm: 0.90 (s, 6H, CH3-1,2), 0.92 (s, 6H, CH3-3,4), 1.25 (dd, 2H, CH2-7′,17′, J = 26.0;8.9), 1.35 (d, 4H, CH2-7,17, J = 8.9), 2.14 (s, 2H, CH2-11), 2.20 (m, 4H, CH2-8,15), 2.45 (m, 2H, CH-5,16), 2.73 (m, 2H, CH-6,18), 3.18 (d, 6H, N+(CH3)2-20, J = 9.7), 3.47 (d, 2H, CH2-10, J = 6.5), 3.73 (t, 2H, CH2-12, J = 15.7;8.3), 4.00 (q, 2H, CH2-13, J = 102.7;12.0), 6.21 (s, 1H, CH-14), 6.72 (s, 1H, CH-9), 7.71 (s, 1H, NH-19).
NMR 13C{1H} (CDCl3) δ, ppm: 21.0 (CH3-1,2), 21.2 (CH3-3,4), 23.0 (CH2-21), 26.0 (CH2-13), 32.1 (CH2-14), 32.9 (CH2-12), 33.0 (CH2-11), 37.5 (C-6), 38.0 (C-5), 39.8 (CH2-20), 40.5 (CH-8,10), 41.8 (CH-7), 46.7 (CH-9), 50.2 (N+(CH3)2-24), 63.0 (CH2-22), 60.9 (CH2-23), 130.8 (CH-16), 136.0 (C-18), 136.8 (CH-15), 143.0 (C-17), 168.2 (CO-19).
HRMS: m/z [M]+ calcd for C25H41N2O+: 385.3219; found: 385.3219.
N-(((1S,5R)-6,6-dimethylbicyclo[3.1.1]hept-2-en-2-yl)methyl)-3-((1S,2S,5S)-6,6-dimethylbicyclo[3.1.1]heptane-2-carboxamido)-N,N-dimethylpropan-1-aminium bromide (10). Whitish cream amorphous solid. Yield: 79%. IR, v, cm−1: 3401 (NH), 1633 (C=C), 1531 (NH-C=O). [α]23D = –12.83° (c 0.149; MeOH).
NMR 1H (CDCl3) δ, ppm: 0.86 (s, 6H, CH3-1,2), 0.87 (s, 6H, CH3-3,4), 1.25 (t, 2H, CH2-7′, J = 20.8;10.1), 1.30 (s, 3H, CH2-17,17′), 1.40 (s, 3H, CH2-7), 1.82 (s, 2H, CH2-11), 1.99 (s, 2H, CH2-8), 2.10, 2.15 (m, 4H, CH2-15,15′), 2.35 (m, 2H, CH2-8′), 2.35 (s, 1H, CH-5), 2.52 (m, 2H, CH-6,18), 2.80 (s, 1H, CH-16), 2.96 (m, 1H, CH-21), 3.18 (d, 6H, N+(CH3)2-20, J = 11.0), 3.49, 3.31 (m, 2H, CH2-9,9′), 3.72 (t, 2H, CH2-10, J = 14.7;7.7), 4.00 (q, 2H, CH2-12, J = 104.0;12.7), 5.36 (s, 2H, CH2-13), 6.17 (s, 1H, CH-14), 7.35 (s, 1H, NH-19).
NMR 13C{1H} (CDCl3) δ, ppm: 21.5 (CH2-21), 22.0 (CH3-1,2), 22.8 (CH3-3,4), 26.6 (CH2-13,15), 30.3 (CH2-11), 31.5 (CH2-12,14), 36.6 (C-6), 38.5 (CH2-20), 39.5 (CH-7), 40.5 (CH-17), 43.8 (C-5), 45.0 (CH-10), 46.0 (CH-9), 49.9 (N+(CH3)2-24), 49.9 (CH-8), 63.0 (CH2-22), 69.8 (CH2-23), 136.0 (CH-16), 136.5 (C-18), 173.6 (CO-19).
HRMS: m/z [M]+ calcd for C25H43N2O+: 387.3375; found: 387.3375.

3.4. Antibacterial and Antifungal Activities

Staphylococcus aureus ATCC® 29213™ and Escherichia coli MG1655 were used as test organisms and grown on a Mueller–Hinton broth (MH, BD Difco) during experiments. The fungal strains Candida albicans NCTC-885-653, Candida tropicalis Y-1513/784, Aspergillus niger F-1119, and Rhizopus nigricans F-1537/1722 were obtained from an all-Russian collection of microorganisms, Moscow, Russia. Trichophyton rubrum C1 (clinical isolate from skin) and Fusarium oxysporum C2611-17 (clinical isolate from skin) were obtained from a collection of clinical isolates at the Kazan Institute of Microbiology and Epidemiology (Kazan, Russia). Fungi were identified by morphological characteristics and by using an AuxaColor 2 Colorimetric sugar-assimilation yeast-identification kit (Bio-Rad, Hercules, CA, USA). All strains were grown in RPMI or Sabouraud broth.
Minimum inhibitory concentrations (MICs) of the compounds were determined using the broth microdilution method in 96-well plates (Eppendorf) in MH broth (for bacteria) or in tubes with RPMI (for yeast fungi) and Sabouraud broth (for filamentous fungi) in accordance with EUCAST guidelines for antimicrobial susceptibility testing [7]. Bacteria were incubated at 37 °C for 24 h. Yeasts and filamentous fungi were incubated at 30 °C for 2 and 5 days, respectively. The MIC was defined as the lowest concentration of the compound at which no visible growth could be seen.

Supplementary Materials

The following supporting information can be downloaded online. Compound 9: Copies of 1H- and 13C-NMR spectra in CDCl3-d1; Copies of HRMS spectra; Copy of IR spectrum. Compound 10: Copies of 1H- and 13C-NMR spectra in CDCl3-d1; Copies of HRMS spectra; Copy of IR spectrum. Raw NMR files.

Author Contributions

I.R.G.: Conceptualization, Formal Analysis, Investigation, Writing—Original Draft Preparation, Visualization. R.S.P.: Conceptualization, Formal analysis, Investigation, Writing—Original Draft Preparation, Visualization, Data Curation. L.E.N.: Conceptualization, Formal Analysis, Investigation, Writing—Original Draft, Visualization, Data Curation, Funding Acquisition, Writing—Review and Editing, Project Administration, Supervision. L.L.F.: Formal Analysis, Investigation, Writing—Original Draft Preparation, Writing—Review and Editing. A.V.P.: Formal Analysis, Investigation, Visualization. I.Z.R.: Formal Analysis, Investigation, Visualization, Writing—Original Draft Preparation. V.V.K.: Formal analysis, Investigation. S.A.L.: Investigation, Formal analysis, Visualization, Writing—Original Draft Preparation. E.Y.T.: Investigation, Formal Analysis, Visualization, Writing—Original Draft Preparation. D.Y.G.: Formal Analysis, Investigation, Visualization. A.R.K.: Formal Analysis, Writing—Original Draft Preparation, Writing—Review and Editing, Supervision, Funding Acquisition. All authors discussed and approved the final version. All authors have read and agreed to the published version of the manuscript.


This study was performed with financial support from the Russian Science Foundation (grant N 20-64-47014 for A.K.–antimicrobial activities testing and NMR) and Kazan State Medical University (Project N 58-012-2022 for L.N.–synthetic procedures).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.


This work was performed in frames of the Strategic Academic Leadership Program (PRIORITY-2030) of Kazan Federal University.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Shi, Y.; Si, H.; Wang, P.; Chen, S.; Shang, S.; Song, Z.; Wang, Z.; Liao, S. Derivatization of Natural Compound β-Pinene Enhances Its In Vitro Antifungal Activity against Plant Pathogens. Molecules 2019, 24, 3144. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Lin, G.-S.; Duan, W.-G.; Yang, L.-X.; Huang, M.; Lei, F.-H. Synthesis and Antifungal Activity of Novel Myrtenal-Based 4-Methyl-1,2,4-triazole-thioethers. Molecules 2017, 22, 193. [Google Scholar] [CrossRef] [PubMed]
  3. Mahmoud, R.Y.; Trizna, E.Y.; Sulaiman, R.K.; Pavelyev, R.S.; Gilfanov, I.R.; Lisovskaya, S.A.; Ostolopovskaya, O.V.; Frolova, L.L.; Kutchin, A.V.; Guseva, G.B.; et al. Increasing the Efficacy of Treatment of Staphylococcus aureusCandida albicans Mixed Infections with Myrtenol. Antibiotics 2022, 11, 1743. [Google Scholar] [CrossRef] [PubMed]
  4. Agafonova, M.N.; Kazakova, R.R.; Lubina, A.P.; Zeldi, M.I.; Nikitina, E.V.; Balakin, K.V.; Shtyrlin, Y.G. Antibacterial activity profile of miramistin in in vitro and in vivo models. Microb. Pathog. 2022, 142, 104072. [Google Scholar] [CrossRef] [PubMed]
  5. de Richter, R.K.; Bonato, M.; Follet, M.; Kamenka, J.M. The (+)-and (−)-[2-(1, 3-dithianyl)] myrtanylborane. Solid and stable monoalkylboranes for asymmetric hydroboration. J. Org. Chem. 1990, 55, 2855–2860. [Google Scholar] [CrossRef]
  6. Liu, H.-X.; Tan, H.-B.; He, M.-T.; Li, L.; Wang, Y.-H.; Long, C.-L. Isolation and synthesis of two hydroxychavicol heterodimers from Piper nudibaccatum. Tetrahedron 2015, 71, 2369–2375. [Google Scholar] [CrossRef]
  7. Leclercq, R.; Canton, R.; Brown, D.F.J.; Giske, C.G.; Heisig, P.; MacGowan, A.P.; Mouton, J.W.; Nordmann, P.; Rodloff, A.C.; Rossolini, G.M.; et al. EUCAST expert rules in antimicrobial susceptibility testing. Clin. Microbiol. Infect. 2013, 19, 141–160. [Google Scholar] [CrossRef] [PubMed] [Green Version]

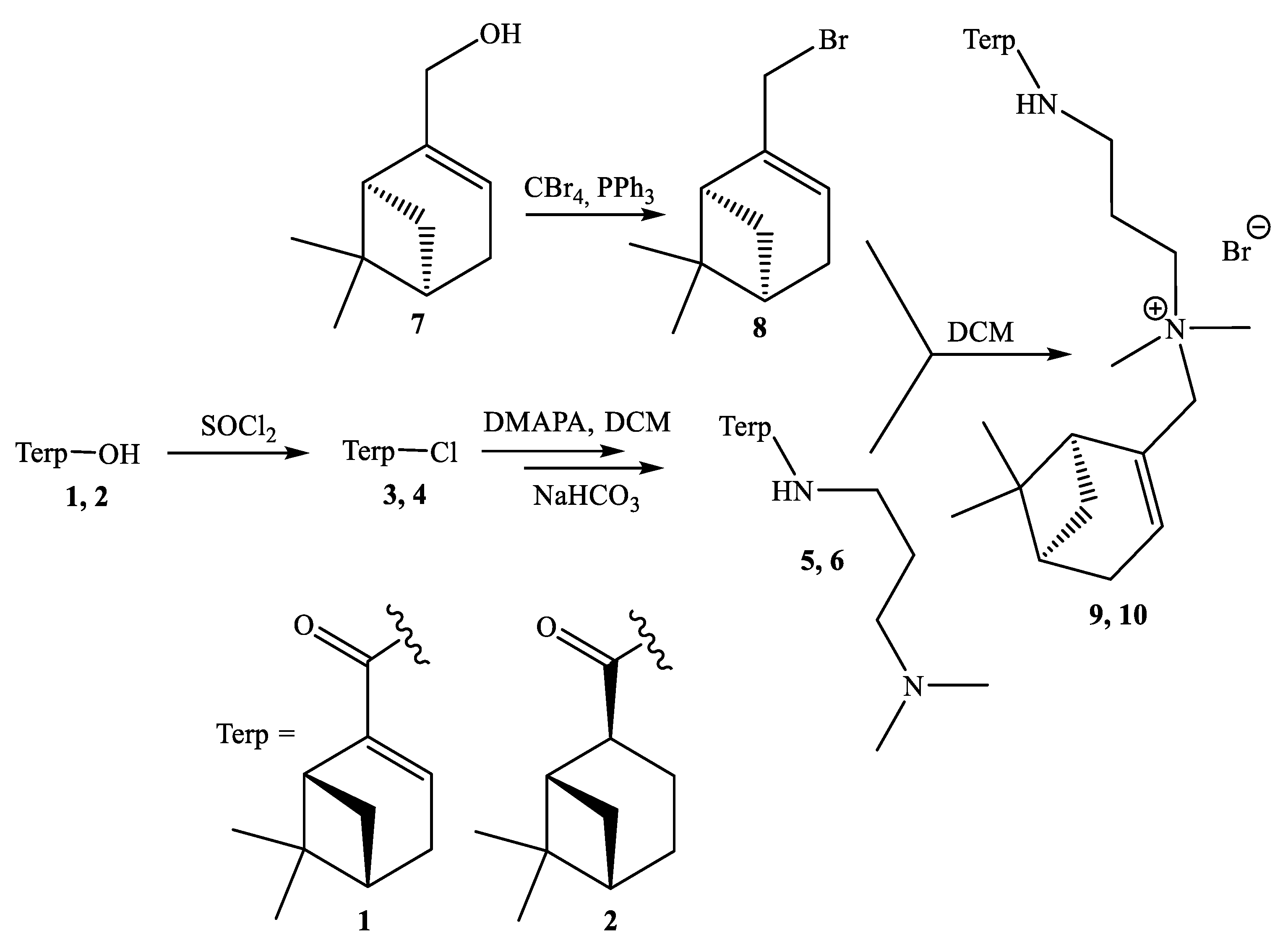

Scheme 1. Synthesis of terpenoids 9, 10.
Scheme 1. Synthesis of terpenoids 9, 10.
Molbank 2023 m1592 sch001
Table 1. Antibacterial and antifungal activities of 9 and 10.
Table 1. Antibacterial and antifungal activities of 9 and 10.
StrainsMIC, µg/mL
S. aureus ATCC2921312812840.25ND
E. coli MG165551251282ND
Candida albicans NCTC- 885-6537501500>750ND46
Candida tropicalis
Aspergillus niger
Rhizopus nigricans
Fusarium oxysporum (clinical isolate)>1500>1500>1500ND>1500
Trichophyton rubrum (clinical isolate)>1500>1500>1500ND>1500
* ND–not determined.
