5,8-Di-tert-butyl-2-hydroxy-1H-benzo[de]isoquinoline-1,3(2H)-dione—A New Lipophilic N-oxyl Radical Precursor

Abstract

N-hydroxyimides are widely known as organocatalysts for aerobic oxidation and oxidative coupling reactions, in which corresponding imide-N-oxyl radicals play the role of catalytically active hydrogen atom abstracting species. The drawbacks of many N-hydroxyimides are poor solubility in low polarity solvents and limited activity in the cleavage of unactivated C–H bonds. To overcome these shortcomings, we have synthesized a new lipophilic N-hydroxyimide, 5,8-di-tert-butyl-2-hydroxy-1H-benzo[de]isoquinoline-1,3(2H)-dione, with high solubility in low-polarity solvents such as DCM. According to the EPR study, the stability of the corresponding imide-N-oxyl radical is comparable to that of the non-tert-butylated analogue, naphthalimide-N-oxyl radical. DFT calculations showed that the NO–H bond dissociation enthalpy (BDE) in the synthesized tert-butylated-N-hydroxynaphthalimide is one of the highest in N-hydroxyimide series, which corresponds to high hydrogen atom abstracting reactivity and may be useful in catalysis of strong C–H bond oxidative cleavage. The synthesized compound can be considered as catalyst for liquid-phase free-radical oxidation and oxidative coupling reactions in non-polar media where solubility was previously the limiting factor.

1. Introduction

N-hydroxyimides are widely applied as redox organocatalysts [1,2,3,4,5,6,7] and reagents for free-radical C–O coupling [8,9,10,11,12,13,14,15]. The well-known example is N-hydroxyphthalimide (NHPI): it is synthetically available on an industrial scale, and it is one of the best organocatalysts for the liquid phase aerobic free-radical oxidation of hydrocarbons [1,2,3,4,5,6,7]. N-hydroxyimides are also widely used as organocatalysts or reagents in oxidative coupling reactions with the formation of C–C [16] and C–heteroatom bonds [8,9,10,11,12,13,14,15,16,17], and as reagents for the oxidative difunctionalization of alkenes [18,19,20]. One of the significant drawbacks of NHPI is its low solubility in low-polarity solvents (DCE, PhH, alkanes), which limits its use in some cases [21,22,23]. On the other hand, there is a long-standing goal to develop novel N-hydroxycompounds as precursors of N-oxyl radicals with different levels of hydrogen atom abstracting ability [24] in order to achieve optimal catalytic efficiency and selectivity for various types of substrates for CH-functionalization [1,25]. As a rule, the stability of a free radical to self-decay drops with the increase of its hydrogen atom abstracting properties. Thus, it is an especially challenging task to find N-hydroxycompound with high hydrogen atom abstracting activity (corresponding to high NO–H bond dissociation enthalpy, BDE), and relatively high stability to self-decay making effective catalytic turnover possible. Several catalytically effective lipophilic NHPI derivatives were reported [21,22,23]. However, BDE values for these derivatives were very close to that of parent NHPI [23]. N-hydroxynaphthalimide (NHNI) is believed to have a significantly higher (ca. 6 kcal/mol) NO–H BDE compared to NHPI according to the DFT calculations [26]. This implies the higher reactivity of the naphthalimide-N-oxyl radical towards H-atom abstraction from the inert C–H bonds. However, NHNI has even lower solubility in non-polar solvents compared to NHPI, which significantly limits its use. Therefore, the synthesis of a lipophilic analogue based on NHNI is of great interest for the catalytic oxidation of strong C–H bonds in such substrates as alkanes. NHNI presents the only known N-oxyl radical precursor with naphthalimide moiety and its catalytic properties were poorly studied [3,17,26,27,28]. There are a few examples showing that NHNI can act as a coupling partner in oxidative C–O coupling reactions [8,13], although the yields are generally low and may suffer from the low solubility of NHNI. Thus, the aim of this work was to synthesize a lipophilic NHNI derivative and study its ability to be a precursor of N-oxyl radicals—important catalytically active intermediates in N-hydroxyimide-catalyzed oxidative processes.

2. Results

2.1. Synthesis of 5,8-Di-tert-butyl-2-hydroxy-1H-benzo[de]isoquinoline-1,3(2H)-dione

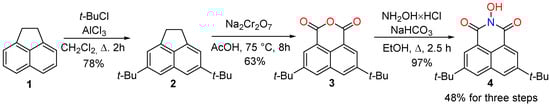

To enhance the lipophilicity of the molecule and its solubility in organic medium it is desirable to introduce lipophilic functional groups, such as long alkyl or tert-butyl. Considering the application of N-hydroxyimides in free-radical oxidative processes catalysis it is also important to avoid fragments sensitive to oxidation (such as benzylic C–H bonds). Thus, we modified the NHNI structure with tert-butyl groups to obtain the lipophilic N-hydroxyimide 4, which is highly soluble in non-polar solvents (Scheme 1).

The industrially available acenaphthene 1 was chosen as the starting compound, for which the selective alkylation reaction at positions 4 and 7 is known [29]. Using two equivalents of tert-butyl chloride under standard Friedel–Crafts alkylation conditions, 4,7-di-tert-butylcenaphthene 2 was selectively obtained. The oxidation of 2 gave the corresponding naphthalic anhydride 3, the reaction of which with hydroxylamine leads to the target 5,8-di-tert-butyl-N-hydroxynaphthalimide 4. The total yield of the desired product for 3 stages was 48%.

2.2. Physical and Chemical Properties of 5,8-Di-tert-butyl-2-hydroxy-1H-benzo[de]isoquinoline-1,3(2H)-dione

The solubility of 5,8-di-tert-butyl-2-hydroxy-1H-benzo[de]isoquinoline-1,3(2H)-dione 4 was measured at room temperature (23–25 °C) in dichloromethane (DCM). It turned out that the solubility of the synthesized compound is 50 mg/mL, exceeding that for NHPI (ca. 1 mg/mL under the same conditions) by 50 times. Thus, we achieved the goal of obtaining N-hydroxyimide with high solubility in low-polarity medium.

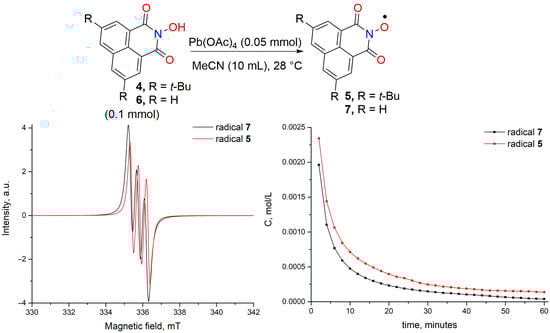

At the next step, we studied the ability of 4 to generate a radical from N-oxyl radical upon oxidation in comparison with unsubstituted NHNI 6 (Scheme 2). The determination of absolute radical concentrations was carried out by quantitative EPR measurement using (4-Benzoyl-2,2,6,6-Tetramethylpiperidin-1-yl)oxyl (BzOTEMPO) as an external standard. Imide-N-oxyl radicals 5 and 7 were generated from equivalent amounts of the corresponding N-hydroxyimides (4 or 6, respectively) and lead tetraacetate Pb(OAc)₄ in acetonitrile (MeCN) at temperature 28 ± 1 °C and starting concentration of N-hydroxyimide 0.01 M. The obtained data showed that the synthesized di-tert-butyl-naphthalimide-N-oxyl radical 5 was slightly more stable than the unsubstituted naphthalimide-N-oxyl radical 7. Both radicals have very similar g-factors (2.0068 for di-tert-butyl naphthalimide-N-oxyl radical 5 and 2.0069 for naphthalimide-N-oxyl radical 7) and hyperfine coupling constants a_N (0.43 mT for both 5 and 7).

In order to estimate the reactivity of di-tert-butyl-naphthalimide-N-oxyl radical 5 in hydrogen atom abstraction reactions, the NO-H BDE value for di-tert-butyl-N-hydroxynaphthalimide 4 was calculated on ωB97M-D3BJ/def2-TZVPP level of theory and compared with NO-H BDE values for unsubstituted NHNI 6 and most widely used N-hydroxyimide organocatalyst NHPI (

Table 1. The calculated NO-H BDE values for di-tert-butyl-N-hydroxynaphthalimide 4, N-hydroxynaphthalimide 6 and N-hydroxyphthalimide (NHPI).

Structure	O–H BDE, kcal/mol 1	Lit. O–H BDE Values
	92.5	-
	92.8	87.6 [26,32] 2
	86.5	88.1 [32] 3 81.2 [26,32] 2

¹ Calculated for gas phase at ωB97M-D3BJ/def2-TZVPP level of theory employing isodesmic work reactions based on the recommended experimental value of O-H BDE in H₂O (118.81 kcal/mol [31]). ² According to DFT calculations. ³ Experimental values by EPR radical equilibration technique in t-BuOH.

). DFT methods are known to predict relative BDEs better than absolute BDEs [30]. Therefore, the isodesmic work reactions scheme was used for BDE calculations using the accurate experimental value of gas phase O–H BDE for H₂O as the reference (118.81 kcal/mol [31]). The calculated BDE values for NHPI and NHNI 6 are in good agreement with the literature data. It was found that NO–H BDE for di-tert-butyl-N-hydroxynaphthalimide 4 is almost equal to that of NHNI 6 (92.5 and 92.8 kcal/mol, respectively) and one of the highest in series of N-hydroxyimides making di-tert-butylnaphthalimide-N-oxyl 5 very strong hydrogen abstracting agent comparable to naphthalimide-N-oxyl 7. For example, NHPI demonstrates significantly lower NO–H BDE (by about 6 kcal/mol).

3. Materials and Methods

3.1. General

In all experiments RT stands for 23–25 °C. Acenaphthene (99%), AlCl₃ anhydrous (99%), tert-butyl chloride (99%), sodium dichromate (99.5%), NaHCO₃ (99%), NH₂OH×HCl (99%), 4-Benzoyloxy-2,2,6,6-tetramethyl-piperidine-1-oxyl (BzOTEMPO, 97%) from commercial sources were used as is. MeCN was distilled over P₂O₅, CH₂Cl₂ was distilled over CaH₂. AcOH, EtOH were used as is from commercial sources. ¹H and ¹³C NMR spectra were recorded on a Bruker AVANCE II 300 and Bruker Fourier 300HD (300.13 and 75.47 MHz, respectively) spectrometers in CDCl₃. The residual signal of CHCl₃ in CDCl₃ (7.26 ppm) was used as a chemical shift reference in ¹H NMR spectra. The central line of CDCl₃ signal (77.16 ppm) was used as a chemical shift reference in ¹³C NMR spectra. FT-IR spectra were recorded on Bruker Alpha instrument. IR spectra were registered in KBr pellets for solid compounds, and liquid compounds were placed between two KBr windows to make a thin layer. High resolution mass spectra (HR-MS) were measured on a Bruker maXis instrument using electrospray ionization (ESI). The measurements were performed in a positive ion mode (interface capillary voltage—4500 V); mass range from m/z 50 to m/z 3000 Da; external calibration with Electrospray Calibrant Solution (Fluka Analytical/Sigma Aldrich, Buchs, Switzerland). A syringe injection was used for all acetonitrile solutions (flow rate 3 µL/min). Nitrogen was applied as a dry gas; interface temperature was set at 180 °C. EPR spectra were recorded on X-band spectrometer Adani Spinscan X. General conditions of EPR measurements: center field—336.12 mT, sweep width—15 mT, sweep time—60 s, modulation amplitude—100 μT, temperature—28 ± 1 °C. Quantitative results were obtained using 4-Benzoyloxy-2,2,6,6-tetramethyl-piperidine-1-oxyl (BzOTEMPO) as an external standard: three EPR spectra were recorded from the solution 0.01 M BzOTEMPO in MeCN and results were averaged and then used for further calculations. Concentrations of imide-N-oxyl radicals were calculated from equation:

$$C_{radical}=C_{BzOTEMPO}\frac{I_{radical}}{I_{BzOTEMPO}}$$

(1)

where C_radical—concentration of radical 5 or 7, M, I_radical—double integrals of corresponding EPR signals of radical 5 or 7, I_BzOTEMPO—double integral of EPR signal of reference BzOTEMPO solution in MeCN with BzOTEMPO concentration = C_BzOTEMPO.

3.2. Experimental Details for the Scheme 1

The 5,8-di-tert-butyl-2-hydroxy-1H-benzo[de]isoquinoline-1,3(2H)-dione 4 was synthesized according to the modified methods described previously [29,33,34,35]. Anhydrous aluminum chloride (0.41 mmol, 56 mg) was added during 1 h to a stirred solution of acenaphthene 1 (20.00 mmol, 3.084 g) and tert-butyl chloride (44.12 mmol, 4.085 g) in dry CH₂Cl₂ (10 mL). The mixture was refluxed for 2 h then left to stir for a further 24 h at room temperature. The reaction mixture was quenched with water (20 mL). The water layer was extracted with CH₂Cl₂ (3 × 20 mL). All organic extracts were combined, and the solvent was removed under reduced pressure. The crude product was recrystallized from EtOH to obtain 2 as orange needles (4.16 g, 15.6 mmol, 78%). ¹H NMR (300 MHz, Chloroform-d) δ 7.62–7.55 (m, 2H), 7.42–7.38 (m, 2H), 3.43 (s, 4H), 1.47 (s, 18H). ¹³C{¹H}NMR (75.48 MHz, CDCl₃) δ 151.4, 145.2, 136.4, 130.9, 117.6, 117.5, 35.5, 31.8, 30.7.

To a solution of 2 (4.16 g, 15.6 mmol) in acetic acid (60 mL), sodium dichromate (11.17 g, 40.0 mmol) was added with stirring at room temperature. The suspension was heated at 75 °C for 8 h. After the completion of the reaction, cold water was added to the reaction mixture to get solid, which was filtered and washed with water. Slightly yellow anhydride 3 (3.05 g, 9.8 mmol, 63%) was obtained. ¹H NMR (300 MHz, Chloroform-d) δ 8.64 (d, J = 1.7 Hz, 2H), 8.23 (d, J = 1.7 Hz, 2H), 1.48 (s, 18H). ¹³C{¹H}NMR (75.48 MHz, CDCl₃) δ 161.2, 151.1, 132.3, 131.5, 130.8, 127.2, 118.4, 35.4, 31.2. The spectral data of 3 are consistent with previously reported [36].

Anhydride 3 (3.05 g, 9.8), NaHCO₃ (1.26 g, 15 mmol), NH₂OH×HCl (1.04 g, 15 mmol) and EtOH (100 mL) were placed in a 250 mL round-bottomed flask. The mixture was refluxed for 2.5 h, then the solvent was evaporated and the residue was diluted with CH₂Cl₂ (50 mL) and water (50 mL). The layers were shaken, and organic phase was separated. The water layer was extracted with CH₂Cl₂ (2 × 50 mL). All organic extracts were combined, dried over MgSO₄, and the solvent was rotary evaporated. The desired product 4 was obtained as yellow needle crystals (3.08 g, 9.5 mmol, 97%). Mp = 198–199 °C (lit. Mp = 180 °C [35]). ¹H NMR (300 MHz, Chloroform-d) δ 8.68 (d, J = 1.8 Hz, 2H), 8.17 (d, J = 1.8 Hz, 2H), 1.47 (s, 18H). ¹³C{¹H}NMR (75.48 MHz, CDCl₃) δ 160.0, 150.8, 132.3, 130.6, 130.1, 123.3, 121.1, 35.5, 31.3. FTIR (KBr): ν_max = 3510, 3158, 2964, 2906, 2871, 1707, 1681, 1652, 1629, 1601, 1476, 1429, 1395, 1366, 1320, 1230, 1207, 1057, 912, 892, 798, 730, 627 cm⁻¹. HR-MS (ESI): m/z = 326.1748, calcd. for C₂₀H₂₃NO₃ + nH⁺: 326.1751. Copies of spectra are presented in Supplementary Materials.

3.3. Experimental Method for the Solubility Measuring of NHPI and 4

An excess amount of N-hydroxyimide (NHPI or 4) was dissolved in 10 mL of DCM at room temperature (23–25 °C) until a saturated solution was obtained. Then a 5 mL aliquot was taken, evaporated and the residue was weighed. Solubility was determined as the mass of the residue divided by the volume of solvent (5 mL).

3.4. Experimental Details for the Scheme 2

To a solution of 4 (0.1 mmol, 32.5 mg) in MeCN (10 mL) the Pb(OAc)₄ (0.05 mmol, 23.3 mg) was added. The resulting solution was thoroughly mixed, and EPR spectrum was recorded 2 min after the addition of oxidant. Subsequent spectra were recorded every 2 min.

3.5. Experimental Details for the Table 1 (Computational Details)

NO-H BDE values were calculated using isodesmic work reaction R₂NOH + •OH = R₂NO• + H₂O. Based on this isodesmic work reaction BDE_NO-H was calculated as H(R₂NO•) + H(H₂O) − H(R₂NOH) − H(•OH) + BDE_H2O, where H are enthalpy values from DFT calculations and BDE_H2O is the recommended precise experimental value of O–H BDE in H₂O (118.81 kcal/mol [31]). Geometry optimizations and thermochemical calculations were realized in Orca 5.03 software package [37,38], LibXC [39] implemented version of ωB97M-D3BJ exchange-correlation functional [40,41,42,43] with atom-pairwise dispersion correction with the Becke–Johnson damping scheme (D3BJ) [44,45], and def2-TZVPP basis set [46]. Optimized structures were visualized using Avogadro 1.2.0 program [47]. All calculations were performed for temperature 298.15 K and pressure 1 atm. Atomic XYZ cartesian coordinates in optimized structures are presented in Supplementary Materials.

4. Conclusions

The 5,8-di-tert-butyl-N-hydroxynaphthalimide 4 was presented as a new lipophilic N-hydroxyimide with high solubility in organic medium with potential application as N-oxyl radical precursor for free-radical oxidative processes. Along with improved solubility in low-polarity solvents it demonstrates chemical characteristics similar to those of unsubstituted NHNI: similar self-decay profile and high NO–H BDE value. The high NO–H BDE (92.5 kcal/mol according to ωB97M-D3BJ/def2-TZVPP calculation) in 4 and relatively slow self-decay of the corresponding N-oxyl radical 5 make 4 perspective N-oxyl radical precursor for CH-functionalization of unactivated substrates by hydrogen atom abstraction.
