N-(4-Methyl-3-((4-(pyridin-3-yl)pyrimidin-2-yl)amino)phenyl)-4-((4-methylpiperazin-1-yl)methyl)benzamide

Abstract

Imatinib is one of the most used therapeutic agents to treat leukemia, which specifically inhibits the activity of tyrosine kinases. This polytopic molecule has been structurally characterized only in the form of its piperazin-1-ium salt (mesylate, picrate, citrate, fumarate or malonate). Herein we present the crystal structure of the freebase Imatinib which precipitated from a 1:10 mixture with arginine. The molecule realizes an extended conformation and forms infinite H-bonded chains through its amide, amine and pyrimidine groups.

1. Introduction

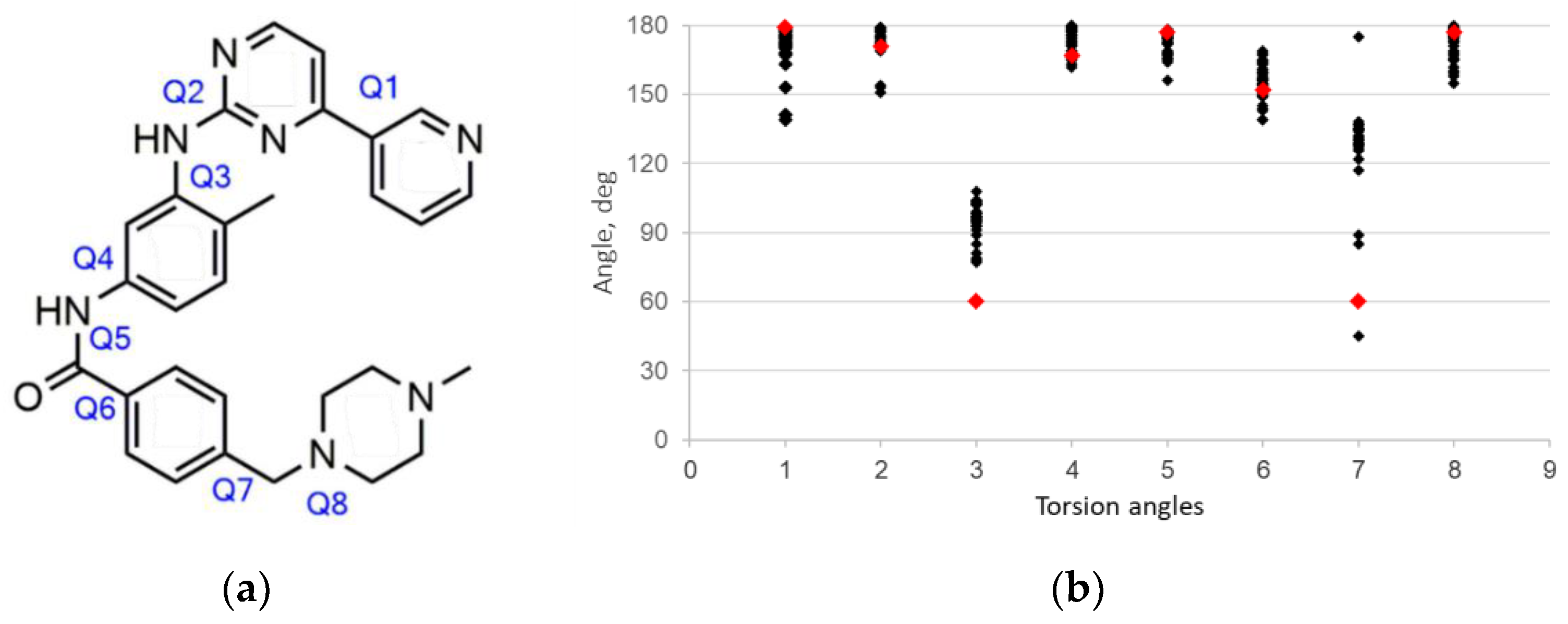

Imatinib commercially available as Gleevec (Figure 1a) is the first therapeutic agent to treat chronic myelogenic leukemia [1,2]. A series of structural studies elucidated that Imatinib specifically binds to an inactive Abelson tyrosine kinase domain characteristic for this gene through numerous hydrogen bonds, hydrophobic C–H…π and π…π interactions [3,4]. Golzarroshan et al. compared its conformations in single crystals and ligand–protein complexes, and revealed that this flexible molecule realizes in crystals two main conformations, an extended with the pyridylpyrimidine moiety in trans position towards the methylbenzene ring and a folded with the pyridylpyrimidine moiety cis situated to the methylbenzene ring [5]. Analysis of contributions of various types of intermolecular interactions to the molecular surface revealed that π…π stacking is more typical for the folded conformation of Imatinib [6], while the contribution of hydrophilic interactions does not affect molecular conformation.

Both in crystals, and in ligand–receptor complexes Imatinib is present in the form of a mono- or a dication. Its commercial form contains Imatinib mesylate which exists in two polymorph modifications [7]. Besides mesylate, it readily forms salts with picrate [5,8], citrate [9], fumarate [9] or malonate [9] anions. Hybrid materials of Imatinib with nanodispersed MoS₂ sheets were obtained as well [10]. However, the crystal structure of the neutral freebase remained unknown to date, although its powder XRD solution was mentioned recently by Kabova et al. [11]. In this report we present the characterization of freebase Imatinib using single crystal X-ray diffraction.

2. Results and Discussion

In our study of novel solid forms of known active pharmaceutical ingredients [12], the potential of Imatinib to co-crystallize with amino acids was attested. A solution of Imatinib mesylate in ethanol was added to a solution of alanine, arginine, asparagine, glycine, iso-leucine, methionine, tyrosine, serine or valine in ethanol in 1:10 molar ratio. A few drops of HNO₃ or heating were applied to make the solution transparent. After several days of standing in air at r.t., white precipitate formed in all cases. Typically, precipitate contained initial reagents; however, from Imatinib: arginine mixture, single crystals of the freebase Imatinib were obtained suitable for X-ray diffraction using synchrotron radiation.

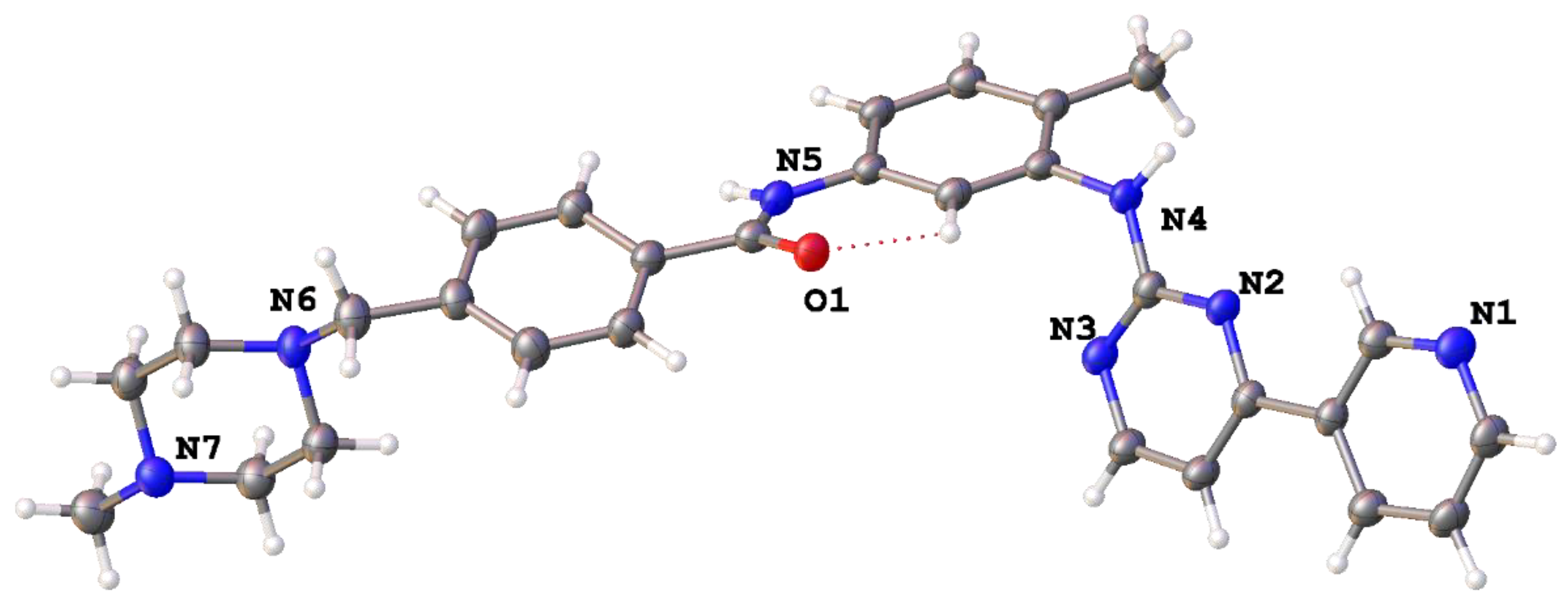

The molecular structure of the freebase is represented on Figure 2. All hydrogen atoms were visible on difference Fourier maps; thus, one can conclude from both bond distances and residual density maps that only N4 amine and N5 amide nitrogen atoms are protonated. The values Q1–Q8 of torsion angles are equal to 178.72(1), 170.66(5), 59.7(3), 166.76(7), 176.72(2), 152.3(1), 59.7(4) and 176.83(3)°, respectively. With an exception of Q3 (C9-N4-C10-C11 angle) and Q7 (C21-C20-C23-N6 angle) the values of angles are typical for experimentally-obtained conformations of Imatinib in an extended conformation (Figure 1b, [5,6]). Particularly, pyridine and pyrimidine or 4-methylphenyl and amide fragments are almost coplanar (Q1 or Q4–Q5 torsion angles are close to 180°). The Q2 = 170.66(5)° angle (N2-C9-N4-C10) between the pyridylpyrimidine and the methylbenzene moieties confirms the extended molecular conformation which was predicted to be 21.39 kJ/mol more stable than the folded one for a freebase [6].

It was previously demonstrated that molecular conformation of Imatinib correlates well with peculiarities of its intermolecular interactions [6]. Particularly, high (up to 25%) contribution of C…C and C…N interactions to the Voronoi molecular surface was found to favor realization of the folded conformation. In this solid, the Voronoi molecular volume and area are equal to 646 ų and 629 Ų, respectively, which is in accord with the average values of 677(51) ų and 661(37) Ų previously obtained for 6 structurally characterized salts and 21 ligand–receptor Imatinib complexes [6]. However, despite the extended conformation, high contribution of C…C and C…N interactions to the molecular surface (5.5% in sum) was observed. Contribution of N…H and O…H hydrogen bonds to the surface (80 and 30 Ų as compared with previously observed 26–71 and 82–206 Ų) is also unusual.

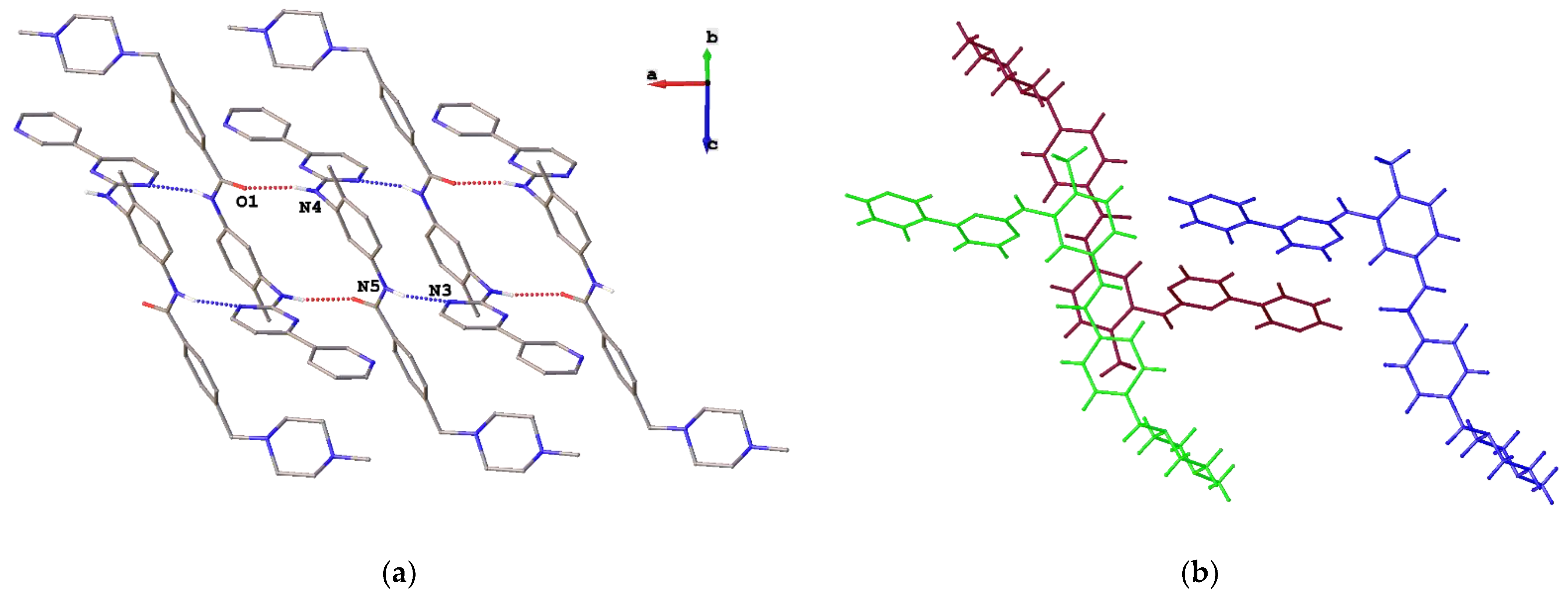

This fact can be rationalized by analysis of particular intermolecular interactions in the solid. The molecules are connected by N–H…O and N–H…N hydrogen bonds between amine and amide, and amide and pyrimidine atoms to infinite chains (Figure 3a). The values of r(N…O) and r(N…N) are equal to 2.963(2) and 3.167(3) Å, respectively; the NHO and NHN angles are 166.7 and 166.1 Å. Note that none of these interactions are the most expected for amide and amine groups. The H-bond propensity tool [13,14] indicates that both amine and amide groups are more inclined to form hydrogen bonds with a nitrogen atom of pyridine ring [6]. Thus, one can propose that a metastable polymorph of pure Imatinib was obtained by us. It is also worth mentioning that the formation of two N–H…N hydrogen bonds also fixes carbamoylbenzyl fragments of neighboring molecules in parallel positions at 3.3 Å which makes the formation of π…π interactions possible. In addition, two pyridylpyrimidine fragments also take part in stacking interactions with the interplanar distance between their parallel meanplanes as short as 3.5 Å and the shortest interatomic distance equal to 3.459(3) Å (Figure 3b). Thus, the significant contribution of stacking interactions to the molecular surface was observed in this solid. The strength of the pairwise interaction in staking dimer in terms of energy frameworks formalism (CrystalExplorer 17.5 program [15]) is −134.2 kJ/mol while in dimer formed by N–H…O bond, the corresponding value is −97.2 kJ/mol. In turn, the value of lattice energy is −489.4 kJ/mol.

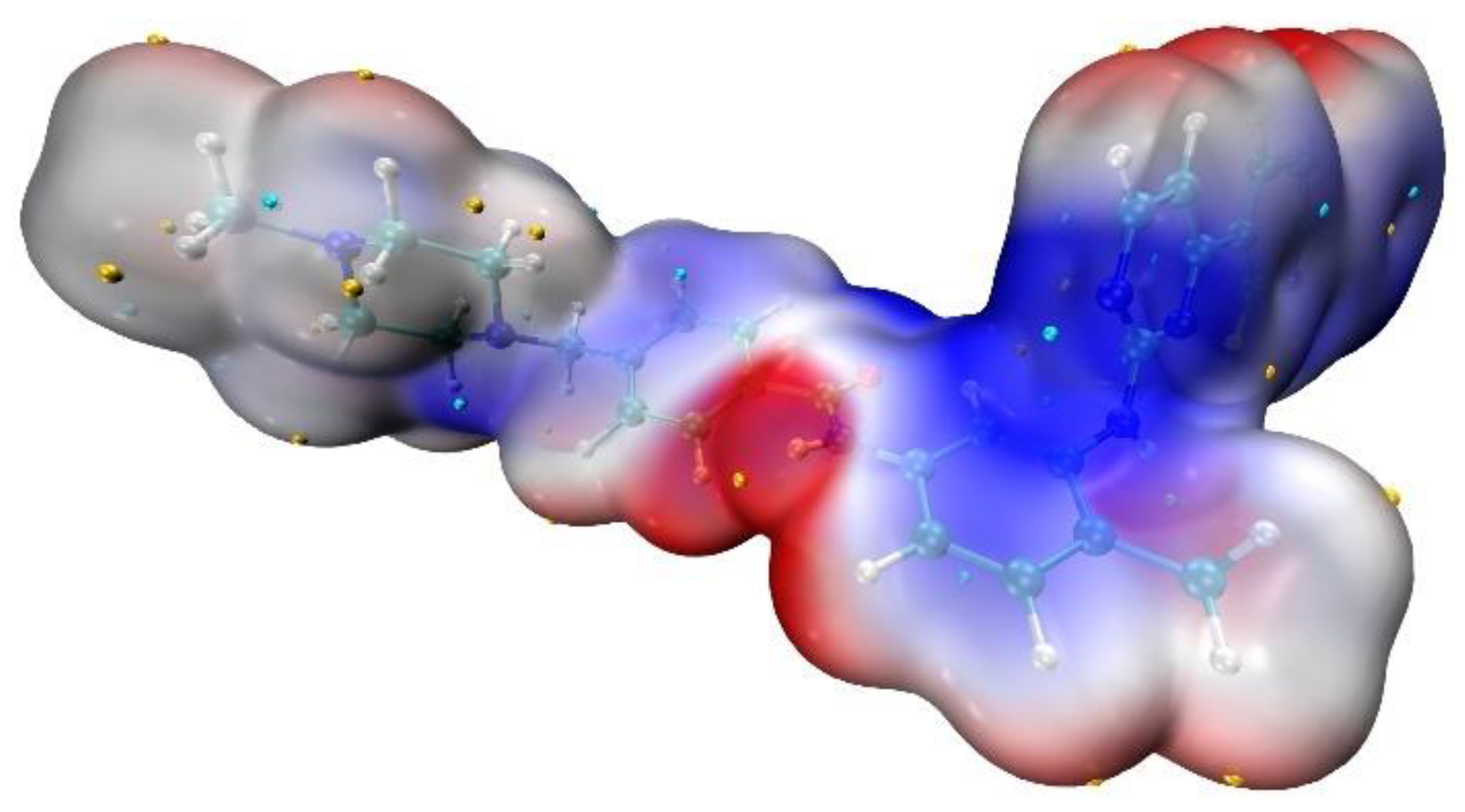

Finally, it is worth mentioning that the observed hydrogen bonding is in accord with distribution of the molecular electrostatic potential (MEP) depicted on Figure 4. NoSphereA2 [16] instead of usual IAM refinement of X-ray diffraction data was used in order to obtain experimental MEP distribution. It allowed not only the decrease of R₁ and wR₂ convergence factors but also gave H(C) and H(N) distances (1.11–1.16 and 1.02–1.03 Å, respectively) close to the average values from neutron diffraction data (1.08–1.10 and 1.01–1.03 Å) as obtained by Allen and Bruno [17]). The most electropositive molecular regions (shown in red) are situated in the region of the amide and amine groups. The regions of electronegative potential are situated close to the oxygen atom and near the nitrogen atom of the pyrimidine ring. Electronegative regions close to the 4-methylpiperazine are absent. This fact is in accord with theoretical calculation of low H-bond propensity of the nitrogen atom connected with the methyl group to take part in H-bonding. Experimentally-observed H-bonding with this nitrogen in previously studied Imatinib salts and ligand–receptor complexes are absent as well.

3. Materials and Methods

A solution of Imatinib mesylate (0.012 g, 0.05 mmol) in 1 ml of ethanol was added to a solution of arginine (0.087 g, 0.5 mmol) in 2 ml of ethanol. The mixture was heated, and the solution was cooled in air. After 2 days of standing at r.t. white precipitate formed. Single crystals of C₂₉H₃₁N₇O were obtained from this precipitate. T_melt = 484–486 K coincides with that given in Ref. [18]. The intensities of 19559 reflections were collected at “Belok/XSA” beamline of the Kurchatov Synchrotron Radiation Source [19,20]. Diffraction patterns were collected using 1-axis MarDTB goniometer equipped with Rayonix SX165 CCD 2D positional sensitive CCD detector (λ = 0.745 Å, φ-scanning in 1.0° steps) in the direct geometry with a detector plane perpendicular to its beam. Approximately 120 diffraction frames were collected for each data set. Thus obtained data were indexed and integrated using the XDS software suite [21]. At 100 K crystal system is triclinic, space group $P\overline{1}$: a = 8.5780(17), b = 10.467(2), c = 14.872(3) Å, α = 79.78(3), β = 82.55(3), γ = 81.94(3)°, V = 1293.6(5) ų, Z = 2, µ = 0.089 mm⁻¹, D_calc = 1.267 g cm⁻³, F(000) = 524.

The structure was solved by the dual-space algorithm [22] and refined by full-matrix least squares against F² using the NoSpherA2 algorithm [16] implemented within the Olex2 package [23]. Non-hydrogen atoms were refined in an anisotropic approximation. Hydrogen atoms were located on difference Fourier maps and included in the refinement in isotropic appoximation and unfixed bond distances. Refinement converged to R₁ = 0.057 (for 3907 observed reflections and 459 parameters), wR₂ = 0.158 and GOF = 1.01 (for 7004 independent reflections, R_int = 0.098). Crystallographic data in Crystallographic Information File (CIF) format can be downloaded online at Supplementary Materials.

Peculiarities of the Voronoi molecular polyhedra were calculated using the ToposPro package [24].
