Short Note

2,6-Dimethoxybenzyl Bromide

EaStCHEM School of Chemistry, University of St Andrews, North Haugh, St Andrews, Fife KY16 9ST, UK
*
Author to whom correspondence should be addressed.
Academic Editor: Raffaella Mancuso
Molbank 2021, 2021(3), M1277; https://doi.org/10.3390/M1277
Received: 10 August 2021 / Revised: 31 August 2021 / Accepted: 2 September 2021 / Published: 7 September 2021
(This article belongs to the Section Organic Synthesis)

Abstract

The unstable title compound has been characterized for the first time. Its melting point, UV, IR, 1H and 13C-NMR and high-resolution mass spectra are presented. The X-ray structure has also been determined and shows a rather long C–Br bond perpendicular to the otherwise planar molecule.
Keywords: 2,6-dimethoxybenzyl bromide; X-ray structure; NMR spectra; IR spectrum; UV spectrum 2,6-dimethoxybenzyl bromide; X-ray structure; NMR spectra; IR spectrum; UV spectrum

1. Introduction

In the course of the synthesis of a natural product, we recently required 2,6-dimethoxybenzyl bromide 1 and were surprised to find that this simple aromatic compound has apparently not been characterised in any way before. The first mention of the compound in the literature seems to be in 1988, when it was briefly evaluated together with other methoxybenzyl bromides as a selective OH-protecting reagent in carbohydrate chemistry [1]. Since then, it has found increasing use both for this application [2,3], and in construction of new ligands [4], organocatalysts [5], antibacterial agents [6], synthetic intermediates [7], insecticides [8] and anticancer agents [9]. However, in all these cases, it is prepared and used immediately without any attempt at isolation or characterisation. The method of preparation is most commonly by reaction of the corresponding alcohol 2 with phosphorus tribromide [6], although treatment of 2 with hydrobromic acid [8], and radical bromination of 2,6-dimethoxytoluene 3 with N-bromosuccinimide [2] have also been used (Scheme 1).
This situation is in marked contrast to most of the other isomeric dimethoxybenzyl bromides (Figure 1), where both the 2,3-isomer 4 [10] and the 3,4-isomer 5 [11,12] have been known since the 1920s and have been thoroughly characterised using all the main analytical and spectroscopic methods. The 2,5-isomer 6 was first reported in 1953 [13] and full spectra were subsequently described [14]. The 3,5-isomer 7 was first prepared in 1962 [15] and is the only one of the six isomers to be characterised by X-ray diffraction to date, with both powder [16] and single crystal [17] data available. Interestingly, the 2,4-isomer 8 has a similar lack of characterisation to 1, being mentioned in two patents [18,19] as being generated from the corresponding alcohol and PBr3 and used immediately without isolation, and in terms of data, only the 1H-NMR chemical shift for its CH2 is available [20].
We here describe the preparation, isolation and full characterisation of compound 1 including its melting point, UV, IR, 1H and 13C-NMR spectra, HRMS and X-ray structure determination. Some observations on the stability and decomposition of this reactive compound are also documented.

2. Results

Reaction of 2,6-dimethoxybenzyl alcohol, prepared by esterification then LiAlH4 reduction of commercially available 2,6-dimethoxybenzoic acid [21], with 0.33 equivalents of PBr3 in diethyl ether at 0 °C, followed by aqueous work-up, drying of the ether extract and evaporation gave the target compound 1 as colourless crystals, mp 65–67 °C. However, it was quickly discovered that the compound decomposed over a period of hours to days at room temperature to give a dark purple polymeric material, insoluble in any common solvents. The decomposition seemed to be accelerated by light, heat or contact with a nickel spatula and, once initiated, seemed to be autocatalytic so that, once it started, it accelerated rapidly. Despite this, samples of the compound have been stored in a foil-covered flask in a refrigerator at 5 °C for several months without decomposition.
The UV, IR and 1H and 13C-NMR spectra could be recorded by working rapidly and with suitable precautions, and the data documented in the Experimental Section and illustrated in the Supplementary Material are in agreement with expectation and also with those for the isomeric compounds of Figure 1. In particular, the UV spectrum consisted of a series of three shoulders at 291, 278 and 246 nm of steadily increasing intensity, while the most prominent peak in the IR spectrum was at 1088 cm–1, attributable to aromatic C–Br stretch. The NMR spectra showed the expected shielding effect of OMe with 3/5 positions giving signals at δH 6.54 and δC 103.7, respectively. The quaternary carbon at C-1 gave a particularly weak signal at δC 114.4 ppm. High-resolution mass spectrometry gave a signal at m/z 151, corresponding to M+–Br and showing good agreement with the theoretical value. This gives some hint as to the mechanism of decomposition since the carbocation 9 formed by ionisation with loss of Br is significantly stabilised by the two OMe groups (Scheme 2), and we speculate that the main mode of decomposition may be bromide mediated O-demethylation of 9 to give the ortho-quinomethane species 10, which then polymerises.
Crystals suitable for X-ray diffraction were obtained directly from the freshly prepared material and quickly mounted while still cold for data collection at 93 K. The resulting molecular structure (Figure 2) shows the two methoxy groups as essentially coplanar with the benzene ring while the CH2–Br bond is essentially orthogonal to it. The arrangement of the four molecules in the unit cell is also shown in Figure 2.
A good number of similar compounds have been crystallographically characterised and a comparison of the key parameters for the Ar–CH2–Br group for a selection of these (Figure 3) is presented in Table 1. As compared to the unsubstituted benzyl bromide 9 compound 1 shows lengthening of both ring–CH2 and CH2–Br bonds and a torsion angle much closer to 90°. In considering the data for the isomeric 3,5-dimethoxy compound 7, it should be noted that the first set of data [16] is derived from a powder diffraction study, and the discrepancy between this and the single-crystal data [17], as well as all the other values in Table 1, is likely to be due to systematic errors linked to the different technique. The situation for the apparently good model compound 10 is complicated by the fact that there are two separate crystal forms containing, respectively, three and two independent molecules in the unit cell and each molecule has all three CH2Br groups non-equivalent, thus delivering a total of 15 values for each parameter, which actually span the full range of values exhibited by the other compounds in the Table. Nonetheless, it can be seen that the parameters listed for 1 are broadly in line with those of closely similar compounds. but the CH2–Br bond length is among the longest and the ring–CH2–Br torsion angle is among the closest to 90°.
In summary, the simple but unstable compound 2,6-dimethoxybenzyl bromide has been characterised for the first time, with its melting point, UV, IR, 1H and 13C-NMR spectra recorded. A correct HRMS measurement was obtained for M+–Br. The X-ray structure was also determined and shows structural parameters in good agreement with similar highly substituted benzyl bromides.

3. Experimental Section

Melting points were recorded on a Reichert hot-stage microscope (Reichert, Vienna, Austria) and are uncorrected. UV spectra were recorded using a Shimadzu (Milton Keynes, UK) instrument and IR spectra were recorded on a Perkin-Elmer 1420 instrument (Perkin-Elmer, Waltham, MA, USA). NMR spectra were recorded using a Bruker (Bruker, Billerica, MA, USA) AV instrument at 300 MHz (1H) and a Bruker AV III instrument at 125.8 MHz (13C) in CDCl3 with chemical shifts given with respect to Me4Si and coupling constants in Hz. HRMS was recorded using a Thermo Fisher Exactive Orbitrap instrument in ESI mode.

2,6-Dimethoxybenzyl Bromide (1)

A solution of 2,6-dimethoxybenzyl alcohol [21] (1.0 g, 6.53 mmol) in dry diethyl ether (20 mL) was stirred at 0 °C while PBr3 (0.21 mL, 2.18 mmol) was added dropwise. After stirring for 1 h, methanol (2 mL) was added, followed by water (20 mL). The organic later was separated and the aqueous layer extracted with Et2O (20 mL). The combined organic extracts were dried (MgSO4) and evaporated under reduced pressure to give the product (1.32 g, 87%) as colourless crystals, mp 65–67 °C, which were stored at 5 °C in the dark; UV/Vis (MeCN): λmax (log ε) 291 (3.39), 278 (3.50), 246 (3.86) nm; IR (ATR): 3273, 1734, 1593, 1474, 1433, 1258, 1150, 1107, 1088, 1032, 781, 735, 590, 523 cm−1; 1H-NMR (300 MHz, CDCl3): 7.24 (1H, t, J = 8.4 Hz, 4-CH), 6.54 (2H, d, J = 8.4 Hz, 3,5-H), 4.70 (2H, s, CH2Br), 3.89 (6H, s, 2 OCH3); 13C-NMR (126 MHz, CDCl3): 158.5 (2C, C-2,6), 130.1 (CH, C-4), 114.4 (C, C-1), 103.7 (2CH, C-3,5), 55.9 (2 OCH3), 23.7 (CH2); HRMS (ESI): Calcd. for C9H11O2 (M–Br): 151.0759. Found: 151.0752.
The structure was determined on a Rigaku XtaLAB 200 diffractometer using graphite monochromated Mo Kα radiation λ = 0.71075 Å.
Crystal data for C9H11BrO2, M = 231.09 g mol−1, colourless prism, crystal dimensions 0.18 × 0.10 × 0.02 mm, orthorhombic, space group Pna21 (No. 33), a = 13.297 (8), b = 5.033 (3), c = 13.789 (9) Å, α = β = γ = 90.00°, V = 922.8 (10) Å3, Z = 4, Dcalc = 1.663 g cm−3, T = 93 K, R1 = 0.0269, Rw2 = 0.0654 for 1554 reflections with I > 2σ (I), and 111 variables, Rint 0.0537, goodness of fit on F2 1.084. Data have been deposited at the Cambridge Crystallographic Data Centre as CCDC 2097451. The data can be obtained free of charge from the Cambridge Crystallographic Data Centre via http://www.ccdc.cam.ac.uk/getstructures. The structure was solved by direct methods and refined by full-matrix least-squares against F2 (SHELXL Version 2018/3 [30]).

Supplementary Materials

The following are available online, Figure S1: UV spectrum of 1; Figure S2: IR spectrum of 1; Figure S3: 1H-NMR spectrum of 1; Figure S4: 13C-NMR spectrum of 1; Figure S5: HRMS measurement on 1.

Author Contributions

E.A.S. prepared the compound and obtained the NMR spectra; A.M.Z.S. collected the X-ray data and solved the structure; R.A.A. designed the experiments, ran the IR and UV spectra, analysed the data, and wrote the paper. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

The X-ray data is deposited at CCDC as stated above and all spectroscopic data is in the Supplementary Material.

Acknowledgments

The authors thank Iain Patterson for assistance with measuring the UV spectrum and Caroline Horsburgh for carrying out the HRMS measurement.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Nakajima, N.; Abe, R.; Yonemitsu, O. 3-Methoxybenzyl (3-MPM) and 3,5-dimethoxybenzyl (3,5-DMPM) protecting groups for the hydroxy function less readily removable the 4-methoxybenzyl (MPM) and 3,4-dimethoxybenzyl (DMPM) protecting groups by DDQ oxidation. Chem. Pharm. Bull. 1988, 36, 4244–4247. [Google Scholar] [CrossRef]
  2. Falck, J.R.; Barma, D.K.; Baati, R.; Mioskowski, C. Differential cleavage of arylmethyl ethers: Reactivity of 2,6-dimethoxybenzyl ethers. Angew. Chem. Int. Ed. 2001, 40, 1281–1283. [Google Scholar] [CrossRef]
  3. Smoot, J.T.; Demchenko, A.V. How the arming participating moieties can broaden the scope of chemoselective oligosaccharide synthesis by allowing the inverse armed-disarmed approach. J. Org. Chem. 2008, 73, 8838–8850. [Google Scholar] [CrossRef] [PubMed]
  4. Kaloglu, M.; Sahin, N.; Sémeril, D.; Brenner, E.; Matt, D.; Ozdemir, I.; Kaya, C.; Toupet, L. Copper-catalysed allylic substitution using 2,8,14,20-tetrapentylresorcinarenyl-substituted imidazolium salts. Eur. J. Org. Chem. 2015, 7310–7316. [Google Scholar] [CrossRef]
  5. Bernal, P.; Fernández, R.; Lassaletta, J.M. Organocatalytic asymmetric cyanosilylation of nitroalkenes. Chem. Eur. J. 2010, 16, 7714–7718. [Google Scholar] [CrossRef]
  6. Feng, L.; Lv, K.; Liu, M.; Wang, S.; Zhao, J.; You, X.; Li, S.; Cao, J.; Guo, H. Synthesis and in vitro antibacterial activity of gemifloxacin derivatives containing a substituted benzyloxime moiety. Eur. J. Med. Chem. 2012, 55, 125–136. [Google Scholar] [CrossRef] [PubMed]
  7. Dong, W.; Yuan, Y.; Liang, C.; Wu, F.; Zhang, S.; Xie, X.; Zhang, Z. Photocatalytic radical ortho-dearomative cyclization: Access to spiro[4.5]deca-1,7,9-trien-6-ones. J. Org. Chem. 2021, 86, 3697–3705. [Google Scholar] [CrossRef]
  8. Silverman, I.R.; Cohen, D.H.; Lyga, J.W.; Szczepanski, S.W.; Ali, S.F. Insecticidal N-(Substituted Arylmethyl)-4-[(Bis(Substituted Phenyl)Methyl]Piperidines. U.S. Patent 1996 5569664, 29 October 1996. [Google Scholar]
  9. Nussbaumer, P. Trisubstituted Phenyl Derivatives. U.S. Patent 1999 5990116, 23 November 1999. [Google Scholar]
  10. Haworth, R.D.; Perkin, W.H., Jr. Synthetical experiments in the isoquinoline group. Part I. J. Chem. Soc. 1925, 127, 1434–1444. [Google Scholar] [CrossRef]
  11. Haworth, R.D.; Perkin, W.H., Jr.; Rankin, J. Synthetical experiments in the isoquinoline group. Part II. J. Chem. Soc. 1925, 127, 1444–1448. [Google Scholar] [CrossRef]
  12. Freudenberg, K.; Carrara, G.; Cohn, E. Eine umlagerungsreaktion des catechins. 21. Mitteilung über gerbstoffe und ähnliche verbindungen. Liebigs Ann. Chem. 1926, 446, 87–95. [Google Scholar] [CrossRef]
  13. Shulgin, A.T.; Gal, E.M. A new synthesis of 2:5-dihydroxyphenyl-DL-alanine adapted to isotopic scale. J. Chem. Soc. 1953, 1316–1318. [Google Scholar] [CrossRef]
  14. Hartzfeld, D.G.; Roser, S.D. Efficient pyrimidine dimer radical anion splitting in low polarity solvents. J. Am. Chem. Soc. 1993, 115, 850–854. [Google Scholar] [CrossRef]
  15. Bhati, A. Syntheses of some tetralones related to tetracyclines. Tetrahedron 1962, 18, 1519–1526. [Google Scholar] [CrossRef]
  16. Pan, Z.; Cheung, E.Y.; Harris, K.D.M.; Constable, E.C.; Housecroft, C.E. Structural properties of methoxy derivatives of benzyl bromide, determined from powder X-ray diffraction data. Powder Diffr. 2005, 20, 345–352. [Google Scholar] [CrossRef]
  17. Flörke, U.; Aamer, S. Experimental crystal structure determination. CSD Commun. 2018, CCDC 1884625. [Google Scholar] [CrossRef]
  18. Foulon, L.; Garcia, G.; Mettefeu, D.; Serradeil-Legal, C.; Valette, G. 1-Benzyl-1,3-Dihydroindol-2-One Derivatives, Their Preparation and the Pharmaceutical Compositions in which they are Present. U.S. Patent 1997 5618833, 8 April 1997. [Google Scholar]
  19. Bold, G.; Capraro, H.-G.; Fässler, A.; Lang, M.; Bhagwat, S.S.; Khanna, S.C.; Lazdins, J.K.; Mestan, J. Antiviral Ethers of Aspartate Protease Substrate Isosteres. U.S. Patent 1997 5663200, 2 September 1997. [Google Scholar]
  20. König, M.; Linhardt, A.; Brüggemenn, O.; Teasdale, I. Phosphine functionalized polyphosphazenes: Soluble and re-usable polymeric reagents for highly efficient halogenations under Appel conditions. Monatsh. Chem. 2016, 147, 1575–1582. [Google Scholar] [CrossRef]
  21. Bandaranayake, W.M.; Crombie, L.; Whiting, D.A. Pyridine-catalysed chromenylation of mono-chelated meta-dihydric-phenols with mono-, sesqui- and di-terpene aldehydes: Synthesis of rubranine and flemingins A-, B- and C-methyl ethers. J. Chem. Soc. C 1971, 804–810. [Google Scholar] [CrossRef]
  22. Nayak, S.K.; Sathishkumar, R.; Guru Row, T.N. Directing role of functional groups in selective generation of C–H...π interactions: In situ cryo-crystallographic studies on benzyl derivatives. CrystEngComm 2010, 12, 3112–3118. [Google Scholar] [CrossRef]
  23. Koch, N.; Seichter, W.; Mazik, M. 1,3,5-Tris(bromomethyl)-2,4,6-trimethoxybenzene. Acta Crystallogr. Sect. E 2013, 69, o679. [Google Scholar] [CrossRef]
  24. Nielsen, B.E.; Gotfredsen, H.; Rasmusen, B.; Tortzen, C.G.; Pittelkow, M. Simple procedures for the preparation of 1,3,5-trisubstitited 2,4,6-trimethoxybenzenes. Synlett 2013, 24, 2437–2442. [Google Scholar] [CrossRef]
  25. Morgans, G.L.; van Otterlo, W.A.L.; Michael, J.P.; Fernandes, M.A. 1-[3,5-Bis(bromomethyl)-2,4,6-trimethoxybenzyl]-3,5-bis(bromomethyl)-2,4,6-trimethoxybenzene. Acta Crystallogr. Sect. E 2006, 62, o168–o170. [Google Scholar] [CrossRef]
  26. Hammerhøj, P.; Christensen, J.B. 2,3-Bis(bromomethyl)-1,4-dimethoxybenzene. Acta Crystallogr. Sect. E 2005, 61, o2839–o2840. [Google Scholar] [CrossRef]
  27. Mendez-Rojas, M.A.; Ejsmont, K.; Watson, W.H. Synthesis and characterization of a 5,6-dibromobenzoquinone-phenyl maleimide adduct. J. Chem. Crystallogr. 2002, 32, 177–184. [Google Scholar] [CrossRef]
  28. Aitken, R.A.; Jethwa, S.J.; Richardson, N.V.; Slawin, A.M.Z. Regioselective bromination of 1,4-dimethoxy-2,3-dimethylbenzene and conversion into sulfur-functionalised benzoquinones. Tetrahedron Lett. 2016, 57, 1563–1566. [Google Scholar] [CrossRef]
  29. Akhtar, M.N.; Zareen, S.; Yeap, S.K.; Ho, W.Y.; Lo, K.M.; Hasan, A.; Alitheen, N.B. Total synthesis, cytotoxic effects of damnacanthal, nordamnacanthal and related anthraquinone analogues. Molecules 2013, 18, 10042–10055. [Google Scholar] [CrossRef] [PubMed]
  30. Sheldrick, G.M. A short history of SHELXL. Acta Crystallogr. Sect. A 2008, 64, 112–122. [Google Scholar] [CrossRef]

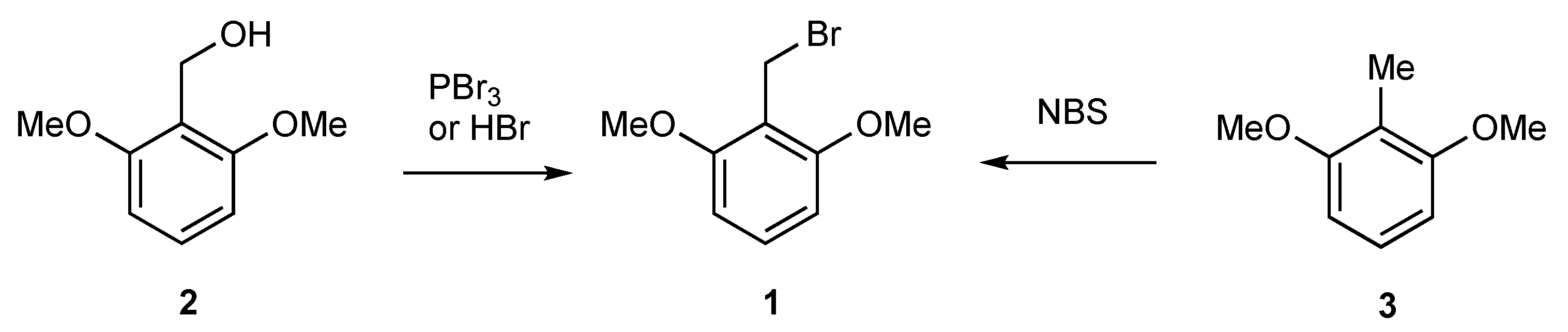

Scheme 1. Synthetic routes to compound 1.
Scheme 1. Synthetic routes to compound 1.
Molbank 2021 m1277 sch001

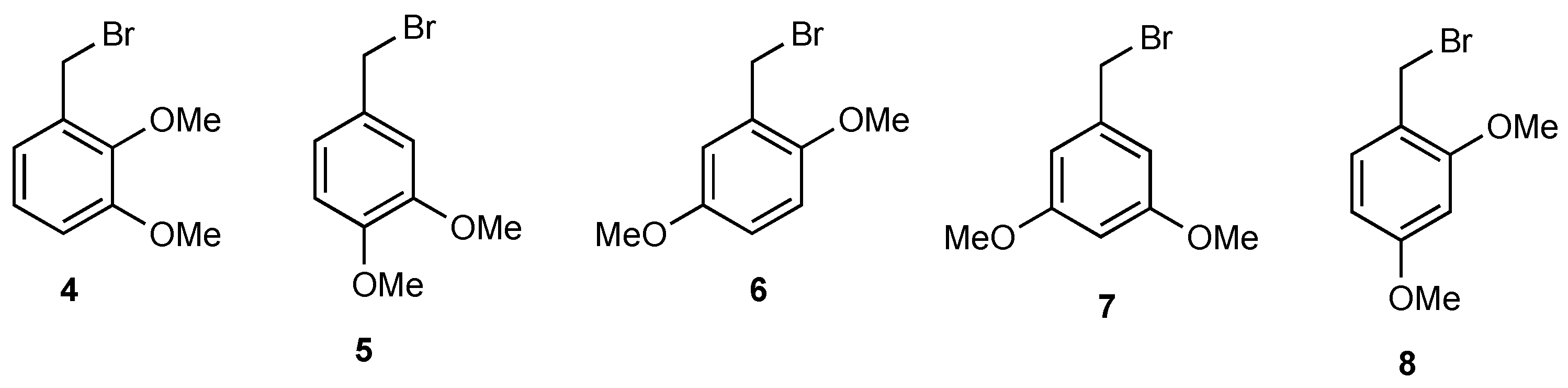

Figure 1. The other isomeric dimethoxybenzyl bromides.
Figure 1. The other isomeric dimethoxybenzyl bromides.
Molbank 2021 m1277 g001

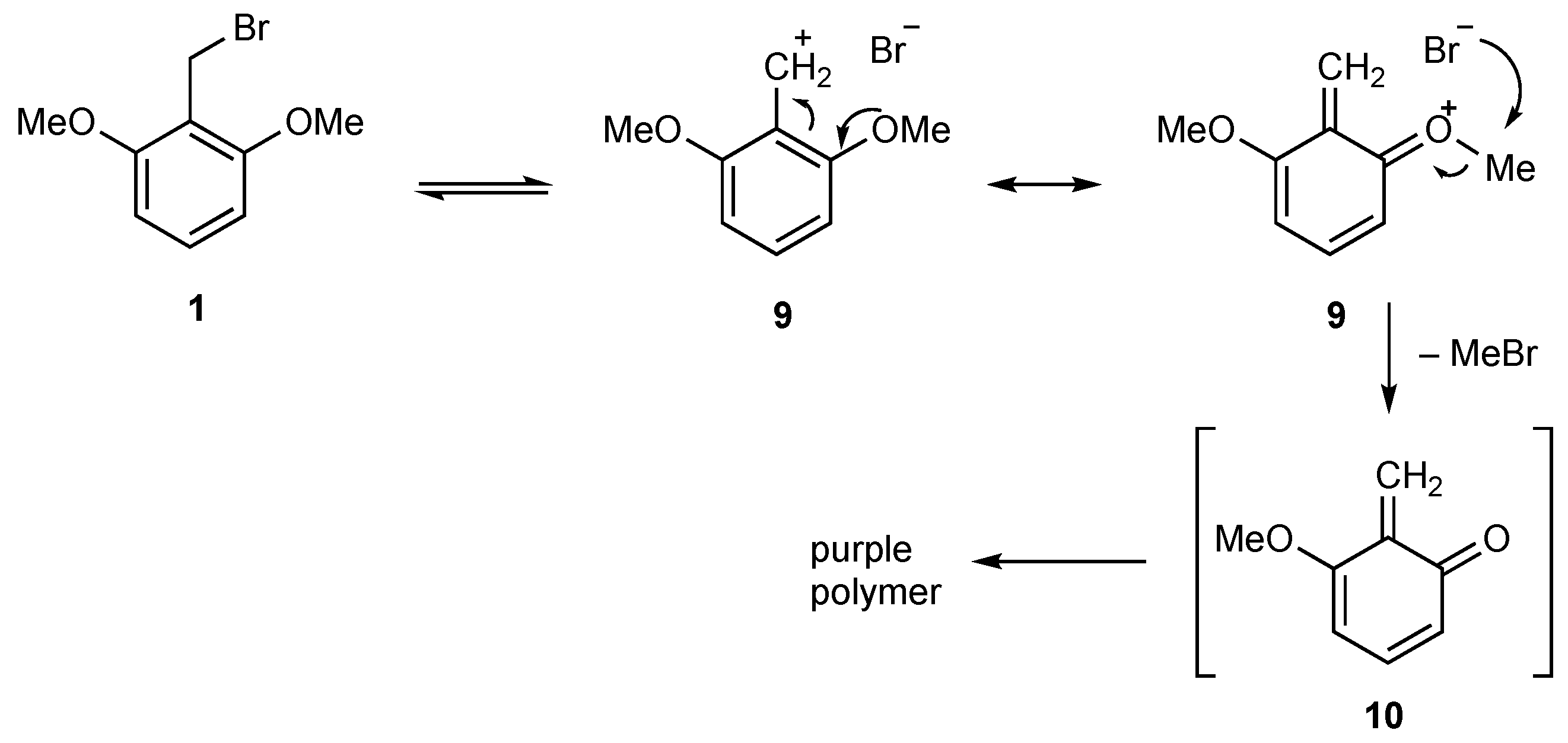

Scheme 2. Suggested mode of decomposition for 1.
Scheme 2. Suggested mode of decomposition for 1.
Molbank 2021 m1277 sch002

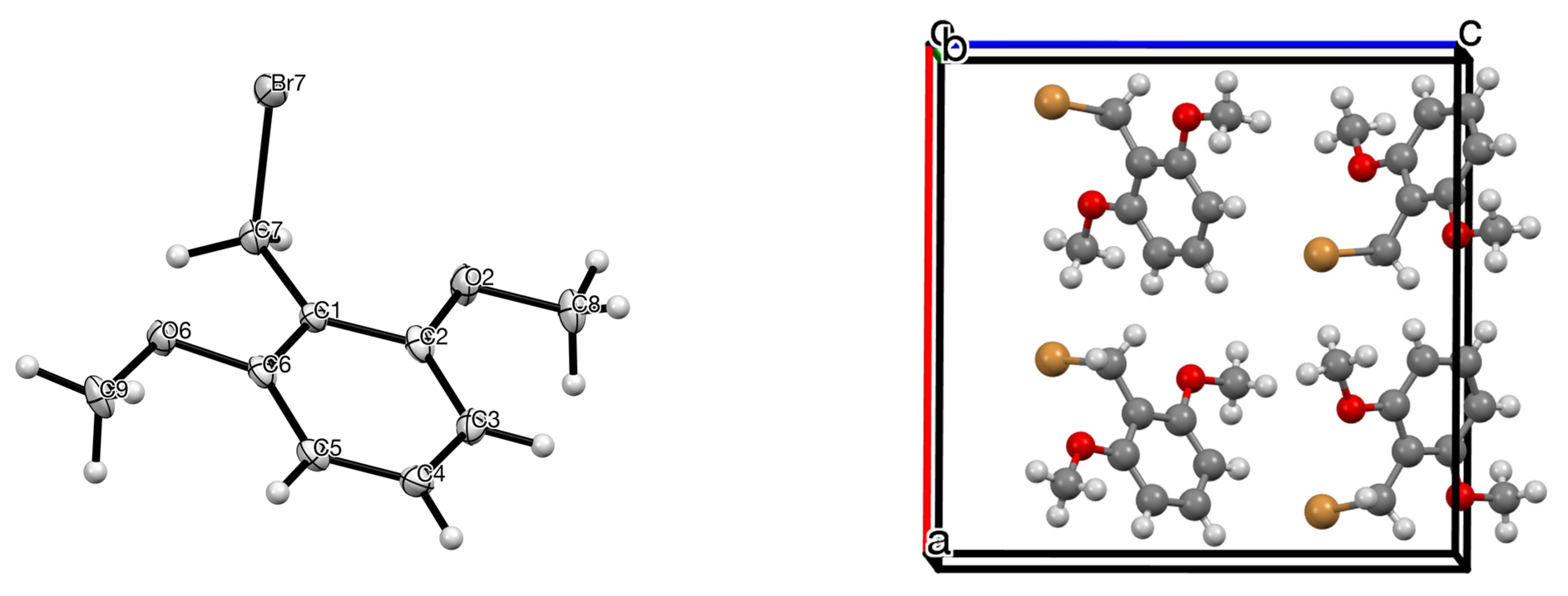

Figure 2. (left) Molecular structure of 1 with anisotropic displacement ellipsoids drawn at 50% probability level and showing numbering system used. (right) View of unit cell along the b axis showing packing.
Figure 2. (left) Molecular structure of 1 with anisotropic displacement ellipsoids drawn at 50% probability level and showing numbering system used. (right) View of unit cell along the b axis showing packing.
Molbank 2021 m1277 g002

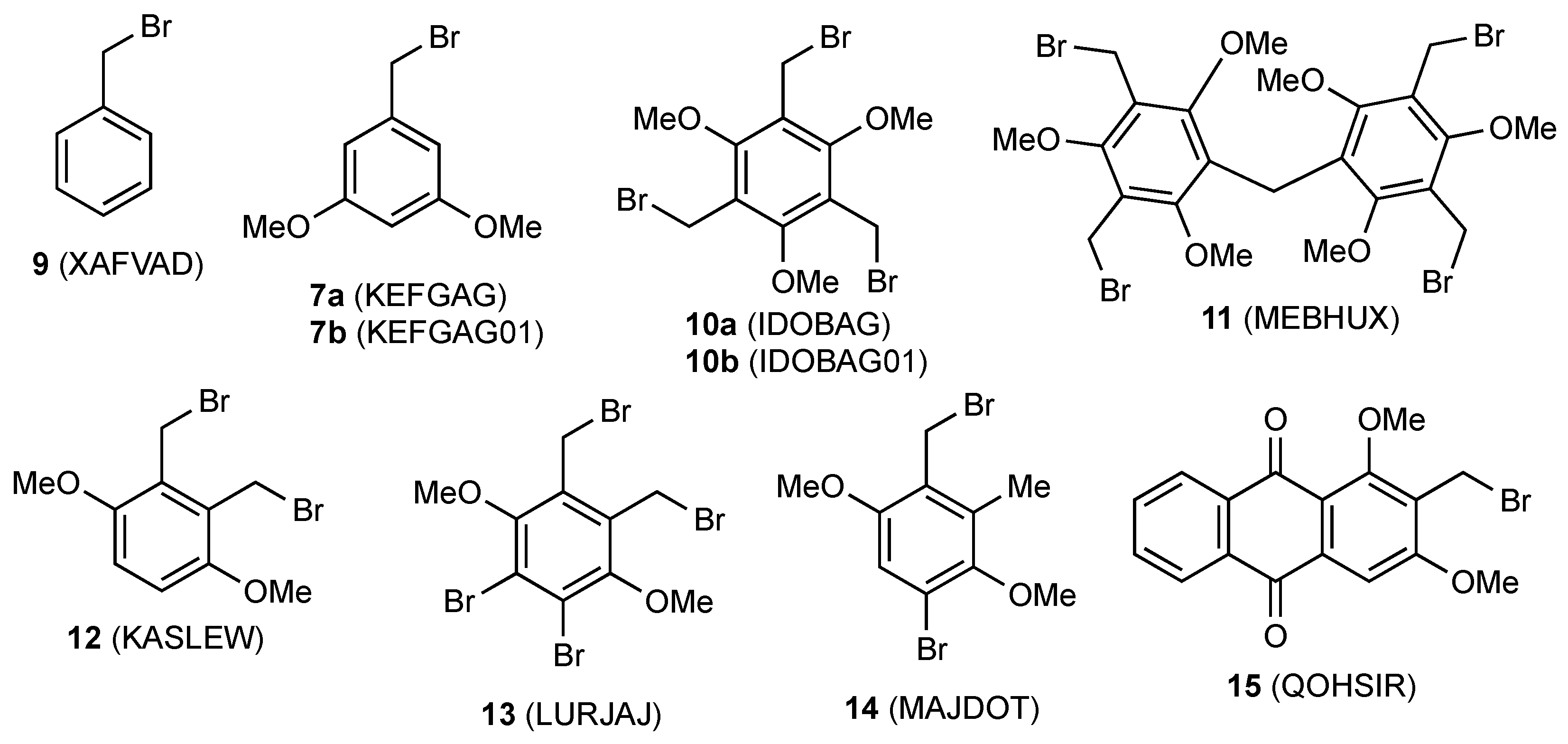

Figure 3. Comparison crystal structures with CSD reference codes.
Figure 3. Comparison crystal structures with CSD reference codes.
Molbank 2021 m1277 g003
Table 1. Geometric parameters for 1 and other comparable benzyl bromides.
Table 1. Geometric parameters for 1 and other comparable benzyl bromides.
CompdLength
C–CH2 (Å)
Length
CH2–Br (Å)
Angle
C–CH2–Br °
Torsion Angle
Ring/CH2–Br °
Ref
11.488 (6)1.992 (4)112.4 (3)88.67this work
91.465 (14)1.971 (11)110.3 (6)77.07[22]
7a a1.466 (2)1.908 (1)116.68 (8)75.65[16]
7b1.498 (4)1.987 (3)110.8 (2)75.82[17]
10a b1.475 (4)–1.491 (5)1.964 (4)–1.980 (2)111.2 (2)–113.4 (2)78.57–89.93[23]
10b c1.485 (4)–1.498 (6)1.972 (4)–1.988 (3)110.7 (2)–114.2 (2)76.64–89.86[24]
111.495 (3)1.979 (3)111.6 (2)89.38[25]
1.491 (3)1.984 (2)113.1 (2)83.19
121.491 (3)1.987 (2)112.0 (1)83.43[26]
1.493 (2)1.978 (2)111.2 (1)79.42
131.49 (1)1.947 (8)111.4 (5)81.47[27]
1.50 (1)1.965 (8)110.4 (5)84.45
141.49 (1)1.991 (7)112.3 (5)82.45[28]
151.497 (4)1.975 (3)110.1 (2)78.99[29]
a powder diffraction; b range of 9 values; c range of 6 values.
