Short Note

1-(4-Formyl-2,6-dimethoxyphenoxy)-4-chlorobut-2-yne

Institut Utinam UMR CNRS 6213, UFR Sciences et Techniques, Université de Bourgogne-Franche-Comté, 16 Route de Gray, 25030 Besançon, France
Academic Editor: Nicholas E. Leadbeater
Molbank 2021, 2021(3), M1252; https://doi.org/10.3390/M1252
Received: 21 June 2021 / Revised: 8 July 2021 / Accepted: 9 July 2021 / Published: 21 July 2021
(This article belongs to the Section Organic Synthesis)

Abstract

A reaction of biomass-derived aldehyde synringaldehyde and half an equivalent of 1,4-dichlorobut-2-yne was attempted in order to obtain a bis-aldehyde with an alkyne spacer. The reaction was carried out in a basic media to effect bis O-alkylation, as described in literature for the preparation of structurally similar compounds. Nevertheless, only mono alkylation was observed.
Keywords: O-alkylation; Williamson reaction; ether derivatives; alkyne derivatives O-alkylation; Williamson reaction; ether derivatives; alkyne derivatives

1. Introduction

Alkyne derivatives are important in organic chemistry. For instance, the alkyne function is found in various chemicals (synthetic or natural ones) with applications in medicinal chemistry or material chemistry, just to name a few (Figure 1) [1,2,3,4].
Additionally, alkyne derivatives are valuable intermediates for the preparation of other compounds, through the transformation of the carbon-carbon triple bond (Figure 2) [5,6,7,8,9], A typical example being the Huisgen reaction [10,11,12].
Finally, alkyne-containing molecules can be used for the preparation of a broad range of coordination compounds through a reaction with metallic centers (Figure 3).
Consequently, the preparation of new alkyne-containing chemicals is still of interest. This paper describes how 1-(4-formyl-2,6-dimethoxyphenoxy)-4-chlorobut-2-yne (1) was obtained as the only product in an attempt to prepare bis-aldehyde (2) with the reaction of biomass-derived syringaldehyde with 1,4-dichlorobut-2-yne (Figure 4).

2. Results

The biomass-derived syringaldehyde [17] was reacted with 0.5 equivalent of 1,4-dicholorobut-2-yne, using potassium carbonate as a base in dimethylformamide at room temperature for 72 h. While monitoring the reaction with TLC (silica gel; cyclohexane/ethyl acetate 7:3 by volume), only a single compound was noticed, and after 72 h, no further evolution of the reaction was observed. With no reference in hand, it was first believed that the observed TLC spot was for the desired compound 2. Nevertheless, after treatment, purification, and characterization, it appeared that the isolated compound was monoaldehyde 1 instead of the desired bis-aldehyde 2.
Compound 1 was identified by 1H and 13C-NMR spectroscopy. Specifically, two triplets were observed in 1H-NMR spectrum that accounted for the two -CH2- that were coupled together (5J = 2.0 Hz) through the triple bond. Multiplicities, coupling constants, and chemical shifts for the -O-CH2- and the -CH2-Cl parts of the molecule were consistent to those previously reported for similar 1-aryloxy-4-chlorobut-2-yne derivatives [18,19,20,21]. This further confirms the structure of 1. All other signals appear as singlet due to the symmetry of the aromatic part of the molecule (Figure 5 and Supplementary Materials).
The 13C-NMR spectrum exhibited 10 signals which agreed with the structure of compound 1. Finally, the recorded mass spectra of compound 1 fully agreed with the proposed structure since the molecular peak [M + Na]+ (m/z = 291.03818) as well as the isotopic distribution fit with the calculated spectrum (Supplementary Materials).

3. Discussion

The obtention of only 1 was quite unexpected, as several reports [22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37] describe the synthesis of diversely substituted 1,4-bisaryloxybut-2-ynes from the reaction of various phenols with 1,4-dichlorobut-2-yne in different basic media.
The problem is clearly not linked to the force of the base that is used (potassium carbonate). In fact, one equivalent of syringaldehyde was able to react, indicating that deprotonation was effective.
Since nucleophilic substitutions onto chloro- derivatives are generally slow, one experiment was carried out in refluxing DMF with the aim to increase reaction kinetics. After an hour of reaction, TLC indicated the complete consumption of syringaldehyde. However, in this case, an intractable mixture of compounds was obtained, and it was not possible to recover any product. Additionally, reacting syringaldehyde and 1,4-dichlorobut-2-yne in a one-to-one ratio (instead of 1:0.5) under the same conditions (room temperature, 72 h) afforded 1 at 21%. This further confirms the low reactivity under these conditions. Consequently, it is necessary to investigate other reaction conditions in order to obtain the desired compound 2.

4. Materials and Methods

All reagents were purchased from ACROS Organics (Geel, Belgium) and used as received. Anhydrous dimethylformamide (DMF) was obtained by drying HPLC grade DMF onto a solvent purification system PS-MD-5 (Innovative Technologies, Amesbury, MA, USA). Flash chromatography was carried out on a Combiflash Rf+ Lumen (Teledyne ISCO, Lincoln, NE, USA) using Redisep Rf silica column (Teledyne ISCO, Lincoln, NE, USA).1H and 13C-NMR spectra were recorded on a Bruker AC 400 (Bruker, Wissembourg, France) at 400 and 100 MHz, respectively, using CDCl3 as a solvent. The melting point was recorded with a Stuart SMP 10 melting point apparatus (Bibby Sterilin, Stone, UK) and was uncorrected. The infrared spectrum was recorded on a Bruker ALPHA II spectrometer (Bruker, Wissembourg, France) as KBr disc. HR-MS was recorded at Sayens SATT, Dijon, France.
1-(4-formyl-2,6-dimethoxyphenoxy)-4-chlorobut-2-yne (1): to a solution of syringaldehyde (1.458 g; 8.0 mmol) in anhydrous DMF (20 mL), potassium carbonate (1.216 g; 8.8 mmol) and 1,4-dichlorobut-2-yne (0.492 g; 4.0 mmol) were successively added. The reaction mixture was stirred at room temperature for 72 h and then poured onto water (200 mL). The pH of the solution was adjusted to 3 by the dropwise addition of 2M hydrochloric acid, and the aqueous layer was extracted with ethyl acetate (3 × 50 mL). Organic layers were combined, washed with brine (100 mL), dried over sodium sulphate, filtered, and concentrated under vacuo. The crude yellow product was purified by flash chromatography to obtain pure 1 as a white solid (0.280–0.340 g; 26%–32%). Mp = 103 °C. 1H-NMR (CDCl3, 400 MHz), δ (ppm): 9.90 (s, 1H), 7.15 (s, 2H), 7.87 (t, 2H, J = 2.0 Hz), 4.14 (t, 2H, J = 2.0 Hz), 3.96 (s, 6H). 13C-NMR (CDCl3, 100 MHz), δ (ppm): 191.0, 153.9, 140.7, 132.4, 106.4, 82.0, 81.7, 60.2, 56.3, 30.3. HR-MS: calc. for [C13H13ClO4 + Na]+ 291.03818, found 291.03946. IR (KBr disc): 2999, 2960, 1697, 1589 cm−1.

5. Conclusions

The reaction between 1,4-dichlorobut-2-yne and syringaldehyde only led to monoalkylation of the latter even though the reaction conditions were expected to produce a dialkylation product. Experiments are currently in progress to obtain the dialkylated compound. Results will be reported in due course.

Supplementary Materials

The following are available online: 1H and 13C-NMR (and raw data files) spectra, HR-MS analysis report, IR spectrum, purification chromatogram, and copies of laboratory notebook.

Funding

This research did not receive specific funding.

Data Availability Statement

The data from this study are available in this paper and in its Supplementary Materials.

Conflicts of Interest

The author declares no conflict of interest.

References

  1. Chai, Q.-Y.; Yang, Z.; Lin, H.-W.; Han, B.-N. Alkynyl-Containing Peptides of Marine Origin: A Review. Mar. Drugs 2016, 14, 216. [Google Scholar] [CrossRef] [PubMed]
  2. Tan, F.H.; Putoczki, T.L.; Stylli, S.S.; Luwor, R.B. Ponatinib: A novel multi-tyrosine kinase inhibitor against human malignancies. OncoTargets Ther. 2019, 12, 635–645. [Google Scholar] [CrossRef]
  3. Li, K.; Wong, N.K.; Strauss, M.J.; Evans, A.M.; Matsumoto, M.; Dichtel, W.R.; Adronov, A. Postsynthetic Modification of a Covalent Organic Framework Achieved via Strain-Promoted Cycloaddition. J. Am. Chem. Soc. 2021, 143, 649–656. [Google Scholar] [CrossRef] [PubMed]
  4. Schrettl, S.; Contal, E.; Hoheisel, T.N.; Fritzsche, M.; Balog, S.; Szilluweit, R.; Frauenrath, H. Facile synthesis of oligoyne amphiphiles and their rotaxanes. Chem. Sci. 2015, 6, 564–574. [Google Scholar] [CrossRef]
  5. Alabugin, I.V.; Gonzalez-Rodriguez, E.; Kawade, R.K.; Stepanov, A.A.; Vasilevsky, S.F. Alkyne as Synthetic Equivalents of Ketones and Aldehydes: A Hidden Entry into Carbonyl Chemistry. Molecules 2019, 24, 1036. [Google Scholar] [CrossRef]
  6. Matsuda, I.; Ogiso, A.; Sato, S.; Izumi, Y. An Efficient Silylformylation of Alkynes Catalyzed by Rh4(CO)12. J. Am. Chem. Soc. 1989, 111, 2332–2333. [Google Scholar] [CrossRef]
  7. Lei, Y.-R.; Liang, J.-Y.; Wang, Y.-J.; Chen, Z. Preparation of vincinal hetero 1,2-dihalo-olefins by using aqueous hydrohalic acid. Tetrahedron Lett. 2021, 70, 152968. [Google Scholar] [CrossRef]
  8. Zhao, M.; Liu, J.-L.; Liu, H.-F.; Chen, J.; Zhou, L. Construction of Bisbenzopyrone via N-Heterocyclic Carbene Catalyzed Intramolecular Hydroacylation-Stetter Reaction Cascade. Org. Lett. 2018, 20, 2676–2679. [Google Scholar] [CrossRef]
  9. Pribut, N.; Veale, C.G.; Basson, A.E.; van Otterlo, W.A.L.; Pelly, S.C. Application of the Huisgen cycloaddition and ‘click’ reaction toward various 1,2,3-triazoles as HIV non-nucleoside reverse transcriptase inhibitors. Bioorg. Med. Chem. Lett. 2016, 26, 3700–3704. [Google Scholar] [CrossRef]
  10. Ma, J.; Ding, S. Transition Metal-Catalyzed Cycloaddition of Azides with Internal Alkynes. Asian J. Org. Chem. 2020, 9, 1872–1888. [Google Scholar] [CrossRef]
  11. Lutz, J.F. 1,3-Dipolar Cycloadditions of Azides and Alkynes: A Universal Ligation Tool in Polymer and Materials Science. Angew. Chem. Int. Ed. 2007, 46, 1018–1025. [Google Scholar] [CrossRef] [PubMed]
  12. Fantoni, N.Z.; El-Sagheer, A.H.; Brown, T. A Hitchhiker’s Guide to Click-Chemistry with Nucleic Acids. Chem. Rev. 2021, 121, 7122–7154. [Google Scholar] [CrossRef] [PubMed]
  13. Mohamed, A.S.; Jourdain, I.; Knorr, M.; Boullanger, S.; Brieger, L.; Strohmann, C. Heterodinuclear Diphosphane-Bridged Iron-Platinum Diyne Complexes as Metalloligands for the Assembly of Polymetallic Systems (Fe, Pt, Co). J. Clust. Sci. 2019, 30, 1211–1225. [Google Scholar] [CrossRef]
  14. Jourdain, I.; Knorr, M.; Strohmann, C.; Unkelbach, C.; Rojo, S.; Gomez-Iglesias, P.; Villafane, F. Reactivity of Silyl-Substituted Iron−Platinum Hydride Complexes toward Unsaturated Molecules: 4. Insertion of Fluorinated Aromatic Alkynes into the Platinum−Hydride Bond. Synthesis and Reactivity of Heterobimetallic Dimetallacylopentenone, Dimetallacyclobutene, μ-Vinylidene, and μ2-σ-Alkenyl Complexes. Organometallics 2013, 32, 5343–5359. [Google Scholar]
  15. Wong, Y.-S.; Ng, M.; Yeung, M.C.-L.; Yam, V.W.-W. Platinum(II)-Based Host-Guest Coordination-Driven Supramolecular Co-Assembly Assisted by Pt•••Pt and π−π Stacking Interactions: A Dual-Selective Luminescence Sensor for Cations and Anions. J. Am. Chem. Soc. 2021, 143, 973–982. [Google Scholar] [CrossRef] [PubMed]
  16. Pinto, A.; Spigolon, G.; Gavara, R.; Zonta, C.; Licini, G.; Rodriguez, L. Tripodal gold(I) polypyridyl complexes and their Cu+ and Zn2+ heterometallic derivatives. Effects on luminescence. Dalton Trans. 2020, 49, 14613–14625. [Google Scholar] [CrossRef]
  17. Ibrahim, M.N.M.; Sriprasanthi, R.B.; Shamsudeen, S.; Adam, F.; Bhawani, S.A. A Concise Review of the Natural Existence, Synthesis, Properties, and Applications of Syringaldehyde. BioResources 2012, 7, 4377–4399. [Google Scholar]
  18. Hillard, J.; Reddy, K.V.; Majumbar, K.C.; Thyagarajan, B.S. A New Synthesis of 2,3-Disubstituted Indoles. J. Heterocycl. Chem. 1974, 11, 369–375. [Google Scholar] [CrossRef]
  19. Arnone, A.; Cardillo, R.; Nasini, G.; Vajna de Pava, O. Two Cinnamic Allenic Ethers from the Fungus Clitocybe Eucalyptorum. Phytochemistry 1993, 32, 1279–1281. [Google Scholar] [CrossRef]
  20. Canceill, J.; Collet, A.; Gottarelli, G.; Palmieri, P. Synthesis and Exciton Optical Activity of D3-Cryptophanes. J. Am. Chem. Soc. 1987, 109, 6454–6464. [Google Scholar] [CrossRef]
  21. Padial, N.M.; Hernandez-Cervantes, C.; Munoz-Bascon, J.; Roldan-Molina, E.; Garcia-Martinez, M.; Ruiz-Muelle, A.B.; Rosales, A.; Alvarez-Corral, M.; Munoz-Dorado, M.; Rodriguez-Garcia, I.; et al. Ti-Catalyzed Synthesis of Exocyclic Allenes on Oxygen Heterocycles. Eur. J. Org. Chem. 2017, 7, 639–645. [Google Scholar] [CrossRef]
  22. Michaux, J.; Poirot, R.; Einhorn, J.; Bessières, B. Co(I) catalyzed yne-ene-yne [2+2+2] cycloaddition: Synthesis of highly strained pentacyclic bis-lactones. A new access to tetraaryl N-hydroxyphtalimides. Tetrahedron Lett. 2014, 55, 2849–2852. [Google Scholar] [CrossRef]
  23. Yusuf, M.; Samdhian, V.; Jain, P. Synthesis, Characterization, and Antimicrobial Studies of New Rigid Linker-Based Bispyrazolines. J. Heterocycl. Chem. 2015, 52, 260–266. [Google Scholar] [CrossRef]
  24. Yusuf, M.; Manpreet, K.; Jain, P. Synthesis and Antimicrobial Evaluations of 1,3,4-Thiadiazoline-based Bisheterocyclics. J. Heterocycl. Chem. 2015, 52, 692–700. [Google Scholar] [CrossRef]
  25. Kiehlmann, E.; Li, E.P.-M.; Millar, J.G. The Claisen rearrangement of 1,4-bis(m-methoxyphenoxy-)2-butyne. Can. J. Chem. 1986, 64, 1989–1997. [Google Scholar] [CrossRef]
  26. Toda, F.; Nakagawa, M. Cyclic Acetylenes. V. Syntheses and Properties of Strained Cyclic Ethers of o,o’-Dihydroxydiphenyldiacetylene. Bull. Chem. Soc. Jpn. 1961, 34, 862–874. [Google Scholar] [CrossRef]
  27. Yusuf, M.; Solanki, I.; Jain, P. Synthesis and antimicrobial studies of new N,N′-[5,5′-{2,2′-(bis-alkoxy)bis(2,1-phenylene)]bis(4-acetyl-4,5-dihydro-1,3,4-thiadiazole-5,2-diyl)]diacetamide. J. Chem. Sci. 2012, 124, 703–715. [Google Scholar] [CrossRef]
  28. Yusuf, M.; Saloni, T. Multicomponent synthesis of new bis(pyranopyrazoles) and their antimicrobial-antioxidant evaluations. J. Serb. Chem. Soc. 2019, 84, 119–128. [Google Scholar] [CrossRef]
  29. Yusuf, M.; Saloni, T. Bis(4,5-dihydropyrazole) Derivatives: Synthesis, Characterization and Antimicrobial-Antioxidant Evaluations. Asian J. Chem. 2018, 30, 2097–2102. [Google Scholar] [CrossRef]
  30. Naidu, B.N.; Wang, T.; Peese, K.; Yin, Z.; Zhang, Z.; Kadow, J.F.; Patel, M. Pyrazolopyrimidine Macrocycles as Inhibitors of Human Immunodeficiency Virus Replication. U.S. Patent WO2015126743, 20 August 2015. [Google Scholar]
  31. Behm, R.; Gloeckner, C.; Grayson, M.A.; Gross, M.L.; Gokel, G.W. Pyxophanes: Selective gas phase ion complexation by 1,6,13,18-tetraoxa[6.6]paracyclophane-3,15-diyne. Chem. Commun. 2000, 23, 2377–2378. [Google Scholar] [CrossRef]
  32. Eid, C.N.; Knobler, C.B.; Gronbeck, D.A.; Cram, D.J. Binding Properties of Two New Hemicarcerands Whose Hemicarceplexes Undergo Chemical Reactions without Guest Release. J. Am. Chem. Soc. 1994, 116, 8506–8515. [Google Scholar] [CrossRef]
  33. Lustenberger, P.; Martinborough, E.; Mordasini Denti, T.; Diederich, F. Geometrical optimization of 1,1′-binaphtalene receptors for enantioselective molecular recognition of excitatory amino acid derivatives. J. Chem. Soc. Perkin Trans. 1998, 4, 747–761. [Google Scholar] [CrossRef]
  34. Canceill, J.; Collet, A. Two-step Synthesis of D3 and C3h Cryptophanes. J. Chem. Soc. Chem. Commun. 1988, 9, 582–584. [Google Scholar] [CrossRef]
  35. Thyagarajan, B.S.; Balasubramanian, K.K.; Bhima Rao, R. Studies in Claisen Rearrangement-II 2-Butyn-1,4-diyl Bis-(aryl ethers). Tetrahedron 1965, 21, 2289–2295. [Google Scholar] [CrossRef]
  36. Davis, A.C.; Hunter, R.F. Polymerisation of Acetylene Derivatives. III. Polymerization of a Dimer of 4-Penten-2-yn-1-ol and Attempted Polymerisation and Copolymerisation with Styrene of 1:1:3:3:6-Pentamethyl-4-isopropenylisocoumaran, 1:4-Di-p-chlorophenoxy-2-butyne, and 2-Methyl-2-isopropenyl-4-methyloldioxolan. J. Appl. Chem. 1959, 9, 660–664. [Google Scholar]
  37. Rudorf, W.-D.; Janietz, D. Intramolekulare 1,3-dipolare Cycloadditionen von Arylaziden mit Alkinylsubstituenten. J. Prakt. Chem. 1987, 1, 55–61. [Google Scholar] [CrossRef]

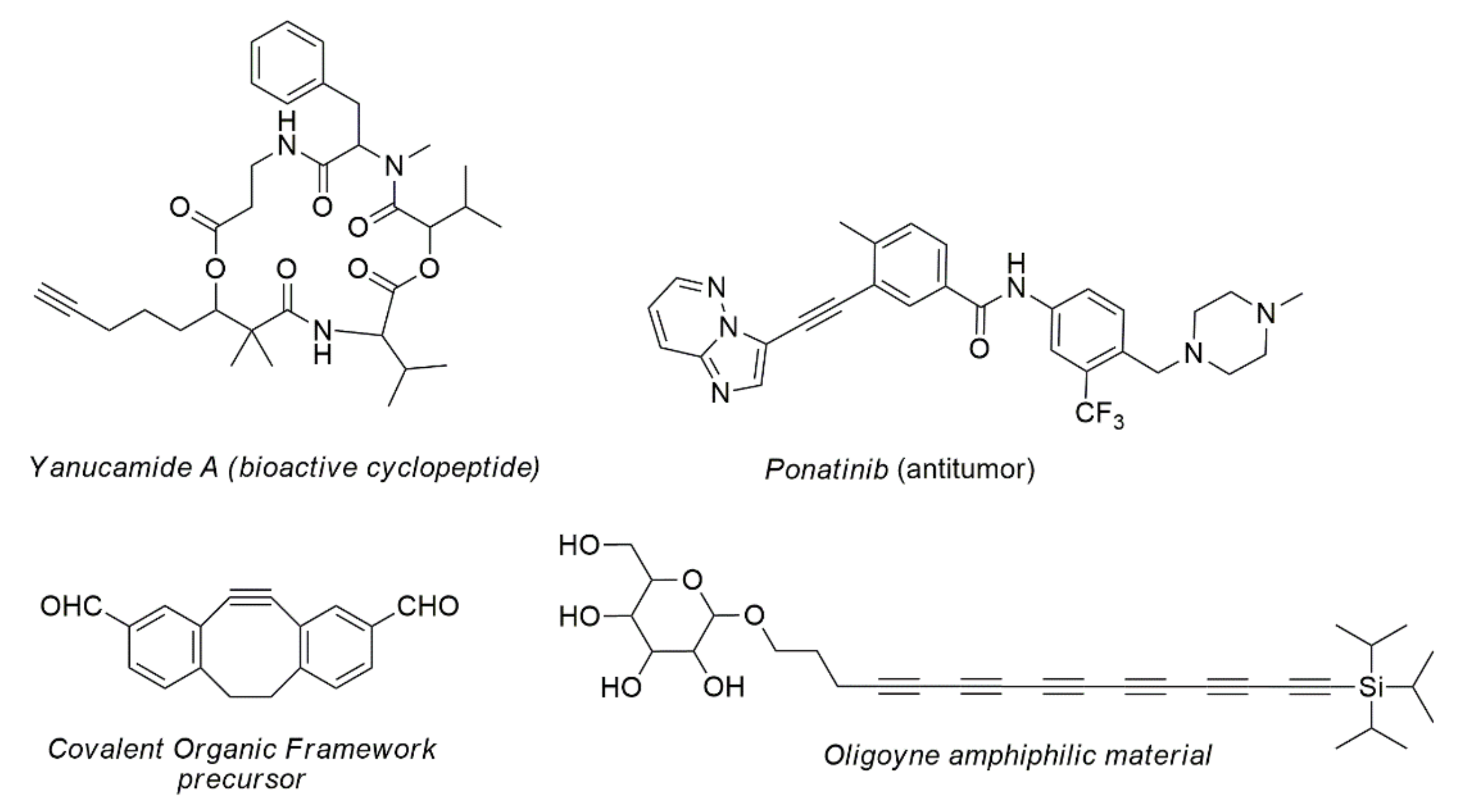

Figure 1. Selected examples of alkyne-containing molecules used as drugs or in material chemistry.
Figure 1. Selected examples of alkyne-containing molecules used as drugs or in material chemistry.
Molbank 2021 m1252 g001
Figure 2. Selected examples of chemicals that were prepared through transformation of a carbon-carbon triple bond.
Figure 2. Selected examples of chemicals that were prepared through transformation of a carbon-carbon triple bond.
Molbank 2021 m1252 g002

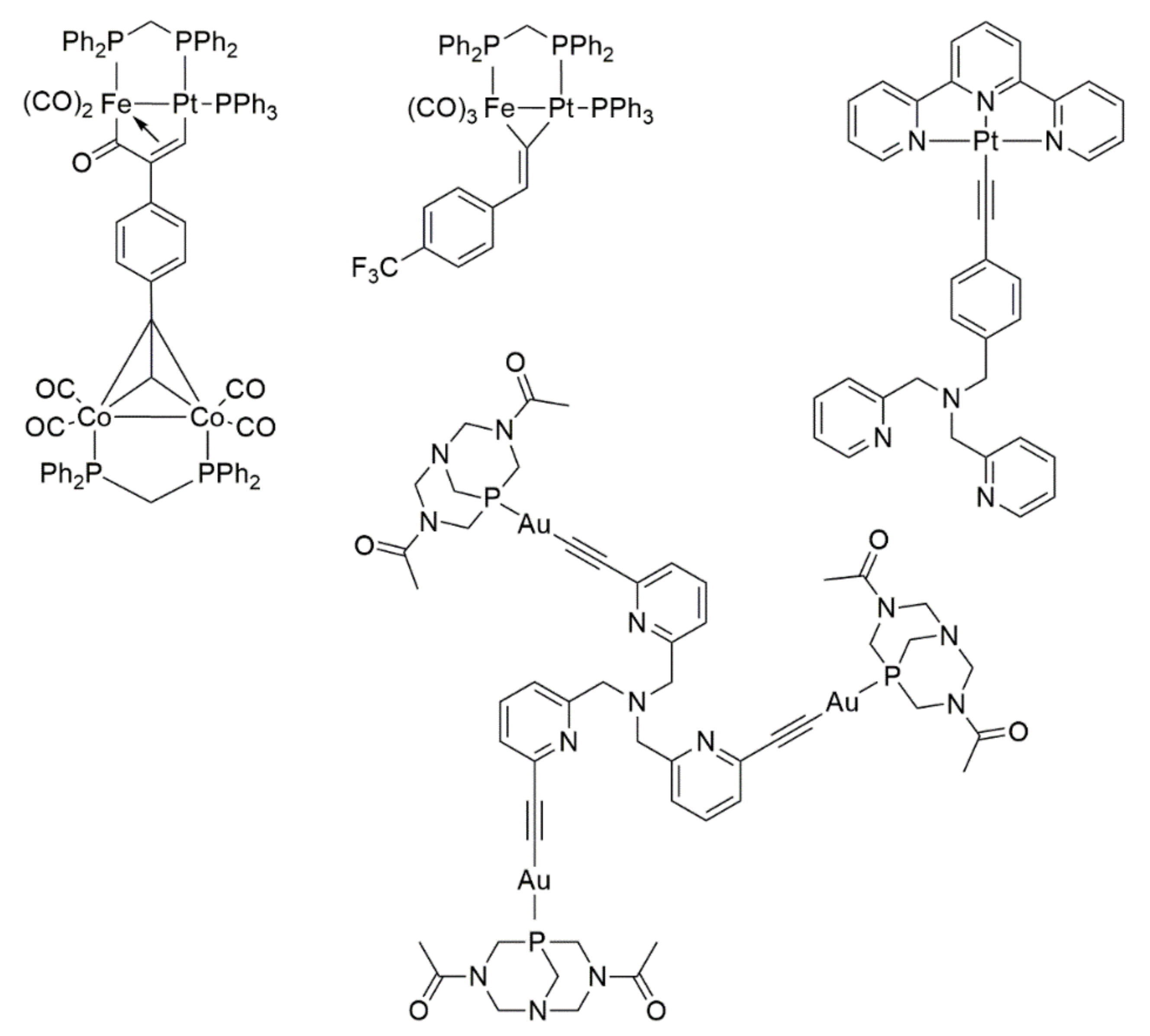

Figure 3. Selected examples [13,14,15,16] of coordination compounds obtained from alkyne-containing molecules.
Figure 3. Selected examples [13,14,15,16] of coordination compounds obtained from alkyne-containing molecules.
Molbank 2021 m1252 g003

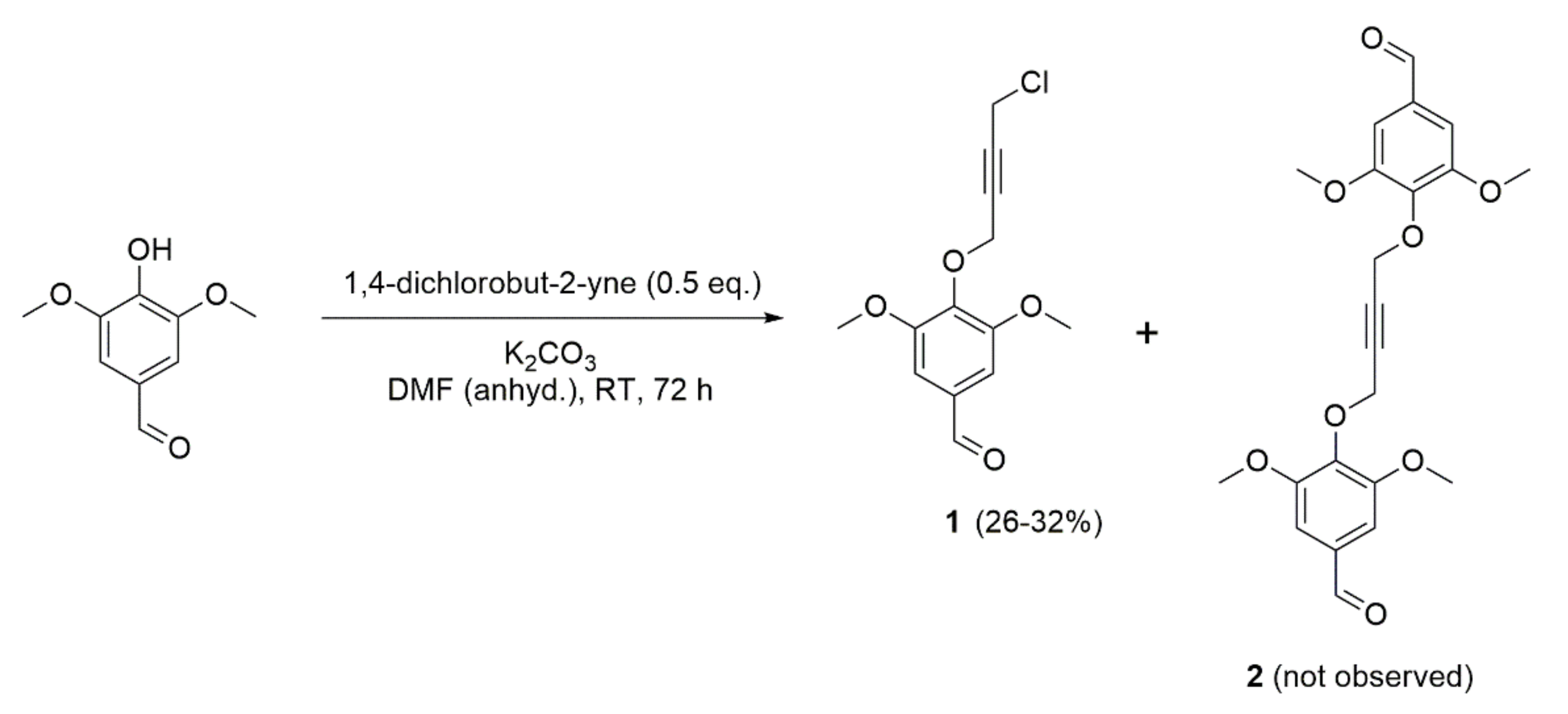

Figure 4. Synthetic scheme for the preparation of 1-(4-formyl-2,6-dimethoxyphenoxy)-4-chlorobut-2-yne.
Figure 4. Synthetic scheme for the preparation of 1-(4-formyl-2,6-dimethoxyphenoxy)-4-chlorobut-2-yne.
Molbank 2021 m1252 g004

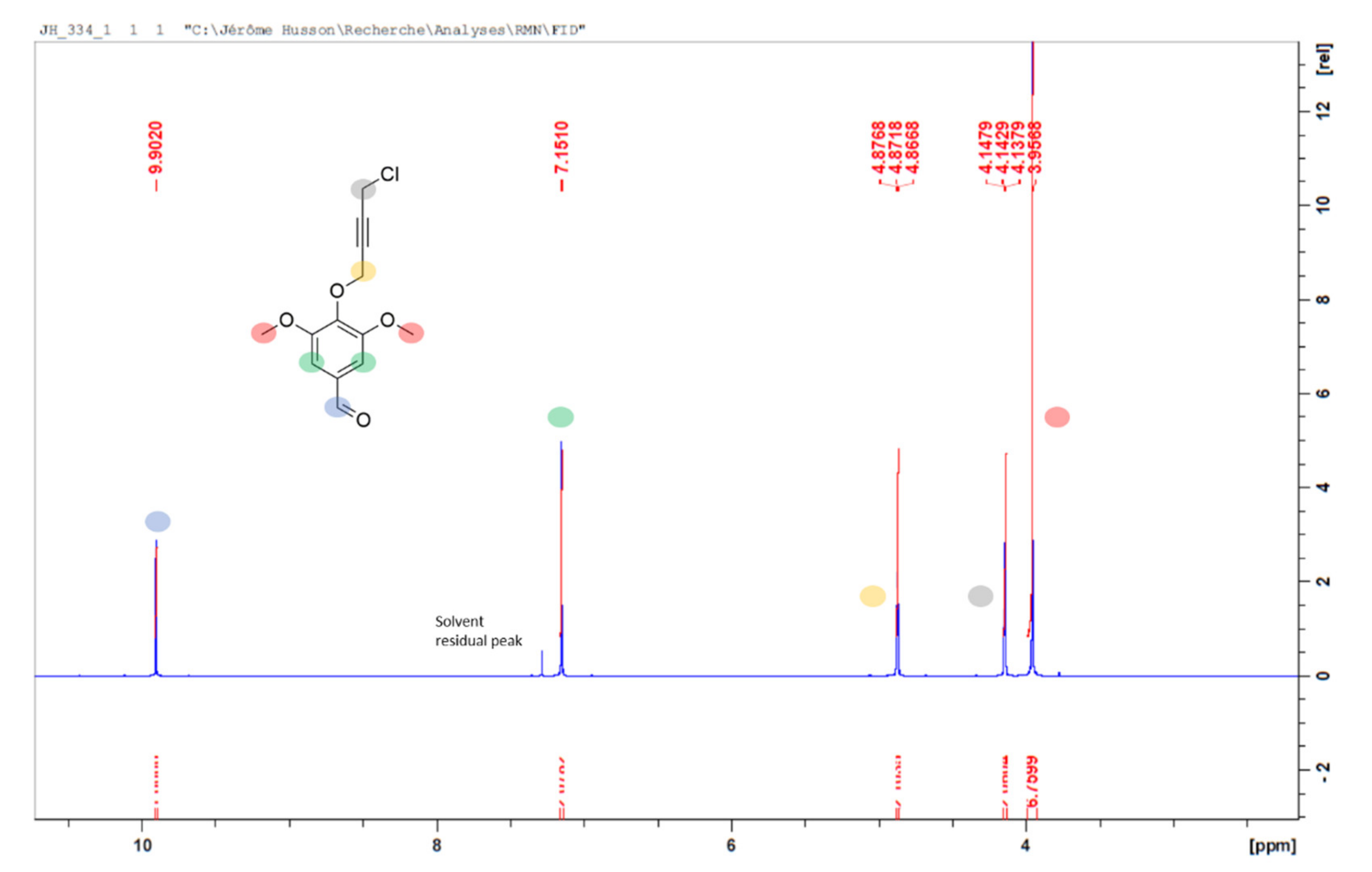

Figure 5. 1H-NMR spectrum of compound 1.
