6,6′-{[Ethane-1,2-diylbis(azaneylylidene)]bis(methaneylylidene)}bis[2-(hexyloxy)phenolato] Nickel(II)
Previous Article in Journal
Editorial: Special Issue “Molecules from Side Reactions”
Open AccessCommunication

Synthesis of 3-Trifluoromethyl-5,6-dihydro-[1,2,4]triazolo Pyrazine Derivatives and Their Anti-Cancer Studies

1
Department of Chemistry, School of Engineering and Technology, Jain Global Campus, Jain University, Ramanagara 562112, India
2
Department of Biotechnology, Teresian Research Foundation, University of Mysore, Mysore 570005, India
*
Author to whom correspondence should be addressed.
Molbank 2020, 2020(4), M1173; https://doi.org/10.3390/M1173
Received: 7 November 2020 / Revised: 25 November 2020 / Accepted: 27 November 2020 / Published: 2 December 2020
(This article belongs to the Section Organic Synthesis)

Abstract

The synthesis of a wide variety of 3-trifluoromethyl-5,6-dihydro-[1,2,4]triazolo pyrazine derivatives, by the treatment of 3-trifluoromethyl-5,6,7,8-tetrahydro-[1,2,4]triazolo[4,3-α]pyrazine hydrochloride with an array of isocyanates in the presence of triethylamine, is reported. All the target compounds were synthesized in excellent yields under mild reaction conditions. The target molecules were effectively screened for their anti-cancer properties and the results are promising. The resultant compounds were assessed for their antiproliferative action against two human colon cancer cell lines (HCT-116 and HT-29 colon cancer cell lines). The IC50 range was estimated at 6.587 to 11.10 µM showing that compound RB7 had remarkable anticancer movement on HT-29. Additionally, it was discovered that RB7 incited the mitochondrial apoptotic pathway by up-regulating Bax and down-regulating Bcl2, eventually leading to the activation of Caspase 3 in HT-29 cells and initiation of cell death via the mitochondrial apoptotic pathway.
Keywords: pyrazine derivatives; isocyanates; anti-cancer studies; HT-29 colon cancer cell lines pyrazine derivatives; isocyanates; anti-cancer studies; HT-29 colon cancer cell lines

1. Introduction

Cancer is a leading cause of death worldwide, it is therefore urgent for medical researchers to discover efficient drugs for this disease [1]. Pyrazines, an important class of six-membered nitrogen-based heterocycles, are well known for their utility in rational drug design [2]. Ligands encompassing a pyrazine ring have been well studied and their p-donor properties have shown to be promising [3]. Pyrazine has generated great attention due to the diazine rings which form an elegant class of molecular entities, widely occurring in natural and synthetic compounds [4]. This novel unit is found in a wide variety of promising drugs pertaining to diversified therapeutic applications, namely in antidepressant [5], antipsychotic [6], antihistamine [7], anti-fungal [8], anticancer [9], antioxidant [10], and anti-inflammatory [11], etc. drugs. Structural modification with respect to substitution patterns towards the pyrazine moiety, leads to appreciable differences in the bio-active properties towards the target molecules. Therefore, continuous efforts have been undertaken to synthesize a diverse class of pyrazine derivatives which are hoped to be useful in the fight against cancer cells [12]. It is important to mention here that uncontrolled cancer cells can spread and invade different parts of the body through the blood vessels or lymphatic framework. The body is comprised of numerous sorts of cells which are important units of life and these cells develop and isolate in a limited manner to keep the body functioning normally. Tumor growth is a major clinical issue globally and it is one of the primary reasons for mortality. Commonly occurring compounds are routinely used for anticancer medication in human cancer growth [13]. Pyrazine derivatives are known for their significant action against various human tumors. Through tubulin polymerization, the anticancer action of various subordinates of pyrazine has been accounted for in the previous report. Since various derivatives of pyrazine molecules are well reported for their anti-cancer properties, we envisioned that 3-trifluoromethyl-5,6-dihydro-[1,2,4]triazolo pyrazine derivatives (RB1-9) may exhibit interesting bio-active properties. In the literature, we could not find any report for the utilization of pyrazine derivatives (RB1-9) towards anti-cancer studies, which enthralled us to screen them for up-regulation of BAX and down-regulation of Bcl2 in HT-29 colon cancer cell lines.

2. Results and Discussion

2.1. Chemical Section

Though various reports are available in the literature for the synthesis of pyrazine derivatives (RB), there is no method available to access them under mild reaction conditions with an excellent yield, which inspired us to focus our efforts in this direction. In order to execute our idea, we have treated 3-trifluoromethyl-5,6,7,8-tetrahydro-[1,2,4]triazolo[4,3-α]pyrazine hydrochloride with 1-chloromethyl-4-iso-cyanato benzene under the catalytic influence of Et3N in DCM at room temperature, over a period of 5 h. This produced the anticipated product in a 92% yield (Scheme 1). The structure of the molecule was confirmed by 1H-NMR, IR, and LCMS analyses. Encouraged by this result, we treated a wide variety of isocyanates derivatives under the aforementioned condition, smoothly affording the desired compounds RB1 to RB9 in excellent yields. It is important to mention here, that all the target molecules were synthesized under mild reaction conditions with excellent reaction conversions, which is very interesting. The results are summarized in Figure 1.
All reactions were carried out using 1 mmoL of 3-trifluoromethyl-5,6,7,8-tetrahydro-[1,2,4]triazolo[4,3-α]pyrazine hydrochloride with isocyanates (1.2 mmoL) and triethylamine (1.5 mmoL) in DCM (10 mL) at RT for 5 h.

2.2. General Procedure for the Synthesis of Pyrazine Derivatives (RB1–RB9)

Triethylamine (1.5 mmol) was added to a suspension of 3-trifluoromethyl-5,6,7,8-tetrahydro-[1,2,4]triazolo[4,3-α]pyrazine hydrochloride (1 mmol) in DCM (dichloro methane) (10 mL) in RT (retention time), followed by the addition of isocyanates (1.2 mmol). The reaction mixture was stirred at room temperature for 5 h and the progress of the reaction was monitored by TLC (Thin layer chromatography). Upon completion of the reaction, the solvent was removed under reduced pressure and the residue obtained was added to water and extracted with ethyl acetate. The organic layer was washed with a brine solution and dried over anhydrous Na2SO4. The solvent was evaporated and the crude product was purified by column chromatography over silica gel using chloroform: methanol (9:1) as an eluent to afford the anticipated products (RB1–RB9) (Supplementary Materials).
N-[4-(chloromethyl)phenyl]-3-(trifluromethyl)-5,6-dihydro-[1,2,4]triazolo[4,3-α]pyrazine-7(8H)-carboxamide (RB1): (92%, off-white solid), m.p 178.8–183.6 °C 1H-NMR (CDCL3, 400 MHz) δ: 4.00 (t, 2H, J = 5.6 Hz), 4.21 (t, 2H, J = 5.2 Hz), 4.46 (d, 2H, J = 5.6 Hz),4.88 (s, 2H), 5.66 (d, 1H, J = 4.8 Hz), 7.28–7.32 (m,4H). LCMS for C14H13ClF3N5O (ESI + ion): m/z = 360 [M + H]+. IR (KBr, cm−1): 3356.2, 1736, 1621, 1041.
N-[3-methyl-(1,11-biphenyl)-4-yl]-3-(trifluromethyl)-5,6-dihydro-[1,2,4]triazolo[4,3-α]pyrazine-7(8H)-carboxamide (RB2): (95%, off-white-solid), 188.6–205.9 °C, 1H-NMR (CDCl3, 400 MHz) δ: 4.07 (t, 2H, J = 5.6 Hz), 4.27 (t, 2H, J = 5.6 Hz), 5.02 (s, 2H), 6.90–7.58 (m, 10H). LCMS for C19H16F3N5O MS (ESI + ion): m/z = 388 [M + H]+. IR (KBr, cm−1): 3429, 3030, 1654, 1283, 1078, 981.
N-(2-fluoro-5-methylphenyl)-3-(trifluromethyl)-5,6-dihydro-[1,2,4]triazolo[4,3-α]pyrazine-7(8H)-carboxamide (RB3): (90%, off-white-solid), 196.7–201.7 °C, 1H-NMR (CDCl3, 400 MHz) δ: 2.32 (s, 3H), 4.05 (t, 2H, J = 6 Hz), 4.27 (t, 2H, J = 4.8 Hz), 4.99 (s, 2H), 6.78–7.76 (m, 4H) LCMS for C14H13F4N5O MS (ESI + ion): m/z = 344 [M + H]+. IR (KBr, cm−1): 3240, 2926, 1638, 1498, 1042, 939, 871.
N-(3-methylbenzene)-3-(trifluromethyl)-5,6-dihydro-[1,2,4]triazolo[4,3-α]pyrazine-7(8H)-carboxamide (RB4): (87%, white-solid), 178.3, 185.1 °C, 1H-NMR (CDCl3, 400 MHz) δ: 2.35 (d, 2H, J = 8 Hz), 3.99 (t, 2H, J = 6.8 Hz), 4.20 (t, 2H, J = 6.8 Hz), 4.43(d, 2H, J = 7.2 Hz), 4.84 (s, 2H), 5.22 (s, 1H), 7.11–7.28 (m, 3H). LCMS for C15H16F3N5O MS (ESI + ion): m/z = 341 [M + H]+. IR (KBr, cm−1): 3354, 2919, 1629, 1535, 1498, 1138, 1011, 947.
N-(2-methoxyphenyl)-3-(trifluromethyl)-5,6-dihydro-[1,2,4]triazolo[4,3-α]pyrazine-7(8H)-carboxamide (RB5): (90%, white-solid), 142.4, 149.9 °C, 1H-NMR (CDCl3, 400 MHz) δ: 2.43 (s, 3H), 4.09 (t, 2H, J = 5.6 Hz), 4.29 (t, 2H, J = 5.2 Hz), 5.06 (s, 2H), 7.06–8.11 (m, 5H). LCMS for C14H14F3N5O2 MS (ESI + ion): m/z = 342 [M + H]+. IR (KBr, cm−1): 3309, 2962, 1662, 1600, 1389, 1012, 939, 747.
N-(2-isopropylyphenyl)-3-(trifluromethyl)-5,6-dihydro-[1,2,4]triazolo[4,3-α]pyrazine-7(8H)-carboxamide (RB6): (95%, Off-white-solid), 168.1–172.9 °C. 1H-NMR (CDCl3, 400 MHz) δ: 1.26 (d, 6H, J = 6.8 Hz), 3.05 (t, 1H, J = 6.8 Hz), 4.02 (t, 2H, J = 5.6 Hz), 4.23 (t, 3H, J = 5.2 Hz), 4.92 (s, 2H), 6.44–7.42 (m, 5H). LCMS for C16H18F3N5O MS (ESI + ion): m/z = 355 [M + H]+. IR (KBr, cm−1): 3290, 2958, 1636, 1521, 1389, 1246, 1122, 1032, 940.
N-(2-fluoro-4-trifluoromethylphenyl-3-(trifluromethyl)-5,6-dihydro-[1,2,4]triazolo[4,3-α]pyrazine-7(8H)-carboxamide (RB7): (88%, off-white-solid), 171.4–176.4 °C, 1H-NMR (CDCl3, 400 MHz) δ: 4.10 (t, 2H, J = 7.6 Hz), 4.31 (t, 2H, J = 6.8 Hz), 5.04 (d, 2H, J = 12 Hz), 6.94–8.41 (m, 4H). LCMS for C14H10Cl2F7N5O MS (ESI + ion): m/z = 398 [M + H]+. IR (KBr, cm−1): 3342, 646, 1501, 1335, 1277, 1121, 1014, 894.
N-(benzyl)-3-(trifluromethyl)-5,6-dihydro-[1,2,4]triazolo[4,3-α]pyrazine7(8H)-carboxamide (RB8): (96%, white-solid), 194.4–199.3 °C. 1H-NMR (CDCl3, 400 MHz) δ: 3.99 (t, 2H, J = 5.6 Hz), 4.20 (t, 2H, J = 5.2 Hz), 4.48 (d, 2H, J = 5.6 Hz), 5.39 (s, 1H), 7.28–7.36 (m, 5H). LCMS for C14H14F3N5O MS (ESI + ion): m/z = 326 [M + H]+. IR (KBr, cm−1): 3325, 2924, 1626, 1543, 1280, 1046, 938.
N-[2-(methylthio)phenyl]-3-(trifluromethyl)-5,6-dihydro-[1,2,4]triazolo[4,3-α]pyrazine7(8H)carboxamide (RB9): (94%, off-white-solid), 191.9–197.3 °C. 1H-NMR (CDCl3, 400 MHz) δ: 2.41 (d, 3H, J = 10.8 Hz), 4.08 (t, 2H, J = 7.6 Hz), 4.29 (t, 2H, J = 6.8 Hz), 5.04 (s, 2H), 7.05–8.10 (m, 5H) LCMS for C14H14F3N5O5 MS (ESI + ion): m/z = 358 [M + H]+. IR (KBr, cm−1): 3299, 2930, 1644, 1398, 1039, 943.

2.3. Biological Studies

The cytotoxic examination and acridine orange and ethidium bromide assay
By MTT assay, resultant compounds were examined for in vitro cytotoxic action in human colon cancer cell lines such as HT-29 and HCT-116. Reduced forms of formazan crystals were obtained from MTT—a tetrazolium salt. The viability of cells was directly measured by the intensity of the formation of formazan. The IC50 estimation of 8.18 µM concentration reveals that the R7 compound shows antitumor activity (Table 1 and Figure 2a,b). Acridine orange is a vital dye that recolors live, as well as dead cells. A given sample treated with cells in various concentrations showed a remarkable growth in apoptosis. The report revealed that samples with cell membrane injury were caused due to early apoptosis at 8.18 µM treatment (Figure 2c).

2.4. Up-Regulation of BAX and Down-Regulation of Bcl2 in HT-29 Cell Lines

The apoptosis process is a quick and irreversible procedure to effectively dispense with inadequate cells. The evasion of apoptosis by threatening cells is a sign of malignant growth. For malignant growth advancement, apoptosis can be viewed as a significant obstruction, maintaining a strategic distance from apoptosis is essential to tumor improvement and protection from treatment. The inborn apoptotic pathway is controlled and managed by the Bcl2 family proteins [14]. The Bcl2 family proteins are known to be significant watchmen of apoptotic reactions. The commencement of apoptosis was observed to rely on the harmony between a professional apoptotic and hostility to an apoptotic protein that intercedes cell death and development.
In numerous malignant growth types, the anti-apoptotic protein Bcl2 may assume an important role. The over articulation of Bcl2 in numerous malignant growths may restrain the prop-apoptotic signals which permit cancer cells to undergo death. The counter apoptotic Bcl2 forestalls apoptosis either by forestalling the arrival of mitochondrial apoptosome factors, for example, cytochrome c and Apaf1 into the cytoplasm or by sequestering preforms of death-driving cysteine proteases called caspases. Cells become delicate to apoptosis when the degree of apoptotic protein BAX is up-regulated. An elevated level of master apoptosis protein Bax sharpens the cells for apoptosis. The pro-apoptotic protein Bax triggers the initiation of caspase 3 by inciting the arrival of mitochondrial cytochrome C and AIF into the cytoplasm by means of changes in the pores, subsequently prompting caspase 3 activation [15]. In the current investigation, d1 inhibited the activation of Bc1-2 mRNA articulation and expanded the up-regulation of Bax. After the successful synthesis of pyrazine derivatives (RB1–9), we utilized them for anti-cancer studies. Results revealed that d1 expanded Bax transcripts and hindered Bcl2 transcripts in HT-29 cells (Figure 3) and revealed a logical increment in caspase 3 inception when contrasted with controls (Figure 3), proposing that d1 causes cell death through a mitochondrial apoptotic pathway.
The apoptosis process is a quick and irreversible procedure to effectively dispense with inadequate cells. The evasion of apoptosis by threatening cells is a sign of malignant growth. For malignant growth advancement, apoptosis can be viewed as a significant obstruction, and maintaining a strategic distance from apoptosis is essential to tumor improvement and protection from treatment. The inborn apoptotic pathway is controlled and managed by the Bc1-2 family proteins [14]. The Bc1-2 family proteins are known to be significant watchmen of the apoptotic reaction. It was observed that the commencement of apoptosis relies upon the harmony between a professional apoptotic and hostility to the apoptotic protein that intercedes cell death and development.
In numerous malignant growth types, the anti-apoptotic protein Bcl2 may assume an important role. The over articulation of Bcl2 in numerous malignant growths may restrain the pro-apoptotic signals which permit cancer cells to undergo death. The counter apoptotic Bcl2 forestalls apoptosis, either by forestalling the arrival of mitochondrial apoptosome factors, for example, cytochrome c and Apaf1 into the cytoplasm or by sequestering preforms of death-driving cysteine proteases called caspases. Cells become delicate to apoptosis when the degree of genius apoptotic protein BAX is up-regulated. An elevated level of master apoptosis protein Bax sharpens the cells for apoptosis. The pro-apoptotic protein Bax triggers the initiation of caspase 3 by inciting the arrival of mitochondrial cytochrome C and AIF into the cytoplasm by means of changes in the pores, subsequently prompting caspase 3 activation [15]. In the current investigation, d1 inhibits the activation of Bc12 mRNA articulation and expanded the up-regulation of Bax. After the successful synthesis of pyrazine derivatives (RB1-9), we utilized them for anti-cancer studies. The results revealed that d1 expanded Bax transcripts and hindered Bcl2 transcripts in HT-29 cells (Figure 3) and revealed a logical increment in caspase 3 inception when contrasted with the control (Figure 3), proposing that d1 causes cell death through a mitochondrial apoptotic pathway.

3. Materials and Methods

3.1. Chemicals and Cell Lines

We purchased MTT [3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl tetrazolium bromide] from Sigma Chemicals. We obtained human HT-29 development cell lines—HT-29 and HCT-116 from the National Centre for Cell Science, Pune, India. Cells developed in an ideal media magnified with 10% warmth inactivated fetal bovine serum (FBS), 100 μg of streptomycin/mL, 100 U/mL of penicillin, and were incubated in humidified environment with 5% CO2 at 37 °C.

3.2. Statistical Analysis

Statistical analysis was accomplished by one-way and one-way ANOVA conveyed by Bonferroni’s multiple comparison test. This was used to examine the correlation p < 0.05 and was used to signify statistical significance when computing the IC50 of all the compounds. Data were analyzed utilizing Graph Pad Prism 5.0 software.

3.3. MTT Cell Viability Assay

Cytotoxic activity of chalcones was examined by applying the MTT assay [16]. In 100 µL DMEM 1 × 104 cells/well had seeded. A total of 10% FBS (fetal bovine serum) was magnified in all wells of a 96-well micro culture plate and incubated at 37 °C in CO2, followed by 48 h of incubation. A total of 10 µL MTT [3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl tetrazolium bromide] (5 mg mL−1) was added to all wells, and the plates further incubated for 4 h. From the supernatant of each well in 100 µL of DMSO, the crystals of formazan were taken up and absorbance was recorded at 540 nm.

3.4. Acridine Orange/Ethidium Bromide Staining

Through the AO/EB (acridine orange and etidium bromide) double staining method, nuclear recoloring was executed [16]. HT-29 cells were collected from the control and d1 treated category. In a fixative arrangement (methanol: acidic corrosive (3:1)) cells were fixed and spread on clean glass slides, the slides were hydrated with PBS, and recolored by acridine orange/ethidium bromide (1:1). The cells were washed thoroughly by using PBS and detected through fluorescent instruments at 400–500 nm.

3.5. RT-PCR

RT-PCR was performed to analyze β-Actin RNA articulation, BAX, Bcl2, and caspase 3 by the Techno Prime framework. As per the manufacturer’s instruction, cDNA was synthesized from 2 µg of RNA utilizing a verso cDNA synthesis kit, accompanied by an oligo dT primer. The reaction volume was set to 20 μL and synthesis of cDNA was carried out for 1 h at 42 °C, followed by RT inactivation for 5 min at 85 °C. Samples of the resultant products were examined in 1.5% agarose gel [16].

4. Conclusions

We have successfully developed an efficient protocol for the synthesis of a wide variety of 3-trifluoromethyl-5,6-dihydro-[1,2,4]triazolo pyrazine derivatives in excellent yields, under mild reaction conditions. All the synthesized compounds were thoroughly characterized using 1H-NMR, IR, and LC-MS analyses. All the synthesized compounds were then utilized for anti-cancer studies. The up-regulation of Bax has expansive applications for the enlistment of apoptosis in disease treatment. Overexpression of the Bax protein prompts the arrival of cytochrome C, initiation of the caspase pathway in compound RB7, and actuates apoptosis in HT-29 cells, ultimately leading to activation of the mitochondrial apoptotic pathway and cell death.

Supplementary Materials

The following are available online. Figure S1: RB1 FT-IR, LC-MS and 1H-NMR, Figure S2: RB2-FT-IR, LC-MS and 1H-NMR, Figure S3: RB3-FT-IR, LC-MS and 1H-NMR, Figure S4: RB4- FT-IR, LC-MS and 1H-NMR, Figure S5: RB5-FT-IR, LC-MS and 1H-NMR, Figure S6: RB6 FT-IR, LC-MS and 1H-NMR, Figure S7: RB7 -FT-IR, LC-MS and 1H-NMR, Figure S8: RB8 -FT-IR, LC-MS and 1H-NMR, Figure S9: RB9-FT-IR, LC-MS and 1H-NMR.

Author Contributions

Synthesis and characterization were carried out by R.R., writing the research paper, editing, and biological activity experiments, and their interpretation were carried out by M.G.D.K., the research supervisor is S.B.B.P. All authors have read and agreed to the published version of the manuscript.

Funding

No external fund was received during this research.

Acknowledgments

The authors thank the Department of Basic Science and Technology, Jain University for the financial support given for this research work and their constant support in encouraging this research work.

Conflicts of Interest

Authors declare no potential conflict of interest.

References

  1. Patridge, E.; Gareiss, P.; Kinch, M.S.; Hoyer, D. An analysis of FDA-approved drugs: Natural products and their derivatives. Drug Discov. Today 2016, 21, 204–207. [Google Scholar] [CrossRef] [PubMed]
  2. Podraza, K.F. Synthesis and thermal rearrangement of allylic 3,5,6-trimethyl-2-pyrazinylacetates: A heterocyclic carroll rearrangement. J. Heterocycl. Chem. 1986, 23, 581–583. [Google Scholar] [CrossRef]
  3. Gao, J.; Luo, X.; Li, Y.; Gao, R.; Chen, H.; Ji, D. Synthesis and biological evaluation of 2-oxo-pyrazine-3-carboxamide-yl nucleoside analogues and their epimers as inhibitors of influenza A viruses. Chem. Biol. Drug Des. 2015, 85, 245. [Google Scholar] [CrossRef]
  4. Liu, W.; Tang, Y.; Guo, Y.; Sun, B.; Zhu, H.; Xiao, Y.; Dong, D.; Yang, C. Synthesis, characterization and bioactivity determination of ferrocenyl urea derivatives. Appl. Organometal. Chem. 2012, 26, 189–193. [Google Scholar] [CrossRef]
  5. Li, H.Q.; Lv, P.C.; Yan, T.o.; Zhu, H.L. Urea derivatives as anticancer agents. Anti-Cancer Agents Med. Chem. 2009, 9, 471–480. [Google Scholar] [CrossRef]
  6. El-Kashef, H.S.; El-Emary, T.I.; Gasquet, M.; Timon-David, P.; Maldonado, J.; Vanelle, P. New pyrazolo [3, 4-b] pyrazines: Synthesis and biological activity. Die Pharm. 2000, 55, 572. [Google Scholar]
  7. Moree, W.J.; Li, B.F.; Jovic, F.; Coon, T.; Yu, J.; Gross, R.S.; Tucci, F.; Marinkovic, D.; Zamani-Kord, S.; Malany, S.; et al. Characterization of novel selective H1-antihistamines for clinical evaluation in the treatment of insomnia. J. Med. Chem. 2009, 52, 5307–5310. [Google Scholar] [CrossRef]
  8. Goetz, M.A.; Zhang, C.; Zink, D.L.; Arocho, M.; Vicente, F.; Bills, G.F.; Polishook, J.; Dorso, K.; Onishi, R.; Gill, C.; et al. Coelomycin, a highly substituted 2,6-dioxo-pyrazine fungal metabolite antibacterial agent discovered by Staphylococcus aureus fitness test profiling. J. Antibiot. 2010, 63, 512–518. [Google Scholar] [CrossRef] [PubMed]
  9. Mannam, M.R.; Devineni, S.R.; Pavuluri, C.M.; Chamarthi, N.R.; Kottapalli, R.S. Urea and thiourea derivatives of 3-trifluoromethyl-5,6,7,8-tetrahydro-[1,2,4]triazolo[4,3-α]pyrazine: Synthesis, characterization, antimicrobial activity and docking studies. Phosphorus Sulfur Silicon Relat. Elem. 2019, 194, 922–932. [Google Scholar] [CrossRef]
  10. Ser, H.L.; Palanisamy, U.D.; Yin, W.F.; Abd Malek, S.N.; Chan, K.G.; Goh, B.H.; Lee, L.H. Presence of antioxidative agent, Pyrrolo [1,2-a] pyrazine-1,4-dione, hexahydro-in newly isolated Streptomyces mangrovisoli sp. nov. Front. Microbiol. 2015, 6, 854. [Google Scholar] [CrossRef]
  11. Opletalová, V.; Patel, A.; Boulton, M.; Dundrová, A.; Lacinová, E.; Převorová, M.; Appeltauerová, M.; Coufalová, M. 5-Alkyl-2-pyrazinecarboxamides, 5-alkyl-2-pyrazinecarbonitriles and 5-alkyl-2-acetylpyrazines as synthetic intermediates for antiinflammatory agents. Collect. Czechoslov. Chem. Commun. 1996, 61, 1093–1101. [Google Scholar] [CrossRef]
  12. Temple, C., Jr.; Wheeler, G.P.; Elliott, R.D.; Rose, J.D.; Kussner, C.L.; Comber, R.N.; Montgomery, J.A. New anticancer agents: Synthesis of 1,2-dihydropyrido [3,4-b]pyrazines(1-deaza-7,8-dihydropteridines). J. Med. Chem. 1982, 25, 1045–1050. [Google Scholar] [CrossRef]
  13. Kassis, P.; Brzeszcz, J.; Bénéteau, V.; Lozach, O.; Meijer, L.; Le Guével, R.; Guillouzo, C.; Lewiński, K.; Bourg, S.; Colliandre, L.; et al. Synthesis and biological evaluation of new 3-(6-hydroxyindol-2-yl)-5-(Phenyl) pyridine or pyrazine V-Shaped molecules as kinase inhibitors and cytotoxic agents. Eur. J. Med. Chem. 2011, 46, 5416–5434. [Google Scholar] [CrossRef]
  14. Naseri, M.H.; Mahdavi, M.; Davoodi, J.; Tackallou, S.H.; Goudarzvand, M.; Neishabouri, S.H. Up-regulation of Bax and down-regulation of Bcl2 during 3-NC mediated apoptosis in human cancer cells. Cancer Cell Int. 2015, 15, 55. [Google Scholar] [CrossRef]
  15. Green, D.R.; Reed, J.C. Mitochondria and apoptosis. Science 1998, 5381, 1309–1312. [Google Scholar] [CrossRef]
  16. Guruswamy, D.K.; Jayarama, S. Proapoptotic and anti-angiogenic activity of (2E)-3-(2-bromo-6-hydroxy-4-methoxyphenyl)-1-(naphthalene-2-yl) prop-2-en-1-one in MCF7 cell line. Chem. Pap. 2020, 74, 2229–2237. [Google Scholar] [CrossRef]

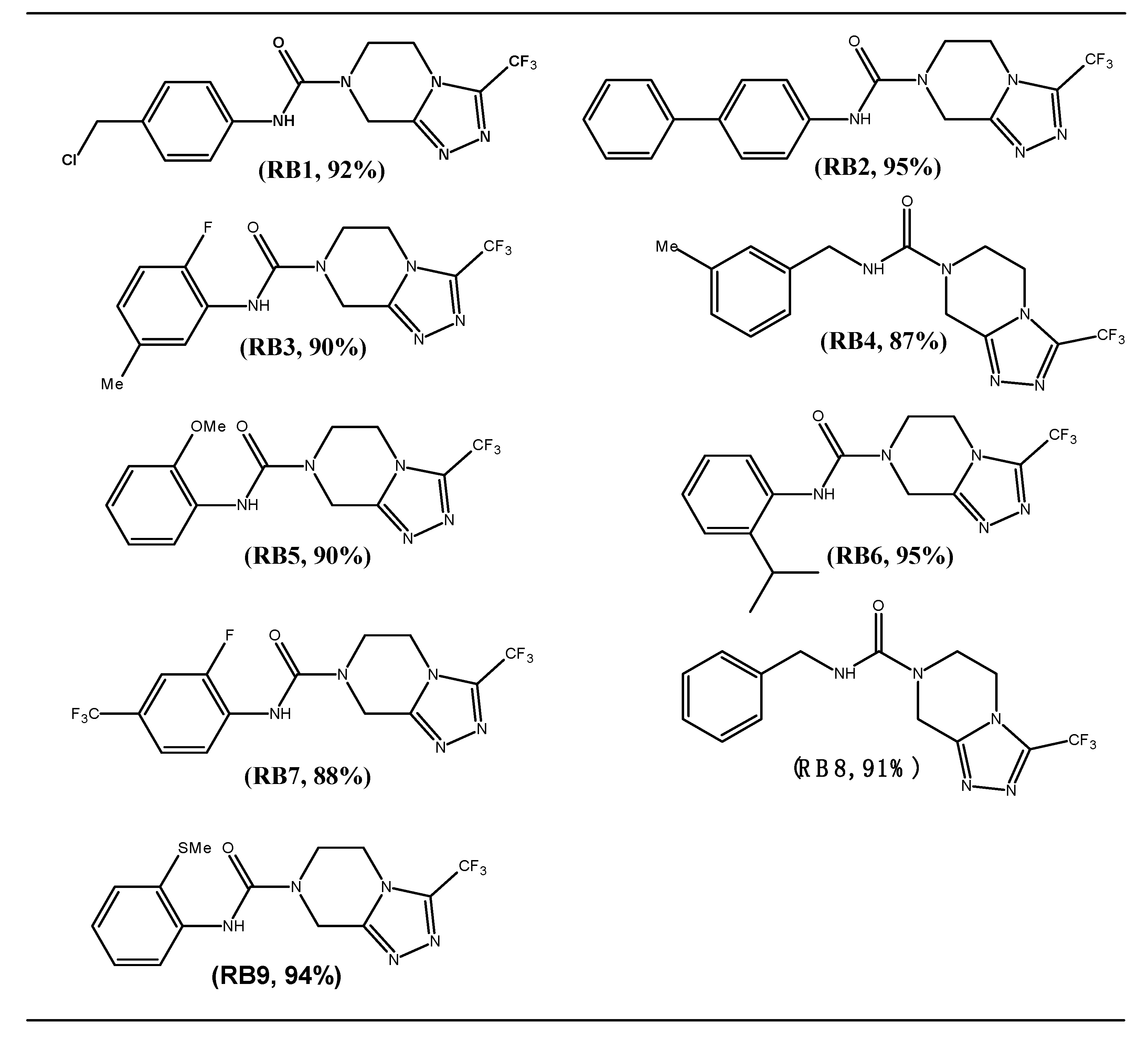

Figure 1. Synthesis of 3-trifluoromethyl-5,6-dihydro-[1,2,4]triazolo pyrazine derivatives.
Figure 1. Synthesis of 3-trifluoromethyl-5,6-dihydro-[1,2,4]triazolo pyrazine derivatives.
Molbank 2020 m1173 g001

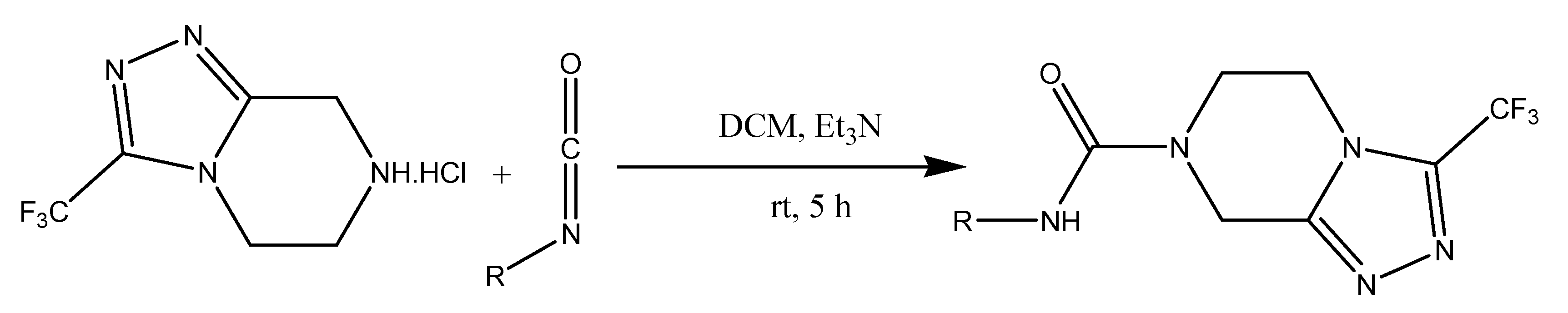

Scheme 1. Synthesis of pyrazine derivatives by isocyanates series.
Scheme 1. Synthesis of pyrazine derivatives by isocyanates series.
Molbank 2020 m1173 sch001

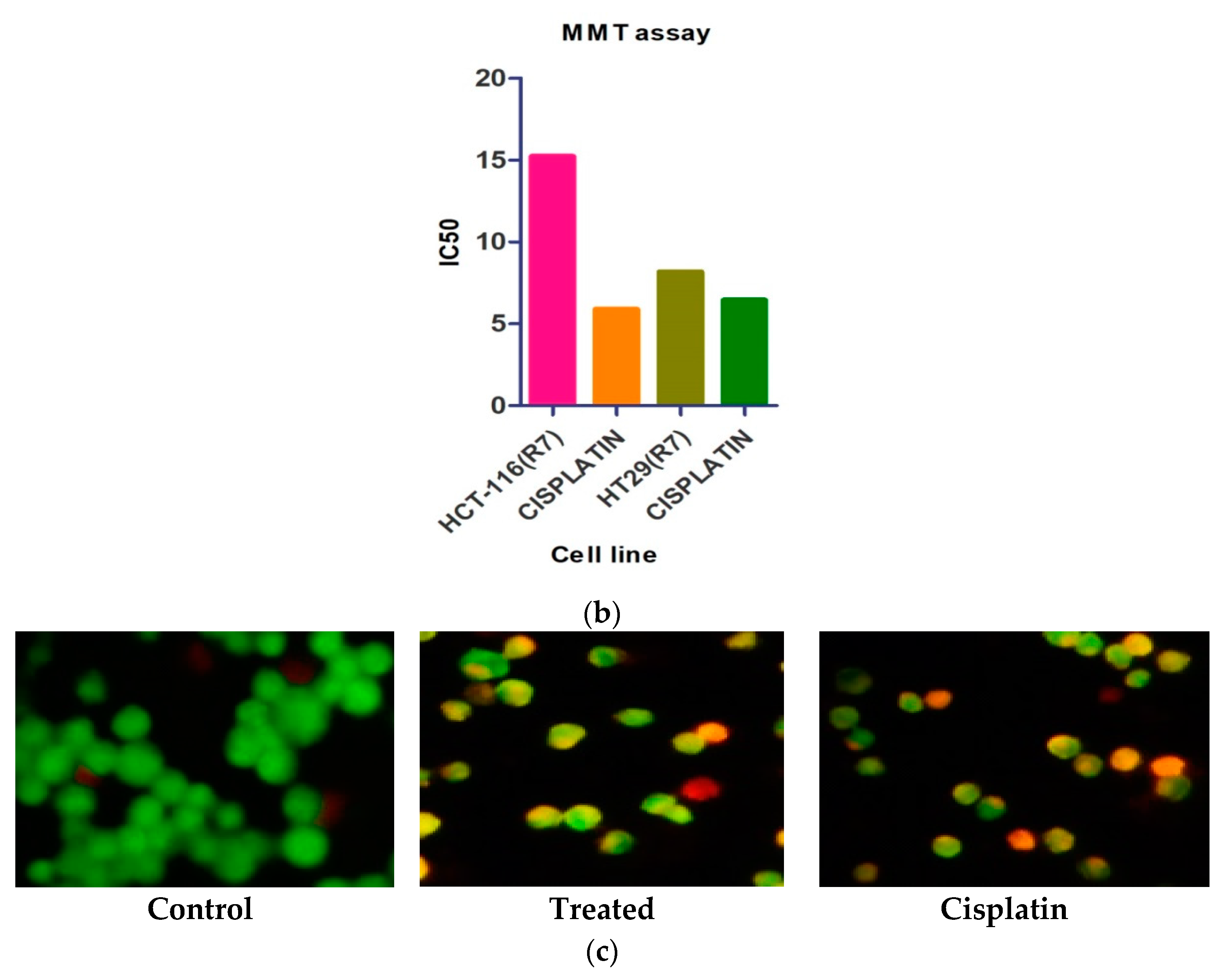

Figure 2. (a) The morphological changes in HT-29 cells in control, treated and cisplatin with specified concentration was observed and visualized under light microscope. (b) the IC50 of RB-7 on different human cancer cell lines along with cisplatin as a standard drug. (c) Apoptosis inducing-activity of RB7 by AO/EB staining for specific cell line HT-29 in RB7 with 8.18 µM concentration.
Figure 2. (a) The morphological changes in HT-29 cells in control, treated and cisplatin with specified concentration was observed and visualized under light microscope. (b) the IC50 of RB-7 on different human cancer cell lines along with cisplatin as a standard drug. (c) Apoptosis inducing-activity of RB7 by AO/EB staining for specific cell line HT-29 in RB7 with 8.18 µM concentration.
Molbank 2020 m1173 g002aMolbank 2020 m1173 g002b

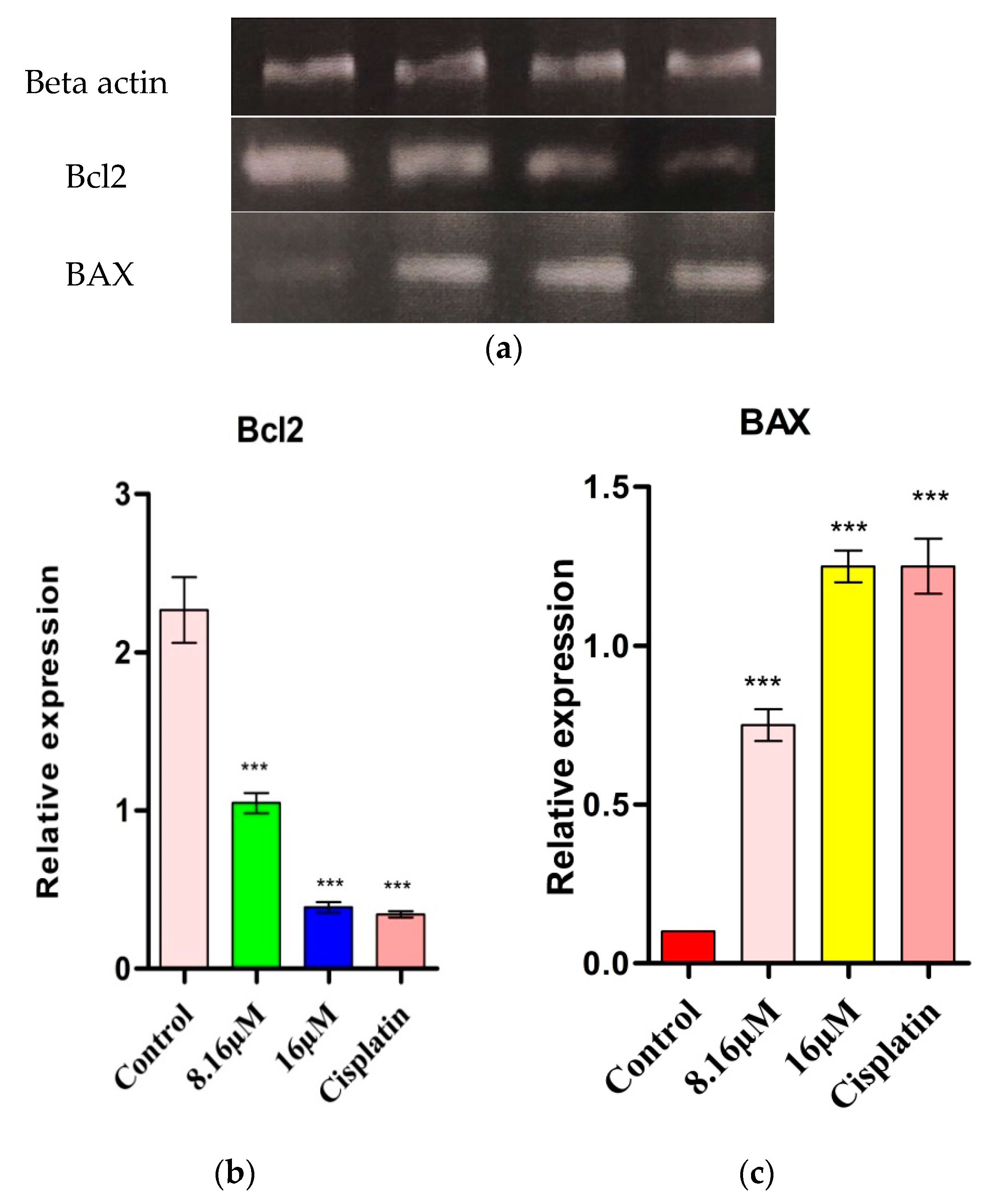

Figure 3. (a) The relative gene expression of BAX in treated HT-29 along with the control and cisplatin. (b) The relative gene expression of Bcl2 in treated HT-29 along with the control and cisplatin. (c) The relative gene expression of Bax in treated HT-29 along with the control and positive drug cisplatin. Statistical significance is expressed as *** p < 0.0001 by using one-way ANOVA.
Figure 3. (a) The relative gene expression of BAX in treated HT-29 along with the control and cisplatin. (b) The relative gene expression of Bcl2 in treated HT-29 along with the control and cisplatin. (c) The relative gene expression of Bax in treated HT-29 along with the control and positive drug cisplatin. Statistical significance is expressed as *** p < 0.0001 by using one-way ANOVA.
Molbank 2020 m1173 g003
Table 1. IC50 for Pyrazine derivatives.
Table 1. IC50 for Pyrazine derivatives.
CompoundsHCT-116HT-29Chang Liver (Normal Cells)
RB123.25 ± 0.828.32 ± 0.5>100
RB232.21 ± 0.629.23 ± 0.6>50
RB328.32 ± 1.233.17 ± 1.2>100
RB445.23 ± 0.2338.26 ± 0.45>100
RB552.32 ± 0.732.16 ± 0.78>50
RB622.36 ± 0.6525.23 ± 0.95>100
RB715.23 ± 0.98.18 ± 1.2>100
RB825.23 ± 1.419.36 ± 1.23>50
RB922.56 ± 1.1218.65 ± 0.89>100
Cisplatin6.15 ± 1.45.23 ± 0.91>50
IC50 values were expressed in triplicate experiments from 0.7 to 200 micro molar and IC50 values were calculated using prism pad 5.0.
