2-Butyl-6-phenyl-4,5-dihydropyridazin-3(2H)-one: Synthesis, In Silico Studies and In Vitro Cyclooxygenase-2 Inhibitory Activity
Open AccessShort Note

2,4,6-Trimethylbenzyl Chloride (α2-Chloroisodurene)

EaStCHEM School of Chemistry, University of St Andrews, North Haugh, St Andrews, Fife KY16 9ST, UK
*
Author to whom correspondence should be addressed.
Molbank 2020, 2020(3), M1156; https://doi.org/10.3390/M1156
Received: 11 August 2020 / Revised: 27 August 2020 / Accepted: 29 August 2020 / Published: 1 September 2020
(This article belongs to the Section Structure Determination)

Abstract

The X-ray structure of the title compound has been determined and it is compared with those of other substituted benzyl chlorides reported previously. It has an atypically long CH2–Cl bond.
Keywords: 2,4,6-trimethylbenzyl chloride; X-ray structure; C-Cl bond length 2,4,6-trimethylbenzyl chloride; X-ray structure; C-Cl bond length

1. Introduction

The formation of 2,4,6-trimethylbenzyl chloride 1 by chloromethylation of mesitylene was first mentioned by Sommelet in 1913 [1], although no data were given for the product. Subsequent reports [2,3,4,5] described the stepwise development of this into a reliable synthetic procedure [6], with the product characterised by melting point and boiling point values. The compound has also been characterised by infrared [7], 1H and 13C nuclear magnetic resonance [8], and nuclear quadrupole resonance [9] spectroscopy, as well as mass spectrometry [10]. However, as far as we are aware, its solid-state structure has not been examined, perhaps as a result of its waxy nature and low melting point of 37 °C. We report here the crystal and molecular structure of 1 as determined by single crystal X-ray diffraction and compare the result with those of similar benzylic chlorides that have been previously reported.

2. Results

Crystals suitable for diffraction were obtained from the inner surface of a commercial bottle (Lancaster Synthesis) that had been stored for >20 years, allowing slow sublimation. The resulting structure (Figure 1) shows two chemically equivalent but crystallographically independent molecules per asymmetric unit. As expected, there are no significant intermolecular interactions, and the shape of each molecule is determined largely by steric factors and, in particular, the presence of the 2,6-dimethyl substituents, which forces the CH2Cl group to take up an orientation with C-Cl almost perpendicular to the plane of the benzene ring. The key geometric parameters for 1 are compared with those for a range of other crystallographically characterised benzyl chlorides (Figure 2) taken from the Cambridge Structural Database (CSD) and shown in in Table 1. These included benzyl chloride itself 2, which is a liquid at room temperature but whose structure was determined at 150 K, and seven further crystalline compounds containing a benzene ring and only CH2Cl, Me, or Cl groups: the three isomeric bis(chloromethyl)benzenes or α,α′-dichloroxylenes 35, 1,3,5-tris(chloromethyl)benzene or α,α′,α″-trichloromesitylene 6, and the hexasubstituted benzene derivatives 79. The parameters examined are the length of the ring to CH2 bond, the length of the CH2 to Cl bond, the ring C to CH2 to Cl angle, and finally the torsion angle between the plane of the benzene ring and the CH2 to Cl bond.
Of the compounds examined, the molecules of 3, 5, 8, and 9 lie on special positions that impose crystallographic symmetry on the molecule, thus exhibiting only one independent set of parameters for CH2Cl, while the molecules of 4, 6, and 7 have all CH2Cl groups with independent geometries; in addition 6, similar to 1, shows two independent molecules per asymmetric unit, thus giving rise to six sets of values.
While the length of the C-CH2 bond does not vary significantly between any of the compounds, the same cannot be said for CH2-Cl, where the values measured for the two molecules in our structure are significantly longer than most of the previously reported values. The value of the C-CH2-Cl angle also turns out to vary relatively little between the compounds, and although the first listed molecule of 1 has a high value of 112.3°, the difference from the normal range of 110–111.5° is small. It is perhaps surprising to observe that the torsion angle between the plane of the aromatic ring and the C-Cl bond is generally between 78° and 89° regardless of the position and nature of substituents present. Apart from a slightly lower value for two such bonds in one molecule of 6, all the other values are in this range indicating that even in the absence of ortho substituents as in compound 1, the favoured orientation in a benzyl chloride is to have the C-Cl bond essentially perpendicular to the plane of the benzene ring.
In summary, we obtained the X-ray crystal structure of 2,4,6-trimethylbenzyl chloride for the first time and found it to have two independent molecules per asymmetric unit both with a C-Cl bond length of 1.83 Å, which is slightly longer than for a range of comparable benzyl chloride structures previously reported.

3. Experimental

The structure was determined on a Rigaku XtalLAB P200 diffractometer using graphite monochromated Mo Kα radiation λ = 0.71075 Å.
Crystal data for C10H13Cl, M = 168.67 g mol−1, colourless prism, crystal dimensions 0.10 × 0.10 × 0.10 mm, triclinic, space group P-1, a = 7.8666(9), b = 10.2719(13), c = 11.8789(15) Å, α = 87.557(9), β = 77.371 (8), γ = 73.908(7)°, V = 899.8 (2) Å3, Z = 4, Dcalc = 1.245 g cm−3, T = 93 K, R1 = 0.0290, Rw2 = 0.0890 for 3040 reflections with I > 2σ(I), and 205 variables, Rint 0.0494, Goodness of fit on F2 1.063. Data have been deposited at the Cambridge Crystallographic Data Centre as CCDC 2010796. The data can be obtained free of charge from the Cambridge Crystallographic Data Centre via http://www.ccdc.cam.ac.uk/getstructures. The structure was solved by direct methods and refined by full-matrix least-squares against F2 (SHELXL Version 2018/3 [16]). Hydrogen atoms were located from difference Fourier maps and refined at idealized positions riding on the carbon atoms with isotropic displacement parameters Uiso(H) = 1.2 Ueq(C) and C-H 0.95–0.99 Å. All CH3 hydrogen atoms were allowed to rotate but not to tip.

Author Contributions

A.M.Z.S. collected the X-ray data and solved the structure; R.A.A. designed the experiments, analysed the data, and wrote the paper. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sommelet, M. Sur une méthode de synthèse du chlorure de benzyle et de ses homologues. C. R. Hebd. Seances Acad. Sci. 1913, 157, 1443–1445. [Google Scholar]
  2. Hoch, J. Synthèse de quelques dérivés des acides arylacétique et β-arylpropionique. C. R. Hebd. Seances Acad. Sci. 1931, 192, 1464–1466. [Google Scholar]
  3. Vavon, G.; Bolle, J. Condensation des carbures benzéniques avec l’éther chlorométhylique. Méthode d’alcoylation des noyaux aromatiques. C. R. Hebd. Seances Acad. Sci. 1937, 204, 1826–1828. [Google Scholar]
  4. Vavon, G.; Bolle, J.; Calin, J. Condensation des éthers chloro et bromométhyliques sur les noyaux aromatiques. Bull. Soc. Chim. Fr. 1939, 6, 1025–1033. [Google Scholar]
  5. Nauta, W.T.; Dienske, J.W. Über einge mesitylen-derivate. Bildung eines aethers aus chlorid und methylalkohol. Recl. Trav. Chim. Pays-Bas 1936, 55, 1000–1006. [Google Scholar] [CrossRef]
  6. Fuson, R.C.; Rabjohn, N. Mesitylacetic acid. Org. Synth. 1945, 25, 65–68. [Google Scholar] [CrossRef]
  7. Mannion, J.J.; Wang, T.S. An infrared study of the CH2Cl group in benzyl chloride and derivatives. Spectrochim. Acta 1964, 20, 45–49. [Google Scholar] [CrossRef]
  8. Yakubov, A.P.; Tsyganov, D.V.; Belen’kii, L.I.; Bogdanov, V.S.; Ugrak, B.I.; Krayushkin, M.M. Unusual effects of steric hindrances in NMR spectra of o,o’-dialkylsubstituted benzylidene dichlorides. Tetrahedron 1991, 47, 5237–5244. [Google Scholar] [CrossRef]
  9. Dewar, M.J.S.; Herr, M.L. Chlorine NQR spectra of some benzyl chlorides, allyl chlorides, and chlorophosphines. Tetrahedron 1971, 27, 2377–2383. [Google Scholar] [CrossRef]
  10. Motsch, S.; Schütz, C.; Huy, P.H. Systematic evaluation of sulfoxides as catalysts in nucleophilic substitutions of alcohols. Eur. J. Org. Chem. 2018, 4541–4547. [Google Scholar] [CrossRef]
  11. Nayak, S.K.; Sathishkumar, R.; Guru Row, T.N. Directing role of functional groups in selective generation of C–H...p interactions: In situ cryo-crystallographic studies on benzyl derivatives. CrystEngComm 2010, 12, 3112–3118. [Google Scholar] [CrossRef]
  12. Basaran, R.; Dou, S.-Q.; Weiss, A. On the persistence of molecular symmetry in the solid state and the role of molecular group dipole moments. Centrosymmetry in bis(chloromethyl)benzenes. Ber. Bunsenges. Phys. Chem. 1992, 96, 1688–1698. [Google Scholar] [CrossRef]
  13. Sanders, M.B.; Leon, D.; Ndichie, E.I.; Chan, B.C. 1,3-Bis(chloromethyl)benzene. Acta Crystallogr. Sect. E 2013, 69, o1150. [Google Scholar] [CrossRef] [PubMed]
  14. Bryan, J.C.; Burnett, M.N.; Sachleben, R.A. 1,3,5-Tris(chloromethyl)benzene. Acta Crystallogr. Sect. C 2000, 56, e167. [Google Scholar] [CrossRef] [PubMed]
  15. Bart, S.C.; Heinemann, F.W.; Anthon, C.; Hauser, C.; Meyer, K. A new tripodal ligand system with steric and electronic modularity for uranium coordination chemistry. Inorg. Chem. 2009, 48, 9419–9426. [Google Scholar] [CrossRef] [PubMed]
  16. Sheldrick, G.M. A short history of SHELXL. Acta Crystallogr. Sect. A 2008, 64, 112–122. [Google Scholar] [CrossRef] [PubMed]

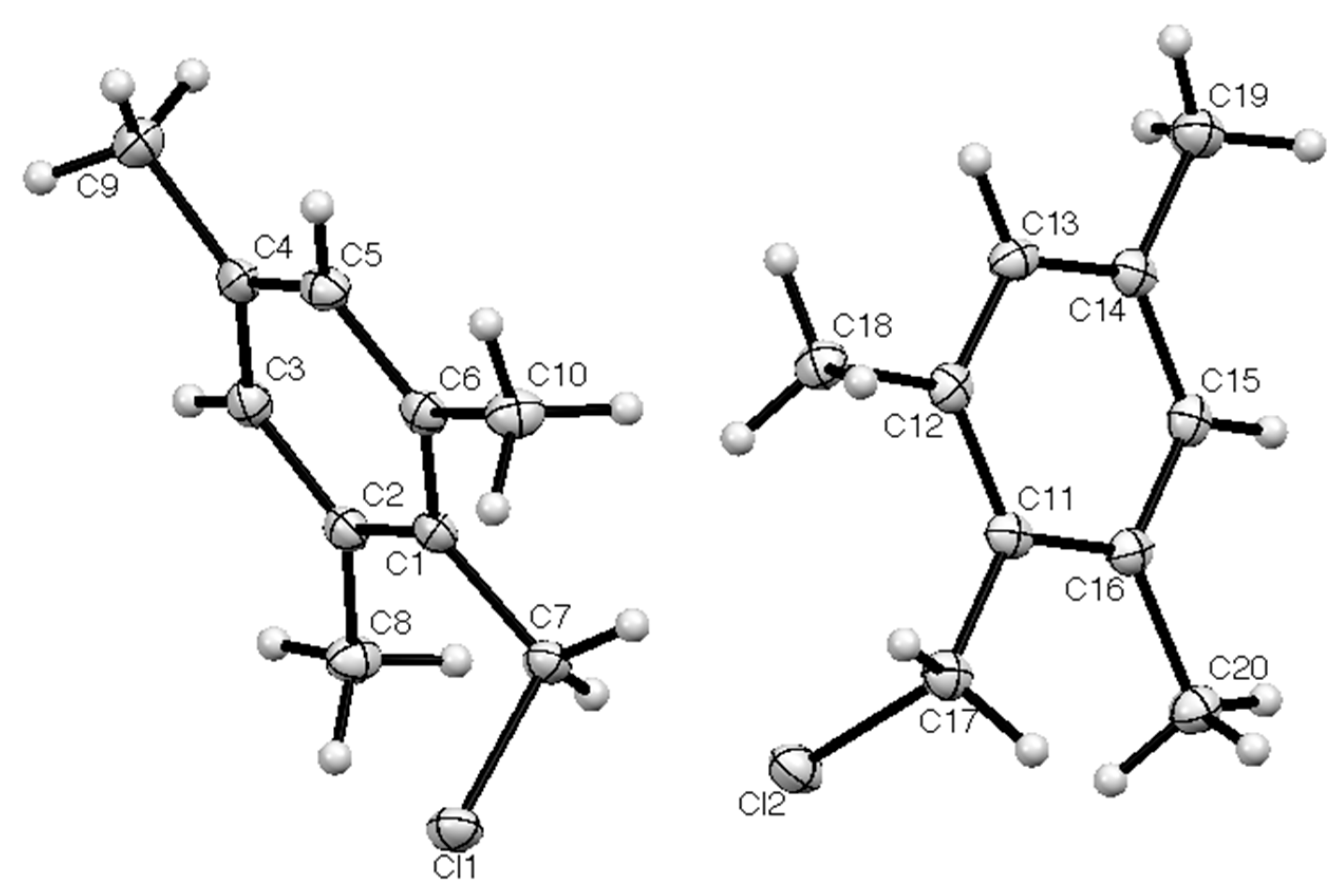

Figure 1. Molecular structures of 1 with anisotropic displacement ellipsoids drawn at 50% probability level.
Figure 1. Molecular structures of 1 with anisotropic displacement ellipsoids drawn at 50% probability level.
Molbank 2020 m1156 g001

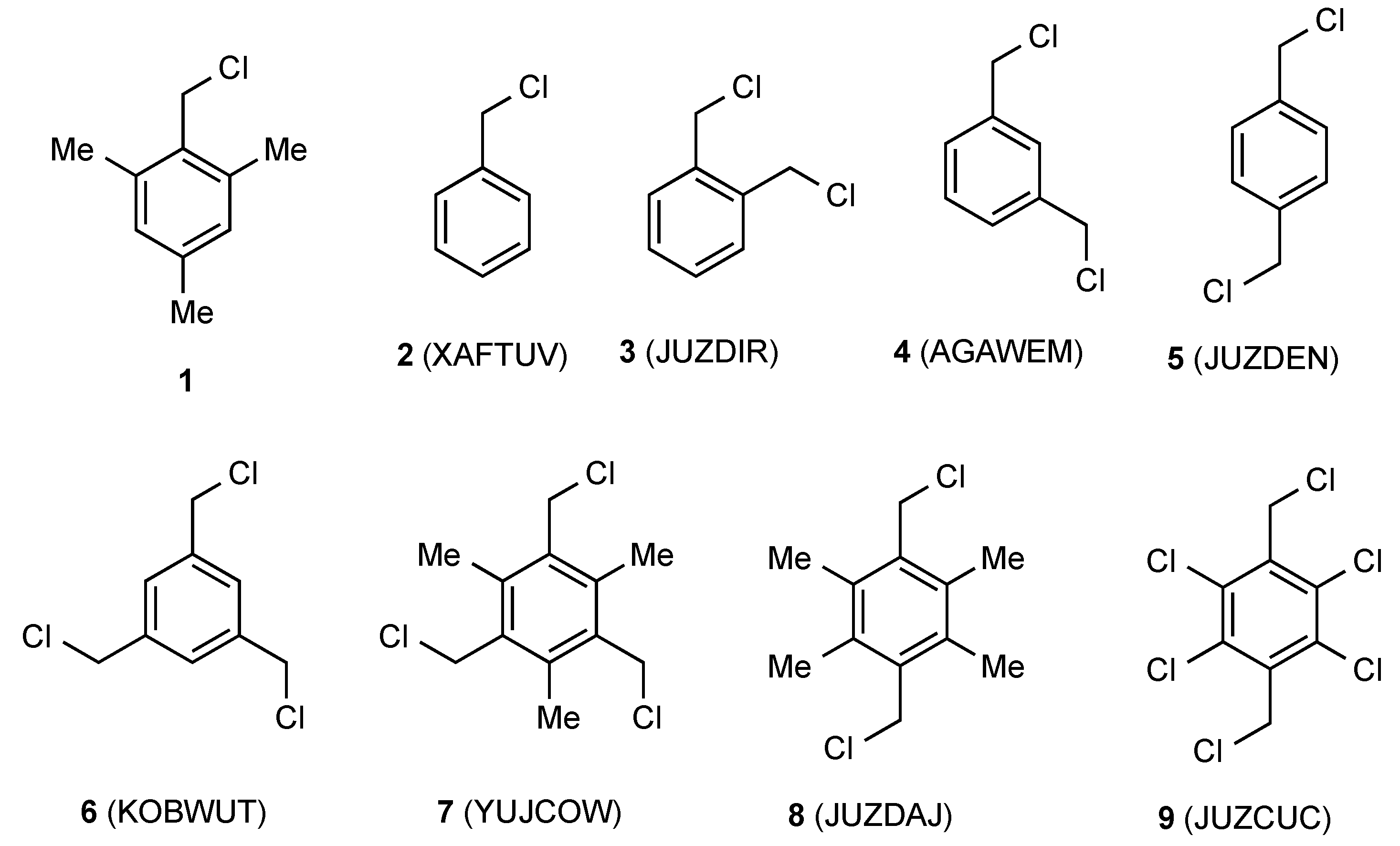

Figure 2. A survey of crystallographically characterised benzyl chlorides with CSD reference codes.
Figure 2. A survey of crystallographically characterised benzyl chlorides with CSD reference codes.
Molbank 2020 m1156 g002
Table 1. Key geometric parameters for crystallographically characterised benzyl chlorides.
Table 1. Key geometric parameters for crystallographically characterised benzyl chlorides.
CompdLength
C–CH2 (Å)
Length
CH2–Cl (Å)
Angle
C–CH2–Cl°
Torsion Angle Ring/CH2–Cl°Reference
11.500(2)1.831(1)112.32(9)85.50this work
*1.500(2)1.829(1)111.34(9)85.51
21.492(3)1.801(3)111.5(2)78.38[11]
31.498(6)1.814(5)111.5(3)81.03[12]
41.501(2)1.811(1)109.98(8)78.49[13]
1.500(2)1.815(1)109.92(8)83.52
51.494(3)1.805(3)111.0(2)86.06[12]
61.498(3)1.806(2)110.6(2)85.98[14]
1.494(3)1.804(3)110.5(2)84.29
1.496(3)1.793(2)110.8(1)82.11
*1.495(3)1.805(2)110.4(2)77.48
*1.495(3)1.804(2)111.2(1)68.88
*1.501(3)1.790(2)110.1(1)82.60
71.501(3)1.814(3)111.3(2)84.31[15]
1.502(3)1.815(2)111.3(2)86.53
1.504(5)1.810(3)109.8(2)83.13
81.493(5)1.817(5)111.3(3)88.55[12]
91.497(3)1.796(3)110.6(2)81.11[12]
* Values for second molecule in the asymmetric unit.
