Bicyclo[4.2.0]octa-1,3,5-trien-3-yl-dimethyl((E)-styryl)-silane
1
RTU MIREA—Russian Technological University, 78 Vernadsky Avenue, Moscow 119571, Russia
2
JSC «Technomash», 4 Ivana Franko Str., Moscow 121108, Russia
*
Author to whom correspondence should be addressed.
Received: 2 December 2019 / Accepted: 19 December 2019 / Published: 23 December 2019

Abstract

:
Bicyclo[4.2.0]octa-1,3,5-trien-3-yl-dimethyl-((E)-styryl)-silane was synthesized via three stage synthesis starting from benzocyclobutene and (2-bromo-vinyl)-benzene. The structure of the product was determined using 1H- and 13C-NMR and HRMS.
Keywords:
benzocyclobutene; Grignard reaction; bicyclo[4.2.0]octa-1,3,5-trien-3-yl-dimethyl-((E)-styryl)-silane; (2-bromo-vinyl)-benzene

1. Introduction

Silicon organic compounds are widely used as intermediates in various syntheses and as target substances in industrial chemistry. Polysiloxanes and polysilanes are known as coupling agents for enhanced adhesion [1,2]. They increase mechanical and dielectric properties of composites [3], improve dispersion of pigments and industrial minerals, provide crosslinking, immobilize catalysts, and bind biomaterials [4].
Many companies are developing silane- and siloxane-based photo or thermo curable materials for electronics. For example, Polyset company (https://www.polyset.com) created a family of novel siloxane-based monomers and oligomers that are especially attractive for such applications as microelectronics, photonics, composites, coatings, and adhesives. These novel materials bear reactive functional groups consisting of cyclohexyl epoxy, glycidyl ether, vinyl ether, and acrylate moieties as well as combinations of these group. Dow chemicals (www.dow.com) presents a line of composite materials (CYCLOTENE™) with divinylsiloxane (DVS) and benzocyclobutene (BCB) based component as photoresists and thermosets (Divinyl siloxane bis-benzocyclobutene, DVS-BCB). In recent years, many new articles have appeared devoted to the development of hybrid silanes or siloxanes and BCB containing monomers [5,6,7,8,9,10]. The polymerization of these compounds occurs due to the presence of acrylate, silocyclobutene groups, alkenes (including vinyl, styryl, and allyl groups), etc. Crosslinking of the polymers provides a benzocyclobutene fragment capable of thermal opening (t > 200 °C) with the formation of active o-xylylenes. Several polymerization mechanisms are known: Interactions of o-xylylenes with active alkenes ([4+2] cycloaddition, (Scheme 1A)) or by itself with the formation of a polydiphenylethylene or cyclooctane structures [11]. Photocurable DVS-BCB composites include [12] photoactive bisazide compounds that are capable of forming aziridines (Scheme 1B) under UV-irradiation. BCB crosslinked polymers have high values of glass transition temperatures and thermal stability [5,6,13].
In this short note we present a synthesis of a new bicyclo[4.2.0]octa-1,3,5-trien-3-yl-dimethyl-((E)-styryl)-silane (BCB-KS) that include benzocyclobuten-3-yl and vinylbenzene moieties. It may be of interest in the creation of photo and thermopolymerizable composites and used in synthetic processes as an intermediate compound.

2. Results and Discussion

Synthesis of the title compound is presented on Scheme 2 and include a three stage process from (2-bromovinyl)benzene and benzocyclobutene. In the first step, (2-bromovinyl)benzene was added to mixture of dichlorodimethylsilane and magnesium in tetrahydrofuran (THF) at 25–30 °C. The resulting dimethylchloro((E)-styryl)silane was purified by vacuum distillation. The byproducts in this reaction are 1,4-diphenylbutadiene and styrene.
Dimethylchloro((E)-styryl)silane can also be obtained from phenylacetylene and dimethylchlorosilane [14,15]. Upon receipt in this way, the target product is contaminated with dimethylchloro(1-phenylvinyl)silane.
Dimethylchloro((E)-styryl)silane reacts with benzocyclobuten-3-yl magnesium bromide to produce the desired benzocyclobuten-3-yl-dimethyl((E)-styryl)silane (BCB-KS) as colorless fusible solid with 65.6% yield.
All compounds were characterized by 1H, 13C NMR, and HRMS analysis. NMR data of known compounds were compared with previously published data [16,17,18]. These NMR, HRMS and FTIR data of compounds can be found in the Supplementary Materials.
Signals of the carbon atoms of the –CH2–CH2– of the compound 7 (BCB-KS) cyclobutene ring were found in the 13C NMR spectra at 29.83 and 29.95 ppm, hydrogen atoms were detected as slightly broadened singlet at 3.21 ppm. Double bond of 7 gives two signals in 1H NMR spectra at 7.07 and 6.71 ppm with high value of J-constants (19.1 Hz), which confirms its trans orientation. Two CH3 groups of –Si(CH3)2 are detected in 1H NMR and 13C NMR spectra at 0.52 (s) and −2.26, respectively. Aromatic hydrogens were indicated at 7.11–7.50 ppm. In 13C NMR spectrum there were found high-intensity signals at 126.50 and 128.52 ppm related to pairs of symmetric carbons of the phenyl group. Six signals (145.06, 132.25, 128.10, 127.72, 127.59, and 122.01) of tertiary carbon atoms and four signals of quaternary carbon atoms (147.22, 145.63, 138.25, and 136.59) were found.

3. Materials and Methods

NMR spectra were registered using a Bruker AM-300 or a Bruker Avance 600 spectrometer (Bruker Corporation, Billerica, MA, USA) in CDCl3. Mass spectra were obtained on a Varian MAT CH-6 instrument (Varian, Inc, Palo Alto, CA, USA) using a direct inlet system; the ionization energy was 70 eV; the acceleration voltage was 1.75 kV. The reaction mixtures were analyzed and the purity of all products was checked by TLC on Merck Silica gel 60 F254 UV-254 plates. Dimethyldichlorosilane was purchased from abcr GmbH, Karlsruhe, Germany. Magnesium powder was purchased from Sigma-Aldrich, Co., USA. Bromine, solvents were purchase from «Base No. 1 «Chimreactivov», Staraya Kupavna, Russia. Other of the reagents were produced from JSC «Technomash, Russia.

3.1. 4-Bromobenzocyclobutene (6)

Benzocyclobutene (23.7 g, 22.8 mmol) was dispersed in 240 mL of water at room temperature. After cooling with ice water, 11.7 mL of bromine (−10–5 °C) was added dropwise. After complete of addition, the ice water bath was removed and the reaction mixture was warmed to room temperature and stirred overnight. The reaction was monitored by TLC until the starting benzocyclobutene disappeared. The mixture was diluted with 50 mL of n-hexane and sodium sulfite (3 g, 23.8 mmol) was added. Upon completion of the addition, the mixture was stirred at room temperature for 30 min. The mixture discolored. Then, the separated organic layer was dried over anhydrous sodium sulfate, filtered to remove the drying agent, and concentrated under reduced pressure to obtain 4-bromobicyclo [4.2.0] octa-1 (6), 2,4-triene. After distillation at 110–114 °C (15 mm of Hg), 28–30 g was obtained as a colorless liquid.1H NMR (300 MHz, CDCl3) δ 7.40 (d, J = 7.8 Hz, 1H), 7.26 (s, 1H), 6.99 (d, J = 7.8 Hz, 1H), and 3.31–3.10 (m, 4H).

3.2. Dimethylchloro((E)-styryl)silane (4)

(2-Bromovinyl)benzene (18.3 g, 100 mmol) was added to a mixture of Mg (2.4g, 100 mmol) and 12.9 g (100 mmol) of dimethyldichlorosilane in 50 mL of dry THF under Ar atmosphere and cooling (t = 20–35 °C). The next day, THF was evaporated. The residue was extracted with dry hexane several times. The extracts were combined and evaporated. Distillation under vacuum (2.25 mm of Hg) gives three fractions. The first fraction contains styrene, the second was collected at 90–130 °C and contains the main product. Higher boiling fractions contain 1,4-diphenylbutadiene. After repeated distillation, dimethylchloro((E)-styryl)silane was obtained. Yield 66%. 1H NMR (300 MHz, CDCl3) δ 7.54–7.29 (m, 5H), 7.15 (d, J = 19.1 Hz, 1H), 6.57 (d, J = 3.1 Hz, 1H), 0.66 (s, 6H).

3.3. Benzocyclobuten-3-yldimethyl((E)-styryl)silane (7) (BCB-KS)

4-Bromobenzocyclobutene (5.49g, 0.03 mol) was added over 1 h to a mixture of dimethylchloro (E)-styrylsilane (5.88 g, 0.03 mol) and Mg (760 mg, 0.032 mol) in 25 mL of THF at 25–32 °C. After addition, the mixture was left to stand overnight. The next day, water was added to the mixture. The resulting solution was extracted with methylene chloride. After evaporation, the oil is dissolved in hexane and passed through 1 cm3 of silica gel and evaporated again. The residue was distilled in vacuum at a temperature of 167–169 °C (1.5 mm of Hg). A clear, viscous liquid (5.2 g, 65.6%) was obtained, which solidifies in the refrigerator. Mp 32 °C. 1H NMR (300 MHz, CDCl3) 7.60–7.52 (m, 3H), 7.48–7.32 (m, 4H), 7.20 (d, J = 7.2 Hz, 1H), 7.07 (d, J = 19.1 Hz, 1H), 6.71 (d, J = 19.1 Hz, 1H), 3.31 (s, 4H), and 0.52 (s, 6H). 13C NMR (126 MHz, CDCl3) δ 147.22, 145.63, 145.06, 138.25, 136.59, 132.25, 128.52, 128.10, 127.72, 127.59, 126.50, 122.01, 29.95, 29.83, and –2.26. HRMS, found: 265.1404, calculated [M + H]: 265.1407.

4. Conclusions

New benzocyclobuten-3-yldimethyl((E)-styryl)silane (BCB-KS) was obtained via three stage synthesis starting from benzocyclobutene and (2-bromovinyl)benzene with good yields. Obtained product can be useful for development of new polymerizable composite materials with good thermal stability and dielectric properties or used in synthetic processes as an intermediate.

Supplementary Materials

Supplementary data to this article can be found online. These data include MOL file, 1H, 13C NMR, HRMS, FTIR data of the title compound.

Author Contributions

Synthesis, K.S.L. and K.A.C.; NMR data analysis, D.Y.D. and P.S.S.; Writing—original draft preparation, K.S.L.; Writing—review and editing, K.S.L. and P.S.S.; Supervision and project administration, E.P.G. All authors have read and agreed to the published version of the manuscript.

Funding

The work was financially supported by a grant from the Ministry of Science and Higher Education of the Russian Federation (Agreement on granting a subsidy from the Ministry of Science and Higher Education of the Russian Federation dated June 14, 2019, № 075-15-2019-1273 (inner № 14.577.21.0273), Unique identifier-RFMEFI57717X0273.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Pantoja, M.; Abenojar, J.; Martínez, M.A.; Velasco, F. Silane pretreatment of electrogalvanized steels: Effect on adhesive properties. Int. J. Adhes. Adhes. 2016, 65, 54–62. [Google Scholar] [CrossRef]
  2. Chen, B.; Lu, Z.; Meng, H.; Chen, Y.; Yang, L.; Zhang, H.; Xie, H.; Chen, C. Effectiveness of pre-silanization in improving bond performance of universal adhesives or self-adhesive resin cements to silica-based ceramics: Chemical and in vitro evidences. Dent. Mater. 2019, 35, 543–553. [Google Scholar] [CrossRef] [PubMed]
  3. Babanzadeh, S.; Mahjoub, A.R.; Mehdipour-Ataei, S. Novel soluble thermally stable silane-containing aromatic polyimides with reduced dielectric constant. Polym. Degrad. Stab. 2010, 95, 2492–2498. [Google Scholar] [CrossRef]
  4. Gelest. Industrial Silanes for Adhesives & Sealants, Coatings and Composites. Available online: https://www.gelest.com/wp-content/uploads/Industrial_Silanes.pdf (accessed on 20 December 2019).
  5. Levchenko, K.S.; Chudov, K.A.; Adamov, G.E.; Poroshin, N.O.; Shmelin, P.S.; Grebennikov, E.P.; Parshikov, Y.G. Photocurable and Thermosetting Polymer Materials on the Basis of Benzocyclobutene and Its Derivatives for Electronics. Russ. J. Gen. Chem. 2018, 88, 2793–2812. [Google Scholar] [CrossRef]
  6. Levchenko, K.S.; Chudov, K.A.; Demin, D.Y.; Adamov, G.E.; Poroshin, N.O.; Shmelin, P.S.; Grebennikov, E.P.; Chvalun, S.N.; Zubov, V.P. Synthesis of photo and thermosetting monomers and polymers based on benzocyclobutene. Russ. Chem. Bull. 2019, 68, 1321–1342. [Google Scholar] [CrossRef]
  7. Hu, H.; Liu, L.; Li, Z.; Zhao, C.; Huang, Y.; Chang, G.; Yang, J. Benzocyclobutene/vinylphenyl-introduced polycarbosilanes with low dielectric constant, high temperature performance and photopatternability. Polymer 2015, 66, 58–66. [Google Scholar] [CrossRef]
  8. Huanga, Y.; Zhanga, S.; Hua, H.; Weia, X.; Yub, H.; Yanga, J. Synthesis of poly(silmethylene)s via ring-opening polymerization of benzocyclobutene functionalized disilacyclobutene and their low-dielectric and thermal properties. Polym. Adv. Technol. 2017, 28, 1480–1488. [Google Scholar] [CrossRef]
  9. Yang, J.; Liu, S.; Zhu, F.; Huang, Y.; Li, B.; Zhang, L. New Polymers Derived from 4-Vinylsilylbenzocyclobutene Monomer with Good Thermal Stability, Excellent Film-Forming Property, and Low-Dielectric Constant. J. Polym. Sci. Part A Polym. Chem. 2011, 49, 381–391. [Google Scholar] [CrossRef]
  10. Yang, L.; Cao, K.; Huang, Y.; Chang, G.; Zhu, F.; Yang, J. Synthesis and properties of cross-linkable polysiloxane via incorporating benzocyclobutene. High Perform. Polym. 2014, 26, 463–469. [Google Scholar] [CrossRef]
  11. So, Y.-H.; Hahn, S.F.; Li, Y.; Reinhard, M.T. Styrene 4-Vinylbenzocyclobutene Copolymer for Microelectronic Applications. J. Polym. Sci. Part A Polym. Chem. 2008, 46, 2799–2806. [Google Scholar] [CrossRef]
  12. Ohba, K. Overview of Photo-definable Benzocyelobutene. Polym. Photopolym. Sci. Technol. 2002, 15, 177–182. [Google Scholar] [CrossRef]
  13. Kirchhoff, R.A.; Bruza, K.J. Polymers from Benzocyclobutenes. In High Performance Polymers; Hergenrother, P.M., Ed.; Advances in Polymer Science; Springer: Berlin/Heidelberg, Germany, 1994; Volume 117, pp. 1–66. [Google Scholar] [CrossRef]
  14. Pandarus, V.; Ciriminna, R.; Gingras, G.; Béland, F.; Kaliaguine, S.; Pagliaro, M. Waste-free and efficient hydrosilylation of olefins. Green Chem. 2019, 21, 129–140. [Google Scholar] [CrossRef]
  15. Brook, M.A.; Neuy, A. The beta-effect: Changing the ligands on silicon. J. Org. Chem. 1990, 55, 3609–3616. [Google Scholar] [CrossRef]
  16. Roth, M.; Ahles, M.; Gawrisch, C.; Schwalm, T.; Schmechel, R.; Melzer, C.; von Seggern, H.; Rehahn, M. Rodlike Tetracene Derivatives. Chem. Eur. J. 2017, 23, 13445–13454. [Google Scholar] [CrossRef] [PubMed]
  17. Zhong, Z.; Wang, Z.-Y.; Ni, S.-F.; Dang, L.; Lee, H.K.; Peng, X.-S.; Wong, H.N.C. Ligand-Free Iron-Catalyzed Carbon(sp2)−Carbon(sp2) Oxidative Homo-Coupling of Alkenyllithiums. Org. Lett. 2019, 21, 700–704. [Google Scholar] [CrossRef] [PubMed]
  18. Chauhan, B.P.S.; Sarkar, A. Functionalized vinylsilanes via highly efficient and recyclable Pt-nanoparticle catalysed hydrosilylation of alkynes. Dalton Trans. 2017, 46, 8709–8715. [Google Scholar] [CrossRef] [PubMed]
Scheme 1. Scheme of photo and thermo polymerization of DVS-BCB and analogs in absence (A) or presence (B) of bisazide photocoupling agent.
Scheme 1. Scheme of photo and thermo polymerization of DVS-BCB and analogs in absence (A) or presence (B) of bisazide photocoupling agent.
Molbank 2020 m1102 sch001

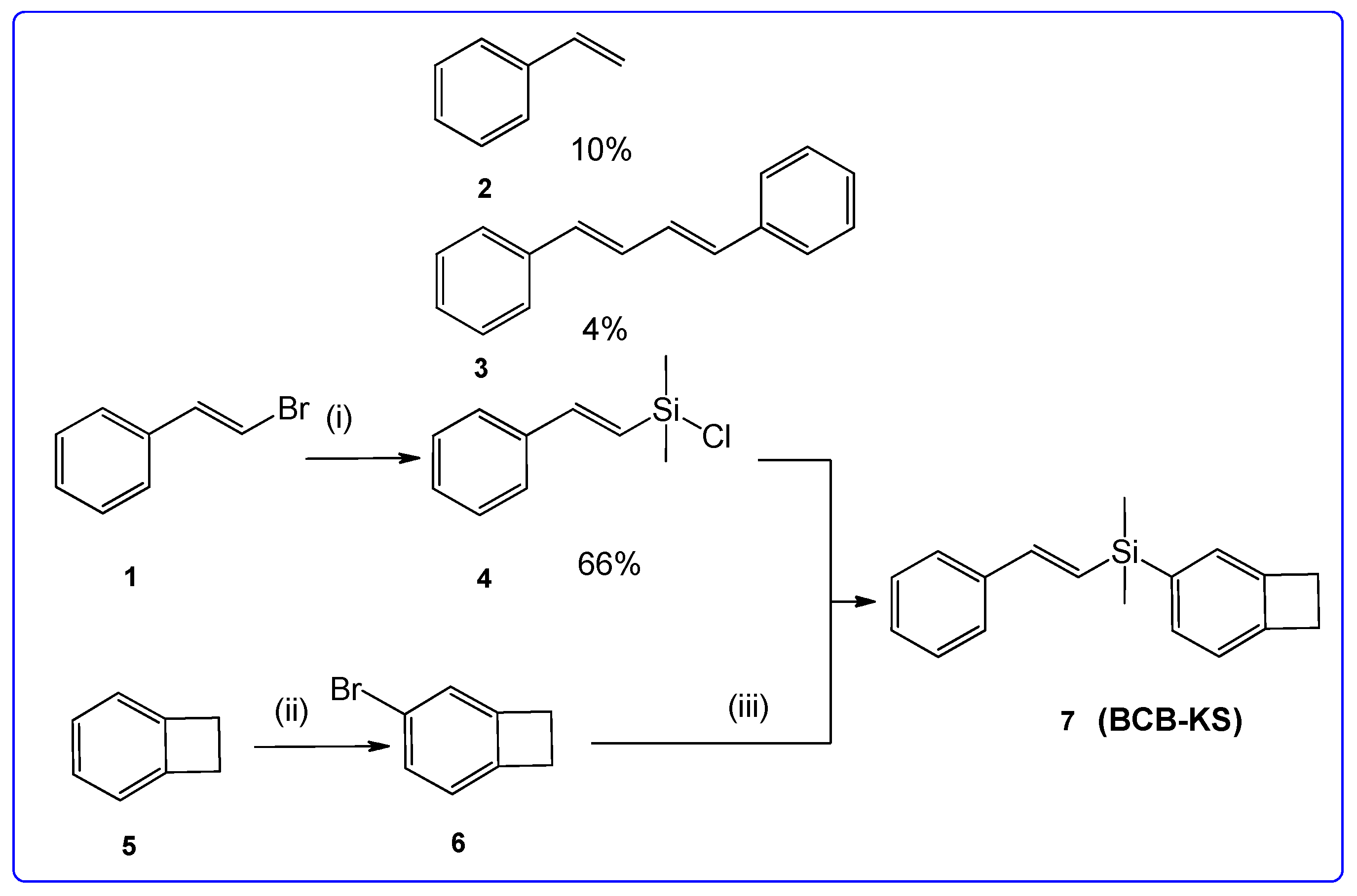

Scheme 2. Synthesis of bicyclo[4.2.0]octa-1,3,5-trien-3-yl-dimethyl-((E)-styryl)-silane (BCB-KS). (i) Mg, Me2SiCl2 THF, 25–30 °C; (ii) Br2, H2O, −10–20 °C, 20 h; and (iii) Mg, THF, 4, 25–30 °C, after r.t., overnight.
