Molbank 2019, 2019(1), M1043; https://doi.org/10.3390/M1043

Short Note
3-Chloro-5-(3-n-hexylthien-2-yl)-4H-1,2,6-thiadiazin-4-one
1
Department of Life Sciences, School of Sciences, European University Cyprus, 6 Diogenis Str., Engomi, P. O. Box 22006, 1516 Nicosia, Cyprus
2
Department of Chemistry, University of Cyprus; P.O. Box 20537, 1678 Nicosia, Cyprus
*
Author to whom correspondence should be addressed.
Received: 18 December 2018 / Accepted: 7 January 2019 / Published: 9 January 2019

Abstract

:
Stille coupling of 5-chloro-4-oxo-4H-1,2,6-thiadiazin-3-yl trifluoromethanesulfonate (7) with tributyl(3-n-hexylthien-2-yl)stannane and Pd(Ph3P)2Cl2 in PhMe at ca. 20 °C, for 24 h gave 3-chloro-5-(3-n-hexylthien-2-yl)-4H-1,2,6-thiadiazin-4-one (9) with a 60% yield. The latter is a potentially useful building block for the synthesis of oligomeric and polymeric donors for organic photovoltaics.
Keywords:
Stille; heterocycle; 1,2,6-thiadiazine; hexylthiophene; unsymmetrical

1. Introduction

Non-oxidized 4H-1,2,6-thiadiazines are a rare class of heterocycles. However, recent interest in their properties and applications has fueled the development of their chemistry: many 3-chloro-5-substituted-4H-1,2,6-thiadiazines show plant antifungal activity [1,2,3,4,5], whereas several fused analogues were studied as examples of “extreme quinoids” with ambiguous aromatic character [6], and others display liquid crystalline properties or behave as near-infrared dyes [7,8]. Moreover, selected 4H-1,2,6-thiadiazines were proposed as radical anion precursors for molecule-based magnetic and conducting materials [9], while both Woodward [10] and Rees [11,12,13] proposed π-conjugated polymers of 1,2,6-thiadiazines as potentially stable alternatives to the superconductor poly(sulfur nitride) (SN)x. Recently, 4H-1,2,6-thiadiazines were characterized by resonance Raman (RR), absorption (UV–vis), and photoluminescence (PL) spectroscopies to better understand their optical properties [14], while an electrochemical study of selected 1,2,6-thiadiazines [15] revealed that they might have useful electronic properties.
We recently prepared a series of small-molecule non-S-oxidized 4H-1,2,6-thiadiazin-4-ones 26 from 3,5-dichloro-4H-1,2,6-thiadiazin-4-one (1) and investigated them as efficient electron donors in solution-processed bulk heterojunction (BHJ) solar cells as substitutes to the widely used 2,1,3-benzothiadiazoles (Figure 1) [16]. The small-molecule donors synthesized in combination with PC70BM were used in BHJ solar cells with Power Conversion Efficiencies (PCE) of ~2.8%, while in a later work, 4H-1,2,6-thiadiazine-containing polymers showed PCEs of up to 3.8% [17].
The common feature of the two previous efforts to prepare thiadiazine-containing light-harvesting donors, either oligomers or polymers, is that they both have a symmetric motif of donor–acceptor alternating units (D–A–D). Interestingly, asymmetrical donor molecules can lead to improved performance due to a larger electron transition dipole moment [18]. As such, to synthesize unsymmetrical donor molecules (D–A–D’), we required access to an unsymmetrical thiadiazine monomer. Use of the readily available dichlorothiadiazinone 1 was not possible as attempts to monoarylate this scaffold using aryltributylstannanes (1 equiv) even in mild conditions gave mixtures of starting material with mono- and bis-arylated products [19]. Nevertheless, dichlorothiadiazinone 1 can be converted in two steps to 5-chloro-4-oxo-4H-1,2,6-thiadiazin-3-yl trifluoromethanesulfonate (7) that can undergo chemoselective Stille couplings to afford mono hetaryls 8ac (Scheme 1) [19].

2. Results and Discussion

During studies on the use of thienylthiadiazines for the construction of unsymmetrical D–A–D’s, we prepared several monochloro monothienyl analogues such as 8a and its 4-n-dodecylthien-2-yl analogue [20]. The presence of suitable alkyl side chains on the thienyl moieties helps to improve the solubility and can influence the solid-state morphology of the D–A–D’s. As such, accessing analogues with different alkyl side chains was important for the evolution of our ongoing studies. In light of this, we prepared 3-chloro-5-(3-n-hexylthien-2-yl)-4H-1,2,6-thiadiazin-4-one (9) as a new soluble monomer that possesses an alkyl side chain at the C-3 thienyl position and a reactive 3-chlorine that can be displaced in a subsequent Stille coupling (Scheme 2). Furthermore, the thiophene C-5 position can be the site of further coupling reactions, either directly via a C–H arylation or in two steps by bromination with N-bromosuccinimide (NBS) followed by a Stille coupling.
The synthesis of thienylthiadiazinone 9 was achieved by modifying the previous methods [19,20]: Stille coupling of 3-chloro-5-triflate thiadiazinone 7 with tributyl(3-n-hexylthien-2-yl)stannane (1 equiv) and Pd(Ph3P)2Cl2 (2.5 mol%), in PhMe at ca. 20 °C gave the desired product 9 with a 60% yield (Scheme 2). The lower catalyst loading (2.5 versus 5 mol%) helped suppress the formation of unwanted bithienylthiadiazine. The yield of thienylthiadiazinone 9 was slightly lower than that of the previously prepared monothienylthiadiazine 8a (Scheme 1), probably due to steric factors, as the thienyl C-3 n-hexyl group was next to the coupling site. We consider thienylthiadiazinone 9 to be a useful scaffold that will enhance the use of thiadiazines in the synthesis of functional materials for applications in electronics.

3. Materials and Methods

The reaction mixture was monitored by TLC using commercial glass-backed thin layer chromatography (TLC) plates (Merck Kieselgel 60 F254, Darmstadt, Germany). The plates were observed under UV light at 254 and 365 nm. The melting point was determined using a PolyTherm-A, Wagner Munz Kofler Hotstage Microscope apparatus (Wagner & Munz, Munich, Germany). The solvent used for recrystallization is indicated after the melting point. The UV–vis spectrum was obtained using a Perkin Elmer Lambda-25 UV–vis spectrophotometer (Perkin Elmer, Waltham, MA, USA), and inflections are identified by the abbreviation “inf”. The IR spectrum was recorded on a Shimadzu FTIR–NIR Prestige-21 spectrometer (Shimadzu, Kyoto, Japan) with Pike Miracle Ge ATR accessory (Pike Miracle, Madison, WI, USA), and strong, medium, and weak peaks are represented by s, m, and w, respectively. 1H and 13C-NMR spectra were recorded on a Bruker Avance 500 machine (at 500 and 125 MHz, respectively, (Bruker, Billerica, MA, USA)). Deuterated solvents were used for homonuclear lock, and the signals are referenced to the deuterated solvent peaks. Attached proton test (APT) NMR studies identified carbon multiplicities, which are indicated by (s), (d), (t), and (q) notations. The MALDI–TOF mass spectrum (+ve mode) was recorded on a Bruker Autoflex III Smartbeam instrument (Bruker). The elemental analysis was run by the London Metropolitan University Elemental Analysis Service. The compound 5-chloro-4-oxo-4H-1,2,6-thiadiazin-3-yl trifluoromethanesulfonate (7) was prepared according to the literature [19].

3-Chloro-5-(3-n-hexylthien-2-yl)-4H-1,2,6-thiadiazin-4-one (9)

To a stirred mixture of 5-chloro-4-oxo-4H-1,2,6-thiadiazin-3-yl trifluoromethanesulfonate (7) (59.3 mg, 0.200 mmol) in PhMe (2 mL) at ca. 20 °C, tributyl(3-n-hexylthien-2-yl)stannane (91.4 mg, 0.200 mmol) and Pd(Ph3P)2Cl2 (7.0 mg, 0.005 mmol) were added. The solution was then stirred at this temperature until no starting material remained (TLC, 24 h). The reaction mixture was then adsorbed onto silica and chromatographed (n-hexane/DCM, 60:40) to give the title compound 9 (38.1 mg, 60%) as yellow needles, mp 47–48 °C (from MeCN, 0 °C); Rf 0.67 (n-hexane/DCM, 60:40); (found: C, 49.68; H, 4.85; N, 8.81. C13H15ClN2OS2 required C, 49.59; H, 4.80; N, 8.90%); λmax(DCM)/nm 256 inf (log ε 3.73), 288 (4.00), 371 (4.35); vmax/cm−1 2951w, 2926w, 2868w and 2851w (C-H), 1632s, 1501w, 1439m, 1395s, 1373w, 1358w, 1339w, 1289w, 1271w, 1238w, 1175m, 1090w, 1015m, 939w, 856m, 843w, 822m, 793m, 752s; δH(500 MHz; CDCl3) 7.59 (1H, d, J 5.1, Ar CH), 7.06 (1H, d, J 5.1, Ar CH), 3.04 (2H, dd, J 7.7, 7.7, CH2), 1.65–1.59 (2H, m, CH2), 1.41–1.28 (6H, m, CH2), 0.90 (3H, t, J 6.7, CH3); δC(125 MHz; CDCl3) 159.9 (s), 154.0 (s), 151.1 (s), 150.5 (s), 132.7 (d), 130.5 (d), 126.1 (s), 31.7 (t), 31.3 (t), 29.8 (t), 29.3 (t), 22.6 (t), 14.1 (q); m/z (MALDI-TOF) 316 (M+ + 2, 46%), 314 (M+, 65), 243 (83), 225 (21).

Supplementary Materials

The following are available online: mol file, 1H and 13C-NMR spectra.

Author Contributions

P.A.K. conceived the experiments; A.S.K. designed and performed the experiments, analyzed the data, and wrote the paper.

Funding

Cyprus Research Promotion Foundation (Grants: ΣΤΡΑΤΗΙΙ/0308/06, NEKYP/0308/02 ΥΓΕΙΑ/0506/19 and ΕΝΙΣΧ/0308/83).

Acknowledgments

The authors thank the following organizations and companies in Cyprus for generous donations of chemicals and glassware: the State General Laboratory, the Agricultural Research Institute, the Ministry of Agriculture, MedoChemie Ltd., Medisell Ltd., and Biotronics Ltd. Furthermore, we thank the A. G. Leventis Foundation for helping to establish the NMR facility at the University of Cyprus.

Conflicts of Interest

The authors declare no conflict of interest. The founding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the results.

References

  1. Peake, C.J.; Harnish, W.N.; Davidson, B.L. Mono-5-substituted-3-chloro-4H-1,2,6-thiadiazin-4-one Antifungal Agents. U.S. Patent 4,097,594, 27 June 1978. [Google Scholar]
  2. Peake, C.J.; Harnish, W.N.; Davidson, B.L. Mono-5-substituted-thio-3-chloro-4H-1,2,6-thiadiazin-4-one Antifungal Agents. U.S. Patent 4,100,281, 11 July 1978. [Google Scholar]
  3. Peake, C.J.; Harnish, W.N.; Davidson, B.L. 3-Chloro-5-(optionally substituted heterocycloxy)-4H-1,2,6-thiadiazin-4-one Antifungal Agents. U.S. Patent 4,143,138, 6 March 1979. [Google Scholar]
  4. Peake, C.J.; Harnish, W.N.; Davidson, B.L. Mono-5-substituted-3-chloro-4H-1,2,6-thiadiazin-4-one Antifungal Agents. U.S. Patent 4,201,780, 6 May 1980. [Google Scholar]
  5. Portnoy, R.C. Thiadiazinone plant disease control agents. U.S. Patent 4,497,807, 5 February 1985. [Google Scholar]
  6. Haddon, R.C.; Kaplan, M.L.; Marshall, J.H. Naphtho[1,8-cd:4,5-c′d′]bis[1,2,6]thiadiazine. A compound of ambiguous aromatic character. J. Am. Chem. Soc. 1978, 100, 1235–1239. [Google Scholar] [CrossRef]
  7. Gómez, T.; Macho, S.; Miguel, D.; Neo, A.G.; Rodríguez, T.; Torroba, T. Cyclopentathiadiazines, Cyclohepta- and Cyclopentadithiazoles: New Materials and a Rich Heterocyclic Chemistry of Cyclic Enaminonitriles. Eur. J. Org. Chem. 2005, 2005, 5055–5066. [Google Scholar] [CrossRef]
  8. Macho, S.; Miguel, D.; Neo, A.G.; Rodríguez, T.; Torroba, T. Cyclopentathiadiazines, new heterocyclic materials from cyclic Enaminonitriles. Chem. Commun. 2005, 3, 334–336. [Google Scholar] [CrossRef] [PubMed]
  9. Lonchakov, A.V.; Rakitin, O.A.; Gritsan, N.P.; Zibarev, A.V. Breathing Some New Life into an Old Topic: Chalcogen-Nitrogen π-Heterocycles as Electron Acceptors. Molecules 2013, 18, 9850–9900. [Google Scholar] [CrossRef] [PubMed][Green Version]
  10. Cava, M.P.; Lakshmikantham, M.V.; Hoffmann, R.; Williams, R.M. R. B. Woodward’s unfinished symphony: Designing organic superconductors (1975–79). Tetrahedron 2011, 67, 6771–6797. [Google Scholar] [CrossRef]
  11. Koutentis, P.A.; Rees, C.W.; White, A.J.P.; Williams, D.J. Reaction of tetracyanoethylene with SCl2; new molecular rearrangements. Chem. Commun. 2000, 4, 303–304. [Google Scholar] [CrossRef]
  12. Koutentis, P.A.; Rees, C.W. Reaction of tetracyanoethylene with SCl2; new molecular rearrangements. J. Chem. Soc. Perkin Trans. 1 2000, 7, 1089–1094. [Google Scholar] [CrossRef]
  13. Koutentis, P.A.; Rees, C.W. Cyclisation chemistry of 4H-1,2,6-thiadiazines. J. Chem. Soc. Perkin Trans. 1 2000, 16, 2601–2607. [Google Scholar] [CrossRef]
  14. Theodorou, E.; Ioannidou, H.A.; Ioannou, T.A.; Kalogirou, A.S.; Constantinides, C.P.; Manoli, M.; Koutentis, P.A.; Hayes, S.C. Spectroscopic characterization of C-4 substituted 3,5-dichloro-4H-1,2,6-thiadiazines. RSC Adv. 2015, 51, 18471–18481. [Google Scholar] [CrossRef]
  15. Economopoulos, S.P.; Koutentis, P.A.; Ioannidou, H.A.; Choulis, S.A. Identifying potential candidates for donor–acceptor copolymers on a series of 4H-1,2,6-thiadiazines: An electrochemical approach. Electrochim. Acta 2013, 107, 448–453. [Google Scholar] [CrossRef]
  16. Hermerschmidt, F.; Kalogirou, A.S.; Min, J.; Zissimou, G.A.; Tuladhar, S.M.; Ameri, T.; Faber, H.; Itskos, G.; Choulis, S.A.; Anthopoulos, T.D.; et al. 4H-1,2,6-Thiadiazin-4-one-containing small molecule donors and additive effects on their performance in solution-processed organic solar cells. J. Mater. Chem. C 2015, 3, 2358–2365. [Google Scholar] [CrossRef]
  17. Chochos, C.L.; Kalogirou, A.S.; Ye, T.; Tatsi, E.; Katsouras, A.; Zissimou, G.A.; Gregoriou, V.G.; Avgeropoulos, A.; Koutentis, P.A. 4H-1,2,6-Thiadiazine-containing donor–acceptor conjugated polymers: Synthesis, optoelectronic characterization and their use in organic solar cells. J. Mater. Chem. C 2018, 6, 3658–3667. [Google Scholar] [CrossRef]
  18. Chen, J.; Liu, Q.; Li, H.; Zhao, Z.; Lu, Z.; Huang, Y.; Xu, D. Density Functional Theory Investigations of D-A-D’ Structural Molecules as Donor Materials in Organic Solar Cell. Front. Chem. 2018, 6, 200. [Google Scholar] [CrossRef] [PubMed]
  19. Ioannidou, H.A.; Kizas, C.; Koutentis, P.A. Selective Stille coupling reactions of 3-chloro-5-halo(pseudohalo)-4H-1,2,6-thiadiazin-4-ones. Org. Lett. 2011, 13, 5886–5889. [Google Scholar] [CrossRef] [PubMed]
  20. Ioannidou, H.A.; Koutentis, P.A. 3-Chloro-5-(4-dodecylthiophen-2-yl)-4H-1,2,6-thiadiazin-4-one. Molbank 2012, 4, M782. [Google Scholar] [CrossRef]

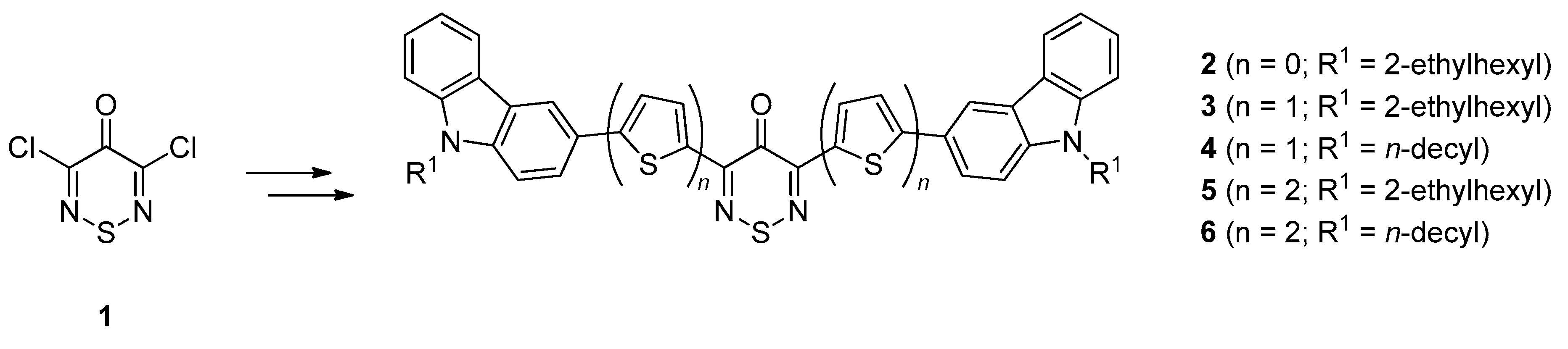

Figure 1. Examples of 1,2,6-Thiadiazine-containing oligomers studied as donors in bulk heterojunction (BHJ) organic photovoltaics (OPVs) [16].
Figure 1. Examples of 1,2,6-Thiadiazine-containing oligomers studied as donors in bulk heterojunction (BHJ) organic photovoltaics (OPVs) [16].
Molbank 2019 m1043 g001

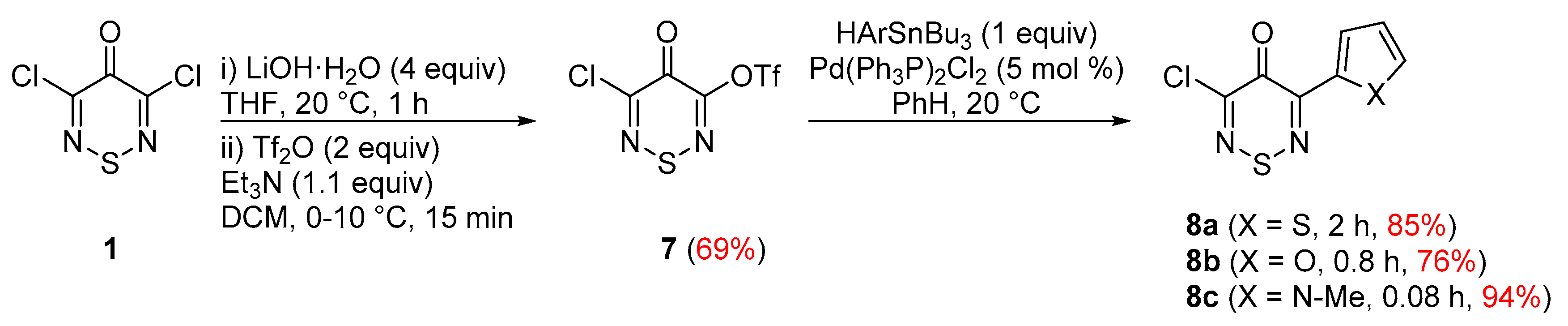

Scheme 1. Synthesis of 3-chloro-5-hetaryl-4H-1,2,6-thiadiazin-4-ones 8a,b,c.
Scheme 1. Synthesis of 3-chloro-5-hetaryl-4H-1,2,6-thiadiazin-4-ones 8a,b,c.
Molbank 2019 m1043 sch001

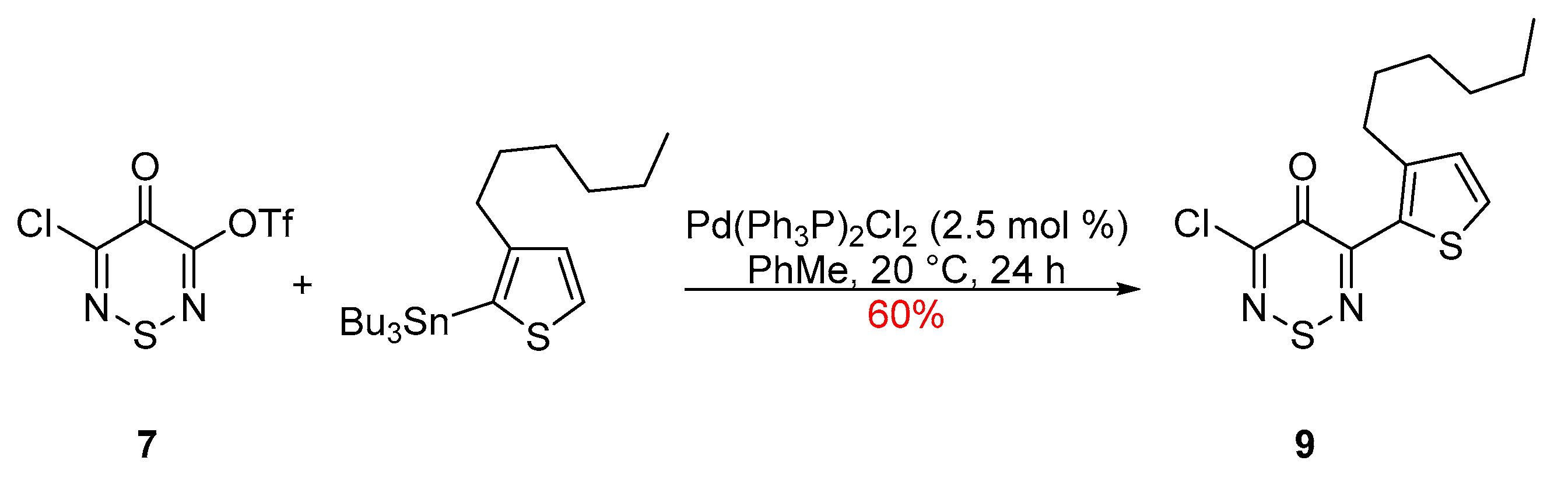

Scheme 2. Synthesis of 3-chloro-5-(3-n-hexylthien-2-yl)-4H-1,2,6-thiadiazin-4-one (9).
Scheme 2. Synthesis of 3-chloro-5-(3-n-hexylthien-2-yl)-4H-1,2,6-thiadiazin-4-one (9).
Molbank 2019 m1043 sch002
