Short Note

N-(3,4-Dimethoxyphenyl)-4-oxo-2,3,7-triazaspiro[4.5]dec-1-ene-1-carboxamide Hydrochloride

by
Rajagopalan Srinivasan
1,2,
Badiadka Narayana
1,*,
Seranthimata Samshuddin
1 and
Balladka Kunhanna Sarojini
3
1
Department of Studies in Chemistry, Mangalore University, Mangalagangotri-574 199, Karnataka, India
2
Aurigene Discovery Technologies Limited, Electronics city, Phase-II, Bangalore-560 100, Karnataka, India
3
Research Department of Chemistry, P. A College of Engineering, Nadupadavu, Mangalore 574153, Karnataka, India
*
Author to whom correspondence should be addressed.
Molbank 2012, 2012(3), M769; https://doi.org/10.3390/M769
Submission received: 29 May 2012 / Accepted: 3 August 2012 / Published: 8 August 2012

Abstract

:
A simple and novel route for synthesis of new spirocyclic amide derivative is developed. The present work involves the oxidative cleavage of tert-butyl 1-(furan-2-yl)-4-oxo-2,3,7-triazaspiro[4.5]dec-1-ene-7-carboxylate 1 followed by the amine coupling and deprotection of Boc.

Graphical Abstract

Introduction

Spirocyclic structures are found in wide range of natural compounds isolated from various sources. Spiro compounds are known to be PDE7 inhibitors and have a number of therapeutic applications in the treatment of pain, especially neuropathic pain. They are useful for arresting cell growth and apoptosis of neoplastic cells, thereby useful in anticancer treatment [1,2]. The spiro functionality shown in many phytochemicals, such as in alkaloids, lactones, terpenoids, and clinically valuable compounds has been known for a long time. At present, spirocyclic compounds play a very important role in many fields such as chiral medicine, chiral LCD materials, macromolecule bulking agent and biological pesticides [3,4,5]. Due to those promising biological activities of spirocyclic compounds and in continuation of our work on synthesis of spirocyclic derivatives [6], it was decided to prepare a new spirocyclic amide derivative.

Results and Discussion

The title compound, N-(3,4-dimethoxyphenyl)-4-oxo-2,3,7-triazaspiro[4.5]dec-1-ene-1-carboxamide hydrochloride (3), was prepared by the coupling of 7-(tert-butoxycarbonyl)-4-oxo-2,3,7-triazaspiro[4.5]dec-1-ene-1-carboxylic acid (2) with 3,4-dimethoxyaniline using O-(7-azabenzotriazol-1-yl)-N,N,N′,N′-tetramethyluronium hexafluorophosphate (HATU) followed by deprotection of Boc group using HCl in 1,4-dioxane (Scheme 1). The intermediate 2 was in turn prepared by the oxidative cleavage of tert-butyl 1-(furan-2-yl)-4-oxo-2,3,7-triazaspiro[4.5]dec-1-ene-7-carboxylate 1. The final product 3 was well characterized by using NMR, IR and mass spectral data.
The IR spectrum of compound (3) showed a wide absorption band at 3378 cm−1 due to the presence of NH groups in the molecule. Two sharp bands at 1731 and 1660 cm−1 were due to pyrazolone carbonyl and amide carbonyl group respectively. In 1H-NMR spectrum, the signals of the respective protons of the title compound (3) were verified on the basis of their chemical shifts, multiplicities, and coupling constants. A singlet observed at δ 12.50 ppm was due to the proton of amide NH. Another singlet observed at δ 10.49 ppm was due to the proton of pyrazolone NH. A broad singlet appeared in the region δ 8.50–8.70 ppm was due to piperidine NH. Signals due to two methoxy groups appeared as singlets at δ 3.85 and 3.86 ppm. The eight protons of piperidine ring resonated in the region δ 1.90–3.66 ppm as different signals due to chemical non-equivalence of these protons. The mass spectrum showed a molecular ion peak at m/z 333.2 corresponding to [(M+-HCl)+H] as the HCl gets instantly dissociated in the mass spectral conditions. Elemental analysis and 13C-NMR spectrum also gave satisfactory results for the title compound.

Experimental

Melting point was taken in an open capillary tube and was uncorrected. The purity of the compound was confirmed by thin layer chromatography using Merck silica gel 60 F254 coated aluminium plates. IR spectrum was recorded on Shimadzu-FTIR Infrared spectrometer in KBr (νmax in cm−1). 1H-NMR (400 MHz) spectrum was recorded on a Varian 400 spectrometer, with 5 mm PABBO BB-1H TUBES and 13C-NMR (100 MHz) spectrum was recorded for approximately 0.03 M solutions in CD3OD at 100 MHz with TMS as internal standard. All exchangeable protons were confirmed by addition of D2O. LCMS was obtained using Agilent 1200 series LC and Micromass zQ spectrometer. Elemental analysis was carried out by using VARIO EL-III (Elementar Analysensysteme GmBH).
The synthesis of tert-butyl 1-(furan-2-yl)-4-oxo-2,3,7-triazaspiro[4.5]dec-1-ene-7-carboxylate (1) was described in our earlier work [6]. The oxidation of 1 with potassium permanganate in acetone medium yielded 7-(tert-butoxycarbonyl)-4-oxo-2,3,7-triazaspiro[4.5]dec-1-ene-1-carboxylic acid (2) [7].
To a solution of 2 (0.15 g, 0.5 mmol) in DMF (2 mL), DIPEA (0.3 mL, 1.5 mmol) was added at 0–5 °C followed by 3,4-dimethoxyaniline (0.081 g, 0.53 mmol). After stirring at 0–5 °C for 15 min, HATU (0.23 g, 0.6 mmol) was added and stirring continued at ambient temperature for 6 h. After the completion of reaction as indicated by TLC, the reaction mixture was quenched into crushed ice and filtered. The solid product was reacted with HCl in 1,4-dioxane [8] to afford the title compound. Yield was 87 mg, 47%.
Melting point: 224–230 °C.
LCMS: m/z = 333.2, [(M+-HCl)+H].
IR (KBr): νmax (cm−1), 3378 (NH), 2998 (Ar-H), 2944 (aliphatic CH), 1731 (pyrazolone C=O), 1660 (amide C=O).
1H-NMR (400 MHz, CD3OD): δ ppm, 1.90 (m, 1H, piperidine-H), 2.10 (m, 3H, piperidine-H), 3.30 (m, 2H, piperidine-H), 3.40 (m, 1H, piperidine-H), 3.66 (m, 1H, piperidine-H), 3.85 (s, 3H, OCH3), 3.86 (s, 3H, OCH3), 6.94 (d, 1H, Ar-H, J = 8.8 Hz), 7.26 (dd, 1H, Ar-H, J = 2.4 Hz, J = 8.8 Hz), 7.43 (d, 1H, Ar-H, J = 2.4 Hz), 8.50 (s, broad, 1H, piperidine NH, D2O exchageable), 10.49 (s, 1H, pyrazolone NH, D2O exchageable), 12.50 (s, 1H, CONH, D2O exchageable).
13C-NMR (100 MHz, CD3OD): δ ppm, 19.02, 29.49, 44.78, 45.87 (piperidine C’s), 56.55 (OCH3), 56.74 (OCH3), 68.13 (quaternary spirocyclic C), 107.09, 113.17, 114.66, 132.10, 148.13, 150.50 (Ar-C), 155.30 (pyrazolone-C), 160.84 (amide C=O), 178.53 (pyrazolone CO).
Elemental analysis: Calculated for C16H21ClN4O4, C, 52.10%; H, 5.74%; N, 15.19 %; Found: C, 52.05%; H, 5.76%; N, 15.16%.

Supplementary materials

Supplementary File 1Supplementary File 2Supplementary File 3Supplementary File 4

Acknowledgments

RS thanks Aurigene Discovery Technologies Limited and Mangalore University for research facilities.

References

  1. Mead, K.T.; Brewer, B.N. Strategies in spiro ketal synthesis revisited: Recent applications and advances. Curr. Org. Chem. 2003, 7, 227–256. [Google Scholar] [CrossRef]
  2. Shi, Z.-J.; Zhang, S.-L.; Cao, W.-G.; Deng, H.-M. Facile synthesis of a series of perfluoroalkyl-containing tetra-spirocyclic compounds and their spectral analysis. Chin. J. Chem. 2008, 26, 2103–2106. [Google Scholar] [CrossRef]
  3. Zhang, Z.-H. Synthesis and application of chiral spiro ligands in asymmetric catalysis. Chin. J. Org. Chem. 2005, 25, 355–363. [Google Scholar]
  4. Arai, M.A.; Kuraishi, M.; Arai, T.; Sasai, H. A new asymmetric Wacker-type cyclization and tandem cyclization promoted by Pd(II)-spiro bis(isoxazoline) catalyst. J. Am. Chem. Soc. 2001, 123, 2907–2908. [Google Scholar] [CrossRef] [PubMed]
  5. Pan, C.-Y.; Wang, Y.; William, J.B. The investigation of polymerization mechanism of 7-methylene-2-methyl-1,4,6-triox-aspiro(4,4)nonane. Acta Polym. Sin. 1989, 1, 18–24. [Google Scholar]
  6. Srinivasan, R.; Narayana, B.; Samshuddin, S.; Sarojini, B.K. tert-Butyl 1-(furan-2-yl)-4-oxo-2,3,7-triazaspiro[4.5]dec-1-ene-7-carboxylate. Molbank 2012, 2012, M757. [Google Scholar] [CrossRef]
  7. Yin, X.H.; Yang, M.Y.; Shi, H.H.; Gu, L.Q. Synthesis of 3- or 4-substituted pyridine-2,6-dicarboxylic acid. Chinese Chem. Lett. 1999, 10, 903–906. [Google Scholar]
  8. Han, G.; Tamaki, M.; Hruby, V.J. Fast, efficient and selective deprotection of the tert-butoxycarbonyl (Boc) group using HCl/dioxane (4 M). J. Pept. Res. 2001, 58, 338–341. [Google Scholar] [CrossRef] [PubMed]

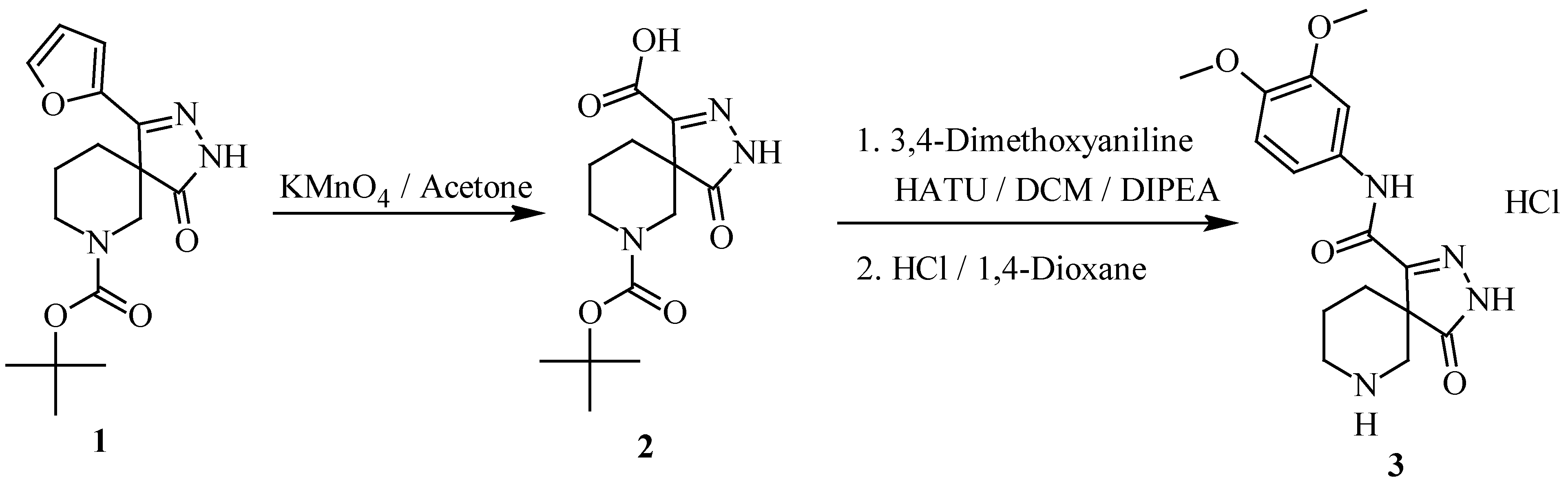

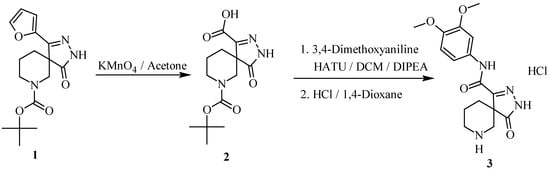

Scheme 1. Synthesis of N-(3,4-dimethoxyphenyl)-4-oxo-2,3,7-triazaspiro[4.5]dec-1-ene-1-carboxamide hydrochloride.
Scheme 1. Synthesis of N-(3,4-dimethoxyphenyl)-4-oxo-2,3,7-triazaspiro[4.5]dec-1-ene-1-carboxamide hydrochloride.
