Molbank 2005, 2005(3), M420; https://doi.org/10.3390/M420

Short Note
3-(2,5-Diethoxy-4-iodo-phenylethynyl)-[1,10]-phenanthroline
Department of Chemistry, Faculty of Sciences, Bu Ali Sina University, Hamedan, Iran. Code: 6517838683
Received: 13 June 2005 / Accepted: 8 August 2005 / Published: 1 September 2005
Keywords:
1,4-diethoxy-2,5-diiodobenzene; Sonogashira procedure; phenanthroline

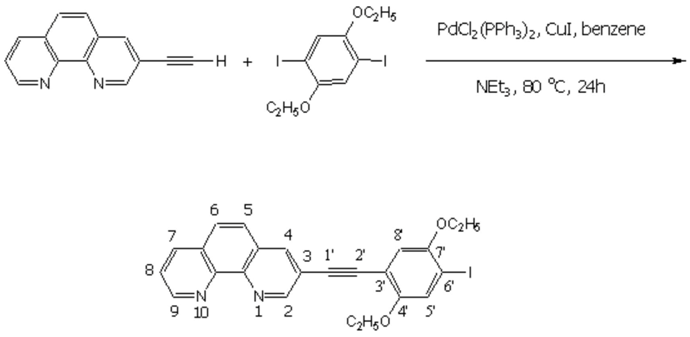

Molbank 2005 m420 i001
The experimental procedure follows a protocol developed by Sonogashira [1]. All reactions were carried out under the atmosphere of dry argon by using standard Schlenk tube techniques.
To a mixture of 3-ethynyl-[1,10]-phenanthroline [2,3] (306 mg, 1.5 mmol) and 1,4-diethoxy-2,5-diiodobenzene (3.135 g, 7.5 mmol) in dry benzene (25 mL), and triethyl amine (10 mL), were added CuI (28.6 mg, 0.15 mmol), and [PdCl2(PPh3)2] (52.6 mg, 0.075 mmol). The reaction mixture was kept at 80 °C for 24h while stirring vigorously and monitored with mass spectrometer to see the formation of the desired product. After removal of the solvent, the residue was washed with aqueous potassium cyanide (2%, 30 mL) and distilled water (100 mL), and purified by column chromatography (SiO2, CHCl3) to collect 3-(2,5-diethoxy-4-iodo-phenylethynyl)-[1,10]-phenanthroline (222 mg, 0.45 mmol, 30%).
Melting Point: > 300°C.
IR (KBr, cm-1): 3205, 2202, 1590, 1477, 1415, 1261, 1202, 1095, 1053, 940, 818, 729.
1H-NMR (200 MHz, d6-acetone): δ= 1.3 (6H, 2CH3); 4 (4H, 2CH2); 6.6 (1H, 8'-H); 7.0 (1H, 5'-H); 7.25 (1H, 8-H); 7.4 (1H, 5-H); 7.7 (1H, 6-H); 8.0 (1H, 7-H); 8.2 (1H, 4-H); 8.8 (1H, 9-H); 9.0 (1-H, 2-H).
Elemental Analysis: Calculated for C24H19IN2O2: C, 58.31%; H, 3.87%; N, 5.67%. Found: C, 58.0%; H, 4.0%; N, 5.8%.

Supplementary materials

Supplementary File 1Supplementary File 2Supplementary File 3

Acknowledgements

The author gratefully acknowledges the financial supports from the Bu Ali Sina University, Hamedan, Iran.

References

  1. Sonogashira, K.; Tohda, Y.; Hagihara, N. Tetrahedron Lett 1975, 4467.
  2. Michel, C.; Habibi, D.; Schmittel, M. Molecules 2001, M224.
  3. Michel, C.; Habibi, D.; Schmittel, M. Molecules 2001, M225.
  4. Giesa, R.; Schulz, R. C. Makromol. Chem. 1990, 191, 857.
  5. Weder, C.; Wrighton, M. S. Macromolecules 1996, 29, 5157.
  6. Swager, T. M.; Gil, C. J.; Wrighton, M. S. J. Phys. Chem. 1995, 99, 4886.
