Article

Gratiola officinalis Alcoholic Extract Targets Warburg Effect, Apoptosis and Cell Cycle Progression in Colorectal Cancer Cell Lines

by
Stefano Bianchini
1,
Federica Bovio
1,
Stefano Negri
2,3,
Flavia Guzzo
2,3,
Matilde Forcella
1,3,* and
Paola Fusi
1,3,4,*
1
Department of Biotechnology and Biosciences, University of Milano-Bicocca, Piazza della Scienza 2, 20126 Milano, Italy
2
Department of Biotechnology, University of Verona, Strada Le Grazie 15, 37134 Verona, Italy
3
National Biodiversity Future Center (NBFC), 90133 Palermo, Italy
4
Integrated Models for Prevention and Protection in Environmental and Occupational Health (MISTRAL), Interuniversity Research Center, 25121 Brescia, Italy
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2025, 26(5), 2220; https://doi.org/10.3390/ijms26052220
Submission received: 28 January 2025 / Revised: 25 February 2025 / Accepted: 27 February 2025 / Published: 28 February 2025
(This article belongs to the Special Issue Natural Products in Cancer Prevention and Treatment)
Browse Figures
Versions Notes

Abstract

Colorectal cancer (CRC) is the second deadliest cancer in the Western world. Increased body weight, a diet rich in red meat and alcohol, as well as a sedentary lifestyle, are all involved in sporadic CRC pathogenesis. Since current CRC therapies show several side effects, there is a need to find new and more effective therapeutic approaches, allowing conventional drug dosages and toxicity to be reduced. Gratiola officinalis alcoholic extract was characterized by LC-MS and its effect investigated on a healthy colon mucosa cell line and on different colorectal cancer cell lines. Cell viability, apoptosis and cell cycle progression were evaluated through flow cytometry; energy production and glycolysis were investigated using Seahorse technology, while cancer markers were analyzed through Western blotting. The untargeted metabolomics analysis of G. officinalis alcoholic extract revealed glycosides of different polyphenols and glycosides of cucurbitane-type triterpenes. This extract showed a stronger impact on CRC cell line viability compared to healthy colon cells. In the E705 CRC cell line, it induced cell apoptosis and caused the downregulation of glycolysis, inhibiting cell proliferation. On the other hand, SW480 CRC cells treated with G. officinalis extract showed G2/M cell cycle arrest. This work shows that G. officinalis extract can reduce glycolysis and promote cell cycle arrest in CRC cells, suggesting that G. officinalis could represent a novel player in the prevention and treatment of CRC.

1. Introduction

Common hedge hyssop (Gratiola officinalis L., Plantaginaceae) is one of the most versatile medicinal plants, although it is endowed with some toxic potential [1]. It has been used since the Middle Ages to treat liver diseases, visceral obstructions, skin diseases, menstrual disorders, gout and parasitic worms; it is also known to affect the nervous system [2]. Moreover, while its anti-inflammatory and sedative actions have been known for a long time, more recently, G. officinalis extracts have been shown to be endowed with antioxidant [3] and anticancer activity towards breast and cervical cancer cells [4]. In particular, Polukonova and coworkers also found that G. officinalis extracts induced apoptosis and necrosis in HCT-116 human colorectal cancer cells [5]. The flavonoid component in G. officinalis extracts was found to be involved in both antioxidant and anticancer activities. Bioflavonoids are known to exert a wide range of anticancer effects, like apoptosis induction, cell cycle arrest and angiogenesis inhibition [6].
With nearly one million newly diagnosed cases each year [7], colorectal cancer (CRC) is the second deadliest cancer in the Western world [8]. Hereditary forms, like familial adenomatous polyposis and hereditary non-polyposis colorectal cancer, account for only approximately 10–20% of all colorectal cancers, with most patients developing sporadic CRC [9]. In addition, sporadic CRC is highly represented among early-onset colorectal cancer patients, a group that has constantly increased over the past two decades, with over 80% of patients not showing any germline mutation [10,11]. In recent years, mortality in CRC patients under the age of 50 has shown an increasing trend, in contrast to the overall decreasing mortality rates among older adults [12].
Dietary factors, such as excessive red meat and alcohol intake, together with other factors like antibiotic assumption, increased bodyweight and a sedentary lifestyle, are involved in sporadic CRC pathogenesis; these factors make CRC a “Westernized” disease, with a high incidence in North America, Australia, New Zealand and Europe [8]. Moreover, the same dietary and environmental factors, disrupting colon epithelium homeostasis, often induce dysbiosis, a potential causal factor for early-onset CRC, especially in women [13,14].
On the other hand, protective factors associated with a decrease in the incidence of CRC include regular physical activity and a diet rich in fruits, vegetables, fish and fiber. An adequate intake of folate, calcium, vitamin D, vitamin B6 and magnesium has also been shown to play a significant role in CRC prevention [15,16].
Current CRC therapies depend on cancer stage: non metastatic CRC is treated with radiotherapy and/or chemotherapy, while for metastatic cancer, the treatment of choice is systemic therapy, including chemotherapy, targeted therapies and immunotherapy [17]. The latter aims at inhibiting epidermal growth factor receptor (EGFR) dimerization, using monoclonal antibodies against EGFR, such as cetuximab and panitumumab. However, these drugs are not effective in patients carrying RAS/BRAF mutations, whose prognosis is generally more unfavorable [18]. Moreover, even patients who are successfully treated with systemic therapy undergo the potentially serious side effects of these drugs and often develop a resistance to anti-EGFR therapies, which can be due to the tumor heterogeneity or to the multidrug treatment favoring resistance through epigenetic changes or microenvironmental factors [18]. Hence, there is a need for new and more effective therapies, which could also be used to reduce conventional drugs’ dosages and toxicity.
In recent years, many plant extracts and compounds have been investigated for their anticancer activity towards CRC; different kinds of molecules, ranging from flavonoids to alkaloids, have been found to be endowed with anticancer activity [19,20].
In this work, we report the anticancer activity of G. officinalis alcoholic extract in different CRC cell lines, after assessing the lack of toxic activity on healthy colorectal control cells. We also explore the molecular mechanisms responsible for this anticancer activity, showing that G. officinalis extract can induce G2/M cell cycle arrest or downregulate glycolysis, which is hyperactivated in cancer cells, thus inhibiting cell proliferation.

2. Results and Discussion

2.1. Phytochemical Characterization of Gratiola officinalis Extract

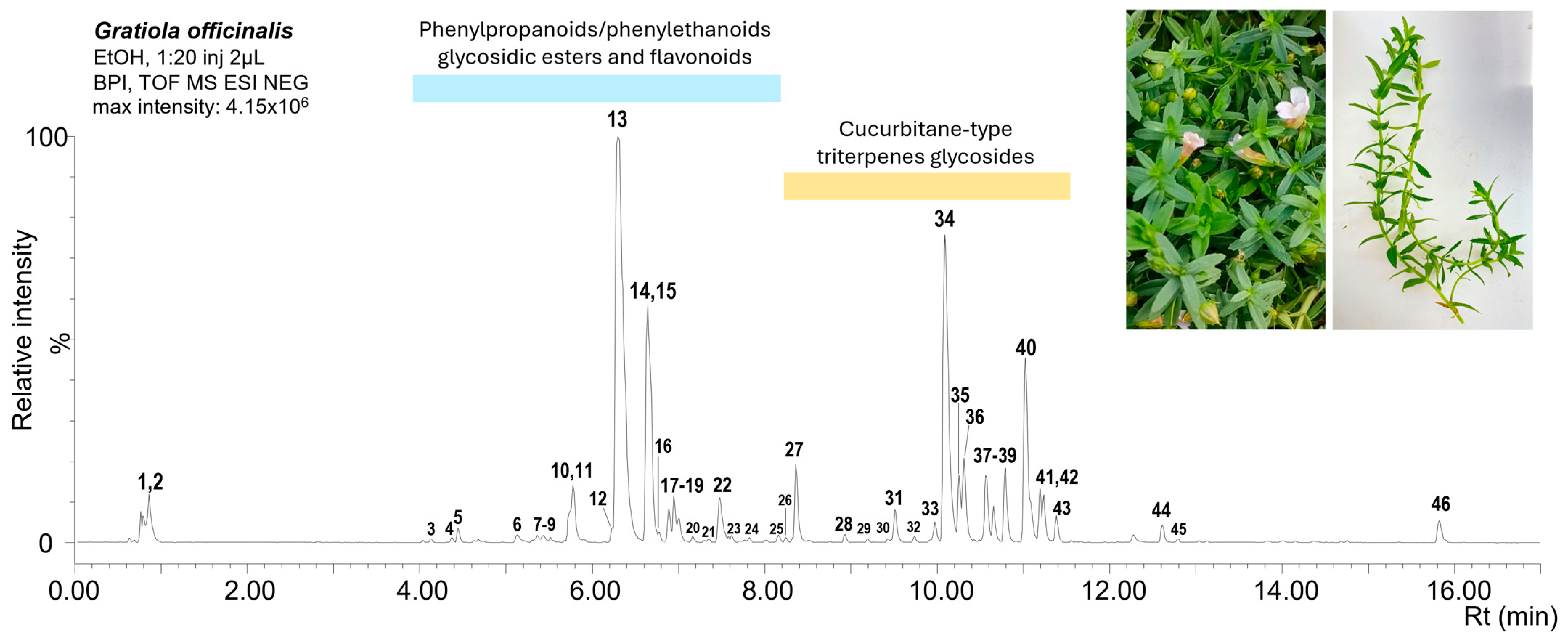

The untargeted metabolomics analysis of G. officinalis extract revealed a phytocomplex characterized by two main classes of metabolites: the glycosides of different polyphenols (phenylethanoids/phenylpropanoids esters and flavonoids) and the glycosides of cucurbitane-type triterpenes, eluting, respectively, in the medium-polar (4–8 min) and low-polar (8–13 min) range of the analysis (Figure 1).
Table 1 reports all the metabolites putatively identified with their LC-MS features (further information supporting the identification of the major metabolites detected is reported in Supplementary File S1).
The main metabolites from the polyphenol group were three glycosidic esters (peaks 13–15) featuring 2-(3,4-dihydroxyphenyl)ethanol (i.e., 3-hydroxytyrosol, phenylethanoid backbone) and caffeic acid (phenylpropanoid backbone) moieties: arenarioside/forsythoside B and verbascoside, the latter coeluting with samioside. These compounds were previously reported as the principal polyphenols of G. officinalis [21]. Further identifications were challenged by the high number of isomers observed in this metabolite class within the Lamiales. Thus, we tentatively identified the following compounds based on the information reported for species from other genera in the Plantaginaceae (e.g., Globularia, Plantago, Veronica) or phylogenetically related families: other glycosidic esters with 3-hydroxytyrosol and caffeic acid (echinacoside, isomers of echinacoside and verbascoside, acetyl-verbascoside) or with ferulic acid (leucosceptoside A) moietes; glycosidic esters with 2-(3-hydroxy-4-methoxyphenyl)ethanol and ferulic acid moieties (alyssonoside and martynoside); and 3-hydroxytyrosol glycosides (verbascoside and markhamioside A/peiioside B). Free caffeic acid and its conjugated forms with hexose sugars were also detected but at lower amounts. Flavonoids were mainly represented by the glycosides of the flavone apigenin (apigenin-C-pentoside-C-hexoside isomers) or its derivatives (e.g., methoxyapigenin). Besides their main antioxidant and anti-inflammatory activities, polyphenols can also modulate the intestinal microbiota. When they reach the distal part of the intestine, they are hydrolyzed and metabolized by intestinal enzymes and the gut microbiota. In particular, the gut microbiota can carry out demethylation and dehydroxylation reactions; conjugates are hydrolyzed releasing aglycones, which are absorbed by the colon and carried to the liver where they undergo further transformation [22]. Unabsorbed metabolites can modulate gut microbiota, exerting both a prebiotic effect, stimulating the growth of Lactobacilli, Bifidobacteria, etc., and an antimicrobial action against dpathogenic bacteria [23].
The occurrence of cucurbitane-type tetracyclic triterpenes in G. officinalis was previously reported [24,25], supporting our putative identifications of different glycosides (mainly 2-O-glucosides) of cucurbitacins B, E, I and S (also detectable, yet at lower levels, in their free form); the main peak from this group was attributed to cucurbitacin E-2-O-glucoside (also known as gratiotoxin/elaterinide, peak 34). Other cucurbitane-type triterpenes reported by the authors and putatively identified were those derived from gratiogenin, which, differently from cucurbitacins, seem to be exclusive of G. officinalis and harbor a furan ring in their structures; these include mainly 3-O-glucosyl-25-O-glucosyl-gratiogenin (gratioside) and its derivatives (e.g., peak 40), together with hydroxylated and 16-hydroxygratiogenin glycosides. At lower levels, triterpene acids, such as lupane-type pentacyclic triterpene betulinic acid, were also detected.
Concerning the bioactivities reported for the main phytochemicals detected in the extract, samioside and verbascoside are used in traditional herbal therapies and have been shown, in recent years, to be endowed with antiprotozoan activity [26,27]. Verbascoside anticancer activity has been studied by different authors in breast cancer [28]. A significant anti-metastatic and anti-invasion activity has been found in CRC HT-29 cultured cells [29] and a potential role has been suggested as an adjuvant treatment to decrease the resistance of CRC cells to 5-Fluorouracil, possibly by targeting the PI3K/AKT pathway [30]. Other components with a previously demonstrated anticancer effect towards CRC include caffeic acid phenethyesther [31], ferulic acid [32] and apigenin [33]. Among triterpenoids, pronounced antitumor and pro-apoptotic activity was reported for G. officinalis cucurbitacins in human kidney cancer Caki-1 and Sn12c cells [34].
Table 1. LC-MS features of the metabolites identified in G. officinalis extract. ID numbers refer to peaks indicated in Figure 1; * = metabolites identified by comparison with the authentic standard; and † = fragments observed in positive ionization. Abbreviations: PP, phenylpropanoid; PE, phenylethanoid. Further information supporting the putative identifications of these metabolites is reported in Supplementary File S1.
Table 1. LC-MS features of the metabolites identified in G. officinalis extract. ID numbers refer to peaks indicated in Figure 1; * = metabolites identified by comparison with the authentic standard; and † = fragments observed in positive ionization. Abbreviations: PP, phenylpropanoid; PE, phenylethanoid. Further information supporting the putative identifications of these metabolites is reported in Supplementary File S1.
IDRt
(min)		Putative IdentificationMolecular ClassFormulaUV–Vis.,
λ Max. (nm)		ESI—Molecular IonESI—Theoretical m/zESI—Experimental m/zESI—ΔppmESI—Confirming FragmentsReference
10.84Tetra-hexoseSugarsC24H42O21 [M+HCOOH−H+]−711.2195711.22000.65665.2137; 383.1197; 341.1084; 179.0578; 221.0678; 485.1530[35]
20.86Di-hexoseSugarsC12H22O11 [M+HCOOH−H+]−387.1139387.1138−0.22341.1084; 215.0318; 179.0578; 161.0464; 119.0344; 101.0243; 89.0222Massbank
2.82Dihydroxybenzoic acid sulfohexosideBenzoic acidsC13H16O12S [M−H+]−395.0284395.0270−3.60241.002; 96.959; 153.019; 222.991; 138.970; 109.028; 222.9906; 80.9645MetFrag
3.03Dihydroxybenzoic acid hexosideBenzoic acidsC13H16O9 [M−H+]−315.0716315.07252.84153.0184; 109.0278; 108.0214Massbank
4.04Caffeoyl-hexose isomer 1Hydroxycinnamic acidsC15H18O9 [M−H+]−341.0873341.08956.59135.045; 179.036; 107.0492; 203.0383; 161.0257Massbank
34.13Verbasoside (decaffeoyl-verbascoside)PE glycosideC20H30O12 [M−H+]−461.1659461.1646−2.80135.045; 315.111; 297.099; 161.044; 113.024; 85.030[36]
44.362,5-dihydroxy-p-benzenediacetic acidPhenolsC10H10O6257[M−H+]−225.0399225.0390−4.05119.050; 207.0303; 163.0398; 107.049; 163.039;[21]
54.43Markhamioside A/Peiioside BPE glycosideC25H38O16242, 324[M−H+]−593.2082593.21043.79161.0231; 447.1492; 461.1646; 135.0449; 429.1376; 153.0564
4.64Caffeic acid glycosideHydroxycinnamic acidsC19H26O12 [M−H+]−445.1346445.1345−0.21161.023; 133.028; 179.033; 135.045; 153.0564MetFrag
4.68Caffeoyl-hexose isomer 2Hydroxycinnamic acidsC15H18O9243, 324[M−H+]−341.0873341.0858−4.26179.036; 135.047; 161.023; 221.043; 251.056; 281.067[37]
65.13UI C26H30O15239, 291, 327[M−H+]−581.1506581.15263.38269.0665; 239.0565; 209.0468
5.31Caffeic acid *Hydroxycinnamic acidsC9H8O4 [M−H+]−179.0344179.03598.20135.0430; 133.0288
5.36Apigenin-C-di-hexosideFlavone glycosidesC27H30O15255, 342[M−H+]−593.1506593.1506−0.06353.0671; 383.0757; 473.1095; 297.0777; 503.1209; 325.0717[38]
75.38Tuberonic acid-O-hexosideJasmonatesC18H28O9 [M−H+]−387.1655387.1650−1.29163.1130; 369.0599; 119.0344; 207.104[39]
85.43Luteolin-C-pentoside-C-hexosideFlavone glycosidesC26H28O15251, 337[M−H+]−579.1350579.13611.92399.0723; 519.1184; 489.1015; 459.1009; 369.0599[40]
95.52UI with caffeoyl moiety C34H44O20247, 330[M−H+]−771.2348771.23561.09161.024; 179.034; 753.2252; 135.0449; 591.194; 661.199; 743.2308; 593.2155
105.64Echinacoside *PP/PE ester glycosideC35H46O20271, 331[M−H+]−785.2504785.25131.11161.024; 623.219; 785.252
115.69Apigenin-C-pentoside-C-hexoside isomer 1Flavone glycosidesC26H28O14 [M−H+]−563.1401563.1398−0.42353.077; 383.078; 297.0777; 443.0940; 473.1140; 325.0717[38]
5.91Apigenin-C-pentoside-C-hexoside isomer 2Flavone glycosidesC26H28O14 [M−H+]−563.1401563.14010.05353.077; 383.078; 297.0777; 443.0940; 473.1140; 325.0717[38]
6.15Echinacoside isomerPP/PE ester glycosideC35H46O20 [M−H+]−785.2504785.25445.09179.0359; 623.2093; 161.024; 179.035; 461.1558; 135.0449;[41]
126.23UI with caffeoyl moiety C34H42O20 [M−H+]−769.2191769.22345.58179.0359; 135.0449; 161.0231; 149.0239; 619.1891
136.31Arenarioside/Forsythoside BPP/PE ester glycosideC34H44O19245, 329[M−H+]−755.2398755.24162.26161.0231; 593.2104; 133.0282; 179.0359; 447.1492; 461.1690; 623.2042; 575.2020; 429.1418[21]
146.65Verbascoside *PP/PE ester glycosideC29H36O15246, 329[M−H+]−623.1976623.19881.88161.026; 179.034; 461.168; 623.19
156.68SamiosidePP/PE ester glycosideC34H44O19244, 328[M−H+]−755.2398755.24000.21593.2104; 161.0257; 133.0292; 135.0449; 179.0332; 447.1492; 461.1690[21]
6.74Isorhamnetin-O-hexosideFlavonol glycosidesC22H22O12 [M−H+]−477.1033477.1027−1.25315.0527; 314.0435; 299.0231; 300.0274; 271.0276; 243.0321
6.75Isorhamnetin-O-hexuronideFlavonol glycosidesC22H20O13 [M−H+]−491.0826491.0818−1.55315.0527; 300.0274
166.78AlyssonosidePP/PE ester glycosideC35H46O19 [M−H+]−769.2555769.25884.30593.2104; 175.0405; 160.0168; 193.0520; 135.0449; 447.1535; 575.2020; 461.1690; 315.1072[42]
176.89UI with caffeoyl moiety C36H46O20244, 329[M−H+]−797.2504797.25374.13179.0359; 161.0257; 135.0449; 619.1891; 635.2241
186.94Verbascoside isomer 1 (isoverbascoside)PP/PE ester glycosideC29H36O15244, 326[M−H+]−623.1976623.19902.27161.024; 179.034; 461.164[21]
197.00Verbascoside isomer 2PP/PE ester glycosideC29H36O15244, 326[M−H+]−623.1976623.19902.27161.024; 179.034; 461.164[42]
207.17UI with caffeoyl moiety C36H48O20247, 296, 327[M−H+]−799.2661799.26620.18161.0231; 637.2377; 608.1956; 179.0359; 133.0282
7.31Leucosceptoside APP/PE ester glycosideC30H38O15 [M−H+]−637.2132637.2119−2.10175.0405; 461.1690; 315.1108; 193.0491; 160.0168[43,44]
217.35Acetyl-verbascosidePP/PE ester glycosideC31H38O16 [M−H+]−665.2082665.20850.53161.026; 179.034; 461.168; 623.1991
227.48Methoxyapigenin-O-hexuronideFlavone glycosidesC22H20O12250, 344[M−H+]−475.0876475.0871−1.08284.0326; 299.0567
237.62Tuberonic acid-(caffeoyl)-O-hexosideJasmonatesC27H34O12 [M−H+]−549.1972549.19903.29387.1690; 161.0257; 207.1039; 133.0305
247.82Dihydrodehydrodiconiferyl alcohol-9′-O-sulfateNeolignanC20H24O9S [M−H+]−439.1063439.10711.8896.9695; 269.0833; 314.1160; 299.9550; 79.9566MetFrag; [45]
258.17MartynosidePP/PE ester glycosideC31H40O15246, 330[M−H+]−651.2289651.22900.18175.0405; 475.1821; 329.1217; 315.0527; 193.0520; 160.0168;[42]
268.25UI C23H40O9 [M+HCOOH−H+]−505.2649505.2628−4.10459.2588; 417.2505; 399.2400; 161.0257
278.37Cucurbitacin I-2-O-glucosideCucurbitane-triterpene glycosideC36H52O12244[M+HCOOH−H+]−721.3435721.34542.60495.272; 513.286; 675.338[46]
288.9416-hydroxygratiogenin-3-O-(apiosyl)-glucoside-25-O-glucosideCucurbitane-triterpene glycosideC47H76O19 [M+HCOOH−H+]−989.4957989.50064.97943.494; 811.448; 649.396; 487.3421[24]
299.19C30H46O6-O-hexosideTriterpenoidC36H56O11 [M+HCOOH−H+]−709.3799709.3783−2.25663.3777; 501.3227; 163.0764
309.43UI C36H60O10 [M+HCOOH−H+]−697.4163697.41873.47nf
319.52C30H50O5-O-(pentosyl)-hexosideTriterpenoidC41H68O14 [M+HCOOH−H+]−829.4585829.46234.51783.458; 651.413; 489.359
329.74Gratiogenin-3-O-(glucosyl)-glucoside-25-O-glucosideCucurbitane-triterpene glycosideC48H78O19 [M+HCOOH−H+]−1003.51141003.5098−1.55957.5112; 795.4572; 633.4042; 471.3524[24]
339.98Gratiogenin-3-O-(glucosyl)-glucoside-25-O-glucoside acetylated derivativeCucurbitane-triterpene glycosideC51H80O22 [M−H+]−1043.50631043.50710.79999.5259; 957.5112; 939.5005; 795.4572; 777.4499; 633.4042; 471.3524
3410.00Cucurbitacin E-2-O-glucoside (elaterinide/gratiotoxin)Cucurbitane-triterpene glycosideC38H54O13240[M+HCOOH−H+]−763.3541763.35622.82495.275; 657.329; 717.351; 615.3190; 699.3390; 537.2862; 477.2637[46]
3510.1416-hydroxygratiogenin-3-O-(apiosyl)-glucosideCucurbitane-triterpene glycosideC41H66O14 [M+HCOOH−H+]−827.4429827.44451.96781.443; 649.398; 487.343[24]
3610.21Cucurbitacin B-2-O-glucosideCucurbitane-triterpene glycosideC38H56O13252[M+HCOOH−H+]−765.3697765.37162.42497.283; 659.45; 701.353; 719.370; 557.3116
3710.46Cucurbitacin S-2-O-glucosideCucurbitane-triterpene glycosideC36H52O11254[M+HCOOH−H+]−705.3486705.35002.01† ESI+: 349.1261][46]
3810.55Gratioside (gratiogenin-3-O-glucoside-25-O-glucoside)Cucurbitane-triterpene glycosideC42H68O14 [M+HCOOH−H+]−841.4585841.46032.14795.4572; 633.4042; 471.3524[24]
3910.68Gratiogenin-3-O-(apiosyl)-glucoside-25-O-glucosideCucurbitane-triterpene glycosideC47H76O18 [M+HCOOH−H+]−973.5008973.50352.82927.501; 795.4572; 633.4042; 471.3524[24]
10.93Cucurbitacin ICucurbitane-triterpene glycosideC30H42O7 [M+HCOOH−H+]−559.2907559.2898−1.60513.2865; 497.2931
4011.02Gratioside acetylated derivativeCucurbitane-triterpene glycosideC45H70O17 [M−H+]−881.4535881.45542.21777.449; 795.454; 837.468; 633.4042; 471.3436
4111.20Gratiogenin-3-O-(apiosyl)-glucoside-25-O-glucoside acetylated derivativeCucurbitane-triterpene glycosideC50H78O21252[M−H+]−1013.49571013.50105.22777.448; 795.459; 909.494; 927.502; 969.515; 471.3524
4211.24C30H44O5-di-O-hexosideTriterpenoidC42H64O15 [M+HCOOH−H+]−853.4222853.42290.87807.4176; 645.3656; 483.3107
4311.39Gratioside diacetylated derivativeCucurbitane-triterpene glycosideC48H72O20 [M−H+]−967.4538967.45592.12879.477; 777.449; 759.436; 795.459; 837.472; 923.472; 819.4574; 633.404; 471.352
11.55C30H44O5-di-O-hexoside acetylated derivativeTriterpenoidC38H70O23 [M−H+]−893.4229893.4192−4.19849.4329; 807.4176; 789.4069; 645.3656; 644.3572; 163.0790
4412.63Cucurbitacin ECucurbitane-triterpene glycosideC32H44O8 [M+HCOOH−H+]−601.3013601.2994−3.09555.2984; 495.2776; 477.2682; 409.2032[47]
12.79Cucurbitacin SCucurbitane-triterpene glycosideC30H42O6 [M−H+]−497.2903497.29315.63† ESI+: 481.2943; 463.2869; 317.2160][46]
4512.81Cucurbitacin BCucurbitane-triterpene glycosideC32H46O8 [M+HCOOH−H+]−603.3169603.31903.47557.3116; 479.2826; 497.2885; 539.3046; 339.1982; 163.0764[47]
4615.81Betulinic acid *Lupane-type triterpenic acidC30H48O3 [M−H+]−455.3525455.35423.73nf[48]

2.2. G. officinalis Extract Triggers Apoptosis in Colorectal Cancer Cells, Without Affecting Healthy Colon Cells

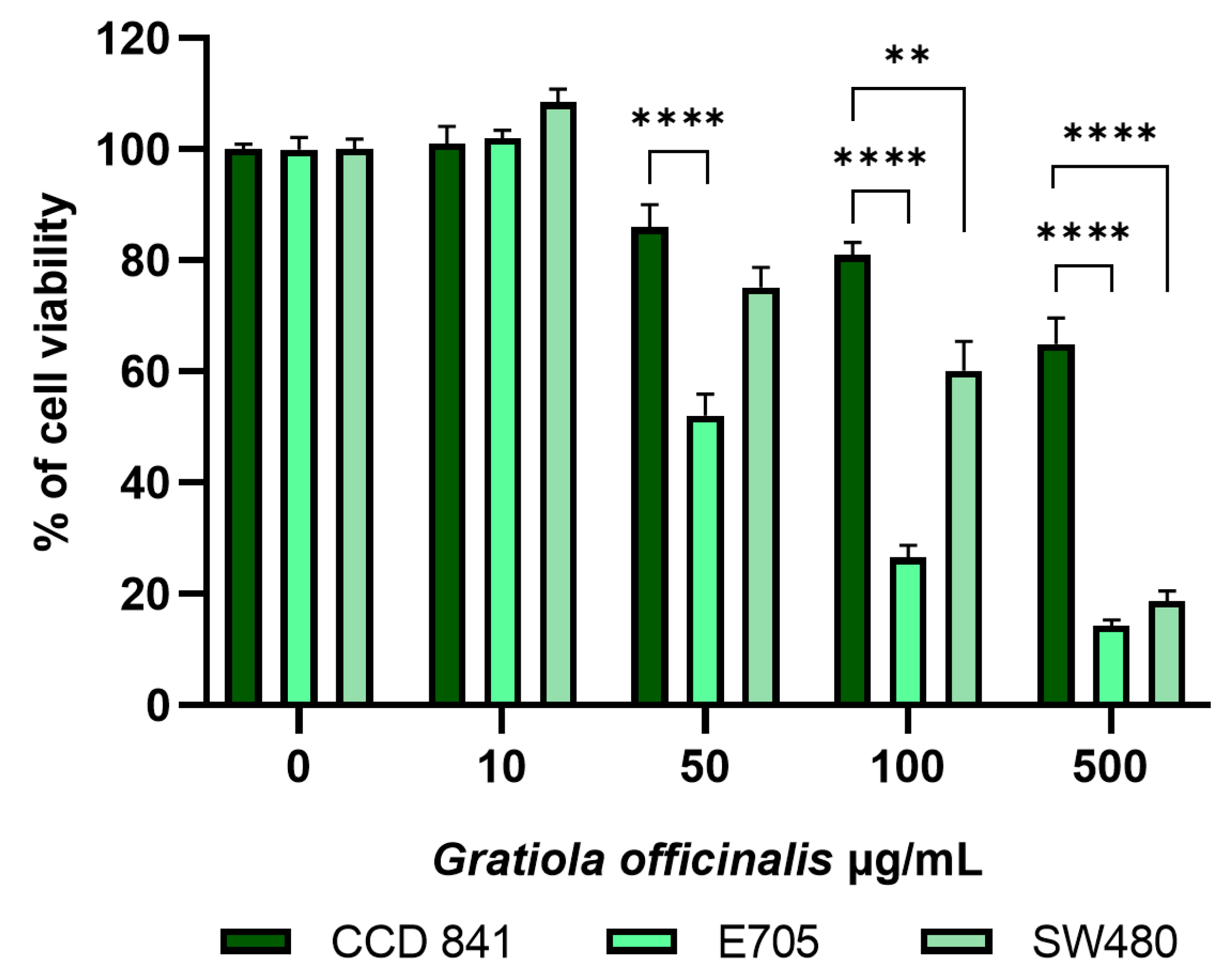

MTT tests were performed on the colorectal cancer cell lines E705 and SW480; the former shows no hyperactivating mutations in KRAS, NRAS and BRAF and carries a silent mutation in the PIK3CA gene, while the latter carries a hyperactivating mutation in exon 2 of the KRAS gene. CCD 841 cells from healthy colon mucosa were used as controls.
Results showed that increasing amounts of G. officinalis extract reduced cancer cell viability in a dose-dependent way: 50 μg/mL, 100 μg/mL and 500 μg/mL extract reduced E705 cell viability to 52%, 27% and 14%, respectively, and SW480 cell viability to 75%, 60% and 19%, respectively (Figure 2). This different sensitivity between the two cell lines was likely related to the presence of a KRAS activating mutation in the SW480 cells. On the contrary, CCD 841 control cells showed a very good safety profile, with their viability remaining around 85% and 80% in the presence of 50 and 100 μg/mL extract, respectively, decreasing to 65% upon the addition of 500 μg/mL extract. Moreover, increasing amounts of G. officinalis extract promoted apoptosis in the E705 cell line, reducing anti-apoptotic Bcl-2 expression and leading to proapoptotic caspase-3 cleavage; variations in both these markers were found to be dose-dependent (Figure 3C,D). No changes in markers related to apoptosis were observed in the healthy CCD 841 cell line (Figure 3A,B), whereas in the SW480 cell line, G. officinalis extract only led to a reduction in the level of Bcl-2 (Figure 3E,F). Bcl-2 downregulation is normally accompanied by caspase cleavage and apoptosis; however, since Bcl-2 also delays G1/S transition [49], its downregulation may facilitate progression into cell cycle, as suggested by the higher viability of SW480 cells compared to E705 ones.

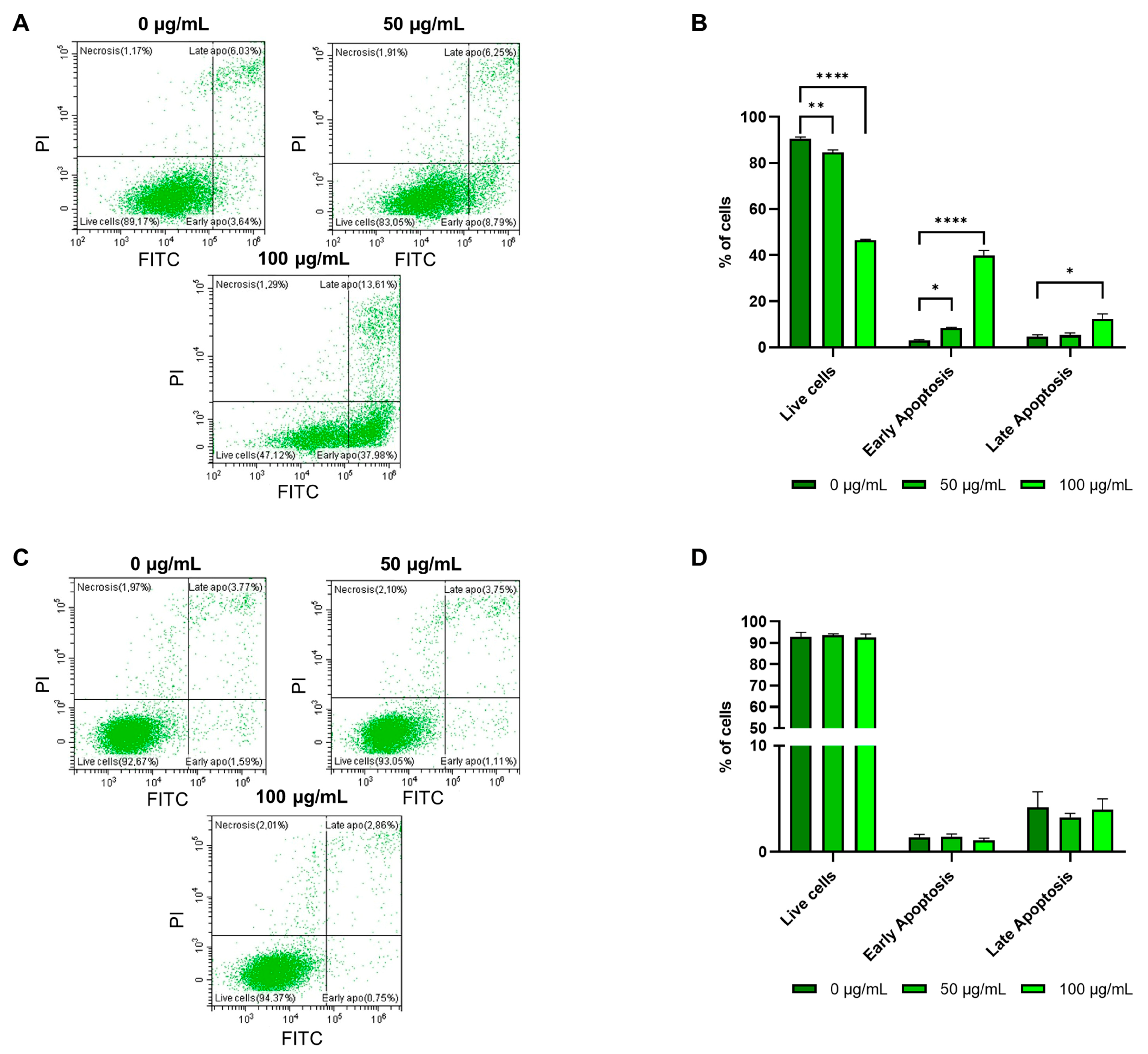

The proapoptotic effect of G. officinalis extract was confirmed also by flow cytometry analysis, in which a dose-dependent decrease in live cells followed by a parallel increase in both early and late apoptotic cells was observed only in the E705 cancer cell line (Figure 4A,B), with no changes in the amount of live and apoptotic cells in the SW480 tumor cells (Figure 4C,D).

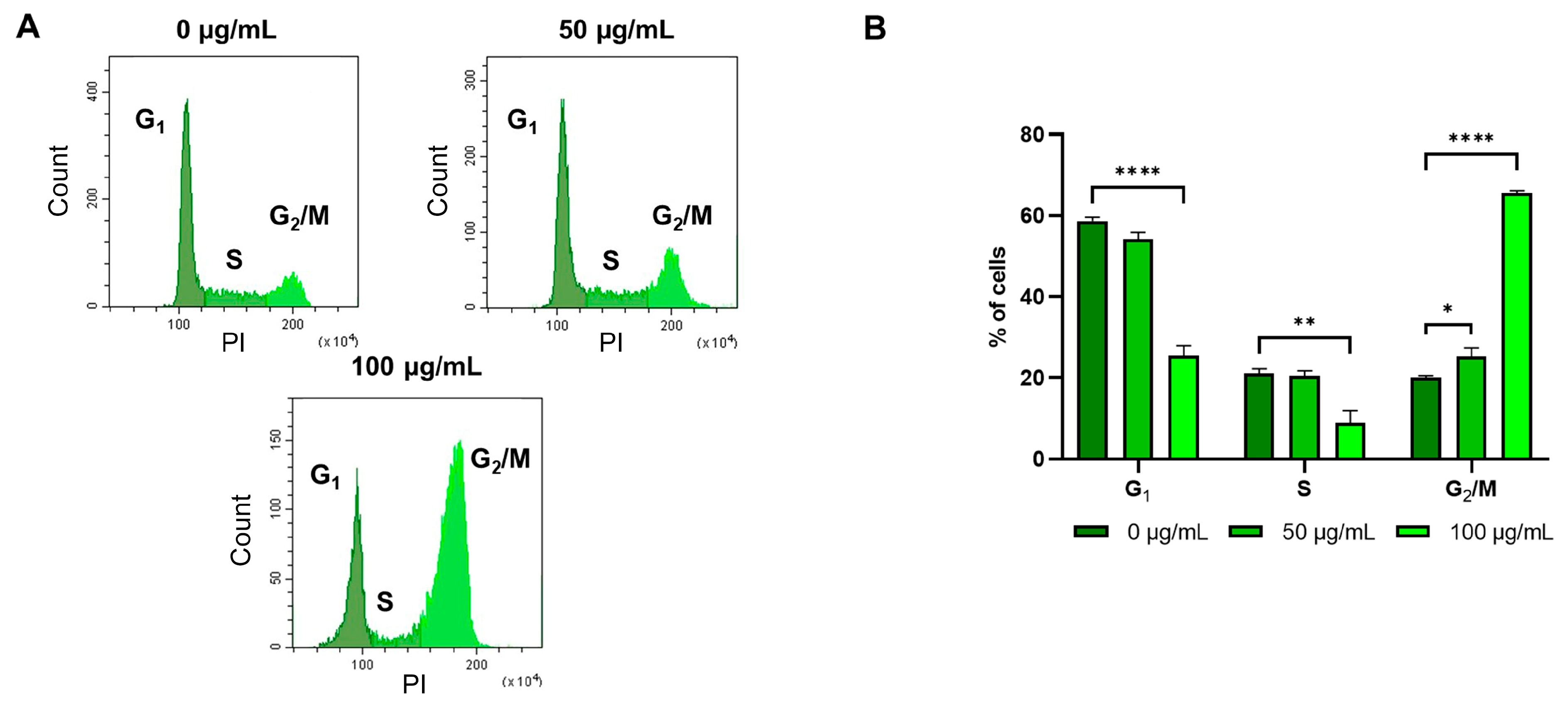

2.3. G. officinalis Extract Shows an Antiproliferative Effect on E705 Cells and Leads SW480 Cells to Cell Cycle Arrest in the G2/M Phase

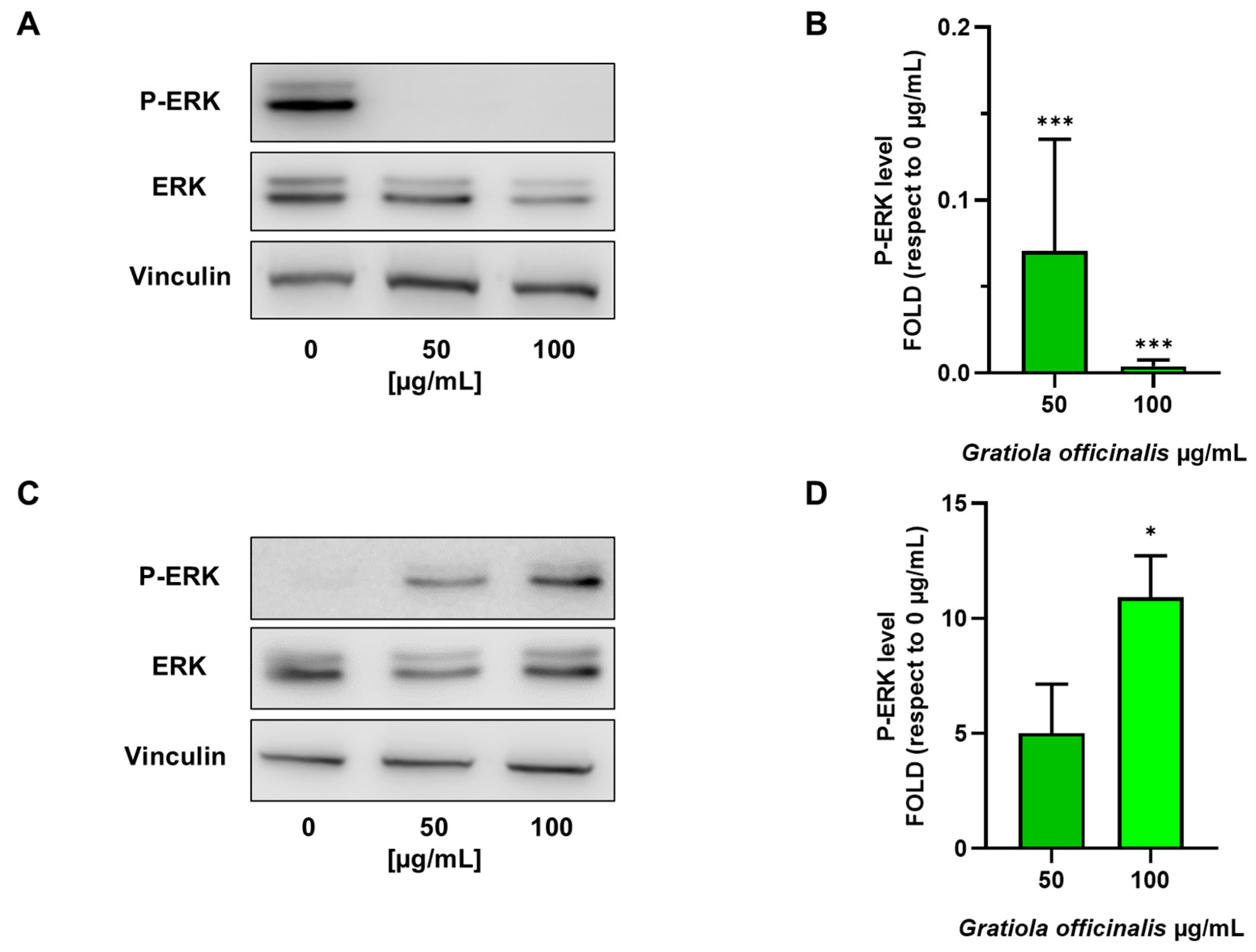

As reported in Figure 5A,B, Western blot analysis after the treatment of E705 cells with G. officinalis extract at 50 μg/mL and 100 μg/mL doses suggests an antiproliferative effect, promoted by the downregulation of the EGFR signaling pathway, which is normally upregulated in colorectal cancer cells [50]. In line with the proapoptotic effect, ERK phosphorylation was found to be downregulated in a dose-dependent way by G. officinalis extract administration. This is well in accordance with the fact that E705 cells are not KRAS-mutated and their ability to proliferate is due to the hyperactivation of the EGFR signaling pathway. On the contrary, in the SW480 cell line, G. officinalis extract caused a dose-dependent increase in the ERK phosphorylation level (Figure 5C,D).
Although this may look contradictory, since ERK phosphorylation normally triggers cell survival, other authors have observed that a persistent over-activation of ERK can induce cell cycle arrest by indirectly enhancing cdc2 phosphorylation and hampering its dephosphorylation, preventing cdc25 migration into the nucleus [51,52]. In order to assess this possibility, we conducted a cell cycle flow cytometric analysis on the SW480 cell line. The evaluation of the percentage of cells in the different cell cycle phases revealed that cells treated with G. officinalis extract were blocked in the G2/M phase; a dose-dependent decrease in the percentage of cells in the G1 and S phases, together with an increase in cells in the G2 phase, was observed (Figure 6). We could hypothesize that in KRAS-mutated cells, G. officinalis plays a role in cell cycle progression, initially enhancing the G1/S transition by downregulating Bcl-2 and subsequently blocking the cells in the G2/M phase, due to ERK hyperactivation.

2.4. G. officinalis Extract Promotes Glycolysis Downregulation, Reducing the Expression of Warburg Effect Markers in E705 Cells

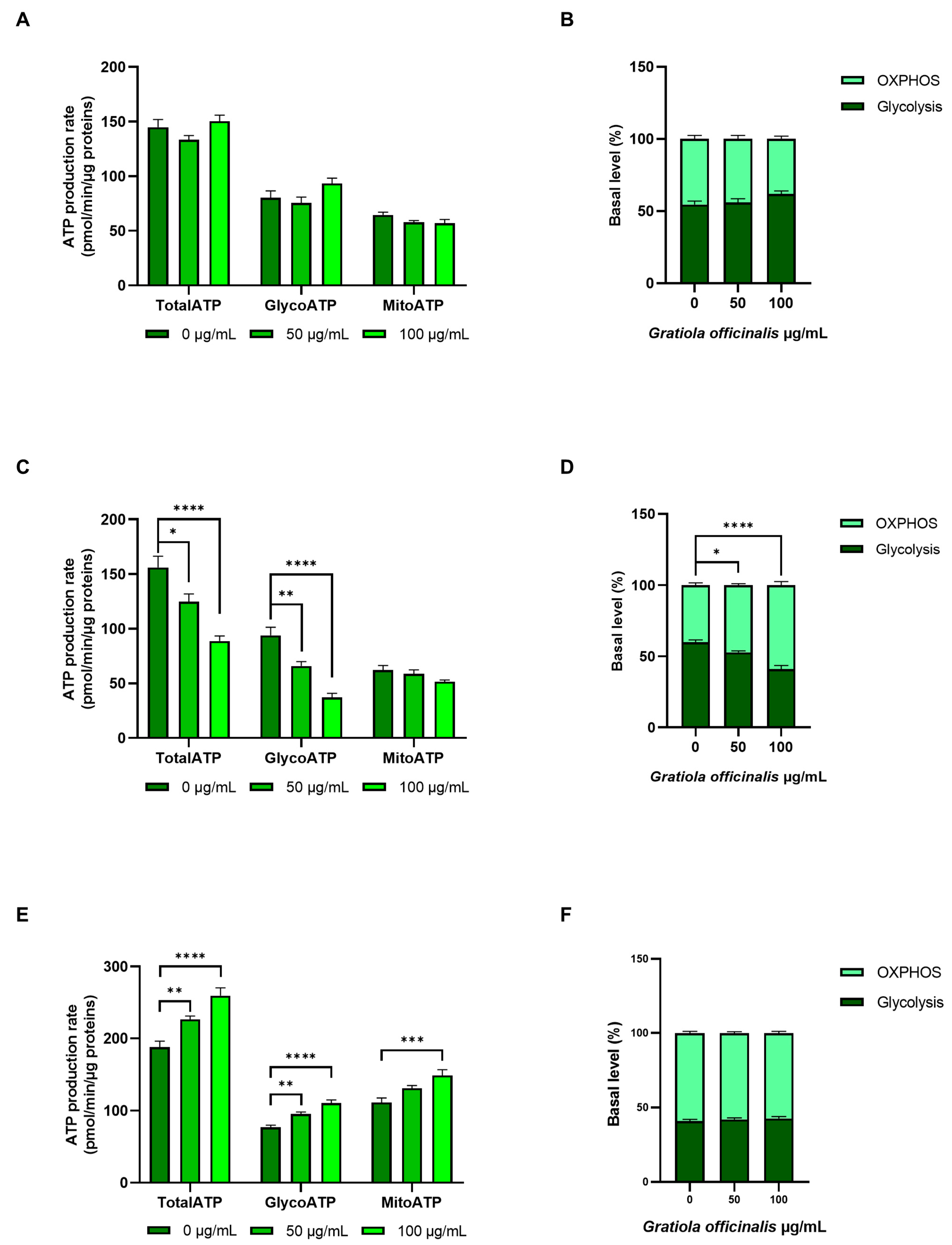

Seahorse technology was used to investigate metabolic rearrangements caused by G. officinalis extract administration by evaluating both the medium acidification (ECAR) and oxygen consumption (OCR) rate, measures of glycolysis and oxidative phosphorylation, respectively. Analysis of the ECAR and OCR profiles allowed the determination of total ATP production, as well as the relative contribution to ATP synthesis of the glycolytic pathway and oxidative phosphorylation. In each experiment, the basal OCR and ECAR were initially measured, with the latter being due to both lactate production through glycolysis and CO2 produced by oxidative phosphorylation. Subsequent oligomycin addition inhibited mitochondrial ATP synthase; this decreased the OCR and increased the glycolytic rate to balance ATP production. Following rotenone/antimycin addition, electron transport was inhibited, allowing us to measure the ECAR due to lactate production. Results, reported in Figure 7, showed no alterations in CCD 841 cells’ ATP production, following 24 h of G. officinalis treatment (Figure 7A,B). On the contrary, increasing G. officinalis extract concentrations led to a significant decrease in total ATP production in E705 cells, resulting from a reduction in glycolytic ATP, while mitochondrial ATP production remained constant (Figure 7C). Glycolysis downregulation re-equilibrated the ratio between glycolytic and mitochondrial ATP production, shifting it from a ratio of 60:40, typical of cancer cells, to a ratio of 40:60, closer to healthy cells values (Figure 7D) [53]. In SW480 cells, treatment with G. officinalis extract resulted in a significantly higher total ATP content, due to the increase in both glycolytic and mitochondrial ATP (Figure 7E), with no change in the ratio between glycolytic and mitochondrial ATP production (Figure 7F); this likely correlated with the initial increase in SW480 cell proliferation, triggered by Bcl-2 downregulation.

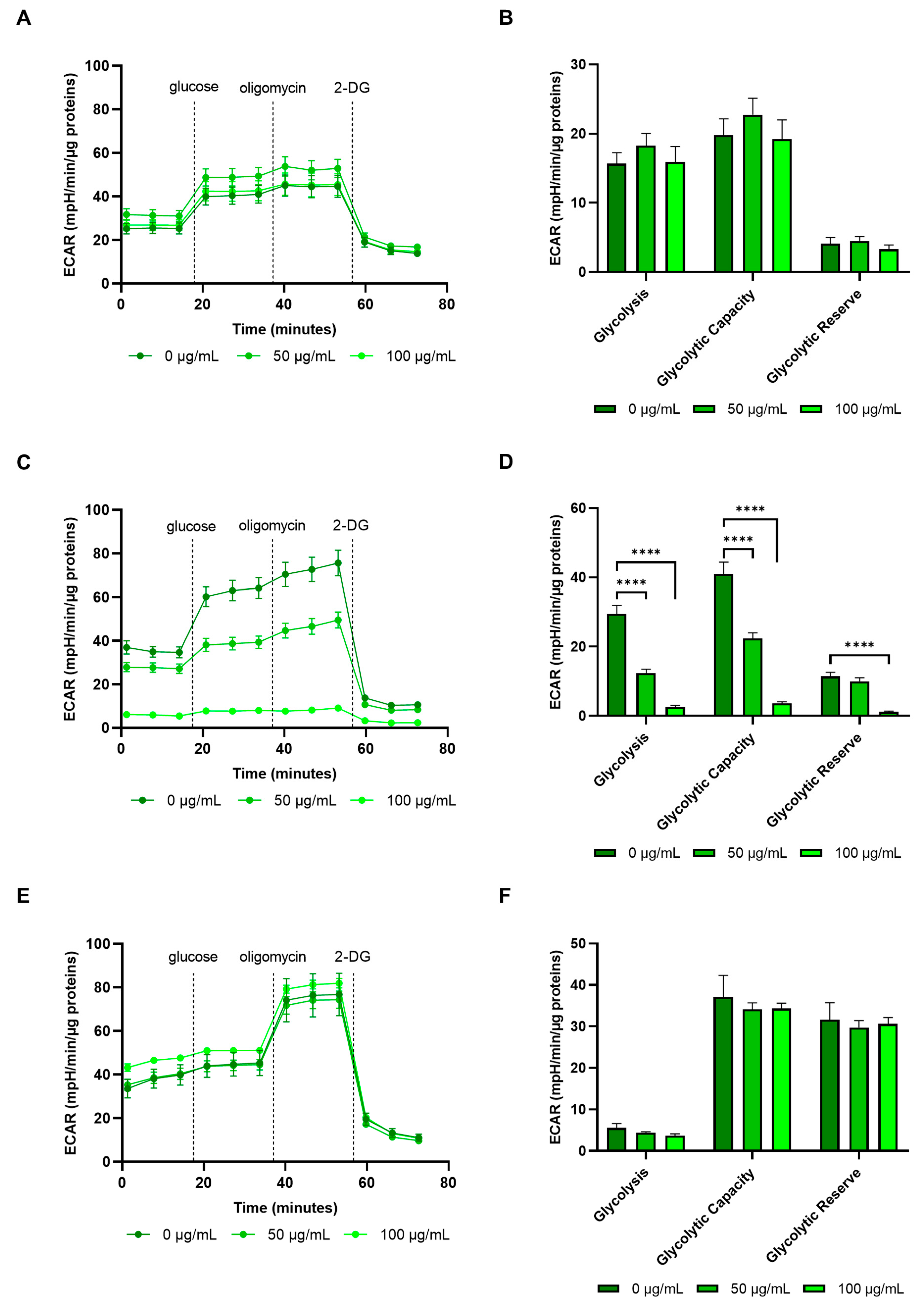

Given these results, the Glycolytic Stress Test was used to assess the glycolytic rate, capacity and reserve. Glycolytic capacity is the maximum ECAR reached when oxidative phosphorylation is blocked by the addition of oligomycin and indicates the maximum glycolytic rate of the system under stress; the glycolytic reserve is obtained by subtracting the glycolysis rate from the glycolytic capacity and is a measure of the cells’ ability to respond to the energetic demand.
As in most cancer cells, the glycolytic rate, capacity and reserve of E705 and SW480 cells showed much higher values compared to healthy CCD 841 cells (Figure 8). These three parameters were all markedly reduced in the E705 cell line by G. officinalis extract addition, as shown in Figure 8C,D; after treatment with 50 μg/mL extract, the values of the glycolytic rate, capacity and reserve were close to the corresponding values measured in healthy CCD 841 cells, which showed no change after treatment with G. officinalis extract (Figure 8C,D). Treatment with 100 μg/mL extract led to an even more marked reduction in the three parameters in E705 cells, with values much lower than those found in healthy CCD 841 cells; in particular, the glycolytic reserve was completely exhausted. The fact that, at this concentration, the ECAR does not increase following oligomycin addition, which inhibits mitochondrial ATP synthase, shows that these cells already use glycolysis at its maximal rate and cannot increase ATP production; this depletion of the glycolytic reserve is what likely leads them to apoptotic death, since they rely mostly on glycolysis for ATP production.

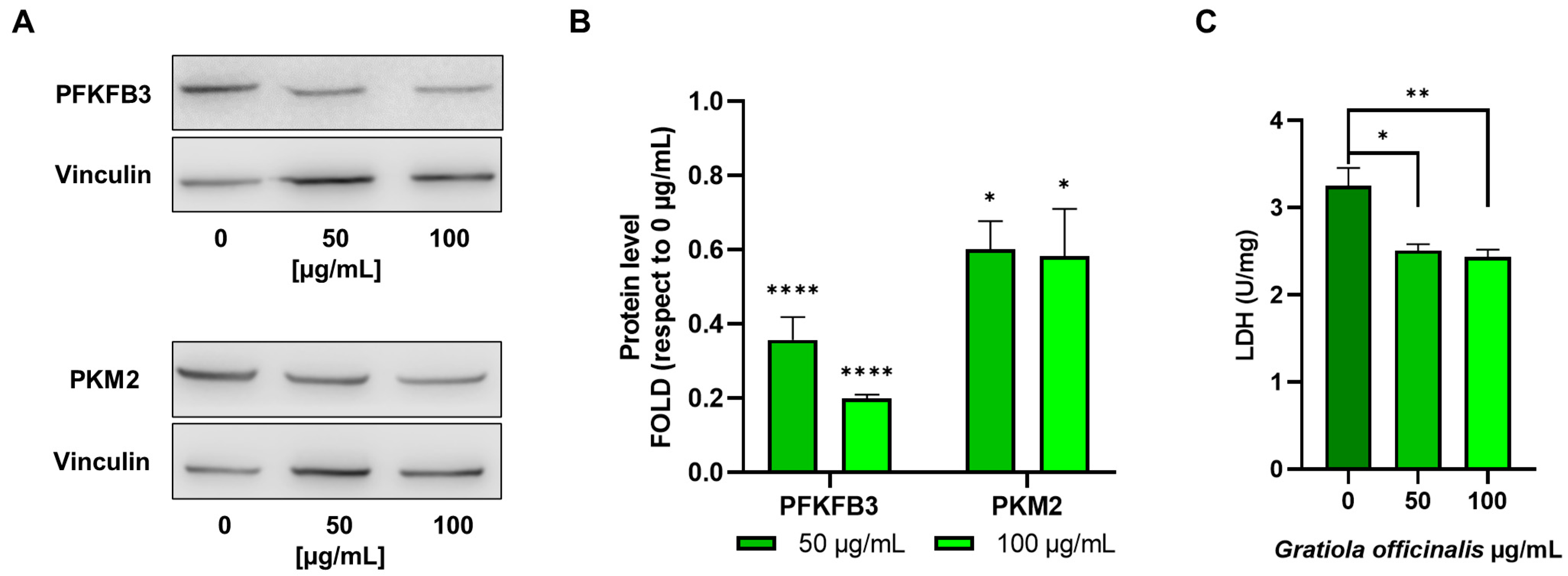

Western blot analysis carried out on E705 after G. officinalis extract treatment, reported in Figure 9A,B, showed a marked decrease in the expression of phosphofructokinase 3 (PFKFB3) and pyruvate kinase 2 (PKM2). These two enzymes are isoforms of phosphofructokinase and pyruvate kinase, respectively, which are normally expressed in cancer cells and are part of the metabolic rearrangements leading to the Warburg effect [54]. In this metabolic rewiring, they promote glycolysis upregulation and lead to an increase in lactate production, which is necessary to regenerate NAD+ and allow glycolysis to work at sustained rates. Therefore, the downregulation of PFKFB3 and PKM2 expression is the mechanism through which G. officinalis extract can induce glycolysis downregulation, as demonstrated by the fact that extract addition does not change mitochondrial ATP production. Moreover, E705 cells treatment with G. officinalis extract led to a significant decrease in lactic dehydrogenase (LDH) activity (Figure 9C). The reduction in LDH activity is in line with the downregulation of glycolysis and lactic fermentation and suggests that G. officinalis extract is also effective in reducing cancer cells’ microenvironment acidity, preventing metastasis development. Conversely, in SW480 cells, the glycolytic rate, capacity and reserve values were not altered by treatment with G. officinalis extract (Figure 8E,F). Moreover, the increase in ECAR measured upon oligomycin addition shows that SW480 cells do not use glycolysis at the maximal rate and are therefore able to upregulate this pathway, when needed; this, in turn, leads to the Warburg effect, promoting cell survival.

3. Materials and Methods

3.1. Cell Cultures

The CCD 841 (CRL-1790™ ATCC, Manassas, VA, USA) human healthy colon mucosa cell line was grown in EMEM medium supplemented with heat-inactivated 10% fetal bovine serum (FBS), 2 mM L-glutamine, 0.1 mM non-essential amino acids, 100 U/mL penicillin and 100 µg/mL streptomycin. E705 (kindly provided by Fondazione IRCCS Istituto Nazionale dei Tumori, Milan, Italy) and SW480 (CCL-228™ ATCC, Manassas, VA, USA) human colorectal cancer cell lines were grown in RPMI 1640 medium supplemented with heat-inactivated 10% FBS, 2 mM L-glutamine, 100 U/mL penicillin and 100 µg/mL streptomycin. All cell lines were maintained at 37 °C in a humidified 5% CO2 incubator. Cell lines were validated by short tandem repeat profiles that were generated by the simultaneous amplification of multiple short tandem repeat loci and amelogenin (for gender identification). All the reagents for cell cultures were supplied by EuroClone (EuroClone S.p.A, Milan, Italy).

3.2. Plant Material and Extract Preparation

G. officinalis plants were purchased from the institutional nursery “Veneto Agricoltura” (Montecchio Precalcino, Vicenza, Italy) and grown in the greenhouse facility of the University of Verona until blooming occurred. Vegetative aerial organs (leaves and young stems) were sampled from two plants and pooled. The fresh material was immediately frozen in liquid nitrogen, ground to powder using an A11 basic analytical mill (IKA-Werke, Staufen, Germany) and stored at −80 °C. About 1 g of frozen powder was extracted with 10 volumes (w/v) of 100% LC-MS grade methanol (Honeywell, Seelze, Germany). The sample was vortexed for 30 s, sonicated on ice for 10 min in a 40 kHz ultrasonic bath (SOLTEC, Milano, Italy) and centrifuged at 14,000× g for 10 min at 4 °C. The recovered supernatant was dried with a speed-vac system (Heto-Holten; Frederiksborg, Denmark). The dried extract was re-solubilized in an equal volume of ethanol, compatible with the following cell assays, and profiled through UPLC-ESI-HRMS analysis.

3.3. Phytochemical Profiling of G. officinalis Extract

G. officinalis extract was diluted 1:20 with LC-MS-grade water (Honeywell) and passed through 0.22 µm Minisart filters (Sartorius-Stedim Biotech, Göttingen, Germany). Phytochemical profiling was performed through untargeted metabolomics by injecting 1.2 and 10 μL into the UPLC-ESI-HRMS system operating in FAST-DDA negative and positive ionization modes, with the instruments and methods previously described [55]. Three orthogonal parameters, i.e., the accurate mass (deduced from the m/z ratio and isotopic pattern), retention time, and fragmentation pattern (from the FAST-DDA analysis), were considered for the putative identification of G. officinalis phytochemicals and compared with a proprietary library of authentic standard compounds, with an in silico proprietary library of plant compounds and with the scientific literature and public databases (e.g., Pubchem, MoNA, MassBank, Human Metabolome Database). When no information was available, the metabolites were putatively identified in silico with Metfrag by querying the Pubchem database with the experimental MS data. The analysis in the positive ionization mode was used only to confirm the molecular ions detected in the negative ionization mode.

3.4. Viability Assay

The different cell lines were seeded in 96-well microtiter plates at a density of 1 × 104 cells/well, cultured in complete medium and, after 24 h, treated with G. officinalis extract solubilized in ethanol, at concentrations between 0 and 500 μg/mL. Ethanol concentration in the wells was 0.5% in both treated and untreated cells. Then, 24 h after treatment, cell viability was investigated using the MTT-based in vitro toxicology assay kit (Merck KGaA, Darmstadt, Germany), according to manufacturer’s protocols. After 4 h for the CCD 841 and 2 h for the E705 and SW480 cell lines, formazan crystals were solubilized with 10% Triton X-100 and 0.1 N HCl in isopropanol and absorbance was measured at 570 nm using a Spectrostar Nano Microplate Reader (BMG LABTECH, Ortenberg, Germany). Cell viability was expressed as a percentage against untreated cells used as control. Viability experiments were carried out in three technical repeats per treatment for each biological replicate, and at least three independent biological replicates were performed for each cell line.

3.5. SDS-PAGE and Western Blotting

For Western blot analysis, cells were seeded at a density of 6 × 105 cells/60 mm dish and, 24 h after seeding, were treated with G. officinalis extract at 50 and 100 μg/mL for 24 h. After treatment, cells rinsed with ice-cold PBS (10 mM K2HPO4, 150 mM NaCl, pH 7.2) were lysed on ice in RIPA buffer (50 mM Tris-HCl pH 7.5, 150 mM NaCl, 1% NP-40, 0.5% sodium deoxycholate, 0.1% SDS) containing 1 μM leupeptin, 2 μg/mL aprotinin, 1 μg/mL pepstatin, 1 mM PMSF and a phosphatase inhibitor cocktail (Merck KgaA, Darmstadt, Germany). Subsequently, homogenates were obtained by being passed 5 times through a blunt 20-gauge needle fitted to a syringe and then centrifuged at 15,000× g for 30 min. Supernatants were analyzed for protein content by a BCA protein assay [56]. SDS-PAGE and Western blotting were carried out by standard procedures [57]. The following primary antibodies, diluted at 1:1000 and purchased from Cell Signaling Technology (Danvers, MA, USA), were used: anti-Bcl-2 (#15071), anti-caspase-3 (#14220), anti-P-ERK (#4370), anti-ERK (#4695), anti-PFKFB3 (#13123) and anti-PKM2 (#4053). Loading control anti-vinculin (V9131 Merck KgaA, Darmstadt, Germany) primary antibody was used at a dilution of 1:5000. IgG HRP anti-rabbit (dilution 1:8000, #7074 Cell Signaling Technology, Danvers, MA, USA) and IgG HRP anti-mouse (dilution 1:8000, #7076 Cell Signaling Technology, Danvers, MA, USA) secondary antibodies were used. Protein levels were visualized with an ECL detection system (EuroClone S.p.A, Milan, Italy) and quantified by the densitometry of immunoblots with ImageStudio™ software version number 5.5 (LI-COR Biosciences, Lincoln, NE, USA). Three independent biological replicates were performed for each cell line.

3.6. Annexin V-FITC Assay for Apoptosis

E705 and SW480 cells were seeded into 24-well plates at a density of 1 × 105 cells/well and, 24 h later, treated with G. officinalis extract at 50 and 100 μg/mL for further 24 h. After treatment, cells were harvested by trypsinization, counted and stained with annexin V/FITC and propidium iodide (PI), according to the manufacturer’s protocol (Cat V13242, Thermo Fisher Scientific, Waltham, MA, USA). Briefly, suspension containing 1 × 105 cells was diluted in 100 μL annexin V binding buffer. Subsequently, 5 μL of annexin V-FITC and 1 μL of propidium iodide were added to each tube and incubated for 15 min in the dark at room temperature. Then, samples were transferred to flow cytometer tubes in a final volume of 500 μL ice-cold annexin V binding buffer, and the cells were analyzed using a flow cytometer (CytoFLEX S, Beckman Coulter Inc., Brea, CA, USA). Data were analyzed using CytExpert 2.3 Software (Beckman Coulter Inc., Brea, CA, USA). Three independent biological replicates were performed for each cell line.

3.7. Cell Cycle Analysis

SW480 cells were seeded into 6-well plates at a density of 2 × 105 cells per well. After 24 h of incubation, the cells were treated for the following 24 h with G. officinalis extract at 50 and 100 μg/mL. Then, cells were harvested by trypsinization, resuspended in PBS and centrifuged at 300× g for 10 min. The supernatant was discarded, and the pellet incubated with 500 μL of 70% ice-cold ethanol at 4 °C for 30 min. Subsequently, after a first incubation with 100 μg/mL RNase at 37 °C for 15 min, the cells were stained with 25 μg/mL propidium iodide (PI) and dissolved in PBS containing 0.1% NP-40 in the dark for 15 min at 37 °C. Finally, 250 μL of PBS was added and the cells were analyzed by flow cytometry (CytoFLEX S, Beckman Coulter Inc., Brea, CA, USA). Data were analyzed using CytExpert 2.3 Software (Beckman Coulter Inc., Brea, CA, USA). All chemicals were purchased from Merck KgaA, Darmstadt, Germany. Three independent biological replicates were performed.

3.8. ATP Production and Glycolytic Rate Measurements

The measurements of the oxygen consumption rate (OCR) and extracellular acidification rate (ECAR) were performed using the Agilent Seahorse XFe96 Analyzer (Agilent Technologies Santa Clara, CA, USA) to determine the total amount of ATP produced in living cells, distinguishing between the fractions derived from oxidative phosphorylation and glycolysis and the glycolytic function.
Cells were seeded in Agilent Seahorse 96-well XF cell culture microplates at a density of 2 × 104 cells per well in 180 µL of growth medium and were allowed to adhere for 24 h in a 37 °C humidified incubator with 5% CO2. Subsequently, the seeded cells were treated with G. officinalis extract at 50 and 100 μg/mL for 24 h. In addition, before running the assay, the Seahorse XF Sensor Cartridge was hydrated and calibrated with 200 µL of Seahorse XF Calibrant Solution in a non-CO2 37 °C incubator to remove CO2 from the media that would otherwise have interfered with measurements that were pH-sensitive.
After the treatment, for the Agilent Seahorse XF ATP Rate Assay Kit, the growth medium was replaced with 180 μL/well of Seahorse XF DMEM Medium containing 1 mM pyruvate, 2 mM L-glutamine and 10 mM glucose, while for the Agilent Seahorse XF Glycolysis Stress Test Kit, the medium substitution was made with XF DMEM Medium containing 2 mM L-glutamine. Subsequently, the plate was incubated in a 37 °C non-CO2 incubator for 1 h, before starting the experimental procedure, and the compounds were loaded into injector ports in the sensor cartridge.
The Agilent Seahorse XF ATP Rate Assay Kit and Agilent Seahorse XF Glycolysis Stress Test Kit were used according to manufacturers’ instructions. For each biological replicate, a technical quadruplicate was performed, and data were normalized for the total protein content, quantified by the Bradford assay [58].
All the kits and reagents were purchased from Agilent Technologies (Santa Clara, CA, USA).

3.9. Enzyme Activity Assay

To evaluate the effect of G. officinalis extract on lactate dehydrogenase (LDH) activity, E705 cells were seeded at a density of 1 × 106/100 mm dish and, 24 h later, treated with G. officinalis extract at concentrations of 50 and 100 μg/mL for 24 h. The cells were then rinsed with ice-cold PBS and lysed in 50 mM Tris-HCl with a pH of 7.5, 150 mM NaCl, 5 mM EDTA, 10% glycerol and 1% NP-40 buffer, also with 1 μM leupeptin, 2 μg/mL aprotinin, 1 μg/mL pepstatin and 1 mM PMSF. Homogenates were obtained by being passed 5 times through a blunt 20-gauge needle fitted to a syringe and then centrifuged at 15,000× g for 30 min. The resulting supernatant was used to measure LDH activity according to Bergmeyer [59] and the protein content was quantified by the Bradford assay [58]. All chemicals were purchased from Merck KgaA, Darmstadt, Germany. Two technical repeats were performed for each biological replicate and at least three independent biological replicates were carried out.

3.10. Statistical Analysis

All the experiments were carried out in biological triplicate. The samples were compared to their reference controls and the data were tested by Dunnett’s multiple comparison procedure (GraphPad Prism Software version 8.0.2). Results were considered statistically significant at p < 0.05.

4. Conclusions

Despite its long-term use in traditional medicine, Gratiola officinalis has not been deeply investigated so far, with regard to its biological activities. Our work shows an interesting anticancer effect of G. officinalis extract against colorectal cancer, a type of cancer whose rate is declining in adults but rising in young people.
In E705 cells, representative of most CRC patients, the reduction in the ability to use glycolysis and a specific downregulation of some Warburg effect markers suggest a potential role of G. officinalis extract in CRC prevention and therapy. In SW480 cells, representative of a less common but more aggressive cancer phenotype, the cell cycle arrest promoted by G. officinalis extract can also be further investigated as a coadiuvant therapeutic approach. The use of cultured cancer cells is a limitation of this work, which does not take into account the fact that polyphenols are normally metabolized by the gut microbiota; however, different data suggest that unabsorbed metabolites can act as prebiotic, while at the same time contrasting the growth of pathogenic bacteria.
Since a limited number of compounds were present in the extract, future work will regard analyzing single components for anticancer activity and specific molecular targets, establishing whether the extract activity relies on a single molecule or on the whole mixture, as in many phytotherapy treatments.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/ijms26052220/s1. Refs [21,24,35,36,42,43,44,45,46,47,48,60,61,62] are cited in Supplementary Materials file.

Author Contributions

Conceptualization, S.B., M.F. and P.F.; validation, S.B. and F.B.; formal analysis, S.B., S.N. and F.G.; investigation, S.B., F.B., S.N. and F.G.; resources, P.F.; writing—original draft preparation, S.N., M.F. and P.F.; writing—review and editing, S.B., F.B., F.G., M.F. and P.F.; visualization, S.B.; supervision, F.B. and M.F.; project administration, M.F. and P.F.; funding acquisition, P.F. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Recovery and Resilience Plan (NRRP), Mission 4, Component 2, Investment 1.4—call for tender, No. 3138 of 16 December 2021; rectified by Decree No. 3175 of 18 December 2021 of the Italian Ministry of University and Research; and funded by the European Union—NextGenerationEU (Award Number: Project code CN_00000033; Concession Decree No. 1034 of 17 June 2022). This study was adopted by the Italian Ministry of University and Research, CUP, H43C22000530001, Spoke 6; project title: “National Biodiversity Future Center-NBFC”.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article/Supplementary Materials. Further inquiries can be directed to the corresponding author(s).

Acknowledgments

We are grateful to the project “ON Foods-Research and innovation network on food and nutrition Sustainability, Safety and Security–Working ON Foods” (project code PE0000003 ON FOODS-CUP:H43C22000820001 Spoke 6), funded by the European Union—NextGenerationEU, and the National Recovery and Resilience Plan (NRRP).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Polukonova, N.; Navolokin, N.; Raĭkova, S.; Masliakova, G.; Bucharskaia, A.; Durnova, N.; Shub, G. AntI-Inflammatory, Antipyretic and Antimicrobial Activity of Flavonoid-Containing Extract of Gratiola officinalis L. Eksp. Klin. Farmakol. 2015, 78, 34–38. [Google Scholar]
  2. Petran, M.; Dragos, D.; Gilca, M. Historical Ethnobotanical Review of Medicinal Plants Used to Treat Children Diseases in Romania (1860s–1970s). J. Ethnobiol. Ethnomed. 2020, 16, 15. [Google Scholar] [CrossRef] [PubMed]
  3. Slapšytė, G.; Dedonytė, V.; Adomėnienė, A.; Lazutka, J.R.; Kazlauskaitė, J.; Ragažinskienė, O.; Venskutonis, P.R. Genotoxic Properties of Betonica Officinalis, Gratiola officinalis, Vincetoxicum Luteum and Vincetoxicum Hirundinaria Extracts. Food Chem. Toxicol. 2019, 134, 110815. [Google Scholar] [CrossRef] [PubMed]
  4. Navolokin, N.; Lomova, M.; Bucharskaya, A.; Godage, O.; Polukonova, N.; Shirokov, A.; Grinev, V.; Maslyakova, G. Antitumor Effects of Microencapsulated Gratiola officinalis Extract on Breast Carcinoma and Human Cervical Cancer Cells In Vitro. Materials 2023, 16, 1470. [Google Scholar] [CrossRef]
  5. Polukonova, N.V.; Navolokin, N.A.; Baryshnikova, M.A.; Maslyakova, G.N.; Bucharskaya, A.B.; Polukonova, A.V. Examining Apoptotic Activity of Gratiola officinalis L. (Scrophulariaceae) Extract On Cultured Human Tumor Cell Lines. Russ. Open Med. J. 2022, 11, 415. [Google Scholar] [CrossRef]
  6. Rana, A.; Samtiya, M.; Dhewa, T.; Mishra, V.; Aluko, R.E. Health Benefits of Polyphenols: A Concise Review. J. Food Biochem. 2022, 46, e14264. [Google Scholar] [CrossRef]
  7. Sammarco, G.; Gallo, G.; Vescio, G.; Picciariello, A.; De Paola, G.; Trompetto, M.; Currò, G.; Ammendola, M. Mast Cells, MicroRNAs and Others: The Role of Translational Research on Colorectal Cancer in the Forthcoming Era of Precision Medicine. J. Clin. Med. 2020, 9, 2852. [Google Scholar] [CrossRef]
  8. Ranasinghe, R.; Mathai, M.; Zulli, A. A Synopsis of Modern—Day Colorectal Cancer: Where We Stand. Biochim. Biophys. Acta (BBA) Rev. Cancer 2022, 1877, 188699. [Google Scholar] [CrossRef]
  9. Dekker, E.; Tanis, P.J.; Vleugels, J.L.A.; Kasi, P.M.; Wallace, M.B. Colorectal Cancer. Lancet 2019, 394, 1467–1480. [Google Scholar] [CrossRef]
  10. Pearlman, R.; Frankel, W.L.; Swanson, B.; Zhao, W.; Yilmaz, A.; Miller, K.; Bacher, J.; Bigley, C.; Nelsen, L.; Goodfellow, P.J.; et al. Prevalence and Spectrum of Germline Cancer Susceptibility Gene Mutations Among Patients With Early-Onset Colorectal Cancer. JAMA Oncol. 2017, 3, 464–471. [Google Scholar] [CrossRef]
  11. Stoffel, E.M.; Koeppe, E.; Everett, J.; Ulintz, P.; Kiel, M.; Osborne, J.; Williams, L.; Hanson, K.; Gruber, S.B.; Rozek, L.S. Germline Genetic Features of Young Individuals With Colorectal Cancer. Gastroenterology 2018, 154, 897–905.e1. [Google Scholar] [CrossRef] [PubMed]
  12. Kim, B.J.; Hanna, M.H. Colorectal Cancer in Young Adults. J. Surg. Oncol. 2023, 127, 1247–1251. [Google Scholar] [CrossRef]
  13. Byndloss, M.X.; Olsan, E.E.; Rivera-Chávez, F.; Tiffany, C.R.; Cevallos, S.A.; Lokken, K.L.; Torres, T.P.; Byndloss, A.J.; Faber, F.; Gao, Y.; et al. Microbiota-Activated PPAR-γ Signaling Inhibits Dysbiotic Enterobacteriaceae Expansion. Science 2017, 357, 570–575. [Google Scholar] [CrossRef] [PubMed]
  14. Lee, J.Y.; Cevallos, S.A.; Byndloss, M.X.; Tiffany, C.R.; Olsan, E.E.; Butler, B.P.; Young, B.M.; Rogers, A.W.L.; Nguyen, H.; Kim, K.; et al. High-Fat Diet and Antibiotics Cooperatively Impair Mitochondrial Bioenergetics to Trigger Dysbiosis That Exacerbates Pre-Inflammatory Bowel Disease. Cell Host Microbe 2020, 28, 273–284.e6. [Google Scholar] [CrossRef]
  15. McCullough, M.L.; Zoltick, E.S.; Weinstein, S.J.; Fedirko, V.; Wang, M.; Cook, N.R.; Eliassen, A.H.; Zeleniuch-Jacquotte, A.; Agnoli, C.; Albanes, D.; et al. Circulating Vitamin D and Colorectal Cancer Risk: An International Pooling Project of 17 Cohorts. J. Natl. Cancer Inst. 2019, 111, 158–169. [Google Scholar] [CrossRef] [PubMed]
  16. Thanikachalam, K.; Khan, G. Colorectal Cancer and Nutrition. Nutrients 2019, 11, 164. [Google Scholar] [CrossRef]
  17. Masci, D.; Puxeddu, M.; Silvestri, R.; La Regina, G. Metabolic Rewiring in Cancer: Small Molecule Inhibitors in Colorectal Cancer Therapy. Molecules 2024, 29, 2110. [Google Scholar] [CrossRef]
  18. Ríos-Hoyo, A.; Monzonís, X.; Vidal, J.; Linares, J.; Montagut, C. Unveiling Acquired Resistance to Anti-EGFR Therapies in Colorectal Cancer: A Long and Winding Road. Front. Pharmacol. 2024, 15, 1398419. [Google Scholar] [CrossRef]
  19. Esmeeta, A.; Adhikary, S.; Dharshnaa, V.; Swarnamughi, P.; Ummul Maqsummiya, Z.; Banerjee, A.; Pathak, S.; Duttaroy, A.K. Plant-Derived Bioactive Compounds in Colon Cancer Treatment: An Updated Review. Biomed. Pharmacother. 2022, 153, 113384. [Google Scholar] [CrossRef]
  20. Feng, Y.; Lu, J.; Jiang, J.; Wang, M.; Guo, K.; Lin, S. Berberine: Potential Preventive and Therapeutic Strategies for Human Colorectal Cancer. Cell Biochem. Funct. 2024, 42, e4033. [Google Scholar] [CrossRef]
  21. Šliumpaite, I.; Venskutonis, P.R.; Murkovic, M.; Pukalskas, A. Antioxidant Properties and Polyphenolics Composition of Common Hedge Hyssop (Gratiola officinalis L.). J. Funct. Foods 2013, 5, 1927–1937. [Google Scholar] [CrossRef]
  22. Plamada, D.; Vodnar, D.C. Polyphenols—Gut Microbiota Interrelationship: A Transition to a New Generation of Prebiotics. Nutrients 2021, 14, 137. [Google Scholar] [CrossRef] [PubMed]
  23. Fabbrini, M.; D’Amico, F.; Barone, M.; Conti, G.; Mengoli, M.; Brigidi, P.; Turroni, S. Polyphenol and Tannin Nutraceuticals and Their Metabolites: How the Human Gut Microbiota Influences Their Properties. Biomolecules 2022, 12, 875. [Google Scholar] [CrossRef]
  24. Rothenburger, J.; Haslinger, E. New Cucurbitacine Glycosides from Gratiola officinalis L. Monatshefte Chem. Chem. Mon. 1995, 126, 1331–1339. [Google Scholar] [CrossRef]
  25. Sturm, S.; Stuppner, H. Analysis of Cucurbitacins in Medicinal Plants by High-Pressure Liquid Chromatography–Mass Spectrometry. Phytochem. Anal. 2000, 11, 121–127. [Google Scholar] [CrossRef]
  26. Frezza, C.; Venditti, A.; Bianco, A.; Serafini, M.; Pitorri, M.; Sciubba, F.; Di Cocco, M.E.; Spinozzi, E.; Cappellacci, L.; Hofer, A.; et al. Phytochemical Analysis and Trypanocidal Activity of Marrubium Incanum Desr. Molecules 2020, 25, 3140. [Google Scholar] [CrossRef]
  27. Sena Filho, J.G.; Nimmo, S.L.; Xavier, H.S.; Barbosa-Filho, J.M.; Cichewicz, R.H. Phenylethanoid and Lignan Glycosides from Polar Extracts of Lantana, a Genus of Verbenaceous Plants Widely Used in Traditional Herbal Therapies. J. Nat. Prod. 2009, 72, 1344–1347. [Google Scholar] [CrossRef]
  28. Daneshforouz, A.; Nazemi, S.; Gholami, O.; Kafami, M.; Amin, B. The Cytotoxicity and Apoptotic Effects of Verbascoside on Breast Cancer 4T1 Cell Line. BMC Pharmacol. Toxicol. 2021, 22, 72. [Google Scholar] [CrossRef]
  29. Seyfi, D.; Behzad, S.B.; Nabiuni, M.; Parivar, K.; Tahmaseb, M.; Amini, E. Verbascoside Attenuates Rac-1 and HIF-1α Signaling Cascade in Colorectal Cancer Cells. Anticancer Agents Med. Chem. 2019, 18, 2149–2155. [Google Scholar] [CrossRef]
  30. Attia, Y.M.; El-Kersh, D.M.; Wagdy, H.A.; Elmazar, M.M. Verbascoside: Identification, Quantification, and Potential Sensitization of Colorectal Cancer Cells to 5-FU by Targeting PI3K/AKT Pathway. Sci. Rep. 2018, 8, 16939. [Google Scholar] [CrossRef]
  31. Sari, C.; Sümer, C.; Eyüpoğlu, F.C. Caffeic Acid Phenethyl Ester Induces Apoptosis in Colorectal Cancer Cells via Inhibition of Survivin. Turk. J. Biol. 2020, 44, 264–274. [Google Scholar] [CrossRef] [PubMed]
  32. El-Gogary, R.I.; Nasr, M.; Rahsed, L.A.; Hamzawy, M.A. Ferulic Acid Nanocapsules as a Promising Treatment Modality for Colorectal Cancer: Preparation and in Vitro/in Vivo Appraisal. Life Sci. 2022, 298, 120500. [Google Scholar] [CrossRef] [PubMed]
  33. Abdelmaksoud, N.M.; Abulsoud, A.I.; Abdelghany, T.M.; Elshaer, S.S.; Samaha, A.; Maurice, N.W.; Rizk, S.M.; Senousy, M.A. Targeting the SIRT3/MnSOD and JNK/HMGB1/Beclin 1 Axes: Role of Apigenin in Multifaceted Metabolic Intervention in Colorectal Cancer. J. Biochem. Mol. Toxicol. 2025, 39, e70095. [Google Scholar] [CrossRef]
  34. Polukonova, N.V.; Navolokin, N.A.; Bucharskaya, A.B.; Mudrak, D.A.; Baryshnikova, M.A.; Stepanova, E.V.; Solomko, E.S.; Polukonova, A.V.; Maslyakova, G.N. The Apoptotic Activity of Flavonoid-Containing Gratiola officinalis Extract in Cell Cultures of Human Kidney Cancer. Russ. Open Med. J. 2018, 7, e0402. [Google Scholar] [CrossRef]
  35. Song, J.; Liu, Y.; Yin, X.; Nan, Y.; Shi, Y.; Chen, X.; Liang, H.; Zhang, J.; Ma, B. Isolation and Structural Elucidation of Prebiotic Oligosaccharides from Ziziphi Spinosae Semen. Carbohydr. Res. 2023, 534, 108948. [Google Scholar] [CrossRef]
  36. Peixoto, J.A.B.; Álvarez-Rivera, G.; Costa, A.S.G.; Machado, S.; Cifuentes, A.; Ibáñez, E.; Oliveira, M.B.P.P.; Alves, R.C. Contribution of Phenolics and Free Amino Acids on the Antioxidant Profile of Commercial Lemon Verbena Infusions. Antioxidants 2023, 12, 251. [Google Scholar] [CrossRef] [PubMed]
  37. Li, X.-N.; Sun, J.; Shi, H.; Yu, L.; Ridge, C.D.; Mazzola, E.P.; Okunji, C.; Iwu, M.M.; Michel, T.K.; Chen, P. Profiling Hydroxycinnamic Acid Glycosides, Iridoid Glycosides, and Phenylethanoid Glycosides in Baobab Fruit Pulp (Adansonia digitata). Food Res. Int. 2017, 99, 755–761. [Google Scholar] [CrossRef]
  38. Cao, J.; Yin, C.; Qin, Y.; Cheng, Z.; Chen, D. Approach to the Study of Flavone Di-C-glycosides by High Performance Liquid Chromatography-tandem Ion Trap Mass Spectrometry and Its Application to Characterization of Flavonoid Composition in Viola Yedoensis. J. Mass Spectrom. 2014, 49, 1010–1024. [Google Scholar] [CrossRef]
  39. Formato, M.; Piccolella, S.; Zidorn, C.; Pacifico, S. UHPLC-HRMS Analysis of Fagus Sylvatica (Fagaceae) Leaves: A Renewable Source of Antioxidant Polyphenols. Antioxidants 2021, 10, 1140. [Google Scholar] [CrossRef]
  40. Pereira-Caro, G.; Cros, G.; Yokota, T.; Crozier, A. Phytochemical Profiles of Black, Red, Brown, and White Rice from the Camargue Region of France. J. Agric. Food Chem. 2013, 61, 7976–7986. [Google Scholar] [CrossRef]
  41. Friščić, M.; Bucar, F.; Hazler Pilepić, K. LC-PDA-ESI-MSn Analysis of Phenolic and Iridoid Compounds from Globularia Spp. J. Mass Spectrom. 2016, 51, 1211–1236. [Google Scholar] [CrossRef]
  42. Kırmızıbekmez, H.; Montoro, P.; Piacente, S.; Pizza, C.; Dönmez, A.; Çalış, İ. Identification by HPLC-PAD-MS and Quantification by HPLC-PAD of Phenylethanoid Glycosides of Five Phlomis Species. Phytochem. Anal. 2005, 16, 1–6. [Google Scholar] [CrossRef]
  43. Gao, H.; Liu, Z.; Song, F.; Xing, J.; Zheng, Z.; Liu, S. A Strategy for Identification and Structural Characterization of Compounds from Plantago asiatica L. by Liquid Chromatography-Mass Spectrometry Combined with Ion Mobility Spectrometry. Molecules 2022, 27, 4302. [Google Scholar] [CrossRef]
  44. Rodríguez-Pérez, C.; Zengin, G.; Segura-Carretero, A.; Lobine, D.; Mahomoodally, M.F. Chemical Fingerprint and Bioactivity Evaluation of Globularia orientalis L. and Globularia trichosantha Fisch. & C. A. Mey. Using Non-targeted HPLC-ESI-QTOF-MS Approach. Phytochem. Anal. 2019, 30, 237–252. [Google Scholar] [CrossRef] [PubMed]
  45. Otsuka, H.; Hirata, E.; Shinzato, T.; Takeda, Y. Isolation of Lignan Glucosides and Neolignan Sulfate from the Leaves of Glochidion zeylanicum (Gaertn) A. Juss. Chem. Pharm. Bull. 2000, 48, 1084–1086. [Google Scholar] [CrossRef] [PubMed]
  46. Haq, F.U.; Ali, A.; Khan, M.N.; Shah, S.M.Z.; Kandel, R.C.; Aziz, N.; Adhikari, A.; Choudhary, M.I.; ur-Rahman, A.; El-Seedi, H.R.; et al. Metabolite Profiling and Quantitation of Cucurbitacins in Cucurbitaceae Plants by Liquid Chromatography Coupled to Tandem Mass Spectrometry. Sci. Rep. 2019, 9, 15992. [Google Scholar] [CrossRef]
  47. Hu, G.; Liu, W.; Li, L. Identification and Quantification of Cucurbitacin in Watermelon Frost Using Molecular Networking Integrated with Ultra-high-performance Liquid Chromatography-tandem Mass Spectrometry. J. Sep. Sci. 2023, 46, e2300019. [Google Scholar] [CrossRef] [PubMed]
  48. Ali, L.; Rizvi, T.S.; Ahmad, M.; Shaheen, F. New Iridoid Glycoside from Gratiola officinalis. J. Asian Nat. Prod. Res. 2012, 14, 1191–1195. [Google Scholar] [CrossRef]
  49. Hatok, J.; Racay, P. Bcl-2 Family Proteins: Master Regulators of Cell Survival. Biomol. Concepts 2016, 7, 259–270. [Google Scholar] [CrossRef]
  50. Uribe, M.L.; Marrocco, I.; Yarden, Y. EGFR in Cancer: Signaling Mechanisms, Drugs, and Acquired Resistance. Cancers 2021, 13, 2748. [Google Scholar] [CrossRef]
  51. Chambard, J.C.; Lefloch, R.; Pouysségur, J.; Lenormand, P. ERK Implication in Cell Cycle Regulation. Biochim. Biophys. Acta (BBA) Mol. Cell Res. 2007, 1773, 1299–1310. [Google Scholar] [CrossRef]
  52. Lv, C.; Hong, Y.; Miao, L.; Li, C.; Xu, G.; Wei, S.; Wang, B.; Huang, C.; Jiao, B. Wentilactone A as a Novel Potential Antitumor Agent Induces Apoptosis and G2/M Arrest of Human Lung Carcinoma Cells, and Is Mediated by HRas-GTP Accumulation to Excessively Activate the Ras/Raf/ERK/P53-P21 Pathway. Cell Death Dis. 2013, 4, e952. [Google Scholar] [CrossRef] [PubMed]
  53. Moreno-Sánchez, R.; Marín-Hernández, A.; Saavedra, E.; Pardo, J.P.; Ralph, S.J.; Rodríguez-Enríquez, S. Who Controls the ATP Supply in Cancer Cells? Biochemistry Lessons to Understand Cancer Energy Metabolism. Int. J. Biochem. Cell Biol. 2014, 50, 10–23. [Google Scholar] [CrossRef] [PubMed]
  54. Abbaszadeh, Z.; Çeşmeli, S.; Biray Avcı, Ç. Crucial Players in Glycolysis: Cancer Progress. Gene 2020, 726, 144158. [Google Scholar] [CrossRef]
  55. De Soricellis, G.; Rinaldi, F.; Tengattini, S.; Temporini, C.; Negri, S.; Capelli, D.; Montanari, R.; Cena, H.; Salerno, S.; Massolini, G.; et al. Development of an Analytical Platform for the Affinity Screening of Natural Extracts by SEC-MS towards PPARα and PPARγ Receptors. Anal. Chim. Acta 2024, 1309, 342666. [Google Scholar] [CrossRef] [PubMed]
  56. Smith, P.K.; Krohn, R.I.; Hermanson, G.T.; Mallia, A.K.; Gartner, F.H.; Provenzano, M.D.; Fujimoto, E.K.; Goeke, N.M.; Olson, B.J.; Klenk, D.C. Measurement of Protein Using Bicinchoninic Acid. Anal. Biochem. 1985, 150, 76–85. [Google Scholar] [CrossRef]
  57. Laemmli, U.K. Cleavage of Structural Proteins during the Assembly of the Head of Bacteriophage T4. Nature 1970, 227, 680–685. [Google Scholar] [CrossRef]
  58. Bradford, M.M. A Rapid and Sensitive Method for the Quantitation of Microgram Quantities of Protein Utilizing the Principle of Protein-Dye Binding. Anal. Biochem. 1976, 72, 248–254. [Google Scholar] [CrossRef]
  59. Bergmeyer, H.U. Enzymes as Biochemical Reagents. Methods Enzym. Anal. 1974, 1, 473–474. [Google Scholar]
  60. Ali, S.; El-Ahmady, S.; Ayoub, N.; Singab, A. Phytochemicals of Markhamia Species (Bignoniaceae) and Their Therapeutic Value: A Review. Eur. J. Med. Plants 2015, 6, 124–142. [Google Scholar] [CrossRef]
  61. Rothenburger, J.; Haslinger, E. Caffeic Acid Glycoside Esters from Gratiola officinalis L. Liebigs Ann. Chem. 1994, 1994, 1113–1115. [Google Scholar] [CrossRef]
  62. Wu, A.-Z.; Zhai, Y.-J.; Zhao, Z.-X.; Zhang, C.-X.; Lin, C.-Z.; Zhu, C.-C. Phenylethanoid glycosides from the stems of Callicarpa peii (hemostatic drug). Fitoterapia 2013, 84, 237–241. [Google Scholar] [CrossRef] [PubMed]
Ijms 26 02220 g001
Figure 1. Base peak chromatogram of G. officinalis extract profiled by UPLC-ESI-HRMS in negative ionization mode. Numbers refer to metabolites listed in Table 1.
Figure 1. Base peak chromatogram of G. officinalis extract profiled by UPLC-ESI-HRMS in negative ionization mode. Numbers refer to metabolites listed in Table 1.
Ijms 26 02220 g001
Ijms 26 02220 g002
Figure 2. A MTT viability assay on the healthy colon mucosa CCD 841 cell line and colorectal cancer cell lines E705 and SW480. The cells were treated for 24 h with G. officinalis extract at concentrations between 0 and 500 μg/mL. Bars indicate the mean ± standard error (SE) of three individual experiments. Statistical significance: ** p < 0.01; **** p < 0.0001.
Figure 2. A MTT viability assay on the healthy colon mucosa CCD 841 cell line and colorectal cancer cell lines E705 and SW480. The cells were treated for 24 h with G. officinalis extract at concentrations between 0 and 500 μg/mL. Bars indicate the mean ± standard error (SE) of three individual experiments. Statistical significance: ** p < 0.01; **** p < 0.0001.
Ijms 26 02220 g002
Ijms 26 02220 g003
Figure 3. Western blot analysis. Representative Western blot analyses were performed on CCD 841 (A), E705 (C) and SW480 (E) cell lines that were untreated and treated for 24 h with 50 μg/mL and 100 μg/mL of G. officinalis extract. Protein extracts were separated on 12% acrylamide/bis-acrylamide SDS-PAGE and the nitrocellulose membranes were probed with anti-Bcl2 and anti-caspase-3 antibodies. Vinculin was used as a loading control. Densitometric analysis values are expressed as folds with respect to the control condition (0 μg/mL) and are presented as the mean ± standard error (SE) of three individual experiments (B,D,F). Statistical significance: * p < 0.05; ** p < 0.01; *** p < 0.001. n.d.: not detected.
Figure 3. Western blot analysis. Representative Western blot analyses were performed on CCD 841 (A), E705 (C) and SW480 (E) cell lines that were untreated and treated for 24 h with 50 μg/mL and 100 μg/mL of G. officinalis extract. Protein extracts were separated on 12% acrylamide/bis-acrylamide SDS-PAGE and the nitrocellulose membranes were probed with anti-Bcl2 and anti-caspase-3 antibodies. Vinculin was used as a loading control. Densitometric analysis values are expressed as folds with respect to the control condition (0 μg/mL) and are presented as the mean ± standard error (SE) of three individual experiments (B,D,F). Statistical significance: * p < 0.05; ** p < 0.01; *** p < 0.001. n.d.: not detected.
Ijms 26 02220 g003
Ijms 26 02220 g004
Figure 4. Apoptosis analysis by flow cytometry in E705 and SW480 cell lines. Representative scatter plots show the distribution of annexin V- and PI-stained cells after treatment for 24 h with G. officinalis extract at 50 μg/mL and 100 μg/mL with respect to the control condition (0 μg/mL) in E705 cells (A) and in SW480 cells (C). The X-axis indicates annexin V–FITC fluorescence detected at 518 nm and the Y-axis indicates PI fluorescence detected at 620 nm. The lower left quadrant indicates live cells, the upper right quadrant indicates late apoptotic cells, the lower right quadrant indicates early apoptotic cells. The results for E705 and SW480 cells are expressed as the mean percentage of total cell numbers ± standard error (SE) of three individual experiments (B,D). Statistical significance: * p < 0.05; ** p < 0.01; **** p < 0.0001.
Figure 4. Apoptosis analysis by flow cytometry in E705 and SW480 cell lines. Representative scatter plots show the distribution of annexin V- and PI-stained cells after treatment for 24 h with G. officinalis extract at 50 μg/mL and 100 μg/mL with respect to the control condition (0 μg/mL) in E705 cells (A) and in SW480 cells (C). The X-axis indicates annexin V–FITC fluorescence detected at 518 nm and the Y-axis indicates PI fluorescence detected at 620 nm. The lower left quadrant indicates live cells, the upper right quadrant indicates late apoptotic cells, the lower right quadrant indicates early apoptotic cells. The results for E705 and SW480 cells are expressed as the mean percentage of total cell numbers ± standard error (SE) of three individual experiments (B,D). Statistical significance: * p < 0.05; ** p < 0.01; **** p < 0.0001.
Ijms 26 02220 g004
Ijms 26 02220 g005
Figure 5. Western blot analysis. Representative Western blot analyses performed on E705 (A) and SW480 (C) cell lines that were untreated and treated for 24 h with 50 μg/mL and 100 μg/mL of G. officinalis extract. Protein extracts were separated on 10% acrylamide/bis-acrylamide SDS-PAGE and the nitrocellulose membranes were probed with anti-P-ERK and anti-ERK antibodies. Vinculin was used as a loading control. Densitometric analysis values for E705 and SW480 cells are expressed as folds with respect to the control condition (0 μg/mL) and are presented as the mean ± standard error (SE) of three individual experiments (B,D). Statistical significance: * p < 0.05; *** p < 0.001.
Figure 5. Western blot analysis. Representative Western blot analyses performed on E705 (A) and SW480 (C) cell lines that were untreated and treated for 24 h with 50 μg/mL and 100 μg/mL of G. officinalis extract. Protein extracts were separated on 10% acrylamide/bis-acrylamide SDS-PAGE and the nitrocellulose membranes were probed with anti-P-ERK and anti-ERK antibodies. Vinculin was used as a loading control. Densitometric analysis values for E705 and SW480 cells are expressed as folds with respect to the control condition (0 μg/mL) and are presented as the mean ± standard error (SE) of three individual experiments (B,D). Statistical significance: * p < 0.05; *** p < 0.001.
Ijms 26 02220 g005
Ijms 26 02220 g006
Figure 6. Cell cycle analysis on SW480 cell lines that were untreated and treated for 24 h with 50 μg/mL and 100 μg/mL of G. officinalis extract. Panel (A) shows the cells analyzed for DNA content by flow cytometry, while the graph in panel (B) depicts the percentage of cells in the different phases of the cell cycle. The values are presented as the mean ± standard error (SE) of three individual experiments. Statistical significance: * p < 0.05; ** p < 0.01; **** p < 0.0001.
Figure 6. Cell cycle analysis on SW480 cell lines that were untreated and treated for 24 h with 50 μg/mL and 100 μg/mL of G. officinalis extract. Panel (A) shows the cells analyzed for DNA content by flow cytometry, while the graph in panel (B) depicts the percentage of cells in the different phases of the cell cycle. The values are presented as the mean ± standard error (SE) of three individual experiments. Statistical significance: * p < 0.05; ** p < 0.01; **** p < 0.0001.
Ijms 26 02220 g006
Ijms 26 02220 g007
Figure 7. ATP production through Seahorse analysis. Total, glycolytic and mitochondrial ATP production rate in CCD 841 (A), E705 (C) and SW480 (E) cell lines that were untreated and treated for 24 h with 50 μg/mL and 100 μg/mL of G. officinalis extract. The values are presented as the mean ± standard error (SE) of three individual experiments. The ratios between glycolytic and mitochondrial ATP production in CCD 841, E705 and SW480 are reported in panels (B), (D) and (F), respectively. Statistical significance: * p < 0.05; ** p < 0.01; *** p < 0.001; **** p < 0.0001.
Figure 7. ATP production through Seahorse analysis. Total, glycolytic and mitochondrial ATP production rate in CCD 841 (A), E705 (C) and SW480 (E) cell lines that were untreated and treated for 24 h with 50 μg/mL and 100 μg/mL of G. officinalis extract. The values are presented as the mean ± standard error (SE) of three individual experiments. The ratios between glycolytic and mitochondrial ATP production in CCD 841, E705 and SW480 are reported in panels (B), (D) and (F), respectively. Statistical significance: * p < 0.05; ** p < 0.01; *** p < 0.001; **** p < 0.0001.
Ijms 26 02220 g007
Ijms 26 02220 g008
Figure 8. Glycolytic Stress Test. ECAR profiles, expressed as mpH/min/µg proteins, in CCD 841 (A), E705 (C) and SW480 (E) cell lines that were untreated and treated for 24 h with 50 μg/mL and 100 μg/mL of G. officinalis extract. The dotted lines indicate the time of addition of 10 mM glucose, 1 μM oligomycin and 50 mM 2-DG. The glycolysis, glycolytic capacity and glycolytic reserve parameters of CCD 841 (B), E705 (D) and SW480 (F) are reported. The values are presented as the mean ± standard error (SE) of three individual experiments. Statistical significance: **** p < 0.0001.
Figure 8. Glycolytic Stress Test. ECAR profiles, expressed as mpH/min/µg proteins, in CCD 841 (A), E705 (C) and SW480 (E) cell lines that were untreated and treated for 24 h with 50 μg/mL and 100 μg/mL of G. officinalis extract. The dotted lines indicate the time of addition of 10 mM glucose, 1 μM oligomycin and 50 mM 2-DG. The glycolysis, glycolytic capacity and glycolytic reserve parameters of CCD 841 (B), E705 (D) and SW480 (F) are reported. The values are presented as the mean ± standard error (SE) of three individual experiments. Statistical significance: **** p < 0.0001.
Ijms 26 02220 g008
Ijms 26 02220 g009
Figure 9. Western blot analysis. Representative Western blot analyses were performed on E705 cell lines that were untreated and treated for 24 h with 50 μg/mL and 100 μg/mL of G. officinalis extract. Protein extracts were separated on 10% acrylamide/bis-acrylamide SDS-PAGE and the nitrocellulose membranes were probed with anti-PFKFB3 and anti-PKM2 antibodies. Vinculin was used as a loading control (A). Densitometric analysis values are expressed as folds with respect to the control condition (0 μg/mL) and are presented as the mean ± standard error (SE) of three individual experiments (B). Panel (C) shows the enzymatic activity of lactate dehydrogenase, expressed in U/mg, of E705 cells that were untreated and treated for 24 h with 50 μg/mL and 100 μg/mL of G. officinalis extract. Bars indicate the mean ± standard error (SE) of three individual experiments. Statistical significance: * p < 0.05; ** p < 0.01; **** p < 0.0001.
Figure 9. Western blot analysis. Representative Western blot analyses were performed on E705 cell lines that were untreated and treated for 24 h with 50 μg/mL and 100 μg/mL of G. officinalis extract. Protein extracts were separated on 10% acrylamide/bis-acrylamide SDS-PAGE and the nitrocellulose membranes were probed with anti-PFKFB3 and anti-PKM2 antibodies. Vinculin was used as a loading control (A). Densitometric analysis values are expressed as folds with respect to the control condition (0 μg/mL) and are presented as the mean ± standard error (SE) of three individual experiments (B). Panel (C) shows the enzymatic activity of lactate dehydrogenase, expressed in U/mg, of E705 cells that were untreated and treated for 24 h with 50 μg/mL and 100 μg/mL of G. officinalis extract. Bars indicate the mean ± standard error (SE) of three individual experiments. Statistical significance: * p < 0.05; ** p < 0.01; **** p < 0.0001.
Ijms 26 02220 g009
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Bianchini, S.; Bovio, F.; Negri, S.; Guzzo, F.; Forcella, M.; Fusi, P. Gratiola officinalis Alcoholic Extract Targets Warburg Effect, Apoptosis and Cell Cycle Progression in Colorectal Cancer Cell Lines. Int. J. Mol. Sci. 2025, 26, 2220. https://doi.org/10.3390/ijms26052220

AMA Style

Bianchini S, Bovio F, Negri S, Guzzo F, Forcella M, Fusi P. Gratiola officinalis Alcoholic Extract Targets Warburg Effect, Apoptosis and Cell Cycle Progression in Colorectal Cancer Cell Lines. International Journal of Molecular Sciences. 2025; 26(5):2220. https://doi.org/10.3390/ijms26052220

Chicago/Turabian Style

Bianchini, Stefano, Federica Bovio, Stefano Negri, Flavia Guzzo, Matilde Forcella, and Paola Fusi. 2025. "Gratiola officinalis Alcoholic Extract Targets Warburg Effect, Apoptosis and Cell Cycle Progression in Colorectal Cancer Cell Lines" International Journal of Molecular Sciences 26, no. 5: 2220. https://doi.org/10.3390/ijms26052220

APA Style

Bianchini, S., Bovio, F., Negri, S., Guzzo, F., Forcella, M., & Fusi, P. (2025). Gratiola officinalis Alcoholic Extract Targets Warburg Effect, Apoptosis and Cell Cycle Progression in Colorectal Cancer Cell Lines. International Journal of Molecular Sciences, 26(5), 2220. https://doi.org/10.3390/ijms26052220

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
