Systematic Approach to Negative Fukui Functions: Its Association with Nitro Groups in Aromatic Systems

Pedro Pablo Zamora Yates; Klaus Bieger

doi:10.3390/ijms26010319

and

Departamento de Química y Biología, Facultad de Ciencias Naturales, Universidad de Atacama, Av. Copayapu 485, Copiapó 1530000, Chile

^*

Author to whom correspondence should be addressed.

Int. J. Mol. Sci.2025, 26(1), 319;https://doi.org/10.3390/ijms26010319

This article belongs to the Section Physical Chemistry and Chemical Physics

Version Notes

Order Reprints

Abstract

Fukui functions are related to electron densities, and their interpretation permits the determination of reactivity of atomic centres. However, negative values cannot be interpreted by an “electron density based” model and represent a phenomenon that has been little investigated and understood. Previous works in the literature suggest that they are related to nodes in the wave function. In our investigations we can relate negative values to nitro groups and their position on aromatic systems, as it is a moiety with HOMO electron densities close to “0” related to “electron attracting” groups. This work can help us understand and predict this phenomenon and the associated chemical reactivities. We also pay attention to the influence of the nitro group angle vs. the aromatic ring.

Keywords:

negative Fukui function; Density Functional Theory (DFT); chemical reactivity; nitro groups

1. Introduction

The chemical reactivity of a molecule can be determined from its electronic structure, and more specifically, from the electron densities of its frontier orbitals: the highest occupied molecular orbital (HOMO) and the lowest unoccupied molecular orbital (LUMO). Analysis of the properties of these orbitals provides a pathway to understanding how molecules interact with other chemical species, offering valuable insights into which atoms or regions of a molecule are more likely to engage in chemical reactions.

A key tool for this analysis is the Fukui function that determines the local reactivity within a molecule by identifying specific atoms that are more likely to donate or accept electron pairs using electron densities of the HOMO and LUMO orbitals. Electrophilic Fukui function,

f^{- (\overset{⃑}{r})}

, can be approximated by the density of the HOMO,

f^{- (\overset{⃑}{r})} \approx ρ_{H O M O (\overset{⃑}{r})}

, as these high energy electrons are those that will interact with the LUMO of another moiety in an electrophilic attack. In consequence, low or negative values of

f^{- (\overset{⃑}{r})}

indicate a lack of reactivity [1,2,3]. However, from a physical standpoint, the electron density of the HOMO cannot be negative [2].

Thus, negative Fukui functions cannot be understood by the “above-mentioned” approximation rule as electronic densities must always be positive since they represent the probability of finding electrons at a specific point in space [1]. Nevertheless, it has been observed that in some cases

f^{- (\overset{⃑}{r})}

can adopt negative values that hold significance and provide important information about molecular parameters from a chemical perspective.

The current literature on the significance and implications of negative

f^{- (\overset{⃑}{r})}

is limited, and its interpretation has not been thoroughly explored. Few researchers have dedicated efforts to understand its meaning and related its origin solely from a formal physical standpoint, without delving into the chemical factors that may produce negative values of this function [2], nor which atoms may show a clear tendency to adopt negative values. Therefore, there is a need for further research to elucidate this phenomenon.

From previous work we knew that nitro groups often led to low values of the Fukui function [3] in several parts of the molecule. Thus, here we aimed to investigate nitrobenzenes as model substances to generate and induce negative values of

f^{- (\overset{⃑}{r})}

to understand its origin and its relationships with frontier orbitals, its electronic implications and its connection with chemical factors. Nitro groups are strong electron attractors that strongly affect the distribution of the HOMO orbital in conjugated systems. Thus, we present a systematic approach based on nitrobenzene derivatives that helps to understand and to predict this curious phenomenon in related substances.

Theoretical Background

Computational math as mentioned, according to Density Functional Theory (DFT), Fukui values are associated with chemical reactivity, and a moiety with high electron density in the HOMO will act as electrophile while it can be attacked by electrophiles in regions with low electron density in the LUMO [2,3].

The most common expression of the related Fukui function is [4,5]:

f (\overset{⃑}{r}) = {(\frac{\partial ρ (\overset{⃑}{r})}{\partial N_{e}})}_{v (r)}

(1)

This function presents the change in electron density when an electron is withdrawn from or added to a molecule with given geometry and constant potential. Its unit is that of electron density: electrons per volume.

For electron withdrawal and addition, Fukui function adopts two different forms when a finite difference approach is used [6,7,8]:

f^{+ (\overset{⃑}{r})} = {(\frac{\partial ρ (\overset{⃑}{r})}{\partial N_{e}})}_{v (r)}^{+} = ρ_{N + 1} (\overset{⃑}{r}) - ρ_{N} (\overset{⃑}{r})

(2)

f^{- (\overset{⃑}{r})} = {(\frac{\partial ρ (\overset{⃑}{r})}{\partial N_{e}})}_{v (r)}^{-} = ρ_{N} (\overset{⃑}{r}) - ρ_{N - 1} (\overset{⃑}{r})

(3)

A further development based on Fukui functions is the Dual Descriptor (DD)

f^{(2)} (\overset{⃑}{r})

introduced by Morell et al. [9]. Mathematically, it is a derivative of the Fukui function with respect to the number of electrons:

f^{2} (\overset{⃑}{r}) = {(\frac{\partial f (\overset{⃑}{r})}{\partial N_{e}})}_{v (r)} = {(\frac{\partial ρ (\overset{⃑}{r})}{\partial N_{e}^{2}})}_{v (r)}

(4)

This helps localize electrophilic and nucleophilic centres on a molecule. Sites with

f^{2} (\overset{⃑}{r}) > 0

will likely suffer from an electrophilic attack, while regions with

f^{2} (\overset{⃑}{r}) < 0

can be attacked by nucleophiles [9]. As the DD is less affected by orbital contraction or orbital expansion than the proper Fukui function, it is considered an even better reactivity indicator [10,11].

With a finite difference approach

f^{2} (\overset{⃑}{r})

can be expressed as the difference between

f^{+ (\overset{⃑}{r})}

and

f^{- (\overset{⃑}{r})}

[11]:

f^{2} (\overset{⃑}{r}) = ∆ f (\overset{⃑}{r}) = f^{+ (\overset{⃑}{r})} - f^{- (\overset{⃑}{r})}

∆ f (\overset{⃑}{r}) = ρ L U M O (\overset{⃑}{r}) - ρ H O M O (\overset{⃑}{r})

(5)

To determine the reactivity of specific atoms in a moiety, Yang et al. introduced a condensed Fukui function as local reactivity descriptor [12,13,14]. It is defined as the change of charge on a specific atom when an electron is withdrawn from or added to the whole molecule. This can be determined via an electron population analysis according to Natural Bond Orbital (NBO) population:

f_{k} = - {(\frac{{\partial q}_{k}}{\partial N_{e}})}_{V e x t}

(6)

The condensed Fukui function

f_{k}

is normally calculated by the finite difference method with a discrete number of electrons. Thus, atomic charges are calculated for the same molecule in anionic, neutral and cationic states. Nucleophilic and electrophilic centres are established as in Equations (2) and (3):

f_{k}^{+} = N_{k} (N) - N_{k} (N + 1)

(7)

f_{k}^{-} = N_{k} (N - 1) - N_{k} (N)

(8)

Here,

N_{k}

stands for the electronic population on atom k for a system with N + 1, N and N − 1 electrons, respectively, conserving the geometry of the neutral molecule with N electrons.

2. Results and Discussion

According to Equation (5), the Fukui function approximates the density of the HOMO,

f^{(- (\overset{⃑}{r})} \approx ρ_{H O M O (\overset{⃑}{r})}

. Electronic densities should take positive values [1,3] since negative densities would not make physical sense. However, as observed in Table 1, this rule is not followed for all atoms (values marked in bold), showing that the density approximation in these cases is too coarse.

Table 1. HOMO orbital plots and Fukui values for all substances studied. The bold values indicate the negative Fukui function values.

Previous investigations explain this phenomenon relating it to nodes in the HOMO [3], something that can be related to the mathematical and physical background. However, they do not relate it to functional groups nor indicate which atoms can generate a negative value for this function. For this reason, we tried to force negative values for

f^{- (\overset{⃑}{r})}

by chemical modifications in order to study the chemical background for this behaviour and not limit the explication to nodes. This approach can help to predict on which sites in a molecule this strange phenomenon could appear.

Since nitro groups have a high capacity to attract electrons [15], they can redistribute the HOMO in aromatic systems as well as modify the energy of the frontier orbitals, thereby reducing the band gap of both aromatic and extensively conjugated molecules [16]. We can see that for compounds 1, 2, 4, 8, 10 and 11 (Table 1) the electron-attracting effect leaves certain atoms with low HOMO density, and these are related to negative values of

f^{- (\overset{⃑}{r})}

.

When an electron is removed from the molecule, the influence of the nucleus on the inner electrons is greater on atoms with low HOMO density, leading to contraction of these orbitals and herewith increase of the electron density. Consequently,

ρ_{N - 1} (\overset{⃑}{r})

becomes greater than

ρ_{N} (\overset{⃑}{r})

(see Equation (2)), resulting in negative values for the function

f^{- (\overset{⃑}{r})}

.

The nitrogen in the nitro group with partial positive charge is a good example of atoms with low HOMO density. In previous studies on reaction mechanisms, we found that phosphorus in oxidation state +V could be another candidate [3] but is not further investigated in this study.

Table 1 shows the results for different nitrobenzene derivatives and the effect of the position and number of the nitro groups on the HOMO and Fukui values of different atoms. Atoms that could be transformed into each other by symmetry operations are listed with the same number and differentiated by letters a, b, c etc. Symmetry elements (rotational axis or mirror planes) were included on the HOMO image as blue lines. Equivalent atoms should have the same Fukui values. Slight differences can be attributed to disorders in the molecule, e.g., by tilt in the functional group versus the molecular plane leading to conformers with lower symmetry. This leads to different interactions of the oxygen atoms with electron clouds over and under the aromatic ring as they have different phases. Even though on the first glance annoying, these derivations could help to establish a threshold for the chemical meaning of differences in Fukui values.

When not taking into account the phases of the orbitals nitrobenzene 1 has necessarily a symmetry element that passes through the nitrogen, ipso and para carbon. Thus, C2 and C2a and C3 and C2a would have forcefully the same Fukui values. When considering the phases however, nitrogroup oxygens will interact in different ways with the electrons on the upper and lower part of the ring system, and this difference will lead to different Fukui values for otherwise identical atoms.

In o-dinitrobenzene 2 one could expect depending on the tilt angles of the nitro groups versus the aromatic ring plane an “m” or a C₂-symmetry with two equal nitro groups. Anyhow the most stable conformer has only one coplanar nitro moiety eliminating the symmetry and forcing all atoms to exhibit different Fukui values. The reason seems to be steric hindrance end electrostatic repulsion between oxygen atoms of the two neighboured NO₂-groups as in 1,3-dinitrobenzene 3 the symmetry reappears and clear pairs of atoms with practically identical Fukui values can be found.

Also, the 1,4-dinitroderivative 4 shows symmetry with very similar parameters for the interchangeable atoms.

The same tendency can be found in higher nitrated derivatives: Vicinal nitro groups tend to force at least one of them to be tilted out of plane. This tilt also has influence on the Fukui values in the ring systems: Only in the coplanar conformers negative Fukui values could be observed on the ipso carbon. In some cases, it extends also the carbon in orto to the coplanar NO₂-group.

In several cases the expected symmetry is broken due to tilt angles of the nitro groups that inhibit mirror operations. Nodal planes tend to form in a way that H-bearing C-atoms of the ring system are separated from the maximum possible amount of nitro groups. When the plane passes through an atom, the HOMO density on these atoms decreases to close to “0”, and low or negative Fukui values can be found here also and not only on the nitrogens (Based on the trend observed in this study, a HOMO density value is considered close to zero when it falls below the threshold of 0.001 eV). This leads to a strong relation of some triple substituted molecules to the electronic structure of tetra substituted analogues. Thus, electronic distribution in the 1,2,4-trinitrobenzene 6 is very similar to the 1,2,3,4-tetranitrobenzene 8 and 1,2,3-trinitrobenzene is similar to 1,2,3,5-tetranitrobenzene 9 in its electron structure. 1,3,5-trinitrobenzene 7 is a bit outstanding as it nearly preserves C₃-symmetry on the ring system as there are three sectors observable on the aromatic ring, even though on a second glance one can observe reduction in symmetry due to a nitro group tilt. C₃-symmetry is completely broken on the hexanitrobenzene 12 where only C₂-symmetry can be found with the symmetry axis passing through the centre of two C-C-bonds on the ring system due to the tilt of two para-standing nitro groups.

A strange phenomenon can be observed in 1,2,3,4-tetranitrobenzene 8 where two oxygens were found without electron density in the HOMO leading to a negative Fukui value on these high electron negative atoms. Additionally, both affected nitro groups show a dihedral angle with respect to the benzene plane, so no direct mesomeric effect would be expected. Here the tendency to form a density node of the whole system through the NO₂-groups and the ipso carbons increases the overall electron withdrawing effect of the nitro group potentiating the decrease in electron density on the atoms of these moieties, even though, strangely, the ipso-carbon is less affected then in other related structures.

The two oxygens on the central nitro group of pentanitrobenzene 11 also show negative Fukui values, and the whole group is tilted out of plane. It seems that the other moieties have stripped this group of electrons to mitigate the electron defect in the rest of the molecule and left these atoms with low HOMO electron density resulting in negative Fukui values. Thus, any reaction pass way that requires, e.g., protonation of these NO₂-oxygen atoms will not work on this group.

Apart from these more surprising findings, the Fukui values for the different atoms correlate to those expected from the –M-effect of the functional group with negative values on carbons where a positive formal charge could be postulated.

Due to the high dependency of Fukui values on the tilt angle, we also carried out a study that correlates both parameters on nitrobenzene, comparing them also to the relative energy of the conformers.

Astonishingly the Fukui values for nearly all atoms do not change gradually but have a harsh leap between 25 and 30° as shown in Figure 1. This change is also reflected by a change in the form of the HOMO orbital. The least affected atom is the nitrogen of the nitro group, showing clearly that the Fukui value here depends practically only on the two oxygens and is not influenced by the rest of the molecule.

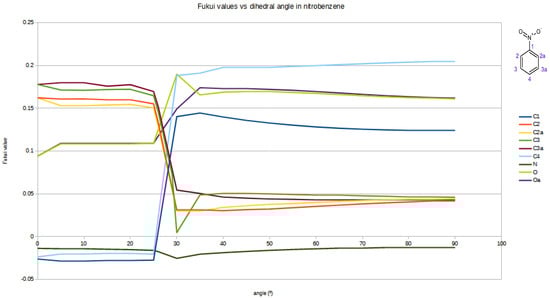

Figure 1. Fukui values vs. tilt angle of the nitro-group in nitrobenzene.

Strangely the sharp change does not show up in the rotational energy where the energy profile shows a smooth graph.

The tendency of the Fukui function to approach negative values as the angle of the nitro group changes can be attributed to its role as a key descriptor of the local reactivity of the atoms within a molecule. This function reflects how the electron density responds to changes in molecular structure, particularly the distribution of electronic orbitals like the HOMO. As the angle of the nitro group is varied, the contribution of the HOMO to the electron density at specific atoms shifts, leading to a decrease in nucleophilic behaviour and an increase in the electron-attracting effect of the nucleus.

When the Fukui function takes values close to zero, it indicates that the atom’s reactivity toward electrophiles becomes negligible, as there is minimal electron density available for interaction. Similarly, negative values of the function suggest a further reduction in nucleophilic activity, potentially due to a redistribution of electron density that disfavours reactivity at that site.

As shown in Table 1 and corroborated by the Supplementary Materials Figures S1 and S2, this relationship between the angle of the nitro group and the local reactivity of the carbon atoms is consistent with how the HOMO’s distribution changes with the orientation of one or more nitro groups. Specifically, variations in the HOMO’s spatial overlap with the atom in question determine the observed trends in reactivity.

This interplay between molecular geometry and electronic structure is crucial for understanding and predicting chemical reactivity, especially in systems where substituents like nitro groups play a significant role in modulating the electron density and reactivity of nearby atoms [17,18]. Regarding the dual reactivity descriptor, as shown in Equation (5), when the Fukui function takes negative or near-zero values, the descriptor becomes more electrophilic. This occurs because, in the absence of HOMO, the atom loses its nucleophilic character and gains electrophilic character due to the presence of the LUMO.

The lower the HOMO values the lower the Fukui functions and the larger the orbital contraction. The sign-flip occurs for HOMO densities practically being zero [19]. The low HOMO density observed in the graphical representations of this orbital shows that certain atoms are completely deprived of HOMO presence, appearing “bare” or “exposed.” This leads to negative Fukui function values because the strong nuclear attraction causes the orbitals to contract, concentrating the electron density closer to the nucleus.

In cases where atoms are located at the edges or boundaries of the HOMO, the orbital’s influence is weaker. This reduced influence causes the Fukui function values to approach zero. At the edges, while some influence of the HOMO remains, the effect is minimal compared to atoms that completely lack the HOMO. Even here, the nucleus’s pull on inner orbitals still causes a slight contraction.

As the HOMO’s presence decreases—whether because an atom is at the boundary or lacks the orbital entirely—the reduced electron density lowers nucleophilic reactivity. Consequently, atoms with a deficiency of HOMO, either at the limits or in complete absence, tend to have Fukui function values that are negative or close to zero.

An aspect not yet studied to date is how the negative Fukui function

f^{- (\overset{⃑}{r})}

can affect the distribution of spin density. According to our calculations (Figure S3) spin density is heterogeneous, and spin redistribution is observed especially on atoms with low values or practically zero of HOMO values while the opposite spin can be localized on atoms with higher electron density in the HOMO. A possible explication is attributing it to the fact that at low electron density the probability that only one electron can be found in the region is high and one electron cannot compensate its proper spin.

3. Computational Methods

All calculations were carried out using the Gaussian-09 program [20]. Molecular geometries were optimized using the B3LYP-funtion on a 6-311G(d,p)—calculation base as they have proven suitable for this type of study [21,22]. The CAM-B3LYP and ωB97X-D functionals were used for compounds 6, 8, and 11 in order to determine whether dispersion effects influence the sign of the Fukui function. Figures S4 and S5 and Tables S1–S3.

For the analysis of electron population, Natural Bonding Orbitals were calculated [21], and the result was used to determine Fukui indices according to Equations (3) and (4). Gauss View 5.08, included as complement in the Gaussian 09—package, was used to generate the surfaces of the HOMO according to Equations (2) and (5).

Graphics were generated from the density with B3LYP-calculations on a 6-311G(d,p) base with isovalue 0.02.

4. Conclusions

We show that negative Fukui functions can not only be observed in nodes of the wave function but on any atom with HOMO values practically equal to zero helping in the understanding of this strange behaviour. The systematic approach based on nitrobenzene derivatives can even help to predict the occurrence of this phenomenon and links it to the already established rules of the −M-effect.

This work explains and helps to predict the appearance of negative Fukui functions and the related low nucleophilicity of the affected atoms. It also opens the door for further investigations that could identify other moieties with a similar behaviour.

Supplementary Materials

The supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms26010319/s1.

Author Contributions

Initial idea, calculations and first discussion P.P.Z.Y.; refinement, additional discussion, revision and adjustments K.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data available upon request to the authors.

Conflicts of Interest

The authors declare no conflicts of interest.

References

Zamora, P.P.; Maurelia, R.; Bieger, K. Pyrazolon-ditiocarbonic acid and dibromoalcanes—Cyclic keto-ditioacetals formation vs. open chain products: A theoretical study. Mol. Phys. 2022, 120, e2052371. [Google Scholar] [CrossRef]
Melin, J.; Ayers, P.W.; Ortiz, J.V. Removing Electrons Can Increase the Electron Density: A Computational Study of Negative Fukui Functions. J. Phys. Chem. A 2007, 111, 10017–10019. [Google Scholar] [CrossRef]
Zamora, P.; Bieger, K.; Cuchillo, A.; Tello, A.; Muena, J. Theoretical determination of a reaction intermediate: Fukui function analysis, dual reactivity descriptor and activation energy. J. Mol. Struct. 2021, 1227, 129369. [Google Scholar] [CrossRef]
Parr, R.G.; Yang, W. Density functional approach to the frontier-electron theory of chemical reactivity. J. Am. Chem. Soc. 1984, 106, 4049–4050. [Google Scholar] [CrossRef]
Yang, W.; Parr, R.G.; Pucci, R. Electron density, Kohn–Sham frontier orbitals, and Fukui functions. J. Chem. Phys. 1984, 81, 2862–2863. [Google Scholar] [CrossRef]
Liu, S.B. Conceptual Density Functional Theory and Some Recent Developments. Acta Phys. Chim. Sin. 2009, 25, 590–600. [Google Scholar] [CrossRef]
Glossman-Mitnik, D. Computational Study of the Chemical Reactivity Properties of the Rhodamine B Molecule. Procedia Comput. Sci. 2013, 18, 816–825. [Google Scholar] [CrossRef]
Frau, J.; Glossman-Mitnik, D. Comparative Study of the Chemical Reactivity of Helical Peptide Models for Protein Glycation. Comput. Chem. 2017, 5, 65–73. [Google Scholar] [CrossRef][Green Version]
Morell, C.; Grand, A.; Toro-Labbé, A. New Dual Descriptor for Chemical Reactivity. J. Phys. Chem. A 2005, 109, 205–212. [Google Scholar] [CrossRef]
Fukui, K.; Yonezawa, T.; Shingu, H. A Molecular Orbital Theory of Reactivity in Aromatic Hydrocarbons. J. Chem. Phys. 1952, 20, 722–725. [Google Scholar] [CrossRef]
Cárdenas, C.; Rabi, N.; Ayers, P.W.; Morell, C.; Jaramillo, P.; Fuentealba, P. Chemical Reactivity Descriptors for Ambiphilic Reagents: Dual Descriptor, Local Hypersoftness, and Electrostatic Potential. J. Phys. Chem. A 2009, 113, 8660–8667. [Google Scholar] [CrossRef]
Yang, W.; Mortier, W.J. The use of global and local molecular parameters for the analysis of the gas-phase basicity of amines. J. Am. Chem. Soc. 1986, 108, 5708–5711. [Google Scholar] [CrossRef] [PubMed]
Ayers, P.W.; Parr, R.G. Variational Principles for Describing Chemical Reactions: The Fukui Function and Chemical Hardness Revisited. J. Am. Chem. Soc. 2000, 122, 2010–2018. [Google Scholar] [CrossRef]
Ayers, P.W.; Parr, R.G. Variational Principles for Describing Chemical Reactions. Reactivity Indices Based on the External Potential. J. Am. Chem. Soc. 2001, 123, 2007–2017. [Google Scholar] [CrossRef] [PubMed]
Jezuita, A.; Ejsmont, K.; Szatylowicz, H. Substituent effects of nitro group in cyclic compounds. Struct. Chem. 2021, 32, 179–203. [Google Scholar] [CrossRef]
Zamora, P.; Bieger, K.; Vasquez, D.; Merino, M.; Maurelia, R. Short Communication: Effect of Nitro Groups on Electrochemical and Photovoltaic Behavior of Tris-thiophenes used in Organic Solar Cells. Int. J. Electrochem. Sci. 2015, 10, 10321–10335. [Google Scholar] [CrossRef]
Olah, G.A.; Lin, H.C. Aromatic Substitution. XXXIV.1 The Differing Nature and Selectivity of the Nitration of Nitro(dinitro)benzene and -toluenes from that of Benzene and Toluene. J. Am. Chem. Soc. 1974, 96, 549–553. [Google Scholar] [CrossRef]
Cyrille, N.N.; Idrice, A.A.; Maraf, M.B.; Charles, F.A.; Ibrahim, M.N.; Ríos-Gutierrez, M.; Domingo, L.R. Understanding the Mechanism of Nitrobenzene Nitration with Nitronium Ion: A Molecular Electron Density Theory Study. ChemistrySelect 2019, 4, 13313–13319. [Google Scholar] [CrossRef]
Pucci, R.; Angilella, G.G.N. Density functional theory, chemical reactivity, and the Fukui functions. Found. Chem. 2022, 24, 59–71. [Google Scholar] [CrossRef]
Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09 Revision E.01; Gaussian Wallingford: Wallingford, CT, USA, 2009. [Google Scholar]
Becke, A.D. Density-functional exchange-energy approximation with correct asymptotic behaviour. Phys. Rev. A 1988, 38, 3098–3100. [Google Scholar] [CrossRef]
Becke, A.D. Density-functional thermochemistry 3. The role of exact exchange. J. Chem. Phys. 1993, 98, 5648–5652. [Google Scholar] [CrossRef]

Figure 1. Fukui values vs. tilt angle of the nitro-group in nitrobenzene.

Table 1. HOMO orbital plots and Fukui values for all substances studied. The bold values indicate the negative Fukui function values.

Compound Number	HOMO	Atom Number	$f^{- (\overset{⃑}{r})}$
1		C1	−0.02617
		C2	0.16223
		C2a	0.16222
		C3	0.17783
		C3a	0.17783
		C4	−0.02362
		N	−0.01371
		O	0.09410
		Oa	0.09410
2	No symmetry element	C1	0.06422
		C1a	0.06414
		C2	−0.00185
		C2a	0.11475
		C3	0.11459
		C3a	−0.00275
		N1	−0.01226
		N1a	0.13211
		O1	−0.01226
		O1a	0.13566
		O2	0.13575
		O2a	0.13205
3		C1	0.1277
		C2	0.01980
		C2a	0.01976
		C3	0.04038
		C3a	0.04043
		C4	0.17606
		N1	−0.01184
		N1a	−0.01183
		O1	0.12144
		O1a	0.12141
		O2	0.12409
		O2a	0.12412
4		C1	−0.01979
		C1a	−0.01979
		C2	0.11729
		C2a	0.11730
		C2b	0.11729
		C2c	0.11730
		N1	−0.00706
		N1a	−0.00707
		O1	0.11958
		O1a	0.11958
		O1b	0.11957
		O1c	0.11957
5	Imperfect m-symmetry	C1	0.05474
		C2	0.02281
		C2a	0.02283
		C3	0.02865
		C3a	0.02864
		C4	0.13450
		N1	−0.00912
		N1a	−0.00911
		N2	−0.0108
		O1	0.09177
		O1a	0.09179
		O2	0.07964
		O2a	0.07967
		O3	0.15307
		O3a	0.15315
6	No symmetry	C1	0.00073
		C2	0.0556
		C3	0.03488
		C4	0.06947
		C5	0.07799
		C6	0.07799
		N1	−0.01497
		N2	−0.00953
		N3	−0.00803
		O1	0.09274
		O2	0.08489
		O3	0.13640
		O4	0.12613
		O5	0.13168
		O6	0.13468
7	Broken C₃-symmetry through the ring centre leaving just a perpendicular C₂ axis	C1	0.00028
		C1a	0.00038
		C1b	0.00029
		C2	0.00021
		C2a	0.00017
		C2b	0.00021
		N1	−0.00397
		N1a	−0.00079
		N1b	−0.00397
		O1	0.19321
		O1a	0.10569
		O1b	0.10572
		O1c	0.19324
		O1d	0.14388
		O1e	0.14381
8	Imperfect mirror symmetry due to tilt in vicinal NO₂-groups.	C1	0.00673
		C1a	0.05819
		C2	0.00021
		C2a	0.00011
		C3	0.03138
		C3a	0.05819
		N1	−0.01071
		N1a	−0.01058
		N2	−0.00773
		N2a	−0.00830
		O1	0.08932
		O1a	0.13085
		O2	0.08948
		O2a	0.12157
		O3	0.06601
		O3a	0.08383
		O4	−0.01250
		O4a	−0.00949
9		C1	0.02215
		C2	0.02222
		C2a	0.02215
		C3	0.01602
		C3a	0.01610
		C4	0.08079
		N1	−0.00863
		N2	−0.00651
		N2a	−0.00651
		N3	−0.01386
		O1	0.14493
		O1a	0.07638
		O2	0.07648
		O2a	0.1449
		O3	0.09631
		O3a	0.14493
		O4	0.08537
		O4a	0.08539
10		C1	−0.00516
		C1a	−0.00866
		C2	0.04254
		C2a	0.04265
		C2b	0.04246
		C2c	0.04257
		N1	−0.00866
		N1a	−0.00866
		N1b	−0.00865
		N1c	−0.00865
		O1	0.10561
		O1a	0.10587
		O1b	0.10564
		O1c	0.1059
		O2	0.0971
		O2a	0.09732
		O2b	0.09714
		O2c	0.0974
11		C1	−0.00482
		C2	0.06131
		C2a	0.06134
		C3	0.0212
		C3a	0.02118
		C4	−0.00162
		N1	−0.01003
		N1a	−0.01003
		N2	−0.00739
		N2a	−0.00739
		N3	−0.01204
		O1	0.09472
		O1a	0.09474
		O2	0.08082
		O2a	0.08084
		O3	0.10762
		O3a	0.11525
		O4	0.11527
		O4a	0.1076
		O5	−0.00075
		O5a	−0.00074
12	Even though at a first glance there seem to be 2 symmetry axes (shown as blue lines) data show that the system can better be described with a perpendicular C₂-axis through the centre of the molecule.	C1	0.00763
		C1a	0.00763
		C2	0.05551
		C2a	0.00753
		C2b	0.05551
		C2c	0.00753
		N1	−0.00957
		N1a	−0.00955
		N2	−0.00955
		N2a	−0.00957
		N2b	−0.00895
		N2c	−0.00957
		O1	0.06550
		O1a	0.06399
		O1b	0.06417
		O1c	0.09901
		O2	0.0657
		O2a	0.0655
		O2b	0.06571
		O2c	0.0655
		O3	0.06417
		O3a	0.06399
		O3b	0.09903
		O3c	0.06399

Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

© 2025 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

Systematic Approach to Negative Fukui Functions: Its Association with Nitro Groups in Aromatic Systems

Abstract

1. Introduction

Theoretical Background

2. Results and Discussion

3. Computational Methods

4. Conclusions

Supplementary Materials

Author Contributions

Funding

Institutional Review Board Statement

Informed Consent Statement

Data Availability Statement

Conflicts of Interest

References

Article Metrics

Citations

Article Access Statistics
