Encapsulation of Nanoparticles with Statistical Copolymers with Different Surface Charges and Analysis of Their Interactions with Proteins and Cells

Fachbereich Physik, Universität Hamburg, Luruper Chaussee 149, 22761 Hamburg, Germany
Physics Department, Faculty of Science, Al-Azhar University, Cairo 11884, Egypt
Max Planck Institute für Polymerforschung, 55128 Mainz, Germany
Zentrum für Angewandte Nanotechnologie CAN, Fraunhofer-Institut für Angewandte Polymerforschung IAP, 20146 Hamburg, Germany
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2024, 25(10), 5539;
Submission received: 10 April 2024 / Revised: 3 May 2024 / Accepted: 16 May 2024 / Published: 19 May 2024
(This article belongs to the Special Issue Molecular Research on Nanotoxicology)


Encapsulation with polymers is a well-known strategy to stabilize and functionalize nanomaterials and tune their physicochemical properties. Amphiphilic copolymers are promising in this context, but their structural diversity and complexity also make understanding and predicting their behavior challenging. This is particularly the case in complex media which are relevant for intended applications in medicine and nanobiotechnology. Here, we studied the encapsulation of gold nanoparticles and quantum dots with amphiphilic copolymers differing in their charge and molecular structure. Protein adsorption to the nanoconjugates was studied with fluorescence correlation spectroscopy, and their surface activity was studied with dynamic interfacial tensiometry. Encapsulation of the nanoparticles without affecting their characteristic properties was possible with all tested polymers and provided good stabilization. However, the interaction with proteins and cells significantly depended on structural details. We identified statistical copolymers providing strongly reduced protein adsorption and low unspecific cellular uptake. Interestingly, different zwitterionic amphiphilic copolymers showed substantial differences in their resulting bio-repulsive properties. Among the polymers tested herein, statistical copolymers with sulfobetaine and phosphatidylcholine sidechains performed better than copolymers with carboxylic acid- and dimethylamino-terminated sidechains.

1. Introduction

In nanomedicine and nanobiotechnology, polymers are commonly employed to stabilize and functionalize nanomaterials [1,2,3,4,5,6,7]. Their structure can be tuned to tailor their physicochemical properties, such as polarity and charge density. In contrast to small stabilizing ligands, they usually provide better steric stabilization, resulting in improved colloidal stability, in particular in aqueous solutions at high ionic strengths, over a wide pH range, and in complex environments [8,9,10,11,12,13]. The structural variety of polymers leads to various coating strategies for nanoparticles (NPs), including direct binding to the nanomaterials’ surfaces via suitable functional groups or encapsulation in layer-by-layer or micellar structures [2,14,15,16,17,18,19,20]. Here, many encapsulation strategies have the advantage that they do not depend on a suitable binding chemistry of the polymer ligand. Thus, a variety of loadings can be encapsulated, including different materials, sizes, and mixtures of nanomaterials.
Amphiphilic copolymers have been demonstrated as effective agents for the encapsulation of nanomaterials [16,21,22,23]. For instance, poly(isobutylene-alt-maleic anhydride) (PMA)-based polymers can encapsulate various nanomaterials, and the anhydride chemistry of the backbone allows for further functionalization or tuning of their properties. In nanobiotechnology, it is well established that protein adsorption, often referred to as protein corona formation, must be managed [24,25,26,27,28,29,30,31,32]. This is a complex process that delicately depends on the physicochemical properties of both the material and the binding properties, as well as the composition of the medium/matrix. Two prominent strategies to reduce unwanted protein adsorption are PEGylation (the binding of poly(ethylene glycol) (PEG)-based ligands to nanomaterials) [3,33,34,35,36,37] on the one hand and the use of small zwitterionic ligands on the other [38,39,40,41,42]. Even though these strategies seem to be very different, relying on uncharged polymers on the one hand or on small mixed-charged molecules on the other, they are both based on a strong hydration of the ligand shell for minimized protein binding [43,44]. There is an additional entropy-based reason for the protein-repelling nature of zwitterionic surfaces [39]. Zwitterionic surfaces are neutral and thus there is no layer of adsorbed counter ions. In this way, in contrast to electrostatically mediated protein adsorption, where binding is driven by the pairing of charges of opposite polarity and causes counter ions to be released from both binding partners (the surface and the proteins), this effect does not take place in the case of zwitterionic surfaces, i.e., adsorption of proteins does not lead to an increase in entropy based on the release of counter ions [39,45,46]. Recently, zwitterionic amphiphilic copolymers have been presented; these combine the advantages of versatile polymer encapsulation chemistry and minimized protein adsorption [47,48]. Very recently, it has also been shown that the detailed surface charge distributions of PEGylated nanoparticles (with mixed PEGs with terminal residues of different polarity) strongly affect their affinity to different proteins [49]. We were therefore interested in the effects of different copolymer surface chemistries for the coating of NPs on the NPs’ colloidal stability, protein adsorption properties, and uptake by cells. We prepared a range of amphiphilic copolymers with different properties (negatively charged, positively charged, or zwitterionic) and encapsulated different nanoparticles with these polymers, namely gold nanoparticles (Au NPs) and quantum dots (QDs). The properties of the resulting NPs were studied with dynamic light scattering (DLS), zeta-potential measurements, and dynamic interfacial tensiometry (DIT). Adsorption of proteins to the NPs was quantified with fluorescence correlation spectroscopy (FCS), and their interaction with cells was determined using viability tests and uptake studies. While our previous studies were focused on colloidal stability, we herein explore the protein adsorption, the physicochemical parameters that are associated with it, and the consequences for cellular uptake. Despite the many involved parameters (which challenge a systematic approach), we were able to extract some clear tendencies. Most importantly, zwitterionic polymers have proven to be favorable for minimized protein adsorption and very low unspecific uptake, but the details of the polymer structure are important. Statistical copolymers with sulfobetaine and phosphatidylcholine sidechains yielded better results than copolymers with carboxylic acid- and dimethylamino-terminated sidechains.

2. Results and Discussion

2.1. Particle Synthesis and Encapsulation

Au NP with mean core diameters of dc~5 nm and dc~17 nm were synthesized using established protocols [18,50,51]. A detailed description of all procedures (including the basic characterization of all nanoparticles used in this study) is provided in the Supporting Information (Figures S1–S6). Quantum dots (QD; CdSe/CdS/ZnS core/shell/shell) with a mean diameter of dc~6 nm were provided by Fraunhofer IAP-CAN. Exemplary transmission electron microscopy (TEM) measurements of the inorganic nanoparticle cores are shown in Figure 1.
The encapsulation procedure was based on established protocols [18,23]. All polymers discussed herein feature hydrophobic lauryl side chains facilitating the strong physisorption of the copolymers to the nanoparticles with hydrophobic coatings in chloroform. The structure of all copolymers is shown in Figure 2 and the general surface structure is sketched in Figure 3. Additional information is summarized in Table 1.
We compared statistical copolymers with a negative (PH(−)) or positive (PT(+)) charge (via phosphate or ammonium residues) or zwitterionic side chains. Among the latter, we compared sulfobetaine (SB(+/−)) and phosphatidylcholine (PC(+/−))-based side chains. Additionally, we tested PMA(−), which is a standard amphiphilic copolymer coating (as mentioned above) and PMAL(+/−), which is an amphiphilic zwitterionic copolymer used for the solubilization of integral membrane proteins [52]. The different formal charges in PMAL(+/−) are on different side chains, whereas in SB(+/−) and PC(+/−) they are located in the same side chain. These structural features might play a role in the different behaviors of these polymers, which will be discussed throughout the manuscript.

2.2. Colloidal Stability

The stability of the nanoparticles with the different coatings was tested with UV/vis absorption spectroscopy and with dynamic light scattering (DLS) (Supporting Information Figures S7–S9). Additionally, ζ-potentials were also measured (Figure 4), which provide an idea of the effective charge of the NPs in solution. Notably, the ζ-potentials do not necessarily reflect the surface charge/potential of the conjugates but refer to the potential at the shearing plane when the particles are moved in an external electric field. In particular, for polymer coatings this means that measured ζ-potentials are not necessarily the ones we would expect based on the formal charge, as discussed recently [33].
In the case of plasmonic gold nanoparticles (Au NPs), aggregation leads to plasmonic coupling, which drastically changes the optical properties [53]. Likewise, dissolution of the particles or strong changes in their dielectric environment affect their optical properties and therefore can be monitored with UV/vis absorption spectroscopy. Aggregation also leads to increased hydrodynamic diameters, as measured using DLS.
For the Au NP samples studied herein, we found no indication of destabilization, neither with UV/vis absorption spectroscopy nor with DLS (Supporting Information, Figures S1–S4), confirming that the coating approach with amphiphilic polymers featuring grafted hydrophobic sidechains can be applied in general to a variety of different polymers. In the presence of high NaCl concentrations (>1 M), some samples showed slight indications of some aggregation (e.g., PT(+)-coated Au NPs with dc~17 nm diameter and PH(−)-coated Au NPs with dc~5 nm; see Supporting Information, Figures S7–S9), but the majority of samples were stable.
Because electrostatic interactions are screened at high ionic strengths, this observation indicates that the polymer coatings provide both steric and—in some cases—additional electrostatic colloidal stabilization. This is crucial for applications in nanobiotechnology, which commonly require media with high ionic strengths. Similar observations were made for the polymer-coated QDs. For those, absorption and emission spectra were recorded, and in addition to the DLS measurements, fluorescence correlation spectroscopy (FCS) was used to determine the hydrodynamic diameter dh. Again, the optical properties showed no indication of aggregation or destabilization (Supporting Information, Figure S5) and the FCS and DLS measurements were in good agreement with no indications of aggregation as well (Supporting Information, Figure S6 and Table S3).
The increase in size due to the polymer coatings (e.g., the difference between the hydrodynamic radius rh = dh/2 and the core radius rc = dc/2 was in the range 2–9 nm for all tested conjugates, a reasonable range for coatings with polymers in this range of molecular weights (4000–22,000 g/mol) [54]. However, there was no clear correlation between polymer molecular weight and resulting ligand shell thickness. This is to be expected, because with the coating strategy employed herein, the polymers are “wrapped” around the particles and not, e.g., in a brush conformation, as could be the case for polymers grafted to the NPs surface directly [7].
The ζ-potentials of the functionalized nanoparticles in water were measured. We note that no ζ-potentials of the plain polymers (i.e., with no wrapping around the NPs) were measured. We also note that the ζ-potentials in cell medium can differ from those in water due to the different buffer conditions (ionic strength, pH, and presence of various molecules).

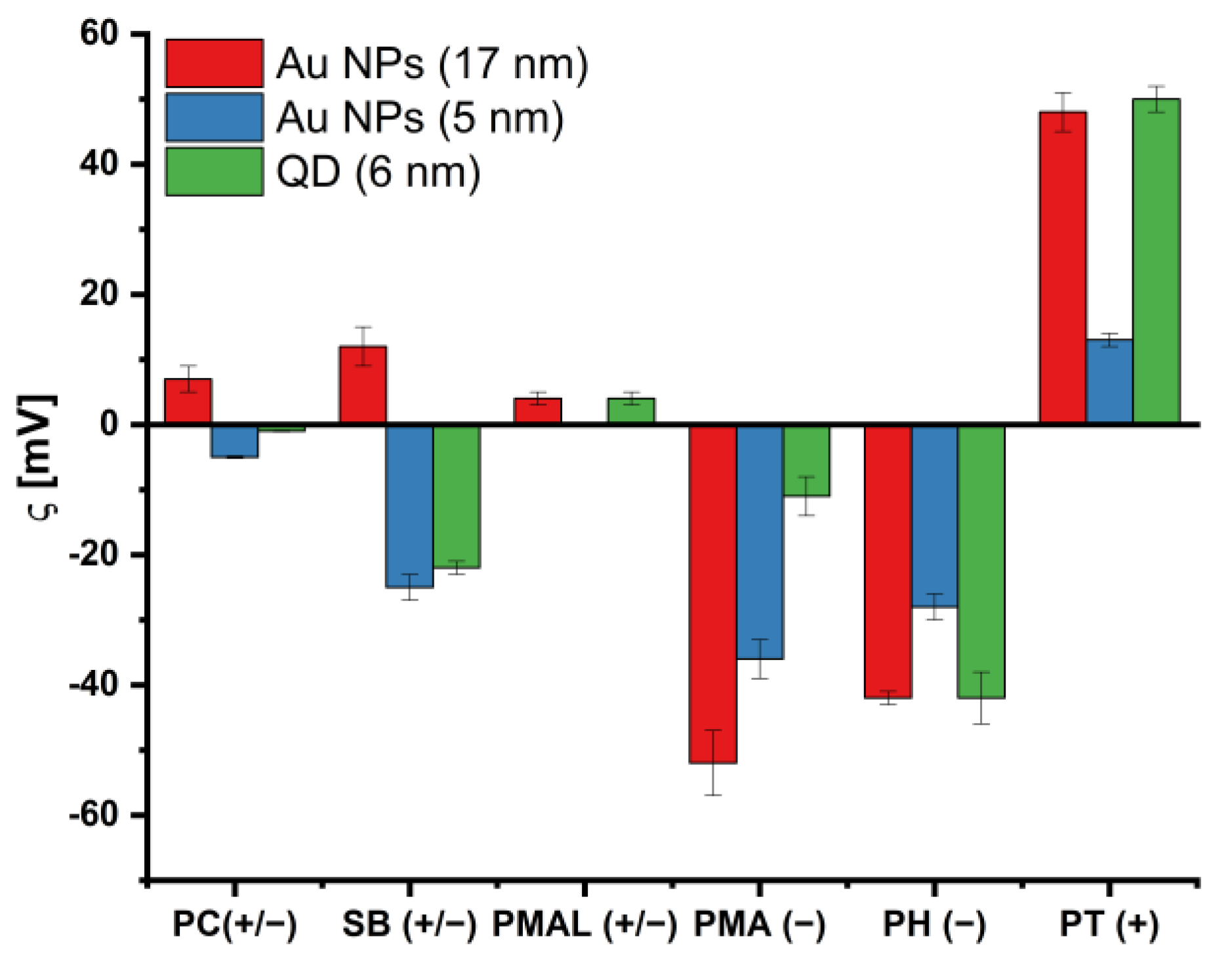

The ζ-potentials (as summarized in Figure 4) are in good agreement with the expected surface charge based on the character of the polymers (cationic, anionic, or zwitterionic), except for the sulfobetaine-derivatives (SB(+/−) and SBL(+/−) (the measured values are also provided as tables in the Supporting Information, Tables S1–S3). An anionic character (despite being formally uncharged) has been shown for zwitterionic micelles; it was shown to be more pronounced for sulfobetaines than for phosphatidylcholines [55]. This has also been found for zwitterionic block–copolymer coatings, where a negative zeta potential was observed over the pH range 1–10 for sulfobetaine derivatives [56]. This observation was explained by the strongly acidic character of sulfonic acids, which have reported pKa values well below <1, often even in the negative range [57]. For zwitterionic amphiphilic polymers with phosphatidylcholine sidechains, the ζ-potentials were around 0 mV, in accordance with the formal net charge. We also note that the values as reported here are not fully quantitative. In the coatings presented herein, there are several possibilities for batch-to-batch variations. First, there may be batch-to-batch diameter and uniformity variations in the synthesis of the core NPs, then there may be batch-to-batch variations in the polymer synthesis, in the polymer coating procedure, and in the purification steps. The obtained data thus allow for qualitative conclusions, but they do not allow for conclusions based on, for example, differences due to the core size of the Au NPs (e.g., Au NPs (17 nm) versus Au NPs (5 nm)). To relate physicochemical characterization data to parameters such as the core size, a much larger set of NPs with different core sizes and core materials would have been required.

2.3. Interfacial Tension

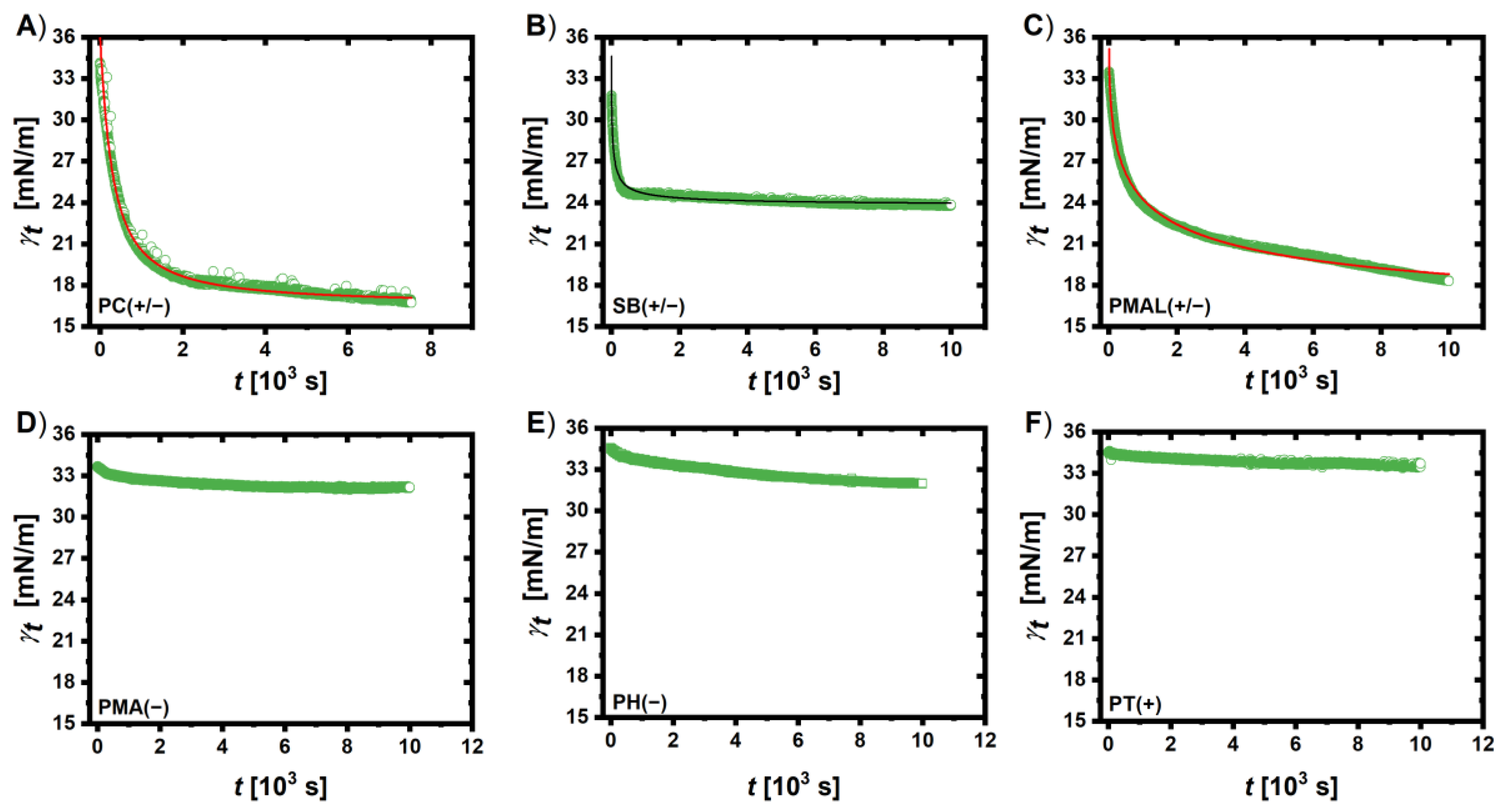

Dynamic interfacial tension (DIT) measurements using the pendant drop method (water in toluene) were conducted to determine the surface activity of the nanoconjugates (details of the measurement and fitting procedure are provided in the Supporting Information, Supporting Note S8) following the strategy of a previous publication [58]. The adsorption of the conjugates at the liquid–liquid interface decreases the interfacial tension, and the time taken to reach an equilibrium value depends on the diffusion and adsorption rates. Rana et al. found a linear correlation of hydrophobicity and surface tension at meso-equilibrium for small gold NPs [59]. With increasing hydrophobicity of the coating ligands, the interfacial tension at meso-equilibrium decreased and this equilibrium was reached faster, as expressed by the maximum surface tension decay rate νmax. Likewise, the hydrophobicity of the NPs affected the binding stoichiometry with proteins and thus is relevant for the interactions with proteins in general. Generally, an increased adsorption of proteins is observed with increasing hydrophobicity of the surface [60,61]. The results of the DIT measurements are presented in Figure 5 for the polymer-coated QDs and in the Supporting Information, Figure S10 for Au NPs (17 nm). A summary of the fitting results for all measurements is also provided as Supporting Information (Tables S4 and S5).
In the case of QDs, all tested polymer coatings with a formal charge (PMA(−), PH(−), and PT(+)) failed to change the interfacial tension γ substantially. Starting from a value of 34–35 mNm−1, the final values at the end of the measurements γeq were >32 mNm−1. In contrast, the zwitterionic polymers decreased the interfacial tension substantially, down to 16 mNm−1. Interestingly, the zwitterionic polymer coatings with a ζ-potential close to zero, PMAL(+/−) and PC(+/−), decreased the interfacial tension to this value, whereas the sulfobetaine-based coating (SB(+/−)), with an anionic character in the ζ-potential measurements, decreased the interfacial tension significantly less (γ eq = 24.3 mNm−1) but much faster: νmax = 85 × 10−3 mN(ms)−1 for SB(+/−), 18 × 10−3 mN(ms)−1 for PC(+/−), and 5 × 10−3 mN(ms)−1 for PMAL(+/−). This indicates a fast diffusion and adsorption of the SB(+/−) conjugates at the interfacial layer, but a less stable structure of the interfacial film, possibly due to electrostatic repulsion. The (formal) charge neutrality of the zwitterionic coatings allows for their assembly at the toluene–water interface, thus modulating the interfacial tension similar to surfactants. However, zwitterionic moieties are not hydrophobic but highly hydrophilic, so it would be misleading to conclude here that the zwitterionic coatings provide the core particles with a hydrophobic character as in the study of Rana et al. In addition, the qualitative nature of the results due to batch-to-batch variations needs to be stressed again. As will be discussed in the following for the Au NPs, some of the coatings lead to different behaviors, and our data thus do not allow for quantitative conclusions.
For the larger Au NPs (d = 17 nm), the results partly differed (cf., Supporting Information, Figure S10 and Table S5). Here, it was not only the tested zwitterionic coatings (PC(+/−) and SBL(+/−) that decreased the interfacial tension: the anionic coatings PMA(−) and PH(−) did as well. This might be due to curvature effects resulting from a different coating structure, which in turn may not have depended on the different nature of the 6 different types of used polymer but may also be influenced by batch-to-batch variations. The cationic coating did not decrease the interfacial tension, similar to the behavior of the respective QDs. Comparing the PC(+/−) coating for QDs and Au NPs (d = 17 nm), the time to reach meso-equilibrium was longer for the Au NPs (d = 17 nm), which might be explained with the larger hydrodynamic diameter and therefore slower diffusion.
Taken together, the DIT results confirm the higher surface activity of the zwitterionic coatings. This can reasonably be expected to affect protein adsorption on the NPs. To confirm this, we used fluorescence correlation spectroscopy (FCS) to measure the protein adsorption to the QD samples directly via the increase in their hydrodynamic radii over time.

2.4. Fluorescence Correlation Spectroscopy

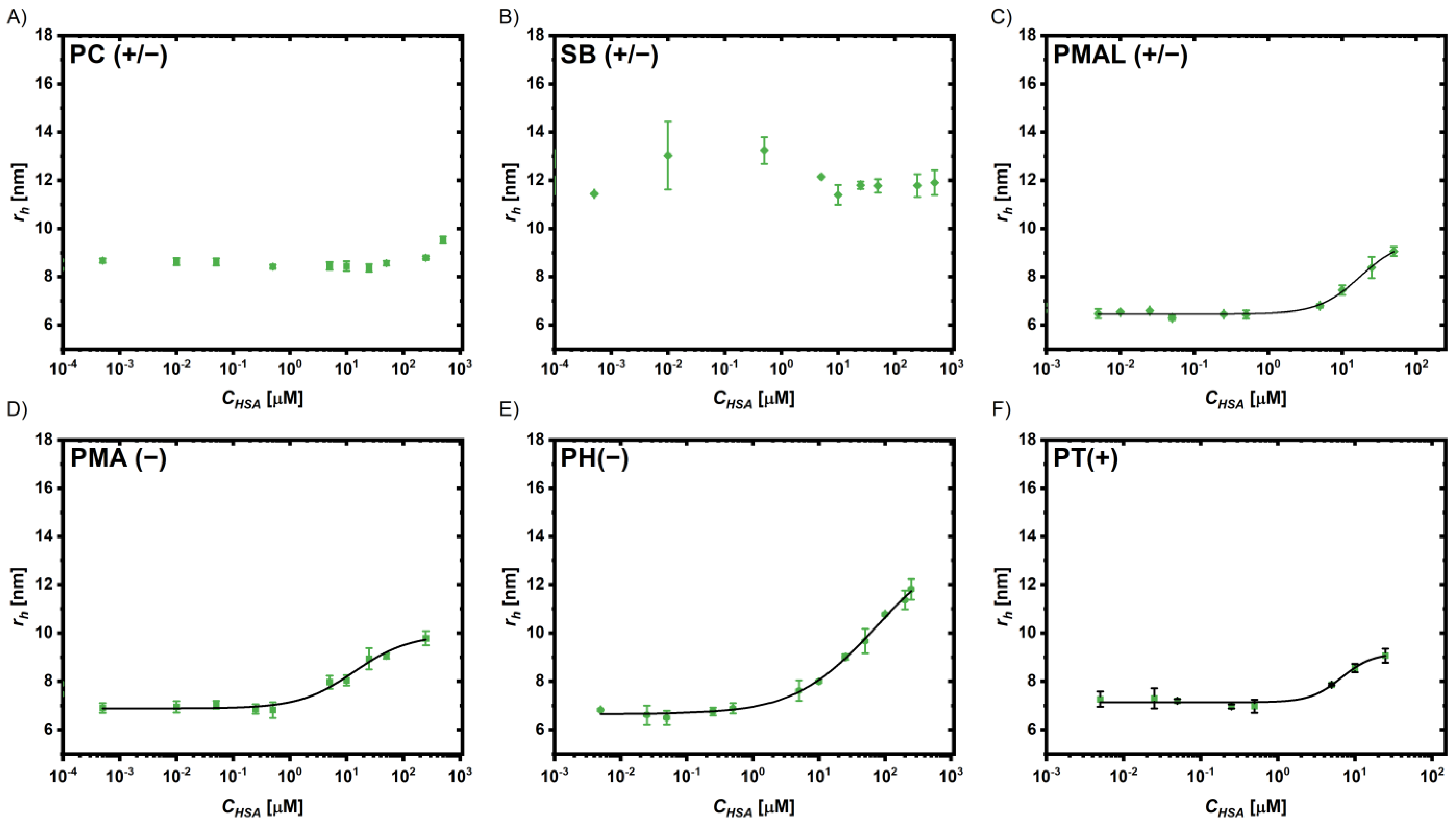

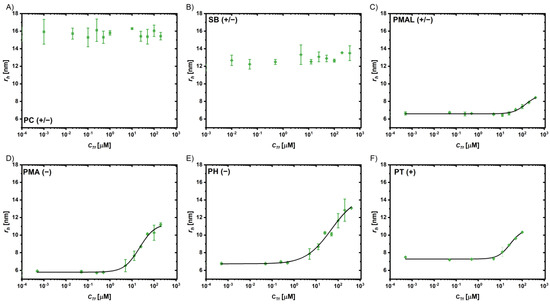

FCS has been demonstrated as an excellent tool to study protein adsorption to fluorescent NPs like QDs [63,64]. It allows us to measure the characteristic diffusion time τD, which can be used to calculate the diffusion constant D and, via the Stokes–Einstein relation, the hydrodynamic radii rh = dh/2. Considering the volume of the proteins, the number of bound proteins can be estimated based on geometry considerations, as described previously [28,63]. By measuring the dependence of the protein concentration cP on the hydrodynamic radius rh of the NPs (which upon adsorption of proteins increases), the Hill equation can be used to fit the data and obtain the apparent dissociation constant KD and the maximum number of adsorbed proteins Nmax as fit parameters [28,65]. A detailed description of the experiments and analysis is provided in the Supporting Information (Supporting Note S9). The adsorption of the abundant serum proteins, human serum albumin (HSA) and transferrin (Tf), were tested. The data and fits are shown in Figure 6 for HSA and in Figure 7 for Tf absorption; the fitting parameters are provided in the Supporting Information, Tables S6 and S7. Note that the Au NPs could not be assessed via FCS due to lack of fluorescence.
For the coatings PMA(−) and PT(+), a comparably strong binding in a similar range was observed for both, with the KD values in the lower micromolar range (KD(PMA(−)-HSA) = 21 µM, KD(PT(+)-HSA) = 7.5 µM, and KD(PMA(−)-Tf) and KD(PT(+)-Tf) both = 35 µM). For the PH(−) coatings, the binding was weaker (KD > 100 µM) and the error for the fit parameters was very high. At the same time, the number of adsorbed proteins Nmax was highest for these coatings (106 for HSA and 38 for Tf); again, these values have to be interpreted with care due to significant uncertainty in the fit, as the KD value is close to the highest experimentally accessed protein concentration cp. Considering the geometry of the proteins and the coated QDs, a monolayer could not contain much more than ~20 HSA molecules and no more than ~10 of the larger Tf molecules (see the Supporting Information, Supporting Note S9 and Figure S11). The other tested anionic coating PMA(−) also adsorbed a higher number of proteins than expected for a monolayer, but the numbers were much closer (Nmax(HSA) = 40, Nmax(Tf) = 17). The cationic coating (PT)+) adsorbed the proteins with high affinity (in particular HSA) but in low numbers in the range of monolayer coverage (Nmax(HSA) = 17, Nmax(Tf) = 11). The isoelectric point of HSA is lower (4.7–5.4) than that of transferrin (5.4–6.2), i.e., at a given pH, HSA is more negatively charged, which can also be observed from the corresponding surface charge distributions (Supporting Information, Figure S11). The strong binding of HSA to the cationic coating might thus be explained by attractive electrostatic interactions. It has to be stressed, however, that even though electrostatic interactions are known to affect protein adsorption, additional effects like hydrophobicity and non-covalent chemical interactions have to be taken into account when interpreting protein–nanoparticle interactions [28,31,66,67]. The results are in line with previous data showing high levels of protein adsorption to negatively and positively charged NPs [68].
In contrast, for the zwitterionic coatings based on the statistic amphiphilic copolymers SB(+/−) and PC(+/−), no significant protein adsorption was observed in the FCS experiments. This confirms that these zwitterionic coatings indeed strongly reduce protein adsorption. The effective suppression of protein adsorption by the zwitterionic polymer coatings PC(+/−) and SB(+/−) is in agreement with previous reports [69]. On the other hand, the coating based on the zwitterionic polymer PMAL(+/−) was less effective in reducing the adsorption of HSA and Tf. In SB(+/−) and PC(+/−), the ionic moieties are close together, separated by only two methylene units; however, in PMAL(+/−), they are in different sidechains of the polymer backbone. In addition, the ionic species contributing the negative charge are different, phosphate and sulfonate in PC(+/−) and SB(+/−) vs. carboxylic acids in PMAL(+/−).
Since protein adsorption strongly affects the interactions of NPs with cells, as a next step we tested for these interactions in a set of experiments.

2.5. Cell Viability and Uptake

First, cell viability in the presence of the different NPs and coatings was evaluated with the resazurin assay (Supporting Information, Figure S12), similar to previous reports [40,70,71]. Cytotoxicity can be due to the release of cytotoxic components of the core (e.g., Cd2+ in the case of QDs, including core-shell QDs [72,73]) that can be reduced by a suitable coating [74]. On the other hand, coating ligands can also contribute to the cytotoxicity of NPs, a prominent example being the cetyltrimethylammonium bromide or chloride ligands on some gold nanomaterials [75,76]. Cell viability assays are an essential complement to NP uptake studies by cells, as there is a mutual influence. In case of high cellular uptake of NPs, cytotoxic effects may be higher. In turn, in case of high toxicity, cells are severely impaired up to cellular death, which in turn would reduce further uptake of NPs.
In the case of the Au NPs within the investigated range of NP concentrations cNP, no reduction in the viability of HeLa cells was found except for the case of Au NPs (5 nm) coated with PT(+) at the highest used concentration. In the case of QDs, the highest used NP concentrations reached a level where viability was reduced. This was again the case for the PT(+) coating and also for PMAL(+/−). This is in line with suggestions that positively charged NPs can have a stronger effect on cellular viability than other NPs with different coatings [77,78], although there are also contradictory reports in the literature [79].

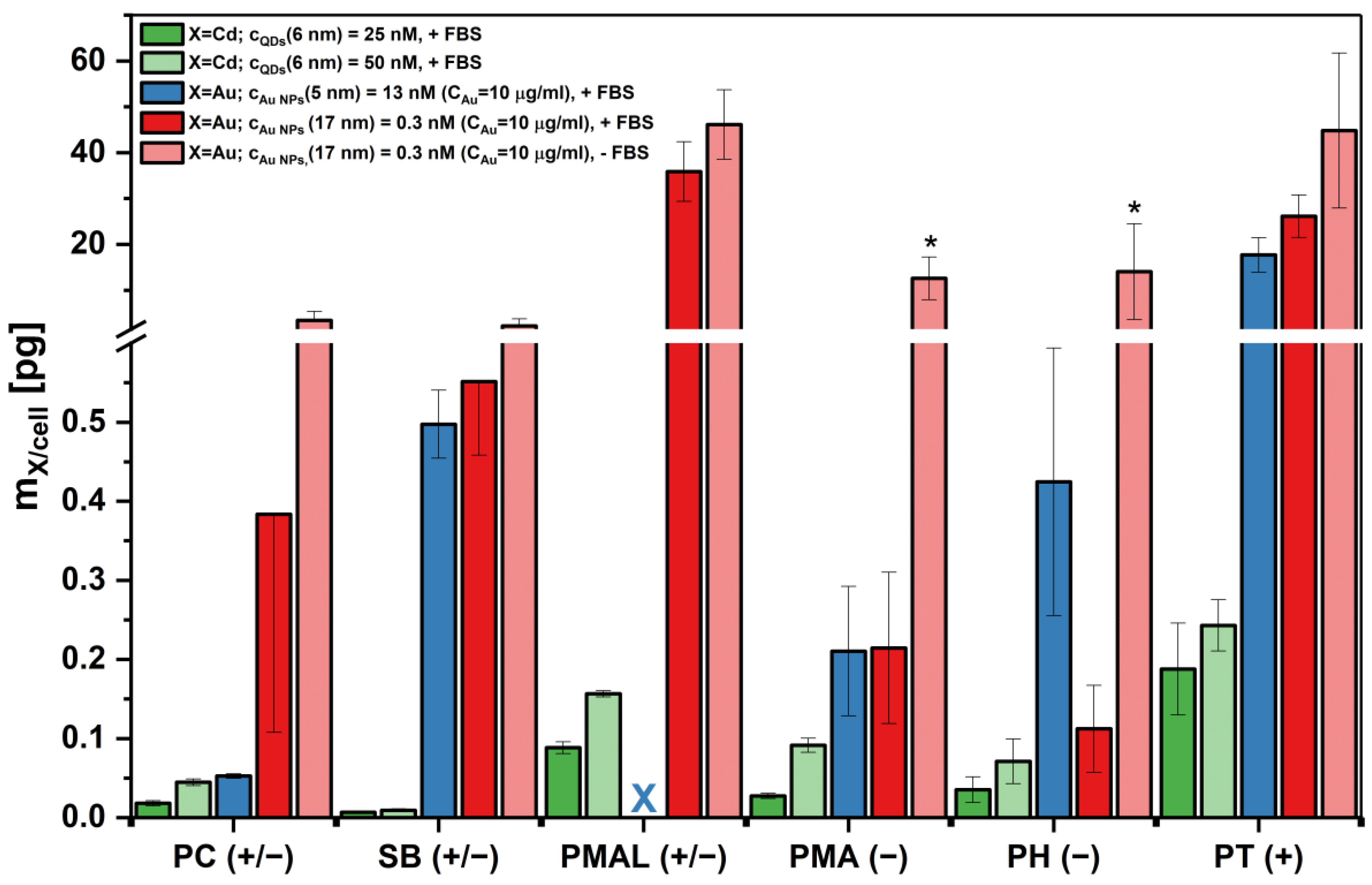

The cellular uptake of the different NPs and coatings was determined with inductively coupled plasma mass spectrometry (ICP-MS)-based elemental analysis. Note that we assumed that NPs found in cells were endocytosed NPs, and that the amount of NPs adherent only to the outer cell membrane plays no significant role after washing of the cells before ICP-MS analysis.
For the QDs, a number of control experiments was performed with flow cytometry utilizing their fluorescence emissions. All procedures are described in detail in the Supporting Information (Supporting Note S10). Figure 8 summarizes the uptake after 24 h for different conjugates (core and coating) and varying conditions such as concentration and the presence or absence of fetal bovine serum (FBS) supplement (i.e., serum proteins). In line with previous findings, NP uptake without the presence of FBS was found to be higher than in FBS-supplemented conditions (see also the Supporting Information, Figures S13 and S14 for the complementary experiments) [80,81].
In the case of QDs, the lowest uptake was observed for the zwitterionic coatings SB(+/−) and PC(+/−), followed by a significantly higher uptake of the anionic coatings PMA(−) and PH(−). The highest uptake was observed for PT(+). Despite the zwitterionic coating, there was also significant uptake of PMAL(+/−)-coated QDs. For the Au NPs, a similar trend was observed.
This shows clearly that the effect of zwitterionic coating cannot be generalized and depends on the chemical structure of the coating. In both the protein adsorption and the cellular uptake experiments, PMAL(+/−)-coated NPs showed behavior more similar to the charged NPs than to the other zwitterionic NPs coated with SB(+/−) and PC(+/−).
One hypothesis can be based on the ruling out of counter ion displacement upon protein adsorption, as mentioned above [39]. If positive and negative charges sit on the same ligand at close distance (i.e., PC(+/−) and SB(+/−)), there will be no adsorbed counter ions, as both charges in close proximity would share the same counter ions. This results in no counter ions due to the cancelling of the net charge that occurs when the negative and the positive charge are close to each other at the same ligand. In contrast, for mixed charged ligands, the distance between negative and positive charges may be bigger, thus there would be local counter ion clouds around these charges, which upon protein binding would be displaced, increasing entropy [39]. We thus speculate that protein repulsion works better for zwitterionic polymers where positive and negative charge pairs share the same ligand chain (e.g., PC(+/−) and SB(+/−)), in contrast to zwitterionic polymers where the positive and negative charge pairs sit on separate ligand chains (e.g., PMAL(+/−)). In order to test this hypothesis, an additional surface coating based on edelfosine (EDLF (+/−), 2-methoxy-3-(octadecyloxy)propyl-2-(trimethylazaniumyl)ethyl phosphate) (cf. Figure S15A) was used. In contrast to the other amphiphilic polymers used in this study, EDLF (+/−) is a single amphiphilic ligand. Similar to the amphiphilic polymers shown in Figure 2, the hydrophobic tail may intercalate the hydrophobic ligand layer around NPs, causing the hydrophilic head group to point towards the solution and rendering the hydrophobically capped NPs hydrophilic and thus water-soluble. The hydrodynamic diameters shown in Table S8 show that the coating yielded NPs well dispersed in the aqueous phase. The protein adsorption data shown in Figure S15B demonstrate low protein adsorption of HSA and Tf, more similar to the case of PC(+/−) and SB(+/−) coatings than to PMAL(+/−) coating (cf. Figure S15B, Figure 6 and Figure 7). Meanwhile, the EDLF (+/−)-coated NPs show some toxicity (cf. Figure S15C), and their uptake by cells is reduced (cf. Figure S15D vs. Figure 8). Again, the behavior of the EDLF (+/−) coating on the cellular uptake of NPs is more similar to PC(+/−) and SB(+/−) than to the PMAL(+/−) coating. While the hypothesis of the influence of the difference in positive and negative charges on the same versus on different ligand chains is not fully proven with these data, results are supportive of this hypothesis.
Taken together, all coatings tested herein provide a good stabilization for different nanoparticles: small QDs and Au NPs (5 nm and 17 nm). DIT measurements revealed that the surface activity of the zwitterionic coatings is higher in general. Even though they are very hydrophilic, their net formal charge is zero (which does not imply that their zeta potential would be zero in general), allowing for their assembly at the water–toluene interface, thereby modulating the interfacial tension. One might speculate that some of the hydrophobic lauryl sidechains in the copolymers orient towards the toluene phase, thereby stabilizing the interfacial assembly similar to zwitterionic tensides. Via FCS experiments we found that the protein adsorption differs for the different charged coatings, even for those with the same formal charge, underlining that protein adsorption cannot be understood based on electrostatic interactions alone.
Remarkably, the zwitterionic coating PMAL(+/−) did not prevent protein adsorption to the same extent as was found for the statistical copolymers SB(+/−) and PC(+/−), where no significant adsorption was observed. A similar observation was made in the NP uptake by cells experiments, where reduced uptake was observed only for the PC(+/−) and SB(+/−)-coated NPs.

3. Materials and Methods

The syntheses used in this study are based on previous work and therefore only briefly summarized here. For a detailed description of all syntheses and procedures we refer to the Supporting Information.
Nanoparticle syntheses. Au NPs with a mean core diameter of dc~17 nm were synthesized based on the protocol described by Bastús et al. [51]. Au NPs with a mean core diameter of dc~5 nm were synthesized with the Brust-synthesis [50]. The QDs (core/shell/shell) CdSe/CdS/ZnS QD Lot No. SAB-0-365-6 were provided by the Fraunhofer Center for Applied Nanotechnology CAN (Hamburg, Germany).
Polymer syntheses. All polymer syntheses and modifications were performed according to previously published protocols. The PMA derivatives were synthesized based on the concept by Pellegrino et al. [23] and as described in Lin et al. [21] and Hühn et al. [18]. The statistical copolymers were synthesized as described in Geidel et al. [82], Hühn et al. [68], and Valdeperez et al. [47].
Encapsulation of nanoparticles. The encapsulation of the different NPs was performed using the general protocol described in Hühn et al. [18].
Instrumentation. DLS and ζ-potential measurements were performed with a Zetasizer Nano ZS system (Malvern Panalytical, Worcestershire, UK), which employs a He–Ne laser (4.0 mW, 633 nm). TEM measurements were performed with a JEOL JEM-1011 at 100 keV (JEOL, Tokyo, Japan); UV/Vis absorption spectroscopy was performed using a Cary 60 spectrophotometer (Agilent Technologies, Santa Clara, CA, USA). Dynamic interfacial tension measurements were recorded with a Drop Shape Analysis system (DSA30S, Krüss, Hamburg, Germany). Protein adsorption to the encapsulated QDs was measured with FCS using confocal light scanning microscopy (CLSM) (LSM 880, Zeiss, Oberkochen, Germany) with a Zeiss Plan-Apochromat 40×/1.0 water (WD 2.5 mm) objective via the approach described by Liedl et al. [64] and Röcker et al. [63]. Elemental mass concentrations from cell uptake experiments were measured with an Agilent 7700 ICP-MS setup (Agilent Technologies, Santa Clara, CA, USA). The calibration curves were prepared with corresponding elemental standards (Carl Roth, Karlsruhe, Germany). Complementary flow cytometry was performed using a BD LSRFortessaTM (BD Bioscience, Franklin Lakes, NJ, USA).

4. Conclusions

We compared amphiphilic copolymers with different formal net charges for the coating of nanoparticles. Based on DIT, FCS, and cellular uptake experiments, we identified zwitterionic coatings as candidates to achieve minimum protein adsorption and minimum nonspecific cellular uptake. Zwitterionic coatings with sulfobetaine- (SB(+/−) and phosphatidylcholine- (PC(+/−) sidechains provided the best results in this respect. Coating with another zwitterionic polymer, i.e., PMAL(+/−), did not show the same effect. This finding also points at a possible difference between statistical and alternating copolymers that could be studied in more detail in future studies. Amphiphilic copolymers of different classes (statistical vs. block copolymers) have previously been observed to perform differently in nanoparticles synthesis and encapsulation [83]. The detailed structure of copolymers can affect the dynamics of micelle formation and consequently the resulting structures, for instance the yield of well-defined micelles. Similarly, the encapsulation of nanoparticles might be affected by copolymer structure. Thus, the conformations of the adsorbed polymers can be affected. However, in the present study the different copolymer types also differed in the presentation and type of functional groups that establish the zwitterionic character; therefore, we cannot draw any conclusions regarding these effects.
The coating strategy utilizing amphiphilic copolymers is general in that different NPs can be encapsulated and versatile because via polymer synthesis, properties like the ratio of the sidechains and the molecular weights of the coating ligands can be varied and optimized for the desired material. It is important to consider the results of this study as qualitative, as for improved quantitative analysis, a larger library of NPs and a more detailed analysis of batch-to-batch variations would be required.

Supplementary Materials

The following supporting information can be downloaded at: References [84,85,86,87,88,89,90,91,92,93,94,95,96] are cited in the supplementary materials.

Author Contributions

S.M.: conceptualization, experimental/investigation, data curation, writing—review & editing; N.W.: conceptualization, experimental/investigation, data curation, writing—review & editing; Y.L.: experimental/investigation, data curation, writing—review & editing; M.K.: project administration, funding acquisition, conceptualization, data curation, writing—review & editing; F.S.: project administration, funding acquisition, conceptualization, data curation, writing—review & editing; N.F.: project administration, funding acquisition, conceptualization, data curation, writing—review & editing; W.J.P.: project administration, funding acquisition, conceptualization, data curation, writing—review & editing. All authors have read and agreed to the published version of the manuscript.


This research was funded by the Fraunhofer Internal Programs under Grant No. Attract 178-600040 and by the Cluster of Excellence “Advanced Imaging of Matter” of the Deutsche Forschungsgemeinschaft, grant number (DFG)—EXC 2056—project ID 390715994. SM and YL had a PhD fellowship from the Deutscher Akademischer Austauschdienst (DAAD) and China Scholarship Council (CSC), respectively.

Data Availability Statement

Data are contained within the article and Supplementary Materials.


The QDs (core/shell/shell) CdSe/CdS/ZnS QD Lot No. SAB-0-365-6 were provided by the Fraunhofer Center for Applied Nanotechnology CAN (Hamburg, Germany) by the group of Jan Niehaus. The authors thank Faustino Mollinedo for suggesting edelfosine as a possible coating.

Conflicts of Interest

The authors declare no conflicts of interest.


  1. Heuer-Jungemann, A.; Feliu, N.; Bakaimi, I.; Hamaly, M.; Alkilany, A.; Chakraborty, I.; Masood, A.; Casula, M.F.; Kostopoulou, A.; Oh, E.; et al. The Role of Ligands in the Chemical Synthesis and Applications of Inorganic Nanoparticles. Chem. Rev. 2019, 119, 4819–4880. [Google Scholar] [CrossRef] [PubMed]
  2. Sapsford, K.E.; Algar, W.R.; Berti, L.; Gemmill, K.B.; Casey, B.J.; Oh, E.; Stewart, M.H.; Medintz, I.L. Functionalizing nanoparticles with biological molecules: Developing chemistries that facilitate nanotechnology. Chem. Rev. 2013, 113, 1904–2074. [Google Scholar] [CrossRef] [PubMed]
  3. Jokerst, J.; Lobovkina, T.; Zare, R.; Gambhir, S. Nanoparticle PEGylation for imaging and therapy. Nanomedicine 2011, 6, 715–728. [Google Scholar] [CrossRef] [PubMed]
  4. Mout, R.; Moyano, D.F.; Rana, S.; Rotello, V.M. Surface functionalization of nanoparticles for nanomedicine. Chem. Soc. Rev. 2012, 41, 2539–2544. [Google Scholar] [CrossRef] [PubMed]
  5. Chen, G.; Roy, I.; Yang, C.; Prasad, P.N. Nanochemistry and Nanomedicine for Nanoparticle-based Diagnostics and Therapy. Chem. Rev. 2016, 116, 2826–2885. [Google Scholar] [CrossRef]
  6. Zhang, F.; Lees, E.; Amin, F.; Rivera_Gil, P.; Yang, F.; Mulvaney, P.; Parak, W.J. Polymer-Coated Nanoparticles: A Universal Tool for Biolabelling Experiments. Small 2011, 7, 3113–3127. [Google Scholar] [CrossRef] [PubMed]
  7. Sperling, R.A.; Parak, W.J. Surface modification, functionalization and bioconjugation of colloidal inorganic nanoparticles. Phil. Trans. R. Soc. A 2010, 368, 1333–1383. [Google Scholar] [CrossRef] [PubMed]
  8. Pöselt, E.; Schmidtke, C.; Fischer, S.; Peldschus, K.; Salamon, J.; Kloust, H.; Tran, H.; Pietsch, A.; Heine, M.; Adam, G.; et al. Tailor-Made Quantum Dot and Iron Oxide Based Contrast Agents for in Vitro and in Vivo Tumor Imaging. ACS Nano 2012, 6, 3346–3355. [Google Scholar] [CrossRef]
  9. Stewart, M.H.; Susumu, K.; Mei, B.C.; Medintz, I.L.; Delehanty, J.B.; Blanco-Canosa, J.B.; Dawson, P.E.; Mattoussi, H. Multidentate Poly(ethylene glycol) Ligands Provide Colloidal Stability to Semiconductor and Metallic Nanocrystals in Extreme Conditions. J. Am. Chem. Soc. 2010, 132, 9804–9813. [Google Scholar] [CrossRef]
  10. Soliman, M.G.; Pelaz, B.; Parak, W.J.; Del Pino, P. Phase transfer and polymer coating methods toward improving the stability of metallic nanoparticles for biological applications. Chem. Mater. 2015, 27, 990–997. [Google Scholar] [CrossRef]
  11. Na, H.B.; Palui, G.; Rosenberg, J.T.; Ji, X.; Grant, S.C.; Mattoussi, H. Multidentate Catechol-Based Polyethylene Glycol Oligomers Provide Enhanced Stability and Biocompatibility to Iron Oxide Nanoparticles. ACS Nano 2012, 6, 389–399. [Google Scholar] [CrossRef] [PubMed]
  12. Palui, G.; Na, H.B.; Mattoussi, H. Poly(ethylene glycol)-Based Multidentate Oligomers for Biocompatible Semiconductor and Gold Nanocrystals. Langmuir 2012, 28, 2761–2772. [Google Scholar] [CrossRef] [PubMed]
  13. Schulz, F.; Dahl, G.T.; Besztejan, S.; Schroer, M.A.; Lehmkühler, F.; Grübel, G.; Vossmeyer, T.; Lange, H. Ligand Layer Engineering To Control Stability and Interfacial Properties of Nanoparticles. Langmuir 2016, 32, 7897–7907. [Google Scholar] [CrossRef] [PubMed]
  14. Sukhorukov, G.B.; Donath, E.; Lichtenfeld, H.; Knippel, E.; Knippel, M.; Budde, A.; Mohwald, H. Layer-by-layer self assembly of polyelectrolytes on colloidal particles. Colloids Surf. A 1998, 137, 253–266. [Google Scholar] [CrossRef]
  15. Donath, E.; Sukhorukov, G.B.; Caruso, F.; Davis, S.A.; Möhwald, H. Novel Hollow Polymer Shells by Colloid-Templated Assembly of Polyelectrolytes. Angew. Chem. Int. Ed. 1998, 37, 2202–2205. [Google Scholar] [CrossRef]
  16. Schmidtke, C.; Poselt, E.; Ostermann, J.; Pietsch, A.; Kloust, H.; Tran, H.; Schotten, T.; Bastus, N.G.; Eggers, R.; Weller, H. Amphiphilic, cross-linkable diblock copolymers for multifunctionalized nanoparticles as biological probes. Nanoscale 2013, 5, 7433–7444. [Google Scholar] [CrossRef] [PubMed]
  17. Ostermann, J.; Merkl, J.P.; Flessau, S.; Wolter, C.; Kornowksi, A.; Schmidtke, C.; Pietsch, A.; Kloust, H.; Feld, A.; Weller, H. Controlling the Physical and Biological Properties of Highly Fluorescent Aqueous Quantum Dots Using Block Copolymers of Different Size and Shape. ACS Nano 2013, 7, 9156–9167. [Google Scholar] [CrossRef]
  18. Hühn, J.; Carrillo-Carrion, C.; Soliman, M.G.; Pfeiffer, C.; Valdeperez, D.; Masood, A.; Chakraborty, I.; Zhu, L.; Gallego, M.; Zhao, Y.; et al. Selected Standard Protocols for the Synthesis, Phase Transfer, and Characterization of Inorganic Colloidal Nanoparticles. Chem. Mater. 2017, 29, 399–461. [Google Scholar] [CrossRef]
  19. Schmidtke, C.; Eggers, R.; Zierold, R.; Feld, A.; Kloust, H.; Wolter, C.; Ostermann, J.; Merkl, J.-P.; Schotten, T.; Nielsch, K.; et al. Polymer-Assisted Self-Assembly of Superparamagnetic Iron Oxide Nanoparticles into Well-Defined Clusters: Controlling the Collective Magnetic Properties. Langmuir 2014, 30, 11190–11196. [Google Scholar] [CrossRef]
  20. Olenych, S.G.; Moussallem, M.D.; Salloum, D.S.; Schlenoff, J.B.; Keller, T.C. Fibronectin and cell attachment to cell and protein resistant polyelectrolyte surfaces. Biomacromolecules 2005, 6, 3252–3258. [Google Scholar] [CrossRef]
  21. Lin, C.-A.J.; Sperling, R.A.; Li, J.K.; Yang, T.-Y.; Li, P.-Y.; Zanella, M.; Chang, W.H.; Parak, W.J. Design of an Amphiphilic Polymer for Nanoparticle Coating and Functionalization. Small 2008, 4, 334–341. [Google Scholar] [CrossRef] [PubMed]
  22. Carrillo-Carrion, C.; Parak, W.J. Design of pyridyl-modified amphiphilic polymeric ligands: Towards better passivation of water-soluble colloidal quantum dots for improved optical performance. J. Colloid Interface Sci. 2016, 478, 88–96. [Google Scholar] [CrossRef] [PubMed]
  23. Pellegrino, T.; Manna, L.; Kudera, S.; Liedl, T.; Koktysh, D.; Rogach, A.L.; Keller, S.; Rädler, J.; Natile, G.; Parak, W.J. Hydrophobic Nanocrystals Coated with an Amphiphilic Polymer Shell: A General Route to Water Soluble Nanocrystals. Nano Lett. 2004, 4, 703–707. [Google Scholar] [CrossRef]
  24. Harder, P.; Grunze, M.; Dahint, R.; Whitesides, G.M.; Laibinis, P.E. Molecular Conformation in Oligo(ethylene glycol)-Terminated Self-Assembled Monolayers on Gold and Silver Surfaces Determines Their Ability To Resist Protein Adsorption. J. Phys. Chem. B. 1998, 102, 426–436. [Google Scholar] [CrossRef]
  25. Walkey, C.D.; Olsen, J.B.; Guo, H.; Emili, A.; Chan, W.C. Nanoparticle size and surface chemistry determine serum protein adsorption and macrophage uptake. J. Am. Chem. Soc. 2012, 134, 2139–2147. [Google Scholar] [CrossRef]
  26. Natte, K.; Friedrich, J.F.; Wohlrab, S.; Lutzki, J.; von Klitzing, R.; Osterle, W.; Orts-Gil, G. Impact of polymer shell on the formation and time evolution of nanoparticle-protein corona. Colloids Surf. B 2013, 104, 213–220. [Google Scholar] [CrossRef] [PubMed]
  27. Chun_Ke, P.; Lin, S.; Parak, W.J.; Davis, T.P.; Caruso, F. A decade of the protein corona. ACS Nano 2017, 11, 11773–11776. [Google Scholar]
  28. del_Pino, P.; Pelaz, B.; Zhang, Q.; Maffre, P.; Nienhaus, G.U.; Parak, W.J. Protein corona formation around nanoparticles-from the past to the future. Mater. Horiz. 2014, 1, 301–313. [Google Scholar]
  29. Cedervall, T.; Lynch, I.; Lindman, S.; Berggård, T.; Thulin, E.; Nilsson, H.; Dawson, K.A.; Linse, S. Understanding the Nanoparticle-Protein Corona Using Methods to Quantify Exchange Rates and Affinities of Proteins for Nanoparticles. Proc. Natl. Acad. Sci. USA 2007, 104, 2050–2055. [Google Scholar] [CrossRef] [PubMed]
  30. Casals, E.; Pfaller, T.; Duschl, A.; Oostingh, G.J.; Puntes, V.F. Time Evolution of the Nanoparticle Protein Corona. ACS Nano 2010, 4, 3623–3632. [Google Scholar] [CrossRef]
  31. Mahmoudi, M.; Lynch, I.; Ejtehadi, M.R.; Monopoli, M.P.; Bombelli, F.B.; Laurent, S. Protein-Nanoparticle Interactions: Opportunities and Challenges. Chem. Rev. 2011, 111, 5610–5637. [Google Scholar] [CrossRef] [PubMed]
  32. Dobrovolskaia, M.; Patri, A.; Zheng, J.; Clogston, J.; Ayub, N.; Aggarwal, P.; Neun, B.; Hall, J.; McNeil, S. Interaction of colloidal gold nanoparticles with human blood: Effects on particle size and analysis of plasma protein binding profiles. Nanomed. Nanotechnol. Biol. Med. 2009, 5, 106–117. [Google Scholar] [CrossRef] [PubMed]
  33. Höeg, F.; Schulz, J.; Graf, S.; Salah, D.; Chandralingam, S.; Maison, W.; Parak, W.J.; Schulz, F. Defined Coadsorption of Prostate Cancer Targeting Ligands and PEG on Gold Nanoparticles for Significantly Reduced Protein Adsorption in Cell Media. J. Phys. Chem. C 2022, 126, 20594–20604. [Google Scholar] [CrossRef]
  34. Karakoti, A.S.; Das, S.; Thevuthasan, S.; Seal, S. PEGylated inorganic nanoparticles. Angew. Chem. Int. Ed. Engl. 2011, 50, 1980–1994. [Google Scholar] [CrossRef] [PubMed]
  35. Otsuka, H.; Nagasaki, Y.; Kataoka, K. PEGylated nanoparticles for biological and pharmaceutical applications. Adv. Drug Deliv. Rev. 2003, 55, 403–419. [Google Scholar] [CrossRef]
  36. Lee, H.; Larson, R.G. Adsorption of Plasma Proteins onto PEGylated Lipid Bilayers: The Effect of PEG Size and Grafting Density. Biomacromolecules 2016, 17, 1757–1765. [Google Scholar] [CrossRef]
  37. Yang, Q.; Jones, S.W.; Parker, C.L.; Zamboni, W.C.; Bear, J.E.; Lai, S.K. Evading Immune Cell Uptake and Clearance Requires PEG Grafting at Densities Substantially Exceeding the Minimum for Brush Conformation. Mol. Pharm. 2014, 11, 1250–1258. [Google Scholar] [CrossRef] [PubMed]
  38. Susumu, K.; Oh, E.; Delehanty, J.B.; Blanco-Canosa, J.B.; Johnson, B.J.; Jain, V.; Hervey, W.J.; Algar, W.R.; Boeneman, K.; Dawson, P.E.; et al. Multifunctional Compact Zwitterionic Ligands for Preparing Robust Biocompatible Semiconductor Quantum Dots and Gold Nanoparticles. J. Am. Chem. Soc. 2011, 133, 9480–9496. [Google Scholar] [CrossRef]
  39. Schlenoff, J.B. Zwitteration: Coating Surfaces with Zwitterionic Functionality to Reduce Nonspecific Adsorption. Langmuir 2014, 30, 9625–9636. [Google Scholar] [CrossRef] [PubMed]
  40. Ashraf, S.; Park, J.; Bichelberger, M.; Kantner, K.; Hartmann, R.; Maffre, P.; Said, A.H.; Feliu, N.; Lee, J.; Lee, D.; et al. Zwitterionic surface coating of quantum dots reduces protein adsorption and cellular uptake. Nanoscale 2016, 10, 1318–1328. [Google Scholar] [CrossRef]
  41. Breus, V.V.; Heyes, C.D.; Tron, K.; Nienhaus, G.U. Zwitterionic Biocompatible Quantum Dots for Wide pH Stability and Weak Nonspecific Binding to Cells. Acs Nano 2009, 3, 2573–2580. [Google Scholar] [CrossRef]
  42. Dridi, N.; Jin, Z.; Perng, W.; Mattoussi, H. Probing Protein Corona Formation around Gold Nanoparticles: Effects of Surface Coating. ACS Nano 2024, 18, 8649–8662. [Google Scholar] [CrossRef]
  43. Ostuni, E.; Chapman, R.G.; Holmlin, R.E.; Takayama, S.; Whitesides, G.M. A Survey of Structure−Property Relationships of Surfaces that Resist the Adsorption of Protein. Langmuir 2001, 17, 5605–5620. [Google Scholar] [CrossRef]
  44. Sin, M.-C.; Chen, S.-H.; Chang, Y. Hemocompatibility of zwitterionic interfaces and membranes. Polym. J. 2014, 46, 436–443. [Google Scholar] [CrossRef]
  45. Estephan, Z.; Schlenoff, P.; Schlenoff, J. Zwitteration As an Alternative to PEGylation. Langmuir 2011, 27, 6794–6800. [Google Scholar] [CrossRef]
  46. Estephan, Z.G.; Jaber, J.A.; Schlenoff, J.B. Zwitterion-Stabilized Silica Nanoparticles: Toward Nonstick Nano. Langmuir 2010, 26, 16884–16889. [Google Scholar] [CrossRef]
  47. Valdeperez, D.; Wutke, N.; Ackermann, L.-M.; Parak, W.J.; Klapper, M.; Pelaz, B. Colloidal stability of polymer coated zwitterionic Au nanoparticles in biological media. Inorg. Chim. Acta 2022, 534, 120820. [Google Scholar] [CrossRef]
  48. Delille, F.; Balloul, E.; Hajj, B.; Hanafi, M.; Morand, C.; Xu, X.Z.; Dumas, S.; Coulon, A.; Lequeux, N.; Pons, T. Sulfobetaine-Phosphonate Block Copolymer Coated Iron Oxide Nanoparticles for Genomic Locus Targeting and Magnetic Micromanipulation in the Nucleus of Living Cells. Nano Lett. 2023, 23, 5919–5926. [Google Scholar] [CrossRef]
  49. Toro-Mendoza, J.; Maio, L.; Gallego, M.; Otto, F.; Schulz, F.; Parak, W.J.; Sanchez-Cano, C.; Coluzza, I. Bioinspired Polyethylene Glycol Coatings for Reduced Nanoparticle–Protein Interactions. ACS Nano 2023, 17, 955–965. [Google Scholar] [CrossRef]
  50. Brust, M.; Walker, M.; Bethell, D.; Schiffrin, D.J.; Whyman, R. Synthesis of Thiol-Derivatized Gold Nanoparticles in a 2-Phase Liquid-Liquid System. J. Chem. Soc. Chem. Commun. 1994, 1, 801–802. [Google Scholar] [CrossRef]
  51. Bastus, N.G.; Comenge, J.; Puntes, V. Kinetically Controlled Seeded Growth Synthesis of Citrate-Stabilized Gold Nanoparticles of up to 200 nm: Size Focusing versus Ostwald Ripening. Langmuir 2011, 27, 11098–11105. [Google Scholar] [CrossRef]
  52. Gorzelle, B.M.; Hoffman, A.K.; Keyes, M.H.; Gray, D.N.; Ray, D.G.; Sanders, C.R. Amphipols Can Support the Activity of a Membrane Enzyme. J. Am. Chem. Soc. 2002, 124, 11594–11595. [Google Scholar] [CrossRef]
  53. Ghosh, S.K.; Pal, T. Interparticle Coupling Effect on the Surface Plasmon Resonance of Gold Nanoparticles: From Theory to Applications. Chem. Rev. 2007, 107, 4797–4862. [Google Scholar] [CrossRef]
  54. Sperling, R.A.; Liedl, T.; Duhr, S.; Kudera, S.; Zanella, M.; Lin, C.-A.J.; Chang, W.H.; Braun, D.; Parak, W.J. Size Determination of (Bio-) Conjugated Water-Soluble Colloidal Nanoparticles: A Comparison of Different Techniques. J. Phys. Chem. C 2007, 111, 11552–11559. [Google Scholar] [CrossRef]
  55. Priebe, J.P.; Satnami, M.L.; Tondo, D.W.; Souza, B.S.; Priebe, J.M.; Micke, G.A.; Costa, A.C.O.; Fiedler, H.D.; Bunton, C.A.; Nome, F. The Chameleon-like Nature of Zwitterionic Micelles: The Intrinsic Relationship of Anion and Cation Binding in Sulfobetaine Micelles. J. Phys. Chem. B. 2008, 112, 14373–14378. [Google Scholar] [CrossRef]
  56. Wu, L.; Jasinski, J.; Krishnan, S. Carboxybetaine, sulfobetaine, and cationic block copolymer coatings: A comparison of the surface properties and antibiofouling behavior. J. Appl. Polym. Sci. 2012, 124, 2154–2170. [Google Scholar] [CrossRef]
  57. Guthrie, J.P. Hydrolysis of esters of oxy acids: pKa values for strong acids; Brønsted relationship for attack of water at methyl; free energies of hydrolysis of esters of oxy acids; and a linear relationship between free energy of hydrolysis and pKa holding over a range of 20 pK units. Can. J. Chem. 1978, 56, 2342–2354. [Google Scholar] [CrossRef]
  58. del_Pino, P.; Yang, F.; Pelaz, B.; Zhang, Q.; Kantner, K.; Hartmann, R.; Baroja, N.M.d.; Gallego, M.; Möller, M.; Manshian, B.B.; et al. Basic Physicochemical Properties of Polyethylene Glycol Coated Gold Nanoparticles that Determine Their Interaction with Cells. Angew. Chem. Int. Ed. 2016, 55, 5483–5487. [Google Scholar] [CrossRef]
  59. Rana, S.; Yu, X.; Patra, D.; Moyano, D.F.; Miranda, O.R.; Hussain, I.; Rotello, V.M. Control of Surface Tension at Liquid–Liquid Interfaces Using Nanoparticles and Nanoparticle–Protein Complexes. Langmuir 2012, 28, 2023–2027. [Google Scholar] [CrossRef] [PubMed]
  60. Sigal, G.B.; Mrksich, M.; Whitesides, G.M. Effect of Surface Wettability on the Adsorption of Proteins and Detergents. J. Am. Chem. Soc. 1998, 120, 3464–3473. [Google Scholar] [CrossRef]
  61. Silin, V.; Weetall, H.; Vanderah, D.J. SPR Studies of the Nonspecific Adsorption Kinetics of Human IgG and BSA on Gold Surfaces Modified by Self-Assembled Monolayers (SAMs). J. Colloid Interface Sci. 1997, 185, 94–103. [Google Scholar] [CrossRef] [PubMed]
  62. Hua, X.Y.; Rosen, M.J. Dynamic surface tension of aqueous surfactant solutions: I. Basic paremeters. J. Colloid Interface Sci. 1988, 124, 652–659. [Google Scholar]
  63. Röcker, C.; Pötzl, M.; Zhang, F.; Parak, W.J.; Nienhaus, G.U. A Quantitative Fluorescence Study of Protein Monolayer Formation on Colloidal Nanoparticles. Nat. Nanotechnol. 2009, 4, 577–580. [Google Scholar] [CrossRef] [PubMed]
  64. Liedl, T.; Keller, S.; Simmel, F.C.; Rädler, J.O.; Parak, W.J. Fluorescent Nanocrystals as Colloidal Probes in Complex Fluids Measured by Fluorescence Correlation Spectroscopy. Small 2005, 1, 997–1003. [Google Scholar] [CrossRef]
  65. Hill, A.V.; Brown, T.G.; Roaf, H.E. The possible effects of the aggregation of the molecules of hemoglobin on its dissociation curves. J. Physiol. 1910, 40, i–vii. [Google Scholar]
  66. Fleischer, C.C.; Payne, C.K. Nanoparticle Surface Charge Mediates the Cellular Receptors Used by Protein–Nanoparticle Complexes. J. Phys. Chem. B 2012, 116, 8901–8907. [Google Scholar] [CrossRef]
  67. Fleischer, C.C.; Payne, C.K. Nanoparticle–Cell Interactions: Molecular Structure of the Protein Corona and Cellular Outcomes. Acc. Chem. Res. 2014, 47, 2651–2659. [Google Scholar] [CrossRef] [PubMed]
  68. Hühn, D.; Kantner, K.; Geidel, C.; Brandholt, S.; De Cock, I.; Soenen, S.J.H.; Rivera Gil, P.; Montenegro, J.-M.; Braeckmans, K.; Müllen, K.; et al. Polymer-Coated Nanoparticles Interacting with Proteins and Cells: Focusing on the Sign of the Net Charge. ACS Nano 2013, 7, 3253–3263. [Google Scholar] [CrossRef] [PubMed]
  69. Debayle, M.; Balloul, E.; Dembele, F.; Xu, X.; Hanafi, M.; Ribot, F.; Monzel, C.; Coppey, M.; Fragola, A.; Dahan, M.; et al. Zwitterionic polymer ligands: An ideal surface coating to totally suppress protein-nanoparticle corona formation? Biomaterials 2019, 219, 119357. [Google Scholar] [CrossRef]
  70. O’Brien, J.; Wilson, I.; Orton, T.; Pognan, F.o. Investigation of the Alamar Blue (resazurin) fluorescent dye for the assessment of mammalian cell cytotoxicity. Eur. J. Biochem. 2000, 267, 5421–5426. [Google Scholar] [CrossRef]
  71. Sarker, S.D.; Nahar, L.; Kumarasamy, Y. Microtitre Plate-Based Antibacterial Assay Incorporating Resazurin as an Indicator of Cell Growth, and Its Application in the in Vitro Antibacterial Screening of Phytochemicals. Methods 2007, 42, 321–324. [Google Scholar] [CrossRef] [PubMed]
  72. Brunetti, V.; Chibli, H.; Fiammengo, R.; Galeone, A.; Malvindi, M.A.; Vecchio, G.; Cingolani, R.; Nadeau, J.L.; Pompa, P.P. InP/ZnS as a safer alternative to CdSe/ZnS core/shell quantum dots: In vitro and in vivo toxicity assessment. Nanoscale 2013, 5, 307–317. [Google Scholar] [CrossRef] [PubMed]
  73. Derfus, A.M.; Chan, W.C.W.; Bhatia, S.N. Probing the Cytotoxicity of Semiconductor Quantum Dots. Nano Lett. 2004, 4, 11–18. [Google Scholar] [CrossRef] [PubMed]
  74. Kirchner, C.; Liedl, T.; Kudera, S.; Pellegrino, T.; Muñoz Javier, A.; Gaub, H.E.; Stölzle, S.; Fertig, N.; Parak, W.J. Cytotoxicity of Colloidal CdSe and CdSe/ZnS Nanoparticles. Nano Lett. 2005, 5, 331–338. [Google Scholar] [CrossRef]
  75. Alkilany, A.M.; Nagaria, P.K.; Hexel, C.R.; Shaw, T.J.; Murphy, C.J.; Wyatt, M.D. Cellular uptake and cytotoxicity of gold nanorods: Molecular origin of cytotoxicity and surface effects. Small 2009, 5, 701–708. [Google Scholar] [CrossRef] [PubMed]
  76. Alkilany, A.; Murphy, C. Toxicity and cellular uptake of gold nanoparticles: What we have learned so far? J. Nanoparticle Res. 2010, 12, 2313–2333. [Google Scholar] [CrossRef] [PubMed]
  77. Bhattacharjee, S.; de Haan, L.H.; Evers, N.M.; Jiang, X.; Marcelis, A.T.; Zuilhof, H.; Rietjens, I.M.; Alink, G.M. Role of surface charge and oxidative stress in cytotoxicity of organic monolayer-coated silicon nanoparticles towards macrophage NR8383 cells. Part. Fibre Toxicol. 2010, 7, 25. [Google Scholar] [CrossRef] [PubMed]
  78. Frohlich, E. The role of surface charge in cellular uptake and cytotoxicity of medical nanoparticles. Int. J. Nanomed. 2012, 7, 5577–5591. [Google Scholar] [CrossRef]
  79. Breus, V.V.; Pietuch, A.; Tarantola, M.; Basche, T.; Janshoff, A. The effect of surface charge on nonspecific uptake and cytotoxicity of CdSe/ZnS core/shell quantum dots. Beilstein J. Nanotechnol. 2015, 6, 281–292. [Google Scholar] [CrossRef]
  80. Allouni, Z.E.; Gjerdet, N.R.; Cimpan, M.R.; Hol, P.J. The effect of blood protein adsorption on cellular uptake of anatase TiO2 nanoparticles. Int. J. Nanomed. 2015, 10, 687–695. [Google Scholar]
  81. Johnston, H.J.; Semmler-Behnke, M.; Brown, D.M.; Kreyling, W.; Tran, L.; Stone, V. Evaluating the uptake and intracellular fate of polystyrene nanoparticles by primary and hepatocyte cell lines in vitro. Toxicol. Appl. Pharmacol. 2010, 242, 66–78. [Google Scholar] [CrossRef]
  82. Geidel, C.; Schmachtel, S.; Riedinger, A.; Pfeiffer, C.; Müllen, K.; Klapper, M.; Parak, W.J. A General Synthetic Approach for Obtaining Cationic and Anionic Inorganic Nanoparticles via Encapsulation in Amphiphilic Copolymers. Small 2011, 7, 2929–2934. [Google Scholar] [CrossRef]
  83. Khrenov, V.; Schwager, F.; Klapper, M. The formation of hydrophobic inorganic nanoparticles in the presence of amphiphilic copolymers. Colloid Polym. Sci. 2006, 28, 927–934. [Google Scholar] [CrossRef]
  84. Fu, K.; Wang, X.; Yuan, X.; Wang, D.; Mi, X.; Tan, X.; Zhang, Y. Size-Dependent Penetration of Gold Nanoprobes into Fixed Cells. ACS Omega 2021, 6, 3791–3799. [Google Scholar] [CrossRef]
  85. Tomaszewska, E.; Ranoszek-Soliwoda, K.; Sztandera, K.; Błażałek, P.; Głowacki, R.; Janaszewska, A.; Janasik, B.; Celichowski, G.; Wąsowicz, W.; Klajnert-Maculewicz, B.; et al. Systematic Studies of Gold Nanoparticles Functionalised with Thioglucose and its Cytotoxic Effect. ChemistrySelect 2021, 6, 1230–1237. [Google Scholar] [CrossRef]
  86. Anderson, R.E.; Chan, W.C.W. Systematic Investigation of Preparing Biocompatible, Single, and Small ZnS-Capped CdSe Quantum Dots with Amphiphilic Polymers. ACS Nano 2008, 2, 1341–1352. [Google Scholar] [CrossRef] [PubMed]
  87. Pellegrino, T.; Kudera, S.; Liedl, T.; Javier, A.M.; Manna, L.; Parak, W.J. On the Development of Colloidal Nanoparticles towards Multifunctional Structures and their Possible Use for Biological Applications. Small 2005, 1, 48–63. [Google Scholar] [CrossRef] [PubMed]
  88. DataPhysics Instruments. Pendant Drop Method—Optical Determination of the Surface/Interfacial Tension. Available online: (accessed on 13 March 2024).
  89. Jasper, J.J. The Surface Tension of Pure Liquid Compounds. J. Phys. Chem. Ref. Data 2009, 1, 841–1010. [Google Scholar] [CrossRef]
  90. Du, Y.; Jin, J.; Liang, H.; Jiang, W. Structural and Physicochemical Properties and Biocompatibility of Linear and Looped Polymer-Capped Gold Nanoparticles. Langmuir 2019, 35, 8316–8324. [Google Scholar] [CrossRef]
  91. Maffre, P.; Brandholt, S.; Nienhaus, K.; Shang, L.; Parak, W.J.; Nienhaus, G.U. Effects of surface functionalization on the adsorption of human serum albumin onto nanoparticles—A fluorescence correlation spectroscopy study. Beilstein J. Nanotechnol. 2014, 5, 2036–2047. [Google Scholar] [CrossRef] [PubMed]
  92. Maffre, P.; Nienhaus, K.; Amin, F.; Parak, W.J.; Nienhaus, G.U. Characterization of Protein Adsorption onto FePt Nanoparticles Using Dual-Focus Fluorescence Correlation Spectroscopy. Beilstein J. Nanotechnol. 2011, 2, 374–383. [Google Scholar] [CrossRef] [PubMed]
  93. Shang, L.; Nienhaus, G.U. In Situ Characterization of Protein Adsorption onto Nanoparticles by Fluorescence Correlation Spectroscopy. Acc. Chem. Res. 2017, 50, 387–395. [Google Scholar] [CrossRef] [PubMed]
  94. de Thomaz, A.A.; Almeida, D.B.; Pelegati, V.B.; Carvalho, H.F.; Cesar, C.L. Measurement of the Hydrodynamic Radius of Quantum Dots by Fluorescence Correlation Spectroscopy Excluding Blinking. J. Phys. Chem. B 2015, 119, 4294–4299. [Google Scholar] [CrossRef] [PubMed]
  95. Chakraborty, I.; Feliu, N.; Roy, S.; Dawson, K.; Parak, W.J. Protein-Mediated Shape-Control of Silver Nanoparticles. Bioconjug. Chem. 2018, 29, 1261–1265. [Google Scholar] [CrossRef] [PubMed]
  96. Ma, X.; Hartmann, R.; Aberasturi, D.J.d.; Yang, F.; Soenen, S.J.H.; Manshian, B.B.; Franz, J.; Valdeperez, D.; Pelaz, B.; Feliu, N.; et al. Colloidal Gold Nanoparticles Induce Changes in Cellular and Subcellular Morphology. ACS Nano 2017, 11, 7807–7820. [Google Scholar]

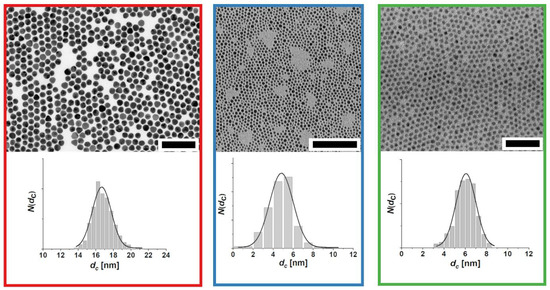

Figure 1. Exemplary TEM measurements of the nanoparticles used in this study and the respective distributions N(dc) of the core diameters dc. Red: Au NPs dc~17 nm (scale bar: 100 nm); blue: Au NPs dc~5 nm (scale bar: 100 nm); green: QDs dc~6 nm (scale bar: 50 nm).
Figure 1. Exemplary TEM measurements of the nanoparticles used in this study and the respective distributions N(dc) of the core diameters dc. Red: Au NPs dc~17 nm (scale bar: 100 nm); blue: Au NPs dc~5 nm (scale bar: 100 nm); green: QDs dc~6 nm (scale bar: 50 nm).
Ijms 25 05539 g001

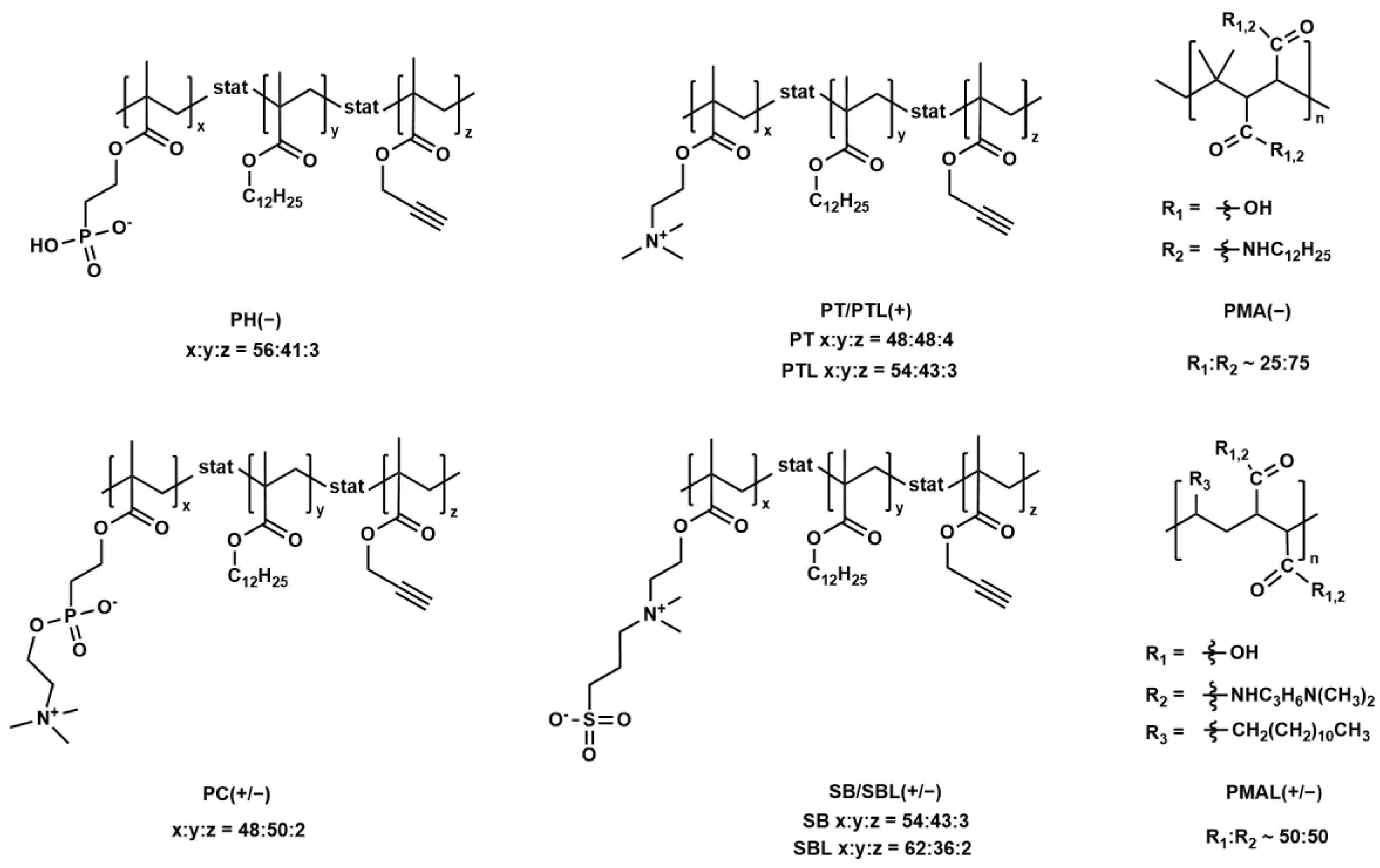

Figure 2. Structure of the amphiphilic copolymers. PMA(−) and PMAL(+/−) are alternating copolymers. PT(+/−)/PTL(+/−) and SB(+/−)/SBL(+/−) differ in molecular weight.
Figure 2. Structure of the amphiphilic copolymers. PMA(−) and PMAL(+/−) are alternating copolymers. PT(+/−)/PTL(+/−) and SB(+/−)/SBL(+/−) differ in molecular weight.
Ijms 25 05539 g002

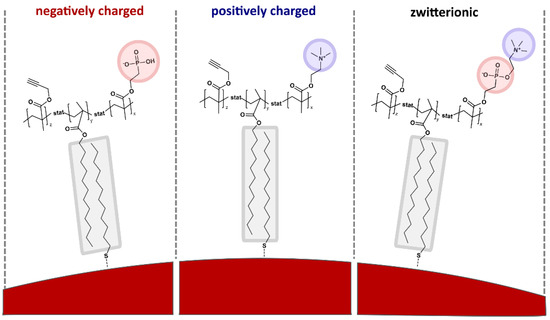

Figure 3. A range of different amphiphilic copolymers was compared as illustrated for three examples and the case of gold nanoparticles (Au NP). The hydrophobic lauryl (C12) side chains form an inner hydrophobic layer with the according alkyl chains of the dodecanethiol ligands bound to the gold surface. This hydrophobic layer, highlighted in grey, is stabilized by intermolecular attractive van der Waals interactions. Phosphonic acid- or trimethylammonium-terminated, or zwitterionic (here phosphatidylcholine-based) side chains provide a negatively charged (highlighted in red), positively charged (highlighted in blue), or zwitterionic surface.
Figure 3. A range of different amphiphilic copolymers was compared as illustrated for three examples and the case of gold nanoparticles (Au NP). The hydrophobic lauryl (C12) side chains form an inner hydrophobic layer with the according alkyl chains of the dodecanethiol ligands bound to the gold surface. This hydrophobic layer, highlighted in grey, is stabilized by intermolecular attractive van der Waals interactions. Phosphonic acid- or trimethylammonium-terminated, or zwitterionic (here phosphatidylcholine-based) side chains provide a negatively charged (highlighted in red), positively charged (highlighted in blue), or zwitterionic surface.
Ijms 25 05539 g003
Figure 4. ζ-potentials of all conjugates as recorded in Milli-Q water.
Figure 4. ζ-potentials of all conjugates as recorded in Milli-Q water.
Ijms 25 05539 g004
Figure 5. Interfacial tension (water–toluene) as function of time, γt, modulated by polymer-coated QDs dispersed in the water phase. QDs were coated with (A) PC(+/−), (B) SB(+/−), (C) PMAL(+/−), (D) PMA(−), (E) PH(−), and (F) PT(+). The red lines are fits with the Hua and Rosen equation where applicable [62].
Figure 5. Interfacial tension (water–toluene) as function of time, γt, modulated by polymer-coated QDs dispersed in the water phase. QDs were coated with (A) PC(+/−), (B) SB(+/−), (C) PMAL(+/−), (D) PMA(−), (E) PH(−), and (F) PT(+). The red lines are fits with the Hua and Rosen equation where applicable [62].
Ijms 25 05539 g005
Figure 6. Change of the hydrodynamic radii rh of the QDs coated with (A) PC(+/−), (B) SB(+/−), (C) PMAL (+/−), (D) PMA (−), (E) PH(−), and (F) PT(+) in the presence of different HSA concentrations cHSA. The black line represents a fit based on the Hill model.
Figure 6. Change of the hydrodynamic radii rh of the QDs coated with (A) PC(+/−), (B) SB(+/−), (C) PMAL (+/−), (D) PMA (−), (E) PH(−), and (F) PT(+) in the presence of different HSA concentrations cHSA. The black line represents a fit based on the Hill model.
Ijms 25 05539 g006
Figure 7. Change of the hydrodynamic radii rh of the QDs coated with (A) PC(+/−), (B) SB(+/−), (C) PMAL (+/−), (D) PMA (−), (E) PH(−), and (F) PT(+) in the presence of different Tf concentrations cTf. The black line represents a fit based on the Hill model. Note that the rh data at low protein concentration are not the same as the ones in Figure 6, which is due to batch-to-batch variations.
Figure 7. Change of the hydrodynamic radii rh of the QDs coated with (A) PC(+/−), (B) SB(+/−), (C) PMAL (+/−), (D) PMA (−), (E) PH(−), and (F) PT(+) in the presence of different Tf concentrations cTf. The black line represents a fit based on the Hill model. Note that the rh data at low protein concentration are not the same as the ones in Figure 6, which is due to batch-to-batch variations.
Ijms 25 05539 g007
Figure 8. Cellular uptake of the NPs with different coatings by HeLa cells after 24 h exposure as determined by elemental analysis in terms of mass mX of element X found per cell (X = Cd for QDs and X = Au for Au NPs). The QDs are compared at different exposure concentrations (dark green: cNP = 25 nM; light green: 50 nM; both in the presence of FBS: +FBS). For the larger Au NPs (17 nm) the uptake is compared at the same concentration in the presence (dark red, +FBS) or absence (light red, −FBS) of FBS supplement. Meanwhile, for the Au NPs, the molar concentrations cNP are different for the 5 nm and 17 nm NPs (13 vs. 0.3 nM), and the Au exposure concentration in terms of Au is the same in both cases: CAu = 10 μg/mL. Data from at least three independent measurements are shown with the standard deviations of the mean. Significance tested with Student’s t-test (* p < 0.05). For the “x”, no data could be measured.
Figure 8. Cellular uptake of the NPs with different coatings by HeLa cells after 24 h exposure as determined by elemental analysis in terms of mass mX of element X found per cell (X = Cd for QDs and X = Au for Au NPs). The QDs are compared at different exposure concentrations (dark green: cNP = 25 nM; light green: 50 nM; both in the presence of FBS: +FBS). For the larger Au NPs (17 nm) the uptake is compared at the same concentration in the presence (dark red, +FBS) or absence (light red, −FBS) of FBS supplement. Meanwhile, for the Au NPs, the molar concentrations cNP are different for the 5 nm and 17 nm NPs (13 vs. 0.3 nM), and the Au exposure concentration in terms of Au is the same in both cases: CAu = 10 μg/mL. Data from at least three independent measurements are shown with the standard deviations of the mean. Significance tested with Student’s t-test (* p < 0.05). For the “x”, no data could be measured.
Ijms 25 05539 g008
Table 1. Polymers used in the present study.
Table 1. Polymers used in the present study.
Full Name of PolymerAbbreviationMw [g/mol]x:y:z aCharge
PTMAEMA-stat-PLMA-stat-PPgMA bPT15,50048:48:04+
PSB-stat-PLMA-stat-PPgMA bSBL390062:36:02+/−
PMPC-stat-PLMA-stat-PPgMA bPC22,00048:50:02+/−
PMAPHOS-stat-PLMA-stat-PPgMA bPH11,00056:41:03
poly(isobutylene-alt-maleic anhydride)-graft-dodecylaminePMA11,40025:75
poly(maleic anhydride-alt-1-tetradecene)-3-(dimethylamino)-1-propylamine derivativePMAL12,00050:50+/−
a x:y:z is the ratio of the hydrophilic (charged) to hydrophobic (PLMA) to functionalized (PPgMA) monomer units, respectively. b PTMAEMA: poly(2-(N,N,N-trimethylammonium)ethyl methacrylate). PLMA: poly(lauryl methacrylate). PPgMA: poly(propargyl methacrylate). PSB: poly (2-(N-3-sulfopropyl-N,N-dimethylammonium)ethyl methacrylate). PMPC: poly(2-(methacryloyloxy)ethylphosphorylcholine). PMAPHOS: poly(2-(methacryloyloxy)ethylphosphonic acid).
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Megahed, S.; Wutke, N.; Liu, Y.; Klapper, M.; Schulz, F.; Feliu, N.; Parak, W.J. Encapsulation of Nanoparticles with Statistical Copolymers with Different Surface Charges and Analysis of Their Interactions with Proteins and Cells. Int. J. Mol. Sci. 2024, 25, 5539.

AMA Style

Megahed S, Wutke N, Liu Y, Klapper M, Schulz F, Feliu N, Parak WJ. Encapsulation of Nanoparticles with Statistical Copolymers with Different Surface Charges and Analysis of Their Interactions with Proteins and Cells. International Journal of Molecular Sciences. 2024; 25(10):5539.

Chicago/Turabian Style

Megahed, Saad, Nicole Wutke, Yang Liu, Markus Klapper, Florian Schulz, Neus Feliu, and Wolfgang J. Parak. 2024. "Encapsulation of Nanoparticles with Statistical Copolymers with Different Surface Charges and Analysis of Their Interactions with Proteins and Cells" International Journal of Molecular Sciences 25, no. 10: 5539.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
