Review

Catalyst Design through Grafting of Diazonium Salts—A Critical Review on Catalyst Stability

by
Szymon Smołka
1 and
Katarzyna Krukiewicz
1,2,*
1
Department of Physical Chemistry and Technology of Polymers, Silesian University of Technology, M. Strzody 9, 44-100 Gliwice, Poland
2
Centre for Organic and Nanohybrid Electronics, Silesian University of Technology, S. Konarskiego 22b, 44-100 Gliwice, Poland
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(16), 12575; https://doi.org/10.3390/ijms241612575
Submission received: 5 July 2023 / Revised: 30 July 2023 / Accepted: 7 August 2023 / Published: 8 August 2023
(This article belongs to the Special Issue Heterogeneous Catalysts: Design, Synthesis, and Applications)
Browse Figures
Review Reports Versions Notes

Abstract

In the pursuit of designing a reusable catalyst with enhanced catalytic activity, recent studies indicate that electrochemical grafting of diazonium salts is an efficient method of forming heterogeneous catalysts. The aim of this review is to assess the industrial applicability of diazonium-based catalysts with particular emphasis on their mechanical, chemical, and thermal stability. To this end, different approaches to catalyst production via diazonium salt chemistry have been compared, including the immobilization of catalysts by a chemical reaction with a diazonium moiety, the direct use of diazonium salts and nanoparticles as catalysts, the use of diazonium layers to modulate wettability of a carrier, as well as the possibility of transforming the catalyst into the corresponding diazonium salt. After providing descriptions of the most suitable carriers, the most common deactivation routes of catalysts have been discussed. Although diazonium-based catalysts are expected to exhibit good stability owing to the covalent bond created between a catalyst and a post-diazonium layer, this review indicates the paucity of studies that experimentally verify this hypothesis. Therefore, use of diazonium salts appears a promising approach in catalysts formation if more research efforts can focus on assessing their stability and long-term catalytic performance.

1. Introduction

Owing to their ability to decrease the activation energy of chemical reactions, catalysts are essential in the chemical industry. It is estimated that over 75% of all industrial chemical transformations use catalysts. Homogeneous catalysts are known to have higher activity and selectivity than heterogeneous ones [1]; however, the major limitation in their use is the difficult and costly separation process [2]. Therefore, many recent studies are focused on the immobilization of catalysts leading to the fabrication of easy to reuse materials with enhanced catalytic activity, i.e., heterogeneous catalysts [3,4,5]. One of the most promising routes to the design of heterogeneous catalysts involves the process of electrochemical grafting of diazonium salts.
Electrografting of diazonium salts is an electrochemical reaction that leads to the reduction of the organic compound by forming a radical on the aromatic ring which can further react with the electrode surface to create an organic layer [6]. So-formed electrodeposited layers are suitable to serve as anchoring points to immobilize catalytic compounds, e.g., enzymes [7] or metal nanoparticles [8], allowing the formation of heterogeneous catalysts applicable in sensors/biosensors [9,10], as well as electrochemical [8,11,12] or chemical reactions [13]. In recent years, several review articles describing the use of electrografting processes for the immobilization of catalysts have been published [14,15]. However, to the best of our knowledge, no one before has attempted to estimate the stability of those catalysts in practice. The aim of this critical review is to describe the electrografting process highlighting various methods to immobilize and modify catalysts, and to extensively discuss vulnerabilities in deactivating catalysts formed through the process of electrografting.

2. Diazonium Salts

Diazonium salts are organic compounds having a diazonium group (-N2-) in their structure, with the general formula x -   N ≡ N + — R 1 . The first diazonium salt was synthesized by Johann Peter Griess in 1858 [16,17]. Since then, many chemists have sought to synthesize new diazonium salts because of their wide applicability, e.g., in dye industry or organic synthesis [18]. From the perspective of this article, the most advantageous feature of diazonium salts is their ease in being reduced and grafted to the surface with the formation of a covalent bond between the compound and a surface [19]. Grafting processes can occur in several different ways including a spontaneous reduction in an aqueous solution with high pH, grafting by the reducing surface such as copper and iron, grafting by reducing agent (e.g., ascorbic acid), or by UV light or localized surface plasmon excitation [20]. Still, the most popular method of grafting is electrochemical grafting (Figure 1) [6]. In this method, an electrical potential applied to the electrode causes the reduction of a diazonium compound, with the formation of a nitrogen molecule and an aryl radical. If the radical is created close to the electrode, it can “attack” the surface and create a covalent bond. The process of electrografting may be monitored in situ with the use of cyclic voltammetry, chronoamperometry, or electrochemical quartz crystal microbalance, for instance, giving direct feedback about its efficiency.

3. Different Approaches to Catalyst Production via Diazonium Salt Chemistry

The main aim in the use of diazonium salts for catalyst design is the formation of a thin organic layer on the surface of a carrier that is able to attach to other compounds with catalytic properties or to act as a catalyst itself. So far, there are four ways to achieve this goal, named as follows: (1) immobilization of a catalyst by a chemical reaction with a diazonium moiety, (2) deposition of nanoparticles on a diazonium layer, (3) modulation of the wettability of a carrier to induce hydrophobic/hydrophilic interactions with a catalyst, and (4) transformation of a catalyst into a corresponding diazonium salt and its electrodeposition on the surface of a carrier.

3.1. Immobilization of Catalysts by a Chemical Reaction with a Diazonium Moiety

In this approach, an organic layer formed during the process of electrografting of diazonium salts should possess functional groups providing the ability to form a chemical bond with a catalyst, e.g., amide bonds, diazo bonds, or the bonds formed during click reactions.
To form amide bonds, both the organic layer and catalyst should possess -NH2 or -COOH groups [21,22,23]. For example, a catalytic compound with a carboxylic group can react with an organic layer attached to the surface possessing amino groups in para position to the surface. This reaction leads to the formation of an amide bond between an organic layer and a catalyst. In this case, the most often used diazonium salt is 4-nitrobenzodiazonium tetrafluoroborate. The nitro group present in a para position can be reduced to amino group after grafting by using further electrochemical reduction, as shown in Figure 2 [11,24]. This route was used in several studies, e.g., for the immobilization of hydrogenase [11], ferrocene carboxylic acid [21], or pyrroloquinoline quinone [24]. It is possible to immobilize compounds possessing -NH2 group by using 4-carboxyphenyl groups grafted on surfaces as well [21], e.g., for the immobilization of glucose oxidase [25] and horseradish peroxidase [26].
To form a diazo bond, 4-nitrobenzodiazonium salt can be used as well as p-bisdiazonium salt [7,27]. In this case, diazonium groups (which can be obtained by a reduction of nitro group to amino group and subsequently treated by HCl + NaNO2 or by simple grafting of p-bisdiazonium salt) can react in azo-coupling with electron-rich aromatic compounds and form a diazo bond (Figure 3). Diazonium group in para position can also react in Gomberg–Bachmann arylation, as shown in a horseradish peroxidase enzyme that was immobilized on a gold electrode to create a biosensor detecting H2O2 [7].
Click chemistry, on the other hand, has been widely examined in recent years since this type of an irreversible chemical reaction occurs under mild conditions with remarkable efficiency. The importance of click chemistry is evident as the Nobel Prize 2022 in Chemistry was given to Carolyn Bertozzi, Morten Meldal, and Barry Sharpless for its development [28]. This reaction is frequently used for the immobilization of molecules, e.g., Cu(I)-catalyzed azide/alkyne cycloaddition (CuAAC) can be used to immobilize an aptamer able to detect ochratoxin A [10]. In this study, the surface of a screen-printed carbon electrode was modified with two types of diazonium salts (TMSi-Eth-Ar-N2+ and p-NO2-Ar-N2+), where TMSi-Eth-Ar-N2+ was able to combine with an aptamer which was responsible for Ochratoxin A detection. In this reaction, the 1,2,3-triazole ring is formed, similar to a peptide bond [10], which is desirable in biosensors applications owing to the enhanced biological activity of the immobilized molecule. The same type of click chemistry was used in other studies [29,30]. In one study, two types of catalyst were immobilized on surfaces through CuAAC and thiol-ene click reactions using the reduction of two types of diazonium salts [31]. These catalysts were used in electroenzymatic reduction of D-fructose to D-sorbitol. To use click chemistry for the immobilization of catalysts, corresponding diazonium salts should have moieties capable of forming a desirable bond. For example, in a CuAAC reaction, diazonium salt should have azide or ethynyl groups in para position. The corresponding diazonium salts are most often prepared in situ [10,31].

3.2. Diazonium Salts and Nanoparticles as Catalysts

Diazonium salts can be used to improve the deposition of metal nanoparticles (NPs) with catalytic properties. In most cases, gold and silver NPs are used [8,13,32,33,34,35], yet there are no limits in the use of other metals, such as copper [12,36], rhodium [36], palladium [35], and ruthenium [12]. Diazonium salts are used for the modification of catalyst carriers for several reasons. First, an organic layer formed during the grafting process prevents the nucleation of metal particles [8]. Moreover, the presence of a functional group in para position to the surface can electrostatically attract metal ions to the surface, which are subsequently chemically reduced [12]. In another approach to forming catalytically active NPs, diazonium salts are used to enable their dispersion in aqueous suspensions. For example, Aghajani et al. [33] studied the arylation of gold NPs for ethanol oxidation. The surface of NPs was modified by the deposition of 4-carboxybenzodiazonium salt whose -COOH groups allowed for a stable water suspension of gold NPs. Aryl groups can form oligomers, leading to the passivation of the surface of particles. Therefore, the concentration of a diazonium compound needs to be controlled to obtain the desired thickness of coating. Another method, also described in [33], used 3,5-dimethylobenzodiazonium salt to block the oligomerization reaction of 4-carboxybenzodiazonium salt. The presence of the carboxylic group allowed for the formation of a stable water suspension, whereas dimethyl derivatives blocked the oligomerization of aryl compounds on the particle’s surface. The summary of techniques used for the formation of catalysts with metal NPs is presented in Figure 4.

3.3. Modulating Wettability of a Carrier

Coating the surface with a diazonium moiety allows for changed surface wettability to enhance the surface adhesion of particular molecules, e.g., fructose dehydrogenase (FDH) [37]. In a recent study, SWCNTs on a GCE surface were modified by diazonium salt prepared from 2-aminoanthracene. Subsequently, FDH was adsorbed on a modified surface. So-formed catalysts showed two separated electrocatalytic waves in the presence of fructose, while a non-modified electrode (without diazonium salt and FDH) showed only one electrocatalytic wave. Adsorbing FDH directly on a GCE electrode showed only a slight catalytic effect. Stability of the catalyst was measured over 60 days. After this time, the catalyst was found to maintain 90% of the initial amperometric signal. The authors explained the enhanced adhesion by π-π interactions between aromatic side chains present in FDH and anthracenyl aromatic molecules.
A different approach was proposed by Park et al. [38], who explored catalysts used in fuel cells. Polymer electrode membrane fuel cells catalysts are characterized by a rapid decrease in efficiency owing to the dissolution of the platinum layer and carbon corrosion caused by water. The proposed solution suggested modifying the surface of the catalyst with diazonium salts possessing fluorine, acid, and nitrile functional groups to increase the hydrophobicity of the surface and thus limit the access of water to the catalyst. In this case, the diazonium layer did not possess catalytic properties, but was used to increase the stability of a catalyst.

3.4. Transforming a Catalyst into a Corresponding Diazonium Salt

In several studies, the corresponding salts with catalytic activity were deposited directly on electrode surface [39,40,41]. In these cases, no special moieties in para position were required. Theoretically, every organic compound with activated aromatic ring can react with a nitrating mixture (HNO3 + H2SO4) to form nitro derivatives. Subsequently, the nitro group could be reduced to an amino group, which can be easily modified to a diazonium group using HNO2 prepared, for example, in situ from HCl and NaNO2. The reaction between HNO2 and amine groups occurs in low temperatures (below 5 °C) because of the thermal instability of diazonium salts and their explosive character. Firstly, amine and acid should be added. NaNO2 is subsequently added, avoiding excess [42]. In practice, it could be difficult to carry out these steps with high yield, which limits this application to few compounds (azure A [40], toluidine blue [43], and trans-4-cinnamic acid [44]). Consequently, transforming a catalyst into a corresponding diazonium salt is a relatively rare method for designing heterogeneous catalysts (Figure 5). The applications of these catalysts included a mediated oxidation of glucose [39] and sensing of β-nicotinamide adenine dinucleotide [40] with surfaces modified with Azure A, determination of NADH and ethanol sensing for glassy carbon modified by toluidine blue [43], glucose biosensing for trans-4-cinnamic acid grafted on glassy carbon [44], and oxidation of water by pentamethylcyclopentadienyl iridium complexes grafted onto glassy carbon [45].

4. Choice of a Carrier

As diazonium salts can be grafted electrochemically, spontaneously, photochemically, or by reducing surfaces, the choice of substrate does not seem to limit the formation of catalysts (Figure 6). In the literature, catalysts were formed or immobilized on the surface of gold [7,9], multi-walled carbon nanotubes [11], glassy carbon [12,46,47], graphite powder [36], and even olive pits [13]. Although the choice of potential carriers is wide, the selection should be well-thought out to achieve the expected results. For example, carbon nanotubes are well known for their large specific surface which is desirable and useful for catalyst production because it allows the reduction of space occupied by the catalyst [11]. On the other hand, catalysts deposited on biodegradable surface, like olive pits, can be used to produce green catalysts. The correct choice of carrier can be also critical for the stability of the diazonium-based catalyst. This will be described in the next sections.

5. Deactivation Routes of Diazonium-Based Catalysts

It is a well-known fact that the lifetime of the catalysts is limited by various deactivation routes, and diazonium-based catalysts are no exception. The typical deactivation routes for a catalyst include mechanical, chemical, and thermal deactivation (Figure 7) [48]. The mechanical types of catalyst deactivation can be divided into attrition, crushing, and physical adhesion of species present in the reactor. A common example of a chemical deactivation route is poisoning by chemical compounds which can react with the active center of a catalyst and block it to disable catalytic activity. Deactivation by thermal vectors can result in the loss of active surface area (sintering) or by the thermal degradation of the catalyst. Different mechanisms of deactivation should be considered for catalysts intended for electrochemical and chemical reactions and for biosensors purposes.

5.1. Mechanical Stability

In the case of diazonium-based catalysts, the most important factor governing the catalyst’s performance is the stability of the organic layer attached to the surface and the stability of bonds formed between an organic layer and a catalyst. Catalysts employing grafted diazonium salts are vulnerable to mechanical deactivation, especially attrition. The organic layer formed during grafting is attached to the surface by a strong covalent bond but can still be removed by a mechanical action, e.g., scratching. For electrocatalysts, this problem is negligible because electrodes are modified with diazonium salts and catalyst moieties during the reaction and there is no risk of attrition. For catalysts intended for chemical reactions, mechanical deactivation could be a serious problem. It can be assumed that the catalyst will be as resistant to attrition as is the surface on which the organic layers are deposited. Catalysts employing diazonium salts should show similar or greater vulnerability to attrition in comparison to typical catalysts, because, unlike most of them, diazonium-based catalysts have an active center only on the surface; therefore, every scratch decreases their catalytic performance. In a study by Anariba et al. [49], atomic force microscopy was used to scratch an organic monolayer formed from the pyrolyzed photoresist film (PPF). The force was determined empirically to scratch only the post-diazonium layer, without scratching the PPF surface. Although the main aim of this study was to determine the thickness of organic layer, it may only useful to estimate the vulnerability of layers for scratches. As recognized by the authors, the force needed to scratch the organic layer from surfaces was ~1 µN, a seemingly small value; however, it should be mentioned that the force needed to scratch is dependent on many factors such as thickness of the layer and scratch speed.

5.2. Thermal Stability

In the case of diazonium-based catalysts, thermal deactivation could proceed in these three ways: (1) sintering, (2) delamination of the organic layer by breaking the bond between the surface and an organic compound, and (3) degradation of the bonds between the organic layer and the catalyst (Figure 8). The bonds between the surface and the organic layer are thermally stable [50,51,52], and the degradation of the layer can be recorded in temperatures above 200 °C. Therefore, the stability of interactions between the surface and organic layer does not seem to be a limitation in the use of diazonium-based catalysts as most chemical reactions are carried out at temperatures below 200 °C.
The degradation of bonds between an organic layer and a catalyst compound is different for each type of linkage: amide bonds, diazo bonds, and triazole linkage.
Amide bonds have the ability to create resonance structures [53,54] so their stability should be sufficient for most applications. Thermal stability of some amide compounds, including aromatic amides, was studied with the use of high-resolution pyrolysis gas chromatography–mass spectrometry and thermogravimetry [55,56]. In general, amide compounds are thermally stable up to 160 °C, but the exact decomposition temperature depends on the structure of the molecule. For example, morpholine amide and N-methylaniline amide derivatives of maleated polyethylene decompose in 160 °C [55] and 3,7-dihydroxy-N-(2-hydroxy-4-methylphenyl)-2-naphthamide degrades 25% by masses around 300 °C [56]. Nevertheless, thermal stability does not seem to be a limitation in those catalyst types, in contrast to chemical stability.
Thermal stability of diazo bonds was studied by thermogravimetry [57,58], and the results indicated their thermal stability below 200 °C, a value that allows their use in most applications, including chemical reactions. Nevertheless, some azo compounds, like the popular radical polymerization initiator AIBN (2,2′-azobisisobutyronitrile), are highly unstable [59,60] because of the presence of electron withdrawing -CN substituents. Moreover, thermal stability of azo compounds can be decreased not only by the presence of substituents, but also by a tautomeric effect [61]. Therefore, it can be predicted that catalysts immobilized by this type of bond will be stable at temperatures under 200 °C, providing that catalyst molecules are devoid of electron withdrawing substituents. This assumption is easy to fulfill, as molecules with deactivated aromatic rings do not react in azo-coupling reactions.
Triazole linkages were used to produce some polytriazoleimides [62] which were subsequently studied by thermogravimetric analysis. The results showed that decomposition temperature of these polymers is under 350 °C. Moreover, triazole linkages is present in many organic compounds requiring high temperatures for decomposition, such as 3,3′-dinitro-5,5′-diamino-bi-1,2,4-triazole, which decomposes at 275.5 °C with a heating rate of 5 K·min−1 [63]. In general, 1,2,3-triazole moiety decomposes at 300–400 °C [64], but the exact temperature of decomposition is always dependent on the structure of attached molecules because some moieties can decrease their stability. To sum up, we can speculate that 1,2,3-triazole linkages are thermally stable and predict that this type of bond should be one of the best choices for immobilization of catalyst compounds, especially for a chemical reaction catalysts.
Fe3O4 nanoparticles grafted by 2-hydroxyethylphenyldiazonium tetrafluoroborate were synthesized to obtain a water-soluble nanoparticle [65]. Thermal stability of synthesized particles was measured by thermogravimetric analysis in the temperature range 20–800 °C (heating rate = 10 °C/min). The diazonium-modified particles decomposed with 20% weight loss after heating to 800 °C, while unmodified Fe2O3 NPs showed a weight loss of 4%. This suggests that the density of the aryl layer was high. Unfortunately, the authors did not attach information about the temperature at which decomposition started. In another study, thermogravimetric curves were recorded to study the behavior of the graft layer on the catalyst surface. As the study showed, the temperature at which the weight loss process began was 140 °C for the benzotrifluoride layer, which was associated with the process of degradation of the functional groups of the grafted salt [38].

5.3. Chemical Stability

Chemical stability of diazonium-based catalysts depends on the type of bond between the post-diazonium layer and catalyst. For instance, triazole bonds created during the click reactions between catalyst and the modified surface are chemically stable [66,67]. The 1,2,3-triazole ring is resistant towards hydrolysis and oxidation [68]. Also, diazo bonds are chemically stable. To the best of our knowledge, there is no evidence for sensitivity of diazo bonds in acidic or alkaline environments. On the other hand, it is widely known that amide compounds can hydrolyse in acidic or alkaline solutions under high temperature, particularly in acidic solutions. Therefore, amide bonds should be excluded from applications requiring acids or bulks and high temperature. It should be noted that the temperature and rate of hydrolysis depend on the structure of the molecule. For example, activation energy of acidic and basic hydrolysis of benzamide derivatives is lower when a molecule possesses electron-withdrawing groups [69]. Nevertheless, amide bonds are still a good choice for biosensors and electrocatalysts that work under mild conditions.

5.4. Deactivation through Poisoning

Diazonium-based catalysts are vulnerable to poisoning. Potential poisoning for a specific catalyst should be considered through the prism of an immobilized particle. For example, gold nanoparticles are easily poisoned by Cl [70] and Br [71]; therefore, these elements should be avoided in a reaction environment. In the study by Karthik et al. [41], p-sulfobenzenediazonium salt was grafted on reduced graphene oxide. Owing to the presence of -SO3H groups, the so-formed organic layer showed Bronsted acidic catalytic properties which were used in the synthesis of benzimidazoles from diamines and aldehydes under ambient conditions. The catalyst obtained a good yield, yet substrates with an aromatic ring with a nitrogen atom were able to suppress the reaction because of the poisoning properties of pyridine moities on the acidic sites; this proves that post-diazonium catalysts exhibit vulnerability to poisoning. It is worth noting that there is no information that diazonium salts could be responsible for the deactivation of the catalyst.
Interestingly, there is evidence for the stability-enhancing influence of diazonium salts for catalysts. Ma et al. [72] used 4-aminodiazonium salt to graft graphene oxide on the surface of a glassy carbon electrode. The post-diazonium layer was used owing to the presence of amine groups which allowed for the deposition of gold nanoparticles on the surface of graphene oxide. The so-formed post-diazonium catalyst was used in methanol oxidation, and its performance was compared with a gold electrode in stability tests. After 1000 CV cycles, the post-diazonium catalysts retained the 80.5% of initial performance, while the catalytic efficiency of the gold electrode decreased to 76.1%. The higher efficiency of the post-diazonium catalyst was explained by the smaller number of poisoning intermediates formed during the oxidation of methanol on this catalyst.

6. Stability of Diazonium-Based Catalysts: Experimental Studies

In many research studies, the stability of diazo-based catalysts is taken for granted, without providing experimental data [73]. Nevertheless, in some studies the information about a long-term catalytic performance is present. For instance, Alonso-Lomillo et al. [11] designed an electrocatalyst for a hydrogen oxidation process and compared carbon nanotubes modified with a catalyst (hydrogenase) via either adsorption or attachment through amide bonds. The amide bonds were created during the reaction between -COOH group from hydrogenase and -NH2 group from diazonium layer, obtained through electrografting of 4-nitrobenzenediazonium salts and the subsequent reduction of -NO2 group in water/ethanol solution (9:1). Both catalysts showed oxidative properties, yet adsorbed hydrogenase was much less efficient and delaminated after six days of work. On the other hand, catalysts with covalently bonded hydrogenase showed a slight decrease in efficiency in the first few days (around 35%), which was correlated with the delamination of the nonbonded hydrogenase; however, the efficiency of this catalyst was significantly higher throughout the duration of the experiment. After the initial decrease in efficiency, the catalyst showed an excellent stability for a month (Figure 9).
Similarly, Radi et al. [7] prepared a biosensor for H2O2 detection by immobilizing horseradish peroxidase on the surface of gold, which was able to retain its full activity for two weeks. The 25% decrease in activity was noticed after three weeks of storage at 4 °C. In this case, 4-nitrobenzenediazonium salt was used as well. The reduction of a nitro group was performed in 0.1 M KCl solution with a potential range between 0.4 and −1.2 V (vs. pseudoreference electrode). Subsequently, amino groups were transformed to diazonium groups using 1 mM sodium nitrate in 0.5 M HCl. The electrodes were submerged in this solution for 5 min and then were flushed with distilled water and washed with a phosphate buffer solution. After that, the enzyme was attached to the substrate by spreading it on its surface.
Water oxidation catalysts, more specifically iridium pentamethylcyclopentadienyl complexes transferred to diazonium derivatives, were grafted onto a glassy carbon electrode by deKrafft et al. [45]. The stability of created catalysts was examined during the electrochemical water oxidation process by measuring numbers of molecules per unit area. The initial value (4.83 molecules/nm2) dropped quickly to 1.97 molecules/nm2 owing to the delamination of ungrafted molecules. The remaining covalently bound catalysts molecules delaminated slower during the 3 h of electrolysis, reaching 0.1 molecules/nm2 (Figure 10). SEM images collected after 40 min and 10 h of electrolysis indicated significant differences between surface roughness, suggesting that the loss of catalyst molecules was caused by a loss of carbon from the electrode that was oxidized during the experiment. This demonstrates the importance of a correct choice of carrier. In another study [23], nickel bisdiphosphine anchored to MWCNT through amide bonds showed excellent stability during 100,000 turnovers.
In a study by Bangle et al. [74], diazonium ruthenium terpyridine was grafted on the surface of metals oxides with a wide band gap (mesoporous thin films of TiO2, SnO2, ZrO2, ZnO, and indium-doped tin oxide deposited on fluorine-doped tin oxide glass), to test their stability in alkaline pH, which is beneficial in a water oxidation process. The diazonium-based catalyst was stable in an alkaline solution (pH 12) for a month, when surfaces functionalized by sensitizers were observed to desorb after several days.
The stability of the catalyst based on silver NPs was examined by Guo et al. [8]. In this study, a MWCNT surface was modified with 4-nitrobenzene diazonium salt, and nitro groups were subsequently reduced to amino ones. After this, the surface was submerged in a AgNO3 solution to adsorb Ag+ ions by electrostatic forces. Then, ions were reduced to NPs using chronoamperometry (potential step from 0 V to −0.5 V vs. SCE for 120 ms). In this way, a catalyst for methanol oxidation was formed in an alkaline solution. It was noticed that electrocatalytic activity of the Ag/MWCNT electrode decreased over time, and this correlated with the deposit of passivation products. Nevertheless, it was also noted that these products can be oxidized in positive potential, which proves that this catalyst can be regenerated.
The issue of catalyst stability was raised also in the case of -SO3H groups of p-sulfobenzenediazonium salt, which were used as a Bronsted acidic catalyst for benzimidazole synthesis [41]. A so-formed catalyst was recovered from the reaction mixture by a simple filtration, washed, and then dried. Subsequently, the catalyst was reused in a new reaction with the same parameters. The results established that the catalyst retains its stability for five full cycles of reaction without decay of activity. Powder diffraction XRD (PXRD), FT-IR, XPS, and HRTEM analysis were used to examine the changes in morphology of the used catalyst. Both PXRD and FT-IR did not show changes between the fresh and used catalyst. TEM images did not show any changes in the microstructure and morphology of surface after five reaction cycles. Moreover, XPS analysis revealed that the chemical composition of the catalyst was the same for the used and fresh one.
Gold NPs modified with 4-carboxyphenyl diazonium salt were synthesized to form a catalyst for the reduction of 4-nitrophenol pollutants [75]. The stability of Au-C6H6-COOH NPs was thoroughly examined in the solutions of different pH and under different temperatures. NPs were submerged for a one day in different buffer solutions (pH range from 1 to 14) and subsequently were tested by UV-Vis spectrophotometry. In pHs higher than 4, UV-Vis spectra were quite similar, but in pHs lower than 4 there was a red-shift and a decrease in the absorbance caused by the formation of larger NPs owing to the decrease in electrostatic forces, as more carboxylic groups were protonated in acidic conditions. Nevertheless, even at pH 1, a characteristic peak at 542 nm was observed, suggesting that diazonium-modified NPs show good environmental stability. The stability of synthesized particles was examined in different temperatures as well (20, 30, 60, 90 °C) by collecting UV-Vis spectra. With increasing temperature to 60 °C, absorbance slightly decreased, however without major changes. However, at a temperature of 90 °C, the absorbance values clearly decreased with a well-observed red shift. Despite this, it was concluded that synthesized NPs show high stability of the gold-organic shell, related to the LSPR peak at 542 nm. In the same study, the activity of catalysts was examined in subsequent cycles of reaction. UV-Vis spectra were shifted to red wave and decreased in intensity at the LSPR band. Moreover, TEM images showed an increase in aggregation of NPs with subsequent cycles, associated with a decrease in catalyst activity.
The diazonium-based catalysts described in this section have been summarized in Table 1.

7. Conclusions

Diazonium-based catalysts are widely used in the fields of electrocatalysis and biosensing. Although applications in common chemical reactions are also possible, they are less frequently used. In this paper, we reviewed the major applications of diazonium-based catalysts, described various routes of formation, and assessed their stability. As proven, diazonium-based catalysts are more stable compared to catalysts adsorbed to the surface without its modification owing to the strong bonds created between catalyst and the post-diazonium layer. The stability of diazonium-based catalysts is strongly associated with the surface on which a diazonium layer is grafted, as in some reports high stability was achieved for many days, while in others the stability decreased abruptly. To conclude, the use of diazonium salts seems to be a promising approach in catalyst formation, if more research efforts can focus on the assessment of their stability and long-term catalytic performance.

Author Contributions

S.S.: Conceptualization, Writing—original draft. K.K.: Conceptualization, Funding acquisition, Writing—review & editing. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Science Centre, Poland [OPUS 2019/35/B/ST5/00995] and Silesian University of Technology [04/040/RGJ23/0240].

Data Availability Statement

No new data were created or analyzed in this study. Data sharing is not applicable to this article.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Sunol, A.K.; Sunol, S.G.; Cogswell, K.; Rooney, D.; Jacquemin, J.; García-álvarez, J.; Villanueva-Bermejo, D.; Fornari, T. Substitution of solvents by safer products. In Handbook of Solvents, Volume 2: Use, Health, and Environment; Elsevier: Amsterdam, The Netherlands, 2019; pp. 1455–1634. [Google Scholar] [CrossRef]
  2. Fadhel, A.Z.; Pollet, P.; Liotta, C.L.; Eckert, C.A. Combining the Benefits of Homogeneous and Heterogeneous Catalysis with Tunable Solvents and Nearcritical Water. Molecules 2010, 15, 8400. [Google Scholar] [CrossRef]
  3. de Vos, D.E.; Sels, B.F.; Jacobs, P.A. Immobilization of Homogeneous Oxidation Catalysts. Adv. Catal. 2001, 46, 1–87. [Google Scholar] [CrossRef]
  4. Vankelecom, I. Catalyst Immobilization in Membranes. In Encyclopedia of Membranes; Springer: Berlin/Heidelberg, Germany, 2016; pp. 315–316. [Google Scholar] [CrossRef]
  5. Stasiak, M.; Röben, C.; Rosenberger, N.; Schleth, F.; Studer, A.; Greiner, A.; Wendorff, J.H. Design of Polymer Nanofiber Systems for the Immobilization of Homogeneous Catalysts—Preparation and Leaching Studies. Polymer 2007, 48, 5208–5218. [Google Scholar] [CrossRef]
  6. Bélanger, D.; Pinson, J. Electrografting: A Powerful Method for Surface Modification. Chem. Soc. Rev. 2011, 40, 3995–4048. [Google Scholar] [CrossRef]
  7. Radi, A.E.; Muñoz-Berbel, X.; Cortina-Puig, M.; Marty, J.L. Novel Protocol for Covalent Immobilization of Horseradish Peroxidase on Gold Electrode Surface. Electroanalysis 2009, 21, 696–700. [Google Scholar] [CrossRef]
  8. Guo, D.J.; Li, H.L. Highly Dispersed Ag Nanoparticles on Functional MWNT Surfaces for Methanol Oxidation in Alkaline Solution. Carbon 2005, 43, 1259–1264. [Google Scholar] [CrossRef]
  9. Revenga-Parra, M.; Villa-Manso, A.M.; Briones, M.; Mateo-Martí, E.; Martínez-Periñán, E.; Lorenzo, E.; Pariente, F. Bioelectrocatalytic Platforms Based on Chemically Modified Nanodiamonds by Diazonium Salt Chemistry. Electrochim. Acta 2020, 357, 136876. [Google Scholar] [CrossRef]
  10. Hayat, A.; Sassolas, A.; Marty, J.L.; Radi, A.E. Highly Sensitive Ochratoxin A Impedimetric Aptasensor Based on the Immobilization of Azido-Aptamer onto Electrografted Binary Film via Click Chemistry. Talanta 2013, 103, 14–19. [Google Scholar] [CrossRef]
  11. Alonso-Lomillo, M.A.; Rüdiger, O.; Maroto-Valiente, A.; Velez, M.; Rodríguez-Ramos, I.; Muñoz, F.J.; Fernández, V.M.; De Lacey, A.L. Hydrogenase-Coated Carbon Nanotubes for Efficient H2 Oxidation. Nano Lett. 2007, 7, 1603–1608. [Google Scholar] [CrossRef]
  12. Marwan, J.; Addou, T.; Bélanger, D. Functionalization of Glassy Carbon Electrodes with Metal-Based Species. Chem. Mater. 2005, 17, 2395–2403. [Google Scholar] [CrossRef]
  13. Belbekhouche, S.; Kebe, S.I.; Mahouche-Chergui, S.; Guerrouache, M.; Carbonnier, B.; Jaziri, M.; Chehimi, M.M. Aryl Diazonium-Modified Olive Waste: A Low Cost Support for the Immobilization of Nanocatalysts. Colloids Surf. A Physicochem. Eng. Asp. 2017, 529, 541–549. [Google Scholar] [CrossRef]
  14. Mirkhalaf, F.; Graves, J.E. Nanostructured Electrocatalysts Immobilised on Electrode Surfaces and Organic Film Templates. Chem. Pap. 2012, 66, 472–483. [Google Scholar] [CrossRef]
  15. Mousli, F.; Snoussi, Y.; Chehimi, M.M.; Wojcieszak, R. On the Use of Diazonium Salts in the Design of Catalytic Hybrid Materials and Coatings. In Aryl Diazonium Salts and Related Compounds: Surface Chemistry and Applications; Springer International Publishing: Cham, Switzerland, 2022; pp. 287–308. [Google Scholar] [CrossRef]
  16. Mo, F.; Dong, G.; Zhang, Y.; Wang, J. Recent Applications of Arene Diazonium Salts in Organic Synthesis. Org. Biomol. Chem. 2013, 11, 1582–1593. [Google Scholar] [CrossRef]
  17. Yates, E.; Yates, A. Johann Peter Griess FRS (1829–88): Victorian Brewer and Synthetic Dye Chemist. Notes Rec. R. Soc. Lond. 2016, 70, 65. [Google Scholar] [CrossRef]
  18. Li, X.; Ye, X.; Wei, C.; Shan, C.; Wojtas, L.; Wang, Q.; Shi, X. Diazo Activation with Diazonium Salts: Synthesis of Indazole and 1,2,4-Triazole. Org. Lett. 2020, 22, 4151–4155. [Google Scholar] [CrossRef]
  19. Mahouche-Chergui, S.; Gam-Derouich, S.; Mangeney, C.; Chehimi, M.M. Aryl Diazonium Salts: A New Class of Coupling Agents for Bonding Polymers, Biomacromolecules and Nanoparticles to Surfaces. Chem. Soc. Rev. 2011, 40, 4143–4166. [Google Scholar] [CrossRef]
  20. Hetemi, D.; Noël, V.; Pinson, J. Grafting of Diazonium Salts on Surfaces: Application to Biosensors. Biosensors 2020, 10, 4. [Google Scholar] [CrossRef]
  21. Noël, J.M.; Sjöberg, B.; Marsac, R.; Zigah, D.; Bergamini, J.F.; Wang, A.; Rigaut, S.; Hapiot, P.; Lagrost, C. Flexible Strategy for Immobilizing Redox-Active Compounds Using in Situ Generation of Diazonium Salts. Investigations of the Blocking and Catalytic Properties of the Layers. Langmuir 2009, 25, 12742–12749. [Google Scholar] [CrossRef] [PubMed]
  22. Vaz-Dominguez, C.; Campuzano, S.; Rüdiger, O.; Pita, M.; Gorbacheva, M.; Shleev, S.; Fernandez, V.M.; de Lacey, A.L. Laccase Electrode for Direct Electrocatalytic Reduction of O2 to H2O with High-Operational Stability and Resistance to Chloride Inhibition. Biosens. Bioelectron. 2008, 24, 531–537. [Google Scholar] [CrossRef]
  23. Le Goff, A.; Artero, V.; Jousselme, B.; Tran, P.D.; Guillet, N.; Métayé, R.; Fihri, A.; Palacin, S.; Fontecave, M. From Hydrogenases to Noble Metal-Free Catalytic Nanomaterials for H2 Production and Uptake. Science 2009, 326, 1384–1387. [Google Scholar] [CrossRef]
  24. Harper, J.C.; Polsky, R.; Dirk, S.M.; Wheeler, D.R.; Brozik, S.M. Electroaddressable Selective Functionalization of Electrode Arrays: Catalytic NADH Detection Using Aryl Diazonium Modified Gold Electrodes. Electroanalysis 2007, 19, 1268–1274. [Google Scholar] [CrossRef]
  25. Bourdillon, C.; Delamar, M.; Demaille, C.; Hitmi, R.; Moiroux, J.; Pinson, J. Immobilization of Glucose Oxidase on a Carbon Surface Derivatized by Electrochemical Reduction of Diazonium Salts. J. Electroanal. Chem. 1992, 336, 113–123. [Google Scholar] [CrossRef]
  26. Radi, A.E.; Lates, V.; Marty, J.L. Mediatorless Hydrogen Peroxide Biosensor Based on Horseradish Peroxidase Immobilized on 4-Carboxyphenyl Film Electrografted on Gold Electrode. Electroanalysis 2008, 20, 2557–2562. [Google Scholar] [CrossRef]
  27. Marshall, N.; Locklin, J. Reductive Electrografting of Benzene (p-Bisdiazonium Hexafluorophosphate): A Simple and Effective Protocol for Creating Diazonium-Functionalized Thin Films. Langmuir 2011, 27, 13367–13373. [Google Scholar] [CrossRef] [PubMed]
  28. Press Release: The Nobel Prize in Chemistry 2022. Available online: https://www.nobelprize.org/prizes/chemistry/2022/press-release/ (accessed on 26 October 2022).
  29. Ran, Q.; Peng, R.; Liang, C.; Ye, S.; Xian, Y.; Zhang, W.; Jin, L. Covalent Immobilization of Horseradish Peroxidase via Click Chemistry and Its Direct Electrochemistry. Talanta 2011, 83, 1381–1385. [Google Scholar] [CrossRef]
  30. Zhang, L.; Vilà, N.; Klein, T.; Kohring, G.W.; Mazurenko, I.; Walcarius, A.; Etienne, M. Immobilization of Cysteine-Tagged Proteins on Electrode Surfaces by Thiol-Ene Click Chemistry. ACS Appl. Mater. Interfaces 2016, 8, 17591–17598. [Google Scholar] [CrossRef]
  31. Zhang, L.; Vilà, N.; Walcarius, A.; Etienne, M. Molecular and Biological Catalysts Coimmobilization on Electrode by Combining Diazonium Electrografting and Sequential Click Chemistry. ChemElectroChem 2018, 5, 2208–2217. [Google Scholar] [CrossRef]
  32. Bensghaïer, A.; Bhullar, V.; Kaur, N.; Lo, M.; Bdiri, M.; Mahajan, A.; Chehimi, M.M. “Painted CNT”@Au Nanoparticles: A Nanohybrid Electrocatalyst of Direct Methanol Oxidation. Emergent Mater. 2021, 4, 515–524. [Google Scholar] [CrossRef]
  33. Aghajani, A.; Santoni, M.P.; Mirzaei, P.; Mohamed, A.A.; Chehimi, M.M.; Jouini, M. Tuning Arylation of Gold Nanoparticles for the Electrocatalyzed Oxidation of Ethanol. Appl. Organomet. Chem. 2022, 36, e6835. [Google Scholar] [CrossRef]
  34. Ait-Touchente, Z.; Falah, S.; Scavetta, E.; Chehimi, M.M.; Touzani, R.; Tonelli, D.; Taleb, A. Different Electrochemical Sensor Designs Based on Diazonium Salts and Gold Nanoparticles for Pico Molar Detection of Metals. Molecules 2020, 25, 3903. [Google Scholar] [CrossRef]
  35. Yang, H.; Li, S.; Shen, S.; Jin, Z.; Jin, J.; Ma, J. Unraveling the Cooperative Synergy of Palladium/Tin Oxide/Aniline-Functionalized Carbon Nanotubes Enabled by Layer-by-Layer Synthetic Strategy for Ethanol Electrooxidation. ACS Sustain. Chem. Eng. 2019, 7, 10008–10015. [Google Scholar] [CrossRef]
  36. Mirzaei, P.; Bastide, S.; Aghajani, A.; Bourgon, J.; Leroy, É.; Zhang, J.; Snoussi, Y.; Bensghaier, A.; Hamouma, O.; Chehimi, M.M.; et al. Bimetallic Cu-Rh Nanoparticles on Diazonium-Modified Carbon Powders for the Electrocatalytic Reduction of Nitrates. Langmuir 2019, 35, 14428–14436. [Google Scholar] [CrossRef]
  37. Bollella, P.; Hibino, Y.; Kano, K.; Gorton, L.; Antiochia, R. Enhanced Direct Electron Transfer of Fructose Dehydrogenase Rationally Immobilized on a 2-Aminoanthracene Diazonium Cation Grafted Single-Walled Carbon Nanotube Based Electrode. ACS Catal. 2018, 8, 10279–10289. [Google Scholar] [CrossRef]
  38. Park, Y.B.; You, E.; Pak, C.; Min, M. Preparation and Characterization of Durable Catalyst via Diazonium Reaction in PEMFC. Electrochim. Acta 2018, 284, 242–252. [Google Scholar] [CrossRef]
  39. Gross, A.J.; Tanaka, S.; Colomies, C.; Giroud, F.; Nishina, Y.; Cosnier, S.; Tsujimura, S.; Holzinger, M. Diazonium Electrografting vs. Physical Adsorption of Azure A at Carbon Nanotubes for Mediated Glucose Oxidation with FAD-GDH. ChemElectroChem 2020, 7, 4543–4549. [Google Scholar] [CrossRef]
  40. Revenga-Parra, M.; Gómez-Anquela, C.; García-Mendiola, T.; Gonzalez, E.; Pariente, F.; Lorenzo, E. Grafted Azure A Modified Electrodes as Disposable β-Nicotinamide Adenine Dinucleotide Sensors. Anal. Chim. Acta 2012, 747, 84–91. [Google Scholar] [CrossRef] [PubMed]
  41. Karthik, M.; Suresh, P. Brønsted Acidic Reduced Graphene Oxide as a Sustainable Carbocatalyst: A Selective Method for the Synthesis of C-2-Substituted Benzimidazole. New J. Chem. 2018, 42, 17931–17938. [Google Scholar] [CrossRef]
  42. Firth, J.D.; Fairlamb, I.J.S. A Need for Caution in the Preparation and Application of Synthetically Versatile Aryl Diazonium Tetrafluoroborate Salts. Org. Lett. 2020, 22, 7057–7059. [Google Scholar] [CrossRef]
  43. Nasri, Z.; Shams, E.; Ahmadi, M. Direct Modification of a Glassy Carbon Electrode with Toluidine Blue Diazonium Salt: Application to NADH Determination and Biosensing of Ethanol. Electroanalysis 2013, 25, 1917–1925. [Google Scholar] [CrossRef]
  44. Yang, X.; Hall, S.B.; Tan, S.N. Electrochemical Reduction of a Conjugated Cinnamic Acid Diazonium Salt as an Immobilization Matrix for Glucose Biosensor. Electroanalysis 2003, 15, 885–891. [Google Scholar] [CrossRef]
  45. DeKrafft, K.E.; Wang, C.; Xie, Z.; Su, X.; Hinds, B.J.; Lin, W. Electrochemical Water Oxidation with Carbon-Grafted Iridium Complexes. ACS Appl. Mater. Interfaces 2012, 4, 608–613. [Google Scholar] [CrossRef] [PubMed]
  46. Cesbron, M.; Dabos-Seignon, S.; Gautier, C.; Breton, T. Enhanced Electrocatalytic Activity on TEMPO Mixed Film Grafted by Diazonium Reduction. Electrochim. Acta 2020, 345, 136190. [Google Scholar] [CrossRef]
  47. Kudas, Z.; Atmaca, U.; Saruhan, T.; Celik, M.; Ekinci, D. Electrocatalytic Reduction of Oxygen at Glassy Carbon Electrodes Coated with Diazonium-Derived Porphyrin/Metalloporphyrin Films. Electroanalysis 2020, 32, 1379–1390. [Google Scholar] [CrossRef]
  48. Bartholomew, C.H. Mechanisms of Catalyst Deactivation. Appl. Catal. A Gen. 2001, 212, 17–60. [Google Scholar] [CrossRef]
  49. Anariba, F.; DuVall, S.H.; McCreery, R.L. Mono- and Multilayer Formation by Diazonium Reduction on Carbon Surfaces Monitored with Atomic Force Microscopy “Scratching”. Anal. Chem. 2003, 75, 3837–3844. [Google Scholar] [CrossRef]
  50. Hinge, M.; Gonçalves, E.S.; Pedersen, S.U.; Daasbjerg, K. On the Electrografting of Stainless Steel from Para-Substituted Aryldiazonium Salts and the Thermal Stability of the Grafted Layer. Surf. Coat. Technol. 2010, 205, 820–827. [Google Scholar] [CrossRef]
  51. Toupin, M.; Bélanger, D. Thermal Stability Study of Aryl Modified Carbon Black by in Situ Generated Diazonium Salt. J. Phys. Chem. C 2007, 111, 5394–5401. [Google Scholar] [CrossRef]
  52. Civit, L.; Fragoso, A.; O’Sullivan, C.K. Thermal Stability of Diazonium Derived and Thiol-Derived Layers on Gold for Application in Genosensors. Electrochem. Commun. 2010, 12, 1045–1048. [Google Scholar] [CrossRef]
  53. Mahesh, S.; Tang, K.C.; Raj, M. Amide Bond Activation of Biological Molecules. Molecules 2018, 23, 2615. [Google Scholar] [CrossRef]
  54. Li, G.; Ma, S.; Szostak, M. Amide Bond Activation: The Power of Resonance. Trends Chem. 2020, 2, 914–928. [Google Scholar] [CrossRef]
  55. Huang, L.; Shi, Y.I.; Chen, L.; Jin, X.; Liu, R.; Winnik, M.A.; Mitchell, D. Thermal Decomposition of Amide and Imide Derivatives of Maleated Polyethylene. J. Polym. Sci. Part A Polym. Chem. 2000, 38, 730–740. [Google Scholar] [CrossRef]
  56. Çanakçı, D. Thermal Stability, Degradation Kinetic and Structural Characterization of Novel Aromatic Amide Compounds. J. Mol. Struct. 2020, 1205, 127645. [Google Scholar] [CrossRef]
  57. Nguyen, T.L.; Saleh, M.A. Thermal Degradation of Azobenzene Dyes. Results Chem. 2020, 2, 100085. [Google Scholar] [CrossRef]
  58. Arabahmadi, R. Synthesis, Spectral Characterization, Thermal Analysis and Electrochemistry Properties of Ni(II) Complexes Derived from Azo Dyes. J. Therm. Anal. Calorim. 2016, 123, 595–605. [Google Scholar] [CrossRef]
  59. Guo, S.; Wan, W.; Chen, C.; Chen, W.H. Thermal Decomposition Kinetic Evaluation and Its Thermal Hazards Prediction of AIBN. J. Therm. Anal. Calorim. 2013, 113, 1169–1176. [Google Scholar] [CrossRef]
  60. Yamashina, M.; Sei, Y.; Akita, M.; Yoshizawa, M. Safe Storage of Radical Initiators within a Polyaromatic Nanocapsule. Nat. Commun. 2014, 5, 4662. [Google Scholar] [CrossRef]
  61. Kazem-Rostami, M. Factors Influencing the Thermal Stability of Azo and Bisazo Compounds. J. Therm. Anal. Calorim. 2020, 140, 613–623. [Google Scholar] [CrossRef]
  62. Zhou, A.; Wan, L.; Hu, Y.; Huang, F.; Du, L. Synthesis and Characterization of Novel Polytriazoleimides by CuAAC Step-Growth Polymerization. Polym. J. 2010, 42, 216–222. [Google Scholar] [CrossRef]
  63. Ma, Q.; Lu, H.; Qu, Y.; Liao, L.; Li, J.; Fan, G.; Chen, Y. A Facile Synthesis of 3,3’-Dinitro-5,5’-Diamino-Bi-1,2,4-Triazole and a Study of Its Thermal Decomposition. J. Energ. Mater. 2017, 2017, 281–295. [Google Scholar] [CrossRef]
  64. Sykam, K.; Donempudi, S.; Basak, P. 1,2,3-Triazole Rich Polymers for Flame Retardant Application: A Review. J. Appl. Polym. Sci. 2022, 139, e52771. [Google Scholar] [CrossRef]
  65. Griffete, N.; Herbst, F.; Pinson, J.; Ammar, S.; Mangeney, C. Preparation of Water-Soluble Magnetic Nanocrystals Using Aryl Diazonium Salt Chemistry. J. Am. Chem. Soc. 2011, 133, 1646–1649. [Google Scholar] [CrossRef] [PubMed]
  66. Fantoni, N.Z.; El-Sagheer, A.H.; Brown, T. A Hitchhiker’s Guide to Click-Chemistry with Nucleic Acids. Chem. Rev. 2021, 121, 7122–7154. [Google Scholar] [CrossRef] [PubMed]
  67. Hein, J.E.; Fokin, V.V. Copper-Catalyzed Azide–Alkyne Cycloaddition (CuAAC) and beyond: New Reactivity of Copper(i) Acetylides. Chem. Soc. Rev. 2010, 39, 1302. [Google Scholar] [CrossRef] [PubMed]
  68. Ji Ram, V.; Sethi, A.; Nath, M.; Pratap, R. Five-Membered Heterocycles. In The Chemistry of Heterocycles; Elsevier: Amsterdam, The Netherlands, 2019; pp. 149–478. [Google Scholar] [CrossRef]
  69. O’Connor, C. Acidic and Basic Amide Hydrolysis. Q. Rev. Chem. Soc. 1970, 24, 553–564. [Google Scholar] [CrossRef]
  70. Broqvist, P.; Molina, L.M.; Grönbeck, H.; Hammer, B. Promoting and Poisoning Effects of Na and Cl Coadsorption on CO Oxidation over MgO-Supported Au Nanoparticles. J. Catal. 2004, 227, 217–226. [Google Scholar] [CrossRef]
  71. Shekhar, M.; Wang, J.; Lee, W.S.; Cem Akatay, M.; Stach, E.A.; Nicholas Delgass, W.; Ribeiro, F.H. Counting Au Catalytic Sites for the Water-Gas Shift Reaction. J. Catal. 2012, 293, 94–102. [Google Scholar] [CrossRef]
  72. Ma, W.; Lv, X.; Han, D.; Li, F.; Dong, X.; Niu, L. Decoration of Electro-Reduced Graphene Oxide with Uniform Gold Nanoparticles Based on in Situ Diazonium Chemistry and Their Application in Methanol Oxidation. J. Electroanal. Chem. 2013, 690, 111–116. [Google Scholar] [CrossRef]
  73. Jlassi, K.; Zavahir, S.; Kasak, P.; Krupa, I.; Mohamed, A.A.; Chehimi, M.M. Emerging Clay-Aryl-Gold Nanohybrids for Efficient Electrocatalytic Proton Reduction. Energy Convers. Manag. 2018, 168, 170–177. [Google Scholar] [CrossRef]
  74. Bangle, R.; Sampaio, R.N.; Troian-Gautier, L.; Meyer, G.J. Surface Grafting of Ru(II) Diazonium-Based Sensitizers on Metal Oxides Enhances Alkaline Stability for Solar Energy Conversion. ACS Appl. Mater. Interfaces 2018, 10, 3121–3132. [Google Scholar] [CrossRef]
  75. Ahmad, A.A.L.; Panicker, S.; Chehimi, M.M.; Monge, M.; Lopez-De-Luzuriaga, J.M.; Mohamed, A.A.; Bruce, A.E.; Bruce, M.R.M. Synthesis of Water-Soluble Gold–Aryl Nanoparticles with Distinct Catalytic Performance in the Reduction of the Environmental Pollutant 4-Nitrophenol. Catal. Sci. Technol. 2019, 9, 6059–6071. [Google Scholar] [CrossRef]
Ijms 24 12575 g001
Figure 1. Scheme of electrografting process. Created with BioRender.com.
Figure 1. Scheme of electrografting process. Created with BioRender.com.
Ijms 24 12575 g001
Ijms 24 12575 g002

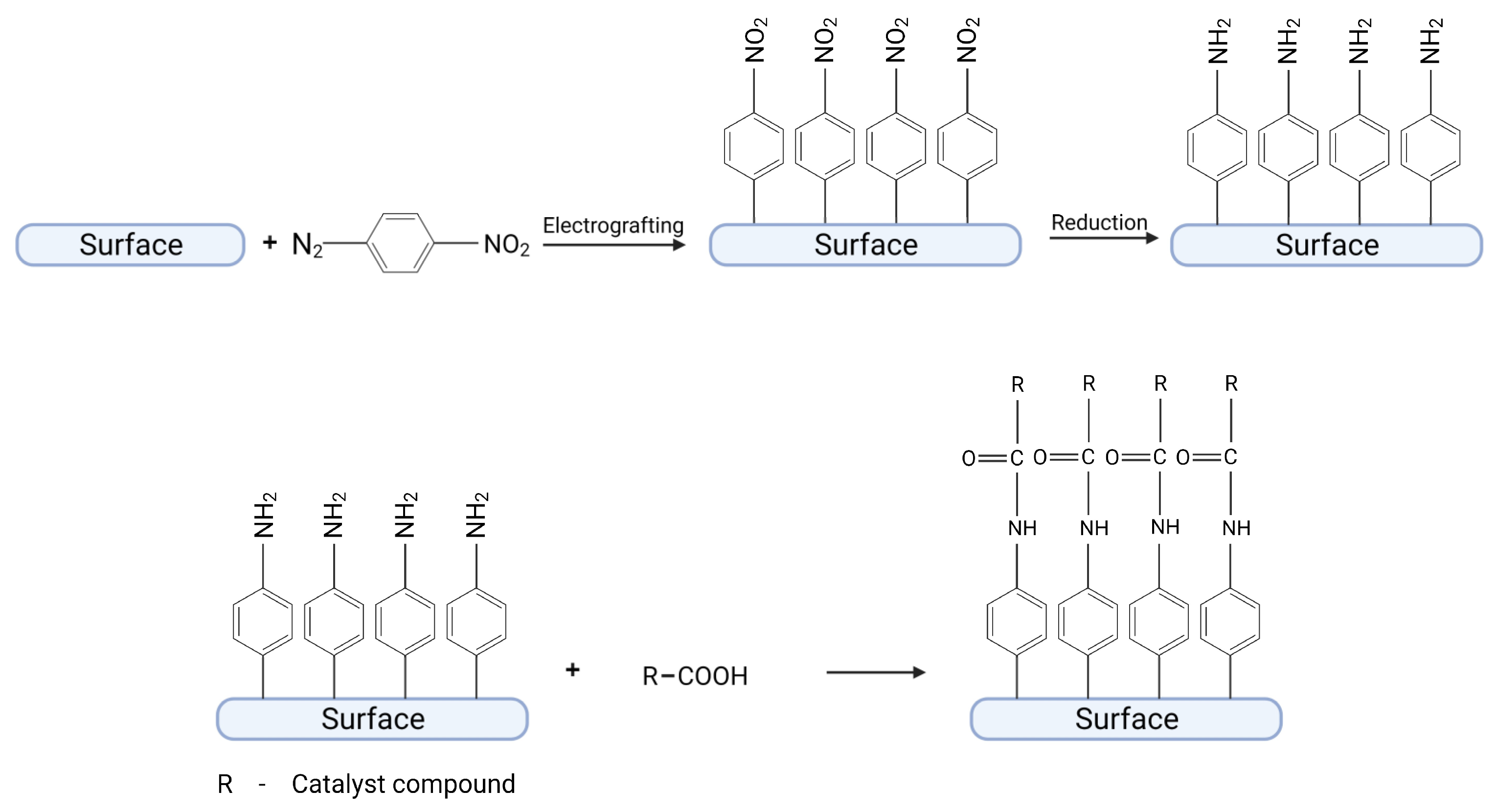

Figure 2. Immobilization of a catalyst compound by the formation of amido bonds between an organic layer and a catalyst. Created with BioRender.com.
Figure 2. Immobilization of a catalyst compound by the formation of amido bonds between an organic layer and a catalyst. Created with BioRender.com.
Ijms 24 12575 g002
Ijms 24 12575 g003

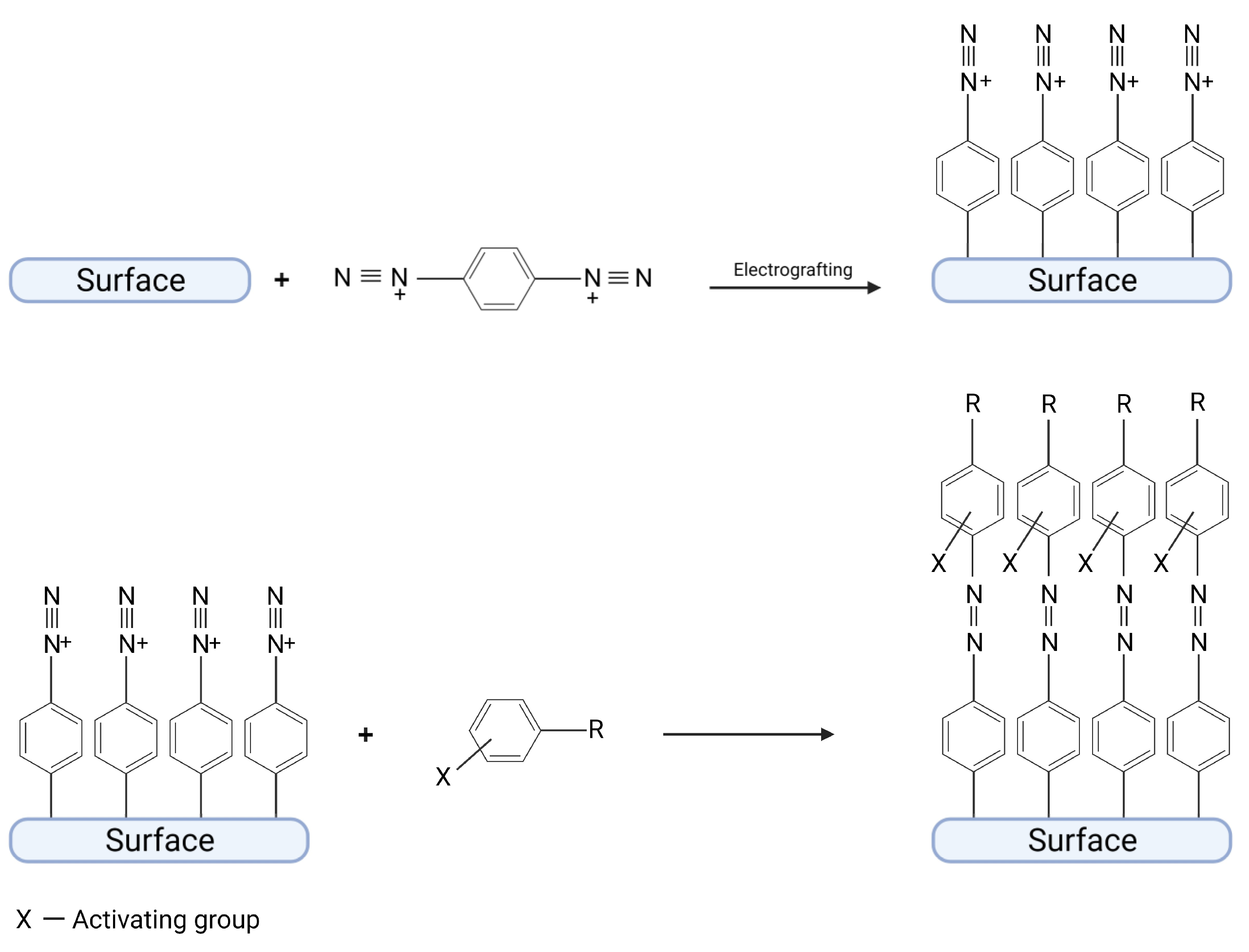

Figure 3. Immobilization of a catalyst compound by the formation of a diazo bond between an organic layer and a catalyst. Created with BioRender.com.
Figure 3. Immobilization of a catalyst compound by the formation of a diazo bond between an organic layer and a catalyst. Created with BioRender.com.
Ijms 24 12575 g003
Ijms 24 12575 g004
Figure 4. Two approaches of using diazonium salts in the production of catalysts based on metal nanoparticles (visualized as brown balls): (1) modification of nanoparticle surface by diazonium salts, e.g., with hydrophilic groups in para position increasing dispersibility of particle; (2) pre-modification of surface by diazonium salts decreasing nucleation of nanoparticles. Created with BioRender.com.
Figure 4. Two approaches of using diazonium salts in the production of catalysts based on metal nanoparticles (visualized as brown balls): (1) modification of nanoparticle surface by diazonium salts, e.g., with hydrophilic groups in para position increasing dispersibility of particle; (2) pre-modification of surface by diazonium salts decreasing nucleation of nanoparticles. Created with BioRender.com.
Ijms 24 12575 g004
Ijms 24 12575 g005
Figure 5. A formation of a diazonium-based catalyst from a catalyst compound. Created with BioRender.com.
Figure 5. A formation of a diazonium-based catalyst from a catalyst compound. Created with BioRender.com.
Ijms 24 12575 g005
Ijms 24 12575 g006

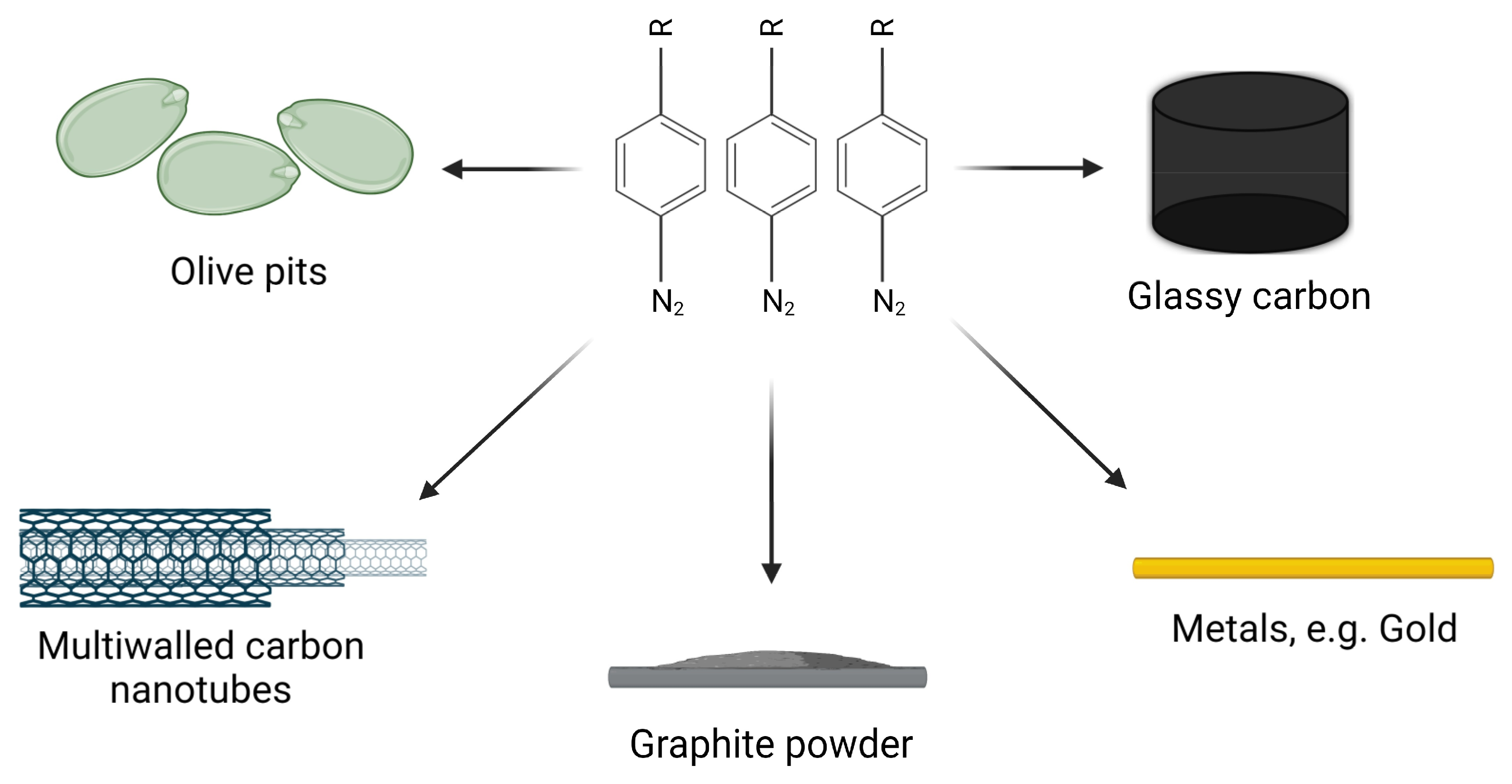

Figure 6. Examples of surfaces used for the formation of diazonium-based catalysts. Created with BioRender.com.
Figure 6. Examples of surfaces used for the formation of diazonium-based catalysts. Created with BioRender.com.
Ijms 24 12575 g006
Ijms 24 12575 g007

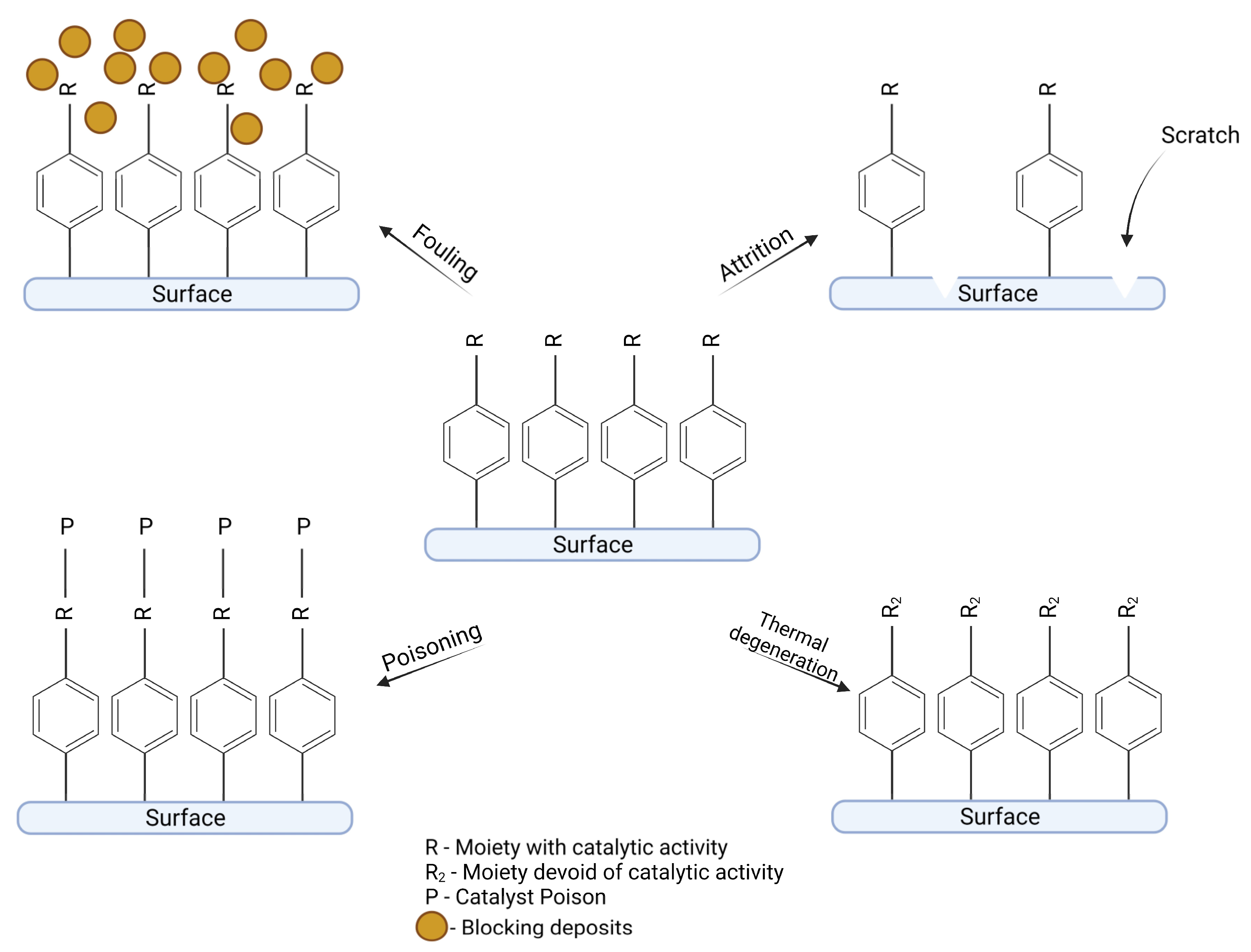

Figure 7. Mechanism of catalyst deactivation. Created with BioRender.com.
Figure 7. Mechanism of catalyst deactivation. Created with BioRender.com.
Ijms 24 12575 g007
Ijms 24 12575 g008

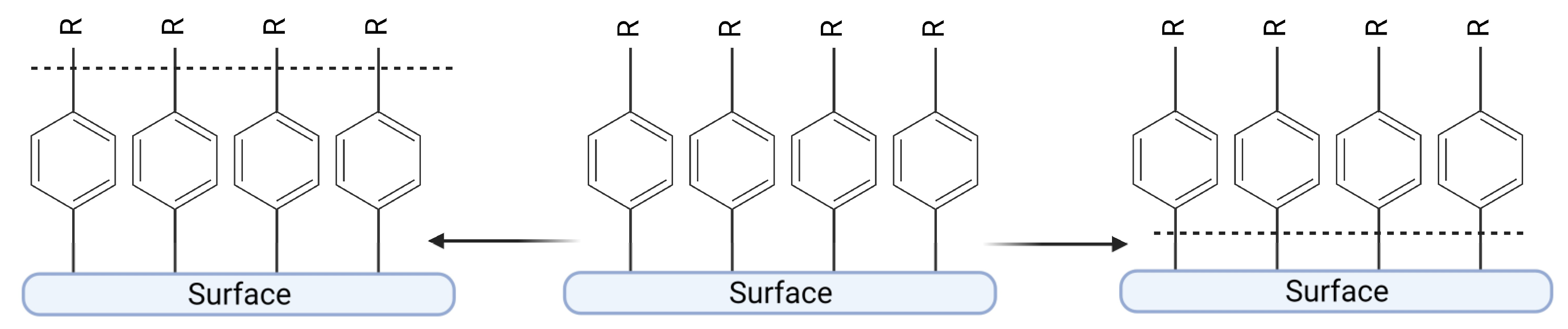

Figure 8. Scheme of possible degradation of catalysts anchored to a surface. Created with BioRender.com.
Figure 8. Scheme of possible degradation of catalysts anchored to a surface. Created with BioRender.com.
Ijms 24 12575 g008
Ijms 24 12575 g009

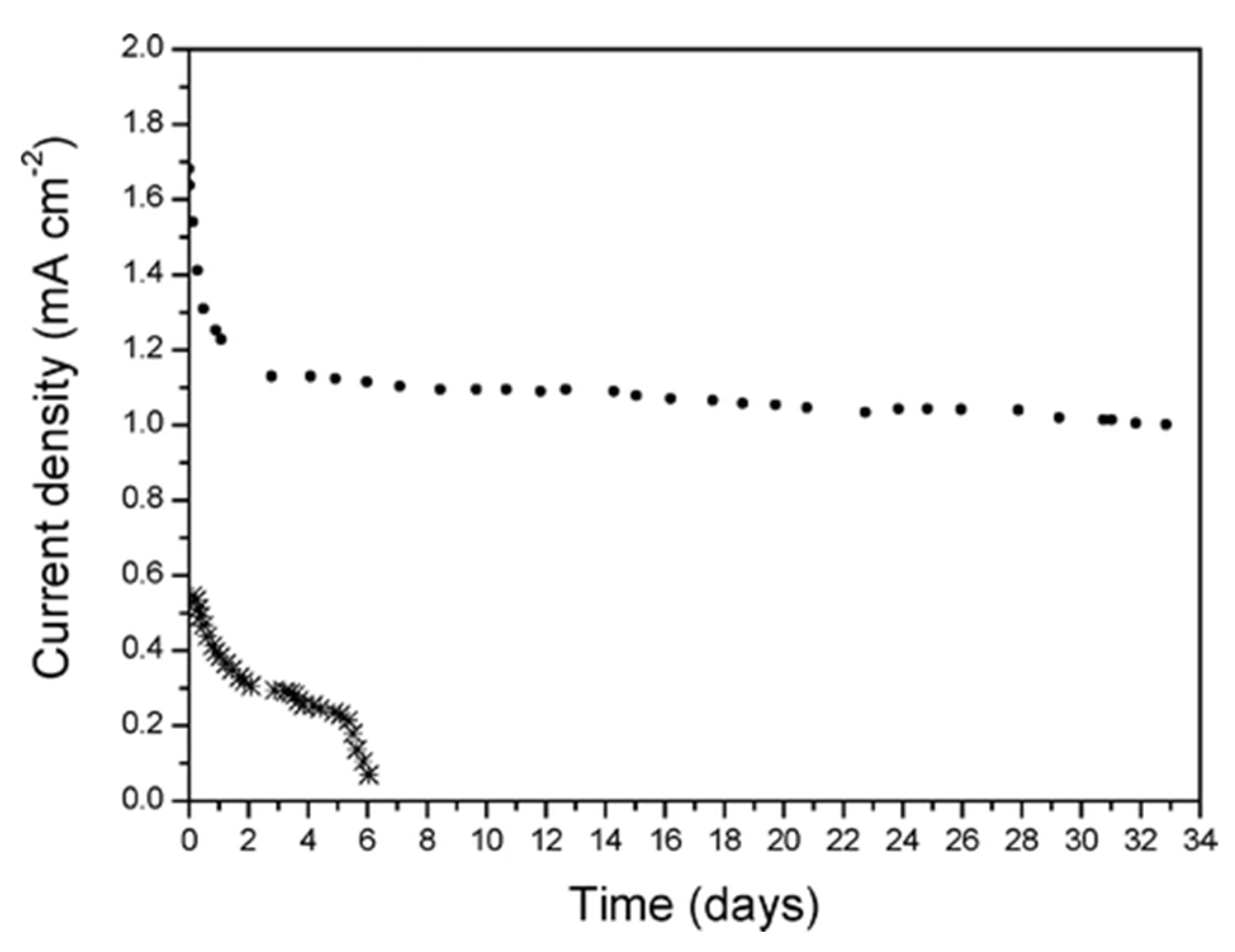

Figure 9. The comparison of catalyst with chemically immobilized hydrogenase (●) and adsorbed-only enzyme (×). Reprinted with permission from [11]. Copyright (2007) American Chemical Society.
Figure 9. The comparison of catalyst with chemically immobilized hydrogenase (●) and adsorbed-only enzyme (×). Reprinted with permission from [11]. Copyright (2007) American Chemical Society.
Ijms 24 12575 g009
Ijms 24 12575 g010

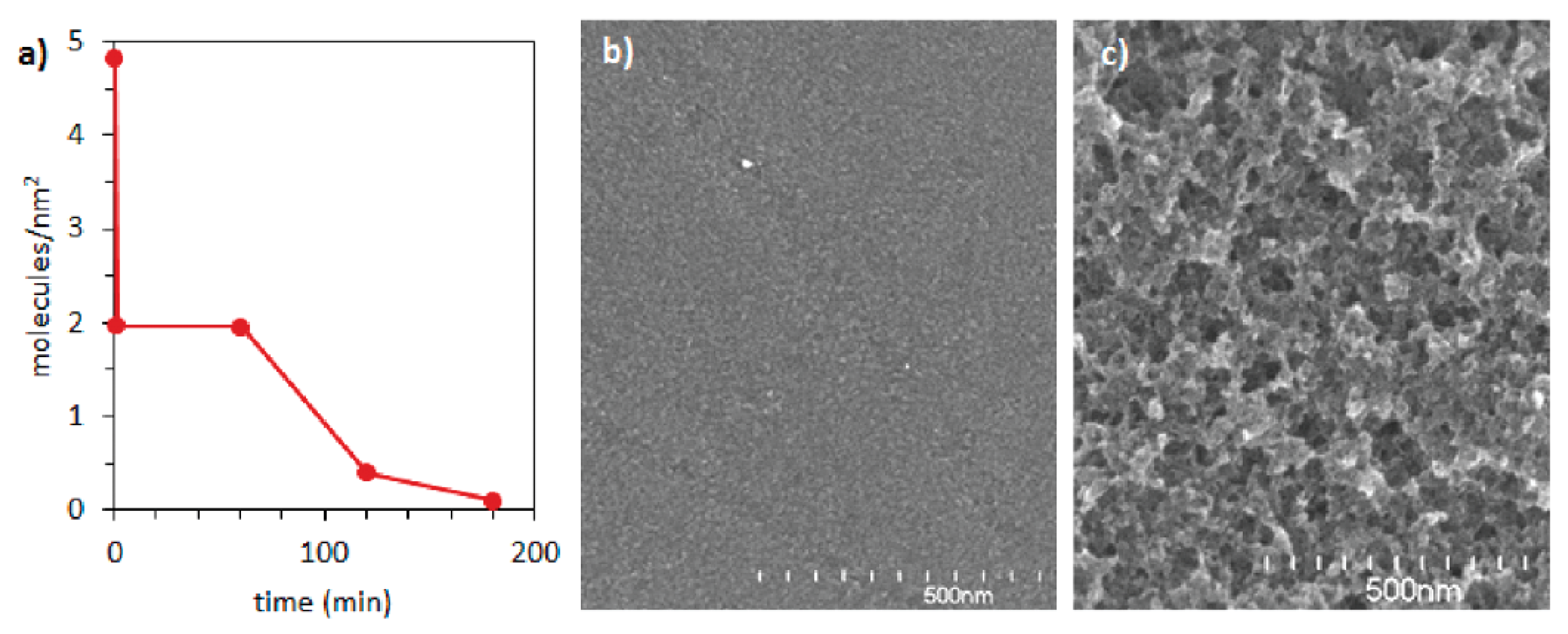

Figure 10. (a) Numbers of molecules per nm2 depending on the process time (experimental points connected by a red line to show changes in time). (b) SEM image of electrode after 40 min of process. (c) SEM image of electrode after 10 days of process. Reprinted with permission from [45]. Copyright (2012) American Chemical Society.
Figure 10. (a) Numbers of molecules per nm2 depending on the process time (experimental points connected by a red line to show changes in time). (b) SEM image of electrode after 40 min of process. (c) SEM image of electrode after 10 days of process. Reprinted with permission from [45]. Copyright (2012) American Chemical Society.
Ijms 24 12575 g010
Table 1. A summary of diazonium-based catalysts, their applications and advantages. MWCNT—multi-walled carbon nanotubes; GC—glassy carbon; NPs—nanoparticles; PQQ—pyrroloquinoline quinone; HPP—horseradish peroxidase; SWCNT—single-walled carbon nanotubes; FDH—fructose dehydrogenase.
Table 1. A summary of diazonium-based catalysts, their applications and advantages. MWCNT—multi-walled carbon nanotubes; GC—glassy carbon; NPs—nanoparticles; PQQ—pyrroloquinoline quinone; HPP—horseradish peroxidase; SWCNT—single-walled carbon nanotubes; FDH—fructose dehydrogenase.
CatalystsType of BondsApplicationAdvantagesRef.
Au/MWCNTs/4-aminophenyl/hydrogenaseamide bondshydrogen oxidationimpressive stability compared to adsorbed hydrogenase [11]
MWCNT/4-aminophenyl/AgNPsC-C bondsmethanol oxidation in alkaline solutionprevention of NPs nucleation [8]
GC/N,N-diethylaniline/CuC-C bondselectrochemical reduction of nitratemuch lower current response compared to catalysts without Cu[12]
GC/4-sulfonatephenyl/RuC-C bondselectrochemical oxidation of H2O2unmodified electrode showed no current response, when modified showed strong peak typical for H2O2 oxidation[12]
Au/4-aminophenyl/PQQamide bondselectrooxidation of NADHprotection against non-specific adsorption and mild chemical reactions[24]
Au/p-diazoniumphenyl/HPPazo-couplingelectrochemical reduction of H2O2electrocatalytic activity towards the reduction of H2O2 without any mediator; fast amperometric response to H2O2; acceptable sensitivity, good reproducibility and long-term stability[7]
Carbon electrode/4-((trimethylsilyl)ethynyl)benzene/p-nitrobenzene/aptamerClick chemistrydetection of ochratoxin A wide detection range (from 1.25 ng/L to 500 ng/L), detection limit of 0.25 ng/L[10]
GC/SWCNT/2-aminoantraceneFDHπ-π interactionsdetection of fructoseefficient direct electron transfer reaction between FDH and GC electrode[37]
Screen printed carbon electrodes/Azure AC-C bondsNADH oxidationhigh and stable electrocatalytic response[40]
Olive pits/-NH2/AuNP
Olive pits/-SH/AuNP
Olive pits/-COOH/AgNP		C-C bondsreduction of nitrophenolremarkable catalytic activity [13]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Smołka, S.; Krukiewicz, K. Catalyst Design through Grafting of Diazonium Salts—A Critical Review on Catalyst Stability. Int. J. Mol. Sci. 2023, 24, 12575. https://doi.org/10.3390/ijms241612575

AMA Style

Smołka S, Krukiewicz K. Catalyst Design through Grafting of Diazonium Salts—A Critical Review on Catalyst Stability. International Journal of Molecular Sciences. 2023; 24(16):12575. https://doi.org/10.3390/ijms241612575

Chicago/Turabian Style

Smołka, Szymon, and Katarzyna Krukiewicz. 2023. "Catalyst Design through Grafting of Diazonium Salts—A Critical Review on Catalyst Stability" International Journal of Molecular Sciences 24, no. 16: 12575. https://doi.org/10.3390/ijms241612575

APA Style

Smołka, S., & Krukiewicz, K. (2023). Catalyst Design through Grafting of Diazonium Salts—A Critical Review on Catalyst Stability. International Journal of Molecular Sciences, 24(16), 12575. https://doi.org/10.3390/ijms241612575

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
