Article

Genome-Wide Characterization and Comparative Genomic Analysis of the Serpin Gene Family in Microsporidian Nosema bombycis

by
Maoshuang Ran
1,2,
Yulian Shi
1,2,
Boning Li
1,2,
Heng Xiang
3,
Meilin Tao
1,
Xianzhi Meng
1,2,
Tian Li
1,2,
Chunfeng Li
1,2,
Jialing Bao
1,2,
Guoqing Pan
1,2,* and
Zeyang Zhou
1,2,3,*
1
State Key Laboratory of Silkworm Genome Biology, Southwest University, Chongqing 400715, China
2
Chongqing Key Laboratory of Microsporidia Infection and Control, Southwest University, Chongqing 400715, China
3
College of Animal Science and Technology, Southwest University, Chongqing 400715, China
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(1), 550; https://doi.org/10.3390/ijms24010550
Submission received: 10 November 2022 / Revised: 10 December 2022 / Accepted: 24 December 2022 / Published: 29 December 2022
(This article belongs to the Section Molecular Genetics and Genomics)
Browse Figures
Versions Notes

Abstract

:
Microsporidia are ubiquitous in the environment, infecting almost all invertebrates, vertebrates, and some protists. The microsporidian Nosema bombycis causes silkworms pébrine disease and leads to huge economic losses. Parasite secreted proteins play vital roles in pathogen–host interactions. Serine protease inhibitors (serpins), belonging to the largest and most broadly distributed protease inhibitor superfamily, are also found in Microsporidia. In this study, we characterized 19 serpins (NbSPNs) in N. bombycis; eight of them were predicted with signal peptides. All NbSPN proteins contain a typical conserved serpin (PF00079) domain. The comparative genomic analysis revealed that microsporidia serpins were only found in the genus Nosema. In addition to N. bombycis, a total of 34 serpins were identified in another six species of Nosema including N. antheraeae (11), N. granulosis (8), Nosema sp. YNPr (3), Nosema sp. PM-1 (3), N. apis (4), and N. ceranae (5). Serpin gene duplications in tandem obviously occurred in Nosema antheranae. Notably, the NbSPNs were phylogenetically clustered with serpins from the Chordopoxvirinae, the subfamily of Poxvirus. All 19 NbSPN transcripts were detected in the infected midgut and fat body, while 19 NbSPN genes except for NbSPN12 were found in the transcriptome of the infected silkworm embryonic cell line BmE-SWU1. Our work paves the way for further study of serpin function in microsporidia.

1. Introduction

Microsporidium is a phylum of fungal-related and obligate intracellular parasitic pathogens that can invade a variety of hosts ranging from protists to insects and mammals including humans [1,2]. The first microsporidium Nosema bombycis was identified in silkworms by Nägeli in 1857. Since then, approximately 1700 species of microsporidia have been described in 220 genera, and new species are being discovered each year [3,4]. Transmissible microsporidia spores are ubiquitous and can infect agriculturally relevant hosts (silkworm, bees, shrimp, fish, etc.), which cause substantial economic losses [5,6]. In addition, 17 species of microsporidia have been recognized as emerging human pathogens responsible for opportunistic infections in AIDS and other immunocompromised patients [4,7]. Although over 50 microsporidia genomes have been sequenced, their molecular pathogenesis remains poorly understood [8].
Serpins are an essential superfamily of endogenous protease inhibitors with key physiological and biological roles. More than 1500 serpins have been identified in all kingdoms including plants, animals, fungi, bacteria, and viruses [9,10,11]. Most serpins inhibit serine proteases, while some serpins can inhibit cysteine proteases and papain-like cysteine proteases [12,13,14]. Despite the poor amino acid sequence homology among family members, core regions of serpins share conserved secondary and tertiary structures, usually consisting of 8–9 alpha helices, three β-sheets (A, B, C sheet), and a reactive center loop (RCL) [10]. Serpins function as suicidal protease inhibitors with unusual inhibitory mechanisms [15]. They take advantage of the energy difference between two physiologically related conformational states: (I) In the natural state, solvent exposure, and flexible RCL from the center of the β-sheet of the protein, which is similar to the typical substrate of the target protease [16,17]. The cleavage of the RCL active site by proteases leads to a conformational change to the relaxed, lower-energy-cleaved state (II), in which the cleaved RCL is inserted into the A-sheet as an additional chain. The conformational transition from stress to relaxation dynamically captures the covalent serpin–protease complex and irreversibly inhibits aggressive proteases by twisting the active site residues [18,19,20]. Recently, the study of serpin function in infection and inflammation has been of particular interest, especially as more serpins from pathogens have been identified and characterized [21]. The presence of serpins indicates their important function in pathogen survival and host interaction [22,23,24,25,26,27].
Dozens of serpins have been annotated in the Nosema bombycis genome, and their functions are believed to be involved in the autoregulation of proteases and the host proteases [28]. In pébrine disease, the immune responses and hemolymph melanization of the silkworm were inhibited. Previous studies have identified the serpins NbSPN6, NbSPN9, NbSPN14, and NbSPN19 transcribed persistently over the infection process, while serpins NbSPN2 and NbSPN13 are highly expressed at later stages of infection [28,29]. Nosema bombycis serpins may suppress the proteolysis of polyphenol oxidase (PPO) and phenoloxidase (PO), ultimately suppressing melanin formation [29]. Subsequent studies have found that NbSPN6 is expressed in the hemolymph of infected silkworms and that the recombinantly expressed NbSPN6 could inhibit silkworm hemolymph melanization. It was verified that NbSPN6 inhibited the process of PPO to PO activation by interacting with prophenoloxidase-activating enzyme (PPAE), thereby hindering hemolymph melanization [30]. Taken together, the functions of N. bombycis serpins have been partially characterized, but the origin and evolution of the serpin family in microsporidia are still unclear. Moreover, a comparative genome analysis has yet not been performed.
The aim of this study was to analyze the physical and chemical properties, genome locations, gene structures, and evolutionary relationships of the serpin family in N. bombycis, and explore serpins from other Nosema species. Furthermore, we obtained the expression profiles of serpins in infected silkworm tissues and BmE-SWU1 cells. Our work will lay the groundwork for future research into the functions of serpin genes in host–microsporidia interactions.

2. Results

2.1. Genome-Wide Identification of Serpin Gene Family Members

Nineteen serpin family genes were identified in the N. bombycis genome. These genes were named NbSPN1–19 in the order of scaffold size. A detailed list is presented in Table 1 and Table S2. The theoretical isoelectric points (pIs) of NbSPNs ranged from 4.45 (NbSPN15) to 9.32 (NbSPN19). The lengths of the serpin genes ranged from 330 bp to 1218 bp, while the polypeptide sequences of serpins ranged from 109 to 405 amino acids, and the molecular weights ranged from 12.98 kDa (NbSPN12) to 47.96 kDa (NbSPN2). The domain analysis demonstrated that all NbSPNs possessed one serpin domain, although some of their amino acid sequence lengths were significantly shorter than the common serpin. The results of the signal peptide analysis indicate that eight of the 19 NbSPNs contained an N-terminal signal peptide, suggesting that they are likely to be secreted into the host cell.

2.2. Multiple Sequence Alignment and Conserved Motifs of NbSPN Proteins

Multiple sequence alignments were performed to identify the conserved motifs of the NbSPN. The results showed a low degree of sequence similarity, but all of the proteins were found to have a serpin superfamily domain (Figure 1). Serpins can generally be recognized by a consensus pattern in their hinge regions: P17: E, P16: E/K/R, P15: G, P14: T/S, P12-P9 (A/G/S) [9,31]. These residues permit the efficient and rapid insertion of RCL into the A β-sheet. Additionally, the presence of proline in the proximal RCL before the P2 residue disrupts the formation of a new β-strand, leading to the failure of RCL incorporation [32,33]. Based on the above criteria and the alignment of the RCL region, most NbSPNs are more likely to encode flexible hinge regions, few proline residues in the proximal RCL, and highly conserved residues in the breach and shutter regions, making them more plausible to function as proteinase inhibitors, except for NbSPN11 and NbSPN12, which lack the RCL region (Figure 2).
In total, five conserved motifs among the NbSPNs were predicted by MEME (Figure 3), of which motif 2 was present in all NbSPNs. Motif 1 was conserved in all NbSPNs except for NbSPN11 and NbSPN12. Motif 5, which may be responsible for interacting with different target proteases, showed a high variability among the NbSPN members. These conserved motifs contribute to the conservation of the tertiary structures and functions.

2.3. Phylogenetic Analysis of NbSPNs

The phylogenetic analysis revealed that the NbSPNs were mainly clustered into four clades. The phylogenetic tree shows that NbSPNs were relatively conserved in that all members contained the serpin domain. There were four, nine, and five members in Clades A, B, and C, respectively, eight of which had the predicted signal peptide, suggesting that these serpins could be secreted into the host cell. Clade D only had one member, NbSPN1, without the predicted signal peptide (Figure 4). Multiple sequence alignment, cluster analyses and the extremely high amino acid similarity showed duplications within the four pairs of NbSPN2-3 (Percent identity: 95.31 %), NbSPN6-10 (Percent identity: 93.92%), NbSPN4-13-18 (Percent identity: 89.49%, 89.74%, 85.38%), and NbSPN7-15 (Percent identity: 95.45%). To determine whether selective pressure acts on NbSPNs, the amino acid substitution rate between the 19 members (342 gene pairs) was calculated. The results showed that the amino acid substitution rate value ranged from 0.111 to 0.937, and the average was 0.444 (Table S3). The results showed that the synonymous substitution rate of all gene pairs was greater than the non-synonymous substitution rate (Ka/Ks < 1), suggesting that they were subjected to purifying selection and their functions were conservative.

2.4. Genome Distribution of NbSPNs

The positions of the NbSPNs in the N. bombycis genome were analyzed. The results indicated 19 NbSPNs distributed on 15 scaffolds (Figure 5). The NBO_18, NBO_19, NBO_34, and NBO_44 scaffolds had two serpin genes each. NbSPN2-3, NbSPN4-5, NbSPN6-7, and Nb11-12 were closely distributed on the scaffold, but not in tandem, and there was at least one gene between them.

2.5. Comparative Genome Analysis of the Serpin Genes in Microsporidia

We screened the genomic data of over 50 species of microsporidia in the NCBI database, MicrosporidiaDB database (https://microsporidiadb.org/micro/app/, accessed on 10 June 2022), and SilkPathDB—Silkworm Pathogen Database (https://silkpathdb.swu.edu.cn/, accessed on 10 June 2022). Currently, all 53 identified serpins have only been found in the genus Nosema, which mainly infect insects and crustaceans. In addition to the 19 serpins in N. bombycis, a total of 34 serpins have been identified in the six genomes of N. antheraeae (11), N. granulosis (8), Nosema sp. YNPr (3), Nosema sp. PM-1 (3), N. apis (4), and N. ceranae (5) (Table S4). Thirteen out of 34 serpins had predicted signal peptides. The sizes of these 34 serpins varied from 187 Aa to 568 Aa, the average amino acid number was 372 Aa. There were six serpins with less than 300 Aa. Two pairs of tandem duplications were observed in N. antheraeae. Three serpins, NOANT 006037, NOANT 006038, NOANT 006039, were distributed in tandem and shared 100% percent identity; two other serpins, NOANT 010029 and NOANT 010030, were also arranged in tandem, and these two serpins shared a 99.35% percent identity. To explore the evolutionary relationships of the serpin proteins in microsporidia, all 53 serpins from Nosema were selected to construct the phylogenetic tree (Figure 6). The tree shows that the Nosema serpins can be divided into seven clades. NbSPNs were mainly distributed in Clades I, II, III, and only NbSPN1 clustered in Clade IV. The serpins of N. antheraeae were distributed in Clades I, III, IV, and V. Notably, all eight serpins of N. granulosis were clustered together only in Clade IV, and the sequence percent identity among them varied from 24.22% to 85.04% All twelve serpins from N. apis, N. ceranae, and Nosema sp. YNPr gathered in Clades VI and VII. Interestingly, there was no signal peptide predicted in all of the serpins from these three species.

2.6. Phylogenetic Analysis to Determine the Evolution Position of the N. bombycis Serpins

To analyze the phylogeny of NbSPNs in all serpin superfamilies, we constructed a phylogenetic tree containing the serpin sequences of the animal, plant, bacteria, archaea, and virus from the NCBI database (Figure 7). The phylogenetic analysis showed that the NbSPNs clustered individually into one group and close to the branch of serpins from the Chordopoxvirinae, the subfamily of Poxvirus, which is mostly found in vertebrates. The phylogenetic tree showed that the evolution of NbSPNs was conservative and independent, and we do not yet have solid phylogenetic proof to conclude whether the origin of the NbSPN gene is horizontal gene transfer from viruses or its host.

2.7. Expression Profiles of NbSPNs in Infected BmE-SWU1 Cells

We analyzed the NbSPN expression at different time points between 0 and 96 h in the BmE-SWU1 (silkworm embryo) cell line after the infection of N. bombycis (Figure 8). The results showed that the NbSPN expression patterns were different. NbSPN1 is highly transcribed during infection and proliferation. After infection for 6 h, the transcription of NbSPN17, 6, and 9 began to increase continuously. Interestingly, NbSPN19 was highly transcribed at the early stage of infection (2 hpi) and was downregulated at the later stage. The remaining genes maintained relatively low expression levels during the infection. The NbSPN12 with the shortest sequence length was not recognized in the whole RNA-Seq data.

2.8. Expression Profiles of NbSPN Genes in Infected Silkworm Tissues

We investigated the transcriptional levels of the entire serpin family in the midgut and fat body of infected silkworm larvae using real-time fluorescence quantitative PCR. At least six infected silkworm midguts and fat bodies were randomly collected together as a sample pool at 1–6 days post-infection. Optical microscopy was used to detect mature spores in the silkworm’s midgut and fat body, confirming the successful infection of N. bombycis. Mature spores were observed in the midgut two days post-infection. As the days after infection increased, more mature spores in the midgut were observed. Quite a few mature spores were observed in the fat body four days post-infection (Figure S1).
In this study, real-time quantitative PCR analysis of NbSPN transcription patterns in the midgut of silkworms infected with N. bombycis was performed. The gene transcription in the infected midgut was mainly divided into two patterns (Figure 9). Most of the NbSPN gene transcription increased with the infection time, while the transcription characteristics of NbSPN1, 13, 5, 6, 9 were different. The high transcription of NbSPN1, 13 occurred at four days post-infection. NbSPN5, 6, 9 exhibited relatively high transcription in the early and middle stages of infection, but low in the late stage (Figure 9a). In the fat body infected by N. bombycis, the general expression pattern of NbSPNs reached a high level at 5 dpi or 6 dpi. Eleven NbSPNs (NbSPN10, 7, 18, 2, 3, 4, 15, 11, 17, 5, 12) shared a similar expression pattern where a higher level occurred at 6 dpi. The other seven NbSPNs (NbSPN14, 8, 19, 16, 13, 6, 9) achieved a high level at 5 dpi. Interestingly, the transcription of NbSPN1 was different to the others, which exhibited a high level at 2 dpi, but the lowest level at 6 dpi (Figure 9b). In general, most NbSPNs showed an increased expression level with infection time in the midgut and fat body; interestingly, compared with other NbSPNs, NbSPN1 had a fairly unique expression feature in both infected tissues, which suggests a different role during the process of infection.

3. Discussion

Serpins are a class of widely distributed superfamily of protease inhibitors found in virus, prokaryotes, and eukaryotes [32]. Here, we identified 53 serpins in the Nosema genus of microsporidia including N. bombycis, N. granulosis, N. antheraeae, Nosema sp. YNPr, Nosema sp. PM-1, N. apis, and N. ceranae. In microsporidia, N. bombycis had the biggest serpin family with 19 members, followed by N. antheraeae with 11 members, both Nosema sp. YNPr and Nosema sp. PM-1 had the smallest serpin family with only three members. Twenty-one out of 53 serpins had the predicted signal peptides. The typical serpins of microsporidia included five motifs. Microsporidia serpin genes underwent duplication in the evolution and resulted in gene expansion in some species of Nosema. In N. antheraeae serpins, the NOANT_006037,38,39 and NOANT_010028,29 genes were shown as tandem duplications, respectively. In N. bombycis, NbSPN2,3, NbSPN4,13,18, NbSPN6,10, and NbSPN7,15 shared a high amino acid sequence identity, respectively, which also suggested that gene duplication occurred. Phylogenetic analysis showed that serpin duplication events in N. bombycis and N. antheraeae may occur before species differentiation, while duplication of serpin genes in N. granulesis may occur after species differentiation because all eight serpins were clustered in Clade IV (Figure 6). Gene duplication and differentiation are considered as the driving force for genes to produce new functions [35,36]. These results suggest that the microsporidia serpin family facilitates species of Nosema to adapt to the complex parasitic environment of the host through gene duplication.
Microsporidian genome evolution is a highly dynamic process that has balanced constraint, reductive evolution, and genome expansion during adaptation to an extraordinarily successful obligate intracellular lifestyle [37,38,39]. In the analyses of gain and loss, expansion and contraction of the protein family during the evolution of microsporidian genomes, 62 protein families were gained and 38 families were expanded in N. ceranae, respectively. Among them, the serpin family of N. ceranae was gained and expanded to five members [37]. One of the main approaches to gain a protein family for species is horizontal gene transfer [40]. In microsporidia, the nucleotide transport proteins (NTT) acquired through horizontal gene transfer (HGT) have been proven [40]. In addition, HGT examples from the host to microsporidia also include multiple transposable elements, septin and purine nucleotide phosphorylase (PNPs) [41,42,43]. Although our current data are not sufficient to determine where, when, and how the serpin genes of microsporidia originated, one possibility is that the Nosema serpin family may have been gained through horizontal gene transfer from its host or coexisted in intracellular pathogens in the same host cell such as poxvirus. Notably, we found that the N. bombycis serpins are phylogenetically clustered with serpins from Chordopoxvirinae, the poxvirus of vertebrates. Poxviridae consists of Chordopoxvirinae and Entomopoxvirinae (EPV), where EPV can infect a variety of insects including Lepidoptera, Coleoptera, Orthotera, and Diptera [44]. Several serpins from Chordopoxvirinae have been identified to inhibit the host apoptosis and inflammation [25,26]. However, we have not gleaned serpin genes from the EPV, which share common insect hosts with parasites of Nosema. Novel clues of the origin of Nosema serpin might be present with more microsporidia and EPV genomes sequenced.
Twenty-one Nosema serpins with the predicted signal peptides were thought to be secreted. Secretory serpins or non-secretory serpins may have different spatial localization and their different roles in parasite proliferation and the pathogenesis of microsporidia. Previous studies have revealed that some of the secreted proteins such as N. bombycis hexokinase (NbHK) were believed to participate in interactions between the parasite and silkworm [45,46]. Eight NbSPNs were predicted with signal peptides, suggesting that they can be secreted into host cells and interact with the host target proteins. Previously, we verified that NbSPN6 could inhibit the hemolymph melanization process via binding to PPAE, a prophenoloxidase-activating enzyme of the silkworm. Transcription of the secreted NbSPNs was detected in the midgut and fat body of B. mori infected by N. bombycis, which suggests that the secreted serpins may be involved in regulating the host biological processes facilitating N. bombycis infection. In further studies, we will use subcellular localization and other approaches to systemically analyze the functions of these secreted NbSPNs.
The expression patterns of NbSPNs tend to be similar in the midgut and fat bodies of infected silkworms. Most NbSPNs are highly expressed in the later stages of infection. The expression pattern of NbSPNs in the infected cell lines was different to that of the infected silkworm tissues. Compared with other NbSPNs, NbSPN1 had a fairly different expression character in various infection scenes, at the same time, we noticed that NbSPN1 also shared a relative far distance with other NbSPNs in phylogeny. Notably, serpins are also able to perform non-inhibitory functions [11]. For example, heat shock protein 47 (HSP47) serves as a chaperone [47]. Thyroxine-binding globulin (TBG)1 and cortisol-binding globulin (CBG)2 all belong to the serpin superfamily and act as a hormone transporter [48]. Whether any serpins serve as non-inhibitory functions in microsporidia need further exploration in the future.

4. Materials and Methods

4.1. Silkworms and N. bombycis

The silkworm strain Dazao used in this study was provided by the State Key Laboratory of Silkworm Genome Biology, Southwest University, Chongqing, China. Nosema bombycis CQ1 was isolated from the State Key Laboratory of Silkworm Genome Biology and preserved at the China Veterinary Culture Collection Center (accession no. CVCCl02059).

4.2. Sequence Database Mining

The database for the N. bombycis genome used in this study contained a 6-fold coverage by the State Key Laboratory of Silkworm Genome Biology with 11,155 reads, 4479 predicted genes, and 1517 EST sequences [41]. Nucleotide and amino acid sequences of serpin homologs of humans, yeast, poxvirus, archaea, and other organisms were downloaded from the NCBI database (https://www.ncbi.nlm.nih.gov//genbank/), accessed on 20 October 2021. Other microsporidian genome data were obtained from Microsporidia DB (http://microsporidiadb.org/micro/, accessed on 10 June 2022.) [49] and the SilkPathDB-Silkworm Pathogen Database [50] (https://silkpathdb.swu.edu.cn/, accessed on 10 June 2022).
FASTA formats for all serpin-related gene sequences were downloaded from the GenBank database and compared to genomic databases for Nosema bombycis, Encephalitozoon cuniculi, Nosema locustae, Nosema apis, Nosema pernyi, and Nosema ceranae using BLASTP. An E-value <10−3 was used as the search threshold to identify the homologous serpin genes of N. bombycis and other microsporidia. Finally, a BLASTN search was performed on the EST database of N. bombycis using the nucleotide sequences of the serpin genes. The search threshold was set to an E-value <10−5, with identities >30% and a matching length exceeding 100 bp; the presence of the SERPIN domain indicated evidence of serpins.

4.3. Chromosomal Location and Gene Structure Analysis

The chromosomal locations of the NbSPN gene family members were extracted from the gff3 file of the N. bombycis genome annotation. A map of the chromosomal gene distribution was constructed using TBtools software (version 1.1047) [51]. The conserved amino acid sequences of the proteins were analyzed online using MEME software version 5.5.0 (http://MEME-suite.org, accessed on 28 June 2022); the number of motifs was set to five, and the other parameters were set to their default values. The motif structures were drawn using TBtools [51].

4.4. Multiple Alignments and Phylogenetic Analysis

The serpin amino acid sequences were retrieved from the N. bombycis genome database using ClustalX for BLASTP multiple sequence alignments; some of the typical serpins have already been reported in the literature. Human α-antitrypsin was used as a template sequence to analyze the sequence characteristics of the N. bombycis serpins. A phylogenetic tree was constructed using the neighbor-joining method in MEGA X, Poisson correction, complete deletion, and a bootstrap value of 1000. The resulting phylogenetic tree was further processed with the online tool iTOL (https://itol.embl.de/, accessed on 14 July 2021). We used the Simple Ka/Ks Calculator function of Tbtools software (version 1.1047) to calculate the base replacement rate of NbSPN gene pairs [51].

4.5. Oral Infection of Silkworms by N. bombycis Spores

The silkworms were reared at 25 °C and maintained at a suitable humidity of approximately 70% until the fourth molting for infection experiments. Newly developed spores were isolated from the infected silkworm pupae and purified using discontinuous Percoll gradient centrifugation (16,000 rpm, 40 min). Purified spores were rinsed twice with sterilized double-distilled water and stored with antibiotics (penicillin-streptomycin solution, 100×, Beyotime, China) at 4 °C. To rule out contamination by other agents, purified spores were added to the cell culture medium; if no contamination was found at 48 h post-infection, the purified spores were suitable for oral infection. One hundred fourth-instar molted silkworm larvae were placed in a Petri dish without food to maintain hunger before infection. The spores were washed with distilled water and then suspended at 109 spores/mL. One milliliter of spore suspension was applied evenly to the folium mori to feed the hungry silkworm. To maintain a long period of spore persistence in the midgut, larvae were reared for 8 h. The midgut and fat bodies of the larvae were collected at 1–6 day time points after infection.

4.6. Real-Time Quantitative PCR Analysis

RNA was extracted using TRIzol™Reagent (Invitrogen, Carlsbad, CA, USA) and purified with a Nucleo Spin H RNA Clean-Up Kit (MACHEREY-NAGEL, Duren, Germany). One microgram of RNA from each sample was reverse-transcribed into cDNA using the EvoScript Universal cDNA Master Kit (Roche, Basel, Switzerland). Quantitative primers for real-time quantitative PCR amplification were designed using Primer 5.0 and synthesized (Sangon Biotech (Chengdu, China) (Table S1). Real-time quantitative PCR was performed as follows: denaturation at 95 °C for 2 min, followed by 40 cycles of 95 °C for 10 s and 60 °C for 20 s (CFX96TM Real-Time System, Bio-Rad, Richmond, CA, USA) [52]. Genomic DNA was isolated from N. bombycis using TRIzol™ Reagent (Invitrogen, Carlsbad, CA, USA). The β-tubulin gene of N. bombycis (GenBankNo.EOB14994.2) was used to normalize the qPCR data in this study. The extracted genomic DNA was used as a template to amplify the N. bombycis and β-tubulin genes since the N. bombycis genome had almost no introns [30].

5. Conclusions

In this study, 19 members of the NbSPN gene family were characterized. A total of 34 serpins from another six species of the Nosema genus were gleaned from the microsporidia genomes sequenced. The phylogenetic analyses provide a possible hypothesis that serpins of the Nosema genus may be gained through horizontal gene transfer from the host or co-infected intracellular pathogens. The large members of the NbSPN family suggest that they have evolved to carry out different functions to support microsporidia adaptation to the intracellular parasitic life. Future endeavors should focus on the origin and the functions of serpins in microsporidia proliferation and interaction with the host.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms24010550/s1.

Author Contributions

G.P. and Z.Z. contributed to the conception and design of the study; M.R., Y.S. and B.L. contributed to the experimental analysis; M.R., H.X., M.T., T.L., C.L., X.M. and J.B. contributed to the data analysis; M.R. wrote the first draft of the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Natural Science Foundation of China (32272942, 31470250, 31472151) and Natural Science Foundation of Chongqing, China (cstc2019yszx-jcyjX0010, cstc2021jcyj-msxmX1003).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors would like to thank all of the authors who published the manuscripts included in this work.

Conflicts of Interest

The authors declare that they have no conflict of interest.

References

  1. Keeling, P. Five Questions about Microsporidia. PLoS Pathog. 2009, 5, e1000489. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Han, B.; Weiss, L.M. Microsporidia: Obligate Intracellular Pathogens Within the Fungal Kingdom. Microbiol. Spectr. 2017, 5, eLocator: 5.2.03. [Google Scholar] [CrossRef] [Green Version]
  3. Nageswara Rao, S.; Muthulakshmi, M.; Kanginakudru, S.; Nagaraju, J. Phylogenetic relationships of three new microsporidian isolates from the silkworm, Bombyx mori. J. Invertebr. Pathol. 2004, 86, 87–95. [Google Scholar] [CrossRef] [PubMed]
  4. Han, B.; Pan, G.; Weiss, L.M. Microsporidiosis in Humans. Clin. Microbiol. Rev. 2021, 34, e0001020. [Google Scholar] [CrossRef]
  5. Szumowski, S.C.; Troemel, E.R. Microsporidia-host interactions. Curr. Opin. Microbiol. 2015, 26, 10–16. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Higes, M.; Martín-Hernández, R.; Botías, C.; Bailón, E.G.; González-Porto, A.V.; Barrios, L.; Nozal, M.J.D.; Bernal, J.L.; Jiménez, J.J.; Palencia, P.G. How natural infection by Nosema ceranae causes honeybee colony collapse. Environ. Microbiol. 2010, 10, 2659–2669. [Google Scholar] [CrossRef]
  7. Li, W.; Feng, Y.; Santin, M. Host Specificity of Enterocytozoon bieneusi and Public Health Implications. Trends Parasitol. 2019, 35, 436–451. [Google Scholar] [CrossRef]
  8. Williams, B.A.; Williams, T.A.; Trew, J. Comparative Genomics of Microsporidia; Springer: Cham, Switzerland, 2022; Chapter 2; p. 44. [Google Scholar]
  9. Silverman, G.A.; Bird, P.I.; Carrell, R.W.; Church, F.C.; Coughlin, P.B.; Gettins, P.G.; Irving, J.A.; Lomas, D.A.; Luke, C.J.; Moyer, R.W.; et al. The serpins are an expanding superfamily of structurally similar but functionally diverse proteins. Evolution, mechanism of inhibition, novel functions, and a revised nomenclature. J. Biol. Chem. 2001, 276, 33293–33296. [Google Scholar] [CrossRef] [Green Version]
  10. Huntington, J.A. Serpin structure, function and dysfunction. J. Thromb. Haemost. JTH 2011, 9 (Suppl. 1), 26–34. [Google Scholar] [CrossRef]
  11. Law, R.H.; Zhang, Q.; McGowan, S.; Buckle, A.M.; Silverman, G.A.; Wong, W.; Rosado, C.J.; Langendorf, C.G.; Pike, R.N.; Bird, P.I.; et al. An overview of the serpin superfamily. Genome Biol. 2006, 7, 216. [Google Scholar] [CrossRef]
  12. Nawata, S.; Nakamura, K.; Tanaka, T.; Numa, F.; Suminami, Y.; Tsunaga, N.; Kakegawa, H.; Katunuma, N.; Kato, H. Electrophoretic analysis of the “cross-class” interaction between novel inhibitory serpin, squamous cell carcinoma antigen-1 and cysteine proteinases. Electrophoresis 2010, 18, 784–789. [Google Scholar] [CrossRef] [PubMed]
  13. Ray, C.A.; Black, R.A.; Kronheim, S.R.; Greenstreet, T.A.; Sleath, P.R.; Salvesen, G.S.; Pickup, D.J. Viral inhibition of inflammation: Cowpox virus encodes an inhibitor of the interleukin-1 beta converting enzyme. Cell 1992, 69, 597–604. [Google Scholar] [CrossRef] [PubMed]
  14. Irving, J.A.; Pike, R.N.; Dai, W.; Brömme, D.; Worrall, D.M.; Silverman, G.A.; Coetzer, T.H.; Dennison, C.; Bottomley, S.P.; Whisstock, J.C. Evidence That Serpin Architecture Intrinsically Supports Papain-like Cysteine Protease Inhibition:  Engineering α1-Antitrypsin To Inhibit Cathepsin Proteases†. Biochemistry 2002, 41, 4998. [Google Scholar] [CrossRef] [PubMed]
  15. Khan, M.S.; Singh, P.; Azhar, A.; Naseem, A.; Rashid, Q.; Kabir, M.A.; Jairajpuri, M.A. Serpin Inhibition Mechanism: A Delicate Balance between Native Metastable State and Polymerization. J. Amino Acids 2011, 2011, 606797. [Google Scholar] [CrossRef] [Green Version]
  16. Spence, M.A.; Mortimer, M.D.; Buckle, A.M.; Minh, B.Q.; Jackson, C.J. A Comprehensive Phylogenetic Analysis of the Serpin Superfamily. Mol. Biol. Evol. 2021, 38, 2915–2929. [Google Scholar] [CrossRef]
  17. Cassar, N.; Hunter, G.J. Serpins: Form, Function and Dysfunction; Malta Chamber of Scientists: Msida, Malta, 2013. [Google Scholar]
  18. Marijanovic, E.M.; Fodor, J.; Riley, B.T.; Porebski, B.T.; Costa, M.G.S.; Kass, I.; Hoke, D.E.; McGowan, S.; Buckle, A.M. Reactive centre loop dynamics and serpin specificity. Sci. Rep. 2019, 9, 3870. [Google Scholar] [CrossRef] [Green Version]
  19. Gettins, P.G.; Olson, S.T. Exosite determinants of serpin specificity. J. Biol. Chem. 2009, 284, 20441–20445. [Google Scholar] [CrossRef] [Green Version]
  20. Guo, P.C.; Dong, Z.M.; Zhao, P.; Zhang, Y.; He, H.W.; Tan, X.; Zhang, W.W.; Xia, Q.Y. Structural insights into the unique inhibitory mechanism of the silkworm protease inhibitor serpin18. Sci. Rep. 2015, 5, 11863. [Google Scholar] [CrossRef] [Green Version]
  21. Bao, J.; Pan, G.; Poncz, M.; Wei, J.; Ran, M.; Zhou, Z. Serpin functions in host-pathogen interactions. PeerJ 2018, 6, e4557. [Google Scholar] [CrossRef] [Green Version]
  22. Carolina, D.M.V.; Jewhurst, H.L.; Tikhonova, I.G.; Urbanus, R.T.; Maule, A.G.; Dalton, J.P.; Cwiklinski, K. Fasciola hepatica serine protease inhibitor family (serpins): Purposely crafted for regulating host proteases. PLoS Negl. Trop. Dis. 2020, 14, e0008510. [Google Scholar]
  23. Bakshi, M.; Kim, T.K.; Porter, L.; Mwangi, W.; Mulenga, A. Amblyomma americanum ticks utilizes countervailing pro and anti-inflammatory proteins to evade host defense. PLoS Pathog. 2019, 15, e1008128. [Google Scholar] [CrossRef] [PubMed]
  24. Xu, Z.; Lin, Z.; Wei, N.; Di, Q.; Cao, J.; Zhou, Y.; Gong, H.; Zhang, H.; Zhou, J. Immunomodulatory effects of Rhipicephalus haemaphysaloides serpin RHS2 on host immune responses. Parasit Vectors 2019, 12, 341. [Google Scholar] [CrossRef] [PubMed]
  25. Tewari, M.; Telford, W.G.; Miller, R.A.; Dixit, V.M. CrmA, a poxvirus-encoded serpin, inhibits cytotoxic T-lymphocyte-mediated apoptosis. J. Biol. Chem. 1995, 270, 22705–22708. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Dobbelstein, M.; Shenk, T. Protection against apoptosis by the vaccinia virus SPI-2 (B13R) gene product. J. Virol. 1996, 70, 6479–6485. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Roth, S.J.; Klopfleisch, R.; Osterrieder, N.; Tischer, B.K. Cowpox virus serpin CrmA is necessary but not sufficient for the red pock phenotype on chicken chorioallantoic membranes. Virus Res. 2012, 163, 254–261. [Google Scholar] [CrossRef] [PubMed]
  28. Song, Y.; Tang, Y.; Yang, Q.; Li, T.; He, Z.; Wu, Y.; He, Q.; Li, T.; Li, C.; Long, M.; et al. Proliferation characteristics of the intracellular microsporidian pathogen Nosema bombycis in congenitally infected embryos. J. Invertebr. Pathol. 2020, 169, 107310. [Google Scholar] [CrossRef]
  29. Ma, Z.; Li, C.; Pan, G.; Li, Z.; Han, B.; Xu, J.; Lan, X.; Chen, J.; Yang, D.; Chen, Q.; et al. Genome-wide transcriptional response of silkworm (Bombyx mori) to infection by the microsporidian Nosema bombycis. PLoS ONE 2013, 8, e84137. [Google Scholar] [CrossRef] [Green Version]
  30. Bao, J.L.; Liu, L.L.; An, Y.Y.; Ran, M.S.; Ni, W.J.; Chen, J.; Wei, J.H.; Li, T.; Pan, G.Q.; Zhou, Z.Y. Nosema bombycis suppresses host hemolymph melanization through secreted serpin 6 inhibiting the prophenoloxidase activation cascade. J. Invertebr. Pathol. 2019, 168, 107260. [Google Scholar] [CrossRef]
  31. Hopkins, P.C.; Carrell, R.W.; Stone, S.R. Effects of mutations in the hinge region of serpins. Biochemistry 1993, 32, 7650–7657. [Google Scholar] [CrossRef]
  32. Gettins, P.G. Serpin structure, mechanism, and function. Chem. Rev. 2003, 34, 4751. [Google Scholar] [CrossRef]
  33. Hopkins, P.C.R.; Stone, S.R. The Contribution Of the Conserved Hinge Region Residues Of Alpha(1)-Antitrypsin To Its Reaction with Elastase. Biochemistry 1995, 34, 15872–15879. [Google Scholar] [CrossRef] [PubMed]
  34. Irving, J.A.; Pike, R.N.; Lesk, A.M.; Whisstock, J.C. Phylogeny of the serpin superfamily: Implications of patterns of amino acid conservation for structure and function. Genome Res. 2000, 10, 1845–1864. [Google Scholar] [CrossRef] [PubMed]
  35. Keeling, P.J.; Fast, N.M.; Law, J.S.; Williams, B.A.; Slamovits, C.H. Comparative genomics of microsporidia. Folia Parasitol. 2005, 52, 8–14. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Kuzmin, E.; VanderSluis, B. Exploring whole-genome duplicate gene retention with complex genetic interaction analysis. Science 2020, 368, eaaz5667. [Google Scholar] [CrossRef]
  37. Nakjang, S.; Williams, T.A.; Heinz, E.; Watson, A.K.; Foster, P.G.; Sendra, K.M.; Heaps, S.E.; Hirt, R.P.; Martin Embley, T. Reduction and expansion in microsporidian genome evolution: New insights from comparative genomics. Genome Biol. Evol. 2013, 5, 2285–2303. [Google Scholar] [CrossRef] [Green Version]
  38. Reinke, A.W.; Balla, K.M.; Bennett, E.J.; Troemel, E.R. Identification of microsporidia host-exposed proteins reveals a repertoire of rapidly evolving proteins. Nat. Commun. 2017, 8, 14023. [Google Scholar] [CrossRef] [Green Version]
  39. Wadi, L.; Reinke, A.W. Evolution of microsporidia: An extremely successful group of eukaryotic intracellular parasites. PLoS Pathog. 2020, 16, e1008276. [Google Scholar] [CrossRef]
  40. Dean, P.; Hirt, R.P.; Embley, T.M. Microsporidia: Why Make Nucleotides if You Can Steal Them? PLoS Pathog. 2016, 12, e1005870. [Google Scholar] [CrossRef] [Green Version]
  41. Pan, G.Q.; Xu, J.S.; Li, T.; Xia, Q.Y.; Liu, S.L.; Zhang, G.J.; Li, S.G.; Li, C.F.; Liu, H.D.; Yang, L.; et al. Comparative genomics of parasitic silkworm microsporidia reveal an association between genome expansion and host adaptation. BMC Genom. 2013, 14, 186. [Google Scholar] [CrossRef] [Green Version]
  42. Parisot, N.; Pelin, A.; Gasc, C.; Polonais, V.; Belkorchia, A.; Panek, J.; Alaoui, H.E.; Biron, D.G.; Brasset, E.; Vaury, C.; et al. Microsporidian Genomes Harbor a diverse Array of transposable elements that demonstrate an ancestry of horizontal exchange with metazoans. Genome Biol. Evol. 2014, 6, 2289–2300. [Google Scholar] [CrossRef] [Green Version]
  43. Alexander, W.G.; Wisecaver, J.H.; Rokas, A.; Hittinger, C.T. Horizontally acquired genes in early diverging pathogenic fungi enable the use of host nucleosides and nucleotides. Proc. Natl. Acad. Sci. USA 2016, 113, 4116–4121. [Google Scholar] [CrossRef] [PubMed]
  44. Thézé, J.; Takatsuka, J.; Li, Z.; Gallais, J.; Doucet, D.; Arif, B.; Nakai, M.; Herniou, E.A. New insights into the evolution of Entomopoxvirinae from the complete genome sequences of four entomopoxviruses infecting Adoxophyes honmai, Choristoneura biennis, Choristoneura rosaceana, and Mythimna separata. J. Virol. 2013, 87, 7992–8003. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Huang, Y.; Zheng, S.; Mei, X.; Yu, B.; Sun, B.; Li, B.; Wei, J.; Chen, J.; Li, T.; Pan, G.; et al. A secretory hexokinase plays an active role in the proliferation of Nosema bombycis. PeerJ 2018, 6, e5658. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Zheng, S.; Huang, Y.; Huang, H.; Yu, B.; Zhou, N.; Wei, J.; Pan, G.; Li, C.; Zhou, Z. The role of NbTMP1, a surface protein of sporoplasm, in Nosema bombycis infection. Parasites Vectors 2021, 14, 81. [Google Scholar] [CrossRef] [PubMed]
  47. Ito, S.; Nagata, K. Biology of Hsp47 (Serpin H1), a collagen-specific molecular chaperone. Semin. Cell Dev. Biol. 2017, 62, 142–151. [Google Scholar] [CrossRef]
  48. Pemberton, P.A.; Stein, P.E.; Pepys, M.B.; Potter, J.M.; Carrell, R.W. Hormone binding globulins undergo serpin conformational change in inflammation. Nature 1988, 336, 257–258. [Google Scholar] [CrossRef]
  49. Aurrecoechea, C.; Barreto, A.; Brestelli, J.; Brunk, B.P.; Caler, E.V.; Fischer, S.; Gajria, B.; Gao, X.; Gingle, A.; Grant, G.; et al. AmoebaDB and MicrosporidiaDB: Functional genomic resources for Amoebozoa and Microsporidia species. Nucleic Acids Res. 2011, 39, D612–D619. [Google Scholar] [CrossRef] [Green Version]
  50. Tian, L.; Pan, G.Q.; Vossbrinck, C.R.; Xu, J.S.; Zhou, Z.Y. SilkPathDB: A comprehensive resource for the study of silkworm pathogens. Database 2017, 2017, bax001. [Google Scholar]
  51. Chen, C.; Chen, H.; Zhang, Y.; Thomas, H.R.; Frank, M.H.; He, Y.; Xia, R. TBtools: An Integrative Toolkit Developed for Interactive Analyses of Big Biological Data. Mol. Plant 2020, 13, 1194–1202. [Google Scholar] [CrossRef]
  52. Livak, K.J.; Schmittgen, T.D. Analysis of Relative Gene Expression Data Using Real-Time Quantitative PCR and the 2−ΔΔCT Method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef]
Ijms 24 00550 g001 550

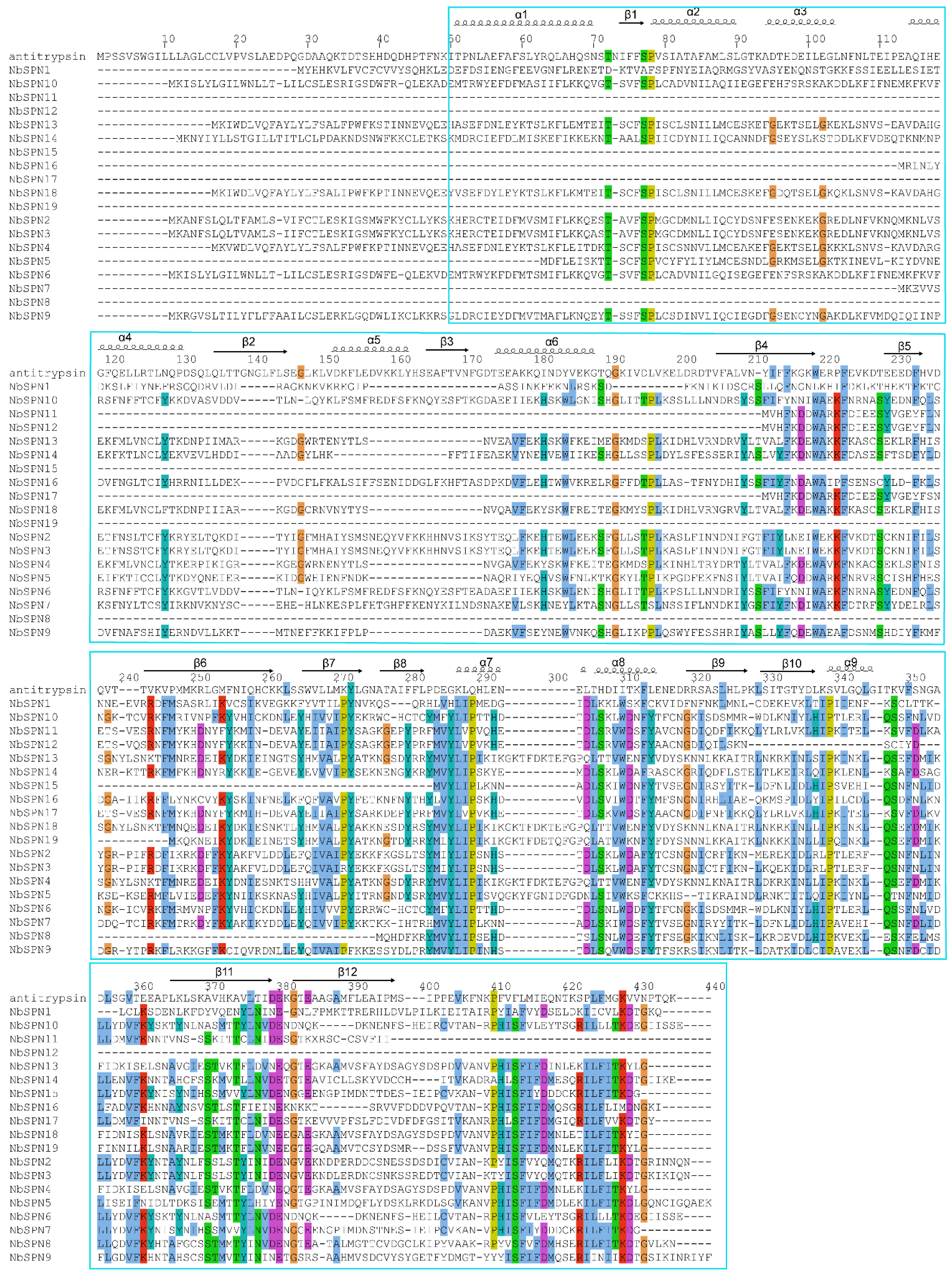

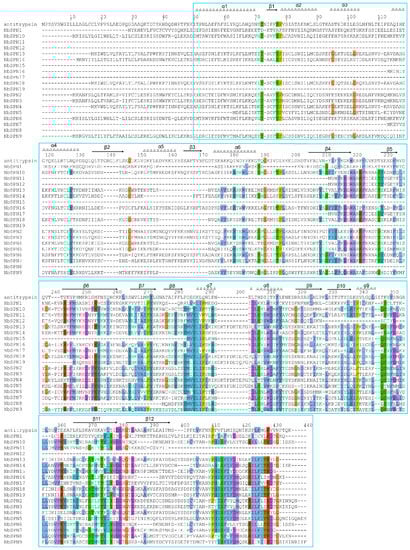

Figure 1. Multiple sequence alignment of all NbSPNs in Nosema bombycis. A blue box marks the typical conserved serpin domain. Human α1-antitrypsin (1QLP) with “template” numbering and the assignment of secondary structures of the cleaved form are included as the top sequence. The alignment of sequences was conducted with ClustalX and shaded with ESPript 3.0 online. Residues were considered as highly similar and are colored in red and framed in blue.
Figure 1. Multiple sequence alignment of all NbSPNs in Nosema bombycis. A blue box marks the typical conserved serpin domain. Human α1-antitrypsin (1QLP) with “template” numbering and the assignment of secondary structures of the cleaved form are included as the top sequence. The alignment of sequences was conducted with ClustalX and shaded with ESPript 3.0 online. Residues were considered as highly similar and are colored in red and framed in blue.
Ijms 24 00550 g001
Ijms 24 00550 g002 550

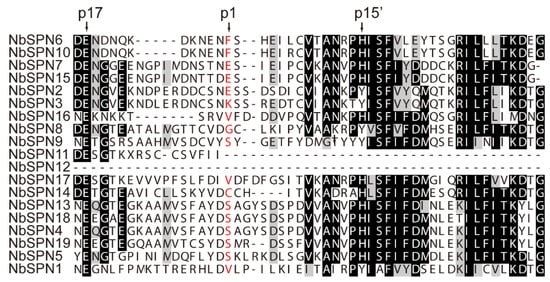

Figure 2. Alignment of the RCL region of N. bombycis serpins. The conserved residues p17 and p15′ were labelled in the hinge region of inhibitory serpins above the alignment. Predicted P1 residues are in red.
Figure 2. Alignment of the RCL region of N. bombycis serpins. The conserved residues p17 and p15′ were labelled in the hinge region of inhibitory serpins above the alignment. Predicted P1 residues are in red.
Ijms 24 00550 g002
Ijms 24 00550 g003 550

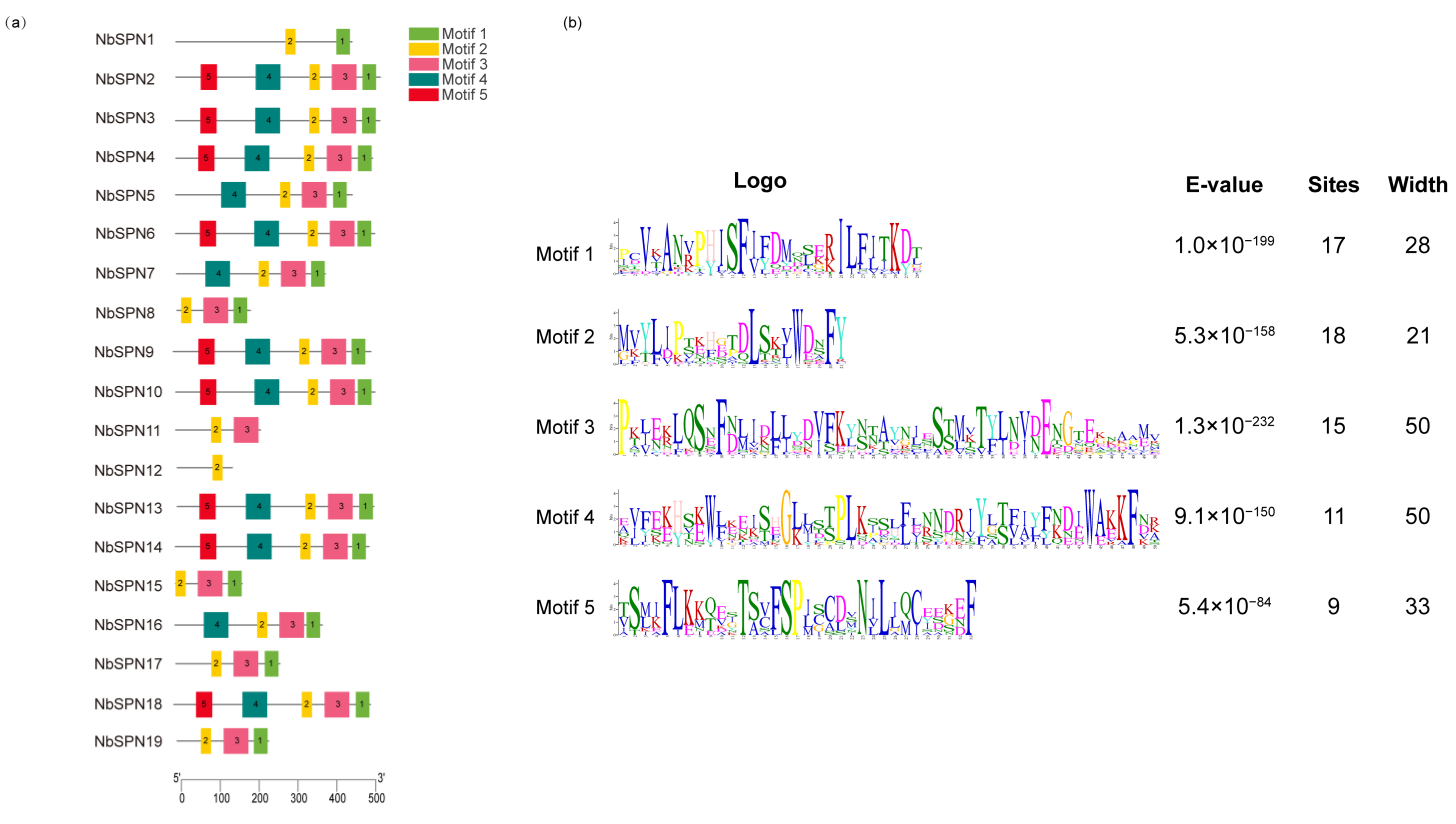

Figure 3. Conserved motifs of the NbSPN genes. (a) Distribution of conserved motifs in 19 NbSPNs, the differently colored boxes represent different bases, and the motif numbers are shown in the colored boxes. The scale represents the amino acid sequence length. (b) The features of the five conserved motifs among the NbSPN proteins.
Figure 3. Conserved motifs of the NbSPN genes. (a) Distribution of conserved motifs in 19 NbSPNs, the differently colored boxes represent different bases, and the motif numbers are shown in the colored boxes. The scale represents the amino acid sequence length. (b) The features of the five conserved motifs among the NbSPN proteins.
Ijms 24 00550 g003
Ijms 24 00550 g004 550

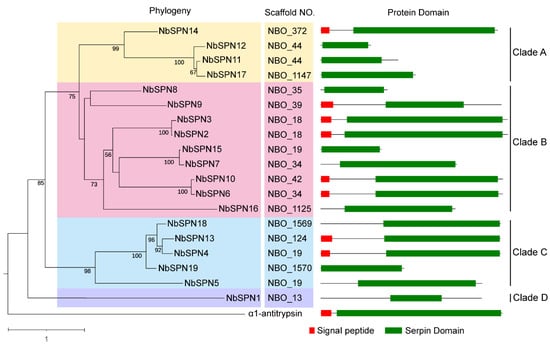

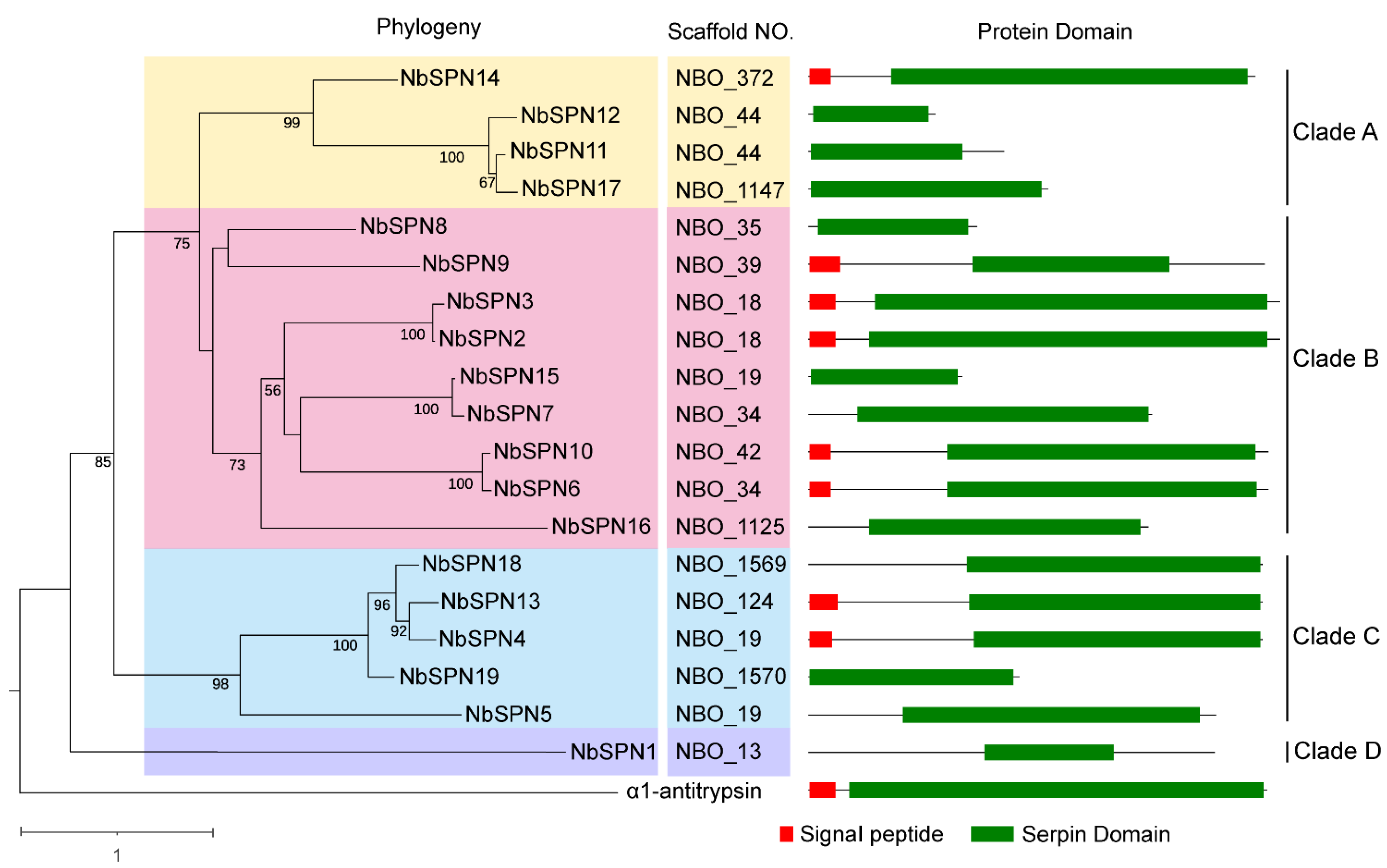

Figure 4. Phylogenetic analysis of NbSPNs and Protein Domain. The neighbor-joining phylogenetic tree was based on serpin protein sequences using MEGA-X. The archetypal serpin α1-antitrypsin was used as the out group. The different colors are to highlight the branches. Serpins with the predicted signal peptides (SignalP-5.0 Online: https://services.healthtech.dtu.dk/service.php?SignalP-5.0, accessed on 6 June 2022) are labeled with a red square.
Figure 4. Phylogenetic analysis of NbSPNs and Protein Domain. The neighbor-joining phylogenetic tree was based on serpin protein sequences using MEGA-X. The archetypal serpin α1-antitrypsin was used as the out group. The different colors are to highlight the branches. Serpins with the predicted signal peptides (SignalP-5.0 Online: https://services.healthtech.dtu.dk/service.php?SignalP-5.0, accessed on 6 June 2022) are labeled with a red square.
Ijms 24 00550 g004
Ijms 24 00550 g005 550

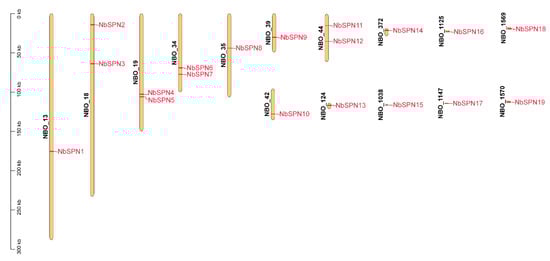

Figure 5. Genomic distribution of NbSPN genes across the fifteen N. bombycis scaffolds. The scaffold count is shown on the left side of each scaffold. The scale is in kilobase (Kb). The scaffold locations of the NbSPNs were determined according to the physical location of each gene.
Figure 5. Genomic distribution of NbSPN genes across the fifteen N. bombycis scaffolds. The scaffold count is shown on the left side of each scaffold. The scale is in kilobase (Kb). The scaffold locations of the NbSPNs were determined according to the physical location of each gene.
Ijms 24 00550 g005
Ijms 24 00550 g006 550

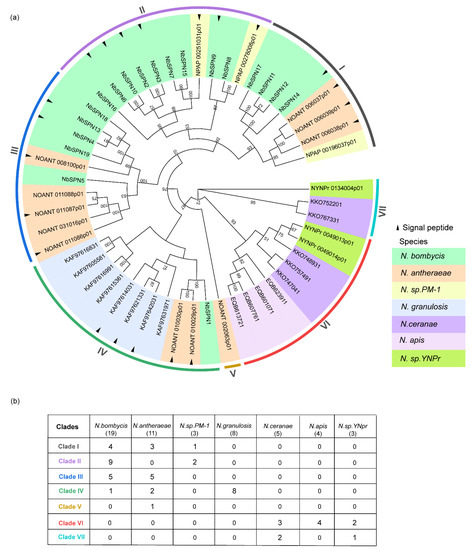

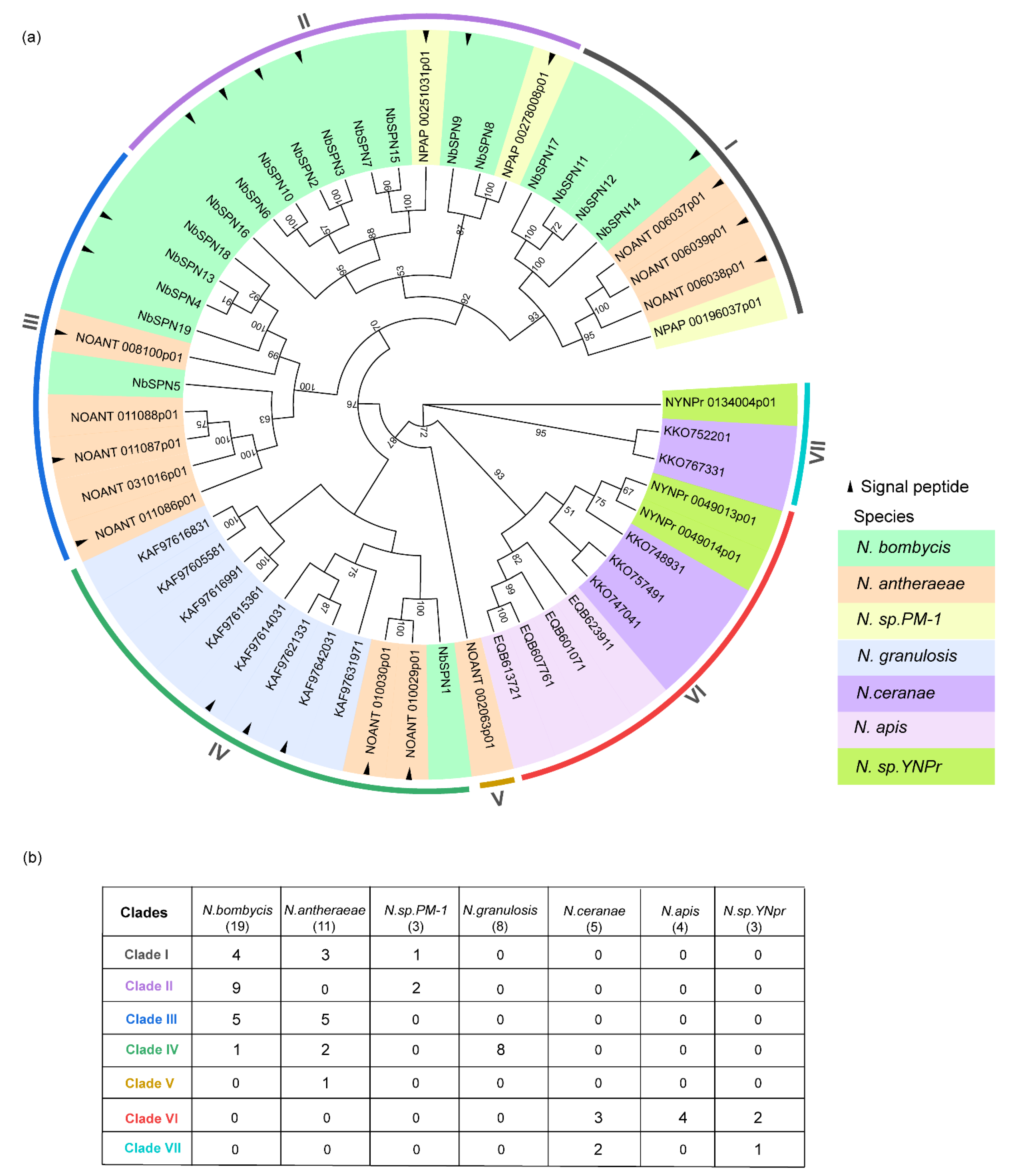

Figure 6. Phylogenetic analysis of serpin genes in microsporidia. (a) Different colors represent different species of serpins. The neighbor-joining phylogenetic tree was based on serpin protein sequences using MEGA-X. The analysis was conducted on 1000 bootstrapped datasets. Serpins with the predicted signal peptides (SignalP-5.0 Online: https://services.healthtech.dtu.dk/service.php?SignalP-5.0, accessed on 4 October 2022) were labeled with a black triangle. (b) The table records each species’ serpin numbers in seven clades in detail.
Figure 6. Phylogenetic analysis of serpin genes in microsporidia. (a) Different colors represent different species of serpins. The neighbor-joining phylogenetic tree was based on serpin protein sequences using MEGA-X. The analysis was conducted on 1000 bootstrapped datasets. Serpins with the predicted signal peptides (SignalP-5.0 Online: https://services.healthtech.dtu.dk/service.php?SignalP-5.0, accessed on 4 October 2022) were labeled with a black triangle. (b) The table records each species’ serpin numbers in seven clades in detail.
Ijms 24 00550 g006
Ijms 24 00550 g007 550

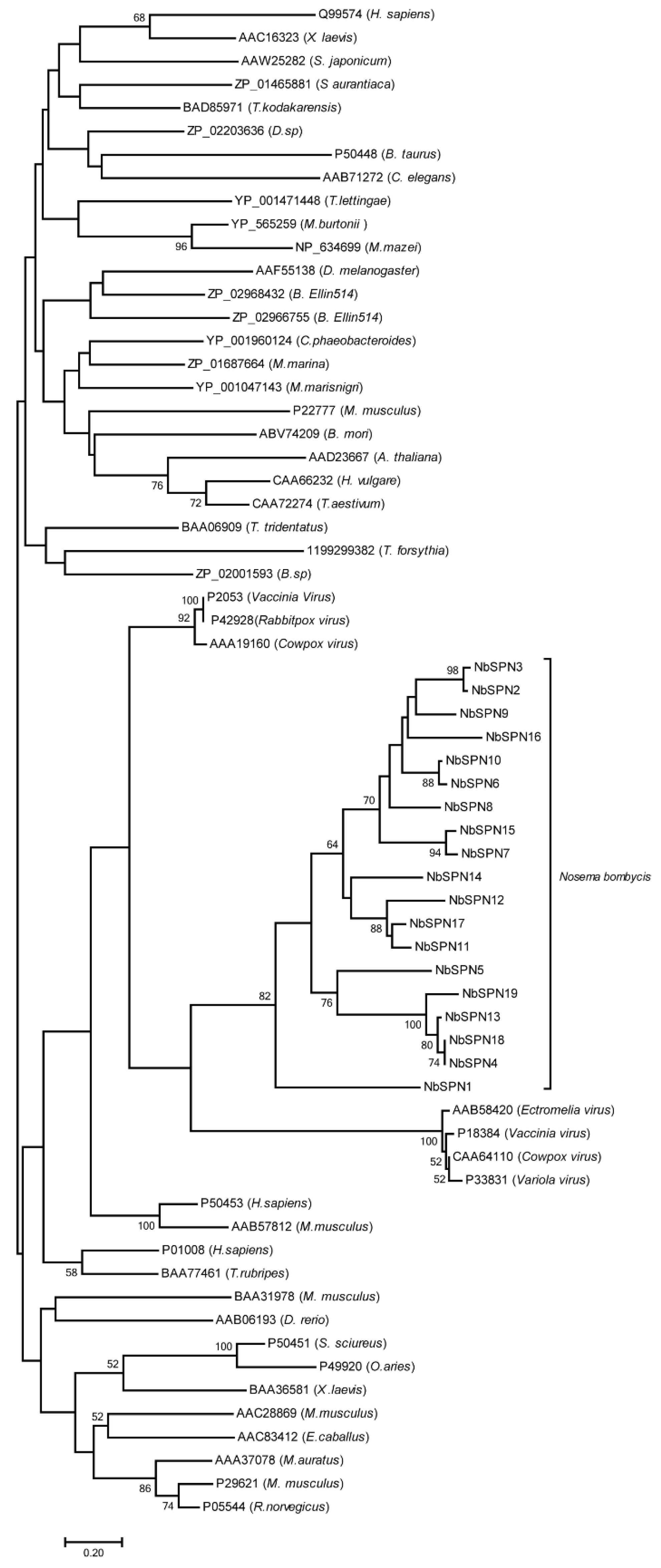

Figure 7. Phylogenetic tree of the serpin superfamily. The phylogenetic analysis of the serpins from N. bombycis, plants, animals, and viruses, etc., was from the NCBI GenBank database. The classification reference was from James A. Irving [34]. The end of each branch represents the GenBank accession number, and the name of the species is in parentheses. The phylogenetic analysis was performed using the MEGA-X neighbor-joining method. The analysis was performed on 1000 bootstrapped datasets.
Figure 7. Phylogenetic tree of the serpin superfamily. The phylogenetic analysis of the serpins from N. bombycis, plants, animals, and viruses, etc., was from the NCBI GenBank database. The classification reference was from James A. Irving [34]. The end of each branch represents the GenBank accession number, and the name of the species is in parentheses. The phylogenetic analysis was performed using the MEGA-X neighbor-joining method. The analysis was performed on 1000 bootstrapped datasets.
Ijms 24 00550 g007
Ijms 24 00550 g008 550

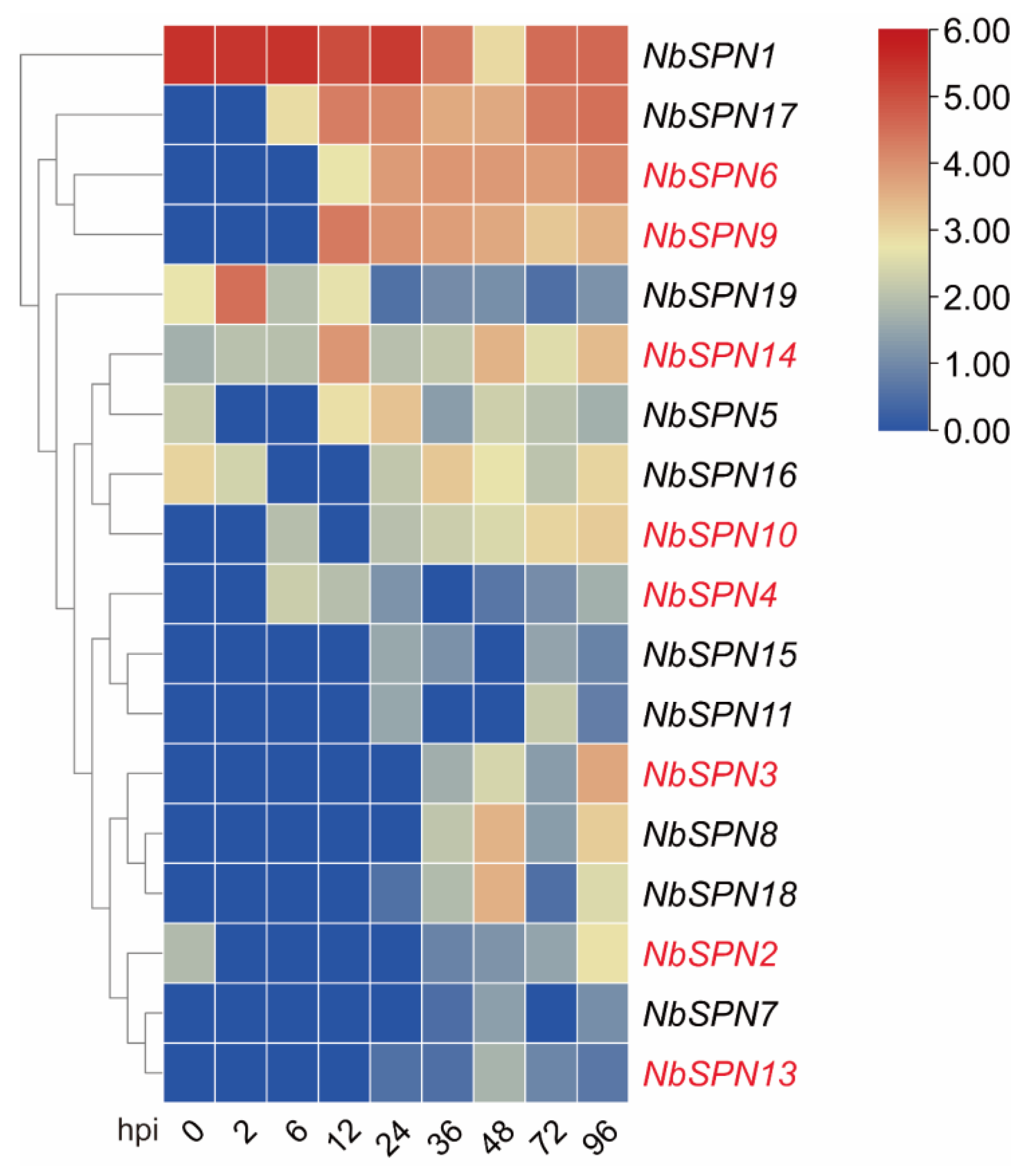

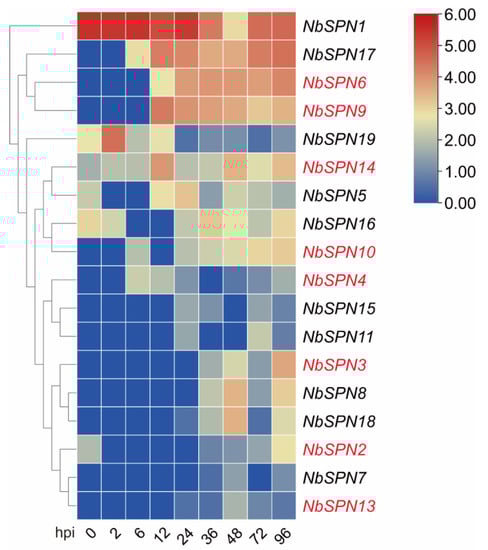

Figure 8. Expression analysis of NbSPNs in BmE-SWU1 cell line infected by N. bombycis. Heatmap generated by TBtools showing a cluster map of the NbSPN genes in infected BmE-SWU1 cells. The predicted genes that could encode signal peptides are marked in red. The color gradient (red/white/blue) indicates the gene expression level (high to low).
Figure 8. Expression analysis of NbSPNs in BmE-SWU1 cell line infected by N. bombycis. Heatmap generated by TBtools showing a cluster map of the NbSPN genes in infected BmE-SWU1 cells. The predicted genes that could encode signal peptides are marked in red. The color gradient (red/white/blue) indicates the gene expression level (high to low).
Ijms 24 00550 g008
Ijms 24 00550 g009 550

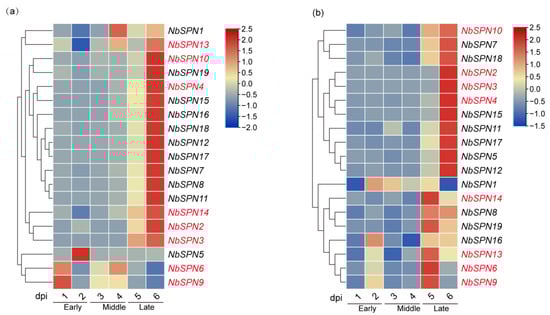

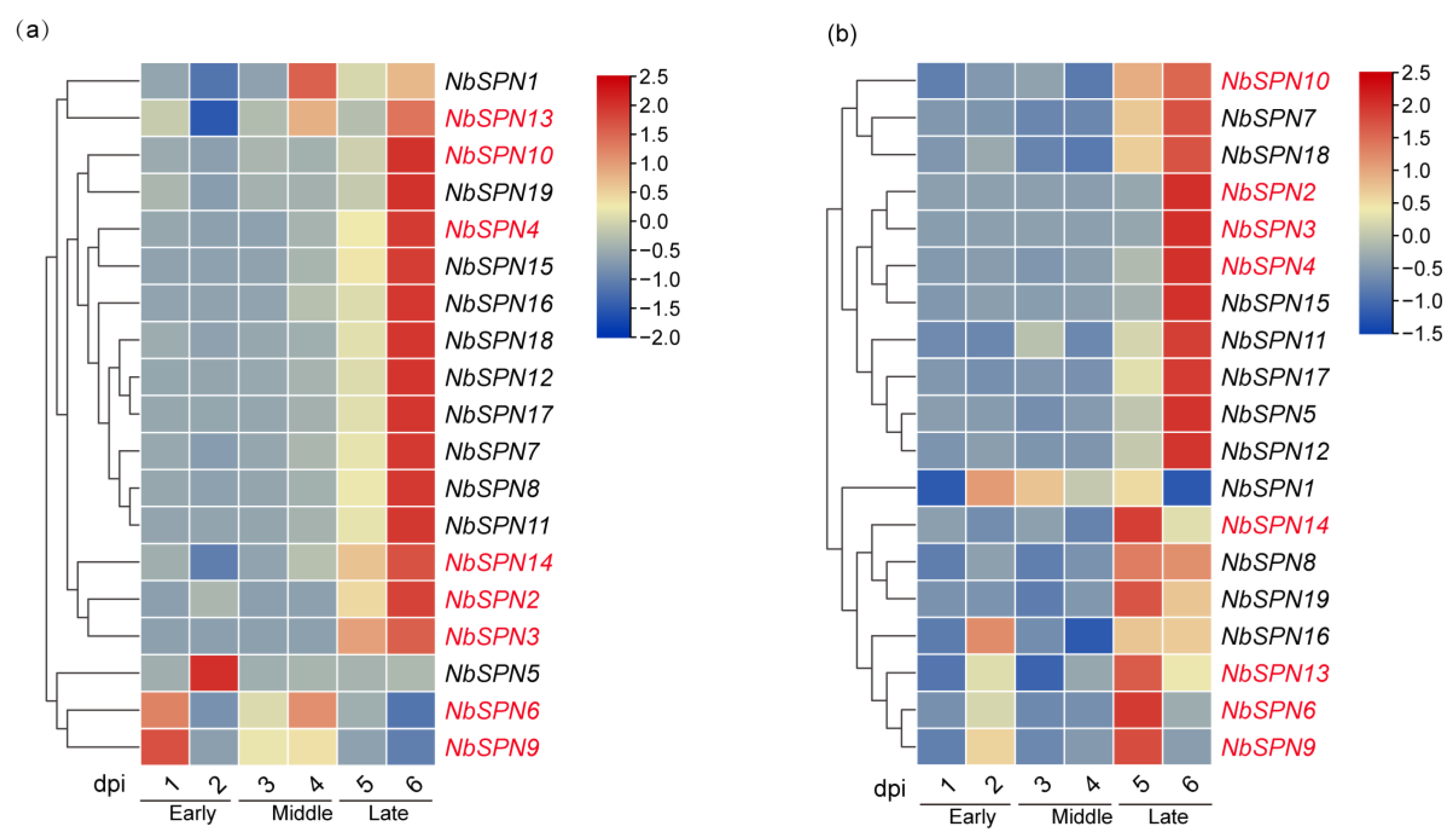

Figure 9. N. bombycis serpins’ transcription patterns of the midgut and the fat body in infected silkworms. They are divided into the early, middle, and late stages along with the time of infection. The predicted genes that could encode signal peptides are marked in red. (a) Transcriptional expression patterns of different serpin genes are in the infected midgut. (b) Transcriptional expression patterns of varying serpin genes are in the infected fat body.
Figure 9. N. bombycis serpins’ transcription patterns of the midgut and the fat body in infected silkworms. They are divided into the early, middle, and late stages along with the time of infection. The predicted genes that could encode signal peptides are marked in red. (a) Transcriptional expression patterns of different serpin genes are in the infected midgut. (b) Transcriptional expression patterns of varying serpin genes are in the infected fat body.
Ijms 24 00550 g009
Table
Table 1. Basic information of serpins in N. bombycis. 1 MW, molecular weight; 2 pI, isoelectric point; 3 Inhibitory, Prediction of inhibitory serpin by RCL hinge region length and sequence consensus mode, “+” represents inhibitory serpin; “−” represents non-inhibitory serpin. Signal peptide was predicted with SignalP-5.0 online: https://services.healthtech.dtu.dk/service.php?SignalP-5.0, accessed on 6 June 2022.
Table 1. Basic information of serpins in N. bombycis. 1 MW, molecular weight; 2 pI, isoelectric point; 3 Inhibitory, Prediction of inhibitory serpin by RCL hinge region length and sequence consensus mode, “+” represents inhibitory serpin; “−” represents non-inhibitory serpin. Signal peptide was predicted with SignalP-5.0 online: https://services.healthtech.dtu.dk/service.php?SignalP-5.0, accessed on 6 June 2022.
Gene NameGene ID in
SilkPathDB		GenBank
Accession		Protein Length (Aa)Signal Peptide (Aa)MW 1 (kDa)pI 2Inhibitory 3
NbSPN1NBO_13g0021EOB14844349none40.828.59+
NbSPN2NBO_18g0004EOB146774051–2347.967.87+
NbSPN3NBO_18g0021EOB146944051–2347.888.80+
NbSPN4NBO_19g0007EOB146543901–2045.048.62+
NbSPN5NBO_19g0009EOB14656350none41.227.79+
NbSPN6NBO_34g0030EOB141803951–1946.985.79+
NbSPN7NBO_34g0036EOB14186295none34.866.60+
NbSPN8NBO_35g0002EOB14148145none16.785.93+
NbSPN9NBO_39gi001-3921–2746.056.71+
NbSPN10NBO_42g0006EOB140163951–1946.886.56+
NbSPN11NBO_44g0004EOB13986168none19.615.57−
NbSPN12NBO_44g0006EOB13988109none12.985.07−
NbSPN13NBO_124g0001EOB131923901–2545.126.69+
NbSPN14NBO_372g0002-3841–1944.895.65+
NbSPN15NBO_1038g0001EOB11591132none15.234.47+
NbSPN16NBO_1125g0001EOB11493292none34.576.13+
NbSPN17NBO_1147g0001EOB11479206none24.175.56+
NbSPN18NBO_1569g0001EOB11151390none45.288.58+
NbSPN19NBO_1570g0002EOB11150181none21.109.32+
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Ran, M.; Shi, Y.; Li, B.; Xiang, H.; Tao, M.; Meng, X.; Li, T.; Li, C.; Bao, J.; Pan, G.; et al. Genome-Wide Characterization and Comparative Genomic Analysis of the Serpin Gene Family in Microsporidian Nosema bombycis. Int. J. Mol. Sci. 2023, 24, 550. https://doi.org/10.3390/ijms24010550

AMA Style

Ran M, Shi Y, Li B, Xiang H, Tao M, Meng X, Li T, Li C, Bao J, Pan G, et al. Genome-Wide Characterization and Comparative Genomic Analysis of the Serpin Gene Family in Microsporidian Nosema bombycis. International Journal of Molecular Sciences. 2023; 24(1):550. https://doi.org/10.3390/ijms24010550

Chicago/Turabian Style

Ran, Maoshuang, Yulian Shi, Boning Li, Heng Xiang, Meilin Tao, Xianzhi Meng, Tian Li, Chunfeng Li, Jialing Bao, Guoqing Pan, and et al. 2023. "Genome-Wide Characterization and Comparative Genomic Analysis of the Serpin Gene Family in Microsporidian Nosema bombycis" International Journal of Molecular Sciences 24, no. 1: 550. https://doi.org/10.3390/ijms24010550

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
