OsSPLs Regulate Male Fertility in Response to Different Temperatures by Flavonoid Biosynthesis and Tapetum PCD in PTGMS Rice

by
Yujun Sun
,
Ming Fu
,
Lei Wang
,
Yunxiu Bai
,
Xueliang Fang
,
Qian Wang
,
Ying He
* and
Hanlai Zeng
*
MOA Key Laboratory of Crop Ecophysiology and Farming System in the Middle Reaches of the Yangtze River, College of Plant Science and Technology, Huazhong Agricultural University, Wuhan 430070, China
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2022, 23(7), 3744; https://doi.org/10.3390/ijms23073744
Submission received: 3 March 2022 / Revised: 21 March 2022 / Accepted: 28 March 2022 / Published: 29 March 2022
(This article belongs to the Special Issue Plant Genome Dynamics)
Browse Figures
Versions Notes

Abstract

:
Photoperiod and thermo-sensitive genic male sterile (PTGMS) rice is an important resource for two line hybrid rice production. The SQUAMOSA–promoter binding, such as the (SPL) gene family, encode the plant specific transcription factors that regulate development and defense responses in plants. However, the reports about SPLs participating in male fertility regulation are limited. Here, we identified 19 OsSPL family members and investigated their involvement in the fertility regulation of the PTGMS rice lines, PA2364S and PA2864S, with different fertility transition temperatures. The results demonstrated that OsSPL2, OsSPL4, OsSPL16 and OsSPL17 affect male fertility in response to temperature changes through the MiR156-SPL module. WGCNA (weighted gene co-expression network analysis) revealed that CHI and APX1 were co-expressed with OsSPL17. Targeted metabolite and flavonoid biosynthetic gene expression analysis revealed that OsSPL17 regulates the expression of flavonoid biosynthesis genes CHI, and the up regulation of flavanones (eriodictvol and naringenin) and flavones (apigenin and luteolin) content contributed to plant fertility. Meanwhile, OsSPL17 negatively regulates APX1 to affect APX (ascorbate peroxidase) activity, thereby regulating ROS (reactive oxygen species) content in the tapetum, controlling the PCD (programmed cell death) process and regulating male fertility in rice. Overall, this report highlights the potential role of OsSPL for the regulation of male fertility in rice and provides a new insight for the further understanding of fertility molecular mechanisms in PTGMS rice.

1. Introduction

Precise coordination of gene expression is essential during plant growth and development, and transcriptional regulation is an important mechanism for controlling gene expression. Transcription factors (TFs) regulate gene expression on the transcriptional level and control various plant life processes by interacting with proteins. Currently, most known TFs have been classified according to specific DNA-binding structural domains and conserved motifs as family classification criteria, and these structural domains are relatively conserved in terms of family evolution [1]. The SQUAMOSA-promoter binding, such as the (SPL) genes, encode a class of plant specific TFs, and this family contains a highly conserved DNA-binding structural domain consisting of 76 amino acids called the SBP (SQUA promoter-binding proteins) domain. The SPL family plays an important role in the gene network that regulates plant development and defense responses [2,3].
AmSBP1/P2 were identified from Antirrhinum majus and these two genes could control flower development by binding to the promoter of the SQUAMOSA gene [4]. To investigate the role of SBP-box genes in plant growth and development, researchers searched for their homologs in the model plant Arabidopsis thaliana at first, and sixteen AtSPL have been identified [5,6]. The proteins encoded by these genes share a sequence region of high similarity, which is the SBP structural domain encoded by the SBP-box. Commonly, the SPL family varies greatly between species. Currently, SPL has been known to regulate a variety of important biological processes, including plant microspore development [7], male fertility [8], nutrient organ development [9], flower and fruit development [10], hormone signaling [11] and abiotic stress regulation [12].
MircoRNA are endogenous noncoding small RNAs with 21–24 nucleotides that bind to complementary mRNAs to repress the translation process, regulate gene expression and reduce protein expression levels [13]. Furthermore, miR156 is a relatively conserved miRNA in the plant kingdom, which eleven OsSPL were found to be targeted by, and the miR156/SPL module plays an important role in plant tissue development [14,15]. In terms of rice agronomic traits and yield contribution, OsSPL2, OsSPL16, OsSPL17 and OsSPL18 were involved in controlling plant height and tiller number at the tillering stage, while overexpression of miR156 significantly increased the number of tillers and decreased the number of grains per spike by regulating the targets OsSPL2, OsSPL12, OsSPL13 and OsSPL14 [15]. However, high expression levels of OsSPL14 at the reproductive stage promote spike branching and obtain higher seed yield in rice [16,17]. In OsSPL18 knockout rice mutants, a significant decrease in grain width, thickness, spikelet length and the number of grains was found, and in contrast an increase in tiller number. Subsequently, the miR156k-OsSPL18d regulatory module was found to regulate rice grain number by affecting cell proliferation to regulate spikelet shell development [18]. The miR156-OsSPL3/12 module was found to directly activate OsMADS50 to regulate crown root development in rice [19]. The role of the miR156/OsSPL module in plant stress responses has attracted the attention of researchers. Under adverse conditions of biotic stress, the plant immune system is an important component of balanced growth and development. It has been shown that the miR156/SPL9 module generates resistance to Pseudomonas syringae, by regulating the expression of the defense gene FLS2. However, SPL9 binds to specific motifs within the miR528 promoter region to activate miR528 expression and regulate L-Ascorbate Oxidase (AO) levels to generate a defense response to rice stripe virus (RSV) [20]. In response to abiotic stress, miR156 has been shown to target SPL in Arabidopsis in response to heat stress. The expression of miR156 increases at high temperatures and SPL2/9/11 gene expression decreases, to counteract the negative effects of heat stress on plant growth [21].
Rice (Oryza sativa L.) is a staple food for nearly half of the world’s population and is one of the most important food crops [22]. To cope with the food requirements of the rapid growth of the world population, efficient breeding to improve crop productivity is essential [23]. Two line hybrid rice uses photoperiod- and thermo-sensitive genic male sterile (PTGMS) lines to produce hybrid seeds, thus eliminating the limitations of the restorer–maintainer relationship of three-line hybrids system, and achieving higher efficiency in excellent hybrid configurations and hybrid seed production [24]. Male fertility in PTGMS rice is controlled by temperature and light conditions, but the mechanism of fertility regulation is unclear. Recent research found that OsSPL is essential for meiosis with rice and plays a regulatory role in callus deposition, tapetum development and anther wall differentiation [25].
Although members of the SPL gene family have been relatively investigated in plant development and stress response, whether the SPL gene family, or certain of its members, regulates male fertility in PTGMS rice is still unclear. In this study, we performed a genomewide identification of the SPL gene family members in rice and analyzed phylogenetic relationships and collinearity in the genome. Expression analysis of the near isogenic lines of material PA2364S and PA2864S with different fertility transformation temperatures was performed. The relationship between OsSPL and male fertility at the same temperature and the effect of different temperatures induction of OsSPL on the level of fertility were investigated. The potential regulatory pathway of OsOPL was explored using protein structure analysis and WGCNA (weighted gene co-expression network analysis). Finally, a flavonoid metabolism and TUNEL (transferase mediated dUTP nick end labeling) assay were used to verify that OsOPL17 might be involved in regulating PTGMS rice fertility by affecting the biosynthetic process of the flavonoid and tapetum PCD (programmed cell death) process. The findings provide a new insight to resolve the mechanism of fertility in PTGMS rice.

2. Results

2.1. Abnormal Development of PA64S Pollen Grains Producing Male Sterile Plants under High Temperature

First, the temperature experimental system for pollen fertility transformations was built using one pair of PTGMS rice lines, PA2364S and PA2864S, with different critical temperatures. We obtained fertile and sterile material for PA2364S and PA2864S, which were treated by three temperatures, respectively. Differences in male fertility and seed setting were observed between PA2364S and PA2864S after the 25 °C treatment (Figure 1A,B). The iodine staining and setting rates were zero after the 30 °C treatment, and approximately 39.30% and 37.35% for PA2364S and PA2864S, respectively, after the 21 °C treatment (Figure 1B and Table 1). Microscopic observation of the anthers and pollen grains of fertile and sterile material was performed after obtaining materials with differential male fertility. Compared to being fully and brightly colored in fertile anthers, abnormalities were found in the sterile anthers (Figure 1C(I,IV)). From the SEM (scanning electron microscopy) of pollen grains, it can be revealed that fertile pollen grains are fully rounded and sterile pollen grains are severely collapsed (Figure 1C(II,V)). In the TEM (transmission electron microscopy) observation of mature pollen grains (Figure 1C(III,VI)), a lot of intracellular substances in fertile pollen grains were found, mainly in the form of SG (starch granule), the exine structure of pollen was clearly visible, and the triple layered structure of Te (texine), Ba (bacula) and Ne (nexine) was obvious. In contrast, there was no filling of any content in the sterile pollen grains, Ba intermittently appeared in the exine, and the structural delamination of Ta and Ne was not clear. In addition, the absence of pollen intine was found in male sterile pollen. Therefore, we conclude that the absence of the pollen intine and abnormal pollen exine leads to abnormal starch deposition in the pollen, which contributes to male sterility.

2.2. The OsSPL Gene Family Is Involved in Male Fertility Regulation in Response to Temperature Changes

2.2.1. Identification and Phylogenetic Analysis of OsSPL Family in Rice

To identify OsSPL gene family members, we performed HMMER analysis and a blastp search using the SBP domain and 16 AtSPL members, respectively identified as OsSPLs in the rice genome [26,27]; as a result, a total of 19 OsSPLs were identified. All of the identified OsSPL proteins share the SBP domain. Multiple sequence comparison was performed by the amino acid sequences of the conserved domain of SBP (Figure S1A). To investigate the sequence structure of the OsSPLs, we analyzed their motif and intron–exon structure. All the 19 OsSPLs share the Motif 3, Motif 2, Motif 1 and Motif 5 structures, forming the conserved SPB functional domain (Figure S2A). This revealed the close evolutionary relationships of the OsSPLs. For example, OsSPL17 and OsSPL14 are identical in motif structural composition. The exon–intron patterns of the OsSPL revealed that OsSPL9, OsSPL15, OsSPL1 and OsSPL6 were in one evolutionary branch and contain the same structure (Figure S2B). The results indicated that the genetic structure of OsSPL from closer evolutionary relationships was similar. Then, a phylogenetic tree was constructed based on 19 OsSPLs, 16 AtSPLs, 17 HvSPLs and 10 TaSPLs in the database (Figure S1B). The 62 SPLs were divided into ten groups (I-X). Group IV has the most members, eleven, and the ones occurring least were only two in groups VI. Group II has ten members, groups III and VII have nine members, group I has six members, group IX has five members, and groups V, VIII and X have three members, respectively. Comparison of the SPLs of rice and Arabidopsis within the same group revealed that OsSPL17 and AtSPL9, OsSPL19 and AtSPL13, and OsSPL9 and AtSPL7 have similar amino acid sequences and physical properties (Table 2). This result suggests that SPLs between rice and Arabidopsis may perform similar functions in plant growth and development, and stress tolerance regulation.

2.2.2. Spike Specificity Expression Patterns of OsSPLs Showing a Potentiality for Temperature Induced Fertility Regulation in PA64S

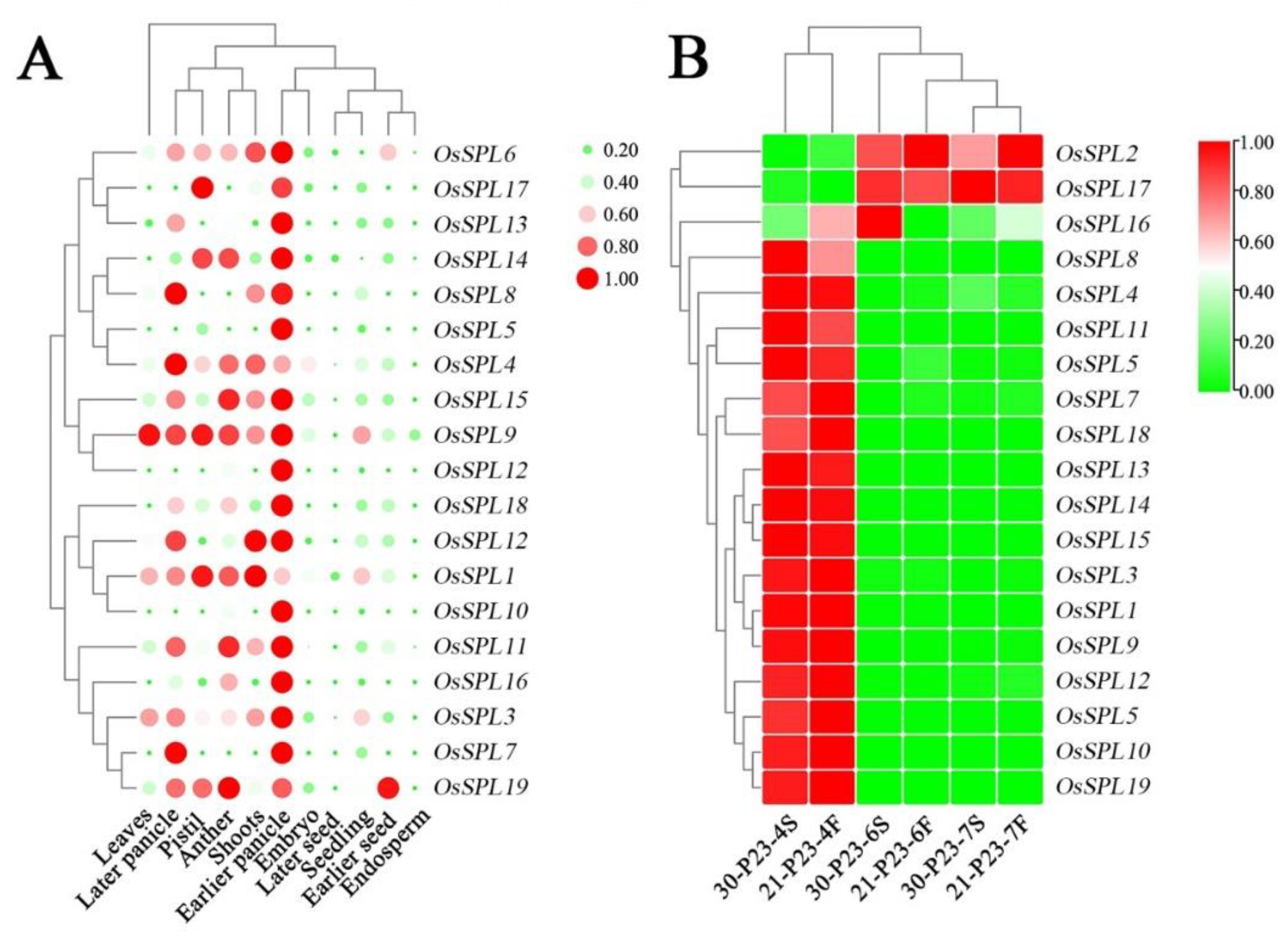

Based on the Rice Genome Annotation Project database, the tissue specific expression patterns of OsSPLs were investigated by the RNA-seq data of nineteen OsSPLs in shoots, leaves, seeds, panicle and anthers. As shown, OsSPLs were expressed with higher levels in the panicle and anther than in other tissues, and all OsSPLs had high expression in the early spikelet (Figure 2A). In addition, some genes (OsSPL1, OsSPL9, and OsSPL12) in seedlings and shoots had high expression. This result indicated that the OsSPL gene family is highly expressed in the developmental stages of rice reproductive organs in general and has an important regulatory role in the development of young spikelets and anthers, specifically. We based this conclusion on the standard of the laboratory for many years, and that the critical stage for male fertility transformation is from the third to seventh stages, according to the eight stage differentiation of young spikes. Subsequently, we selected PTGMS rice PA2364S with a fertility transition temperature of 23 °C to obtain fertility differential plants by temperature treatment and performed RNA-seq analysis on spikes at different developmental stages (Figure 2B). The expression levels of OsSPL differed significantly among the three young spike differentiation stages of various fertility materials. Among them, OsSPL2 and OsSPL17 showed a higher level of expression in the fourth stage, while there were higher expression levels in the sixth and seventh stages. Meanwhile, we found that there were differences in the expression levels of OsSPL2, OsSPL17 and OsSPL16 after different temperature treatments. This result indicated that fertility transition can be induced by temperature and the expression level of OsSPL responds to temperature changes. Therefore, we hypothesize that the spike specific expression pattern of OsSPL in rice reveals its potential male fertility regulation ability.

2.2.3. Differential Expressions of OsSPL in Sterile and Fertile Panicles of PA2364S and PA2864S under 25 °C Conditions

The fertile and sterile plants of PA2364S and PA2864S in the fifth and sixth stages were subjected to expression analysis. The expression profile illustrated that the OsSPL expression levels were higher in the fifth stage panicles from PA2364S and PA2864S at 21 °C, compared with the 30 °C treatment. The panicles OsSPL expressions at the sixth stage were consistent with those at the fifth stage (Figure S3). To investigate the specific trends of OsSPL genes with temperature treatment, we show their expression in Figure S4. Interestingly, we found that the expression trends of OsSPL1, OsSPL2, OsSPL4, OsSPL6, OsSPL7, OsSPL8, OsSPL9 and OsSPL15, at the two stages, showed lower levels of expression after 30 °C treatment compared with 21 °C treatment. In contrast, the expression trends of OsSPL10 and OsSPL16 were opposite, with higher levels under the 30 °C treatment than those at 21 °C. The result is a superimposed expression level of the OsSPLs in response to temperature changes and involvement in fertility regulation. It also suggested that the sixth stage was a critical stage for the fertility transition, when the OsSPLs might be involved in rice fertility regulation responding to temperature changes.

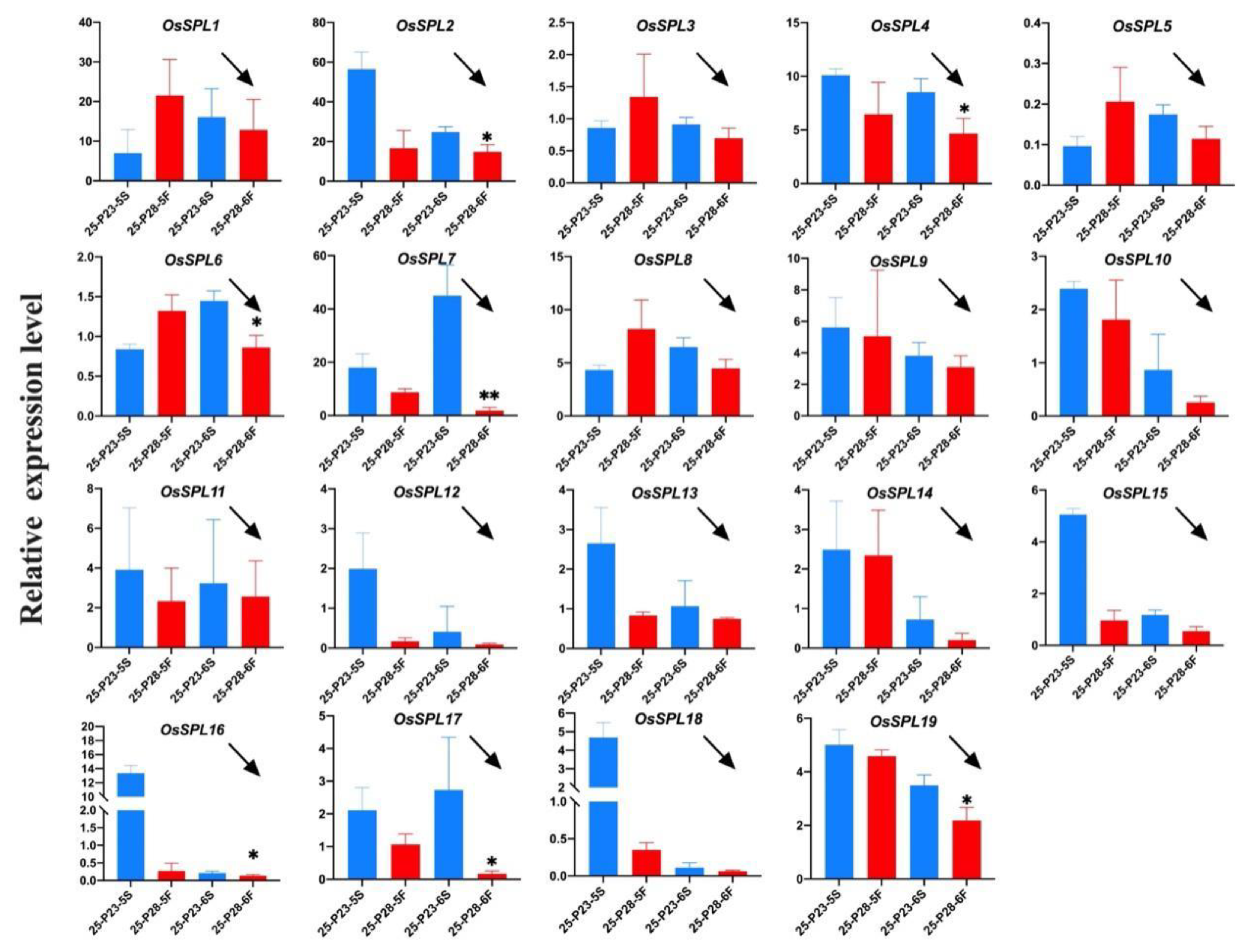

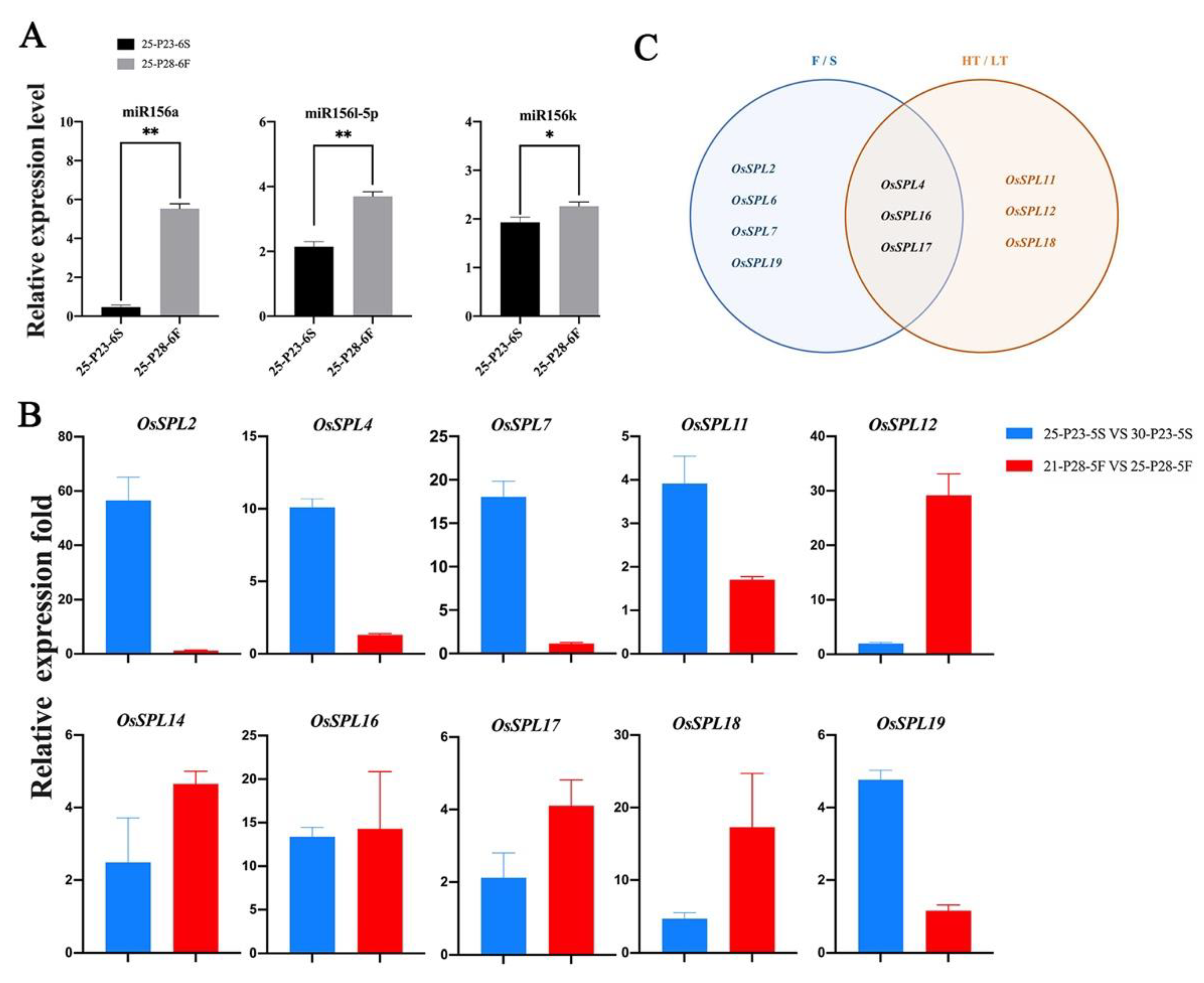

To verify that OsSPL responds to changes in fertility during the critical stage of fertility transition, and exclude the effect of temperature change on OsSPL expression, we performed qPCR validation using the two PTGMS rice, PA2364S and PA2864S, selected from the same genetic background, with different fertility transition temperatures. As shown in Figure 3, PA2364S showed male sterility while PA2864S showed male fertility under the same temperature—25 °C treatment. At the sixth stage, all the OsSPLs showed increased expression in sterile plants and decreased expression in fertile plants. Among them, the transcription level of OsSPL2, OsSPL4, OsSPL6, OsSPL16, OsSPL17 and OsSPL19 differed significantly between the lines, but the greatest differences were observed for OsSPL7. This result indicates a regular change in the OsSPL expression level with a change in fertility after excluding the effect of temperature changes and the high expression levels in sterile plants. The results further suggest that OsSPL genes are involved in the process of fertility regulation in rice.

2.2.4. Differential Expressions of miR156-OsSPL Module Genes in Sterile and Fertile Panicles of PA2364S and PA2864S under Different Temperature Conditions

Some research has found that the OsSPL mediated signaling pathway plays a crucial role in rice meiotic entry though the miR156-OsSPL module. According to the relationship network of miRNA and OsSPLs identified by our previous studies (Figure S5), a total of nine OsSPL genes, including OsSPL2, OsSPL7, OsSPL11, OsSPL12, OsSPL14, OsSPL16, OsSPL17, OsSPL18 and OsSPL19, were targeted by miR156a, miR156k and miR156l-5p, respectively. To demonstrate miRNAs-OsSPLs module expression, the relative expression levels of miR156a, miR156k and miR156l-5p in PA2364S and PA2864S were also verified by qPCR (Figure 4A). The expression of miR156a, miR156k and miR156l-5p was lower in sterile plants than in fertile ones, after the same temperature—25 °C treatments. The expression trends of these miRNAs were opposite to those of the OsSPLs. The result indicated that miR156 negatively regulates OsSPL expression and is involved in the regulation of rice fertility. Indirectly, the expression pattern of miR156 demonstrated that SPL plays an important role in the regulation of fertility.
After obtaining the above results, we were interested in the response of miR156 and OsSPL to temperature changes. Therefore, we compared the expression patterns of OsSPL genes in the fifth stage of plants of PA2364S and PA2864S with temperature changes and unchanged male fertility (Figure 4B). Interestingly, it was found that all the ten OsSPL genes (OsSPL2, OsSPL4, OsSPL7, OsSPL11, OsSPL12, OsSPL14, OsSPL16, OsSPL17, OsSPL18 and OsSPL19) targeted by miR156 showed regular change with temperature. OsSPL expression was lower at relatively high temperatures and higher at relatively low temperatures, while the miR156a expression pattern was opposite to them. Among them, OsSPL4, OsSPL11, OsSPL12, OsSPL16, OsSPL17 and OsSPL18 showed significantly different levels. The results demonstrated that OsSPL is sensitive to environmental temperature changes, and miR156/OsSPL might be involved in the regulation of male fertility in a modular form, in response to temperature changes. Therefore, following the expression analysis of the gene families, we found that OsSPL4, OsSPL16 and OsSPL17 might be involved in regulating fertility in response to temperature changes (Figure 4C).

2.3. The OsSPL17 Gene Is Highly Homologous with the AtSPL9 Gene and Has the Potential to Regulate Male Fertility

2.3.1. Collinearity and Nonredundant Analysis of the OsSPL Family

Gene duplication allows the expansion of new genes with similar or different functions, which is a special mechanism of species evolution. Completing the basic and evolutionary analyses of OsSPLs, we analyzed the segmental duplication events in the 19 genes that had been identified. In total, seven pairs of segmental duplication events (OsSPL2-OsSPL16, OsSPL2-OsSPL18, OsSPL4-OsSPL11, OsSPL5-OsSPL10, OsSPL3-OsSPL12, OsSPL14-OsSPL17 and OsSPL16-OsSPL18) were found on the chromosomes 1, 2, 6, 8 and 9, respectively (Figure S6A). It suggested that half of the OsSPLs were involved in the segmental duplication events of rice.
To understand the genetic origins and evolution of the SPL gene family, genomewide collinearity analysis was also performed. Four representative species were selected with two monocotyledons and two dicotyledons, respectively. The 7 Arabidopsis genes, 12 Hordeum vulgare genes, 11 Glycine max genes and 30 Zea mays genes were collinearly related to OsSPL (Figure S6B). Meanwhile, we calculated the nonsynonymous substitution/synonymous substitution (Ka/Ks) ratio of the orthologous gene pairs (Figure S6C). The Ka/Ks ratios between rice and Arabidopsis, Hordeum vulgare, Glycine max and Zea mays were calculated to be 0.25, 0.40, 0.26, and 0.39. This indicated that OsSPLs may have evolved from under strong purifying selection pressure. Analysis of the orthologous relationships between rice and Arabidopsis revealed that seven pairs of their SPLs were homologous (Table 3). Among them, OsSPL2, OsSPL16 and OsSPL19 were homologous to AtSPL13, and OsSPL14 and OsSPL17 were homologous to AtSPL9. By evolutionary analysis, there were seven syntenic SPL gene pairs found between rice with Hordeum vulgare and Zea mays, but no pairs simultaneously among the four species (Figure S6D). The results indicated that the OsSPL gene and AtSPL gene are homologous genes arising from species differentiation and have similar biological functions.

2.3.2. OsSPL17 Has a Similar Protein Structure to AtSPL9 and Is a Core Gene in the Male Fertility Related Module

OsSPL4, OsSPL16 and OsSPL17 were found to have important roles in regulating male fertility in response to temperature changes, according to the results of expression analysis. Integrating the homology between rice and Arabidopsis, we explored the protein structures of OsSPL17 and AtSPL9 to determine whether they have similar biological functions. Previous studies have found that AtSPL9 can regulate anthocyanin biosynthesis genes and control anthocyanin and flavonoids content in plants, and the flavonoids are necessary for the formation of male fertility in rice [28,29]. The comparison revealed that AtSPL9 and OsSPL17 have similar protein backbones, which have a variation of amino acids only in the chain (Figure 5A). They have identical α-helix and β-fold structures in the secondary structure. Hydrogen bonding is the force that maintains the secondary structure of the protein, and more hydrogen bonding structures were found in AtSPL9 by comparison (Figure 5A(IV,VIII)). Local structural comparisons revealed that the increase in hydrogen bonding was due to differences in the amino acids at some positions. For instance, PRO at position 88 in AtSPL9 and GLY at position 88 in OsSPL17 (Figure 5B(I)). Similarly, there are amino acid differences in TYR/GLY and MET/VAL at positions 97 and 98 between AtSPL9 and OsSPL17 (Figure 5B(II)). In addition, they have similar protein surface structures and surface electrostatic potentials. The results showed that OsSPL17 and AtSPL9 have similar compositions and structures of proteins, and they have a greater degree of similarity in biological functions.

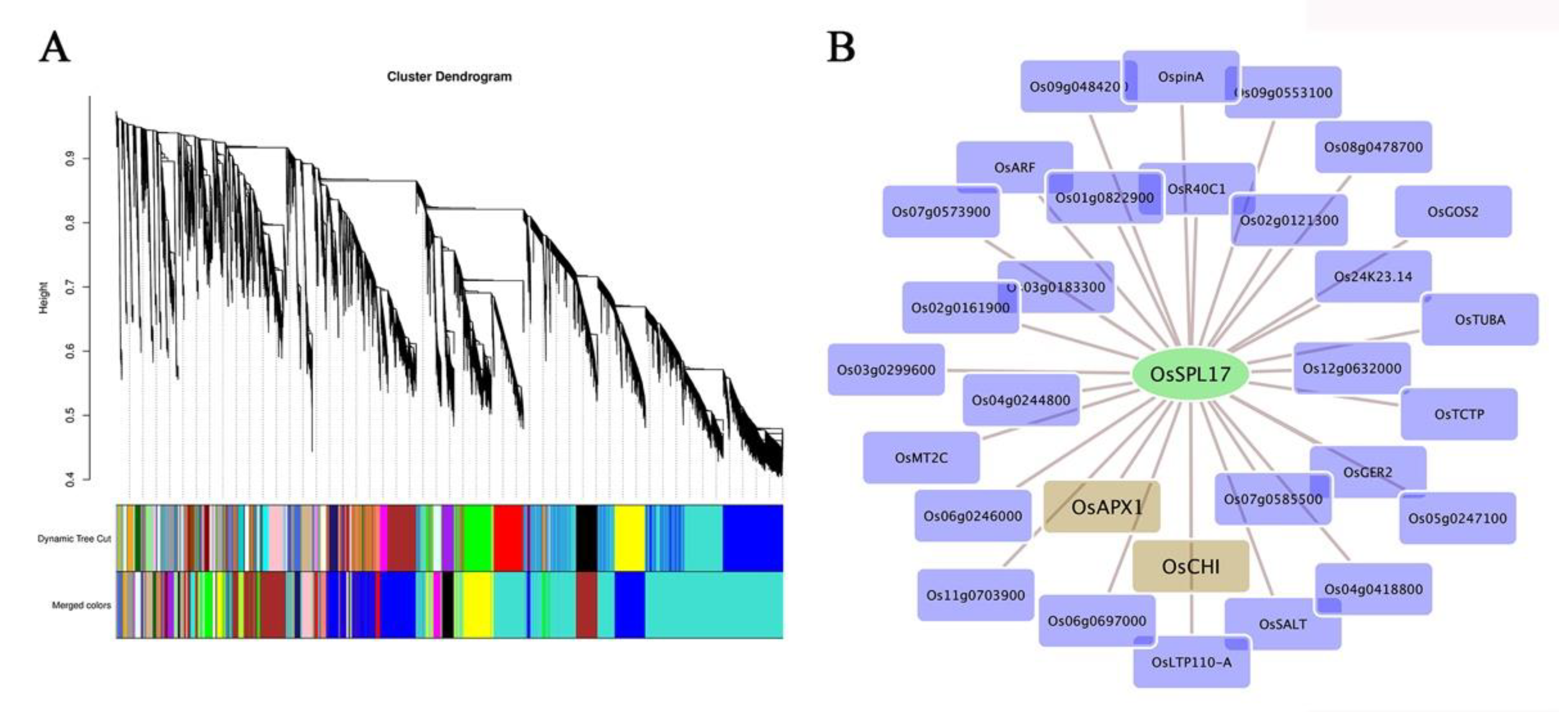

To investigate the potential role of OsSPL17 in the regulation of male fertility in rice, we performed WGCNA of the gene expression data from the obtained transcriptome. We clustered the genes into 30 related modules via association with male fertility traits (Figure 6A). After further analysis, we correlated the fertility related module with OsSPL17, which was finally identified in the darkturquoise module (Figure 6B). Several core genes were identified in the darkturquoise module, including OsSPL17. In particular, CHI and APX1 were identified among the co-expression genes of OsSPL17, which are critical genes for flavanone synthesis in the flavonoid pathway and major antioxidant enzymes in the ROS (reactive oxygen species) scavenging pathway, respectively. Flavonoids are inevitable for the formation of male fertility in rice. Meanwhile, our previous research found that, following the abnormal degradation of the tapetum in sterile anthers, ROS are essential for the initiation of the PCD process in the tapetum [30]. Therefore, the results indicated that OsSPL17 has the potential to regulate male fertility.

2.4. OsSPL17 Is Involved in Flavonoid Metabolic Processes and Regulates Male Fertility in PA64S

The miR156/SPL9 module can negatively regulate flavonoid biosynthesis in Arabidopsis [29]. OsSPL17 was found to have a similar protein structure to ATSPL9 and a gene interaction relationship in regulating the flavonoid pathway from evolutionary analysis, protein structure analysis and co-expression analysis. To investigate the regulatory role of OsSPL17 in flavonoid metabolism, we performed the metabolomic analysis of flavonoid substances in the fertility differential material. Significant differences in flavonoid metabolites between fertile and sterile plants were found in the analysis of flavonoid metabolites of fertile differential plants. Among the significantly different metabolites, 16 flavonoids were up regulated and 29 were down regulated in sterile plants, respectively, compared to fertile plants (Figure 7B). The content of several major class II flavonoids was different in the fertility differential material, such as flavanones, flavonols, flavones, chalcones and anthocyanidins. The ratio of the content in the fertile compared with the sterile plants showed that the flavanones and flavonols were higher in the fertile plants and the opposite results were obtained in the flavones, chalcones and anthocyanidins (Figure 7C). From the differentially expressed class II metabolites, we found that two flavanones, 2-hydroxynaringenin and narirutin, were up regulated in the expression of fertile plants, and kaempferol-7-O-glucoside and nicotiflorin are expressed as down regulated in fertile plants. Among the six flavones substances, apigenin-7-O-glucuronide, apigenin-7-O-(6′′-p-Coumaryl) glucoside and Isorhoifolin were up regulated in fertile plants, while the other three (chrysoeriol-7-O-(6′′-feruloyl) glucoside, luteolin-7-O-(6′′-eudesmyl) glucoside and tricin-7-O-(2′′-feruloyl) glucoside) were down regulated in fertile plants (Figure 7D). The results showed that the substance composition of the different class II flavonoid metabolites was quite different in the fertile differential material, further suggesting that flavonoid metabolic processes may be regulators of male fertility in rice.

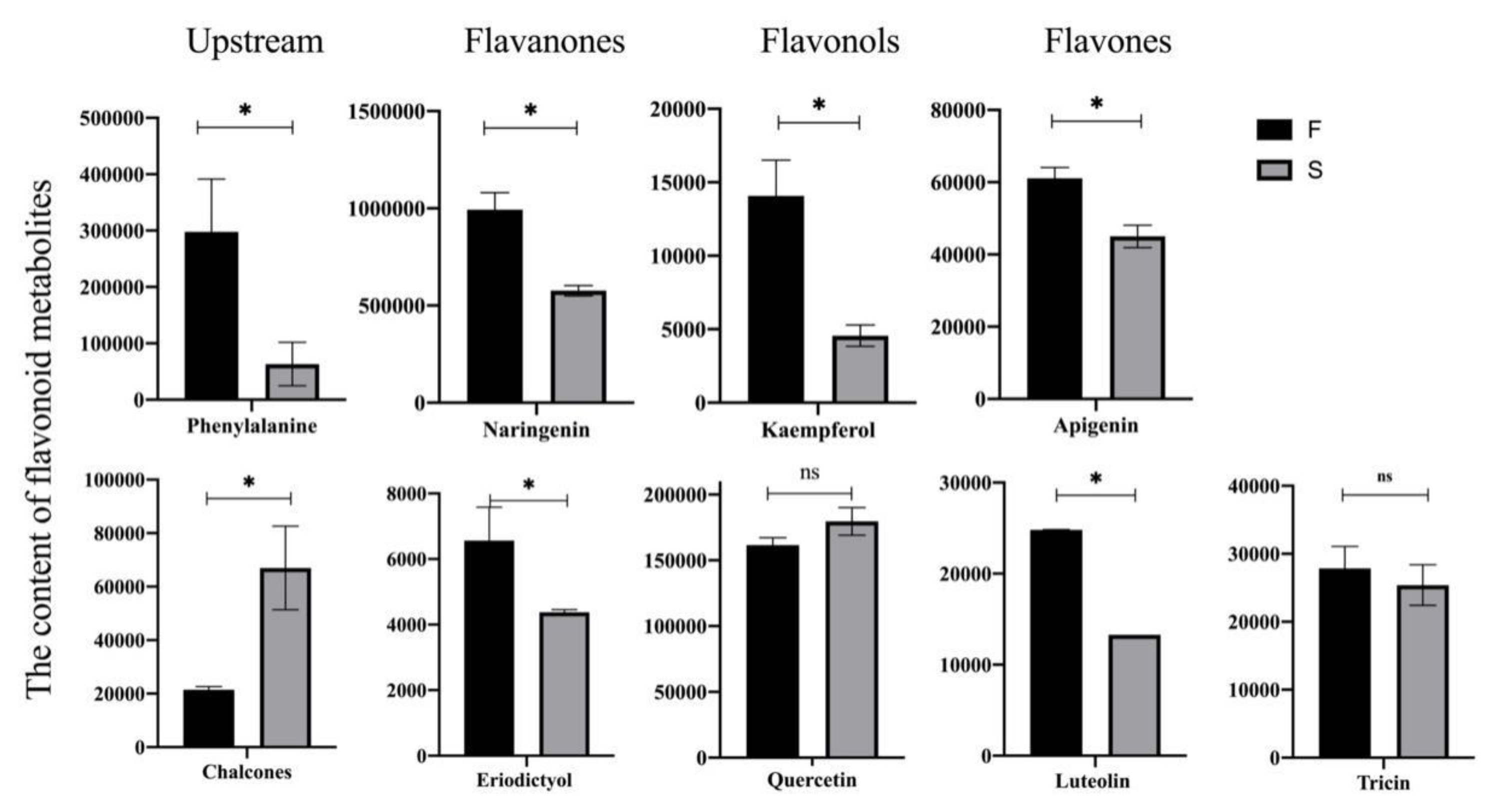

To further investigate the function of flavonoids in rice fertility, we extracted the major fractions of the different class II flavonoid metabolites in the anthers of fertile differential plants. Naringenin and eriodictyol substances were mainly extracted from flavanones, and they were both present in higher levels in fertile plants compared to sterile plants (Figure 8). Meanwhile, we also detected flavonols (kaempferol and quercetin), flavones (apigenin, luteolin and tricin) and chalcones. Apart from quercetin and chalcones, all substances were up regulated in fertile plants. This result indicates that fertile rice anthers have high levels of flavonoids, which are essential for the formation of male fertility in rice.

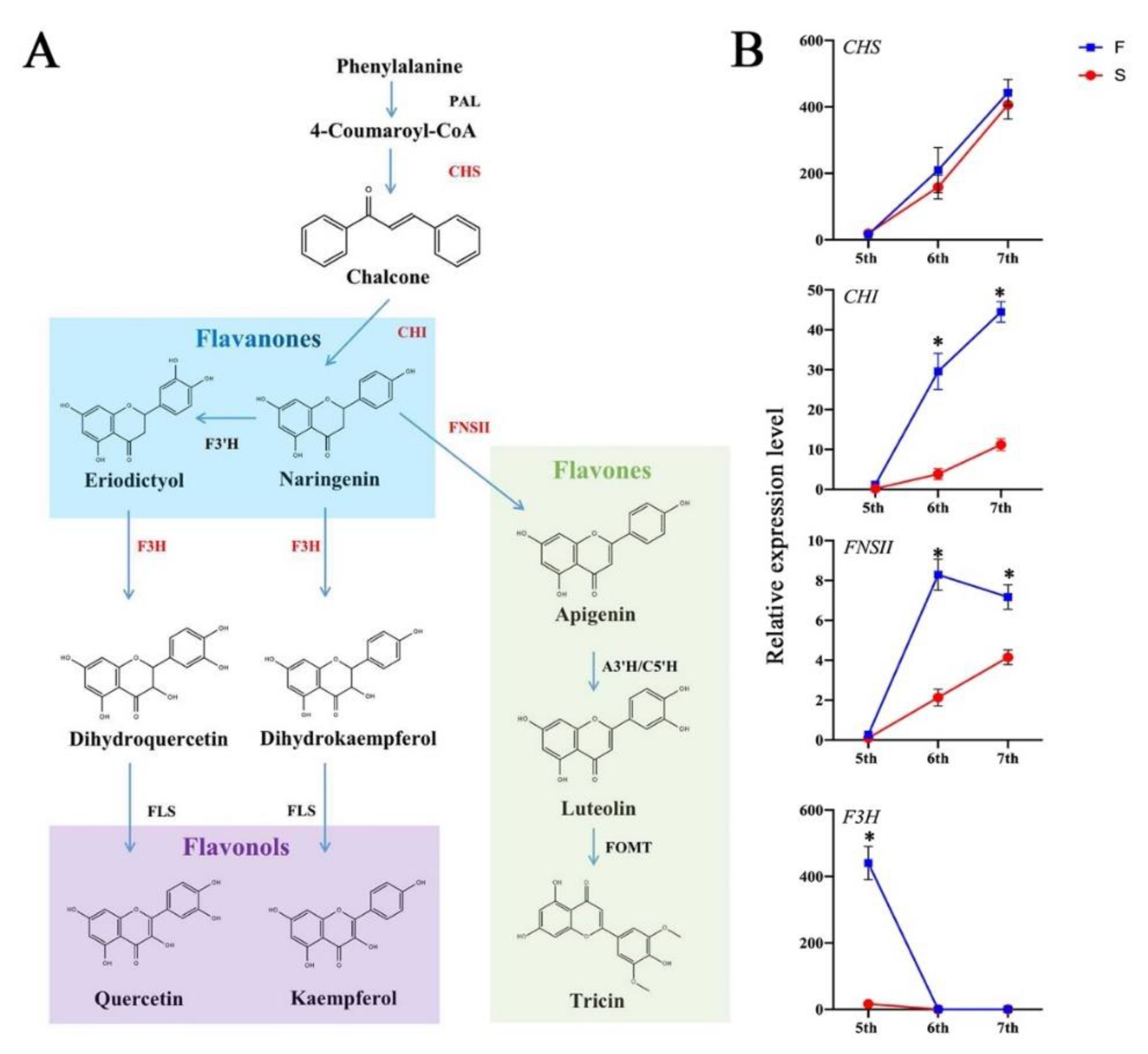

To investigate the process of flavonoid biosynthesis in rice anthers, we presented a flavonoid metabolic pathway and performed expression analysis of several key enzyme genes in the biosynthesis of important class II flavonoid (Figure 9). CHS is the first branch point enzyme encoding the biosynthesis of flavanones and the expression in fertile plants was slightly higher than that of sterile plants. The expression levels of CHI and FNS2 were higher in fertile plants than that in sterile plants at three stages (fifth, sixth and seventh), and CHI showed significantly up regulated expression in the sixth and seventh stages. This result demonstrated that there was a vigorous flavonoid biosynthesis process in the rice anthers of fertile plants. Interestingly, a higher expression of CHI and FNS2 genes was observed in the later stages of young spike development; these results indicate that flavonoid substances start efficiently synthesized at the sixth stage. F3H is a gene encoding the synthase of flavonols and its expression is higher in the early stages of young spike development. However, the contents of kaempferol and qurerrtin were inconsistently expressed in fertile plants. Therefore, the results speculated that the flavonoids involved in fertility regulation are mainly flavonols and flavones. OsSPL17 negatively regulate CHI to increase the biosynthetic process of flavonols and flavones, which provide more flavonoid substances for fertile plant fertility formation.

2.5. Regulated by OsSPL17, Delayed ROS Accumulation Causes Delayed PCD of the Tapetum in PA64S

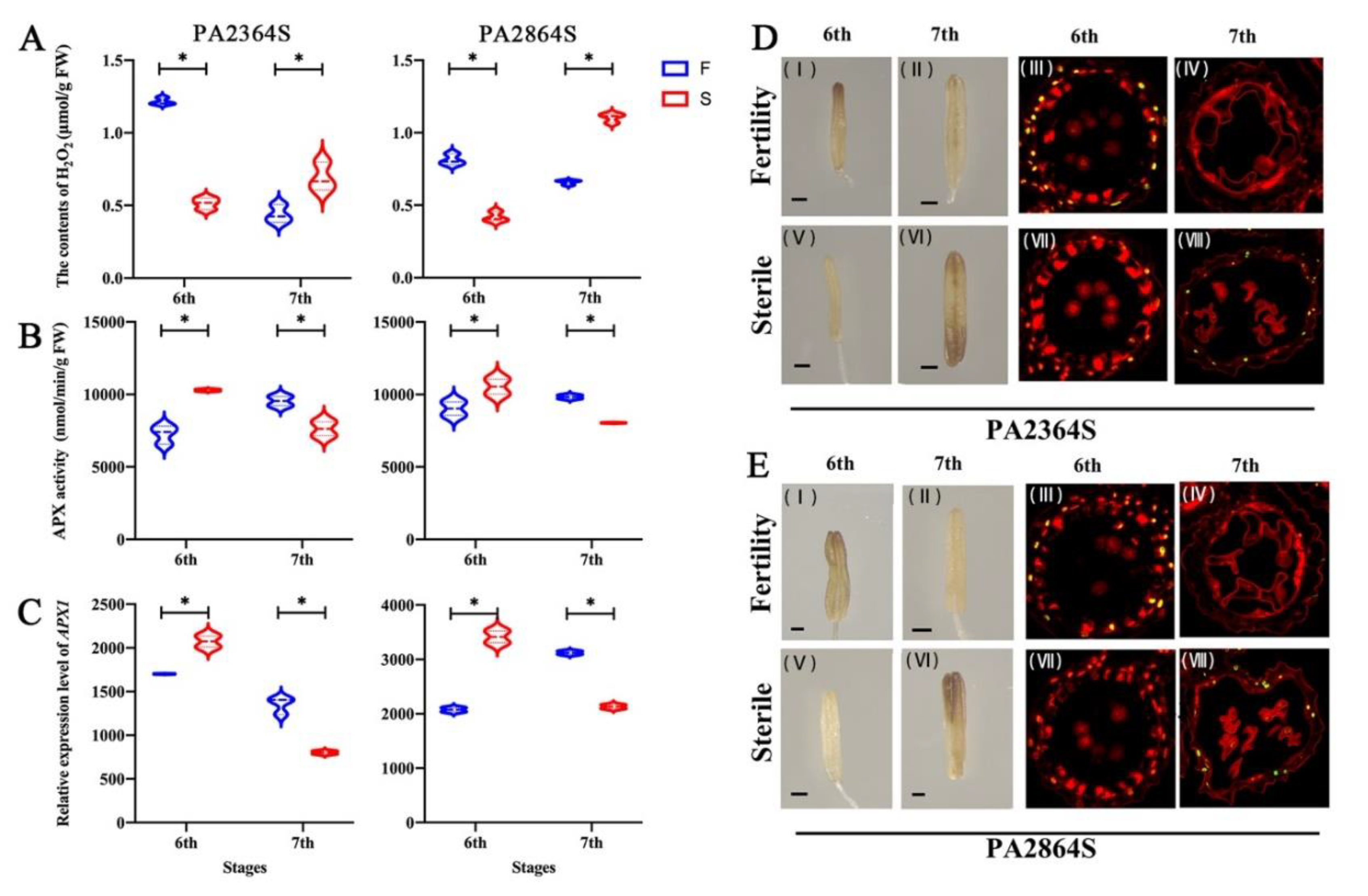

ROS homeostasis is critical for cell survival and growth during anther development, especially for timely PCD in the tapetum [31,32]. APX (Ascorbate peroxidase) is a major scavenger of ROS, which converts H2O2 to H2O and balances the ROS level. To investigate how the OsSPL17 regulates OsAPX1 expression and regulates the male sterility process, we measured the H2O2 content and APX enzyme activity in rice anthers. The results showed that H2O2 was higher in fertile plants at the sixth stage and higher in sterile plants at the seventh stage among PA2364S and PA2864S (Figure 10A). It was found that the anthers stained darker at stage six in fertile plants and at stage seven in sterile plants with DAB staining, and this result is consistent with the measured value of H2O2 content (Figure 10C). To further investigate whether the ROS content in the tapetum is consistent with the anther phenotype, we performed a TUNEL assay on anther sections. There was a clear fluorescence signal in the tapetum region in the sixth stage of the PA2364S fertile anthers (Figure 10C(III)), compared with a weaker fluorescence signal in the tapetum of sterile anthers (Figure 10C(VII)), which suggested that there were strong ROS accumulation and PCD processes in the tapetum of fertile anthers. In contrast, the opposite phenomenon was observed in the seventh stage, and a stronger fluorescence signal appeared in the tapetum of sterile anthers (Figure 10C(IV,VIII)). This variation pattern was also demonstrated in PA2864S (Figure 10D). The results indicated that the ROS accumulated earlier and induced the PCD process in the tapetum of fertile anthers during anther development. The ROS accumulated later in the tapetum of sterile anthers and delayed the PCD process. To determine the relationship between ROS changes and APX, we measured APX activity in anthers (Figure 10B). The results showed that APX activity was higher in fertile plants at stage six than in sterile plants, and the opposite result was obtained at stage seven. Meanwhile, the expression pattern of APX1 gene in PA2364S and PA2864S was consistent with the trend of enzyme activity (Figure 10C). Therefore, we concluded that OsSPL17 interacts with APX1 to affect APX activity in the anther, thereby regulating ROS content in anthers and the tapetum, then controlling the PCD process in the tapetum at last regulating male fertility in rice.

3. Discussion

3.1. Function of SPL Family Genes in Rice

SPL transcription factors are a family of proteins with a highly conserved SBP structural domain unique to photosynthetic plants [5]. Up to now, the SPL gene family members have been identified in various plants, including Arabidopsis, Oryza sativa, Triticum aestivum and strawberry (Fragaria vesca) [2,15,33,34,35,36,37]. The number of SPL gene family members varies widely among species [38,39]. In this research, there were 27 alternative splicing OsSPLs sequences identified during the initial process, mainly in the OsSPL1, OsSPL4, OsSPL12 and OsSPL16 sequences. We selected the maximum length alternative splicing sequences for subsequent gene family identification and sequence alignment, and a total of 19 OsSPLs were identified in rice. Multiple segmental duplications, tandem duplication and transposition events are major drivers of genome and genetic system evolution [40,41]. In the evolutionary relationships of SPL genes, five homologous gene pairs of Oryza sativa were identified to locate within segmental duplication region, and this result was also reported in the research of Zhong et al. [42]. Meanwhile, the number of collinear genes was lower in rice with Arabidopsis and Glycine max (7 and 12). Notably, we found seven shared OsSPL genes with collinearity in three species other than Arabidopsis, and the results suggest that the orthologous correlations between these species are relatively conserved during evolution, and these OsSPL genes might present before species divergence [43]. The Ka/Ks of collinear gene pairs were lower than 1 between rice and the four species, and the results suggest that there might have been a stronger purifying selection pressure of the SPL gene family in species evolution. Previous studies indicated that the SPL gene family is widely involved in plant growth and development and stress responses [44,45]. AtSPL3, AtSPL4 and AtSPL5 could promote flowering in Arabidopsis by directly activating the expression of AP1, LFY, and FUL [46]. The reports in the literature indicate that SPL is involved in the reproductive growth process and is essential for fertility determination [47,48]. The loss of function spl8 mutant showed reduced fertility, which was mainly characterized by abnormal pollen sacs and reduced pollen production [49]. In addition, SPL could act as a regulatory center in response to environmental temperature. The miR156-SPL3 module could respond to environmental temperature changes by controlling FT expression to regulate the flowering process. In addition, the miR156-SPL9-SOC1 regulatory module also has the ability to control plant flowering in response to temperature changes [50,51]. In the homologous gene relationship analysis, OsSPL17 and OsSPL14 were orthologous to AtSPL9, and they constituted selected pressure for purifying selection. Similarly, OsSPL2, OsSPL16 and OsSPL19 were orthologous to AtSPL13. However, we observed that AtSPL9 has a key role in regulating flavonoid metabolism and plant immune response, and we hypothesized that OsSPL17 and OsSPL14 have similar functional roles with AtSPL9 in plant development, focused on the gene function of OsSPL17 in the study.

3.2. OsSPL Responds to Temperature Changes and Is Involved in the Regulation of Male Fertility in PTGMS Rice

In general, the function of genes depends on their expression levels in plants [52]. The expression level of SPL genes are regulated by miRNA targeting, in general, and plays a key role in plant embryo, tissue, hormone response and stress response [53]. In this study, we selected two rice varieties (PA2364S and PA2864S) with the same genetic background and different fertility transition temperatures bred by our research team [54], and the expression levels of the identified OsSPL genes in PA2364S and PA2864S were analyzed. It was found that the expression level is a superimposed expression of the gene in response to fertility and temperature treatment. PA2364S was male sterile and PA2864S was male fertile under 25 °C treatment. Therefore, we could obtain the OsSPL gene expression levels of differentially fertile plants under 25 °C treatment. At the critical stage of fertility transition (the sixth stage), the expression levels of OsSPL in differentially fertile plants were significantly different (OsSPL2, OsSPL4, OsSPL6, OsSPL7, OsSPL16, OsSPL17 and OsSPL19), and the expression levels of OsSPL in sterile plants were higher than those in fertile plants. The results indicated that the OsSPL gene is involved in regulating male fertility in rice. A significant reduction in setting rate was observed in OsSPL2, OsSPL7, OsSPL16 and OsSPL17 by knocking out 19 SPL family genes in rice [55]. Ren et al. revealed that OsSPL may act upstream of MIL1 (MICROSPORELESS1) and MIL2 (MICROSPORELESS2) to regulate meiotic entry and parietal cell differentiation in rice [25]. It is well known that genes are regulated by miRNA targeting, and the expression of most BpSPL in terminal buds and male inflorescences was also observed to be negatively correlated with miR156 expression in Betula (Betula platyphylla Suk) [56]. We found that miR156 (miR156a, miR156k, miR156l-5p, miR156j-3p and miR156f-3p) targets 10 OsSPL genes in our material, after analyzing the target relationships of miRNAs by sequencing (Figure S5). The expression analysis of miR156 in plants treated at 25 °C revealed a low relative expression in sterile plants, and this result contrasted with the expression trend of OsSPL. Fifty-seven percent of miR156 targeted SPL in Zea mays was inhibited by salt and drought stresses, and the results suggest that miR165/SPL modules might be jointly involved in regulating growth and development in response to environmental changes [36,57]. Regulatory modules consisting of miRNAs and target genes have been reported in response to disease resistance and abiotic stresses in plants. Some common targeting OsSPL genes exist in miR156/529 that have important roles in regulating inflorescence structure and seed yield in rice [58]. For instance, panicle architecture and grain size were controlled by miR529a through altering the expression of all five target genes OsSPL2, OsSPL7, OsSPL14, OsSPL16, OsSPL17 and OsSPL18 [59]. Overexpression of miR156k resulted in the down regulation of SPL3, SPL14 and SPL17, which reduced tolerance to cold stress in rice [60]. To explore whether OsSPL genes have a unique pattern in response to temperature changes, we compared OsSPL expression levels in the fifth stage plants of two varieties treated with different temperatures. Interestingly, all 10 OsSPL genes targeted by miR156 showed a lower expression level in the relatively high temperature treatment (30/25 °C) and a higher expression level in the relatively low temperature treatment (25/21 °C), while the opposite trend of miR156 expression was observed in fifth stage plants, among them, OsSPL4, OsSPL11, OsSPL12, OsSPL16, OsSPL17 and OsSPL18 were significantly different levels. The results indicate that miR156 is an miRNA that responds to environmental temperature changes, which is consistent with the previous research that miR156 is upregulated in expression by high temperature conditions [61]. Temperature changes were not high temperature stress or low temperature stress in this study, and the results illustrated that the miR156/SPL module is more sensitive in response to temperature changes. OsSPL4, OsSPL16 and OsSPL17 were revealed to be significantly differentially expressed in response to both temperature and fertility changes; they might be more important in responding to temperature and regulating male fertility. We speculated that the difference in fertility critical temperatures, between PA2364S and PA2864S, might be a change in the expression level of OsSPLs in response to temperature, and, thus, the change in male fertility in rice.

3.3. OsSPL17 Is Involved in Male Fertility Regulation by Impacting Flavonoid Metabolic and Tapetum PCD Processes

Flavonoids are a common class of plant secondary metabolites with a variety of regulatory roles in plant physiological responses, growth and development [62]. They are mainly classified into six class II flavonoids: flavanones, flavonols, flavones, chalcones, anthocyanidins and proanthocyanidins, and more than 6000 flavonoids have been identified [63]. Studies have demonstrated that flavonoids play a regulatory role in biotic and abiotic stresses; in addition, the functional role of flavonoids in male fertility has been demonstrated in several plants [64,65,66,67]. Flavonoids are essential for the formation of male fertility in rice [68]. The miR156-SPL9 module was reported to regulate the flavonoid biosynthetic pathway in Arabidopsis, and SPL9 upregulation affected flavonol biosynthesis and inhibited flavonol accumulation [29]. In our study, we found that rice OsSPL17, which responds to temperature changes and regulates the fertility process, and AtSPL9 in Arabidopsis are proteins of the same subfamily, with some structural and functional similarities. In addition, the CHI genes interacting with OsSPL17 were found to be involved in the regulation of the flavonoid synthesis pathway in WGCNA analysis. The analysis of flavonoid metabolites revealed that the composition of the different class II flavonoids differed significantly in the fertile differential material. Flavonols showed a significant up-regulation of the main substance, kaempferol, in fertile plants, although the total amount was low in comparison with sterile plants. In addition, we found that flavanones and flavones were also significantly upregulated in fertile plants, which indicated that flavonoid substances were at higher levels in fertile plants. Interestingly, we detected that the upstream metabolites of flavonoids, chalcone was significantly down-regulated in fertile plants, and the change in phenylalanine was the opposite. Phenylalanine is an important substance in the phenylpropanoid metabolic pathway, and its content changes directly affect the metabolic processes of downstream flavonoids and lignin. However, the process of lignin metabolism is indispensable for sporopollenin synthesis during male fertility development [28]. Analysis of the expression of genes encoding key enzymes in the flavanones, flavonols and flavones biosynthetic pathway revealed that the expression of CHI and FNS2 were at a high level in fertile plants, especially at the early stage of anther development. Active flavonoid biosynthesis processes are present in fertile plants, which were directly responsible for the high content of flavanones and flavones. Some studies found that MYB (MYB11, MYB12 and MYB111) regulates the expression of several early flavonoid biosynthetic genes, including CHS, CHI, F3H and FLS1, while SPL may have an indirect effect on MYB12 and MYB111 via a feedback loop [69,70,71]. Therefore, it was hypothesized that OsSPL17 might affect rice male fertility by regulating the accumulation process of flavonoid substances (Figure 11).
The development and maturation of male gametes play an important role in the fertility and reproduction of rice. Pollen development is a multisystem coordinated and complicated physiological process [72]. The anther is an important site for pollen development, which is composed of four layers of sporophytic cells (epidermis, endothecium, middle layer and tapetum) from outside to inside [73]. The tapetum is the innermost structure of the anther and contributes to microspore release, nutrient accumulation, pollen wall synthesis, and sporopollenin deposition [74,75]. Controlled degradation of the tapetum is essential, and changes in this process can directly reduce fertility [76]. It has been found that the delayed degradation of the tapetum causes male sterility in rice [72,77,78]. In this study, we found that the PCD process normally starts at an early stage in the tapetum cells of fertile plants, whereas that process in the tapetum of sterile plants starts at a later stage of development (Figure 10D,E). Similarly, the accumulation pattern of ROS in anthers was also consistent with its variation pattern (Figure 10A). ROS are involved in the PCD process in the tapetum, and timely PCD in the tapetum and the maintenance of dynamically balanced ROS levels are essential for anther cell growth and survival. The co-expression between APX1 and OsSPL17 was found in the WGCNA analysis, and the expression of APX1 and APX enzyme activity assay revealed that the expression pattern was opposite to the ROS accumulation pattern: low ROS accumulation was observed during the stage of high APX activity in anther the tapetum (Figure 10B,C). In addition, Liu et al. found that the down regulation of APX and GPX activity increased the accumulation of ROS in late pollen development in wheat male sterile materials [79]. In addition, TEM observation of mature pollen grains revealed the absence of starch grain formation, the absence of pollen intine structure and abnormal pollen exine structures in sterile pollen grains (Figure 1C). The tapetum has a secretory role during sporogenesis. Accompanying callus cell degradation, a large amount of sporopollenin precursor material derived from the tapetum is stored on the primexine, and constitutes the basic structure of the pollen exine. GAMYB, CYP703A3 and GPT1 were demonstrated to be essential for pollen exine development in rice, and these mutants all showed abnormal PCD in the tapetum. Therefore, we propose that OsSPL17 may impact APX enzyme activity by regulating the expression of APX1, which regulates the balance of ROS in the anther tapetum, leading to abnormal PCD processes in the tapetum and producing male sterility (Figure 11).

4. Materials and Methods

4.1. Plant Materials and the Temperature Experimental Treatment for Pollen Fertility Transformation

The near isogenic lines (NILs) PA2364S and PA2864S come from Peiai64S (PA64S) used in the study are PTGMS rice, which had been identified and bred by our research team for multiple generations. PA2364S has a fertility critical temperature of 23 °C, and, under long day (LD) conditions, male sterility manifested when the average temperature was above 23 °C, and males were fertile at average temperatures below 23 °C. PA2864S has a fertility critical temperature of 28 °C, and, under LD conditions, male sterility manifested when the average temperature was above 28 °C, and males were fertile at average temperatures below 28 °C. This experiment was conducted at the Crop Physiology and Production Centre of Huazhong Agricultural University (30.28° N, 114.20° E) during 2020–2021. Sowed annually on May 10, better growing seedlings were selected and transplanted into enamel pots to grow naturally. Three plants were transplanted into each pot, each limited to primary tillers. During this period, regular fertilizer, water and disease management was performed. According to the method of eight stage differentiation of young rice spikes [80], when the plant population (50%) develops into the secondary stalk and spikelet primordium differentiation stage (3rd stage), the rice plants were moved to the plant growth chamber. The average temperatures were 21 °C, 25 °C and 30 °C with fluorescent light of 300 μmol/(m2·s) and relative humidity of 80% of PA2364S and PA2864S.

4.2. Phenotype and Characterization Analysis of PTGMS Rice

The representative mature rice plants and spikelets were selected for observation according to our previous research methods [13,81]. The anthers of the top floret that had initiated heading were picked and stained with 1% I2-KI. The anthers were extruded with tweezers to remove the residue, and three fields of view were observed randomly under the microscope. Pollen was classified into two categories, fertile and abortive (pollenless, round abortive and spot abortive), according to their different morphologies, and the percentage of fertility was calculated. Finally, the percent fertility of all tested spikelets from the same treatment was averaged to obtain the percentage of pollen fertility for the period under the treatment. We selected 60 plants with more than two young spikelets per plant for observation, with pollen fertility and seed setting rate (N > 120). Significant differences are, according to Student’s t-test, at p  <  0.05 (*).

4.3. Identification and Bioinformatics Analysis of SPL Genes in Rice

To identify members of the SPL gene family in rice, the rice genome and genome annotation files were downloaded from Ensembl Plants release 50 (http://plants.ensembl.org/index.html, accessed on 5 July 2021) and that of SBP domain (PF03110) from the Pfam database [27]. First, we used hmmsearch (http://www.hmmer.org/, accessed on 5 July 2021) with SBP domain to search the poplar amino acid sequences, with a threshold of e < 1 × 10−5. We obtained all the Arabidopsis SBP-box gene family (AtSPL) protein sequences from the TAIR database (https://www.arabidopsis.org/index.jsp, accessed on 11 July 2021) by querying the sequences. Based on these data, the sequences of the most representative SPL gene family members in rice were extracted using the TBtools [82], and the OsSPL protein sequence was further queried and validated by BLASTp in the NCBI protein database. (https://blast.ncbi.nlm.nih.gov/Blast.cgi?PROGRAM=blastp&PAGE_TYPE=BlastSearch&LINK_LOC=blasthome, accessed on 13 July 2021). We used Batch CD-Search in NCBI for further screening based on conserved structural domains to obtain candidate genes, which were also removed (https://www.ncbi.nlm.nih.gov/Structure/bwrpsb/bwrpsb.cgi, accessed on 15 July 2021). The ExPASy website (http://expasy.org/tools/, accessed on 15 July 2021) was employed for evaluations of molecular weight (MW), isoelectric point (pI) and amino acid numbers of the identified OsSPL proteins [83].
The physical location of the OsSPL gene was obtained from the genome annotation information of rice, the visualization of the OsSPL gene on the rice chromosome was performed using TBtools, and the intron–exon structure was demonstrated. Conserved motifs of the OsSPL protein were identified using MEME v5.4.3 (https://meme-suite.org/meme/tools/meme, accessed on 22 July 2021) with the maximum motif number set to 20. Finally, the conserved amino acid sequences were visualized using the WebLogo online tools (http://weblogo.berkeley.edu/, accessed on 22 July 2021).
The SPL protein sequences of rice, Arabidopsis, Hordeum vulgare and Triticum aestivum were used to construct phylogenetic analyses [84,85], and multiple sequence comparisons were performed and an unrooted phylogenetic relationship was constructed by MEGA 7.0 software, the phylogenetic relationship was constructed by the Jones–Taylor–Thornton (JTT)+ gamma distributed (G) model based on 1000 bootstrap replicates [86]. Finally, the images were processed using Figtree v1.4.4 software and Adobe illustrator 2021.
Genomic and annotation files of Arabidopsis, Zea mays, Hordeum vulgare and Triticum aestivum were obtained from the Ensembl database for species collinearity analysis. Using the TBtools with MCScanX, we analyzed the tandem duplication events and the collinearity relationship for gene pairs from different species [87]. Ka and Ks substitutions between gene pairs were also calculated, by use of the TBtools [82].

4.4. RNA Sequencing and qPCR Validation for PA2364S and PA2364S Rice

The 4th, 6th and 7th stage materials of PA2364S and PA2864S were selected for the extraction of total RNA, using TIANGEN RNAprep Pure Plant Kit as described by the supplier. For RNA sequencing, 3.0 μg of RNA from each sample was used for sequencing. Each sample was represented by three biological replicates.
For mRNA quantification, the 5th, 6th and 7th stages materials of PA2364S and PA2864S were selected for the extraction of total RNA, and followed the instructions of the RevertAidTM First Strand cDNA Synthesis Kit (MBI, Lithuania) to reverse transcribe RNA samples into cDNA. In this experiment, Acting7 (X16280) was selected as the internal reference gene. We used primer 3.0 to design specific primers, and these primers were synthesized by Shanghai Shenggong Bioengineering Co., Ltd., Shanghai, China. The specific primer information is shown in Supplementary Table S1. The QuantStudio™ Real-Time PCR Detection System was used for qPCR, and each sample was represented by three biological replicates. For miRNA quantification, according to the instructions, we used a TIANGEN miRcute enhanced miRNA cDNA first-strand synthesis kit to obtain reverse transcription products in a PCR machine (Bio-Rad, Hercules, CA, USA). A TIANGEN miRcute Enhanced miRNA Fluorescence Quantitative Detection Kit (SYBR Green) was used for qPCR of miRNA. U6 was selected as the internal reference gene. The expression of miRNA was verified by three biological replicates. Values were represented as the average values of three biological repeats. Error bars represented standard deviations. Asterisks indicated significant differences revealed by the Student’s t-test.

4.5. Analysis of the Protein Structure and WGCNA of PA64S

Analysis of protein structures was performed using SWISS-MODEL and Phyre2 to ensure their credibility [88,89]. Files constructed in the database were visualized and edited using PyMOL (The PyMOL Molecular Graphics System, Schrödinger, LLC., New York, NY, USA) software.
The co-expression network was constructed using the WGCNA package in Rsoftware. In this study, the data from 18 samples were analyzed. Before performing WGCNA analysis, selected genomes were filtered to remove low quality genes, and the data were filtered by setting a coefficient of variation of 0.5. The parameters of WGCNA program were as follows: power estimate (estimate value) = 8, min module size = 30, merge cut height = 0.25. The other parameters were defined as default values. Highly similar modules were subsequently identified by clustering and then merged into new modules on the basis of eigengenes. Finally, Cytoscape 3.8.2 was used to visualize the data.

4.6. Electron Microscopy Methods and TUNEL Assays of PA64S

The sample preparation and observation for TEM (transmission electron microscopy), SEM (scanning electron microscopy), and TUNEL (transferase mediated dUTP nick end labeling) of rice anthers were performed according to the previous work [77].

4.7. Determination of DAB Staining, H2O2 Content and APX Activity in Rice Anthers

PA64S anthers were stained with 3,3′-Diaminobenzidine as described in previous studies [90]. ROS was quantified by measuring H2O2. Briefly, fresh rice anthers were ground to a fine powder using liquid nitrogen and the powder was homogenized with buffer on ice, and centrifugation at 8000× g for 10 min at 4 °C. The H2O2 in the supernatant was quantified as described in the H2O2 kit (Keming, Suzhou, China). Similarly, APX activity was performed using the plant APX activity assay kit (Keming, Suzhou, China).

4.8. UPLC-MS/MS Analysis of Anther Metabolites

Anther samples were freeze dried by vacuum freeze dryer (Scientz-100F). The freeze dried sample was crushed using a mixer mill (MM 400, Retsch) with a zirconia bead for 1.5 min at 30 Hz. A total of 100 mg of lyophilized powder was dissolved with 1.2 mL 70% methanol solution, vortexed for 30 s every 30 min for 6 times in total, the sample was places in a refrigerator at 4 °C overnight. Following centrifugation at 12,000 rpm for 10 min, the extracts were filtrated (SCAA-104, 0.22 μm pore size; ANPEL,Shanghai, China, http://www.anpel.com.cn/, accessed on 11 October 2021) before UPLC-MS/MS analysis. The sample extracts were analyzed using an UPLC-ESI-MS/MS system (UPLC, SHIMADZU Nexera X2, https://www.shimadzu.com.cn/, accessed on 11 October 2021; MS, Applied Biosystems 4500 Q TRAP, https://www.thermofisher.cn/cn/zh/home/brands/applied-biosystems.html, accessed on 11 October 2021).

4.9. Data and Figures

The RNA-seq data of the OsSPL gene family in 11 various tissues (shoots, leaves, seeds, inflorescence and anthers) were obtained from the public database (Rice Genome Annotation Project, http://rice.plantbiology.msu.edu/index.shtml, accessed on 22 August 2021). Statistical analysis of data and plotting of histograms were performed using Origin 2021. Error bars represented by standard deviations. Asterisks indicated significant differences revealed by the Student’s t-test.

5. Conclusions

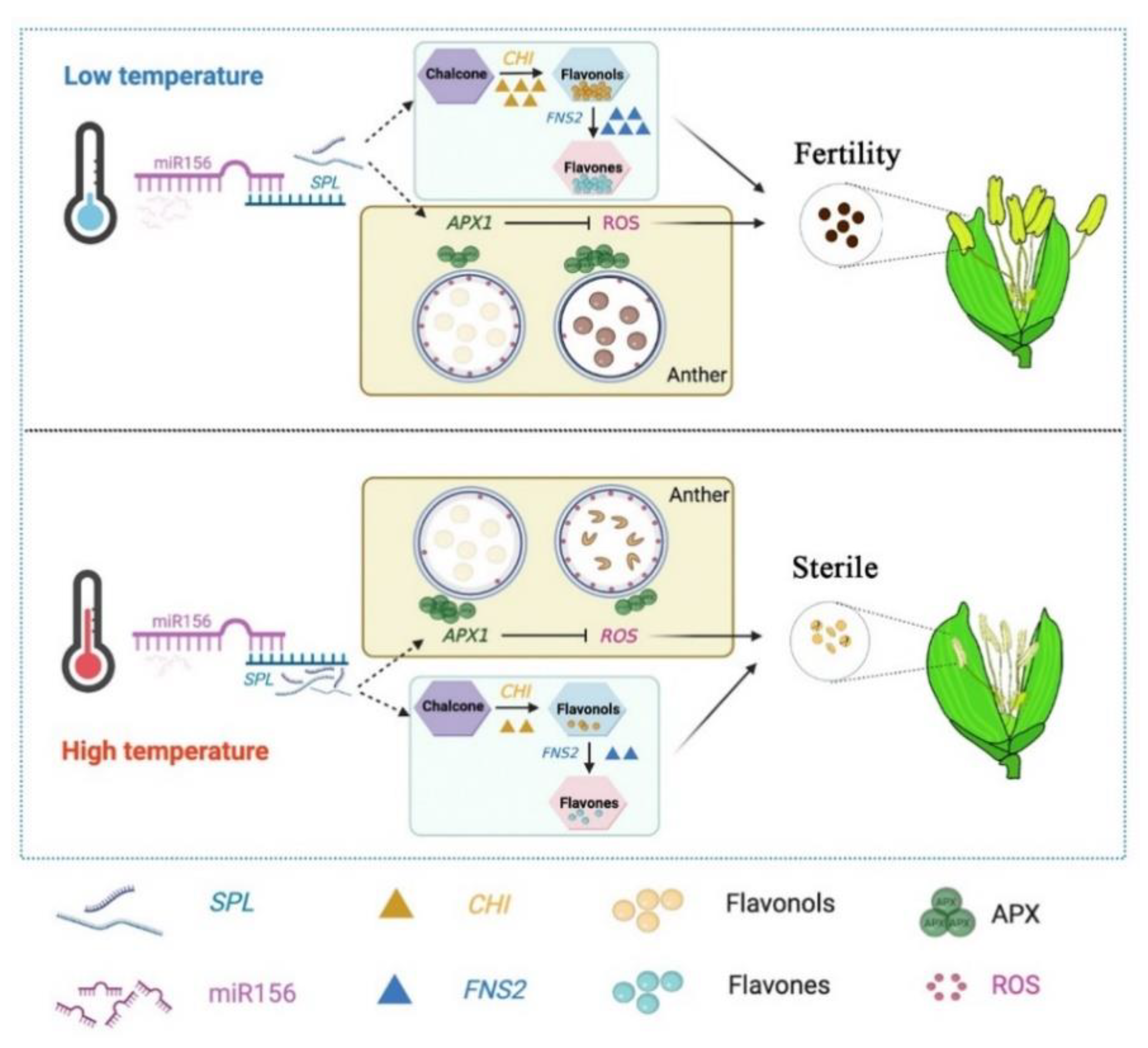

In conclusion, we identified the SPL gene family in rice with 19 members. Based on the temperature experimental system for pollen fertility transformations from PTGMS rice lines PA2364S and PA2864S, with different critical temperatures, it was suggested that three SPL family members, OsSPL4, OsSPL16 and OsSPL17, were involved in regulating male fertility responding to temperature. The WGCNA analysis revealed CHI and APX1 co-expression with OsSPL17, and they play an important role in the flavonoid synthesis pathway and ROS clear system, respectively. Flavonoid metabolite analysis revealed that a more active flavonoid biosynthesis process exists in fertile plants, OsSPL17 negatively regulates CHI to increase the biosynthetic process of flavonols and flavonoids, which provide more flavonoid substances for fertile plant fertility formation. In addition, OsSPL17 negatively regulates APX1 to affect APX activity, thereby regulating ROS content in the tapetum, controlling the PCD process, and regulating male fertility in rice. The results provide a new insight for further analysis of the OsSPL gene regulation of male fertility in PTGMS rice. Further research is needed to understand the molecular mechanism of OsSPL in the regulation of male fertility in rice.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms23073744/s1.

Author Contributions

Y.S. analyzed and interpreted the data, and wrote the manuscript; Y.S., M.F., L.W., Y.B. and X.F. performed the experiments; Q.W. collected the original data; H.Z. and Y.H. conceived and designed the experiments, applied for the project and provided platforms and materials. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Key R&D Program of China (2016YFD0300207), the National Natural Science Foundation of China (31801294) and the Hubei Agricultural Science and Technology Innovation Center Program (2019-620-000-001-32).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors thank Guosheng Xie for critical reading of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.
