Factors Affecting the Stability of Platinum(II) Complexes with 1,2,4-Triazolo[1,5-a]pyrimidine Derivatives and Tetrahydrothiophene-1-Oxide or Diphenyl Sulfoxide
by
, , and
Mateusz Jakubowski
1,
Iwona Łakomska
1,*,
Adriana Kaszuba
1,
Andrzej Wojtczak
1,
Jerzy Sitkowski
2,3 and
Andrzej A. Jarzęcki
4,5 1
Faculty of Chemistry, Nicolaus Copernicus University in Toruń, 7, 87-100 Toruń, Poland
2
National Institutes of Medicines, 30/34, 00-725 Warszawa, Poland
3
Institutes of Organic Chemistry, Polish Academic of Science, 44/52, 01-224 Warszawa, Poland
4
Department of Chemistry, Brooklyn College of the City University of New York, New York, NY 11210, USA
5
Ph.D. Program in Chemistry and Ph.D. Program in Biochemistry, The Graduate Center of the City University of New York, New York, NY 10016, USA
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2022, 23(7), 3656; https://doi.org/10.3390/ijms23073656
Submission received: 18 January 2022
/
Revised: 20 March 2022
/
Accepted: 23 March 2022
/
Published: 26 March 2022
(This article belongs to the Section Physical Chemistry and Chemical Physics)
Abstract
:The platinum(II) complexes of general formula [PtCl2(dstp)(S-donor)] were dstp 5,7-dimethyl-1,2,4-triazolo[1,5-a]-pyrimidine (dmtp), 5,7-ditertbutyl-1,2,4-triazolo[1,5-a]pyrimidine (dbtp), 5-methyl-7-isobutyl-1,2,4-triazolo[1,5-a]pyrimidine (ibmtp) or 5,7-diphenyl-1,2,4-triazolo[1,5-a]pyrimidine (dptp), whereas S-tetrahydrothio-phene-1-oxide (TMSO) or diphenyl sulfoxide (DPSO) were synthesized in a one-pot reaction. Here, we present experimental data (1H, 13C, 15N, 195Pt NMR, IR, X-ray) combined with density functional theory (DFT) computations to support and characterize structure–spectra relationships and determine the geometry of dichloride platinum(II) complexes with selected triazolopyrimidines and sulfoxides. Based on the experimental and theoretical data, factors affecting the stability of platinum(II) complexes have been determined.
1. Introduction
Coordination compounds of transition metals having a d8 configuration such as Rh(I), Pd(II), Au(III), as well as Pt(II) exhibit square-planar geometry [1,2]. Most synthetic pathways that achieve this type of platinum(II) complexes involve associative ligand substitution [3]. These [PtX2N2] complexes, where X is a halide and N is an N-donor ligand, can exist as two cis or trans isomers, displaying different properties and antitumor activities [4]. Stereochemistry of the final product results from the trans effect of ligands within a complex [3,5].
Cisplatin (cis-[PtCl2(NH3)2]) is a worldwide platinum(II) anticancer drug currently used in treating various types of tumors. However, isomer trans (transplatin (trans-[PtCl2(NH3)2]) is inactive against tumor cell lines. Those simple examples confirm that the position of the ligand in the coordination sphere creates specific properties such as cytotoxicity [6]. Determining a specific isomer of platinum(II) compounds ([PtX2N2]) is significant for their structural and future application, especially antitumor studies. Usually, the isomers are distinguished by X-ray experiments for single crystals, IR spectra, or the Kurnakov test [7]. The Kurnakov reaction determines the cis/trans PtCl2N2 isomers upon treatment with an excess of thiourea (tu), giving different solubility products. Trans isomer converts into the white, insoluble powder of trans-[Pt(N)2(tu)2]Cl2, whereas cisplatin converts into yellow, soluble complex [Pt(tu)4]Cl2.
In general, the two isomers could be distinguished by NMR spectroscopy. However, the effectiveness and application of the method strongly depend on the ligands. For example, cis-[PtCl2(NH3)2] and trans-[PtCl2(NH3)2] structures are difficult to distinguish by 195Pt NMR since their chemical shifts are very alike (δ −2104 and −2101 ppm, respectively) [8]. However, the ranges of chemical shifts for dichloride platinum(II) complexes with pyridine derivatives differentiate enough to identify the two isomers. In these cases, the cis chemical shifts are observed between −1998 and −2021 ppm, while the trans shifts are between −1948 and −1973 ppm [9].
Our previous research on dichloride platinum(II) compounds with 1,2,4-triazolo[1,5-a]pyrimidine derivatives (dstp) led to obtain series of cis-[PtCl2(dstp)2] [10,11], cis-[PtCl2(NH3)(dstp)] [10,11] and trans-[PtCl2(dstp)(DMSO)] [11,12] complexes. Infrared studies confirmed the stereochemistry of those complexes. According to the group theory, IR spectra for cis complexes revealed two stretching vibrations for Pt-Cl (in the range 329–342 cm−1) and two absorption bands assigned to Pt-N stretching vibrations (in the range 280–287 cm−1) [10,13].
Here, as a continuation of a study in this field, we present experimental data (1H, 13C, 15N, 195Pt NMR, IR, X-ray) combined with density functional theory (DFT) computations to support and characterize structure–spectra relationships and determine the geometry of dichloride platinum(II) complexes with N-donor ligands. We selected series of novel dichloride platinum(II) complexes with disubstituted 1,2,4-triazolo[1,5-a]pyrimidine (dstp) derivatives and two different sulfoxides. The first series (A) is four platinum(II) compounds with tetrahydrothiophene-1-oxide (TMSO) with a general formula, cis-[PtCl2(dstp) (TMSO)], and the second (B) is another four complexes with diphenyl sulfoxide (DPSO) of a general formula, trans-[PtCl2(dstp) (DPSO)], where dstp ligands in the series are: 5,7-dimethyl-1,2,4-triazolo[1,5-a]pyrimidine (dmtp), 5,7-ditertbutyl-1,2,4-triazolo[1,5-a]-pyrimidine (dbtp), 5-methyl-7-isobutyl-1,2,4-triazolo[1,5-a]pyrimidine (ibmtp) or 5,7-diphenyl-1,2,4-triazolo[1,5-a]pyrimidine (dptp) (Figure 1). Structural studies incorporate X-ray diffraction experiments (solid-state) and multinuclear NMR spectroscopy (solutions). Additionally, to study structural differences between cis/trans isomers, we have compared experimental, and DFT calculated values of 1H, 13C, 15N, and 195Pt NMR chemical shifts, bond lengths, and angles for eight novel platinum(II) complexes with TMSO or DPSO. We complemented the study by computing the DFT energy scan of the relative rotation of the N-donor ligand and a sulfoxide and its potential impact on the relative stabilization of the cis/trans isomers for both series of (A) and (B).
Based on the good agreement of experimental results with DFT calculations, we can suggest spectroscopic techniques as a helpful method for predicting the cis/trans isomerism of platinum(II) complexes without the crystal structure data. This is a continuation of a long-standing investigation of our research group in order to understand the stability and biological function of platinum(II) complexes with triazolopyrimidines for medical and pharmacological applications.
2. Results and Discussion
2.1. Crystal Structures of cis-[PtCl2(dmtp)(TMSO)] (A1), cis-[PtCl2(dbtp)(TMSO)] (A3), and trans-[PtCl2(dbtp)(DPSO)] (B3)
The selected bond lengths and angles for (A1, A3, B3) are given in Table 1, whereas crystal data are presented in the experimental part.
In the reported complexes, the coordination sphere of Pt(II) has a square-planar geometry (Figure 2). Complexes (A1) and (A3) containing the disubstituted triazolopyrimidine ligand (dstp) and cyclic TMSO have been obtained as cis-dichloride isomers while (B3) is the trans-dichloride isomer. In (A1) and (A3), the valence geometry of the coordination sphere is almost identical (Table 1). In both complexes, the shortest bond is with the tp N3 atom, and both Pt-Cl bonds are slightly longer than the Pt-S bonds. Analysis of (A1) and (A3) reveals that the trans effect of the TMSO S-donor atom is stronger than that of N3 since Pt1-Cl2 in (A1) and Pt1-Cl1 in (A3) trans to Pt-S are longer than the other Pt-Cl bonds in both complexes. In the trans-dichloride isomer found for (B3), both Pt-Cl bonds are significantly shorter than those in complexes (A1) and (A3 A significant difference in the Pt-Cl distances found in (B3) can be attributed to the Cl2 position, as it is more crowded with the phenyl ring of DPSO and the ring system of dbtp. In contrast, the Cl1 atom is away from the rings of DPSO. Moreover, in (B3), the Pt1-S1 distance of 2.2150(18) Å is significantly longer than that of 2.199 Å found in (A1, A3). That reflects the significant steric effect of the DPSO ligand in (B3). It is supported by comparing the valence angles of the coordination sphere with both N3-Pt1-Cl angles. These angles notably deviate from 90°. In (B3), the angles decrease by up to 2.4° while both angles of S1-Pt1-Cl increase up to 2.9°. However, in (A1) and (A3), the angle deviations are less than 1.6° (Table 1).
The superposition of molecules (A1) and (A3) based on atoms of the coordination sphere PtSNCl2 (Figure 3) reveals the identical orientation of the TMSO ring but the opposite of the triazolopyrimidines moiety. Due to the heteroatom positions in 1,2,4-triazolopyrimidines, the partial charge at C2 and C3a might be positive. In (A1), the C3a of dmtp is 3.016 Å away from the TPSO O1, and a 3.37 Å distance was found between H2(C2) and Cl2. In the dbtp complex (A3), similar intramolecular contacts are also found (C3a…O1 and H2…Cl1, with 3.124 Å and 3.707 Å, respectively). Additionally, the t-Bu substituent at C5 is in the cavity of the coordination plane, the C21 methylene, and the S = O group. Therefore, the resulting tilt of the tp ring system relative to the coordination plane is different, with the dihedral angle between the best planes of 66.52(14)° in (A1) and 77.35(19)° in (A3). The comparison reveals a slight difference in the position of the TMSO S atom relative to the PtCl2N best plane. In (A3), the displacement of S from that plane is 0.043 Å, while in (A1), the distance is 0.190 Å.
In (B3), the DPSO ligand is in such an orientation that its O atom is close to the PtCl2NS coordination plane, with the Cl2-Pt1-S1-O1 torsional angle 24.33°. In such a position, the DPSO C31–C36 phenyl ring fits the cavity between C53 and C54 methyl groups of the t-Bu substituent. The intramolecular H…H interactions involving C53, C54 methyl groups of t-Bu and C35, C36 groups of DPSO are detected, with the distances 2.682 and 3.345 Å. The dihedral angle between the coordination plane and the triazolopyrimidine ring plane is 70.62°.
Comparison of the dbtp complexes (A3) and (B3) revealed that Pt1-N3-C2 angles are 129.7(5)° and 134.9(5)°, while Pt1-N3-C3A angles are 125.8(5)° and 123.2(4)° in (A3) and (B3), respectively. These data suggest the significant dispersion attractive interactions between t-Bu groups of dbtp and phenyl moiety of DPSO and to a certain extent with methylene groups of TMSO. On the other hand, in (A1), the less bulky methyl substituents in dmtp do not form any strong interactions with the methylene groups of TMSO, so they do not affect the dmtp position, and the resulting angles Pt1-N3-C2 of 127.3(3)° Pt1-N3-C3A 127.3(3)° are identical. The most substantial effect found for (B3) is confirmed by the S1-Pt1-N3 angle of 175.29(16)°, while in (A1) and (A3) the trans positioned Cl ligands to form N3-Pt1-Cl angles of 178.63(11)° and 179.17(19)°, respectively, much closer to the symmetric 180°.
Based on the architecture of (A1, A3, B3), the observed preferences for the complex isomers are supported by intramolecular interactions within the opposite isomers containing TMSO and DPSO. For hypothetic trans-[PtCl2(dstp)(TMSO)], the lack of significant interactions stabilizing the molecule might be expected between the TMSO methylenes and triazolopyrimidines. Therefore, that might be a discriminating factor responsible for the observed preference of cis isomers. For hypothetical cis-[PtCl2(dstp)(DPSO)], the steric hindrance generated by the ring systems of dstp and DPSO might be the factor explaining why isomers are unfavorable. That hypothesis is consistent with the potential energy surfaces calculated with DFT and reported further in the paper. It is worth pointing out that the global minima conformations computed by DFT correspond to those found in the crystal structures reported here.
Complete geometry optimization performed with DFT calculation for compounds (A1), (A3), and (B3) gave results in good agreement with those obtained by X-ray diffraction studies concerning the bond lengths and angles (Table 1). Additionally, a correlation of experimental data with theoretical calculation allowed us to compute structures and DFT energies for complexes we do not have isolated signal crystals for (Table 2). Based on DFT calculations, we can conclude that all cis isomers with TMSO are energetically favored, whereas all structures with DPSO tend towards trans configuration.
2.2. Multinuclear 1H, 13C, 15N, and 195Pt NMR Spectroscopy
A series of 1H, 13C, 15N, and 195Pt NMR spectra were recorded to confirm the composition of the coordination sphere in a solution and indicate the donor atoms bonded to the platinum(II) ion. As mentioned above, we also calculated NMR spectral shifts by the DFT methodology for their detailed analysis and characteristic structure-spectral trends.
Most characteristic resonance signals in experimental 1H NMR spectra are detected in the aromatic region between 8.53 and 8.66 ppm for H2 and 6.93 and 7.79 ppm for H6 (Table 3 and Table 4). Both were deshielded compared to the resonance signals for the corresponding free ligands. For that reason, we estimated a value of coordination shits (Δ1Hcoord = 1Hδcomplex–1Hδligand) for H2 (Δ1Hcoord = 0.06–0.17 ppm) and for H6 (Δ1Hcoord = 0.07–0.26 ppm), which confirm the coordination of triazolopyrimidines to the platinum(II) ion. Additionally, in 13C NMR spectra, we observed that the signals of the C2 and C3a atoms were shielded (Δ13C2coord = −2.4 to −1.1 ppm, Δ13C3acoord = −3.6 to −2.3 ppm), whereas other atoms were deshielded (Table 3 and Table 4). This suggested that a likely place for coordinating heterocycle ligand was a five-membered triazole ring [14]. The 1H-15N analysis indicated which nitrogen atom is a donor and forms a coordination bond with the platinum(II) ion.
The results reveal that the resonance signals for N1, N4, and N8 show relatively small shifts (Δ15Ncoord = −2.6 to 1.6 ppm), whereas the shielding of the N3 atom is significantly greater (Δ15Ncoord = −73.1 to −64.5 ppm) (Table 3 and Table 4). The biggest shielding for N3 after coordination is observed for complex (A2) and (B2) with 5-methyl-7-isobutyl-1,2,4-triazolo[1,5-a]pyrimidine (Figure 4). Based on these findings, we implied that N3 is the coordination site. Additionally, the ranges of coordination chemical shifts agree with data of previously discussed complexes with the same triazolopyrimidine coordination [15,16,17]. and with parameters obtained by DFT calculations.
In addition, 1H NMR spectra of novel complexes exhibited two multiplets for the CH2 groups from TMSO in the 4.18–3.63 ppm and 2.45–2.22 ppm ranges and multiplets for phenyl groups from DPSO in the 7.53–7.55 ppm and 8.06–8.13 ppm ranges. These signals were shifted too (compared with spectra of uncoordinated sulfoxides). Therefore, the binding of tetrahydrothiophene-1-oxide or diphenyl sulfoxide to the platinum(II) ion was confirmed.
Unfortunately, it has not been possible to indicate the isomers (cis or trans) based on 1H, 13C, and 15N NMR studies. The 195Pt NMR experiments were necessary. 195Pt resonance signals for studied, mixed platinum(II) complexes shift towards higher fields than K2PtCl4, and are observed between −3000 and −3010 ppm for compounds with TMSO or between −3095 and −3101 ppm for compounds with DPSO (Figure 5). It indicates that shielding spectral signals for trans isomers of platinum(II) complexes with diphenyl sulfoxide increase compared to cis isomers of analogous complexes with tetrahydrothiophene-1-oxide. A similar observation is noted for previously investigated complexes with a dimethyl sulfoxide (DMSO), such as cis-[PtCl2(DMSO)(ibmtp)] [11] and trans-[PtCl2(DMSO)(dptp)] [12,18]. Additionally, an occurrence of signals in a very tight range indicates that the replacement of N-donor heterocycle ligand to other triazolopyrimidine derivatives in this type of complexes has a negligible impact on 195Pt resonance signal shifts [12]. On the other hand, changing the N-donor ligand to a sulfoxide (DMSO or DPSO) significantly affects the position of the signal of the 195Pt NMR spectra (Figure 5). The good agreement of these resonance signals with DFT 195Pt chemical shifts suggested that the 195Pt NMR experiments can be useful for determining a specific geometric isomer for these complexes.
Potential energy surfaces (PES) for (B) isomers, showing the computed DFT energy scan as triazolopyrimidines (dstp) and DPSO ligands rotating about N3-Pt1-S1 trans-bonds, are presented in Figure 6, panel (A). All four (B1–B4) isomers give comparable results as the dstp plane turns around the two bulky phenyl groups of a DPSO ligand. The scanned torsional angle (C3a-[N-Pt1-S1]-O1) is between the C3a-N3-Pt1 plane of a dstp ligand and the Pt1-S1=O1 plane of the DPSO ligand. The plots reveal shallow torsional energy barriers, with easily identified four (two pairs) energy minima. Each minimum is nearly eclipsed (0 degrees) or staggered (180 degrees) conformations. The two global minima, tilted only by around ±15 degrees from an eclipsed conformation, place the C3a carbon of the dstp ring and the O1 oxygen of DPSO on the same side of the Pt coordination plane. The other minima pair, also tilted by around ±15 degrees, but from a staggered conformation (at ±165 degrees), places the C3a carbon and O1 oxygen atoms opposite the Pt coordination plane. The two pairs of rotamers, one nearly eclipsed and another nearly staggered, are energetically comparable (0.5 kcal/mol) and separated by two gauche-type transitional conformations (around ±60 degrees and ±120 degrees), and the rotational energy barrier of 1.75 kcal/mol when the O1 atom eclipses one of the chlorides. Therefore, the tp rings have complete rotational freedom about the DPSO ligand at room temperature. Notably, in these complexes′ crystal structures, any rotational configuration of the tps plane seems plausible, especially in the presence of favorable intermolecular interactions (not included in the calculations).
Potentially, the dstp plane′s rotational freedom, illustrated for (B) complexes, might significantly obstruct NMR aid to support the characterization of the Pt-N3 bond. We have also studied H, C, N, and Pt NMR shifts as a function of the C3a-[N3-Pt1-S1]-O1 torsional angle, as defined above. The calculations revealed that only 195Pt NMR shifts are appreciably sensitive to the rotational angle, altering the computed value by about 250 ppm, ranging from −3500 to −3250 ppm. The dot-plot in panel B of Figure 6 illustrates these results.
For most stable rotamers of the (B) complexes, as discussed above, two nearly eclipsed (0 degrees) and another two nearly staggered (180 degrees) conformations, the computed 195Pt NMR shifts are at around −3450 ppm, while, experimentally, the signal is observed at around −3100 ppm. The discrepancy between computed and experimental values found here is more prominent than that found for other Pt(II) complexes. However, given these complexes′ conformational accessibility and rotational freedom, one should consider a complete range of computed 195Pt NMR shifts (from −3500 to −3250 ppm) as very plausible. Thus, the 195Pt NMR shift marker for (B) complexes and those structurally similar should be applied cautiously, as it presents a challenge for the definite characterization of such complexes.
In summary of the section, the relationship between the rotational isomerization induced by the DPSO ligand and 195Pt NMR shifts found via computational modeling revealed subtle and essential differences. Within the full 360-degree rotation of the DPSO ligand, the computed 195Pt NMR shifts for trans and cis isomers range from −3100 to −3500 ppm (Figure 7). The lower region of the spectral gap between −3375 and −3500 ppm might be deterministic for the trans isomers with the torsional angle near the eclipse conformation at 0 degrees (within +/− 60 degrees). Moreover, the 195Pt NMR shifts in the higher spectral region, between −3100 and −3225 ppm, might easily characterize the cis isomers with the torsional angle near their minima (within +/−20 degrees). However, the computed spectral signals between −3375 and −3225 ppm are representative for both trans and cis-isomers (Figure 7). Therefore, the isomer determination of cis versus trans based on these spectral lines is inconclusive.
3. Materials and Methods
3.1. Materials and Instrumentation
The reagents: 3-amino-1,2,4-triazole, acetylacetone, 1,3-diphenyl-1,3-propanedione, 2,2,6,6-tetramethyl-3,5-heptanedione, 6-methyl-2,4-heptanedione, diphenyl sulfoxide, tetrahydrothiophene-1-oxide, and K2PtCl4 were purchased from Sigma Aldrich (St. Louis, MO, United States), whereas the inorganic salts and solvents of analytical grade from Avantor Performance Materials Poland S.A. (Gliwice, Poland). All chemicals and solvents obtained commercially were used without further purification.
The 5,7-disubstituted derivatives of 1,2,4-triazolo[1,5-a]pyrimidine were obtained according to the Bülow and Haas [19,20] method by the condensation of 3-amino-1,2,4-triazole with corresponding diketones such as: acetylacetone for (dmtp), 6-methyl-2,4-heptanedione for (ibmtp), 2,2,6,6-tetramethyl-3,5-heptanedione for (dbtp) and 3,5-diphenyl-1,3-propanedione for (dptp).
3.2. Instrumentation
The C, H, and N elemental contents were determined using an Elementar Analysensysteme GmbH Vario MACRO analyzer. ATR-FTIR spectra of free ligands and novel platinum(II) complexes were recorded using Vertec 70v spectrometer (200–4000 cm−1). Moreover, the UV-Vis measurements for lipophilicity determination were obtained using a HITACHI U-2900 UV-Vis spectrophotometer equipped with 1.0 cm path length quartz cuvettes (1.5 mL).
NMR spectra were recorded at 298 K in the CDCl3 solutions with a Varian INOVA 500 (Varian Inc., Palo Alto, CA, USA) spectrometer, operating at 499.8, 125.7, 50.6, and 107.4 MHz for 1H, 13C, 15N, and 195Pt, respectively. The reference standards were TMS for 1H and 13C, CH3NO2 for 15N, and H2PtCl6 for 195Pt. Gradient-enhanced IMPACT-HMBC 1H-{15N} correlation spectra [21] were optimized for the coupling constant of 6 Hz under the following experimental conditions: an acquisition time of 0.2 s, spectral windows of 6000 (F2) and 10,000 (F1) Hz, 1K complex data points, 256 time increments, 30 ms WURST-2 mixing sequence centered within a 60 ms preparation interval (ASAP2) and a 150° Ernst angle as the excitation pulse [22].
3.3. X-Ray Structure Determination
Crystals of (A1, A3, B3) were grown from the ethanol solution. The X-ray diffraction data were collected with an Oxford Sapphire CCD diffractometer using MoKα radiation, λ = 0.71073 Å, by ω-2θ method at 293 (2) K. Structures were solved by the direct methods and refined with the full-matrix least-squares method on F2 using SHELX2017 program package [23,24]. Analytical absorption corrections were applied (CrysAlis package of programs [25]) (Table 5). In all structures, hydrogen atoms were located from the difference of electron density maps. Their positions were constrained in the refinement with the appropriate AFIX commands as implemented in SHELX. The structural data of (A1, A3, B3) are deposited with Cambridge Crystallographic Data Centre, CCDC number 2142681 (A1), 2142682 (A3), and 2142683 (B3).
3.4. Computational Methods
Density functional theory (DFT) was employed to compute geometry, frequencies, and NMR shifts of the eight synthesized Pt(II) complexes (A1–A4, B1–B4) as implemented in Gaussian 09 software package [26]. Moreover, an alternative series of eight complexes that are geometric isomers of (A) and (B), i.e., trans- for (A) and cis- for (B), were included in the DFT computations to deepen the energetic and spectroscopic comparisons. Specifically, geometry optimization for all structures was performed with B3LYP functional and 6–311G** basis set for all atoms but Pt atom, where aug-cc-pVTZ-PP basis sets [27] were applied. All frequencies of optimized structures were positive, indicating that their geometry converged to appropriate minima. Interestingly, the relative orientation of the tp ligand’s aromatic ring, in all optimized structures, is always perpendicular to the plane of the Pt(II) coordination sphere, PtCl2(N3-tp) (S1), where the C3a atom is pointing away from the metal′s coordinated sulfur atom (S1).
The NMR chemical shifts of 1H, 13C, 15N, and 195Pt were computed with gauge-including atomic orbitals (GIAO) method [28,29] using B3LYP functional with SARC-ZORA basis sets for Pt atom and 6–311++G** basis set for the remaining atoms (GIAO-B3LYP/SARC-ZORA/6–311++G**). All basis sets were obtained from the Basis Set Exchange Library [30]. Moreover, a solvent environment was represented applying the polarizable continuum model (PCM) [31] with a polarizable solvent cavity (ε = 4.7113), consistently for all modeled structures and their spectral predictions. The computational procedure outlined here has proven successful in our previous parent Pt(II) complex studies [11]. Interestingly, the (B) complexes containing a bulky DPSO ligand show several distinct minima along a torsional angle of the Pt-S bond, defined by O1-[S1-Pt1-N3]-C3a atom sequence. More importantly, the computed 195Pt NMR chemical shift along the torsional angle shows significant fluctuation, ranging as much as 250 ppm. At the same time, the rotational energy barrier is very shallow, only about 1.75 kcal/mole. Consequently, the 195Pt NMR shifts for (B) complexes are not as distinct or conclusive as series A complexes. Computed relative energies (kcal/mol) and the 195Pt NMR shifts (ppm) as a function of the torsion of the DPSO ligand for (B1–B4) complexes and their complementing cis-isomers are listed in the table given in the Supplementary Materials.
3.5. Syntheses of Complexes
cis-[PtCl2(TMSO)2] were used as a substrate for syntheses of (A1–A4), and cis-[PtCl2(DPSO)2] were used as a substrate for syntheses of (B1–B4). Starting complexes were prepared from K2PtCl4 and tetrahydrothiophene-1-oxide or diphenyl sulfoxide by the method analogous to that for cis-[PtCl2(DMSO)2] [32]. The details of these syntheses are as follows:
3.5.1. cis-[PtCl2(TMSO)2]
A solution of K2PtCl4 (0.100 g; 0.24 mmol) in 10 mL of water was treated with TMSO (48 μL; 0.53 mmol). The reaction mixture was stirred at room temperature for 24 h. The white participant was filtered, washed with water, ethanol, diethyl ether, and dried under vacuum.
Yield 0.092 g (80%). 1H NMR (499.8 MHz, CDCl3): δ = 2.23 (m, 2H, -CH2), 2.40 (m, 2H, CH2), 3.55 (m, 2H, S-CH2), 4.17 (m, 2H, S-CH2); 13C NMR (125.7 MHz, CDCl3): δ = 25.4 (CH2), 58.6 (S-CH2); 195Pt NMR (107.4 MHz, CDCl3): −3436 ppm (s, PtCl2S2).
Elemental analysis found C, 20.2; H, 3.3%. Calculation for C8Cl2H16O2PtS2: C, 20.3; H, 3.4%.
3.5.2. cis-[PtCl2(DPSO)2]
A solution of K2PtCl4 (0.100 g; 0.24 mmol) in 10 mL of water was treated with an equivalent of DPSO (0.097 g, 0.48 mmol) in 5 mL of acetone. The reaction mixture was stirred at room temperature for 48 h. Slow evaporation of solvents obtained a white precipitate, which was filtered, washed with diethyl ether, and dried under vacuum.
Yield 0.082 g (51%). 1H NMR (499.8 MHz, CDCl3): δ = 7.50 (m, 4H, o-C6H5), 2.40 (m, 2H, p-C6H5), 7.85 (m, 4H, m-C6H5); 13C NMR (125.7 MHz, CDCl3): δ = 127.7 (o-C6H5), 128.8 (m-C6H5), 133.2 (p-C6H5), 140.8 (S-C6H5); 195Pt NMR (107.4 MHz, CDCl3): −3529 ppm (s, PtCl2S2).
Elemental analysis found C, 42.8; H, 3.4%. Calculation for C24Cl2H20O2PtS2: C, 43.0; H, 3.0%.
3.5.3. cis-[PtCl2(dstp) (TMSO)] (A1–A4) and trans-[PtCl2(dstp) (DPSO] (B1–B4)
All novel platinum(II) complexes with tetrahydrothiophene-1-oxide were obtained by reaction between starting complex cis-[PtCl2(TMSO)2] or cis-[PtCl2(DPSO)2] and corresponding dstp ligands (dmtp (A1, B1), ibmtp (A2, B2), dbtp (A3, B3) and dptp (A4, B4)) in molar ratios of 1:1 in ethanol. The reaction mixture was heated to 45 °C and stirred for 2 h. After this period, stirring continued at r.t. for 24 h. Slow evaporation of the solvent resulted in obtaining yellow residue, which was freeze-dried (A1–A3, B1–B3). A deposit formed directly in the reaction mixture (A4, B4) was washed with diethyl ether and then dried under a vacuum.
Yield 65% (A1), 68% (B1), 70% (A2), 62% (B2), 71% (A3), 57% (B3), 75% (A4), 79% 1H. Analysis calc/found for: (A1) C11Cl2H16N4OPtS: C, 25.5/25.2%; H 3.1/3.6%; N, 10.8/10.8%; (B1) C19Cl2H18N4OPtS: C, 37.0/37.0%; H 2.9/2.8%; N, 9.1/9.0%; (A2) C14Cl2H22N4OPtS: C, 30.0/29.7%; H, 4.0/3.9%; N, 9.9/9.4%; (B2) C22Cl2H24N4OPtS: C, 40.1/39.9%; H, 3.7/4.3%; N, 8.5/8.4%; (A3) C17Cl2H28N4OPtS: C, 33.9/34.0%; H, 4.7/4.7%; N, 9.3/8.7 %; (B3) C25Cl2H30N4OPtS: C, 42.9/43.0%; H, 4.3/4.7%; N, 8.0/7.9 %; (A4) C21Cl2H20N4OPtS: C, 39.2/39.5%; H, 3.1/3.4%; N, 8.7/8.5%; (B4) C29Cl2H22N4OPtS: C, 47.0/47.2%; H, 3.0/3.5%; N, 7.6/7.6%.
4. Conclusions
We successfully synthesized eight novel square planar platinum(II) complexes with 5,7-disubstituted-1,2,4-triazolo[1,5-a]pyrimidine (dstp) and two different sulfoxides: DPSO or TMSO. The structures, and the effects of sulfoxide ligands on their cis-trans isomerism, were studied by employing multinuclear (1H, 13C, 15N, 195Pt) NMR and X-ray experiments and DFT calculations. Based on a good agreement of all experimental results with DFT calculations, we suggest that 195Pt NMR (experiments and DFT parameters) is a valuable method for predicting the cis-trans isomerism of platinum(II) complexes without the crystal structure.
Supplementary Materials
The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms23073656/s1.
Author Contributions
Conceptualization, M.J. and I.Ł.; methodology and formal analysis, M.J., I.Ł., A.W., J.S., and A.A.J.; investigation, M.J, I.Ł.; A.K., A.W., J.S., and A.A.J.; writing—original draft preparation, M.J., I.Ł., A.W., and A.A.J.; writing—review and editing, M.J., I.Ł., A.K., and A.A.J.; visualization, M.J., A.K., and A.A.J.; supervision, I.Ł., A.K., and A.A.J. All authors have read and agreed to the published version of the manuscript.
Funding
Publication costs were supported by the Nicolaus Copernicus University in Toruń (Excellence Initiative—Research University).
Institutional Review Board Statement
The study was conducted according to the guidelines of the Declaration of Helsinki.
Informed Consent Statement
Not applicable.
Data Availability Statement
Faculty of Chemistry, Nicolaus Copernicus University in Toruń.
Acknowledgments
The above studies were co-financed by the Center of Excellence Towards Personalized Medicine operating under the Excellence Initiative—Research University, whose members are I.Ł., A.K. and A.W.
Conflicts of Interest
The authors declare no conflict of interest.
References
- Wong, W.Y.; Abd-El-Aziz, A.S. Molecular Design of Photofunctional Polymers and Materials; RSC Publishing: London, UK, 2012. [Google Scholar]
- Sigel, A.; Sigel, H. Metal Ions in Biological Systems; CRC Press: Boca Raton, FL, USA, 1996. [Google Scholar]
- Wilson, J.J.; Lippard, S.J. Synthetic Methods for the Preparation of Platinum Anticancer Complexes. Chem. Rev. 2014, 114, 4470–4495. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Melnik, M.; Mikus, P. Stereochemistry of Pt(η2-P2L)Cl2 derivatives. Rev. Inorg. Chem. 2019, 39, 199–210. [Google Scholar] [CrossRef]
- Peloso, A. Kinetics of nickel, palladium and platinum complexes. Coord. Chem. Rev. 1973, 10, 123–181. [Google Scholar] [CrossRef]
- Lippert, B. Cisplatin; Chemistry and Biochemistry of a Leading Anticancer Drug Wiley-VCH: Weinheim, Germany, 1999. [Google Scholar]
- Cvitkovic, E. Cumulative toxicities from cisplatin therapy and current cytoprotective measures. Cancer Treat. Rev. 1998, 24, 265–281. [Google Scholar] [CrossRef]
- Priqueler, J.R.L.; Butler, I.S.; Rochon, F.D. An Overview of 195Pt Nuclear Magnetic Resonance Spectroscopy. Appl. Spectrosc. Rev. 2006, 41, 185–226. [Google Scholar] [CrossRef]
- Tessier, C.; Rochon, F.D. Multinuclear NMR study and crystal structures of complexes of the types cis- and trans-Pt(Ypy)2X2, where Ypy=pyridine derivative and X=Cl and I. Inorg. Chim. Acta 1999, 295, 25–38. [Google Scholar] [CrossRef]
- Łakomska, I.; Szłyk, E.; Sitkowski, J.; Kozerski, L.; Wietrzyk, J.; Pełczyńska, M.; Nasulewicz, A.; Opolski, A. Multinuclear NMR spectroscopy and antitumor activity of novel platinum(II) complexes with 5,7-disubstituted-1,2,4-triazolo[1,5-a]pyrimidines. J. Inorg. Biochem. 2004, 98, 167–172. [Google Scholar] [CrossRef]
- Łakomska, I.; Babinska, M.; Wojtczak, A.; Kozakiewicz, A.; Sitkowski, J.; Jarzęcki, A. Experimental and theoretical investigation of the complexation of 5-methyl-7-isobutyl-1,2,4-triazolo[1,5-a]pyrimidine with platinum(II) ions. New J. Chem. 2017, 41, 7775–7782. [Google Scholar] [CrossRef]
- Szłyk, E.; Łakomska, I.; Surdykowski, A.; Głowiak, T.; Pazderski, L.; Sitkowski, J.; Kozerski, L. The X-ray structure and spectroscopy of platinum(II) complexes with 1,2,4-triazolo[1,5-a]pyrimidines and dimethylsulfoxide. Inorg. Chim. Acta 2002, 333, 93–99. [Google Scholar] [CrossRef]
- Jolley, J.; Cross, W.I.; Pritchard, R.G.; McAuliffe, C.A.; Nolan, K.B. Synthesis and characterisation of mercaptoimidazole, mercaptopyrimidine and mercaptopyridine complexes of platinum(II) and platinum(III). The crystal and molecular structures of tetra(2-mercaptobenzimidazole)- and tetra(2-mercaptoimidazole)platinum(II) chloride. Inorg. Chim. Acta 2001, 315, 36–43. [Google Scholar]
- Łakomska, I.; Hoffmann, K.; Muzioł, T.; Sitkowski, J. Multinuclear magnetic resonance and X-ray characterization of platinum(II) complexes with substituted-1,2,4-triazolo[1,5-a]pyrimidines. J. Mol. Struct. 2014, 1056–1057, 146–151. [Google Scholar] [CrossRef]
- Hoffmann, K.; Wiśniewska, J.; Wojtczak, A.; Sitkowski, J.; Denslow, A.; Wietrzyk, J.; Jakubowski, M.; Łakomska, I. Rational design of dicarboxylato platinum(II) complexes with purine-mimetic ligands as novel anticancer agents. J. Inorg. Biochem. 2017, 172, 34–45. [Google Scholar] [CrossRef] [PubMed]
- Łakomska, I.; Hoffmann, K.; Wojtczak, A.; Sitkowski, J.; Maj, E.; Wietrzyk, J. Cytotoxic malonate platinum(II) complexes with 1,2,4-triazolo[1,5-a]pyrimidine derivatives: Structural characterization and mechanism of the suppression of tumor cell growth. J. Inorg. Biochem. 2014, 141, 188–197. [Google Scholar] [CrossRef] [PubMed]
- Łakomska, I.; Babinska, M.; Wojtczak, A.; Sitkowski, J. Synthesis, characterization and in vitro cytotoxicity of three types of platinum(II) complexes containing 5,7-diethyl-1,2,4-triazolo[1,5-a]pyrimidine. Inorg. Chim. Acta 2016, 453, 516–521. [Google Scholar] [CrossRef]
- Łakomska, I. Molecular structure and antitumor activity of platinum(II) complexes containing purine analogs. Inorg. Chim. Acta. 2009, 362, 669–681. [Google Scholar] [CrossRef]
- Bülow, C.; Haas, K. Synthetische Versuche zur Darstellung von Derivaten des heterokondensierten, heterocyclischen 1.3-Triazo-7.0′-pyrimidins. Ber. Der Dtsch. Chem. Ges. 1909, 42, 4638–4644. [Google Scholar] [CrossRef] [Green Version]
- Haasnoot, J.G. Mononuclear, oligonuclear and polynuclear metal coordination compounds with 1,2,4-triazole derivatives as ligands. Coord. Chem. Rev. 2000, 200, 131–185. [Google Scholar] [CrossRef]
- Furrer, J. A Robust, sensitive, and versatile HMBC experiment for rapid structure elucidation by NMR: IMPACT-HMBC. Chem. Commun. 2010, 46, 3396–3398. [Google Scholar] [CrossRef]
- Kupce, E.; Freeman, R. Fast multidimensional NMR by polarization sharing. Magn. Reson. Chem. 2007, 45, 2–4. [Google Scholar] [CrossRef]
- Sheldrick, G.M. Short history of SHELX. Acta Cryst. 2008, A64, 112–122. [Google Scholar] [CrossRef] [Green Version]
- Sheldrick, G.M. SHELXT—Integrated space-group and crystal-structure determination. Acta Cryst. 2015, C71, 3–8. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- CrysAlisPro Version 1.171.41.120; A Software Package; Rigaku OD: Neu-Isenburg, Germany, 2021.
- Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Petersson, G.A.; Nakatsuji, H.; et al. Gaussian 09, Revision B.01; Gaussian, Inc.: Wallingford, CT, USA, 2009. [Google Scholar]
- Figgen, D.; Peterson, K.A.; Dolg, M.; Stoll, H. Energy-consistent pseudopotentials and correlation consistent basis sets for the 5d elements Hf-Pt. J. Chem. Phys. 2009, 130, 164108. [Google Scholar] [CrossRef] [PubMed]
- Ditchfield, R. Self-consistent perturbation theory of diamagnetism: I. A gauge-invariant LCAO method for NMR chemical shifts. Mol. Phys. 1974, 27, 789. [Google Scholar] [CrossRef]
- Gauss, J.J. Effects of electron correlation in the calculation of nuclear magnetic resonance chemical shifts. Chem. Phys. 1993, 99, 3629. [Google Scholar] [CrossRef]
- Feller, D.J. The role of databases in support of computational chemistry calculations. Comput. Chem. 1996, 17, 1571–1586. [Google Scholar] [CrossRef]
- Cossi, M.; Scalmani, G.; Rega, N.; Barone, V. New Developments in the Polarizable Continuum Model for QuantumMechanical and Classical Calculations on Molecules in Solution. J. Chem. Phys. 2002, 117, 43. [Google Scholar] [CrossRef]
- Price, J.H.; Williamson, A.S.; Schramm, R.S.; Wayland, B.B. Palladium(II) and Platinum(II) Alkyl Sulfoxide Complexes. Examples of Sulfur-Bonded, Mixed Sulfur- and Oxygen-Bonded, and Totally Oxygen-Bonded Complexes. Inorg. Chem. 1972, 11, 1280–1284. [Google Scholar] [CrossRef]
Figure 1.
Structures of novel dichloride platinum(II) complexes. The structures contain tetrahydrothiophene-1-oxide (TMSO) for cis isomers (A) and diphenyl sulfoxide (DPSO) for trans isomers (B). IUPAC numbering of 1,2,4-triazolo[1,5-a]pyrimidine derivative is displayed. (A1, B1) R1, R2 = CH3 for dmtp; (A2, B2) R1 = CH2CH(CH3)2, R2 = CH3 for ibmtp; (A3, B3) R1, R2 = C(CH3)3 for dbtp; (A4, B4) R1, R2 = C6H5 for dptp.
Figure 1.
Structures of novel dichloride platinum(II) complexes. The structures contain tetrahydrothiophene-1-oxide (TMSO) for cis isomers (A) and diphenyl sulfoxide (DPSO) for trans isomers (B). IUPAC numbering of 1,2,4-triazolo[1,5-a]pyrimidine derivative is displayed. (A1, B1) R1, R2 = CH3 for dmtp; (A2, B2) R1 = CH2CH(CH3)2, R2 = CH3 for ibmtp; (A3, B3) R1, R2 = C(CH3)3 for dbtp; (A4, B4) R1, R2 = C6H5 for dptp.

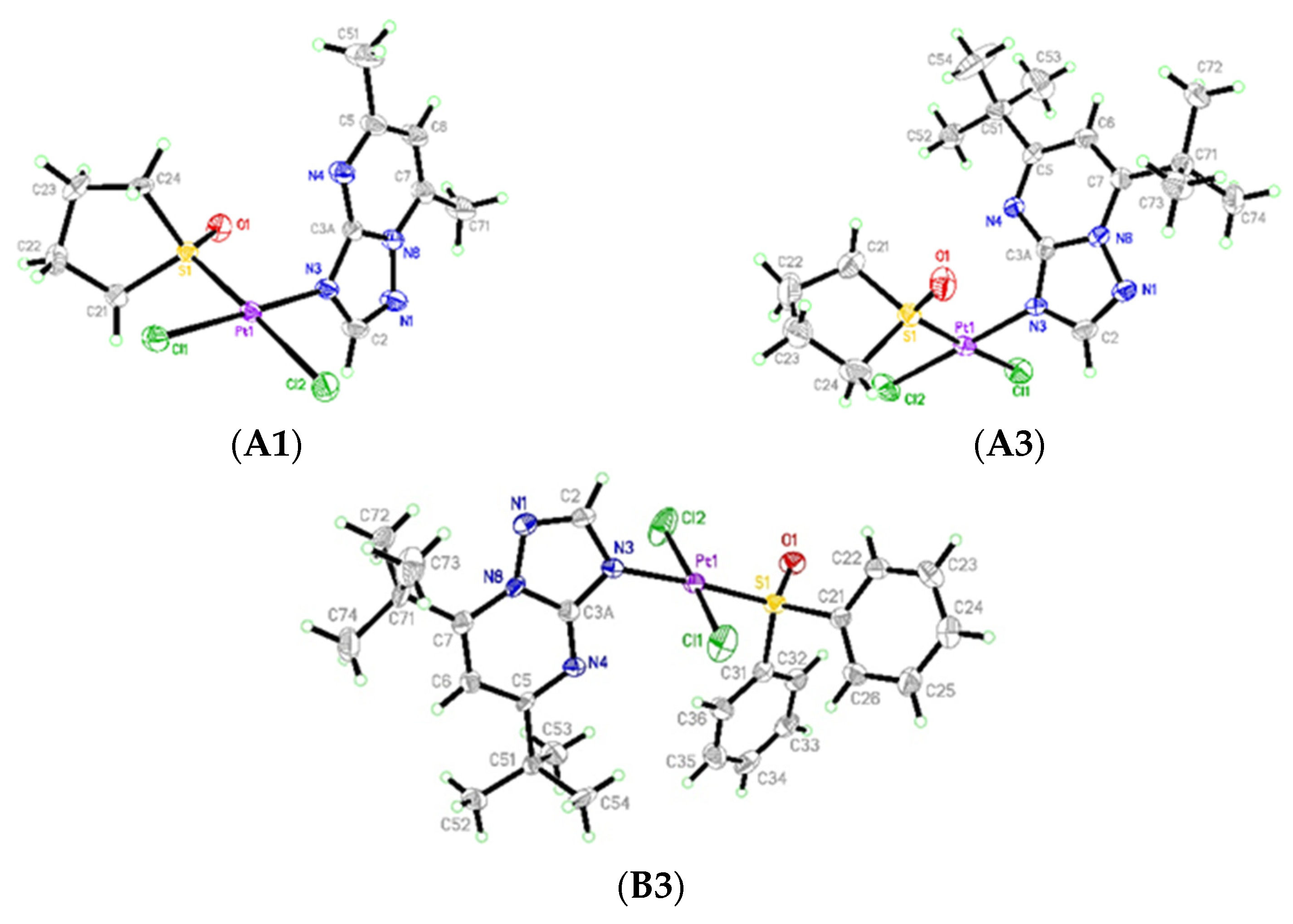

Figure 2.
Crystal structure of cis-[PtCl2(dmtp)(TMSO)] (A1), cis-[PtCl2(dbtp)(TMSO)] (A3) and trans-[PtCl2(dbtp) (DPSO)] (B3).
Figure 2.
Crystal structure of cis-[PtCl2(dmtp)(TMSO)] (A1), cis-[PtCl2(dbtp)(TMSO)] (A3) and trans-[PtCl2(dbtp) (DPSO)] (B3).

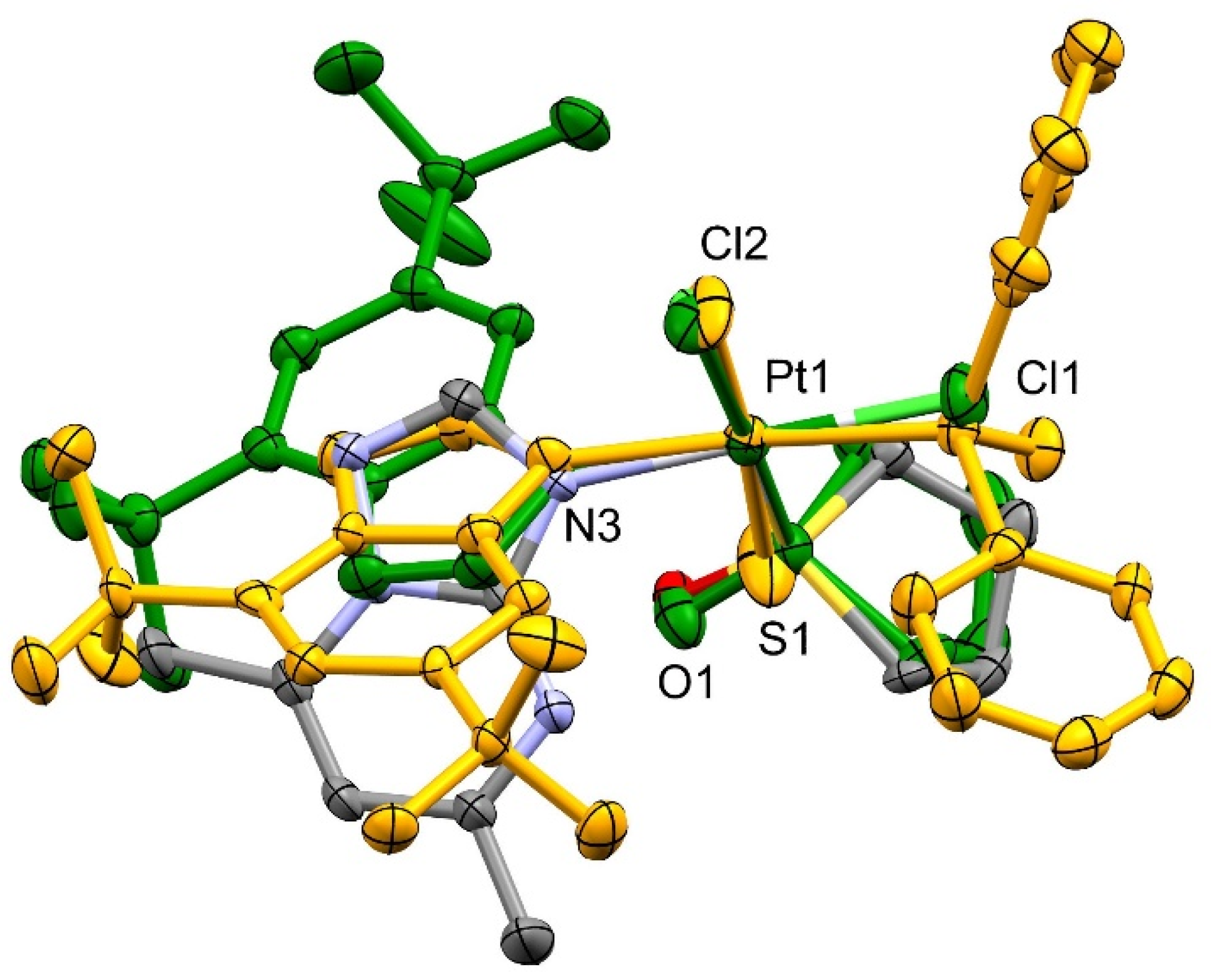

Figure 3.
Structures superposition of (A1) (atoms: C gray, N blue, O red), (A3) (green) and (B3) (yellow). Heteroatoms are labeled for (A1).
Figure 3.
Structures superposition of (A1) (atoms: C gray, N blue, O red), (A3) (green) and (B3) (yellow). Heteroatoms are labeled for (A1).
Figure 4.
15N NMR chemical shifts of free ligand (ibmtp) and platinum(II) complexes cis-[PtCl2(ibmtp)(TMSO)] and trans-[PtCl2(DPSO) (ibmtp)].
Figure 4.
15N NMR chemical shifts of free ligand (ibmtp) and platinum(II) complexes cis-[PtCl2(ibmtp)(TMSO)] and trans-[PtCl2(DPSO) (ibmtp)].

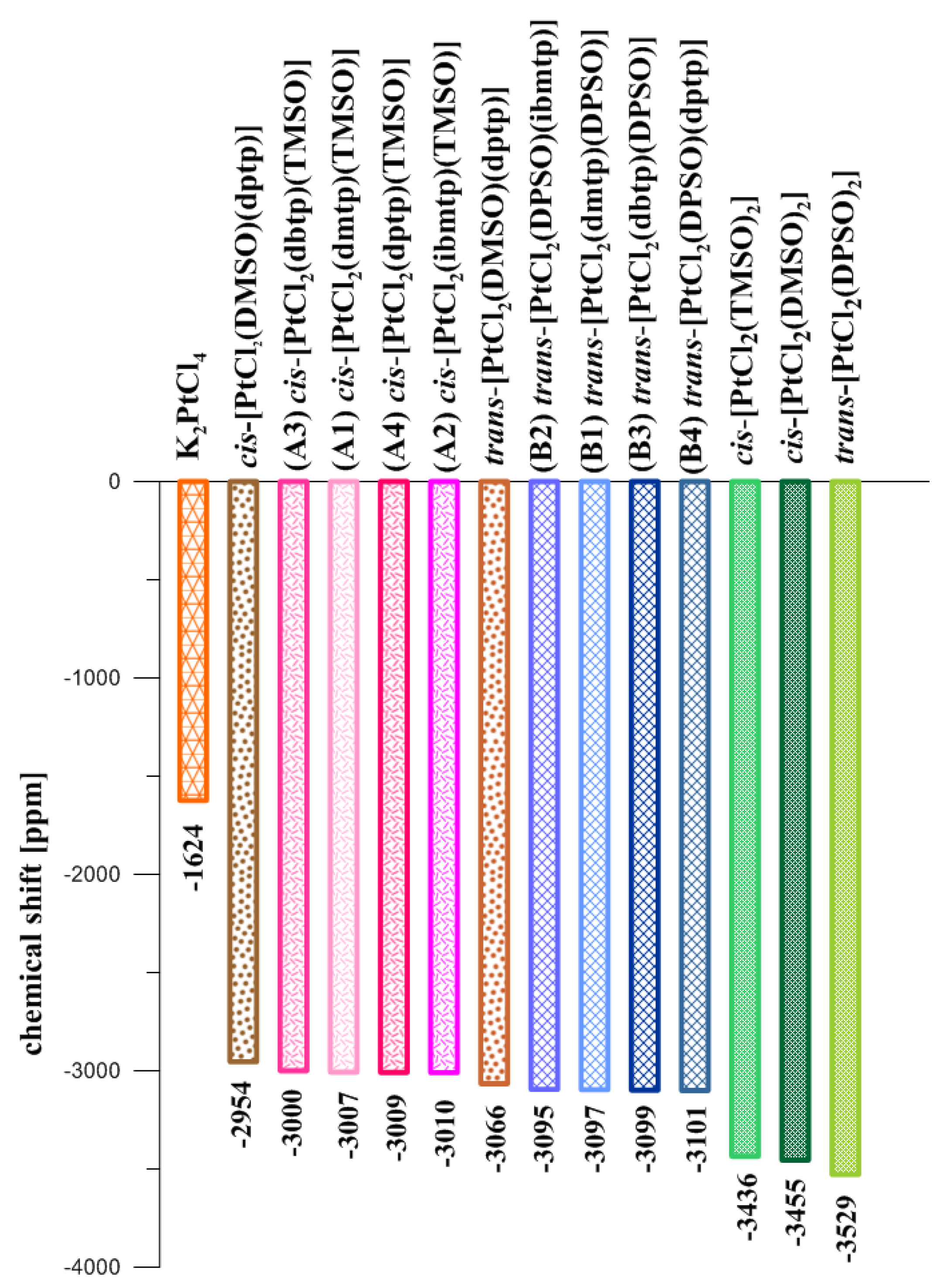

Figure 5.
195Pt NMR chemical shifts of a substrate (K2PtCl4) and platinum(II) complexes with sulfoxides.
Figure 5.
195Pt NMR chemical shifts of a substrate (K2PtCl4) and platinum(II) complexes with sulfoxides.

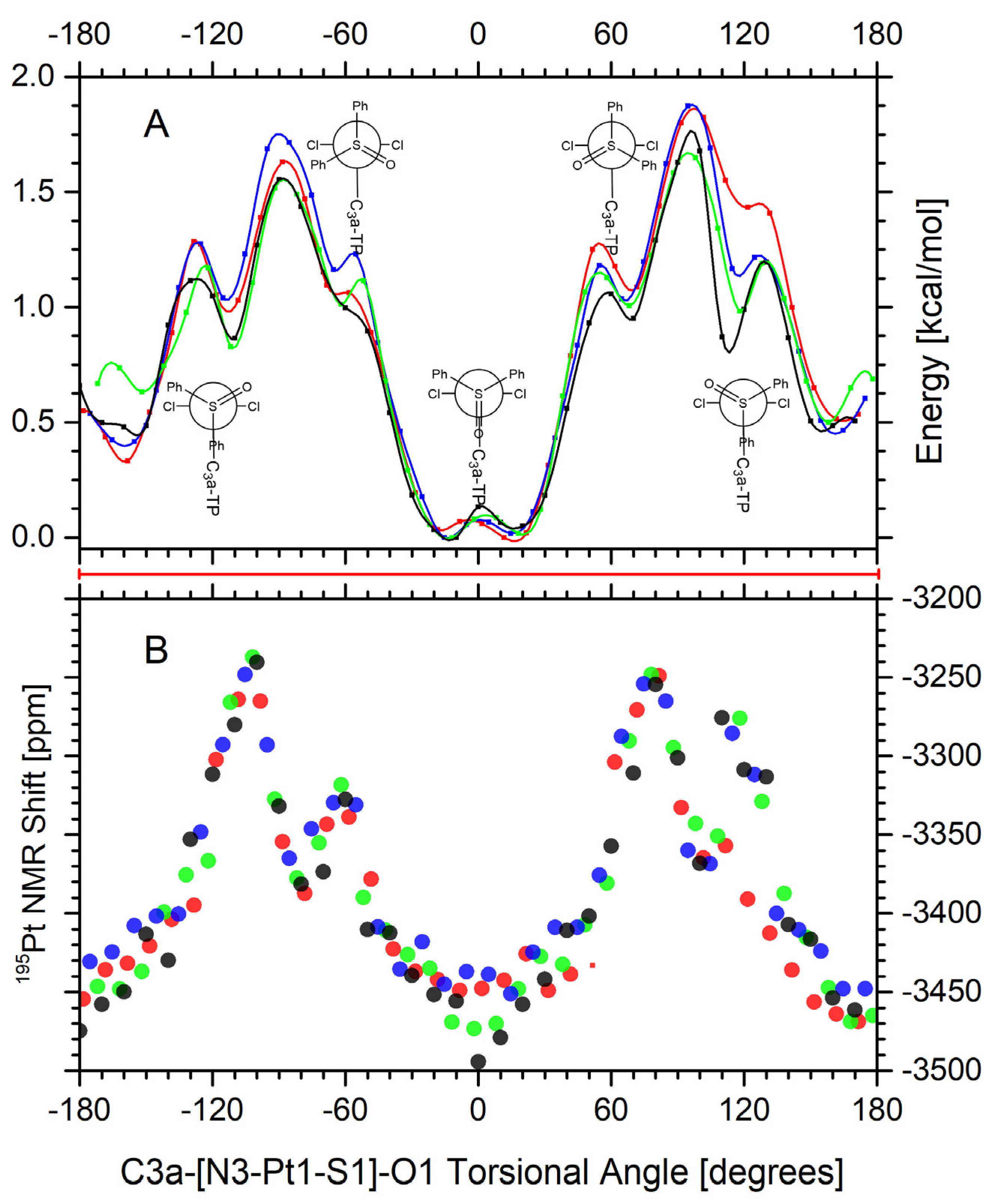

Figure 6.
Calculated scan of the potential energy surface (panel (A)) and 195Pt NMR shifts (panel (B)) as a function of the (C3a)-Pt1-S1 = O1 torsional angle for trans-isomers of dmtp (black), dbtp (blue), ibmtp (green), and dptp (red). A red bar between the panels indicates a degree of rotational freedom within about 2 kcal/mol above the rotational energy minimum (complete 360-degree rotation). See a table in the supplementary material for values used in the graphs.
Figure 6.
Calculated scan of the potential energy surface (panel (A)) and 195Pt NMR shifts (panel (B)) as a function of the (C3a)-Pt1-S1 = O1 torsional angle for trans-isomers of dmtp (black), dbtp (blue), ibmtp (green), and dptp (red). A red bar between the panels indicates a degree of rotational freedom within about 2 kcal/mol above the rotational energy minimum (complete 360-degree rotation). See a table in the supplementary material for values used in the graphs.

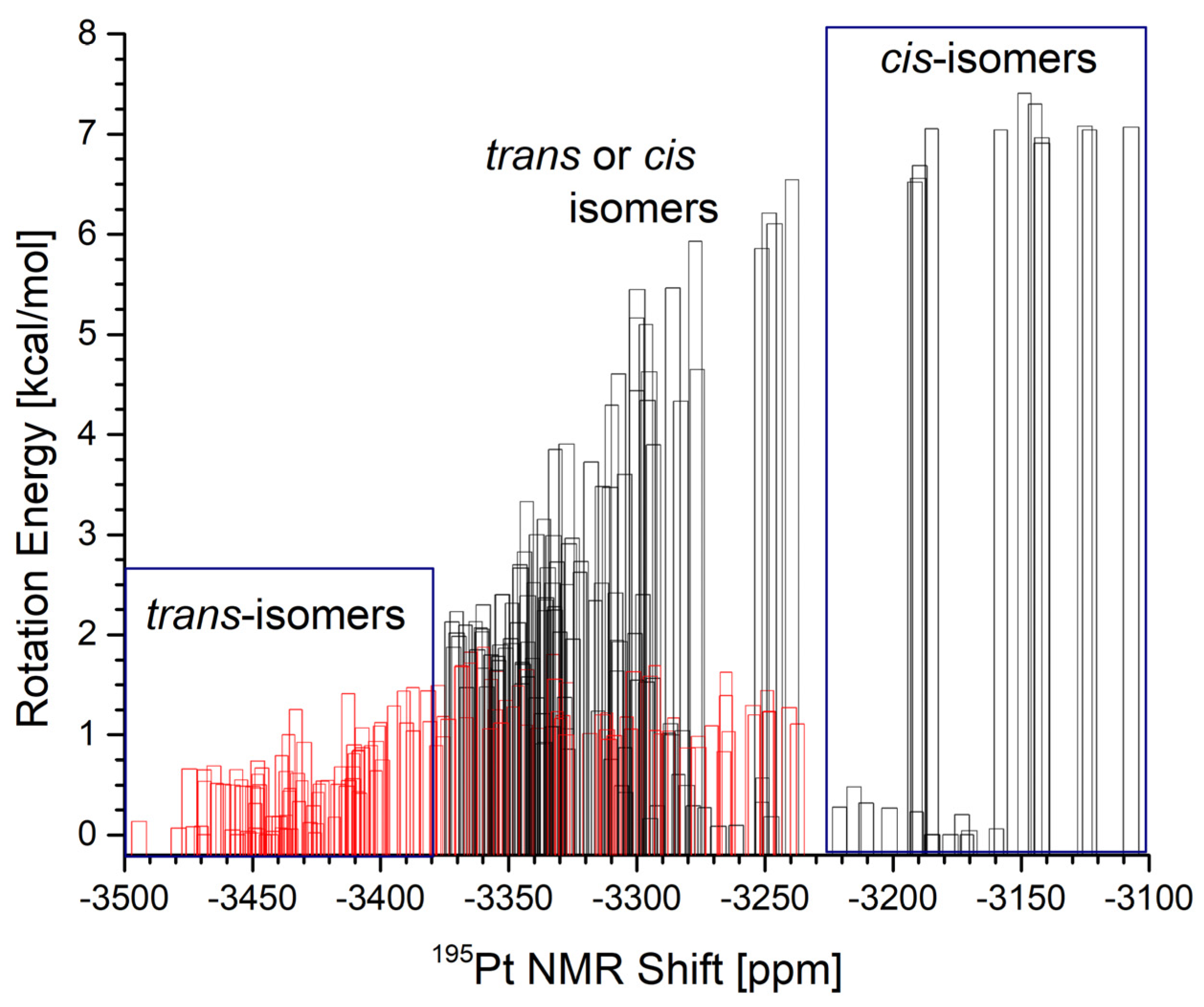

Figure 7.

Histogram of calculated 195Pt NMR for (B1–B4) complexes, trans-isomers (red bars), and corresponding cis-isomers (black bars) of [PtCl2(DPSO)(dstp)] structures. See a table in the supplementary materials for values used in the graphs.
Figure 7.
Histogram of calculated 195Pt NMR for (B1–B4) complexes, trans-isomers (red bars), and corresponding cis-isomers (black bars) of [PtCl2(DPSO)(dstp)] structures. See a table in the supplementary materials for values used in the graphs.
Table 1.
Experimental and calculated selected bond lengths [Å] and angles [°] for (A1), (A3), and (B3).
Table 1.
Experimental and calculated selected bond lengths [Å] and angles [°] for (A1), (A3), and (B3).
| (A1) | (A3) | (B3) | ||||
|---|---|---|---|---|---|---|
| Bond Lengths [Å] | ||||||
| Exp. | Calc. | Exp. | Calc. | Exp. | Calc. | |
| Pt1-N3 | 2.017 (4) | 2.043 | 2.020 (6) | 2.046 | 2.033 (6) | 2.052 |
| Pt1-S1 | 2.199 (14) | 2.256 | 2.199 (2) | 2.274 | 2.215 (18) | 2.267 |
| Pt1-Cl1 | 2.301 (12) | 2.343 | 2.307 (2) | 2.349 | 2.281 (2) | 2.357 |
| Pt1-Cl2 | 2.306 (15) | 2.351 | 2.299 (2) | 2.342 | 2.295 (2) | 2.349 |
| Angles [°] | ||||||
| Exp. | Calc. | Exp. | Calc. | Exp. | Calc. | |
| N3-Pt1-S1 | 89.65 (13) | 91.5 | 89.28 (18) | 89.33 | 175.29 (16) | 175.6 |
| N3-Pt1-Cl1 | 178.63 (11) | 178.7 | 88.55 (19) | 87.47 | 88.28 (18) | 87.6 |
| S1-Pt1-Cl1 | 90.60 (5) | 91.5 | 177.30 (8) | 176.28 | 92.86 (7) | 94.5 |
| N3-Pt1-Cl2 | 88.56 (13) | 87.9 | 179.17 (19) | 177.19 | 87.58 (18) | 88.0 |
| S1-Pt1-Cl2 | 175.51 (5) | 179.3 | 90.60 (9) | 93.43 | 91.32 (8) | 89.8 |
| Cl1-Pt1-Cl2 | 91.29 (5) | 90.8 | 91.54 (9) | 89.75 | 175.82 (9) | 175.2 |
Table 2.
DFT computed values of selected bond lengths (Å) and angles (°) for (A2, A4, B1, B2, B4).
| (A2) | (A4) | (B1) | (B2) | (B4) | |
|---|---|---|---|---|---|
| Bond Lengths [Å] | |||||
| Pt1-N3 | 2.042 | 2.043 | 2.053 | 2.054 | 2.052 |
| Pt1-S1 | 2.259 | 2.258 | 2.267 | 2.266 | 2.267 |
| Pt1-Cl1 | 2.351 | 2.349 | 2.348 | 2.350 | 2.355 |
| Pt1-Cl2 | 2.341 | 2.343 | 2.355 | 2.355 | 2.355 |
| Angles [°] | |||||
| N3-Pt1-S1 | 91.5 | 91.4 | 175.4 | 175.4 | 175.7 |
| N3-Pt1-Cl1 | 87.7 | 87.8 | 87.4 | 87.3 | 87.8 |
| S1-Pt1-Cl1 | 178.6 | 179.1 | 94.5 | 94.6 | 90.5 |
| N3-Pt1-Cl2 | 178.5 | 178.5 | 87.9 | 88.0 | 87.7 |
| S1-Pt1-Cl2 | 89.9 | 89.9 | 90.1 | 90.0 | 90.5 |
| Cl1-Pt1-Cl2 | 90.9 | 90.9 | 174.8 | 175.1 | 174.6 |
Table 3.
Experimental and calculated 1H, 13C, 15N, and 195Pt NMR chemical shifts for selected atoms of the platinum(II) complexes with tetrahydrothiophene-1-oxide (TMSO).
Table 3.
Experimental and calculated 1H, 13C, 15N, and 195Pt NMR chemical shifts for selected atoms of the platinum(II) complexes with tetrahydrothiophene-1-oxide (TMSO).
| (A1) | (A2) | (A3) | (A4) | |||||
|---|---|---|---|---|---|---|---|---|
| Expt. | Calc. | Expt. | Calc. | Expt. | Calc. | Expt. | Calc. | |
| δH2 | 8.53 (+0.13) | 8.82 | 8.56 (+0.10) | 8.83 | 8.56 (+0.14) | 8.86 | 8.66 (+0.07) | 8.88 |
| δH6 | 7.07 (+0.26) | 7.55 | 6.95 (+0.22) | 7.52 | 7.16 (+0.16) | 7.74 | 7.79 (+0.07) | 8.30 |
| δC2 | 153.0 (−2.2) | 153.10 | 152.9 (−2.3) | 152.72 | 152.1 (−2.1) | 151.56 | 153.7 (−1.1) | 153.79 |
| δC3a | 151.9 (−3.2) | 151.34 | 151.8 (−3.6) | 151.87 | 152.5 (−3.4) | 151.90 | 153.0 (−2.3) | 152.63 |
| δC5 | 168.7 (+4.0) | 168.86 | 168.6 (+3.9) | 168.21 | 179.1 (+3.4) | 179.50 | 164.4 (+1.9) | 163.00 |
| δC6 | 113.4 (+2.6) | 110.44 | 113.2 (+2.7) | 111.24 | 106.0 (+2.6) | 106.01 | 108.8 (+1.6) | 106.64 |
| δC7 | 148.1 (+1.4) | 149.74 | 151.1 (+1.4) | 152.49 | 158.7 (+1.3) | 160.73 | 149.3 (+0.9) | 150.21 |
| δN1 | −110.6 (+1.6) | −116.91 | −110.7 (+1.3) | −118.69 | −106.6 (+0.4) | −113.26 | −110.3 (+1.0) | −117.28 |
| δN3 | −226.2 (−72.2) | −207.31 | −226.7 (−72.7) | −206.98 | −228.0 (−70.9) | −208.19 | −225.5 (−64.6) | −207.80 |
| δN4 | −114.5 (−1.1) | −125.52 | −114.4 (−1.0) | −126.62 | −114.7 (+0.2) | −130.09 | −122.2 (−0.4) | −137.47 |
| δN8 | −157.2 (−2.3) | −165.06 | −157.9 (−2.4) | −165.27 | −160.3 (−2.2) | −166.95 | −162.0(−2.2) | −170.60 |
| δPt | −3010 | −3209.32 | −3007 | −3202.16 | −3000 | −3186.18 | −3009 | −3195.93 |
Table 4.
Experimental and calculated 1H, 13C, 15N, and 195Pt NMR chemical shifts for selected atoms of the platinum(II) complexes with diphenyl sulfoxide (DPSO).
Table 4.
Experimental and calculated 1H, 13C, 15N, and 195Pt NMR chemical shifts for selected atoms of the platinum(II) complexes with diphenyl sulfoxide (DPSO).
| (B1) | (B2) | (B3) | (B4) | |||||
|---|---|---|---|---|---|---|---|---|
| Expt. | Calc. | Expt. | Calc. | Expt. | Calc. | Expt. | Calc. | |
| δH2 | 8.57 (+0.17) | 8.87 | 8.55 (+0.09) | 8.86 | 8.54 (+0.12) | 8.92 | 8.65 (+0.06) | 8.97 |
| δH6 | 7.01 (+0.20) | 7.57 | 6.93 (+0.20) | 7.55 | 7.15 (+0.15) | 7.74 | 7.79 (+0.07) | 8.36 |
| δC2 | 152.9 (−2.3) | 152.81 | 152.8 (−2.4) | 152.69 | 151.8 (−2.4) | 152.13 | 153.6 (−1.2) | 153.59 |
| δC3a | 151.8 (−3.3) | 151.62 | 152.1 (−3.3) | 151.72 | 152.5 (−3.4) | 152.33 | 152.9 (−2.4) | 152.77 |
| δC5 | 168.8 (+4.1) | 168.44 | 168.6 (+3.9) | 168.37 | 179.0 (+3.3) | 180.05 | 164.2 (+1.7) | 163.33 |
| δC6 | 113.4 (+2.6) | 110.50 | 113.1 (+2.6) | 111.24 | 106.0 (+2.6) | 103.99 | 108.7 (+1.5) | 106.82 |
| δC7 | 148.0 (+1.3) | 149.77 | 151.0 (+1.3) | 152.67 | 158.7 (+1.3) | 161.84 | 149.3 (+0.9) | 150.65 |
| δN1 | −110.6 (+1.6) | −117.15 | −110.7 (+1.3) | −117.15 | −106.0 (+1.0) | −113.19 | −110.0 (+1.3) | −117.58 |
| δN3 | −226.6 (−72.6) | −213.13 | −227.1 (−73.1) | −213.80 | −227.7 (−70.6) | −217.63 | −225.4 (−64.5) | −213.41 |
| δN4 | −113.7(−0.3) | −126.29 | −113.6 (−0.2) | −126.25 | −115.1 (−0.2) | −125.87 | −122.0 (+0.2) | −136.29 |
| δN8 | −157.4 (−2.5) | −163.81 | −158.1 (−2.6) | −164.62 | −160.4 (−2.3) | 165.46 | −162.0 (−2.2) | 169.46 |
| δPt | −3097 | −3465.9 | −3095 | −3466.9 | −3099 | 3445.3 | −3101 | 3442.8 |
Table 5.
Crystal data and structure refinement for (A1, A3 and B3).
| Compound | cis-[PtCl2(dmtp)(TMSO)] (A1) | cis-[PtCl2(dbtp)(TMSO)] (A3) | trans-[PtCl2(dbtp (DPSO)] (B3) |
|---|---|---|---|
| Empirical formula | C11H16Cl2N4OPtS | C17H28Cl2N4OPtS | C25H30Cl2N4OPtS |
| Formula weight | 518.33 | 602.48 | 700.58 |
| Temperature; K | 293 (2) | 293 (2) | 293 (2) |
| Wavelength; Å | 0.71073 | 0.71073 | 0.71073 |
| Crystal system | Monoclinic | Monoclinic | Triclinic |
| Space group | P21/n | P21/n | P-1 |
| Unit cell dimensions; Å, ° | a = 10.7446 (3) | a = 12.3610 (16) | a = 9.3248 (7) |
| b = 8.3993 (3) | b = 10.1722 (10) | b = 10.8972 (8) | |
| c = 18.0425 (6) | c = 17.871 (2) | c = 14.6506 (12) | |
| α = 90 | α =90 | α =88.183 (6) | |
| β = 98.946 (3) | β = 94.347 (10) | β = 73.143 (7) | |
| γ = 90 | γ = 90 | γ = 77.059 (6) | |
| Volume; Å3 | 1608.48 (10) | 2240.6 (5) | 1387.67 (19) |
| Z | 4 | 4 | 2 |
| Density (calculated); Mg/m3 | 2.140 | 1.786 | 1.677 |
| Absorption coefficient; mm−1 | 9.185 | 6.608 | 5.348 |
| F (000) | 984 | 1176 | 688 |
| Crystal size; mm | 0.340 × 0.209 × 0.136 | 0.609 × 0.579 × 0.194 | 0.312 × 0.237 × 0.086 |
| Theta range for data collection | 2.285 to 28.462°. | 2.305 to 28.486°. | 2.342 to 28.516°. |
| Index ranges | −13 < = h < = 14, −10 < = k < = 10, −23 < = l < = 21 | −15 < = h < = 15, −12 < = k < = 13, −21 < = l < = 23 | −12 < = h < = 12, −13 < = k < = 13, −19 < = l < = 13 |
| Reflections collected | 10,499 | 15,074 | 9764 |
| Independent reflections | 3696 [R(int) = 0.0474] | 5184 [R(int) = 0.0716] | 6129 [R(int) = 0.0389] |
| Completeness to theta = 25.242° | 100.0 % | 99.9 % | 99.9 % |
| Max. and min. transmission | 0.429 and 0.135 | 0.377 and 0.060 | 0.657 and 0.366 |
| Refinement method | Full-matrix least-squares on F2 | Full-matrix least-squares on F2 | Full-matrix least-squares on F2 |
| Data/restraints/parameters | 3696/0/181 | 5184/0/235 | 6129/0/307 |
| Goodness-of-fit on F2 | 0.995 | 1.052 | 1.063 |
| Final R indices [I > 2sigma(I)] | R1 = 0.0314, wR2 = 0.0497 | R1 = 0.0541, wR2 = 0.1178 | R1 = 0.0412, wR2 = 0.0744 |
| R indices (all data) | R1 = 0.0524, wR2 = 0.0539 | R1 = 0.0816, wR2 = 0.1347 | R1 = 0.0597, wR2 = 0.0918 |
| Largest diff. peak and hole; e.Å−3 | 1.203 and −0.791 | 2.862 and −1.726 | d −0.768 |
