Leveraging Blood-Based Diagnostics to Predict Tumor Biology and Extend the Application and Personalization of Radiotherapy in Liver Cancers

Edwin L. Steele Laboratories for Tumor Biology, Massachusetts General Hospital, Boston, MA 02114, USA
Department of Radiation Oncology, Massachusetts General Hospital, Boston, MA 02114, USA
Department of Radiation Oncology, University Clinic Tuebingen, 72076 Tuebingen, Germany
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2022, 23(4), 1926;
Submission received: 14 January 2022 / Revised: 1 February 2022 / Accepted: 3 February 2022 / Published: 9 February 2022
(This article belongs to the Special Issue Radiation Biology and Molecular Radiation Oncology)


While the incidence of primary liver cancers has been increasing worldwide over the last few decades, the mortality has remained consistently high. Most patients present with underlying liver disease and have limited treatment options. In recent years, radiotherapy has emerged as a promising approach for some patients; however, the risk of radiation induced liver disease (RILD) remains a limiting factor for some patients. Thus, the discovery and validation of biomarkers to measure treatment response and toxicity is critical to make progress in personalizing radiotherapy for liver cancers. While tissue biomarkers are optimal, hepatocellular carcinoma (HCC) is typically diagnosed radiographically, making tumor tissue not readily available. Alternatively, blood-based diagnostics may be a more practical option as blood draws are minimally invasive, widely availability and may be performed serially during treatment. Possible blood-based diagnostics include indocyanine green test, plasma or serum levels of HGF or cytokines, circulating blood cells and genomic biomarkers. The albumin–bilirubin (ALBI) score incorporates albumin and bilirubin to subdivide patients with well-compensated underlying liver dysfunction (Child–Pugh score A) into two distinct groups. This review provides an overview of the current knowledge on circulating biomarkers and blood-based scores in patients with malignant liver disease undergoing radiotherapy and outlines potential future directions.

1. Introduction

Liver malignancies are a leading cause of cancer-related death worldwide. Hepatocellular carcinoma (HCC) is the most common liver malignancy, and its incidence has more than tripled in the US since 1980 [1,2]. In recent years, radiotherapy has emerged as a promising modality for patients with liver malignancies, aided by advances in target immobilization, localization, and treatment delivery. Intensity modulated radiation therapy (IMRT) and volumetric arc therapy (VMAT) have allowed for highly conformal radiation plans while maximally sparing the surrounding healthy liver as much as possible. MRI-based online adaptive treatment is another promising technique to further spare healthy liver tissue [3,4,5]. Radiotherapy is generally a safe and highly effective treatment with local-control rates for HCC of up to 95% [6,7,8,9,10]. However, the optimal dose and fractionation scheme, as well as radiotherapy technique such as photon versus proton irradiation, remain unclear. In addition, the potential for severe toxicities such as radiation-induced liver disease (RILD) in patients with underlying liver diseases (cirrhosis, steatosis) may be dose-limiting in some patients. [11,12]. These challenges could be addressed by identifying accurate and meaningful biomarkers for liver cancer radiotherapy.
As new treatments emerge, the investigation of biomarkers and clinical scores to predict tumor biology is essential to guide patient management. Among several methods, blood-based diagnostics have unique advantages. Peripheral blood can be easily obtained and collected throughout the treatment and recovery periods, allowing for the measurement of toxicity, treatment response or disease progression. In addition, as blood draws are widely available without elaborate setups or imaging services, its use can be easily adopted into clinical practice. As virtual visits become increasingly common, blood-based biomarkers may facilitate remote monitoring without requiring patients to travel, potentially alleviating financial toxicities for patients undergoing cancer therapy [13]. The identification of circulating biomarkers in patients with HCC would be of particular use because the diagnosis is typically made radiographically; tissue biopsies are uncommon due to the risk of bleeding and needle-tract seeding [14]. This review provides an overview of current approaches on blood-based diagnostics for patients treated with radiotherapy for liver malignancies.

2. Clinical Scores: Child–Pugh, Barcelona Clinic Liver Cancer (BCLC), and Albumin–Bilirubin (ALBI) Grades

Historically, Child–Pugh score (CPS) system (also referred to as the Child–Turcotte–Pugh score) has been used to assess hepatic function in a variety of liver malignancies, by itself or as part of the Barcelona Clinic Liver Cancer (BCLC) [15]. Although widely used, there are major concerns on the objectivity of the CPS system and its ability to stratify patients into prognostic groups. First, the presence and severity of both ascites and encephalopathy are subjective, often assessed by a single physician. Second, both parameters are strongly influenced by extrinsic factors such as medication, making them prone to fluctuations that may affect the clinical grade. Finally, some variables are interdependent; for example, low albumin may lead to increased ascites, resulting in a potentially disproportional impact on the total score [16].
The BCLC staging system incorporates the CPS score as a measure of underlying hepatic function, along with the disease extent and Eastern Cooperative Oncology Group (ECOG) performance status to create five stages of HCC. These five stages range from very early stage (BCLC 0) to Terminal stage (BCLC D) and are predictive of prognosis. The BCLC score is widely used in clinical management.
Similarly, the albumin–bilirubin (ALBI) grade has been used to predict prognosis in HCC. Initially developed to assess of liver function after surgery [17,18], it was developed to be more objective than the CPS system. The ALBI grade uses plasma albumin and bilirubin using the formula ALBI = (log10 bilirubin [µmol/L] × 0.66) + (albumin [g/L] × −0.0852) to create the following three groups: grade 1: ≥−2.60, grade 2: −2.61–−1.39 and grade 3: >−1.39 [19]. Since first proposed in 2015 by Johnson and colleagues as a new and less biased approach towards assessment of liver function, there has been increasing interest in validating the ALBI score for liver cancer patients undergoing radiotherapy. Since 2015, more than 1000 patients have been included in studies of pre-treatment ALBI scores, predominantly using retrospective analyses (Table 1). In line with previously published data for patients undergoing liver resection or other liver directed therapies [20,21,22], several studies showed a strong correlation between overall survival and ALBI score [23,24,25,26,27]. However, the specific threshold of a statistically significant increase in ALBI score varied between the studies (e.g., Murray et al. [23]: 0.1 increase vs. Toesca et al. [25]: 0.5), making a cross-study comparison difficult. Of note, the ALBI score outperformed CPS system in predicting mortality in some cases [23,26,27,28].
Five studies showed a correlation between pre-treatment ALBI score and a decline in liver function following radiotherapy [23,24,25,28,29]. As previously described for other liver cancer therapies, the ALBI score was able to further subdivide patients in CPS group A into two distinct subgroups (ALBI grade 1 and 2) correlating both with overall survival and more importantly with the development of liver toxicity after radiotherapy. In this context, Lo and colleagues showed that the risk of developing RILD increases from 2.4% to 15.1% with between ALBI grades 1 and 2 [24]. It has therefore been suggested that CPS class A patients with an ALBI grade of 2 should be treated like CPS class B patients. In line with these data, Gkika et al. proposed a shorter follow up period (~1 month after irradiation) for patients with higher baseline ALBI score to account for their higher risk of early and late toxicity, and a more restrictive mean liver dose [29]. This decline may not translate to cholangiocarcinoma. Toesca and colleagues found no correlation between ALBI grade and toxicity following radiotherapy in patients with cholangiocarcinoma (CCA) [25]. The authors suggested that the observed discrepancy between patients with HCC and CCA was based on the smaller patient cohort (n = 20 vs. 40 patients), and potential differences in underlying liver fibrosis (15 vs. 65% of patients with fibrosis) between the cohorts. Similarly, ALBI did not have predictive power in patients with CPS class B in two studies [24,27], which again could be due to the small patient sample size but could also reflect a potential inaccuracy of ALBI grade in detecting more severe underlying liver damage. Further prospective studies focusing on these patient subgroups should clarify these inconsistencies.

3. Indocyanine Green (ICG) Test

Indocyanine Green (ICG) is an FDA approved tricarbocyanine dye that has been utilized since the 1980s to evaluate hepatic function after several procedures [30,31,32,33]. After intravenous infusion, ICG binds to plasma proteins and subsequently gets excreted into the bile without biotransformation, providing a kinetic estimation of liver function. The speed with which ICG is eliminated depends on several parameters including hepatic blood-flow, allowing for an individualized and sensitive estimation of global liver function [34].
A group at the University of Michigan developed a treatment strategy based on the ICG retention rate 15 min after injection (ICGR15) to individually tailor radiation dose to a patient’s underlying liver function (Table 2, I). In two independent studies (with 48 and 131 patients), they observed that ICGR15 levels mid-treatment, but not prior to irradiation, reflected functional liver reserve after radiotherapy [35,36]. Building upon these findings, they built a toxicity model using ICGR15 levels, which led to the superior prediction of liver toxicity following radiation (AUC = 0.86 vs. 0.75; p = 0.04) [37]. Based on these results, the group designed a phase II study where patients were re-assessed for changes in ICGR15 4 weeks after the third of five planned irradiation fractions. If hepatic function was unchanged at this time point, the remaining two fractions were given as initially planned. If liver function had declined, the radiation plan was either adjusted or patients were re-tested after another 4 weeks to allow for more recovery time [38]. The proposed adjustment of radiation dose based on ICGR15 was feasible and led to high local control rates (1y = 99%; 2y = 95%) with low complication rates (increase in CPS 1 or 2 points within 6 months: 14%/7%). Interestingly, a recent study by the same group found that an ALBI-centric model performed equivalently to the ICGR15 model (AUC = 0.79 for both), supporting the use of the less labor-intensive ALBI grade as a biomarker [39]. More importantly, only pre- and mid-treatment levels of ALBI were associated with liver toxicity following radiation. Nevertheless, this approach may be of particular benefit to patients with CPS class B and C liver function, who currently are either excluded from radiotherapy or receive insufficient dosing due to concerns for further hepatic toxicity.

4. Hepatocyte Growth Factor (HGF)

Hepatocyte growth factor (HGF) is the ligand to the mesenchymal-epithelial transition factor (MET) tyrosine-kinase receptor and is produced in the liver mainly by activated stromal cells called hepatic stellate cells. The activation of the HGF/MET pathway promotes cell proliferation, survival and invasion [55]. The MET pathway physiologically activates during liver tissue regeneration; however, its constitutive activation in cancer cells can lead to a more aggressive and metastatic phenotype [56,57]. Based on these effects, HGF has been investigated as a biomarker for a variety of cancers, with most of these studies showing a negative correlation between plasma HGF levels and patient survival [58,59,60,61]. For patients with HCC, serum HGF levels were significantly elevated compared to healthy individuals [62].
The specific predictive value of circulating HGF for radiotherapy/SBRT response and RILD remain to be fully characterized [45,62,63] (Table 2, II). In a cohort of 104 patients treated with radiotherapy for liver malignancies, Cuneo and colleagues observed a correlation between pre-treatment HGF levels and overall survival (HGF high vs. low: 14.5 vs. 28.1 months). More interestingly, both pre- and mid-treatment levels of HGF predicted liver toxicity after treatment; however, multivariant analysis showed that mid-treatment HGF levels had the highest predictability [40]. Similarly, in a cohort of HCC and ICC patients treated with proton radiotherapy (n = 43), pre-treatment HGF levels were predictive of liver damage after irradiation [41]. Of note, the definition of liver damage considered significant differed between the studies (CTP increase of at least 2 points versus 1 point), as the number of events was small in proton-treated patients. Interestingly, a study by Ng and colleagues did not find a correlation between blood HGF levels and liver toxicity at any time point after radiotherapy [14]. Of note, the reported median HGF levels in these studies differed greatly (1.4 ng/mL (range not reported) [40] vs. 2.31 ng/mL (range 1.037–8 ng/mL) [64] vs. 0.824 ng/mL (range 0.16–11 ng/mL) [45]). In addition, 18 out of 47 patient samples were out of the detection range of the assay [45]. Thus, the observed discrepancy might arise from differences in the patient cohorts investigated or the assay used. Additional insights should be gained from ongoing randomized phase III trial of proton versus photon SBRT in HCC patients (NCT03186898), which will investigate plasma HGF as an integrated biomarker for susceptibility to RILD.

5. Cytokines

The release of damage-associated molecular patterns (DAMPs), including cytokines and interleukins, has been reported following irradiation via NF-κB [64,65] (Figure 1). It is well known that irradiation leads to an increase in vessel permeability resulting in both extravasation and recruitment of different leukocyte populations, which in turn creates a pro-inflammatory microenvironment [66]. This inflamed environment induces the release of cytokines, chemokines, and several other factors into the bloodstream, which can be measured by plasma assays such as ELISA. Several studies have evaluated various cytokines and interleukins as potential biomarkers for patients with HCC undergoing radiotherapy (Table 2, III). The following section will focus on markers that have been reported so far.
CD40 Ligand (CD40L), also known as CD154, is mainly expressed on the surface of platelets, endothelial cells and T-cells. It is cleaved by matrix metalloproteases creating the pro-inflammatory molecule soluble CD40 ligand (sCD40L) [67,68]. It has been suggested that patients with cancer have higher levels of sCD40L than patients without cancer [69], and that there may be an association between higher plasma levels of sCD40L and the presence of metastatic disease [70]. For HCC patients undergoing radiotherapy, the potential association between OS and plasma levels of sCD40L has been inconsistent. Ng and colleagues reported that lower levels of sCD40L before treatment were associated with higher risk of death three months after treatment [45]. There was no correlation found in a study by Cuneo et al. (CD40L baseline: HR 0.876; p-value = 0.122 and CD40L 1 month: HR 0.907; p-value = 0.568). Interestingly, both studies showed that a decrease in sCD40L at mid-treatment was predictive of liver disfunction following radiotherapy. These results suggest that sCD40L may have the potential to mitigate toxicity by facilitating a tailored radiation dose during therapy.
Interleukine-6 (IL-6) is a pro-inflammatory cytokine that is known to be elevated in patients with HCC, reflecting chronic inflammation in the liver [71]. Moreover, plasma IL-6 levels have been shown to stratify patients into early vs. late-stage disease and correlate with treatment outcomes after resection or trans-arterial chemoembolization [72,73,74]. With radiotherapy, high levels of circulating IL-6 seem to be associated with overall negative treatment outcomes. Ng and colleagues reported that high levels of soluble IL-6 receptor (sIL-6R) at baseline or mid-treatment, as well as baseline soluble gp160 (sgp130), were correlated with both an increased risk of death three months after treatment and an increased risk of liver toxicity. sIL-6R is the cleaved version of the membrane-bound IL-6R, which plays an important role in trans-signaling of the cytokine IL-6, whereas sgp130 inhibits the signaling of this pathway [75]. In addition, two other groups reported that high circulating IL-6 levels at baseline or mid-treatment were predictive of local failure after radiotherapy (HR 1.15 (95% CI 1.04–1.25) [43] and RR 1.019 (95% CI 1.011–1.028) [76]). Of note, for patients with HCC, this correlation might only be evident in non-treatment-naïve patients [44]. Interestingly, Ajdari et al. found a correlation between the volume of liver radiated with low doses (5Gy, V5) and the risk of liver toxicity, as well as higher plasma IL-6 levels, during treatment [43]. These results indicate that clinically significant increases in circulating IL-6 levels may be detectable even earlier than at mid-treatment. These results are in line with previously published data on increased IL-6 levels following radiation in patients with other cancer types [76,77,78,79,80,81].
Tumor necrosis factor alpha (TNFα) is another inflammatory cytokine that can promote tumor progression, survival, and metastasis. TNFα is synthesized as pro-TNFα mainly by NK-cells, T-cells and macrophages and is activated upon enzymatical cleavage. There are two soluble TNFα receptors. TNFα receptor 1 (TNFR1) is ubiquitously expressed. TNFα receptor 2 (TNFR2) is mainly expressed on immune cells and shows a higher affinity for TNFα than TNFR1 [79]. Most biological activity of TNFα is thought to occur via TNFR1 [80]. Although TNFα has been shown to play a major role in development and maintenance of liver inflammation and cirrhosis [81], reports have been inconsistent. Cha and colleagues found no correlation between overall survival and plasma levels of TNFα in patients with HCC undergoing radiotherapy (univariate analysis: p = 0.573) [44]. This may be related to the short half-life of TNFα in plasma (ca. 20–70 min) [82] as plasma samples were generated before and after the completion of radiotherapy. Interestingly, two other studies that investigated plasma levels of TNFα receptors over the course of radiotherapy found a correlation with the development of liver toxicity [45,46]. Cousins and colleagues found an association between liver toxicity and TNFR1, while Ng and colleagues found an association with mid-treatment TNFR2 levels. Additionally, Ng and colleagues found that TNFR2 levels were associated with a higher risk of death both at baseline and during treatment. TNFR1 levels were not detectable and thus not evaluated in this study [45]. Further studies are needed to clarify the relationship between the levels of TNFα and TNFα receptors in blood with survival and radiation-induced toxicity in patients undergoing liver radiotherapy.

6. Circulating Blood Cells

Radiation-induced lymphopenia (RIL) has been recently identified as a negative biomarker for patients. A recent meta-analysis reported that patients who experienced grade ≥3 lymphopenia after irradiation demonstrated an increased risk of death of 65%, compared to patients who did not [83]. Multiple factors have been reported to influence the risk of developing RIL, including patient age, sex, baseline absolute lymphocyte count (ALC), irradiated tumor volume and fractionation [49,50]. For patients undergoing radiotherapy for liver malignancies, several groups have reported transient decreases in lymphocyte counts [47,48,49,50,51,52] (Table 2, IV). However, the reported duration of RIL differed between studies and ranged between 1 month [48] and up to 1 year [51] following irradiation. Studies have been inconsistent in the type of lymphocyte most impacted by radiotherapy. Gustafson and colleagues observed a decrease in CD3+ T-cells in a more diverse patient cohort including HCC, CCA and patients with liver metastasis [48]. Zhang et al. reported most the prominent change in CD19+ B-cell counts in a cohort of HCC patients [49]. In contrast, Zhuang et al. did not observe any association between CD19+ B-cell, CD3+ T-cell or CD4+ T-cell counts and survival in their patient cohort [51]. Interestingly, the severity of RIL may depend on radiation technique. Zhang and colleagues showed that patients treated with SBRT had the least decline in lymphocytes, compared to patients treated with conventional radiotherapy [49], suggesting that hypofractionation may reduce the risk of developing RIL. Furthermore, it has been proposed that the unique physical properties of proton radiation may reduce the risk and severity of RIL, as protons come to rest within a pre-specified range according to the Bragg peak, reducing the low-dose radiation to healthy liver tissue [84,85,86]. In this context, a recent study comparing lymphocyte levels of patients either undergoing photon or proton radiation for HCC showed that proton therapy led to a higher ALC nadir and significantly longer overall survival (33 vs. 13 months, p = 0.002) [54].
Several reports showed a correlation between overall survival and low lymphocyte counts in liver cancer patients, although the specific time points analyzed and parameters evaluated have differed between studies [49,50,51,52]. Of note, markers correlating with overall survival might be specific to cancer histology, as we have previously reported for HCC versus CCA patients [47]. Three studies also reported inverse correlations between the baseline neutrophil-to-lymphocyte ratio (NLR) and treatment outcome (Byun et al.: HR 1.03 (95%CI 1.01–1.06); p= 0.016) [48,50,53]. Hsiang and colleagues additionally reported an association between liver toxicity and the maximal change in NLR [liver toxicity rate (delta NLR< vs. >1.9): 7.5% vs. 35.1%].
In summary, the available data suggest that the immune system should be recognized as an organ-at-risk in radiation treatment planning. Investigating the effect of radiation on circulating blood cells and their potential as biomarkers will be crucial in developing strategies for radio-immunotherapy approaches in the future [87].

7. Genomic Biomarkers

The advent of next generation sequencing has provided new opportunities for utilizing liquid biopsies for diagnostic purposes [88] (Table 2, V). A promising biomarker in this context is circulating cell-free DNA (cfDNA), which are fragments of 150 to 200 base pairs of double-stranded DNA segments that have a short half-life. Levels of cfDNA been reported to be increased after surgery, in autoimmune disease and other types of inflammation [89]. In a first study of HCC patients undergoing radiotherapy, Park and colleagues observed quantitative changes in cfDNA and stratified patients in low and high cfDNA subgroups [90]. Baseline cfDNA levels correlated with tumor size and stage, as previously reported for other cancer subtypes [91]. Patients in the low cfDNA group following treatment showed improved local control compared to patients with high cfDNA (HR = 2.405 (95% CI 1.059–5.460). The authors hypothesized that continuously elevated cfDNA plasma levels might indicate residual disease or external tumor progression. However, cfDNA levels may be less reliable in patients with acute or chronic inflammatory conditions, as inflammation may also increase cfDNA levels and results must be interpreted accordingly [92].

8. Other Soluble Factors

Several other factors have been evaluated by single groups as potential biomarkers in the plasma of patients with both primary and secondary liver cancers undergoing radiotherapy (Table 2, VI). Suh and colleagues observed that plasma levels of vascular endothelial growth factor (VEGF) normalized to platelet count (VEGF/plt) were elevated after radiotherapy [93]. Additionally, higher baseline levels of VEGF/plt were associated with reduced progression-free survival (PFS) and higher risk of outfield intrahepatic failure. Based on these observations, the authors hypothesized that a combination of radiotherapy with anti-angiogenic therapy might have a synergistic effect. A randomized phase III trial (RTOG 1112) is currently investigating the effect of sorafenib alone versus sorafenib in combination with SBRT (NCT01730937), and its results will provide insights into potential synergy. Similarly, Kim and colleagues studied soluble programmed death-ligand 1 (sPD-L1) in the plasma and found that increased levels following radiotherapy correlated with poor survival and the development of metastasis in HCC patients. However, on multivariate analysis, only tumor size remained statistically significant in this study [94]. Radiation-induced upregulation of PD-L1 on cancer cells has been reported both in vitro and in vivo models [94,95,96]. Several trials are currently investigating the combination of radiotherapy with multiple immune checkpoint blockading therapies [96,97]. In an exploratory study, Ng and colleagues observed changes in plasma metabolomic profiles, including the lipid and amino acid metabolism of patients undergoing radiotherapy. Several metabolites were associated with underlying liver function, receipt of radiotherapy and, most interestingly, liver function decline following radiotherapy [98].
Two small trials investigated potential biomarkers in patients undergoing chemoradiation for primary and secondary liver malignancies. One looked at patients undergoing chemoradiation for liver and lung metastases of colorectal cancer (n = 35) resulted in a mid-treatment increase in serum ceramide, a pro-apoptotic sphingolipid. Interestingly, high versus low ceramide levels were able to categorize patients into responders and non-responders, respectively [99]. Another promising marker explored in the plasma samples of 10 HCC patients is the inter-alpha inhibitor heavy chain H4 isoform 2 precursor (ITIH4) [100]. Patients were stratified by prognosis, and those in the favorable prognosis group showed significant higher levels of ITIH4 at baseline compared to those with a poor prognosis. Both ceramide and ITIH4 levels need to be evaluated in larger randomized studies to further evaluate their clinical potential.

9. Summary and Future Directions

Radiotherapy is a mainstay of treatment for many cancers, and its integration with other therapies holds great promise for liver cancers. Further progress will be facilitated by new strategies for treatment personalization. However, these strategies will depend on the discovery and validation of biomarkers to guide individualized patient management. This limitation is particularly evident in patients with HCC, as they often have underlying liver insufficiency and poorer overall health that often limit management. In recent years, irradiation of the liver has emerged as a valuable treatment option for these patients, but for those with more severe liver dysfunction, its applicability is hampered by concerns of RILD that may result in further impairment of liver function. The availability of predictive and prognostic biomarkers, ones which can also allow for the adjustment of treatment parameters such as dose and field size as treatment progresses, would increase the availability and safety of radiation therapy for a larger group of patients. Blood-based biomarkers may be most practical as they are widely available and can be easily and frequently measured. However, these blood-based biomarkers rely on the assumption that local therapy will result in a measurable systemic effect. Several prognostic and predictive biomarkers have recently been identified to bridge this gap (Table 3). However, most studies have been small and retrospective in nature, with heterogeneous treatment regimens that limit comparability. Interestingly, most markers predictive of liver toxicity following radiotherapy were measured mid-treatment, while the prognostic biomarkers are more typically measured prior to treatment. In addition, most studies have focused on patients with HCC. The unique features of HCC, a highly vascularized tumor often found in the setting of underlying liver fibrosis or cirrhosis, may limit the applicability of these findings to other primary and secondary liver cancers. To increase conclusiveness and validation of these biomarkers, well-powered, prospective randomized controlled trials need to be conducted. Studies are particularly needed for patients with CTP B and C scores, as they currently have limited treatment options and may particularly benefit from radiotherapy. Given the short treatment times with some treatment regimens such as stereotactic body radiation (SBRT), predictive tests with a short turnover time are favored. Alternatively, a test could be performed following half the dose with a planned break, as proposed by colleagues at the University of Michigan Health Services [37,38].
The available data strongly supports the application of the ALBI grade for patients undergoing radiotherapy for liver malignancies. There is compelling evidence that the ALBI grade safely stratifies patients with a CP A score into two distinct predictive and prognostic patient cohorts. Within these cohorts, patients with a CP A score and ALBI grade 1 can be safely treated with radiotherapy within known dose constraints and with minimal risk of serious adverse events. In contrast, patients with a CP A score that show an ALBI grade 2 have a higher risk of developing liver toxicity following irradiation, and should be treated similarly to patients with a CP B score.

10. Conclusions

Blood-based diagnostics hold great potential for personalizing radiotherapy in patients with malignant liver disease. Strong evidence supports the notion that patients with CP class A baseline liver function should be further stratified by ALBI score prior to radiation treatment and treated according to their assigned subgroup. Other promising biomarkers are currently being investigated in prospective randomized trials and may provide additional insights into their prognostic or predictive value.

Author Contributions

Conceptualization, F.H. and D.G.D.; writing—original draft preparation, F.H.; writing—review and editing, D.G.D., H.J.R. and T.S.H.; funding acquisition, D.G.D. All authors have read and agreed to the published version of the manuscript.


D.G.D.’s research is supported through NIH grants R01CA260872, R01CA260857, R01CA247441, and R03CA256764, and Department of Defense grants PRCRP W81XWH-19-1-0284 and PRCRP W81XWH-21-1-0738. T.S.H. and D.G.D.’s research is supported through NIH grant P01CA261669. F.H.’s research is supported by a Mildred Scheel Postdoctoral Fellowship from Deutsche Krebshilfe, Germany. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.


Illustration in Figure 1 was created using (accessed on 2 July 2021).

Conflicts of Interest

F.H. received nonfinancial research support (provision of activity trackers to institution for studies) from Beurer GmbH outside the submitted work; F.H.’s department (Radiation Oncology, University Hospital Tuebingen, Germany) has research agreements with Elekta, Philips, Siemens, Sennewald Medizintechnik, Kaiku Health, TheraPanacea, PTW, and ITV. D.G.D. received consultant fees from Simcere, Surface Oncology, Sophia Bioscience, Innocoll and BMS and research grants from Exelixis, BMS and Surface Oncology. No reagents from these companies were used in this study.


  1. Llovet, J.M.; Kelley, R.K.; Villanueva, A.; Singal, A.G.; Pikarsky, E.; Roayaie, S.; Lencioni, R.; Koike, K.; Rossi-Zucman, J.; Fin, R.S. Hepatocellular carcinoma. Nat. Rev. Dis. Primers 2021, 7, 6. [Google Scholar] [CrossRef] [PubMed]
  2. Singal, A.G.; Lampertico, P.; Nahon, P. Epidemiology and surveillance for hepatocellular carcinoma: New trends. J. Hepatol. 2020, 72, 250–261. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. van Dams, R.; Wu, T.C.; Kishan, A.U.; Raldow, A.C.; Chu, F.-I.; Hernandez, J.; Lamb, J.M.; Mikaeilian, A.; Low, D.A.; Steinberg, M.L. Ablative Radiotherapy for Liver Tumors Using Stereotactic MRI-Guidance: A Prospective Phase I Trial. Radiother. Oncol. 2021, 21, S0167-8140. [Google Scholar] [CrossRef] [PubMed]
  4. Gani, C.; Boeke, S.; McNair, H.; Ehlers, J.; Nachbar, M.; Mönnich, D.; Stolte, A.; Boldt, J.; Marks, C.; Winter, J.; et al. Marker-less online MR-guided stereotactic body radiotherapy of liver metastases at a 1.5 T MR-Linac—Feasibility, workflow data and patient acceptance. Clin. Transl. Radiat. Oncol. 2020, 26, 55–61. [Google Scholar] [CrossRef]
  5. Romesser, P.B.; Tyagi, N.; Crane, C.H. Magnetic Resonance Imaging-Guided Adaptive Radiotherapy for Colorectal Liver Metastases. Cancers 2021, 13, 1636. [Google Scholar] [CrossRef]
  6. Mathew, A.S.; Dawson, L.A. Current Understanding of Ablative Radiation Therapy in Hepatocellular Carcinoma. J. Hepatocell. Carcinoma 2021, 8, 575–586. [Google Scholar] [CrossRef]
  7. Kim, N.; Cheng, J.; Huang, W.-Y.; Kimura, T.; Zeng, Z.C.; Lee, V.H.; Kay, C.S.; Seong, J. Dose-Response Relationship in Stereotactic Body Radiation Therapy for Hepatocellular Carcinoma: A Pooled Analysis of an Asian Liver Radiation Therapy Group Study. Int. J. Radiat. Oncol. Biol. Phys. 2021, 109, 464–473. [Google Scholar] [CrossRef]
  8. Park, H.C.; Seong, J.; Han, K.H.; Chon, C.Y.; Moon, Y.M.; Suh, C.-O. Dose-response relationship in local radiotherapy for hepatocellular carcinoma. Int. J. Radiat. Oncol. Biol. Phys. 2002, 54, 150–155. [Google Scholar] [CrossRef]
  9. Romero, A.M.; Wunderink, W.; Hussain, S.M.; de Pooter, J.; Heijmen, B.J.M.; Nowak, P.C.J.M.; Nuyttens, J.J.; Brandwijk, R.P.; Verhoef, C.; Ijzermans, J.N.M.; et al. Stereotactic body radiation therapy for primary and metastatic liver tumors: A single institution phase i-ii study. Acta Oncol. 2006, 45, 831–837. [Google Scholar] [CrossRef]
  10. Hong, T.S.; DeLaney, T.F.; Mamon, H.J.; Willett, C.G.; Yeap, B.Y.; Niemierko, A.; Wolfgang, J.A.; Lu, H.-M.; Adams, J.; Weyman, E.A. A prospective feasibility study of respiratory-gated proton beam therapy for liver tumors. Pr. Radiat. Oncol. 2014, 4, 316–322. [Google Scholar] [CrossRef] [Green Version]
  11. Guha, C.; Kavanagh, B.D. Hepatic radiation toxicity: Avoidance and amelioration. Semin. Radiat. Oncol. 2011, 21, 256–263. [Google Scholar] [CrossRef] [Green Version]
  12. Dawson, L.A.; Normolle, D.; Balter, J.M.; McGinn, C.J.; Lawrence, T.S.; Haken, R.T. Analysis of radiation-induced liver disease using the Lyman NTCP model. Int. J. Radiat. Oncol. Biol. Phys. 2002, 53, 810–821. [Google Scholar] [CrossRef]
  13. Fitch, M.I.; Sharp, L.; Hanly, P.; Longo, C.J. Experiencing financial toxicity associated with cancer in publicly funded healthcare systems: A systematic review of qualitative studies. J. Cancer Surviv. 2021, 1–15. [Google Scholar] [CrossRef]
  14. Di Tommaso, L.; Spadaccini, M.; Donadon, M.; Personeni, N.; Elamin, A.; Aghemo, A.; Lleo, A. Role of liver biopsy in hepatocellular carcinoma. World J. Gastroenterol. 2019, 25, 6041–6052. [Google Scholar] [CrossRef]
  15. Llovet, J.M.; Bruix, J. Prognosis of hepatocellular carcinoma: The BCLC staging classification. Semin. Liver Dis. 1999, 19, 329–338. [Google Scholar] [CrossRef]
  16. Knox, J.J. Addressing the interplay of liver disease and hepatocellular carcinoma on patient survival: The ALBI scoring model. J. Clin. Oncol. 2015, 33, 529–531. [Google Scholar] [CrossRef]
  17. Na, S.K.; Yim, S.Y.; Suh, S.J.; Jung, Y.K.; Kim, J.H.; Seo, Y.S.; Yim, H.J.; Yeon, J.E.; Byun, K.S.; Um, S.H. ALBI versus Child-Pugh grading systems for liver function in patients with hepatocellular carcinoma. J. Surg. Oncol. 2018, 117, 912–921. [Google Scholar] [CrossRef]
  18. Wang, Y.-Y.; Zhong, J.-H.; Su, Z.-Y.; Huang, J.-F.; Lu, S.-D.; Xiang, B.-D.; Ma, L.; Qi, L.-N.; Ou, B.-N.; Li, L.-Q. Albumin-bilirubin versus Child-Pugh score as a predictor of outcome after liver resection for hepatocellular carcinoma. Br. J. Surg. 2016, 103, 725–734. [Google Scholar] [CrossRef]
  19. Johnson, P.J.; Berhane, S.; Kagebayashi, C.; Satomura, S.; Teng, M.; Reeves, H.L.; O’Beirne, J.; Fox, R.; Skowronska, A.; Palmer, D.; et al. Assessment of liver function in patients with hepatocellular carcinoma: A new evidence-based approach-the ALBI grade. J. Clin. Oncol. 2015, 33, 550–558. [Google Scholar] [CrossRef]
  20. Liu, P.-H.; Hsu, C.-Y.; Hsia, C.-Y.; Lee, Y.-H.; Chiou, Y.-Y.; Huang, Y.-H.; Lee, F.-Y.; Lin, H.-C.; Hou, M.-C.; Huo, T.-I. ALBI and PALBI grade predict survival for HCC across treatment modalities and BCLC stages in the MELD Era. J. Gastroenterol. Hepatol. 2017, 32, 879–886. [Google Scholar] [CrossRef]
  21. Ogasawara, S.; Chiba, T.; Ooka, Y.; Suzuki, E.; Kanogawa, N.; Saito, T.; Motoyama, T.; Tawada, A.; Kanai, F.; Yokosuka, O. Liver function assessment according to the Albumin-Bilirubin (ALBI) grade in sorafenib-treated patients with advanced hepatocellular carcinoma. Invest. New Drugs 2015, 33, 1257–1262. [Google Scholar] [CrossRef]
  22. Amisaki, M.; Uchinaka, E.; Morimoto, M.; Tokuyasu, N.; Sakamoto, T.; Honjo, S.; Saito, H.; Fujiwara, Y. Post-operative albumin-bilirubin grade predicts long-term outcomes among Child-Pugh grade A patients with hepatocellular carcinoma after curative resection. Hepatobiliary Pancreat. Dis. Int. 2018, 17, 502–509. [Google Scholar] [CrossRef] [PubMed]
  23. Murray, L.J.; Sykes, J.; Brierley, J.; Kim, J.J.; Wong, R.K.; Ringash, J.; Craig, T.; Velec, M.; Lindsay, P.; Knox, J.J.; et al. Baseline Albumin-Bilirubin (ALBI) Score in Western Patients with Hepatocellular Carcinoma Treated with Stereotactic Body Radiation Therapy (SBRT). Int. J. Radiat. Oncol. Biol. Phys. 2018, 101, 900–909. [Google Scholar] [CrossRef] [PubMed]
  24. Lo, C.-H.; Liu, M.-Y.; Lee, M.-S.; Yang, J.-F.; Jen, Y.-M.; Lin, C.-S.; Chao, H.-L.; Shen, P.-C.; Huang, W.-Y. Comparison Between Child-Turcotte-Pugh and Albumin-Bilirubin Scores in Assessing the Prognosis of Hepatocellular Carcinoma After Stereotactic Ablative Radiation Therapy. Int. J. Radiat. Oncol. Biol. Phys. 2017, 99, 145–152. [Google Scholar] [CrossRef] [PubMed]
  25. Toesca, D.A.; Osmundson, E.C.; von Eyben, R.; Shaffer, J.L.; Koong, A.C.; Chang, D.T. Assessment of hepatic function decline after stereotactic body radiation therapy for primary liver cancer. Pr. Radiat. Oncol. 2017, 7, 173–182. [Google Scholar] [CrossRef] [PubMed]
  26. Ho, C.H.; Chiang, C.-L.; Lee, F.A.; Choi, H.C.; Chan, J.C.; Yeung, C.S.; Huang, J.; Chan, M.K.; Blanck, O.; Wong, F.C. Comparison of platelet-albumin-bilirubin (PALBI), albumin-bilirubin (ALBI), and child-pugh (CP) score for predicting of survival in advanced hcc patients receiving radiotherapy (RT). Oncotarget 2018, 9, 28818–28829. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Su, T.S.; Yang, M.-H.; Zhou, Y.; Huang, Y.; Liang, P.; Cheng, T.; Chen, L.; Li, L.-Q.; Liang, S.-X. Albumin—bilirubin (ALBI) versus Child-Turcotte-Pugh (CTP) in prognosis of HCC after stereotactic body radiation therapy. Radiat. Oncol. 2019, 14, 50. [Google Scholar] [CrossRef] [PubMed]
  28. Jackson, W.C.; Hartman, E.; Gharzai, L.A.; Maurino, C.; Karnak, D.M.; Mendiratta-Lala, M.; Parikh, N.D.; Mayo, C.S.; Haken, R.K.T.; Schipper, M.J.; et al. The Potential for Midtreatment Albumin-Bilirubin (ALBI) Score to Individualize Liver Stereotactic Body Radiation Therapy. Int. J. Radiat. Oncol. Biol. Phys. 2021, 111, 127–134. [Google Scholar] [CrossRef]
  29. Gkika, E.; Bettinger, L.; Bettinger, L.; Schultheiss, M.; Brunner, T.B. The role of albumin-bilirubin grade and inflammation-based index in patients with hepatocellular carcinoma treated with stereotactic body radiotherapy. Strahlenther Onkol. 2018, 194, 403–413. [Google Scholar] [CrossRef]
  30. Gottlieb, M.E.; Stratton, H.; Newell, J.C.; Shah, D.M. Indocyanine green. Its use as an early indicator of hepatic dysfunction following injury in man. Arch. Surg. 1984, 119, 264–268. [Google Scholar] [CrossRef]
  31. Khisti, R.; Patidar, Y.; Garg, L.; Mukund, A.; Thomas, S.S.; Sarin, S.K. Correlation of baseline Portal pressure (hepatic venous pressure gradient) and Indocyanine Green Clearance Test With Post-transarterial Chemoembolization Acute Hepatic Failure. J. Clin. Exp. Hepatol. 2019, 9, 447–452. [Google Scholar] [CrossRef]
  32. Pind, M.; Bendtsen, L.; Kallemose, T.; Møller, S. Indocyanine green retention test (ICG-r15) as a noninvasive predictor of portal hypertension in patients with different severity of cirrhosis. Eur. J. Gastroenterol. Hepatol. 2016, 28, 948–954. [Google Scholar] [CrossRef]
  33. Wang, Z.; Wu, F.; Yue, Z.D.; Zhao, H.W.; Wang, L.; Fan, Z.H.; Zhang, Y.; Liu, F.Q. Comparative study of indocyanine green-R15, Child-Pugh score, and model for end-stage liver disease score for prediction of hepatic encephalopathy after transjugular intrahepatic portosystemic shunt. World J. Gastroenterol. 2021, 27, 416–427. [Google Scholar] [CrossRef]
  34. Hoekstra, L.; de Graaf, T.; Nibourg, G.A.; Heger, M.; Bennink, R.J.; Stieger, B.; van Gulik, T.M. Physiological and biochemical basis of clinical liver function tests: A review. Ann. Surg. 2013, 257, 27–36. [Google Scholar] [CrossRef] [Green Version]
  35. Stenmark, M.; Cao, H.; Wang, H.; Jackson, A.; Ben-Josef, E.; Ten Haken, R.K.; Lawrence, T.S.; Feng, M. Estimating functional liver reserve following hepatic irradiation: Adaptive normal tissue response models. Radiother. Oncol. 2014, 111, 418–423. [Google Scholar] [CrossRef] [Green Version]
  36. Lee, I.; Seong, J.; Shim, J.; Han, K.H. Radiotherapeutic parameters predictive of liver complications induced by liver tumor radiotherapy. Int. J. Radiat. Oncol. 2009, 73, 154–158. [Google Scholar] [CrossRef]
  37. Suresh, K.; Owen, L.; Bazzi, W.; Jackson, R.; Ten Haken, K.; Cuneo, K.; Feng, M.; Lawrence, T.S.; Schipper, M.J. Using Indocyanine Green Extraction to Predict Liver Function After Stereotactic Body Radiation Therapy for Hepatocellular Carcinoma. Int. J. Radiat. Oncol. 2017, 100, 131–137. [Google Scholar] [CrossRef]
  38. Feng, M.; Suresh, M.J.; Schipper, L.; Bazzi, E.; Ben-Josef, M.M.; Matuszak, N.D.; Parikh, T.H.; Welling, D.; Normolle, R.; Ten Haken, K.; et al. Individualized Adaptive Stereotactic Body Radiotherapy for Liver Tumors in Patients at High Risk for Liver Damage: A Phase 2 Clinical Trial. JAMA Oncol. 2018, 4, 40–47. [Google Scholar] [CrossRef]
  39. Jackson, W.C.; Tang, C.; Maurino, M.; Mendiratta-Lala, N.D.; Parikh, M.M.; Matuszak, J.S.; Dow, Y.; Cao, C.S.; Mayo, R.K.; Ten Haken, M.J.; et al. Individualized Adaptive Radiation Therapy Allows for Safe Treatment of Hepatocellular Carcinoma in Patients With Child-Turcotte-Pugh B Liver Disease. Int. J. Radiat. Oncol. 2020, 109, 212–219. [Google Scholar] [CrossRef]
  40. Cuneo, K.C.; Devasia, Y.; Sun, M.J.; Schipper, D.; Karnak, M.A.; Davis, D.; Owen, M.; Feng, I.; El Naqa, L.; Bazzi, R.; et al. Serum Levels of Hepatocyte Growth Factor and CD40 Ligand Predict Radiation-Induced Liver Injury. Transl. Oncol. 2019, 12, 889–894. [Google Scholar] [CrossRef]
  41. Hong, T.S.; Grassberger, B.Y.; Yeap, W.; Jiang, J.Y.; Wo, L.; Goyal, J.W.; Clark, C.H.; Crane, E.J.; Koay, S.; Dima, C.E.; et al. Pretreatment plasma HGF as potential biomarker for susceptibility to radiation-induced liver dysfunction after radiotherapy. NPJ Precis. Oncol. 2018, 2, 22. [Google Scholar] [CrossRef]
  42. El Naqa, I.; Johansson, D.; Owen, K.; Cuneo, Y.; Cao, M.; Matuszak, L.; Bazzi, T.; Lawrence, S.; Randall K. Ten, K. Modeling of Normal Tissue Complications Using Imaging and Biomarkers After Radiation Therapy for Hepatocellular Carcinoma. Int. J. Radiat. Oncol. 2018, 100, 335–343. [Google Scholar] [CrossRef] [Green Version]
  43. Ajdari, A.; Xie, C.; Richter, M.; Niyazi, D.; Duda, G.; Hong, T.S.; Bortfeld, T. Toward Personalized Radiation Therapy of Liver Metastasis: Importance of Serial Blood Biomarkers. JCO Clin. Cancer Inf. 2021, 5, 315–325. [Google Scholar] [CrossRef] [PubMed]
  44. Cha, H.; Lee, E.J.; Seong, J. Multi-analyte analysis of cytokines that predict outcomes in patients with hepatocellular carcinoma treated with radiotherapy. World J. Gastroenterol. 2017, 23, 2077–2085. [Google Scholar] [CrossRef] [PubMed]
  45. Ng, S.S.W.; Zhang, L.; Wang, D.; Citrin, L.; Dawson, A. Association of pro-inflammatory soluble cytokine receptors early during hepatocellular carcinoma stereotactic radiotherapy with liver toxicity. NPJ Precis. Oncol. 2020, 4, 17. [Google Scholar] [CrossRef] [PubMed]
  46. Cousins, M.M.; Morris, C.; Maurino, T.P.; Devasia, D.; Karnak, D.; Ray, N.D.; Parikh, D.; Owen, R.K.; Ten Haken, M.J.; Schipper, T.S.; et al. TNFR1 and the TNFα axis as a targetable mediator of liver injury from stereotactic body radiation therapy. Transl. Oncol. 2021, 14, 100950. [Google Scholar] [CrossRef] [PubMed]
  47. Grassberger, C.; Hong, T.; Hato, B.Y.; Yeap, J.Y.; Wo, M.; Tracy, T.; Bortfeld, J.A.; Wolfgang, C.E.; Eyler, L.; Goyal, J.W.C.; et al. Differential Association Between Circulating Lymphocyte Populations with Outcome After Radiation Therapy in Subtypes of Liver Cancer. Int. J. Radiat. Oncol. 2018, 101, 1222–1225. [Google Scholar] [CrossRef]
  48. Gustafson, M.P.; Bornschlegl, S.; Park, S.; Gastineau, D.A.; Roberts, L.R.; Dietz, A.B.; Hallemeier, C.L. Comprehensive assessment of circulating immune cell populations in response to stereotactic body radiation therapy in patients with liver cancer. Adv. Radiat. Oncol. 2017, 2, 540–547. [Google Scholar] [CrossRef] [Green Version]
  49. Zhang, H.G.; Yang, T.; Jiang, J.; Zhang, Y.; Jin, X.J.; Hu, Y.; Sun, J.; Du, S.S.; Zeng, Z.C. Lymphopenia Is Associated with Gross Target Volumes and Fractions in Hepatocellular Carcinoma Patients Treated with External Beam Radiation Therapy and Also Indicates Worse Overall Survival. Can. J. Gastroenterol. Hepatol. 2019, 2019, 9691067. [Google Scholar] [CrossRef]
  50. Byun, H.; Kim, K.; Park, S.; Seong, J. Acute severe lymphopenia by radiotherapy is associated with reduced overall survival in hepatocellular carcinoma. Strahlenther Onkol. 2019, 195, 1007–1017. [Google Scholar] [CrossRef]
  51. Zhuang, Y.; Yuan, Y.; Chen, G.W.; Zhao, X.M.; Hu, Y.; Zhu, W.C.; Zeng, Z.C.; Chen, Y.X. Association Between Circulating Lymphocyte Populations and Outcome After Stereotactic Body Radiation Therapy in Patients with Hepatocellular Carcinoma. Front. Oncol. 2019, 9, 896. [Google Scholar] [CrossRef]
  52. Liu, J.; Zhao, Q.; Deng, W.; Lu, J.; Xu, X.; Wang, R.; Li, X.; Yue, J. Radiation-related lymphopenia is associated with spleen irradiation dose during radiotherapy in patients with hepatocellular carcinoma. Radiat. Oncol. 2017, 12, 90. [Google Scholar] [CrossRef] [Green Version]
  53. Hsiang, C.W.; Huang, Y.; Yang, J.F.; Shen, P.C.; Dai, Y.H.; Wang, Y.F.; Lin, C.S.; Chang, W.C.; Lo, C.H. Dynamic Changes in Neutrophil-to-Lymphocyte Ratio are Associated with Survival and Liver Toxicity Following Stereotactic Body Radiotherapy for Hepatocellular Carcinoma. J. Hepatocell. Carcinoma 2021, 8, 1299–1309. [Google Scholar] [CrossRef]
  54. De, B.; Ng, P.S.; Liu, A.Y.; Avila, S.; Tao, R.; Holliday, E.B.; Brownlee, Z.; Kaseb, A.; Lee, S.; Raghav, K.; et al. Radiation-Associated Lymphopenia and Outcomes of Patients with Unresectable Hepatocellular Carcinoma Treated with Radiotherapy. J. Hepatocell. Carcinoma 2021, 8, 57–69. [Google Scholar] [CrossRef]
  55. Gupta, G.; Al-Malki, H.; Kazmi, I.; Thangavelu, L.; Gupta, P.K.; Jha, N.K.; Prasher, P.; Singh, S.K.; Dua, K. The role of HGF/MET in liver cancer. Futur. Med. Chem. 2021, 13, 1829–1832. [Google Scholar] [CrossRef]
  56. Fu, R.; Jiang, J.; Lim, H.; Chen, X.; Zhang, X. Activation of the HGF/c-MET axis promotes lenvatinib resistance in hepatocellular carcinoma cells with high c-MET expression. Med. Oncol. 2020, 37, 24. [Google Scholar] [CrossRef]
  57. Firtina Karagonlar, Z.; Koc, D.; Iscan, E.; Erdal, E.; Atabey, N. Elevated hepatocyte growth factor expression as an autocrine c-Met activation mechanism in acquired resistance to sorafenib in hepatocellular carcinoma cells. Cancer Sci. 2016, 107, 407–416. [Google Scholar] [CrossRef]
  58. Moosavi, F.; Giovannetti, E.; Saso, L.; Firuzi, O. HGF/MET pathway aberrations as diagnostic, prognostic, and predictive biomarkers in human cancers. Crit. Rev. Clin. Lab. Sci. 2019, 56, 533–566. [Google Scholar] [CrossRef] [Green Version]
  59. Dayyani, F.; Zurita, J.; Nogueras-González, G.M.; Slack, R.; Millikan, R.E.; Araujo, J.C.; Gallick, G.E.; Logothetis, C.J.; Corn, P.G. The combination of serum insulin, osteopontin, and hepatocyte growth factor predicts time to castration-resistant progression in androgen dependent metastatic prostate cancer- an exploratory study. BMC Cancer 2016, 16, 721. [Google Scholar] [CrossRef] [Green Version]
  60. Hügel, R.; Muendlein, A.; Volbeding, L.; Drexel, H.; Richtig, E.; Wehkamp, U.; Painsi, C.; Lange-Asschenfeldt, B.; Hauschild, A.; Egberts, F. Serum levels of hepatocyte growth factor as a potential tumor marker in patients with malignant melanoma. Melanoma Res. 2016, 26, 354–360. [Google Scholar] [CrossRef]
  61. Saltarella, I.; Morabito, N.; Giuliani, C.; Terragna, P.; Omedè, A.; Palumbo, S.; Bringhen, L.; De Paoli, E.; Martino, A.; Larocca, M.; et al. Prognostic or predictive value of circulating cytokines and angiogenic factors for initial treatment of multiple myeloma in the GIMEMA MM0305 randomized controlled trial. J. Hematol. Oncol. 2019, 12, 4. [Google Scholar] [CrossRef]
  62. Yamagamim, H.; Moriyama, M.; Matsumura, H.; Aoki, H.; Shimizu, T.; Saito, T.; Kaneko, M.; Shioda, A.; Tanaka, N.; Arakawa, Y. Serum concentrations of human hepatocyte growth factor is a useful indicator for predicting the occurrence of hepatocellular carcinomas in C-viral chronic liver diseases. Cancer 2002, 95, 824–834. [Google Scholar] [CrossRef]
  63. Karabulut, S.; Tas, F.; Akyüz, F.; Ormeci, A.C.; Serilmez, M.; Soydinç, H.O.; Vatansever, S.; Yasasever, V. Clinical significance of serum hepatocyte growth factor (HGF) levels in hepatocellular carcinoma. Tumour Biol. 2014, 35, 2327–2333. [Google Scholar] [CrossRef]
  64. Finkelstein, S.; Timmerman, E.; McBride, W.H.; Schaue, D.; Hoffe, S.E.; Mantz, C.A.; Wilson, G.D. The confluence of stereotactic ablative radiotherapy and tumor immunology. Clin. Dev. Immunol. 2011, 2011, 439752. [Google Scholar] [CrossRef]
  65. Janus, P.; Szołtysek, K.; Zając, G.; Stokowy, T.; Walaszczyk, A.; Widłak, W.; Wojtaś, B.; Gielniewski, B.; Iwanaszko, M.; Braun, R.; et al. Pro-inflammatory cytokine and high doses of ionizing radiation have similar effects on the expression of NF-kappaB-dependent genes. Cell Signal. 2018, 46, 23–31. [Google Scholar] [CrossRef]
  66. Ong, Z.Y.; Gibson, J.; Bowen, J.M.; Stringer, A.M.; Darby, J.M.; Logan, R.M.; Yeoh, A.S.; Keefe, D.M. Pro-inflammatory cytokines play a key role in the development of radiotherapy-induced gastrointestinal mucositis. Radiat. Oncol. 2010, 5, 22. [Google Scholar] [CrossRef] [Green Version]
  67. Aloui, C.; Prigent, S.; Tariket, C.; Sut, J.; Fagan, J.; Cognasse, F.; Chakroun, T.; Garraud, O.; Laradi, S. Levels of human platelet-derived soluble CD40 ligand depend on haplotypes of CD40LG-CD40-ITGA2. Sci. Rep. 2016, 6, 24715. [Google Scholar] [CrossRef] [Green Version]
  68. Tang, T.; Cheng, B.; Truong, L.; Sun, L.; Yang, X.; Wang, H. Molecular basis and therapeutic implications of CD40/CD40L immune checkpoint. Pharm. Ther. 2021, 219, 107709. [Google Scholar] [CrossRef]
  69. Angelou, A.; Antoniou, N.; Garmpis, C.; Damaskos, S.; Theocharis, G.; Margonis, A. The Role of Soluble CD40L Ligand in Human Carcinogenesis. Anticancer. Res. 2018, 38, 3199–3201. [Google Scholar]
  70. Roselli, M.C.; Mineo, S.; Basili, F.; Martini, S.; Mariotti, S.; Aloe, G.; Del Monte, V.; Ambrogi, A.; Spila, R.; Palmirotta, R.; et al. Soluble CD40 ligand plasma levels in lung cancer. Clin. Cancer Res. 2004, 10, 610–614. [Google Scholar] [CrossRef] [Green Version]
  71. Rico Montanari, N.; Anugwom, M.; Boonstra, A.; Debes, J.D. The Role of Cytokines in the Different Stages of Hepatocellular Carcinoma. Cancers 2021, 13, 4876. [Google Scholar] [CrossRef] [PubMed]
  72. Lai, S.C.; Su, Y.T.; Chi, C.C.; Kuo, Y.C.; Lee, K.F.; Wu, Y.C.; Lan, P.C.; Yang, M.H.; Chang, T.S.; Huang, Y.H. Correction to: DNMT3b/OCT4 expression confers sorafenib resistance and poor prognosis of hepatocellular carcinoma through IL-6/STAT3 regulation. J. Exp. Clin. Cancer Res. 2020, 39, 10. [Google Scholar] [CrossRef] [PubMed]
  73. Shakiba, E.; Ramezani, M.; Sadeghi, M. Evaluation of serum interleukin-6 levels in hepatocellular carcinoma patients: A systematic review and meta-analysis. Clin. Exp. Hepatol. 2018, 4, 182–190. [Google Scholar] [CrossRef] [PubMed]
  74. Kim, M.J.; Jang, W.; Oh, B.S.; Kwon, J.H.; Chung, K.W.; Jung, H.S.; Jekarl, D.W.; Lee, S. Change in inflammatory cytokine profiles after transarterial chemotherapy in patients with hepatocellular carcinoma. Cytokine 2013, 64, 516–522. [Google Scholar] [CrossRef]
  75. Taniguchi, K.; Karin, M. IL-6 and related cytokines as the critical lynchpins between inflammation and cancer. Semin. Immunol. 2014, 26, 54–74. [Google Scholar] [CrossRef]
  76. Dehing-Oberije, C.; Aerts, H.; Yu, S.; De Ruysscher, D.; Menheere, P.; Hilvo, M.; van der Weide, H.; Rao, B.; Lambin, P. Development and validation of a prognostic model using blood biomarker information for prediction of survival of non-small-cell lung cancer patients treated with combined chemotherapy and radiation or radiotherapy alone (NCT00181519, NCT00573040, and NCT00572325). Int. J. Radiat. Oncol. 2011, 81, 360–368. [Google Scholar]
  77. Wu, C.T.; Chen, F.; Chen, W.C.; Hsieh, C.C. The role of IL-6 in the radiation response of prostate cancer. Radiat. Oncol. 2013, 8, 159. [Google Scholar] [CrossRef] [Green Version]
  78. Duffy, S.A.; Taylor, M.; Terrell, J.E.; Islam, M.; Li, Y.; Fowler, K.E.; Wolf, G.T.; Teknos, T.N. Interleukin-6 predicts recurrence and survival among head and neck cancer patients. Cancer 2008, 113, 750–757. [Google Scholar] [CrossRef]
  79. van Remco, H.; Ten Hagen, T.L.; Eggermont, A.M. TNF-alpha in cancer treatment: Molecular insights, antitumor effects, and clinical utility. Oncologist 2006, 11, 397–408. [Google Scholar]
  80. Aggarwal, B.B. Signalling pathways of the TNF superfamily: A double-edged sword. Nat. Rev. Immunol. 2003, 3, 745–756. [Google Scholar] [CrossRef]
  81. Yang, Y.M.; Kim, S.Y.; Seki, E. Inflammation and Liver Cancer: Molecular Mechanisms and Therapeutic Targets. Semin. Liver Dis. 2019, 39, 026–042. [Google Scholar] [CrossRef]
  82. Oliver, J.C.; Bland, A.; Oettinger, C.W.; Arduino, M.J.; McAllister, S.K.; Aguero, S.M.; Favero, M.S. Cytokine kinetics in an in vitro whole blood model following an endotoxin challenge. Lymphokine Cytokine Res. 1993, 12, 115–120. [Google Scholar]
  83. Damen, P.J.J.; Kroese, E.; van Hillegersberg, R.; Schuit, E.; Peters, M.; Verhoeff, J.J.C.; Lin, S.H.; van Rossum, P.S.N. The Influence of Severe Radiation-Induced Lymphopenia on Overall Survival in Solid Tumors: A Systematic Review and Meta-Analysis. Int. J. Radiat. Oncol. Biol. Phys. 2021, 111, 936–948. [Google Scholar] [CrossRef]
  84. Sung, W.; Grassberger, A.; McNamara, L.; Basler, L.; Ehrbar, S.; Tanadini-Lang, S.; Hong, T.S.; Paganetti, H. A tumor-immune interaction model for hepatocellular carcinoma based on measured lymphocyte counts in patients undergoing radiotherapy. Radiother. Oncol. 2020, 151, 73–81. [Google Scholar] [CrossRef]
  85. Routman, D.M.; Garant, S.C.; Lester, C.N.; Day, W.S.; Harmsen, C.T.; Sanheuza, H.H.; Yoon, M.A.; Neben-Wittich, J.A.; Martenson, M.G.; Haddock, C.L.; et al. A Comparison of Grade 4 Lymphopenia with Proton Versus Photon Radiation Therapy for Esophageal Cancer. Adv. Radiat. Oncol. 2019, 4, 63–69. [Google Scholar] [CrossRef] [Green Version]
  86. Mohan, R.Y.; Liu, P.D.; Brown, A.; Mahajan, J.; Dinh, C.; Chung, S.; McAvoy, M.F.; McAleer, S.H.; Lin, J.; Li, A.J.; et al. Proton therapy reduces the likelihood of high-grade radiation-induced lymphopenia in glioblastoma patients: Phase II randomized study of protons vs photons. Neuro-Oncol. 2020, 23, 284–294. [Google Scholar] [CrossRef]
  87. Lambin, P.; Lieverse, R.I.Y.; Eckert, F.; Marcus, D.; Oberije, C.; van der Wiel, A.M.A.; Guha, C.; Dubois, L.J.; Deasy, J.O. Lymphocyte-Sparing Radiotherapy: The Rationale for Protecting Lymphocyte-rich Organs When Combining Radiotherapy with Immunotherapy. Semin. Radiat. Oncol. 2020, 30, 187–193. [Google Scholar] [CrossRef]
  88. Zhang, Y.; Liu, K.; Ji, X.; Li, C.; Wang, Z.; Ren, Y.; Liu, X.; Chen, X.; Han, L.; Meng, L.; et al. Clinical Application Value of Circulating Cell-free DNA in Hepatocellular Carcinoma. Front. Mol. Biosci. 2021, 8, 736330. [Google Scholar] [CrossRef]
  89. Corcoran, R.B.; Chabner, B.A. Application of Cell-free DNA Analysis to Cancer Treatment. N. Engl. J. Med. 2018, 379, 1754–1765. [Google Scholar] [CrossRef] [Green Version]
  90. Park, S.; Lee, J.; Rim, C.H.; Seong, J. Plasma Cell-Free DNA as a Predictive Marker after Radiotherapy for Hepatocellular Carcinoma. Yonsei Med. J. 2018, 59, 470–479. [Google Scholar] [CrossRef]
  91. Ren, N.; Ye, H.; Qin, L.X.; Zhang, B.H.; Liu, Y.K.; Tang, Z.Y. Circulating DNA level is negatively associated with the long-term survival of hepatocellular carcinoma patients. World J. Gastroenterol. 2006, 12, 3911–3914. [Google Scholar] [CrossRef] [PubMed]
  92. Zwirner, K.; Hilke, J.; Demidov, G.; Ossowski, S.; Gani, C.; Rieß, O.; Zips, D.; Welz, S.; Schroeder, C. Circulating cell-free DNA: A potential biomarker to differentiate inflammation and infection during radiochemotherapy. Radiother. Oncol. 2018, 129, 575–581. [Google Scholar] [CrossRef] [PubMed]
  93. Suh, Y.G.; Lee, J.; Cha, H.; Yang, S.H.; Seong, J. Prognostic values of vascular endothelial growth factor and matrix metalloproteinase-2 in hepatocellular carcinoma after radiotherapy. Dig. Dis. 2014, 32, 725–732. [Google Scholar] [CrossRef] [PubMed]
  94. Dovedi, S.J.; Adlard, A.L.; Lipowska-Bhalla, G.; McKenna, C.; Jones, S.; Cheadle, E.J.; Stratford, I.J.; Poon, E.; Morrow, M.; Stewart, R.; et al. Acquired resistance to fractionated radiotherapy can be overcome by concurrent PD-L1 blockade. Cancer Res. 2014, 74, 5458–5468. [Google Scholar] [CrossRef] [Green Version]
  95. Kim, K.J.; Kim, H.; Lee, S.J.; Lee, E.J.; Shin, E.C.; Seong, J. Radiation improves antitumor effect of immune checkpoint inhibitor in murine hepatocellular carcinoma model. Oncotarget 2017, 8, 41242–41255. [Google Scholar] [CrossRef] [Green Version]
  96. Lee, Y.H.; Tai, C.; Yip, S.; Choo, P.; Chew, V. Combinational Immunotherapy for Hepatocellular Carcinoma: Radiotherapy, Immune Checkpoint Blockade and Beyond. Front. Immunol. 2020, 11, 568759. [Google Scholar] [CrossRef]
  97. Parikh, A.R.; Szabolcs, A.; Allen, J.N.; Clark, J.W.; Wo, J.Y.; Raabe, M.; Thel, H.; Hoyos, D.; Mehta, A.; Arshad, S.; et al. Radiation therapy enhances immunotherapy response in microsatellite stable colorectal and pancreatic adenocarcinoma in a phase II trial. Nat. Cancer 2021, 2, 1124–1135. [Google Scholar] [CrossRef]
  98. Ng, S.S.W.; Jang, H.; Kurland, I.J.; Qiu, Y.; Guha, C.; Dawson, L.A. Plasma metabolomic profiles in liver cancer patients following stereotactic body radiotherapy. EBioMedicine 2020, 59, 102973. [Google Scholar] [CrossRef]
  99. Dubois, N.; Rio, N.; Ripoche, V.; Ferchaud-Roucher, M.; Gaugler, H.; Campion, L.; Krempf, M.; Carrie, C.; Mahé, M.; Mirabel, X.; et al. Plasma ceramide, a real-time predictive marker of pulmonary and hepatic metastases response to stereotactic body radiation therapy combined with irinotecan. Radiother. Oncol. 2016, 119, 229–235. [Google Scholar] [CrossRef] [Green Version]
  100. Lee, E.J.; Yang, H.; Kim, K.J.; Cha, H.; Lee, S.J.; Kim, J.H.; Song, J.; Chun, K.H.; Seong, J. Inter-alpha Inhibitor H4 as a Potential Biomarker Predicting the Treatment Outcomes in Patients with Hepatocellular Carcinoma. Cancer Res. Treat. 2018, 50, 646–657. [Google Scholar] [CrossRef] [Green Version]
  101. Cuneo, K.; Sun, C.; Schipper, M.; Tewari, M.; Ten Haken, R.K.; Lawrence, T.S.; Feng, M. MicroRNAs Predict Liver Toxicity in Patients Receiving Stereotactic Body Radiation Therapy for Hepatocellular Carcinoma. Int. J. Rad. Oncol. Biol. Phys. 2016, 96 (Suppl. 2), S202–S203. [Google Scholar] [CrossRef]
  102. Kim, H.J.; Park, K.; Kim, J.; Seong, J. Clinical significance of soluble programmed cell death ligand-1 (sPD-L1) in hepatocellular carcinoma patients treated with radiotherapy. Radiother. Oncol. 2018, 129, 130–135. [Google Scholar] [CrossRef]

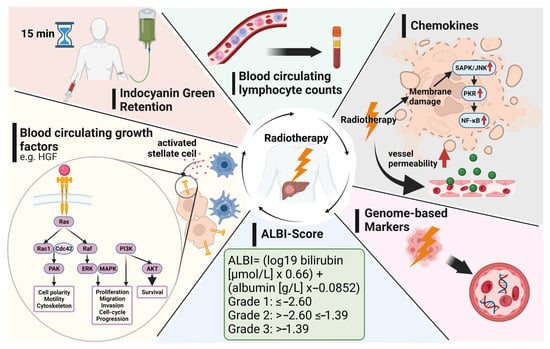

Figure 1. Potential candidates for prognostic and predictive biomarkers in patients with liver malignancies undergoing radiotherapy. HGF, hepatocyte growth factor; RAS, rat sarcoma; Rac1, Ras-related C3 botulinum toxin substrate 1; Cdc42, cell division cycle 42; RAF, rat fibrosarcoma; ERK, extracellular-signal regulated kinase; MAPK, mitogen-activated protein kinase; PI3K, phosphoinositide-3 kinase; AKT, protein kinase B; SAPK/JNK, stress-activated protein kinase/c-Jun NH(2)-terminal kinase; PKR, protein kinase R; NF-kB, nuclear factor kappa-light-chain-enhancer of activated B cells. This figure was created with
Figure 1. Potential candidates for prognostic and predictive biomarkers in patients with liver malignancies undergoing radiotherapy. HGF, hepatocyte growth factor; RAS, rat sarcoma; Rac1, Ras-related C3 botulinum toxin substrate 1; Cdc42, cell division cycle 42; RAF, rat fibrosarcoma; ERK, extracellular-signal regulated kinase; MAPK, mitogen-activated protein kinase; PI3K, phosphoinositide-3 kinase; AKT, protein kinase B; SAPK/JNK, stress-activated protein kinase/c-Jun NH(2)-terminal kinase; PKR, protein kinase R; NF-kB, nuclear factor kappa-light-chain-enhancer of activated B cells. This figure was created with
Ijms 23 01926 g001
Table 1. Albumin–bilirubin (ALBI) grade as biomarker of radiotherapy outcome in liver cancer patients.
Table 1. Albumin–bilirubin (ALBI) grade as biomarker of radiotherapy outcome in liver cancer patients.
Author (Year)Bio-MarkerTime-PointsPatient #Cancer TypeBaseline ALBI Score, Median (Range) or Grade 1/2/3 [%]Underlying Liver Damage (CPS A/B/C/NA [%])Dose, Median (Range) [Gy]/
Murray LJ et al. (2018)
ALBI Pre RT102HCC−2.63 (−3.40 to −1.64)100/0/0/036 (2–54)/6OS
HR (increase in ALBI score per 0.1): 1.09 (95% CI 1.03–1.17)
OR (increase in ALBI score per 0.1): 1.51 (95% CI 1.23–1.85)
Lo CH et al. (2017) [24]ALBIPre RT152HCC(−3.67 to −0.84)78.3/21.7/0/045 (25–65)/5 (3–6)OS
HR (increase in ALBI score 2 vs.1): 2.09 (95% CI 1.26–3.46)
Pretreatment ALBI Grade: p < 0.001
Toesca DAS et al. (2017)
ALBI pre, 1/3/6/12 months post RT60HCC (40/60); CCA (20/60)5/82.5/12.557.5/30/0/12.540 (22–50)/5 (1–7)OS
HCC cohort (worsening ALBI score by 0.5 post RT): median OS = 37 vs. 14 months, p = 0.0005
CCA cohort (pretreatment ALBI grade): p = 0.02
HCC cohort (worsening ALBI score by 0.5 post RT): G3 + HB toxicity= p = 0.01; significant decline in hepatic function = p = 0.001
Gkika E et al. (2018)
ALBI, inflammation-based index (IBI)Pre, during, post, 2 months post RT40HCC30/58/1255/45/0/045 (21–66)/3–12OS
Increased OS (lower IBI during treatment): p = 0.034
Decreased OS (Higher CRP/AFP): p = 0.001
Higher Incidence of acute/late toxicities (Higher ALBI/CPS at baseline): p = 0.02/0.001
Jackson WC et al. (2021) [28]ALBIPre RT151HCC25.9/65.7/8.466.9/31.3/1.8/079.2 (IQR 69.3, 101.7)/3–5ToxicityBaseline ALBI: OR 1.8 (95% CI: 1.24–2.62)
Change in ALBI: OR 3.07 (95% CI: 1.29–7.32)
Su TS et al. (2019) [27]ALBI Pre RT511HCC36.9/58.4/4.780.6/18.2/1.2/042–43/3–5OSMedian OS (ALBI grade 1/2/3): 53 vs. 19.5 vs. 6.5 months (p < 0.0001)
Ho CH et al. (2018) [26]ALBIPre-RT174HCC−2.39 (−3.61 to −1.41)100/0/0/037.3 (23.3–72)/7 (5–10)OSALBI score: HR = 1.72 (95% CI 1.2–2.48)
ALBI, albumin–bilirubin; CCA, cholangiocarcinoma; CI, confidence interval; CPS, Child–Pugh score; HCC, hepatocellular carcinoma; HR, hazard ratio; IQR, interquartile range; OR, odds ratio; OS, overall survival.
Table 2. Candidate biomarkers of radiotherapy outcomes in liver cancer patients.
Table 2. Candidate biomarkers of radiotherapy outcomes in liver cancer patients.
Author (Year)BiomarkerTimepointPat. #Cancer Type [%]Underlying Liver Damage (CPS A/B/C/NA [%])Dose [Gy] (Median, Range)/
Indocyanine Green Retention (ICGR)
Suresh K et al. (2018) [37]ICGR after 15 min Pre and after 3rd fraction, 1/3/6 months post RT144HCCNANA/3–5ToxicityInclusion of ICGR15 significantly improves prediction of liver toxicity after irradiation
Feng M et al. (2018) [38]ICGR after 15 minPre and after 3rd fraction90HCC (76.7), ICC (4.4), Metastasis (18.9) NA49 (23–60)/3 or 5Phase II StudyHigh Feasibility of biomarker adapted RT (LC: 1y = 99% (95% CI: 97–100%); 2y = 95% (95% CI: 91–99%)
Stenmark MH et al. (2014) [35]ICGR after 15 minPre, 50–70% of RT dose, 1/2 months post RT48HCC (44), ICC (29), Metastasis (27)92/8/0/0Different treatment regimesToxicityBoth mid-RT ICGR15 and Mean liver dose predicted liver function post RT (p < 0.0001)
Lee IJ et al. (2009) [36]ICGR after 15 minPre RT131HCC87/13/0/045 +/−16.5/1.5–2.5 Gy/frToxicityICGR15 increased after radiotherapy; CPS but not ICGR15 predicted liver toxicity
Hepatocyte Growth Factor (HGF)
Cuneo KC et al. (2019) [40]HGF, CD40 LigandPre and after 3rd fraction104HCC (84), others (16)75/22/3/028–55/3 or 5; 60/20OS
Pretreatment HGF (High vs. low): 14.5 vs. 27.1 months (p = 0.035)
Toxicity (Increase in CPS > = 2 points): HGF (baseline/1-month) = OR 6.97 (95% CI 1.05–46.36, p value = 0.045)/OR 7.82 (95% CI 1.14–53.6, p value 0.036); CD40L (baseline/1-month) = OR 0.47 (95% CI 0.201–1.098, p value = 0.081)/OR 0.28 (95% CI 0.086–0.897, p value = 0.032)
Hong TS et al. (2018)
Pretreatment HGFPre RT43HCC (51.2), ICC and others (48.8)86/14/0/058 Gy RBE (15.1–67.5)OS (2y)
PFS (2y)
Pretreatment HGF (High vs. low): 14% vs. 69% (p = 0.0147)
Pretreatment HGF (High vs. low): ns (p = 0.348)
Low pretreatment HGF: correlation with stable CPS and lower bilirubin (p = 0.01)
El Naqa I et al. (2018) [42]TGFβ1, CCL11, HGF, CD40 LigandPre and after 3rd fraction192HCCNASBRT: 49.8 (18.6–60); cf RT: 50.4 (30–90)/3–5ToxicityModels to predict liver toxicity after RT were improved by a factor of 1.5 with inclusion of TGFβ1 and Eotaxin
Cytokines and Interleukins
Ajdari A et al. (2021) [43]Inflammatory cytokines, gene mutation status, complete blood countPre and before 4th fraction89Liver metastasisNA40 GyE (30–50)/5OS (2y)
LF (1y)
baseline absolute lymphocyte count (High vs. Low): 54% vs. 25% (p = 0.0002)
Baseline Platelet-to-lymphocyte ratio: HR 1.004 (p = 0.0004); Baseline Neutrophile-to-Lymphocyte: HR = 1.32 (p = 0.0001)
Mutation in KRAS gene (Yes vs. No): 69% vs. 31%; HR 2.92 (95% CI, 1.17 to 7.28, p = 0.02)
Baseline/mid-treatment interleukin 6: HR 1.15 (95% CI 1.04–1.26, p = 0.01)/1.06 (95% CI 1.01–1.13, p = 0.01)
Cha H et al. (2017) [44]IL-1/6/8/10/12, TNF-aPre and post RT51HCC96.1/3.9/0/050.4 (45–64.8)OS
Infield FFS
Outfield-intrahepatic FFS
No correlation between baseline Cytokines and OS
baseline serum IL-6 level: p < 0.001, RR 1.019 (95%CI 1.011–1.028)
Baseline Serum IL-10 level: p = 0.026, RR 0.830 (95%CI 0.705–0.978)
Ng SSW et al. (2020) [45]Soluble cytokine receptorsPre RT, post 1–2 fractions47HCC81/19/0/033(30–54)/6Risk of early death
Lower risk: high baseline level sCD40L = HR 1.8(95% CI 0.27–0.99, p = 0.05)
Higher risk: high baseline levels sTNFRII = HR 1.93 (95% CI 1.02–3.65, p = 0.04); sIL-6r = HR 1.9 (95% CI 1.01–3.57, p = 0.05); AFP= HR 2.61 (95% CI 1.03–4.54, p = 0.043); sEGFR = HR 2.61 (95% CI 1.32–5.16, p = 0.006); sgp130 = HR 2.19 (95% CI 1.13–4.25, p = 0.021)
≥2 increase CP score (3 months post RT): increased level sTNFRII (p < 0.001); decreased levels of sCD40L (p < 0.001)/CXCL1(p = 0.01)
Cousins MM et al. (2021) [46]Soluble TNFa receptor (sTNFR1)Pre and after 3rd fraction, 1/3/6 months post RT78HCC (95), others (5)NA18–60/3–5ToxicitysTNFR1 (Increase in CPS > = 2 points): baseline= OR 1.62 (p = 0.0573); 1 month= OR 2.35 (p = 0.0181)
Circulating Blood cells
Grassberger C et al. (2018) [47]LymphocytesPre, Day 8 and Day 15 of RT43HCC (51.2), ICC (48.8)73.7/13.3/0/058 RBE/
OSICC: baseline CD4 + CD25 + T cells (p = 0.003) and CD4 + CD127+ T cells (p = 0.01)
HCC: mid-treatment fraction of activated CTLs (p = 0.007)
Gustafson MP et al. (2017) [48]Immune cell populationsPre and post RT, 3 months post RT10HCC (50), CCA (10), Metastasis (40)NA50–60/5 or 54/3Changes pre- to post RTCirculating T cells dropped at the end of RT (2-fold) and recovered within 3 months; CD56br
CD16− NK cells dropped 40% after RT and recovered at 3 months
Zhang H et al. (2019) [49]LymphocytesPre, twice during RT, follow up every 3 months (1st year) then every 6 months184HCC79.3/15.3/0/5.475 (50–119) BED/16 (5–35)OS
1/2-year OS (Low vs. high lymphocyte nadir during RT): 56.7% vs. 80.3%; 28.4% vs. 55.7% (p < 0.001)
Lymphocyte counts declined during RT (p < 0.001)
Byun HK et al. (2019) [50]LymphocytesPre and 3 months post RT920HCC78.2/21.8/0/0Cf RT: 45–60/20–25;
SBRT: 60 or 52/4
OSAcute severe lymphopenia: HR = 1.40 (95% CI 1.02–1.91), p = 0.035
Baseline NLR: HR = 1.03 (95% CI 1.01–1.06), p = 0.016
Zhuang Y et al. (2019) [51]Lymphocytes,
Pre and 10 days, 1/2/3 months post RT, then every 3 months78HCC96.2/3.8/0/048 (48–60)/(5–10)OSTotal peripheral lymphocyte counts post RT < 0.45 × 109/L: HR = 0.14 (95% CI 0.02–0.93), p = 0.04
TNFα < 5.5 n/mL: HR = 0.07 (95% CI 0.01-.44), p = 0.005
Liu J et al. (2017) [52]LymphocytesPre and weekly during RT59HCCNA54 (45–62)/NAOSMinimum value of absolute lymphocyte counts (cut-off 300 cells/µL): OR 28.8 (95% CI 27.23–30.37)
Hsiang CW et al. (2021) [53]Neutrophil -to-Lymphocyte Ratio (NLR)Pre and 3 months post RT93HCC69.9/30.1/0/045 (25–60)/5(4–6)OS
Pre-RT NLR: HR = 1.24 (95% CI 1.12–1.38), p < 0.001
Delta NLR: HR = 1.1 (95% CI 1.02–1.18), p = 0.011
Liver toxicity rate (delta NLR <vs > 1.9): 7.5% vs. 35.1%
De B et al. (2021) [54]Lymphocytes Pre, during, post RT143HCC80/20/0/0Photon (72%); Proton (28%)
60 (30–100)/15 (3–34)
OSpre-RT ALC ≤ 0.5: OS (median 7 vs. 20 months, p = 0.03); HR = 2.677 (95% CI 1.057–6.779), p = 0.039)
Post-RT ALC ≤ 0.5: HR = 1.031 (95% CI 1.001–1.062), p = 0.043)
G3 or higher lymphopenia during RT: OS (median 13 vs. 31 months, p < 0.001)
Genomic Markers
Cuneo KC et al. (2016)cMicro RNA (miR)Pre and after 3rd fraction, 1/3/6 months post RT30HCCNANA/3–5ToxicityPotential correlation with microRNA miR.122.3p, miR.375, miR.217, miR.125a.5p
Park S et al. (2018)Cell-free DNAPre and post RT55HCC88.5/11.5/0/0SBRT: 60/4;
cf RT: 45.6 (45–60)/1.8 Gy/fr (1.8–3) + Ctx

Intrahepatic FFS
Post RT (low vs. High cell-free DNA): p = 0.041 (SBRT); p = 0.046 (cf RT)
Post RT cell free DNA = HR 2.405 (95% CI 1.059–5.460)
Other Soluble Factors
Dubois N et al. (2016)Ceramide
D0, D3 (post 2fr), D10 (post 4fr)35Liver and lung metastasis (colorectal cancer)NA40/4 (Rctx with Irinotecan)Tumor control (1y)HR (Ceramide D10): 1.09 (95% CI 1.03–1.17)
Lee EJ et al. (2018)Inter-alpha Inhibitor H4 (ITIH4)Pre and post RT20HCC95/0/0/045/25 (Rctx with 5FU)PrognosisGood Prognosis group (fold change ITIH4 compared to poor prognosis group): 6.1, p < 0.05
Kim HJ et al. (2018)Soluble programmed cell death-ligand 1 (sPD-L1) Pre and post RT, 1 month after RT53HCC90.6/9.4/0/0SBRT: 60/4;
Cf RT: 45/25 + Ctx
OS (2y)
Plasma Level
sPD-L1 (low vs. high): 87.5% vs. 47.7%, p = 0.037
Mean sPD-L1 level (pre/post/1 month post RT) [pg/mL]: 6.99 (+/−6.55); 12.93 (+/−8.27); 12.31 (+/−7.72), p < 0.001
Suh YG et al. (2014)Vascular Endothelial Growth Factor (VEGF)Pre and post RT50HCC96/4/0/049 (36–60)/1.8–2.95 Gy/fr PFS
Outfield-intrahepatic recurrence
Worse PFS: high baseline levels of VEGF/Plt = HR 2.22 (95% CI 1.04–4.76, p = 0.04)
Higher Risk: higher VEGF/Plt levels pre and post RT (p = 0.04)
Ng SSW et al. (2020)Plasma metabolitesPre RT, post 1–2 fractions47HCC81/19/0/033 (30–54)/6Liver toxicityIncrease in CPS 3 months at least 2 points: increase in serine and alanine
BED, biologically effective dose; ICC, intrahepatic cholangiocarcinoma; Cf, conventional fractionated; CI, confidence interval; CPS, Child–Pugh score; FFS, failure free survival; fr, fraction; HCC, hepatocellular carcinoma; HR, hazard ratio; LC, local control; NA, not available; NK, natural killer cells; OR, odd ratio; OS, overall survival; PFS, progression-free survival; Plt, platelet; RBE, relative biological effectiveness; Rctx, radiochemotherapy; RT, radiotherapy; SBRT, stereotactic body radiation therapy; TGF, transforming growth factor; TNF, tumor necrosis factor.
Table 3. Potential prognostic and predictive scores and biomarkers for patients undergoing radiotherapy for liver malignancies.
Table 3. Potential prognostic and predictive scores and biomarkers for patients undergoing radiotherapy for liver malignancies.
Potential Prognostic Scores/BiomarkersPotential Predictive Scores/Biomarkers
ALBI [23,24,25,26,27,29]ALBI [23,24,25,29,39]
Absolute lymphocyte count [43]Indocyanin Green Retention [35,36,37]
Hepatocyte growth factor (HGF) [41,40]HGF [41,40]
CD40 Ligand (CD40L) [45]sCD40L [45,40]
Platelet-to-lymphocyte ratio [43]Transforming growth factor (TGF)-β [42]
Neutrophile-to-Lymphocyte ratio [43,50,53]Neutrophile-to-Lymphocyte ratio [53]
Interleukin 6 (IL-6) [43,44]Eotaxin [42]
Interleukin 10 (IL-10) [44]TNF receptor I (TNFR-I) [46]
Tumor Necrosis Factor receptor II [45]TNFR-II [45]
Circulating lymphocyte counts [47,49,50,51,52]Circulating lymphocyte counts [49]
Tumor Necrosis Factor (TNF)-α [51]Micro RNAs [101]
Cell-free DNA [90] Plasma metabolites [98]
Ceramide [99]
Programmed cell death ligand 1 (PD-L1) [102]
Vascular Endothelial Growth Factor (VEGF)/platelets [93]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Hauth, F.; Roberts, H.J.; Hong, T.S.; Duda, D.G. Leveraging Blood-Based Diagnostics to Predict Tumor Biology and Extend the Application and Personalization of Radiotherapy in Liver Cancers. Int. J. Mol. Sci. 2022, 23, 1926.

AMA Style

Hauth F, Roberts HJ, Hong TS, Duda DG. Leveraging Blood-Based Diagnostics to Predict Tumor Biology and Extend the Application and Personalization of Radiotherapy in Liver Cancers. International Journal of Molecular Sciences. 2022; 23(4):1926.

Chicago/Turabian Style

Hauth, Franziska, Hannah J. Roberts, Theodore S. Hong, and Dan G. Duda. 2022. "Leveraging Blood-Based Diagnostics to Predict Tumor Biology and Extend the Application and Personalization of Radiotherapy in Liver Cancers" International Journal of Molecular Sciences 23, no. 4: 1926.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
