Identification and Characterization of AP2/ERF Transcription Factors in Yellow Horn

by
Fang Hu
,
Yunxiang Zhang
and
Jinping Guo
*
The College of Forestry, Shanxi Agricultural University, Jinzhong 030801, China
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2022, 23(23), 14991; https://doi.org/10.3390/ijms232314991
Submission received: 23 October 2022 / Revised: 12 November 2022 / Accepted: 24 November 2022 / Published: 30 November 2022
(This article belongs to the Section Molecular Plant Sciences)
Browse Figures
Versions Notes

Abstract

:
The AP2/ERF gene family involves numerous plant processes, including growth, development, metabolism, and various plant stress responses. However, several studies have been conducted on the AP2/ERF gene family in yellow horn, a new type of oil woody crop and an essential oil crop in China. According to sequence alignment and phylogenetic analyses, one hundred and forty-five AP2/ERF genes were detected from the yellow horn genome. They were divided into four relatively conserved subfamilies, including 21 AP2 genes, 119 ERBP genes, 4 RAV genes, and 1 Soloist gene. Gene analysis of XsAP2/ERF TFs showed 87 XsAP2/ERF TFs lacked introns. There were 75 pairs of collinearity relationships between X. sorbifolium and Arabidopsis, indicating a close similarity. In addition, the expression patterns of XsAP2/ERF TFs under cold treatments confirmed that the XsAP2/ERF TFs play essential roles in abiotic stress response. The expression of eight XsAP2/ERF transcription factors was verified in different tissues and under various stress treatments using RT-qPCR. This study establishes a starting point for further research to explore the potential mechanisms of identifying candidate AP2/ERF TFs that could respond to the abiotic stress of yellow horn.

1. Introduction

The increasing frequency of extreme weather and climate events and various other abiotic stresses globally threaten plant growth, health, and productivity. Due to the continuous accumulation of environmental conditions, the survival of plants is facing more and more severe challenges. Plants enhance their tolerance to these stresses through intricate regulatory mechanisms [1]. These mechanisms cause physiological and biochemical responses and developmental changes [2,3]. It is worth noting that plants contain many transcription factors (TFs) that control plant growth, development, and response to environmental stress [4,5,6]. Transcription factors that activate the abscisic acid and ethylene signaling pathways play an essential role in plant responses to abiotic stresses [7] by binding specifically to repressor regions in the promoter regions of downstream target genes. Throughout activating or inhibiting downstream functional genes, cis-acting elements can regulate gene expression [8]. Several transcription factor families have been identified in plants, including AP2/ERF, MYB, HSP, Bzip, and NAC [6]. The AP2/ERF gene family is a large gene group that encodes transcription factors specific to plants [9,10]. These transcription factors are essential for regulating plant gene expression and play a key role in various aspects of plant development [11,12].
The AP2/ERF genes contain 60–70 amino acid AP2/ERF DNA binding domains composed of YRG and RAYD motifs. Based on the number of AP2/ERF domains and the similarity of amino acid sequences, the AP2/ERF TFs can be classified into four categories: (1) The AP2 family contains two AP2 domains; (2) The EREBP family contains one AP2 domain [13], which is further subdivided into ERF and DREB subfamilies depending on sequence similarities [14]; (3) RAV family contains a single AP2 and B3 domain [15], mainly regulated by ethylene or brassinosteroid participates in biotic and abiotic stresses [16,17]; (4) Soloist family contains one AP2 domain and acts as a positive regulator of the disease defense mechanisms [18]. These TFs are involved explicitly in regulating defense responses against various biological stresses and controlling different multiple stress responses, such as pathogen-induced stimuli [19,20,21], drought [22,23], heat [24], and salt stress [23].
With the release of many plant genome reference sequences, research on the AP2/ERF gene family has been conducted in Arabidopsis [10], rice [25], grape [26], soybean [27], and poplar [28]. However, no study has explored the identification and characterization of the AP2/ERF family in yellow horn (Xanthoceras sorbifolia).

2. Results

2.1. Identification and Classification of AP2/ERF

This study identified 145 XsAP2/ERF TFs using HMM profile searches and blasts in the X. sorbifolium genome. The XsAP2/ERF genes were classified into AP2, EREBP, RAV, and Soloist. The 21 genes were assigned to the AP2 subfamily, of which 18 had two identical AP2 domains, and 3 contained only one. However, the 119 EREBP TFs were further divided into DREB and ERF branches. According to the sequence similarity, the ERF and DREB branches were categorized into six subgroups (A1 to A6, B1 to B6), respectively. The RAV subfamily (four members) has one AP2/ERF domain and an additional B3-DNA binding domain. The remaining gene was assigned to the Soloist, which showed higher similarity with At4g13040. Based on their chromosomes order and physical positions, they were named from XsAP2/ERF1 to XsAP2/ERF65, XsDREB1 to XsDREB54, XsRAV1 to XsRAV4 and XsSoloist1. More characteristics, including gene IDs, and other features, were listed in Table S1. The molecular weight of the protein ranged from 11.86 kDa to 83.67 kDa, while the isoelectric point varied from 4.6 (XsERF36) to 10.38 (XsERF51).

2.2. Phylogenetic Analysis

The phylogenetic relationship of XsAP2/ERF genes was investigated using the amino acid sequences of 145 XsAP2/ERF from X. sorbifolium and 175 AtAP2/ERFs from A. thaliana. A phylogenetic tree was constructed to reveal the evolutionary history between these genes. As shown in Figure 1, all the XsAP2/ERFs were classified into five groups, named DREB, ERF, AP2, RAV, and Soloist. Among them, 56 DREBs were distributed into groups A1- A6, containing 6, 5, 6, 19, 12, and 6 genes, respectively (Figure 2). Additionally, 65 ERFs were distributed into groups B1-B6 containing 13, 3, 19, 7, 6, and 17 genes, respectively. Notably, the ERF subgroup was the largest, whereas the Solosist subgroup was the smallest, with only one member.

2.3. Gene Structure and Conserved Motif Analysis

The number of exons and introns and the distribution of conserved domains was investigated to gain insights into the structural diversity of XsAP2/ERF genes (Figure S1). We found that the number of introns varied significantly, with 58% of AP2/ERF genes having no introns. The four XsDREB genes (2, 34, 35, and 41) had introns ranging from one to four, except XsDREB genes contained no introns. A total of 39 ERF genes do not possess introns. Unlike the ERF gene, all 21 AP2 genes contained introns, ranging in number from two to nine. For the four RAV genes, XsRAV1 had one intron, XsRAV4 had three introns, and the other two RAV genes had no introns. One Soloist gene has six introns. The intron distribution of the XsAP2/ERF gene suggested that the AP2 and Soloist subgroups contained more introns in comparison to the other three subgroups.
All AP2/ERF proteins were investigated by MEME, revealing 25 conserved motifs within the families and subfamilies. Motif-1 was present in all XsAP2/ERF proteins. Most of the XsAP2/ERF also showed motif-2 and motif-3. As predicted, similar compositions of conserved motifs among closely related members suggest functional similarities within the same subfamily.

2.4. Chromosome Distribution and Duplication

The locations of genes on chromosomes were generated using the software map chart. The XsAP2/ERF genes were renamed according to the chromosomal distribution. There was a great deal of variation in the number of XsAP2/ERF genes among chromosomes (Figure 3). For example, chromosome 1 contained the most genes (12), while chromosomes 2 and 14 had only two genes. There was no observed relationship between chromosome length and the distribution of XsAP2/ERF genes. Moreover, the Soloist gene was found on chromosome 1, while the XsRAV family members were located on chromosomes 5, 7, 8, and 13. The research showed an uneven distribution of XsAP2/ERF genes on the chromosomes.
The MCScanX package discovered 18 gene tandem duplication events containing 35 XsAP2/ERF genes on chromosomes. Among the tandem repeat genes, eight pairs were DREB genes, and 10 were ERF genes. In addition, 14 segmental duplication events with 27 genes happened, one between alleles and 13 between non-alleles in the yellow horn genome (Figure 4). Two tandem duplication pairs happened in chromosomes 3 and 12, four tandem duplication pairs happened in chromosomes 4 and 11, and chromosome 1 has seven duplicates. Segmental repeat events were also detected in each chromosome (Figure 5). These results suggest that large-scale segmental duplication events are essential to expanding the XsAP2/ERF family. To explore the mechanism of XsAP2/ERF genes divergence after duplication and examine the selection effect, we calculated the nonsynonymous substitution ratios (Ka) and synonymous substitution ratios (Ks), and nucleotide substitutions (Ka/Ks ratio) for both tandem and segmented duplications (Table S2). The Ka/Ks ratio for tandem repeat genes in the AP2/ERF TFs ranged from 0.17 to 0.72. This suggests that all genes within this family are evolving under negative selection pressure.
The evolutionary origins of the AP2/ERF gene in yellow horn could be examined by constructing semilinear maps of two representative species. A comparison of direct homologous gene pairs across all chromosomes showed that 75 XsAP2/ERF genes were synonymous with A. thaliana genes, and 39 XsAP2/ERF genes were synonymous with rice genes.

2.5. Analysis of Cis-Regulatory Elements (CRE)

Cis-regulatory elements (CREs) play a vital role in genetic regulatory networks because of the DNA sequences they contain in non-coding regions. Transcription factors usually bind to the CREs region to control the transcription and expression of neighboring genes. Using the PlantCare tool, we could scan the cis-acting regulatory elements in the 2000-bp sequence upstream of the translation start site of XsAP2/ERF genes. The statistical results for the cis-acting elements showed that the regulation of XsAP2/ERF genes is mainly associated with MeJA, ABA, IAA, GA, and SA (Figure S2). In addition to the transcription factors, cis-regulatory elements were related to various stress responses, such as wound healing, defense, stress tolerance, hypoxia, anaerobic, and hypothermia.
In this study, a total of 119 XsAP2/ERF genes were found to contain abscisic acid response elements, 93 genes contained gibberellin response elements, and 101 genes contained MeJA response elements. Another 37 XsAP2/ERF genes contained low-temperature responsive elements, and 145 contained light-responsive elements. Soloist genes tend to have fewer CREs than other genes linked to hormones and stress responses. Although the five gene families shared similarities in their CREs types, the number of each CRE was different. The analyses of cis-regulatory elements suggest that XsAP2/ERF is essential for plant development and adaptation to environmental stress conditions.

2.6. Expression Pattern

2.6.1. The Expression Using RNA-Seq

To understand the expression pattern of XsAP2/ERF genes, we analyzed the expression profiles of the identified genes under salt, alkali, and low-temperature stress using RNA-seq data. Heat maps of XsAP2/ERF gene expression profiles in leaves were drawn by TBtools (Figure S3).
Twenty-nine XsAP2/ERF genes were expressed under cold stress. We found nine XsAP2/ERF genes were up-regulated, and one gene was down-regulated under low-temperature stress for 4 h. There were 19 up-regulated and three down-regulated expressions under low-temperature stress for 12 h. Under low-temperature stress for 24 h, there were 15 up-regulated and three down-regulated expressions. Among them, the co-expressed six XsAP2/ERF genes (XsDREB20/32/33/48, XsERF30/45) were up-regulated and included in all treatments. However, none of the XsAP2/ERF genes were differentially expressed under salt and alkali stress.

2.6.2. The Expression Levels by RT-qPCR

We analyzed the expression levels of XsAP2/ERF in seven different tissues (leaves, axillary bud, bud, stem, root, safflower, white flower) of mature plants (unstressed) by RT-qPCR. The expression levels of XsERF30, 48, 55, and 60 were significantly different in axillary buds, buds, stems, and roots, among which two genes (XsDREB41 and XsERF45) were highest expressed in safflower and white flowers (Figure 6), and three genes (XsERF45, 48 and 60) were highly expressed in axillary buds. XsDREB41, XsERF55, and XsERF60 were highly expressed in shoots, roots, and stems. Overall, the expression level of XsDREB41 was high in all tissues.
To further explore the response of XsAP2/ERF genes to abiotic stress conditions (salinity, drought, cold, and dark treatments) and plant hormone induction, we analyzed the expression levels of eight XsAP2/ERF genes by RT-qPCR (Figure 7). Interestingly, all tested XsAP2/ERF gene family members showed up-regulated expression under cold stress and dark treatment for 24 h. XsDREB20 and XsERF60 were up-regulated under PEG treatment for 24 h, XsERF60 was up-regulated under ABA treatment for 24 h, and XsDREB20 was down-regulated under all hormones treatment for 24 h. Our abiotic stress response expression analysis results indicate the potential role of AP2/ERF family genes in regulating cold stress and dark stress responses in X. sorbifolium.

3. Discussion

To date, the AP2/ERF family is prominent in dicotyledons and monocots that play an essential role in plants [10] to protect themselves from environmental stimuli and improve growth and stress tolerance [29,30]. Thus, identifying AP2/ERF TFs could significantly enhance our understanding of the evolution and function of these TFs in different plant species. Based on the release of the other genome sequence data, a previous study reported the identification and functional analysis of the AP2/ERF, which will provide essential clues to further functional characterization of each AP2/ERF TFs.
The AP2/ERF gene family contains 145 members, identified using the PFAM ID ‘PF00847′ in yellow horn. The number of X. sorbifolium was close to the number of A. thaliana (147) [10], soybean (147) [27], grape (149) [26] but was less than rice (163) [25] and poplar (200) [28]. This is likely because the ERF/DREB subfamily of AP2/ERF TFs is the largest, with 119 members being similar to A. thaliana (122), soybean (120), and grapevine (122) but less than rice (145) and poplar (169). Like most plant species, the identified number of AP2/ERF members is determined by the number of ERF/DREB subfamily members [31].
According to the gene structure and evolutionary rate, the AP2/ERF TFs were classified as 54 DREB, 65 ERF, 21 AP2, 4 RAV, and 1 Soloist. Generally, the number of genes in each family was similar as a percentage of the total number of genes in the AP2/ERF superfamily between plant species. The number of genes in each family was similar as a percentage of the total number of genes in the AP2/ERF superfamily among plant species. For example, the ratio of ERF family members is just as high as that of AP2 family members within the AP2/ERF family. The AP2 family has about four times as many genes as the RAV family, which has about four to five times as many genes as the Soloist gene.
The AP2/ERF gene structure analysis indicated that more AP2 family members contained more than two introns. However, most members had few introns in other subfamily members. For example, 85.18% of DREB subfamily members lack introns, and 58.00% of ERF subfamily members have no intron structure. All of the AP2 subfamilies contain introns and exons, and a Soloist gene has six introns. In summary, most ERF and DREB subfamily members in yellow horn possessed no or one intron. In contrast, almost all the AP2 and Soloist subfamilies contained 2–9 introns. The gene and protein structure variance demonstrate a divergence of different subfamilies while highly conserved within subfamilies. Losing introns in ERF subfamily members during evolution may impact their function [30].
Multiple studies indicated that gene duplication events, including segmental duplication, tandem duplication, transposition, and whole-genome duplication, are the primary source of evolution and expansion of the gene families [32,33,34]. The AP2/ERF gene family has expanded due to segmental and tandem duplications, which might play a role in the evolution. We found that 18 pairs of tandem duplication and 27 pairs revealed segmentary repeat events in yellow horn, indicating that these genome duplication events have been recorded as responsible forces for the expansion of the AP2/ERF gene family, which is consistent with previous findings [35]. The number of ERF and DREB genes in different plants varied significantly, proving this point. However, the number of introns in the RAV subfamily genes of X. sorbifolium showed less variation, indicating that these genes were highly conserved and shared a common ancestor before separation from the other plants. Moreover, only 32 duplicated gene pairs were found in yellow horn, which was lower than 51 gene pairs of Arabidopsis, 41 gene pairs of rice, 90 gene pairs of sunflower, and 76 gene pairs of grapevine. Hence, the low number of gene replication events might be due to the low number of AP2/ERF genes in X. sorbifolium.
The results of the collinearity analysis demonstrated that there are 75 pairs of homologous genes between yellow horn and Arabidopsis. Still, only 39 pairs of homologous genes were identified between yellow horn and rice. This finding further suggests that the yellow horn had higher homology with Arabidopsis. Furthermore, the XsAP2/ERF gene clusters or hot regions were mapped to chromosomes LG01, LG03, LG011, and LG012, suggesting the expansion of the XsAP2/ERF gene family may have been the result of tandem duplication and segmental duplications. The Ka/Ks values of all gene pairs in the XsAP2/ERF members were less than 1, indicating that these genes may be affected by purification selection instead of positive selection during their evolution.
The evolutionary relationships among AP2/ERF family proteins of yellow horn and Arabidopsis were used to build a phylogenetic tree, indicating that the AP2/ERF family was clustered into four subfamilies that were homologous between X. sorbifolium and Arabidopsis [10,28].
Plant transcription factors generally have four functional domains, namely DNA binding region, oligomeric site, transcription control region, and nuclear localization signal [10], which are essential in regulating gene expression and various biological processes [14]. Identifying conserved motif structures in phylogenetic clades helps to understand the variation and evolution of gene function [36]. A different subfamily of the AP2/ERF gene family has undergone a specific expansion/contraction during the development of other plants [37]. Most genes in the same class usually share similar conserved motifs and gene structures. A total of 50 AP2/ERF protein motifs have been characterized in A.thaliana [10]. Combined with phylogenetic trees, we found 25 AP2/ERF protein motifs using MEME and named motifs 1–25. Among them, motif one was shared by all members. The AP2/ERF superfamily has high conservation [38], while different XsAP2/ERF proteins have other conserved motifs. In general, the highly similar gene structure and conserved motif composition of XsAP2/ERF genes within the same subgroup strongly support the results of the phylogenetic analysis [39].
In addition, we tested the expression of eight XsAP2/ERF genes in various tissues, including leaves, axillary buds, buds, stems, roots, red flowers, and white flowers by RT-qPCR. The transcription factors were highly expressed in all tissues, with XsDREB41 showing the highest expression levels. However, leaves showed lower levels of expression for these factors. Previous reports have demonstrated that AP2/ERF family members are widely expressed in various tissues and organs, regulating plant growth and development [40,41]. Many studies have demonstrated that multiple family members of TFs have contributed to controlling a wide range of defense responses and adapting to various changing environmental conditions in different plants.
The mechanism of these inducible genes is unknown, and this lack of understanding extends to the expression profiles of the XsAP2/ERF genes under abiotic stress. By analyzing the gene expression patterns of XsAP2/ERF genes under low-temperature stress, we found that the transcription levels of most co-expressed genes were up-regulated. The DREB TFs have been widely identified in various species like rice [42], soybean [43], maize [35], tomato [44], and tamarix [45]. These transcription factors are vital in regulating plant stress responses, especially A1 and A2 DREB subfamily members [46,47]. XsDREB32 and XsDREB33, which belong to the DREB A1 subgroup, were significantly up-regulated under cold stress in our study. Meanwhile, RAP2.1 overexpression also leads to enhanced sensitivity to abiotic stresses, such as cold and drought stresses [48]. Three DREBs and five ERFs were up-regulated under cold stress conditions according to RT-qPCR analysis. These findings are consistent with past reports of the AP2/ERF transcription factors regulated by cold stress. Overall, these results provide valuable information for a better understanding of the function of AP2/ERF genes in yellow horn.
The cis-acting elements in the regulatory sequences upstream of the gene can influence the response to stress and hormones, growth, and development. They perform essential functions, such as integrating stress signals and controlling downstream stress responses under various abiotic stress treatments [47]. Promoter analysis of XsAP2/ERF members revealed that almost all XsAP2/ERF members contain conserved ABA-response elements. In addition, a large number of stress-related cis-elements were identified, including low-temperature responsive elements (LTRs) [48], drought-responsive elements (MYBs, MYCs) [49], light response elements, and dehydration-responsive elements (DREs). These genes might play critical functions in light signaling, hormone, and stress response. Our results showed high expression levels of four genes (XsDREB20/32/33/48) by RNA-seq, which have abundant stress-related cis-acting elements under abiotic stress. Meanwhile, eight XsAP2/ERF genes that possessed LTR and light-responsive elements were significantly up-regulated under the treatment of cold and dark stress considerably by RT-qPCR.
In sum, it was suggested that the expression of XsAP2/ERF genes in yellow horn is regulated by cis-elements linked with hormone signal transduction and abiotic stress tolerance.

4. Materials and Methods

4.1. Identification and Classification

Yellow horn (Xanthoceras sorbifolia) genome files were downloaded from the GigaDBdata (http://gigadb.org/dataset/view/id/100606, accessed on 7 June 2021). The AP2/ERF protein sequences of Arabidopsis thaliana and Oryza sativa were retrieved from PlantTFDB (http://planttfdb.gao-lab.org/, accessed on 7 June 2021). The obtained proteins sequence of X. sorbifolium were used as query sequences in the BLAST software (the primary local alignment search tool) to screen members of the AP2/ERF gene family. The Hidden Markov Model (HMM) profiles of AP2 domains (PF00847) were obtained from the Pfam and used to HMM search against the yellow horn genomic database by HMMER3.0. The default parameters were used, and the cutoff value was set to 0.001. Then, the XsAP2/ERF genes were rechecked using the NCBI CDD (Conserved Domains) database (https://www.NCBI.nlm.nih.gov/cdd, accessed on 7 June 2021) to remove non-family members and repetitive sequences.

4.2. Phylogenetic Analysis

The ClustalW program was used to align multiple candidate AP2/ERF genes with default parameters [50]. The three phylogenetic trees were produced using the neighbor-joining method in MEGA 6.0 software [51]. The bootstrap values were calculated based on 1000 replicates for node support.

4.3. Gene Structure and Conserved Motif

The Multiple Em for Motif Elicitation (MEME) 5.0.5 online tool (https://meme-suite.org/meme/tools/meme, accessed on 7 June 2021) [52] was used to identify conserved protein motifs with the following parameters: zero or one occurrence per sequence the maximum number of motifs, 25; optimum motif widths ranging from 6 to 50 residues. The exon-intron structure of XsAP2/ERFs was recorded from the gene structure Display Server (GSDS 2.0) [53]. The phylogenetic trees, conserved motifs, and gene structure of XsAP2/ERF genes were shown by TBtools software [54].

4.4. Chromosome Distribution and Duplication

The chromosomal localization information of the AP2/ERF genes in yellow horn was retrieved from the reference genome database. We used the TBtools software to visualize the distribution of genes on chromosomes, with Multiple collinear Scanning toolkits (MCScanX) [55] used to analyze gene duplication events.
The syntenic relationships between XsAP2/ERF and AP2/ERF genes from Arabidopsis thaliana and Oryza sativa were generated using Dual Synteny Plotter software. Nonsynonymous (Ka), synonymous (Ks) substitutions and the Ka/Ks ratio were calculated in a pairwise comparison by KaKs_Calculator Version 2.0 [56].

4.5. Cis-Acting Elements Analysis of AP2/ERF Superfamily Genes

The 2000 bp sequences upstream of the XsAP2/ERF genes transcriptional start site were submitted to the online site PlantCARE to predict their cis-acting elements. (http://bioinformatics.psb.ugent.be/webtools/plantcare/html/, accessed on 7 June 2021).

4.6. Plant Materials and Stress Treatments

4.6.1. Transcriptome Analysis of AP2/ERF

Transcriptome data under salt, alkali, and low-temperature stress were downloaded from the NCBI short read archive database (SRA database, https://www.ncbi.nlm.nih.gov, accession number SRX7830132—SRX7830143 and SRX8911738—SRX8911752). We used to map all transcriptome data to the X. sorbifolium reference genome [57]. XsAP2/ERF gene expressional values were evaluated using the Cufflinks software previously described [58]. TBtools drew heat maps of salt, alkali, and low-temperature stress.

4.6.2. Real-Time Quantitative PCR (RT-qPCR) of XsAP2/ERF

Seedlings were cultivated in the greenhouse of the College of Forestry, Shanxi Agricultural University (22–25 °C, 16 h light, 8 h darkness) for three months. The plant material was selected for abiotic and hormone treatments for 24 h: 100 μM gibberellin A3 (GA3), 100 μM of abscisic acid (ABA), 200 μM salicylic acid (SA), 10% polyethylene glycol 6000 (PEG6000), 100 mM sodium chloride (NaCl), 4 °C low temperature. Dark control seedlings were kept in darkness. The leaves of the plant were harvested 24 h after exposure to the abiotic factors and hormone treatments. In experimental fields, samples of different tissues were collected from triennial plants at the flowering stage. All models were frozen immediately in liquid nitrogen and stored at −80 °C before RNA extraction.
RT-qPCR experiments were performed on an ABI 7500 system (Applied Biosystems, Carlsbad, CA, USA), and the same RNA samples were used. UBC2 (EVM0006862) was used as an internal control. The specific primer pairs of the selected genes were designed using Primer3 (https://bioinfo.ut.ee/primer3-0.4.0/, accessed on 7 June 2021) (Table S3). The relative expression levels of the genes were measured using the comparative 2−ΔΔCt method, and each sample was repeated three times.

5. Conclusions

This study comprehensively analyzed the AP2/ERF TFs in yellow horn. To this end, 145 AP2/ERF family genes were identified as potential candidates and were subsequently divided and analyzed in detail. Their evolutionary characteristics, expression patterns in different tissues, and their response to salt, alkali, and low-temperature stress were studied. The expression of transcription factors was generally consistent with the correlated gene expression patterns in leaves. Taken together, these findings promoted a further understanding of the biological function of the AP2/ERF superfamily members. They helped to choose the potential better AP2/ERF transcription factors in regulating abiotic stress responses in the yellow horn.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/ijms232314991/s1, Figure S1: Phylogenetic relationships, gene structure, and motif analysis of conserved protein motifs in AP2/ERF gene from yellow horn, Figure S2: Cis-acting elements and phylogenetic tree of AP2/ERF gene promoter region in yellow horn, Figure S3: Expression profile of XsAP2/ERF gene under salt, alkali, and low-temperature stress levels of yellow horn. Table S1: List of XsAP2/ERF genes identified, Table S2: Gene duplication analysis of XsAP2/ERF genes, Table S3: q-PCR primers.

Author Contributions

Conceptualization, J.G.; methodology, F.H.; validation, F.H.; investigation, all the authors; resources, J.G.; data Curation, all the authors; writing—original draft preparation, F.H.; writing—review and editing, all the authors; and project administration, Y.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Fine Seedlings of Xanthoceras sorbifolia and Clonal Breeding of Excellent Varieties (20120311015-3).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The raw RNA-seq data are available in the National Center for Biotechnology Information (NCBI) under SRA accession number: SRP251348.

Acknowledgments

We wish to acknowledge all the staff of the experiment station and those who provided help during the study. We also want to recognize support from the Shanxi Key Laboratory of Cultivation and Development on Functional oil trees in northern China and the Conservation of Fine Seedlings of Xanthoceras sorbifolia.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Suzuki, N.; Rivero, R.M.; Shulaev, V.; Blumwald, E.; Mittler, R. Abiotic and biotic stress combinations. New Phytol. 2014, 203, 32–43. [Google Scholar] [CrossRef] [PubMed]
  2. Gong, Z.; Xiong, L.; Shi, H.; Yang, S.; Herrera-Estrella, L.R.; Xu, G.; Chao, D.Y.; Li, J.; Wang, P.Y.; Qin, F.; et al. Plant abiotic stress response and nutrient use efficiency. Sci. China Life Sci. 2020, 63, 635–674. [Google Scholar] [CrossRef] [PubMed]
  3. Zhu, J.K. Salt and drought stress signal transduction in plants. Annu. Rev. Plant Biol. 2002, 53, 247–273. [Google Scholar] [CrossRef] [Green Version]
  4. Baillo, E.H.; Kimotho, R.N.; Zhang, Z.; Xu, P. Transcription Factors Associated with Abiotic and Biotic Stress Tolerance and Their Potential for Crops Improvement. Genes 2019, 10, 771. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Khan, S.A.; Li, M.Z.; Wang, S.M.; Yin, H.J. Revisiting the role of plant transcription factors in the battle against abiotic Stress. Int. J. Mol. Sci. 2018, 19, 1634. [Google Scholar] [CrossRef] [Green Version]
  6. Yamaguchi-Shinozaki, K.; Shinozaki, K. Transcriptional regulatory networks in cellular responses and tolerance to dehydration and cold stresses. Annu. Rev. Plant Biol. 2006, 57, 781–803. [Google Scholar] [CrossRef] [Green Version]
  7. Chinnusamy, V.; Schumaker, K.; Zhu, J.K. Molecular genetic perspectives on cross-talk and specificity in abiotic stress signalling in plants. J. Exp. Bot. 2004, 55, 225–236. [Google Scholar] [CrossRef]
  8. Zhang, J.Z. Overexpression analysis of plant transcription factors. Curr. Opin. Plant Biol. 2003, 6, 430–440. [Google Scholar] [CrossRef]
  9. Feng, K.; Hou, X.L.; Xing, G.M.; Liu, J.X.; Duan, A.Q.; Xu, Z.S.; Li, M.Y.; Zhuang, J.; Xiong, A.S. Advances in AP2/ERF super-family transcription factors in plant. Crit. Rev. Biotechnol. 2020, 40, 750–776. [Google Scholar] [CrossRef]
  10. Nakano, T.; Suzuki, K.; Fujimura, T.; Shinshi, H. Genome-wide analysis of the ERF gene family in Arabidopsis and rice. Plant Physiol. 2006, 140, 411–432. [Google Scholar] [CrossRef]
  11. Kuluev, B.; Avalbaev, A.; Nurgaleeva, E.; Knyazev, A.; Nikonorov, Y.; Chemeris, A. Role of AINTEGUMENTA-like gene NtANTL in the regulation of tobacco organ growth. J. Plant Physiol. 2015, 189, 11–23. [Google Scholar] [CrossRef] [PubMed]
  12. Li, A.; Zhou, Y.; Jin, C.; Song, W.; Chen, C.; Wang, C. LaAP2L1, a heterosis-associated AP2/EREBP transcription factor of Larix, increases organ size and final biomass by affecting cell proliferation in Arabidopsis. Plant Cell. Physiol. 2013, 54, 1822–1836. [Google Scholar] [CrossRef] [Green Version]
  13. Mantiri, F.R.; Kurdyukov, S.; Lohar, D.P.; Sharopova, N.; Saeed, N.A.; Wang, X.D.; Vandenbosch, K.A.; Rose, R.J. The transcription factor MtSERF1 of the ERF subfamily identified by transcriptional profiling is required for somatic embryogenesis induced by auxin plus cytokinin in Medicago truncatula. Plant Physiol. 2008, 146, 1622–1636. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Sakuma, Y.; Liu, Q.; Dubouzet, J.G.; Abe, H.; Shinozaki, K.; Yamaguchi-Shinozaki, K. DNA-binding specificity of the ERF/AP2 domain of Arabidopsis DREBs, transcription factors involved in dehydration- and cold-inducible gene expression. Biochem. Biophys. Res. Commun. 2002, 290, 998–1009. [Google Scholar] [CrossRef] [PubMed]
  15. Kagaya, Y.; Ohmiya, K.; Hattori, T. RAV1, a novel DNA-binding protein, binds to bipartite recognition sequence through two distinct DNA-binding domains uniquely found in higher plants. Nucleic Acids Res. 1999, 27, 470–478. [Google Scholar] [CrossRef] [PubMed]
  16. Je, B.I.; Piao, H.L.; Park, S.J.; Park, S.H.; Kim, C.M.; Xuan, Y.H.; Park, S.H.; Huang, J.; Do Choi, Y.; An, G.; et al. RAV-Like1 maintains brassinosteroid homeostasis via the coordinated activation of BRI1 and biosynthetic genes in rice. Plant Cell 2010, 22, 1777–1791. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Li, C.W.; Su, R.C.; Cheng, C.P.; Sanjaya; You, S.J.; Hsieh, T.H.; Chao, T.C.; Chan, M.T. Tomato RAV transcription factor is a pivotal modulator involved in the AP2/EREBP-mediated defense pathway. Plant Physiol. 2011, 156, 213–227. [Google Scholar] [CrossRef] [Green Version]
  18. Giri, M.K.; Swain, S.; Gautam, J.K.; Singh, S.; Singh, N.; Bhattacharjee, L.; Nandi, A.K. The Arabidopsis thaliana At4g13040 gene, a unique member of the AP2/EREBP family, is a positive regulator for salicylic acid accumulation and basal defense against bacterial pathogens. J. Plant Physiol. 2014, 171, 860–867. [Google Scholar] [CrossRef]
  19. Dong, L.; Cheng, Y.; Wu, J.; Cheng, Q.; Li, W.; Fan, S.; Jiang, L.; Xu, Z.; Kong, F.; Zhang, D.; et al. Overexpression of GmERF5, a new member of the soybean EAR motif-containing ERF transcription factor, enhances resistance to Phytophthora sojae in soybean. J. Exp. Bot. 2015, 66, 2635–2647. [Google Scholar] [CrossRef]
  20. Mizoi, J.; Shinozaki, K.; Yamaguchi-Shinozaki, K. AP2/ERF family transcription factors in plant abiotic stress responses. Biochim. Biophys. Acta 2012, 1819, 86–96. [Google Scholar] [CrossRef]
  21. Zhao, Y.; Wei, T.; Yin, K.Q.; Chen, Z.; Gu, H.; Qu, L.J.; Qin, G. Arabidopsis RAP2.2 plays an important role in plant resistance to botrytis cinerea and ethylene responses. New Phytol. 2012, 195, 450–460. [Google Scholar] [CrossRef] [PubMed]
  22. Fang, Z.; Zhang, X.; Gao, J.; Wang, P.; Xu, X.; Liu, Z.; Shen, S.; Feng, B. A buckwheat (Fagopyrum esculentum) DRE-Binding transcription factor gene, FeDREB1, enhances freezing and drought tolerance of transgenic Arabidopsis. Plant Mol. Biol. Rep. 2015, 33, 1510–1525. [Google Scholar] [CrossRef]
  23. Hong, J.P.; Kim, W.T. Isolation and functional characterization of the Ca-DREBLP1 gene encoding a dehydration-responsive element binding-factor-like protein 1 in hot pepper (Capsicum annuum L. cv. Pukang). Planta 2005, 220, 875–888. [Google Scholar] [CrossRef] [PubMed]
  24. Qin, F.; Sakuma, Y.; Tran, L.S.; Maruyama, K.; Kidokoro, S.; Fujita, Y.; Fujita, M.; Umezawa, T.; Sawano, Y.; Miyazono, K.; et al. Arabidopsis DREB2A-interacting proteins function as RING E3 ligases and negatively regulate plant drought stress-responsive gene expression. Plant Cell 2008, 20, 1693–1707. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Rashid, M.; Guangyuan, H.; Guangxiao, Y.; Hussain, J.; Xu, Y. AP2/ERF Transcription Factor in Rice: Genome-wide canvas and syntenic relationships between monocots and eudicots. Evol. Bioinf. Online 2012, 8, 321–355. [Google Scholar] [CrossRef]
  26. Licausi, F.; Giorgi, F.M.; Zenoni, S.; Osti, F.; Pezzotti, M.; Perata, P. Genomic and transcriptomic analysis of the AP2/ERF superfamily in Vitis vinifera. BMC Genom. 2010, 11, 719. [Google Scholar] [CrossRef] [Green Version]
  27. Zhang, G.; Chen, M.; Chen, X.; Xu, Z.; Guan, S.; Li, L.C.; Li, A.; Guo, J.; Mao, L.; Ma, Y. Phylogeny, gene structures, and expression patterns of the ERF gene family in soybean (Glycine max L.). J. Exp. Bot. 2008, 59, 4095–4107. [Google Scholar] [CrossRef] [Green Version]
  28. Zhuang, J.; Cai, B.; Peng, R.H.; Zhu, B.; Jin, X.F.; Xue, Y.; Gao, F.; Fu, X.Y.; Tian, Y.S.; Zhao, W.; et al. Genome-wide analysis of the AP2/ERF gene family in Populus trichocarpa. Biochem. Biophys. Res. Commun. 2008, 371, 468–474. [Google Scholar] [CrossRef]
  29. Lakhwani, D.; Pandey, A.; Dhar, Y.V.; Bag, S.K.; Trivedi, P.K.; Asif, M.H. Genome-wide analysis of the AP2/ERF family in Musa species reveals divergence and neofunctionalisation during evolution. Sci. Rep. 2016, 6, 18878. [Google Scholar] [CrossRef] [Green Version]
  30. Shu, Y.; Liu, Y.; Zhang, J.; Song, L.; Guo, C. Genome-wide analysis of the AP2/ERF superfamily genes and their responses to abiotic stress in Medicago truncatula. Front. Plant Sci. 2015, 6, 1247. [Google Scholar] [CrossRef]
  31. Tang, Y.; Qin, S.; Guo, Y.; Chen, Y.; Wu, P.; Chen, Y.; Li, M.; Jiang, H.; Wu, G. Genome-wide analysis of the AP2/ERF gene family in physic nut and overexpression of the JcERF011 gene in rice increased its sensitivity to salinity stress. PLoS ONE 2016, 11, e0150879. [Google Scholar] [CrossRef] [PubMed]
  32. Cannon, S.B.; Mitra, A.; Baumgarten, A.; Young, N.D.; May, G. The roles of segmental and tandem gene duplication in the evolution of large gene families in Arabidopsis thaliana. BMC Plant Biol. 2004, 4, 10. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Cui, L.; Feng, K.; Wang, M.; Wang, M.; Deng, P.; Song, W.; Nie, X. Genome-wide identification, phylogeny and expression analysis of AP2/ERF transcription factors family in Brachypodium distachyon. BMC Genom. 2016, 17, 636. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Flagel, L.E.; Wendel, J.F. Gene duplication and evolutionary novelty in plants. New Phytol. 2009, 183, 557–564. [Google Scholar] [CrossRef] [PubMed]
  35. Liu, S.; Wang, X.; Wang, H.; Xin, H.; Yang, X.; Yan, J.; Li, J.; Tran, L.S.; Shinozaki, K.; Yamaguchi-Shinozaki, K.; et al. Genome-wide analysis of ZmDREB genes and their association with natural variation in drought tolerance at seedling stage of Zea mays L. PLoS Genet. 2013, 9, e1003790. [Google Scholar] [CrossRef] [Green Version]
  36. Xie, Z.; Nolan, T.; Jiang, H.; Tang, B.; Zhang, M.; Li, Z.; Yin, Y. The AP2/ERF transcription factor TINY modulates brassinosteroid-regulated plant growth and drought responses in Arabidopsis. Plant Cell 2019, 31, 1788–1806. [Google Scholar] [CrossRef] [Green Version]
  37. Licausi, F.; Ohme-Takagi, M.; Perata, P. APETALA/Ethylene Responsive Factor (AP2/ERF) transcription factors: Mediators of stress responses and developmental programs. New Phytol. 2013, 199, 639–649. [Google Scholar] [CrossRef]
  38. Dossa, K.; Wei, X.; Li, D.; Fonceka, D.; Zhang, Y.; Wang, L.; Yu, J.; Boshou, L.; Diouf, D.; Cisse, N.; et al. Insight into the AP2/ERF transcription factor superfamily in sesame and expression profiling of DREB subfamily under drought stress. BMC Plant Biol. 2016, 16, 171. [Google Scholar] [CrossRef] [Green Version]
  39. Magnani, E.; Sjolander, K.; Hake, S. From endonucleases to transcription factors: Evolution of the AP2 DNA binding domain in plants. Plant Cell 2004, 16, 2265–2277. [Google Scholar] [CrossRef] [Green Version]
  40. Li, P.; Chai, Z.; Lin, P.; Huang, C.; Huang, G.; Xu, L.; Deng, Z.; Zhang, M.; Zhang, Y.; Zhao, X. Genome-wide identification and expression analysis of AP2/ERF transcription factors in sugarcane (Saccharum spontaneum L.). BMC Genom. 2020, 21, 685. [Google Scholar] [CrossRef]
  41. Tamura, K.; Peterson, D.; Peterson, N.; Stecher, G.; Nei, M.; Kumar, S. MEGA5: Molecular evolutionary genetics analysis using maximum likelihood, evolutionary distance, and maximum parsimony methods. Mol. Biol. Evol. 2011, 28, 2731–2739. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Cui, M.; Zhang, W.; Zhang, Q.; Xu, Z.; Zhu, Z.; Duan, F.; Wu, R. Induced over-expression of the transcription factor OsDREB2A improves drought tolerance in rice. Plant Physiol. Biochem. 2011, 49, 1384–1391. [Google Scholar] [CrossRef] [PubMed]
  43. Chen, M.; Wang, Q.Y.; Cheng, X.G.; Xu, Z.S.; Li, L.C.; Ye, X.G.; Xia, L.Q.; Ma, Y.Z. GmDREB2, a soybean DRE-binding transcription factor, conferred drought and high-salt tolerance in transgenic plants. Biochem. Biophys. Res. Commun. 2007, 353, 299–305. [Google Scholar] [CrossRef]
  44. Hichri, I.; Muhovski, Y.; Clippe, A.; Zizkova, E.; Dobrev, P.I.; Motyka, V.; Lutts, S. SlDREB2, a tomato dehydration-responsive element-binding 2 transcription factor, mediates salt stress tolerance in tomato and Arabidopsis. Plant Cell Environ. 2016, 39, 62–79. [Google Scholar] [CrossRef] [PubMed]
  45. Yang, G.; Yu, L.; Zhang, K.; Zhao, Y.; Guo, Y.; Gao, C. A ThDREB gene from Tamarix hispida improved the salt and drought tolerance of transgenic tobacco and T. hispida. Plant Physiol. Biochem. 2017, 113, 187–197. [Google Scholar] [CrossRef]
  46. Reis, R.R.; da Cunha, B.A.; Martins, P.K.; Martins, M.T.; Alekcevetch, J.C.; Chalfun, A., Jr.; Andrade, A.C.; Ribeiro, A.P.; Qin, F.; Mizoi, J.; et al. Induced over-expression of AtDREB2A CA improves drought tolerance in sugarcane. Plant Sci. 2014, 221–222, 59–68. [Google Scholar] [CrossRef]
  47. Wang, Q.; Guan, Y.; Wu, Y.; Chen, H.; Chen, F.; Chu, C. Overexpression of a rice OsDREB1F gene increases salt, drought, and low temperature tolerance in both Arabidopsis and rice. Plant Mol. Biol. 2008, 67, 589–602. [Google Scholar] [CrossRef]
  48. Dong, C.J.; Liu, J.Y. The Arabidopsis EAR-motif-containing protein RAP2.1 functions as an active transcriptional repressor to keep stress responses under tight control. BMC Plant Biol. 2010, 10, 47. [Google Scholar] [CrossRef] [Green Version]
  49. Najafi, S.; Sorkheh, K.; Nasernakhaei, F. Characterization of the APETALA2/Ethylene-responsive factor (AP2/ERF) transcription factor family in sunflower. Sci. Rep. 2018, 8, 11576. [Google Scholar] [CrossRef] [Green Version]
  50. Larkin, M.A.; Blackshields, G.; Brown, N.P.; Chenna, R.; McGettigan, P.A.; McWilliam, H.; Valentin, F.; Wallace, I.M.; Wilm, A.; Lopez, R.; et al. Clustal W and Clustal X version 2.0. Bioinformatics 2007, 23, 2947–2948. [Google Scholar] [CrossRef]
  51. Tamura, K.; Stecher, G.; Peterson, D.; Filipski, A.; Kumar, S. MEGA6: Molecular evolutionary genetics analysis version 6.0. Mol. Biol. Evol. 2013, 30, 2725–2729. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Bailey, T.L.; Boden, M.; Buske, F.A.; Frith, M.; Grant, C.E.; Clementi, L.; Ren, J.; Li, W.W.; Noble, W.S. MEME SUITE: Tools for motif discovery and searching. Nucleic Acids Res. 2009, 37, W202–W208. [Google Scholar] [CrossRef] [PubMed]
  53. Hu, B.; Jin, J.; Guo, A.Y.; Zhang, H.; Luo, J.; Gao, G. GSDS 2.0: An upgraded gene feature visualization server. Bioinformatics 2015, 31, 1296–1297. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Chen, C.; Chen, H.; Zhang, Y.; Thomas, H.R.; Frank, M.H.; He, Y.; Xia, R. TBtools: An integrative toolkit developed for interactive analyses of big biological data. Mol. Plant 2020, 13, 1194–1202. [Google Scholar] [CrossRef] [PubMed]
  55. Wang, Y.; Tang, H.; Debarry, J.D.; Tan, X.; Li, J.; Wang, X.; Lee, T.H.; Jin, H.; Marler, B.; Guo, H.; et al. MCScanX: A toolkit for detection and evolutionary analysis of gene synteny and collinearity. Nucleic Acids Res. 2012, 40, e49. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Wang, D.; Zhang, Y.; Zhang, Z.; Zhu, J.; Yu, J. KaKs_Calculator 2.0: A toolkit incorporating gamma-series methods and sliding window strategies. Genom. Proteom. Bioinf. 2010, 8, 77–80. [Google Scholar] [CrossRef] [Green Version]
  57. Bi, Q.; Zhao, Y.; Du, W.; Lu, Y.; Gui, L.; Zheng, Z.; Yu, H.; Cui, Y.; Liu, Z.; Cui, T.; et al. Pseudomolecule-level assembly of the Chinese oil tree yellowhorn (Xanthoceras sorbifolium) genome. Gigascience 2019, 8, giz070. [Google Scholar] [CrossRef]
  58. Trapnell, C.; Roberts, A.; Goff, L.; Pertea, G.; Kim, D.; Kelley, D.R.; Pimentel, H.; Salzberg, S.L.; Rinn, J.L.; Pachter, L. Differential gene and transcript expression analysis of RNA-seq experiments with TopHat and Cufflinks. Nat. Protoc. 2012, 7, 562–578. [Google Scholar] [CrossRef]
Ijms 23 14991 g001 550

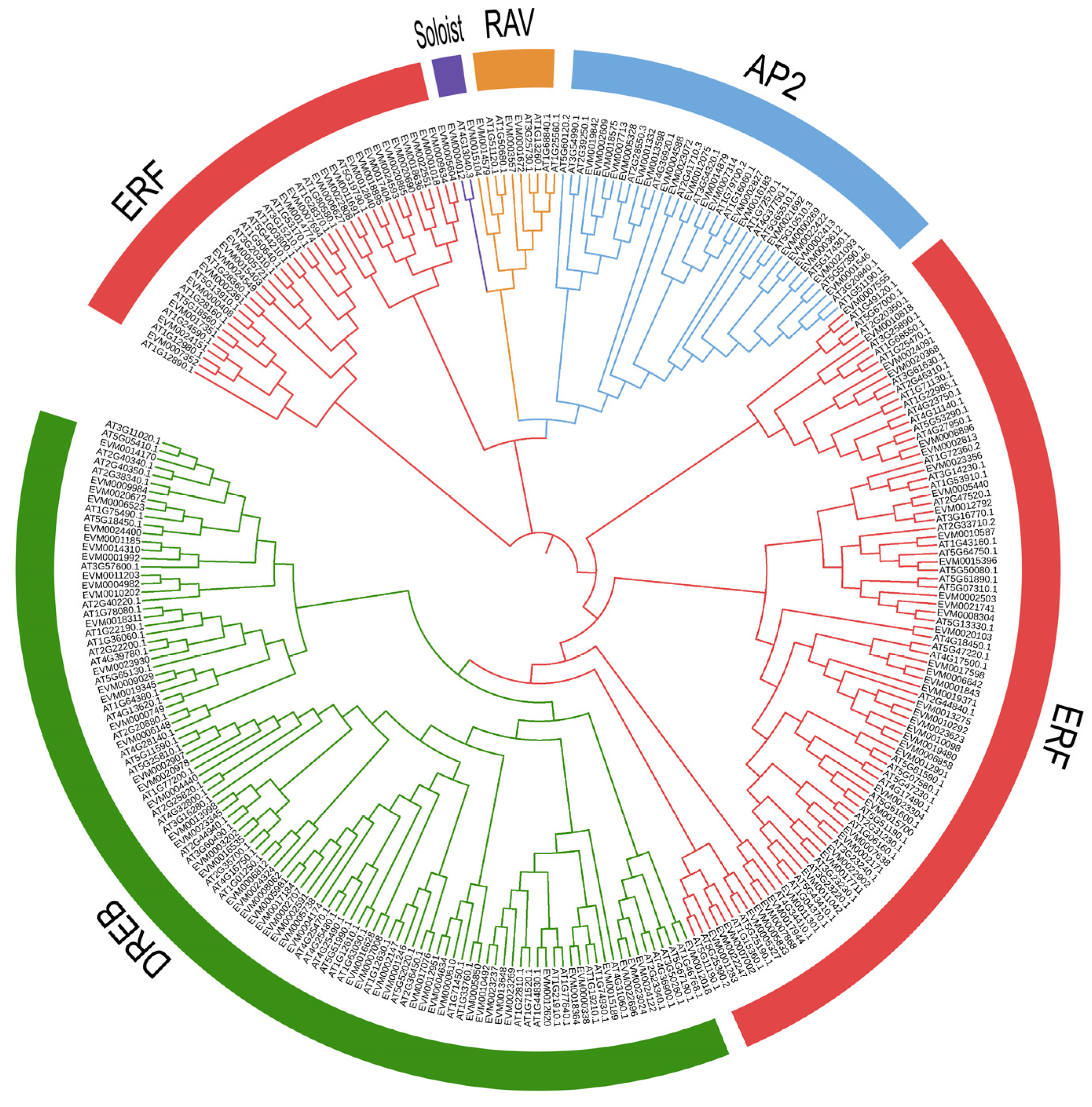

Figure 1. Phylogenetic tree of AP2/ERF genes between X. sorbifolium and A. thalian. The ERF, DREB, AP2, RAV, and Soloist families are distinguished by different colors.
Figure 1. Phylogenetic tree of AP2/ERF genes between X. sorbifolium and A. thalian. The ERF, DREB, AP2, RAV, and Soloist families are distinguished by different colors.
Ijms 23 14991 g001
Ijms 23 14991 g002 550
Figure 2. Phylogenetic trees of the ERF and DREB subfamilies of yellow horn. (a) Phylogenetic tree of ERF subfamily; (b) Phylogenetic trees of subfamilies. The 12 clades of ERF and DREB subfamily genes (B1–6 and A1–6) were grouped depending on their previous classification in Arabidopsis.
Figure 2. Phylogenetic trees of the ERF and DREB subfamilies of yellow horn. (a) Phylogenetic tree of ERF subfamily; (b) Phylogenetic trees of subfamilies. The 12 clades of ERF and DREB subfamily genes (B1–6 and A1–6) were grouped depending on their previous classification in Arabidopsis.
Ijms 23 14991 g002
Ijms 23 14991 g003 550

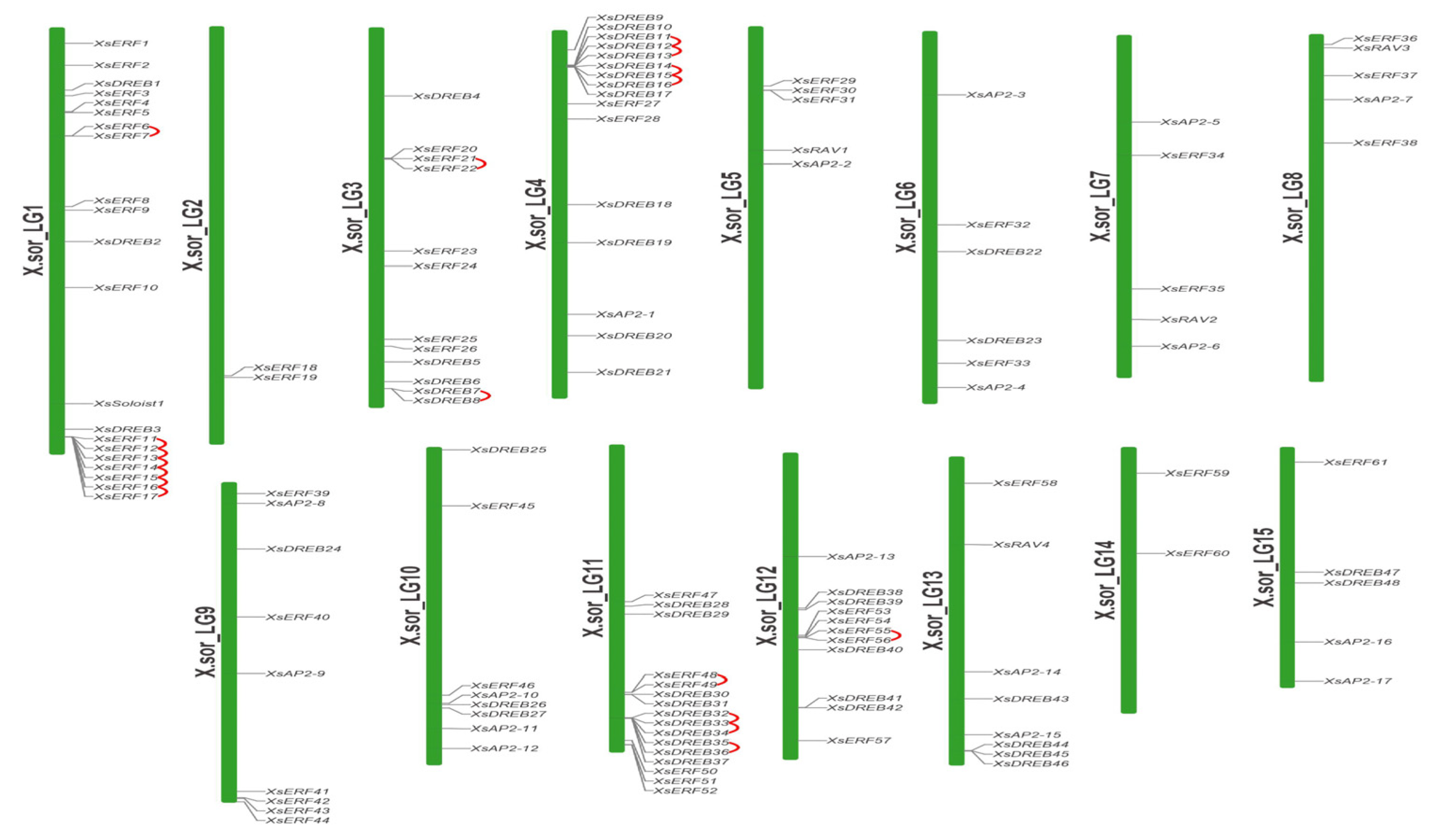

Figure 3. Schematic diagram of AP2/ERF gene chromosome distribution in yellow horn. The XsAP2/ERF genes were located on 15 chromosomes, representing gene positions by proportion. A line indicates position of a gene on each chromosome. The red line between the two gene names suggests that they are tandem repeat pairs. Chromosome numbers are represented on the right side of each chromosome.
Figure 3. Schematic diagram of AP2/ERF gene chromosome distribution in yellow horn. The XsAP2/ERF genes were located on 15 chromosomes, representing gene positions by proportion. A line indicates position of a gene on each chromosome. The red line between the two gene names suggests that they are tandem repeat pairs. Chromosome numbers are represented on the right side of each chromosome.
Ijms 23 14991 g003
Ijms 23 14991 g004 550

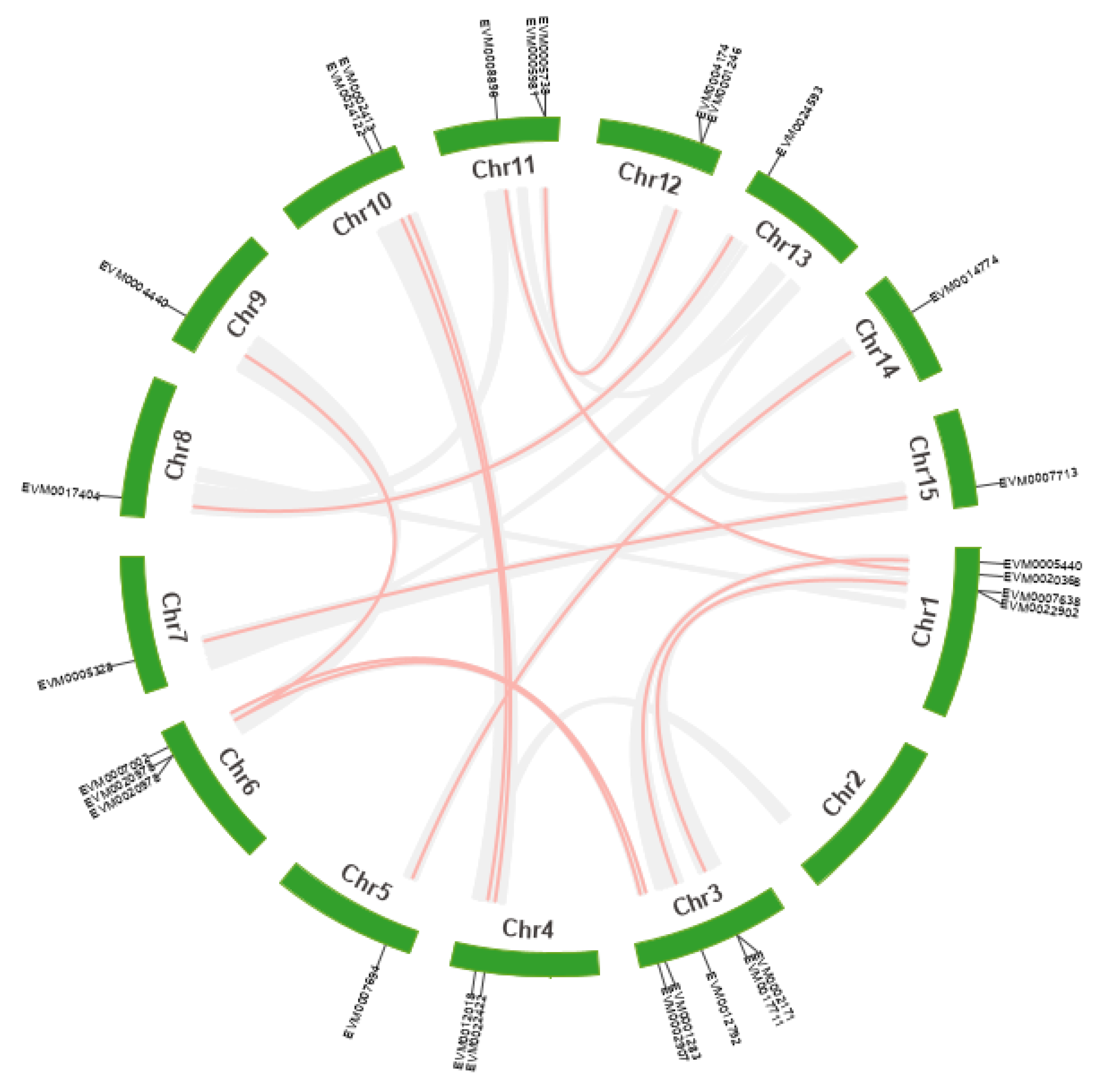

Figure 4. Schematic diagram of the relationship between AP2/ERF TFs in yellow horn. The visualization of all AP2/ERF family repeat gene pairs in chromosome Chr1-15 was performed using Circos. The gray lines in the figure represent collinear blocks, and the red lines represent repeated AP2/ERF gene pairs with collinear relationships in yellow horn.
Figure 4. Schematic diagram of the relationship between AP2/ERF TFs in yellow horn. The visualization of all AP2/ERF family repeat gene pairs in chromosome Chr1-15 was performed using Circos. The gray lines in the figure represent collinear blocks, and the red lines represent repeated AP2/ERF gene pairs with collinear relationships in yellow horn.
Ijms 23 14991 g004
Ijms 23 14991 g005 550

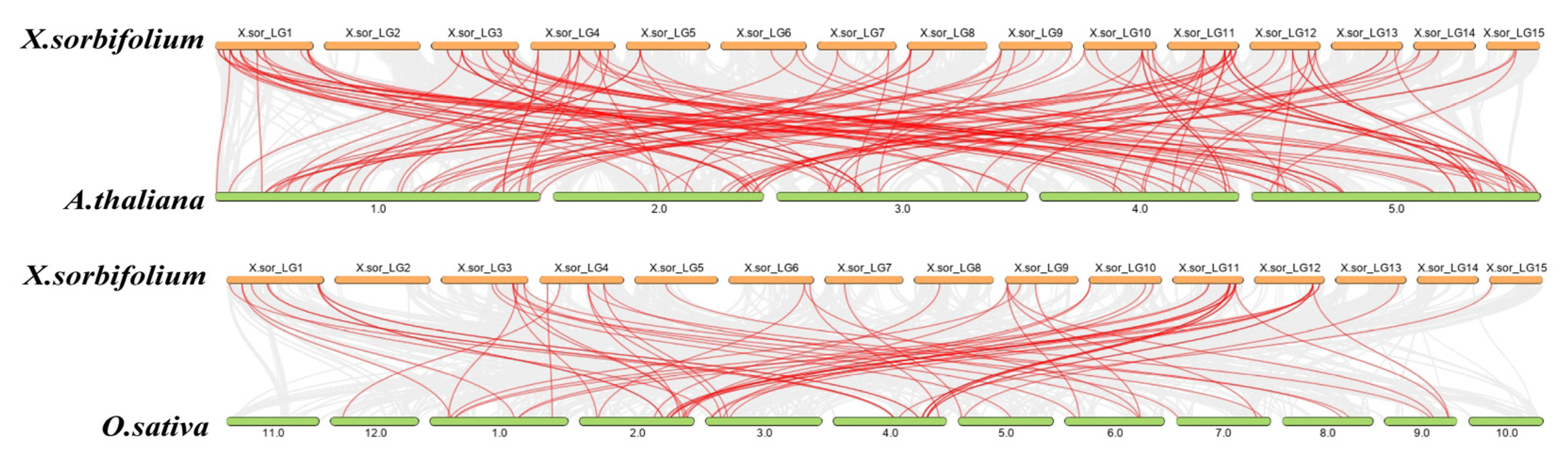

Figure 5. Homolinear AP2/ERF gene analysis between X. sorbifolium, rice, and A. thaliana. The gray lines in the background indicate colinear blocks within the genomes of X. sorbifolium and other plants, while the red line denotes the colinear AP2/ERF gene pairs.
Figure 5. Homolinear AP2/ERF gene analysis between X. sorbifolium, rice, and A. thaliana. The gray lines in the background indicate colinear blocks within the genomes of X. sorbifolium and other plants, while the red line denotes the colinear AP2/ERF gene pairs.
Ijms 23 14991 g005
Ijms 23 14991 g006 550
Figure 6. Real-time PCR analysis of eight XsAP2/ERF transcription factors in leaves, axillary buds, buds, stems, roots, safflower, and white flowers of mature plants. The X-axis is different tissues. The Y-axis represents the relative expression levels of transcription factors. The data represent the mean ± SE of three dependent replicates. A p-value less than 0.01 (**), 0.001 (***), or 0.0001 (****) indicates statistical significance.
Figure 6. Real-time PCR analysis of eight XsAP2/ERF transcription factors in leaves, axillary buds, buds, stems, roots, safflower, and white flowers of mature plants. The X-axis is different tissues. The Y-axis represents the relative expression levels of transcription factors. The data represent the mean ± SE of three dependent replicates. A p-value less than 0.01 (**), 0.001 (***), or 0.0001 (****) indicates statistical significance.
Ijms 23 14991 g006
Ijms 23 14991 g007 550

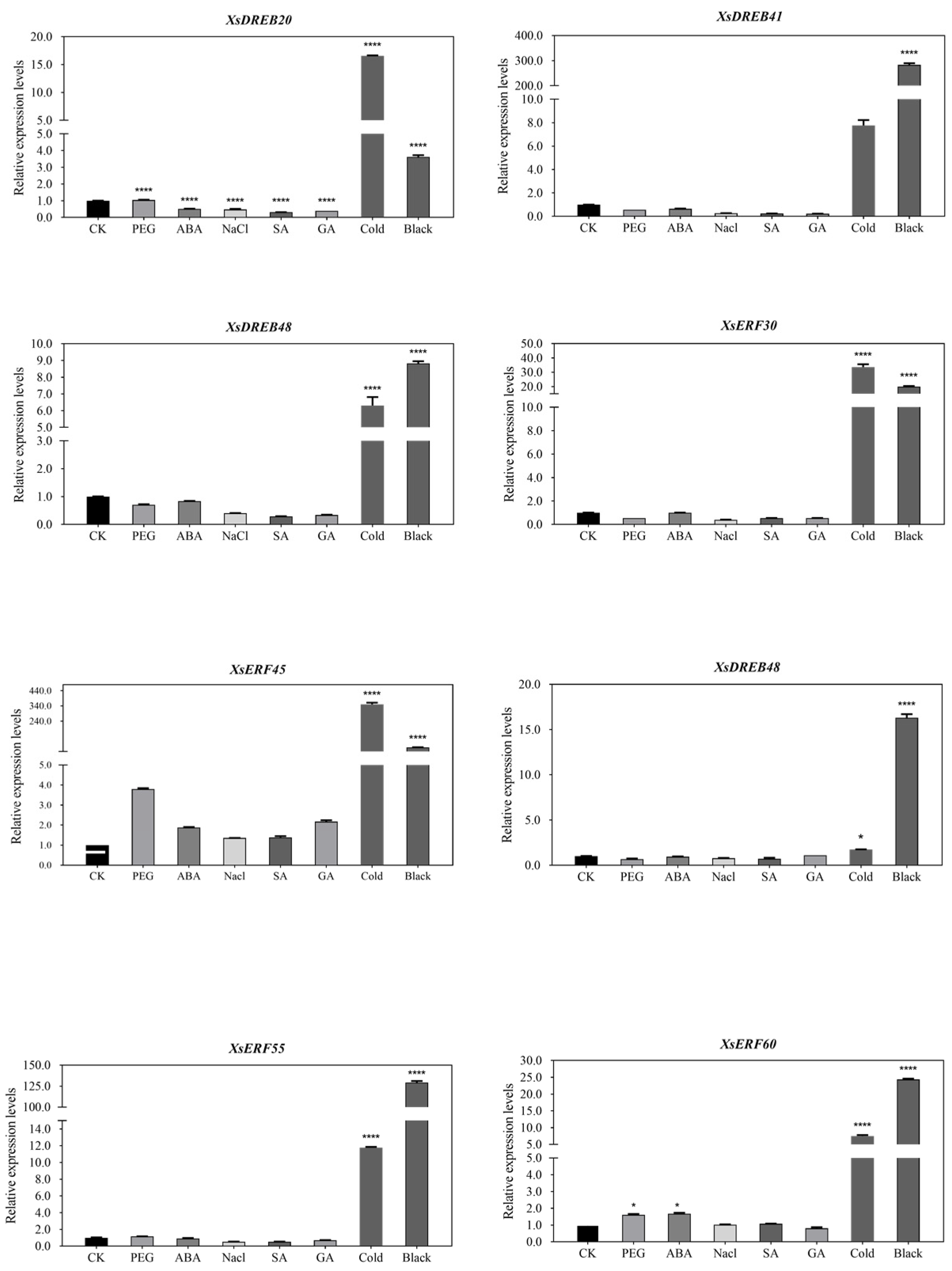

Figure 7. Real-time PCR analysis of 8 XsAP2/ERF transcription factors treated for 24 h under PEG, salt, cold, ABA, SA, and GA conditions and 48 h under dark conditions. The X-axis is a different treatment. The Y-axis represents the relative expression levels of transcription factors. The data represent the mean ±SE of three dependent replicates. A p-value less than 0.05 (*), or 0.0001 (****) indicates statistical significance.
Figure 7. Real-time PCR analysis of 8 XsAP2/ERF transcription factors treated for 24 h under PEG, salt, cold, ABA, SA, and GA conditions and 48 h under dark conditions. The X-axis is a different treatment. The Y-axis represents the relative expression levels of transcription factors. The data represent the mean ±SE of three dependent replicates. A p-value less than 0.05 (*), or 0.0001 (****) indicates statistical significance.
Ijms 23 14991 g007
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Hu, F.; Zhang, Y.; Guo, J. Identification and Characterization of AP2/ERF Transcription Factors in Yellow Horn. Int. J. Mol. Sci. 2022, 23, 14991. https://doi.org/10.3390/ijms232314991

AMA Style

Hu F, Zhang Y, Guo J. Identification and Characterization of AP2/ERF Transcription Factors in Yellow Horn. International Journal of Molecular Sciences. 2022; 23(23):14991. https://doi.org/10.3390/ijms232314991

Chicago/Turabian Style

Hu, Fang, Yunxiang Zhang, and Jinping Guo. 2022. "Identification and Characterization of AP2/ERF Transcription Factors in Yellow Horn" International Journal of Molecular Sciences 23, no. 23: 14991. https://doi.org/10.3390/ijms232314991

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
