One-Step Synthesis of Nitrogen-Doped Porous Biochar Based on N-Doping Co-Activation Method and Its Application in Water Pollutants Control

Abstract

In this work, birch bark (BB) was used for the first time to prepare porous biochars via different one-step methods including direct activation (BBB) and N-doping co-activation (N-BBB). The specific surface area and total pore volume of BBB and N-BBB were 2502.3 and 2292.7 m²/g, and 1.1389 and 1.0356 cm³/g, respectively. When removing synthetic methyl orange (MO) dye and heavy metal Cr⁶⁺, both BBB and N-BBB showed excellent treatment ability. The maximum adsorption capacities of BBB and N-BBB were 836.9 and 858.3 mg/g for MO, and 141.1 and 169.1 mg/g for Cr⁶⁺, respectively, which were higher than most previously reported biochar adsorbents. The probable adsorption mechanisms, including pore filling, π–π interaction, H-bond interaction, and electrostatic attraction, supported the biochars’ demonstrated high performance. In addition, after five recycles, the removal rates remained above 80%, which showed the high stability of the biochars. This work verified the feasibility of the one-step N-doping co-activation method to prepare high-performance biochars, and two kinds of biochars with excellent performance (BBB and N-BBB) were prepared. More importantly, this method provides new directions and ideas for the development and utilization of other biomasses.

1. Introduction

Water pollution is a serious threat to the ecosystem and human safety [1]. Organic pollutants (aromatic species) and heavy metals in water have become the focus of global attention due to their strong teratogenicity, carcinogenicity, and non-degradability [2,3]. Cr⁶⁺ is one of the main forms of Cr. Because of its high solubility, easy accumulation, and difficulty degrading in the ecosystem, Cr⁶⁺ is one of the main toxic heavy metals that pollute water bodies [4]. Cr⁶⁺ ions are discharged into the water in large quantities during industrial processes such as metallurgy and electroplating [5]. Similarly, synthetic dyes are widely used in the printing, dyeing, and textile industries [6]. Many synthetic dyes have caused irreversible threats to human safety, such as skin allergy and cancer, and have become a research hotspot in the field of water pollution remediation [7,8]. Therefore, it is important to remove Cr⁶⁺ and synthetic dyes to purify water.

At present, the removal methods for Cr⁶⁺ and synthetic dyes from polluted water mainly include biological treatment, chemical treatment, and physical treatment [9,10,11]. As one of the physical treatment methods, the adsorption method is widely used in water pollution treatment because of its low cost, lack of by-products, and mild conditions [12,13]. It is also considered an ideal method to effectively remove Cr⁶⁺ and synthetic dyes. Many materials, such as graphene oxide and carbon nanotubes, are used to treat water pollution due to their excellent adsorption properties on pollutants, but the high cost often limits their application [14,15]. In contrast, biochar is attracting increasing attention as an excellent adsorbent with a large specific surface area, abundant functional groups, and a well-developed pore structure [16,17]. Unfortunately, due to the limited adsorption sites, the adsorption performance is often limited. Appropriately modifying and improving the adsorption efficiency of biochar is the key to determining whether it can become a widely used adsorbent.

As an effective strategy to improve biochar performance, nitrogen doping (N-doping) technology has been applied in environmental remediation, such as adsorption, catalysis, and electrochemistry [18,19]. N hetero-atoms provide more binding sites on the biochar surface, which enhances the hydrophilicity and adsorption capacity of the compound by forming a more stable complex with pollutants [20]. At the same time, the N-doping method can adjust part of the electronic structure in the carbon skeleton, and further improve the reactivity of the biochar [21]. The pore structure, specific surface area, and other physical and chemical properties of biochars are also crucial factors that not only affect the adsorption capacity but also determine the degree of adsorbed pollutant diffusion [22,23]. The pore-forming effect of common activators (such as NaOH and KOH) in biochar preparation is beyond doubt [24,25]. However, there are few studies on biochar prepared with one-step pyrolysis and N-doping.

To remedy this, we explored a novel biochar preparation strategy to improve the performance of biochars, that is, N-doping co-activation. N-doping co-activation refers to the incorporation of nitrogen sources in the activation process in order to complete nitrogen doping and activation at the same time and successfully prepare nitrogen-doped porous biochars in one step. In this study, Birch bark was used as the carbon source for biochar preparation for the first time. N-doped porous biochar was synthesized with one-step co-activation pyrolysis by adding an activator (NaOH) and a nitrogen source (urea) in the preparation process. The focus of this study is to determine the feasibility of one-step N-doping co-activation in biochar preparation and its superiority in water pollution treatment, in order to provide a more effective way to deal with water pollution.

2. Results and Discussion

2.1. Preparation of CBB, BBB, and N-BBB

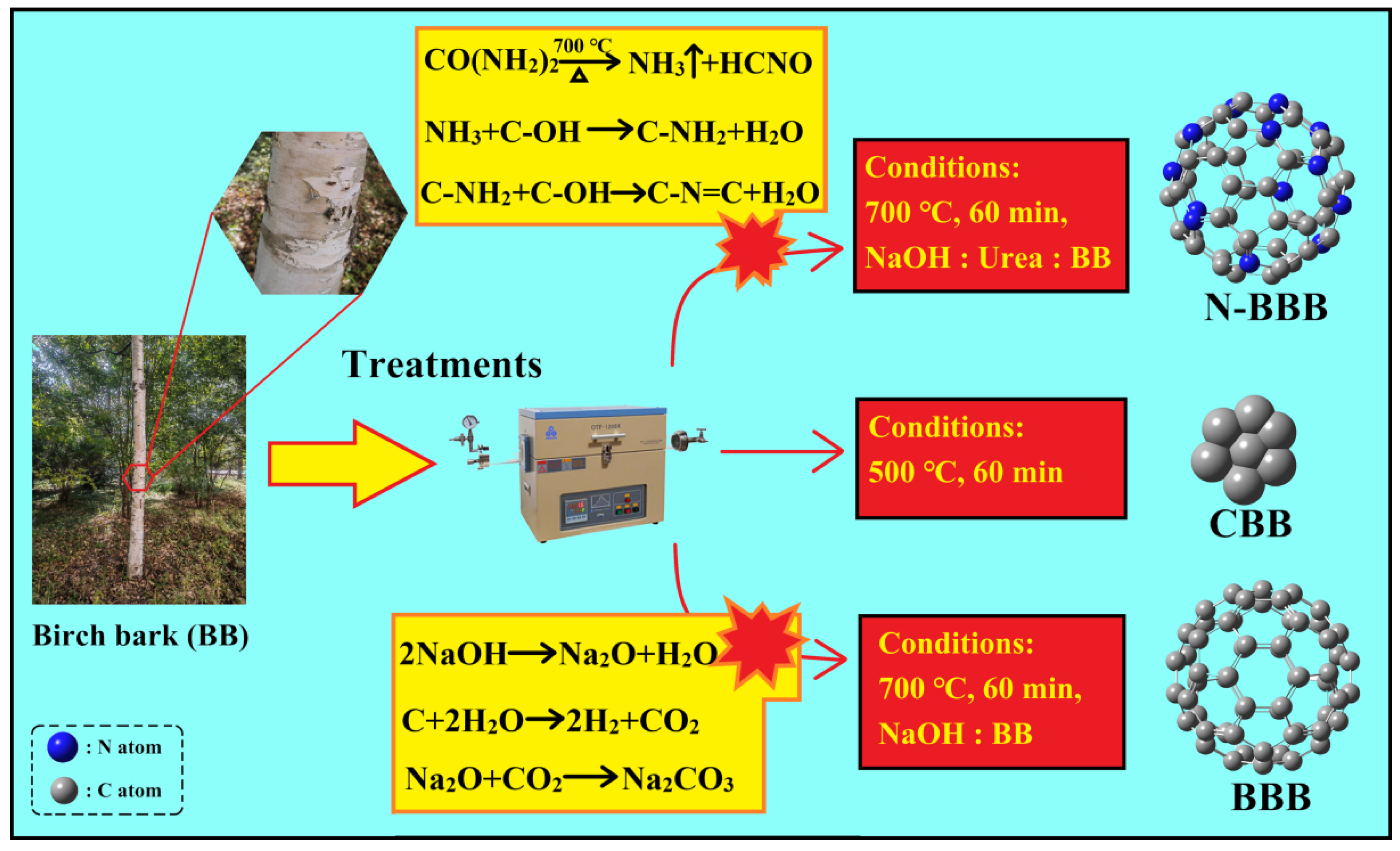

The sample preparation process is shown in Figure 1 and can be divided into three processes: direct carbonization, activation, and N-doping co-activation. The probable chemical reactions during the processes are summarized as follows:

Activation process [26,27,28]: In the high-temperature pyrolysis process, NaOH will generate Na₂O and water, and then be further ionized to form Na⁺ and OH⁻. These ions will migrate or insert carbon precursors and react with them to generate carbon dioxide and water. The carbon dioxide further reacts with the oxide produced by NaOH (Na₂O) to form carbonate (Na₂CO₃), which etches the carbonized sample. Finally, microporous, or mesoporous, structures are formed in the carbon.

N-doping process [29,30,31]: The decomposition of CO(NH₂)₂ at a high temperature produces solid and gaseous substances. Through the diffusion of the gas, the surface of the biochar develops various wrinkles and pores. The NH₃ released during the pyrolysis process combines with the -OH group in lignocellulose (the main component of BB) to form C-NH2, and further generate C=N-C [20]. Eventually, these nitrogenous groups form various N-bond configurations including pyrrolic-N, pyridinic-N, and graphite-N.

2.2. Results of Characterizations

The microscopic morphology and elemental composition of the samples were observed by SEM and EDS, as shown in Figure 2. BB had a rough, irregular surface and uneven lamellar structure. After carbonization (Figure 2B), CBB began to show a dense and smooth surface morphology. This can be explained by the fact that the main composition of BB is lignocellulose, consisting mainly of cellulose composed of glucose and hemicellulose composed of xylose [32]. During the high-temperature pyrolysis process, denatured glucose and xylose changed the morphology of CBB [33]. With the activation process treatment, especially in the presence of NaOH, BBB, and N-BBB (Figure 2C,E), many cracks and fragmentation occurred on the surface due to a severe reaction phenomenon. BBB and N-BBB were mainly composed of C, O, and N elements. However, because of different treatments, their nitrogen content was different. The C, O, and N contents of BBB and N-BBB were 84.62%, 13.52%, and 1.87%, and 84.16%, 12.14%, and 3.70%, respectively. Compared with BBB, the content of N in N-BBB nearly doubled. The above results not only proved the success of the activation process but also proved the feasibility of the N-doping co-activation process.

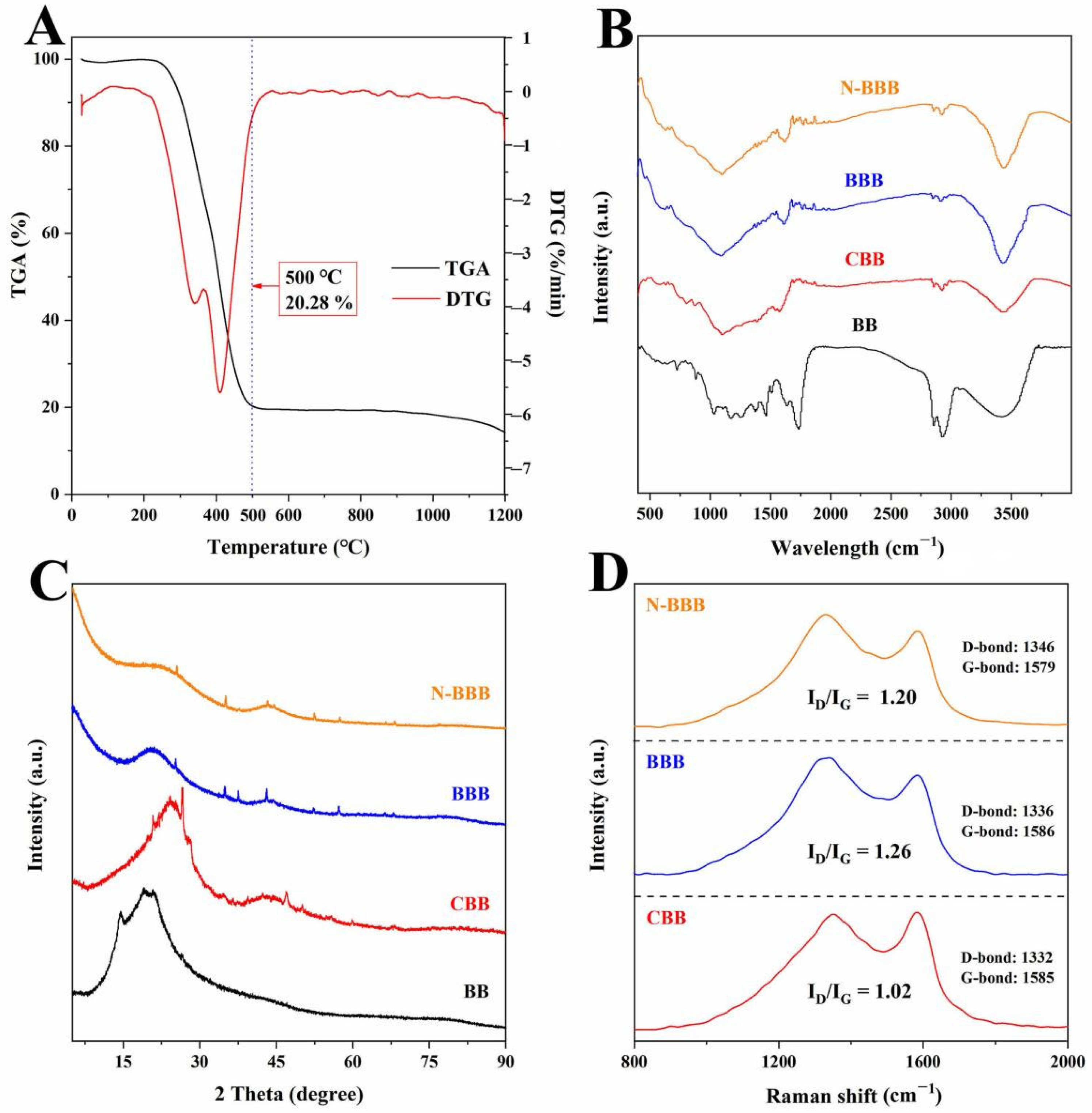

The influence of temperature on BB was measured by a TGA test under N₂ protection, as shown in Figure 3A. The TGA curves corresponding to three main stages of weight loss ranged from room temperature to 1200 °C. The first stage occurred at room temperature to 275 °C and was caused by evaporation and loss of residual water from physical surfaces and internal pores [34,35]. The second stage, which started at 275 °C and ended at 500 °C, was the most significant stage of weight loss. It can be explained by the fact that the main oxygenated component of BB was lignocellulose, which can be cracked into gases and tar at higher temperatures. With the removal of these pyrolytic substances, weight loss in the second stage was induced. Therefore, 500 °C was selected as the carbonization temperature for CBB preparation, and the yield was 20.28% at this time. As for the third stage (500–1200 °C), the TG curve was relatively stable, indicating that there was no obvious weight loss phenomenon. However, when the temperature exceeded 1000 °C (especially when it was close to 1200 °C), CBB exhibited a slight mass change, which may have been caused by the pyrolysis of some minerals [36,37].

The FT-IR spectra of the functional groups of the samples were analyzed, as shown in Figure 2B. The broad band at around 3450 and 2930 cm⁻¹ represented the stretching vibrations of hydroxyl functional groups (O-H) and -CH, -CH², and -CH³ groups [38]. The band around 1730 cm⁻¹ represented the stretching vibration of C=O. The peak at 1630 cm⁻¹ represented the axial deformation of the carbonyl group. The band at around 1375 and 1420 cm⁻¹ represented the C-H symmetric bending vibration of the methyl group and the deformation vibration of methylene [38,39]. In common with many biomass materials [34,35,38,39], the bands at around 1047–1159 cm⁻¹ represented the tensile vibrations of C-O from alcohols, phenols, acids, or esters. After N-doping co-activation, a new vibration peak appeared at 1690 cm⁻¹, which indicated that the C=N was formed on N-BBB [20].

The crystal structure of the samples was tested by XRD, as shown in Figure 3C. The peaks at 17° and 23° represent the cellulose from the lignocellulose of raw BB [32,33]. The irregular peaks represent minerals that can be interpreted as inorganic salts. These peaks became sharper and more distinct after carbonization. After direct activation and N-doped co-activation, these peaks were significantly weakened, which can be explained by the removal of a large quantity of soluble mineral salts during the washing process. In addition, we noted that the diffraction peaks of CBB, BBB, and N-BBB were in the range of 10–30° and 38–45°, indicating that the prepared biochars had the local structure of typical carbon materials; that is, they contained both amorphous carbon and a 2D graphite planar structure [40].

The presence of defects in the carbon was determined by Raman spectra, as shown in Figure 3D. Two typical peaks obtained from the results include the D-band with amorphous carbon at around 1339 ± 7 cm⁻¹ and the G-band with graphitic carbon at around 1583 ± 3 cm⁻¹ [38,39,40]. To measure the degree of defect and disorder in the carbons, the intensity ratio of the D-band and G-band (I_D/I_G) was used as an important index. The I_D/I_G value of CBB was 1.02. After activation, the I_D/I_G value of BBB and N-BBB were 1.26 and 1.20, which indicated that more amorphous carbon structures were generated in the biochars.

The specific surface area and porosity of the samples were tested by N₂ adsorption-desorption isotherms, as shown in Figure 4, and the data are shown in

Table 1. The data of N₂ adsorption-desorption for CBB, BBB, and N-BBB.

Samples	SBET (m2/g)	Vmicro (cm3/g)	Vtotal (cm3/g)
CBB	49.5	0.0187	0.0222
BBB	2502.3	1.1118	1.1389
N-BBB	2292.7	1.0170	1.0356

S_BET, V_micro, and V_total represent the BET specific surface area, the volume of micropores, and the total pore volume.

. The specific surface area and the total pore volume of CBB were 49.5 m²/g and 0.0222 cm³/g, respectively, which were not enough to support CBB as a porous biochar for adsorption. Therefore, further activation treatment is needed to greatly improve its properties and enhance its application performance. After direct activation and N-doping co-activation, the specific surface areas of BBB and N-BBB were 2502.3 and 2292.7 m²/g, respectively, and their total pore volumes were 1.1389 and 1.0356 cm³/g, respectively. Compared with CBB, the values were greatly improved, which indicated the success and effectiveness of the further activation treatment. Moreover, both BBB and N-BBB showed typical type IV isotherms with a slight H3 hysteresis loop, indicating that some mesoporous structures existed in the prepared biochars [39,40]. The volumes of micropores in BBB and N-BBB were 1.1118 and 1.0170 cm³/g, respectively, accounting for 97.6% and 98.2% of the total pore volume, respectively, indicating that they were porous biochars with mainly micropore structure and partly mesoporous structure [24,25]. Pore size distribution was used to further analyze the porosity of the samples. The results based on the NLDFT method also showed that both BBB and N-BBB had microporous and mesoporous structures. The BJH and H-K methods were used to study the pore distribution, which not only re-analyzed the multi-pore structure of BBB and N-BBB but also further proved the existence of both mesoporous and microporous structures.

In addition, it is noteworthy that the specific surface area and total pore volume of N-BBB were smaller than those of BBB. There are three possible reasons for this. First, the addition of the nitrogen source urea in the activation process will compete with the activator NaOH for the contact area with the carbon precursor, thus affecting the specific surface area and pore structure of N-BBB. Second, it may be caused by the chemical reaction between the ammonia gas generated by the nitrogen source urea at high temperature and carbon dioxide produced in the activation process and water vapor, thus consuming part of the activator and reducing the activation efficiency. Third, the nitrogen source urea and activator simultaneously etched the surface of the carbon material and generated more gases [29,30,31], which diffused into the carbon precursor, resulting in partial fragmentation, affecting the pore structure and resulting in the reduction in the specific surface area and total pore volume.

The surface chemical and electronic states of the samples were determined by XPS spectra, as shown in Figure 5. Both BBB and N-BBB contained mainly C, O, and N elements, which was consistent with the EDS. The high-resolution C1s spectra of BBB and N-BBB showed three classical peaks at 283.87–283.88, 284.82–284.98, and 287.74–288.22 eV corresponding to C-C, C-O, and C=O, respectively [38,39,40]. The high-resolution O1s spectra of BBB and N-BBB both had three peaks at 530.74–530.93, 532.36–532.43, and 533.76–534.28 eV corresponding to C=O, C-O, and -OH, respectively [38,39,40]. The high-resolution N1s spectra of ITGB and MITGB both had peaks at 397.41–37.42 and 399.33–399.38 eV, corresponding to pyridinic-N and pyrrolic-N, respectively [38,39,40]. In addition, N-BBB had a unique peak corresponding to graphite-N at 403.53 eV [20], indicating that the N-doped co-activation method had indeed successfully doped N into N-BBB.

2.3. Results of Adsorption Performances

2.3.1. Adsorption Kinetics

Adsorption kinetics describes the adsorption capacity of the adsorbent at different initial solution concentrations as a function of contact time [32,33,34,35]. Therefore, the effect of time on the adsorption of MO and Cr⁶⁺ by BBB and N-BBB at a temperature of 303 K was explored, as shown in Figure 6. Whether the adsorbent was BBB or N-BBB, or the adsorbate was MO or Cr⁶⁺, all the adsorption process trends were similar. The adsorption capacities increased sharply in the first 30 min, and then gradually reached equilibrium at 60 min. The extension of contact time did not further significantly improve the adsorption capacities. It can be speculated that the adsorption capacities would increase with the increase in the initial concentration of the solution, and the high concentration of solution promoted the adsorption process to some certain extent [40]. In order to study the control mechanism of reactions in the process of adsorption, three common adsorption kinetic models, Lagergren’s PFK model based on surface physical adsorption [40], Ho–McKay’s PSK model based on chemical adsorption [39], and Weber–Morris’s IPD model based on molecular diffusion [38] were used to analyze the experimental data, as shown in

Table 2. Fitting parameters of adsorption kinetic models for MO and Cr⁶⁺ at 303 K.

Adsorbates	Adsorbents	Models	Parameters	C0 (mg L−1)
				50	100	200
MO	BBB		Qe (mg/g)	627.9	737.2	836.9
		PFK	k1 (min−1)	0.0028	0.0074	0.0058
			Qe.cat (mg/g)	611.8	720.4	800.3
			R2	0.9880	0.9944	0.9780
		PSK	k2 (g mg−1 min−1)	0.0003	0.0003	0.0005
			Qe.cat (mg/g)	664.5	769.0	844.2
			R2	0.9848	0.9896	0.9997
		IPD	k3 (mg g−1 min−0.5)	27.12	23.62	19.90
			C	350.1	497.9	628.2
			R2	0.6464	0.5822	0.7517
	N-BBB		Qe (mg/g)	644.4	755.1	858.3
		PFK	k1 (min−1)	0.0044	0.0054	0.0051
			Qe.cat (mg/g)	631.3	732.9	817.1
			R2	0.9952	0.9885	0.9721
		PSK	k2 (g mg−1 min−1)	0.0004	0.0004	0.0005
			Qe.cat (mg/g)	672.1	777.9	862.8
			R2	0.9873	0.9980	0.9989
		IPD	k3 (mg g−1 min−0.5)	19.4	22.0	20.9
			C	448.7	530.3	637.3
			R2	0.5471	0.6549	0.7830
Cr6+	BBB		Qe (mg/g)	93.8	119.6	141.1
		PFK	k1 (min−1)	0.0014	0.0017	0.0020
			Qe.cat (mg/g)	85.3	109.2	130.4
			R2	0.9741	0.9614	0.9550
		PSK	k2 (g mg−1 min−1)	0.0007	0.0008	0.0008
			Qe.cat (mg/g)	98.4	122.3	143.6
			R2	0.9923	0.9919	0.9913
		IPD	k3 (mg g−1 min−0.5)	6.2	6.9	7.3
			C	22.7	41.4	59.1
			R2	0.9138	0.9280	0.9279
	N-BBB		Qe (mg/g)	99.5	135.0	169.1
		PFK	k1 (min−1)	0.0015	0.0017	0.0017
			Qe.cat (mg/g)	89.7	122.4	153.0
			R2	0.9500	0.9506	0.9318
		PSK	k2 (g mg−1 min−1)	0.0007	0.0007	0.0006
			Qe.cat (mg/g)	102.2	135.9	170.6
			R2	0.9843	0.9869	0.9765
		IPD	k3 (mg g−1 min−0.5)	6.2	7.3	9.6
			C	27.7	50.5	58.4
			R2	0.9537	0.9432	0.9746

.

The PFK correlation coefficients R² of BBB for MO ranged from 0.9780 to 0.9944; while the Q_e.cat values (611.8, 720.4, and 800.3 mg/g) were lower than the Q_e (627.9, 737.2, and 836.9 mg/g) obtained from the experiments. The PFK for Cr⁶⁺ ranged from 0.9550 to 0.9741; while the Q_e.cat values were 85.3, 109.2, and 130.4 mg/g for different initial concentrations, and were again lower than Q_e (93.8, 119.6, and 141.1 mg/g). To summarize, the PFK model was not the best kinetic to describe the whole adsorption process. The IPD correlation coefficients R² of BBB for MO ranged from 0.5822 to 0.7517, indicating that the adsorption process of MO by BBB may not be affected by particle diffusion. For Cr⁶⁺, on the contrary, the correlation coefficients R² ranged from 0.9138 to 0.9280, which indicated the adsorption process had a particle diffusion behavior. Ho–McKay’s PSK model was used to fit the data; the PSK correlation coefficients R² of BBB ranged from 0.9848 to 0.9997 for MO and from 0.9913 to 0.9919 for Cr⁶⁺. Meanwhile, the Q_e.cat values (664.5, 769.0, and 844.2 mg/g for MO, and 98.4, 122.3, and 143.6 mg/g for Cr⁶⁺) agreed with those obtained from experiments, which showed the applicability of PSK in the adsorption process.

When the models were used to fit with the data of N-BBB, the PFK correlation coefficients R² were 0.9721–0.9952 for MO and 0.9318–0.9506 for Cr⁶⁺. The Q_e.cat values were 631.3, 732.9, and 817.1 mg/g for MO, and 89.7, 122.4 and 153.0 mg/g for Cr⁶⁺, which were both lower than the Q_e values (644.4, 755.1 and 858.3 mg/g for MO, and 99.5, 135.0, and 169.1 mg/g for Cr⁶⁺) obtained from experiments. It can be speculated that the PFK model may have played a role in the adsorption process, although the role was not dominant. For the IPD model, the correlation coefficients R² were 0.5471–0.7830 for MO and 0.9432–0.9746 for Cr⁶⁺, also indicating that the adsorption process of N-BBB for Cr⁶⁺ had a particle diffusion behavior and was largely unaffected by particle diffusion for MO. The PSK coefficients R² were 0.9873–0.9989 for MO and 0.9765–0.9869 for Cr⁶⁺, indicating the PSK model was more suitable to describe the adsorption process. Moreover, it was found that, with the increase in the initial concentration of the solution, the rate constants k₂ of BBB were also increased for both MO and Cr⁶⁺, indicating that the adsorption rate gradually accelerated, and the adsorption rate was faster at a higher concentration. However, the rate constants k₂ of N-BBB were different. For MO, N-BBB showed a similar trend to BBB. At the same time, the rate constants k₂ of N-BBB for Cr⁶⁺ decreased gradually, which indicated that, with the increase in initial concentration, the adsorption rate gradually slowed, and the adsorption rate was slower at a higher concentration.

According to the results, we inferred that the adsorption processes of BBB and N-BBB for MO and Cr⁶⁺ may be mainly chemical reactions (while physical adsorption and particle diffusion also had certain effects on the adsorption process), and the adsorption behaviors between adsorbent and adsorbate through transfer, exchange, or sharing to form chemisorption bonds, may control the adsorption rate [40,41].

2.3.2. Adsorption Isotherms

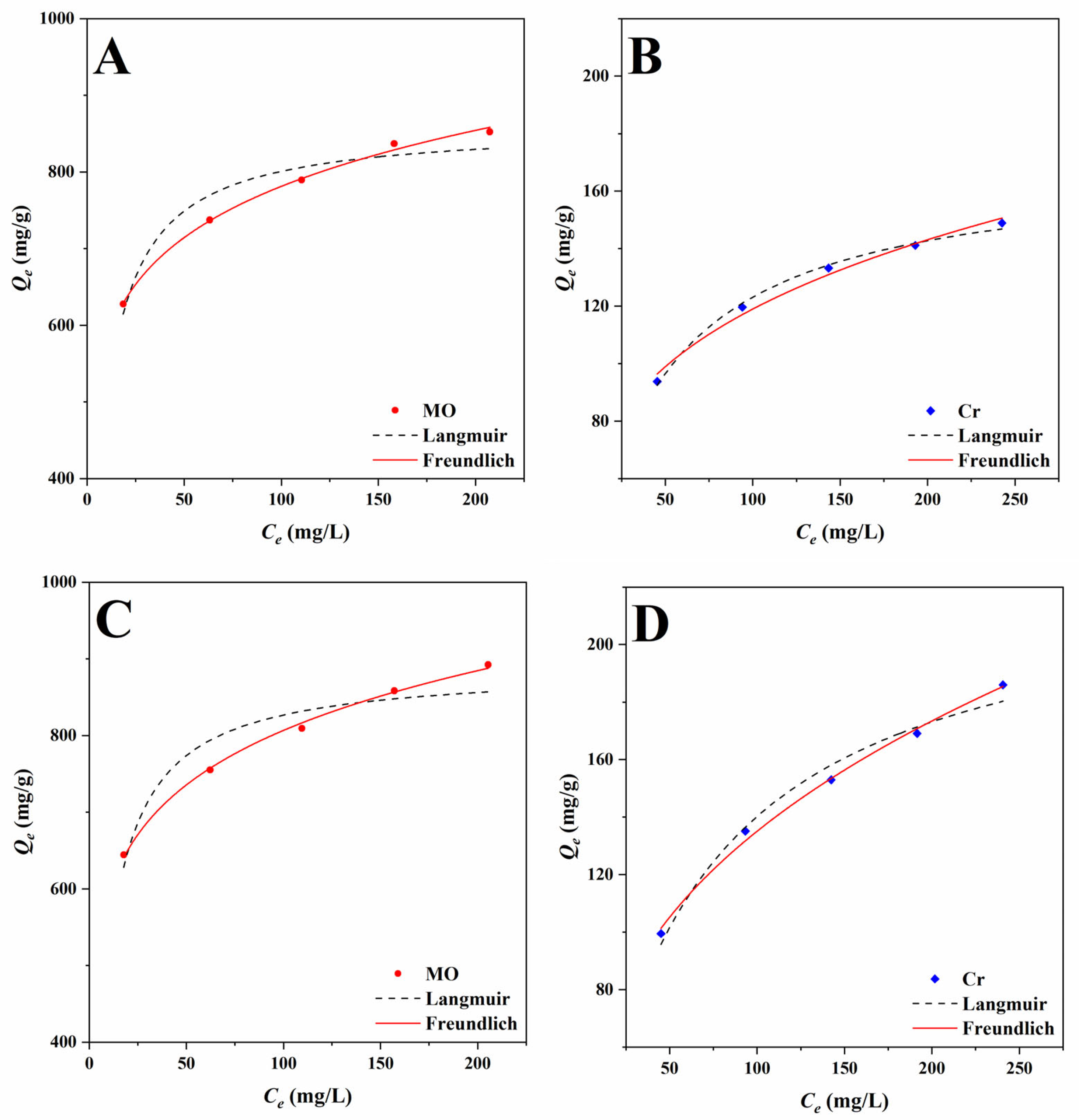

The effect of concentration on the adsorption capacity of the adsorbent is usually determined by investigating the adsorption isotherms. The effects of different initial concentrations of solution on the adsorption process of BBB and N-BBB were studied at a temperature of 303 K, and the results are shown in Figure 7. Increasing the initial concentration of MO or Cr⁶⁺ solution was beneficial to the forward process of adsorption.

Subsequently, the Langmuir and Freundlich isotherm models were used to analyze the experimental data, and the results are shown in

Table 3. Fitting parameters of adsorption isotherm models for MO and Cr⁶⁺ at 303 K.

Adsorbates	Adsorbents	Types	Parameters
MO	BBB	Langmuir	Qm (mg/g)	860.3
			KL (L/mg)	0.1345
			R2	0.9327
		Freundlich	KF (mg g−1(L mg−1)1/n)	431.5
			nF	7.75
			R2	0.9967
	N-BBB	Langmuir	Qm (mg/g)	887.4
			KL (L/mg)	0.1364
			R2	0.9041
		Freundlich	KF (mg g−1(L mg−1)1/n)	437.1
			nF	7.51
			R2	0.9883
Cr6+	BBB	Langmuir	Qm (mg/g)	169.8
			KL (L/mg)	0.0264
			R2	0.9949
		Freundlich	KF (mg g−1(L mg−1)1/n)	34.9
			nF	3.76
			R2	0.9976
	N-BBB	Langmuir	Qm (mg/g)	226.2
			KL (L/mg)	0.0163
			R2	0.9822
		Freundlich	KF (mg g−1(L mg−1)1/n)	25.7
			nF	2.77
			R2	0.9959

. The Langmuir isotherm model is often used to describe the adsorption process of homogeneous molecules [42], while the Freundlich isotherm model is often used to study the heterogeneous multilayer adsorption process [43]. When the adsorbate was MO, the Langmuir isotherm correlation coefficients R² were 0.9327 for BBB and 0.9041 for N-BBB, which indicated that the adsorption processes were not uniform single-layer. The Q_m of BBB and N-BBB for MO were 860.3 and 887.4 mg/g, higher than Q_e, indicating that the prepared biochars had higher adsorption capacities for MO. Moreover, the K_L of N-BBB for MO was slightly bigger than that of BBB, which showed that N-BBB had a faster MO adsorption rate. The Freundlich isotherm correlation coefficients R² for MO were 0.9967 for BBB and 0.9883 for N-BBB. The n_F values of BBB and N-BBB for MO were 7.75 and 7.51, bigger than 1.0, indicating that this adsorption model of fitting MO was appropriate. As for Cr⁶⁺, the Langmuir isotherm correlation coefficients R² were 0.9949 for BBB and 0.9822 for N-BBB, which also showed that the uniform single-layer adsorption was not suitable to describe the adsorption process. When the Freundlich isotherm was used to fit the data, the correlation coefficients R² were 0.9976 for BBB and 0.9959 for N-BBB; while the n_F values of BBB and N-BBB were 3.76 and 2.77. The results indicated that the adsorption processes were non-uniform multilayer [42,43,44].

2.3.3. Adsorption Thermodynamics

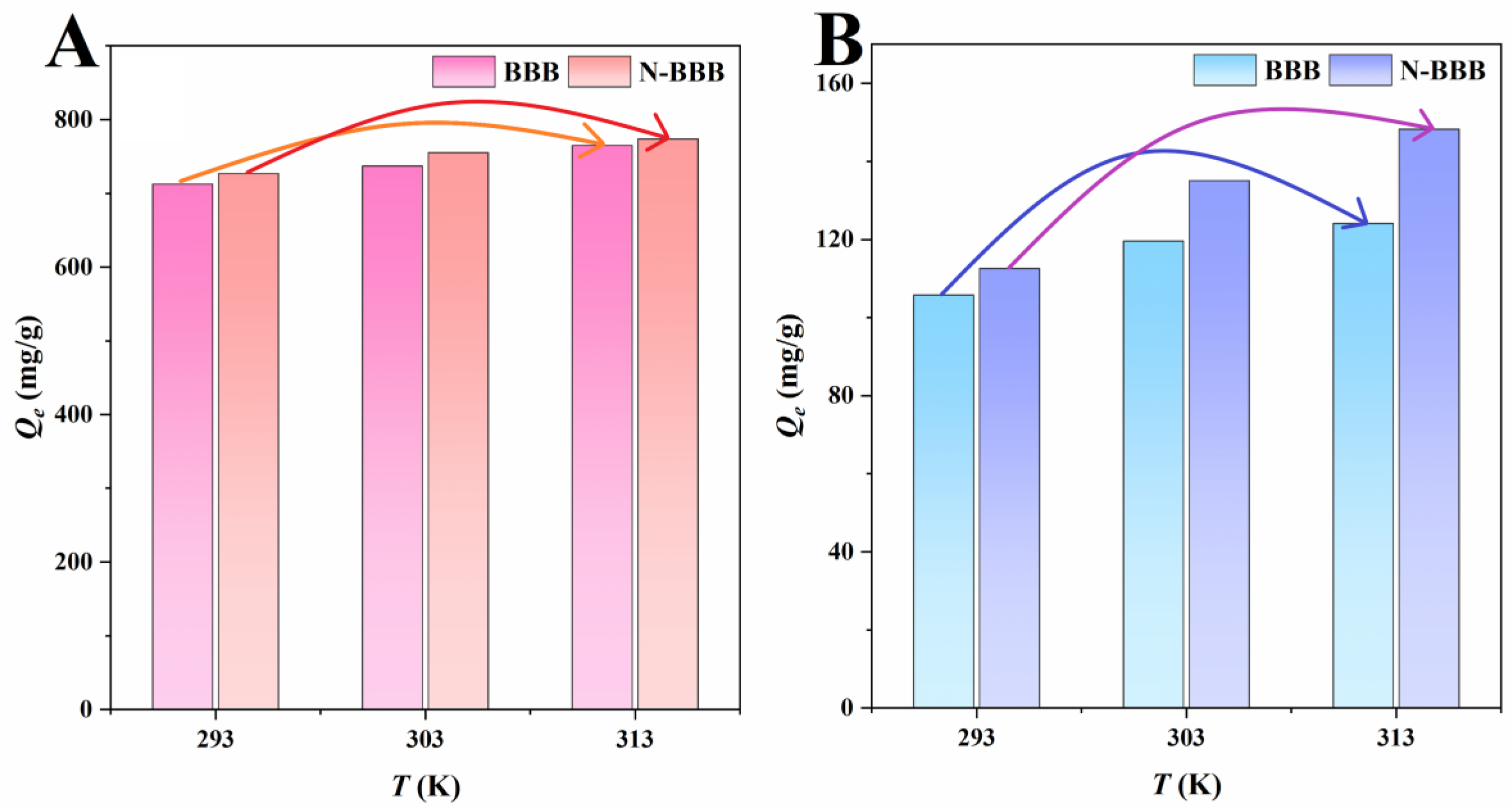

The influence of temperature (293, 303, and 313 K) on adsorption by BBB and N-BBB is shown in Figure 8. On increasing the temperature from 293 K to 313 K, the adsorption capacities of BBB for MO and Cr⁶⁺ increased from 712.5 to 764.8 mg/g and from 105.8 to 124.1 mg/g, respectively, while the adsorption capacities of N-BBB for MO and Cr⁶⁺ increased from 726.7 to 773.7 mg/g and from 112.6 to 148.3 mg/g, respectively. Obviously, raising the temperature increased the adsorption capacities of MO and Cr⁶⁺—that is, a high-temperature environment promoted the adsorption processes by biochars (BBB and N-BBB).

The experimental data were analyzed by thermodynamics formulas, and the parameters are shown in

Table 4. Fitting adsorption thermodynamic parameters for MO and Cr⁶⁺.

Adsorbents	Adsorbates	T (K)	∆G (kJ/mol)	∆H (kJ/mol)	∆S (J mol−1 K−1)
BBB	MO	293	−5.86	4.29	34.61
		303	−6.19
		313	−6.55
	Cr6+	293	−0.27	6.47	23.01
		303	−0.61
		313	−0.73
N-BBB	MO	293	−5.93	3.82	33.27
		303	−6.29
		313	−6.60
	Cr6+	293	−0.43	11.23	39.78
		303	−0.93
		313	−123

. All ΔG values were negative, indicating that the adsorption occurred spontaneously, both with BBB (−5.86, −6.19, and −6.55 for MO and −0.27, −0.61, and −0.73 for Cr⁶⁺) and N-BBB (−5.93, −6.29, and −6.60 for MO and −0.43, −0.93, and −1.23 for Cr⁶⁺) [39,40]. The thermodynamic enthalpy values of ΔH of adsorption of MO were 4.29 and 3.82 kJ/mol for BBB and N-BBB, respectively, and the ΔH values of adsorption of Cr⁶⁺ were 6.47 and 11.23 kJ/mol for BBB and N-BBB, respectively, which further confirmed the endothermic property of the adsorption process [38]. In addition, the positive values of thermodynamic ΔS (34.61 and 33.27 Jmol⁻¹ K⁻¹ for MO, 23.01 and 39.78 J mol⁻¹ K⁻¹ for Cr⁶⁺) indicated that the randomness and chaos of the interface between the porous biochars and solutions increased with the increase in temperature [40].

2.3.4. Effect of pH

In general, pH affects the adsorption process by changing the charge properties of the adsorbent and the adsorbate [32,33,34,35]. MO has two chemical structures, basic and acidic, and whether the chromophore was anthraquinone or azo bond depends on the pH of the solution [45]. The adsorption of MO by biochars was investigated in the pH range of 2 to 10, and the results are shown in Figure 9A. With the increase in pH, the adsorption capacity of both BBB and N-BBB decreased, which can be explained by the electrostatic attraction between the surface charge of the biochars and the ionic charge of the anionic dye MO. Compared with BBB, N-BBB had higher electronegativity due to the N-doping. When the pH value was less than 6, the affinity of the dye increased, and the negative charge on the surface of the biochar could be used as the active site to generate a strong electrostatic attraction with the dye in solution. Conversely, when the pH was higher than 6 (particularly 8), the protonation of the dye was gradually weakened, and the biochars with negative active sites on the surface were not conducive to the adsorption of anionic dyes due to electrostatic repulsion, which reduced the adsorption amount of MO. Cr⁶⁺ also possessed various forms at different pH levels [4,5,20], where it exists as HCrO₄⁻ and Cr₂O₇²⁻ when the pH is lower than 6.5, and as Cr₂O₇²⁻ and CrO₄²⁻ when the pH is higher than 6.5. With the increase in pH, the adsorption capacities of both BBB and N-BBB decreased, and the maximum adsorption capacities were at a pH value of 2. This can be explained by the fact that the biochars (BBB and N-BBB) had a positive surface charge at a pH less than pH_pzc (4.46 for BBB and 4.52 for N-BBB). When the pH was higher than 6, the adsorption capacities decreased sharply, which may be due to electrostatic repulsion. When the pH was in the range of 8 to 10, the adsorption became relatively stable, which indicated that electrostatic interaction was not the only process affecting adsorption performance [20].

2.4. Results of Cycle Tests

The recyclability of adsorbents is an important parameter for evaluating the practical performance of biochars [38,39,40]; thus, the five-cycle performance of the biochars was investigated, and the results are shown in Figure 10. The removal rates of MO and Cr⁶⁺ by BBB and N-BBB decreased with an increase in cycle number. This can be explained as follows: on the one hand, with the treatment of the cycling experiment, adsorbed organic pollutants formed by-products on the surface of biochars [38,39]; while on the other hand, with the increase in the carbonization regeneration process, the structure of the biochars became more fragile, which further affected its regeneration. At the same time, after five cycles, the removal rate of MO and Cr⁶⁺ by BBB and N-BBB remained above 80%, indicating that they had good stability and regeneration ability.

2.5. Probable Mechanism Analysis

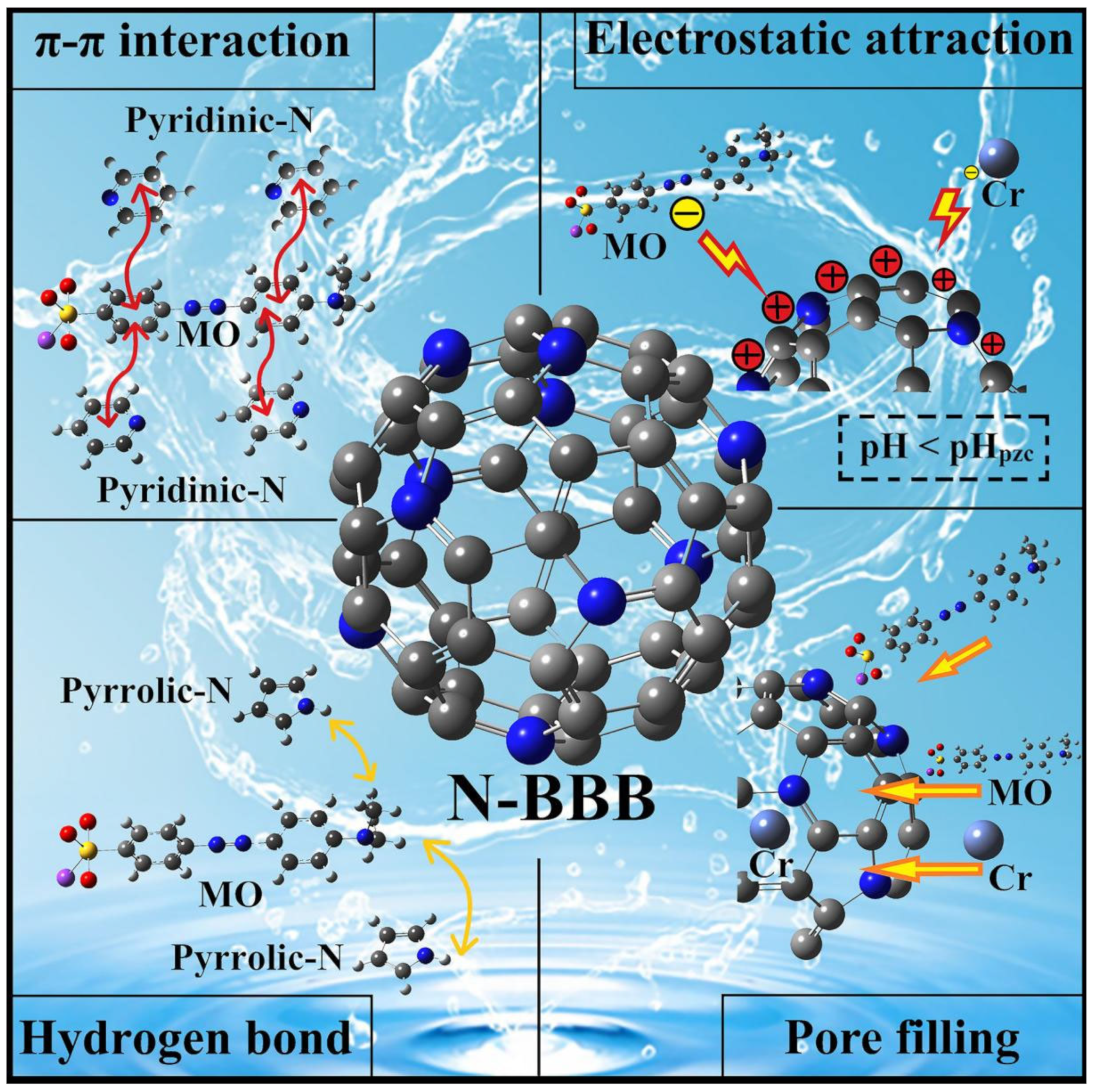

In this work, the N-BBB exhibited good removal ability of MO and Cr⁶⁺ in water solutions affected by many factors (Figure 11). Firstly, the large specific surface area and high total pore volume (2292.7 m²/g and 1.0356 cm³/g) of N-BBB provided many adsorption sites for the adsorption pollutant; therefore, it can be speculated that pore filling may play an important role in the adsorption process. The results based on the kinetics and isotherm showed that the adsorption process was heterogeneous multilayer adsorption with a chemical reaction, which indicated that the chemical binding force will also promote the adsorption process. In addition, from the test results with FT-IR and XPS, it can be speculated that many unsaturated functional groups containing carbon and oxygen on the biochar surface will produce hydrogen-bond interaction with the pollutant model. Moreover, FT-IR and Raman test results also showed that the prepared biochars contained aromatic rings and sp² hybridized carbon with graphite structure, and the π bond in these structures may also have π–π interaction with aromatic rings in pollutants to enhance the adsorption capacity. The charged pollutants in the appropriate pH environment formed a strong electrostatic attraction with N-BBB, which further promoted the adsorption process. Experiments under different conditions, such as the initial concentration of the solution and the temperature of the adsorption process, show that these also affect the adsorption process. To summarize, in addition to the experimental conditions, the pore filling, π–π interaction, H-bond interaction, and electrostatic attraction supported the excellent performance of N-BBB.

2.6. Comparison

Adsorption capacity is an important parameter for evaluating the practical performance of an adsorbent; thus, the adsorption capacities of BBB and N-BBB are compared with other biochars, as shown in

Table 5. Comparison of BBB and N-BBB to MO and Cr⁶⁺ with other biochars.

Adsorbents	Qe for MO (mg/g)	Qe for Cr6+ (mg/g)	References
BBB	836.9	141.1	This work
N-BBB	858.3	169.1	This work
Pomelo peel biochar	147.9	-	[46]
Magnetic bamboo biochar	305.4	-	[47]
Date seeds biochar	334.0	-	[48]
Lotus root biochar	449.0	-	[49]
Date palm petioles biochar	461.0	-	[50]
Landfill leachate sludge biochar	-	17.5	[51]
Zn/iron-based sludge/biochar	-	27.0	[52]
Potamogeton crispus biochar	-	34.4	[53]
Egeria najas biochar	-	138.8	[54]
Soybean protein biochar	-	489.7	[55]

. The adsorption capacities of CBB for MO and Cr⁶⁺ were only 25.2 and 10.4 mg/g. After activation and N-doping co-activation, the adsorption capacities of BBB and N-BBB to MO and Cr⁶⁺ were significantly enhanced. In addition, compared with other biochars, the adsorption capacities of BBB and N-BBB were not low, which fully indicated that the prepared biochars had great potential and application prospects in the treatment of water pollutants.

3. Materials and Methods

3.1. Materials and Reagents

Birch bark (BB), Betula Mandshurica Nakai, obtained from the campus of Jilin Agricultural University (Changchun, China) in 2022, was washed with deionized water, dried at 80 °C for 12 h, and crushed. Urea, NaOH, H₂SO₄, HCl, and ethanol were purchased from Beijing Chemical Works (Beijing, China) and used without further purification.

Diphenylcarbazide (CAS: 140-22-7), Methyl orange (MO, CAS: 547-58-0), and Potassium dichromate (Cr⁶⁺, CAS: 7778-50-9) were supplied by Aladdin Chemical (Shanghai) Co., Ltd. (Shanghai, China) and the structural formulas are shown in Figure S1 (Supplementary Material).

3.2. Preparation of Biochars

BB was carbonized at 500 °C for 60 min with a heating rate of 10 °C/min under the protection of a nitrogen atmosphere to obtain CBB. BB was used by mixing with NaOH and Urea at a ratio of 1:4:1; meanwhile, 1.0 g BB was sufficiently ground with 4.0 g NaOH. The two mixtures were both heated at 700 °C for 60 min. After cooling to room temperature, the activated mixtures were washed with HCl and deionized water until reaching a natural pH value and dried at 180 °C for 12 h. At last, the samples including CBB, BBB, and N-BBB were kept in a desiccator prior to subsequent experiments.

3.3. Adsorption Performances

In a batch adsorption experiment, 0.05 g/L BBB or N-BBB was added to a flask containing pollutant solutions (MO or Cr⁶⁺). The flask was placed in a constant temperature shaker at 150.0 RPM in the dark. After the adsorption process reached equilibrium, the suspension was centrifuged, and the supernatant was diluted with deionized water. The concentration of the solution was determined with an Agilent Cary-300 UV-vis spectrophotometer. The adsorption capacities of samples were calculated by Equation (1):

$$Q_e=\frac{(C_0-C_e)\times V}{m}$$

(1)

where Q_e (mg/g) represents the adsorption capacity of the sample, C_e represents the equilibrium concentrations of the solution, C₀ (mg/L) represents the initial concentrations of the solution, m (g) represents the mass of the samples, and V (L) represents the volume of the solutions.

The pollutant solutions were prepared at different concentrations (50, 100, and 200 mg/L). A total of 0.05 g/L BBB or N-BBB was dispersed into flasks containing MO or Cr⁶⁺ solutions and shaken at 150 RPM in the dark at 303 K. Then, the concentrations of the solutions were determined at preset time intervals. The pseudo-first-order kinetic (PFK, Equation (2)), the pseudo-second-order kinetic (PSK, Equation (3)), and the intra-particle diffusion model (IPD, Equation (4)) were used to analyze the adsorption kinetic data, shown as follows:

$$\ln (Q_e-Q_t)=\ln Q_e-k_{1}t$$

(2)

$$\frac{t}{Q_t}=\frac{1}{k_2{Q}_t^2}+\frac{t}{Q_e}$$

(3)

$$Q_t=k_3{t}^{0.5}+C$$

(4)

where Q_t represents the adsorption capacity of the sample at different time points t, C represents the thickness of the boundary layer, k₁ represents the PFK adsorption kinetic rate constant, k₂ represents the PSK adsorption kinetic rate constant, and k₃ denotes the IPD adsorption kinetic rate constant.

The pollutant solutions at different initial concentrations (50, 100, 150, 200, and 250 mg/L) were prepared and used to test the adsorption isotherm at 303 K. After adsorption saturation, the absorbances of the solutions were measured using a UV-Vis spectrophotometer. The adsorption isotherm data were investigated using the Langmuir isotherm model (Equation (5)) and Freundlich isotherm model (Equation (6)), as follows:

$$\frac{C_e}{Q_e}=\frac{C_e}{Q_m}+\frac{1}{Q_m{K}_L}$$

(5)

$$\ln Q_m=\frac{1}{n}\ln C_e+\ln K_F$$

(6)

where Q_m (mg/g) represents the maximum adsorption capacity of the sample calculated by the adsorption isotherm model, K_L represents the Langmuir adsorption isotherm constant, and K_F represents the Freundlich adsorption isotherm constant.

The effect of temperature (293, 303, and 313 K) on the adsorption capacity of the samples was investigated at an initial concentration of 100 mg/L BBB or 0.05 g/L N-BBB. The thermodynamic parameters were analyzed to describe the effect of temperature on the adsorption process. The calculation equations were as follows:

$$\ln \left(K_T\right)=-\frac{\Delta H}{RT}+\frac{\Delta S}{R}$$

(7)

$$K_T=\frac{Q_e}{C_e}$$

(8)

$$\Delta G=\Delta H-T\Delta S$$

(9)

where ΔS represents the thermodynamic parameters’ standard entropy, ΔG represents the standard free Gibbs energy, ΔH represents the standard enthalpy, and R represents the gas constant (8.314 J/K·mol).

The variation in the adsorption capacity of the samples with the pH (2, 4, 6, 8, and 10) was also investigated. The solutions were adjusted to different pH values by HCl and NaOH.

3.4. Cycle Tests

In each cycle, 1.0 g/L BBB or N-BBB was placed into a flask containing the organic pollutant solutions at a concentration of 100 mg/L at 303 K. After the adsorption of pollutants (Figure S2, Supplementary Material), the samples, BBB/MO, BBB/Cr⁶⁺, N-BBB/MO, and N-BBB/Cr⁶⁺, were collected and washed with deionized water. Then, the recycled samples were carbonized for 60 min at 600 °C under the protection of a nitrogen atmosphere. The re-carbonized samples were re-used as fresh adsorbent in the next cycle.

4. Conclusions

In this work, BB was used for the first time to prepare porous biochars via N-doping co-activation. The specific surface area and total pore volume of N-BBB were 2292.7 m²/g and 1.0356 cm³/g, respectively, which proved the feasibility of N-doping co-activation in pore-forming. The large specific surface area and the high total pore volume played a substantial role in the adsorption process. EDS, FT-IR, and XPS were used to characterize the samples, and the results indicated that nitrogen doping was successfully completed. In an experiment using the synthetic dye MO and heavy metal Cr⁶⁺ as the pollutant models, N-BBB showed good removal ability. The adsorption capacity of N-BBB remained above 80% after five regenerations, which fully proved the stability of regeneration. Moreover, the excellent adsorption performance of N-BBB may have been influenced by pore filling, π–π interaction, H-bond interaction, and electrostatic attraction. This study not only provided a biochar adsorbent with excellent performance but also verified the feasibility of the one-step nitrogen-doping co-activation method to prepare high-performance biochars. In the future, we will continue to study this N-doped co-activation method and explore its application to other types of biomass to further develop more biochars with better performance.
