Self-Organization of Fullerene Derivatives in Solutions and Biological Cells Studied by Pulsed Field Gradient NMR

Abstract

Fullerene derivatives are of great interest in various fields of science and technology. Fullerene derivatives are known to have pronounced anticancer and antiviral activity. They have antibacterial properties. Their properties are largely determined by association processes. Understanding the nature and properties of associates in solvents of various types will make it possible to make significant progress in understanding the mechanisms of aggregation of molecules of fullerene derivatives in solutions. Thus, this work, aimed at studying the size and stability of associates, is relevant and promising for further research. The NMR method in a pulsed field gradient was used, which makes it possible to directly study the translational mobility of molecules. The sizes of individual molecules and associates were calculated based on the Stokes–Einstein model. The lifetime of associates was also estimated. The interaction of water-soluble C₆₀ fullerene derivatives with erythrocytes was also evaluated. The values of self-diffusion coefficients and the lifetime of molecules of their compounds in cell membranes are obtained. It is concluded that the molecules of fullerene derivatives are fixed on the cell surface, and their forward movement is controlled by lateral diffusion.

1. Introduction

Fullerene is a three-dimensional allotropic modification of carbon (C_n, where n = 20…540). A fullerene molecule is a convex closed polyhedron consisting of an even number of atoms forming pentagons and hexagons. Currently, a large number of types of fullerenes are known, but the most common and studied is the C₆₀ molecule. At the vertices of a truncated icosahedron are 60 carbon atoms, and the faces are 20 hexagons and 12 pentagons. Fullerene derivatives are widely used in various fields of science and technology [1,2].

Water-soluble fullerene derivatives (WSFD) show considerable promise in the field of biomedical applications. These are substances with unique properties. They can be used as a targeted component of drug delivery systems. It is known from the literature data that some of the fullerene derivatives exhibited pronounced anticancer activity [3,4,5,6], antiviral (including anti-HIV) [7,8,9,10,11], and antibacterial [4,12,13] activity. It was also shown that fullerenes and fullerene-dye hybrid structures have a pronounced antitumor photodynamic effect [14,15,16].

The biological activity of water-soluble fullerene derivatives is explained by the peculiarity of their structure. Water-soluble fullerene derivatives are amphiphilic compounds consisting of a hydrophobic carbon framework surrounded by hydrophilic addends [17,18,19]. As a result, these compounds are lipophilic. On the one hand, WSFDs interact with the lipid matrix of the cell membrane; on the other hand, WSFDs interact specifically with protein active sites.

There are many publications devoted to the behavior of WSFD in proteins, model and native biological membranes [20,21,22,23,24]. However, at the same time, only a few works are devoted to studying the interaction of water-soluble fullerene derivatives with red blood cell (RBC) membranes [25,26]. Although RBCs as a biological system are of interest since the structure of their membrane is similar to the membranes of other cells. In [25,26], fullerenols C₆₀(OH)₂₄ and C₆₀(OH)₃₆ containing polar hydroxyl groups were studied. The authors showed that fullerenols are predominantly associated with surface proteins of the plasma membrane; however, they can also be incorporated into the membrane. It has also been demonstrated that fullerenol affects membrane ATPases and can modulate ion transport across membranes.

The amphiphilic nature of the molecules of water-soluble fullerene derivatives causes their aggregation in aqueous solutions. As a result of self-organization processes, nanosized hollow spherical vesicles are formed [27,28,29]. It is reasonable to assume that the biological properties of these molecules will be influenced by the processes of self-aggregation and the size of the resulting clusters. Therefore, the study of self-organization in solutions of fullerene derivatives is of fundamental importance.

The processes of self-organization of fullerene derivatives in water and organic solutions are studied using various experimental methods: dynamic light scattering [7,30,31,32], atomic force microscopy [7,30,33,34], transmission electron microscopy [7,32,33,35,36]. However, these methods are rather indirect.

The most direct way to estimate the size of aggregates in solutions from diffusion coefficients is using the Stokes–Einstein model. Diffusion NMR spectroscopy is informative for measuring molecular diffusion parameters [37,38]. For example, in [39,40,41,42], the ¹H DOSY NMR method was used to study supramolecular systems based on fullerenes. This method made it possible to obtain information about the processes of formation of supramolecular systems by analyzing the self-diffusion coefficients of the initial compounds and finished complexes. It was shown that the mobility of supramolecular systems is lower than the mobility of the initial molecules. In paper [43], the ¹H DOSY NMR method was used to establish the formation of fullerene polyesters, which was also confirmed by a decrease in the diffusion coefficient.

A special place in the field of diffusion NMR spectroscopy is occupied by the pulsed field gradient NMR technique (PFG NMR). In the PFG NMR experiment, individual diffusion components could be selected from the NMR spectra using Fourier transform, and the partial diffusion coefficients can be estimated, which makes it possible to apply this method to study the association of fullerene derivatives in organic and aqueous media.

Another remarkable feature of PFG NMR is the possibility of its application to study the translational mobility of molecules in biological systems (cells, models) [22,23,44,45,46,47,48,49,50,51,52,53]. It does not have a destructive effect on cells and, at the same time, allows obtaining of qualitative and quantitative information related to the self-diffusion processes of molecules in biosystems.

Thus, the following conclusions can be drawn. First, water-soluble fullerene derivatives are promising compounds for biomedical research and pharmaceutical applications. Second, the investigation of these substances’ state in aqueous solutions, as well as their interaction with biological systems (for example, RBCs), is very important. Third, the pulsed field gradient NMR technique makes it possible to noninvasively study the translational mobility of fullerene derivatives molecules in solutions and biological cells.

Herein we have presented the experimental results of fullerene derivative association in solutions and erythrocytes obtained with the pulsed field gradient technique.

2. Results and Discussion

2.1. Fullerene Derivatives in Solutions

The Stokes–Einstein model is usually used to describe the aggregation of molecules in solutions. The hydrodynamic radius r_H of a spherical particle is calculated using the self-diffusion coefficient D according to Equation (1) [54,55,56,57,58]:

$$D=\frac{k\cdot T}{n\cdot \pi \cdot \eta \cdot r_H},$$

(1)

where k is the Boltzmann constant, T is the absolute temperature, and η is the solvent viscosity.

In the case of slip molecules, the value of n is equal to four. For the stick-shaped molecules, n is equal to 6.

The applicability of the Stokes–Einstein model for calculating the size of particles formed by molecules of fullerene derivatives was tested using the fluorinated fullerene C₆₀F₃₆. The structure of this compound is well known; the van der Waals diameter is 1.23 nm [58]. From the experimental data of PFG NMR of ¹⁹F nuclei, the value of the self-diffusion coefficient of C₆₀F₃₆ molecules was obtained, which was 6.5 10⁻¹⁰ m²/s [59]. The hydrodynamic diameter 2r_H, calculated from Equation (1), is equal to the van der Waals diameter at n = 6 within the measurement error. Thus, it seems appropriate to apply Equation (2) for hydrodynamic radii of particles formed by molecules of fullerene derivatives estimation:

$$r_H=\frac{k\cdot T}{6\cdot \pi \cdot \eta \cdot D}$$

(2)

2.1.1. Nonpolar Fullerene Derivatives

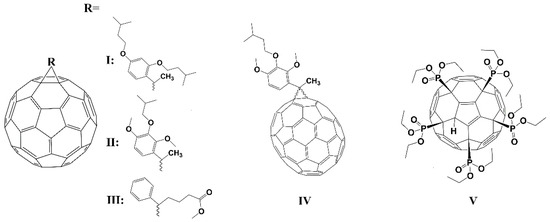

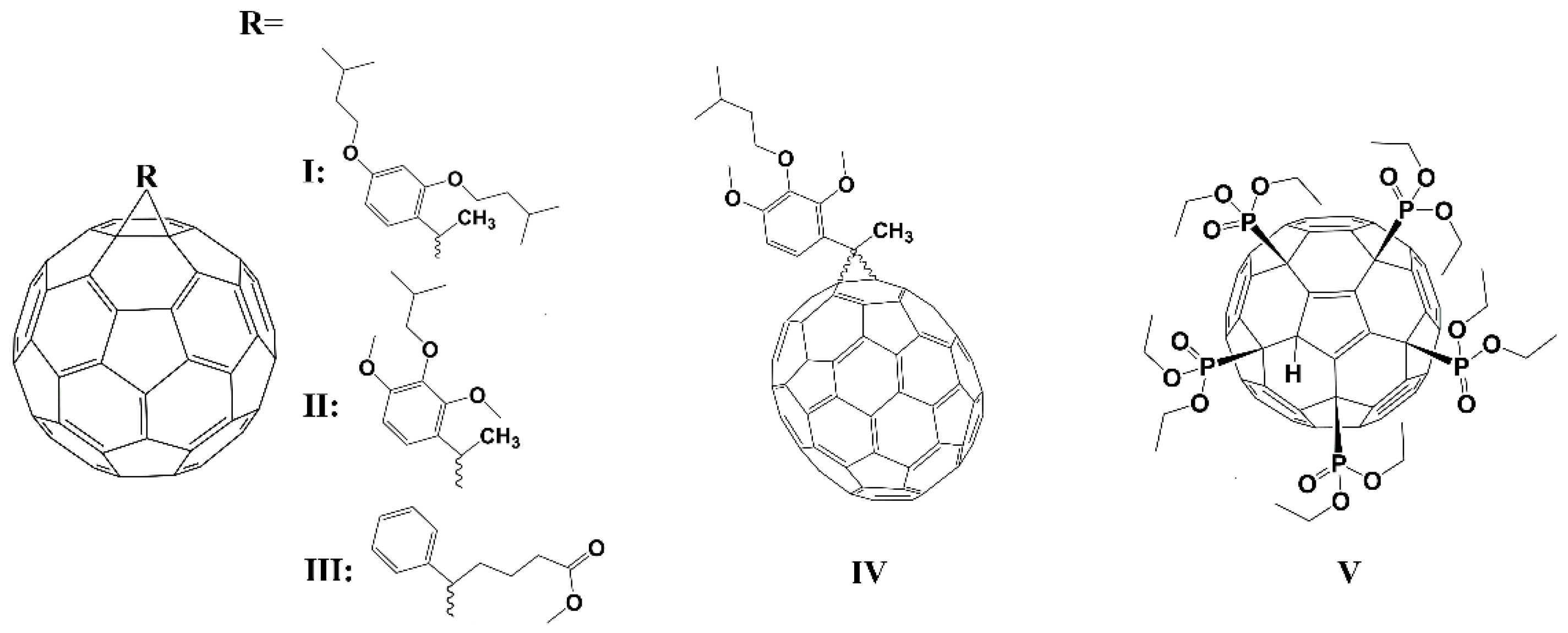

The molecular structures of fullerene derivatives that do not contain polar groups (I–V) are shown in Figure 1.

For compounds I–V, spin echo attenuation of ¹H nuclei was measured in the solvents indicated in Section 3.1. The dependences of the spin echo attenuation amplitude A(2τ, τ₁, g) vs. the square of the pulsed field gradient amplitude g² (diffusion decays) were analyzed. The diffusion decays were exponential shapes and fitted well using Equation (3):

$$A\left(2\tau ,{\tau }_1,g\right)=A\left(2\tau ,{\tau }_1,0\right)\exp \left(-{\gamma }^2{g}^2{\delta }^2{t}_d{D}_s\right),$$

(3)

which is an instance of Equation (9) presented in Section 3.3 at m = 1.

The exponential character of diffusion decays of compounds I–V indicates that the mobility of the molecules of fullerene derivatives is characterized by a single self-diffusion coefficient D_s. Since the NMR spectra of the studied compounds are well resolved, the diffusion decays of different spectral lines belonging to different functional groups were analyzed. The resulting decays turned out to be almost identical.

Table 1. The self-diffusion coefficients D_s and the diameters d_H calculated from Equation (2) for the fullerene derivatives I–V.

Compound	Solvent	Ds, m2/s	dH, nm
I	CDCl3	5.9·10−10	1.3 ± 0.1
	CS2	1.0·10−9	1.2 ± 0.1
II	CDCl3	6.3·10−10	1.3 ± 0.1
	CS2	1.1·10−9	1.2 ± 0.1
	C6D5CD3	6.6·10−10	1.2 ± 0.1
III	CDCl3	6.9·10−10	1.2 ± 0.1
IV	C6D5CD3	6.1·10−10	1.2 ± 0.1
V	CDCl3	5.8·10−10	1.4 ± 0.1

presents the self-diffusion coefficients obtained for the molecules of compounds I–V in various solvents. The sizes of particles d_H = 2·r_H are calculated using the Stokes–Einstein Equation (2).

The hydrodynamic diameters of the molecules of compounds I–V are in the range of 1.2–1.4 nm. It should be noted that the type of solvent does not affect the particle sizes, which are close to the van der Waals diameter of the fullerene. Thus, fullerene derivatives containing non-polar groups are not prone to the formation of aggregates but are in solutions as isolated molecules.

2.1.2. Polar Fullerene Derivatives

Another picture was observed for fullerene derivatives containing polar groups. The molecular structures of fullerene derivatives containing polar groups are shown in Figure 2.

The exponential diffusion decays were observed for solutions of VI in deuterated DMSO-d₆, acetone-d6, and DMSO-D₂O mixtures. The fullerene self-diffusion coefficients and hydrodynamic diameters calculated from Equations (2) and (3), respectively, are shown in

Table 2. The self-diffusion coefficients D_s and the diameters d_H from Equation (2) for fullerene derivative VI, the solution concentration C = 8 mg/mL.

Solvent	Ds, m2/s	dH, nm
acetone-d6	5.7·10−10	2.4 ± 0.2
DMSO	8.5·10−11	2.3 ± 0.2
The molar ratio DMSO:D2O = 3:1	2.1·10−11	5.4 ± 0.5
The molar ratio DMSO:D2O = 1:1	2.3·10−11	6.3 ± 0.6
The molar ratio DMSO:D2O = 1:3	2.3·10−11	9.6 ± 0.9

.

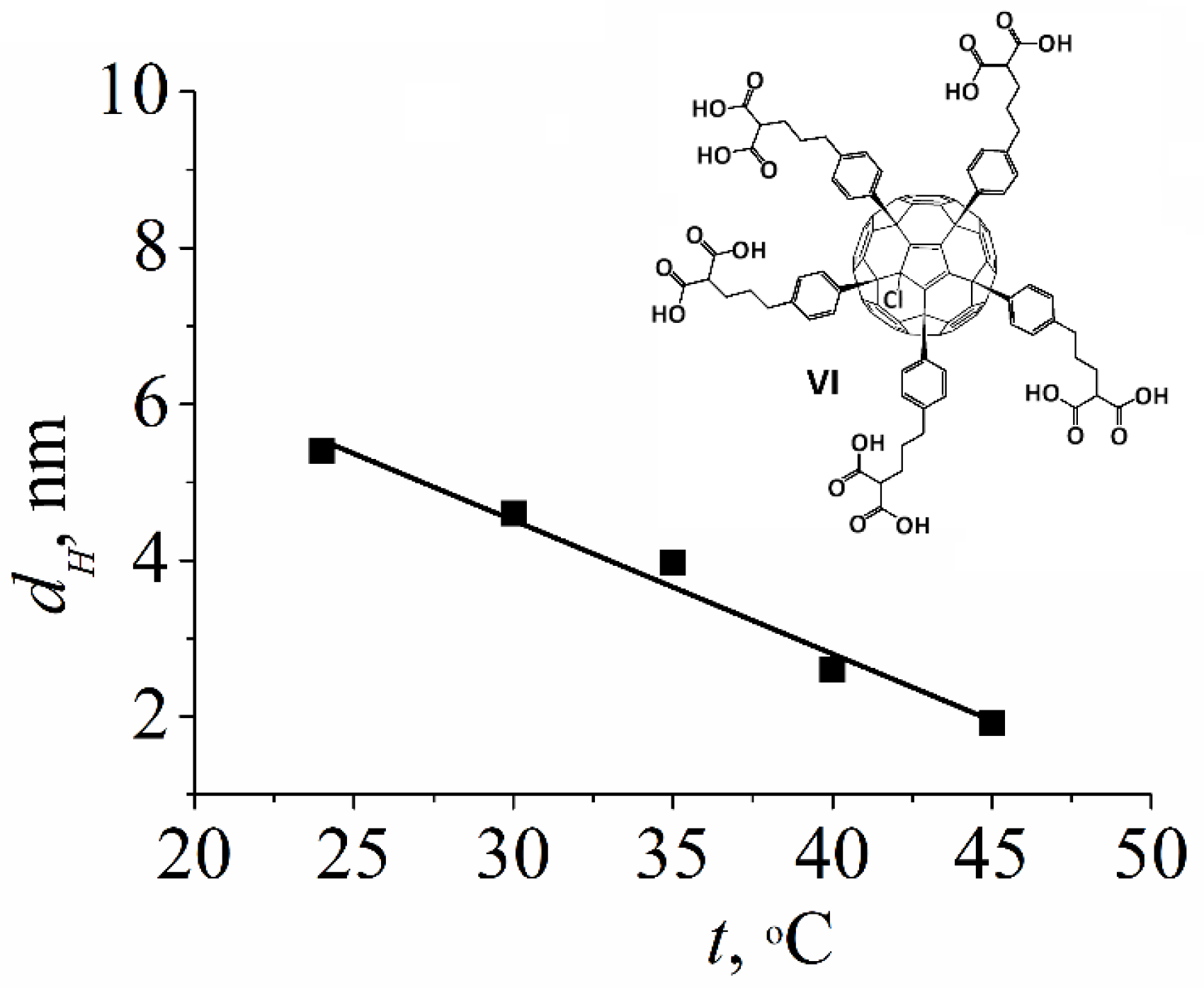

The calculated particle size formed by the molecules of compound VI in solutions of deuterated DMSO and acetone was 2.3–2.4 nm. The obtained value exceeds the size of the C60 fullerene molecule twice as much. Presumably, it can be explained by the presence of five bulk addends on the C₆₀ fullerene framework, which increases the molecular hydrodynamic diameter. Another option is the formation of self-assembling dimers by compound VI due to the occurrence of hydrogen bonds between the -COOH groups of two complementary molecules, as is well known for organic acids.

At the same time, in a mixture of DMSO-D₂O solvents, for the molecules of compound VI, a noticeable aggregation was observed, which can be seen in Table 2. Probably, stable aggregates of various sizes, including D₂O molecules, are formed in the system. In addition, the observed exponential diffusion decay characterizes an average aggregate self-diffusion coefficient.

Associates formed by the molecules of compound VI possess low stability, which was confirmed using the dependence of the hydrodynamic diameter d_H on temperature. Figure 3 shows that with the increasing temperature of the solution from 25 to 45 °C, a decrease in particle size was observed.

2.1.3. Water-Soluble Fullerene Derivatives

The results obtained for compounds VII–XIII in aqueous solutions should be considered separately.

Compound VII

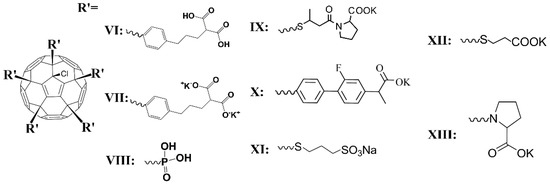

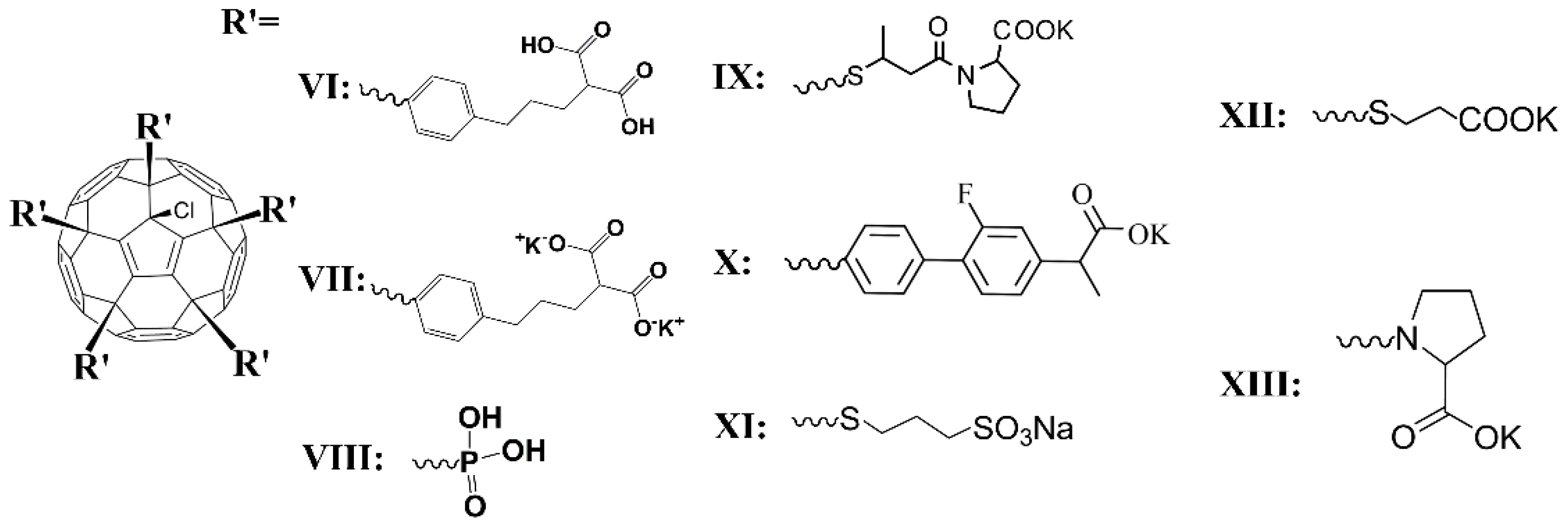

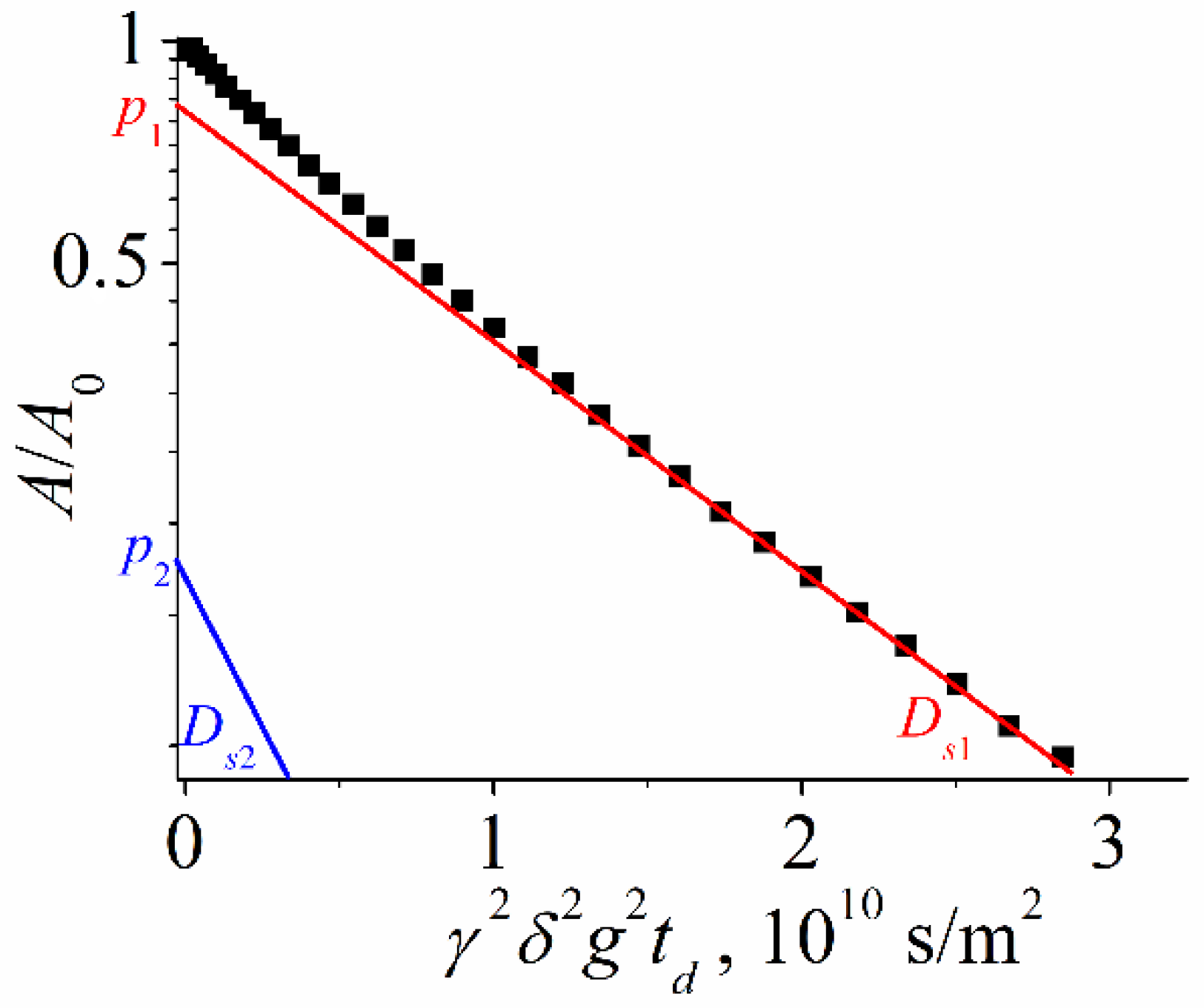

Water-soluble fullerene derivatives (e.g., compound VII in Figure 2) demonstrate the strongest tendency to self-organization in solutions. The self-diffusion of the potassium salt VII in D₂O was investigated. The diffusion decays were approximated by the sum of two exponential components according to Equation (4) [59] (m is equal to two in Equation (9)) as it is shown in Figure 4:

$$A\left(g\right)=p_1\exp \left(-{\gamma }^2{g}^2{\delta }^2{t}_d{D}_{s1}\right)+p_2\exp \left(-{\gamma }^2{g}^2{\delta }^2{t}_d{D}_{s2}\right),$$

(4)

where p₁, D_s1 and p₂, D_s2—are the relative parts (phase populations) and partial self-diffusion coefficients of the first and the second component, respectively.

The hydrodynamic diameters d_H based on each self-diffusion coefficient were calculated from Equation (2) and are given in

Table 3. The self-diffusion coefficients D_s1, D_s2, populations p₁, p₂, and the hydrodynamic diameters d_H1, d_H2 of the aggregates formed by the compound VII in deuterated water solutions.

C, mg/mL	Ds, m2/s		p		dH, nm
	Ds1	Ds2	p1	p2	dH1	dH2
6	7.1·10−11	2.1·10−10	0.60	0.40	5.5 ± 0.5	1.8 ± 0.2
12	6.6·10−11	1.7·10−10	0.70	0.30	5.9 ± 0.6	2.3 ± 0.2
14	7.1·10−11	1.7·10−10	0.80	0.20	5.5 ± 0.5	2.3 ± 0.2
24	6.9·10−11	2.0·10−10	0.87	0.13	5.7 ± 0.6	1.9 ± 0.2

.

From the data in Table 3, we can conclude that there are two different types of clusters formed by the fullerene derivative in the solution. Based on the obtained values of hydrodynamic diameters, it can be assumed that isolated molecules (d_H = 2 nm) and stable aggregates (d_H about 5.5 nm) are observed. The values of the self-diffusion coefficients did not depend on the solution concentration; they were constant in the concentration range from 6 to 24 mg/mL. The increasing of aggregate populations with concentration rising was observed.

Compound VIII

The results obtained for the fullerene derivative VIII show a completely different behavior of molecules in the solution. It is assumed that for the molecules of this compound, the aggregate lifetime is shorter than the diffusion time. This ensures fast exchange between isolated molecules and aggregates of compound VIII. Therefore, the obtained diffusion decays are exponential. Their analysis revealed average self-diffusion coefficients characterizing the translational mobility of various types of compound VIII aggregates.

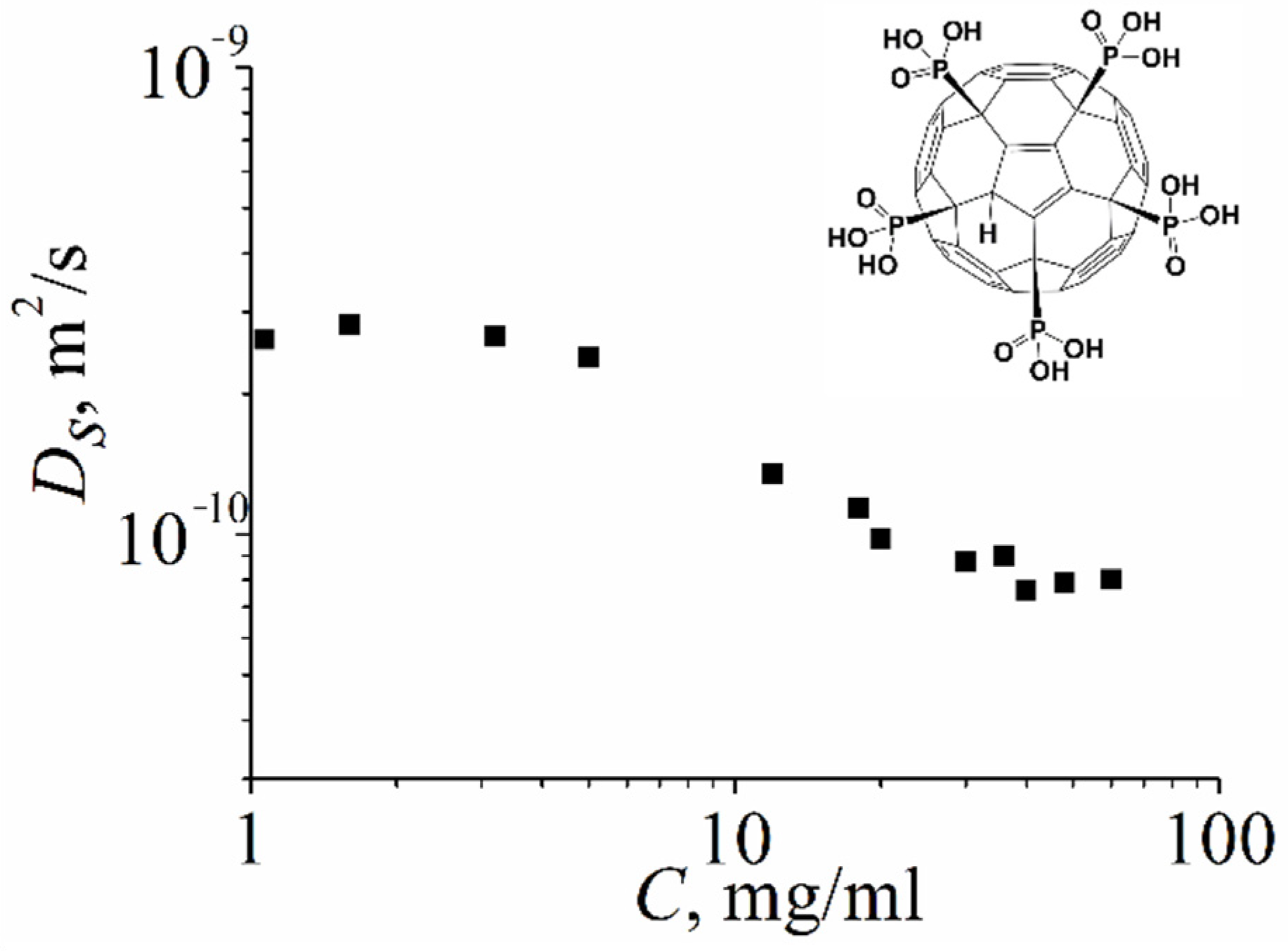

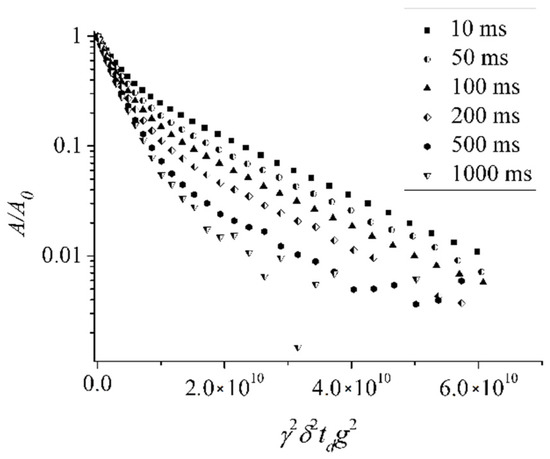

Figure 5 shows the dependence of the self-diffusion coefficient of molecules of compound VIII on the concentration of an aqueous solution. At low solution concentrations (less than 3 mg/mL), the d_H value was (1.3 ± 0.15) nm, which corresponds to the size of an isolated molecule. With an increase in concentration, a decrease in the self-diffusion coefficient was observed, which indicates the formation of aggregates by the molecules of the fullerene derivative VIII. At a solution concentration of 40 mg/mL, the maximum value of the hydrodynamic diameter d_H = (4.5 ± 0.5) nm was obtained, which does not change with a further increase in concentration.

Compound IX

For compound IX, aqueous solutions of the concentrations indicated in paragraph 4.1 were prepared, and NMR experiments were performed. The diffusion decays of fullerenes (Figure 6) were approximated using bi-exponential curves according to Equation (4).

From the analysis of diffusion decays, the self-diffusion coefficients of the molecules of compound IX were obtained, the values of which were Ds₁ = (6.5 ± 0.3) 10⁻¹¹ m²/s and Ds₂ = (4.0 ± 0.5) 10⁻¹⁰ m²/s.

By analogy with the previous compounds, it is assumed that Ds₁ and Ds₂ characterize particles of the fullerene derivative of different sizes. From Equation (2), the particle sizes were calculated, the values of which were d_H1 = (5.2 ± 0.4) nm and d_H2 = (1.0 ± 0.06) nm. The obtained values indicate that the molecules of compound IX in an aqueous solution are represented by isolated and aggregated molecules.

The experimental data obtained for compound IX give the possibility to estimate the lifetime of aggregates formed by molecules in an aqueous solution. The lifetime of fullerene aggregates was estimated from the temperature dependence of the low self-diffusion coefficient population on diffusion time t_d p₂(t_d) according to the procedure proposed in [37].

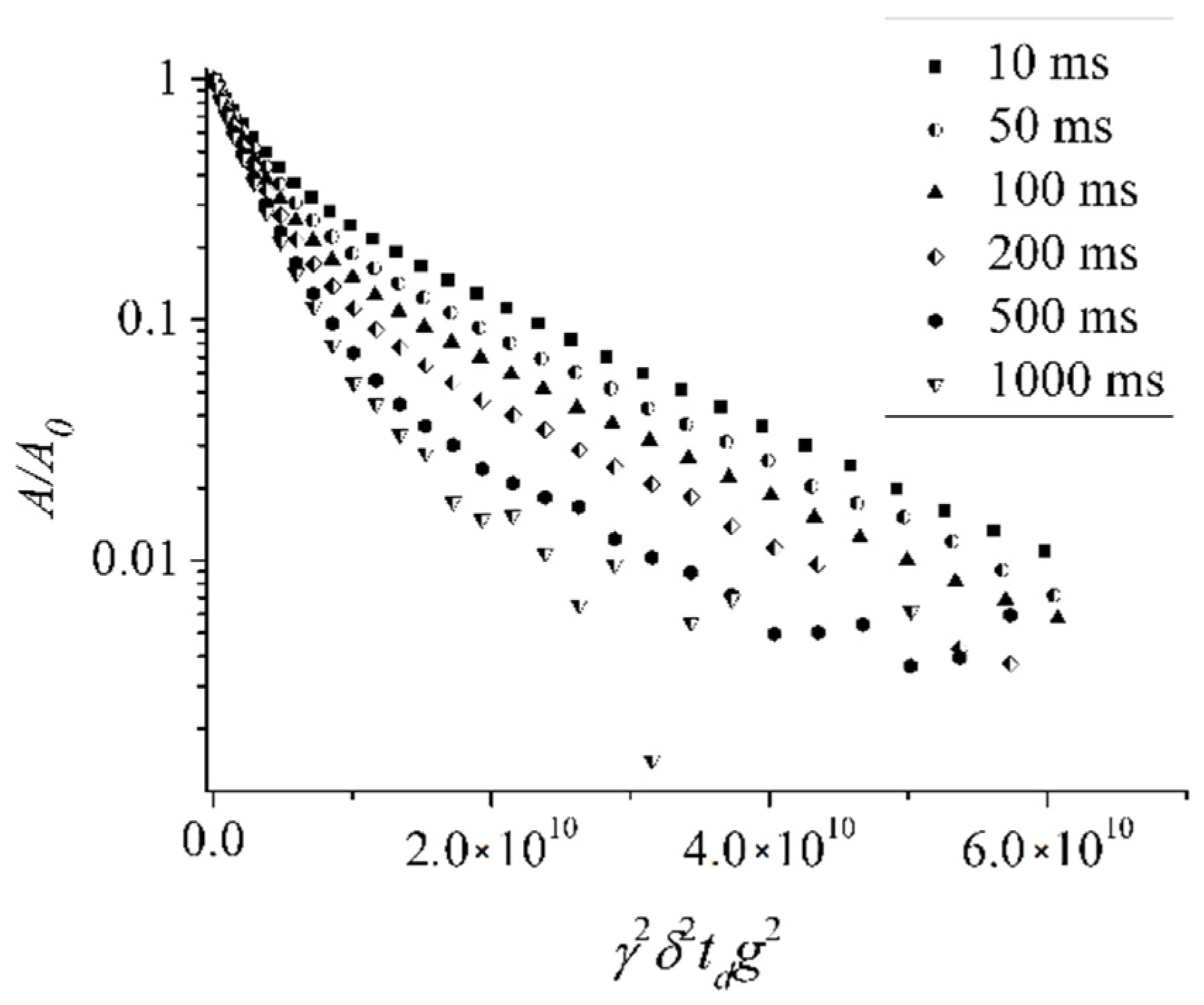

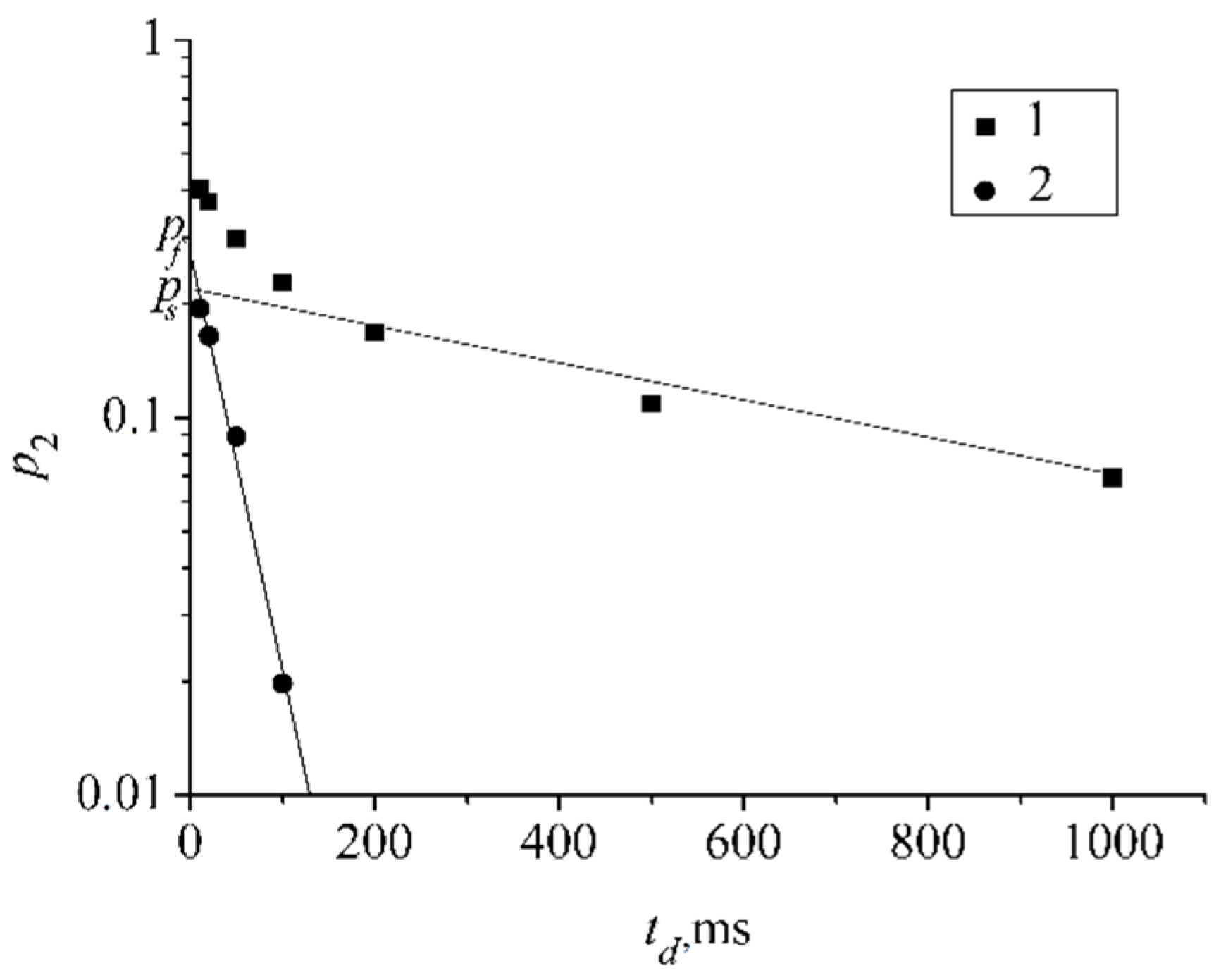

Figure 7 shows an example of dependence p₂(t_d). The characteristic times of the curve tail were about 1 s, which was in good agreement with the values of the spin lattice relaxation times (T₁ = 0.9 s) for this compound, measured independently. Figure 7 also shows the result of the spin lattice relaxation component subtracting, which is a straight line. Their slopes were used to calculate the lifetime τ according to Equation (5):

$$p_2=p_f\exp \left(-\frac{t_d}{\tau }\right)+p_s\exp \left(-\frac{t_d}{T_1}\right),$$

(5)

where τ is the lifetime, T₁ is fullerene spin lattice relaxation time, p_f + p_s = p₂(0).

The lifetime values τ are 140 ms, 180 ms, and 200 ms for compound IX solution concentrations of 64.4 mg/mL, 21.3 mg/mL, and 5.3 mg/mL, respectively.

Compound X

For compound X, aqueous solutions of the concentrations indicated in Section 3.1 were prepared. NMR studies were performed for ¹H and ¹⁹F nuclei. The diffusion decays of ¹H (Figure 8a) and ¹⁹F (Figure 8b) nuclei at different diffusion times t_d are shown.

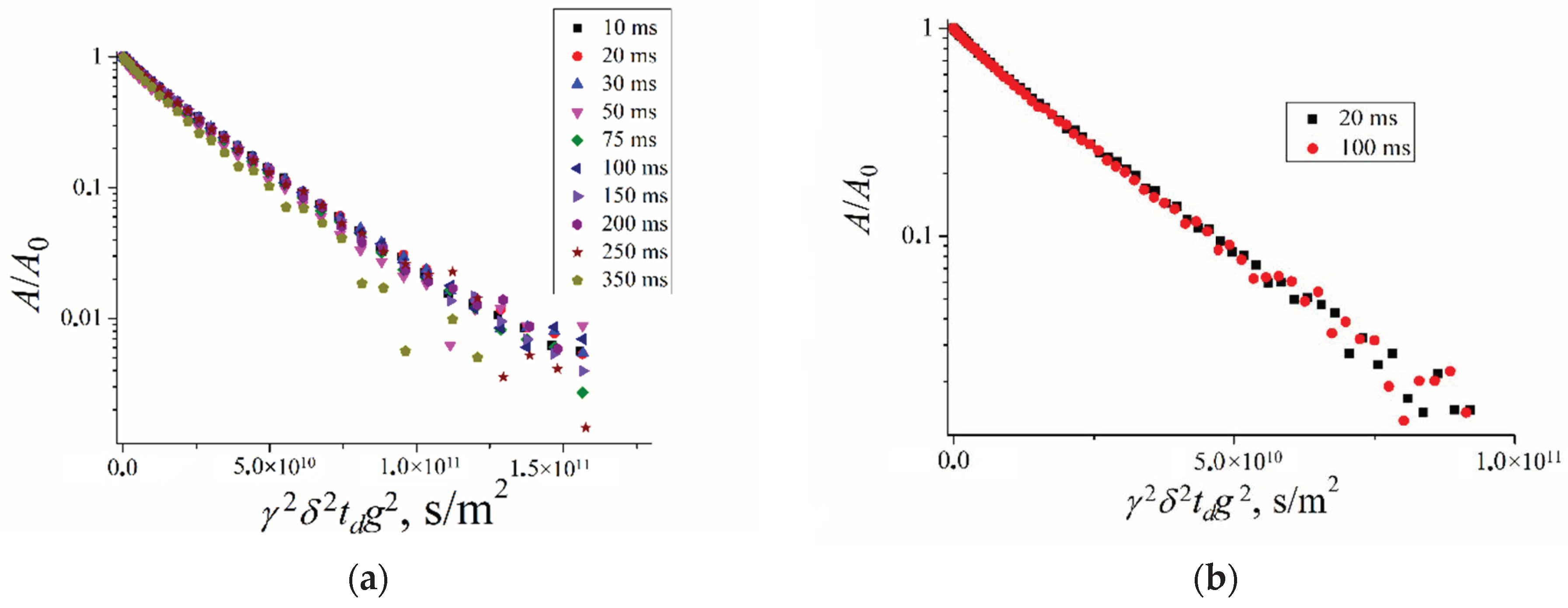

These diffusion decays are bi-exponential shapes. As shown in Figure 8, self-diffusion coefficients D_s1 and D_s2 are t_d independent. It may be proposed that two types of molecule associations are observed. The exchange rate between these two associates was slow compared to diffusion time. Self-diffusion coefficients decrease with solution concentration increasing. Hydrodynamic diameters calculated from Stokes–Einstein by Equation (2) are given in

Table 4. Diameters of particles of compound X calculated on the basis of Equation (2) from self-diffusion coefficients measured for ¹H and ¹⁹F nuclei.

C, mg/mL	1H		19F
	dH1, nm	dH2, nm	dH1, nm	dH2, nm
6	7.6 ± 0.4	0.8 ± 0.1	7.6 ± 0.4	1.0 ± 0.1
8	7.6 ± 0.4	1.0 ± 0.1	7.8 ± 0.4	1.0 ± 0.1
12	7.4 ± 0.4	1.1 ± 0.1	8.2 ± 0.4	1.1 ± 0.1
16	7.6 ± 0.4	1.1 ± 0.1	8.0 ± 0.4	1.1 ± 0.1
24	8.0 ± 0.4	1.3 ± 0.1	8.4 ± 0.4	1.6 ± 0.1
30	7.9 ± 0.4	1.5 ± 0.1	8.8 ± 0.4	1.9 ± 0.1
50	9.8 ± 0.4	2.4 ± 0.1	10.6 ± 0.4	2.4 ± 0.1

. The lesser diameter is close to individual molecule diameters, but the largest diameter characterizes associate size.

The particle sizes calculated from ¹H and ¹⁹F self-diffusion data are agreed well. The associate size, as well as the relative part of associated molecules, increases with the solution concentration increasing. The diameter increases from 7.6 nm to 9.8 nm and from 7.6 nm to 10.6 nm; the associate part increases from 0.67 to 0.8 and from 0.69 to 0.83 for ¹H and ¹⁹F data, correspondingly, with concentration increasing from 6 to 50 mg/mL.

Compound XI

For compound XI, aqueous solutions of the concentrations indicated in Section 3.1 were prepared. NMR studies were performed on ¹H nuclei. These derivative diffusion decays are bi exponential which was evidence of two sizes of particles: individual molecules d_H2 = (0.9 ± 0.1) nm and associated molecules d_H1 = (5.6 ± 0.3) nm.

As shown in Figure 9, the low diffusion associated molecule component population p₁ decreases with diffusion time t_d increasing. In Figure 9, p₁(t_d) dependence is shown.

This dependence is exponential, as described by Equation (6). The lifetime of associates formed by molecules of compound XI in aqueous solutions was calculated.

$$p\left(t_d\right)=p\left(0\right)\exp \left(-\frac{t_d}{\tau }\right)$$

(6)

The lifetime of associates τ are (350 ± 10), (430 ± 20) and (440 ± 20) ms at solution concentration C = 10, 15 and 24.4 mg/mL, accordingly. The lifetime of associates increased insignificantly with solution concentration increasing.

Compound XII

The diffusion decay of compound XII is bi-exponential, which is due to isolated (self-diffusion coefficient D_s2 = (4.3 ± 0.8)·10⁻¹⁰ m²/s) and associated molecules (self-diffusion coefficient D_s1 = (7.5 ± 1.5)·10⁻¹¹ m²/s). The dependence of diffusion decay shape on diffusion time t_d and concentration was negligible, indicating a slow exchange between isolated and associated molecules compared to the maximum value of t_d (250 ms). The isolated molecule size d_H2 = 1.0 ± 0.2 nm, and the associate size was d_H1 = 5.0 ± 1.0 nm. The relative part of associates increases with concentration growth from 0.56 to 0.73.

Compound XIII

The ¹H diffusion decay for molecules of compound XIII is also bi-exponential, and decay shape depends on diffusion time and solution concentration C insignificantly. Self-diffusion coefficients Ds₁ and Ds₂ are (1.3 ± 0.1)·10⁻¹⁰ m²/s and (5.8 ± 0.2)·10⁻¹⁰ m²/s, accordingly. Hydrodynamical diameters are d_H2 = (0.7 ± 0.1) nm—isolated molecules and d_H1 = (2.8 ± 0.2) nm—associates. The associated molecules’ relative part increases from 0.59 to 0.70, with concentration increasing from 3 to 40 mg/mL.

2.2. Water-Soluble Fullerene Derivatives in Red Blood Cells

Water-soluble fullerene derivatives (WSFDs) are biologically active species. Therefore, one of the fundamental problems is to reveal the mechanism of fullerene derivative interaction with Red Blood Cells (RBCs).

We have previously performed a detailed study of the translational mobility of compound XI in various biological systems: liposomes, shadows, and erythrocytes [53]. In this work, analysis of the high-resolution NMR spectra of the following systems was conducted: an aqueous solution of compound XI; RBCs suspension; suspensions of RBCs, RBCs shadows, and liposomes with the addition of compound XI. Using the analysis of ¹H spectra at different amplitudes of the magnetic field gradient, we showed that the signals from the protons of compound XI could be uniquely identified in the spectra of suspensions. These signals do not overlap with the proton signals of the membrane components. It was also shown that, at a high amplitude of the magnetic field gradient, in the spectra of ¹H suspension of RBCs with added compound XI, a signal of WSFD molecules was well observed. At the same time, proton signals of compound XI molecules are absent in an aqueous solution under the same experimental conditions. A similar picture was obtained for compounds XII and XIII. Figure 10 shows examples of the ¹H spectra of the systems under study (erythrocyte suspensions with added compounds XI–XIII). ¹H chemical shifts of compounds are slightly changing in suspensions of RBCs compared to solutions due to fullerene derivative interaction with RBCs.

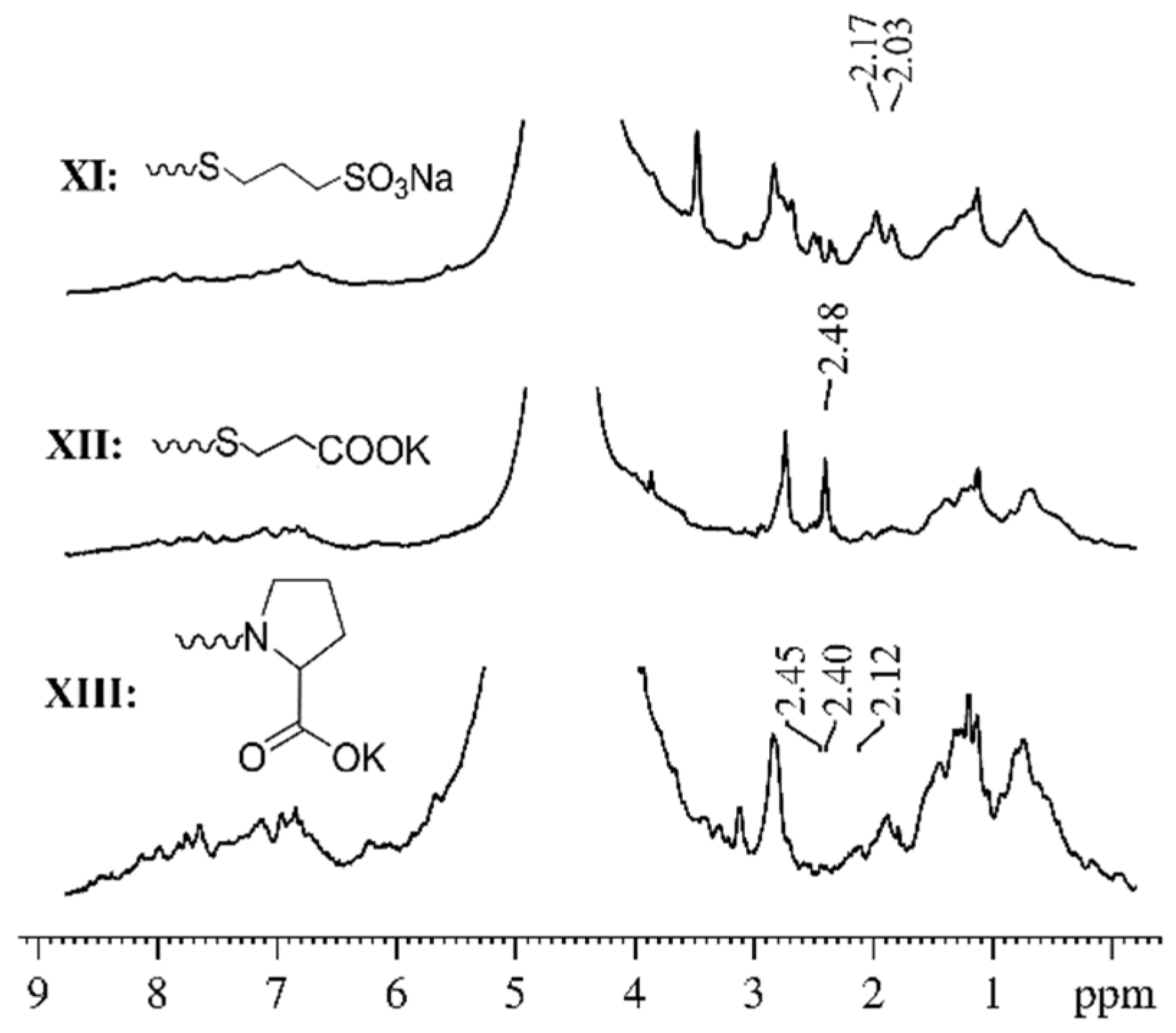

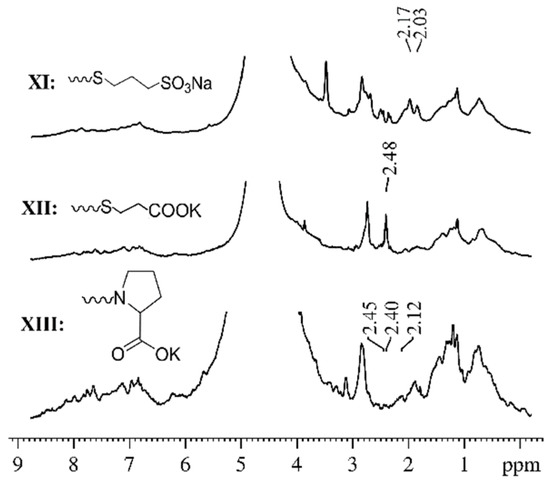

The isolated ¹H signals of compound molecules give the possibility to register the diffusion decays of WSFD molecules in a suspension of RBCs correctly. The obtained experimental data made it possible to extract information about the translational mobility of WSFD molecules in cell suspensions. The obtained diffusion decays were complex and were decomposed into three exponent components according to Equation (9) at m = 3. At the same time, in aqueous solutions of compounds XI–XIII, two exponential diffusion decays are observed. The values of the self-diffusion coefficients of the molecules of compounds XI–XIII are presented in

Table 5. Self-diffusion coefficients of WSFD molecules in aqueous solutions and RBCs suspension. D_s1^w and D_s2^w—aqueous solution; D_s1^s, D_s2^s, D_s3^s—RBCs suspension. Reprinted with permission from Ref. [44].

Compound	Aqueous Solution		RBCs Suspension
	Ds1w·1011, m2/s	Ds2w·1010, m2/s	Ds1s·1012, m2/s	Ds2s·1011, m2/s	Ds3s·1010, m2/s
XI	7.4 ± 0.7	4.1 ± 0.4	5.5 ± 0.8	3.9 ± 0.6	5.5 ± 0.8
XII	7.5 ± 1.5	4.3 ± 0.8	5.0 ± 1.0	4.4 ± 0.9	7.1 ± 1.4
XII	4.9 ± 0.5	1.2 ± 0.1	6.0 ± 1.0	3.8 ± 0.6	8.0 ± 1.0

[44].

As shown in Table 5, the translational mobility of molecules of compounds XI–XIII in a suspension of RBCs is characterized by three diffusion coefficients, the values of which differ by an order of magnitude. However, only two self-diffusion coefficients have been identified in the aqueous solutions of these compounds. Extraction of the third coefficient of self-diffusion, the value of which differs significantly from the other two coefficients, suggests that the movement of the molecules of compounds XI–XIII in the cell suspension was hindered.

It is known from the literature data that the lateral diffusion coefficient D_L, which characterizes the mobility of lipid molecules in the cell membrane, has a value of about (5–7)∙10⁻¹² m²/s [44,52,53]. The observed “low” coefficient of self-diffusion of the molecules of compounds XI–XIII was close to a lateral diffusion coefficient. Thus, the complex nature of the obtained experimental data can be explained by the fact that in the erythrocyte suspension, the molecules of compounds XI–XIII are in the aqueous phase of the system or are bound to the erythrocyte cell membrane. The penetration of molecules of compounds XI–XIII into the membrane was observed as a result of the appearance of a slow diffusion component. At the same time, in the aqueous phase, the molecules of compounds XI–XIII are in an isolated and associated form.

The analysis of the dependence of relative parts slow moving fullerene derivative molecules p₁ on diffusion time t_d makes it possible to estimate the lifetimes τ of fullerene derivative molecules in the erythrocyte membrane from Equation (6). Lifetimes τ for compounds XI–XIII are given in

Table 6. The self-diffusion coefficients D_s1^s, population p₁ at t_d→0, p₁(0), and lifetimes τ of WSFD molecules in RBCs. Reprinted with permission from Ref. [44].

Compound	Ds1s·1012, m2/s	p1(0)	τ, ms
XI	5.5 ± 0.8	0.33	440 ± 70
XII	5.0 ± 1.0	0.13	470 ± 70
XIII	6.0 ± 1.0	0.06	1200 ± 300

.

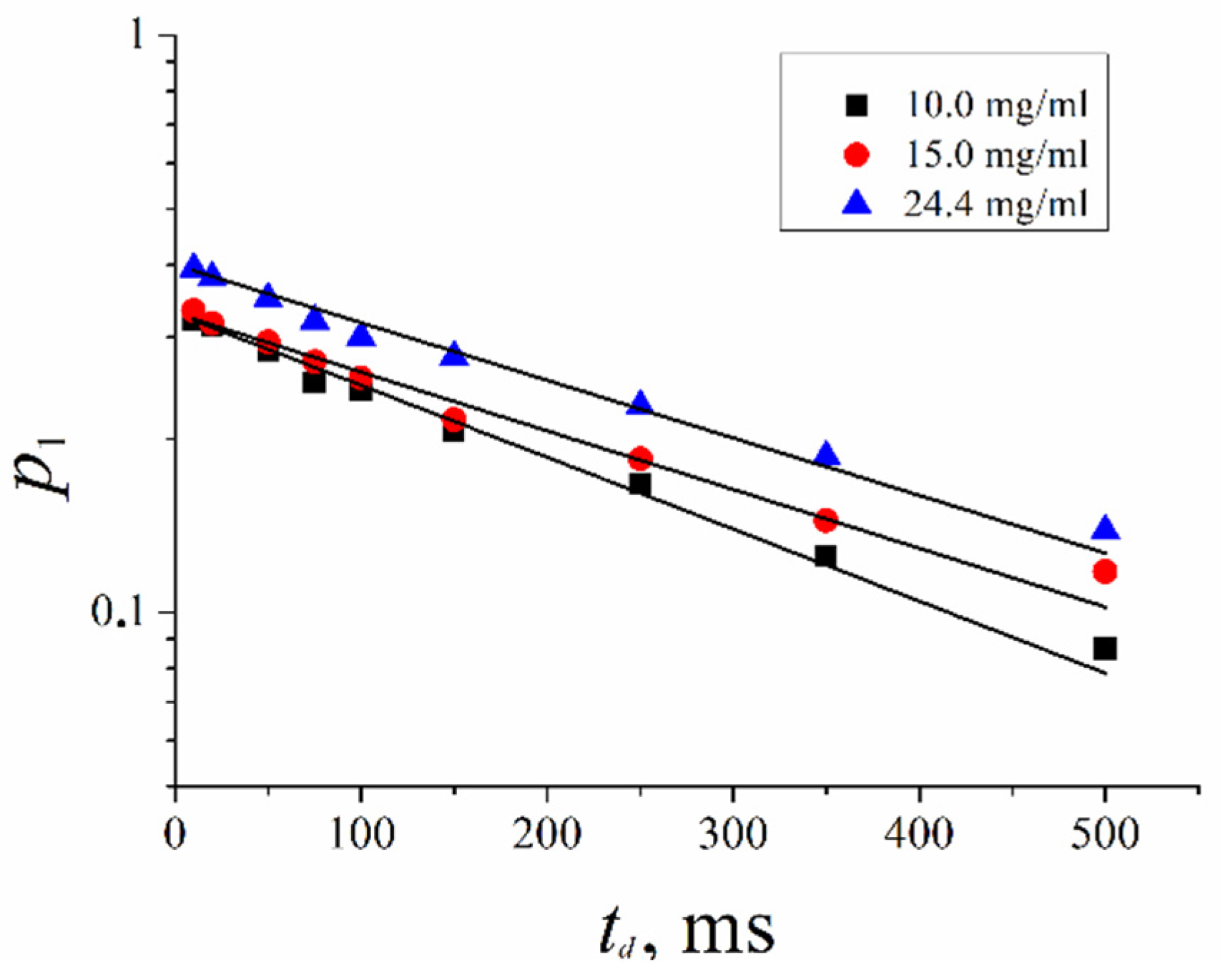

The dependences of the relative parts p₁ of molecules of compound XI on the diffusion time t_d at different concentrations are shown in Figure 11. From the analysis of these dependences, the lifetime calculation was carried out according to Equation (6). The obtained values of the lifetimes are presented in

Table 7. The values of the lifetime of the molecules of compound XI in the RBC membrane at various concentrations.

C, M	τ1, ms
1.99·10−3	280 ± 15
9.12·10−3	300 ± 20
1.19·10−2	440 ± 70

.

As seen from Table 7, the lifetime τ₁ of compound XI molecules in the cell membrane increases with the increase of its concentration in the RBCs suspension.

3. Materials and Methods

3.1. Fullerene Derivatives

Methanofullerenes I, II, and IV were reported recently [60,61]. Compound III represents a well-known n-type material for organic solar cells abbreviated as PCBM [62]. Fullerene derivatives V and VIII were synthesized recently in the reaction of chlorofullerene C₆₀Cl₆ and triethyl phosphite [17]. Fullerene derivatives VI and VII were reported as products of the Friedel–Crafts arylation of C₆₀Cl₆ [63]. Compounds IX and XI were synthesized as described in [64]. Fullerene derivatives X, XII, and XIII were obtained and characterized as reported in our previous papers [19], [65], [66], respectively.

The molecular mobility of compounds I–V was studied in various solvents: CDCl₃ (I, II, III, V), CS₂ (I, II), and C₆D₅CD₃ (II, IV). For investigation of the molecular mobility of compound VI in solution, deuterated DMSO-d6, acetone-d6, and mixtures of DMSO-D₂O were used. Compounds VII–XIII are highly soluble in water due to the presence of five hydrophilic groups. Therefore, solutions of various concentrations in deuterium water were prepared for them. The concentrations were from 6 to 24 mg/mL for VII; from 2 to 50 mg/mL for VIII; from 5 to 64 mg/mL for IX; from 6 to 50 mg/mL for X; from 10 to 24 mg/mL for XI; from 10 to 47 mg/mL for XII; from 3 to 40 mg/mL for XIII.

3.2. Red Blood Cells

Blood samples were taken from anesthetized mice by decapitation. The 0.11 molar sodium citrate aqueous solutions were used as an anticoagulant. The citrate solution to blood ratio was one to five by volume. The collected blood samples were centrifuged for 15 min at 1000 rpm, and the plasma was removed with decantation. The erythrocyte sediment was resuspended in NaCl solution (salt concentration was 0.85 g per 100 mL) containing 5 mM of Na-phosphate buffer with pH = 7.4. The centrifugation and decantation procedures were repeated triply; the duration of the second and third centrifugations was 7 min. The fresh buffered NaCl solution was used for each resuspending step. The obtained erythrocyte sediment was stored at 4 °C for no more than 36 h. The fullerene derivatives were added to the RBCs suspension. The final concentration of WSFD in suspension was 1.19·10⁻², 9.12·10⁻³, and 1.99·10⁻³ M for compound XI; 1.2·10⁻² M for compound XII and XIII.

3.3. PFG NMR Technique

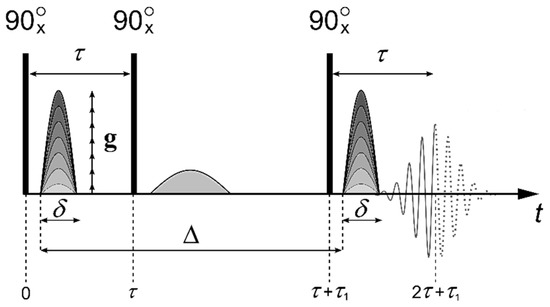

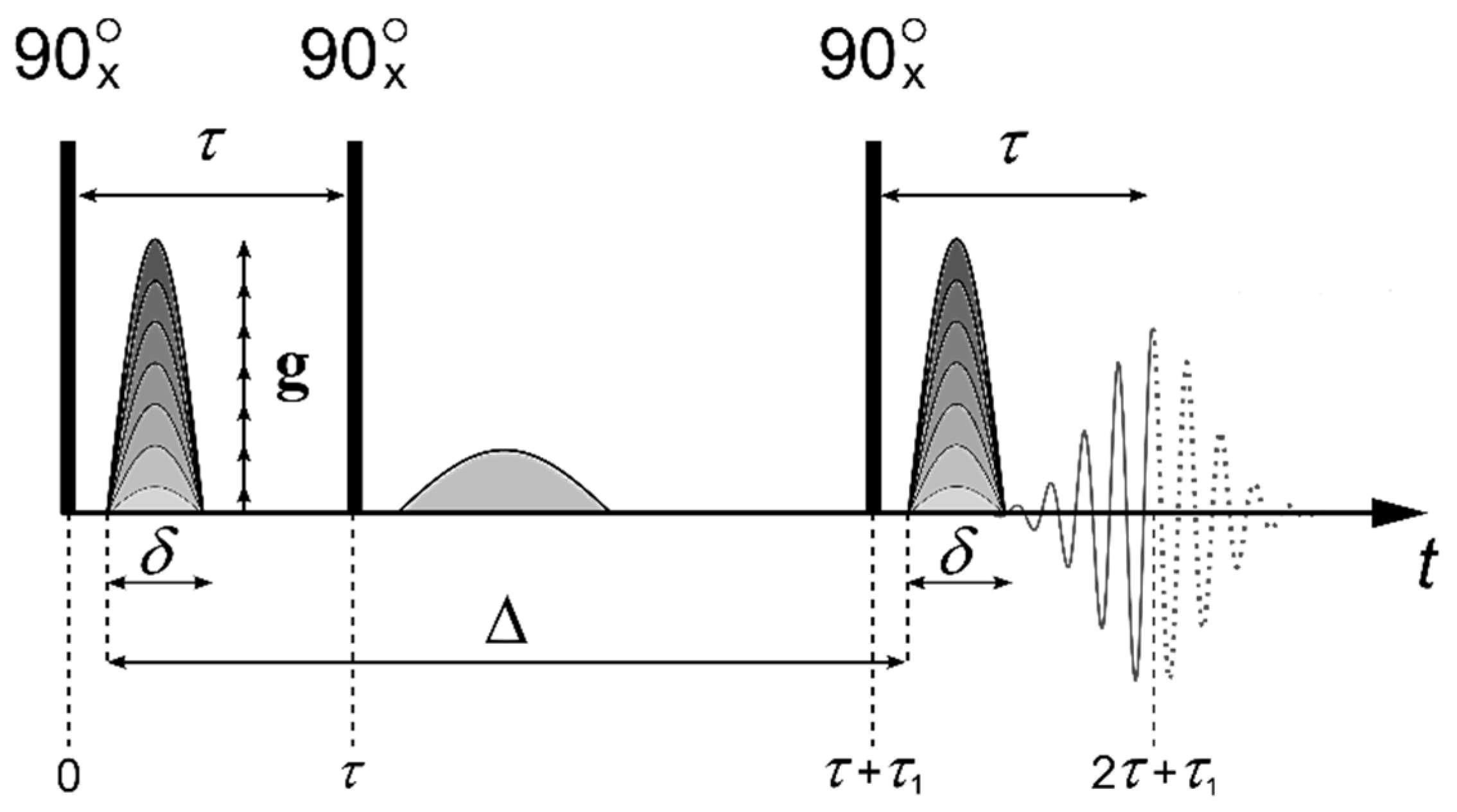

The self-diffusion coefficients were measured with the pulsed field gradient technique for ¹H, ¹⁹F, and ³¹P nuclei at the frequencies of 400.13, 376.498, and 161.976 MHz, correspondingly. The measurements were conducted on Bruker Avance-III—400 NMR spectrometer equipped with the diff-60 gradient unit. The pulsed field gradient stimulated echo sequence shown in Figure 12 was applied in the experiments. Three 90° pulses produce a stimulated spin-echo at the time of 2τ + τ₁ (where τ and τ₁ are the time intervals between the first and the second or the second and the third 90° pulses, respectively). The magnetic field gradient pulses of amplitude g and duration δ were applied after the first and the third 90° pulses. The gradient strength was varied linearly in 64 steps within the range from 0.1 to 27 T/m. The integrated intensities of the spectrum lines were used to obtain the dependence of the echo signal attenuation with respect to g² (diffusion decay) [44,49,50,51,52,67].

For the molecules undergoing unhindered isotropic Brownian motion, the evolution of the spin echo signal is described by the following Equation (3):

$$A\left(2\tau ,{\tau }_1,g\right)=A\left(2\tau ,{\tau }_1,0\right)\exp \left(-{\gamma }^2{g}^2{\delta }^2{t}_d{D}_s\right),$$

(3)

where γ is gyromagnetic ratio, t_d = Δ−δ/3 is the diffusion time, and D_s is the self-diffusion coefficient, τ, τ₁ and g are shown in Figure 12; A(2τ, τ₁, 0) is expressed by the equation:

$$\left(2\tau ,{\tau }_1,0\right)=\frac{A\left(0\right)}{2\exp \left(-\frac{2\tau }{T_2}-\frac{{\tau }_1}{T_1}\right)}$$

(7)

where A(0) is the signal intensity after the first radio frequency (RF) pulse (Figure 12). T₁ and T₂ are the spin-lattice and spin-spin relaxation times, respectively. While measuring the echo signal evolution, τ and τ₁ are fixed, and only the dependence of A as a function of g is analyzed, which is called the diffusion decay.

In the case of non-exponential diffusion decay decays, the experimental curves:

$$A\left(g\right)=\frac{A\left(2\tau ,{\tau }_1,g\right)}{A\left(2\tau ,{\tau }_1,0\right)},$$

(8)

are usually deconvoluted in several exponential components, which are described by Equation (3). For the multiphase system consisting of m phases in the case of slow (compared to t_d) molecular exchange between the phases:

$$A\left(g\right)={\displaystyle \sum }_{i=1}^m{p}_i^{\prime }\exp (-{\gamma }^2{g}^2{\delta }^2{t}_d{D}_{si})$$

(9)

where D_si is the self-diffusion coefficient of the i-th component and:

$$\begin{gathered} p_i^{\prime }=p_i\exp \left(-\frac{2\tau }{T_{2i}}-\frac{{\tau }_1}{T_{1i}}\right)/{\displaystyle \sum }_{i=1}^m{p}_i\exp \left(-\frac{2\tau }{T_{2i}}-\frac{{\tau }_i}{T_{1i}}\right), \\ {\displaystyle \sum }_{i=1}^m{p}_i=1 \end{gathered}$$

(10)

Here p_i is the relative amount of the nuclei belonging to the molecules characterized by the self-diffusion coefficient D_si. The value p_i is called the population of the i-th phase. For the long T₁ and T₂ values, it is usually assumed that p_i ≈ p′_i. The details of the experimental curve decomposition in several exponential diffusion decays were described previously [44].

We have decomposed diffusion decays on two or three exponential components; the values m in Equation (9) were two or three, accordingly. Between different phases (individual and associated molecules), a molecular exchange occurs. The lifetime in phase is τ. In the case of fast exchange rate τ << t_d (t_d is diffusion time), the exponential diffusion decay is observed, which is characterized by the average self-diffusion coefficient:

D = Ʃp_i∙D_si

(11)

For slow rate exchange conditions, τ >> t_d multi-exponential diffusion decay shape according to Equation (9) is observed, and p_i and D_si do not depend on diffusion time t_d.

If phase exchange time is comparable with diffusion time τ ≈ t_d, the slowly moving molecule phase population exponentially decreases with increasing diffusion time, and lifetime τ may be estimated [49,50].

4. Conclusions

The self-organization of a series of differently functionalized fullerene derivatives dissolved in the solvents of different polarity and suspension of RBCs was investigated with pulsed field gradient NMR spectroscopy of ¹H, ¹⁹F, ³¹P nuclei. No aggregation was observed for the fullerene derivatives containing nonpolar functional groups I–V in carbon disulfide, deuterated chloroform, and toluene-d₈ solutions. The hydrodynamic diameters calculated from Stokes–Einstein equation are equal to individual molecule van der Waals diameters (1.2–1.4 nm). Therefore, Stokes–Einstein model is correct for hydrodynamic size calculations. The fullerene derivatives bearing polar functional groups such as -COOH, -COOK, -P(O)(OH)₂, -SO₃Na showed a strong tendency to aggregate. The revealed diameters of the aggregates varied from 2.2 nm to 9.6 nm depending on the solvent and temperature. The water-soluble fullerene derivatives VII–XIII demonstrated the most stable aggregates with a diameter of about 5 nm. An analysis of the concentration dependences showed that in solutions, the number of associated molecules of water-soluble derivatives of fullerenes increases with increasing concentration. Aggregated lifetimes were estimated from the analysis of diffusion decay shape dependence on the diffusion time. Associate lifetime increases with increasing fullerene derivatives aqueous solution concentration.

Self-diffusion of water-soluble fullerene derivatives XI–XIII in RBCs was characterized using ¹H PFG NMR. Were obtained and analyzed the diffusion decays of the molecules of compounds XI–XIII in a suspension of RBCs. It was found that a fraction of fullerene derivative molecules shows a self-diffusion coefficient of about (5–6)·10⁻¹² m²/s, independent of fullerene derivative type, which matched the coefficient of the lateral diffusion of lipids in the RBCs membrane (D_L = (5–7) 10⁻¹² m²/s). This experimental finding evidences the absorption of the fullerene derivatives by RBC. The obtained results suggest that fullerene derivative molecules are probably fixed on the RBC surface. The average lifetime of the fullerene derivative molecule on RBC was estimated as 440 ± 70 ms for compound XI, 470 ± 70 ms for compound XII, and 1200 ± 300 ms for compound XIII. An experimental dependence of the lifetime of molecules of compound XI in the RBC membrane on the concentration of the compound in suspension was obtained. It was shown that with increasing concentration, the lifetime also increases.

Thus, pulsed field gradient NMR was shown to be a versatile technique for the investigation of self-organization and interactions of the fullerene derivatives with blood cells, providing essential information which could be projected on their behavior in-vivo after intravenous administration while screening as potential drug candidates.
