Systematic Analysis and Functional Characterization of R2R3-MYB Genes in Scutellaria baicalensis Georgi

by
Wentao Wang
1,2,3,†,
Suying Hu
1,†,
Caijuan Zhang
1,
Jing Yang
1,4,
Tong Zhang
1,
Donghao Wang
1,
Xiaoyan Cao
1,* and
Zhezhi Wang
1,*
1
National Engineering Laboratory for Resource Development of Endangered Crude Drugs in Northwest China, Key Laboratory of the Ministry of Education for Medicinal Resources and Natural Pharmaceutical Chemistry, Shaanxi Normal University, Xi’an 710062, China
2
University of Chinese Academy of Sciences, Beijing 100049, China
3
Key Laboratory of Plant Resources Conservation and Sustainable Utilization, South China Botanical Garden, Chinese Academy of Sciences, Guangzhou 510650, China
4
National Maize Improvement Center, College of Agronomy and Biotechnology, China Agricultural University, Beijing 100094, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2022, 23(16), 9342; https://doi.org/10.3390/ijms23169342
Submission received: 24 July 2022 / Revised: 10 August 2022 / Accepted: 13 August 2022 / Published: 19 August 2022
(This article belongs to the Section Molecular Genetics and Genomics)
Browse Figures
Review Reports Versions Notes

Abstract

:
R2R3-MYB transcription factors participate in multiple critical biological processes, particularly as relates to the regulation of secondary metabolites. The dried root of Scutellaria baicalensis Georgi is a traditional Chinese medicine and possesses various bioactive attributes including anti-inflammation, anti-HIV, and anti-COVID-19 properties due to its flavonoids. In the current study, a total of 95 R2R3-MYB genes were identified in S. baicalensis and classified into 34 subgroups, as supported by similar exon–intron structures and conserved motifs. Among them, 93 R2R3-SbMYBs were mapped onto nine chromosomes. Collinear analysis revealed that segmental duplications were primarily responsible for driving the evolution and expansion of the R2R3-SbMYB gene family. Synteny analyses showed that the ortholog numbers of the R2R3-MYB genes between S. baicalensis and other dicotyledons had a higher proportion compared to that which is found from the monocotyledons. RNA-seq data indicated that the expression patterns of R2R3-SbMYBs in different tissues were different. Quantitative reverse transcriptase-PCR (qRT-PCR) analysis showed that 36 R2R3-SbMYBs from different subgroups exhibited specific expression profiles under various conditions, including hormone stimuli treatments (methyl jasmonate and abscisic acid) and abiotic stresses (drought and cold shock treatments). Further investigation revealed that SbMYB18/32/46/60/70/74 localized in the nucleus, and SbMYB18/32/60/70 possessed transcriptional activation activity, implying their potential roles in the regulatory mechanisms of various biological processes. This study provides a comprehensive understanding of the R2R3-SbMYBs gene family and lays the foundation for further investigation of their biological function.

1. Introduction

Transcription factors (TFs), as significant regulators at the transcriptional level, can control or affect diverse biological processes via activating or inhibiting specific gene expressions [1]. The myeloblastosis (MYB) TFs, as one of the largest functional TF families among plants, were characterized by an extremely conserved MYB DNA binding domain that is composed of one to four imperfect repeats at the N-terminus [2]. Each repeat is typically composed of 50–53 amino acids that encode three α-helices, the second and third of which create a 3D helix–turn–helix (HTH) structure via three regularly spaced tryptophan residues for binding to the major DNA groove at a specific recognition site during transcription [2]. There are four classes of MYB proteins that can be distinguished based on the number of Rs (MYB repeats), namely 1R-MYB, R2R3, 3R, and 4R-MYB [3]. Among them, the R2R3-MYB TFs that play important roles in a multitude of key physiological and biochemical processes, including organ development, hormone synthesis and signal transduction, response to biotic and abiotic stresses, and primary and secondary metabolism particularly those that affect nutritional and medicinal active ingredients or morphological and qualitative characteristics [4,5,6,7].
Recently, as many plants have undergone whole-genome sequencing, the number of identified R2R3-MYB gene members continues to increase. For example, 126 R2R3-MYB genes have been reported in Arabidopsis thaliana [8], 157 in Zea mays [9], 125 in Oryza sativa [10], 108 in Vitis vinifera [11], 110 in Salvia miltiorrhiza [12], 109 in Hypericum perforatum [13], 244 in Glycine max [14], 196 in Populus trichocarpa [15], and 69 in Ginkgo biloba [16]. Subsequently, the genetic and biochemical characterization of R2R3-MYB proteins in a wide variety of plant species has followed. Numerous R2R3-MYBs have been implicated in the response to biotic and abiotic conditions. For instance, rice OsMYB2 was involved in enhanced cold, salt, and dehydration tolerance and reduced ABA sensitivity [17]; MdoMYB121 enhanced the tolerance to cold, drought, and salinity stress in M. domestica [18]; apple MdMYB88/124 is involved in cold tolerance by CBF-dependent and CBF-independent pathways [19]; and AtMYB2, AtMYB102, and AtMYB41 were induced by salt, phosphate starvation, drought, and wounding stress in Arabidopsis [20,21,22].
Some R2R3-MYB TFs have been characterized in regulating secondary metabolites biosynthesis, especially anthocyanins and flavonoids in the phenylpropanoid biosynthetic pathway. For example, R2R3-MYB TFs in many species were identified and characterized for their participation in anthocyanin biosynthesis, including AtMYB75/90/113/114 in Arabidopsis [23,24], MdMYBA/1/3/10/110a in apple [25,26,27], PyMYB10/114 in pears [28,29], FaMYB10 in strawberry [30], StAN1 in potato [31], and MaAN2 in Muscari armeniacum [32]. AtMYB11/12/111 promotes flavonol accumulation in the A. thaliana seedling [24]. EsMYB9 and EsMYBF1 from Epimedium sagittatum positively regulate flavonoid biosynthesis and accumulation by activating the structural genes CHS, CHI, and F3H [33,34]. While AtMYB4 [35] and MdMYB28 [36] are repressors of flavonoids in Arabidopsis and apple, respectively. VvMYB84 [37] from grape negatively regulates flavonoid biosynthesis in a similar manner to GmMYB100 from soybean [38]. Currently, the functions of R2R3-MYBs have only been identified and characterized in Arabidopsis, agricultural, and vegetable plants, while little is known about them in Chinese herbal medicines and commercial crops.
Scutellaria baicalensis Georgi is an important medicinal plant in the Lamiaceae family and is extensively used in China, Japan, and Southeast Asian countries [39]. Scutellariae Radix (the dried root of S. baicalensis) has been applied as an ethnobotanical herbs for more than 2000 years, since being recorded in Chinese ancient medical books [40]. Pharmacological studies have shown that Scutellariae Radix possesses various bioactivities (e.g., antiviral, antibacterial, neuroprotectant, and cardiovascular protectant, etc.) [40]. The major medically active compounds in Scutellariae Radix are the flavonoids, such as baicalin, wogonoside, and their aglycones [41]. Encouragingly, baicalin and baicalein have been proven to repress the replication of COVID-19 virus via inhibiting SARS-CoV-2 3CLpro (3C-like protease) [42,43]. In this species, the genome sequence has been released and several enzyme genes of the flavonoid pathway have been identified [44,45], while the information of R2R3-MYB genes in S. baicalensis is lacking, which hinders research into R2R3-SbMYBs functionality to a certain extent. Hence, we performed a systematic bioinformatics analysis of R2R3-SbMYB gene family to understand the R2R3-MYB TF gene family′s function, evolution, and expression profiles in S. baicalensis.
Here, we carried out a genome-wide analysis for the R2R3-MYB gene family and discovered 95 members in S. baicalensis. The comprehensive bioinformatics analysis of the R2R3-SbMYBs was conducted, such as sequence features, phylogenetic relationships, chromosome distribution, gene structure, motif composition, cis-element analysis, and collinearity and synteny analysis. RNA-Seq analysis revealed the expression patterns of R2R3-SbMYB genes in different tissues. A total of 36 R2R3-SbMYBs were selected and subjected to gene expression analyses under hormonal treatments and abiotic stresses via qRT-PCR. Considering these results, we might be able to carry out a further functional study of R2R3-MYB proteins in S. baicalensis using these data.

2. Results

2.1. Identification, Sequence Feature, and Phylogenetic Analysis of the R2R3-SbMYB Members

A total of 209 SbMYB candidate genes containing complete MYB domains were originally identified from the S. baicalensis genome. Finally, 95 R2R3-SbMYBs genes were verified via Pfam and SMART. As a result of their random distribution, 93 R2R3-SbMYB genes have been renamed from SbMYB1 to SbMYB93 according to where they map on the chromosomes, while two R2R3-SbMYBs (evm.model.contig391.4 and evm.model.contig588.2), were renamed SbMYB94 and SbMYB95, respectively, because they could not be assigned to any specific chromosome.
Multiple sequence alignment analysis revealed that R2R3-SbMYB has a similar distribution of R2 and R3 repeat residues as Arabidopsis R2R3-MYB (Figure 1). The R2 repeat in both S. baicalensis and Arabidopsis contains three extremely conserved tryptophan residues (W) at positions 5, 25, and 45 (Figure 1A,B), which play significant roles in MYB-DNA interaction via forming a hydrophobic core in the HTH structure which is also known as the signature of the MYB domain. Similarly, in the R3 repeat, there are three highly conserved residues at positions 5, 24, and 43, including a phenylalanine (F) and two tryptophan residues (W) (Figure 1C,D), suggesting that the R2R3 domains were extremely conserved.
The detailed characteristics of the 95 R2R3-SbMYB members were analyzed and are listed in Table S1. The lengths of the amino acids of the R2R3-SbMYB family ranged from 144 to 972, with the pI value ranged from 4.90 (SbMYB62) to 9.85 (SbMYB8) and MW from 10.82 kDa (SbMYB58) to 91.76 kDa (SbMYB57).
To further elucidate the functions of the R2R3-SbMYB proteins and the evolutionary relationships within the R2R3-MYB family, an NJ tree containing 95 R2R3-SbMYBs and 126 R2R3-AtMYBs was constructed (Figure 2, Table S2). These R2R3-MYBs from S. baicalensis and A. thaliana were divided into 34 subgroups (S1–S34) and named based on the previous report [8]. Remarkably, 29 clades contained different numbers of R2R3-MYBs from the two species, while four clades (S03, S10, S12, and S33) only included R2R3-AtMYBs, and one clade (S29) was specific to R2R3-SbMYBs (Figure 2), suggesting that these subgroup members may have particular responsibilities.

2.2. Analyses of Chromosome Distribution, Gene Duplication, and Synteny for R2R3-SbMYB Genes

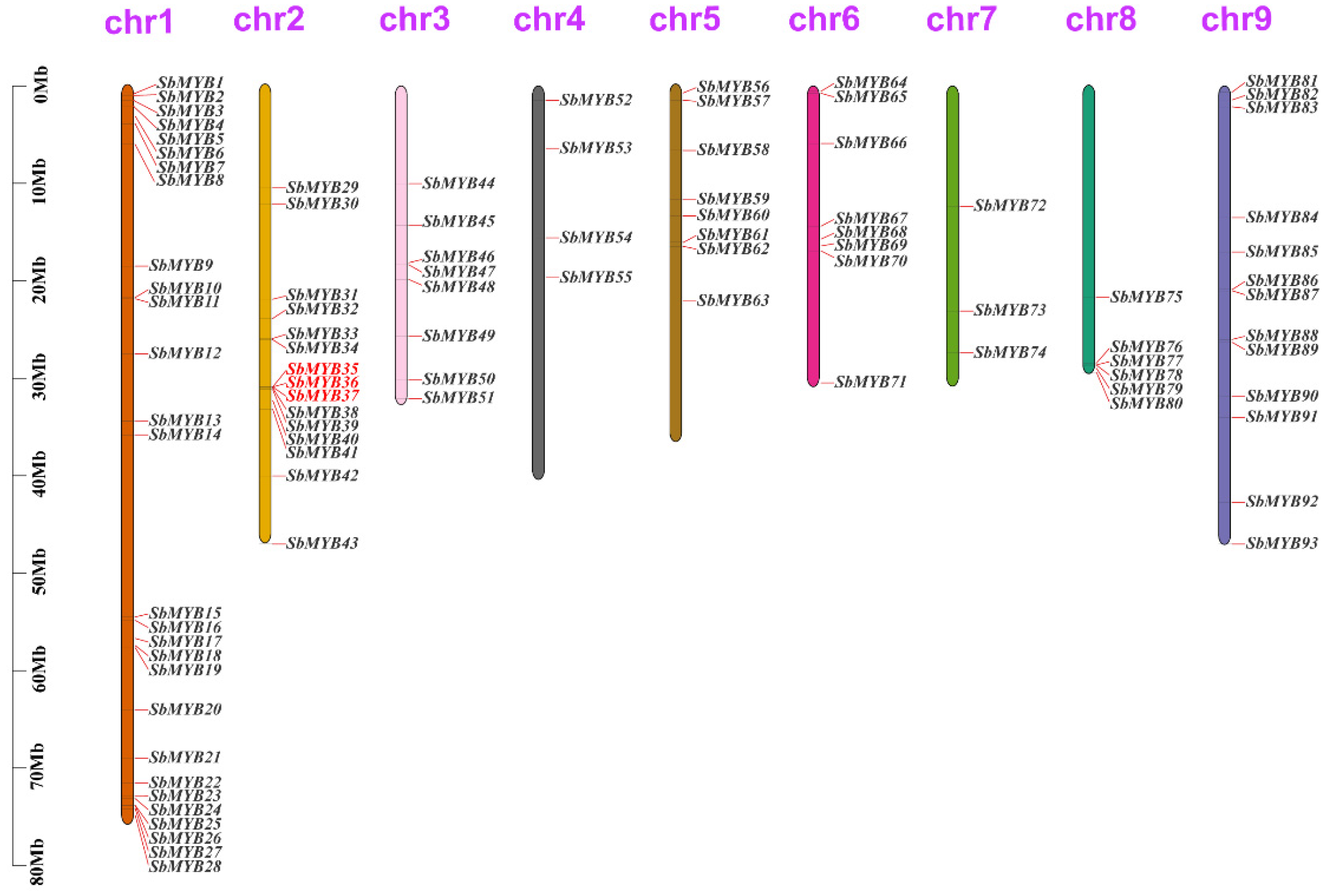

According to genome chromosome location analyses, R2R3-SbMYB genes were unevenly spread throughout nine chromosomes (Figure 3). Chromosome 1 contained the largest number of R2R3-SbMYBs (28 members, accounting for 30.1%), followed by chromosome 2 with 15 R2R3-SbMYBs, while chromosome 7 contained the minimum number of three genes. Furthermore, these results suggested that the R2R3-SbMYBs, distributed adjacently on the same chromosome, were divided into the same subgroup in the phylogenetic analysis. For example, SbMYB35, SbMYB36, and SbMYB37, clustered and distributed on chromosome 2 (Figure 3), were grouped into the S9 (Figure 2), suggesting that these clustered genes may have similar molecular functions.

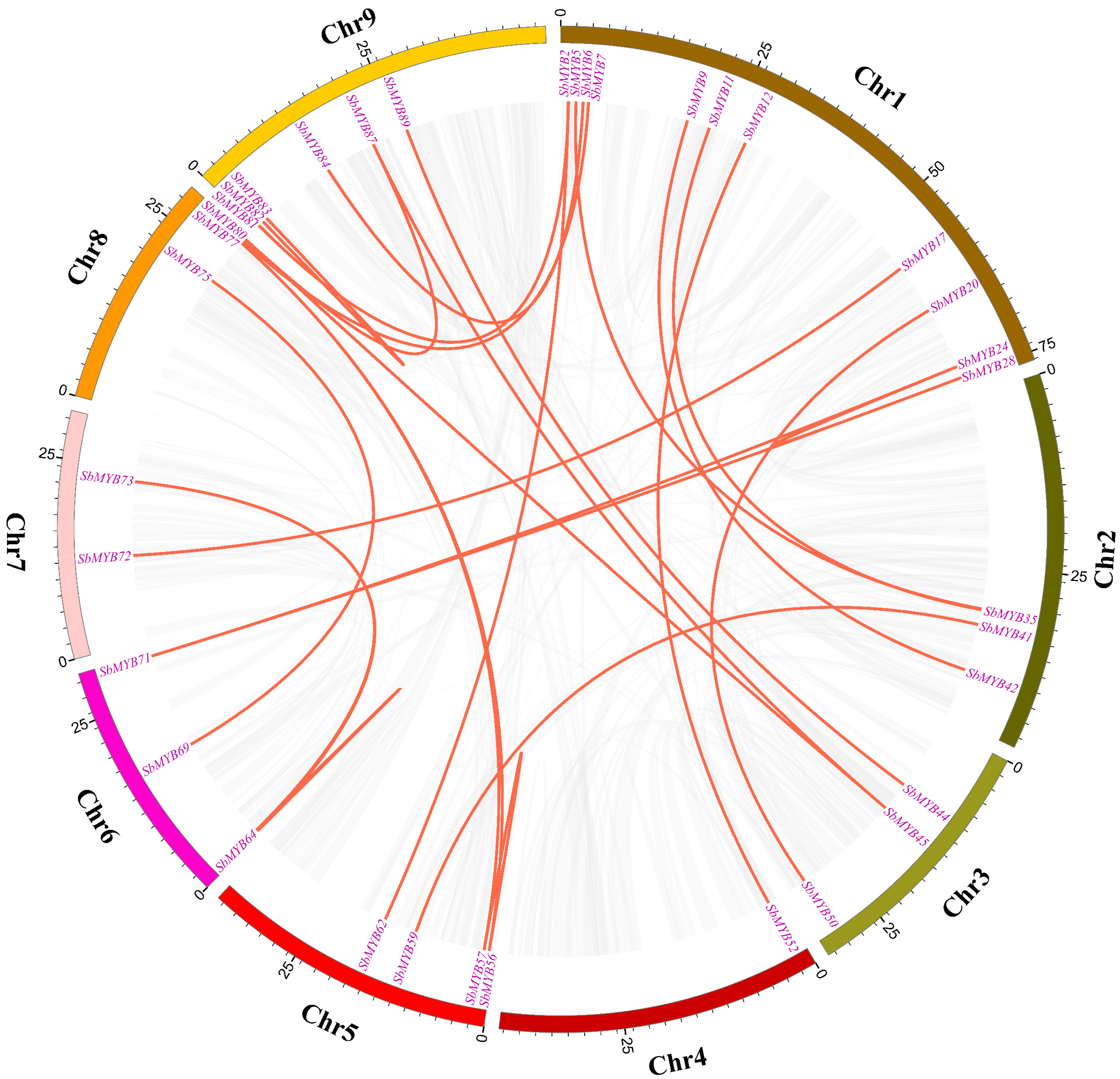

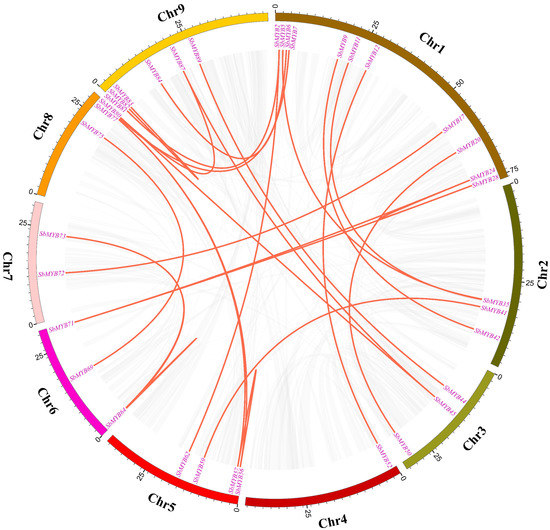

The collinearity of the R2R3-SbMYB genes was constructed via BLASTP and MCScanX software to understand the potential duplication events between them. Among these R2R3-SbMYBs, 25 segmental duplication pairs were detected between the R2R3-SbMYBs (Figure 4 and Table S3). Meanwhile, we also observed intrachromosomal duplications, identified only one tandem duplication event with three R2R3-SbMYBs, in which SbMYB35 was tandemly duplicated with SbMYB36 and SbMYB37 on two chromosome (Figure 3 and Table S3). These results determined that gene duplications, especially segmental duplications, fueled R2R3-SbMYBs diversification and evolution.

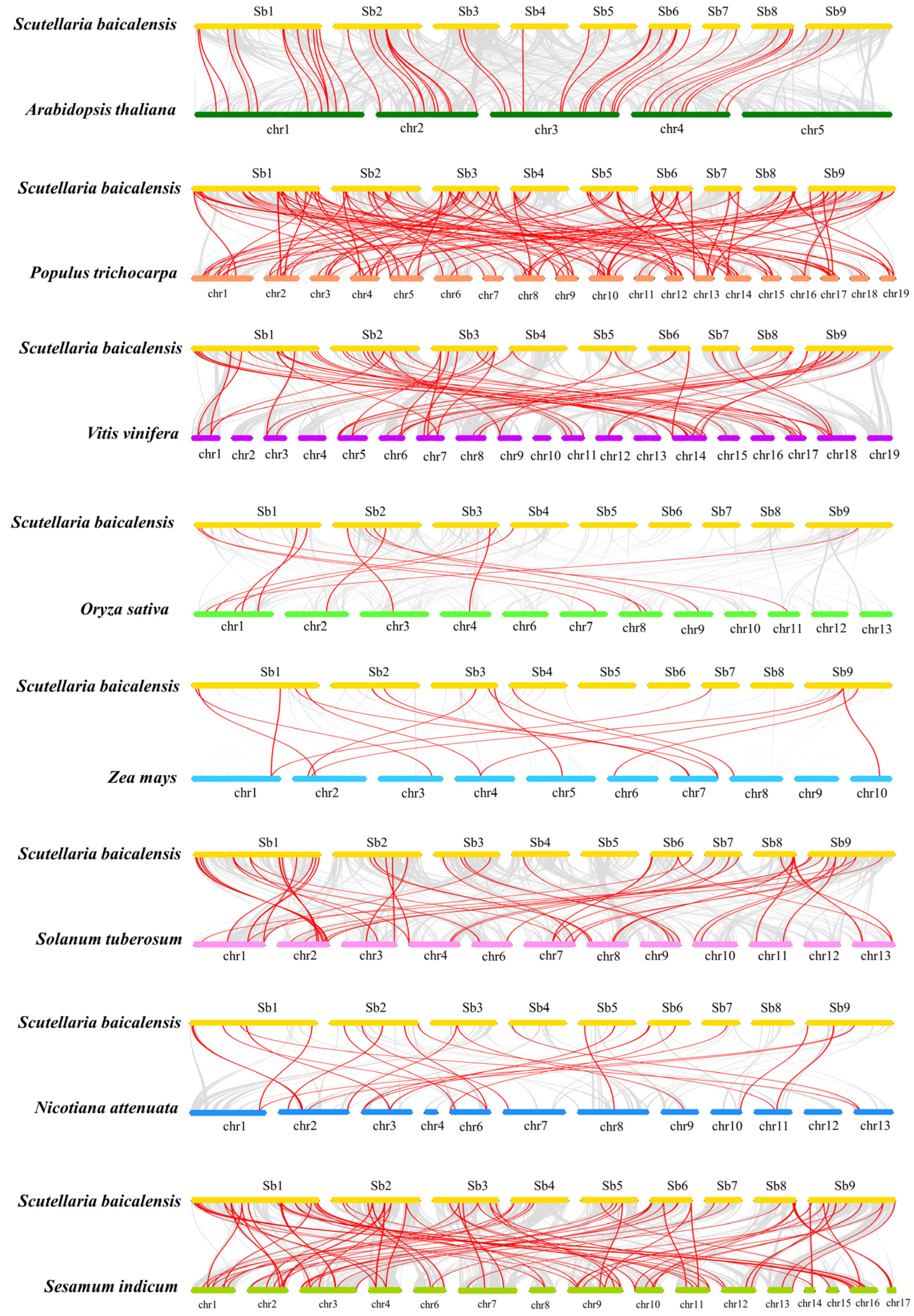

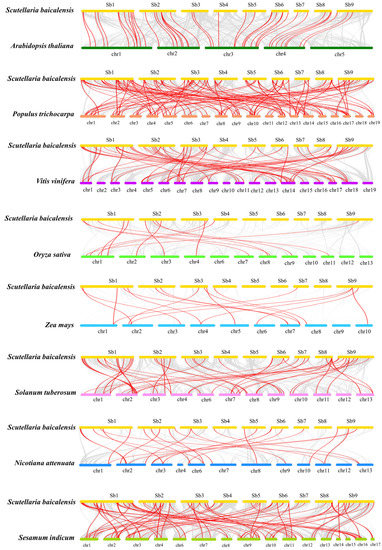

To further elucidate the possible evolutionary relationship of the R2R3-SbMYBs between S. baicalensis and other eight representative species, a comparative syntenic map was constructed between these species (Figure 5 and Table S4). A total of 70 R2R3-SbMYBs exhibited a syntenic relationship between S. baicalensis and Sesamum indicum, followed by P. trichocarpa (67), V. vinifera (54), Solanum tuberosum (44), A. thaliana (40), Nicotiana attenuatattenuate (28), Z. mays (15), and O. sativa (13). These results indicated that S. baicalensis and dicots presented more homologous gene pairs than S. baicalensis and monocots. Besides, some R2R3-SbMYBs were found to be collinear with at least three R2R3-MYBs of other species, especially those in S. indicum and P. trichocarpa, suggesting that these R2R3-MYBs may play important roles in the evolution of plants. Furthermore, these results showed that some R2R3-SbMYBs, including SbMYB3, 5, 20, 21, 30, 31, 34, 38, and 50, had collinear paired genes with R2R3-MYBs of other seven species, indicating that these synonymous gene pairs are highly conserved in R2R3-MYB evolution.

2.3. Gene Structure, Motif Composition, and Cis-Elements Analysis

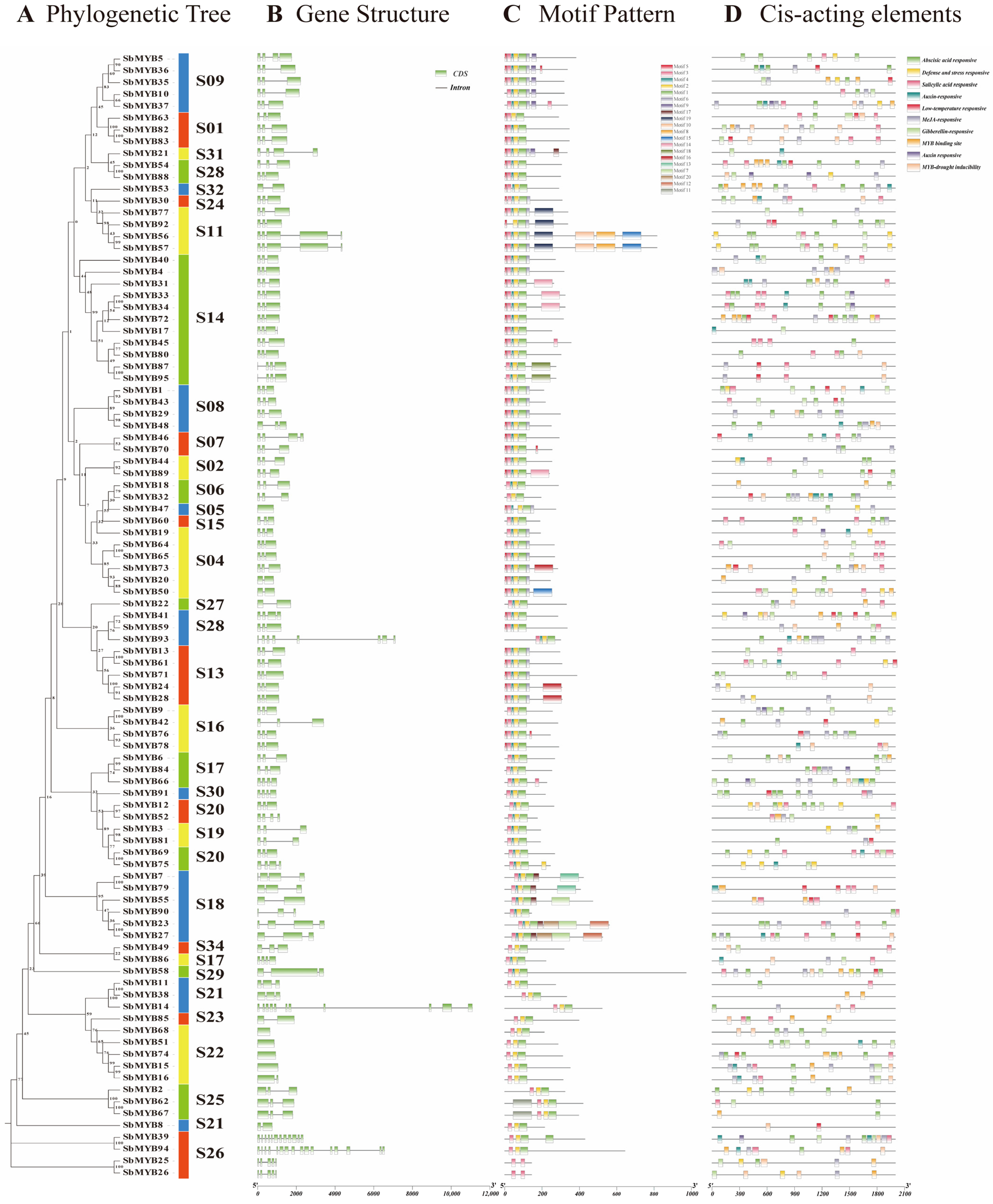

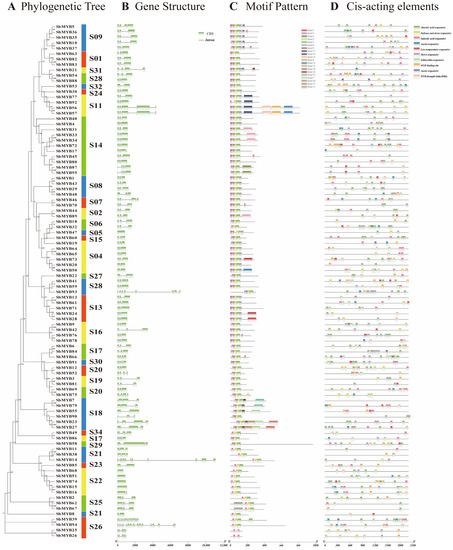

Our study also constructed an unrooted phylogenetic tree based on 95 amino acid sequences of R2R3-SbMYBs in order to better understand their gene structure, conserved motifs, and cis-elements (Figure 6A). Gene structure analysis revealed that different intron numbers have been found in R2R3-SbMYBs, ranging from 0 to 15. Approximately 86% of genes contain one to three introns, with the majority containing two introns. Some R2R3-SbMYBs had a large number of introns, with 15, 11, and 10 introns in SbMYB94, SbMYB39, and SbMYB14, respectively (Figure 6B). In addition, we also found that similar exon/intron structures were observed among R2R3-SbMYBs in the same subgroup.
We identified 20 conserved motifs in the R2R3-SbMYB proteins (Figure 6C), which we referred to as motif 1 to 20. Interestingly, each R2R3-SbMYB protein contained motif 1, 2, 3, 4, and 5, which were commonly conserved in S. baicalensis. Additionally, we found similar motif compositions among R2R3-SbMYBs in the same subgroup, suggesting similar functions.
Cis-elements analysis demonstrated that a total of 73 kinds of elements were found in the promoter regions of 95 R2R3-SbMYBs, and the majority of which were related to hormone response and abiotic/biotic stress (Figure 6D and Table S5). The abscisic acid (ABA) response element was the most common and existed in the promoter regions of 69 genes, followed by salicylic acid (SA) (58), methyl jasmonate (MeJA) (57), MYB binding sites (43), auxin (31), and defense and stress response elements (28), as showed Figure 6D and Table S5. The above results indicated that R2R3-SbMYBs can be regulated by numerous factors and are possibly involved in hormone-regulation, development, and stress responses.

2.4. RNA-Seq Analysis of R2R3-SbMYB Expression in Various Tissues

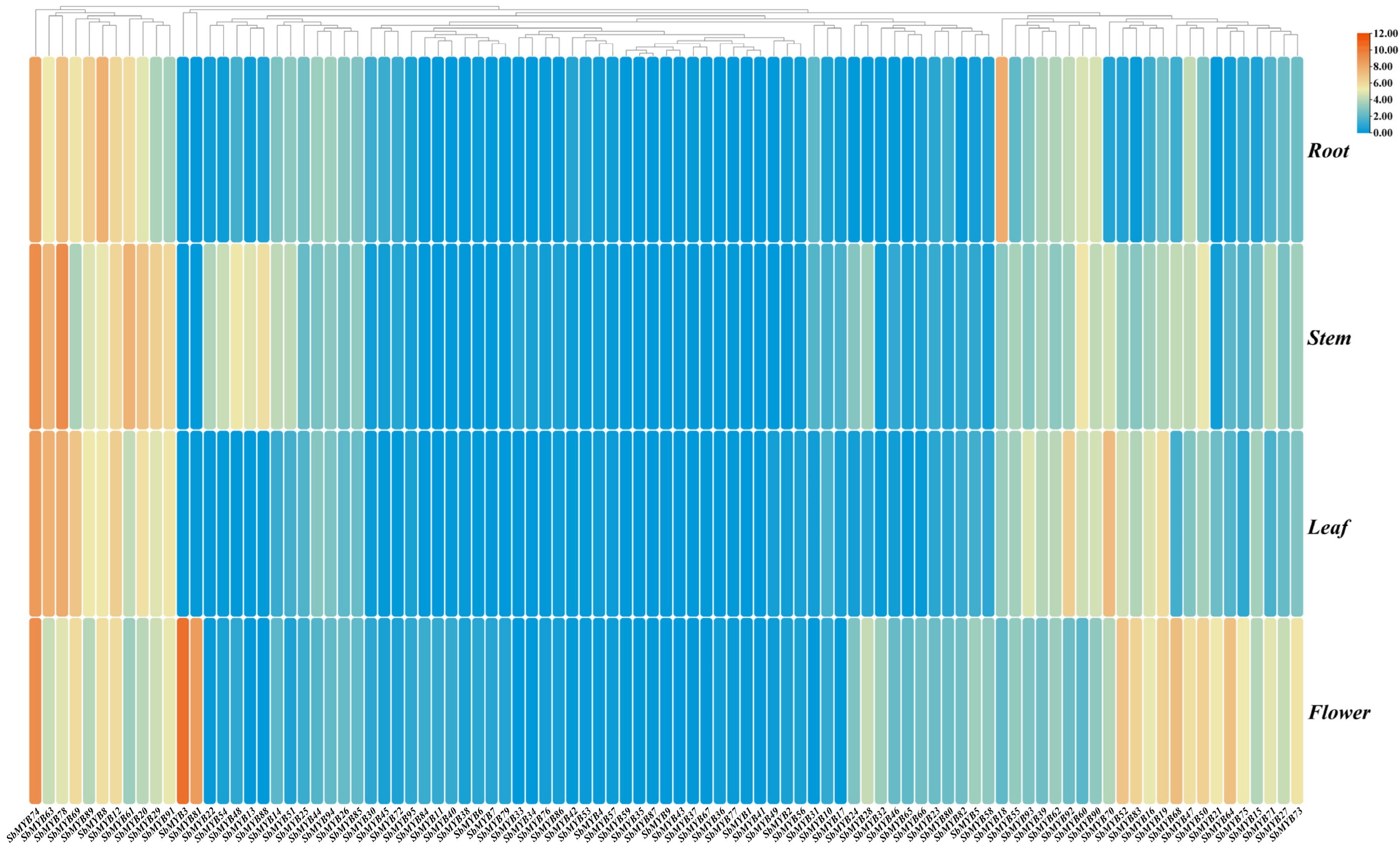

To explore the tissue-specific expression profiles of R2R3-SbMYBs, we analyzed the transcriptional abundance of R2R3-SbMYBs in four tissues (root, stem, leaf, and flower) based on the RNA-seq data (unpublished) (Figure 7). The results indicated that 18 highly expressed R2R3-SbMYBs (FPKM > 5) were detected in all four tissues, of which SbMYB74 and SbMYB12 showed higher expression levels (FPKM > 50). In contrast, 27 R2R3-SbMYBs were expressed at low level (FPKM < 1) in the four different tissues, of which, the transcriptional levels of eight genes were extremely low, including SbMYB9/37/41/43/59/67/87 (Table S6). Furthermore, some R2R3-SbMYBs exhibited tissue-specific or preferential expression. For example, SbMYB88/54/22 was preferably expressed in the stem, while SbMYB3/64/75/81 were highly expressed in the flower (Figure 7). Interestingly, no R2R3-MYB was specifically expressed in the roots and leaves of S. baicalensis (Table S6).

2.5. Expression Patterns of R2R3-SbMYBs under Hormone Stimuli and Abiotic Stresses

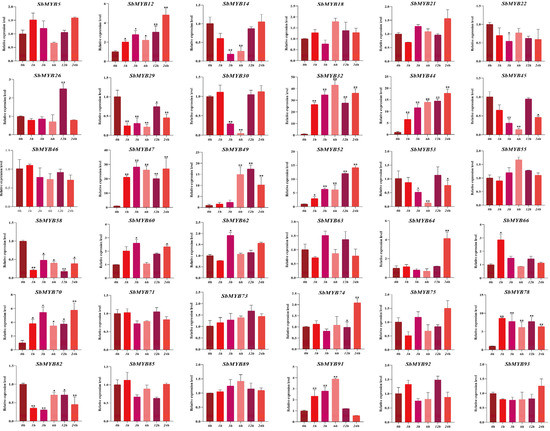

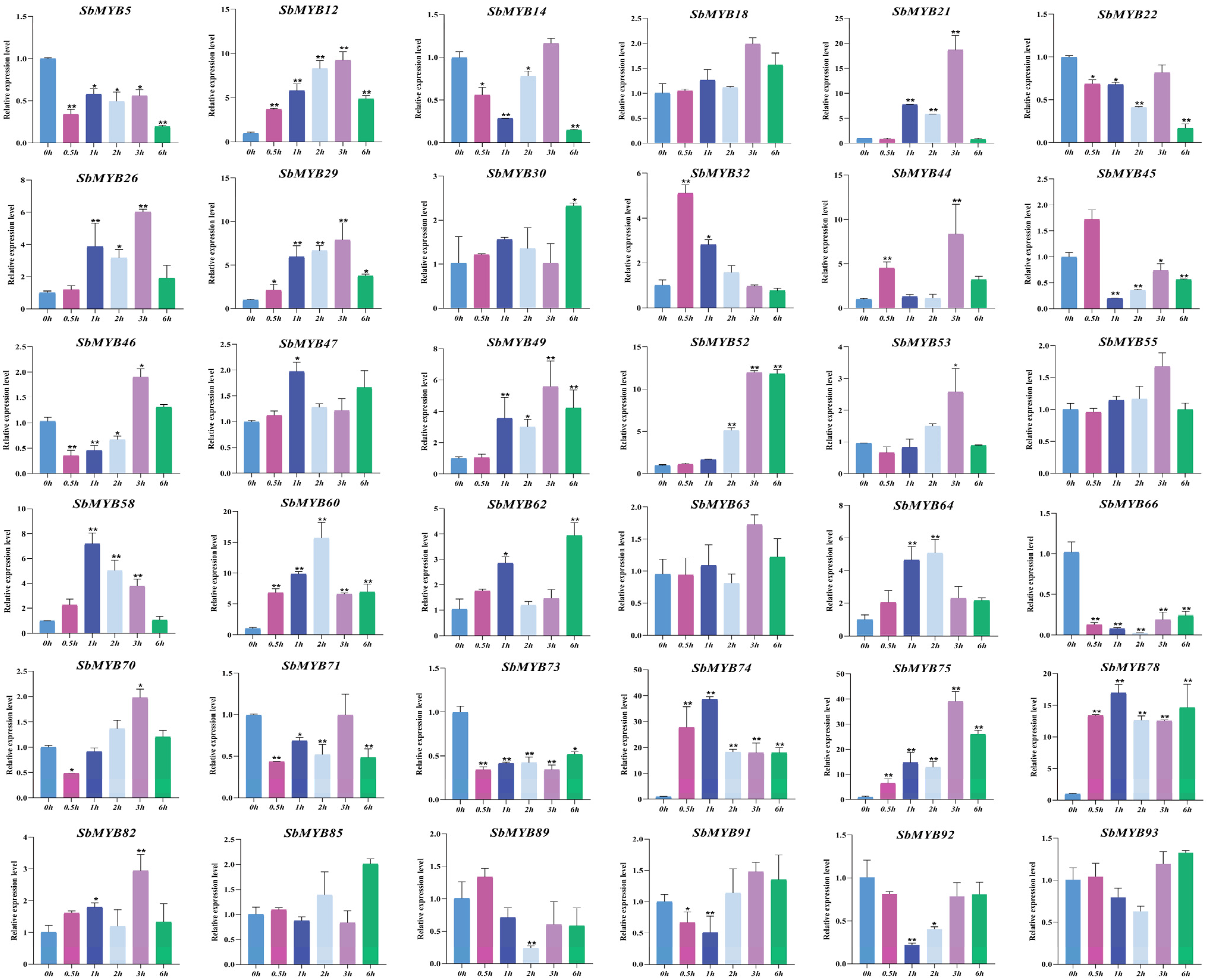

To explore whether the expression levels of R2R3-SbMYBs were affected by hormone treatments or abiotic stresses, we selected 36 members from different subgroups to determine their expression levels by qRT-PCR based on the analysis results of known R2R3-MYB proteins and cis-elements under hormone stimuli treatments (ABA and MeJA) and abiotic stresses (4 °C and PEG6000). In summary, the results showed that SbMYB44/52/78 expression levels were affected in all four stress conditions, while SbMYB63 and SbMYB55 were not obvious in all treatments.

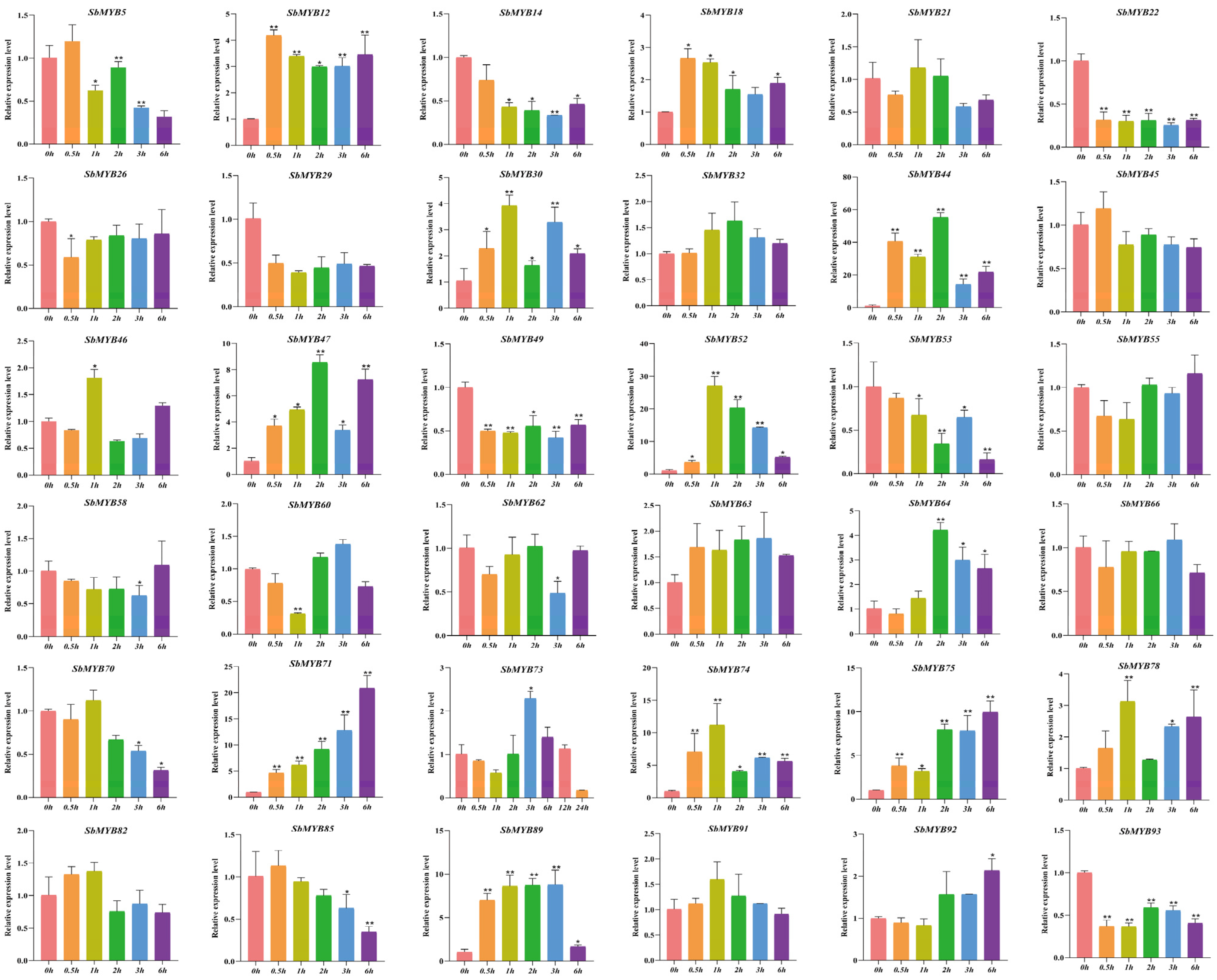

For hormone stimuli, SbMYB12/44/52/64/74/75/78 showed similar expression patterns, all of which were significantly increased under ABA and MeJA treatments (Figure 8 and Figure 9). Specifically, the expression levels of SbMYB30/44/47/64/71 also increased significantly under ABA stress (Figure 8), while the transcription levels of SbMYB21/29/49/58/60/62 also increased significantly under MeJA treatment (Figure 9). In addition, the expression levels of SbMYB5/14/22/49/53/70/85 decreased significantly under ABA stimuli (Figure 8), and SbMYB5/14/45/66/73/89/92 decreased significantly under MeJA treatment (Figure 9). This result indicates that ABA and MeJA treatments had significant effects on the expression of these genes.

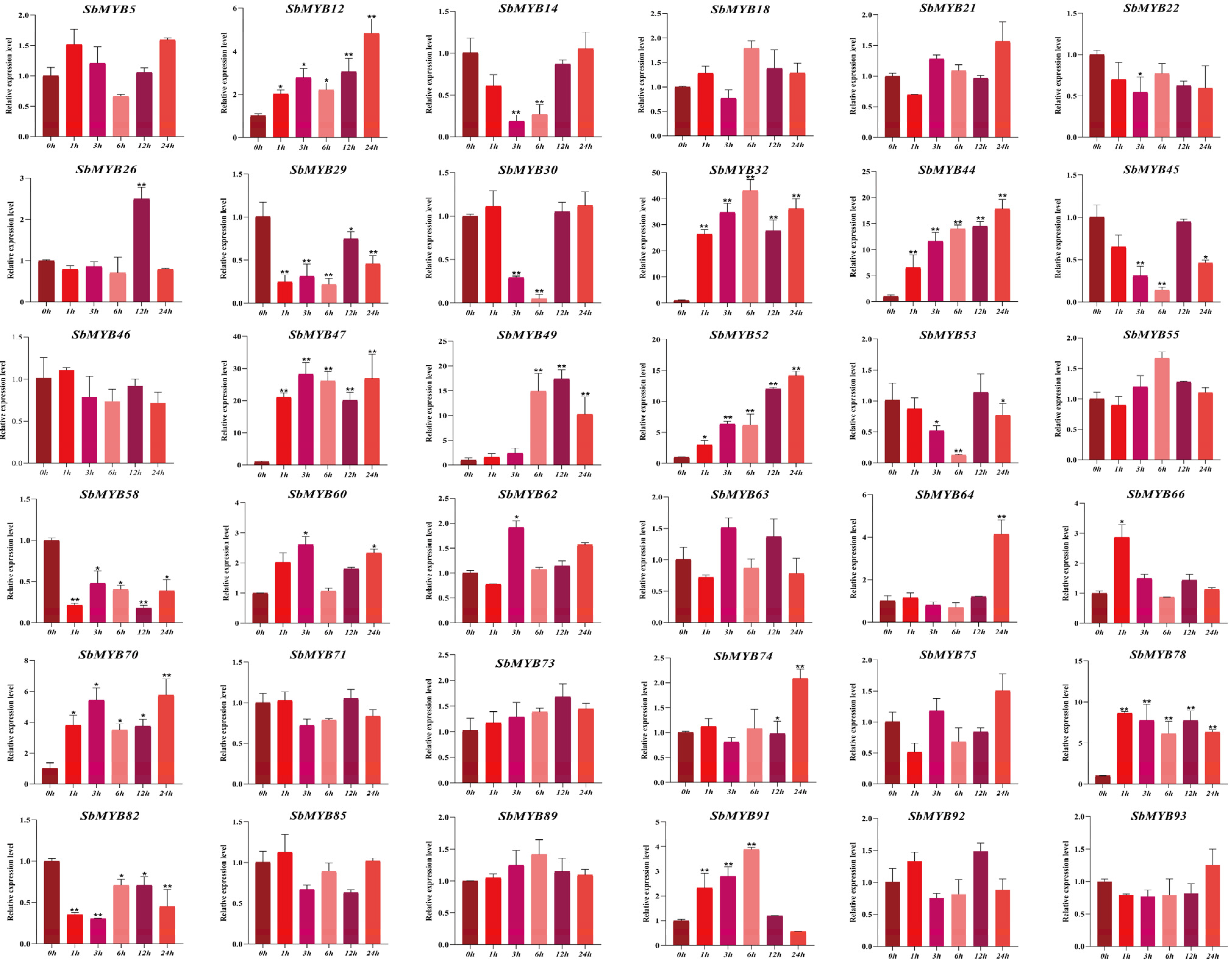

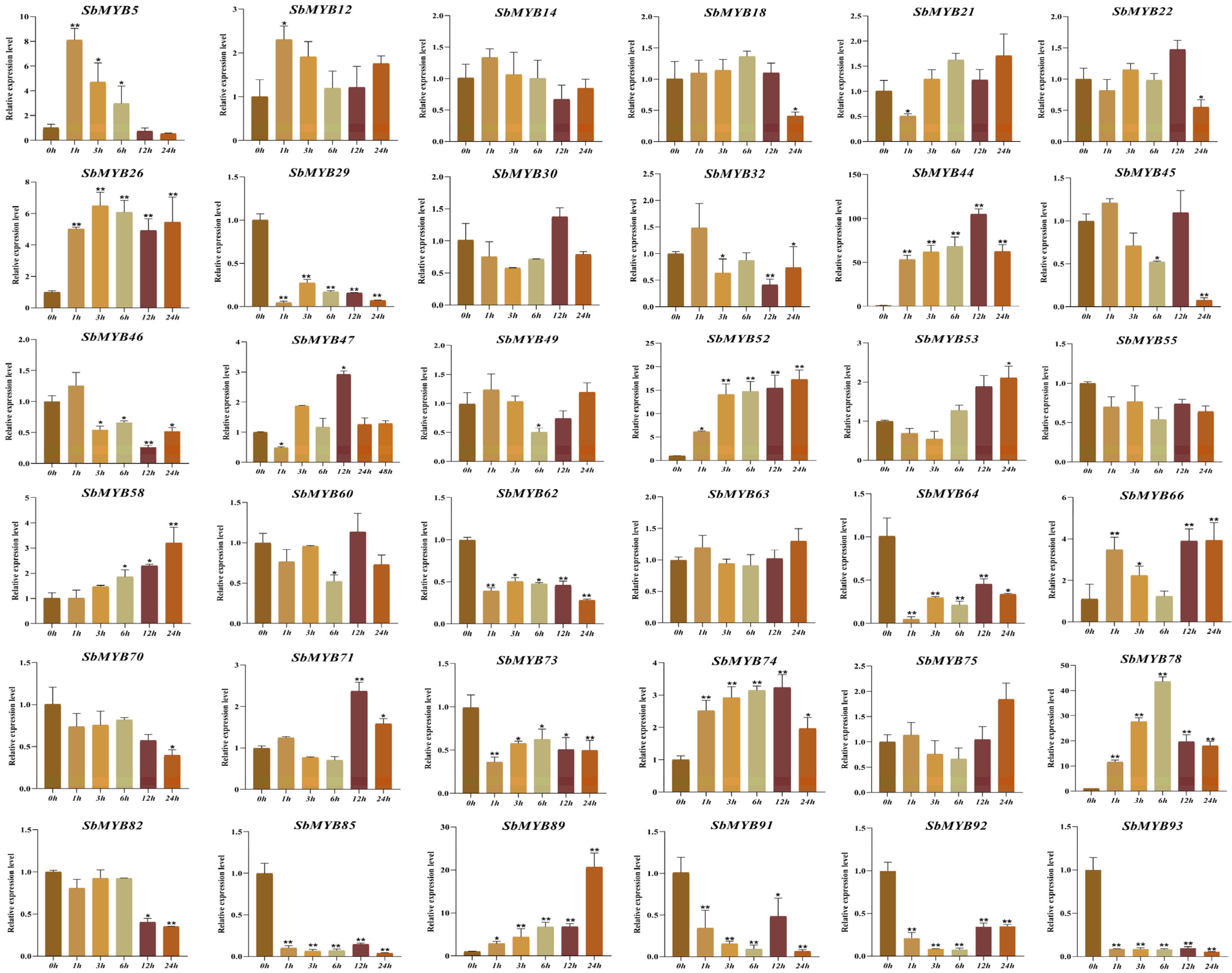

For abiotic stresses, the expression levels of SbMYB44/52/78 were significantly increased under both drought (PEG6000) and low temperature (4 °C) treatments (Figure 10 and Figure 11). Particularly, the expression levels of SbMYB12/32/47/49/70/91 increased significantly under PEG6000 stress (Figure 10), and SbMYB5/26/58/66/71/89 increased significantly under low temperature stress (Figure 11), while the expression levels of SbMYB29/45/58/82 decreased significantly under drought conditions (Figure 10), and SbMYB29/46/55/62/64/73/85/91/92/93 decreased significantly under low temperature stress (Figure 11).

2.6. Subcellular Localization and Trans-Activating Assays of R2R3-SbMYBs

To further elucidate the potential function of R2R3-SbMYBs in the transcriptional regulation system, we amplified the coding regions of the selected genes, SbMYB18/32/46/60/70/74 and fused them to HBT-GFP-NOS vector, respectively. The primers for vector construction are shown in Table S7. As shown in Figure 12, GFP protein was expressed in the nucleus and cytoplasm as a control, while the SbMYBs-GFP were specifically localized within the nucleus, which was consistent with our prediction (Table S1). Similar to many other TFs, SbMYB18/32/46/60/70/74 may be involved in the transcriptional regulation system.
As part of our investigation into whether these proteins have transactivation activity, we fused SbMYBs in pGBKT7 to produce the recombinant vector pGBKT7-SbMYBs and conducted transactivation assays in the yeast strain AH109. As shown in Figure 13, all the yeast cells containing pGBKT7-SbMYBs or control plasmid pGBKT7 grew well on the SD/-Trp medium. However, only SbMYB18/32/60/70 grew normally and turned blue on the SD/-Trp/-His/-Ade medium with X-α-gal. These results indicate that SbMYB18/32/60/70 exhibited transcriptional activation in yeast, and that these proteins were functional transcription factors.

3. Discussion

Scutellaria baicalensis, as a Chinese medicinal material, was traditionally used to treat lung and liver diseases in many Asian countries [40]. In recent years, Scutellariae Radix has been becoming one of the top ten sales of medicinal herbs in the Chinese medicine market because of its growing market demand every year and huge medicinal value [46]. R2R3-MYB proteins are involved in various plant biological processes including organ development processes, hormone synthesis and signal transduction, response to biotic and abiotic stresses, and primary and secondary metabolism, which were the main forms in all higher plants [4,5,6,7]. As a result of the release of the whole genomes of numerous plant species, a genome-wide identification of R2R3-MYB genes was performed in an increasing number of them [4,13,14,16,18,47,48,49]. As of yet, no research has been conducted on the systematic identification and investigation of the R2R3-MYB gene family in S. baicalensis.
Our study identified 95 genes that were associated with the R2R3-MYB family in S. baicalensis. The amount of R2R3-SbMYB was higher than the identified R2R3-MYB genes in ginkgo (69), and cucumber (71), it was less than that of Arabidopsis (126), rice (125), Salvia (110), and potato (111), especially significantly less than that of poplar (192), and soybean (244). This suggested that these species evolved with gene duplication and functional differentiation [13]. Multiple sequence alignment showed that all the 95 R2R3-SbMYB proteins possessed a highly conserved MYB domain (Figure 1), while the C-terminal region of the MYB domain contained plentiful variations.
Based on the phylogenetic tree, 34 subgroups (S1–34) were identified between S. baicalensis and Arabidopsis R2R3-MYB genes (Figure 2). As a result of their similar amino acid sequences, proteins from the same subgroup usually perform similar functions in plant physiological and biochemical processes [9]. Therefore, we speculated that SbMYB18 and SbMYB32 had the similar function as AtMYB75 and AtMYB90 (S6), which were known for their role in promoting anthocyanins accumulation [23,24]. AtMYB11/12/111 (S7) is involved in regulating the biosynthesis of flavanols [8], which hinted that SbMYB46 and SbMYB70 in S7 may regulate flavanol biosynthesis. SbMYB12 may regulate anthocyanin and flavonoid accumulation, similar to AtMYB112 in S20 [50]. Additionally, we also found that SbMYB58 protein clustered in subgroup S29 alone, suggesting that it should be conferred the particular functions which was either lost in Arabidopsis or acquired in S. baicalensis after divergence from the last common ancestor. Similar phenomena were observed in previous studies [13,15]. In addition, some subgroups (S03, S10, S12, and S33) only incorporate R2R3-AtMYBs from Arabidopsis, which suggested that these genes may be lost in the evolution of S. baicalensis. As an example, no SbMYBs were classified into Arabidopsis S12, the members of which regulate glucosinolate synthesis. Glucosinolates mainly exist in Brassicaceae plants and were secondary metabolites containing nitrogen and sulfur that can act as insecticides and prevent herbivore effects by causing bitterness and pungency. Similar results were found in Beta vulgaris [51], P. bretschneideri [52], and P. trichocarpa [15], just as in S. baicalensis. These insights will facilitate further studies on the functions of R2R3-SbMYBs.
Gene duplication is a major factor that contributes significantly to evolutionary expansion and genetic diversity in the plant kingdom [53]. Previous studies found that segmental duplications were the main mechanism by which the R2R3-MYB gene family expanded in apple, potato, and Pistacia chinensis [48]. In our study, 25 segmental duplication pairs were found (Figure 4 and Table S3), and only one tandem duplication event was detected. These results indicated that gene duplications, especially segmental duplications, may contribute to the expansion of R2R3-SbMYB genes [54]. Here, we also observed that all the three tandemly duplicated genes (SbMYB35, SbMYB36, and SbMYB37) had two introns and were grouped in the same subfamily (S9) with AtMYB16 (Figure 6B). It suggests that these genes may have similar functions to AtMYB16 in controlling cell and petal morphogenesis in S. baicalensis [55]. Synteny analyses showed that the number of orthologs between S. baicalensis and those dicotyledons (A. thaliana, P. trichocarpa, V. vinifera, S. tuberosum, N. attenuate, and S. indicum) was more comparable to those between S baicalensis and the monocotyledons (O. sativa and Z. mays) (Figure 5 and Table S4), suggesting that these orthologous pairs diverged during the evolution of different plants [16]. Furthermore, we also found that some synonymous gene pairs of R2R3-SbMYBs are highly conserved in R2R3-MYB evolution, which is in accordance with previous studies [16].
Gene structure analysis indicated that most R2R3-SbMYB genes had one to three introns (86%) and the majority of which contained two introns (Figure 6B). Notably, SbMYB39 and SbMYB94 in the S26 subgroup have complex structures which contained 11 and 15 introns (Figure 6B), respectively, similar to their orthologs gene AtMYB124 and AtMYB88 in Arabidopsis [56]. Moreover, MEME analysis indicated that the majority of R2R3-SbMYBs in the same subgroup had conserved motif composition outside the MYB domains, suggesting that they have similar functions (Figure 6C). These results indicate that R2R3-SbMYB gene evolution occurred in a conservative pattern, rather than through accidental mutations.
To understand the function of these genes, it is crucial to examine the abundance of R2R3-SbMYB transcripts in different tissues. Based on RNA-seq data, we investigated the expression patterns of R2R3-SbMYB genes in four tissues. Some tissue-specific R2R3-SbMYBs as well as highly-expressed members were identified (Table S6), which may play important roles during the growth and development of S. baicalensis. The results indicated that 18 highly expressed R2R3-SbMYBs were detected in all four tissues, of which SbMYB74 and SbMYB12 showed higher expression levels (FPKM > 50). In addition, further studies showed that they had a close phylogenetic relationship with AtMYB73 (S22) and AtMYB112 (S20), respectively, indicating that they may have similar functions [8]. SbMYB18 showed the preferential expression in roots and was phylogenetically closer to AtMYB75 and AtMYB90, suggesting that this gene possibly regulated the production of anthocyanins in root tissues. It was noteworthy that two R2R3-MYB genes (SbMYB3 and SbMYB81) were expressed specifically in flowers and phylogenetically sub-grouped in S19 with AtMYB21/22, suggesting SbMYB3 and SbMYB81, as flower-specific transcription factors, may have a similar functional characteristics in participating in the regulation of the FLS1 gene in anther and pollen [57,58].
Several cis-elements were identified in the promoters of R2R3-SbMYB genes, such as ABA, SA, MeJA, light, cold, and drought responsive elements, suggesting that these genes are involved in responses to various hormones and environmental stresses (Figure 6D and Table S5). As is well known, plants sense and respond to various stress conditions by producing numerous secondary metabolites, which is an important mechanism for plants to survive under adverse conditions. It has been shown that MeJA and ABA are effective elicitors and can facilitate the accumulation of medicinal plant active ingredients [59,60]. Appropriate drought stress can significantly promote the accumulation of baicalin by stimulating the expression of the key enzymes in S. baicalensis [61]. Low temperature stress has a similar promoting effect on the accumulation of flavonoids [62]. Therefore, we determined the expression levels of 36 R2R3-SbMYBs under MeJA, ABA, drought, and low temperature conditions via qRT-PCR. As shown in Figure 8, Figure 9, Figure 10, and Figure 11, some R2R3-SbMYBs, especially SbMYB44/52/78, can be induced synchronously under various stress conditions, indicating that they are pleiotropic regulators which mediate the cross-talk between multiple signaling pathways under hormone stimuli treatments and abiotic stresses. In our present work, SbMYB74 responded to ABA, MeJA, and cold treatment and phylogenetically clustered with ABA-mediated stress-related subgroup S22 (AtMYB70/73/77/44) of Arabidopsis [8], suggesting that it may have potential value in the stress responses of S. baicalensis. Of note, the transcription level of SbMYB12 was significantly activated under MeJA, ABA, and drought treatments, hinting that it may play important roles in the growth and development of S. baicalensis, particularly in the regulation of the biosynthesis of secondary metabolites. Additionally, a significant number of R2R3-SbMYB genes play a role in response to only one stress stimulus, indicating that there may be distinct signaling pathways that are involved in the response to stress. Taking SbMYB60 as an example, the gene only responded to MeJA treatment and was preferentially expressed in the stem tissues, which had a close phylogenetic relationship with AtMYB0/23/66 (S15), suggesting that it possibly involved in determining epidermal stem cell types [8].
Systematic genomic bioinformatics analysis based on the whole genome data, combined with transcriptome analysis in various tissues and qRT-PCR results under abiotic stresses or hormone responses, affords valuable information for identifying valuable candidate genes for further functional characterization. Additionally, we performed subcellular localization and transactivation analysis for six selected genes, SbMYB18/32/46/60/70/74. The results showed that these six proteins were localized in the nuclei (Figure 12), among which SbMYB18/32/60/70 exhibited transcriptional activation activity in yeast (Figure 13).

4. Materials and Methods

4.1. Identification of R2R3-MYB Transcriptional Factors in S. baicalensis

From the Pfam database (http://pfam.xfam.org/family/PF00249, accessed on 12 August 2022), we downloaded the Hidden Markov Model (HMM) profile of the MYB DNA binding domain (PF00249), which was used to search MYB genes against the genome of S. baicalensis. Candidate MYB proteins were confirmed using the Pfam and SMART database (http://smart.embl.de/, accessed on 12 August 2022) [13] and only those with complete R2R3 domains were identified as members of the R2R3-MYB family. An analysis of the physicochemical properties of the R2R3-SbMYB proteins was conducted with the ExPASy server (http://web.expasy.org/-compute_pi/, accessed on 12 August 2022) [53], which included measuring their sequence lengths, theoretical isoelectric points (pI), and molecular weight (MW). Sequence logos for R2 and R3 MYB domains in 95 R2R3-SbMYB proteins were created by using the WEBLOGO online program (http://weblog.berkeley.edu/logo.cgi, accessed on 12 August 2022).

4.2. Chromosome Distribution, Gene Duplication, Synteny, and Phylogenetic Analyses of R2R3-SbMYB Genes

Using the S. baicalensis genome database, chromosome distribution data for R2R3-SbMYB genes was retrieved, and the chromosome position map was generated by Tbtools software [63]. We examined gene duplication events using the Multiple Collinear Scanning Toolkit (MCScanX) [64], which was visualized by Circos software [65]. Syntenic analysis maps were generated using Dual Synteny Plotter software (https://github.com/CJ-Chen/TBtools, accessed on 12 August 2022) [63] for investigating the synteny relationships among R2R3-MYBs in S. baicalensis and other species (A. thaliana, O. sativa, Z. mays, S. tuberosum, P. trichocarpa, V. vinifera, N. attenuata, and S. indicum).
Additionally, the protein sequences of 126 R2R3-MYBs from A. thaliana were downloaded from the TAIR (http://www.arabidopsis.org/, accessed on 12 August 2022). The protein sequence of 95 R2R3-SbMYBs and 126 R2R3-AtMYB were used for phylogenetic analysis. With the MEGA version 7.0 [66], a neighbor-joining (NJ) phylogenetic tree was constructed and the multiple sequence alignments were performed with ClustalW [67]. Based on the topology of the phylogenetic tree, the R2R3-SbMYB proteins were separated into several groups.

4.3. Gene Structure, Motif Composition, and Cis-Elements Analysis

The exon-intron structures of the R2R3-SbMYB genes were graphically displayed via TBtools software according to the CDS and genome sequence [63]. We predicted the conservation motifs by using the MEME program [68], where 20 motifs were the maximum number and 6 to 100 was the optimum width. To identify the cis-elements in the R2R3-SbMYB promoter regions, the 2000 bp genomic DNA sequences that were upstream of the start codon (ATG) were submitted to the PlantCARE database (http://bioinformatics.psb.ugent.be/web-tools/plantcare/html/, accessed on 12 August 2022).

4.4. Plant Materials and Various Treatments

The seeds of S. baicalensis were collected from Longxi County, Gansu Province, China. The seedlings were cultivated in the incubator at 25 ± 2 °C (16 h light/8 h dark cycle, 65 ± 5% humidity). Seedlings that were two-months-old in a uniform growth state were subjected to abiotic stresses and hormonal treatments. For hormonal treatments, young seedlings were sprayed with 200 µM MeJA or 100 µM ABA as described previously [69]. For drought stress, the seedlings were placed in pots with 20% PEG6000. For cold shock treatment, the seedlings were exposed to 4 °C. The seedlings were treated for 0 (as the control); 0.5, 1, 2, 3, and 6 h under MeJA and ABA treatments; and 0 (as the control), 1, 3, 6, 12, and 24 h under PEG6000 and cold treatments. After collecting the samples, they were immediately frozen in liquid nitrogen and stored at −80 °C until RNA extraction was performed. A total of three biological replicates were collected. All primers that were used in the study are listed in Table S1.

4.5. RNA-Seq Data and qRT-PCR Analysis

During the flowering stage of S. baicalensis, the roots, stems, leaves, and flowers were collected to sequence its transcriptome. The expression profiles of R2R3-SbMYB were hierarchically clustered with average linkage based on the FPKM value, and displayed by the Heatmap illustrator of TBtools [63].
The procedure for total RNA isolation and qRT-PCR analysis has been described previously [70]. The SbACT7 (evm.TU.contig159.4) gene was used as the reference gene [70]. Based on the qRT-PCR data, the expression level of the corresponding gene was calculated using the 2−ΔΔCt method.

4.6. Subcellular Location Analyses of SbMYBs

To study the subcellular location of SbMYBs protein, the coding sequence of SbMYBs (including SbMYB18/32/46/60/70/74) lacking the stop codon were amplified and fused with the HBT-GFP-NOS vector to construct the SbMYBs-GFP fusion protein expression vector. Mesophyll protoplasts were prepared from the leaves of Arabidopsis that were grown under 12 h light/12 h darkness for four weeks and transformed as previously reported [69]. We first incubated the transformed protoplasts at 21 °C for 12 h, and then observed them under a confocal laser microscope with high resolution (Leica TCS SP5, Wetzlar, Germany).

4.7. Transcriptional Activation Assays of SbMYBs

The ORF of SbMYBs (including SbMYB18/32/46/60/70/74) was cloned and integrated into the pGBKT7 vector using the Gateway recombinational cloning system [71]. The recombinant vector BD-SbMYBs was transformed into the strain AH109 and cultured on SD/-Trp at 28 °C for 2–3 days, then screened on SD/-Trp/-Ade/-His/X-α-gal media to assay the transactivation activity.

5. Conclusions

Here, 95 R2R3-MYB gene family members were identified in the genome of S. baicalensi, followed by a comprehensive analysis, including chromosome distribution, gene duplication and synteny, gene structure, motif composition, and cis-elements analysis. Phylogenetic comparisons, transcriptome analysis in various tissues, and qRT-PCR results under various conditions predicted the potential functions of these R2R3-SbMYB genes. We also analyzed the subcellular localization and transactivation of six key model genes. Together, these results provided novel insights into the functionality of R2R3-SbMYB in flavonoid biosynthesis and established a foundation for further investigation. Additionally, the assumptions about the functionality of the R2R3-MYB gene in this study provide directions for future related proof research.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms23169342/s1.

Author Contributions

Conceptualization, W.W.; Data curation, W.W., S.H., C.Z. and X.C.; Formal analysis, D.W. and Z.W.; Investigation, W.W. and J.Y.; Methodology, S.H. and C.Z.; Project administration, X.C.; Resources, T.Z.; Supervision, J.Y.; Validation, Z.W.; Visualization, W.W.; Writing–original draft, W.W.; Writing–review & editing, X.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Key Technologies R&D Program for Modernization of Traditional Chinese Medicine (2017YFC1701300), the Key Industry Chain Project of Shaanxi province (2022ZDLSF05-01), and the Fundamental Research Funds for the Central Universities (GK202205006).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

MDPI Research Data Policies.

Acknowledgments

We thank all those participated in this research.

Conflicts of Interest

The authors declare that there are no conflicts of interest in this paper.

References

  1. Weidemüller, P.; Kholmatov, M.; Petsalaki, E.; Zaugg, J.B. Transcription factors: Bridge between cell signaling and gene regulation. Proteomics 2021, 21, e2000034. [Google Scholar] [CrossRef] [PubMed]
  2. Millard, P.S.; Kragelund, B.; Burow, M. R2R3 MYB Transcription Factors—Functions outside the DNA-Binding Domain. Trends Plant Sci. 2019, 24, 934–946. [Google Scholar] [CrossRef] [PubMed]
  3. Wang, X.; Niu, Y.; Zheng, Y. Multiple Functions of MYB Transcription Factors in Abiotic Stress Responses. Int. J. Mol. Sci. 2021, 22, 6125. [Google Scholar] [CrossRef] [PubMed]
  4. Huang, J.; Guo, Y.; Sun, Q.; Zeng, W.; Li, J.; Li, X.; Xu, W. Genome-Wide Identification of R2R3-MYB Transcription Factors Regulating Secondary Cell Wall Thickening in Cotton Fiber Development. Plant Cell Physiol. 2019, 60, 687–701. [Google Scholar] [CrossRef] [PubMed]
  5. He, J.; Liu, Y.; Yuan, D.; Duan, M.; Liu, Y.; Shen, Z.; Yang, C.; Qiu, Z.; Liu, D.; Wen, P.; et al. An R2R3 MYB transcription factor confers brown planthopper resistance by regulating the phenylalanine ammonia-lyase pathway in rice. Proc. Natl. Acad. Sci. USA 2020, 117, 271–277. [Google Scholar] [CrossRef]
  6. Liu, J.; Osbourn, A.; Ma, P. MYB Transcription Factors as Regulators of Phenylpropanoid Metabolism in Plants. Mol. Plant 2015, 8, 689–708. [Google Scholar] [CrossRef]
  7. Ma, D.; Constabel, C.P. MYB Repressors as Regulators of Phenylpropanoid Metabolism in Plants. Trends Plant Sci. 2019, 24, 275–289. [Google Scholar] [CrossRef]
  8. Stracke, R.; Werber, M.; Weisshaar, B. The R2R3-MYB gene family in Arabidopsis thaliana. Curr. Opin. Plant Biol. 2001, 4, 447–456. [Google Scholar] [CrossRef]
  9. Hai; Du; Bo-Run; Feng; Si-Si; Yang; Yu-Bi; Huang; Yi-Xiong; Tang, The R2R3-MYB Transcription Factor Gene Family in Maize. PLoS ONE 2012, 7, e37463. [CrossRef]
  10. Katiyar, A.; Smita, S.; Lenka, S.; Rajwanshi, R.; Chinnusamy, V.; Bansal, K. Genome-wide classification and expression analysis of MYB transcription factor families in rice and Arabidopsis. BMC Genom. 2012, 13, 544. [Google Scholar] [CrossRef]
  11. Matus, J.T.; Aquea, F.; Arce-Johnson, P. Analysis of the grape MYB R2R3 subfamily reveals expanded wine quality-related clades and conserved gene structure organization across Vitis and Arabidopsis genomes. BMC Plant Biol. 2008, 8, 83. [Google Scholar] [CrossRef] [PubMed]
  12. Li, C.; Lu, S. Genome-wide characterization and comparative analysis of R2R3-MYB transcription factors shows the complexity of MYB-associated regulatory networks in Salvia miltiorrhiza. BMC Genom. 2014, 15, 277. [Google Scholar] [CrossRef] [PubMed]
  13. Zhou, W.; Zhang, Q.; Sun, Y.; Yang, L.; Wang, Z. Genome-wide identification and characterization of R2R3-MYB family in Hypericum perforatum under diverse abiotic stresses. Int. J. Biol. Macromol. 2020, 145, 341–354. [Google Scholar] [CrossRef] [PubMed]
  14. Hai, D.; Si-Si, Y.; Zhe, L.; Bo-Run, F.; Lei, L.; Yu-Bi, H.; Yi-Xiong, T. Genome-wide analysis of the MYB transcription factor superfamily in soybean. BMC Plant Biol. 2012, 12, 106. [Google Scholar] [CrossRef]
  15. Yang, X.; Li, J.; Guo, T.; Guo, B.; An, X. Comprehensive analysis of the R2R3-MYB transcription factor gene family in Populus trichocarpa. Ind. Crops Prod. 2021, 168, 113614. [Google Scholar] [CrossRef]
  16. Yang, X.; Zhou, T.; Wang, M.; Li, T.; Wang, G.; Fu, F.F.; Cao, F. Systematic investigation and expression profiles of the GbR2R3-MYB transcription factor family in ginkgo (Ginkgo biloba L.). Int. J. Biol. Macromol. 2021, 172, 250–262. [Google Scholar] [CrossRef]
  17. Yang, A.; Dai, X.; Zhang, W.H. A R2R3-type MYB gene, OsMYB2, is involved in salt, cold, and dehydration tolerance in rice. J. Exp. Bot. 2012, 63, 2541–2556. [Google Scholar] [CrossRef]
  18. Cao, Z.H.; Zhang, S.Z.; Wang, R.K.; Zhang, R.F.; Hao, Y.J. Genome wide analysis of the apple MYB transcription factor family allows the identification of MdoMYB121 gene confering abiotic stress tolerance in plants. PLoS ONE 2013, 8, e69955. [Google Scholar] [CrossRef]
  19. Xie, Y.; Chen, P.; Yan, Y.; Bao, C.; Li, X.; Wang, L.; Shen, X.; Li, H.; Liu, X.; Niu, C.; et al. An atypical R2R3 MYB transcription factor increases cold hardiness by CBF-dependent and CBF-independent pathways in apple. New Phytol. 2018, 218, 201–218. [Google Scholar] [CrossRef]
  20. Abe, H.; Urao, T.; Ito, T.; Seki, M.; Shinozaki, K.; Yamaguchi-Shinozaki, K. Arabidopsis AtMYC2 (bHLH) and AtMYB2 (MYB) function as transcriptional activators in abscisic acid signaling. Plant Cell 2003, 15, 63–78. [Google Scholar] [CrossRef]
  21. Seo, P.J.; Xiang, F.; Qiao, M.; Park, J.Y.; Lee, Y.N.; Kim, S.G.; Lee, Y.H.; Park, W.J.; Park, C.M. The MYB96 transcription factor mediates abscisic acid signaling during drought stress response in Arabidopsis. Plant Physiol. 2009, 151, 275–289. [Google Scholar] [CrossRef] [PubMed]
  22. Denekamp, M.; Smeekens, S.C. Integration of wounding and osmotic stress signals determines the expression of the AtMYB102 transcription factor gene. Plant Physiol. 2003, 132, 1415–1423. [Google Scholar] [CrossRef]
  23. Gonzalez, A.; Zhao, M.; Leavitt, J.M.; Lloyd, A.M. Regulation of the anthocyanin biosynthetic pathway by the TTG1/bHLH/Myb transcriptional complex in Arabidopsis seedlings. Plant J. 2010, 53, 814–827. [Google Scholar] [CrossRef] [PubMed]
  24. Stracke, R.; Ishihara, H.; Huep, G.; Barsch, A.; Weisshaar, B. Differential regulation of closely related R2R3-MYB transcription factors controls flavonol accumulation in different parts of the Arabidopsis thaliana seedling. Plant J. 2010, 50, 660–677. [Google Scholar] [CrossRef] [PubMed]
  25. Espley, R.V.; Hellens, R.P.; Putterill, J.; Stevenson, D.E.; Kutty-Amma, S.; Allan, A.C. Red colouration in apple fruit is due to the activity of the MYB transcription factor, MdMYB10. Plant J. 2010, 49, 414–427. [Google Scholar] [CrossRef]
  26. Chagné, D.; Lin-Wang, K.; Espley, R.V.; Volz, R.K.; How, N.M.; Rouse, S.; Brendolise, C.; Carlisle, C.M.; Kumar, S.; De Silva, N.; et al. An ancient duplication of apple MYB transcription factors is responsible for novel red fruit-flesh phenotypes. Plant Physiol. 2013, 161, 225–239. [Google Scholar] [CrossRef]
  27. Vimolmangkang, S.; Han, Y.; Wei, G.; Korban, S.S. An apple MYB transcription factor, MdMYB3, is involved in regulation of anthocyanin biosynthesis and flower development. BMC Plant Biol. 2013, 13, 176. [Google Scholar] [CrossRef]
  28. Feng, S.; Wang, Y.; Yang, S.; Xu, Y.; Chen, X. Anthocyanin biosynthesis in pears is regulated by a R2R3-MYB transcription factor PyMYB10. Planta 2010, 232, 245–255. [Google Scholar] [CrossRef]
  29. Yao, G.; Ming, M.; Allan, A.C.; Gu, C.; Li, L.; Wu, X.; Wang, R.; Chang, Y.; Qi, K.; Zhang, S.; et al. Map-based cloning of the pear gene MYB114 identifies an interaction with other transcription factors to coordinately regulate fruit anthocyanin biosynthesis. Plant J. 2017, 92, 437–451. [Google Scholar] [CrossRef]
  30. Castillejo, C.; Waurich, V.; Wagner, H.; Ramos, R.; Oiza, N.; Muñoz, P.; Triviño, J.C.; Caruana, J.; Liu, Z.; Cobo, N.; et al. Allelic Variation of MYB10 Is the Major Force Controlling Natural Variation in Skin and Flesh Color in Strawberry (Fragaria spp.) Fruit. Plant Cell 2020, 32, 3723–3749. [Google Scholar] [CrossRef]
  31. Liu, Y.; Lin-Wang, K.; Espley, R.V.; Wang, L.; Yang, H.; Yu, B.; Dare, A.; Varkonyi-Gasic, E.; Wang, J.; Zhang, J.; et al. Functional diversification of the potato R2R3 MYB anthocyanin activators AN1, MYBA1, and MYB113 and their interaction with basic helix-loop-helix cofactors. J. Exp. Bot. 2016, 67, 2159–2176. [Google Scholar] [CrossRef] [PubMed]
  32. Kaili, C.; Hongli, L.; Qian, L.; Yali, L. Ectopic Expression of the Grape Hyacinth (Muscari armeniacum) R2R3-MYB Transcription Factor Gene, MaAN2, Induces Anthocyanin Accumulation in Tobacco. Front. Plant Sci. 2017, 8, 965. [Google Scholar] [CrossRef]
  33. Huang, W.J.; Khaidun, A.B.M.; Chen, J.J.; Zhang, C.J.; Yuan, H.Y. A R2R3-MYB Transcription Factor Regulates the Flavonol Biosynthetic Pathway in a Traditional Chinese Medicinal Plant, Epimedium sagittatum. Front. Plant Sci. 2016, 7, 1089. [Google Scholar] [CrossRef] [PubMed]
  34. Huang, W.; Lv, H.; Wang, Y. Functional Characterization of a Novel R2R3-MYB Transcription Factor Modulating the Flavonoid Biosynthetic Pathway from Epimedium sagittatum. Front. Plant Sci. 2017, 8, 1274. [Google Scholar] [CrossRef] [PubMed]
  35. Hemm, M.R.; Herrmann, K.M.; Chapple, C. AtMYB4: A transcription factor general in the battle against UV. Trends Plant Sci. 2001, 6, 135–136. [Google Scholar] [CrossRef]
  36. Ding, T.; Zhang, R.; Zhang, H.; Zhou, Z.; Liu, C.; Wu, M.; Wang, H.; Dong, H.; Liu, J.; Yao, J.L.; et al. Identification of gene co-expression networks and key genes regulating flavonoid accumulation in apple (Malus × domestica) fruit skin. Plant Sci. 2021, 304, 110747. [Google Scholar] [CrossRef]
  37. Pérez-Díaz, J.R.; Pérez-Díaz, J.; Madrid-Espinoza, J.; González-Villanueva, E.; Moreno, Y.; Ruiz-Lara, S. New member of the R2R3-MYB transcription factors family in grapevine suppresses the anthocyanin accumulation in the flowers of transgenic tobacco. Plant Mol. Biol. 2016, 90, 63–76. [Google Scholar] [CrossRef]
  38. Yan, J.; Wang, B.; Zhong, Y.; Yao, L.; Cheng, L.; Wu, T. The soybean R2R3 MYB transcription factor GmMYB100 negatively regulates plant flavonoid biosynthesis. Plant Mol. Biol. 2015, 89, 35–48. [Google Scholar] [CrossRef]
  39. Liu, R.X.; Song, G.H.; Wu, P.G.; Zhang, X.W.; Hu, H.J.; Liu, J.; Miao, X.S.; Hou, Z.Y.; Wang, W.Q.; Wei, S.L. Distribution patterns of the contents of five biologically activate ingredients in the root of Scutellaria baicalensis. Chin. J. Nat. Med. 2017, 15, 152–160. [Google Scholar] [CrossRef]
  40. Zhao, Q.; Chen, X.Y.; Martin, C. Scutellaria baicalensis, the golden herb from the garden of Chinese medicinal plants. Sci. Bull. 2016, 61, 1391–1398. [Google Scholar] [CrossRef]
  41. Pei, T.; Yan, M.; Huang, Y.; Wei, Y.; Martin, C.; Zhao, Q. Specific Flavonoids and Their Biosynthetic Pathway in Scutellaria baicalensis. Front. Plant Sci. 2022, 13, 866282. [Google Scholar] [CrossRef] [PubMed]
  42. Liu, H.; Ye, F.; Sun, Q.; Liang, H.; Li, C.; Li, S.; Lu, R.; Huang, B.; Tan, W.; Lai, L. Scutellaria baicalensis extract and baicalein inhibit replication of SARS-CoV-2 and its 3C-like protease in vitro. J. Enzyme Inhib. Med. Chem. 2021, 36, 497–503. [Google Scholar] [CrossRef] [PubMed]
  43. Su, H.; Yao, S.; Zhao, W.; Li, M.; Xu, Y. Discovery of baicalin and baicalein as novel, natural product inhibitors of SARS-CoV-2 3CL protease in vitro. bioRxiv 2020. bioRxiv:2020.04.13.038687. [Google Scholar] [CrossRef]
  44. Zhao, Q.; Zhang, Y.; Wang, G.; Hill, L.; Weng, J.K.; Chen, X.Y.; Xue, H.; Martin, C. A specialized flavone biosynthetic pathway has evolved in the medicinal plant, Scutellaria baicalensis. Sci. Adv. 2016, 2, e1501780. [Google Scholar] [CrossRef]
  45. Zhao, Q.; Cui, M.Y.; Levsh, O.; Yang, D.; Liu, J.; Li, J.; Hill, L.; Yang, L.; Hu, Y.; Weng, J.K.; et al. Two CYP82D Enzymes Function as Flavone Hydroxylases in the Biosynthesis of Root-Specific 4’-Deoxyflavones in Scutellaria baicalensis. Mol. Plant 2018, 11, 135–148. [Google Scholar] [CrossRef]
  46. Bai, C.; Yang, J.; Cao, B.; Xue, Y.; Gao, P.; Liang, H.; Li, G. Growth years and post-harvest processing methods have critical roles on the contents of medicinal active ingredients of Scutellaria baicalensis. Ind. Crops Prod. 2020, 158, 112985. [Google Scholar] [CrossRef]
  47. Li, Y.; Lin-Wang, K.; Liu, Z.; Allan, A.C.; Qin, S.; Zhang, J.; Liu, Y. Genome-wide analysis and expression profiles of the StR2R3-MYB transcription factor superfamily in potato (Solanum tuberosum L.). Int. J. Biol. Macromol. 2020, 148, 817–832. [Google Scholar] [CrossRef]
  48. Song, X.; Yang, Q.; Liu, Y.; Li, J.; Chang, X.; Xian, L.; Zhang, J. Genome-wide identification of Pistacia R2R3-MYB gene family and function characterization of PcMYB113 during autumn leaf coloration in Pistacia chinensis. Int. J. Biol. Macromol. 2021, 192, 16–27. [Google Scholar] [CrossRef]
  49. Huang, D.; Ming, R.; Xu, S.; Yao, S.; Li, L.; Huang, R.; Tan, Y. Genome-Wide Identification of R2R3-MYB Transcription Factors: Discovery of a “Dual-Function” Regulator of Gypenoside and Flavonol Biosynthesis in Gynostemma pentaphyllum. Front. Plant Sci. 2021, 12, 796248. [Google Scholar] [CrossRef]
  50. Lotkowska, M.E.; Tohge, T.; Fernie, A.R.; Xue, G.P.; Balazadeh, S.; Mueller-Roeber, B. The Arabidopsis Transcription Factor MYB112 Promotes Anthocyanin Formation during Salinity and under High Light Stress. Plant Physiol. 2015, 169, 1862–1880. [Google Scholar] [CrossRef]
  51. Stracke, R.; Holtgräwe, D.; Schneider, J.; Pucker, B.; Sörensen, T.R.; Weisshaar, B. Genome-wide identification and characterisation of R2R3-MYB genes in sugar beet (Beta vulgaris). BMC Plant Biol. 2014, 14, 249. [Google Scholar] [CrossRef] [PubMed]
  52. Li, X.; Xue, C.; Li, J.; Qiao, X.; Li, L.; Yu, L.; Huang, Y.; Wu, J. Genome-Wide Identification, Evolution and Functional Divergence of MYB Transcription Factors in Chinese White Pear (Pyrus bretschneideri). Plant Cell Physiol. 2016, 57, 824–847. [Google Scholar] [CrossRef] [PubMed]
  53. Hou, D.; Cheng, Z.; Xie, L.; Li, X.; Li, J.; Mu, S.; Gao, J. The R2R3MYB Gene Family in Phyllostachys edulis: Genome-Wide Analysis and Identification of Stress or Development-Related R2R3MYBs. Front. Plant Sci. 2018, 9, 738. [Google Scholar] [CrossRef] [PubMed]
  54. Sun, W.; Jin, X.; Ma, Z.; Chen, H.; Liu, M. Basic helix-loop-helix (bHLH) gene family in Tartary buckwheat (Fagopyrum tataricum): Genome-wide identification, phylogeny, evolutionary expansion and expression analyses. Int. J. Biol. Macromol. 2020, 155, 1478–1490. [Google Scholar] [CrossRef]
  55. Baumann, K.; Perez-Rodriguez, M.; Bradley, D.; Venail, J.; Bailey, P.; Jin, H.; Koes, R.; Roberts, K.; Martin, C. Control of cell and petal morphogenesis by R2R3 MYB transcription factors. Development 2007, 134, 1691–1701. [Google Scholar] [CrossRef]
  56. Yang, M. The FOUR LIPS (FLP) and MYB88 genes conditionally suppress the production of nonstomatal epidermal cells in Arabidopsis cotyledons. Am. J. Bot. 2016, 103, 1559–1566. [Google Scholar] [CrossRef] [PubMed]
  57. Shin, B.; Choi, G.; Yi, H.; Yang, S.; Cho, I.; Kim, J.; Lee, S.; Paek, N.C.; Kim, J.H.; Song, P.S.; et al. AtMYB21, a gene encoding a flower-specific transcription factor, is regulated by COP1. Plant J. 2002, 30, 23–32. [Google Scholar] [CrossRef] [PubMed]
  58. Shan, X.; Li, Y.; Yang, S.; Yang, Z.; Qiu, M.; Gao, R.; Han, T.; Meng, X.; Xu, Z.; Wang, L.; et al. The spatio-temporal biosynthesis of floral flavonols is controlled by differential phylogenetic MYB regulators in Freesia hybrida. New Phytol. 2020, 228, 1864–1879. [Google Scholar] [CrossRef] [PubMed]
  59. Zhan, X.; Liao, X.; Luo, X.; Zhu, Y.; Feng, S.; Yu, C.; Lu, J.; Shen, C.; Wang, H. Comparative Metabolomic and Proteomic Analyses Reveal the Regulation Mechanism Underlying MeJA-Induced Bioactive Compound Accumulation in Cutleaf Groundcherry (Physalis angulata L.) Hairy Roots. J. Agric. Food Chem. 2018, 66, 6336–6347. [Google Scholar] [CrossRef]
  60. Deng, C.; Wang, Y.; Huang, F.; Lu, S.; Zhao, L.; Ma, X.; Kai, G. SmMYB2 promotes salvianolic acid biosynthesis in the medicinal herb Salvia miltiorrhiza. J. Integr. Plant Biol. 2020, 62, 1688–1702. [Google Scholar] [CrossRef]
  61. Cheng, L.; Han, M.; Yang, L.M.; Yang, L.; Sun, Z.; Zhang, T. Changes in the physiological characteristics and baicalin biosynthesis metabolism of Scutellaria baicalensis Georgi under drought stress. Ind. Crops Prod. 2018, 122, 473–482. [Google Scholar] [CrossRef]
  62. Bhatia, C.; Pandey, A.; Gaddam, S.R.; Hoecker, U.; Trivedi, P.K. Low Temperature-Enhanced Flavonol Synthesis Requires Light-Associated Regulatory Components in Arabidopsis thaliana. Plant Cell Physiol. 2018, 59, 2099–2112. [Google Scholar] [CrossRef] [PubMed]
  63. Chen, C.; Chen, H.; Zhang, Y.; Thomas, H.R.; Frank, M.H.; He, Y.; Xia, R. TBtools: An Integrative Toolkit Developed for Interactive Analyses of Big Biological Data. Mol. Plant 2020, 13, 1194–1202. [Google Scholar] [CrossRef] [PubMed]
  64. Wang, Y.; Tang, H.; Debarry, J.D.; Tan, X.; Li, J.; Wang, X.; Lee, T.H.; Jin, H.; Marler, B.; Guo, H.; et al. MCScanX: A toolkit for detection and evolutionary analysis of gene synteny and collinearity. Nucleic Acids Res. 2012, 40, e49. [Google Scholar] [CrossRef]
  65. Cui, Y.; Cui, Z.; Xu, J.; Hao, D.; Shi, J.; Wang, D.; Xiao, H.; Duan, X.; Chen, R.; Li, W. NG-Circos: Next-generation Circos for data visualization and interpretation. NAR Genom. Bioinform. 2020, 2, lqaa069. [Google Scholar] [CrossRef]
  66. Kumar, S.; Stecher, G.; Tamura, K. MEGA7: Molecular Evolutionary Genetics Analysis Version 7.0 for Bigger Datasets. Mol. Biol. Evol. 2016, 33, 1870–1874. [Google Scholar] [CrossRef] [PubMed]
  67. Larkin, M.A.; Blackshields, G.; Brown, N.P.; Chenna, R.; McGettigan, P.A.; McWilliam, H.; Valentin, F.; Wallace, I.M.; Wilm, A.; Lopez, R.; et al. Clustal W and Clustal X version 2.0. Bioinformatics 2007, 23, 2947–2948. [Google Scholar] [CrossRef]
  68. Nystrom, S.L.; McKay, D.J. Memes: A motif analysis environment in R using tools from the MEME Suite. PLoS Comput. Biol. 2021, 17, e1008991. [Google Scholar] [CrossRef]
  69. Zhang, C.; Wang, W.; Wang, D.; Hu, S.; Zhang, Q.; Wang, Z.; Cui, L. Genome-Wide Identification and Characterization of the WRKY Gene Family in Scutellaria baicalensis Georgi under Diverse Abiotic Stress. Int. J. Mol. Sci. 2022, 23, 4225. [Google Scholar] [CrossRef]
  70. Wang, W.; Hu, S.; Cao, Y.; Chen, R.; Cao, X. Selection and evaluation of reference genes for qRT-PCR of Scutellaria baicalensis Georgi under different experimental conditions. Mol. Biol. Rep. 2021, 48, 1115–1126. [Google Scholar] [CrossRef]
  71. Reece-Hoyes, J.S.; Walhout, A.J.M. Gateway Recombinational Cloning. Cold Spring Harb. Protoc. 2018, 2018, pdb.top094912. [Google Scholar] [CrossRef] [PubMed]
Ijms 23 09342 g001 550

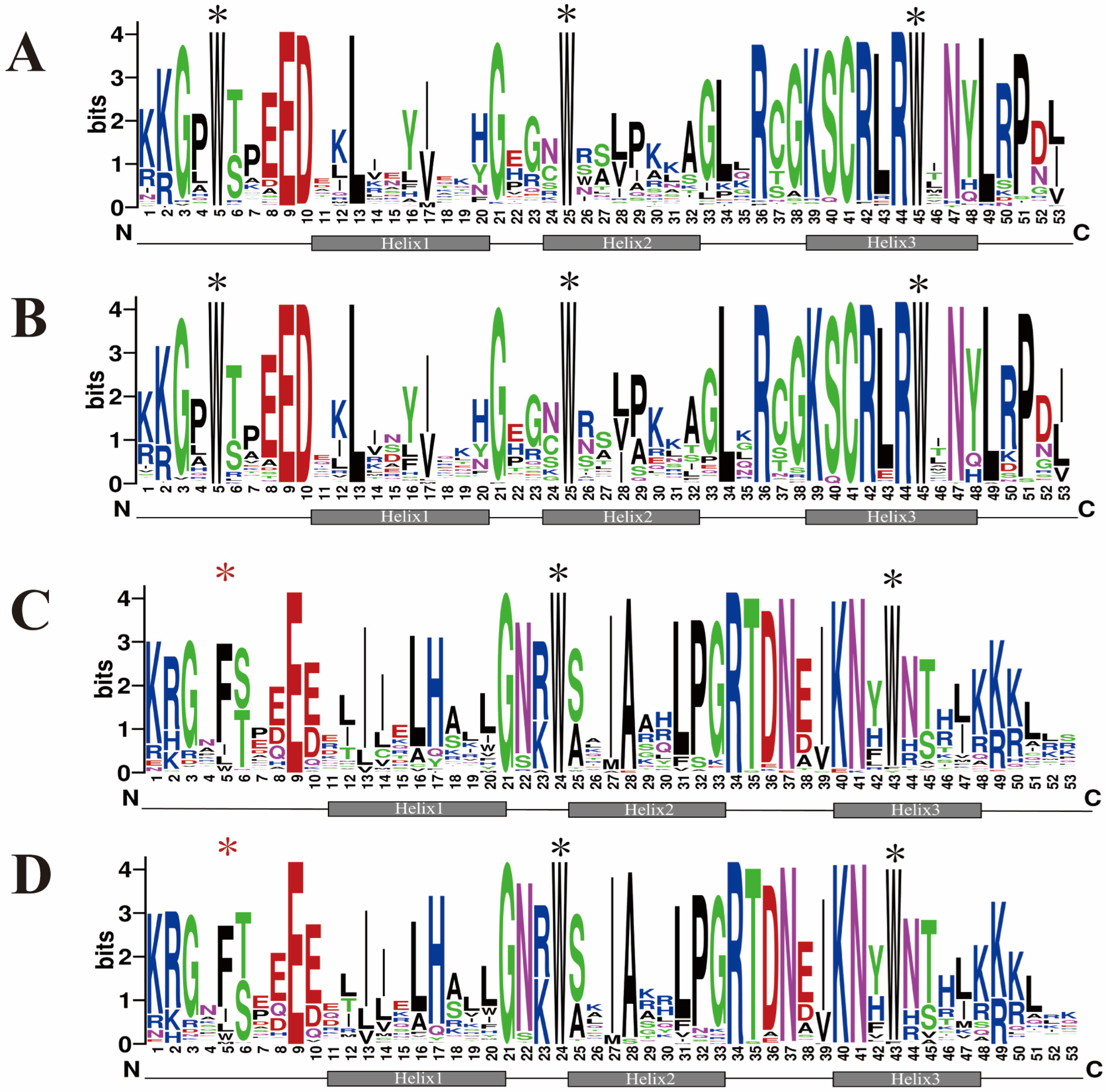

Figure 1. Comparison of the MYB R2 and R3 sequences in S. baicalensis and Arabidopsis R2R3-MYBs. (A) R2 sequence logos in S. baicalensis MYBs. (B) R2 sequence logos in Arabidopsis MYBs. (C) R3 sequence logos in S. baicalensis MYBs. (D) R3 sequence logos in Arabidopsis MYBs. Highly conserved tryptophan (W) and phenylalanine (F) residues are indicated by asterisks. To provide clues for the functional investigation of R2R3-SbMYB proteins, we predicted subcellular localization and found 94 R2R3-SbMYB proteins in the nuclei, while only SbMYB66 was within the mitochondria.
Figure 1. Comparison of the MYB R2 and R3 sequences in S. baicalensis and Arabidopsis R2R3-MYBs. (A) R2 sequence logos in S. baicalensis MYBs. (B) R2 sequence logos in Arabidopsis MYBs. (C) R3 sequence logos in S. baicalensis MYBs. (D) R3 sequence logos in Arabidopsis MYBs. Highly conserved tryptophan (W) and phenylalanine (F) residues are indicated by asterisks. To provide clues for the functional investigation of R2R3-SbMYB proteins, we predicted subcellular localization and found 94 R2R3-SbMYB proteins in the nuclei, while only SbMYB66 was within the mitochondria.
Ijms 23 09342 g001
Ijms 23 09342 g002 550

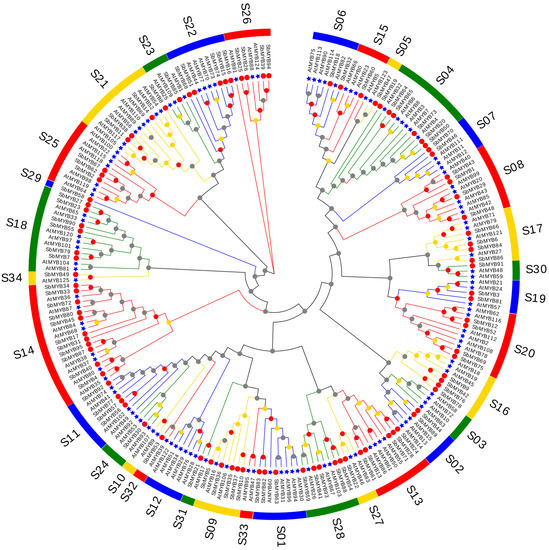

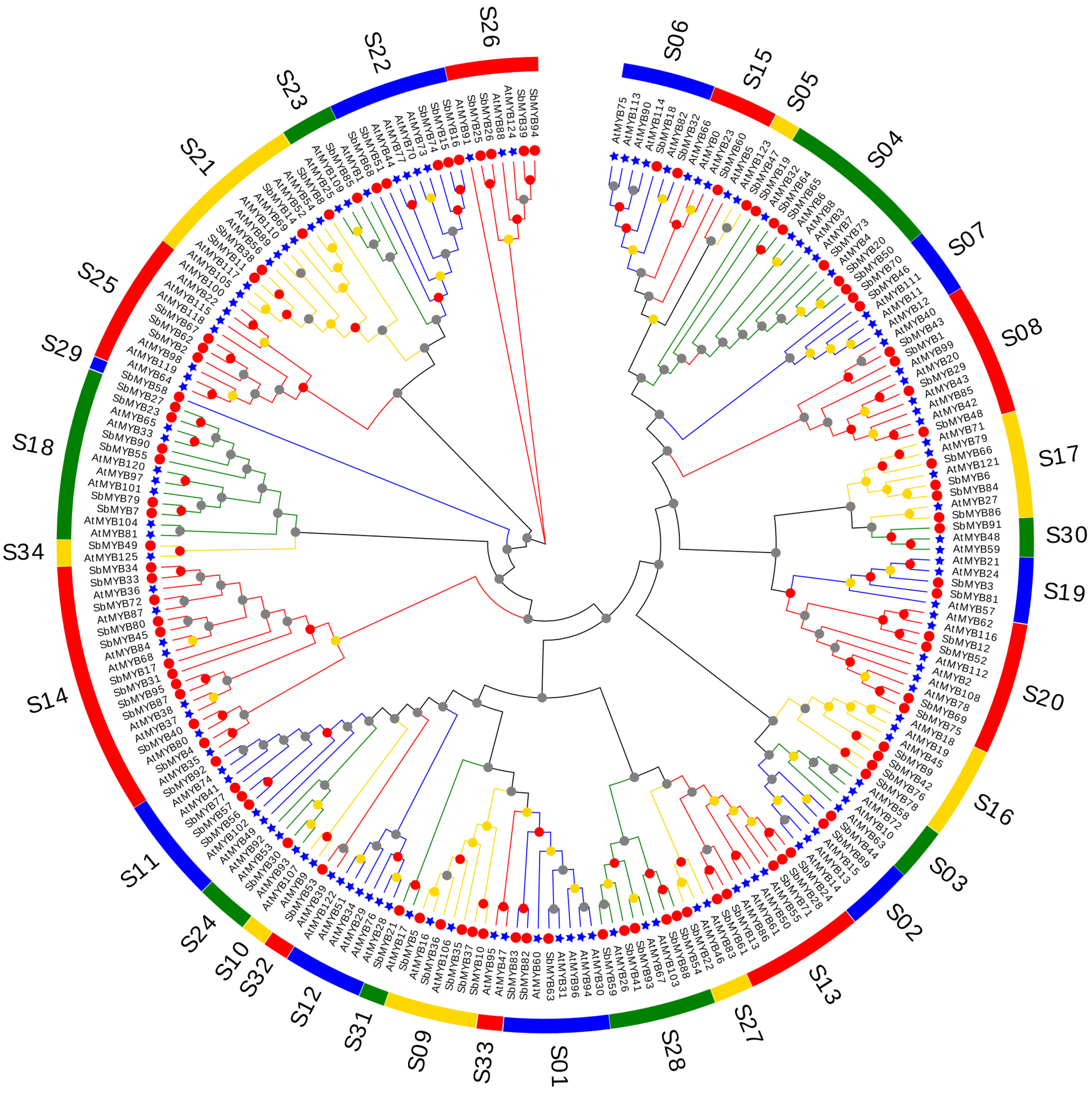

Figure 2. S. baicalensis (red) and Arabidopsis (blue) R2R3-MYB proteins phylogenetic relationships. A neighbor-joining (NJ) phylogenetic tree was generated using 1000 replications. A total of 34 subgroups of R2R3-MYBs (S1–S34) were determined along with Arabidopsis homologs. The red circle refers to SbMYBs and the blue star refers to AtMYBs, and the outer circle of the phylogenetic tree contained the ID number of each subgroup.
Figure 2. S. baicalensis (red) and Arabidopsis (blue) R2R3-MYB proteins phylogenetic relationships. A neighbor-joining (NJ) phylogenetic tree was generated using 1000 replications. A total of 34 subgroups of R2R3-MYBs (S1–S34) were determined along with Arabidopsis homologs. The red circle refers to SbMYBs and the blue star refers to AtMYBs, and the outer circle of the phylogenetic tree contained the ID number of each subgroup.
Ijms 23 09342 g002
Ijms 23 09342 g003 550
Figure 3. Chromosomal map of R2R3-SbMYB genes was generated for S. baicalensis. A total of 93 R2R3-SbMYB genes were located on nine different chromosomes, with the remaining two genes resided on the unassembled scaffold (SbMYB94 and SbMYB95). Every chromosome has a number at the top and is scaled in megabases (Mb). Gene names that are highlighted in red on each chromosome indicate tandem duplications.
Figure 3. Chromosomal map of R2R3-SbMYB genes was generated for S. baicalensis. A total of 93 R2R3-SbMYB genes were located on nine different chromosomes, with the remaining two genes resided on the unassembled scaffold (SbMYB94 and SbMYB95). Every chromosome has a number at the top and is scaled in megabases (Mb). Gene names that are highlighted in red on each chromosome indicate tandem duplications.
Ijms 23 09342 g003
Ijms 23 09342 g004 550
Figure 4. Interchromosomal relationships of the R2R3-MYB genes in S. baicalensis. Synteny blocks in S. baicalensis are depicted in gray lines, and duplicate MYB gene pairs are shown in red lines.
Figure 4. Interchromosomal relationships of the R2R3-MYB genes in S. baicalensis. Synteny blocks in S. baicalensis are depicted in gray lines, and duplicate MYB gene pairs are shown in red lines.
Ijms 23 09342 g004
Ijms 23 09342 g005 550
Figure 5. Synteny analysis of S. baicalensis R2R3-MYB genes in comparison with eight other representative plant species (A. thaliana, P. trichocarpa, V.vinifera, S. tuberosum, N. attenuata, S. indicum O. sativa, and Z. mays). Red lines highlight the syntenic R2R3-MYB gene pairs between S. baicalensis and the other plants, while gray lines illustrate all collinear blocks.
Figure 5. Synteny analysis of S. baicalensis R2R3-MYB genes in comparison with eight other representative plant species (A. thaliana, P. trichocarpa, V.vinifera, S. tuberosum, N. attenuata, S. indicum O. sativa, and Z. mays). Red lines highlight the syntenic R2R3-MYB gene pairs between S. baicalensis and the other plants, while gray lines illustrate all collinear blocks.
Ijms 23 09342 g005
Ijms 23 09342 g006 550
Figure 6. Phylogenetic analysis of the gene structures, conserved protein motifs, and cis-acting elements of R2R3-MYBs from S. baicalensis. (A) Phylogenetic tree of the R2R3-SbMYB proteins. (B) Structures of R2R3-SbMYB genes are depicted with green boxes for exons and gray lines for introns. (C) A total of 20 motif compositions of the R2R3-SbMYB proteins are represented via differently colored boxes. (D) Analysis of R2R3-SbMYB gene promoters for cis-acting elements.
Figure 6. Phylogenetic analysis of the gene structures, conserved protein motifs, and cis-acting elements of R2R3-MYBs from S. baicalensis. (A) Phylogenetic tree of the R2R3-SbMYB proteins. (B) Structures of R2R3-SbMYB genes are depicted with green boxes for exons and gray lines for introns. (C) A total of 20 motif compositions of the R2R3-SbMYB proteins are represented via differently colored boxes. (D) Analysis of R2R3-SbMYB gene promoters for cis-acting elements.
Ijms 23 09342 g006
Ijms 23 09342 g007 550
Figure 7. The heatmap shows the hierarchical clustering of expression profiles of R2R3-SbMYB genes in different tissues based on Lg (FPKM) values.
Figure 7. The heatmap shows the hierarchical clustering of expression profiles of R2R3-SbMYB genes in different tissues based on Lg (FPKM) values.
Ijms 23 09342 g007
Ijms 23 09342 g008 550
Figure 8. Response to ABA treatments of 36 selected R2R3-SbMYB genes. The reference gene was SbACT7. Comparing the experimental and control groups (0 h), statistically significant differences are indicated by * p < 0.05, ** p < 0.01.
Figure 8. Response to ABA treatments of 36 selected R2R3-SbMYB genes. The reference gene was SbACT7. Comparing the experimental and control groups (0 h), statistically significant differences are indicated by * p < 0.05, ** p < 0.01.
Ijms 23 09342 g008
Ijms 23 09342 g009 550
Figure 9. Response to MeJA treatments of 36 selected R2R3-SbMYB genes. The reference gene was SbACT7. Comparing the experimental and control groups (0 h), statistically significant differences are indicated by * p < 0.05, ** p < 0.01.
Figure 9. Response to MeJA treatments of 36 selected R2R3-SbMYB genes. The reference gene was SbACT7. Comparing the experimental and control groups (0 h), statistically significant differences are indicated by * p < 0.05, ** p < 0.01.
Ijms 23 09342 g009
Ijms 23 09342 g010 550
Figure 10. Response to PEG6000 treatments of 36 selected R2R3-SbMYB genes. The reference gene was SbACT7. Comparing the experimental and control groups (0 h), statistically significant differences are indicated by * p < 0.05, ** p < 0.01.
Figure 10. Response to PEG6000 treatments of 36 selected R2R3-SbMYB genes. The reference gene was SbACT7. Comparing the experimental and control groups (0 h), statistically significant differences are indicated by * p < 0.05, ** p < 0.01.
Ijms 23 09342 g010
Ijms 23 09342 g011 550
Figure 11. Response to low temperature treatments of 36 selected R2R3-SbMYB genes. The reference gene was SbACT7. Comparing the experimental and control groups (0 h), statistically significant differences are indicated by * p < 0.05, ** p < 0.01.
Figure 11. Response to low temperature treatments of 36 selected R2R3-SbMYB genes. The reference gene was SbACT7. Comparing the experimental and control groups (0 h), statistically significant differences are indicated by * p < 0.05, ** p < 0.01.
Ijms 23 09342 g011
Ijms 23 09342 g012 550
Figure 12. Subcellular location of the selected SbMYBs (SbMYB18/32/46/60/70/74) in Arabidopsis mesophyll protoplasts by laser confocal microscopy, with GFP as the positive control (Scale bar: 25 µm).
Figure 12. Subcellular location of the selected SbMYBs (SbMYB18/32/46/60/70/74) in Arabidopsis mesophyll protoplasts by laser confocal microscopy, with GFP as the positive control (Scale bar: 25 µm).
Ijms 23 09342 g012
Ijms 23 09342 g013 550
Figure 13. Transactivation activity of SbMYBs protein. The construct of the six recombinant vector pGBKT7-SbMYBs were transformed into AH109 and detected on SD/-Trp, SD/-Trp/-His/-Ade medium with X-α-gal. (Scale bar: 8 mm).
Figure 13. Transactivation activity of SbMYBs protein. The construct of the six recombinant vector pGBKT7-SbMYBs were transformed into AH109 and detected on SD/-Trp, SD/-Trp/-His/-Ade medium with X-α-gal. (Scale bar: 8 mm).
Ijms 23 09342 g013
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Wang, W.; Hu, S.; Zhang, C.; Yang, J.; Zhang, T.; Wang, D.; Cao, X.; Wang, Z. Systematic Analysis and Functional Characterization of R2R3-MYB Genes in Scutellaria baicalensis Georgi. Int. J. Mol. Sci. 2022, 23, 9342. https://doi.org/10.3390/ijms23169342

AMA Style

Wang W, Hu S, Zhang C, Yang J, Zhang T, Wang D, Cao X, Wang Z. Systematic Analysis and Functional Characterization of R2R3-MYB Genes in Scutellaria baicalensis Georgi. International Journal of Molecular Sciences. 2022; 23(16):9342. https://doi.org/10.3390/ijms23169342

Chicago/Turabian Style

Wang, Wentao, Suying Hu, Caijuan Zhang, Jing Yang, Tong Zhang, Donghao Wang, Xiaoyan Cao, and Zhezhi Wang. 2022. "Systematic Analysis and Functional Characterization of R2R3-MYB Genes in Scutellaria baicalensis Georgi" International Journal of Molecular Sciences 23, no. 16: 9342. https://doi.org/10.3390/ijms23169342

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
