Article

A Fully-Human Antibody Specifically Targeting a Membrane-Bound Fragment of CADM1 Potentiates the T Cell-Mediated Death of Human Small-Cell Lung Cancer Cells

1
Department of Biopharmaceutical Chemistry, Kookmin University, Seoul 02707, Korea
2
Department of Chemistry, Kookmin University, Seoul 02707, Korea
3
R&D Center, CellabMED Inc., 161, Jeongneung-ro, Seongbuk-gu, Seoul 02708, Korea
4
Department of Life Science, Ewha Womans University, Seoul 03760, Korea
5
Biopharmaceutical Chemistry Major, School of Applied Chemistry, Kookmin University, Seoul 02707, Korea
6
Antibody Research Institute, Kookmin University, Seoul 02707, Korea
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2022, 23(13), 6895; https://doi.org/10.3390/ijms23136895
Submission received: 22 April 2022 / Revised: 13 June 2022 / Accepted: 20 June 2022 / Published: 21 June 2022
(This article belongs to the Special Issue From Omics to Therapeutic Targets in Cancer)

Abstract

:
Small-cell lung cancer (SCLC) is the most aggressive form of lung cancer and the leading cause of global cancer-related mortality. Despite the earlier identification of membrane-proximal cleavage of cell adhesion molecule 1 (CADM1) in cancers, the role of the membrane-bound fragment of CAMD1 (MF-CADM1) is yet to be clearly identified. In this study, we first isolated MF-CADM1-specific fully human single-chain variable fragments (scFvs) from the human synthetic scFv antibody library using the phage display technology. Following the selected scFv conversion to human immunoglobulin G1 (IgG1) scFv-Fc antibodies (K103.1–4), multiple characterization studies, including antibody cross-species reactivity, purity, production yield, and binding affinity, were verified. Finally, via intensive in vitro efficacy and toxicity evaluation studies, we identified K103.3 as a lead antibody that potently promotes the death of human SCLC cell lines, including NCI-H69, NCI-H146, and NCI-H187, by activated Jurkat T cells without severe endothelial toxicity. Taken together, these findings suggest that antibody-based targeting of MF-CADM1 may be an effective strategy to potentiate T cell-mediated SCLC death, and MF-CADM1 may be a novel potential therapeutic target in SCLC for antibody therapy.

1. Introduction

Lung cancer is the leading cause of cancer-related mortality worldwide [1]. More specifically, an estimated 2,206,771 new cases and 1,796,144 deaths from lung cancer were reported globally in 2020 [2]. Lung cancers include non–small-cell lung cancer (NSCLC) and small-cell lung cancer (SCLC) [3]. Especially, SCLC is a highly aggressive neuroendocrine carcinoma that represents approximately 10%–15% of lung cancers with an exceptionally poor prognosis [4]. Furthermore, SCLC tends to grow and spread faster than NSCLC [5]. In the United States (US), approximately 30,000–35,000 people are diagnosed with SCLC each year [6]. Currently, SCLC has two stages, namely, the limited and extensive stages [7]. Limited-stage SCLC is only present in one lung and potentially in nearby lymph nodes to the same side of the chest, whereas extensive-stage SCLC spreads to the opposite side of the chest or distant organs [8]. Over several decades, a variety of therapeutic regimens, including chemotherapy, radiation therapy, immunotherapy, surgery, and combination therapy, have been clinically used for SCLC treatment [9]. These treatment options are mainly determined based on the stage of cancer, but other factors, such as a person’s overall health and lung function, are also considered [10]. However, the 5-year survival rate for SCLC is reported to be relatively low (6.5%) [11].
Monoclonal antibody (mAb) is a laboratory-produced molecule that is engineered to study disease-related molecular mechanisms and/or treat various diseases, such as infectious diseases, immunological disorders, and cancers [12,13]. Currently, mAb therapy is one of the most effective treatments for cancers [14]. Since the first approval of the US Food and Drug Administration (FDA) for OKT3, a mouse anti-CD3 mAb, 131 therapeutic antibodies have been approved by the US FDA and/or European Medicines Agency (EMA) thus far [15,16]. Among them, 59 are indicated for cancer treatment. Some immune checkpoint inhibitors, such as atezolizumab, which is a humanized IgG1 antibody to PD-L1, and durvalumab, which is a fully human immunoglobulin G1 (IgG1) antibody to PD-L1, are currently used for SCLC treatment in combination with chemotherapy [17]; however, according to a phase III clinical trial results, their therapeutic efficacy is not dramatic [18]. In detail, the median overall survival (OS) of atezolizumab plus carboplatin and the etoposide-treated group was 12.3 months, which was 2 months longer than that of the carboplatin and etoposide-treated groups (10.3 months) [19]. Furthermore, the median OS of durvalumab plus platinum-etoposide-treated groups (13 months) was 2.7 months longer than that of the platinum-etoposide-treated group (10.3 months) [20]. Therefore, identifying the novel potential therapeutic targets in SCLC is essential for not only better understanding their functional role and relevance in SCLC but also for developing novel therapeutics for improving the clinical outcomes of patients with SCLC.
Cell adhesion molecule 1 (CADM1), also known as IGSF4, TSLC1, Necl-2, and SynCAM1, is a member of the Immunoglobulin (Ig) superfamily that consists of an extracellular domain (ECD) containing three Ig-like loops, a single transmembrane domain (TM), and a cytoplasmic domain (CD) [21]. CADM1 protein is expressed in some normal tissues, including epithelial, neuronal, lung, brain, pancreas, and testis tissues [22,23,24,25]. It plays a vital role in the regulation of cell adhesion, migration, and survival [22,26,27]. CADM1 seems to play different roles depending on the cancer type. Many studies reported CADM1 as a tumor suppressor in several cancer types, including ovarian, breast, and pancreatic cancers, and the loss of CADM1 expression is closely associated with cancer progression and metastasis [28,29,30]. Contrarily, CADM1 overexpression in SCLC is particularly associated with tumorigenicity, suggesting its unique oncogenic role in SCLC [31,32]. Furthermore, CADM1, encoded by 12 exons, undergoes alternative splicing to generate several splicing variants through combining alternative exons 8/9/10. Among them, variants 8 and 8/9 of CADM1 are almost exclusively observed in SCLCs [32]. Variant 8/9 is susceptible to cleavage by proteases, such as a disintegrin and metalloprotease 10 (ADAM10), and γ-secretases, and it generates the membrane-bound fragment of CADM1 (MF-CADM1) on the cancer cell surface, whereas variant 8 was known to be a cleavage-resistant form of CADM1 [33]. In addition, normal lung and brain tissues did not express variant 8/9; however, its expression could be detected in testis, suggesting that the expression of MF-CADM1 might be specific to SCLC [32]. However, the role of MF-CADM1 in SCLC has not been clearly identified yet.
Therefore, for the first time, this study developed fully human antibodies that are specific to human and mouse MF-CADM1 using a phage display technology. Our intensive in vitro characterization and functional analyses with these antibodies provided a proof of concept that antibody-based targeting of MF-CADM1 may potentiate the T cell-mediated cell death of SCLCs and that MF-CADM1 may be a novel potential therapeutic target in SCLCs for antibody therapy.

2. Results

2.1. Preparation and Analysis of MF-CADM1 Peptide Conjugates for Antibody Selection

CADM1 is an Ig superfamily member that promotes the malignant features of SCLCs [31]. Reportedly, some proteases, such as ADAM10 and γ-secretase, induce the membrane-proximal cleavage of CADM1, called shedding, that results in MF-CADM1 formation on tumor cells (Figure 1A) [33]. To investigate whether the cleavage of CADM1 also occurs on NCI-H69 human SCLC cells, the cell extracts and culture media were individually collected and subjected to immunoblot analysis with a commercially available anti-CADM1 antibody that is specific to the second Ig-like domain in the ECD of CADM1. We detected a discrete CADM1 band that had a smaller molecular weight in the media than that in the cell extract, thereby suggesting the membrane-proximal cleavage of CADM1 on the NCI-H69 cells (Figure 1B).
To generate MF-CADM1 peptide conjugates as antigens for antibody selection, we first synthesized the peptides of human MF-CADM1 (MF-hCADM1; amino acids 360–374) or mouse MF-CADM1 (MF-mCADM1; amino acids 374–388), respectively, and conjugated them to bovine serum albumin (BSA) as a carrier protein (MF-hCADM1-BSA and MF-mCADM1-BSA). The quality of the MF-CADM1 peptide conjugates was then assessed with sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE) followed by Coomassie Brilliant Blue (CBB) staining. We confirmed the mobility shift of MF-hCADM1-BSA or MF-mCADM1-BSA compared with BSA as a negative control, showing the proper conjugation of MF-CADM1 peptide conjugates (Figure 1C). These conjugates were then used for antibody selection using phage display technology.

2.2. Selection of Fully Human scFvs Specific to Human and Mouse MF-CADM1

To select fully-human antibodies having cross-species reactivity to human and mouse MF-CADM1, we performed phage display bio-panning with the MF-hCADM1- or MF-mCADM1-BSA-immobilized magnetic beads and selected scFv clones specific to both MF-hCADM1 and MF-mCADM1 from a human synthetic scFv antibody library (Figure 2A). In detail, following the consecutive six rounds of bio-panning by increasing detergent concentration and washing frequency, 96 clones from output titer plates were randomly selected, rescued by the helper phages, and tested for their reactivity to MF-hCADM1 and MF-mCADM1 using phage enzyme-linked immunosorbent assay (phage ELISA). All of the selected scFv clones were found to have strong reactivity to MF-hCADM1- and MF-mCADM1-BSA (Figure 2B), but not to BSA, as a negative control (data not shown), showing the specific binding of the selected scFvs to MF-hCADM1 and MF-mCADM1. Finally, the deoxyribonucleic acid (DNA) sequencing results reveal that four scFv clones have different complementarity-determining region (CDR) sequences (data not shown).

2.3. Biophysiochemical Characterization of the Selected scFv-Fc Antibodies

Following the conversion of the selected scFvs to human IgG1 scFv-Fc antibodies, the antibodies were transiently overproduced in Expi293F cells and purified using affinity column chromatography with protein A sepharose, respectively. Here, we designated four scFv-Fc antibodies as K103.1–4 and found that all the scFv-Fc antibodies have a production yield of approximately 20 mg/L (Figure 3A). Further, the endotoxin contamination in each antibody preparation was individually tested, wherein negligible endotoxin was detected (data not shown).
To examine the conformation status of the scFv-Fcs, each scFv-Fc clone, in the presence or absence of dithiothreitol as a reducing agent, was subjected to SDS-PAGE followed by CBB staining. We observed that each clone is monomeric in the reducing condition, whereas it has dimeric a conformation as expected in the non-reducing condition (Figure 3B).
To verify the specific binding of each scFv-Fc antibody to human and mouse MF-CADM1, we individually performed ELISA with recombinant human CAMD1-ECD, MF-hCAMD1-BSA, or MF-mCADM1-BSA. Here, BSA is used as a negative control. We found that all the selected scFv-Fc antibodies bind to MF-hCADM1- and MF-mCADM1-BSA but not to recombinant human CAMD1-ECD or BSA alone (Figure 3C).
To investigate the binding affinity of each scFv-Fc antibody to human MF-CADM1, we performed surface plasmon resonance (SPR). In detail, following the immobilization of MF-hCAMD1-BSA onto a sensor chip, the binding kinetics of antigen-antibody interaction was measured by increasing the concentration of the selected scFv-Fc antibodies (Figure 4A–D). We demonstrated that K103.1, K103.2, K103.3, and K103.4 specifically bind to MF-hCADM1 with a dissociation constant (KD) of ~4.5, 39, 2.3, and 41 nM, respectively (Table 1).

2.4. Effect of the Selected scFv-Fc Antibodies on Jurkat T Cell-Mediated SCLC Cell Death

To examine the surface binding of each scFv-Fc antibody to MF-CADM1 on SCLC cells, we conducted flow cytometry with each scFv-Fc and NCI-H69 cell. The result revealed that all the antibodies bind to the NCI-H69 cell surface (Figure 5A), whereas control IgG has no binding (Supplementary Figure S1), indicating the specific interaction of the antibodies to the considerable amount of MF-CADM1 on NCI-H69 cells. To further test the specific binding of the antibody to MF-CADM1 on NCI-H69 cells, we pre-incubated K103.3 in the presence or absence of MF-hCADM1 peptide-conjugated BSA and then conducted flow cytometry. We found that pre-incubation of K103.3 with MF-hCADM1 reduces the antibody binding to the NCI-H69 cell surface, indicating the specific binding of K103.3 on MF-CADM1 on the cells (Supplementary Figure S2).
To investigate the role of the selected antibodies on T cell-mediated death in SCLC cells, we first generated an antibody specific to CD3ε for T cell activation and prepared engineered Jurkat T cells that specifically express a green fluorescent protein (GFP) upon T cell activation. Then, we treated NCI-H69 with this anti-CD3ε antibody in the presence or absence of each scFv-Fc antibody and measured the T cell activity. We confirmed that the selected antibodies do not affect the Jurkat T cell activation induced by the anti- CD3ε antibody (Figure 5B). Simultaneously, we incubated NCI-H69 cells with IncuCyte annexin V red reagent, a fluorescent death dye, and quantified the extent of NCI-H69 cell death in the presence or absence of each scFv-Fc antibody in the same experimental settings. We found that, among the selected antibodies, K103.3 most potently induces the death of NCI-H69 cells by the activated Jurkat cells (Figure 5C). Further, we detected that K103.3-induced death in NCI-H69 cells was increased in an antibody concentration-dependent manner (Figure 5D).
To further examine the universal effect of K103.3 on T cell-mediated death in SCLC cells, we also performed flow cytometry with K103.3 and other SCLC cell lines, such as NCI-H146 and NCI-H187. We confirmed the binding of K103.3 on the surface of both NCI-H146 and NCI-H187 cells (Figure 6A). Then, we incubated the activated Jurkat T cell with NCI-H146 or NCI-H187 cells in the presence or absence of the K103.3 antibody. We confirmed that the selected antibodies did not affect the Jurkat T cell activation induced by the anti-CD3ε antibody (Figure 6B). Simultaneously, we found that K103.3 increases the Jurkat T cell-mediated death in NCI-H146 (Figure 6C) or NCI-H187 (Figure 6D) in an antibody concentration-dependent manner.

2.5. Effect of K103.3 on Endothelial Cell Toxicity

To investigate the effect of K103.3 on endothelial cell viability, we first evaluated the viability of human umbilical vein endothelial cells (HUVECs) in the absence or presence of K103.3 and 5-fluorouracil (5-FU) as a positive control. We confirmed that K103.3 did not affect HUVEC viability, whereas 5-FU significantly reduced the cell viability (Figure 7A). Furthermore, we treated HUVECs with K103.3 or human tumor necrosis factor α (hTNFα) as a positive control. We monitored the HUVEC activation by measuring the expression of vascular cell adhesion molecule-1 (VCAM-1) and intracellular cell adhesion molecule-1 (ICAM-1), endothelial cell activation markers. We found that K103.3 did not affect the HUVEC activation, while hTNFα significantly induced the cell activation (Figure 7B). Additionally, to investigate the possible adverse effects of the antibody in normal cells, we first evaluated the MF-CADM1 expression on HUVECs using flow cytometry. The result showed that CADM1, but not MF-CADM1, is expressed on HUVECs (Supplementary Figure S4). Next, we incubated the activated Jurkat T cell with HUVECs in the presence or absence of the K103.3 antibody. We confirmed that the selected antibody did not induce Jurkat T cell-mediated death in HUVECs in an antibody concentration-dependent manner (Supplementary Figure S5).

3. Discussion

SCLC is an aggressive form of lung cancer that has metastasized to other body areas by the time it is diagnosed [34]. To date, some immunotherapy treatments have been developed for the treatment of patients with SCLCs [35]. The two US FDA-approved immune checkpoint inhibitors, namely, durvalumab and atezolizumab, are clinically used; however, these have shown limited clinical efficacy because the median OS is only extended by < 3 months [19,20]. Furthermore, other than these inhibitors, there are no other options for antibody therapy for SCLC treatment [17]. Therefore, continuous efforts are needed to identify promising potential therapeutic targets in SCLCs and therapeutics to improve the clinical outcome of patients with SCLCs. In this study, we selected MF-CADM1-specific fully human antibodies, a cleaved fragment of CADM1 on the cell surface of advanced SCLCs, using phage display technology. Through intensive characterization and functional studies, we demonstrated that an antibody targeting MF-CADM1 shows promising anti-tumor activity by promoting the T-cell-mediated cell death of SCLCs. Here, based on our findings, we suggest that MF-CADM1 may be a novel potential therapeutic target in SCLCs, and antibody-based targeting of MF-CADM1 may be effective against SCLC.
Antibody therapy is one of the targeted therapies that specifically modulates a causative factor in cancer and blocks a specific signaling pathway that is closely associated with cancer progression and metastasis [36,37]. As well known, the target specificity of antibodies leads to fewer adverse effects and superior efficacy and/or in combination with pre-existing chemotherapeutic agents in cancer therapy [38]. Based on the present study findings, we propose that the anti-MF-CADM1-specific antibodies that we have developed can be used as antibody platforms for a wide range of use, such as research and pharmaceutical purposes. Several lines of evidence support our hypothesis. First, K101.3 seems to be specific to MF-CADM1. Our phage ELISA and ELISA with the selected scFv-Fc antibodies (K103.1~4) show that all scFv or scFv-Fc clones specifically recognize MF-CADM1-BSA but not BSA. All scFv-Fcs only bind to MF-CADM1-BSA but not to rhCADM1-ECD, and BSA further supports the specific binding of the antibodies to MF-CADM1. Furthermore, we confirmed that K103.3 does bind to MF-CADM1-KLH but not to KLH alone (Supplementary Figure S1). Second, all scFvs that are isolated from the human synthetic antibody library are fully human antibodies. Thus, they may relatively lead to lower immunogenicity than the mouse or chimeric antibodies in vivo. Third, it has broad cross-species reactivity to human and mouse MF-CADM1 that can apply to preclinical and clinical safety and efficacy evaluation studies. In phage ELISA and ELISA with selected antibodies, we observed that all the scFvs or scFv-Fcs specifically recognize both MF-hCADM1-BSA and MF-mCADM1-BSA, but not BSA. Fourth, our SPR analysis showed that K103.3 has a high affinity (KD approximately 2.3 nM) to MF-hCADM1, indicating strong binding toward the target antigen. Fifth, K103.3 specifically target MF-CADM1 expression on the membrane surface of SCLC cells. Using flow cytometry, K103.3 specifically binds to a broad range of SCLC cell lines, including NCI-H69, NCI-H146, and NCI-H526, whereas control scFv-Fc does not bind to these cell lines (Supplementary Figure S2). Furthermore, K103.3, pre-incubated with MF-hCADM1, does not bind to these SCLC cell lines (Supplementary Figure S3). Lastly, we confirmed that all the selected scFv-Fc antibodies do not form visible aggregates during antibody purification, indicating that the antibodies are physiochemically stable. Taken together, these results suggest that the anti-MF-CADM1-specific antibodies may be useful not only for identifying the functional role and relevance of MF-CADM1 in SCLCs but also for developing the next-generation SCLC therapeutics for antibody therapy.
Cancer immunotherapy is a type of cancer treatment that boosts the body’s immune system to combat cancer [39]. Upon the activation of T cells, it plays a pivotal role in cancer cell death by secreting a variety of factors, including perforin, granzymes, and cytokines [40]. By monitoring cell death using IncuCyte annexin V red reagent in the present study, we found that K103.3 significantly promotes the death of three types of SCLC cell lines, such as NCI-H69, NCI-H146, and NCI-H187 cells, by the activated Jurkat T cells without interfering with the T cell activation. Furthermore, we found that each cancer cell death was increased in a K103.3 antibody concentration-dependent manner. This evidence leads us to speculate that K103.3 may act as a facilitator to recruit the activated T cells near MF-CADM1-expressing SCLC cells and result in efficient SCLC cell death. In these functional analyses, we have used an engineered Jurkat T cell line as a model cell line to simultaneously monitor T cell activation and cancer cell death. This study has focused on identifying the role of K103.3 on SCLC cell death by activated Jurkat T cells; however, we cannot exclude the possibility that CD8-positive cytotoxic T cells participate in T cell-mediated cell death of SCLCs in vivo. Additionally, through our in vitro toxicity evaluation studies, we demonstrated that K103.3 does not affect the HUVEC activation, as well as the HUVEC viability, suggesting that this antibody may not induce significant endothelial cell toxicity in vivo. Taken together, although further in vivo studies are needed, based on our findings, we suggest that MF-CADM1 may be a novel potential therapeutic target in SCLCs and that antibody-based targeting of MF-CADM1 may be effective against SCLCs.
In conclusion, based on currently available evidence, we suggest a mode of action whereby MF-CADM1-specific IgG-based antibody can promote the efficient recruitment of T cells by interactions between the Fc region of the antibody and Fc gamma receptors expressing on T cells and redirect the activated T cells proximal to the membrane surface of MF-CADM1-expressing SCLC cells, resulting in potentiating T cell-mediated SCLC cell death. Furthermore, despite our antibodies being developed as mAbs, these antibodies are also used as antibody platforms to generate bi- or multi-specific immune cell engagers or chimeric antigen receptor T cells for the effective treatment of patients with SCLCs. In future studies, we plan to further investigate the action mechanism in more detail and evaluate in vivo efficacy, in combination with immune checkpoint inhibitors and against MF-CADM1-expressing SCLCs.

4. Materials and Methods

4.1. Cell Culture

NCI-H69, NCI-H146, and NCI-H187 human SCLC cells (Korean Cell Bank, Seoul, Korea), and NF-κB/Jurkat/GFP™ transcriptional reporter cells (System Bioscience, Palo alto, CA, USA) were cultured in RPMI 1640 medium (Gibco, Waltham, MA, USA) supplemented with 10% (v/v) fetal bovine serum (FBS; Gibco) and 1% (v/v) penicillin/streptomycin (Gibco) and maintained at 37 °C with 5% CO2. HUVECs were cultured in Endothelial Cell Growth Medium-2 (EGM-2) (Lonza, Basel, Switzerland) at 37 °C with 5% CO2. The Expi293F cells (Gibco) were cultured in Expi293 expression medium (Gibco) in a humidified shaking incubator at 37 °C with 8% CO2.

4.2. Immunoblot Analysis

The NCI-H69 cells were lysed with RIPA buffer (Thermo Fisher Scientific, Waltham, MA, USA) supplemented with a protease inhibitor cocktail (GenDEPOT, Katy, TX, USA). NCI-H69 cultured media was concentrated with Amicon® Ultra Centrifugal Filters (Merck Millipore, Burlington, MA, USA) following the manufacturer’s protocol. Then, the amount of total protein was determined using the BCA assay kit (Thermo Fisher Scientific, Waltham, MA, USA). Then, 10 μg of protein samples in the cell extracts or cultured media were resolved by SDS-PAGE and transferred to nitrocellulose membrane (GE Healthcare, Chicago, IL, USA). The membrane was incubated with chicken anti-CADM1 mAb (1:1000; MBL, Tokyo, Japan) or mouse anti-β-actin antibody (1:3000; Santa Cruz Biotechnology, Dallas, TX, USA), respectively, overnight at 4 °C. After several washes with tris-buffered saline with 0.1% (v/v) tween 20 (TBST), the membranes were incubated with horseradish peroxidase (HRP)-conjugated anti-chicken IgY antibody (1:5000; Abcam, Cambridge, UK), or HRP-conjugated anti-mouse IgG antibody (Seracare Life Science, Milford, MA, USA) for 1 h at room temperature. After washing with TBST buffer three times, the protein bands were visualized using SuperSignal West Pico PLUS Chemiluminescent Substrate (Thermo Fisher Scientific, Waltham, MA, USA) following the manufacturer’s instructions.

4.3. Analysis of MF-CADM1 Peptide-Conjugates and Purified Antibodies

MF-hCADM1 or MF-mCADM1 peptide-conjugated BSA was generated by peptide synthesis (Peptron, Daejeon, Korea). Then, 2 μg of MF-hCADM1 or MF-mCADM1 peptide-conjugated BSA or BSA were only resolved by SDS-PAGE with a 12% polyacrylamide under reducing conditions. The same amount of selected scFv-Fc antibodies was separated under reducing or non-reducing conditions. After separation, each band on the resulting gels was visualized by CBB staining.

4.4. Isolation of Fully Human scFv Antibodies Specific to MF-hCADM1 and MF-mCADM1

Phage display bio-panning was conducted to select MF-hCADM1- and MF-mCADM1-specific fully human scFv antibodies from a human synthetic scFv antibody library. In detail, 4 μg of MF-hCADM1 or MF-mCADM1 peptide-conjugated BSA for each bio-panning was first immobilized onto magnetic beads (Dynabeads M-270 epoxy, Invitrogen™, Waltham, MA, USA). Then, to select scFv clones cross-reactive to human and mouse MF-CADM1, six rounds of bio-panning were consecutively performed by alternately using magnetic beads immobilized with MF-hCADM1 peptide conjugate for the first, third, and fifth bio-panning or MF-mCADM1 peptide conjugate for the second, fourth, and sixth bio-panning. Finally, 96 phage clones were randomly selected from output colonies and tested for their reactivity to target antigens by phage ELISA. Following DNA sequencing, scFv clones with different CDR sequences were selected and used for the next studies.

4.5. Phage ELISA

Single colonies were inoculated into 1 mL of SB media containing 50 μg/mL of carbenicillin in 96-deep-well plates (Axygen, Union City, CA, USA) and incubated at 37 °C overnight. Then, 1012 pfu/mL helper phages (VCSM13; Agilent, Santa Clara, CA, USA) and 70 μg/mL of kanamycin were added and incubated overnight at 37 °C. The plates were centrifuged at 4000 rpm, and the supernatant was applied for phage ELISA. The 96-well high-binding microplates (Corning, Corning, NY, USA) were coated overnight with 0.1 μg of MF-hCADM1 and MF-mCADM1 in phosphate-buffered saline (PBS) at 4 °C. After blocking with 3% (w/v) BSA in PBS, the plates were incubated with 100 μL of phage supernatant at 37 °C for 2 h. After washing three times with PBS containing 0.05% (v/v) tween 20 (PBST), HRP-conjugated anti-hemagglutinin (HA) antibody (1:3000; Bethyl Laboratories, Montgomery, TX, US) was added and incubated at 37 °C for 1 h. Colorimetric detection was performed by adding 3,3′,5,5′-tetramethylbenzidine (TMB) substrate solution (Thermo Fisher Scientific, Waltham, MA, USA) as the chromogenic substrate. The reactions were stopped by the addition of 2 M of sulfuric acid (H2SO4), and the absorbance was read at 450 nm using a microtiter plate reader (Bio-Tek Instruments, Winooski, VT, USA).

4.6. Generation of scFv-Fc Antibodies

To generate the scFv-Fc forms of antibodies, the selected scFv clones were individually subcloned into the pCEP4 mammalian expression vector containing the fragment crystallizable (Fc) region of human IgG1. The recombinant vectors that encode the scFv-Fc antibodies were transfected into Expi293 cells using the Expi293 transfection kit (Thermo Fisher Scientific, Waltham, MA, USA) following the manufacturer’s instruction and cultured at 37 °C with shaking at 125 rpm and 8% CO2. On the 7th day after transfection, the resulting supernatants were collected for antibody purification using affinity chromatography with protein A sepharose (GE Healthcare, Chicago, IL, USA) as previously described [41].

4.7. ELISA

Then, 0.05 μg of MF-hCADM1 or MF-mCADM1 peptide-conjugated BSA were coated on 96-well plates (Corning) overnight at 4 °C. After blocking with 3% BSA in PBS, the plates were incubated with the diluted antibodies in blocking buffer at 37 °C for 2 h. Following several washes with PBST, the plates were then incubated with HRP-conjugated anti-HA antibody (1:5000; Bethyl Laboratories) at 37 °C for 1 h. Finally, 100 μL of TMB substrate (Thermo Fisher Scientific, Waltham, MA, USA) to each well was added for colorimetric detection, and the reaction was stopped with the addition of 2N H2SO4 solution. The absorbance was measured at 450 nm using a microtiter plate reader (Bio-Tek Instruments, Winooski, VT, USA).

4.8. SPR

The real-time interaction of antibody and antigen was measured at room temperature using SPR with an iMSPR mini-instrument (Icluebio, Seongnam, South Korea). MF-hCADM1 peptide-conjugated BSA was immobilized on a research-grade carboxylic (COOH) sensor chip using an amine coupling kit (Icluebio, Seongnam, South Korea) according to the manufacturer’s instruction. Then, the increasing concentrations (8 nM, 16 nM, 32 nM, 64 nM, and 128 nM) of the selected antibodies in a running buffer containing 10 mM of HEPES-buffered saline, pH of 7.4, 2 mM of CaCl2, 1 mM of MnCl2, 700 mM of NaCl, and 0.005% (v/v) tween 20 were injected at a flow rate of 50 µL/min at room temperature. For the regeneration of the sensor chips at each cycle, 10 mM glycine-HCl, with a pH of 2.5, was used to remove bound antibodies from the surfaces. The affinity constant (KD) was obtained using the iMSPR analysis software.

4.9. Flow Cytometry

To evaluate the selected antibody binding to MF-CADM1 on SCLC cells, 1 × 106 of NCI-H69, NCI-H146, and NCI-H187 cells were fixed with 4% (w/v) paraformaldehyde (PFA), blocked with 1% (w/v) BSA in PBS, and stained with 20 μg/mL anti-CADM1 scFv-Fcs at 4 °C for 30 min. The cells were then incubated with Alexa Fluor 488-labeled anti-human Fc antibody (1:200; Invitrogen™, Waltham, MA, USA) at 4 °C for 30 min. The samples were analyzed using flow cytometry (Guava easyCyte, Merck Millipore, Burlington, MA, USA). The data were analyzed using FlowJo software (TreeStar, V 10.6, Ashland, OR, USA).
To test the specific binding of K103.3 to MF-CADM1, 1 × 106 NCI-H69 cells were fixed with 4% (w/v) paraformaldehyde (PFA), blocked with 1% (w/v) BSA in PBS, and stained with K103.3 pre-incubated with MF-hCADM1 (4 °C for 1 h). The cells were then incubated with Alexa Fluor 488-labeled anti-human Fc antibody (1:200; Invitrogen™) at 4 °C for 30 min. The samples were analyzed using flow cytometry (Guava easyCyte, Merck Millipore, Burlington, MA, USA). The data were analyzed using FlowJo software (TreeStar, V 10.6).
To evaluate the effects of K103.3 on endothelial cell activation, 2 × 105 HUVECs were incubated in the absence or presence of 20 ng/mL hTNFα (Millipore) or 20 μg/mL K103.3 for 24 h. After blocking with 1% (w/v) BSA in PBS at room temperature for 1 h, cells were incubated with 2 μg of anti-ICAM-1 (Abcam) or anti-VCAM-1 antibody (Abcam) at 37 °C for 1 h and then with Alexa 647-labeled anti-rabbit IgG antibody (1:1000; Invitrogen™) at 37 °C for 1 h. The samples were analyzed using flow cytometry (Guava easyCyte). The data were analyzed using FlowJo software (TreeStar, V 10.6).
To investigate the expression of CADM1 and MF-CADM1 on HUVECs, 1 × 106 HUVEC cells were fixed with 4% (w/v) paraformaldehyde (PFA), blocked with 1% (w/v) BSA in PBS, and stained with 20 μg/mL anti-CADM1 scFv-Fc or chicken anti-CADM1 mAb (1:1000; MBL) at 4 °C for 30 min. The cells were then incubated with Alexa Fluor 488-labeled anti-human Fc antibody (1:200; Invitrogen™) or Alexa Fluor 488-labeled anti-chicken IgY antibody (1:200; Jackson ImmunoResearch Laboratories, West Grove, PA, USA) at 4 °C for 30 min. The samples were analyzed using flow cytometry (Guava easyCyte, Merck Millipore). The data were analyzed using FlowJo software (TreeStar, V 10.6).

4.10. T Cell-Mediated Tumor Cell Killing Assay

The 96-well plates were coated with poly-L-lysine at 37 °C for 2 h and washed with PBS three times. After drying, 5 × 103 of the indicated SCLC cells and HUVECs were seeded and incubated at 37 °C overnight. Then, 5 × 104 Jurkat T cells activated by 1 μg/mL anti-CD3ε antibody were incubated with the target cells in 96-well clear flat bottom (Falcon, Corning, NY, USA) in the presence or absence of the indicated concentration of the selected antibodies. Simultaneously, Annexin V red reagent (Sartorius, Goettingen, Germany) was also added to this experimental setting to monitor the death of SCLC cells and HUVECs, which was measured using the IncuCyte® system (Sartorius) hourly for 2 days.

4.11. Cell Viability Assay

To test the cell viability of HUVECs in the absence or presence of the selected antibody, 5 × 103 HUVECs were seeded on 96-well plates after cell counting with ADAM-CellT (NanoEntek, Seoul, Korea) and incubated in EGM-2 in the absence or presence of 20 μg/mL of K103.3 or 36 μg/mL of 5-fluorouracil (5-FU) for 24 h at 37 °C. Cell viability was determined using the Cell Counting Kit-8 (Sigma-Aldrich, St Louis, MO, USA) following the manufacturer’s instructions and measured at 450 nm absorbance using a microtiter plate reader (Bio-Tek Instruments).

4.12. Statistical Methods

The statistical analyses were carried out using GraphPad Prism (GraphPad Software Inc., San Diego, CA, USA) using the two-tailed Student t-test for comparisons between two groups. p-values of < 0.05 were considered statistically significant (* p < 0.05; ** p < 0.01; *** p < 0.001). Graphs are presented as the mean of independent experiments ± standard error of the means (SEM).

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/ijms23136895/s1.

Author Contributions

Conceptualization, S.L., S.-W.S. and Y.J.; methodology, J.H.L., J.W.K., S.-J.L., A.J. and K.H.; validation, J.H.L., J.W.K., H.R.Y. and J.H.Y.; formal analysis, J.H.L. and J.W.K.; investigation, J.H.L., J.W.K., N.L., M.-G.K. and M.K.; resources, H.S. and S.L.; writing—original draft preparation, J.H.L. and J.W.K.; writing—review and editing, S.L., J.H.L. and J.W.K.; visualization, J.H.L. and J.W.K.; supervision, S.L.; project administration, S.L.; funding acquisition, S.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Research Foundation of Korea, grant number 2019M3E5D5065844, and CellabMED Inc., grant number H2020-0033.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The collected data in this study are available from the corresponding author on reasonable request. The information of the antibody clone sequences is not publicly available due to patent issue.

Acknowledgments

We acknowledge that images were created with Biorender.com, accessed on 21 April 2022. We also appreciate Yea Bin Cho for technical support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Barta, J.A.; Powell, C.A.; Wisnivesky, J.P. Global Epidemiology of Lung Cancer. Ann. Glob. Health 2019, 85, 8. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Sung, H.; Ferlay, J.; Siegel, R.L.; Laversanne, M.; Soerjomataram, I.; Jemal, A.; Bray, F. Global Cancer Statistics 2020: GLOBOCAN Estimates of Incidence and Mortality Worldwide for 36 Cancers in 185 Countries. CA Cancer J. Clin. 2021, 71, 209–249. [Google Scholar] [CrossRef] [PubMed]
  3. Rudin, C.M.; Brambilla, E.; Faivre-Finn, C.; Sage, J. Small-cell lung cancer. Nat. Rev. Dis. Prim. 2021, 7, 3. [Google Scholar] [CrossRef] [PubMed]
  4. Raso, M.G.; Bota-Rabassedas, N.; Wistuba, I.I. Pathology and Classification of SCLC. Cancers 2021, 13, 820. [Google Scholar] [CrossRef] [PubMed]
  5. Oronsky, B.; Reid, T.R.; Oronsky, A.; Carter, C.A. What’s New in SCLC? A Review. Neoplasia 2017, 19, 842–847. [Google Scholar] [CrossRef]
  6. National Organization for Rare Disorders (NORD). Small Cell Lung Cancer. Available online: https://rarediseases.org/rare-diseases/small-cell-lung-cancer/ (accessed on 2 March 2022).
  7. Kalemkerian, G.P. Staging and imaging of small cell lung cancer. Cancer Imaging 2012, 11, 253–258. [Google Scholar] [CrossRef]
  8. The American Cancer Society. What Is Lung Cancer? Available online: https://www.cancer.org/cancer/lung-cancer/about/what-is.html (accessed on 1 March 2022).
  9. Wang, Y.; Zou, S.; Zhao, Z.; Liu, P.; Ke, C.; Xu, S. New insights into small-cell lung cancer development and therapy. Cell Biol. Int. 2020, 44, 1564–1576. [Google Scholar] [CrossRef] [Green Version]
  10. Treatment Choices for Small Cell Lung Cancer, by Stage. Available online: https://www.cancer.org/cancer/lung-cancer/treating-small-cell/by-stage.html (accessed on 2 March 2022).
  11. Dayen, C.; Debieuvre, D.; Molinier, O.; Raffy, O.; Paganin, F.; Virally, J.; Larive, S.; Desurmont-Salasc, B.; Perrichon, M.; Martin, F.; et al. New insights into stage and prognosis in small cell lung cancer: An analysis of 968 cases. J. Thorac. Dis. 2017, 9, 5101–5111. [Google Scholar] [CrossRef] [Green Version]
  12. Quinteros, D.A.; Bermúdez, J.M.; Ravetti, S.; Cid, A.; Allemandi, D.A.; Palma, S.D. Therapeutic use of monoclonal antibodies: General aspects and challenges for drug delivery. In Nanostructures for Drug Delivery; Elsevier Inc.: Amsterdam, The Netherlands, 2017; pp. 807–833. [Google Scholar] [CrossRef]
  13. Lu, R.-M.; Hwang, Y.-C.; Liu, I.-J.; Lee, C.-C.; Tsai, H.-Z.; Li, H.-J.; Wu, H.-C. Development of therapeutic antibodies for the treatment of diseases. J. Biomed. Sci. 2020, 27, 1. [Google Scholar] [CrossRef] [PubMed]
  14. Zahavi, D.; Weiner, L. Monoclonal Antibodies in Cancer Therapy. Antibodies 2020, 9, 34. [Google Scholar] [CrossRef]
  15. Kuhn, C.; Weiner, H.L. Therapeutic anti-CD3 monoclonal antibodies: From bench to bedside. Immunotherapy 2016, 8, 889–906. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Kaplon, H.; Chenoweth, A.; Crescioli, S.; Reichert, J.M. Antibodies to watch in 2022. MAbs 2022, 14, 2014296. [Google Scholar] [CrossRef] [PubMed]
  17. Mathieu, L.; Shah, S.; Pai-Scherf, L.; Larkins, E.; Vallejo, J.; Li, X.; Rodriguez, L.; Mishra-Kalyani, P.; Goldberg, K.B.; Kluetz, P.G.; et al. FDA Approval Summary: Atezolizumab and Durvalumab in Combination with Platinum-Based Chemotherapy in Extensive Stage Small Cell Lung Cancer. Oncol. 2021, 26, 433–438. [Google Scholar] [CrossRef] [PubMed]
  18. Regzedmaa, O.; Zhang, H.; Liu, H.; Chen, J. Immune checkpoint inhibitors for small cell lung cancer: Opportunities and challenges. OncoTargets Ther. 2019, 12, 4605–4620. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Horn, L.; Mansfield, A.S.; Szczęsna, A.; Havel, L.; Krzakowski, M.; Hochmair, M.J.; Huemer, F.; Losonczy, G.; Johnson, M.L.; Nishio, M.; et al. First-Line Atezolizumab plus Chemotherapy in Extensive-Stage Small-Cell Lung Cancer. N. Engl. J. Med. 2018, 379, 2220–2229. [Google Scholar] [CrossRef]
  20. Paz-Ares, L.; Dvorkin, M.; Chen, Y.; Reinmuth, N.; Hotta, K.; Trukhin, D.; Statsenko, G.; Hochmair, M.J.; Özgüroğlu, M.; Ji, J.H.; et al. Durvalumab plus platinum–etoposide versus platinum–etoposide in first-line treatment of extensive-stage small-cell lung cancer (CASPIAN): A randomised, controlled, open-label, phase 3 trial. Lancet 2019, 394, 1929–1939. [Google Scholar] [CrossRef]
  21. van der Weyden, L.; Arends, M.J.; Rust, A.G.; Poulogiannis, G.; McIntyre, R.E.; Adams, D.J. Increased tumorigenesis associated with loss of the tumor suppressor gene Cadm1. Mol. Cancer 2012, 11, 29. [Google Scholar] [CrossRef] [Green Version]
  22. Hagiyama, M.; Kimura, R.; Yoneshige, A.; Inoue, T.; Otani, T.; Ito, A. Cell Adhesion Molecule 1 Contributes to Cell Survival in Crowded Epithelial Monolayers. Int. J. Mol. Sci. 2020, 21, 4123. [Google Scholar] [CrossRef]
  23. Hagiyama, M.; Ichiyanagi, N.; Kimura, K.B.; Murakami, Y.; Ito, A. Expression of a Soluble Isoform of Cell Adhesion Molecule 1 in the Brain and Its Involvement in Directional Neurite Outgrowth. Am. J. Pathol. 2009, 174, 2278–2289. [Google Scholar] [CrossRef] [Green Version]
  24. Koma, Y.; Furuno, T.; Hagiyama, M.; Hamaguchi, K.; Nakanishi, M.; Masuda, M.; Hirota, S.; Yokozaki, H.; Ito, A. Cell Adhesion Molecule 1 Is a Novel Pancreatic–Islet Cell Adhesion Molecule That Mediates Nerve–Islet Cell Interactions. Gastroenterology 2008, 134, 1544–1554. [Google Scholar] [CrossRef]
  25. Wakayama, T.; Iseki, S. Role of the spermatogenic–Sertoli cell interaction through cell adhesion molecule-1 (CADM1) in spermatogenesis. Anat. Sci. Int. 2009, 84, 112–121. [Google Scholar] [CrossRef] [PubMed]
  26. Moiseeva, E.P.; Straatman, K.R.; Leyland, M.L.; Bradding, P. CADM1 Controls Actin Cytoskeleton Assembly and Regulates Extracellular Matrix Adhesion in Human Mast Cells. PLoS ONE 2014, 9, e85980. [Google Scholar] [CrossRef] [Green Version]
  27. Prisco, A.R.; Hoffmann, B.R.; Kaczorowski, C.C.; McDermott-Roe, C.; Stodola, T.J.; Exner, E.C.; Greene, A.S. Tumor Necrosis Factor α Regulates Endothelial Progenitor Cell Migration via CADM1 and NF-kB. Stem Cells 2016, 34, 1922–1933. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Si, X.; Xu, F.; Xu, F.; Wei, M.; Ge, Y.; Chenge, S. CADM1 inhibits ovarian cancer cell proliferation and migration by potentially regulating the PI3K/Akt/mTOR pathway. Biomed. Pharmacother. 2020, 123, 109717. [Google Scholar] [CrossRef]
  29. Saito, M.; Goto, A.; Abe, N.; Saito, K.; Maeda, D.; Ohtake, T.; Murakami, Y.; Takenoshita, S. Decreased expression of CADM1 and CADM4 are associated with advanced stage breast cancer. Oncol. Lett. 2018, 15, 2401–2406. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Wang, H.-L.; Zhou, R.; Liu, J.; Chang, Y.; Liu, S.; Wang, X.-B.; Huang, M.-F.; Zhao, Q. MicroRNA-196b inhibits late apoptosis of pancreatic cancer cells by targeting CADM1. Sci. Rep. 2017, 7, 11467. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  31. Funaki, T.; Ito, T.; Tanei, Z.-I.; Goto, A.; Niki, T.; Matsubara, D.; Murakami, Y. CADM1 promotes malignant features of small-cell lung cancer by recruiting 4.1R to the plasma membrane. Biochem. Biophys. Res. Commun. 2021, 534, 172–178. [Google Scholar] [CrossRef]
  32. Kikuchi, S.; Iwai, M.; Sakurai-Yageta, M.; Tsuboi, Y.; Ito, T.; Maruyama, T.; Tsuda, H.; Kanai, Y.; Onizuka, M.; Sato, Y.; et al. Expression of a splicing variant of the CADM1 specific to small cell lung cancer. Cancer Sci. 2012, 103, 1051–1057. [Google Scholar] [CrossRef]
  33. Nagara, Y.; Hagiyama, M.; Hatano, N.; Futai, E.; Suo, S.; Takaoka, Y.; Murakami, Y.; Ito, A.; Ishiura, S. Tumor suppressor cell adhesion molecule 1 (CADM1) is cleaved by a disintegrin and metalloprotease 10 (ADAM10) and subsequently cleaved by γ-secretase complex. Biochem. Biophys. Res. Commun. 2012, 417, 462–467. [Google Scholar] [CrossRef]
  34. Byers, L.A.; Rudin, C.M. Small cell lung cancer: Where do we go from here? Cancer 2015, 121, 664–672. [Google Scholar] [CrossRef]
  35. Guo, H.; Li, L.; Cui, J. Advances and challenges in immunotherapy of small cell lung cancer. Chin. J. Cancer Res. 2020, 32, 115–128. [Google Scholar] [CrossRef]
  36. Redman, J.M.; Hill, E.M.; AlDeghaither, D.; Weiner, L.M. Mechanisms of action of therapeutic antibodies for cancer. Mol. Immunol. 2015, 67, 28–45. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Vanneman, M.; Dranoff, G. Combining immunotherapy and targeted therapies in cancer treatment. Nat. Cancer 2012, 12, 237–251. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Castelli, M.S.; Mcgonigle, P.; Hornby, P.J. The pharmacology and therapeutic applications of monoclonal antibodies. Pharmacol. Res. Perspect. 2019, 7, e00535. [Google Scholar] [CrossRef] [PubMed]
  39. Waldman, A.D.; Fritz, J.M.; Lenardo, M.J. A guide to cancer immunotherapy: From T cell basic science to clinical practice. Nat. Rev. Immunol. 2020, 20, 651–668. [Google Scholar] [CrossRef] [PubMed]
  40. Hombach, A.; Köhler, H.; Rappl, G.; Abken, H. Human CD4+ T Cells Lyse Target Cells via Granzyme/Perforin upon Circumvention of MHC Class II Restriction by an Antibody-Like Immunoreceptor. J. Immunol. 2006, 177, 5668–5675. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  41. Ki, M.K.; Jeoung, M.H.; Choi, J.R.; Rho, S.-S.; Kwon, Y.-G.; Shim, H.; Chung, J.; Hong, H.J.; Song, B.D.; Lee, S. Human antibodies targeting the C-type lectin-like domain of the tumor endothelial cell marker clec14a regulate angiogenic properties in vitro. Oncogene 2013, 32, 5449–5457. [Google Scholar] [CrossRef] [Green Version]

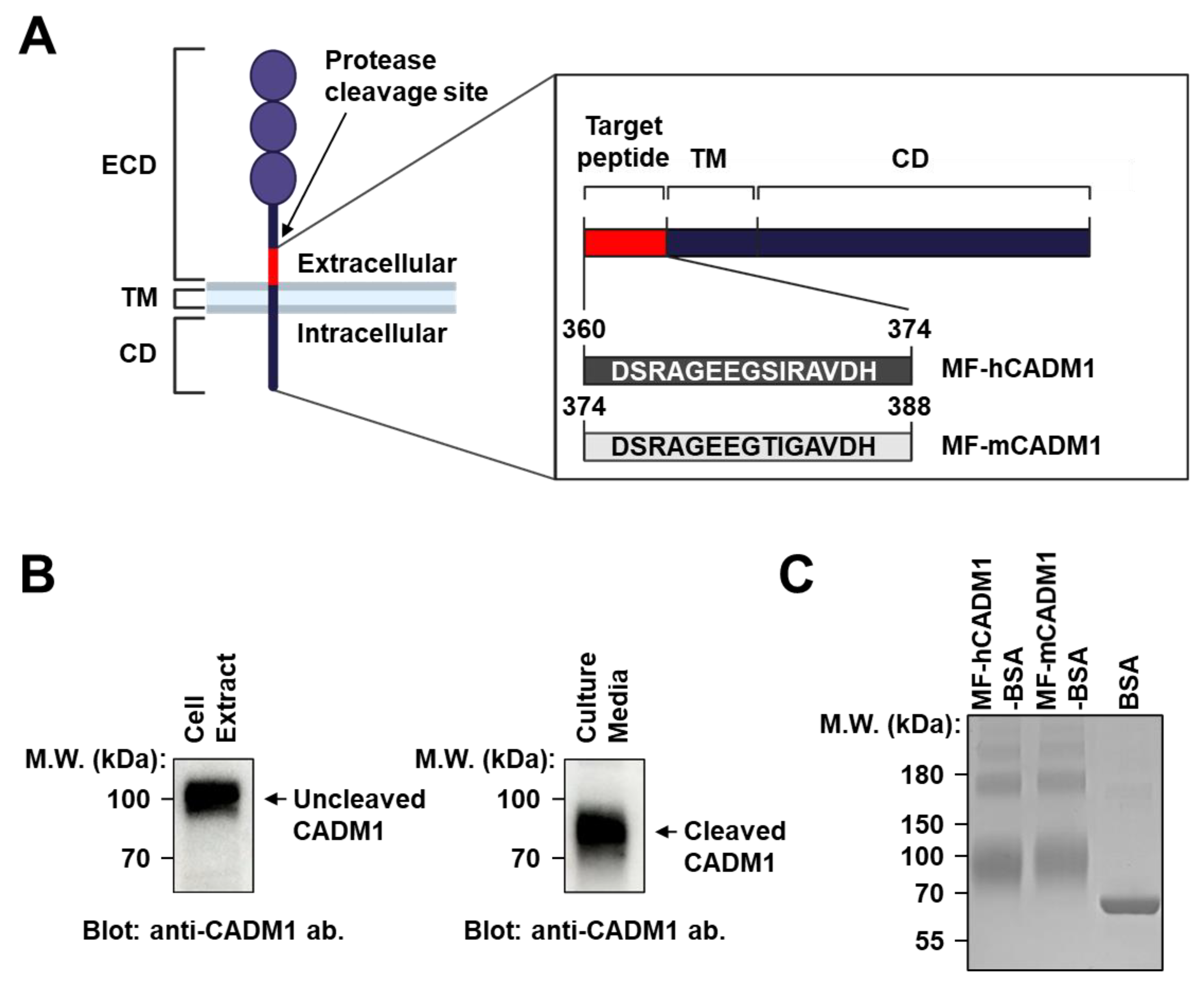

Figure 1. Cleavage of CADM1 protein and preparation of CADM1 peptide conjugates as antigens for antibody selection. (A) Schematic drawing of the membrane-proximal cleavage of CADM1 and its resulting membrane-bound fragment of CADM1 (MF-CADM1) on cancer cell surfaces. (B) NCI-H69 SCLC cell extracts (left) or the culture media (right) were individually subjected to immunoblot analysis with commercially available anti-CADM1 antibodies. Beta-actin was used as a loading control. (C) MF-hCADM1-BSA, MF-hCADM1-BSA, or BSA as a negative control, was subjected to SDS-PAGE, and the mobility shift was visualized by Coomassie Brilliant Blue (CBB) staining.
Figure 1. Cleavage of CADM1 protein and preparation of CADM1 peptide conjugates as antigens for antibody selection. (A) Schematic drawing of the membrane-proximal cleavage of CADM1 and its resulting membrane-bound fragment of CADM1 (MF-CADM1) on cancer cell surfaces. (B) NCI-H69 SCLC cell extracts (left) or the culture media (right) were individually subjected to immunoblot analysis with commercially available anti-CADM1 antibodies. Beta-actin was used as a loading control. (C) MF-hCADM1-BSA, MF-hCADM1-BSA, or BSA as a negative control, was subjected to SDS-PAGE, and the mobility shift was visualized by Coomassie Brilliant Blue (CBB) staining.
Ijms 23 06895 g001

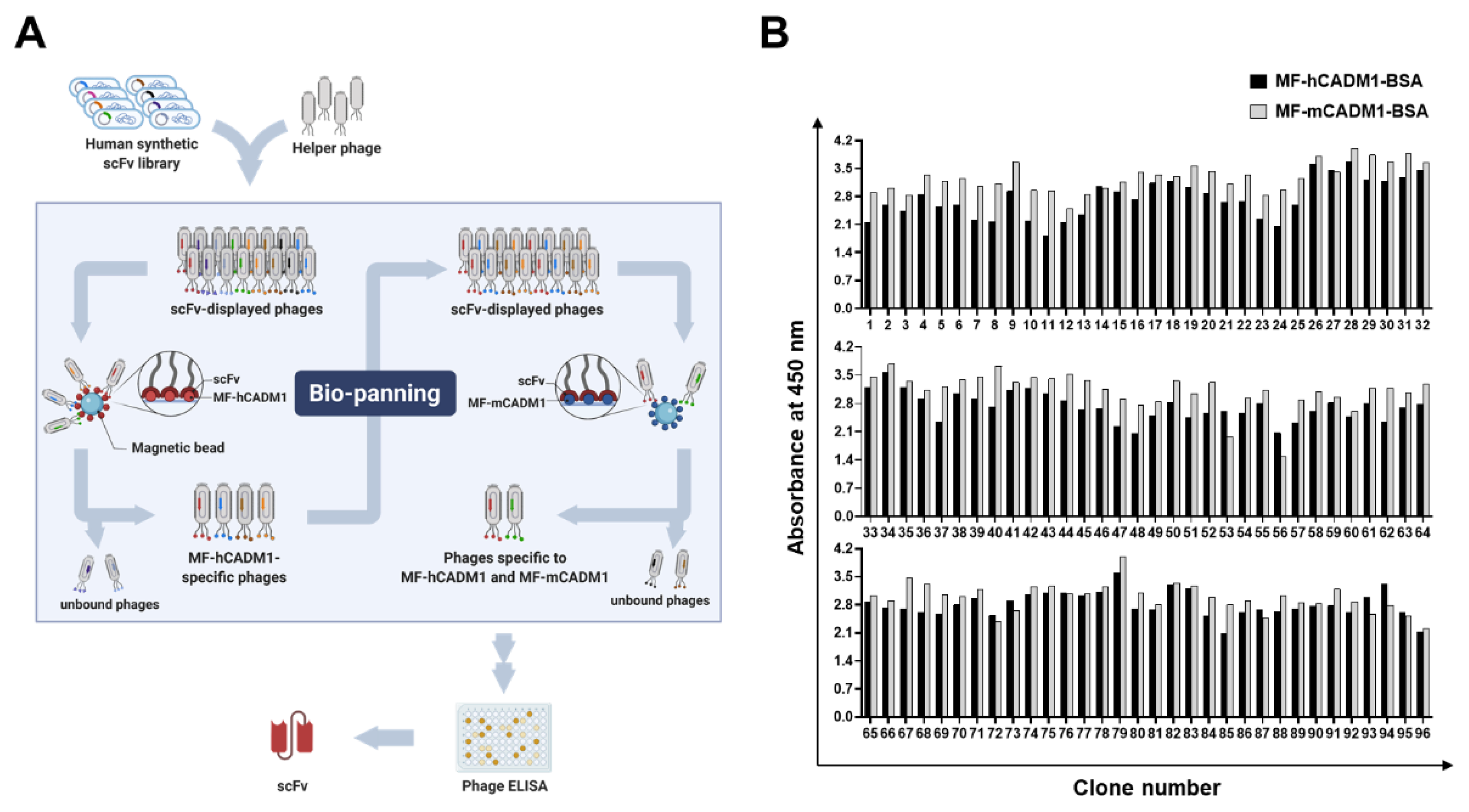

Figure 2. Selection of human and mouse MF-CADM1-specific scFv clones using phage display technology. (A) Schematic representation of the scFv antibody selection procedures using phage display bio-panning. Six rounds of bio-panning were performed with the MF-hCADM1- or MF-mCADM1-BSA-immobilized magnetic beads. (B) Phage ELISA, with 96 randomly selected phage clones, was performed to select MF-hCADM1- and MF-mCADM1-specific scFv clones.
Figure 2. Selection of human and mouse MF-CADM1-specific scFv clones using phage display technology. (A) Schematic representation of the scFv antibody selection procedures using phage display bio-panning. Six rounds of bio-panning were performed with the MF-hCADM1- or MF-mCADM1-BSA-immobilized magnetic beads. (B) Phage ELISA, with 96 randomly selected phage clones, was performed to select MF-hCADM1- and MF-mCADM1-specific scFv clones.
Ijms 23 06895 g002

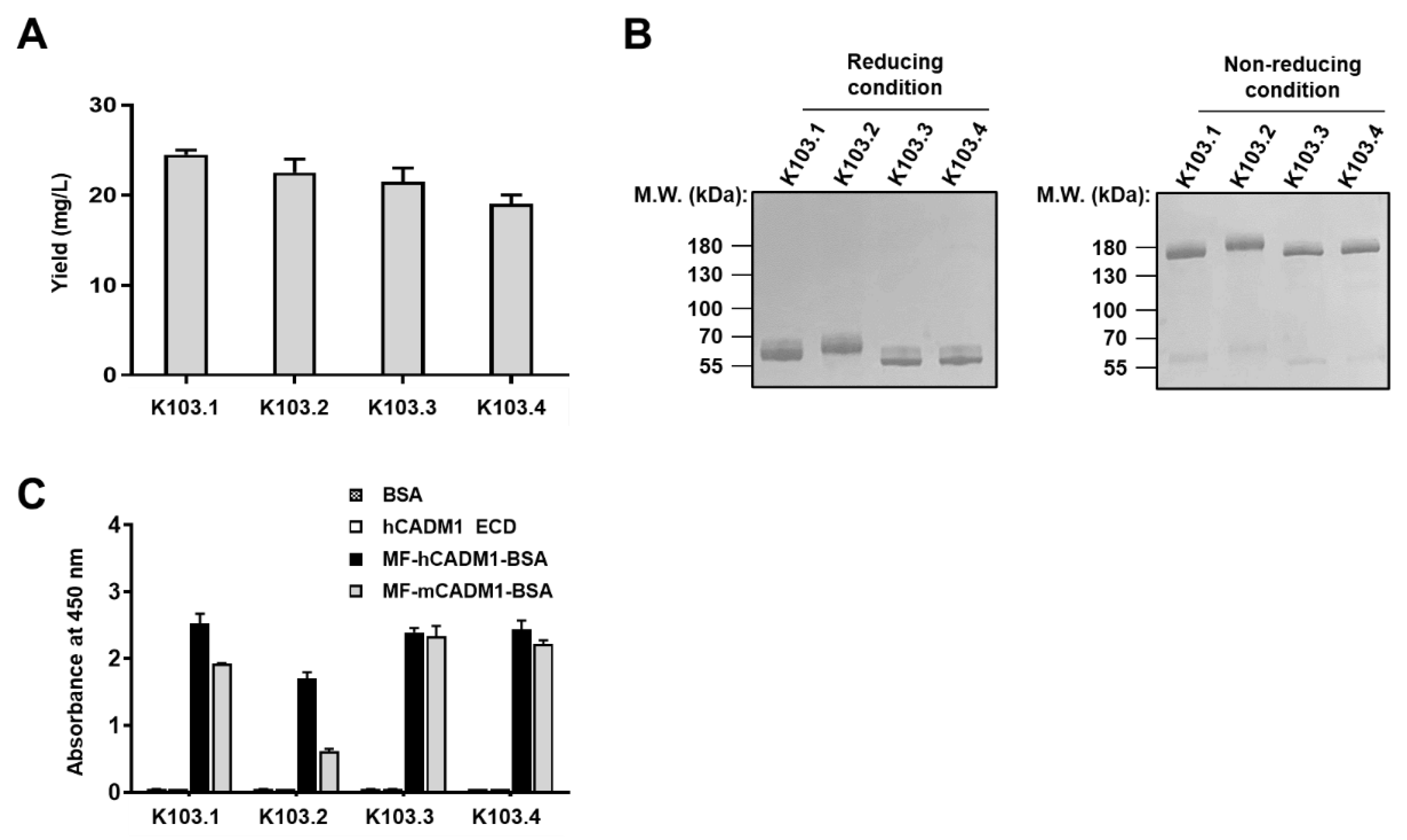

Figure 3. Biochemical characterization of the four selected scFv-Fc antibodies. (A) The selected antibodies were transiently overproduced and purified using affinity column chromatography. The production yield of each scFv-Fc antibody was shown as graph bars. (B) The conformation status of the scFv-Fcs was confirmed by SDS-PAGE under reducing and non-reducing conditions, followed by CBB staining. (C) ELISA was performed with recombinant human CADM1-ECD, MF-hCADM1-BSA, or MF-mCADM1-BSA to verify the specific binding of each antibody to MF-CADM1. BSA alone was used as a negative control.
Figure 3. Biochemical characterization of the four selected scFv-Fc antibodies. (A) The selected antibodies were transiently overproduced and purified using affinity column chromatography. The production yield of each scFv-Fc antibody was shown as graph bars. (B) The conformation status of the scFv-Fcs was confirmed by SDS-PAGE under reducing and non-reducing conditions, followed by CBB staining. (C) ELISA was performed with recombinant human CADM1-ECD, MF-hCADM1-BSA, or MF-mCADM1-BSA to verify the specific binding of each antibody to MF-CADM1. BSA alone was used as a negative control.
Ijms 23 06895 g003

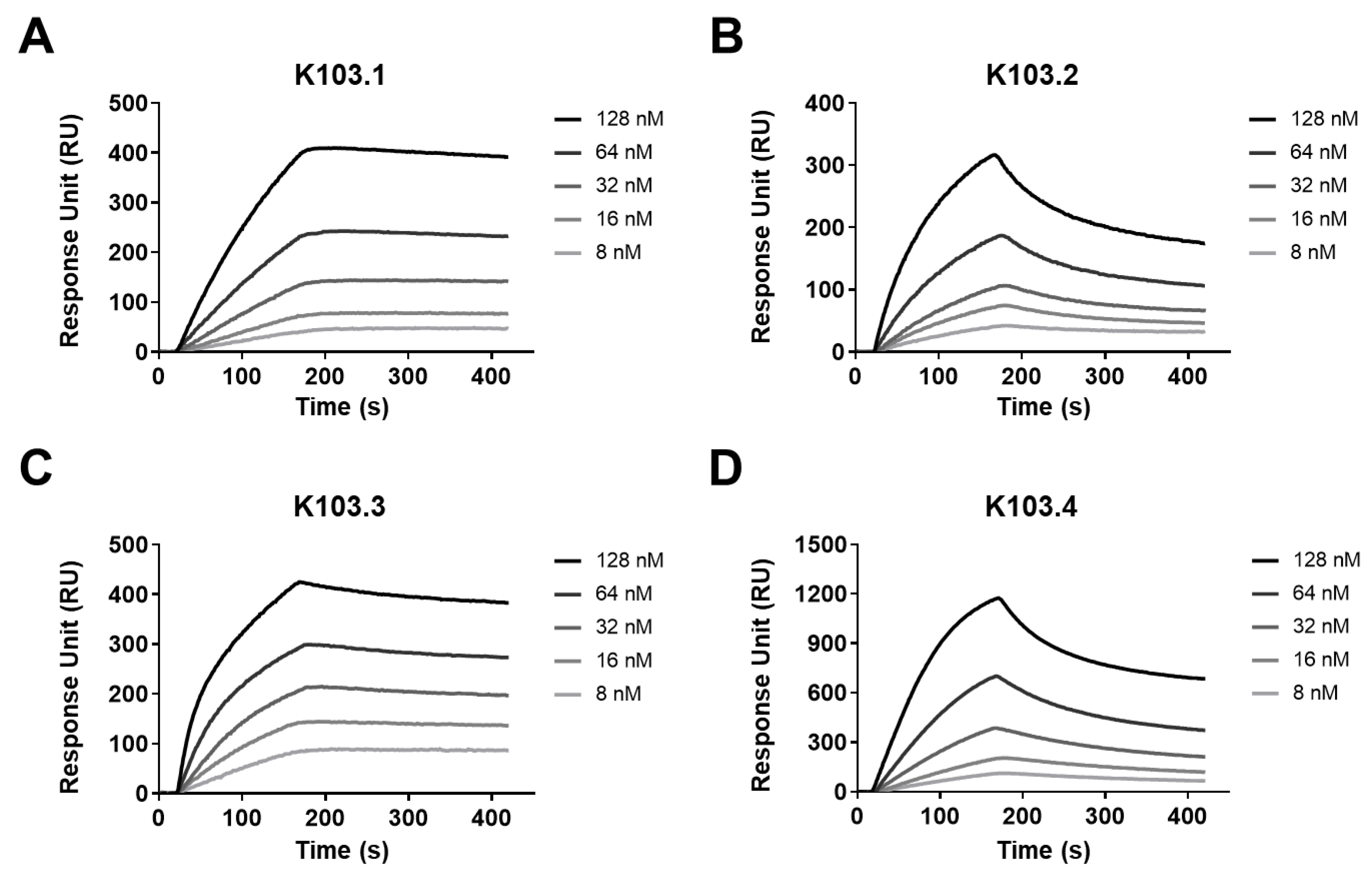

Figure 4. Kinetic analysis of the interaction between the selected scFv-Fc antibodies and MF-hCADM1. The binding affinities of the selected antibodies to MF-hCADM1 were measured using SPR. Each SPR sensorgram shows the interaction of the different concentrations (8, 16, 32, 64, and 128 nM) of (A) K103.1, (B) K103.2, (C) K103.3, and (D) K103.4 to an MF-hCADM1-BSA-immobilized sensor chip.
Figure 4. Kinetic analysis of the interaction between the selected scFv-Fc antibodies and MF-hCADM1. The binding affinities of the selected antibodies to MF-hCADM1 were measured using SPR. Each SPR sensorgram shows the interaction of the different concentrations (8, 16, 32, 64, and 128 nM) of (A) K103.1, (B) K103.2, (C) K103.3, and (D) K103.4 to an MF-hCADM1-BSA-immobilized sensor chip.
Ijms 23 06895 g004

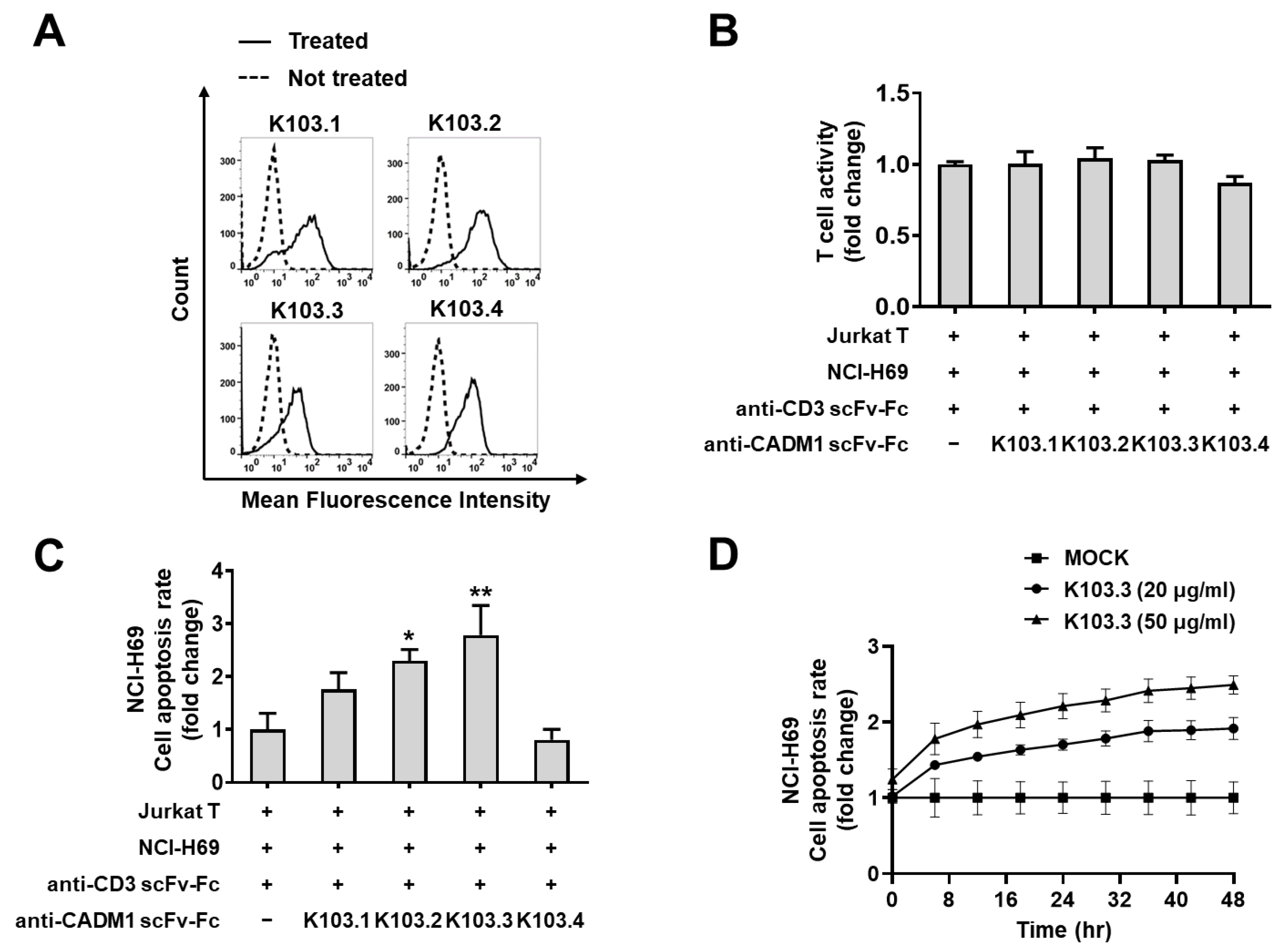

Figure 5. Effect of the selected scFv-Fc antibodies on death in NCI-H69 cells by activated Jurkat T cells. (A) The binding of the selected antibodies to MF-CADM1 on NCI-H69 cells was investigated in the presence (solid line) or absence (dashed line) of the selected antibodies using flow cytometry. (B) T cell activity was compared by measuring the fluorescence of GFP expressed in activated Jurkat T cells in the presence or absence of selected antibodies. (C) The death rate of NCI-H69 cells using the activated Jurkat T cells in the presence or absence of the selected antibodies, respectively. (D) Antibody concentration-dependent death in NCI-H69 cells was measured. All values represent the mean ± SEM of triplicate measurements from one of three independent experiments. * p < 0.05; ** p < 0.01.
Figure 5. Effect of the selected scFv-Fc antibodies on death in NCI-H69 cells by activated Jurkat T cells. (A) The binding of the selected antibodies to MF-CADM1 on NCI-H69 cells was investigated in the presence (solid line) or absence (dashed line) of the selected antibodies using flow cytometry. (B) T cell activity was compared by measuring the fluorescence of GFP expressed in activated Jurkat T cells in the presence or absence of selected antibodies. (C) The death rate of NCI-H69 cells using the activated Jurkat T cells in the presence or absence of the selected antibodies, respectively. (D) Antibody concentration-dependent death in NCI-H69 cells was measured. All values represent the mean ± SEM of triplicate measurements from one of three independent experiments. * p < 0.05; ** p < 0.01.
Ijms 23 06895 g005
Figure 6. Effect of the selected scFv-Fc antibodies on death in NCI-H146 and NCI-H187 cells by activated Jurkat T cells. (A) The binding of the selected antibodies to MF-CADM1 on NCI-H146 and NCI-H187 cells were examined in the presence (solid line) or absence (dashed line) of the selected antibodies using flow cytometry. (B) T cell activity was compared by measuring the fluorescence of GFP expressed in activated Jurkat T cells in the presence or absence of selected antibodies. Antibody concentration-dependent death in NCI-H146 (C) and NCI-H187 cells (D) in the presence or absence of the selected antibodies was measured. All values represent the mean ± SEM of triplicate measurements from one of three independent experiments.
Figure 6. Effect of the selected scFv-Fc antibodies on death in NCI-H146 and NCI-H187 cells by activated Jurkat T cells. (A) The binding of the selected antibodies to MF-CADM1 on NCI-H146 and NCI-H187 cells were examined in the presence (solid line) or absence (dashed line) of the selected antibodies using flow cytometry. (B) T cell activity was compared by measuring the fluorescence of GFP expressed in activated Jurkat T cells in the presence or absence of selected antibodies. Antibody concentration-dependent death in NCI-H146 (C) and NCI-H187 cells (D) in the presence or absence of the selected antibodies was measured. All values represent the mean ± SEM of triplicate measurements from one of three independent experiments.
Ijms 23 06895 g006
Figure 7. Effect of K103.3 on endothelial cell toxicity. (A) HUVECs were incubated in the absence or presence of K103.3 or 5-FU. Cell viability was measured at an absorbance of 450 nm. Values represent the mean ± SEM of triplicate measurements. (B) HUVECs were cultured in the presence or absence of hTNF-α or K103.3, stained with anti-ICAM-1 (upper panel) or VCAM-1 (lower panel) polyclonal antibody, and analyzed using flow cytometry.
Figure 7. Effect of K103.3 on endothelial cell toxicity. (A) HUVECs were incubated in the absence or presence of K103.3 or 5-FU. Cell viability was measured at an absorbance of 450 nm. Values represent the mean ± SEM of triplicate measurements. (B) HUVECs were cultured in the presence or absence of hTNF-α or K103.3, stained with anti-ICAM-1 (upper panel) or VCAM-1 (lower panel) polyclonal antibody, and analyzed using flow cytometry.
Ijms 23 06895 g007
Table 1. SPR analysis of the binding affinities of the selected scFv-Fc clones to MF-hCADM1.
Table 1. SPR analysis of the binding affinities of the selected scFv-Fc clones to MF-hCADM1.
Antibody (scFv-Fc)KD (M)Kon (1/M∙s)Koff (1/s)
K103.14.49 × 10−94.63 × 1042.07 × 10−4
K103.23.91 × 10−85.04 × 1041.97 × 10−3
K103.32.25 × 10−91.38 × 1053.11 × 10−4
K103.44.12 × 10−84.59 × 1041.89 × 10−3
