Hypothesis

Rethinking Sesquiterpenoids: A Widespread Hormone in Animals

by
Wai Lok So
1,2,†,
Zhenpeng Kai
3,†,
Zhe Qu
1,2,
William G. Bendena
4,* and
Jerome H. L. Hui
1,2,*
1
School of Life Sciences, State Key Laboratory of Agrobiotechnology, The Chinese University of Hong Kong, Hong Kong, China
2
Simon F.S. Li Marine Science Laboratory, School of Life Sciences, The Chinese University of Hong Kong, Hong Kong, China
3
School of Chemical and Environmental Engineering, Shanghai Institute of Technology, Shanghai 201418, China
4
Department of Biology, Queen’s University, Kingston, ON K7L 3N6, Canada
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2022, 23(11), 5998; https://doi.org/10.3390/ijms23115998
Submission received: 13 April 2022 / Revised: 23 May 2022 / Accepted: 24 May 2022 / Published: 26 May 2022
(This article belongs to the Special Issue Hormonal/Noncoding RNA Regulation in Invertebrate Models)
Browse Figures
Review Reports Versions Notes

Abstract

:
The sesquiterpenoid hormone juvenile hormone (JH) controls development, reproduction, and metamorphosis in insects, and has long been thought to be confined to the Insecta. While it remains true that juvenile hormone is specifically synthesized in insects, other types or forms of sesquiterpenoids have also been discovered in distantly related animals, such as the jellyfish. Here, we combine the latest literature and annotate the sesquiterpenoid biosynthetic pathway genes in different animal genomes. We hypothesize that the sesquiterpenoid hormonal system is an ancestral system established in an animal ancestor and remains widespread in many animals. Different animal lineages have adapted different enzymatic routes from a common pathway, with cnidarians producing farnesoic acid (FA); non-insect protostomes and non-vertebrate deuterostomes such as cephalochordate and echinoderm synthesizing FA and methyl farnesoate (MF); and insects producing FA, MF, and JH. Our hypothesis revolutionizes the current view on the sesquiterpenoids in the metazoans, and forms a foundation for a re-investigation of the roles of this important and yet neglected type of hormone in different animals.

1. Introduction

1.1. Sesquiterpenoids in Insects

Hormones are important regulators of animal development and play important roles in both physiology and body plan diversification during animal evolution [1,2]. Sesquiterpenes are a class of terpenes that consist of three isoprene units, and a sesquiterpenoid hormone named juvenile hormone (JH) is precisely controlled for their titers, together with ecdysteroid, in the processes of complete and incomplete metamorphosis of insects (i.e., holometabolous and hemimetabolous) [1,3,4]. In brief, JH binds to intracellular receptor, Methoprene-tolerant (Met) and triggers the expression of downstream genes, including Kruppel homolog 1 (Kr-h1), that regulate development and metamorphosis in insects [5,6,7] (Figure 1).
Sesquiterpenoids are produced through the conserved mevalonate (MVA) pathway in animals [5,6,7,8]. The first step of sesquiterpenoid biosynthesis occurs in the cytoplasm, under the action of thiolase, two acetyl-CoA molecules combined to form a single acetoacetyl-CoA. Acetoacetyl-CoA then condenses with another acetyl-CoA molecule to form β-hydroxy-β-methylglutaryl-CoA (HMG-CoA), which is catalyzed by HMG-CoA synthase. The second phase begins with the reduction of HMG-CoA to form mevalonate, under the action of HMG-CoA reductase, which is the rate-controlling enzyme. Subsequently, two rounds of phosphorylation occur by mevalonate kinases to form mevalonate diphosphate. Decarboxylation and dehydration reactions then sequentially occur in the conversion of mevalonate diphosphate into isopentenyl diphosphate (IPP). With the addition of geranyl diphosphate, IPP is converted to farnesyl diphosphate (FPP) under the action of farnesyl diphosphate synthase [5,6,7,8].
Insects and other arthropods, due to the absence of squalene synthase, do not synthesize cholesterol [9,10]. Alternatively, they possess farnesyl diphosphate phosphatase (FPPP) and farnesol dehydrogenase (FOHSDR), which allow the conversion of farnesyl diphosphate into farnesol (FOH) and farnesal (FO), respectively [11,12,13,14,15]. FO is then oxidized by aldehyde dehydrogenase III, resulting in the formation of farnesoic acid (FA) [16]. FA could be further converted to methyl farnesoate (MF) by the juvenile hormone acid O-methyltransferase (JHAMT). Different lineages of insects utilize different end products in this sesquiterpenoid pathway [7]. In certain insects, for instance, the cockroach, grasshopper, and Drosophila, further conversion of MF into JH III is possible, under the reaction of an epoxidase, CYP15 [17,18,19]. In the hemipterans, JHSB3 is produced by a methyl farnesoate epoxidase (EPOX) from MF [20]. In other insects such as the lepidopterans, FA is first converted into JH III acid with CYP15 and subsequently converted into JH with JHAMT [5,21,22,23]. It has also been demonstrated that FA could be epoxidized and methylated into JHB3 in D. melanogaster and JHAMT is also suggested to be involved in the methylation of JHB3 acid to JHB3 [24,25].
Apart from the conventional JH-specific synthesis pathway, another side branch called the isoprenylation pathway was also discovered to produce farnesal [26]. Thus, this pathway could also potentially provide the basis of the synthesis of higher-order sesquiterpenoids. This pathway also utilizes FPP as an initial substrate and through the steps of enzymatic reactions using protein farnesyl transferase (PFT), endopeptidase (ste24), protein-S-isoprenylcysteine O-methyltransferase (ICMT), and prenylcysteine oxidase (PCYOX), farnesal would be produced as a by-product [26].
The biosynthesis of JH has long known to be specific to insects since its discovery in the 1930s by Vincent Wigglesworth [1,6,23,27]. Different insects are now known to have different sesquiterpenoid biosynthetic pathways and modified products [7]. Juvenile hormone III (JH III) has been detected in all insects apart from the hemipterans, which mainly produce JH III skipped bisepoxide (JHSB3) [28]. Some dipterans, including Drosophila, have also been shown to produce JH bisepoxide (JHB3) in addition to JH III [29,30]. Furthermore, apart from JH III, lepidopterans exclusively produce JH 0, JH I, 4-methyl-JH I, and JH II [21,31]. Methyl farnesoate (MF), the precursor of JH III, has also been found in cockroach Diploptera punctata nymphs and fly Drosophila melanogaster [32,33]. In general, sesquiterpenoids regulate metamorphosis, reproduction, sexual dimorphism, eusociality, and the defense mechanism in insects [7].

1.2. Sesquiterpenoids in Non-Insect Arthropods

Despite the lack of juvenile hormone in other arthropods, including crustaceans (crab, crayfish, lobster, shrimp), chelicerates (spider, mite, tick), and myriapods (centipedes and millipedes), other types of functional sesquiterpenoids are present [34,35,36,37,38,39,40,41,42,43,44,45,46]. The existence of sesquiterpenoid MF in crustaceans was first identified in the late 1980s by gas chromatography-mass spectrometry (GC-MS) in the crab Libinia emarginata [34] and was since then identified in different groups of crustaceans [35]. MF, in general, has been regarded as the “crustacean JH”, and plays important roles in molting, reproduction, metamorphosis, and respondence to environmental stresses [1,6].
Sesquiterpenoids in non-insect/crustacean arthropods such as the chelicerates, on the other hand, are relatively understudied. Enzymes of the mevalonate (MVA) pathway and the downstream pathway leading to the production of MF were identified in the spider mite Tetranychus urticae. The presence of MF in T. urticae was subsequently confirmed by GC-MS and is likely the end-product of the pathway as the epoxidase to convert MF further was missing in the genome [36]. Through the use of JH analogs and mimics, sesquiterpenoids have been implicated in the development and reproduction of mites, ticks, and spiders [1,37,38,39,40,41,42,43]. In further support of the MVA pathway, and likely sesquiterpenoids being used to regulate reproduction, was the presence and expression pattern of the allatoregulatory neuropeptides allatostatin and allatotropin in the female spider Parasteadtoda tepidariorum [44].
In 2014, with the sequencing of the first myriapod genome, the centipede Strigamia maritima, genes involved in the biosynthetic pathway leading to sesquiterpenoid production were identified [45]. Recently, a myriapod genome sequencing study (including Lithobius niger, Rhysida immarginata, Thereuonema tuberculata, Anaulaciulus tonginus, Glomeris maerens, Niponia nodulosa) also applied a similar strategy and sesquiterpenoid pathway genes were also found in the genomes. JHAMT was found to be absent in the investigated millipede genomes, suggesting FA as the final product of the pathway [46].

1.3. Sesquiterpenoids in Non-Arthropods

In the 1990s, exogenous applications of MF and JH induced the settlement and metamorphosis of polychaete Capitella [47,48]. In 2016, MF was first detected in head extracts of polychaete Platynereis dumerilii. MF application suppressed the expression of the yolk protein gene Vitellogenin (Vg) and arrested reproductive maturation [49]. Later, in another polychaete Syllis magdolena, MF, along with dopamine and serotonin, was found to trigger the formation of a posterior gamete containing a structure known as a stolon, which upon maturation releases gametes [50]. Recent genome analyses have also revealed the presence of biosynthetic pathway genes in gastropods and bivalves, and in vivo MF treatment could alter the gene expression of sesquiterpenoid pathway genes in the snail Biomphalaria straminea [51].
In a recent analysis of jellyfish genomes, the existence of genes involved in the biosynthetic pathway of sesquiterpenoids was also unexpectedly discovered [52]. This study suggested that the sesquiterpenoid hormone system is ancestrally established in the animals. In this article, combining the existing literature and carrying out additional experiments such as hormonal measurement and systematically mining the sesquiterpenoid pathway genes in genomes at key phylogenetic positions, we asked the question: How widespread is the sesquiterpenoid system in different groups of animals?

2. Materials and Methods

2.1. In Silico Sesquiterpenoid System Gene Analyses and Phylogenetic Analyses

Gene family sequences were first retrieved from the NCBI public database. Each gene was blasted to the published animal genomes, including Amphimedon queenslandica (sponge), Hormiphora californensis (ctenophore), Trichoplax adhaerens (placozoan), Nematostella vectensis (seas anemone), Acropora digitifera (coral), Sanderia malayensis (jellyfish), Rhopilema esculentum (jellyfish), Hydra vulgaris (hydra), Helobdella robusta (leech), Caenorhabditis elegans (nematode), Branchiostoma lanceolatum (amphioxus), Branchiostoma floridae (amphioxus), Branchiostoma belcheri (amphioxus), Ciona intestinalis (tunicate), and Strongylocentrotus purpuratus (sea urchin). The identity of each retrieved gene was subsequently submitted to the NCBI online nr database for reciprocal BLAST using the BLASTP and BLASTX algorithm. The conserved functional domain of the protein was further examined using the NCBI CD search.
For phylogenetic analyses, sequences were first retrieved from the respective animal genomes and aligned to other known animal reference sequences, which were retrieved from NCBI, using ClustalW in MEGA 7.0 software [53]. The best model was predicted using ModelFinder [54] of iqtree v2.2.0-beta [55], and the maximum likelihood (ML) trees and bootstrap trees were built using iqtree with the parameters “--seqtype AA --runs 1 -T AUTO -B 1000 -bnni --alrt 1000”.

2.2. Sesquiterpenoid Hormone Measurement

Freeze-dried jellyfish samples were placed in stainless steel grinding jars with balls of Restch MM400. The grinding jars were chilled in liquid nitrogen for 30 min, and then homogenized at a frequency of 20 Hz for 0.5 min [56]. The homogenate was immediately transferred to a 10 mL glass centrifuge tube containing 1 mL acetonitrile, 1 mL 0.9% (w/v) sodium chloride solution, and 10 ng JH III-D3 as an internal standard; ultrasonicated for 1 min; and then vortexed and extracted twice with 2 mL hexane. The hexane phase (upper layer) was removed and transferred to a new glass vial, and then dried under nitrogen flow. The residue was dissolved in 1 mL acetonitrile. The measurement of FA was determined using the liquid chromatography method coupled with electrospray tandem mass spectrometry (LC-MS/MS) reported by Ramirez et al. [57].

3. Results and Discussion

3.1. Farnesoic Acid and Methyl Farnesoate in Non-Insect Protostomes

To systematically identify sesquiterpenoid pathway genes in genomes at key phylogenetic positions, we need to first understand the current animal phylogeny. Cnidaria includes jellyfish, sea anemones, and corals and is the closest relative of bilaterally symmetrical animals, Bilateria. Bilateria comprises three major clades: Deuterostomia (hemichordates, echinoderms, and chordates); Protostomia, which can be further separated into Ecdysozoa (arthropods, nematodes, tardigrades); and Lophotrochozoa (annelids and molluscs). In all the animal genomes searched in this study, all the genes involved in the MVA pathway and isoprenylation pathway could be identified (Figure 2A; Supplementary Figures S1–S12; Supplementary Data S1–S15), suggesting the conservation of these pathways across metazoans.
In chelicerates and crustaceans, the majority of the sesquiterpenoid biosynthetic pathway genes could be identified except the epoxidase genes leading to the synthesis of juvenile hormone [23,58,59] (Figure 2A). MF, the final product, has been demonstrated to be the functional hormone that regulates development, reproduction, and sex determination in crustaceans [60,61,62,63,64,65,66,67,68] (Figure 3). In centipede Strigamia maritima, genome sequencing identified the MVA pathway genes and the downstream pathway leading to MF as was found in chelicerates and crustaceans [23,45]. Recently, genes present in the sesquiterpenoid biosynthetic pathway could also be identified in more centipede and millipede genomes [46] (Figure 2A).
In the other lineage of protostomes, the Lophotrochozoa, a genomic search conducted on the mollusk genomes showed that the sesquiterpenoid biosynthesis genes are present in gastropods and bivalves [51]. In addition, MF could be detected in the annelid and involved in metamorphosis, reproduction, and stolon formation [35,49,50] (Figure 3). These studies suggest that a functional sesquiterpenoid hormonal system with conserved roles in the control of development and reproduction exists in protostomes (Figure 4).

3.2. Sesquiterpenoids in Cephalochordate, Urochordate, and Echinoderm

In vertebrates, FPP is converted to squalene by squalene synthase, and subsequently into cholesterol [1,69]. To ask the question whether sesquiterpenoids exist in non-vertebrate deuterostomes, we searched for sesquiterpenoid biosynthetic pathway genes in the genomes of amphioxus Branchiostoma floridae and Branchiostoma belcheri, sea urchin Strongylocentrotus purpuratus, and tunicate Ciona intestinalis as representatives of cephalochordate, echinoderm, and urochordate, respectively.
To our surprise, aldehyde dehydrogenase (ALDHIII) could be identified in the genomes of B. floridae, B. belcheri, S. purpuratus, and C. intestinalis, suggesting sesquiterpenoid farnesoic acid (FA) could be produced in these animals (Figure 2A; Supplementary Figures S1–S12; Supplementary Data S11–S15). In addition, the juvenile hormone O-methyltransferase (JHAMT) could also be identified in the genomes of amphioxus and echinoderms, suggesting that sesquiterpenoids MF may be well produced (Figure 2B and Figure 4; Supplementary Figures S1–S12; Supplementary Data S11–S15). Although FA and MF are not produced in vertebrates, farnesol-like sesquiterpenoids are produced and have been suggested as potential “JH” in vertebrates [70]. These findings suggest that sesquiterpenoid is widely produced in bilaterians.

3.3. Farnesoic Acid in Cnidarians

Previous study revealed sesquiterpenoid biosynthetic pathway genes in jellyfish and suggested that the pathway would terminate with the production of FA [52] (Figure 2A and Figure 4). Here, we also measured sesquiterpenoids using liquid chromatography coupled with electrospray tandem mass spectrometry (LC-MS/MS), and confirmed that FA was produced at titers of 55.02 ± 9.21 ng/g FA in the medusa of lion mane jellyfish Cyanea capillata, and 1.04 ± 0.48 ng/g FA in the medusa of edible jellyfish Rhopilema esculentum.
We further searched for the sesquiterpenoid biosynthetic pathway genes in other cnidarian genomes, including the jellyfish Sanderia malayensis and Rhopilema esculentum, the sea anemone Nematostella vectensis, corals Acropora digitifera, Stylophora pistillata and Pocillopora damicornis, and hydroid Hydra vulgaris, and found the presence of MVA, isoprenylation, and ALDHIII genes in all these cnidarian genomes (Figure 2A; Supplementary Figures S1–S12; Supplementary Data S4–S8). This finding suggests that sesquiterpenoids are widely produced in cnidarians, and further consolidates that the cnidarian-bilaterian ancestor had an established sesquiterpenoid system.

3.4. Sesquiterpenoids in Early Branched Metazoans?

To explore whether the sesquiterpenoid system could be dated back to the metazoan ancestor, we also investigated the genomes of poriferan Amphimedon queenslandica and ctenophore Hormiphora californensis. Both A. queenslandica and H. californensis possess the complete set of genes involved in the terpenoid backbone synthesis and isoprenylation pathways, suggesting the potential presence of farnesal in these animals (Figure 2A; Supplementary Figures S1–S12; Supplementary Data S1–S2). In addition, the presence of ALDHIII could also be identified in these animals, suggesting the likelihood of the conversion of farnesal into farnesoic acid (Figure 2A). Future hormone measurement in poriferans and ctenophores will be needed to test this hypothesis.

4. Conclusions

Here, we hypothesize that the sesquiterpenoid hormonal system is an ancestral system established in an animal ancestor and remains widespread in many animals. Different animal lineages have adapted different enzymatic routes from a common pathway that produces different sesquiterpenoid hormones. Much work needs to be conducted to test the function of these sesquiterpenoid compounds and discover their various roles in different animal lineages.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms23115998/s1. Supplementary Data–Mevalonate, isoprenylation and JH-specific pathway genes mined from selected animals (S1–Amphimedon queenslandica, S2–Hormiphora californensis, S3–Trichoplax adhaerens, S4–Nematostella vectensis, S5–Acropora digitifera, S6–Sanderia malayensis, S7–Rhopilema esculentum, S8–Hydra vulgaris, S9–Helobdella robusta, S10–Caenorhabditis elegans, S11–Branchiostoma lanceolatum, S12–Branchiostoma floridae, S13–Branchiostoma belcheri, S14–Ciona intestinalis, S15–Strongylocentrotus purpuratus); Supplementary Figures–Phylogenetic analyses of the mevalonate, isoprenylation and JH-specific pathway genes mined from selected animals.

Author Contributions

J.H.L.H. conceived, designed, and supervised the study. J.H.L.H. and W.L.S. coordinated the pro-ject. Z.K. carried out hormone measurements in cnidarians. W.L.S. and Z.Q. carried out gene an-notation and BLAST. W.L.S. carried out phylogenetic analysis. W.L.S., Z.K., Z.Q. and W.G.B. con-tributed to the discussion of the project at different stages. J.H.L.H., W.L.S., Z.Q. and W.G.B. wrote the first draft of the manuscript. All authors were involved in writing the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Hong Kong Research Grant Council Collaborative Research Fund (C4015-20EF), General Research Fund (14100420), NSFC/RGC Joint Research Scheme (N_CUHK401/21), and The Chinese University of Hong Kong Direct Grant (4053547).

Institutional Review Board Statement

This study does not require ethical approval.

Informed Consent Statement

Not applicable.

Data Availability Statement

This study does not report any data.

Acknowledgments

The authors would also like to thank Stephen Tobe, who is a friend and collaborator who contributed much to the development of the hypothesis but sadly passed away in late 2020.

Conflicts of Interest

The authors declare no competing interests.

Abbreviations

FA: farnesoic acid; GC-MS: gas chromatography-mass spectrometry; LC-MS/MS: liquid chromatography method coupled to electrospray tandem mass spectrometry; ALDHIII: aldehyder dehydrogenase III; FO: farnesal; FOH: farnesol; FPP: farnesyl diphosphate; HMG-CoA: β-hydroxy-β-methylglutaryl-CoA; IPP: isopentenyl diphosphate; JH: juvenile hormone; JHSB3: JH III skipped bisepoxide; JHAMT: juvenile hormone acid O-methyltransferase; MF: methyl farnesoate; MVA: mevalonate; EPOX: epoxidase; Hsp83: heat shock protein 83; Kr-h1: Kruppel homolog 1; RTK: receptor tyrosine kinase; PKC: protein kinase C.

References

  1. Cheong, S.P.; Huang, J.; Bendena, W.G.; Tobe, S.S.; Hui, J.H. Evolution of ecdysis and metamorphosis in arthropods: The rise of regulation of juvenile hormone. Integr. Comp. Biol. 2015, 55, 878–890. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Flatt, T.; Tu, M.P.; Tatar, M. Hormonal pleiotropy and the juvenile hormone regulation of Drosophila development and life history. Bioessays 2005, 27, 999–1010. [Google Scholar] [CrossRef]
  3. Truman, J.W. The evolution of insect metamorphosis. Curr. Biol. 2019, 29, 1252–1268. [Google Scholar] [CrossRef] [PubMed]
  4. Scieuzo, C.; Nardiello, M.; Salvia, R.; Pezzi, M.; Chicca, M.; Leis, M.; Bufo, S.A.; Vinson, B.; Rao, A.; Vogek, H.; et al. Ecdysteroidogenesis and development in Heliothis virescens (Lepidoptera: Noctuidae): Focus on PTTH-stimulated pathways. J. Insect Physiol. 2018, 107, 57–67. [Google Scholar] [CrossRef] [PubMed]
  5. Tobe, S.S.; Bendena, W.G. The regulation of juvenile hormone production in arthropods: Functional and evolutionary perspectives. Ann. N.Y. Acad. Sci. 1999, 897, 300–310. [Google Scholar] [CrossRef]
  6. Qu, Z.; Bendena, W.G.; Tobe, S.S.; Hui, J.H. Juvenile hormone and sesquiterpenoids in arthropods: Biosynthesis, signaling, and role of MicroRNA. J. Steroid Biochem. Mol. Biol. 2018, 184, 69–76. [Google Scholar] [CrossRef]
  7. Tsang, S.S.; Law, S.T.; Li, C.; Qu, Z.; Bendena, W.G.; Tobe, S.S.; Hui, J.H. Diversity of insect sesquiterpenoid regulation. Front. Genet. 2020, 11, 1027. [Google Scholar] [CrossRef]
  8. Boncan, D.A.T.; Tsang, S.S.; Li, C.; Lee, I.H.; Lam, H.M.; Chan, T.F.; Hui, J.H. Terpenes and terpenoids in plants: Interactions with environment and insects. Int. J. Mol. Sci. 2020, 21, 7382. [Google Scholar] [CrossRef]
  9. Clark, A.J.; Bloch, K. The absence of sterol synthesis in insects. J. Biol. Chem. 1959, 234, 2578–2582. [Google Scholar] [CrossRef]
  10. van den Oord, A. The absence of cholesterol synthesis in the crab, Cancer pagurus L. Comp. Biochem. Physiol. 1964, 13, 461–467. [Google Scholar] [CrossRef]
  11. Baker, F.C.; Mauchamp, B.; Tsai, L.W.; Schooley, D.A. Farnesol and farnesal dehydrogenase (s) in corpora allata of the tobacco hornworm moth, Manduca sexta. J. Lipid Res. 1983, 24, 1586–1594. [Google Scholar] [CrossRef]
  12. Sperry, A.E.; Sen, S.E. Farnesol oxidation in insects: Evidence that the biosynthesis of insect juvenile hormone is mediated by a specific alcohol oxidase. Insect Biochem. Mol. Biol. 2001, 31, 171–178. [Google Scholar] [CrossRef]
  13. Mayoral, J.G.; Nouzova, M.; Navare, A.; Noriega, F.G. NADP+-dependent farnesol dehydrogenase, a corpora allata enzyme involved in juvenile hormone synthesis. Proc. Natl. Acad. Sci. USA 2009, 106, 21091–21096. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Nyati, P.; Nouzova, M.; Rivera-Perez, C.; Clifton, M.E.; Mayoral, J.G.; Noriega, F.G. Farnesyl phosphatase, a corpora allata enzyme involved in juvenile hormone biosynthesis in Aedes aegypti. PLoS ONE 2013, 8, e71967. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Satyaveanthan, M.V.; Suhaimi, S.A.; Ng, C.L.; Muhd-Noor, N.D.; Awang, A.; Lam, K.W.; Hassan, M. Purification, biochemical characterisation and bioinformatic analysis of recombinant farnesol dehydrogenase from Theobroma cacao. Plant Physiol. Biochem. 2021, 161, 143–155. [Google Scholar] [CrossRef] [PubMed]
  16. Rivera-Perez, C.; Nouzova, M.; Clifton, M.E.; Garcia, E.M.; LeBlanc, E.; Noriega, F.G. Aldehyde dehydrogenase 3 converts farnesal into farnesoic acid in the corpora allata of mosquitoes. Insect Biochem. Mol. Biol. 2013, 43, 675–682. [Google Scholar] [CrossRef] [Green Version]
  17. Helvig, C.; Koener, J.F.; Unnithan, G.C.; Feyereisen, R. CYP15A1, the cytochrome P450 that catalyzes epoxidation of methyl farnesoate to juvenile hormone III in cockroach corpora allata. Proc. Natl. Acad. Sci. USA 2004, 101, 4024–4029. [Google Scholar] [CrossRef] [Green Version]
  18. Huang, J.; Marchal, E.; Hult, E.F.; Tobe, S.S. Characterization of the juvenile hormone pathway in the viviparous cockroach, Diploptera punctata. PLoS ONE 2015, 10, e0117291. [Google Scholar] [CrossRef] [Green Version]
  19. Daimon, T.; Shinoda, T. Function, diversity, and application of insect juvenile hormone epoxidases (CYP15). Biotechnol. Appl. Biochem. 2013, 60, 82–91. [Google Scholar] [CrossRef]
  20. Villalobos-Sambucaro, M.J.; Nouzova, M.; Ramirez, C.E.; Alzugaray, M.E.; Fernandez-Lima, F.; Ronderos, J.R.; Noriega, F.G. The juvenile hormone described in Rhodnius prolixus by Wigglesworth is juvenile hormone III skipped bisepoxide. Sci. Rep. 2020, 10, 1–9. [Google Scholar] [CrossRef] [Green Version]
  21. Bellés, X.; Martín, D.; Piulachs, M.D. The mevalonate pathway and the synthesis of juvenile hormone in insects. Annu. Rev. Entomol. 2005, 50, 181–199. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Hui, J.H.; Hayward, A.; Bendena, W.G.; Takahashi, T.; Tobe, S.S. Evolution and functional divergence of enzymes involved in sesquiterpenoid hormone biosynthesis in crustaceans and insects. Peptides 2010, 31, 451–455. [Google Scholar] [CrossRef] [PubMed]
  23. Qu, Z.; Kenny, N.J.; Lam, H.M.; Chan, T.F.; Chu, K.H.; Bendena, W.G.; Tobe, S.S.; Hui, J.H.L. How did arthropod sesquiterpenoids and ecdysteroids arise? Comparison of hormonal pathway genes in noninsect arthropod genomes. Genome Biol. Evol. 2015, 7, 1951–1959. [Google Scholar] [PubMed] [Green Version]
  24. Moshitzky, P.; Applebaum, S.W. Pathway and regulation of JHIII-bisepoxide biosynthesis in adult Drosophila melanogaster corpus allatum. Arch. Insect Biochem. Physiol. 1995, 30, 225–237. [Google Scholar] [CrossRef]
  25. Niwa, R.; Niimi, T.; Honda, N.; Yoshiyama, M.; Itoyama, K.; Kataoka, H.; Shinoda, T. Juvenile hormone acid O-methyltransferase in Drosophila melanogaster. Insect Biochem. Mol. Biol. 2008, 38, 714–720. [Google Scholar] [CrossRef] [Green Version]
  26. Zhang, F.L.; Casey, P.J. Protein prenylation: Molecular mechanisms and functional consequences. Annu. Rev. Biochem. 1996, 65, 241–269. [Google Scholar] [CrossRef]
  27. Qu, Z.; Bendena, W.G.; Nong, W.; Siggens, K.W.; Noriega, F.G.; Kai, Z.P.; Zang, Y.Y.; Koon, A.C.; Chan, H.Y.E.; Chan, T.F.; et al. MicroRNAs regulate the sesquiterpenoid hormonal pathway in Drosophila and other arthropods. Proc. R. Soc. B Biol. Sci. 2017, 284, 20171827. [Google Scholar] [CrossRef] [Green Version]
  28. Kotaki, T.; Shinada, T.; Kaihara, K.; Ohfune, Y.; Numata, H. Structure determination of a new juvenile hormone from a heteropteran insect. Org. Lett. 2009, 11, 5234–5237. [Google Scholar] [CrossRef]
  29. Richard, D.S.; Applebaum, S.W.; Sliter, T.J.; Baker, F.C.; Schooley, D.A.; Reuter, C.C.; Henrich, V.C.; Gilbert, L.I. Juvenile hormone bisepoxide biosynthesis in vitro by the ring gland of Drosophila melanogaster: A putative juvenile hormone in the higher Diptera. Proc. Natl. Acad. Sci. USA 1989, 86, 1421–1425. [Google Scholar] [CrossRef] [Green Version]
  30. Bendena, W.G.; Zhang, J.; Burtenshaw, S.M.; Tobe, S.S. Evidence for differential biosynthesis of juvenile hormone (and related) sesquiterpenoids in Drosophila melanogaster. Gen. Comp. Endocrinol. 2011, 172, 56–61. [Google Scholar] [CrossRef]
  31. Schooley, D.A.; Baker, F.C.; Tsai, L.W.; Miller, C.A.; Jamieson, G.C. Juvenile hormones O, I, and II exist only in Lepidoptera. In Biosynthesis, Metabolism and Mode of Action of Invertebrate Hormones; Springer: Berlin/Heidelberg, Germany, 1984; pp. 373–383. [Google Scholar]
  32. Jones, G.; Jones, D.; Li, X.; Tang, L.; Ye, L.; Teal, P.; Riddiford, L.; Sandifer, C.; Borovsky, D.; Martin, J.R. Activities of natural methyl farnesoids on pupariation and metamorphosis of Drosophila melanogaster. J. Insect Physiol. 2010, 56, 1456–1464. [Google Scholar] [CrossRef]
  33. Jindra, M.; Palli, S.R.; Riddiford, L.M. The juvenile hormone signaling pathway in insect development. Annu. Rev. Entomol. 2013, 58, 181–204. [Google Scholar] [CrossRef]
  34. Laufer, H.; Borst, D.; Baker, F.C.; Reuter, C.C.; Tsai, L.W.; Schooley, D.A.; Carrasco, C.; Sinkus, M. Identification of a juvenile hormone-like compound in a crustacean. Science 1987, 235, 202–205. [Google Scholar] [CrossRef] [PubMed]
  35. Laufer, H.; Biggers, W.J. Unifying concepts learned from methyl farnesoate for invertebrate reproduction and post-embryonic development. Am. Zool. 2001, 41, 442–457. [Google Scholar] [CrossRef] [Green Version]
  36. Li, G.; Sun, Q.Z.; Liu, X.Y.; Zhang, J.; Dou, W.; Niu, J.Z.; Wang, J.J. Expression dynamics of key ecdysteroid and juvenile hormone biosynthesis genes imply a coordinated regulation pattern in the molting process of a spider mite, Tetranychus urticae. Exp. Appl. Acarol. 2019, 78, 361–372. [Google Scholar] [CrossRef] [PubMed]
  37. Downing, A.S.; Wright, C.G.; Farrier, M.H. Population growth of Dermatophagoides farinae Hughes (Acari: Epidermoptidae) suppressed by methoprene and hydroprene. J. Med. Entomol. 1993, 30, 531–536. [Google Scholar] [CrossRef]
  38. Mazyad, S.A.; Mohammad, K.A. Effect of insect growth regulators on protein pattern of Dermatophagoides farinae and its validity on inducing human alleregens. J. Egypt. Soc. Parasitol. 2006, 36, 1101–1114. [Google Scholar]
  39. Oliver, J.H., Jr.; Pound, J.M.; Gilberto, S. Evidence of a juvenile-hormone-like compound in the reproduction of Dermanyssus gallinae (Acari: Dermanyssidae). J. Med. Entomol. 1985, 22, 281–286. [Google Scholar] [CrossRef]
  40. Connat, J.L. Effects of different anti-juvenile hormone agents on the fecundity of the female cattle tick Boophilus microplus. Pestic. Biochem. Physiol. 1988, 30, 28–34. [Google Scholar] [CrossRef]
  41. Connat, J.L.; Nepa, M.C. Effects of different anti-juvenile hormone agents on the fecundity of the female tick Ornithodoros moubata. Pestic. Biochem. Physiol. 1990, 37, 266–274. [Google Scholar] [CrossRef]
  42. Thind, B.B.; Edwards, J.P. Stimulation of egg production in the grain mite Acarus siro by the juvenile-hormone analogue fenoxycarb. Exp. Appl. Acarol. 1990, 9, 1–10. [Google Scholar] [CrossRef]
  43. Bednarek, A.W.; Sawadro, M.K.; Nicewicz, Ł.; Babczyńska, A.I. Vitellogenins in the spider Parasteatoda tepidariorum–expression profile and putative hormonal regulation of vitellogenesis. BMC Dev. Biol. 2019, 19, 4. [Google Scholar] [CrossRef] [Green Version]
  44. Sawadro, M.K.; Bednarek, A.W.; Molenda, A.E.; Babczyńska, A.I. Expression profile of genes encoding allatoregulatory neuropeptides in females of the spider Parasteatoda tepidariorum (Araneae, Theridiidae). PLoS ONE 2019, 14, e0222274. [Google Scholar] [CrossRef] [PubMed]
  45. Chipman, A.D.; Ferrier, D.E.; Brena, C.; Qu, J.; Hughes, D.S.; Schröder, R.; Torres-Oliva, M.; Znassi, N.; Jiang, H.; Almeida, F.C.; et al. The first myriapod genome sequence reveals conservative arthropod gene content and genome organisation in the centipede Strigamia maritima. PLoS Biol. 2014, 12, e1002005. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. So, W.L.; Nong, W.; Xie, Y.; Ma, H.; Baril, T.; Qu, Z.; Haimovita, J.; Swale, T.; Gaitan-Espitia, J.D.; Lau, K.F.; et al. Myriapod genomes reveal ancestral horizontal gene transfer and hormonal gene loss in millipedes. Nat. Commun. 2022, in press. [Google Scholar]
  47. Biggers, W.J.; Laufer, H. Chemical induction of settlement and metamorphosis of Capitella capitata Sp. I (Polychaeta) larvae by juvenile hormone-active compounds. Invertebr. Reprod. Dev. 1992, 22, 39–45. [Google Scholar] [CrossRef]
  48. Biggers, W.J.; Laufer, H. Settlement and metamorphosis of Capitella larvae induced by juvenile hormone-active compounds is mediated by protein kinase C and ion channels. Biol. Bull. 1999, 196, 187–198. [Google Scholar] [CrossRef] [PubMed]
  49. Schenk, S.; Krauditsch, C.; Frühauf, P.; Gerner, C.; Raible, F. Discovery of methylfarnesoate as the annelid brain hormone reveals an ancient role of sesquiterpenoids in reproduction. Elife 2016, 5, e17126. [Google Scholar] [CrossRef] [Green Version]
  50. Álvarez-Campos, P.; Kenny, N.J.; Verdes, A.; Fernández, R.; Novo, M.; Giribet, G.; Riesgo, A. Delegating sex: Differential gene expression in stolonizing syllids uncovers the hormonal control of reproduction. Genome Biol. Evol. 2019, 11, 295–318. [Google Scholar] [CrossRef] [Green Version]
  51. Nong, W.; Yu, Y.; Aase-Remedios, M.E.; Xie, Y.; So, W.L.; Li, Y.; Wong, C.F.; Baril, T.; Law, S.T.S.; Lai, S.Y.; et al. Genome of the ramshorn snail Biomphalaria straminea—An obligate intermediate host of schistosomiasis. GigaScience 2022, 11, giac012. [Google Scholar]
  52. Nong, W.; Cao, J.; Li, Y.; Qu, Z.; Sun, J.; Swale, T.; Yip, H.Y.; Qian, P.Y.; Qiu, J.W.; Kwan, H.S.; et al. Jellyfish genomes reveal distinct homeobox gene clusters and conservation of small RNA processing. Nat. Commun. 2020, 11, 3051. [Google Scholar] [CrossRef] [PubMed]
  53. Kumar, S.; Stecher, G.; Tamura, K. MEGA7: Molecular evolutionary genetics analysis version 7.0 for bigger datasets. Mol. Biol. Evol. 2016, 33, 1870–1874. [Google Scholar] [CrossRef] [Green Version]
  54. Kalyaanamoorthy, S.; Minh, B.Q.; Wong, T.K.; Von Haeseler, A.; Jermiin, L.S. ModelFinder: Fast model selection for accurate phylogenetic estimates. Nat. Methods 2017, 14, 587–589. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Minh, B.Q.; Schmidt, H.A.; Chernomor, O.; Schrempf, D.; Woodhams, M.D.; Von Haeseler, A.; Lanfear, R. IQ-TREE 2: New models and efficient methods for phylogenetic inference in the genomic era. Mol. Biol. Evol. 2020, 37, 1530–1534. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Kai, Z.P.; Yin, Y.; Zhang, Z.R.; Huang, J.; Tobe, S.S.; Chen, S.S. A rapid quantitative assay for juvenile hormones and intermidiates in the biosynthetic pathway using gas chromatography tandem mass spectrometry. J. Chromatogr. A. 2018, 1538, 67–74. [Google Scholar] [CrossRef] [PubMed]
  57. Ramirez, C.E.; Nouzova, M.; Michalkova, V.; Fernandez-Lima, F.; Noriega, F.G. Common structural features facilitate the simultaneous identification and quantification of the five most common juvenile hormones by liquid chromatography-tandem mass spectrometry. Insect Biochem. Mol. Biol. 2020, 116, 103287. [Google Scholar] [CrossRef]
  58. Sin, Y.W.; Kenny, N.J.; Qu, Z.; Chan, K.W.; Cheong, S.P.; Leung, R.W.T.; Chan, T.F.; Bendena, W.G.; Chu, K.H.; Tobe, S.S.; et al. Identification of putative ecdysteroid and juvenile hormone pathway genes in the shrimp Neocaridina denticulata. Gen. Comp. Endocrinol. 2015, 214, 167–176. [Google Scholar] [CrossRef]
  59. Zhu, J.; Khalil, S.M.; Mitchell, R.D.; Bissinger, B.W.; Egekwu, N.; Sonenshine, D.E.; Roe, R.M. Mevalonate-farnesal biosynthesis in ticks: Comparative synganglion transcriptomics and a new perspective. PLoS ONE 2016, 11, e0141084. [Google Scholar] [CrossRef] [Green Version]
  60. Mullen, P.J.; Yu, R.; Longo, J.; Archer, M.C.; Penn, L.Z. The interplay between cell signalling and the mevalonate pathway in cancer. Nat. Rev. Cancer 2016, 16, 718–731. [Google Scholar] [CrossRef]
  61. Borst, D.W.; Laufer, H.; Landau, M.; Chang, E.S.; Hertz, W.A.; Baker, F.C.; Schooley, D.A. Methyl farnesoate and its role in crustacean reproduction and development. Insect Biochem. 1987, 17, 1123–1127. [Google Scholar] [CrossRef]
  62. Laufer, H.; Sagi, A.; Ahl, J.S.B.; Homola, E. Methyl farnesoate appears to be a crustacean reproductive hormone. Invertebr. Reprod. Dev. 1992, 22, 17–19. [Google Scholar] [CrossRef]
  63. Sagi, A.; Ahl, J.S.; Danaee, H.; Laufer, H. Methyl farnesoate levels in male spider crabs exhibiting active reproductive behavior. Horm. Behav. 1994, 28, 261–272. [Google Scholar] [CrossRef]
  64. Olmstead, A.W.; Leblanc, G.A. Juvenoid hormone methyl farnesoate is a sex determinant in the crustacean Daphnia magna. J. Exp. Zool. 2002, 293, 736–739. [Google Scholar] [CrossRef] [PubMed]
  65. Laufer, H.; Ahl, J.; Rotllant, G.; Baclaski, B. Evidence that ecdysteroids and methyl farnesoate control allometric growth and differentiation in a crustacean. Insect Biochem. Mol. Biol. 2002, 32, 205–210. [Google Scholar] [CrossRef]
  66. Rodríguez, E.M.; Greco, L.S.L.; Medesani, D.A.; Laufer, H.; Fingerman, M. Effect of methyl farnesoate, alone and in combination with other hormones, on ovarian growth of the red swamp crayfish, Procambarus clarkii, during vitellogenesis. Gen. Comp. Endocrinol. 2002, 125, 34–40. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  67. Laufer, H.; Demir, N.; Pan, X.; Stuart, J.D.; Ahl, J.S. Methyl farnesoate controls adult male morphogenesis in the crayfish, Procambarus clarkii. J. Insect Physiol. 2005, 51, 379–384. [Google Scholar] [CrossRef]
  68. Toyota, K.; Sato, T.; Iguchi, T.; Ohira, T. Methyl farnesoate regulatory mechanisms underlying photoperiod-dependent sex determination in the freshwater crustacean Daphnia magna. J. Appl. Toxicol. 2021, 41, 216–223. [Google Scholar] [CrossRef]
  69. Zhang, T.; Yuan, D.; Xie, J.; Lei, Y.; Li, J.; Fang, G.; Tian, L.; Liu, J.; Cui, Y.; Zhang, M.; et al. Evolution of the cholesterol biosynthesis pathway in animals. Mol. Biol. Evol. 2019, 36, 2548–2556. [Google Scholar] [CrossRef]
  70. De Loof, A.; Marchal, E.; Rivera-Perez, C.; Noriega, F.G.; Schoofs, L. Farnesol-like endogenous sesquiterpenoids in vertebrates: The probable but overlooked functional “inbrome” anti-aging counterpart of juvenile hormone of insects? Front. Endocrinol. 2015, 5, 222. [Google Scholar] [CrossRef] [Green Version]
Ijms 23 05998 g001 550

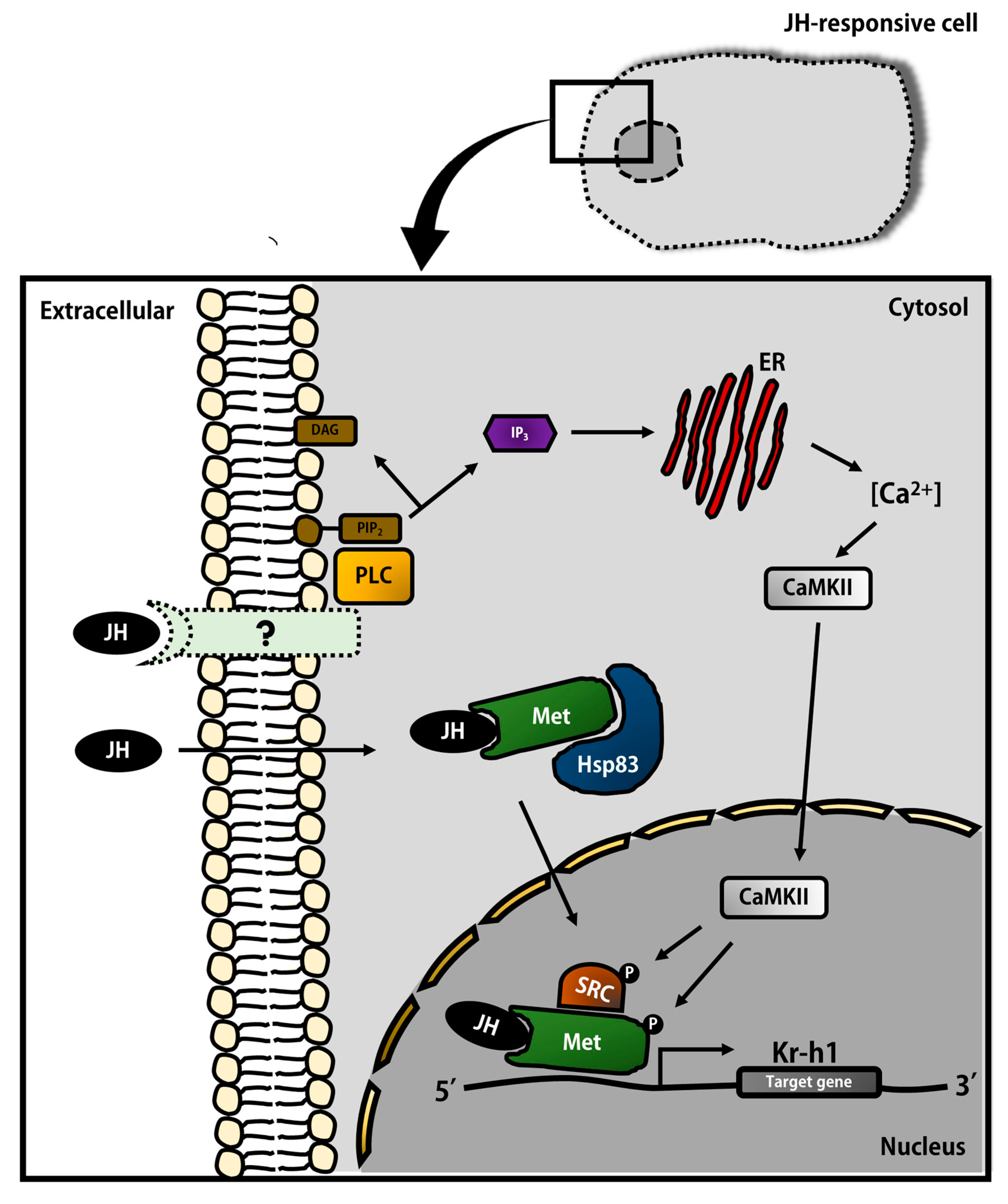

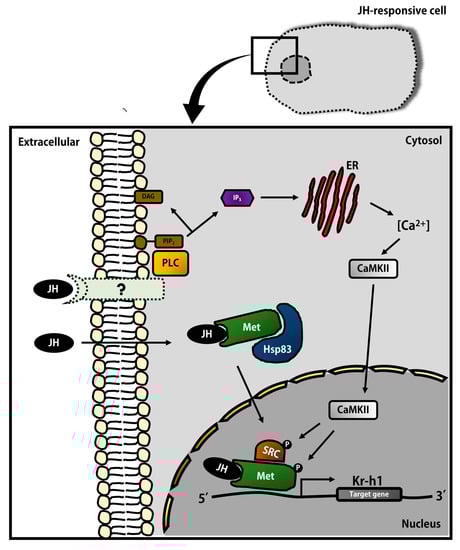

Figure 1. JH signaling pathway.Schematic diagram showing the cellular response upon JH stimulation, summarized from the previous literature. JH binds to its intracellular receptor Methoprene-tolerant (Met) and the complex is transported into the nucleus, mediated by heat shock protein 83 (Hsp83). Steroid receptor coactivator (SRC) then forms a heterodimer with the JH-Met to form an active complex to regulate the transcription of target genes. A putative transmembrane receptor (labeled in pale green with a dotted line) is hypothesized from previous studies, which demonstrated an activated intracellular RTK-signaling pathway (phospholipase C (PLC), phosphatidylinositol biphosphatein (PIP2), diacylglycerol (DAG), inositol trisphosphate (IP3), and Ca2+/calmodulin-dependent protein kinase II (CaMKII)) in JH-stimulating cells.
Figure 1. JH signaling pathway.Schematic diagram showing the cellular response upon JH stimulation, summarized from the previous literature. JH binds to its intracellular receptor Methoprene-tolerant (Met) and the complex is transported into the nucleus, mediated by heat shock protein 83 (Hsp83). Steroid receptor coactivator (SRC) then forms a heterodimer with the JH-Met to form an active complex to regulate the transcription of target genes. A putative transmembrane receptor (labeled in pale green with a dotted line) is hypothesized from previous studies, which demonstrated an activated intracellular RTK-signaling pathway (phospholipase C (PLC), phosphatidylinositol biphosphatein (PIP2), diacylglycerol (DAG), inositol trisphosphate (IP3), and Ca2+/calmodulin-dependent protein kinase II (CaMKII)) in JH-stimulating cells.
Ijms 23 05998 g001
Ijms 23 05998 g002 550

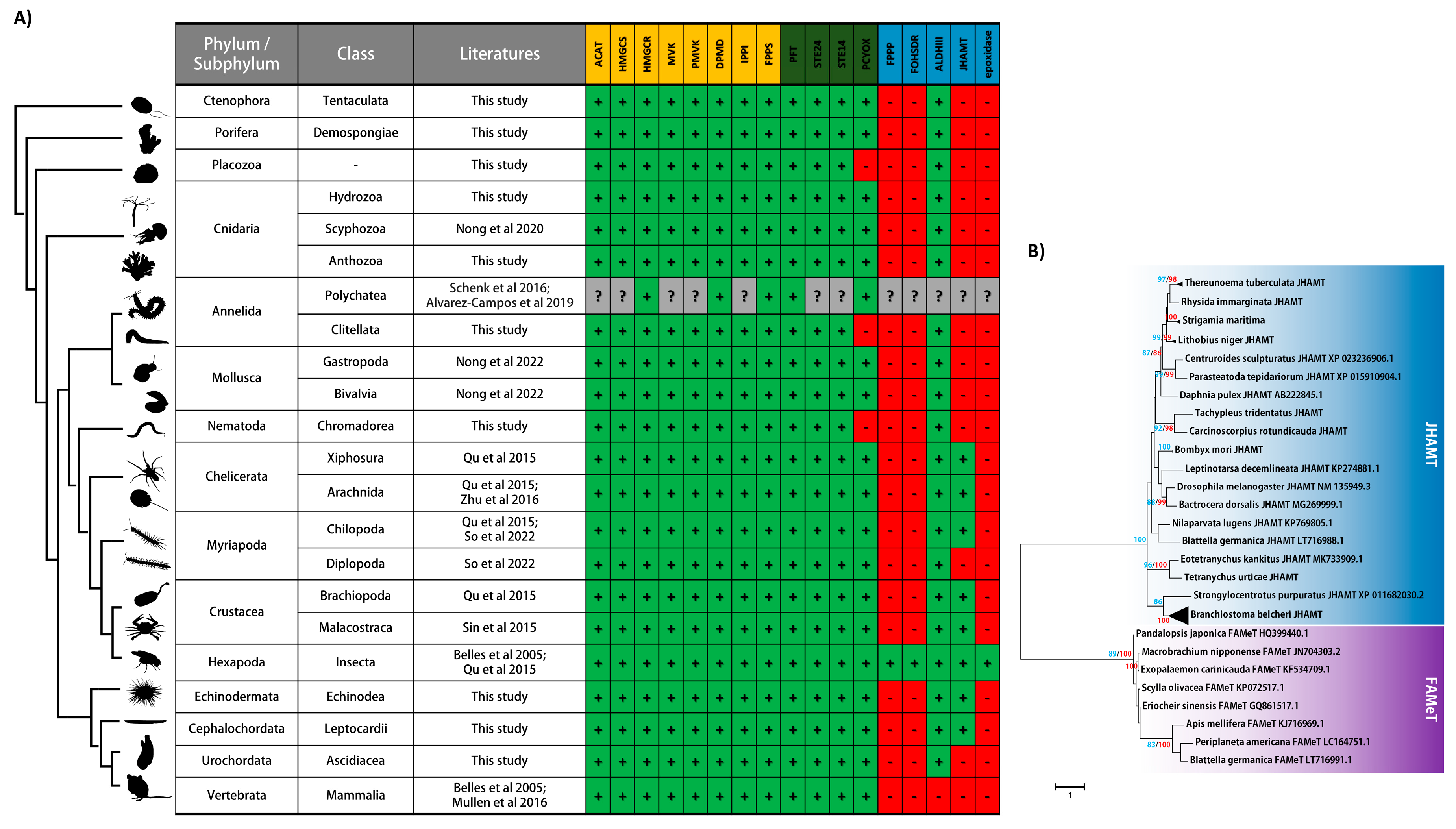

Figure 2. A summary of the literature reporting the gene cassette required in sesquiterpenoid biosynthesis and the JHAMT gene tree. (A) A table showing the presence of MVA, isoprenylation and JH-specific pathway in different animals, summarized from the previous studies [21,23,46,49,50,51,52,58]. The box labeled in green with “+” indicates the presence of genes; The box labeled in red with “-” indicates the absence of genes. The box labeled in grey with “?” indicates the uncertainty. The genes present in the mevalonate pathway, the isoprenylation pathway, and the downstream juvenile hormone pathway are highlighted in orange, green, and blue, respectively. ACAT, Acetyl-CoA Acetyltransferase; HMGCS, hydroxymethylglutaryl-CoA synthase; HMGCR, 3-hydroxy-3-methylglutaryl-CoA reductase; MVK, mevalonate kinase; PMVK, phosphomevalonate kinase; DPMD, diphosphomevalonate decarboxylase; FPPS, farnesyl diphosphate synthase; FPPP, farnesyl diphosphate phosphatase; FOHSDR, farnesol dehydrogenase (short-chain dehydrogenase); ALDHIII, aldehyde dehydrogenase 3; PFT, protein farnesyl transferase; STE24, endopeptidase; ICMT, protein-S-isoprenylcysteine O-methyltransferase; PCYOX, prenylcysteine oxidase. (B) Phylogenetic gene tree of JHAMTs identified in animals. The tree topology shown is constructed by the maximum likelihood (ML) algorithm. The phylogenetic trees were constructed with the LG + G + I model using the maximum likelihood (ML) and neighbor-joining (NJ) methods, rooted with arthropod farnesoic methyltransferase (FAMeT) in MEGA 7.0, with 1000 replicates. Only bootstrap values larger than 80% are indicated for clarity (blue from ML and red from NJ).
Figure 2. A summary of the literature reporting the gene cassette required in sesquiterpenoid biosynthesis and the JHAMT gene tree. (A) A table showing the presence of MVA, isoprenylation and JH-specific pathway in different animals, summarized from the previous studies [21,23,46,49,50,51,52,58]. The box labeled in green with “+” indicates the presence of genes; The box labeled in red with “-” indicates the absence of genes. The box labeled in grey with “?” indicates the uncertainty. The genes present in the mevalonate pathway, the isoprenylation pathway, and the downstream juvenile hormone pathway are highlighted in orange, green, and blue, respectively. ACAT, Acetyl-CoA Acetyltransferase; HMGCS, hydroxymethylglutaryl-CoA synthase; HMGCR, 3-hydroxy-3-methylglutaryl-CoA reductase; MVK, mevalonate kinase; PMVK, phosphomevalonate kinase; DPMD, diphosphomevalonate decarboxylase; FPPS, farnesyl diphosphate synthase; FPPP, farnesyl diphosphate phosphatase; FOHSDR, farnesol dehydrogenase (short-chain dehydrogenase); ALDHIII, aldehyde dehydrogenase 3; PFT, protein farnesyl transferase; STE24, endopeptidase; ICMT, protein-S-isoprenylcysteine O-methyltransferase; PCYOX, prenylcysteine oxidase. (B) Phylogenetic gene tree of JHAMTs identified in animals. The tree topology shown is constructed by the maximum likelihood (ML) algorithm. The phylogenetic trees were constructed with the LG + G + I model using the maximum likelihood (ML) and neighbor-joining (NJ) methods, rooted with arthropod farnesoic methyltransferase (FAMeT) in MEGA 7.0, with 1000 replicates. Only bootstrap values larger than 80% are indicated for clarity (blue from ML and red from NJ).
Ijms 23 05998 g002
Ijms 23 05998 g003 550

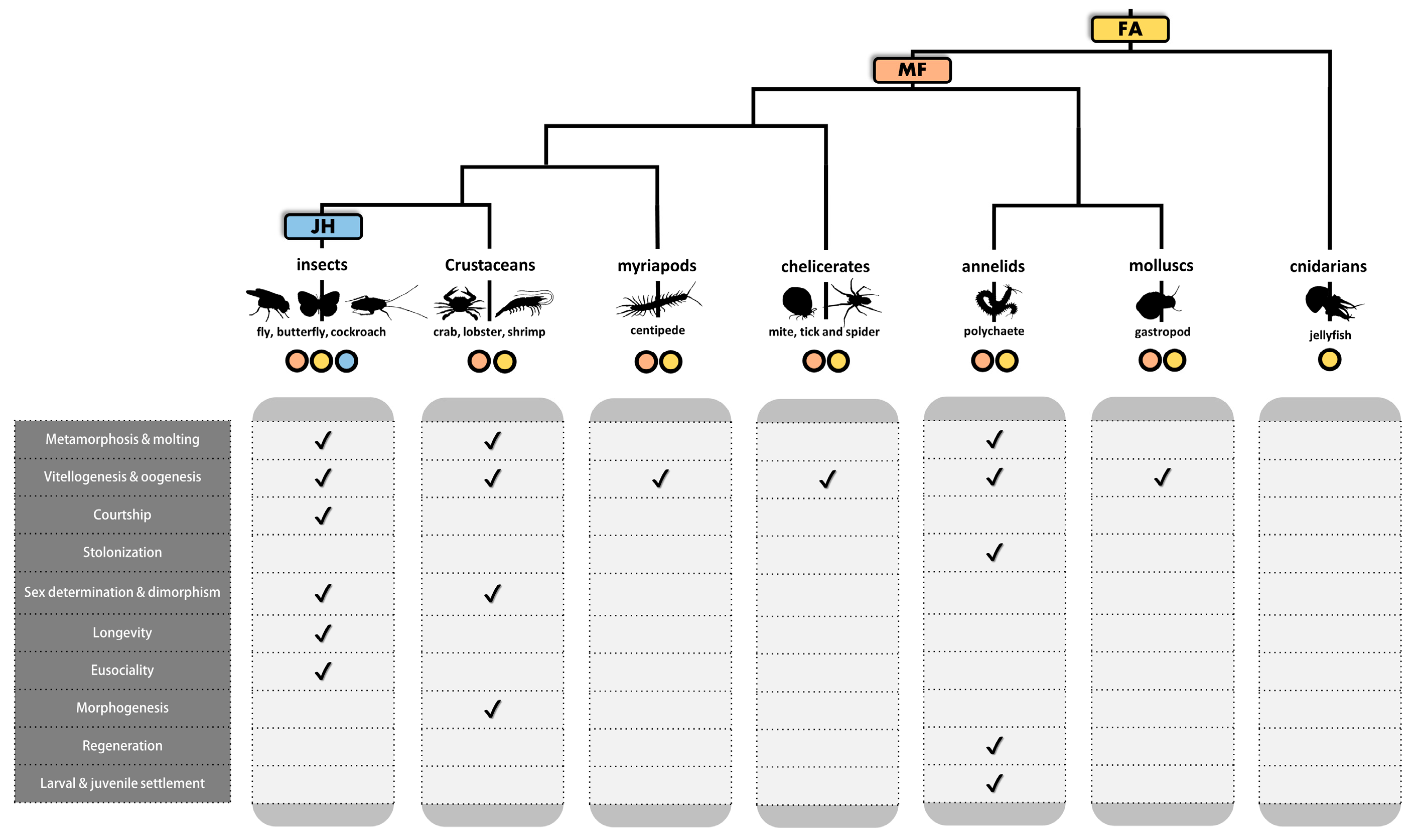

Figure 3. The form of sesquiterpenoids present across the animal phylogeny and their biological effects documented in previous studies.
Figure 3. The form of sesquiterpenoids present across the animal phylogeny and their biological effects documented in previous studies.
Ijms 23 05998 g003
Ijms 23 05998 g004 550

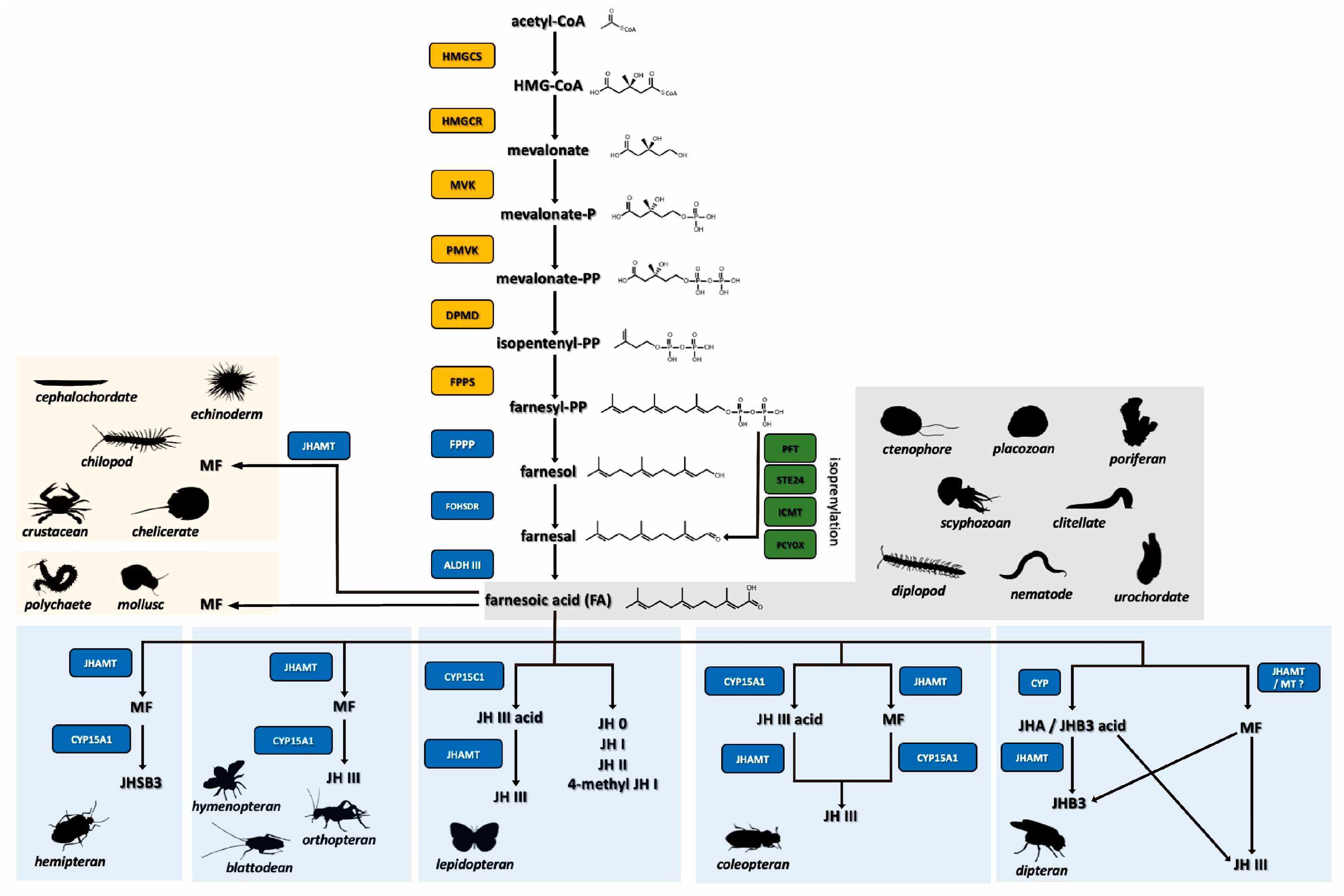

Figure 4. A summary of the sesquiterpenoid biosynthetic pathway and the putative functioning final products in different researched animals up to date. The enzymes in the mevalonate pathway, the isoprenylation pathway, and the downstream JH-specific pathway are highlighted in orange, green, and blue, respectively.
Figure 4. A summary of the sesquiterpenoid biosynthetic pathway and the putative functioning final products in different researched animals up to date. The enzymes in the mevalonate pathway, the isoprenylation pathway, and the downstream JH-specific pathway are highlighted in orange, green, and blue, respectively.
Ijms 23 05998 g004
