1. Introduction
An estimated 6000 American women transition to menopause every day, with 75% of women aged 50 to 55 years old assumed to be postmenopausal [
1]. Among the eleven key health issues selected in terms of burden exerted in women’s mortality, morbidity, disability and quality of life, vasomotor symptoms play a prominent role [
2]. To date, the most effective and reliable therapy for menopausal vasomotor symptoms (e.g., hot flushes, night sweats) is hormone replacement therapy (HRT). However, long-term HRT carries the increased risk of hormone-related cancers and cardiovascular disease [
3]. Mood modulators and selective serotonin re-uptake inhibitors are commonly recommended for short-term use in highly symptomatic women who are not HRT candidates, but these treatments lack supported data on safety and efficacy [
4]. Natural approaches for hot flush relief aim to reduce the daily vasomotor symptoms (frequency, intensity, and number) and improve quality of life through supplementation with phytoestrogens (soy, red clover, flax, hops, hesperidin, and kudzu) and non-phytoestrogens, i.e., black cohosh, essential fatty acids, vitamin E, and succinates [
5]. Unlike HRT, these approaches may specifically target specific estrogen receptors (ER) and therefore offer more selective clinical benefits [
6].
Rhapontic rhubarb roots (
Rheum rhaponticum L., family Polygonaceae) contain a significant amount of hydroxystilbene compounds without any anthraquinones [
7]. The standardized ERr 731 extract contains rhaponticin and desoxyrhaponticin glycosides as the main bioactive constituents (
Figure 1), in addition to lesser amounts of their respective rhapontigenin and desoxyrhapontigenin aglycones (~5%) [
8]. The ERr 731 extract, as well as its individual compounds, have been demonstrated to act as potent, selective ERβ agonists in human endometrial cells, without significant ERα effects [
9]. The safety of ERr 731 was evaluated in 90-day rat [
10] and 13-week dog [
11] studies. Subsequent clinical investigations suggested that ERr 731 was well tolerated in the long-term observational studies [
7,
12]. ERr 731 was effective in decreasing the number and severity of hot flushes in a 12-week multicenter trial that included 109 women with climacteric complaints [
7], a menopause rating scale total score given after 6 months of treatment in 252 women [
13], as well as 112 perimenopausal women with menopausal symptoms followed for 12 weeks [
14]. Postmarketing surveillance data from Germany (140 million daily doses), the United States and Canada (13 million) suggest that the extract is generally safe for consumption [
15]. However, it is not clear how effective ERr 731 supplementation is following the substitution after termination of HRT (E
2 withdrawal).
In rats, vasodilation of the tail is a primary heat-dissipating mechanism [
16] that can be monitored by measuring tail skin temperature T
skin [
17]. T
skin is increased by ovariectomy (OVX) and reduced by administration of 17β-estradiol (E
2), thus making the OVX rat model combined with an inexpensive, non-invasive T
skin monitoring device attached in a protective covering on the surface of the tail a versatile screening platform to evaluate botanical and pharmaceutical treatments of hot flushes and general wellbeing during menopause [
18]. Because hot flushes correlate to a spiking of the peripheral LH and GnRH released from the hypothalamus, they most likely represent a disorder of hypothalamic thermoregulation [
19].
The present study was designed to examine the acute and replacement therapy effects of ERr 731 supplementation on several underlying components of skin vasomotion responses in the OVX rat model, and to substantiate these changes with the hypothalamic expression patterns of genes related to the ERα/β signaling and bioactive peptides.
3. Discussion
The top eleven major health issues present in peri- and postmenopausal women are vasomotor symptoms, depression, dementia, sleep disorders, migraine, cardiovascular disease, metabolic syndrome, diabetes, chronic respiratory syndrome, cancer and musculoskeletal diseases [
2]. Vasomotor symptoms are tightly linked with hormonal loss and the quality of life is severely affected. Since there is a large placebo effect in humans, and the majority of the tested natural compounds showed an inconsistent result in clinical studies for the alleviation of vasomotor symptoms [
5], there is a critical need for the development of proper screening methods that predict the efficacy of such therapeutic intervention in humans.
In this study, we used a noninvasive method for measuring T
skin with SubCue Mini data loggers in a modified protective casing, attached to the surface of the rat tail [
17]. Because T
skin increase highly correlates with the occurrence of hot flushes, it has been commonly used as one of the phenotypical (objective) markers for menopause symptoms [
21]. In OVX rats, vasodilation (T
skin increase) starts at a significantly lower core temperature than in Sham rats [
22]. This is a strong indication that OVX rats are more prone to undergo induction of vasodilatory heat dissipation, and therefore provide a good model for studying menopausal hot flashes [
23]. This technology is readily accessible to most laboratories and, in our opinion, represents a highly suitable screening platform to evaluate dietary, botanical, or pharmaceutical interventions for their ability to modulate the mechanisms and treatments of menopause.
Our experimental findings provide further evidence for the efficacy of a rhubarb root extract ERr 731 in improving vasomotor menopausal symptoms, and raise the intriguing possibility that it is effective in improving wellbeing during the menopausal transition. E

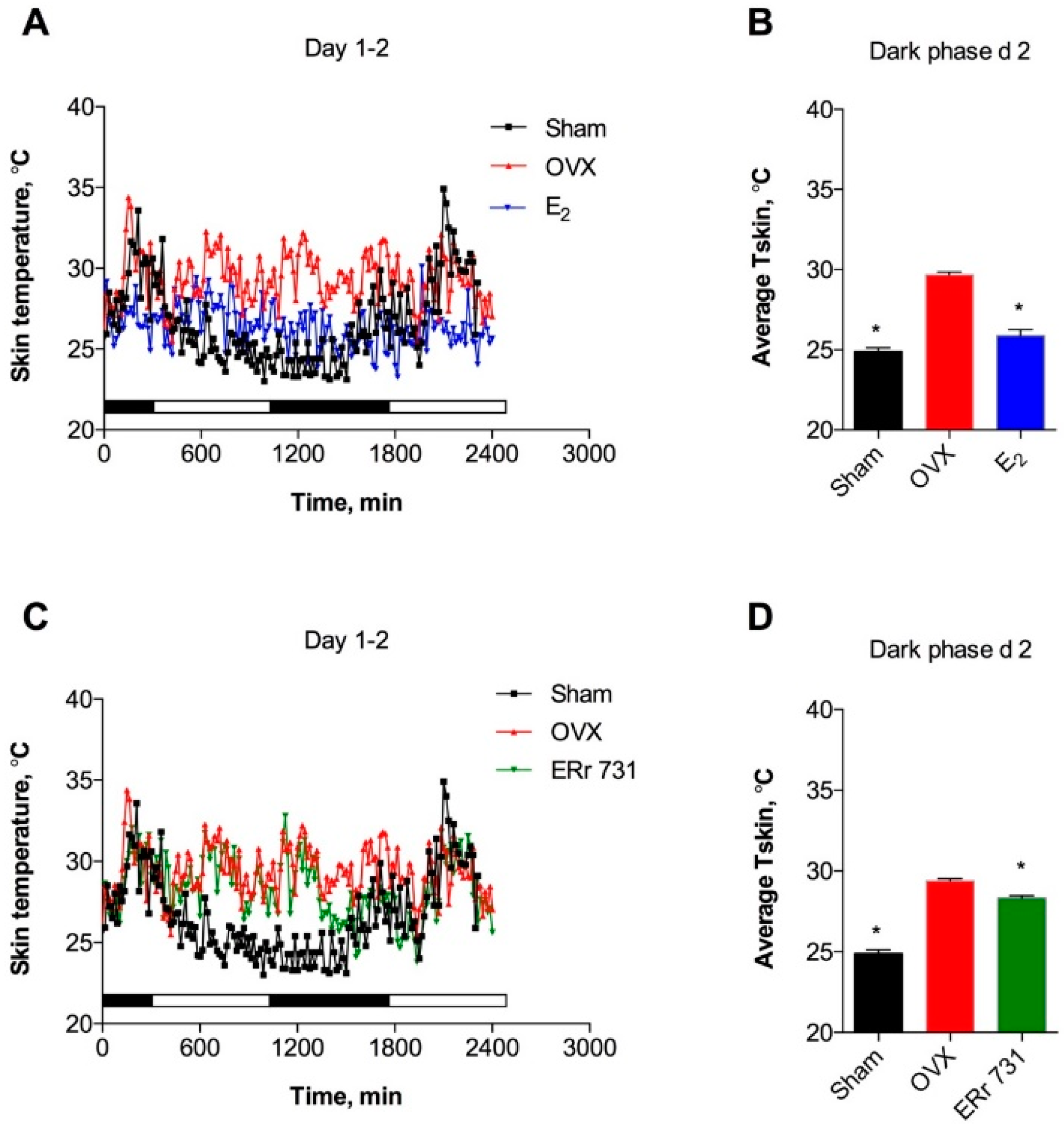

2 treatment (0.1 mg/kg/day) of OVX rats resulted in decreased T
skin, which was evident on day 1 and reached significance by the dark phase of day 2, similar to the previously published studies [

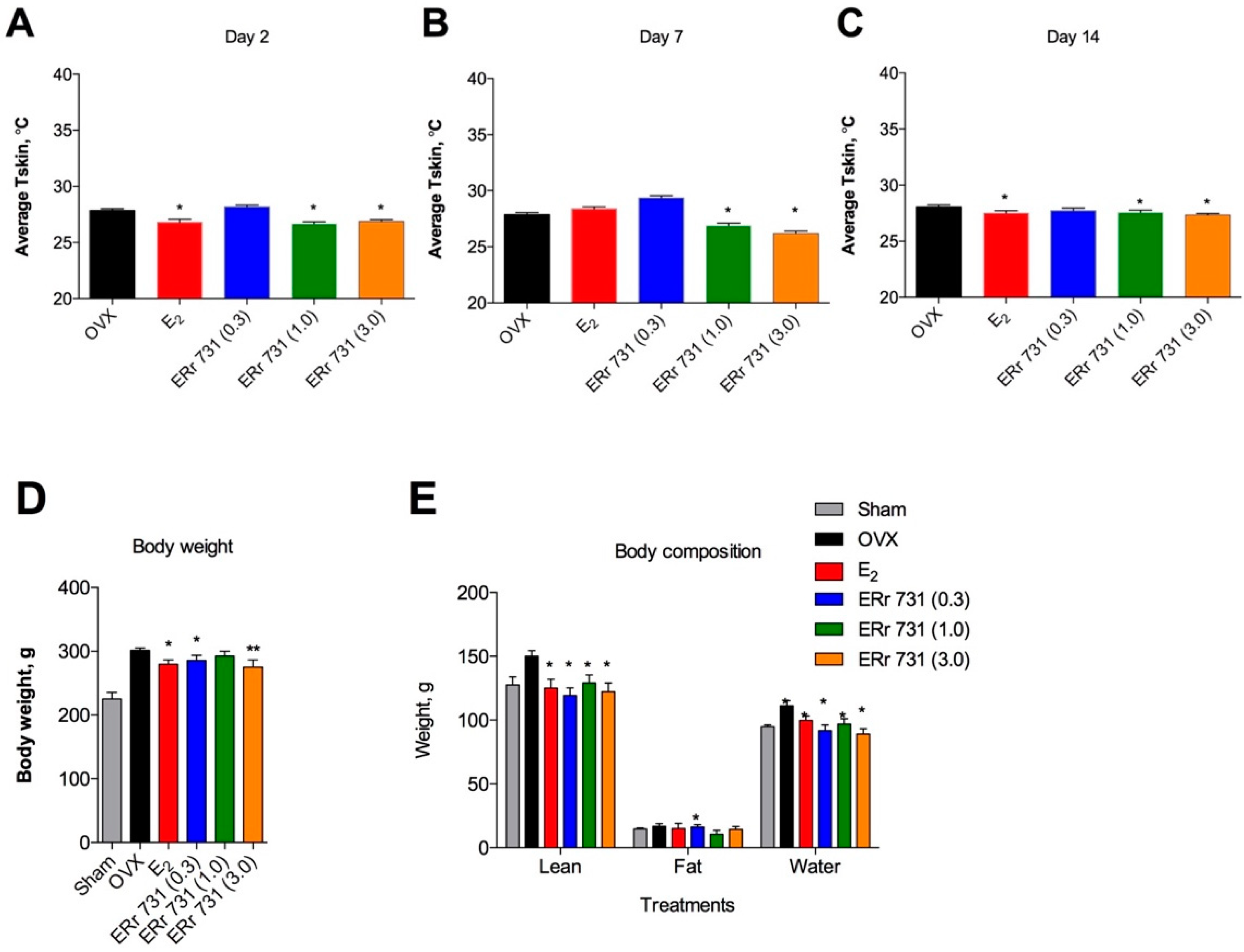

18]. In a dose ranging study, ERr 731 botanical extract administered at low (0.3 mg/kg/day), middle (1 mg/kg/day), or high (3 mg/kg/day) doses reduced the T
skin values of OVX rats by an average of 1 °C. The human equivalent dose for the middle dose used in this study was estimated at 0.16 mg/kg/day or 10 mg/day of ERr 731 extract for an average adult [
24]. This is in line with previous uses of ERr 731 in humans to alleviate the symptoms of menopause. The ERr 731 group receiving 4 mg/day of the botanical extract showed significant improvements in 11 common menopausal complaints during a 12-week randomized, double-blind clinical study [
7]. In a 6-month observational study, ERr 731 taken at 4 or 8 mg/day resulted in a significant decrease in the menopause rating scale total score, from 14.5 points at baseline to 6.5 points [
13]. This compares favorably to the dosing of soy isoflavones (30–90 mg/day) [
25], red clover isoflavones (40–120 mg/day) [
26] or black cohosh triterpene glycosides (10–60 mg/day) [
27], to achieve similar beneficial results.

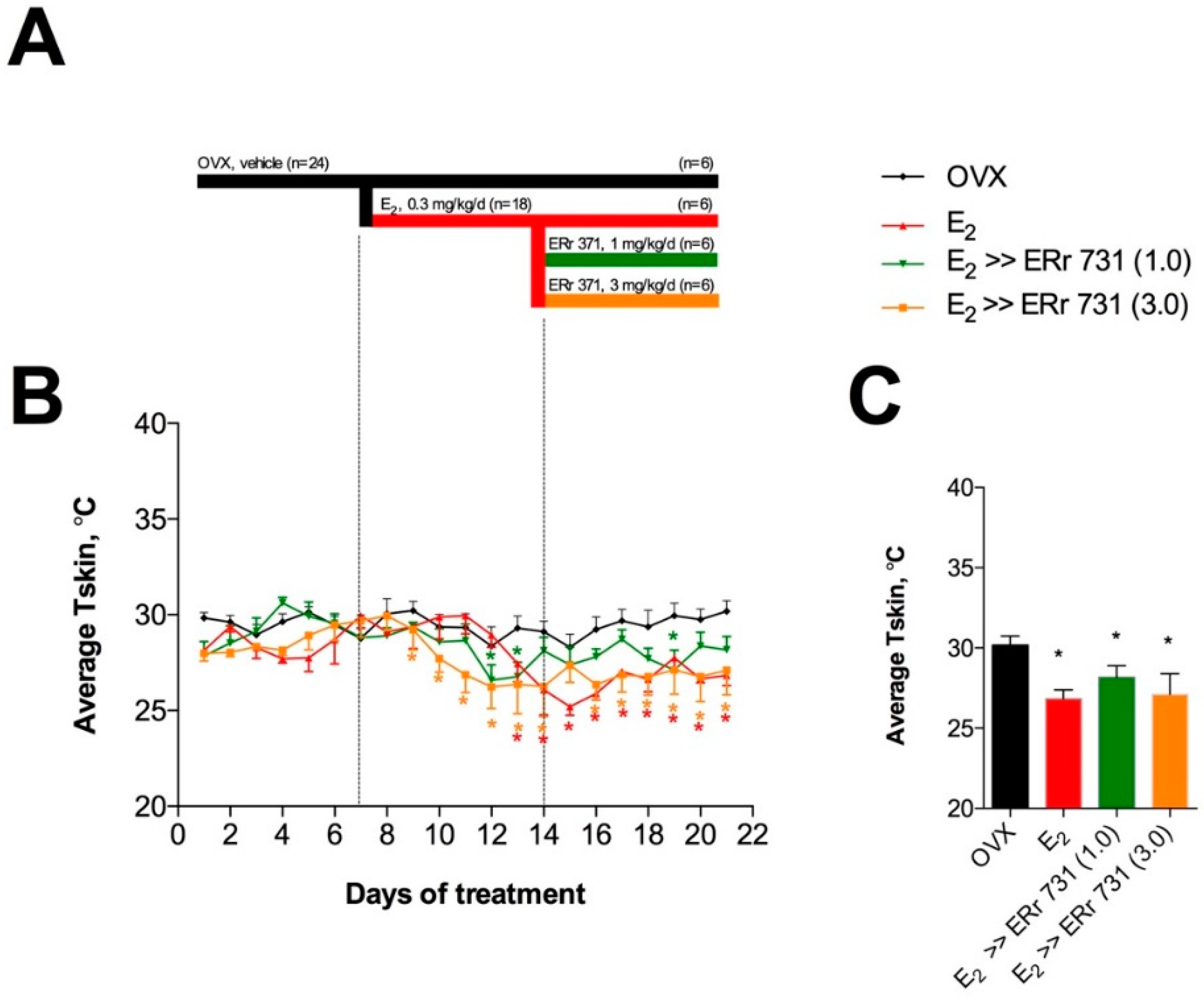

The present study was also designed to examine ERr 731 supplementation after hormone replacement therapy (HRT) withdrawal or the discontinuation of E2 treatment. ERr731 supplementation at 1 and 3 mg/kg/day after E2 withdrawal lowered Tskin similarly to E2, and this effect was set within 2 days of treatment. Substituting ERr 731 after E2 withdrawal therefore helped maintain body temperature similarly to E2 alone, suggesting the usefulness of ERr 731 as an alternative approach to existing hormonal therapy in humans. The oral bioavailability of ERr 731 was further confirmed by measuring the plasma levels of its primary metabolite, rhapontigenin.
Because hot flushes correlate with spikes in the peripheral LH and GnRH released from the hypothalamus, they most likely represent a disorder of hypothalamic thermoregulation [
19]. In order to substantiate the T

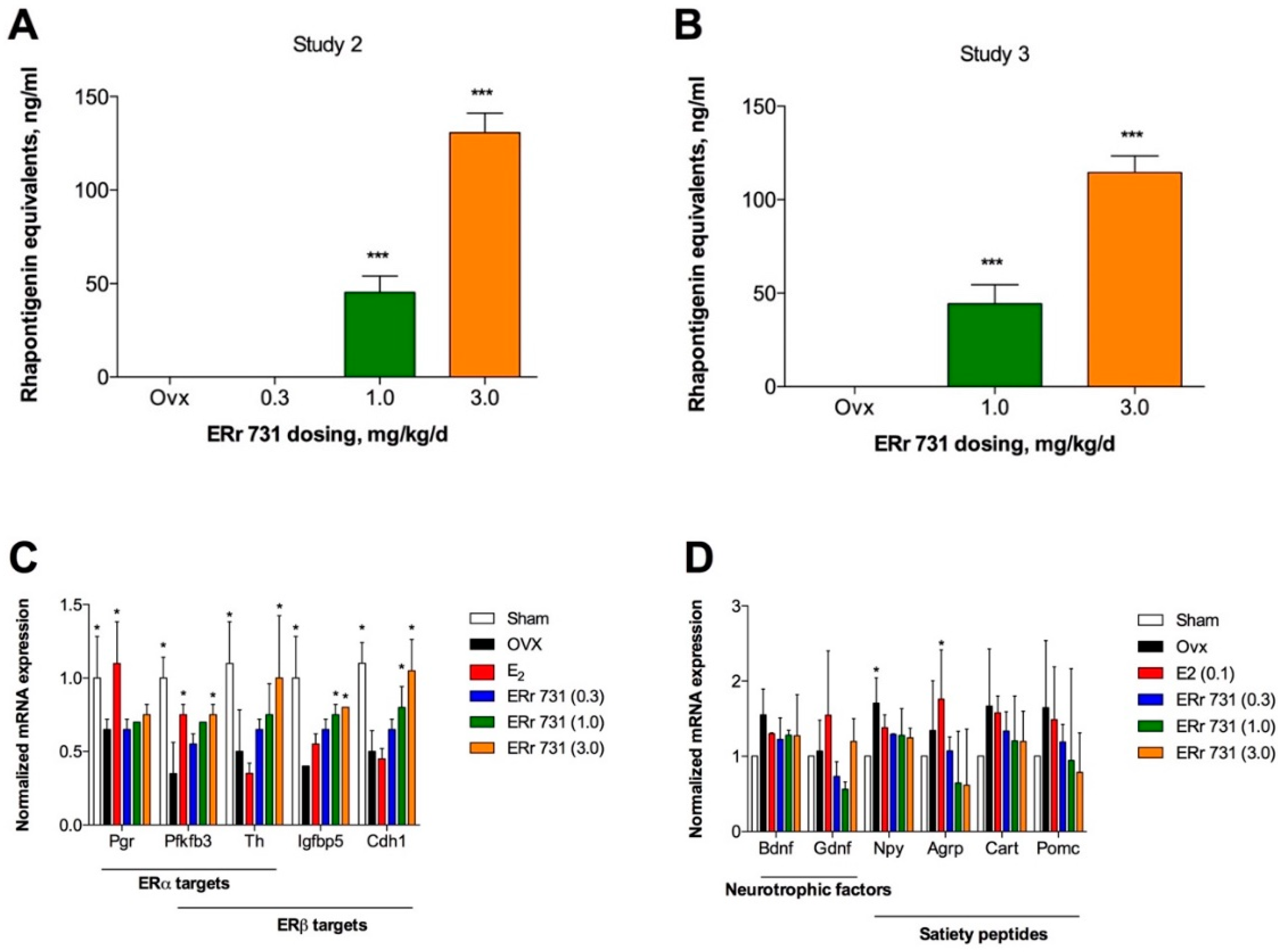

skin changes with the hypothalamic expression patterns of genes related to the ERα/β signaling and bioactive peptides, we performed a pharmacogenomics assessment of gene expression profiles in the hypothalamus of OVX rats treated with E
2 or ERr 731. We observed a prominent ERβ selectivity of ERr 731 in vivo, as the treatment was associated with the activation of ERβ target genes (
Th,
Igfbp5 and

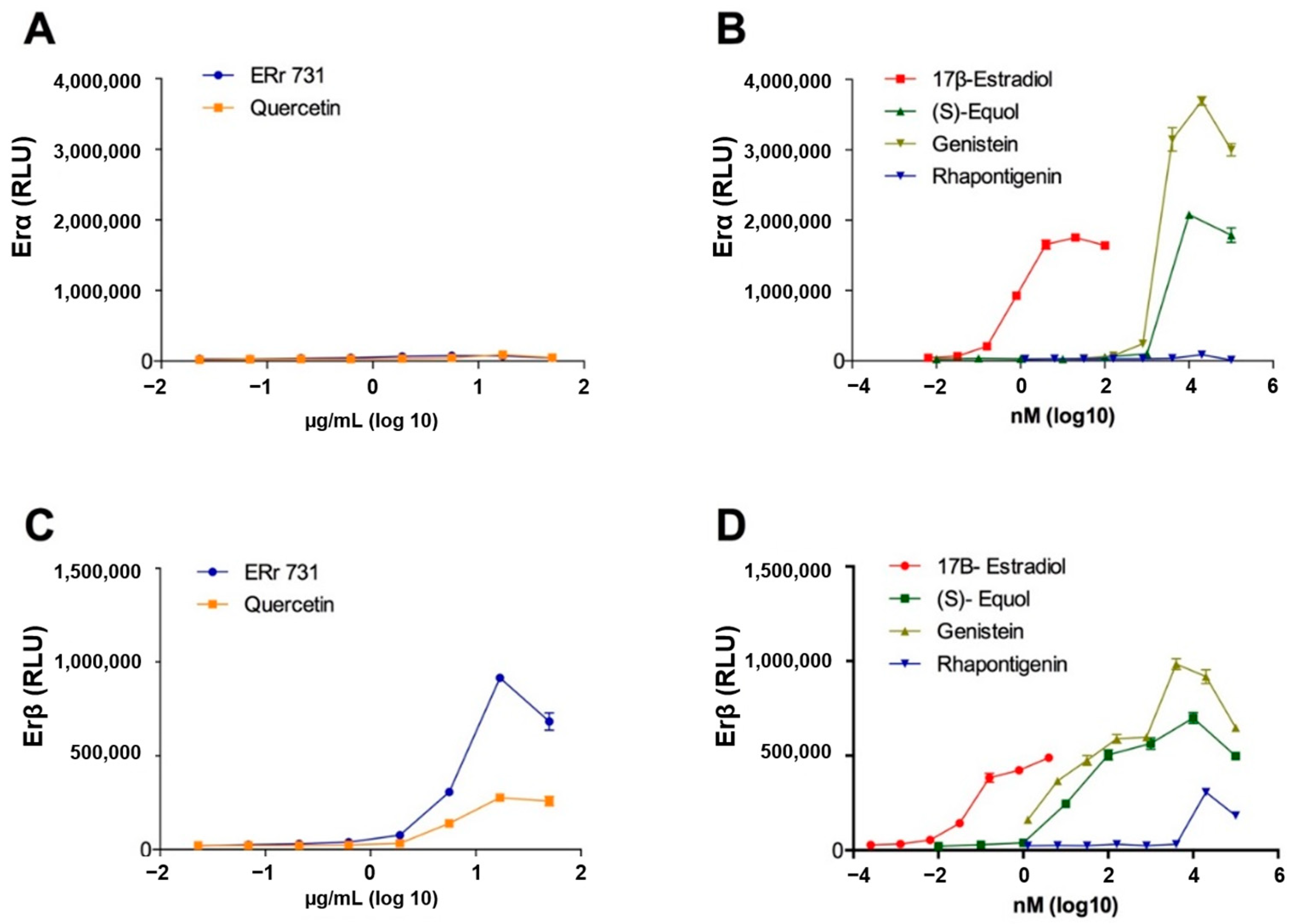

Cdh1), and had little effect on the ERα-specific expression profiles. The ERβ specificity was further confirmed in reporter assays, as ERr 731 and rhapontigenin (an active metabolite of rhaponticin) acted as the full agonist of the ERβ receptor. Both the extract and the pure compound were highly selective for ERβ, compared to E
2 and other estrogenic compounds, such as genistein and equol. These results were consistent with a previous study, where the total ERr 731 extract, as well as its individual compounds, have been demonstrated to act as potent, selective ERβ agonists in human endometrial cells, without affecting ERα-meditated activities [
9]. While no changes in the expression levels of the hypothalamic neurotrophic factors were observed in the ERr 731-treated animals, ERr 731 (but not E
2) treatment had a moderate suppressive effect on the mRNA levels of the agouti-related peptide
Agrp. This might explain the small but significant reduction in body weight and fat mass associated with the administration of 1 mg/kg/day ERr 731, but the effect was not dose-dependent. AgRP is a crucial part of the melanocortin system involved in the regulation of food intake and energy balance through antagonistic effects on the melanocortin 3 and 4 receptors that stimulate a long-lasting increase in food intake [
28]. Other botanical interventions, for example steroidal glycosides from milkweeds, were also shown to modulate AgRP levels in vivo [
29].
In summary, this study validated the OVX/Tskin rat model as a suitable screening platform to evaluate the effects of dietary and botanical interventions on the mechanisms and treatments of menopause. Our experimental findings provided further evidence for the efficacy of ERr 731 in alleviating vasomotor menopausal symptoms, and raised the intriguing possibility of its effectiveness in improving wellbeing during the menopausal transition. Substituting ERr 731 after E2 withdrawal helped maintain body temperature similarly to E2 alone, suggesting the usefulness of ERr 731 supplementation after the termination of HRT if these findings are confirmed in the future clinical studies.
4. Materials and Methods
4.1. Chemicals
The ERr 731 botanical extract from the Siberian rhubarb, also known as rhapontic rhubarb (
Rheum rhaponticum L., family Polygonaceae), was manufactured by Chemisch-Pharmazeutische Fabrik Göppingen Carl Müller Apotheker GmbH & Co. (Göppingen, Germany) (
Figure 1), and kindly provided by Metagenics Inc. (Gig Harbor, WA, USA). Rhapontigenin, (S)-equol and genistein were purchased from Cayman Chemicals (Ann Arbor, MI, USA). All other chemical reagents including 17β-estradiol (E
2) and solvents (analytical grade) were purchased from Sigma (St Louis, MO, USA).
4.2. Monitoring of Tail Skin Temperature Tskin
To record T
skin, SubCue Mini data loggers (Canadian Analytical Technologies, Calgary, AB, Canada) were inserted into a protective covering (University Research Instrumentation Center, University of Arizona, Tucson, AZ, USA) as described previously [
17] with the following modification: the length of the covering was extended by 5 mm to provide additional protection for data loggers against accidental nibbling. The assembled data loggers were attached on the ventral surface of the tail using double-sided tape. The data loggers were calibrated and set to record temperature every 15 min for the duration of the study. Mean T
skin values were calculated separately for the dark (active) and light (non-active) phases of the day cycle. All animal experiments were performed according to procedures approved by the NC Research Campus Institutional Animal Care and Use Committee in the David H. Murdock Research Institute, the AAALAC accredited animal care facility, and followed NIH guidelines.
4.3. Animal Study 1: Model Validation
Sham-operated and bilaterally ovariectomized female Sprague Dawley rats (10-week-old, 200–250 g, Charles River Laboratories, Wilmington, MA, USA) were housed 2 per cage in a temperature- (21–23 °C) and humidity-controlled environment under an inverted 12 h light cycle (lights on at 1900 h). Rats were fed an AIN-93 standard diet (Research Diets, New Brunswick, NJ, USA) and tap water ad libitum. The experimental groups (n = 6) consisted of (1) sham-operated controls gavaged daily with 1 mL of inactive vehicle (10% DMSO in saline), (2) OVX controls gavaged daily with the vehicle, (3) OVX, gavaged daily with 0.1 mg/kg/day E2 suspension in vehicle, and (4) OVX, gavaged daily with 1 mg/kg/day ERr 731 suspension in vehicle. Tskin temperature recordings were obtained daily for the duration of the study. On day 8, the animals were fasted overnight, sacrificed, and a terminal blood sample was collected via cardiac puncture.
4.4. Animal Study 2: Dose Response
The experimental groups (n = 6) consisted of (1) OVX controls gavaged daily with vehicle (10% DMSO in saline); (2) OVX, gavaged daily with 0.1 mg/kg/day E2 suspension in vehicle; (3–5) OVX, gavaged daily with either 0.3, 1.0, or 3.0 mg/kg/day ERr 731 suspension in vehicle. Tskin temperature recordings were obtained during the 12 h dark (active) phase of the light cycle on days 2, 7 and 14 of the study. On day 16, animals were subject to body composition measurements by quantitative magnetic resonance using EchoMRI (Echo Medical Systems, Houston, TX, USA). Unanesthetized rats were placed in plastic restrainer tubes, and triplicate measurements were completed in less than 5 min. Next, animals were fasted overnight, sacrificed on day 17, and a terminal blood sample was collected via cardiac puncture. Terminal body weights, organ weights, and tissues samples were taken at each scheduled sacrifice. Tissues and serum were stored at −80 °C until molecular assays were performed. This study was also repeated once with similar results (not shown).
4.5. Animal Study 3: Replacement Therapy
All experimental groups (n = 6) were subjected to the treatment period set at 21 days and divided in three 7-day periods: days 1–7 (initial period, all animals received daily gavage with vehicle 10% DMSO in saline); days 8–14 (E2 supplementation period, all animals except OVX controls received daily gavage with 0.3 mg/kg/d E2 suspension in vehicle); and days 15–21 (replacement therapy period, E2 animals were further randomized into three groups and continued to receive either 0.3 mg/kg/d E2 or 1–3 mg/kg/day ERr 731 suspension in vehicle as a replacement treatment).
4.6. Quantification of Plasma Rhaponticin
Rhaponticin was measured in OVX rat plasma collected from animal studies 2 and 3. In both experiments, the last dosing was performed 1 h prior to animal sacrifice and plasma collection [
30]. The presence of rhaponticin in plasma was detected by the fluorescent quenching method in the presence of 10 μM cerium nitrate probe (pH 7.4), as described previously [
31].
4.7. Gene Expression Studies
Gene expression profiles for ERα/β target genes [
32] as well as neurotrophic factors (
Bdnf,
Gdnf) and satiety peptides (
Npy,
Agrp,
Cart,
Pomc) [
29] were measured by real-time quantitative PCR (qPCR) in hypothalamus brain tissues collected from animal study 2. The total RNA was isolated using TRIzol reagent (Life Technologies, Carlsbad, CA, USA). RNA was quantified using the SynergyH1/Take 3 spectrophotometer (BioTek, Winooski, VT, USA). The cDNAs were synthesized using 2 µg of RNA for each sample using a high-capacity cDNA Reverse Transcription kit on the ABI GeneAMP 9700 (Life Technologies).
The resulting cDNAs were amplified by qPCR using SYBR green PCR Master Mix (Life Technologies). To avoid interference due to genomic DNA contamination, only intron-overlapping primers were selected using the Primer Express version 2.0 software (Applied Biosystems, Foster City, CA, USA). qPCRs were performed on an ABI 7500 Fast (Life Technologies) using 1 cycle at 50 °C for 2 min and 1 cycle of 95 °C for 10 min, followed by 40 cycles of 15 s at 95 °C and 1 min at 60 °C. The dissociation curve was completed with 1 cycle of 1 min at 95 °C, 30 s at 55 °C, and 30 s at 95 °C. mRNA expression was analyzed using the 2
-ΔΔCT method [
20] and normalized with respect to the expression of the
gapdh housekeeping genes using 7500 Fast System SDS Software v1.3.0 (Life Technologies). The amplification of specific transcripts was further confirmed by obtaining melting curve profiles.
4.8. Estrogen Receptor Activity
ERα/ERβ receptor assays were performed by Indigo Biosciences (College Park, PA, USA). The ERα/ERβ reporter vectors used in these studies comprised the firefly luciferase gene functionally linked to the appropriate upstream ER response element. Cells were treated in triplicates with various concentrations of test articles, including ERr 731 (0.023–50 µg/mL), rhapontigenin (0.01–100 µM), quercetin (0.023–50 µg/mL), genistein (0.001–100 µM) and (S)-equol (0.00001–100 µM). E2 was used as positive control and DMSO (0.1%) was used as a solvent control. Cells were incubated for 24 h and average relative light unit (RLU) values were used to determine ERα and ERβ activity.
4.9. Statistics
Data were analyzed by one-way ANOVA followed by Dunnett’s multiple-range tests using Prism 6.0 (GraphPad Software, San Diego, CA, USA). All data were presented as means ± SEM. Significant differences were accepted when the p-value was <0.05.
