Thermoresponsive Molecular Brushes with a Rigid-Chain Aromatic Polyester Backbone and Poly-2-alkyl-2-oxazoline Side Chains

by
Elena Tarabukina
1,
Emil Fatullaev
2,
Anna Krasova
1,
Maria Sokolova
1,
Mikhail Kurlykin
1,
Igor Neelov
2,*,
Andrey Tenkovtsev
1 and
Alexander Filippov
1
1
Institute of Macromolecular Compounds, Russian Academy of Sciences, 199004 Saint Petersburg, Russia
2
St. Petersburg National Research University of Information Technologies, Mechanics and Optics (ITMO University), 197101 Saint Petersburg, Russia
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2021, 22(22), 12265; https://doi.org/10.3390/ijms222212265
Submission received: 27 October 2021 / Revised: 8 November 2021 / Accepted: 9 November 2021 / Published: 12 November 2021
(This article belongs to the Special Issue Polymer and Biopolymer Systems of Complex Architecture and Composition)
Browse Figures
Versions Notes

Abstract

:
A new polycondensation aromatic rigid-chain polyester macroinitiator was synthesized and used to graft linear poly-2-ethyl-2-oxazoline as well as poly-2-isopropyl-2-oxazoline by cationic polymerization. The prepared copolymers and the macroinitiator were characterized by NMR, GPC, AFM, turbidimetry, static, and dynamic light scattering. The molar masses of the polyester main chain and the grafted copolymers with poly-2-ethyl-2-oxazoline and poly-2-isopropyl-2-oxazoline side chains were 26,500, 208,000, and 67,900, respectively. The molar masses of the side chains of poly-2-ethyl-2-oxazoline and poly-2-isopropyl-2-oxazoline and their grafting densities were 7400 and 3400 and 0.53 and 0.27, respectively. In chloroform, the copolymers conformation can be considered as a cylinder wormlike chain, the diameter of which depends on the side chain length. In water at low temperatures, the macromolecules of the poly-2-ethyl-2-oxazoline copolymer assume a wormlike conformation because their backbones are well shielded by side chains, whereas the copolymer with short side chains and low grafting density strongly aggregates, which was visualized by AFM. The phase separation temperatures of the copolymers were lower than those of linear analogs of the side chains and decreased with the concentration for both samples. The LCST were estimated to be around 45 °C for the poly-2-ethyl-2-oxazoline graft copolymer, and below 20 °C for the poly-2-isopropyl-2-oxazoline graft copolymer.

1. Introduction

The synthesis of rigid-chain polymers in the middle of the 20th century was a breakthrough in polymer science and technology, which made it possible to obtain new ultra-strong materials. Rigid-chain polymers usually include polymers with a Kuhn segment length A of more than 10 nm. The high rigidity of macromolecules predetermines their elongated state in the direction of the main chain and often provides lyotropic mesomorphism [1,2,3,4,5]. Such features are useful for creating high-strength fibers and films and self-reinforcing plastics, including those with specific optical and conductive properties [6,7,8,9].
The establishment of the correlation of molecular characteristics of such polymers with their structure has been and is still being actively pursued by many scientific groups. Analysis of the various molecular structures showed that the high chain equilibrium and kinetic rigidity is the effect of a specific chemical structure of macromolecules [10,11]. The main reason for the increase in A of chain molecules is the presence in their repeating units of structural elements that prevent rotation around the chain direction, such as double bonds, cyclic fragments, and a ladder structure [12,13,14,15]. An increase in equilibrium rigidity is facilitated by chain conjugation, such as, for example, in polyisocyanates, and specific non-covalent interactions, such as in DNA and polysaccharides [16,17,18,19,20,21]. In macromolecules with a comb-like structure, increased rigidity is induced by steric obstacles arising between the side chains, which impede the bending and folding of the main chain as a result of intramolecular thermal movement of the units [11,22,23].
Research on comb-like polymers, or more precisely, molecular brushes, intensified at the end of the 20th century, when new synthetic approaches were developed that allowed the controlled synthesis of high-molecular compounds of various architectures [24,25,26,27,28,29]. As a result, the main regularities of the behavior of graft copolymers in solutions were established; in particular, the influence of the size of the main and side chains, as well as the grafting density of the latter, on the hydrodynamic characteristics and conformation of comb-like macromolecules was revealed [23,30,31,32,33,34,35,36,37,38,39]. In the formation of properties in solutions of amphiphilic comb-shaped macromolecules, in which the chemical nature of the main and side chains is very different, the affinity to the solvent of various blocks of the graft copolymer is of great importance [40,41,42,43,44,45]. Accordingly, by varying the chemical structure of the main and side chains, their sizes, and grafting density, it is possible to control the self-organization of molecular brushes in selective solvents. For example, molecules of graft copolymers with a flexible main chain of polyimides and side chains of polymethyl methacrylate in selective solvents are capable of assuming an extended or compact conformation depending on the grafting density of side chains and their length, as well as the hydrodynamic quality of the solvent with respect to the components [46,47,48]. A significant role in the formation of the properties of molecular brushes in solutions is played by the rigidity of their structural elements: the main and side chains [11,38,49,50]. It has been shown that the presence of rigid-chain fragments in the side chains can lead to their orientational order in solution. On the other hand, grafting long flexible chains onto a rigid aromatic backbone prevents aggregation when grafting is sufficiently dense.
Recently, special attention has been attracted by amphiphilic stimuli-sensitive graft copolymers, solutions of which are characterized by a nonlinear response to a weak external effect, for example, to a change in the temperature or acidity of the medium, to irradiation with light at a certain wavelength, etc. [51,52,53,54,55,56,57]. Typically, such brushes are built with a hydrophobic or less commonly hydrophilic backbone and water-soluble stimulus-sensitive side chains. Thermoresponsive poly-2-alkyl-2-oxazolines (PAlOx) are promising as grafted blocks [58,59,60,61,62]. Biocompatible linear PAlOx have good prospects for use in medicine and biotechnology; the conditions of controlled synthesis have been reliably established for them and the basic correlations of behavior in solutions have been revealed [63,64,65,66,67]. In particular, it was shown that the dehydration temperature of PAlOx units decreases with an increase in the size of the side radical in their chains [68]. Accordingly, the lower critical dissolution temperature (LCST) for poly(2-ethyl-2-oxazoline) (PEtOx) solutions is about 30 °C higher than the LCST for poly-2-isopropyl-2-oxazoline (PiPrOx). This pattern is retained for graft copolymers in which aromatic polyesters served as the main chain and PEtOx or PiPrOx as side chains [69,70,71]. In this case, the nature of self-organization, namely, compaction or aggregation, in solutions of the discussed molecular brushes depended on the grafting density of side chains.
All the cited works investigated graft copolymers in which flexible-chain polymers were used as the main chain. It seems interesting to analyze how the behavior of molecular brushes with PAlOx side chains will change if the backbone is a rigid chain polymer. In connection with the above, the objectives of this work are: (i) the development of approaches to the controlled synthesis of copolymers (APEr.ch.-graft-PAlOx), in which thermosensitive PEtOx or PiPrOx are grafted to a rigid-chain aromatic polyester (APEr.ch.); (ii) determination of hydrodynamic and conformational characteristics of the synthesized APEr.ch.-graft-PAlOx; and (iii) the study of the thermal response of aqueous solutions of the synthesized molecular brushes and its dependence on the chemical structure of the side PAlOx chains. The structure of APEr.ch.-graft-PAlOx is shown in Figure 1.

2. Results and Discussion

2.1. Synthesis

2.1.1. Synthesis of the Polyester Multifunctional Macroinitiator

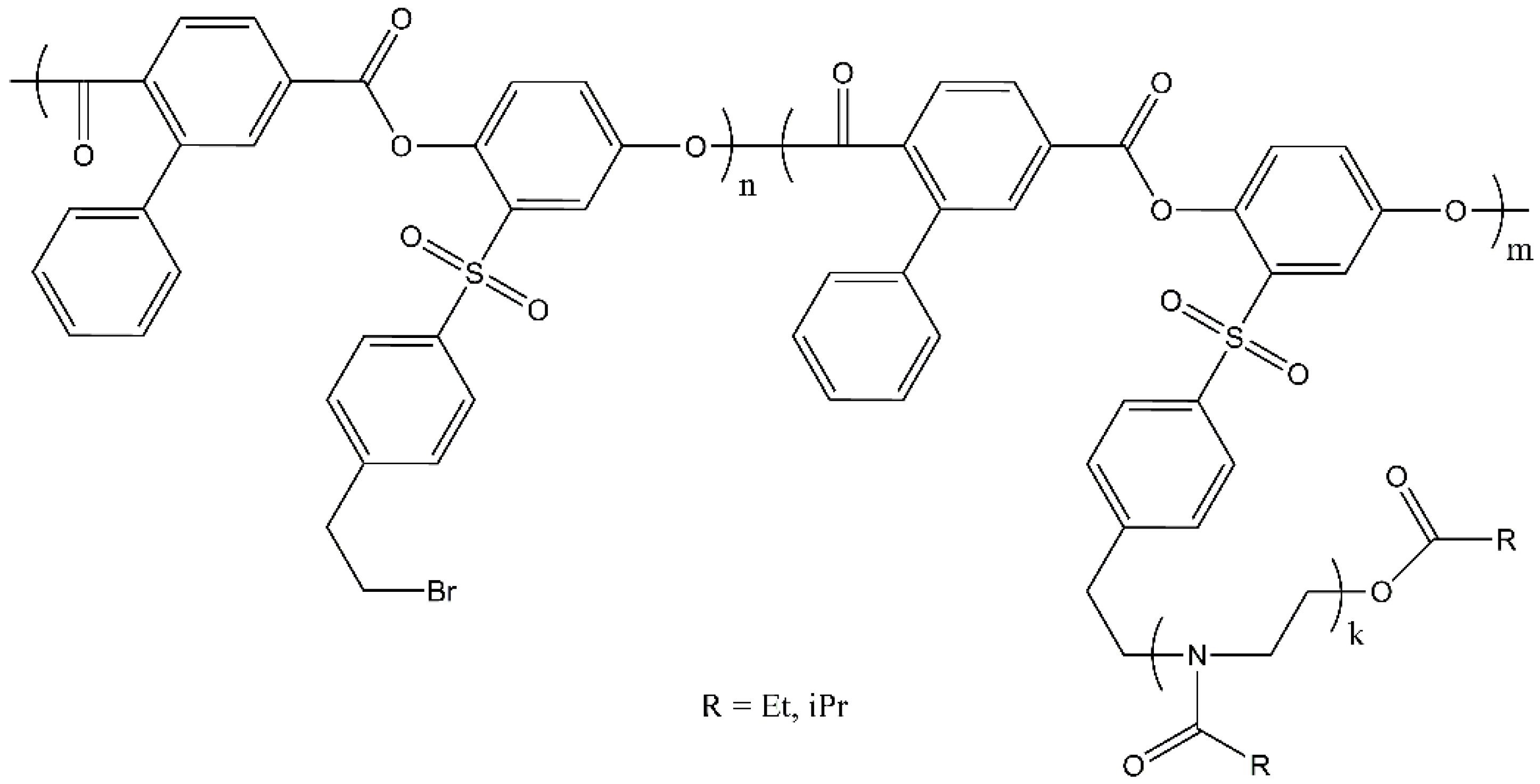

2-(4-(2-bromoethyl)phenylsulfonylhydroquinone was chosen as a polycondensation monomer containing functional groups suitable for initiating cationic polymerization of 2-alkyl-2-oxazolines. The choice of this compound was determined by the fact that previously described [72] soluble alkylene-aromatic polyesters based on phenylsulfonylhydroquinone can be synthesized using the method of non-acceptor polycondensation. It is necessary to keep in mind that the presence of a 2-bromoethyl group sensitive to tertiary amines and alkali in the target monomer makes it impossible to apply traditional acceptor methods for polyester synthesis. On the other hand, it can be assumed that the direct nucleophilic substitution of bromine in the 2-bromoethyl group as a result of the attack of a phenolic hydroxyl in the absence of bases is an unlikely process.

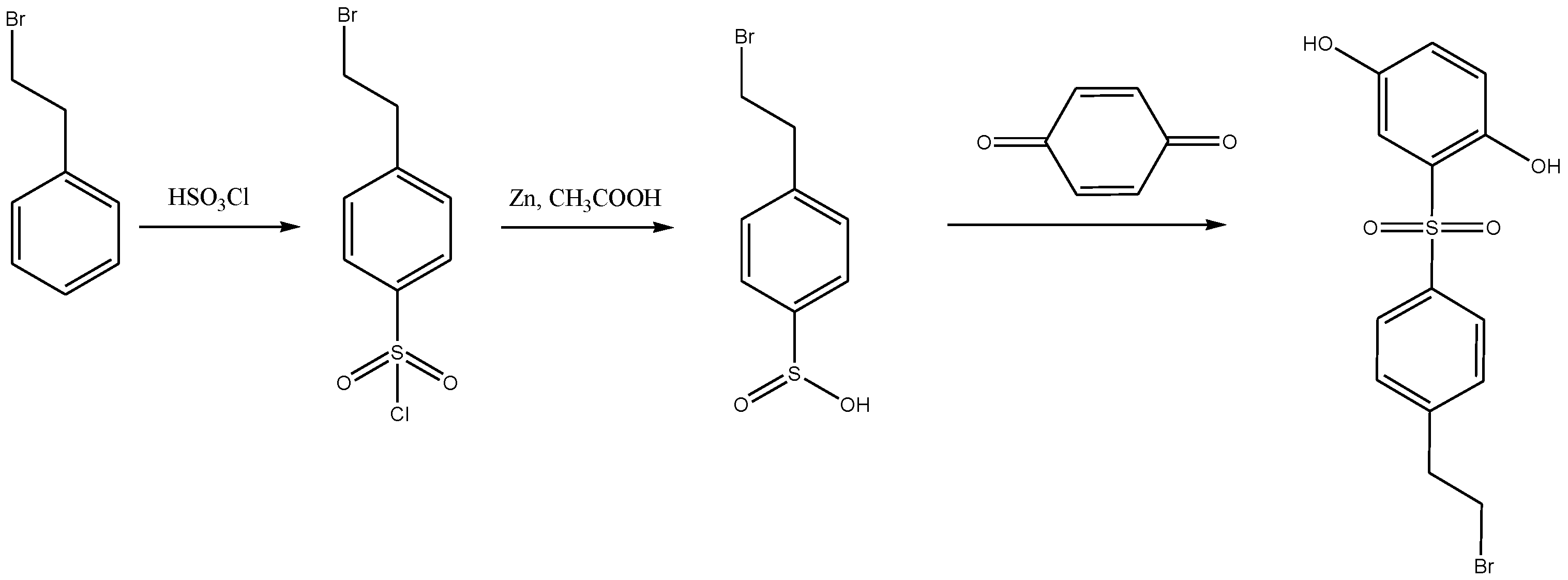

Synthesis of 2-(4-(2-bromoethyl)phenylsulfonylhydroquinone was carried out using the previously published procedure [73], which includes the reaction of 2-phenylethyl bromide with chlorosulfonic acid, reduction of the corresponding sulfonyl chloride to sulfinic acid, and addition of the latter, under the conditions of the Michael reaction, to 1,4-benzoquinone (Figure 2).

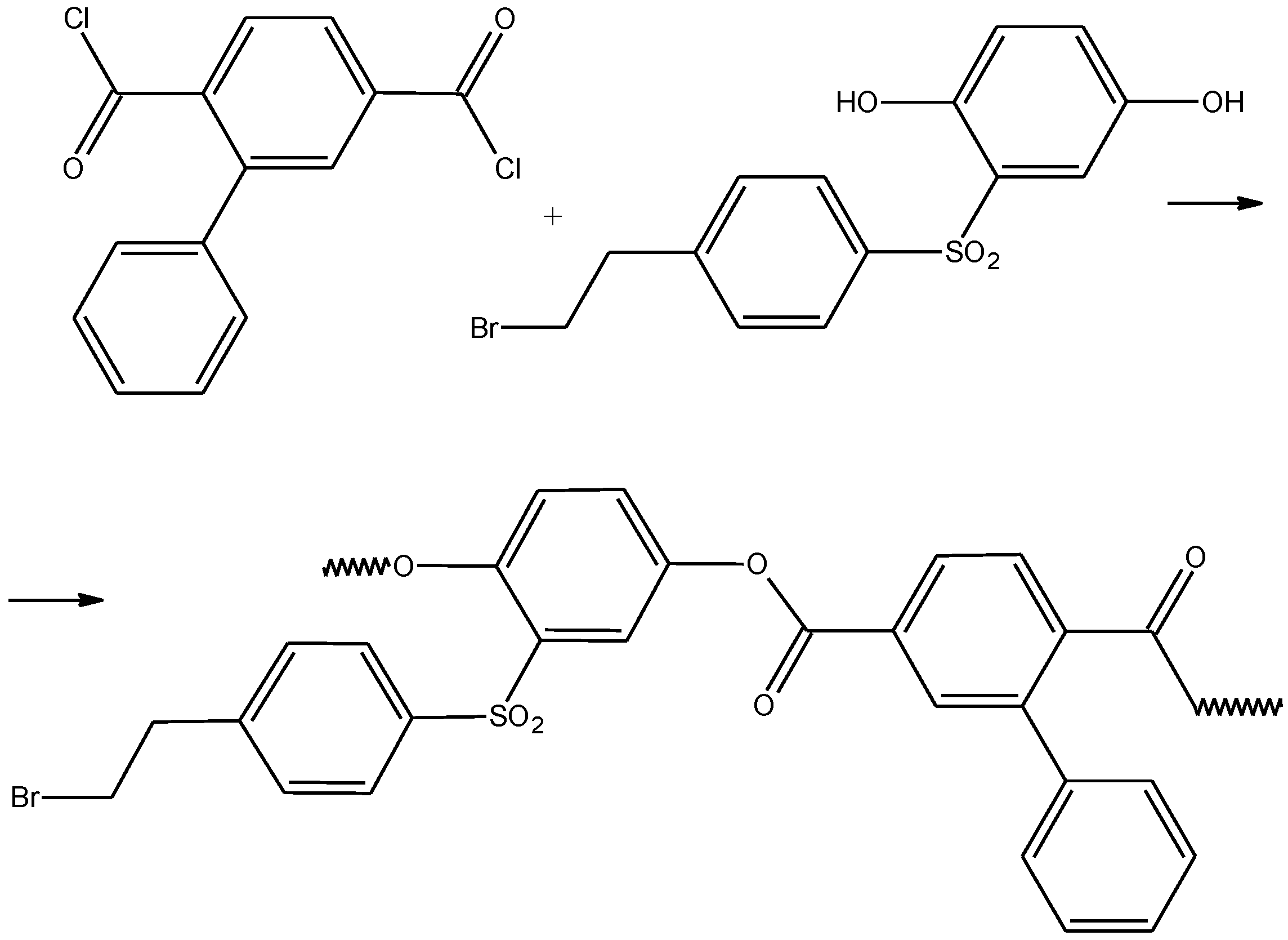

[1,1’-biphenyl]-2,5-dicarbonyl dichloride was used as a comonomer. The polymer synthesis was carried out under the conditions of acceptorless high-temperature polycondensation (Figure 3), which has proven itself well in the synthesis of aromatic polyesters [74]. 1-Chloro-naphthalene was used as a solvent. It was found that the optimal conditions for polycondensation are as follows: temperature of 200 °C, monomer concentration of 25 wt%, and reaction time of 2 h.

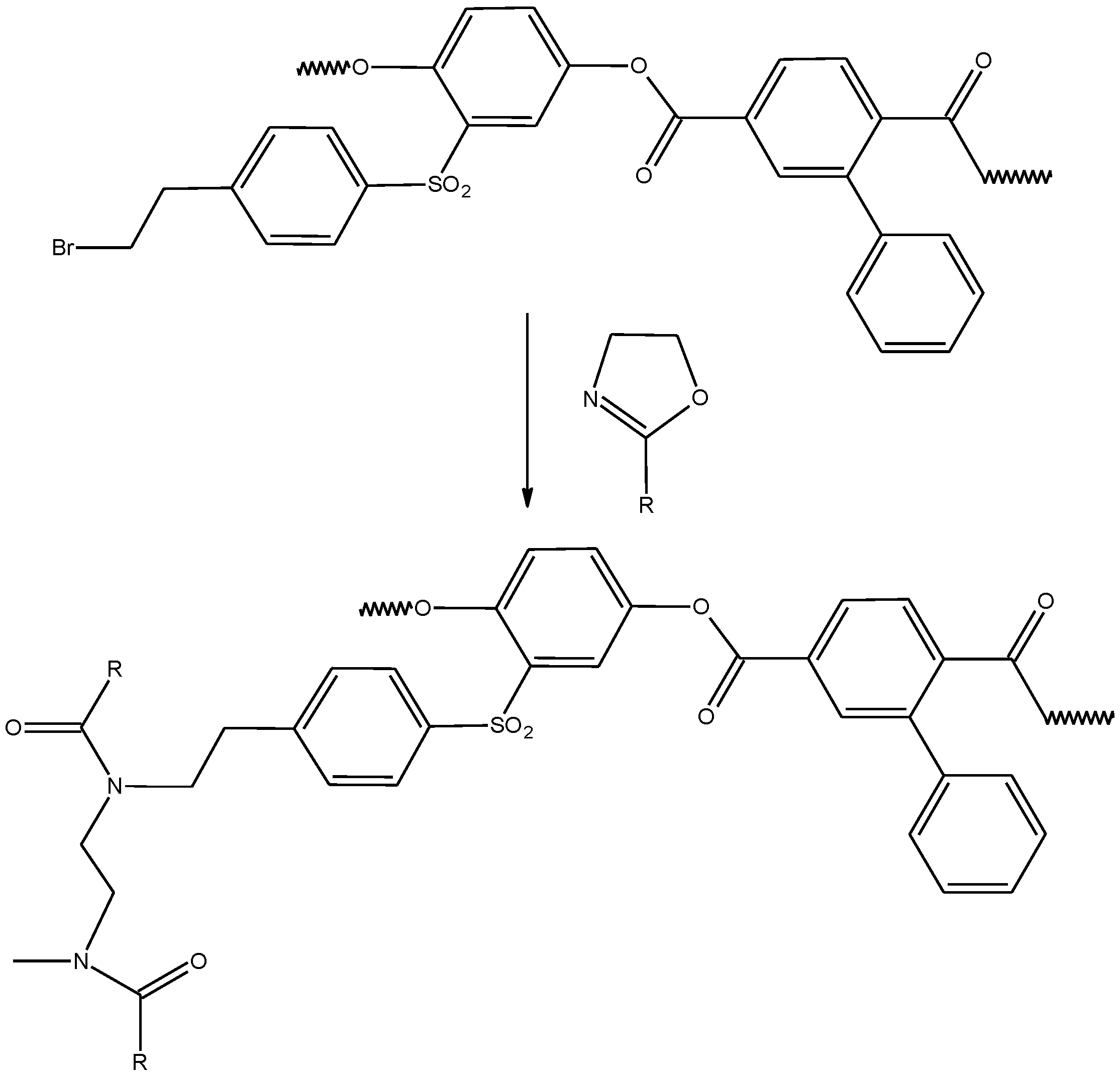

2.1.2. Synthesis of the APEr.ch.-Graft-PAlOx Copolymers with PEtOx or PiPrOx Side Chains

It is well known that aromatic polyesters are soluble in a limited number of solvents (chlorinated hydrocarbons, CF3COOH, m-cresol), which significantly limits the choice of a medium for cationic polymerization. It is obvious that protonic acids are unsuitable for this purpose, while chlorinated hydrocarbons are close to theta-solvents for synthesized macroinitiators at room temperatures [75]. It is well known that carrying out polymer analogous transformations in poor solvents cannot provide a sufficient degree of grafting due to the unavailability of a significant part of the functional groups. Usually, the thermodynamic quality of the solvent improves with increasing temperature. In this regard, the grafting of polyoxazoline chains (Figure 4) was carried out in tetrachloroethane at 150 °C.

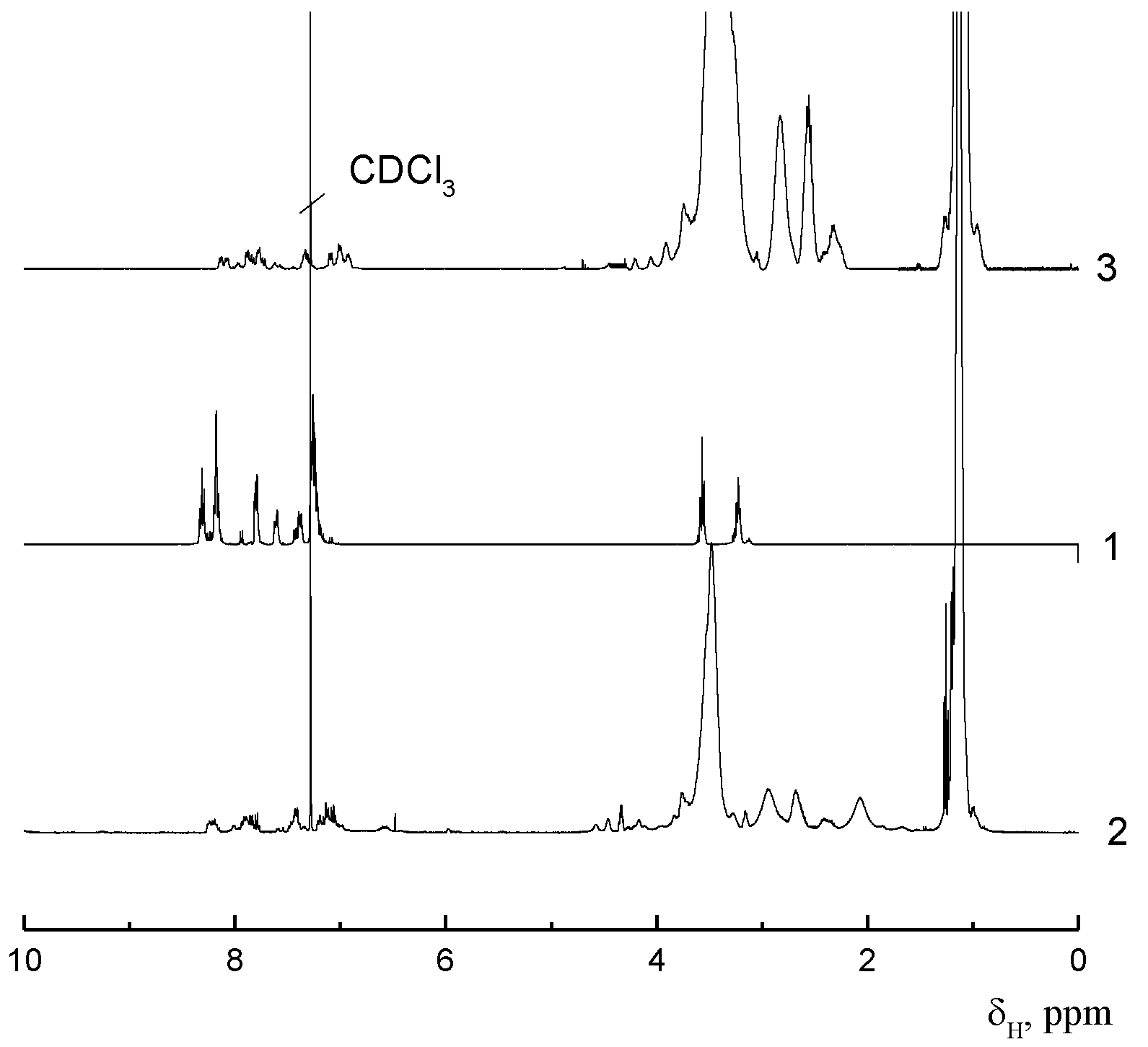

A comparison, for example, of the 1H NMR spectra of the macroinitiator and the grafted copolymer APEr.ch.-graft-PEtOx shows (Figure 5) that both signals of aromatic protons of the main chain and signals related to the PEtOx side chains are present in the spectrum of the copolymer. Together with the monomodality of the obtained polymer, these data allow us to assert that the sample under investigation is a graft copolymer. It should be noted, however, the asymmetric shape of the GPC trace of the graft copolymer (Figure 6), which probably indicates some unevenness in the distribution of the side chains along the main one. In order to determine the molecular weight characteristics of the grafted chains and their grafting density, the main chains of copolymers were destroyed by alkaline hydrolysis under conditions that provide quantitative cleavage of ester groups [76] (Figure 7).

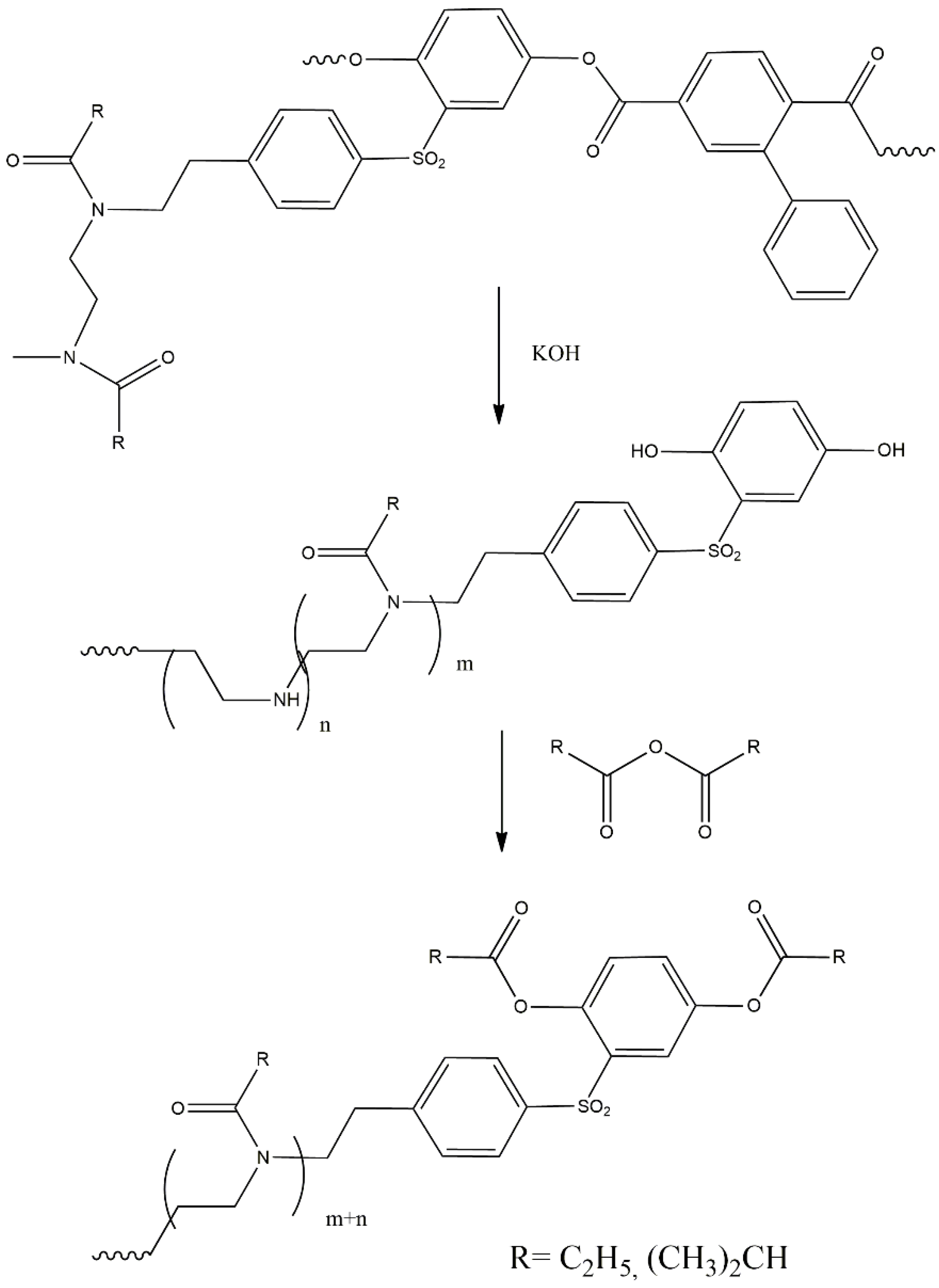

Isolated side chains, after acylation with propionic anhydride (in the analysis of the APEr.ch.-graft-PEtOx) or isobutyric anhydride (in the analysis of the APEr.ch.-graft-PiPrOx), according to chromatographic data, had weight-average molar mass Mw = 7400 (polydispersity Mw/Mn = 1.34) for APEr.ch.-graft-PEtOx and Mw = 3400 (Mw/Mn = 1.27) for APEr.ch.-graft-PiPrOx (Figure 8).

2.2. Molecular Characteristics and Equilibrium Rigidity of the APEr.ch. Macroinitiator and the Grafted Copolymers APEr.ch.-graft-PEtOx and APEr.ch.-graft-PiPrOx

The molar masses and hydrodynamic characteristics of the macroinitiator and the graft copolymers are given in Table 1. First of all, we note that for the APEr.ch. in tetrachloroethane, a very low value of the second virial coefficient A2 was obtained. Consequently, tetrachloroethane is close in thermodynamic quality to the θ-solvent. This is also indicated by the absence of the concentration dependence of the hydrodynamic radius Rh (Figure S1), which is typical for θ-solvents in which thermodynamic interactions are absent. This fact makes it possible to roughly estimate the APEr.ch. equilibrium rigidity by the value of Rh, using the relation valid for Gaussian chains:
f = 61/2η0P Rg,
where f and Rg are the translational friction coefficient and the radius of gyration of macromolecules, respectively, and the invariant P is P = 5.1 [11]. This relationship is similar to the Flory–Fox equation for intrinsic viscosity. According to the Stokes equation used to calculate the hydrodynamic radius:
f = 6πη0Rh,
and therefore:
<h2>1/2 = 6πRh/P,

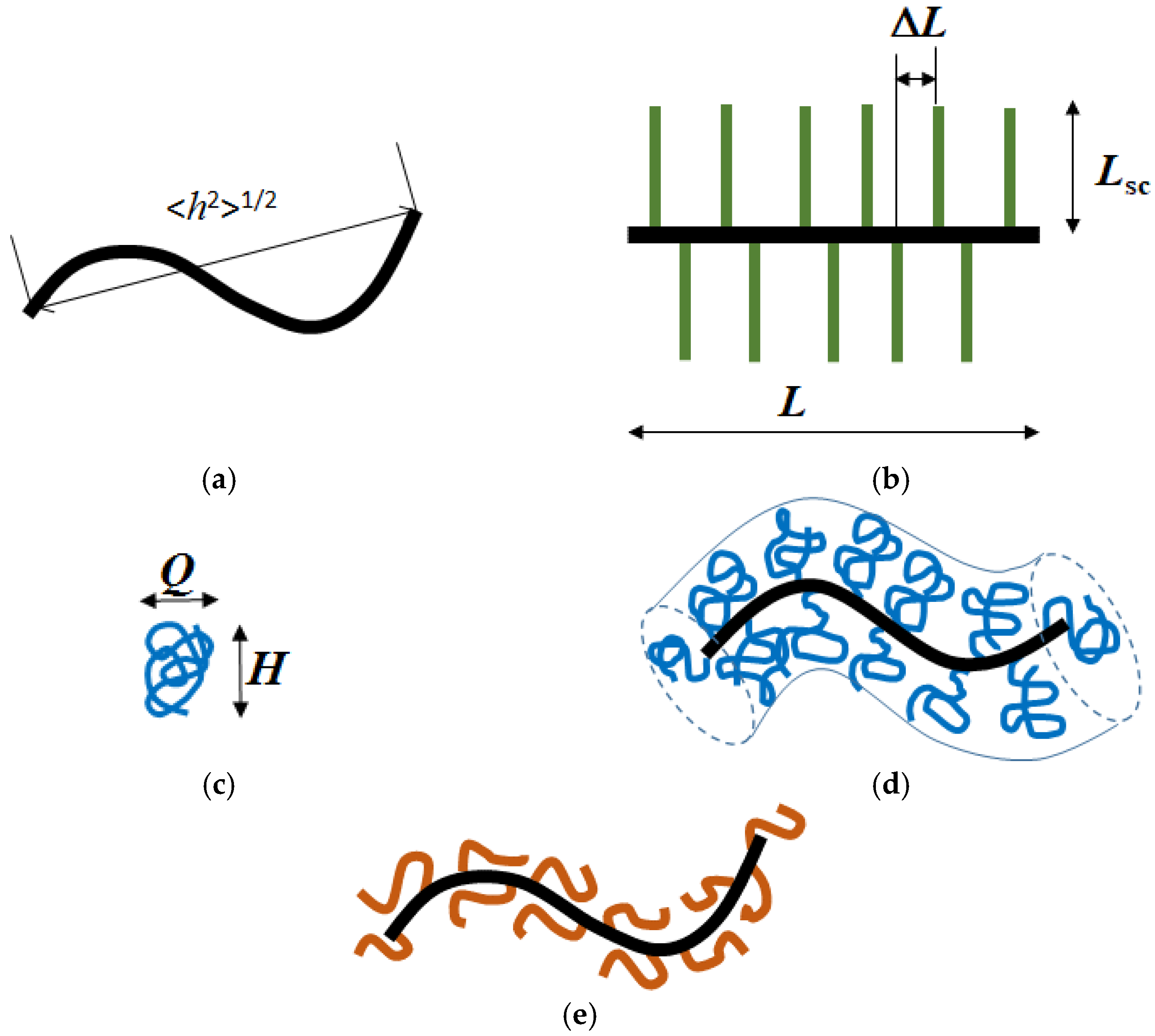

where <h2>1/2 is the root-mean-square distance between the ends of the polymer chain, which, according to the Kuhn equation, is related to the contour length of the macromolecule L and the Kuhn segment length A:
<h2> = LA.
The molar mass M0-APE of the APEr.ch. monomer unit is 563 g·mol−1. Therefore, the macroinitiator molecule consists of NAPE = (n + m) = Mw/M0-APE = 26,500/563 = 47 monomer units, n and m being unsubstituted and substituted ones, respectively. The length of the macroinitiator monomer unit λ0-APE can be estimated as the sum of the lengths of its bonds along the chain direction. Assuming that the length of all valence bonds of the main chain is close to 0.14 nm, and the valence angles are tetrahedral, in accordance with the APEr.ch. structural formula (Figure 1), we obtain λ0-APE = 1.51 nm. Accordingly, the APEr.ch. contour length is LAPE = 71 nm. Substitution of the Rh and LAPE values into Equations (3) and (4) results in the Kuhn segment length A = 28 nm.
We emphasize once again that the approach used is a rough estimation of the APEr.ch. equilibrium rigidity. Indeed, the APEr.ch. macromolecule chain consists of only 71/28 = 2.6 Kuhn segments, and its behavior does not obey Gaussian statistics. However, the result obtained is important from the point of view, which allows us to reliably state that APEr.ch. is a typical rigid-chain polymer. Therefore, its conformation should be analyzed within the framework of the Porod model, that is, a worm-like chain with constant curvature. Several approaches are used to describe the hydrodynamic behavior of rigid-chain polymers (see [11]), for example, the model of a worm-shaped spherocylinder proposed by Yamakawa [77,78,79]. In any case, in order to quantitatively determine the equilibrium rigidity of a polymer from hydrodynamic data, it is necessary to study the homologous series.
The long Kuhn segment for the APEr.ch. was expected, since its chain is built of alternating planar ester groups and para-phenylene rings. Such structures are characterized by the so-called “crankshaft” conformation [11], which provides high equilibrium rigidity. For example, the Kuhn segment length of a para-aromatic polyester (pAPE) (Figure 9) is 26 nm according to hydrodynamic data [80] and 20 nm according to flow birefringence data [81]. As seen in Figure 1 and Figure 9, the APEr.ch. and the pAPE differ very slightly (the structure of the main chains is identical); therefore, these polymers should have similar rigidity.
Thus, it can be argued with high probability that the APEr.ch. Kuhn segment length is within the range from 20 to 26 nm. Accordingly, the macroinitiator molecules have a curved thin rod conformation (Figure 10a). As a measure of the curving of a chain macromolecule, the ratio <h2>1/2/L can be considered, which varies from 1 for a straight rod to 0 for an infinitely long Gaussian chain. The value of <h2> can be estimated using the Porod equation for persistent chains [82,83]:
< h 2 > A L = 1 − 1 − e − 2 L / A 2 L / A .
Therefore, the ratio <h2>1/2/L is 0.49 at A = 20 nm and 0.56 at A = 28 nm, that is, the length of the APEr.ch. macromolecule about twice exceeds the distance between the ends of its chain. As for the thickness d of the macroinitiator molecules, based on its structure, it is close to 2 nm, and the ratio d/A = (0.07–0.10) is typical for thin rigid-chain molecules.
To determine the conformation of the molecules of grafted copolymers, it is necessary to know a number of structural parameters, first of all, the length of the side chains Lsc (Figure 10b) and the grafting density z of the latter. It is easy to show that the value of z can be calculated from the relation:
z = m n + m = m N APE = M cop − M APE N APE ( M sc − M Br ) ,
where Mcop, MAPE, Msc, MBr = 79.9 g·mol−1 are the molar masses of the graft copolymer, the macroinitiator, the side chains, and bromine, respectively. According to NMR spectroscopy, the degrees of polymerization of the side chains Nsc were 75 and 30 for the APEr.ch.-graft-PEtOx and APEr.ch.-graft-PiPrOx (Table 2). Taking into account that the molar masses M0-sc of the monomeric units of the side chains of PEtOx and PiPrOx are equal to 99 and 113 g·mol−1, it is easy to obtain the values Msc = M0-sc·Nsc for the studied copolymers (Table 2).
Calculations using Equation (6) show that the grafting density of the APEr.ch.-graft-PEtOx and the APEr.ch.-graft-PiPrOx side chains differs by a factor of two (Table 2). Note that the z value for the APEr.ch.-graft-PEtOx is close to the corresponding characteristic for the previously investigated thermosensitive graft copolymers with PAlOx side chains and flexible-chain polyester backbones [69,70,71]. Thus, both copolymers under study are relatively loose brushes: in the APEr.ch.-graft-PEtOx macromolecules, only about a half of the backbone units contain side chains, while the APEr.ch.-graft-PiPrOx contains a quarter ones.
The difference in z determines the differences in the average distance ΔL = λ0-APE/z along the chain between the adjacent grafted chains (Figure 10b) and in the number fsc = LAPE/ΔL = z·NAPE of the latter for the studied copolymers (Table 2). It is interesting to compare the ΔL values with the contour length of the side chains Lsc = λ0-sc·Nsc, where λ0-sc = 0.378 nm [84] is the projection length of the PAlOx monomer unit. As can be seen from Table 2, for the APEr.ch.-graft-PEtOx, the length Lsc is almost 10 times greater than ΔL. For the APEr.ch.-graft-PiPrOx, the difference in the compared characteristics is much less, Lsc/ΔL ≈ 2. Consequently, in a selective solvent, the main chain in the APEr.ch.-graft-PEtOx macromolecules is sufficiently well shielded from the solvent, while in the case of the APEr.ch.-graft-PiPrOx, the APEr.ch. chain is available to solvent molecules.
As is known, PAlOx are flexible-chain polymers with a Kuhn segment length A = 1.7 nm. Accordingly, the side chains of the APEr.ch.-graft-PEtOx contain about 16 Kuhn segments, that is, they are in the Gaussian region in length. The Gaussian coil can be roughly modeled by an ellipsoid of revolution, the major axis of which is H = 1.4<h2>1/2, and the minor axis is Q = 0.7<h2>1/2 (Figure 10c) [85]. For the APEr.ch.-graft-PEtOx copolymer, we have H = 1.4 × (LscA)1/2 = 1.4 × (28 × 1.7)1/2 = 9.7 nm and Q = H/2 = 4.8 nm, that is, both H and Q is greater than the distance between the adjacent grafted chains ΔL. Consequently, steric repulsion occurs between the adjacent PEtOx chains, and their curvature decreases. It can be assumed that the PEtOx coil is “stretched” along the long axis, and the value of H increases. The interaction of the side chains in molecular brushes leads to the straightening of the main chain; however, if the main chain is a rigid-chain polymer, this effect is insignificant [11]. Then, the APEr.ch.-graft-PEtOx macromolecule can be modeled with a curved thick spherocylinder (Figure 10d). Its radius Rsph is knowingly less than the length of the PEtOx side chains and greater than H, that is, 10 nm < Rsph < 28 nm. The length of the axis of the curved spherocylinder Lsph is the sum of the contour length of the macroinitiator and the contribution of two side chains, that is, LAPE = 71 nm < Lsph < LAPE + 2H = 90 nm.
In the APEr.ch.-graft-PiPrOx copolymer, the side chains contain only six to seven Kuhn segments, and their conformation should be described within the framework of the Porod model. Then, in accordance with the ratio (5), the rms distance <h2>1/2 between the ends of the PiPrOx chain is about 5 nm. Hence, the side chains of the APEr.ch.-graft-PiPrOx are markedly curled up. Since <h2>1/2 and ΔL are comparable, steric interactions between PiPrOx chains are weak, and it can be assumed that the APEr.ch. chain does not change the conformation when passing from the macroinitiator to the graft copolymer. The APEr.ch.-graft-PiPrOx macromolecules can also be modeled by a worm-shaped spherocylinder. Its radius is small, less than 5 nm (that is, <h2>1/2 for the side PiPrOx chains), and the axis length is close to 80 nm ≈ LAPE + 2<h2>1/2 (Figure 10e). Probably, it is the difference in the thickness of the graft copolymer molecules that determines the difference in the values of the hydrodynamic radius for the APEr.ch.-graft-PEtOx and the APEr.ch.-graft-PiPrOx (Table 1).

2.3. Self-Organization in Aqueous Solutions of the APEr.ch.-graft-PEtOx and APEr.ch.-graft-PiPrOx Grafted Copolymers

In the studied range of concentrations at a temperature T < 30 °C, aqueous solutions of the APEr.ch.-graft-PEtOx were molecularly dispersed. As can be seen in Figure 11, there is a tendency towards a decrease in the hydrodynamic radius Rh with dilution. However, this change is small, and it fits within the experimental error.
Aqueous solutions of the APEr.ch.-graft-PiPrOx at 21 °C were slightly cloudy. Even at the lowest temperatures of the experiment (7 °C), they were opalescent. However, hydrodynamic size distributions obtained for them by DLS were unimodal (Figure 12). The hydrodynamic size Rh of scattering species was almost an order of magnitude higher than the Rh value obtained in chloroform (Table 1), which indicates the aggregation of the APEr.ch.-graft-PiPrOx macromolecules in water. Aggregation is caused by hydrophobic interactions of the APEr.ch. backbones, which are poorly screened from the solvent, since the grafting density of water-soluble PiPrOx chains is low (z = 0.26), and these chains themselves are short (Lsc/ΔL ≈ 2). As demonstrated by the example of molecular brushes with a flexible polyester backbone with short PiPrOx side chains, the mechanism of hydrophobic interactions is intramolecular: the backbone collapses, forming a core shielded from the solvent by a hydrophilic PiPrOx corona [71]. Unlike a brush with a flexible chain backbone, the rigid backbones of APEr.ch.-graft-PiPrOx cannot fold, and it can be assumed that in order to form a solubilizing shell consisting of hydrophilic short side chains, the PiPrOx chains must be packed tightly to each other, forming bundles or sheaves (Figure 13).

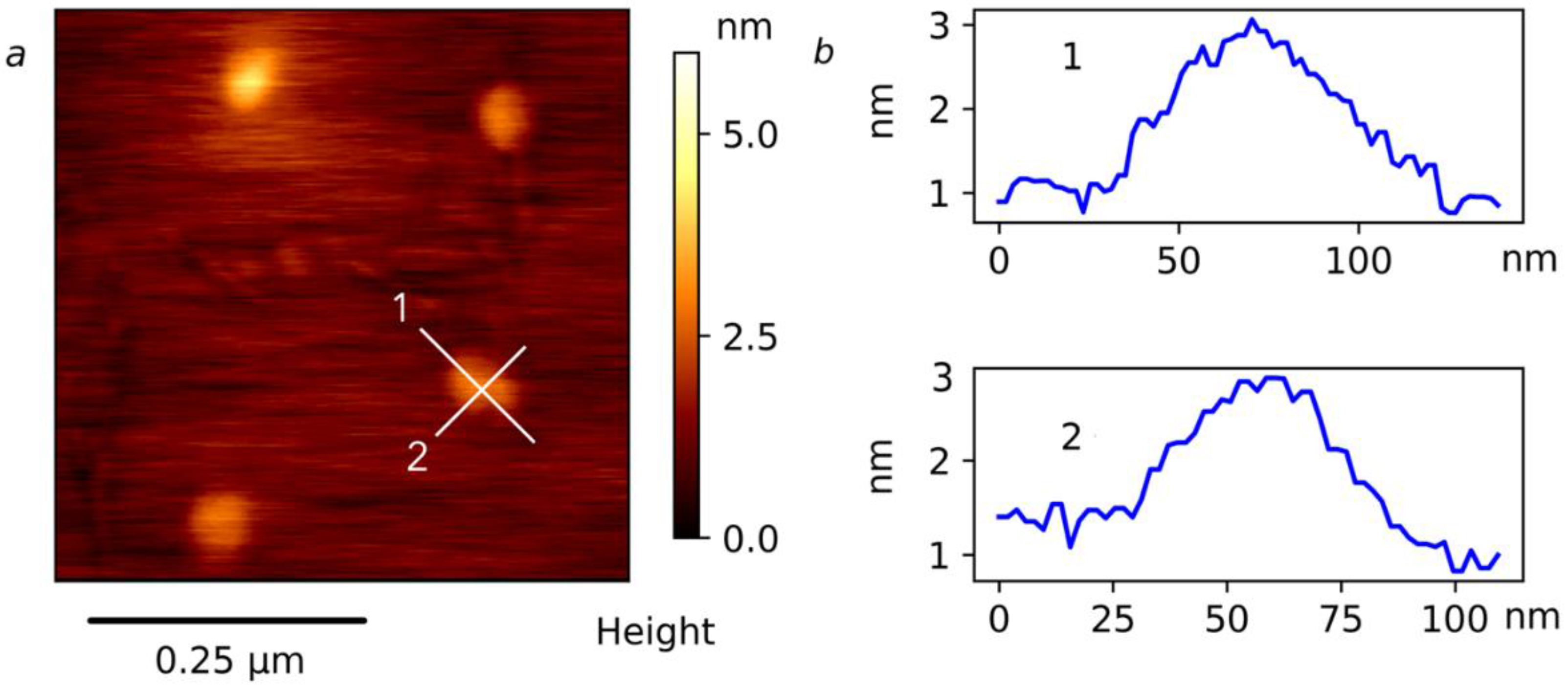

This aggregation model is supported by the AFM experiment. The AFM measurements for the APEr.ch.-graft-PiPrOx sample have shown approximately uniform ellipsoidal-shaped particles distributed along the surface of mica (Figure 14a). Cross-sections measured on the individual nanostructures are given in Figure 14b and Figure S2. This allows an estimation of the dimensions of ellipsoids as 43–56 nm and 64–76 nm in width and length, respectively.

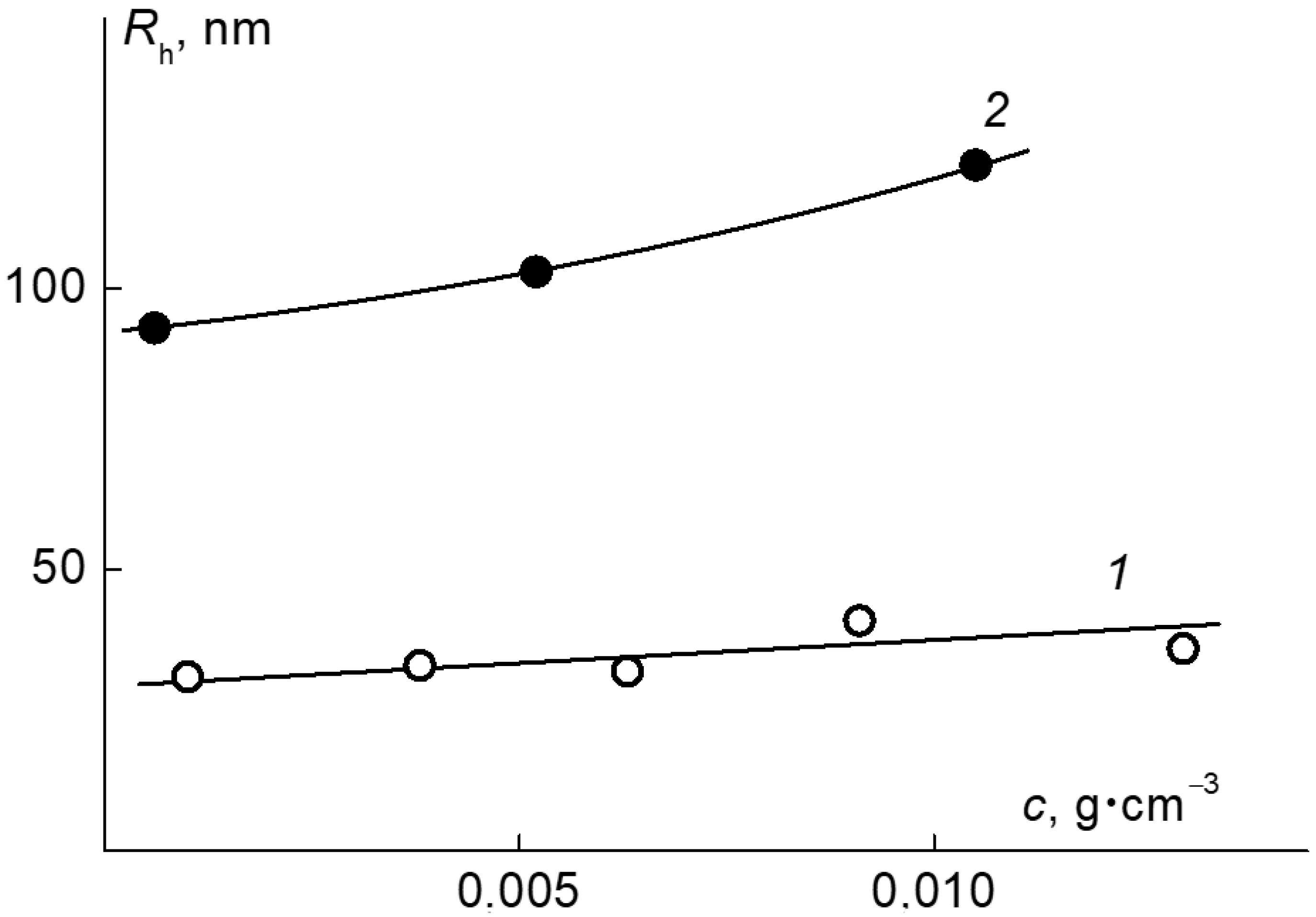

The hydrodynamic radius of the discussed particles Rh increased from 90 to 120 nm (Figure 11) as the concentration increased, which is in agreement with the AFM data. Augmentation of the hydrodynamic radii of aggregates with the concentration was observed before for molecular brushes with a flexible aromatic polyester backbone and PEtOx [70] and PiPrOx [71] side chains. The increase is caused by an enhancement of the hydrophobic interactions between the hydrophobic main chains of the grafted copolymers, especially between unsubstituted monomer units of the main chains, where they are less screened by hydrophilic side chains.

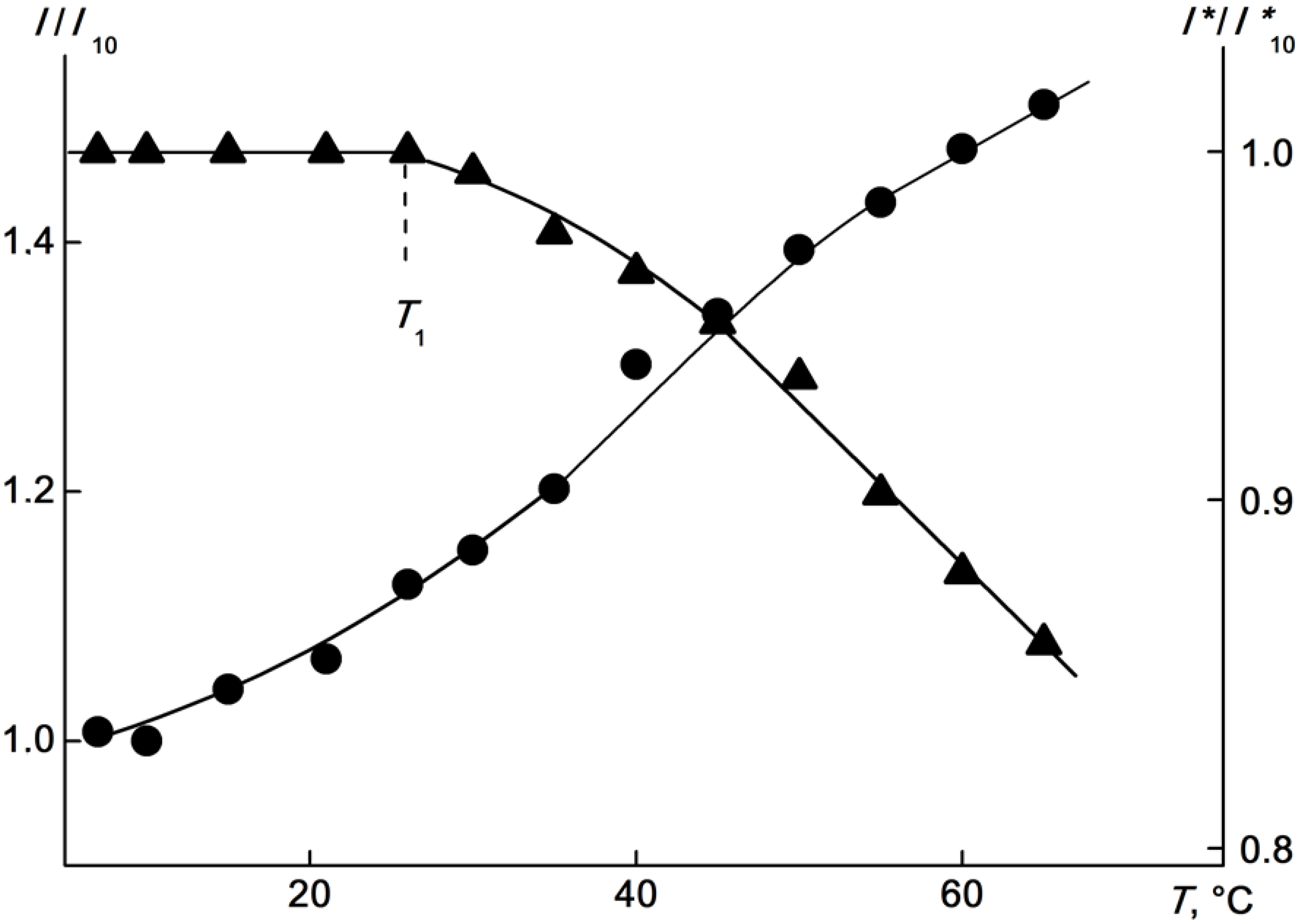

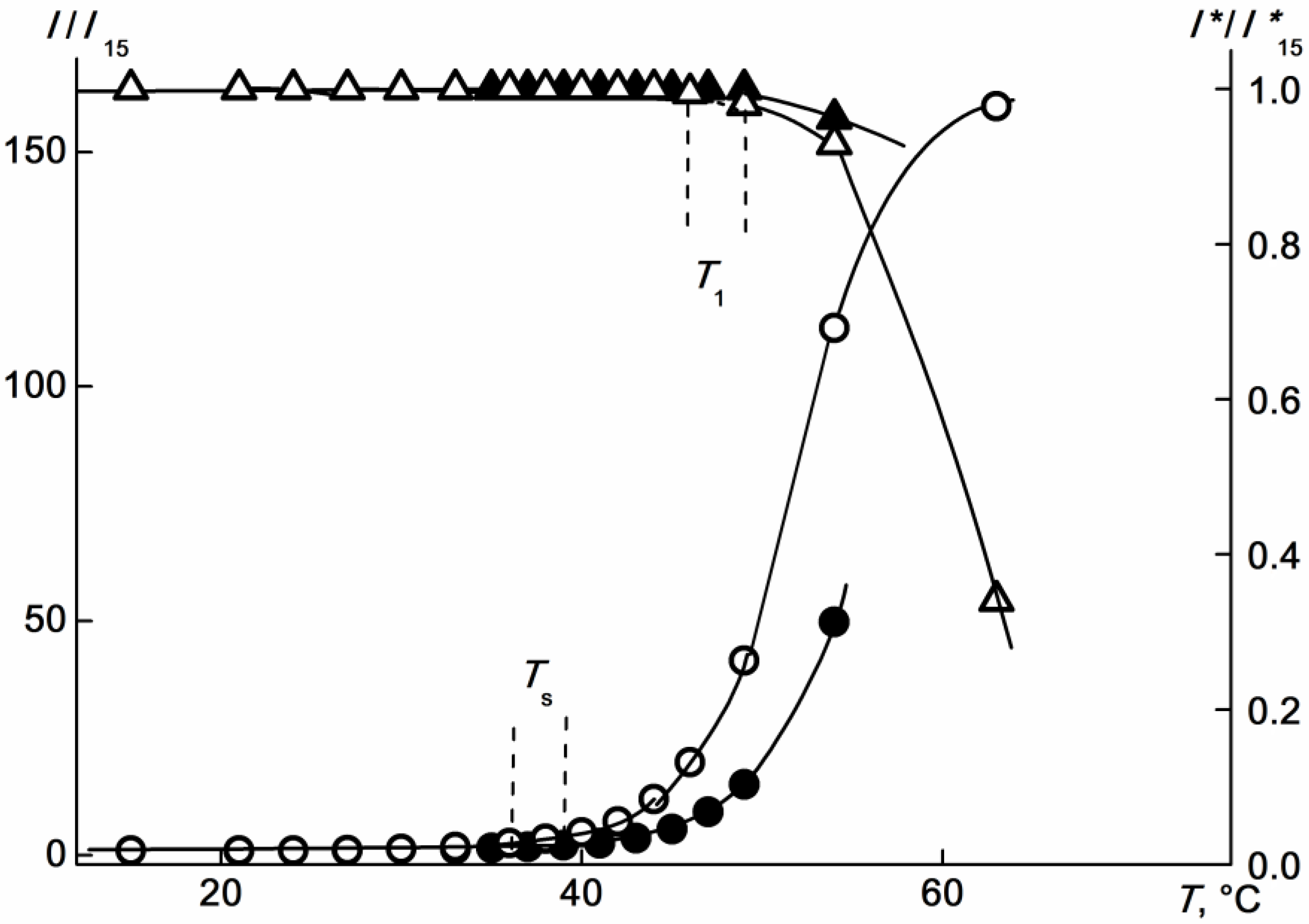

The temperature dependences of the scattered light intensity I and optical transmission I* for the APEr.ch.-graft-PEtOx are shown in Figure 15. Similar plots of I/I15(T) and I*/I*15(T) and I15 and I*15, being the light scattering intensity and optical transmission at 15 °C, respectively, were obtained for other concentrations. The temperature of the onset of phase separation T1 was determined as the temperature corresponding to the onset of a decrease in I*. Note that the termination of phase separation in the range of accessible temperatures was not observed at any of the studied concentrations, and for none of the studied APEr.ch.-graft-PEtOx solutions was it possible to achieve zero optical transmission. Unlike I*, the value of which was constant up to T1, the intensity of the scattered light began to change at a temperature Ts, that is, long before the start of phase separation (Figure 15). The change in I was smooth, its rate increased with temperature, at least up to the temperature T1. Similar I(T) dependences were previously observed for thermosensitive polymer brushes, in particular, for graft copolymers with flexible-chain polyester backbones and side chains of poly-2-ethyl-2-oxazoline [69].
The observed change in the scattered light intensity is due to the aggregation of the APEr.ch.-graft-PEtOx macromolecules. As can be seen in Figure 16, at about the temperature Ts, the value of the hydrodynamic radius Rh of the scattering species begins to increase. This reflects aggregation due to dehydration of PEtOx units and, accordingly, a decrease in the solubility of graft copolymers with increasing T. Near T1, the rate of change in Rh increases. The maximum values of the hydrodynamic radii of the aggregates reach 100 nm.

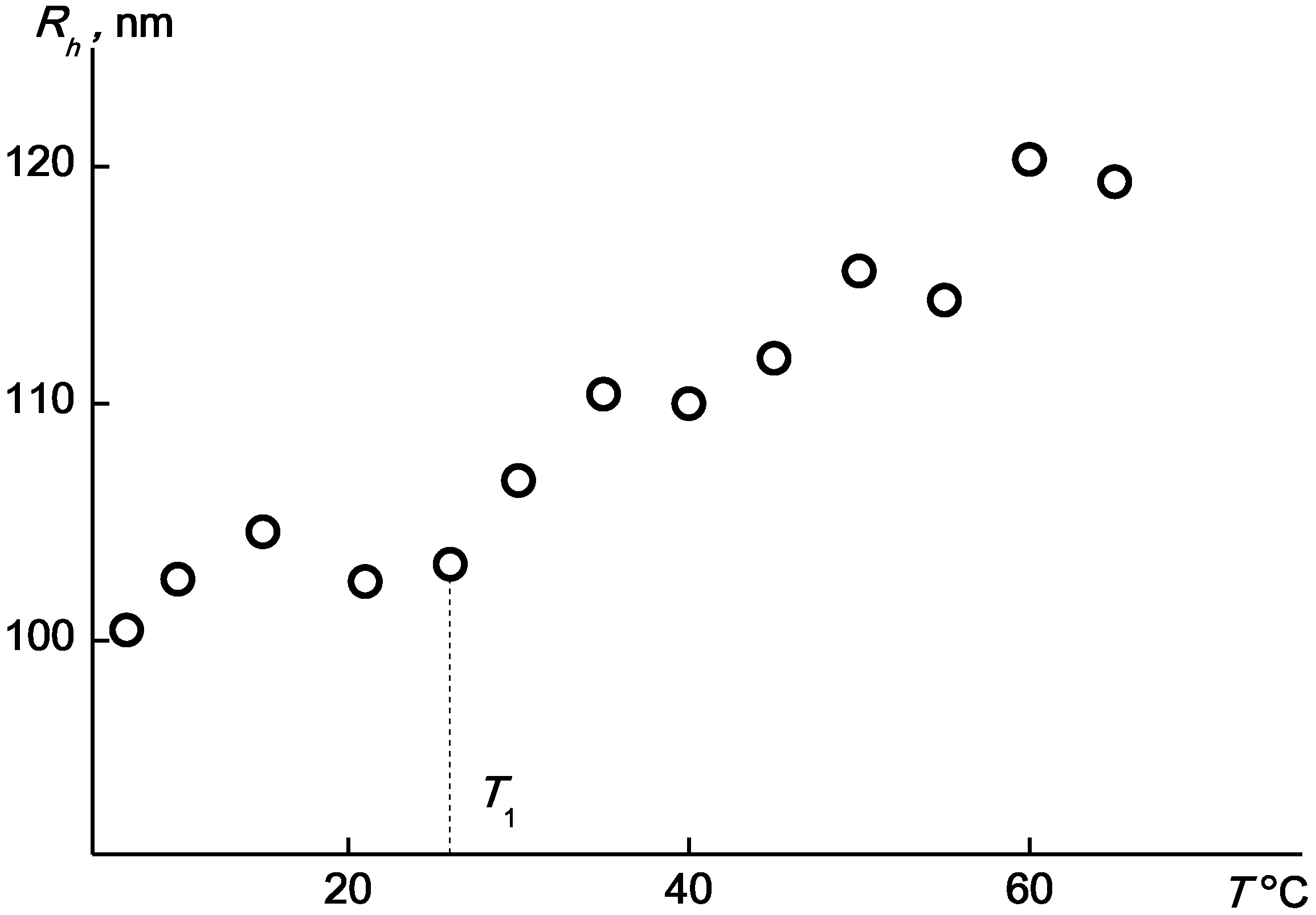

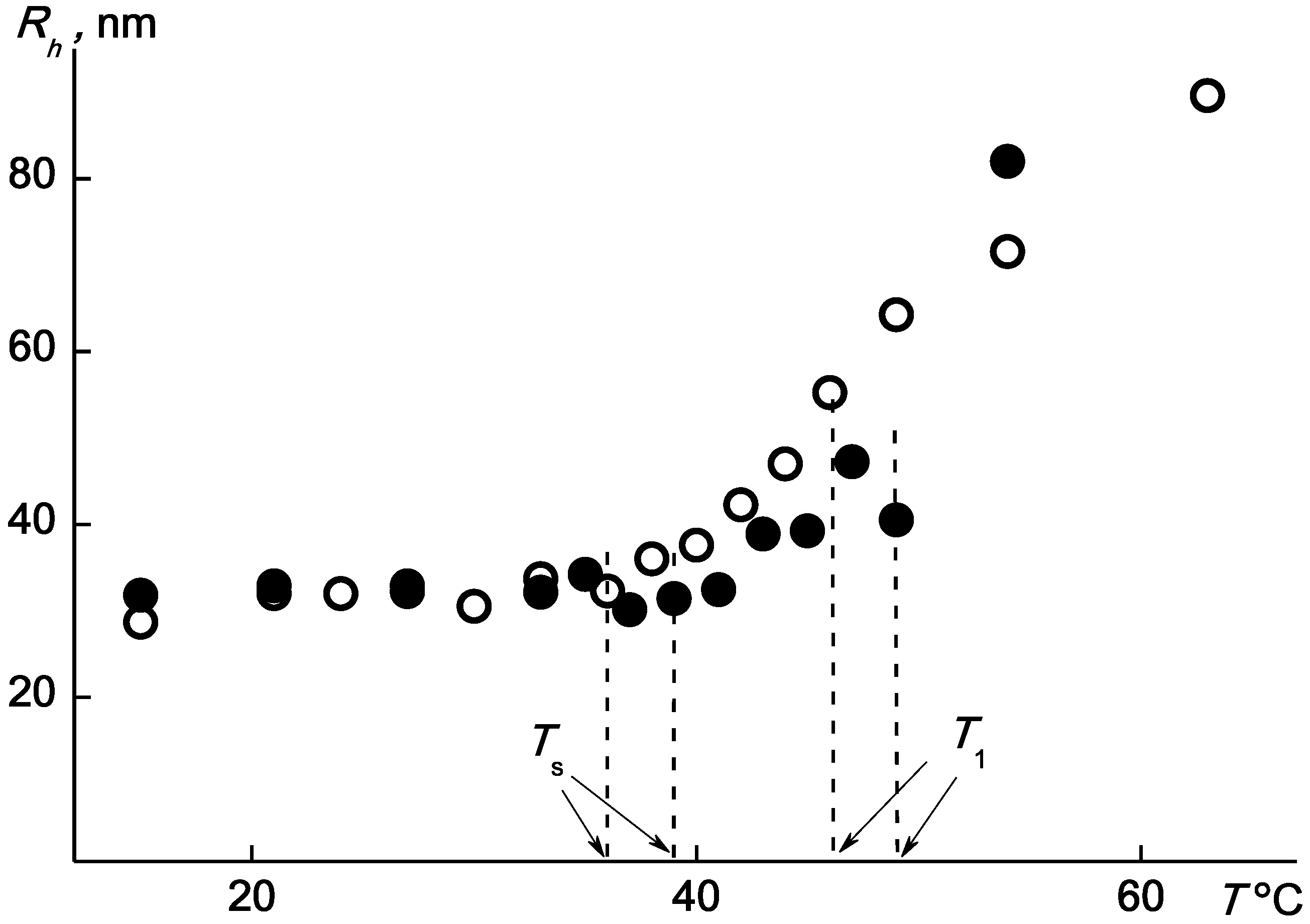

The temperature dependences of I, I*, and Rh for solutions of the graft copolymer with PiPrOx side chains (Figure 17 and Figure 18) are qualitatively similar to that observed for the APEr.ch.-graft-PEtOx. On the other hand, the changes in I, I*, and Rh described above for the APEr.ch.-graft-PEtOx, in the case of APEr.ch.-graft-PiPrOx, occur at lower temperatures. This behavior is due to the higher hydrophobicity of the APEr.ch.-graft-PiPrOx. Indeed, the fraction ω of hydrophobic fragments in the APEr.ch.-graft-PiPrOx macromolecules is about 50 mol%, while for the APEr.ch.-graft-PEtOx, ω = 13 mol% (Table 3). In addition, as mentioned above, the hydrophobic backbone in the APEr.ch.-graft-PiPrOx is much more accessible to the solvent due to the low grafting density z of the side chains and the relatively short length Lsc of the latter. Therefore, aqueous solutions of the APEr.ch.-graft-PiPrOx are not molecular, resulting in high Rh values at low T. Heating them leads to a further increase in hydrophobicity due to the dehydration of PiPrOx units and, accordingly, to an increase in the size of aggregates (Figure 18), which causes an increase in I (Figure 17). Note that in the studied concentration range, the change in I and Rh begins at a very low temperature T = 7 °C (Figure 17 and Figure 18). In contrast to the APEr.ch.-graft-PEtOx solutions, the dependences of I and Rh for the APEr.ch.-graft-PiPrOx are more monotonic; they do not show an increase in the rate of I and Rh change at a temperature around T1.

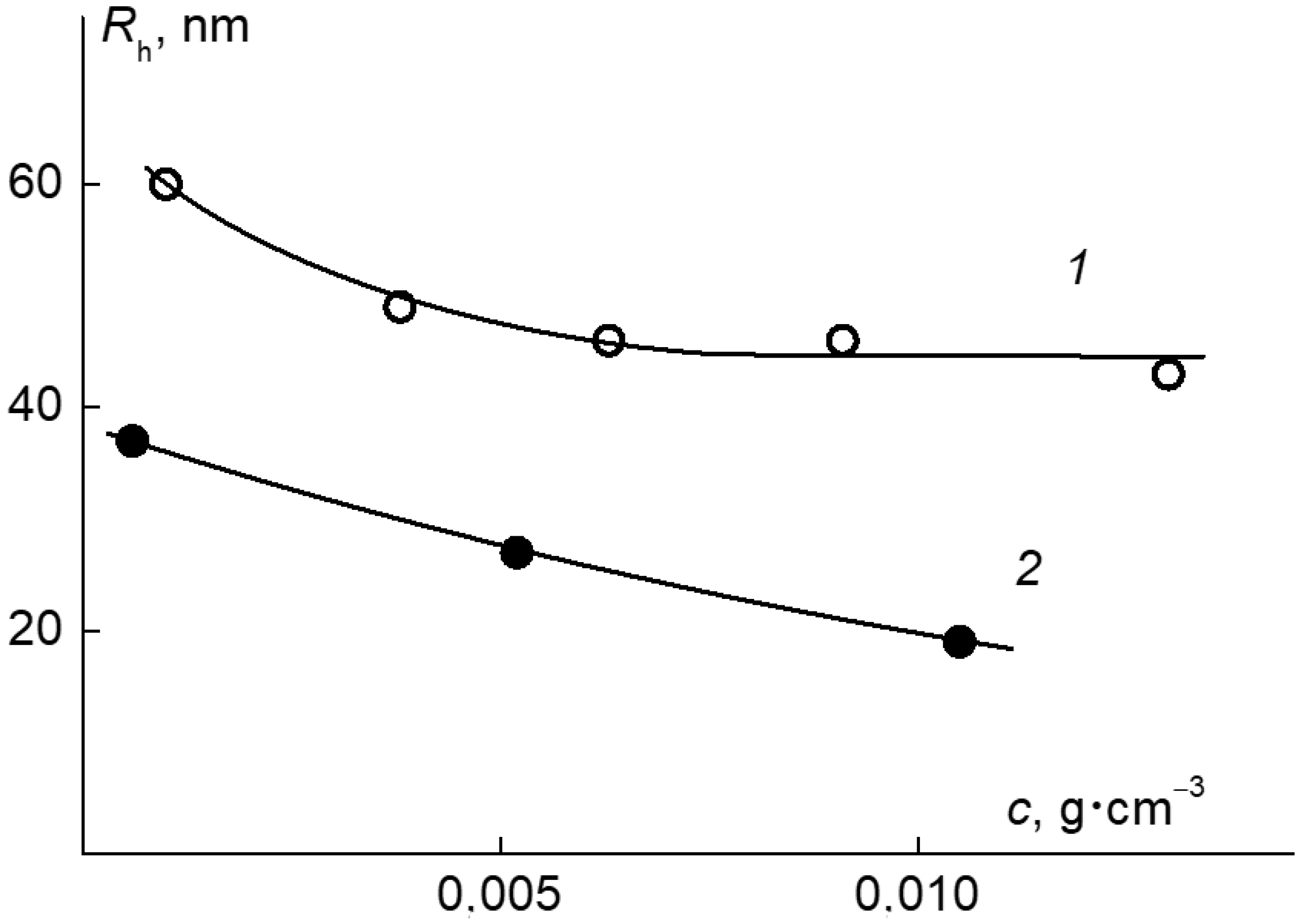

Figure 19 shows the concentration dependences of the phase separation temperatures T1. For both studied copolymers, the T1 values decrease with increasing c, which is typical for dilute solutions of thermosensitive polymers. For the APEr.ch.-graft-PEtOx, the T1(c) dependence flattens out in the region c > 0.0063 g·cm−3, which makes it possible to reliably determine the LCST. For the APEr.ch.-graft-PiPrOx solutions, the temperature T1 depends on the concentration over the entire studied range of c. Accordingly, it can be argued that for this graft copolymer, LCST is noticeably lower than the value T1 = 20 °C for the solution with the highest concentration.
The LCST = 45 °C for the APEr.ch.-graft-PEtOx copolymer with PEtOx chains is slightly lower than the LCST for linear PEtOx [66,86,87], which may be due to both the influence of the architecture and hydrophobicity of the APEr.ch.-graft-PEtOx macromolecules, and the molar mass, since its total value for PEtOx chains in the polymer brush is higher than the typical molar mass values for linear PEtOx. A similar situation takes place for the APEr.ch.-graft-PiPrOx, but in this case, the difference in LCST for the graft copolymer and the linear polymer is slightly larger [87,88,89], which can be explained by the large fraction of hydrophobic fragments.
It seems interesting to compare the obtained data with the LCST for graft copolymers with PEtOx and PiPrOx side chains and flexible polyester main chains (Table 3). For the copolymers APE6-graft-PEtOx with a spacer –(CH2)6– in the main chain, LCST is 6 and 11 °C lower than the LCST for the APEr.ch.-graft-PEtOx [70]. This difference cannot be explained by the difference in the molar fraction of hydrophobic fragments, since the ω values are higher for the APE6-graft-PEtOx. The relative length Lsc of the side chains, more precisely the ratio Lsc/ΔL of this length Lsc to the distance between two adjacent side chains ΔL, for copolymers with a flexible main chain is 4–6 times less (Table 3). Therefore, in the APEr.ch.-graft-PEtOx, the APEr.ch. chain should be better shielded than the main chain in the APE6-graft-PEtOx. However, in reality, this is not the case, since the flexible backbone of the APE6-graft-PEtOx collapses, sharply decreasing the distance ΔL and increasing the density of the PEtOx corona. In addition, the molar mass can contribute to the decrease in the LCST upon passing from the APE6-graft-PEtOx to the APEr.ch.-graft-PEtOx, which differs for the compared graft copolymers by 2.8 and 3.5 times.
For the copolymers with PiPrOx side chains, the MM and Lsc/ΔL ratio are practically the same, and the decrease in the LCST for the APEr.ch.-graft-PiPrOx as compared to the APE8-graft-PEtOx with a flexible spacer –(CH2)8– in the main chain [71] is probably primarily due to the greater hydrophobicity of the APEr.ch.-graft-PiPrOx macromolecules. Poor protection of the APEr.ch. backbones results in their hydrophobic interactions, to which, upon heating, interactions of dehydrated PiPrOx units are added.

2.4. Kinetics of Aggregation in Aqueous Solutions of the APEr.ch.-graft-PEtOx and the APEr.ch.-graft-PiPrOx

All the results discussed above refer to the “equilibrium” state of solutions, that is, conditions when their characteristics are constant over time. The times teq and t*eq for the APEr.ch.-graft-PEtOx and APEr.ch.-graft-PiPrOx solutions to reach the equilibrium state after the temperature change were found by flattening of the I(T) or I*(T) dependences, which are shown in Figure S3.

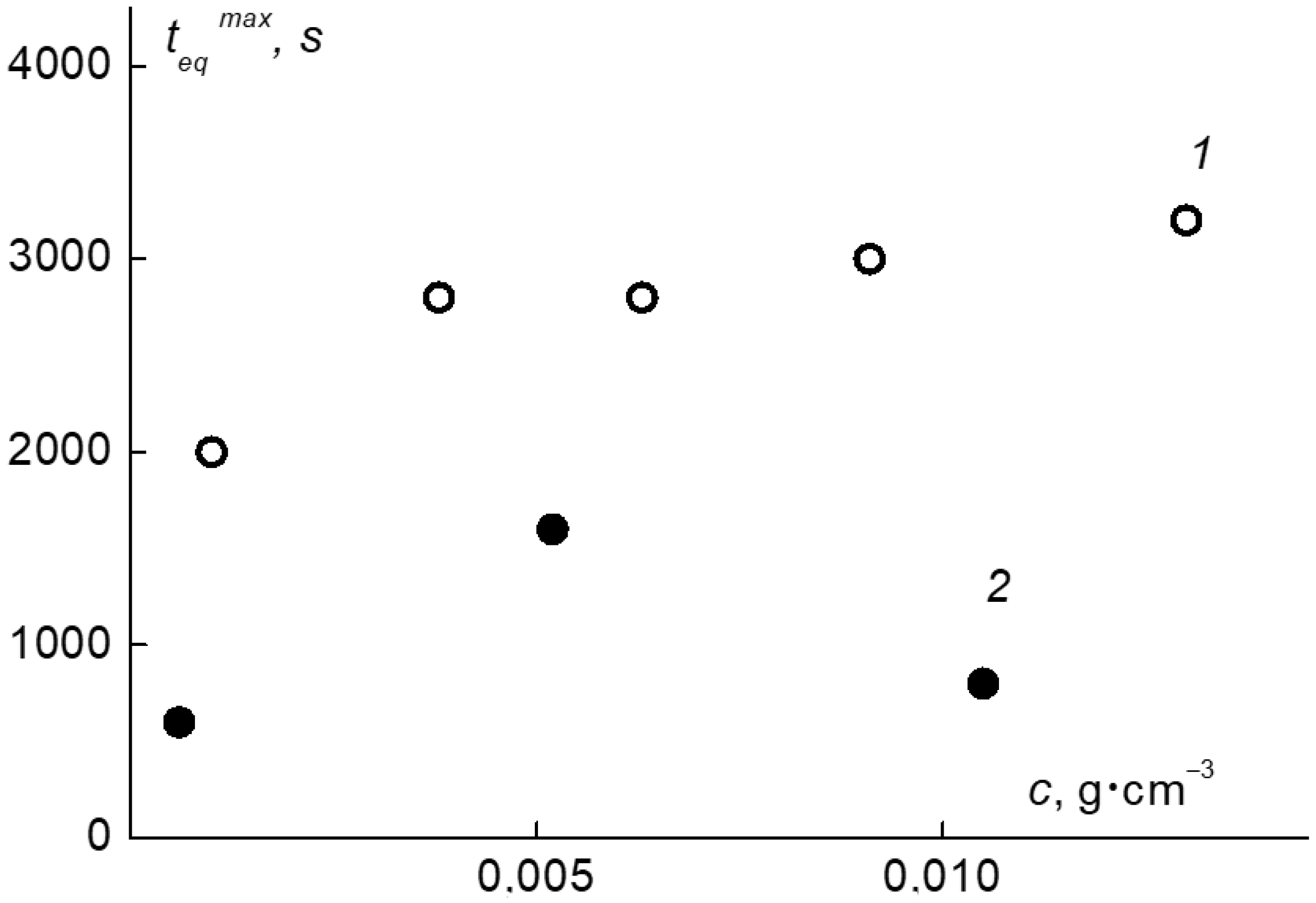

For all solutions, teq values depended on T. For the APEr.ch.-graft-PEtOx, they were minimal at low temperatures, increased with heating, taking the maximum value teqmax near the T1 for a given concentration, and then teq decreased (Figure S4). Note that similar dependences were previously observed for thermosensitive star-shaped poly-2-alkyl-2-oxazolines and PAlOx graft copolymers [70,71,90]. As seen in Figure 20, for the APEr.ch.-graft-PEtOx solutions, teqmax decreases with dilution. The most important thing is that for both polymers, the obtained values are noticeably lower than teqmax determined earlier for solutions of the APE6-graft-PEtOx and APE8-graft-PiPrOx graft copolymers. In particular, for the APE6-graft-PEtOx, teqmax reached 12,000 s [70]. The acceleration of self-organization processes may be due to the fact that the APEr.ch.-graft-PEtOx sample proceeds mainly by the aggregation mechanism, while in the APE6-graft-PEtOx solutions, the main chain is also compacted, which leads to an increase in the density of the hydrophilic corona and hinders the contacts of hydrophobic nuclei [69,70].
For the APEr.ch.-graft-PiPrOx solutions, the “settling” times have the smallest values: at low temperatures, the teq is in the range from 200 to 400 s. Such values are typical for linear thermoresponsive polymers [91,92,93,94]. The maximum times teqmax do not exceed 2000 s, which is 2.5–6 times less than the teqmax for the APE8-graft-PiPrOx with a flexible main chain [71]. The high rate of aggregation in the APEr.ch.-graft-PiPrOx solutions upon heating can be explained by the fact that its macromolecules were already aggregated before heating, and the aggregates form faster by combining ready-made supramolecular structures.

3. Materials and Methods

3.1. Synthesis

2-[4-(2-Br-ethyl)]phenylsulfonylhydroquinone (1) [73] and 2-isopropyl-2-oxazoline [95] were synthesized according to the known procedures. 1-Chloronaphthalene and 1,1,2,2-tetrachloroethane (Aldrich) as well as oxazolines were dried over calcium hydride and distilled.
NMR spectra were recorded on a Bruker AC 400 spectrometer (400 MHz) for solutions in CDCl3. Dialysis was performed with the use of dialysis bags (CellaSep, Orange Scientific Braine-l’Alleud, Belgium) with an MWCO of 3500 Da.
The chromatographic analysis was performed on a Shimadzu LC-20AD chromatograph equipped with a SDA0830055E1 column (PSS SDV 50 Å (5 µm) 300 mm × 8.0 mm, Mainz, Germany) and a refractometric detector. A solution of LiBr in DMF (0.1 mol/L) at 60 °C was used as the mobile phase. Calibration was performed relative to poly(ethylene glycol) standards (Mw = 6 × 102–4 × 104).

3.1.1. Poly(2-[4-(2-Br-ethyl)phenylsulfonyl]-1,4-phenylene-2’,5’-biphenyldicarboxylate Synthesis

A flask equipped with a stirrer and a gas-supplying tube was charged with 1 (4.23 g, 0.01 mol), 2,5-dichlorocarbonylbiphenyl (2.79 g, 0.01 mol), and 1-chloronaphthalene (30 mL). The obtained mixture was purged with dry argon and heated up to 200 °C under a flow of gas. The reaction mixture was kept at 200 °C for 2 h. The polymer was precipitated with hexane, continuously extracted with hexane in Soxlet apparatus for 6 h, and dried. Yield 6.5 g (93%).
1H NMR (CDCl3, δ ppm.): 3.22 (d, ArCH2CH2Br), 3.56 (d, ArCH2CH2Br), 7.11–8.43 (m, Ar–H)

3.1.2. Polymerization of 2-Alkyl-2-Oxazolines on the Polyester Macroinitiator

A solution of initiator and monomer in 1,1,2,2-tetrachloroethane (feed ratio monomer/functional groups of macroinitiator 30/1 for 2-isopropyl-2-oxazoline and 100/1 for 2-ethyl-2-oxazoline) was heated under argon for 72 h at 70 °C. The solvent was distilled off in vacuum, the polymer was dissolved in ethanol, dialyzed against water for 48 h, and freeze-dried.

3.1.3. Hydrolysis of Graft-Copolymers

A solution of 0.1 g of a graft-copolymer in 5 mL of 1 M KOH in 2-methoxyethanol was heated under reflux for 10 min, after which it was neutralized and evaporated to dryness in vacuo. The residue was dissolved in 5 mL of ethanol, dialyzed against sodium bicarbonate (concentration 0.1 mol/L) using CellaSep dialysis bags with MWCO 1000 Da, and freeze-dried. The product was dissolved in 15 mL of propionic anhydride or isobutyric anhydride, heated at 50 °C for 30 min, and evaporated under reduced pressure.

3.2. Determination of Molar Mass and Hydrodynamic Characteristics of Polymers

Weight-average molar masses Mw of the macroinitiator APEr.ch. and the APEr.ch.-graft-PAlOx graft copolymers, and the hydrodynamic radii Rh of their macromolecules were determined in dilute solutions in organic solvents by static (SLS) and dynamic (DLS) light scattering. Tetrachloroethane (dynamic viscosity η0 = 1.74 × 10−3 Pa·s, density ρ0 = 1.595 g/cm3 and refractive index n0 = 1.49) was used as a solvent for the APEr.ch., and it was chloroform for the molecular brushes (η0 = 0.542 × 10−3 Pa·s, ρ0 = 1.483 g/cm3 and n0 = 1.4467), since associative phenomena were absent in them.
The measurements were carried out in a Photocor Complex instrument (Photocor Instrument Inc., Russia), which was equipped with a Photocor-PC2 correlator with 288 channels, as well as a Photocor-PD detector for measuring the intensity of transmitted light. A Photocor-DL semiconductor laser with a wavelength λ0 = 659.1 nm was used as a light source. Calibration was carried out using toluene, the absolute scattering intensity of which was Rv = 1.38×10−5 cm−1. Before measurements, the solutions were filtered into dust-free cells using Chromafil polyamide filters (Macherey-Nagel GmbH & Co. KG, Dueren, Germany) with a pore size of 0.45 μm.
For all solutions, there was no scattered light asymmetry, and Mw values were obtained by the usual Debye technique by measuring the light scattering intensity at an angle of 90°. The plots for Mw determination for the macroinitiator and the grafted copolymers are shown on Figure S5. The values of Mw were calculated using the equation:
c H I = 1 M w + 2 A 2 c   ,
where I90 is the intensity of the light scattering at the 90° angle, A2 is the second virial coefficient, H is the optical constant, and the value of H is:
H = 4 π 2 n 0 2 ( d n / d c ) 2 N A λ 0 4 ,
where NA is the Avogadro’s number.
The scattered light intensity distributions were unimodal. The hydrodynamic radii of the macromolecules Rh(c) collected at concentrations c did not depend on c (Figure S1), and the Rh(c) values were averaged over the concentration to obtain the Rh.
The refractive index n was measured on a RA-620 refractometer (KEM, Kyoto, Japan). The refractive index increment dn/dc, which is a factor in (7), was calculated as a slope of the dependence (n − n0)/c on c, where n is the refractive index of the solution taken at a concentration c.

3.3. Study of the Solutions’ Phase Separation upon Heating

The thermal sensitivity of the APEr.ch.-graft-PAlOx copolymers in aqueous solutions was studied by light scattering and turbidimetry using the Photocor Complex device described above. The temperature T was controlled with an accuracy of 0.1 °C, changing it discretely with a step from 5.0 °C at low temperatures to 1.0 °C near the phase separation interval.
The scattered light intensity I and the transmitted light intensity I* were measured as a function of T with increasing temperature. The temperatures T1 of the beginning of phase separation were determined from the dependences I(T) and I*(T), taking as T1 the temperatures at which a decrease in I* began. The hydrodynamic radii Rh of scattering species were measured as a function of T The measurements of the particles’ size were carried out after reaching the equilibrium state of the solutions, that is, after the values of I and I* reached constant values over time.

3.4. Microscopic Investigation

The surface morphology of the samples was investigated by the AFM method on the SPM-9700HT scanning probe microscope equipped with the SPM software v.4.76.1 (Shimadzu, Kyoto, Japan) using NSG30-SS Silicon probes with the radius of the tip curvature of 2 nm produced by “TipsNano” (Tallinn, Estonia). To take the sample, the tapping mode measurements were conducted in air using mica as a support.

4. Conclusions

New diphylic grafted copolymers were synthesized successfully. A polycondensation aromatic polyester served as a macroinitiator to graft poly(2-ethyl-2-oxazoline) and poly(2-isopropyl-2-oxazoline) side chains by cationic polymerization. A fundamentally different chemical class of the backbone and the side chains ensure diphilicity of the resulting polymer brushes. Analysis of their molecular and architectural characteristics made it possible to conclude that they can be considered as loose brushes, with a grafting degree of 0.53 and 0.27 for the APEr.ch.-graft-PEtOx and the APEr.ch.-graft-PiPrOx, respectively. In contrast to the previously studied molecular brushes APE-graft-PAlOx, in this case, the macroinitiator was a rigid-chain polymer. The Kuhn segment length for the APEr.ch. macroinitiator is estimated to be of the order of 23 nm, which results in specific properties of the polymer brushes as in organics as in a selective solvent. In chloroform, the APEr.ch.-graft-PEtOx and APEr.ch.-graft-PiPrOx macromolecules take a wormlike cylindrical conformation, the asymmetry of which depends on the PAlOx side chains’ length.
It was shown that architectural parameters are essential for their conformational properties in selective solvents, self-organization, and thermoresponsiveness. Due to high equilibrium rigidity of the main chain, the nature of the self-assembly process of the graft copolymers of the aromatic polyester with PAlOx side chains differs significantly from that of the flexible-chain polymer brushes with similar side chains. Whereas a flexible APE main chain with short side chains is sufficiently labile and capable of changing conformation in various solvents, the rigid hydrophobic APEr.ch. backbone determines either the intra- or intermolecular organization of macromolecules, depending on the length of the side chains and the distance between the grafting points. A rigid-chain brush with a low side chain grafting density takes on a cylindrical wormlike conformation in the case of sufficiently long PAlOx side chains and aggregate in water in big structures if the side chains are short.
The range of thermosensitivity of the rigid-chain APEr.ch. copolymer, which is conditioned by the thermoresponsiveness of the PAlOx side chains, was studied. The LCST of the APEr.ch.-graft-PEtOx under consideration, at given molecular and architectural characteristics, is assumed to be around 45 °C, whereas for the APEr.ch.-graft-PiPrOx, the LCST is much lower than 20 °C. The phase separation temperatures are determined by both the structure and the length of the side chains, and the grafting density. Thus, architecture parameters play a prominent role as in conformational and aggregative properties as in the thermoresponsive behavior of hybrid graft copolymers with a hydrophobic aromatic polyester main chain and hydrophilic thermosensitive polyalkyloxazoline side chains.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/ijms222212265/s1.

Author Contributions

Conceptualization, A.T. and A.F.; Formal analysis, E.T.; Investigation, E.F., A.K., M.S. and M.K.; Methodology, A.T. and A.F.; Project administration, A.F.; Resources, A.T.; Supervision, E.T. and A.T.; Writing—original draft, E.T., M.S., M.K. and A.T.; Writing—review and editing, E.T., I.N. and A.F. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Russian Ministry of Science and Highest Education within State Contract No.14.W03.31.0022. E.Fatullaev was supported by RFBR, grants 20-33-90292 and 20-53-12036.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Guha-Sridhar, C.; Hines, W.A.; Samulski, E.T. Polypeptide liquid crystals: Magnetic susceptibility, twist elastic constant, rotation viscosity coefficient, and poly-γ-benzyl-L-glutamate side chain conformation. J. Chem. Phys. 1974, 61, 947–953. [Google Scholar] [CrossRef]
  2. Conio, G.; Bianchi, E.; Ciferri, A.; Tealdi, A.; Aden, M.A. Mesophase formation and chain rigidity in cellulose and derivatives. 1. (Hydroxypropyl)cellulose in dimethylacetamide. Macromolecues 1983, 16, 1264–1270. [Google Scholar] [CrossRef]
  3. Ronova, I.A.; Ponomarev, I.I. Design of monomeric units for rigid aromatic polymers. Struct. Chem. 2019, 30, 1611–1627. [Google Scholar] [CrossRef]
  4. Kakali, F.; Kallitsis, J.K. Chain Rigidity of Substituted Aromatic Polyesters Containing Oligophenyl Units in the Main Chain. Macromolecules 1996, 29, 4759–4763. [Google Scholar] [CrossRef]
  5. Ronova, I. Structural aspects in polymers: Interconnections between conformational parameters of the polymers with their physical properties. Struct. Chem. 2010, 21, 541–553. [Google Scholar] [CrossRef]
  6. Kwolek, S.L.; Morgan, P.W.; Schaefgen, J.R.; Gulrich, L.W. Synthesis, Anisotropic Solutions, and Fibers of Poly(1,4-benzamide). Macromolecues 1977, 10, 1390–1396. [Google Scholar] [CrossRef]
  7. Valenti, B.; Alfonso, G.C.; Ciferri, A.; Giordani, P.; Marrucci, G. Solution spinning of a semirigid chain polymer forming ultrahigh modulus fibers. J. Appl. Polym. Sci. 1981, 26, 3643–3655. [Google Scholar] [CrossRef]
  8. Ozawa, S. A New Approach to High Modulus, High Tenacity Fibers. Polym. J. 1987, 19, 119–125. [Google Scholar] [CrossRef] [Green Version]
  9. Wu, J.; Eduard, P.; Thiyagarajan, S.; Noordover, B.A.J.; van Es, D.S.; Koning, C.E. Semi-Aromatic Polyesters Based on a Carbohydrate-Derived Rigid Diol for Engineering Plastics. ChemSusChem 2015, 8, 67–72. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Tsvetkov, V. Structure and properties of rigid chain polymer molecules in solutions. Polym. Sci. USSR 1979, 21, 2879–2899. [Google Scholar] [CrossRef]
  11. Tsvetkov, V.N. Rigid-Chain Polymers. Hydrodynamic and Optical Properties in Solution, 1st ed.; Plenum Press: New York, NY, USA, 1989; pp. 1–512. [Google Scholar]
  12. Tsvetkov, V.; Tarasova, G.; Vinogradov, Y.; Kuprianova, N.; Yamshchikov, V.; Skazka, V.; Ivanov, V.; Smirnova, V.; Migunova, I. Hydrodynamic and optical properties of poly-N-2,4-dimethylphenylmaleimide molecules in solution. Polym. Sci. USSR 1971, 13, 705–714. [Google Scholar] [CrossRef]
  13. Wolfe, J.F.; Loo, B.H.; Arnold, F.E. Rigid-rod polymers. 2. Synthesis and thermal properties of para-aromatic polymers with 2,6-benzobisthiazole units in the main chain. Macromolecues 1981, 14, 915–920. [Google Scholar] [CrossRef]
  14. Sicree, A.J.; Arnold, F.E.; Van Deusen, R.L. New imidazoisoquinoline ladder polymers. J. Polym. Sci. Polym. Chem. Ed. 1974, 12, 265–272. [Google Scholar] [CrossRef]
  15. Tsvetkov, V.N.; Andrianov, K.A.; Vinogradov, E.L.; Shtennikova, I.N.; Yakushkina, S.E.; Pakhomov, V.I. Hydrodynamic properties and optical anisotropy of molecules of linear and cyclolinear polyphenylsiloxanes in solution. J. Polym. Sci. Part C Polym. Symp. 1968, 23, 385–391. [Google Scholar] [CrossRef]
  16. Doty, P.; Holtzer, A.; Bradbury, J.H.; Blout, E. Polypeptides. II. Configuration of polymers of γ-benzyl-L- glutamate in solution. J. Am. Chem. Soc. 1954, 76, 4493–4494. [Google Scholar] [CrossRef]
  17. Doty, P.; Bradbury, J.H.; Holtze, A.H. Polypeptides. IV. Molecular weight, configuration and association of poly-γ-benzyl-Lglutamate in various solvent. J. Am. Chem. Soc. 1956, 78, 947–954. [Google Scholar] [CrossRef]
  18. Gray, H.B., Jr.; Bloomfield, V.A.; Hearst, J.E. Sedimentation Coefficients of Linear and Cyclic Wormlike Coils with Excluded-Volume Effects. J. Chem. Phys. 1967, 46, 1493–1498. [Google Scholar] [CrossRef]
  19. Tsvetkov, V.; Tsepelevich, S. Light scattering of solutions of polyamidohydrazide and conformation characteristics of its molecules. Polym. Sci. USSR 1983, 25, 2221–2230. [Google Scholar] [CrossRef]
  20. Meyerhoff, G.; Sutterlin, N. Eihylzellulosen in losungen. Hydrodynamische eigenschaften. Makromol. Chem. 1965, 87, 258–270. [Google Scholar] [CrossRef]
  21. Pogodina, N.V.; Mel’nikov, A.B.; Mikryukova, O.I.; Didenko, S.A.; Marchenko, G.N. Conformational characteristics of low-molecular weight colloids as shown by diffusion-sedimentation analysis. Polym. Sci. Ser. A 1984, 26, 2819–2825. [Google Scholar] [CrossRef]
  22. Tsvethov, V.; Andreyeva, L.; Korneyeva, Y.; Lavrenko, P.; Plate, N.; Shibayev, V.; Petruhhin, B. Conformational and optical properties of poly(decyl acrylate). Polym. Sci. USSR 1972, 14, 1944–1954. [Google Scholar] [CrossRef]
  23. Filippov, A.; Kozlov, A.; Tarabukina, E.; Obrezkova, M.; Muzafarov, A. Solution properties of comb-like polymers consisting of dimethylsiloxane monomer units. Polym. Int. 2016, 65, 393–399. [Google Scholar] [CrossRef]
  24. Zhang, M.; Müller, A.H.E. Cylindrical polymer brushes. J. Polym. Sci. Part A Polym. Chem. 2005, 43, 3461–3481. [Google Scholar] [CrossRef]
  25. Wintermantel, M.; Gerle, M.; Fischer, K.; Schmidt, M.; Wataoka, I.; Urakawa, H.; Kajiwara, K.; Tsukahara, Y. Molecular bottlebrushes. Macromolecules 1996, 29, 978–983. [Google Scholar] [CrossRef]
  26. Sheiko, S.S.; Sumerlin, B.S.; Matyjaszewski, K. Cylindrical molecular brushes: Synthesis, characterization, and properties. Prog. Polym. Sci. 2008, 33, 759–785. [Google Scholar] [CrossRef]
  27. Hadjichristidis, N.; Pitsikalis, M.; Pispas, S.; Iatrou, H. Polymers with Complex Architecture by Living Anionic Polymerization. Chem. Rev. 2001, 101, 3747–3792. [Google Scholar] [CrossRef]
  28. Yilmaz, G.; Toiserkani, H.; Demirkol, D.O.; Sakarya, S.; Timur, S.; Yagci, Y.; Torun, L. Modification of polysulfones by click chemistry: Amphiphilic graft copolymers and their protein adsorption and cell adhesion properties. J. Polym. Sci. Part A Polym. Chem. 2011, 49, 110–117. [Google Scholar] [CrossRef]
  29. Ilgach, D.; Meleshko, T.K.; Yakimansky, A.V. Methods of controlled radical polymerization for the synthesis of polymer brushes. Polym. Sci. Ser. C 2015, 57, 3–19. [Google Scholar] [CrossRef]
  30. Birshtein, T.; Borisov, O.; Zhulina, Y.; Khokhlov, A.; Yurasova, T. Conformations of comb-like macromolecules. Polym. Sci. USSR 1987, 29, 1293–1300. [Google Scholar] [CrossRef]
  31. I Popov, K.; Palyulin, V.V.; Möller, M.; Khokhlov, A.R.; I Potemkin, I. Surface induced self-organization of comb-like macromolecules. Beilstein J. Nanotechnol. 2011, 2, 569–584. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Dutta, S.; Wade, M.A.; Walsh, D.; Guironnet, D.; Rogers, S.A.; Sing, C.E. Dilute solution structure of bottlebrush polymers. Soft Matter 2019, 15, 2928–2941. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Dalsin, S.J.; Rions-Maehren, T.G.; Beam, M.D.; Bates, F.S.; Hillmyer, M.A.; Matsen, M.W. Bottlebrush Block Polymers: Quantitative Theory and Experiments. ACS Nano 2015, 9, 12233–12245. [Google Scholar] [CrossRef]
  34. Pesek, S.L.; Li, X.; Hammouda, B.; Hong, K.; Verduzco, R. Small-Angle Neutron Scattering Analysis of Bottlebrush Polymers Prepared via Grafting-Through Polymerization. Macromolecues 2013, 46, 6998–7005. [Google Scholar] [CrossRef]
  35. Zhang, B.; Gröhn, F.; Pedersen, J.S.; Fischer, K.; Schmidt, M. Conformation of Cylindrical Brushes in Solution: Effect of Side Chain Length. Macromolecues 2006, 39, 8440–8450. [Google Scholar] [CrossRef]
  36. Terao, K.; Hokajo, T.; Nakamura, A.Y.; Norisuye, T. Solution Properties of Polymacromonomers Consisting of Polystyrene. 3. Viscosity Behavior in Cyclohexane and Toluene. Macromolecues 1999, 32, 3690–3694. [Google Scholar] [CrossRef]
  37. Wataoka, I.; Urakawa, H.; Kobayashi, K.; Akaike, T.; Schmidt, M.; Kajiwara, K. Structural Characterization of Glycoconjugate Polystyrene in Aqueous Solution. Macromolecues 1999, 32, 1816–1821. [Google Scholar] [CrossRef]
  38. Nakamura, Y. Stiffness parameter of brush-like polymers with rod-like side chains. J. Chem. Phys. 2016, 145, 14903. [Google Scholar] [CrossRef] [PubMed]
  39. Filippov, A.P.; Krasova, A.S.; Tarabukina, E.B.; Kashina, A.; Meleshko, T.K.; Yakimansky, A.V. The effect of side chain length on hydrodynamic and conformational characteristics of polyimide-graft-polymethylmethacrylate copolymers in thermodynamically good solutions. J. Polym. Res. 2016, 23, 219. [Google Scholar] [CrossRef]
  40. Theodorakis, P.E.; Paul, W.; Binder, K. Microphase separation in bottlebrush polymers under poor-solvent conditions. EPL (Europhys. Lett.) 2009, 88, 63002. [Google Scholar] [CrossRef] [Green Version]
  41. Borisov, O.V.; Zhulina, E. Amphiphilic Graft Copolymer in a Selective Solvent: Intramolecular Structures and Conformational Transitions. Macromolecues 2005, 38, 2506–2514. [Google Scholar] [CrossRef]
  42. Liu, W.; Liu, Y.; Hao, X.; Zeng, G.; Wang, W.; Liu, R.; Huang, Y. Backbone-collapsed intra- and inter-molecular self-assembly of cellulose-based dense graft copolymer. Carbohydr. Polym. 2012, 88, 290–298. [Google Scholar] [CrossRef]
  43. Meleshko, T.K.; Ivanov, I.V.; Kashina, A.V.; Bogorad, N.N.; Simonova, M.A.; Zakharova, N.V.; Filippov, A.P.; Yakimansky, A.V. Diphilic macromolecular brushes with a polyimide backbone and [G9.poly(methacrylic acid) blocks in side chains. Polym. Sci. Ser. B 2018, 60, 35–50. [Google Scholar] [CrossRef]
  44. Ishizu, K.; Tsubaki, K.; Mori, A.; Uchida, S. Architecture of nanostructured polymers. Prog. Polym. Sci. 2003, 28, 27–54. [Google Scholar] [CrossRef]
  45. Simonova, M.; Ivanov, I.; Meleshko, T.; Kopyshev, A.; Santer, S.; Yakimansky, A.; Filippov, A. Self-Assembly of Molecular Brushes with Polyimide Backbone and Amphiphilic Block Copolymer Side Chains in Selective Solvents. Polymers 2020, 12, 2922. [Google Scholar] [CrossRef] [PubMed]
  46. Filippov, A.P.; Belyaeva, E.V.; Krasova, A.S.; Simonova, M.; Meleshko, T.K.; Ilgach, D.; Bogorad, N.N.; Yakimansky, A.; Larin, S.; Darinskii, A.A. Conformations of molecular brushes based on polyimide and poly(methyl methacrylate) in selective solvents: Experiment and computer simulation. Polym. Sci. Ser. A 2014, 56, 393–404. [Google Scholar] [CrossRef]
  47. Krasova, A.; Belyaeva, E.; Tarabukina, E.; Filippov, A.; Meleshko, T.; Ilgach, D.; Bogorad, N.; Yakimansky, A. Synthesis and Solution Properties of Loose Polymer Brushes Having Polyimide Backbone and Methylmethacrylate Side Chains. Macromolecues Symp. 2012, 316, 32–42. [Google Scholar] [CrossRef]
  48. Filippov, A.P.; Krasova, A.S.; Tarabukina, E.B.; Meleshko, T.K.; Yakimansky, A.V.; Sheiko, S.S. The Behavior of Amphiphilic Molecular Brushes with Polyimide Backbone and Poly(methyl methacrylate) and Polystyrene Side Chains in the Vicinity of Θ Point. Polym. Sci. Ser. C 2018, 60, 219–227. [Google Scholar] [CrossRef]
  49. Sato, E.; Tamari, N.; Horibe, H. Facile synthesis of graft copolymers containing rigid poly(dialkyl fumarate) branches by macromonomer method. J. Polym. Sci. Part A Polym. Chem. 2019, 57, 2474–2480. [Google Scholar] [CrossRef]
  50. Song, H.; Dotrong, M.; Price, G.; Vakil, U.; Santhosh, U.; Evers, R. Rod aggregation in graft rigid-rod copolymers for single-component molecular composites. Polymer 1994, 35, 675–680. [Google Scholar] [CrossRef]
  51. Sui, K.; Zhao, X.; Wu, Z.; Xia, Y.; Liang, H.; Li, Y. Synthesis, Rapid Responsive Thickening, and Self-Assembly of Brush Copolymer Poly(ethylene oxide)-graft-Poly(N,N-dimethylaminoethyl methacrylate) in Aqueous Solutions. Langmuir 2012, 28, 153–160. [Google Scholar] [CrossRef]
  52. Xu, Y.; Bolisetty, S.; Drechsler, M.; Jiayin, B.; Matthias, Y.; Axel, B.; Müller, H.E. pH and salt responsive poly(N,N-dimethylaminoethyl methacrylate) cylindrical brushes and their quaternized derivatives. Polymer 2008, 49, 3957–3964. [Google Scholar] [CrossRef]
  53. Phan, H.T.T.; Zhu, K.; Kjøniksen, A.-L.; Nyström, B. Temperature-responsive self-assembly of charged and uncharged hydroxyethylcellulose-graft-poly(N-isopropylacrylamide) copolymer in aqueous solution. Colloid Polym. Sci. 2011, 289, 993–1003. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Vasile, C.; Bumbu, G.-G.; Mylonas, I.; Bokias, G.; Staikos, G. Thermoresponsive behaviour in aqueous solution of poly(maleic acid-alt-vinyl acetate) grafted with poly(N-isopropylacrylamide). Polym. Int. 2004, 53, 1176–1179. [Google Scholar] [CrossRef]
  55. Köseli, V.; Rzaev, Z.M.O.; Pişkin, E. Bioengineering functional copolymers. III. Synthesis of biocompatible poly[(N-isopropylacrylamide-co-maleic anhydride)-g-poly(ethylene oxide)]/poly(ethylene imine) macrocomplexes and their thermostabilization effect on the activity of the enzyme penicilli. J. Polym. Sci. Part A Polym. Chem. 2003, 41, 1580–1593. [Google Scholar] [CrossRef]
  56. Li, X.; ShamsiJazeyi, H.; Pesek, S.L.; Agrawal, A.; Hammouda, B.; Verduzco, R. Thermoresponsive PNIPAAM bottlebrush polymers with tailored side-chain length and end-group structure. Soft Matter 2014, 10, 2008–2015. [Google Scholar] [CrossRef] [Green Version]
  57. Liu, L.X.; Li, W.; Liu, K.; Yan, J.T.; Hu, G.X.; Zhang, A.F. Comblike thermoresponsive polymers with sharp transitions: Synthesis, characterization, and their use as sensitive colorimetric sensors. Macromolecules 2011, 44, 8614–8621. [Google Scholar] [CrossRef]
  58. Weber, C.; Rogers, S.; Vollrath, A.; Hoeppener, S.; Rudolph, T.; Fritz, N.; Hoogenboom, R.; Schubert, U.S. Aqueous solution behavior of comb-shaped poly(2-ethyl-2-oxazoline). J. Polym. Sci. Part A Polym. Chem. 2013, 51, 139–148. [Google Scholar] [CrossRef]
  59. Weber, C.; Wagner, M.; Baykal, D.; Hoeppener, S.; Paulus, R.M.; Festag, G.; Altuntas, E.; Schacher, F.H.; Schubert, U.S. Easy Access to Amphiphilic Heterografted Poly(2-oxazoline) Comb Copolymers. Macromolecues 2013, 46, 5107–5116. [Google Scholar] [CrossRef]
  60. Zhang, N.; Luxenhofer, R.; Jordan, R. Thermoresponsive Poly(2-oxazoline) Molecular Brushes by Living Ionic Polymerization: Kinetic Investigations of Pendant Chain Grafting and Cloud Point Modulation by Backbone and Side Chain Length Variation. Macromol. Chem. Phys. 2012, 213, 973–981. [Google Scholar] [CrossRef]
  61. Guillerm, B.; Darcos, V.; Lapinte, V.; Monge, S.; Coudane, J.; Robin, J.-J. Synthesis and evaluation of triazole-linked poly(ε-caprolactone)-graft-poly(2-methyl-2-oxazoline) copolymers as potential drug carriers. Chem. Commun. 2012, 48, 2879–2881. [Google Scholar] [CrossRef] [PubMed]
  62. Agrawal, M.; Rueda, J.C.; Uhlmann, P.; Müller, M.; Simon, F.; Stamm, M. Facile Approach to Grafting of Poly(2-oxazoline) Brushes on Macroscopic Surfaces and Applications Thereof. ACS Appl. Mater. Interfaces 2012, 4, 1357–1364. [Google Scholar] [CrossRef]
  63. Adams, N.; Schubert, U.S. Poly(2-oxazolines) in biological and biomedical application contexts. Adv. Drug Deliv. Rev. 2007, 59, 1504–1520. [Google Scholar] [CrossRef]
  64. Rossegger, E.; Schenk, V.; Wiesbrock, F. Design Strategies for Functionalized Poly(2-oxazoline)s and Derived Materials. Polymers 2013, 5, 956–1011. [Google Scholar] [CrossRef] [Green Version]
  65. Dworak, A.; Trzebicka, B.; Kowalczuk, A.; Tsvetanov, C.; Rangelov, S. Polyoxazolines—Mechanism of synthesis and solution properties. Polimery 2014, 59, 88–94. [Google Scholar] [CrossRef]
  66. Hoogenboom, R.; Schlaad, H. Thermoresponsive poly(2-oxazoline)s, polypeptoids, and polypeptides. Polym. Chem. 2017, 8, 24–40. [Google Scholar] [CrossRef] [Green Version]
  67. Zahoranova, A.; Luxenhofer, R. Poly(2-oxazoline)- and poly(2-oxazine)-based self-assemblies, polyplexes, and drug nanoformulations–An update. Adv. Healthc. Mater. 2021, 10, 2001382. [Google Scholar] [CrossRef]
  68. Katsumoto, Y.; Tsuchiizu, A.; Qiu, X.; Winnik, F.M. Dissecting the Mechanism of the Heat-Induced Phase Separation and Crystallization of Poly(2-isopropyl-2-oxazoline) in Water through Vibrational Spectroscopy and Molecular Orbital Calculations. Macromolecues 2012, 45, 3531–3541. [Google Scholar] [CrossRef]
  69. Kudryavtseva, A.A.; Kurlykin, M.P.; Tarabukina, E.B.; Tenkovtsev, A.V.; Filippov, A.P. Behavior of thermosensitive graft copolymer with aromatic polyester backbone and poly-2-ethyl-2-oxazoline side chains in aqueous solutions. Int. J. Polym. Anal. Charact. 2017, 22, 526–533. [Google Scholar] [CrossRef]
  70. Filippov, A.; Tarabukina, E.; Kudryavtseva, A.; Fatullaev, E.; Kurlykin, M.; Tenkovtsev, A. Molecular brushes with poly-2-ethyl-2-oxazoline side chains and aromatic polyester backbone manifesting double stimuli responsiveness. Colloid Polym. Sci. 2019, 297, 1445–1454. [Google Scholar] [CrossRef]
  71. Tarabukina, E.; Fatullaev, E.; Krasova, A.; Kurlykin, M.; Tenkovtsev, A.; Sheiko, S.S.; Filippov, A. Synthesis, Structure, Hydrodynamics and Thermoresponsiveness of Graft Copolymer with Aromatic Polyester Backbone at Poly(2-isopropyl-2-oxazoline) Side Chains. Polymers 2020, 12, 2643. [Google Scholar] [CrossRef] [PubMed]
  72. Kurlykin, M.; Bursian, A.; Filippov, A.; Dudkina, M.; Tenkovtsev, A. Multicenter Polyester Initiators for the Preparation of Graft Copolymers with Oligo(2-Oxazoline) Side Chains. Macromol. Symp. 2017, 375, 1600162. [Google Scholar] [CrossRef]
  73. Spinner, I.H.; Yannopoulos, J.; Metanomski, W. OXIDATION–REDUCTION POLYMERS: I. SYNTHESIS OF MONOMERS. Can. J. Chem. 1961, 39, 2529–2535. [Google Scholar] [CrossRef]
  74. Bilibin, A.Y.; Tenkovtsev, A.V.; Piraner, O.N.; Skorokhodov, S.S. Investigation of the possibility of transesterification in the polycondensation of dihydroxyl compounds with acid dichlorides containing an ester bond. Makromol. Chem. Rapid Commun. 1989, 10, 249–254. [Google Scholar] [CrossRef]
  75. Kurlykin, M.P.; Golub, O.V.; Filippov, A.P.; Tenkovtsev, A.V.; Bursian, A.E. Multicenter polyester initiators for the synthesis of graft copolymers with oligo(2-ethyl-2-oxazoline) side chains. Polym. Sci. Ser. B 2016, 58, 421–427. [Google Scholar] [CrossRef]
  76. Allen, B.J.; Elsea, G.M.; Keller, K.P.; Kinder, H.D. Quantitative hydrolysis-gas chromatographic methods for the determination of selected acids and glycols in polyesters. Anal. Chem. 1977, 49, 741–743. [Google Scholar] [CrossRef]
  77. Yamakawa, H.; Fujii, M. Translational Friction Coefficient of Wormlike Chains. Macromolecues 1973, 6, 407–415. [Google Scholar] [CrossRef]
  78. Yamakawa, H.; Fujii, M. Intrinsic Viscosity of Wormlike Chains. Determination of the Shift Factor. Macromolecues 1974, 7, 128–135. [Google Scholar] [CrossRef] [PubMed]
  79. Yamakawa, H.; Yoshizaki, T. Transport Coefficients of Helical Wormlike Chains. 3. Intrinsic Viscosity. Macromolecues 1980, 13, 633–643. [Google Scholar] [CrossRef]
  80. Bushin, S.; Smirnov, K.; Andreeva, L.; Belyaeva, Y.; Bilibin, A.; Stepanova, A.; Tsvetkov, V. Hydrodynamic and conformational properties of a phenyl-substituted para-aromatic polyester in dioxane and dichloroacetic acid. Polym. Sci. USSR 1990, 32, 1015–1021. [Google Scholar] [CrossRef]
  81. Tsvetkov, V.; Andreyeva, L.; Filippov, A.; Belyneva, Y.; Bilibin, A.; Stepanova, A. Dynamo-optical and electro-optical properties of solutions of diphenyl-substituted poly-para-phenylene terephthalate in polar and non-polar solvents. Polym. Sci. USSR 1991, 33, 316–324. [Google Scholar] [CrossRef]
  82. Porod, G. Zusammenhang zwischen mittlerem Endpunktsabstand und Kettenlänge bei Fadenmolekülen. Mon. Für Chem.—Chem. Mon. 1949, 80, 251–255. [Google Scholar] [CrossRef]
  83. Kratky, O.; Porod, G. Röntgenuntersuchung gelöster Fadenmoleküle. Recl. Trav. Chim. B 1949, 68, 1106–1122. [Google Scholar] [CrossRef]
  84. Gubarev, A.S.; Monnery, B.D.; Lezov, A.A.; Sedlacek, O.; Tsvetkov, N.V.; Hoogenboom, R.; Filippov, S.K. Conformational properties of biocompatible poly(2-ethyl-2-oxazoline)s in phosphate buffered saline. Polym. Chem. 2018, 9, 2232–2237. [Google Scholar] [CrossRef] [Green Version]
  85. Kuhn, W. Äußere Abmessungen von Fadenmolekülen in Lösung. Experentia 1945, 1, 28–29. [Google Scholar] [CrossRef]
  86. Hoogenboom, R. Poly(2-oxazoline)s: A Polymer Class with Numerous Potential Applications. Angew. Chem. Int. Ed. 2009, 48, 7978–7994. [Google Scholar] [CrossRef] [PubMed]
  87. Aseyev, V.; Tenhu, H.; Winnik, F.M. Non-ionic Thermoresponsive Polymers in Water. In Self Organized Nanostructures of Amphiphilic Block Copolymers II. Advances in Polymer Science; Springer: Berlin/Heidelberg, Germany, 2010; Volume 242, pp. 29–89. [Google Scholar] [CrossRef] [Green Version]
  88. Uyama, H.; Kobayashi, S. A Novel Thermo-Sensitive Polymer. Poly(2-iso-propyl-2-oxazoline). Chem. Lett. 1992, 21, 1643–1646. [Google Scholar] [CrossRef]
  89. Diab, C.; Akiyama, Y.; Kataoka, K.; Winnik, F.M. Microcalorimetric Study of the Temperature-Induced Phase Separation in Aqueous Solutions of Poly(2-isopropyl-2-oxazolines). Macromolecues 2004, 37, 2556–2562. [Google Scholar] [CrossRef]
  90. Amirova, A.; Rodchenko, S.; Filippov, A. Time dependence of the aggregation of star-shaped poly(2-isopropyl-2-oxazolines) in aqueous solutions. J. Polym. Res. 2016, 23, 221. [Google Scholar] [CrossRef]
  91. Ye, J.; Xu, J.; Hu, J.; Wang, X.; Zhang, G.; Liu, S.; Wu, C. Comparative Study of Temperature-Induced Association of Cyclic and Linear Poly(N-isopropylacrylamide) Chains in Dilute Solutions by Laser Light Scattering and Stopped-Flow Temperature Jump. Macromolecues 2008, 41, 4416–4422. [Google Scholar] [CrossRef]
  92. Han, X.; Zhang, X.; Zhu, H.; Yin, Q.; Liu, H.; Hu, Y. Effect of Composition of PDMAEMA-b-PAA Block Copolymers on Their pH- and Temperature-Responsive Behaviors. Langmuir 2013, 29, 1024–1034. [Google Scholar] [CrossRef]
  93. Adelsberger, J.; Grillo, I.; Kulkarni, A.; Sharp, M.; Bivigou-Koumba, A.M.; Laschewsky, A.; Müller-Buschbaum, P.; Papadakis, C.M. Kinetics of aggregation in micellar solutions of thermoresponsive triblock copolymers—Influence of concentration, start and target temperatures. Soft Matter 2013, 9, 1685–1699. [Google Scholar] [CrossRef]
  94. Tarabukina, E.; Harabagiu, V.; Fundueanu, G.; Constantin, M.; Filippov, A. Thermo- and pH-responsive copolymer of N-isopropylacrylamide with acryloylvaline: Synthesis and properties in aqueous solutions. J. Polym. Res. 2021, 28, 155. [Google Scholar] [CrossRef]
  95. Witte, H.; Seeliger, W. Cyclische imidsäreester aus nitrilen und aminoalkoholen. Liebigs Ann. Chem. 1974, 996–1009. [Google Scholar] [CrossRef]
Ijms 22 12265 g001 550
Figure 1. Chemical structure of the APEr.ch.-graft-PEtOx and APEr.ch.-graft-PiPrOx graft copolymers.
Figure 1. Chemical structure of the APEr.ch.-graft-PEtOx and APEr.ch.-graft-PiPrOx graft copolymers.
Ijms 22 12265 g001
Ijms 22 12265 g002 550
Figure 2. Synthesis of the functionalized hydroquinone comonomer.
Figure 2. Synthesis of the functionalized hydroquinone comonomer.
Ijms 22 12265 g002
Ijms 22 12265 g003 550
Figure 3. Synthesis of the APEr.ch. macroinitiator.
Figure 3. Synthesis of the APEr.ch. macroinitiator.
Ijms 22 12265 g003
Ijms 22 12265 g004 550
Figure 4. Synthesis of the APEr.ch.-graft-PAlOx copolymers.
Figure 4. Synthesis of the APEr.ch.-graft-PAlOx copolymers.
Ijms 22 12265 g004
Ijms 22 12265 g005 550
Figure 5. 1H NMR spectra of the macroinitiator APEr.ch. (1), the APEr.ch.-graft-PiPrOx (2), and the APEr.ch.-graft-PEtOx (3).
Figure 5. 1H NMR spectra of the macroinitiator APEr.ch. (1), the APEr.ch.-graft-PiPrOx (2), and the APEr.ch.-graft-PEtOx (3).
Ijms 22 12265 g005
Ijms 22 12265 g006 550

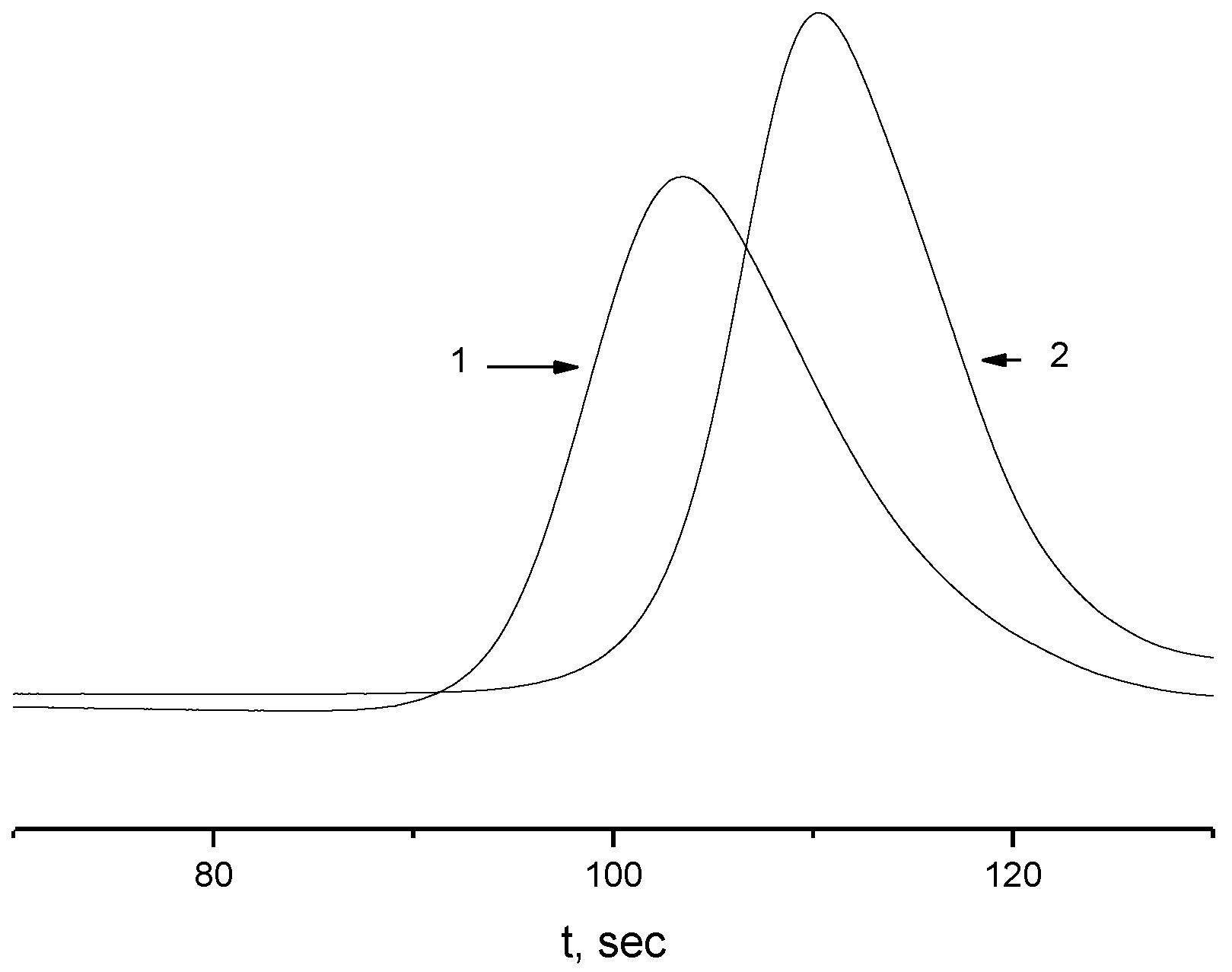

Figure 6. GPC traces of the APEr.ch.-graft-PEtOx (1) and the APEr.ch.-graft-PiPrOx (2).
Figure 6. GPC traces of the APEr.ch.-graft-PEtOx (1) and the APEr.ch.-graft-PiPrOx (2).
Ijms 22 12265 g006
Ijms 22 12265 g007 550
Figure 7. Selective destruction of synthesized graft-copolymers.
Figure 7. Selective destruction of synthesized graft-copolymers.
Ijms 22 12265 g007
Ijms 22 12265 g008 550

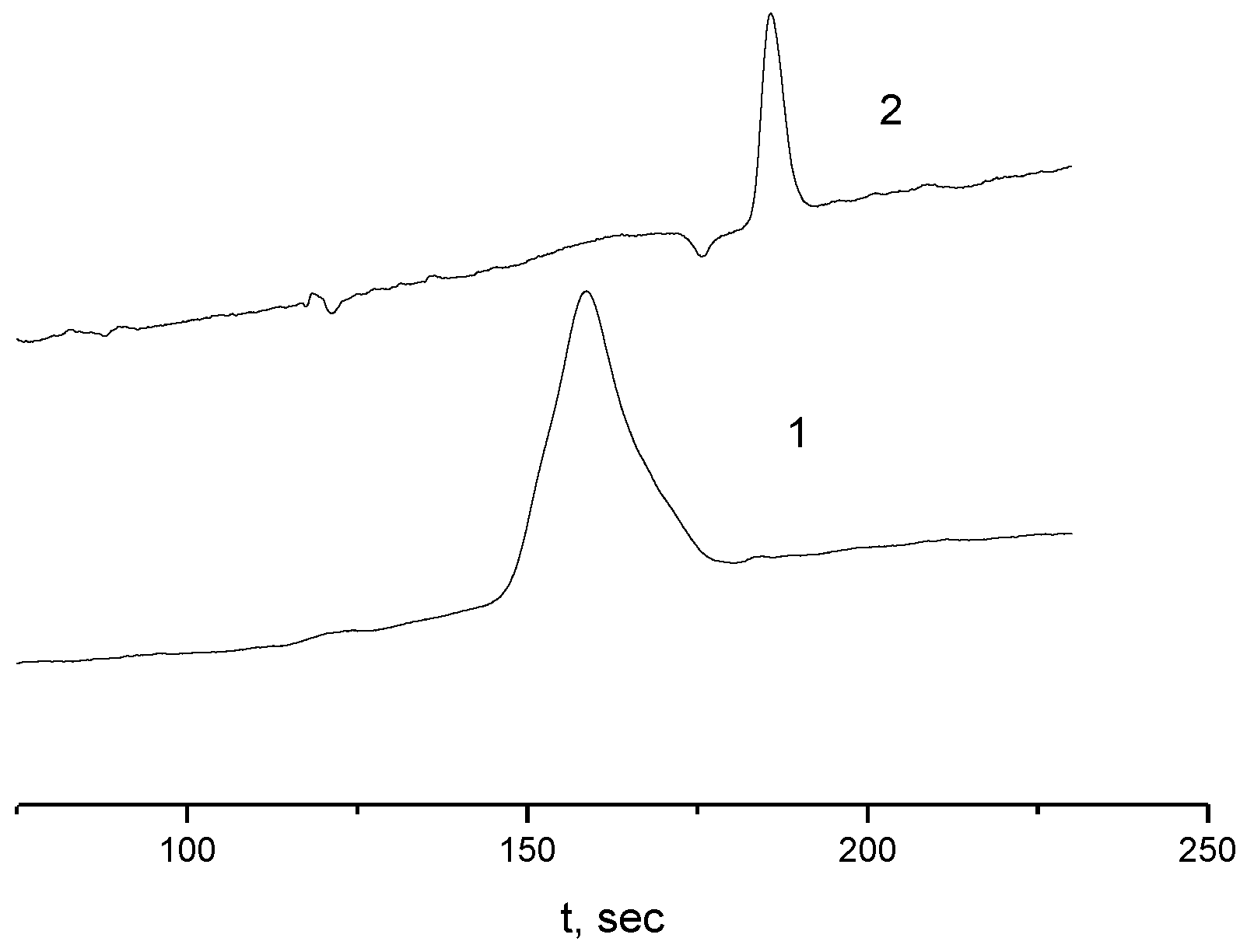

Figure 8. GPC traces of the PEtOx (1) and PiPrOx (2) isolated side chains.
Figure 8. GPC traces of the PEtOx (1) and PiPrOx (2) isolated side chains.
Ijms 22 12265 g008
Ijms 22 12265 g009 550

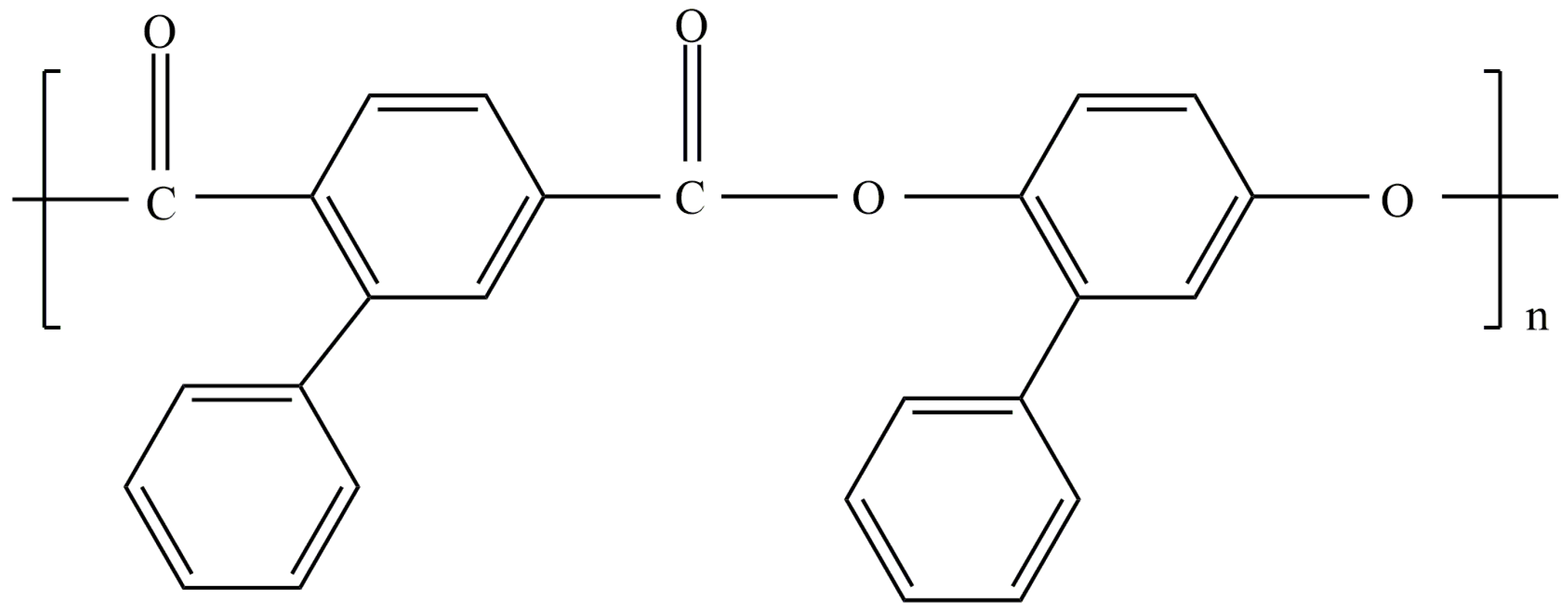

Figure 9. Chemical structure of the pAPE [80].
Figure 9. Chemical structure of the pAPE [80].
Ijms 22 12265 g009
Ijms 22 12265 g010 550
Figure 10. Model representation of the APEr.ch. (a), the APEr.ch.-graft-PEtOx (d), and the APEr.ch.-graft-PiPrOx (e) macromolecules; structural parameters of the chain L, ΔL, and Lsc (b); and the Gaussian coil dimensions determination (c).
Figure 10. Model representation of the APEr.ch. (a), the APEr.ch.-graft-PEtOx (d), and the APEr.ch.-graft-PiPrOx (e) macromolecules; structural parameters of the chain L, ΔL, and Lsc (b); and the Gaussian coil dimensions determination (c).
Ijms 22 12265 g010
Ijms 22 12265 g011 550
Figure 11. The dependence of the hydrodynamic radii of the dissolved species on the concentration in the APEr.ch.-graft-PEtOx solutions at 21 °C (1) and the APEr.ch.-graft-PiPrOx at 10 °C (2).
Figure 11. The dependence of the hydrodynamic radii of the dissolved species on the concentration in the APEr.ch.-graft-PEtOx solutions at 21 °C (1) and the APEr.ch.-graft-PiPrOx at 10 °C (2).
Ijms 22 12265 g011
Ijms 22 12265 g012 550

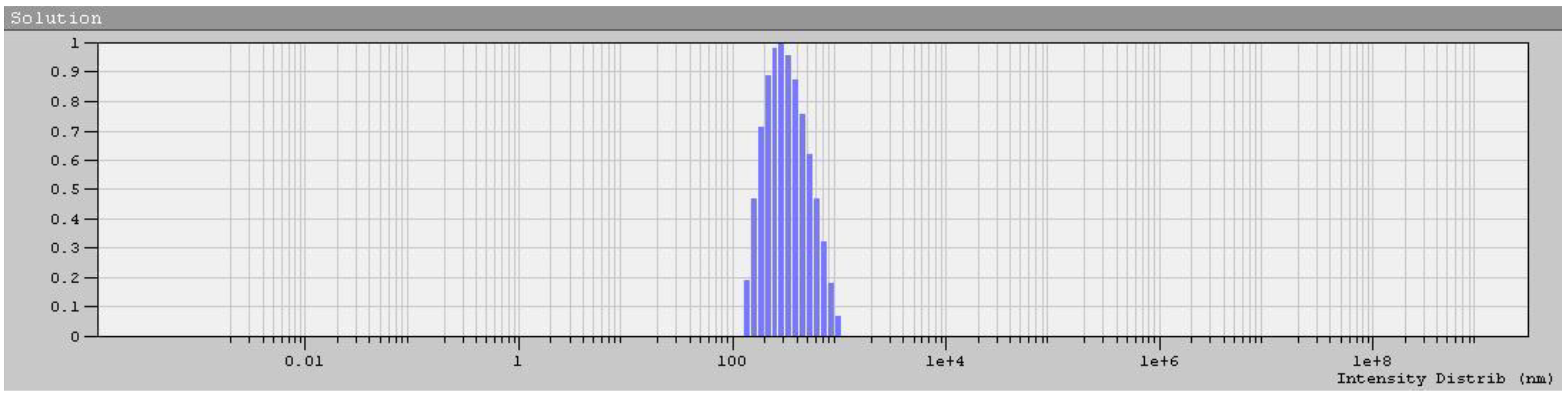

Figure 12. Rh spectrum obtained by DLS for the APEr.ch.-graft-PiPrOx aqueous solution at c = 1.05 × 10−2 g/cm3 and T = 10 °C.
Figure 12. Rh spectrum obtained by DLS for the APEr.ch.-graft-PiPrOx aqueous solution at c = 1.05 × 10−2 g/cm3 and T = 10 °C.
Ijms 22 12265 g012
Ijms 22 12265 g013 550

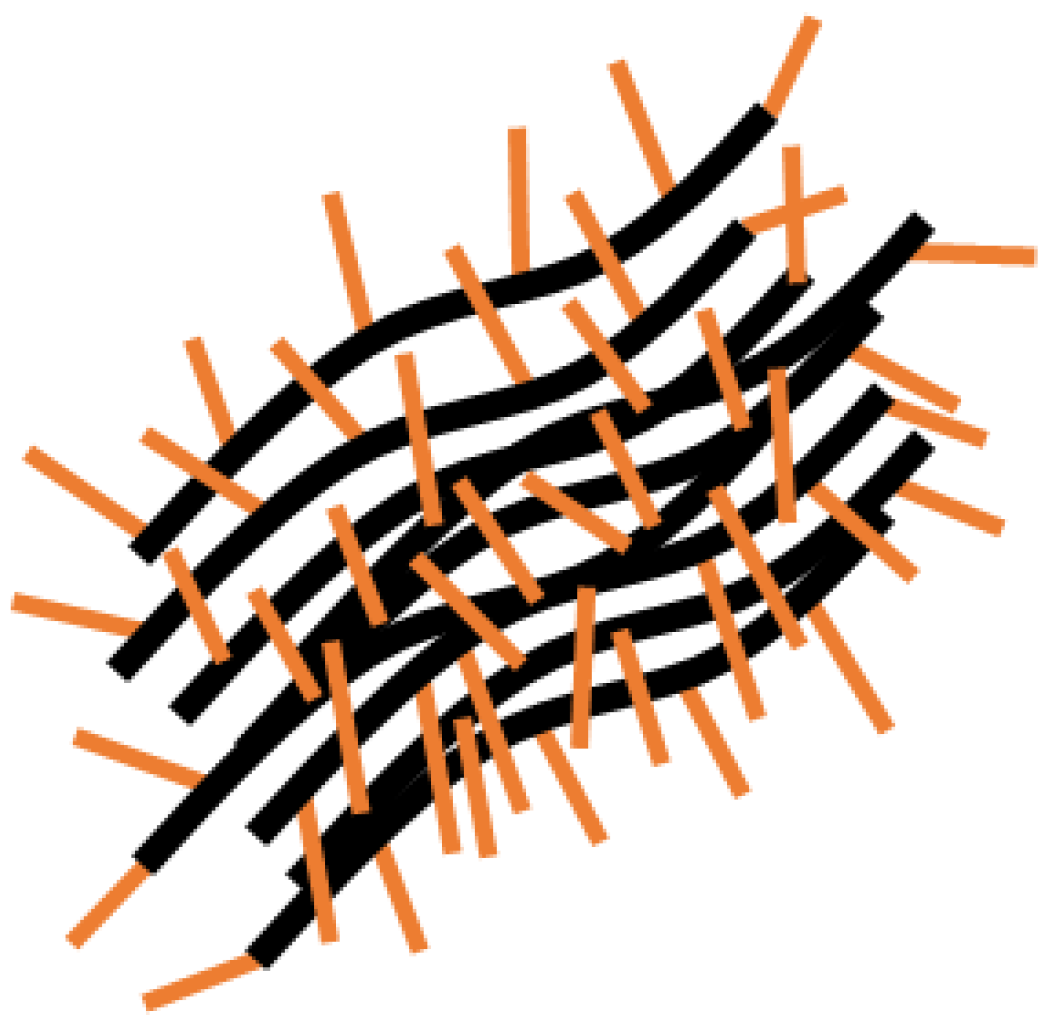

Figure 13. Aggregation of the APEr.ch.-graft-PiPrOx macromolecules in water.
Figure 13. Aggregation of the APEr.ch.-graft-PiPrOx macromolecules in water.
Ijms 22 12265 g013
Ijms 22 12265 g014 550
Figure 14. AFM topography image for mica surface with deposited APEr.ch.-graft-PiPrOx (a) and the profiles (b) corresponding to the white lines in (a).
Figure 14. AFM topography image for mica surface with deposited APEr.ch.-graft-PiPrOx (a) and the profiles (b) corresponding to the white lines in (a).
Ijms 22 12265 g014
Ijms 22 12265 g015 550
Figure 15. Temperature dependences of I/I15 (circles) and I*/I*15 (triangles) for the APEr.ch.-graft-PEtOx solutions at c = 0.0063 (open symbols) and 0.0038 g·cm−3 (black symbols). I15 and I*15 are the light scattering intensity and the optical transmission at 15 °C, respectively.
Figure 15. Temperature dependences of I/I15 (circles) and I*/I*15 (triangles) for the APEr.ch.-graft-PEtOx solutions at c = 0.0063 (open symbols) and 0.0038 g·cm−3 (black symbols). I15 and I*15 are the light scattering intensity and the optical transmission at 15 °C, respectively.
Ijms 22 12265 g015
Ijms 22 12265 g016 550
Figure 16. The temperature dependences of Rh for the APEr.ch.-graft-PEtOx solutions at c = 0.0063 (open symbols) and 0.0038 g·cm−3 (black symbols).
Figure 16. The temperature dependences of Rh for the APEr.ch.-graft-PEtOx solutions at c = 0.0063 (open symbols) and 0.0038 g·cm−3 (black symbols).
Ijms 22 12265 g016
Ijms 22 12265 g017 550
Figure 17. The temperature dependencies of I/I10 (circles) and I*/I*10 (triangles) for the APEr.ch.-graft-PiPrOx solutions at c = 0.0052 g·cm−3. I10 and I*10 are the light scattering intensity and the optical transmission at 10 °C, respectively.
Figure 17. The temperature dependencies of I/I10 (circles) and I*/I*10 (triangles) for the APEr.ch.-graft-PiPrOx solutions at c = 0.0052 g·cm−3. I10 and I*10 are the light scattering intensity and the optical transmission at 10 °C, respectively.
Ijms 22 12265 g017
Ijms 22 12265 g018 550
Figure 18. The temperature dependence of Rh for the APEr.ch.-graft-PiPrOx solutions at c = 0.0052 g·cm−3.
Figure 18. The temperature dependence of Rh for the APEr.ch.-graft-PiPrOx solutions at c = 0.0052 g·cm−3.
Ijms 22 12265 g018
Ijms 22 12265 g019 550
Figure 19. The concentration dependences of the phase separation temperatures of the APEr.ch.-graft-PEtOx (1) and APEr.ch.-graft-PiPrOx (2) solutions.
Figure 19. The concentration dependences of the phase separation temperatures of the APEr.ch.-graft-PEtOx (1) and APEr.ch.-graft-PiPrOx (2) solutions.
Ijms 22 12265 g019
Ijms 22 12265 g020 550
Figure 20. The concentration dependence of teqmax for the APEr.ch.-graft-PEtOx (1) and APEr.ch.-graft-PiPrOx (2) solutions.
Figure 20. The concentration dependence of teqmax for the APEr.ch.-graft-PEtOx (1) and APEr.ch.-graft-PiPrOx (2) solutions.
Ijms 22 12265 g020
Table
Table 1. Molecular characteristics of the APEr.ch., the APEr.ch.-graft-PEtOx, and the APEr.ch.-graft-PiPrOx.
Table 1. Molecular characteristics of the APEr.ch., the APEr.ch.-graft-PEtOx, and the APEr.ch.-graft-PiPrOx.
PolymerMw, g·mol−1A2 × 104, cm3mol/g2Rh, nm
APEr.ch.26,5000.412
APEr.ch.-graft-PEtOx208,000−0.631
APEr.ch.-graft-PiPrOx68,0005.918
Table
Table 2. Structural parameters of the APEr.ch.-graft-PEtOx and APEr.ch.-graft-PiPrOx.
Table 2. Structural parameters of the APEr.ch.-graft-PEtOx and APEr.ch.-graft-PiPrOx.
PolymerMs, g·mol−1zNscLsc, nmΔL, nmfsc
APEr.ch.-graft-PEtOx74000.5375282.924
APEr.ch.-graft-PiPrOx34000.2730115.613
Table
Table 3. Molar masses, structural parameters, and LCST for the APEr.ch.-graft-PEtOx, APE6-graft-PEtOx, APEr.ch.-graft-PiPrOx, and APE8-graft-PiPrOx.
Table 3. Molar masses, structural parameters, and LCST for the APEr.ch.-graft-PEtOx, APE6-graft-PEtOx, APEr.ch.-graft-PiPrOx, and APE8-graft-PiPrOx.
PolymerMw, g·mol−1Lsc/ΔLω, mol%LCST, °CReference
APEr.ch.-graft-PEtOx208,000101345this work
APE6-graft-PEtOx 159,0001.73350[70]
APE6-graft-PEtOx 175,0002.32455[70]
APEr.ch.-graft-PiPrOx68,0002.050<20this work
APE8-graft-PiPrOx 274,0002.02620[71]
1 APE6-graft-PEtOx is a graft copolymer containing –(CH)6– spacer in the APE6 main chain [70]. 2 APE8-graft-PEtOx is a graft copolymer containing –(CH)8– spacer in the APE8 main chain [71].
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Tarabukina, E.; Fatullaev, E.; Krasova, A.; Sokolova, M.; Kurlykin, M.; Neelov, I.; Tenkovtsev, A.; Filippov, A. Thermoresponsive Molecular Brushes with a Rigid-Chain Aromatic Polyester Backbone and Poly-2-alkyl-2-oxazoline Side Chains. Int. J. Mol. Sci. 2021, 22, 12265. https://doi.org/10.3390/ijms222212265

AMA Style

Tarabukina E, Fatullaev E, Krasova A, Sokolova M, Kurlykin M, Neelov I, Tenkovtsev A, Filippov A. Thermoresponsive Molecular Brushes with a Rigid-Chain Aromatic Polyester Backbone and Poly-2-alkyl-2-oxazoline Side Chains. International Journal of Molecular Sciences. 2021; 22(22):12265. https://doi.org/10.3390/ijms222212265

Chicago/Turabian Style

Tarabukina, Elena, Emil Fatullaev, Anna Krasova, Maria Sokolova, Mikhail Kurlykin, Igor Neelov, Andrey Tenkovtsev, and Alexander Filippov. 2021. "Thermoresponsive Molecular Brushes with a Rigid-Chain Aromatic Polyester Backbone and Poly-2-alkyl-2-oxazoline Side Chains" International Journal of Molecular Sciences 22, no. 22: 12265. https://doi.org/10.3390/ijms222212265

APA Style

Tarabukina, E., Fatullaev, E., Krasova, A., Sokolova, M., Kurlykin, M., Neelov, I., Tenkovtsev, A., & Filippov, A. (2021). Thermoresponsive Molecular Brushes with a Rigid-Chain Aromatic Polyester Backbone and Poly-2-alkyl-2-oxazoline Side Chains. International Journal of Molecular Sciences, 22(22), 12265. https://doi.org/10.3390/ijms222212265

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
