Article

Intracellular Na+ Modulates Pacemaking Activity in Murine Sinoatrial Node Myocytes: An In Silico Analysis

by
Stefano Morotti
1,*,
Haibo Ni
1,
Colin H. Peters
2,
Christian Rickert
2,
Ameneh Asgari-Targhi
1,
Daisuke Sato
1,
Alexey V. Glukhov
3,
Catherine Proenza
2,4 and
Eleonora Grandi
1,*
1
Department of Pharmacology, University of California Davis, Davis, CA 95616, USA
2
Department of Physiology and Biophysics, University of Colorado Anschutz Medical Campus, Aurora, CO 80045, USA
3
Department of Medicine, Cardiovascular Medicine, University of Wisconsin Madison School of Medicine and Public Health, Madison, WI 53705, USA
4
Department of Medicine, Division of Cardiology, University of Colorado Anschutz Medical Campus, Aurora, CO 80045, USA
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2021, 22(11), 5645; https://doi.org/10.3390/ijms22115645
Submission received: 19 April 2021 / Revised: 21 May 2021 / Accepted: 25 May 2021 / Published: 26 May 2021
(This article belongs to the Special Issue New Insights into Cardiac Ion Channel Regulation)
Browse Figures
Versions Notes

Abstract

:
Background: The mechanisms underlying dysfunction in the sinoatrial node (SAN), the heart’s primary pacemaker, are incompletely understood. Electrical and Ca2+-handling remodeling have been implicated in SAN dysfunction associated with heart failure, aging, and diabetes. Cardiomyocyte [Na+]i is also elevated in these diseases, where it contributes to arrhythmogenesis. Here, we sought to investigate the largely unexplored role of Na+ homeostasis in SAN pacemaking and test whether [Na+]i dysregulation may contribute to SAN dysfunction. Methods: We developed a dataset-specific computational model of the murine SAN myocyte and simulated alterations in the major processes of Na+ entry (Na+/Ca2+ exchanger, NCX) and removal (Na+/K+ ATPase, NKA). Results: We found that changes in intracellular Na+ homeostatic processes dynamically regulate SAN electrophysiology. Mild reductions in NKA and NCX function increase myocyte firing rate, whereas a stronger reduction causes bursting activity and loss of automaticity. These pathologic phenotypes mimic those observed experimentally in NCX- and ankyrin-B-deficient mice due to altered feedback between the Ca2+ and membrane potential clocks underlying SAN firing. Conclusions: Our study generates new testable predictions and insight linking Na+ homeostasis to Ca2+ handling and membrane potential dynamics in SAN myocytes that may advance our understanding of SAN (dys)function.

Graphical Abstract

1. Introduction

In a healthy individual, each cardiac beat is initiated by the periodic activation of the sinoatrial node (SAN), the primary pacemaker of the heart [1]. The SAN is a complex and heterogeneous structure [2] that consists of a mix of fibroblasts, atrial myocytes, and a subpopulation of specialized myocytes characterized by the peculiar capability of spontaneously firing an action potential (AP), which is the main determinant of SAN pacemaking activity. It is well known that multiple mechanisms forming a “coupled-clock system” are involved in sustaining the automaticity of the spontaneously beating SAN myocytes (SAMs) [3,4]. The first subsystem, called “membrane clock”, encompasses sarcolemmal ion channels and transporters that exhibit voltage- and time-dependent properties and interact nonlinearly to shape AP characteristics. Those include the hyperpolarization-activated cyclic nucleotide-gated channels (carrying the “funny” current If, the dominant driver of early depolarization) [5], the voltage-gated L-type and T-type Ca2+ channels (carrying ICaL and ICaT, respectively) [6], various voltage-gated Na+ and K+ channels, and the electrogenic Na+/K+ ATPase (NKA) and Na+/Ca2+ exchanger (NCX) [3,4]. NKA consumes ATP to steadily extrude 3 Na+ ions and import 2 K+ ions (thereby contributing an outward current). In contrast, NCX exchanges one Ca2+ ion for 3 Na+ ions and, depending on the electrochemical gradients of Na+ and Ca2+, results in either inward or outward current (with the former mode being predominant during the AP). The second subsystem, called “Ca2+ clock”, refers to the mechanisms responsible for regulating intracellular Ca2+ concentration ([Ca2+]i), including the release of Ca2+ from and reuptake into the sarcoplasmic reticulum (SR). In particular, local spontaneous Ca2+ releases occurring periodically during diastole activate inward NCX current (in Ca2+-extrusion mode), contributing to diastolic depolarization by directly coupling Ca2+ handling with AP dynamics [3,4]. Coupling between the membrane and Ca2+ clocks is also modulated by other [Ca2+]i-dependent processes, such as Ca2+-dependent inactivation (CDI) of ICaL [7], and is bidirectional, in that AP morphology and duration also affect cytosolic and SR Ca2+ levels by shaping Ca2+ influx and efflux. Disruption of the mechanisms influencing the coupled-clock system impairs regulation of SAM automaticity and can compromise SAN function leading to pathologic phenotypes, including bradycardia, tachy-brady arrhythmias, and sinus arrest [8]. While genetic mutations can cause SAN dysfunction [6,9,10], this condition, also called “sick sinus syndrome”, is associated with more common widespread diseases like heart failure (HF) and atrial fibrillation [11,12], or aging [13]. Despite progress made with animal studies in the last decades to unravel the pathophysiological mechanisms underlying SAN dysfunction, our understanding of the disease in humans and treatment options for patients are limited [8], whereby implantation of an electronic pacemaker is still the most common solution [10].
One understudied aspect of the regulation of SAN electrophysiology is the role of intracellular Na+ ([Na+]i) homeostasis. [Na+]i has emerged as a key regulator of cardiac excitation-contraction coupling in ventricular and atrial myocytes [14,15,16], in that it controls not only cardiac inotropy by affecting the ability of NCX to extrude Ca2+, but also affects cardiac excitability and AP duration by modulating voltage-gated Na+ channels [17,18] and electrogenic NKA and NCX currents [19,20,21]. Indeed, in ventricular myocytes from HF rabbits and patients, excessive Na+ accumulation limits NCX-mediated Ca2+ extrusion, possibly leading to diastolic dysfunction and increased propensity for Ca2+-induced triggered arrhythmias [20,21,22,23,24,25]. Unlike [Ca2+]i, which shows large changes from ~100 nM to ~1 µM within each cardiac cycle (i.e., a few hundreds of milliseconds) [26], the balance between Na+ influx and efflux mechanisms results in a relatively stable [Na+]i from beat to beat, with changes requiring many seconds to minutes. Indeed, slow changes in [Na+]i have been shown to underlie intermittent arrhythmias in both atrial and ventricular myocytes [27,28]. While these Na+ channels and transport mechanisms are mostly maintained in SAMs, distinct SAN AP characteristics and transmembrane ion channel repertoire may uniquely shape Na+ in these cells. Furthermore, the effect of alterations in Na+ homeostasis on SAM automaticity is largely unexplored, nor is it known whether changes in [Na+]i are involved in SAN remodeling and dysregulation observed, e.g., in HF patients [11]. Interestingly, abnormalities in Na+ influx and extrusion pathways, via either NCX knockout or ankyrin-B loss of function (which disrupts localization and expression of NCX and NKA) lead to irregular SAN activity, including tachy-brady arrhythmias and increased heart rate variability [29,30,31,32,33].
Here, we aim to quantitatively assess the impact of [Na+]i changes on SAM automaticity and to test whether Na+ dysregulation may contribute to SAN dysfunction. To pursue this goal, we developed a dataset-specific computational model of the murine SAM and simulated the effects of blocking NKA and NCX (i.e., the major mechanisms of Na+ removal and influx, respectively). We demonstrate that Na+ homeostasis dynamically regulates SAM electrophysiology, whereby Na+ changes can lead to an array of arrhythmogenic phenotypes, including tachycardia, bursting behavior, and complete loss of automaticity. Our study provides new insight into the link between [Na+]i, [Ca2+]i, and AP dynamics in SAMs and generates new testable predictions that may advance our understanding of cardiac pacemaking function and dysfunction.

2. Results

2.1. A Computational Model of Murine SAMs Well Recapitulates a Broad Experimental Dataset

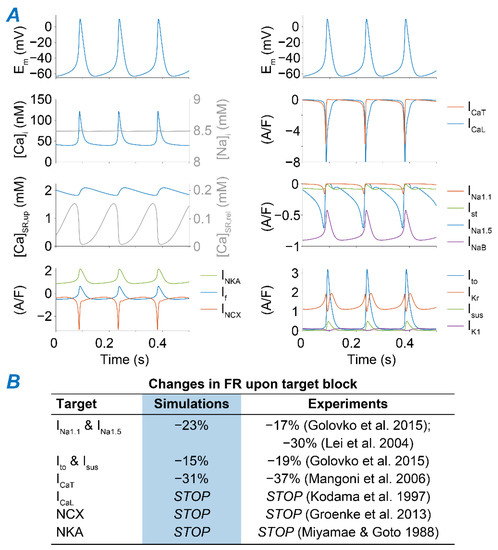

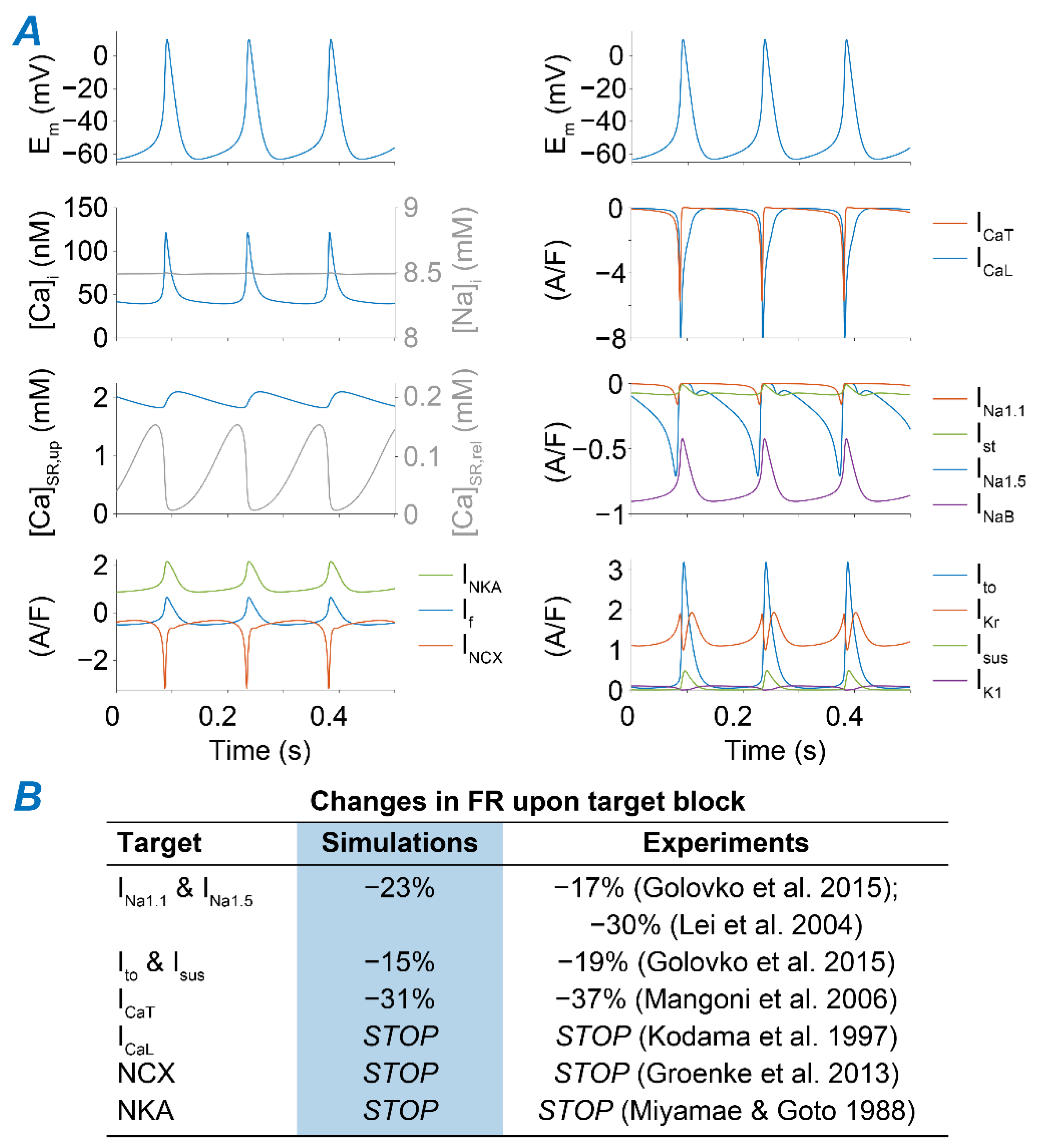

We simulated the murine SAM AP using the published model developed by Kharche et al. [34], updated to more closely recapitulate our experimental datasets. First, we adjusted the formulation of several ionic currents based on our measurements of ICaL [35], transient and steady-state outward K+ currents (Ito and Isus) [36], and If [37] (Figure 1A). Then, we applied a global optimization method [38] to scale selected model parameters (Table A1) to match measured AP characteristics (Figure 1B and Table A2) [39,40]. The resulting optimized model reproduces AP waveform properties that closely resemble our experimental results (Figure 1C,D and Figure 2A). As an additional validation step, we confirmed that the model reproduces the reported effects of selectively blocking individual ion channels and transporters on SAM firing rate (FR, Figure 2B) [41,42,43,44,45,46].

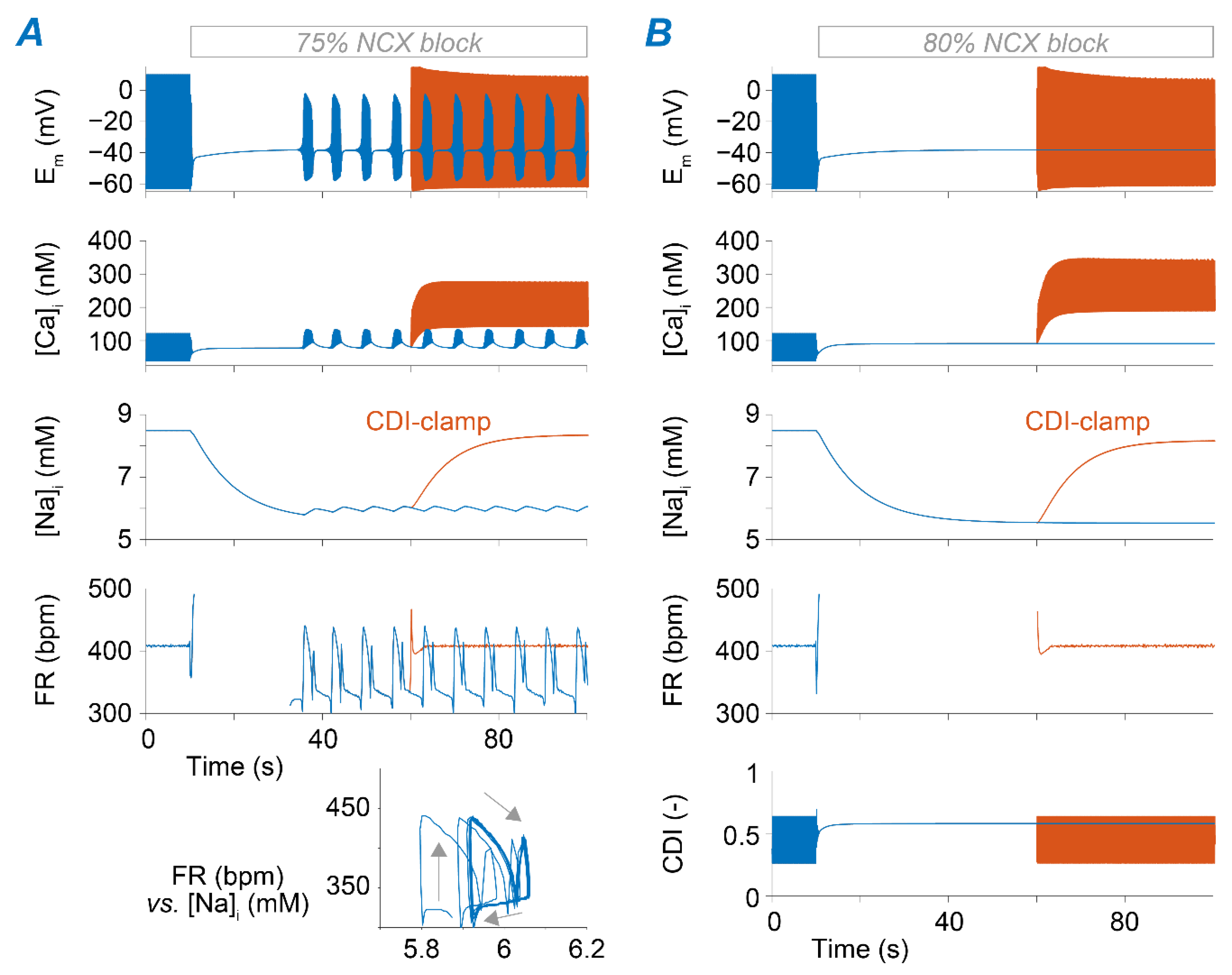

2.2. NKA and NCX Inhibition Can Both Boost and Disrupt SAM Automaticity

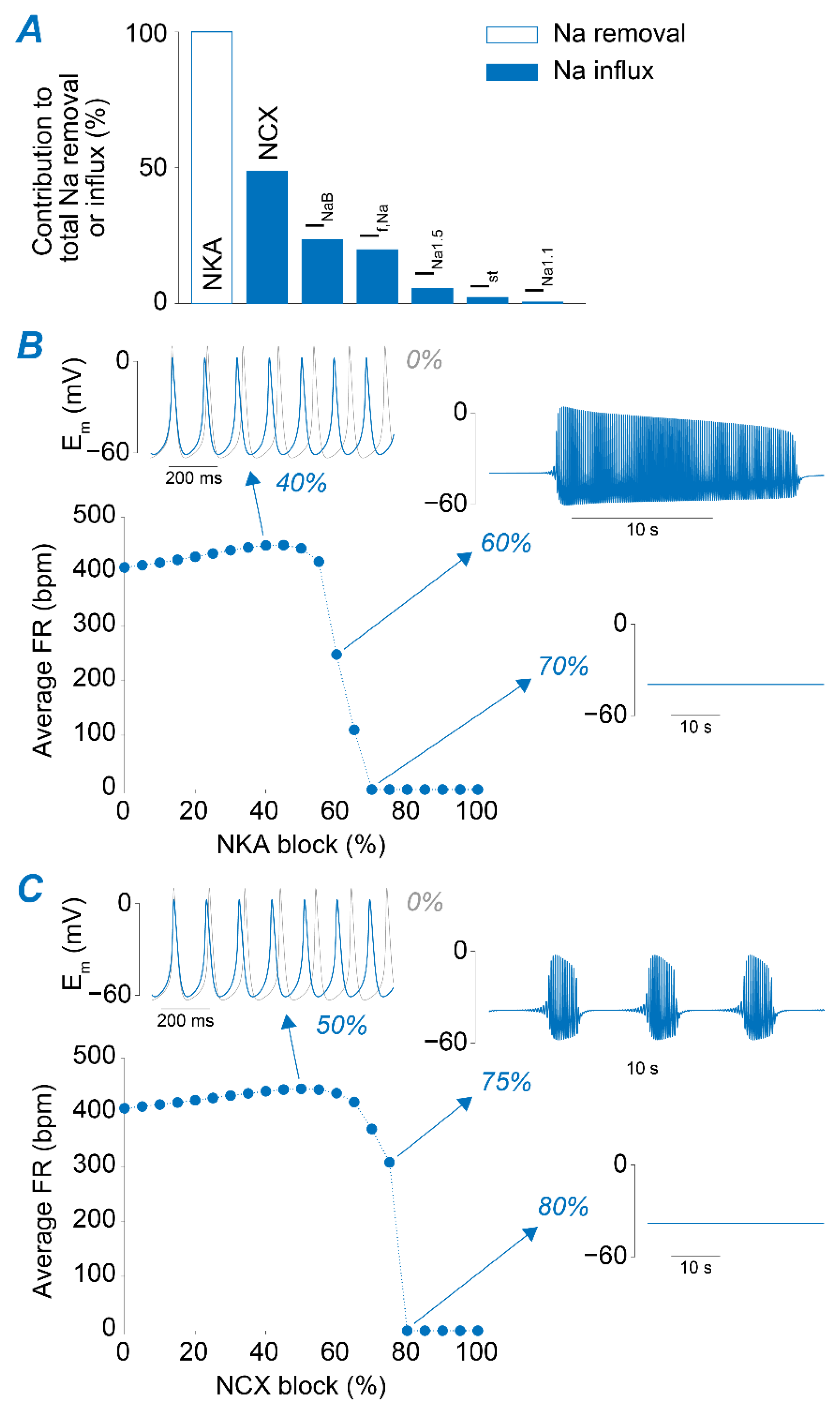

Regulation of [Na+]i depends on the balance between Na+ influx and efflux through the sarcolemmal membrane during the beat cycle. Figure 3A depicts the predicted contribution of various mechanisms for Na+ removal (NKA) and Na+ influx, mediated by the voltage-gated TTX-sensitive, TTX-insensitive, and sustained Na+ currents (INa1.1, INa1.5, and Ist, respectively), a passive Na+ leak (INaB), If (which carries both Na+ and K+), and NCX [34]. In the model, NCX constitutes the main Na+ entry pathway, accounting for ~50% of the total Na+ influx, whereas NKA is the only Na+ extrusion pathway. Thus, we manipulated their respective maximal transport rates (vNKA and vNCX) to produce substantial changes in Na+ homeostasis and investigate the effects induced by Na+ accumulation and depletion on SAN automaticity. Interestingly, despite opposite effects on [Na+]i, we observed similar phenotypes when progressively increasing the degree of the block of each transporter (Figure 3B,C). Reducing NKA or NCX function up to ~60 and 50%, respectively, has a slight positively chronotropic effect. However, higher degrees of block lead to a decrease in FR and irregularities in pacemaking function, in which the SAM capability of firing APs is periodically lost and restored. Further reductions in NKA (≥70%) or NCX (≥80%) eventually lead to permanent loss of SAM automaticity, in agreement with experimental observations [45,46]. We analyzed these results and performed simulations to dissect the mechanisms underlying the observed phenotypes, as detailed in the following sections.

2.3. Na+ Accumulation Induced by NKA Impairment Reduces SAM Automaticity via Ca2+ Overload and Excessive Ca2+-Dependent ICaL Inactivation

The time course of SAM response to NKA blockade reveals both instantaneous and gradual changes in SAM electrophysiology (Figure 4 and Figure 5). This is due to the abrupt reduction in the electrogenic NKA current that alters voltage dynamics and thus FR instantaneously, and the slower consequent increase in Na+, which modulates Ca2+ homeostasis and AP dynamics. When reducing vNKA by 40%, decreased outward current accelerates diastolic depolarization and suddenly enhances SAM automaticity (Figure 4; after a transient spike that fades in a few beats). Then, [Na+]i accumulates over time and leads to further enhancement in SAM automaticity. This further FR increase is due to [Na+]i-mediated increase in [Ca2+]i and consequently increased NCX activity during diastole. In fact, when we repeated the simulation with [Na+]i clamped at the initial value to prevent its elevation, the slow FR adaptation phase is prevented. Our simulations also predict a reduced steady-state AP amplitude due to increased ICaL CDI limiting the AP upstroke (Figure 4).
As shown in Figure 3B, the steady-state response leads to very different outcomes upon a higher degree of NKA block. When reducing vNKA by 60%, the model enters a bistable regime in which the SAM exhibits intermittent firing activity (Figure 5A). The switch between these two states is determined by slow changes in [Na+]i that accumulates during the active phase and diminishes during the pauses. To demonstrate that this arrhythmic phenotype is caused by Na+ accumulation and depletion, we ran additional simulations in which [Na+]i was clamped to the maximal or minimal Na+ levels (~13.5 and ~12 mM, respectively) seen during the oscillations. Indeed, model results predict that the bursting behavior is suppressed if Na+ is kept constant, whereby Na+ elevation (or depletion) can permanently interrupt (or restore) regular AP firing (Figure 5A). Permanent loss of automaticity is observed when the NKA block is ≥70%. In this case, Na+ levels increase due to limited extrusion, and the SAM membrane potential stabilizes at ~−40 mV, similarly to the value reported in rabbit multicellular SAN preparations [46]. In these conditions, regular firing activity could be restored by clamping [Na+]i in our model to a lower level (12 vs. ~14 mM, Figure 5B).
To identify the mechanism linking Na+ overload to loss of AP firing, we analyzed the changes in currents and transporters modulated by [Na+]i, either directly or indirectly (e.g., via Ca2+ overload). We found that Na+-dependent Ca2+ accumulation increases CDI of ICaL to the extent that it hampers a current essential for generating the AP [44,47]. Indeed, our simulations reveal that firing activity can be re-initiated (even with high Na+ load) by restoring CDI to the levels seen before perturbing NKA function (Figure 5B).

2.4. Ca2+ Accumulation Induced by NCX Impairment Reduces SAM Automaticity via Excessive Ca2+-Dependent ICaL Inactivation

Despite the opposing roles of NKA and NCX in regulating cellular Na+ loading, the block of these transporters has similar consequences in terms of changes in FR (Figure 3). The next set of simulations aimed at identifying similarities and differences in the underlying mechanisms. We found that positive chronotropy induced by reducing vNCX up to 60% is primarily mediated by increased [Ca2+]i that enhances NCX activity during diastole and limits ICaL (via CDI), leading to a lower AP peak (Figure S1). The moderate [Na+]i decrease predicted in this case weakly counteracts Ca2+ accumulation and contributes to the chronotropic effect by slightly decreasing outward NKA current and facilitating diastolic depolarization (Figure S1). Upon 75% reduction of vNCX, the cell enters a bistable regime characterized by periodic transitions between the active (firing) and inactive states (Figure 6A), accompanied by small oscillations in [Na+]i. Once again, disruption of regular pacemaking is due to excessive CDI of ICaL induced by intracellular Ca2+ accumulating during the active phase. When simulating ≥80% vNCX reduction, SAM automaticity is permanently lost (Figure 6B), in agreement with observations in murine SAMs lacking NCX [45]. As previously shown for NKA block, disruption of SAM automaticity is primarily determined by Ca2+ overload, which hampers ICaL via excessive CDI (Figure 6B).

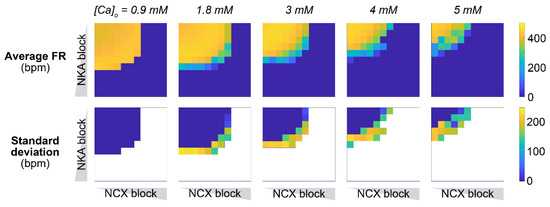

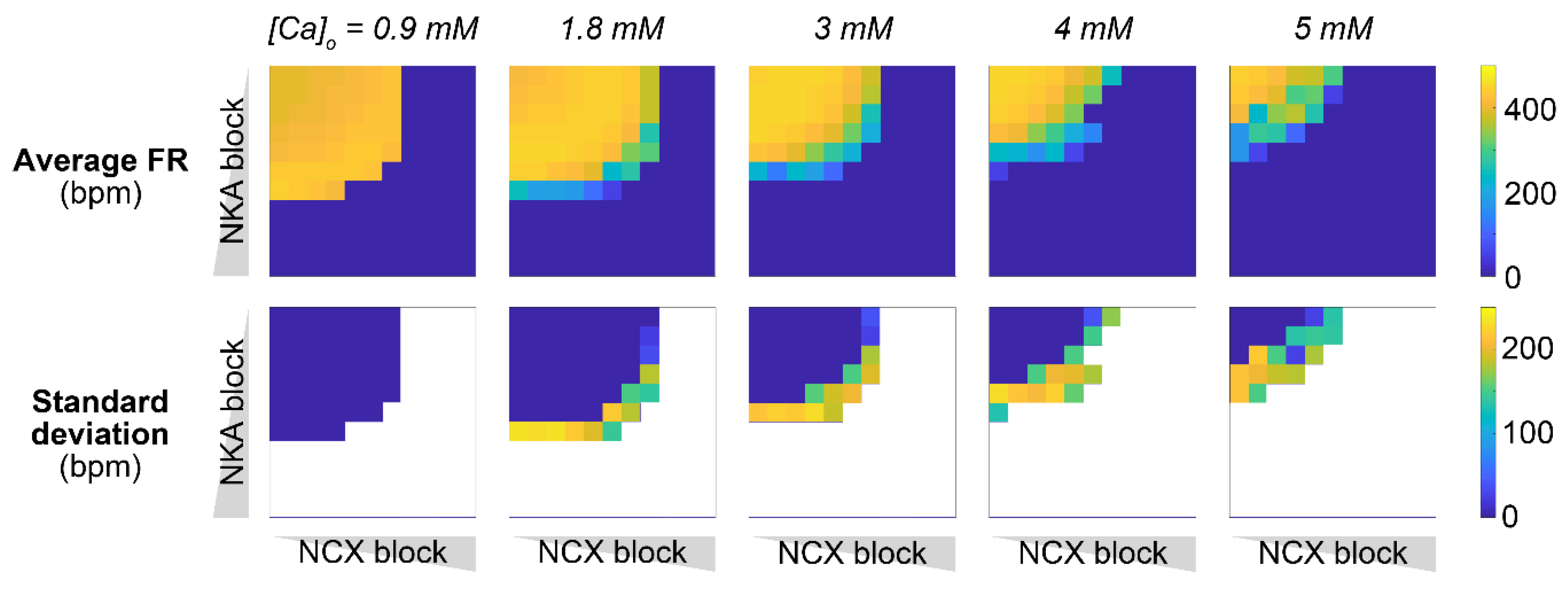

2.5. Concomitant NKA, NCX, and ICaL Block Increases the Susceptibility to Pacemaking Dysfunction

We demonstrated that individual blocks of NKA and NCX could impair SAM automaticity. Interestingly, however, concomitant downregulation of NKA and NCX has been observed in mice lacking functional ankyrin-B [31,32] and could be a key contributing factor to the emerging irregularities in SAN function. We hypothesized that impairment in both transporters could act synergistically, whereby smaller concomitant reductions in vNKA and vNCX are required to disrupt SAM firing activity compared to those needed when NKA (≥60%) and NCX (≥75%) are altered individually. To test our hypothesis, we simulated various combinations of NKA and NCX block, ranging from normal function to complete block, and assessed the impact on average FR and FR variability (Figure 7). As hypothesized, our simulations predicted developing irregular pacemaking activity, including bursting and permanent loss of automaticity, with a combined ≥50% reduction of vNKA and vNCX.
We previously described the key role of ICaL in the generation of SAM APs, and the deleterious consequences of increasing CDI (Figure 5 and Figure 6). Notably, ICaL was found reduced in dysfunctional SAMs from both NCX knockout and ankyrin-B-deficient mice [29,32], potentially due to a compensatory mechanism to reduce Ca2+ load [48]. To assess how changes in ICaL influence SAM response in the face of combined NKA and NCX block, we expanded the parametric analysis in Figure 7 by simulating the effects of variations in ICaL maximal conductance (GCaL) and voltage-dependent gating (Figure 8). Our results show that the region in which regular SAM firing activity is preserved shrinks as GCaL is reduced, suggesting that even smaller perturbations of NKA and NCX function could result in SAM dysfunction in the case of ICaL downregulation. Similarly, we observed that the region with irregular firing activity expands as voltage-dependence of ICaL is shifted toward more positive potentials (i.e., to increase its voltage threshold of activation).

3. Discussion

3.1. Summary of the Results

Intracellular Na+ homeostasis is critical in regulating cardiac electrophysiology and contraction in atrial and ventricular myocytes [14,15]. Elevated cardiomyocyte [Na+]i has been reported in diseases such as HF and diabetes [16], contributing to arrhythmogenesis and impaired relaxation. SAN dysfunction is often associated with these diseases, but the role of [Na+]i in the regulation of cardiac pacemaking is largely unexplored in normal physiology, let alone in disease. Here, we sought to investigate how Na+ homeostasis affects SAM automaticity and to test whether [Na+]i dysregulation may contribute to SAN dysfunction. We simulated mouse SAM APs using the Kharche et al. model [34], fitted to our experimental dataset recently collected in mice at a physiologic temperature [39] (Figure 1). We showed that disrupting Na+ homeostasis by reducing NKA or NCX function leads to an array of phenotypes, including enhanced FR, bursting behavior, and complete loss of automaticity (Figure 3). Our model-based analysis revealed that these behaviors are due to the coupling of Na+ homeostasis to Ca2+ handling (via NCX) and to membrane potential dynamics (via ICaL CDI) in SAMs (Figure 5 and Figure 6). We also found that NKA and NCX block displays a synergistic pro-arrhythmic effect (Figure 7), and disruption of SAM automaticity is also facilitated by downregulation of ICaL (Figure 8).

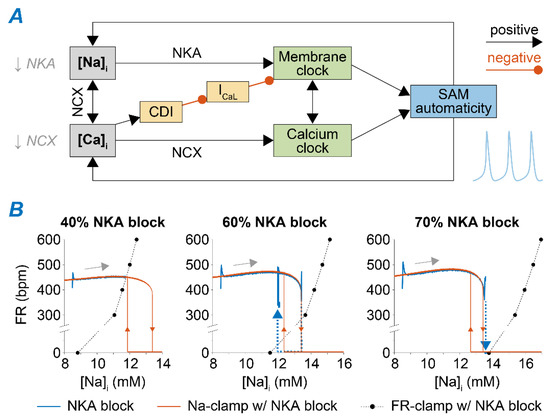

3.2. Feedback of Na+ and Ca2+ Signals and Membrane Clock Dynamically Modulates SAM Automaticity

Our results reveal complex interactions of intracellular Na+ homeostasis, Ca2+ handling, and AP dynamics in SAMs (Figure 9A). At baseline, modest increases in Ca2+ and Na+ loading enhance FR. Mild inhibition of NKA leads to enhanced automaticity via a direct effect on membrane dynamics (due to a reduced outward current in diastole) and a Na+-mediated increase in Ca2+ load and consequent NCX increase that accelerates the Ca2+ clock. Modest NCX inhibition leads to opposite and smaller changes in [Na+]i (Figure S2), but the impaired Ca2+ extrusion favors Ca2+ accumulation and results in a comparable chronotropic effect. Strong NKA and NCX function reductions lead to excessive Ca2+ accumulation, which increases CDI and prevents ICaL and AP firing. For intermediate degrees of NKA and NCX block, SAMs display intermittent firing activity, in which slow changes in [Na+]i and diastolic [Ca2+]i (which increase during firing and decrease during the pause) drive the switch between predominantly positive or negative coupling between increased Ca2+ loading and coupled membrane and Ca2+ clock. In the case of the 60% NKA block, the sudden decrease in NKA causes slow Na+ accumulation. This increased [Na+]i in turn outwardly shifts the NKA current and causes FR to increase but also increases Ca2+ loading (due to reduced NCX) and favors CDI. Thus, negative feedback exists between the slow Na+ dynamics and the fast [Ca2+]i-FR subsystem. In phase plots of FR and [Na+]i, the fast [Ca2+]i-FR subsystem shows bistable FR (FR nullcline, orange lines in Figure 9B, central panel). The slow [Na+]i variable increases monotonically with FR ([Na+]i nullcline, black dots). The intersection of these two nullclines, which identifies the system’s fixed point, does not occur in either stable branches of the FR nullcline but crosses the unstable region (Figure 9B, central panel). Thus, the system oscillates, and the FR-Na+ phase plot forms a hysteresis loop, corresponding to the quasi-periodic FR fluctuations (i.e., bursting) observed at the steady-state (Figure 5A). When NKA block is modest (i.e., 40%) and our simulations predict regular steady-state firing activity, Na+ and FR nullclines cross within the FR-Na+ phase plot, and the fixed point of the system anchors on the stable branch corresponding to regular AP firing (Figure 9B, left panel). Conversely, with strong NKA reduction (i.e., 70%), the firing is stably suppressed (Figure 9B, right panel). Similar dynamics were observed in ventricular myocytes, where feedback of [Ca2+]i and [Na+]i that influence membrane voltage could explain the intermittency of early after-depolarizations [27].

3.3. Disruption of Na+ Homeostatic Processes Contributes to SAN Dysfunction in Animal Models and Patients

Our model analysis suggests that pharmacological NKA inhibition can have opposite consequences in SAN myocytes, depending on the degree of induced Na+ (and Ca2+) rise, similar to experimental observations in ventricular myocytes upon administration of cardiac glycosides [49]. Cardiac glycosides are used in treating congestive HF to promote inotropy. Moderate Na+ accumulation has a positive inotropic effect in ventricular myocytes and a positive chronotropic effect in our SAN cell simulations. Excessive [Na+]i displays pro-arrhythmic side effects, including an increased propensity for spontaneous SR Ca2+ release and delayed after-depolarizations, and decreased lusitropy in ventricles [49], and disrupts simulated SAN pacemaker activity, which may contribute to arrhythmia due to ectopic pacemakers. Notably, patients intoxicated by cardiac glycosides also develop supraventricular arrhythmias [50]. Although cardiac glycosides decrease heart rate due to vagomimetic and anti-adrenergic effects [50], studies in isolated SAN multicellular preparations, devoid of neurohormonal control, reported an increase in FR (a phenomenon called “digitalis-induced sinus tachycardia”), development or irregular activity, and arrest of pacemaking function [46,50,51]. While our simulations reproduce these phenotypes, future experimental work should investigate whether reduction of Na+ load attenuates the impact of cardiac glycosides on SAM function.
Our simulations also recapitulated data from mouse models of atrial-selective NCX knockout or ankyrin-B syndrome [30,31], thus suggesting that interventions aimed at restoring Na+ homeostasis and/or its consequences for Ca2+-dependent processes can reduce the susceptibility for pacemaking irregularities. Indeed, our simulation of complete NCX block predicted loss of automaticity, as observed in isolated SAMs from NCX knockout mice [45]. Loss of function of ankyrin-B impairs targeting and stabilization of NKA, NCX, and inositol trisphosphate (InsP3) receptors at the transverse-tubule/SR sites in cardiomyocytes [31], leading to a broad set of cardiac dysfunctions, including impaired pacemaking [31,32,33]. Since the analysis of SAMs isolated from ankyrin-B-deficient mice suggested concomitant downregulation of NKA and NCX [32], SAN irregularities in this animal model could be facilitated by the synergistic effect described for the combined NKA and NCX block (Figure 7).
While we simulated acute changes induced by NCX and NKA inhibition, long-term chronic changes (e.g., due to transcriptional and post-translational regulation) are likely to occur in these extremely high Na+ and Ca2+ levels. Indeed, experiments in both NCX knockout and ankyrin-B-deficient mice also revealed a ~50% decrease in ICaL [29,32]. While reduced ICaL is likely a mechanism to limit cellular Ca2+ overload [48], our analysis predicts that this maladaptive alteration further impairs SAN pacemaking by reducing the NKA and NCX block ranges that remain compatible with stable SAM function (Figure 8). Future experimental investigations could test whether increasing ICaL can attenuate the pathologic phenotype observed in these mice. Notably, level of serum (or extracellular) Ca2+ concentration ([Ca2+]o) influences Ca2+ influx via ICaL and the function of other Ca2+ handling processes in SAMs. Development of hypocalcemia and hypercalcemia have been documented in several pathologic states, and both conditions have been associated with increased pro-arrhythmic risk [52]. Our simulations show that increasing [Ca2+]o enhances SAM automaticity (Figure 10), in agreement with recent computational work that also has suggested that this effect is even more pronounced in humans vs. small mammals [53,54]. Our results further demonstrate that increasing [Ca2+]o increased SAM susceptibility to irregularities induced by combined NKA and NCX block (Figure 10), confirming recent experimental observations reporting that hypercalcemia not only increases FR but can also increase the propensity of SAN dysfunction in mice [55].
We assessed the translatability of our findings in mouse to human physiology by simulating the Loewe et al. model of the human SAM [53]. Human simulations confirmed our observations in murine SAMs that inhibition of NCX or NKA can disrupt SAM automaticity via Ca2+ overload and consequent ICaL inhibition (Figure S3). As observed with our mouse model (Figure 5), preventing the accumulation of Na+ due to NKA block restores regular automaticity in human SAMs (see [Na+]i-clamp simulation in Figure S3C). Clamping CDI of ICaL to the values predicted before block restores fast (but irregular) firing activity after disruption of human SAM function induced by NCX or NKA block (see CDI-clamp simulations in Figure S3C,D). However, the human model did not predict the chronotropic effect induced by mild NKA block in murine SAMs (Figure 4), and neither NCX nor NKA block (or their combined inhibition) led to developing the bursting activity. These results suggest that intracellular Na+ levels affect pacemaking function in both human and murine SAMs. However, interspecies differences likely exist in the strengths and relative roles of the processes linking Na+, Ca2+, and membrane potential homeostasis depicted in Figure 9 that warrant further investigation.

3.4. Limitations and Future Directions

Despite the modifications made to closely recapitulate our experimental dataset, our model maintains the same structure of the original Kharche et al. version and inherits its main limitations previously discussed in [34]. Notably, this framework does not include several components proposed to actively regulate SAM electrophysiology in control and, more so, pathologic conditions. Those include ion channels (e.g., small-conductance Ca2+-activated K+ channels [56]), transporters (e.g., InsP3 receptors [57], and Na+/H+ exchanger [58,59]), and intracellular signaling pathways (e.g., CaMKII- [60] and PKA-dependent cascades [61]).
Neurohumoral regulation is a major determinant of pacemaking function in vivo [62], and β-adrenergic signaling critically regulates the coupling between the membrane and Ca2+ clocks in human SAMs [63]. Thus, future work should investigate the role of Na+ homeostasis in mediating SAM response to the β-adrenergic challenge when increases in PKA-dependent phosphorylation of phospholemman enhances NKA function [64,65]. The consequent Na+ depletion expected in this case could, for example, be involved in the isoproterenol-induced restore of automaticity observed in dormant SAMs [63,66].
Future investigations should also extend our analysis to incorporate the structural modifications that have been associated with SAN dysfunction, including remodeling in subcellular ultrastructure [30] and functional microdomains [67] and tissue-level fibrosis [68]. Experiments in intact SAN tissue isolated from NCX knockout mice revealed bursting activity [29]. Since heterogeneous Na+ loading has been associated with repolarization abnormalities in ventricular tissue simulations [27], future work should explore whether intercellular [69] and inter-regional variability [44,70] affect SAN function at the tissue level.

3.5. Conclusions

In this study, we show that [Na+]i dynamically modulates SAM automaticity during regular and irregular firing regimes, and reveal new mechanisms by which aberrant Na+ signaling plays an important role in generating cardiac disorders [71]. Experimental characterization of the mechanisms controlling SAM Na+ homeostasis, including testing our model predictions, may advance our understanding of cardiac pacemaking function and dysfunction and aid in identifying new therapeutic targets [72].

4. Methods

4.1. Experimental Data

Experimental data previously collected by the Proenza laboratory [35,36,37,39] were used to constrain model reparameterization. Briefly, SAMs were isolated from 2–3 months old male C58BL/6 J mice [73,74], and membrane currents and spontaneous APs were recorded at 35 °C in whole-cell and amphotericin perforated patch configurations, respectively [35,36,39]. AP characteristics (defined in Table A2) were determined for each cell from average waveforms from 5 s recording windows using the software ParamAP [40].

4.2. Model Development

The Kharche et al. model of murine SAMs [34], implemented in MATLAB (The MathWorks Inc., Natick, MA, USA), provided the basis for our simulations. We first modified the formulation of the following currents to match our experimental data (Figure 1A):
(i)
ICaL. The original Kharche et al. model includes isoform-specific formulations for ICaL1.2 and ICaL1.3 based on data obtained from genetically modified mice lacking either isoform. Given the lack of pharmacological agents that unequivocally distinguish between Cav1.2 and Cav1.3 when both expressed in wild-type mice, we eliminated ICaL1.2 and re-parameterized the formulation of ICaL1.3 to reproduce our experimental peak ICaL-voltage relationship [35]. This was obtained by negatively shifting (−7 mV) the voltage-dependence of activation and inactivation and decreasing the maximal conductance by one-third.
(ii)
Ito and Isus. Maximal conductances of both components of the outward K+ currents were increased by 2.5-fold [36].
(iii)
If. The original If the formulation of the Kharche et al. model was replaced with our recently updated version [37]. Briefly, we modified and extended the Hodgkin-Huxley type If model originally present in the Kharche et al. framework based on our novel data in murine SAMs describing voltage-dependence of If availability and activation/deactivation kinetics. Notably, in our novel formulation, activation and deactivation of If exhibit both fast and slow kinetics [37].

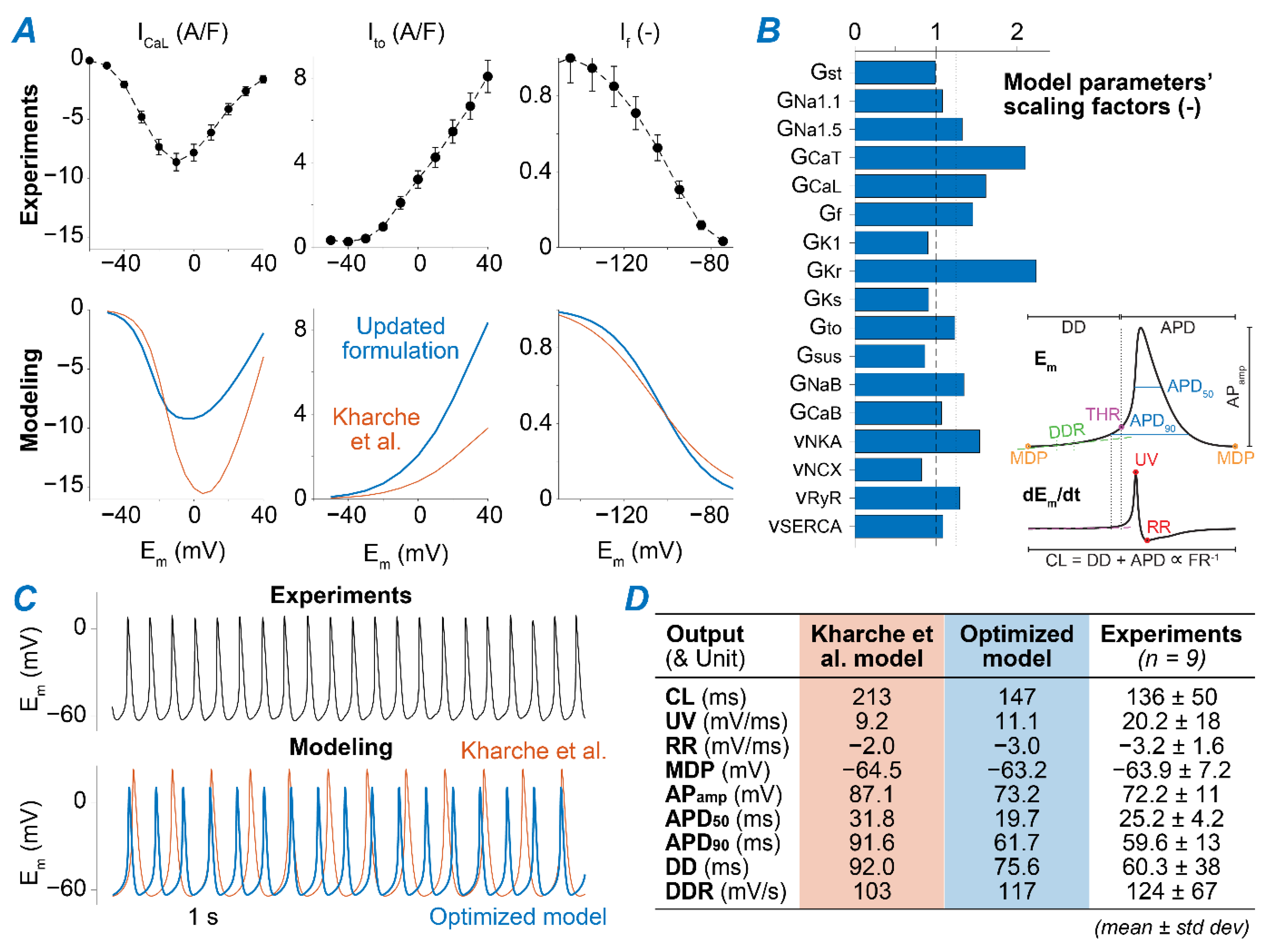

Next, to reproduce the average AP properties observed in our experiments [39], we applied an established population-based optimization method [38]. We created a population of 1000 model variants by perturbing selected parameters (listed in Table A1) with random scaling factors chosen from a log-normal distribution with a median value of 1 and a standard deviation of 0.1 [75]. We assessed AP characteristics in each model in the population and then performed reverse multivariable regression [38] to identify the parameters scaling factors required to best reproduce the AP biomarkers experimentally observed (Figure 1B). We used the following set of target values: upstroke velocity of 10 mV/ms; repolarization rate of −3 mV/ms; maximum diastolic potential of −65 mV; AP amplitude of 75 mV; AP duration at 90% repolarization of 60 ms; AP duration at 50% repolarization 25 ms; cycle length of 150 ms; diastolic duration of 75 ms; diastolic depolarization rate of 100 mV/s.

4.3. Simulation Protocols and Analysis

Using our newly developed dataset-specific version of the Kharche et al. model [34], we simulated various degrees of reduction of NKA and NCX function by modulating their respective maximal transport rates vNKA and vNCX, individually or in combination. In a separate set of simulations, we superimposed changes in ICaL properties (i.e., ±50% in GCaL and ±4 mV shift in voltage-dependence) or extracellular [Ca2+]. We simulated the effect of parameter perturbations for 120 s and quantified the impact on FR (average and variability) over the last 60 s. Specifically, in each simulation, we assessed the FR at 7 time points (every 10 s, from 60 to 120 s after block), analyzing the voltage signal over a time interval of 1.8 s, and then calculated average and standard deviation from the 7 samples.
To identify the subcellular mechanisms involved in regulating SAM automaticity upon NKA and NCX block, we also performed simulations in which [Na+]i or CDI of ICaL were clamped to desired values. In “CDI-clamp” simulations, we used the subsarcolemmal [Ca2+] signal observed in the absence of any block as input for the calculation of the changes in the state variable Fca, which represents the CDI-related gate in the Hodgkin-Huxley type ICaL model implemented in Kharche et al. [34]. Note that Fca, which varies between 0 and 1, decreases as CDI increases and vice versa. Therefore, CDI values were estimated in our simulations as CDI = 1 − Fca. Finally, voltage-clamp simulations were performed to assess how changes in SAM automaticity influence [Na+]i (“FR-clamp”). Specifically, the AP obtained with the updated baseline model was used as voltage command in AP-clamp simulations and stretched/compressed in time to simulate different FRs within the range of 300–600 bpm. Na+ levels predicted in the absence of firing activity were determined by clamping the transmembrane potential at −40 mV.
Consequences of NKA and NCX block on human SAM electrophysiology were investigated simulating the model recently developed by Loewe et al. [53].

Supplementary Materials

The following figures are available online at https://www.mdpi.com/article/10.3390/ijms22115645/s1.

Author Contributions

S.M. and E.G. designed the research; C.H.P., C.R. and C.P. provided the experimental data; S.M., H.N. and A.A.-T. developed the model and produced the simulated data. S.M., D.S., A.V.G., C.P. and E.G. analyzed the data; S.M. and E.G. wrote the manuscript, then all other co-authors revised it. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by NIH/NHLBI Grants R00HL138160 (S.M.), R01HL131517 (E.G.), P01HL141084 (E.G.), R01HL141214 (A.V.G. and E.G.), R01HL088427 (C.P.), and R01HL149349 (D.S.); NIH Stimulating Peripheral Activity to Relieve Conditions Grant OT2OD026580 (E.G.); American Heart Association Scientist Development Award 15SDG24910015 (E.G.), and Postdoctoral Fellowships 20POST35120462 (H.N.) and 19POST34380777 (C.H.P.); UC Davis School of Medicine Dean’s Fellow Award (E.G.).

Data Availability Statement

All data needed to evaluate the conclusions in the paper are present in the main text and the Supplementary Materials. Data and source codes are freely available for download at elegrandi.wixsite.com/grandilab/downloads and github.com/drgrandilab.

Acknowledgments

The authors thank Yuanfang Xie for helpful discussions during the early stage of this work and Axel Loewe for sharing the code of the human model.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in designing the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Appendix A

Table
Table A1. List and definition of altered model parameters.
Table A1. List and definition of altered model parameters.
Maximal Conductances
GstSustained inward Na+ current (Ist)
GNa1.1TTX-sensitive Na+ current (INa1.1)
GNa1.5TTX-resistant Na+ current (INa1.5)
GCaTT-type Ca2+ current (ICaT)
GCaLL-type Ca2+ current (ICaL)
GfHyperpolarization-activated (funny) current (If)
GK1Time-independent K+ current (IK1)
GKrRapid delayed rectifying K+ current (IKr)
GKsSlow delayed rectifying K+ current (IKs)
GtoTransient component of the 4-AP-sensitive K+ current (Ito)
GsusSustained component of the 4-AP-sensitive K+ current (Isus)
GNaBBackground Na+ current (INaB)
GCaBBackground Ca2+ current (ICaB)
Maximal Transport Rates
vNKANa+/K+ ATPase (NKA)
vNCXNa+/Ca2+ exchanger (NCX)
vRyRCa2+ release via ryanodine receptor
vSERCASarcoplasmic reticulum (SR) Ca2+ pump
Table
Table A2. List and definition of action potential characteristics. The values of these biomarkers were determined as described in [40].
Table A2. List and definition of action potential characteristics. The values of these biomarkers were determined as described in [40].
OutputUnit
FRFiring ratebpm
CLCycle lengthms
UVUpstroke velocitymV/ms
RRRepolarization ratemV/ms
DDDiastolic durationms
APDAction potential (AP) durationms
APD90APD at 90% of repolarizationms
APD50APD at 50% of repolarizationms
MDPMaximum diastolic potentialmV
APampAP amplitudemV
THRThreshold potentialmV
DDRDiastolic depolarization ratemV/s

References

  1. Monfredi, O.; Dobrzynski, H.; Mondal, T.; Boyett, M.R.; Morris, G.M. The anatomy and physiology of the sinoatrial node-a contemporary review: Sinoatrial nodal anatomy and physiology. Pacing Clin. Electrophysiol. 2010, 33, 1392–1406. [Google Scholar] [CrossRef] [PubMed]
  2. Boyett, M.R.; Honjo, H.; Kodama, I. The sinoatrial node, a heterogeneous pacemaker structure. Cardiovasc. Res. 2000, 47, 658–687. [Google Scholar] [CrossRef]
  3. Lakatta, E.G.; Maltsev, V.A.; Vinogradova, T.M. A Coupled SYSTEM of intracellular Ca2+ clocks and surface membrane voltage clocks controls the timekeeping mechanism of the heart’s pacemaker. Circ. Res. 2010, 106, 659–673. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Yaniv, Y.; Lakatta, E.G.; Maltsev, V.A. From two competing oscillators to one coupled-clock pacemaker cell system. Front. Physiol. 2015, 6. [Google Scholar] [CrossRef] [Green Version]
  5. DiFrancesco, D. The role of the funny current in pacemaker activity. Circ. Res. 2010, 106, 434–446. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Torrente, A.G.; Mesirca, P.; Bidaud, I.; Mangoni, M.E. Channelopathies of Voltage-Gated L-Type Cav1.3/A1D and T-Type Cav3.1/A1G Ca2+ Channels in dysfunction of heart automaticity. Pflugers Arch. Eur. J Physiol. 2020, 472, 817–830. [Google Scholar] [CrossRef]
  7. Bers, D.M.; Morotti, S. Ca(2+) Current facilitation Is CaMKII-dependent and has arrhythmogenic consequences. Front. Pharmacol. 2014, 5, 144. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Mesirca, P.; Fedorov, V.V.; Hund, T.J.; Torrente, A.G.; Bidaud, I.; Mohler, P.J.; Mangoni, M.E. Pharmacologic approach to sinoatrial node dysfunction. Annu. Rev. Pharmacol. Toxicol. 2021, 61, 757–778. [Google Scholar] [CrossRef] [PubMed]
  9. Milanesi, R.; Bucchi, A.; Baruscotti, M. The genetic basis for inherited forms of sinoatrial dysfunction and atrioventricular node dysfunction. J. Interv. Card. Electrophysiol. 2015, 43, 121–134. [Google Scholar] [CrossRef] [Green Version]
  10. Wallace, M.J.; El Refaey, M.; Mesirca, P.; Hund, T.J.; Mangoni, M.E.; Mohler, P.J. Genetic complexity of sinoatrial node dysfunction. Front. Genet. 2021, 12, 654925. [Google Scholar] [CrossRef] [PubMed]
  11. Sanders, P.; Kistler, P.M.; Morton, J.B.; Spence, S.J.; Kalman, J.M. Remodeling of sinus node function in patients with congestive heart failure: Reduction in sinus node reserve. Circulation 2004, 110, 897–903. [Google Scholar] [CrossRef] [Green Version]
  12. John, R.M.; Kumar, S. Sinus node and atrial arrhythmias. Circulation 2016, 133, 1892–1900. [Google Scholar] [CrossRef] [PubMed]
  13. Peters, C.H.; Sharpe, E.J.; Proenza, C. Cardiac pacemaker activity and aging. Annu. Rev. Physiol. 2020, 82, 21–43. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Despa, S.; Bers, D.M. Na+ Transport in the normal and failing heart—Remember the balance. J. Mol. Cell. Cardiol. 2013, 61, 2–10. [Google Scholar] [CrossRef] [Green Version]
  15. Grandi, E.; Herren, A.W. CaMKII-dependent regulation of cardiac Na+ homeostasis. Front. Pharmacol. 2014, 5. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Despa, S. Myocyte [Na+]i dysregulation in heart failure and diabetic cardiomyopathy. Front. Physiol. 2018, 9, 1303. [Google Scholar] [CrossRef] [Green Version]
  17. Horvath, B.; Banyasz, T.; Jian, Z.; Hegyi, B.; Kistamas, K.; Nanasi, P.P.; Izu, L.T.; Chen-Izu, Y. Dynamics of the late Na+ current during cardiac action potential and its contribution to afterdepolarizations. J. Mol. Cell. Cardiol. 2013, 64, 59–68. [Google Scholar] [CrossRef] [Green Version]
  18. Hegyi, B.; Bányász, T.; Shannon, T.R.; Chen-Izu, Y.; Izu, L.T. Electrophysiological determination of submembrane Na+ concentration in cardiac myocytes. Biophys. J. 2016, 111, 1304–1315. [Google Scholar] [CrossRef] [Green Version]
  19. Despa, S.; Islam, M.A.; Pogwizd, S.M.; Bers, D.M. Intracellular [Na+] and Na+ pump rate in rat and rabbit ventricular myocytes. J. Physiol. 2002, 539, 133–143. [Google Scholar] [CrossRef]
  20. Despa, S.; Islam, M.A.; Weber, C.R.; Pogwizd, S.M.; Bers, D.M. Intracellular Na+ concentration is elevated in heart failure but Na/K pump function is unchanged. Circulation 2002, 105, 2543–2548. [Google Scholar] [CrossRef] [Green Version]
  21. Pieske, B.; Maier, L.S.; Piacentino, V.; Weisser, J.; Hasenfuss, G.; Houser, S. Rate Dependence of [Na+]i and contractility in nonfailing and failing human myocardium. Circulation 2002, 106, 447–453. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Sossalla, S.; Wagner, S.; Rasenack, E.C.L.; Ruff, H.; Weber, S.L.; Schöndube, F.A.; Tirilomis, T.; Tenderich, G.; Hasenfuss, G.; Belardinelli, L.; et al. Ranolazine improves diastolic dysfunction in isolated myocardium from failing human hearts—role of late sodium current and intracellular ion accumulation. J. Mol. Cell. Cardiol. 2008, 45, 32–43. [Google Scholar] [CrossRef] [PubMed]
  23. Sossalla, S.; Maurer, U.; Schotola, H.; Hartmann, N.; Didié, M.; Zimmermann, W.-H.; Jacobshagen, C.; Wagner, S.; Maier, L.S. Diastolic dysfunction and arrhythmias caused by overexpression of CaMKIIδC can be reversed by inhibition of late Na+ current. Basic Res. Cardiol. 2011, 106, 263–272. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Morotti, S.; Edwards, A.G.; McCulloch, A.D.; Bers, D.M.; Grandi, E. A novel computational model of mouse myocyte electrophysiology to assess the synergy between Na+ loading and CaMKII. J. Physiol. 2014, 592, 1181–1197. [Google Scholar] [CrossRef]
  25. Morotti, S.; Grandi, E. Quantitative systems models illuminate arrhythmia mechanisms in heart failure: Role of the Na+–Ca2+–Ca2+/calmodulin-dependent protein kinase ii-reactive oxygen species feedback. Wiley Interdiscip. Rev. Syst. Biol. Med. 2019, 11, e1434. [Google Scholar] [CrossRef]
  26. Bers, D.M. Excitation-contraction coupling and cardiac contractile force. In Developments in Cardiovascular Medicine; Springer: Dordrecht, The Netherlands, 2001; Volume 237, ISBN 978-0-7923-7158-8. [Google Scholar]
  27. Xie, Y.; Liao, Z.; Grandi, E.; Shiferaw, Y.; Bers, D.M. Slow [Na]i changes and positive feedback between membrane potential and [Ca]i underlie intermittent early afterdepolarizations and arrhythmias. Circ. Arrhythm. Electrophysiol. 2015, 8, 1472–1480. [Google Scholar] [CrossRef] [Green Version]
  28. Krogh-Madsen, T.; Christini, D.J. Slow [Na+]i dynamics impacts arrhythmogenesis and spiral wave reentry in cardiac myocyte ionic model. Chaos 2017, 27, 093907. [Google Scholar] [CrossRef] [PubMed]
  29. Torrente, A.G.; Zhang, R.; Zaini, A.; Giani, J.F.; Kang, J.; Lamp, S.T.; Philipson, K.D.; Goldhaber, J.I. Burst pacemaker activity of the sinoatrial node in sodium–calcium exchanger knockout mice. Proc. Natl. Acad. Sci. USA 2015, 112, 9769–9774. [Google Scholar] [CrossRef] [Green Version]
  30. Yue, X.; Hazan, A.; Lotteau, S.; Zhang, R.; Torrente, A.G.; Philipson, K.D.; Ottolia, M.; Goldhaber, J.I. Na/Ca exchange in the atrium: Role in sinoatrial node pacemaking and excitation-contraction coupling. Cell Calcium 2020, 87, 102167. [Google Scholar] [CrossRef]
  31. Mohler, P.J.; Splawski, I.; Napolitano, C.; Bottelli, G.; Sharpe, L.; Timothy, K.; Priori, S.G.; Keating, M.T.; Bennett, V. A Cardiac Arrhythmia syndrome caused by loss of ankyrin-b function. Proc. Natl. Acad. Sci. USA 2004, 101, 9137–9142. [Google Scholar] [CrossRef] [Green Version]
  32. Le Scouarnec, S.; Bhasin, N.; Vieyres, C.; Hund, T.J.; Cunha, S.R.; Koval, O.; Marionneau, C.; Chen, B.; Wu, Y.; Demolombe, S.; et al. Dysfunction in Ankyrin-B-Dependent ion channel and transporter targeting causes human sinus node disease. Proc. Natl. Acad. Sci. USA 2008, 105, 15617–15622. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Glukhov, A.V.; Fedorov, V.V.; Anderson, M.E.; Mohler, P.J.; Efimov, I.R. Functional anatomy of the murine sinus node: High-resolution optical mapping of Ankyrin-B Heterozygous Mice. Am. J. Physiol. Heart Circ. Physiol. 2010, 299, H482–H491. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Kharche, S.; Yu, J.; Lei, M.; Zhang, H. A Mathematical Model of Action Potentials of Mouse Sinoatrial Node Cells with Molecular Bases. Am. J. Physiol. Heart Circ. Physiol. 2011, 301, H945–H963. [Google Scholar] [CrossRef] [Green Version]
  35. Larson, E.D.; St Clair, J.R.; Sumner, W.A.; Bannister, R.A.; Proenza, C. Depressed pacemaker activity of sinoatrial node myocytes contributes to the age-dependent decline in maximum heart rate. Proc. Natl. Acad. Sci. USA 2013, 110, 18011–18016. [Google Scholar] [CrossRef] [Green Version]
  36. St Clair, J.R.; Sharpe, E.J.; Hagar, A.; Garthe, C.; Juchno, J.; Proenza, C. Diabetes slows heart rate via electrical remodeling of K+ currents in sinoatrial node myocytes. Biophys. J. 2015, 108, 195a. [Google Scholar] [CrossRef] [Green Version]
  37. Peters, C.H.; Liu, P.W.; Morotti, S.; Gantz, S.C.; Grandi, E.; Bean, B.P.; Proenza, C. Bi-directional flow of the funny current (If) during the pacemaking cycle in murine sinoatrial node myocytes. bioRxiv 2021. [Google Scholar] [CrossRef]
  38. Sarkar, A.X.; Sobie, E.A. Regression analysis for constraining free parameters in electrophysiological models of cardiac cells. PLoS Comput. Biol. 2010, 6, e1000914. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Rickert, C.; Proenza, C. Action potential heterogeneity in murine sinoatrial node myocytes. Biophys. J. 2017, 112, 35a. [Google Scholar] [CrossRef]
  40. Rickert, C.; Proenza, C. ParamAP: Standardized parameterization of sinoatrial node myocyte action potentials. Biophys. J. 2017, 113, 765–769. [Google Scholar] [CrossRef] [Green Version]
  41. Lei, M.; Jones, S.A.; Liu, J.; Lancaster, M.K.; Fung, S.S.-M.; Dobrzynski, H.; Camelliti, P.; Maier, S.K.G.; Noble, D.; Boyett, M.R. Requirement of neuronal- and cardiac-type sodium channels for murine sinoatrial node pacemaking: Sodium channels in the SA Node. J. Physiol. 2004, 559, 835–848. [Google Scholar] [CrossRef]
  42. Golovko, V.; Gonotkov, M.; Lebedeva, E. Effects of 4-aminopyridine on action potentials generation in mouse sinoauricular Node Strips. Physiol. Rep. 2015, 3, e12447. [Google Scholar] [CrossRef]
  43. Mangoni, M.E.; Traboulsie, A.; Leoni, A.-L.; Couette, B.; Marger, L.; Le Quang, K.; Kupfer, E.; Cohen-Solal, A.; Vilar, J.; Shin, H.-S.; et al. Bradycardia and slowing of the atrioventricular conduction in mice lacking CaV3.1/α1G T-Type calcium channels. Circ. Res. 2006, 98, 1422–1430. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Kodama, I.; Nikmaram, M.R.; Boyett, M.R.; Suzuki, R.; Honjo, H.; Owen, J.M. Regional differences in the role of the Ca2+ and Na+ currents in pacemaker activity in the sinoatrial node. Am. J. Physiol. Heart Circ. Physiol. 1997, 272, H2793–H2806. [Google Scholar] [CrossRef] [PubMed]
  45. Groenke, S.; Larson, E.D.; Alber, S.; Zhang, R.; Lamp, S.T.; Ren, X.; Nakano, H.; Jordan, M.C.; Karagueuzian, H.S.; Roos, K.P.; et al. Complete atrial-specific knockout of sodium-calcium exchange eliminates sinoatrial node pacemaker activity. PLoS ONE 2013, 8, e81633. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Miyamae, S.I.; Goto, K. Effects of Ethylene Glycol-Bis-(Beta-Aminoethyl Ether)-N,N′-Tetraacetic acid on rabbit sinoatrial node cells treated with cardiotonic steroids. J. Pharmacol. Exp. Ther. 1988, 245, 706–717. [Google Scholar]
  47. Baudot, M.; Torre, E.; Bidaud, I.; Louradour, J.; Torrente, A.G.; Fossier, L.; Talssi, L.; Nargeot, J.; Barrère-Lemaire, S.; Mesirca, P.; et al. Concomitant Genetic Ablation of L-Type Cav1.3 (A1D) and T-Type Cav3.1 (A1G) Ca2+ channels disrupts heart automaticity. Sci. Rep. 2020, 10, 18906. [Google Scholar] [CrossRef]
  48. Pott, C.; Philipson, K.D.; Goldhaber, J.I. Excitation–Contraction Coupling in Na+–Ca2+ Exchanger Knockout Mice: Reduced Transsarcolemmal Ca2+ Flux. Circ. Res. 2005, 97, 1288–1295. [Google Scholar] [CrossRef] [Green Version]
  49. Altamirano, J.; Li, Y.; DeSantiago, J.; Piacentino, V.; Houser, S.R.; Bers, D.M. The inotropic effect of cardioactive glycosides in ventricular myocytes requires Na+–Ca2+ Exchanger Function: Na+ and cardioactive glycoside action. J. Physiol. 2006, 575, 845–854. [Google Scholar] [CrossRef] [PubMed]
  50. Steinbeck, G.; Bonke, F.I.; Allessie, M.A.; Lammers, W.J. The effect of ouabain on the isolated sinus node preparation of the rabbit studied with microelectrodes. Circ. Res. 1980, 46, 406–414. [Google Scholar] [CrossRef] [Green Version]
  51. Gonzalez, M.D.; Vassalle, M. Role of oscillatory potential and pacemaker shifts in digitalis intoxication of the sinoatrial node. Circulation 1993, 87, 1705–1714. [Google Scholar] [CrossRef] [Green Version]
  52. El-Sherif, N.; Turitto, G. Electrolyte disorders and arrhythmogenesis. Cardiol. J. 2011, 18, 233–245. [Google Scholar]
  53. Loewe, A.; Lutz, Y.; Nairn, D.; Fabbri, A.; Nagy, N.; Toth, N.; Ye, X.; Fuertinger, D.H.; Genovesi, S.; Kotanko, P.; et al. Hypocalcemia-induced slowing of human sinus node pacemaking. Biophys. J. 2019, 117, 2244–2254. [Google Scholar] [CrossRef]
  54. Loewe, A.; Lutz, Y.; Nagy, N.; Fabbri, A.; Schweda, C.; Varro, A.; Severi, S. Inter-species differences in the response of sinus node cellular pacemaking to changes of extracellular calcium. In Proceedings of the 2019 41st Annual International Conference of the IEEE Engineering in Medicine and Biology Society (EMBC), Berlin, Germany, 23–27 July 2019; IEEE: Berlin, Germany, 2019; pp. 1875–1878. [Google Scholar]
  55. Torrente, A.G.; Fossier, L.; Baudot, M.; Bidaud, I.; Mesirca, P.; Mangoni, M. Hypercalcemia impairs sino-atrial automaticity through excessive Cav1.2-Mediated Ca2+ Influx. Arch. Cardiovasc. Dis. Suppl. 2020, 12, 255. [Google Scholar] [CrossRef]
  56. Torrente, A.G.; Zhang, R.; Wang, H.; Zaini, A.; Kim, B.; Yue, X.; Philipson, K.D.; Goldhaber, J.I. Contribution of small conductance K+ channels to sinoatrial node pacemaker activity: Insights from atrial-specific Na+/Ca2+ exchange knockout mice: Role of small conductance K+ channels in sinus node activity. J. Physiol. 2017, 595, 3847–3865. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Kapoor, N.; Tran, A.; Kang, J.; Zhang, R.; Philipson, K.D.; Goldhaber, J.I. Regulation of calcium clock-mediated pacemaking by inositol-1,4,5-trisphosphate receptors in mouse sinoatrial nodal cells: IP3 R-mediated regulation of SAN Pacemaking. J. Physiol. 2015, 593, 2649–2663. [Google Scholar] [CrossRef] [Green Version]
  58. Cingolani, H.E.; Ennis, I.L. Sodium-hydrogen exchanger, cardiac overload, and myocardial hypertrophy. Circulation 2007, 115, 1090–1100. [Google Scholar] [CrossRef] [PubMed]
  59. van Borren, M.M.G.J.; Vos, M.A.; Houtman, M.J.C.; Antoons, G.; Ravesloot, J.H. Increased Sarcolemmal Na+/H+ Exchange Activity in hypertrophied myocytes from dogs with chronic atrioventricular block. Front. Physiol. 2013, 4. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  60. Wu, Y.; Anderson, M.E. CaMKII in sinoatrial node physiology and dysfunction. Front. Pharmacol. 2014, 5. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  61. Arbel-Ganon, L.; Behar, J.A.; Gómez, A.M.; Yaniv, Y. Distinct mechanisms mediate pacemaker dysfunction associated with catecholaminergic polymorphic ventricular tachycardia mutations: Insights from computational modeling. J. Mol. Cell Cardiol. 2020, 143, 85–95. [Google Scholar] [CrossRef] [PubMed]
  62. MacDonald, E.A.; Rose, R.A.; Quinn, T.A. Neurohumoral control of sinoatrial node activity and heart rate: Insight from experimental models and findings from humans. Front. Physiol. 2020, 11, 170. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Tsutsui, K.; Monfredi, O.J.; Sirenko-Tagirova, S.G.; Maltseva, L.A.; Bychkov, R.; Kim, M.S.; Ziman, B.D.; Tarasov, K.V.; Tarasova, Y.S.; Zhang, J.; et al. A coupled-clock system drives the automaticity of human sinoatrial nodal pacemaker cells. Sci. Signal. 2018, 11, eaap7608. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Despa, S.; Bossuyt, J.; Han, F.; Ginsburg, K.S.; Jia, L.-G.; Kutchai, H.; Tucker, A.L.; Bers, D.M. Phospholemman-Phosphorylation Mediates the β-Adrenergic Effects on Na/K pump function in cardiac myocytes. Circ. Res. 2005, 97, 252–259. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Despa, S.; Tucker, A.L.; Bers, D.M. Phospholemman-mediated activation of Na/K-ATPase Limits [Na]i and inotropic state during β-Adrenergic stimulation in mouse ventricular myocytes. Circulation 2008, 117, 1849–1855. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  66. Kim, M.S.; Maltsev, A.V.; Monfredi, O.; Maltseva, L.A.; Wirth, A.; Florio, M.C.; Tsutsui, K.; Riordon, D.R.; Parsons, S.P.; Tagirova, S.; et al. Heterogeneity of calcium clock functions in dormant, dysrhythmically and rhythmically firing single pacemaker cells isolated from SA Node. Cell Calcium 2018, 74, 168–179. [Google Scholar] [CrossRef]
  67. Lang, D.; Glukhov, A.V. Functional microdomains in heart’s pacemaker: A step beyond classical electrophysiology and remodeling. Front. Physiol. 2018, 9, 1686. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  68. Csepe, T.A.; Kalyanasundaram, A.; Hansen, B.J.; Zhao, J.; Fedorov, V.V. Fibrosis: A structural modulator of sinoatrial node physiology and Dysfunction. Front. Physiol. 2015, 6. [Google Scholar] [CrossRef] [Green Version]
  69. Ni, H.; Morotti, S.; Grandi, E. A heart for diversity: Simulating variability in cardiac arrhythmia research. Front. Physiol. 2018, 9, 958. [Google Scholar] [CrossRef]
  70. Kurata, Y.; Matsuda, H.; Hisatome, I.; Shibamoto, T. Regional difference in dynamical property of sinoatrial node pacemaking: Role of Na+ Channel Current. Biophys. J. 2008, 95, 951–977. [Google Scholar] [CrossRef] [Green Version]
  71. Clancy, C.E.; Chen-Izu, Y.; Bers, D.M.; Belardinelli, L.; Boyden, P.A.; Csernoch, L.; Despa, S.; Fermini, B.; Hool, L.C.; Izu, L.; et al. Deranged sodium to sudden death: Deranged sodium to sudden death. J. Physiol. 2015, 593, 1331–1345. [Google Scholar] [CrossRef] [Green Version]
  72. Cingolani, E.; Goldhaber, J.I.; Marbán, E. Next-generation pacemakers: From small devices to biological pacemakers. Nat. Rev. Cardiol. 2018, 15, 139–150. [Google Scholar] [CrossRef]
  73. St Clair, J.R.; Sharpe, E.J.; Proenza, C. Culture and adenoviral infection of sinoatrial node myocytes from adult mice. Am. J. Physiol. Heart Circ. Physiol. 2015, 309, H490–H498. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  74. Sharpe, E.J.; St Clair, J.R.; Proenza, C. Methods for the isolation, culture, and functional characterization of sinoatrial node myocytes from adult mice. JoVE 2016, 54555. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  75. Sobie, E.A. Parameter sensitivity analysis in electrophysiological models using multivariable regression. Biophys. J. 2009, 96, 1264–1274. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Ijms 22 05645 g001 550

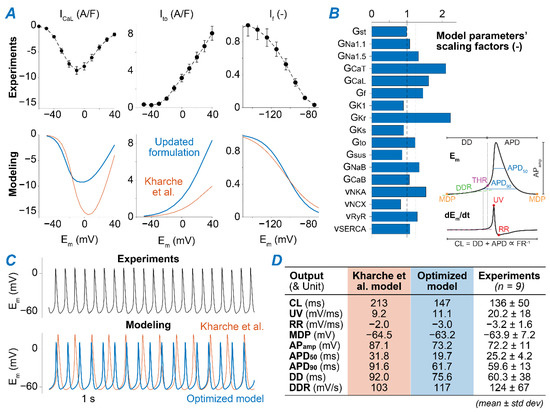

Figure 1. Reparameterization of the Kharche et al. model of the murine SAM. (A) Experimental (top panels) and simulated (bottom panels) voltage-dependence of peak ICaL [24], peak Ito [25], and If availability [26]. (B) Parameter scaling factors yielded by the global optimization process aimed at minimizing the differences between average measured and simulated AP characteristics (shown in the schematic in the inset). Definition of both model parameters and AP characteristics is reported in Appendix A. (C) Time course of membrane voltage in a representative experimental trace and in simulations performed with the original Kharche et al. model (orange) and our optimized dataset-specific reparameterization (blue). (D) Comparison between experimentally measured AP characteristics [23] and the outputs predicted with original and optimized models.
Figure 1. Reparameterization of the Kharche et al. model of the murine SAM. (A) Experimental (top panels) and simulated (bottom panels) voltage-dependence of peak ICaL [24], peak Ito [25], and If availability [26]. (B) Parameter scaling factors yielded by the global optimization process aimed at minimizing the differences between average measured and simulated AP characteristics (shown in the schematic in the inset). Definition of both model parameters and AP characteristics is reported in Appendix A. (C) Time course of membrane voltage in a representative experimental trace and in simulations performed with the original Kharche et al. model (orange) and our optimized dataset-specific reparameterization (blue). (D) Comparison between experimentally measured AP characteristics [23] and the outputs predicted with original and optimized models.
Ijms 22 05645 g001
Ijms 22 05645 g002 550
Figure 2. Properties of the newly developed dataset-specific model of the murine SAM. (A) Time course of AP, Ca2+ and Na+ concentrations, and main ion currents in the optimized model. (B) Simulated and experimentally observed effects on FR induced by complete block of INa1.1 and INa1.5 [28,29], Ito and Isus [29], ICaT [30], ICaL [31], NCX [32], and NKA [33]. “Stop” indicates interruption of spontaneous firing activity.
Figure 2. Properties of the newly developed dataset-specific model of the murine SAM. (A) Time course of AP, Ca2+ and Na+ concentrations, and main ion currents in the optimized model. (B) Simulated and experimentally observed effects on FR induced by complete block of INa1.1 and INa1.5 [28,29], Ito and Isus [29], ICaT [30], ICaL [31], NCX [32], and NKA [33]. “Stop” indicates interruption of spontaneous firing activity.
Ijms 22 05645 g002
Ijms 22 05645 g003 550
Figure 3. NKA and NCX reductions can both enhance SAM automaticity and impair pacemaking activity depending on the degree of block. (A) Bar graph showing the relative contribution of NKA, NCX, INa1.1, INa1.5, Ist, INaB, and If to total Na+ influx and removal during a beat cycle in the optimized murine SAM model. (B) Average FR upon simulation of various extents of NKA block. Insets show voltage traces obtained simulating 40%, 60%, and 70% block. (C) Average FR upon simulation of various extents of NCX block. Insets show voltage traces obtained simulating 50%, 75%, and 80% block. Thin gray traces in insets correspond to the voltage traces simulated in the absence of the block.
Figure 3. NKA and NCX reductions can both enhance SAM automaticity and impair pacemaking activity depending on the degree of block. (A) Bar graph showing the relative contribution of NKA, NCX, INa1.1, INa1.5, Ist, INaB, and If to total Na+ influx and removal during a beat cycle in the optimized murine SAM model. (B) Average FR upon simulation of various extents of NKA block. Insets show voltage traces obtained simulating 40%, 60%, and 70% block. (C) Average FR upon simulation of various extents of NCX block. Insets show voltage traces obtained simulating 50%, 75%, and 80% block. Thin gray traces in insets correspond to the voltage traces simulated in the absence of the block.
Ijms 22 05645 g003
Ijms 22 05645 g004 550

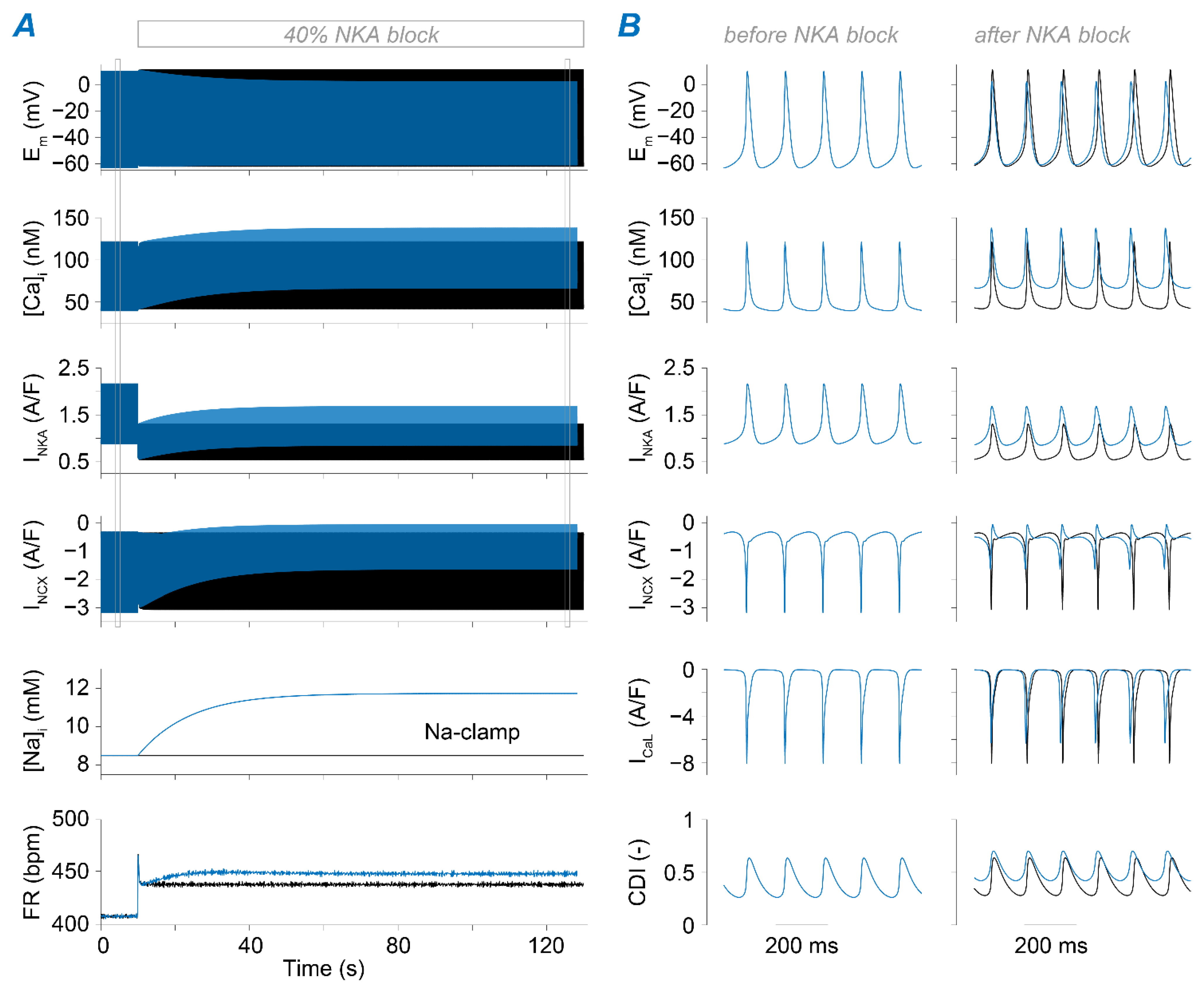

Figure 4. Mild block of NKA has positive chronotropic and isotropic effects. (A) Time course of membrane potential, [Ca2+]i, NKA current, [Na+]i, and FR predicted upon sudden 40% block of NKA maximal transport rate (at t = 10 s). Black traces are obtained clamping [Na+]i to the initial value, while blue traces are obtained simulating the normal condition in which [Na+]i is free to change. (B) Comparison between the time course before applying the block and at the end of the simulation for membrane potential, [Ca2+]i, NKA current, NCX current, ICaL, and its Ca2+-dependent inactivation. CDI values were calculated from the state variable Fca, representing the gate describing CDI in the Hodgkin-Huxley type ICaL model in the Kharche et al. framework (CDI = 1 − Fca, with Fca varying from 0 to 1).
Figure 4. Mild block of NKA has positive chronotropic and isotropic effects. (A) Time course of membrane potential, [Ca2+]i, NKA current, [Na+]i, and FR predicted upon sudden 40% block of NKA maximal transport rate (at t = 10 s). Black traces are obtained clamping [Na+]i to the initial value, while blue traces are obtained simulating the normal condition in which [Na+]i is free to change. (B) Comparison between the time course before applying the block and at the end of the simulation for membrane potential, [Ca2+]i, NKA current, NCX current, ICaL, and its Ca2+-dependent inactivation. CDI values were calculated from the state variable Fca, representing the gate describing CDI in the Hodgkin-Huxley type ICaL model in the Kharche et al. framework (CDI = 1 − Fca, with Fca varying from 0 to 1).
Ijms 22 05645 g004
Ijms 22 05645 g005 550

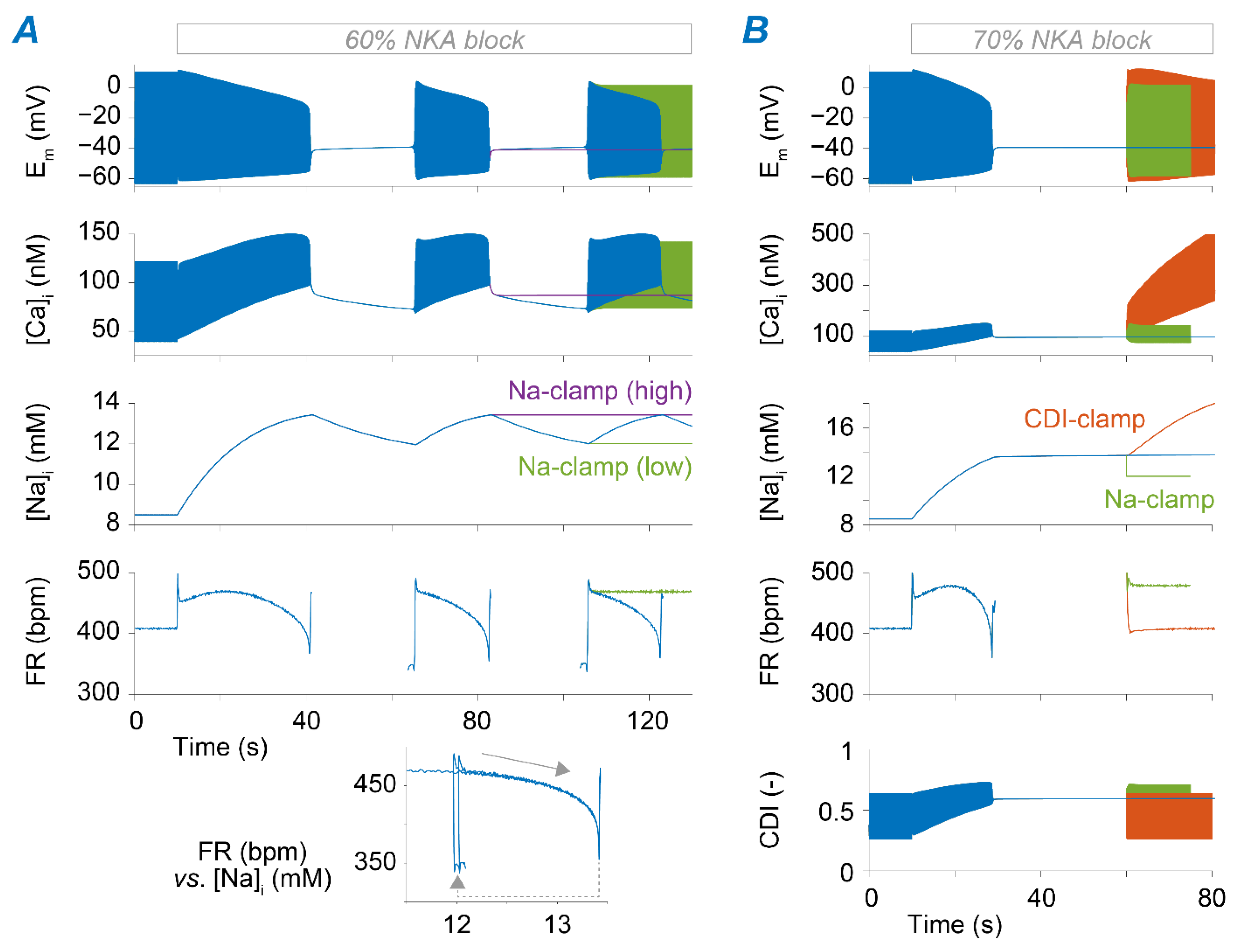

Figure 5. Excessive Na+ accumulation and consequent Ca2+ overload upon NKA block impair SAM automaticity. (A) Time course of membrane potential, [Ca2+]i, [Na+]i, and FR simulated upon 60% block of NKA (at t = 10 s). Blue traces are obtained simulating the baseline condition in which [Na+]i is free to change. Purple and green traces are obtained by clamping [Na+]i to either the maximal or the minimum values in the blue trace. The inset shows the FR-[Na+]i phase plot obtained during the bistable regime. (B) Time course of membrane potential, [Ca2+]i, [Na+]i, FR, and CDI of ICaL obtained upon simulation of 70% block of NKA (at t = 10 s). Green traces are obtained by clamping [Na+]i to 12 mM after t = 60 s; orange traces are obtained by imposing (after t = 60 s) the values of CDI predicted before NKA block; blue traces are obtained simulating the model without any constrain on [Na+]i or CDI.
Figure 5. Excessive Na+ accumulation and consequent Ca2+ overload upon NKA block impair SAM automaticity. (A) Time course of membrane potential, [Ca2+]i, [Na+]i, and FR simulated upon 60% block of NKA (at t = 10 s). Blue traces are obtained simulating the baseline condition in which [Na+]i is free to change. Purple and green traces are obtained by clamping [Na+]i to either the maximal or the minimum values in the blue trace. The inset shows the FR-[Na+]i phase plot obtained during the bistable regime. (B) Time course of membrane potential, [Ca2+]i, [Na+]i, FR, and CDI of ICaL obtained upon simulation of 70% block of NKA (at t = 10 s). Green traces are obtained by clamping [Na+]i to 12 mM after t = 60 s; orange traces are obtained by imposing (after t = 60 s) the values of CDI predicted before NKA block; blue traces are obtained simulating the model without any constrain on [Na+]i or CDI.
Ijms 22 05645 g005
Ijms 22 05645 g006 550

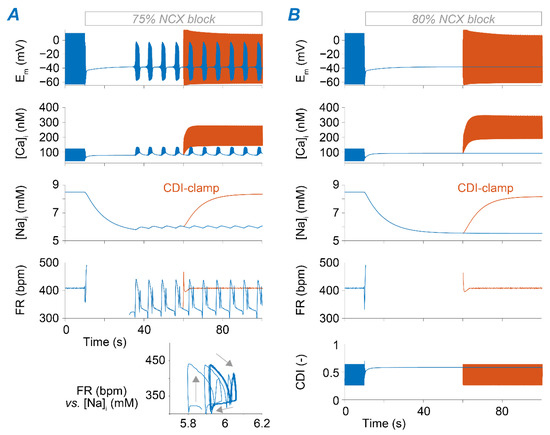

Figure 6. Ca2+-dependent ICaL inactivation upon NCX block impairs SAM automaticity. (A) Time course of membrane potential, [Ca2+]i, [Na+]i, and FR upon simulation of 75% block of NCX (at t = 10 s). The inset shows the FR-[Na+]i phase plot obtained when the model enters the bursting regime. (B) Time course of membrane potential, [Ca2+]i, [Na+]i, FR, and CDI of ICaL upon simulation of 80% block of NCX (at t = 10 s). In both panels, orange traces are obtained by imposing (after t = 60 s) the values of CDI predicted before NCX block; blue traces are obtained simulating the model without any constrain on CDI.
Figure 6. Ca2+-dependent ICaL inactivation upon NCX block impairs SAM automaticity. (A) Time course of membrane potential, [Ca2+]i, [Na+]i, and FR upon simulation of 75% block of NCX (at t = 10 s). The inset shows the FR-[Na+]i phase plot obtained when the model enters the bursting regime. (B) Time course of membrane potential, [Ca2+]i, [Na+]i, FR, and CDI of ICaL upon simulation of 80% block of NCX (at t = 10 s). In both panels, orange traces are obtained by imposing (after t = 60 s) the values of CDI predicted before NCX block; blue traces are obtained simulating the model without any constrain on CDI.
Ijms 22 05645 g006
Ijms 22 05645 g007 550

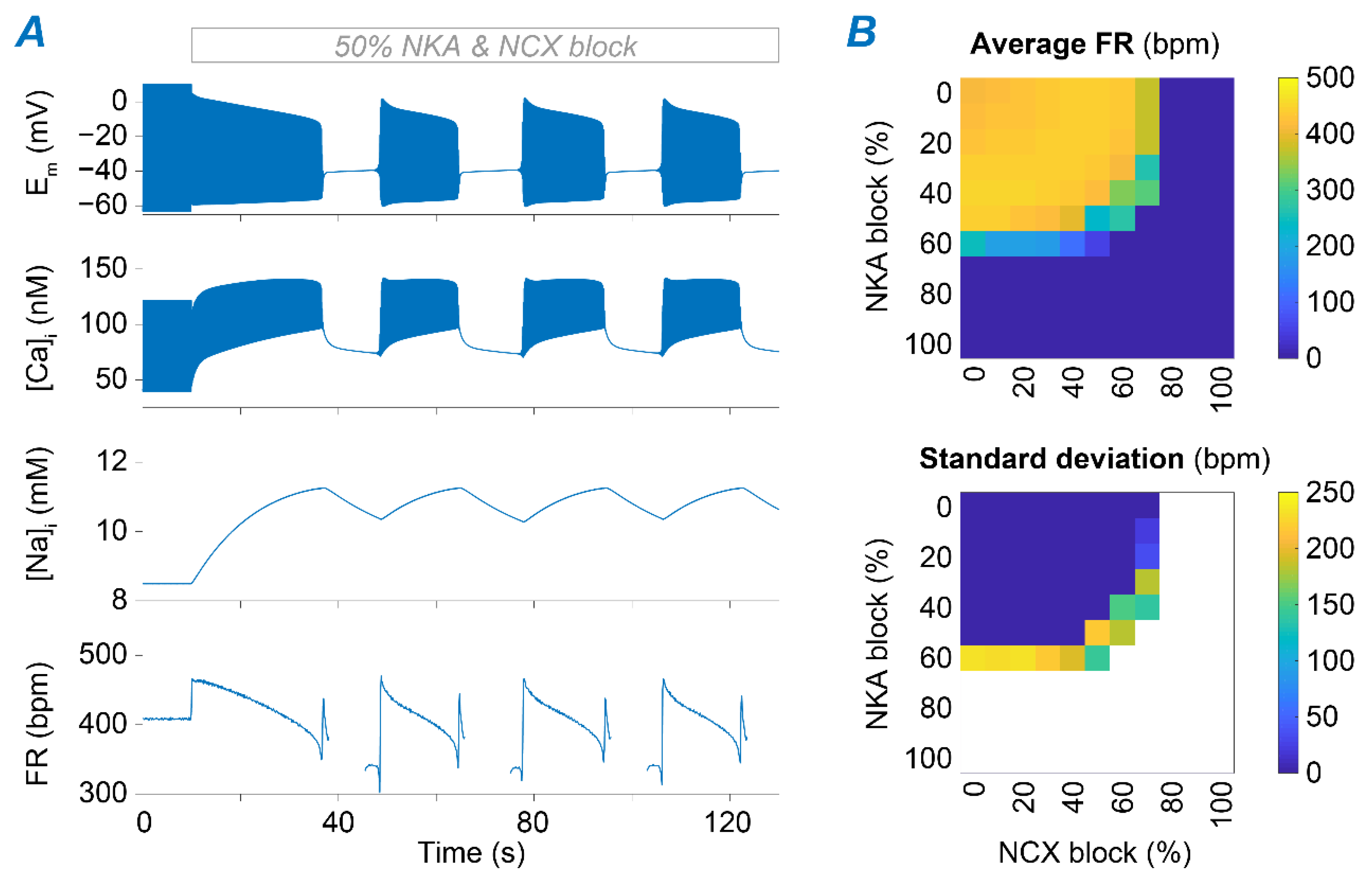

Figure 7. Combining NKA and NKA block facilitates disruption of SAM automaticity. (A) Time course of membrane potential, [Ca2+]i, [Na+]i, and FR upon simulation of combined 50% block of NKA and NCX. (B) Average FR (top panel) and its standard deviation (bottom panel) were assessed upon combinations of concomitant NKA and NCX block.
Figure 7. Combining NKA and NKA block facilitates disruption of SAM automaticity. (A) Time course of membrane potential, [Ca2+]i, [Na+]i, and FR upon simulation of combined 50% block of NKA and NCX. (B) Average FR (top panel) and its standard deviation (bottom panel) were assessed upon combinations of concomitant NKA and NCX block.
Ijms 22 05645 g007
Ijms 22 05645 g008 550

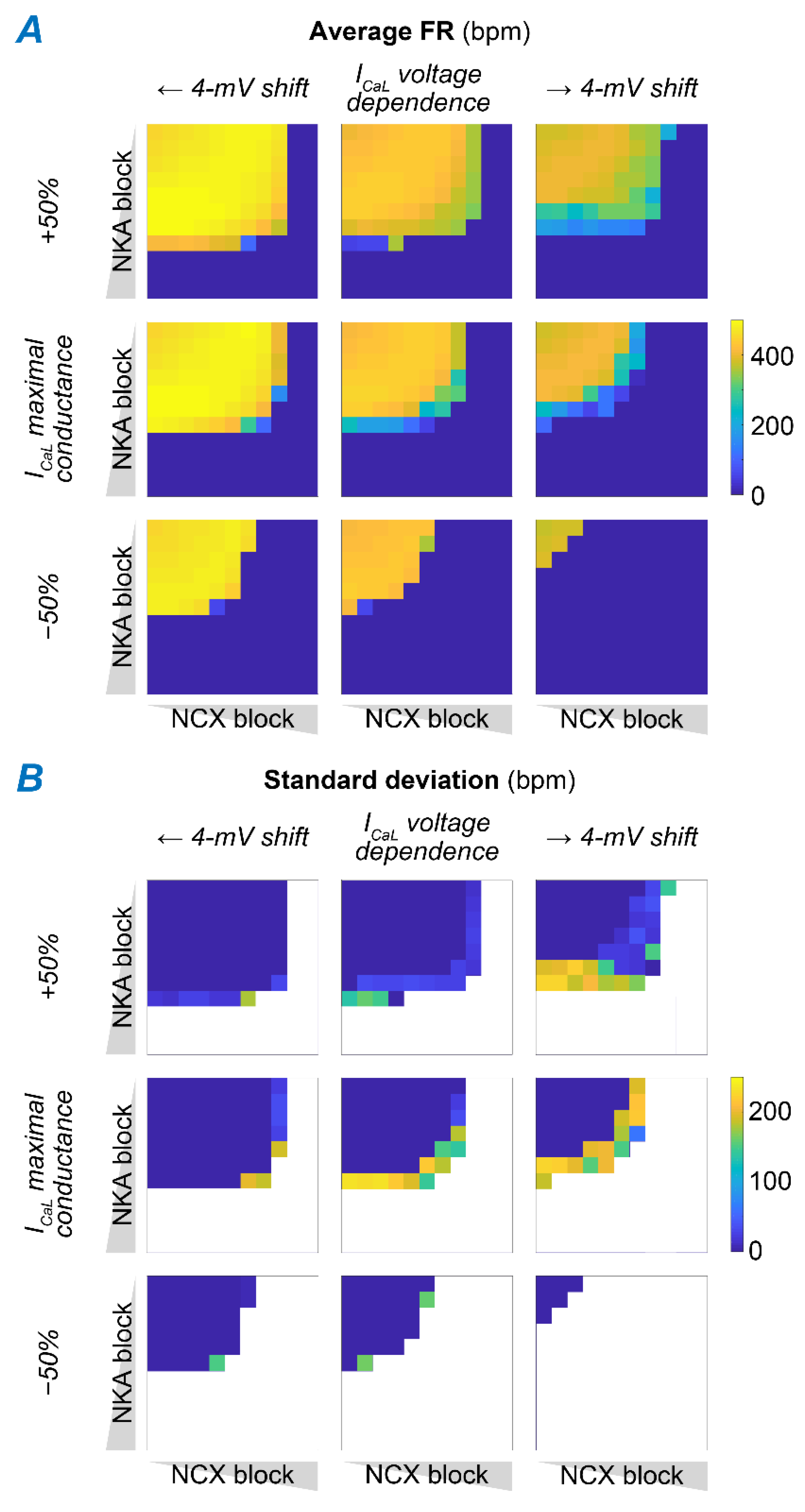

Figure 8. Increased GCaL and leftward shift of ICaL voltage-dependence counteracts disruption of SAM automaticity induced by combined NKA and NCX block. Average FR (A) and FR standard deviation (B) were assessed upon combinations of concomitant NKA and NCX block with normal or altered ICaL function. Changes in ICaL include modulation of maximal conductance (±50%) and shifts in the voltage-dependence of activation and inactivation (±4 mV).
Figure 8. Increased GCaL and leftward shift of ICaL voltage-dependence counteracts disruption of SAM automaticity induced by combined NKA and NCX block. Average FR (A) and FR standard deviation (B) were assessed upon combinations of concomitant NKA and NCX block with normal or altered ICaL function. Changes in ICaL include modulation of maximal conductance (±50%) and shifts in the voltage-dependence of activation and inactivation (±4 mV).
Ijms 22 05645 g008
Ijms 22 05645 g009 550

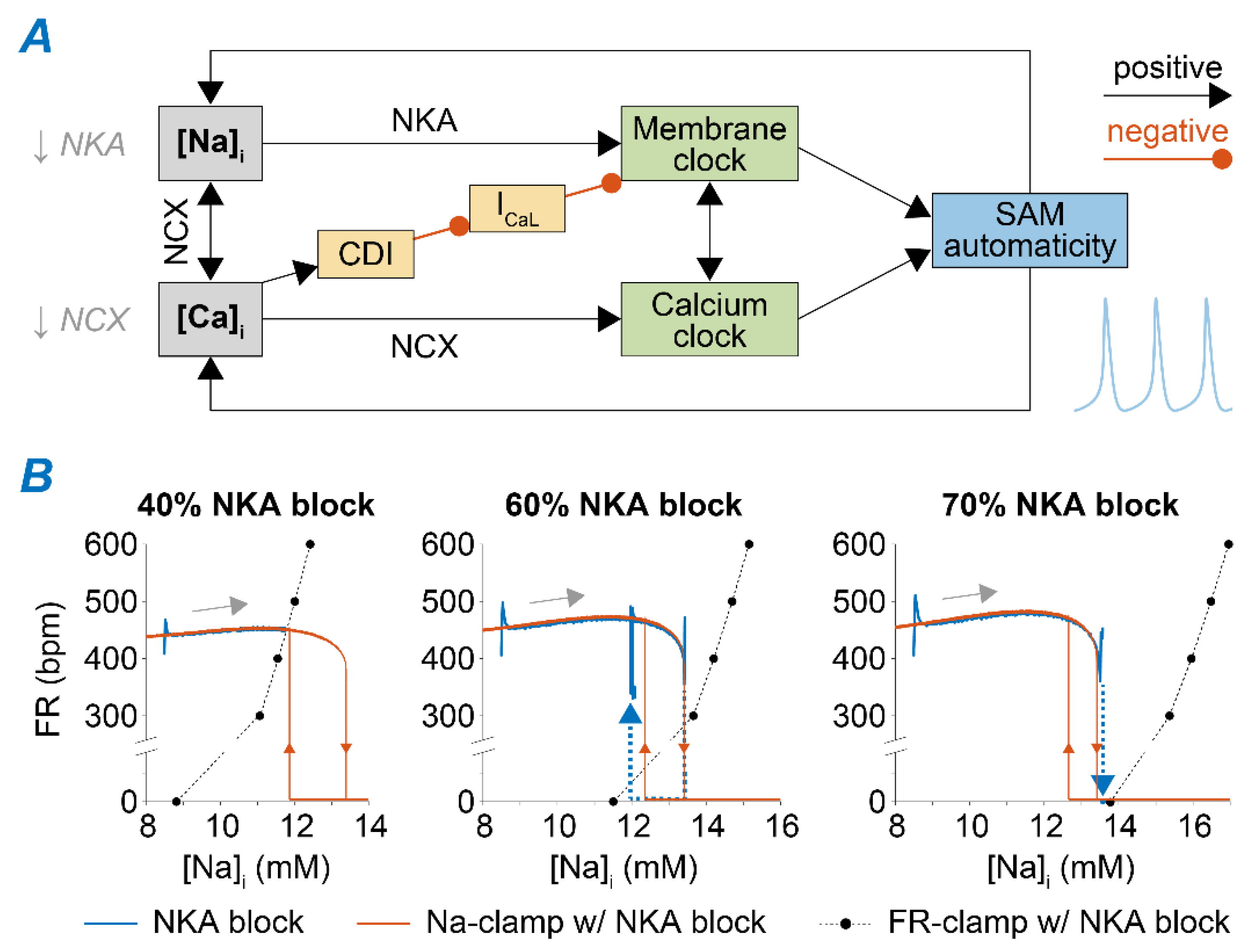

Figure 9. Feedback of Na+ and Ca2+ signals and membrane clock modulates SAM automaticity. (A) Schematic of the relationships linking Na+ and Ca2+ signaling and SAM automaticity. (B) FR-[Na+]i phase plots showing FR and [Na+]i values predicted over time upon 40%, 60%, and 70% NKA block (blue lines), during quasi-steady-state [Na+]i-clamp simulations in which [Na+]i is slowly (i.e., 0.33 mM/min) increased from 8 to 17 mM and then reduced to 8 mM (orange lines), and at steady-state in voltage-clamp simulations in which the FR is controlled (dotted black lines with dots).
Figure 9. Feedback of Na+ and Ca2+ signals and membrane clock modulates SAM automaticity. (A) Schematic of the relationships linking Na+ and Ca2+ signaling and SAM automaticity. (B) FR-[Na+]i phase plots showing FR and [Na+]i values predicted over time upon 40%, 60%, and 70% NKA block (blue lines), during quasi-steady-state [Na+]i-clamp simulations in which [Na+]i is slowly (i.e., 0.33 mM/min) increased from 8 to 17 mM and then reduced to 8 mM (orange lines), and at steady-state in voltage-clamp simulations in which the FR is controlled (dotted black lines with dots).
Ijms 22 05645 g009
Ijms 22 05645 g010 550
Figure 10. Hypercalcemia facilitates disruption of SAM automaticity. Average FR (top panels) and FR standard deviation (bottom panels) were assessed upon combinations of concomitant NKA and NCX block at different levels of extracellular [Ca2+]. Note that the baseline [Ca2+]o used in our simulations is 1.8 mM.
Figure 10. Hypercalcemia facilitates disruption of SAM automaticity. Average FR (top panels) and FR standard deviation (bottom panels) were assessed upon combinations of concomitant NKA and NCX block at different levels of extracellular [Ca2+]. Note that the baseline [Ca2+]o used in our simulations is 1.8 mM.
Ijms 22 05645 g010
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Morotti, S.; Ni, H.; Peters, C.H.; Rickert, C.; Asgari-Targhi, A.; Sato, D.; Glukhov, A.V.; Proenza, C.; Grandi, E. Intracellular Na+ Modulates Pacemaking Activity in Murine Sinoatrial Node Myocytes: An In Silico Analysis. Int. J. Mol. Sci. 2021, 22, 5645. https://doi.org/10.3390/ijms22115645

AMA Style

Morotti S, Ni H, Peters CH, Rickert C, Asgari-Targhi A, Sato D, Glukhov AV, Proenza C, Grandi E. Intracellular Na+ Modulates Pacemaking Activity in Murine Sinoatrial Node Myocytes: An In Silico Analysis. International Journal of Molecular Sciences. 2021; 22(11):5645. https://doi.org/10.3390/ijms22115645

Chicago/Turabian Style

Morotti, Stefano, Haibo Ni, Colin H. Peters, Christian Rickert, Ameneh Asgari-Targhi, Daisuke Sato, Alexey V. Glukhov, Catherine Proenza, and Eleonora Grandi. 2021. "Intracellular Na+ Modulates Pacemaking Activity in Murine Sinoatrial Node Myocytes: An In Silico Analysis" International Journal of Molecular Sciences 22, no. 11: 5645. https://doi.org/10.3390/ijms22115645

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
