Identification and Toxicity Prediction of Biotransformation Molecules of Organophosphate Flame Retardants by Microbial Reactions in a Wastewater Treatment Plant

by
Yeowool Choi
1 and
Sang Don Kim
2,3,*
1
Convergence Technology Research Center, Korea Institute of Industrial Technology (KITECH), Ansan 15588, Korea
2
School of Earth Sciences and Environmental Engineering, Gwangju Institute of Science and Technology, 123 Cheomdangwagi-ro, Buk-gu, Gwangju 61005, Korea
3
Center for Chemicals Risk Assessment, Gwangju Institute of Science and Technology, 123 Cheomdangwagi-ro, Buk-gu, Gwangju 61005, Korea
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2021, 22(10), 5376; https://doi.org/10.3390/ijms22105376
Submission received: 20 April 2021 / Revised: 18 May 2021 / Accepted: 18 May 2021 / Published: 20 May 2021
(This article belongs to the Section Molecular Toxicology)
Browse Figures
Review Reports Versions Notes

Abstract

:
Organophosphate flame retardants (OPFRs) are substances added to plastics, textiles, and furniture, and are used as alternatives to brominated flame retardants. As the use of OPFRs increases in the manufacturing industry, the concentration in the aquatic environment is also increasing. In this study, OPFRs introduced into a wastewater treatment plant (WWTP) were identified, and the toxicity of biotransformation molecules generated by the biological reaction was predicted. Tris(2-butoxyethyl) phosphate, tris(2-butoxyethyl) phosphate, and triphenyl phosphate were selected as research analytes. Chemicals were analyzed using high-resolution mass spectrometry, and toxicity was predicted according to the structure. As a result, tris(1-chloro-2-propyl) phosphate showed the highest concentration, and the removal rate of OPFRs in the WWTP was 0–57%. A total of 15 biotransformation products were produced by microorganisms in the WWTP. Most of the biotransformation products were predicted to be less toxic than the parent compound, but some were highly toxic. These biotransformation products, as well as OPFRs, could flow into the water from the WWTP and affect the aquatic ecosystem.

1. Introduction

Organophosphate flame retardants (OPFRs) are substances applied when manufacturing plastics and fibers, and their production is gradually increasing due to the regulation of brominated flame retardants used in the past [1,2]. OPFR usage worldwide rose from 500,000 tons in 2011 to 680,000 tons in 2015, an increase of 36% over five years [3]. OPFRs are likely to be easily eluted in water as they are added without chemical bonding in the product [4]. Since OPFRs are used in various products, large amounts of OPFRs can be found in the aquatic environment. Recently, research on OPFRs has been conducted with a focus on surface water and wastewater treatment plants (WWTPs). The total concentration of OPFRs was 877 ng/L (28.3–16,000 ng/L) in Lake Shihwa, South Korea. An OPFR concentration of 164–627 ng/L was detected near the WWTP runoff. The main OPFRs detected were tris(2-butoxyethyl) phosphate (TBEP), triethyl phosphate, and tris(2-chloroethyl) phosphate [5]. In Beijing’s surface water, an average concentration of 14 kinds of OPFRs was 954 ng/L (3.24–10,945 ng/L). Among them, tris(1-chloro-2-propyl) phosphate (TCPP) and tris(chloroethyl) phosphate were identified as major chemicals [6].
OPFRs are assumed to be emitted from pollutants of household items and enter the influent water of the WWTP. Since it is detected mostly in WWTPs of residential areas and factory sewage, OPFRs in effluent remain and may be discharged into the environment, so research on OPFRs in WWTPs must be continued [7]. Although OPFRs have been identified in surface water and wastewater, studies on the removal process in the WWTPs are still insufficient [8]. Therefore, this study focused on OPFRs in WWTPs that perform biological treatment and the resulting transformation.
The microbial community of WWTPs contains various groups of organisms, most of which provide functional benefits such as water quality improvement [9]. Most WWTPs are currently designed to remove organic matter and nutrients in wastewater by passing through anaerobic, anoxic, and aerobic bioreactors [10]. In a previous study, pharmaceutical ibuprofen showed a high removal rate (90%) in WWTPs, resulting from absorption and microbial biodegradation [11]. In effluent, ibuprofen itself was rarely detected or appeared at low concentrations, but the biotransformation products (BTPs) hydroxyl ibuprofen and ibuprofen carboxylic acid were detected at much higher concentrations [12]. Fungicide triclosan was not only combined with methyl and hydroxyl molecules by microorganisms but also transformed into chlorophenol, which is a toxic substance. Intermediated products and final products generated by the chemical transformation in WWTPs might be more toxic than parent compounds [13]. Therefore, it is necessary to understand the biotransformation process of organic pollutants to optimize the removal efficiency of pollutants and the operation of the WWTP.
In this study, representative alkyl OPFR, chlorinated OPFR, and aryl OPFR were analyzed in the influent, biological reactor, and effluent of a WWTP. For each OPFR, the BTPs produced in the biological reactor were identified, and toxicity was predicted using a software tool. Microorganisms in WWTPs have the potential to transform the parent compound into another hazardous pollutant. Since BTPs discharged from the WWTP are introduced into the river and can affect the aquatic ecosystem, this study was conducted to predict a potential impact of BTPs on water environment.

2. Results

2.1. Quality Assurance and Quality Control (QAQC)

To increase the confidence of the analysis, the QAQC of OPFRs were confirmed. By exposing TBEP, TCPP, and TPHP to water, the average recovery was calculated by triplicate experiment at each concentration: TBEP 97% (93–105%), TCPP 103% (91–109%), TPHP 103% (84–111%). The method detection limit (MDL) was measured at least seven times at the same concentration. The MDL was found to be 0.08 µg/L in TBEP, 0.06 µg/L in TCPP, and 0.01 µg/L in TPHP.

2.2. Concentration of Organophosphate Flame Retardants in Wastewater Treatment Plant

OPFRs were analyzed at the Gwangju WWTP; the target sampling points, the concentration, and the elimination rate according to each location are shown in Table 1. In the influent, TBEP, TCPP, and TPHP were detected at concentrations of 2.55 μg/L, 0.13 μg/L, and 0.021 μg/L. In the effluent, OPFRs were found to be 1.09 μg/L, 0.27 μg/L, and 0.017 μg/L, respectively. The flame retardant which had the highest detected concentration in influent, biological reactor, and effluent was TBEP. Over 50% of TBEP and less 20% of TPHP in the influent were removed from WWTP by microorganisms. Rather, the concentration of TCPP increases as it undergoes biological treatment.

2.3. Identification of Biotransformation Products from Organophosphate Flame Retardants

In the study, only BTPs with clear chromatography peaks, isotopic patterns, and MS/MS fragments were selected. All BTPs were substances with an intensity of 104 or higher. The Gwangju WWTP treats chemicals in wastewater by a biological method and discharges them into the river. During this process, OPFRs are highly likely to be transformed into BTPs. Therefore, this study was conducted focusing on the biotransformation of OPFRs by microorganisms. To identify BTPs caused by biological transformation, newly detected chemicals in biological reactors compared to influent were selected. Table 2 indicated the results of identifying BTPs of representative alkyl, chlorinated, and aryl OPFRs (TBEP, TCPP, TPHP) in positive/negative modes. Five types of BTPs were identified in TBEP, four in TCPP, and six in TPHP. Biotransformation of OPFRs was determined by referring to the literature and the EAWAG-BBD. The biotransformation reactions were mainly hydrolysis and oxidation, and in the case of TCPP, oxidative dechlorination occurred in which Cl-functional groups were removed.
Information on TBEP, TCPP, TPHP, and its BTPs identified in WWTP was shown in Table 2. The MS/MS fragment pattern of the major substances among each BTP are shown in Figure 1. All three BTPs were indicated in the form of oxidation from the OPFRs. Oxidation caused by organic pollutants is a potential toxicity mechanism in organisms. The oxidative BTPs formed by microorganisms could be discharged into the river by the effluent, so the study was required.

2.3.1. Tris(2-butoxyethyl) Phosphate

Most of the five BTPs of TBEP were detected in the positive mode, and TB_88 was the only one identified in the negative mode. Figure 1a was the MS/MS fragment pattern of TB_414, the main product of TBEP. Information on the remaining BTPs is included in Figure 2. TB_414 was BTP generated from TBEP by oxidation of microorganisms. Peaks of the product were observed at 9.34 and 9.68 min (Table 2). Retention times pairing was due to the formation of an enantiomer in which an OH-functional group was bound to the parent compound. Precursor ion (C18H39O8P) was not identified in the MS/MS, but several fragments prove that an oxidative product was detected. Fragment C4H8O4P, C7H18O4P, C9H22O4P, and C11H19O4P are structures in which an alkyl or ether group was bound to a phosphorus oxide. In addition, a molecule of H4PO4 with H+ bound to phosphoric acid was identified at m/z 98.98410. The OH-functional group of TB_414 was transformed into a carbonyl group through oxidation, resulting in TB_412 (Figure 2d). Therefore, MS/MS fragment patterns of TB_412 and 414 were almost similar. In the MS/MS fragment of another product TB_88 generated by the oxidation, only the precursor ion (C4H7O2) was identified. It was judged that the mass information was insufficient due to the limitation of the small molecular weight. The oxidation that contributed to the formation of TB_88 was a different kind of reaction from TB_412 and TB_414; it was generated by aldehyde dehydrogenase from TBEP [14].
TB_298 was a hydrolysis BTP from TBEP by microbial esterase. TB_198 was generated after hydrolysis from TB_298 once more, and TB_298 and TB_198 had cognate MS/MS fragment patterns (Figure 2b,c). According to a previous study, exposure of TBEP to human liver microsomes generated hydroxylated TBEP and hydrolysis TBEP [15]. The result was shown to be the same as the BTPs of TBEP by microorganisms in this study.

2.3.2. Tris(1-chloro-2-propyl) Phosphate

Chemicals that did not exist in influent and were detected in biological reactors and effluent were classified to identify BTPs generated by microorganisms. As a result, four kinds of BTPs of TCPP were identified in WWTP by microorganisms. Three were observed in the negative mode and one in the positive mode. The MS/MS fragment pattern of TC_290, the main BTP of TCPP, is described in Figure 1b. This was a form in which two chlorides in TCPP were converted into hydroxyl groups by oxidative dechlorination. BTPs were produced by dehalogenase in microorganisms present in the biological reactor [16]. M/z 184.01529 (C4H9O6P) was a fragment in which propyl chloride and methane were removed from TC_290. In addition, the presence of Cl was identified through fragments of CH2Cl and CH3OClP, and phosphate was identified by m/z 78.95898. Except for TC_249, TC_90 and TC_304 were BTPs were derived from TC_290 (Figure 3). TC_90 was formed by hydrolysis, and TC_304 by oxidation (Table 2). Only precursor ion (C3H5O3) was observed in the MS/MS fragment of TC_90 (Figure 3a). This was considered a lack of information due to the small molecular weight, similar to TB_88. In TC_304, the OH-functional group of TC_290 was oxidized by dehydrogenase and changed into a carboxyl group. The structure of TC_304 was predicted based on m/z 78.95881 (PO3), 119.03474 (C4H7O3), and 146.96076 (CH5O4ClP) (Figure 3c). Wan, et al. [17] confirmed the biotransformation reaction by exposing TCPP to wheat. The main reactions were oxidative dehalogenation and hydroxylation, which were also investigated in this study. Therefore, the significant biotransformations of TCPP were oxidative dechlorination and oxidation in organisms.
Halogenated compounds are persistently hazardous materials in the environment [18]. Halogenated compounds are generally non-degradable, but a larger degree of degradation occurs in anaerobic microorganisms than in aerobic microorganisms [19]. The cytochrome P450 enzyme in organisms has the potential to dehalogenate the halogenated hydrocarbons [20]. For that reason, in this study it is estimated that the oxidative dechlorination of TCPP was caused by cytochrome P450 in anaerobic microorganisms with the anaerobic process of the biological reactor.

2.3.3. Triphenyl Phosphate

Six BTPs of TPHP generated by microorganisms were identified in the WWTP. Two types were detected in the positive mode, and four were detected in the negative mode. Among them, the MS/MS fragment pattern of TP_342, a major BTP, is presented in Figure 1c. TP_342 was a BTP formed by oxidation in microorganisms from TPHP. M/z 95.04924 (C6H7O) and 109.02821 (C6H5O2) were fragments that prove the phenyl groups of the chemical structure. M/z 124.99921 (C2H6O4P) and 153.06872 (C5H14O3P) were derived from the phosphate of TP_342. BTPs other than TP_342 were formed by hydrolysis in microorganisms. TP_250 was BTP generated only through hydrolysis reaction from TPHP (Table 2). This product has the same structure as diphenyl phosphate, and the results were confirmed by comparison with the MS/MS fragment pattern of the reference standard (Figure 4e). TP_250 and TP_342 were detected as the same BTPs in invertebrates exposed to TPHP [21]. It could be inferred that hydrolysis and oxidation might occur with the biotransformation reactions of TPHP regardless of species.
TP_110 had the same structure as hydroquinone, and the precursor ion C6H5O2 (m/z 109.02943) was confirmed in MS/MS (Figure 4a). TP_110 seemed to be produced by the degradation of TPHP by an enzyme (aryldialkylphosphatase) in microorganisms [22]. TP_138, an intermediate product between TP_188 and TP_140, was formed by hydrolysis and carboxylation from TPHP (Figure 4b).

2.4. Ecotoxicological Information of Biotransformation Products in Microorganisms

In this study, toxicity was predicted based on 15 kinds of BTPs formed by microorganisms in WWTP. The LC50 (green algae, daphnid, fish) of BTPs was determined by applying to the ECOSAR program from USEPA based on the chemical structure of detected BTPs. Figure 5 shows the biotransformation pathways and toxicity of OPFRs. The figure indicated on the structure of BTPs represents the value obtained by dividing 1,000,000 by the sum of the predicted LC50 for each species (106/∑LC50). The LC50 for BTPs is described in Table S2 (Supplementary Materials). In the experiment, the LC50 (EC50) of TBEP was found to be 61 mg/L (72 h) in green algae, 53 mg/L (48 h) in daphnid, and 24 mg/L (96 h) in freshwater fish [23]. The toxicity of TBEP was identified as 26–42 mg/L by ECOSAR, so the prediction data of the model and the experimental values were not significantly different (Table S2). The experimental value of TCPP was 10–100 mg/L, and TPHP was 0.2–0.4 mg/L [24,25]. The other OPFRs had similar experimental and predicted values. Among the OPFRs in this study, TPHP seems to have the highest toxicity.
The toxicity of BTPs predicted by the ECOSAR model was mostly reduced compared to the parent compound. In TBEP, the toxicity intensity was estimated to be 104, while other BTPs were observed to be less than about 103 (Figure 5a). In TCPP, the toxicity of BTPs decreased sharply compared to other OPFRs (Figure 5b). Except for TC_249, the toxicity of BTPs of TCPP was expected to decrease by more than 100 times compared to the parent compound. On the other hand of TPHP, transformations were carried out in the form of decreasing or increasing product toxicity (Figure 5c). The BTP with the hydroxyl group (TP_342) showed the same intensity of toxicity as the parent compound. TP_110 was hydroquinone and was expected to exhibit higher toxicity than TPHP.

3. Discussion

As a result of this study, the OPFR with the highest concentration in the influent was TBEP. The production of TBEP is 5000–6000 tons per year worldwide, and a large amount is used as a substitute for brominated flame retardants [26]. TBEP is an additive that does not chemically bond to the product, so it could be easily released into the water [4]. Due to these characteristics, it is believed that the concentration of TBEP entering the WWTP was high. It was detected in the order of TBEP, TCPP, and TPHP in the influent, and the concentration of TCPP was rather increased in the effluent. Similar results have been published in the previous study. OPFRs were detected in the German Ruhr/Rhine regional sewage treatment plant; TBEP (3.7 μg/L in influent and 0.4 μg/L in effluent), TCPP (2 μg/L and 3 μg/L), and TPHP (0.13 μg/L and 0.07 μg/L) [7]. The reason that the concentration of TCPP increased in WWTP effluent was that the biocube used in the aerobic tank. During the biological treatment stage of the Gwangju WWTP, the aerobic tank uses a biocube (or biomedia) to increase the number of microorganisms to treat wastewater. The biocube applied in the A2O (anaerobic/anoxic/aerobic) process is a carrier made of polyurethane to contain microorganisms, and TCPP is a major flame retardant added to polyurethane production [27]. Because there is a large amount of biocube to supply microorganisms in the aerobic tank, it is expected that TCPP was eluted into the wastewater.
Oxidative BTPs of OPFRs were produced by microorganisms in WWTP. The hydroxyl groups of BTPs have the potential to cause toxicity. According to a previous study, Escherichia coli exposed to polybrominated diphenyl ether (PBDE) generated hydroxylated brominated diphenyl ether (HO-BDE) through biotransformation in the body. The hydroxylated BTP inhibited the growth of E. coli and interfered with the metabolic balance [28]. The reason that oxidative BTPs increase toxicity, as well as genomic and mutational effect, is that the hydrophilic OH-functional groups increased water solubility and biological reactivity [29].
Organic pollutants are transformed into BTPs through biological reactions, and the products might have different toxicity compared to the parent compound [30]. The type and intensity of toxicity reactions exhibited by chemicals are regulated by the characteristics and extent of biotransformation [31]. In general, biological transformation reaction converts a chemical into a less polarized and more easily excreted form than the parent compound. In addition, the biotransformed products via phase I and phase II are generally more hydrophilic and less toxic than the hydrophobic and toxic parent compounds. However, some biotransformation could generate products that are much more toxic than the parent compound [32,33]. In this study, hydroquinone in particular was predicted to have higher toxicity than the parent compound TPHP. Hydroquinone is a stable compound with various resonance structures, so it could be highly toxic as well as soluble. Hydroquinone must be carefully monitored in the environment, as prolonged exposure to aquatic organisms could cause serious toxicity [34]. When BTPs generated from organic pollutants are stable, or the biotransformation rate is slower than the parent compound, BTPs can be continuously produced by the transformation/decomposition process in a WWTP [8]. Since the BTPs produced in this way have the potential to flow into rivers, continuous research on biotransformation is required.

4. Materials and Methods

4.1. Chemicals and Reagents

Each type of alkyl OPFR, chlorinated OPFR, and aryl OPFR was prepared for the sample analysis of the WWTP. Tris(2-butoxyethyl) phosphate (TBEP), tris(1-chloro-2-propyl) phosphate (TCPP), and triphenyl phosphate (TPHP) were purchased from Sigma-Aldrich (St. Louis, MO, USA). Internal standard (TPHP-d15, 98 atom% D) and formic acid added to the mobile phase were also prepared by Sigma-Aldrich. Methanol and water (HPLC grade) were used as the mobile phase for analysis (Thermo Fisher Scientific: St. Waltham, MA, USA).

4.2. Information on the Wastewater Treatment Plant

Samples were collected in April 2020 at the first WWTP in Gwangju, South Korea (35°09′22.7” N 126°49′51.8” E). The source of inflow to the WWTP is municipal and industrial wastewater. The facility treats 600,000 tons of wastewater per day and covers an area of about 450,000 m2, and the discharged water flows into the Youngsan River. This WWTP takes steps to remove contaminants through biological methods, so it is suitable for identifying the transformation in OPFRs (Figure S1). Although the activity of microorganism in bioreactor might be variable due to different organic load with time, samples were collected at three sites in duplicate: influent, immediately after the biological reactor, and effluent.

4.3. Sample Preparation

Water from the WWTP was filtered using a 125-mm GF/C microfiber filter within 12 h of collecting to minimize changes in the sample. Then, 100 μL internal standard was injected into the sample, and the final volume was adjusted to 1 L. The sample was extracted using solid-phase extraction (SPE: AutoTrace 280, Thermo Scientific; Waltham, MA, USA) to identify OPFRs and their biotransformation products. Next, 6-mL, 500-mg Oasis HLB cartridges (Waters: Milford, MA, USA) were conditioned with 5 mL water and methanol, respectively. The samples were loaded at 8 mL/min, and then the cartridge was dried with nitrogen gas for 40 min. It was eluted to a final volume of 10 mL using methanol. A nitrogen concentrator (Hurricane-lite, Chongmin tech: Gangseo-gu, Seoul, Korea) was used to concentrate the sample volume for analysis to 1 mL. Samples were stored in a deep freezer until analysis.

4.4. Chemical Analysis

An ultra-high-performance liquid chromatography-electrospray ionization-quadrupole orbitrap mass spectrometer (UHPLC-HRMS/MS, Thermo Fisher Scientific Inc: Waltham, MA, USA) was used to analyze OPFRs and biotransformation products in the WWTP. The mobile phase was water (A) and methanol (B), each containing 0.1% formic acid. The sample was passed through an Xbridge C18 column (2.1 × 50 mm, 3.5 µm: Waters, Milford, MA, USA) to separate the chemicals. The UHPLC gradient is described in Table S1 (Supplementary Materials). Orbitrap was analyzed data-dependent MS/MS fragment for five highest intensive ions in full scan. The range of full scan was from 50 to 750 m/z, mass resolution of 140,000, and 10 ppm of mass accuracy. Analysis conditions were as follows: 10 μL injection volume, 45 L/min sheath gas, 10 L/min auxiliary gas, and 320 °C capillary temperature. Samples were analyzed in both positive and negative modes: source voltages were 3.8 kV in the positive mode and -3 kV in the negative mode.
Quantitative analysis of OPFRs was performed with standard compounds, and qualitative analysis of BTPs without standard was identified through a prediction process. The transformation pathway of OPFRs was estimated by the EAWAG-BBD (Biocatalysis/Biodegradation Database) pathway prediction system (http://eawag-bbd.ethz.ch/predict/, accessed on 12 October 2020). CompoundDiscoverer 2.0 (Thermo Scientific: Waltham, MA, USA) was also used to predict degradation products from OPFRs. When information existed as a reference standard among BTPs, it was confirmed by comparing the mass spectral database (m/z Cloud: Waltham, MA, USA).

4.5. Toxicity Prediction

The ecological structure activity relationships (ECOSAR) predictive model was used to predict the toxicity of BTPs by microorganisms as well as OPFRs. ECOSAR estimates the toxicity of aquatic organisms based on the similarity of the chemical structure from the USEPA database. For this, ECOSAR V1.11 distributed by USEPA was applied (https://www.epa.gov/tsca-screening-tools/ecological-structure-activity-relationships-ecosar-predictive-model, accessed on 15 March 2021). From the data, we selected the acute toxicity values (LC50) of green algae (96 h), daphnid (48 h), and freshwater fish (96 h).

5. Conclusions

In this study, the concentration of OPFRs (TBEP, TCPP, and TPHP) and the removal rate of organic pollutants were identified according to the wastewater treatment process. As a result, TBEP was found to have the highest concentration, and TCPP was not eliminated by the biological reaction of the WWTP. In the case of TCPP, the concentration was higher in the effluent than in the influent due to the biocube component of the biological reactors. OPFRs introduced into the WWTP were transformed into various biotransformation molecules by anaerobic and aerobic microorganisms. Five biotransformation types of TBEP, four of TCPP, and six of TPHP were generated by microorganisms. Common microbial biotransformation of TBEP, TCPP, and TPHP was observed as hydrolysis and oxidation. The resulting BTPs were generally predicted to have lower toxicity than the parent compound, but products such as hydroquinone were predicted to be highly toxic. The BTPs are mixed with the effluent and flow into the river, which has the potential ultimately to affect the aquatic ecosystem. The BTPs of OPFRs identified in this study could be cited as data for screening chemicals in water. In addition, when BTPs against OPFRs are detected in rivers, it is possible to predict whether they are derived from biological reactions in WWTPs. Considering that the removal rate of OPFRs in the wastewater treatment plant was low and other biotransformation molecules were generated, the wastewater treatment technology needs to be changed. It was confirmed that the chlorinated biotransformation molecule was formed through the biocube. In addition, toxic substances could affect microorganisms in biological reactors. In order to efficiently remove organic pollutants, it is necessary to apply an alternative and additional technique other than biological treatment.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/ijms22105376/s1, Table S1. Time gradient of mobile phase B in ultra-high-performance liquid chromatography. Table S2. Predicted LC50 (50% of lethal concentration) in each aquatic species (algae, daphnid, fish). Figure S1. Overview of the wastewater treatment plant. Samples were collected in influent, after a biological reactor, and effluent.

Author Contributions

Conceptualization, Y.C. and S.D.K.; methodology, investigation, Y.C.; writing—original draft preparation, Y.C.; writing—review and editing, Y.C. and S.D.K.; supervision, project administration, funding acquisition, S.D.K. All authors have read and agreed to the published version of the manuscript.

Funding

This study was funded by the National Research Foundation (NRF) of Korea (NRF-2016R1D1A1B03934058) and by Korea Environment Industry and Technology Institute (KEITI) “Development of target/suspect/nontarget screening method for analysis of micropollutants and unknown substances”, funded by Korea Ministry of Environment (MOE) (No. 20190027100051).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Abbreviations

BTPsbiotransformation products
MDLmethod detection limit
OPFRsorganophosphate flame retardants
TBEPtris(2-butoxyethyl) phosphate
TCPPtris(1-chloro-2-propyl) phosphate
TPHPtriphenyl phosphate
WWTPwastewater treatment plant

References

  1. van der Veen, I.; de Boer, J. Phosphorus flame retardants: Properties, production, environmental occurrence, toxicity and analysis. Chemosphere 2012, 88, 1119–1153. [Google Scholar] [CrossRef] [PubMed]
  2. Li, N.; Ho, W.; Wu, R.S.S.; Ying, G.-G.; Wang, Z.; Jones, K.; Deng, W.-J. Organophosphate flame retardants and bisphenol A in children’s urine in Hong Kong: Has the burden been underestimated? Ecotoxicol. Environ. Saf. 2019, 183, 109502. [Google Scholar] [CrossRef] [PubMed]
  3. Green, M. Flame Retardant Chemicals: Technologies and Global Markets; BCC Research: Wellesley, MA, USA, 2015. [Google Scholar]
  4. Rodríguez, I.; Calvo, F.; Quintana, J.; Rubí, E.; Rodil, R.; Cela, R. Suitability of solid-phase microextraction for the determination of organophosphate flame retardants and plasticizers in water samples. J. Chromatogr. A 2006, 1108, 158–165. [Google Scholar] [CrossRef] [PubMed]
  5. Lee, S.; Cho, H.-J.; Choi, W.; Moon, H.-B. Organophosphate flame retardants (OPFRs) in water and sediment: Occurrence, distribution, and hotspots of contamination of Lake Shihwa, Korea. Mar. Pollut. Bull. 2018, 130, 105–112. [Google Scholar] [CrossRef] [PubMed]
  6. Shi, Y.; Gao, L.; Li, W.; Wang, Y.; Liu, J.; Cai, Y. Occurrence, distribution and seasonal variation of organophosphate flame retardants and plasticizers in urban surface water in Beijing, China. Environ. Pollut. 2016, 209, 1–10. [Google Scholar] [CrossRef] [PubMed]
  7. Meyer, J.; Bester, K. Organophosphate flame retardants and plasticisers in wastewater treatment plants. J. Environ. Monit. 2004, 6, 599–605. [Google Scholar] [CrossRef] [PubMed]
  8. Boix, C.; Ibáñez, M.; Sancho, J.V.; Parsons, J.R.; de Voogt, P.; Hernández, F. Biotransformation of pharmaceuticals in surface water and during waste water treatment: Identification and occurrence of transformation products. J. Hazard. Mater. 2016, 302, 175–187. [Google Scholar] [CrossRef]
  9. Numberger, D.; Ganzert, L.; Zoccarato, L.; Mühldorfer, K.; Sauer, S.; Grossart, H.-P.; Greenwood, A.D. Characterization of bacterial communities in wastewater with enhanced taxonomic resolution by full-length 16S rRNA sequencing. Sci. Rep. 2019, 9, 1–14. [Google Scholar] [CrossRef] [Green Version]
  10. Han, X.; Zuo, Y.-T.; Hu, Y.; Zhang, J.; Zhou, M.-X.; Chen, M.; Tang, F.; Lu, W.-Q.; Liu, A.-L. Investigating the performance of three modified activated sludge processes treating municipal wastewater in organic pollutants removal and toxicity reduction. Ecotoxicol. Environ. Saf. 2018, 148, 729–737. [Google Scholar] [CrossRef]
  11. Jelić, A.; Petrović, M.; Barceló, D. Multi-residue method for trace level determination of pharmaceuticals in solid samples using pressurized liquid extraction followed by liquid chromatography/quadrupole-linear ion trap mass spectrometry. Talanta 2009, 80, 363–371. [Google Scholar] [CrossRef]
  12. Climent, L.F.; Collado, N.; Buttiglieri, G.; Gros, M.; Rodríguez-Roda, I.; Rodriguez-Mozaz, S.; Barceló, D. Comprehensive study of ibuprofen and its metabolites in activated sludge batch experiments and aquatic environment. Sci. Total Environ. 2012, 438, 404–413. [Google Scholar] [CrossRef] [PubMed]
  13. Fischer, K.; Majewsky, M. Cometabolic degradation of organic wastewater micropollutants by activated sludge and sludge-inherent microorganisms. Appl. Microbiol. Biotechnol. 2014, 98, 6583–6597. [Google Scholar] [CrossRef] [PubMed]
  14. ExPASy ENZYME Class: 1.2. Available online: https://enzyme.expasy.org/EC/1.2. (accessed on 12 October 2020).
  15. Eede, N.V.D.; Erratico, C.; Exarchou, V.; Maho, W.; Neels, H.; Covaci, A. In vitro biotransformation of tris(2-butoxyethyl) phosphate (TBOEP) in human liver and serum. Toxicol. Appl. Pharmacol. 2015, 284, 246–253. [Google Scholar] [CrossRef] [PubMed]
  16. ExPASy ENZYME Class: 3.8.1. Available online: https://enzyme.expasy.org/EC/3.8.1. (accessed on 12 October 2020).
  17. Wan, W.; Huang, H.; Lv, J.; Han, R.; Zhang, S. Uptake, Translocation, and Biotransformation of Organophosphorus Esters in Wheat (Triticum aestivum L.). Environ. Sci. Technol. 2017, 51, 13649–13658. [Google Scholar] [CrossRef] [PubMed]
  18. De Duffard, A.M.E.; Duffard, R. Behavioral toxicology, risk assessment, and chlorinated hydrocarbons. Environ. Health Perspect. 1996, 104, 353–360. [Google Scholar] [CrossRef] [Green Version]
  19. Smidt, H.; De Vos, W.M. Anaerobic Microbial Dehalogenation. Annu. Rev. Microbiol. 2004, 58, 43–73. [Google Scholar] [CrossRef] [PubMed]
  20. Hackett, J.C.; Sanan, T.T.; Hadad, C.M. Oxidative Dehalogenation of Perhalogenated Benzenes by Cytochrome P450 Compound I. Biochem. 2007, 46, 5924–5940. [Google Scholar] [CrossRef] [PubMed]
  21. Choi, Y.; Jeon, J.; Choi, Y.; Kim, S.D. Characterizing biotransformation products and pathways of the flame retardant triphenyl phosphate in Daphnia magna using non-target screening. Sci. Total Environ. 2020, 708, 135106. [Google Scholar] [CrossRef]
  22. ExPASy ENZYME Entry: EC 3.1.8.1. Available online: https://enzyme.expasy.org/EC/3.1.8.1 (accessed on 14 October 2020.).
  23. ECHA. Tris(2-butoxyethyl) Phosphate. Available online: https://echa.europa.eu/registration-dossier/-/registered-dossier/14166/6/1 (accessed on 14 October 2020).
  24. ECHA. Tris(2-chloro-1-methylethyl) Phosphate. Available online: https://echa.europa.eu/registration-dossier/-/registered-dossier/1355/6/1 (accessed on 16 October 2020).
  25. ECHA Triphenyl Phosphate. Available online: https://echa.europa.eu/registration-dossier/-/registered-dossier/15972/6/1 (accessed on 16 October 2020).
  26. Liu, X.; Ji, K.; Choi, K. Endocrine disruption potentials of organophosphate flame retardants and related mechanisms in H295R and MVLN cell lines and in zebrafish. Aquat. Toxicol. 2012, 114-115, 173–181. [Google Scholar] [CrossRef]
  27. Andresen, J.; Grundmann, A.; Bester, K. Organophosphorus flame retardants and plasticisers in surface waters. Sci. Total. Environ. 2004, 332, 155–166. [Google Scholar] [CrossRef]
  28. Su, G.; Zhang, X.; Liu, H.; Giesy, J.P.; Lam, M.H.W.; Lam, P.K.S.; Siddiqui, M.A.; Musarrat, J.; Al-Khedhairy, A.; Yu, H. Toxicogenomic Mechanisms of 6-HO-BDE-47, 6-MeO-BDE-47, and BDE-47 in E. coli. Environ. Sci. Technol. 2011, 46, 1185–1191. [Google Scholar] [CrossRef] [PubMed]
  29. Su, G.; Yu, H.; Lam, M.H.W.; Giesy, J.P.; Zhang, X. Mechanisms of Toxicity of Hydroxylated Polybrominated Diphenyl Ethers (HO-PBDEs) Determined by Toxicogenomic Analysis with a Live Cell Array Coupled with Mutagenesis in Escherichia coli. Environ. Sci. Technol. 2014, 48, 5929–5937. [Google Scholar] [CrossRef] [PubMed]
  30. Jokanović, M. Biotransformation of organophosphorus compounds. Toxicology 2001, 166, 139–160. [Google Scholar] [CrossRef]
  31. Nelson, S.D. Metabolic activation and drug toxicity. J. Med. Chem. 1982, 25, 753–765. [Google Scholar] [CrossRef] [PubMed]
  32. Buhler, D.R.; Williams, D.E. The role of biotransformation in the toxicity of chemicals. Aquat. Toxicol. 1988, 11, 19–28. [Google Scholar] [CrossRef]
  33. Guengerich, F.P.; Liebler, D.C.; Reed, D.L. Enzymatic activation of chemicals to toxic metabolites. CRC Crit. Rev. Toxicol. 1985, 14, 259–307. [Google Scholar] [CrossRef] [PubMed]
  34. ECHA Hydroquinone. Available online: https://echa.europa.eu/substance-information/-/substanceinfo/100.004.199 (accessed on 9 July 2020).
Ijms 22 05376 g001 550

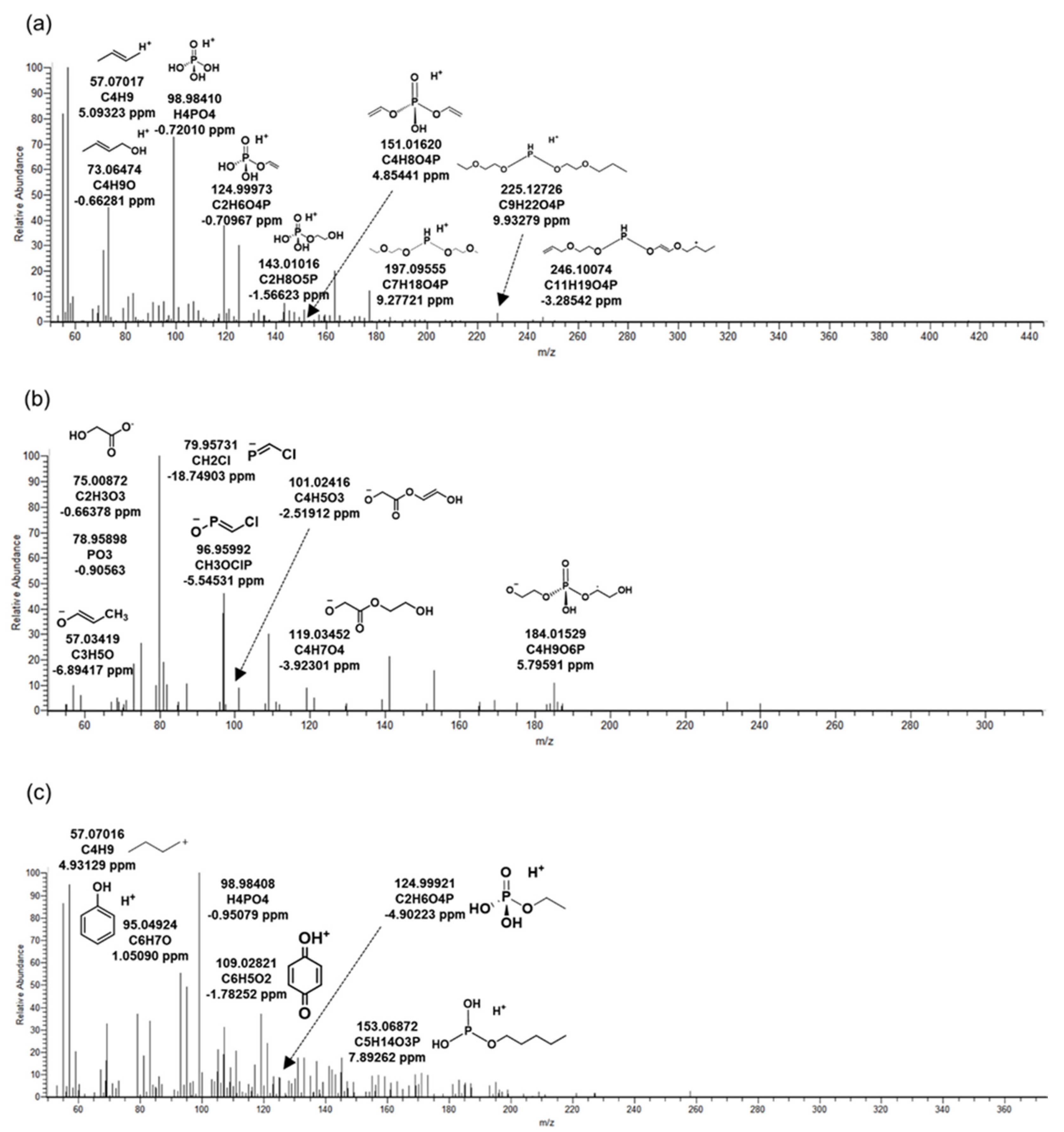

Figure 1. MS/MS fragments at oxidative biotransformation products of organophosphate flame retardants generated in biological reactor from wastewater treatment plant. (a) TB_414: biotransformation product (BTP) of tris(2-butoxyethyl) phosphate, (b) TC_290: BTP of tris(1-chloro-2-propyl) phosphate, (c) TP_342: BTP of triphenyl phosphate.
Figure 1. MS/MS fragments at oxidative biotransformation products of organophosphate flame retardants generated in biological reactor from wastewater treatment plant. (a) TB_414: biotransformation product (BTP) of tris(2-butoxyethyl) phosphate, (b) TC_290: BTP of tris(1-chloro-2-propyl) phosphate, (c) TP_342: BTP of triphenyl phosphate.
Ijms 22 05376 g001
Ijms 22 05376 g002 550

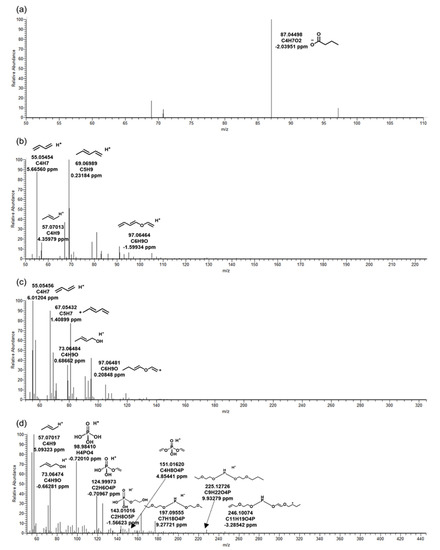

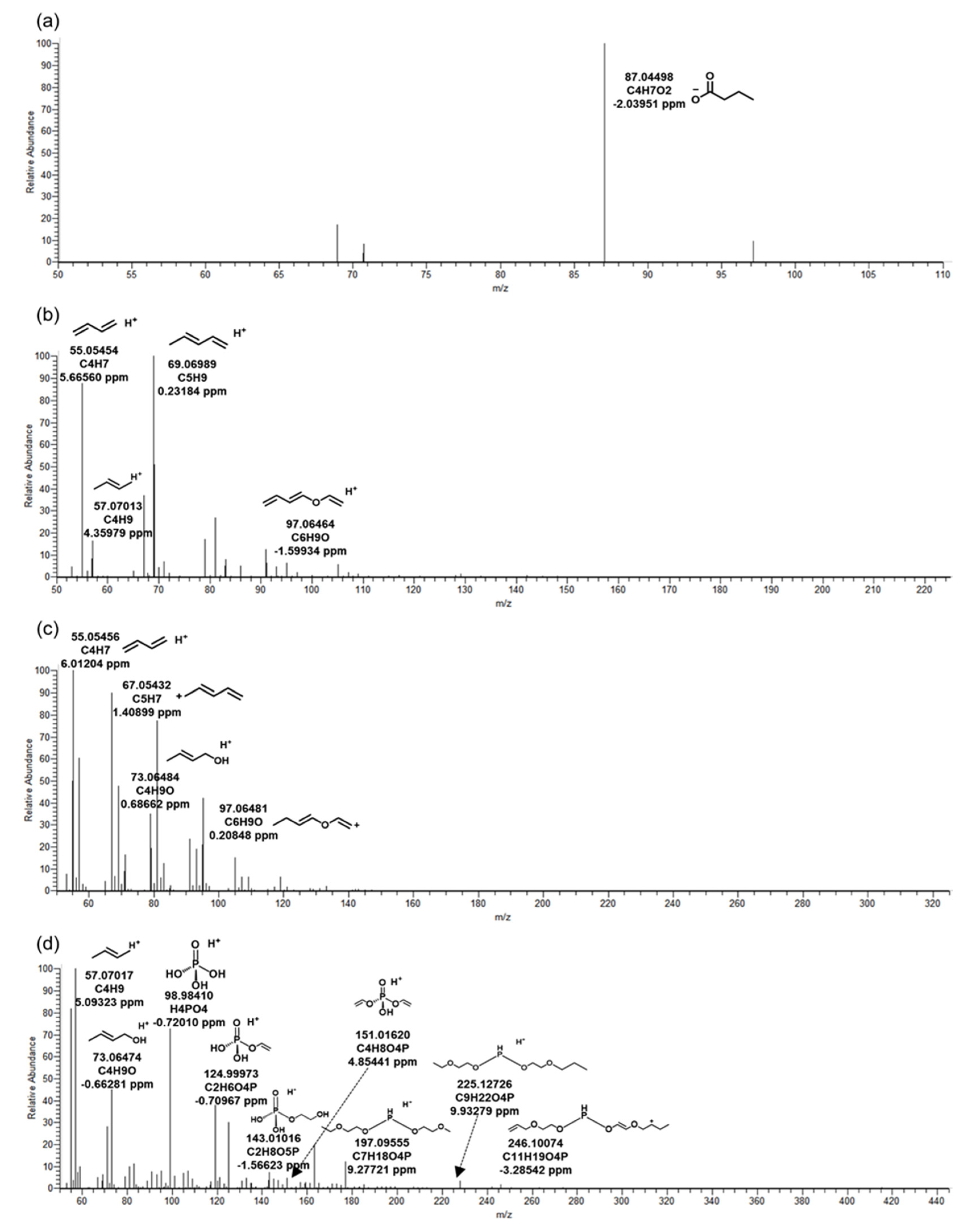

Figure 2. MS/MS fragments of tris(2-butoxyethyl) phosphate in biological reactor of wastewater treatment plant. The biotransformation products: (a) TB_88, (b) TB_198, (c) TB_298, (d) TB_412.
Figure 2. MS/MS fragments of tris(2-butoxyethyl) phosphate in biological reactor of wastewater treatment plant. The biotransformation products: (a) TB_88, (b) TB_198, (c) TB_298, (d) TB_412.
Ijms 22 05376 g002
Ijms 22 05376 g003 550

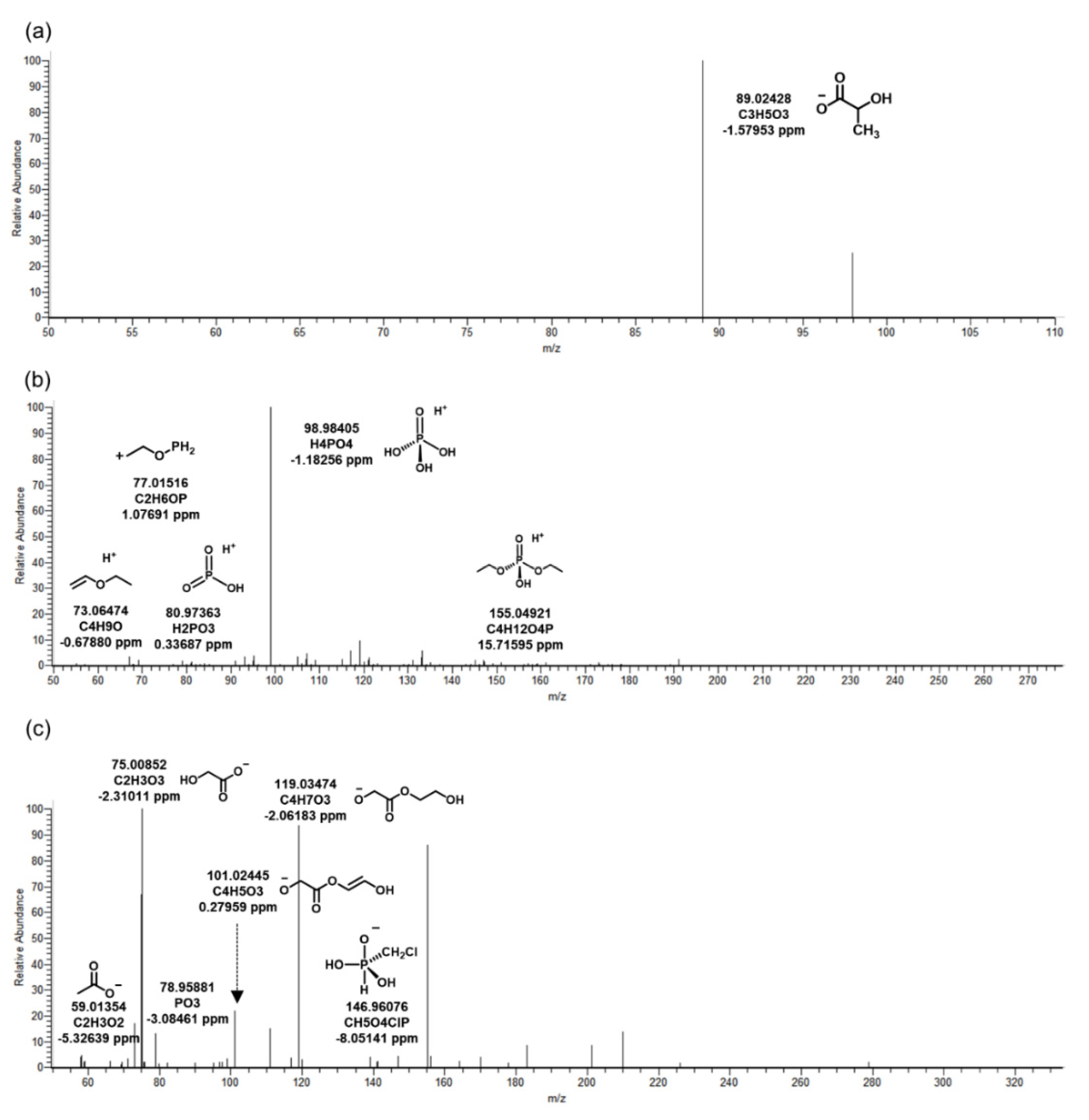

Figure 3. MS/MS fragments of tris(1-chloro-2-propyl) phosphate in biological reactor of wastewater treatment plant. The biotransformation products: (a) TC_90, (b) TC_249, (c) TC_304.
Figure 3. MS/MS fragments of tris(1-chloro-2-propyl) phosphate in biological reactor of wastewater treatment plant. The biotransformation products: (a) TC_90, (b) TC_249, (c) TC_304.
Ijms 22 05376 g003
Ijms 22 05376 g004 550

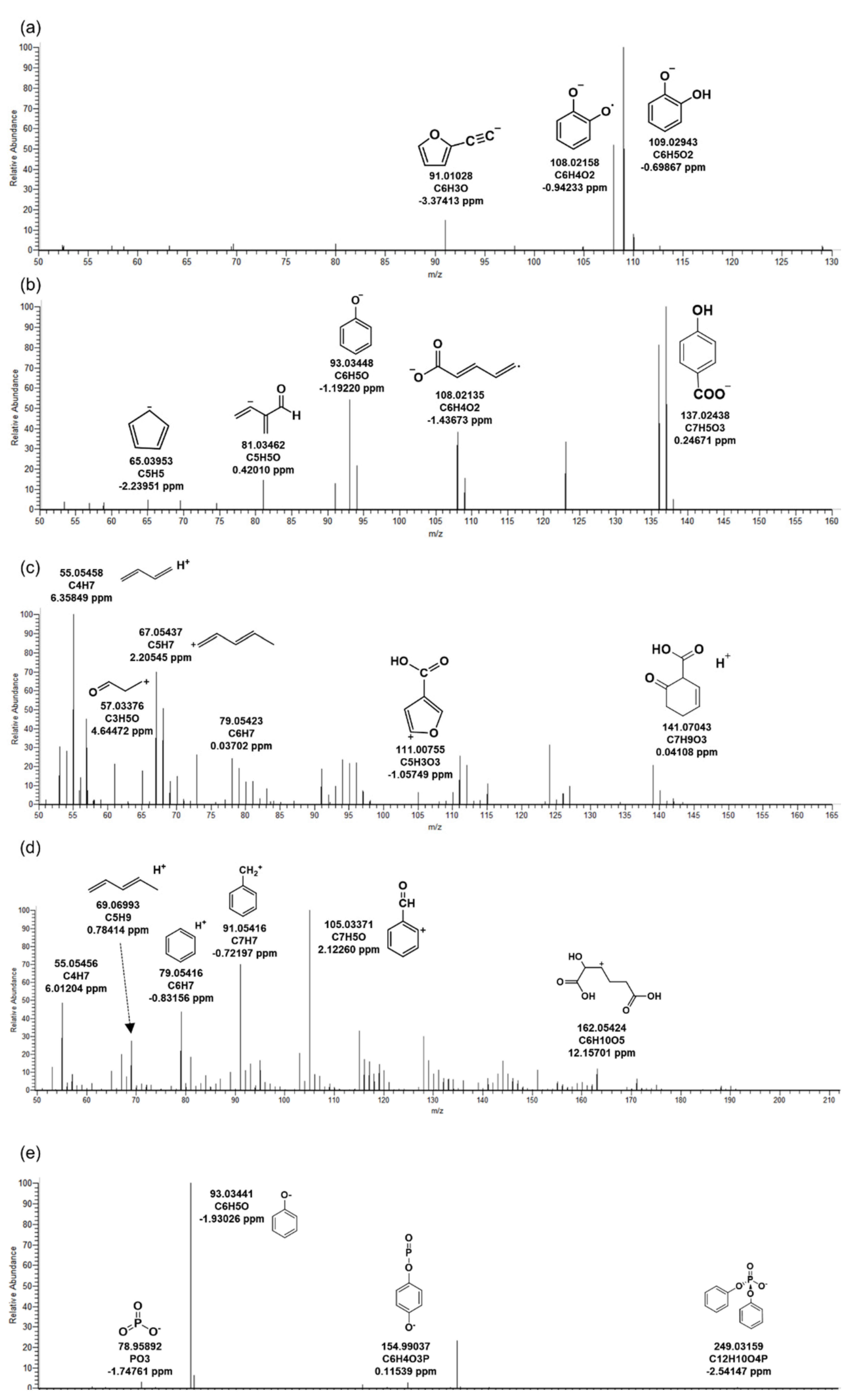

Figure 4. MS/MS fragments of triphenyl phosphate in biological reactor of wastewater treatment plant. The biotransformation products: (a) TP_110, (b) TP_138, (c) TP_140, (d) TP_188, (e) TP_250.
Figure 4. MS/MS fragments of triphenyl phosphate in biological reactor of wastewater treatment plant. The biotransformation products: (a) TP_110, (b) TP_138, (c) TP_140, (d) TP_188, (e) TP_250.
Ijms 22 05376 g004
Ijms 22 05376 g005 550

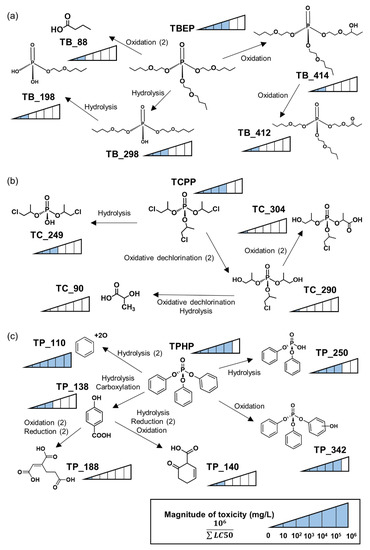

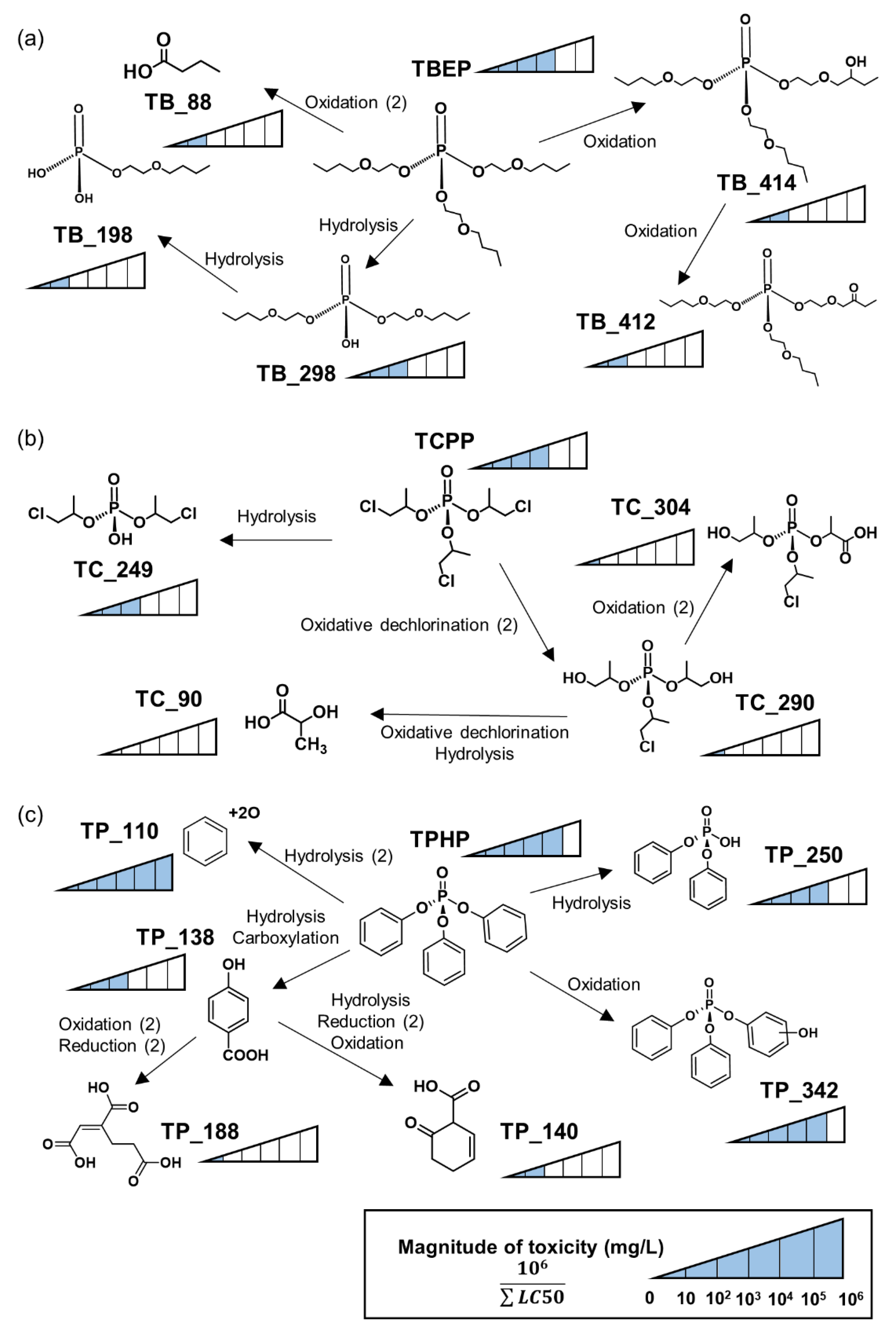

Figure 5. Biotransformation pathway and predicted toxicity of (a) tris(2-butoxyethyl) phosphate, (b) tris(1-chloro-2-propyl) phosphate, (c) triphenyl phosphate. The arrow represents the pathway to the formation of biotransformation products. The number of blocks indicates the estimated magnitude of the toxicity of substances.
Figure 5. Biotransformation pathway and predicted toxicity of (a) tris(2-butoxyethyl) phosphate, (b) tris(1-chloro-2-propyl) phosphate, (c) triphenyl phosphate. The arrow represents the pathway to the formation of biotransformation products. The number of blocks indicates the estimated magnitude of the toxicity of substances.
Ijms 22 05376 g005
Table
Table 1. The concentration of OPFRs in the influent, biological reactor, and effluent of the wastewater treatment plant. The following OPFRs were analyzed: TBEP (tris(2-butoxyethyl) phosphate), TCPP (tris(1-chloro-2-propyl) phosphate), and TPHP (triphenyl phosphate). When the removal rate of chemical was less than 0, it was expressed as none.
Table 1. The concentration of OPFRs in the influent, biological reactor, and effluent of the wastewater treatment plant. The following OPFRs were analyzed: TBEP (tris(2-butoxyethyl) phosphate), TCPP (tris(1-chloro-2-propyl) phosphate), and TPHP (triphenyl phosphate). When the removal rate of chemical was less than 0, it was expressed as none.
OPFRsInfluent
[μg/L]		Biological Reactor
[μg/L]		Effluent
[μg/L]		Removal Rate
(%)
TBEP2.551.241.0957.3
TCPP0.130.240.27None
TPHP0.0210.0190.01719.0
Table
Table 2. Information on organophosphate flame retardants (OPFRs) and their biotransformation products by microorganisms in the wastewater treatment plant (WWTP).
Table 2. Information on organophosphate flame retardants (OPFRs) and their biotransformation products by microorganisms in the wastewater treatment plant (WWTP).
Compound aFormulaMass of [M+H]+ or
[M-H]−		Retention
Time (min)		Formula
Change		Biotransformation
TBEPC18H39O7P[M + H]+: 399.2506212.76 Parent compound
TB_88C4H8O2[M − H]−: 87.045159.26− C12H31O5POxidation (2)
TB_198C6H15O5P[M + H]+: 199.072995.66− C12H24O2Hydrolysis (2)
TB_298C12H27O6P[M + H]+: 299.1618011.15− C6H12OHydrolysis
TB_412C18H37O8P[M + H]+: 413.229889.38− H2 + OOxidation (2)
TB_414C18H39O8P[M + H]+: 415.245539.34, 9.68+ OOxidation
TCPPC9H18Cl3O4P[M + H]+: 327.008118.62 Parent compound
TC_90C3H6O3[M − H]−: 89.0244116.45− C6H12Cl3OPOxidative dechlorination (3),Hydrolysis
TC_249C6H13Cl2O4P[M + H]+: 251.000138.64− C3H5ClHydrolysis
TC_290C9H20ClO6P[M − H]−: 289.061324.95− Cl2 + H2O2Oxidative dechlorination (2)
TC_304C9H18ClO7P[M − H]−: 303.040599.08− Cl2 + O3Oxidative dechlorination (2),Oxidation (2)
TPHPC18H15O4P[M + H]+: 327.0780710.89 Parent compound
TP_110C6H6O2[M − H]−: 109.029503.61− C12H9O2PHydrolysis (2)
TP_138C7H6O3[M − H]−: 137.024402.47− C11H9OPHydrolysis, Carboxylation
TP_140C7H8O3[M + H]+: 141.054602.48− C11H7OPHydrolysis (2), Reduction (2),Oxidation, Carboxylation
TP_188C7H8O6[M + H]+: 189.039404.98− C11H7P + O2Hydrolysis, Oxidation (2), Reduction (2), Carboxylation
TP_250C12H11O4P[M − H]−: 249.032226.27− C6H4Hydrolysis
TP_342C18H15O5P[M + H]+: 343.072999.01+ OOxidation
a Abbreviation: TBEP (tris(2-butoxyethyl) phosphate), TCPP (tris(1-chloro-2-propyl) phosphate), TPHP (triphenyl phosphate). TB, TC, and TP stand for the biotransformation products of TBEP, TCPP, and TPHP, respectively. The following number represents the neutral mass of the product.
